Standard Specifications
Hull
• Back Cove white iso-npg gelcoat
• Vinylester backup resin
• VIP Resin Infused hull w/ PVC foam core sandwich
• VIP Resin Infused foam core stringer system
• Advanced prop pocket hull design
• Awlgrip boot top
• Molded cove stripe depression w/ “gold leaf” style stripe

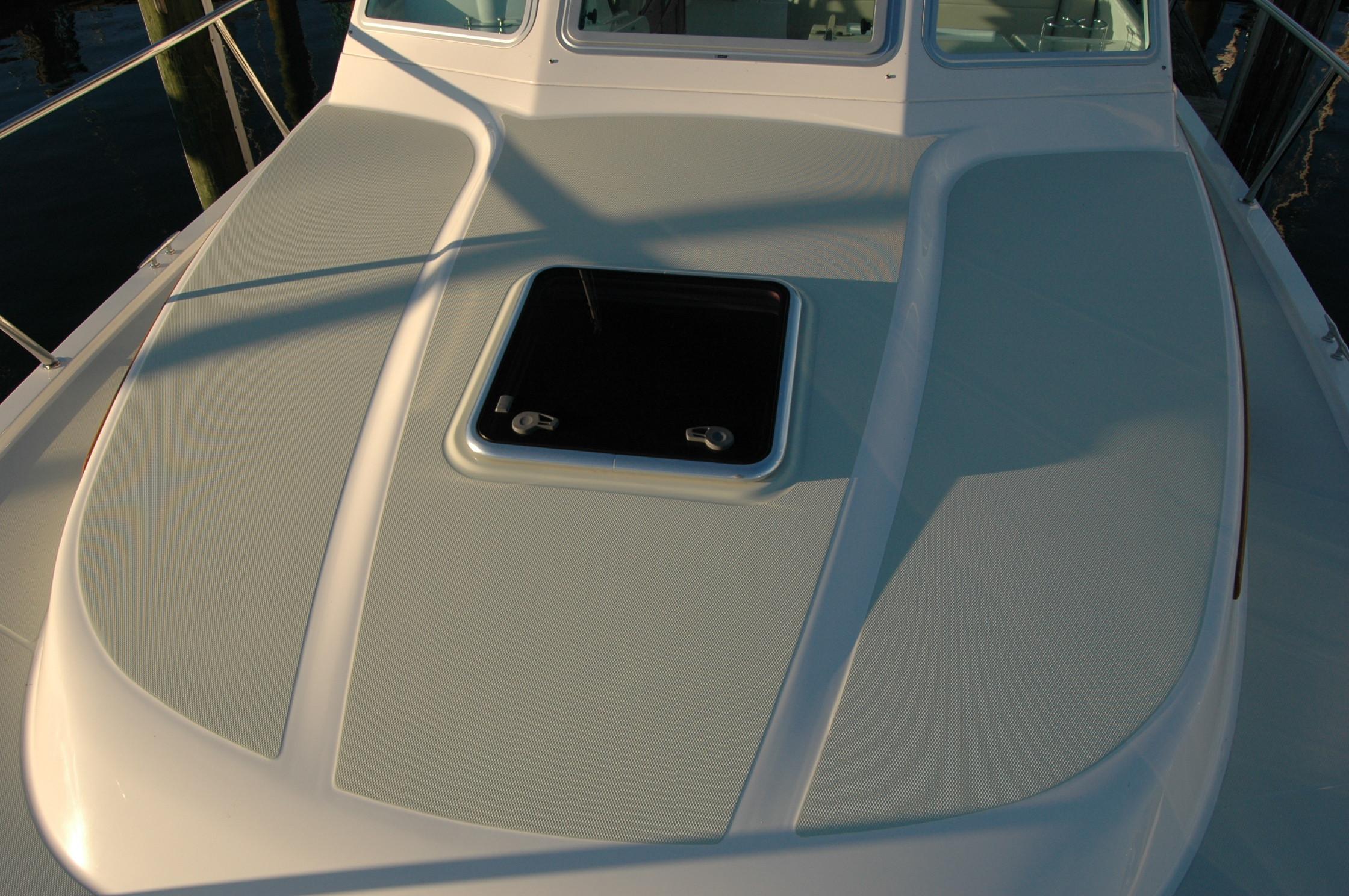

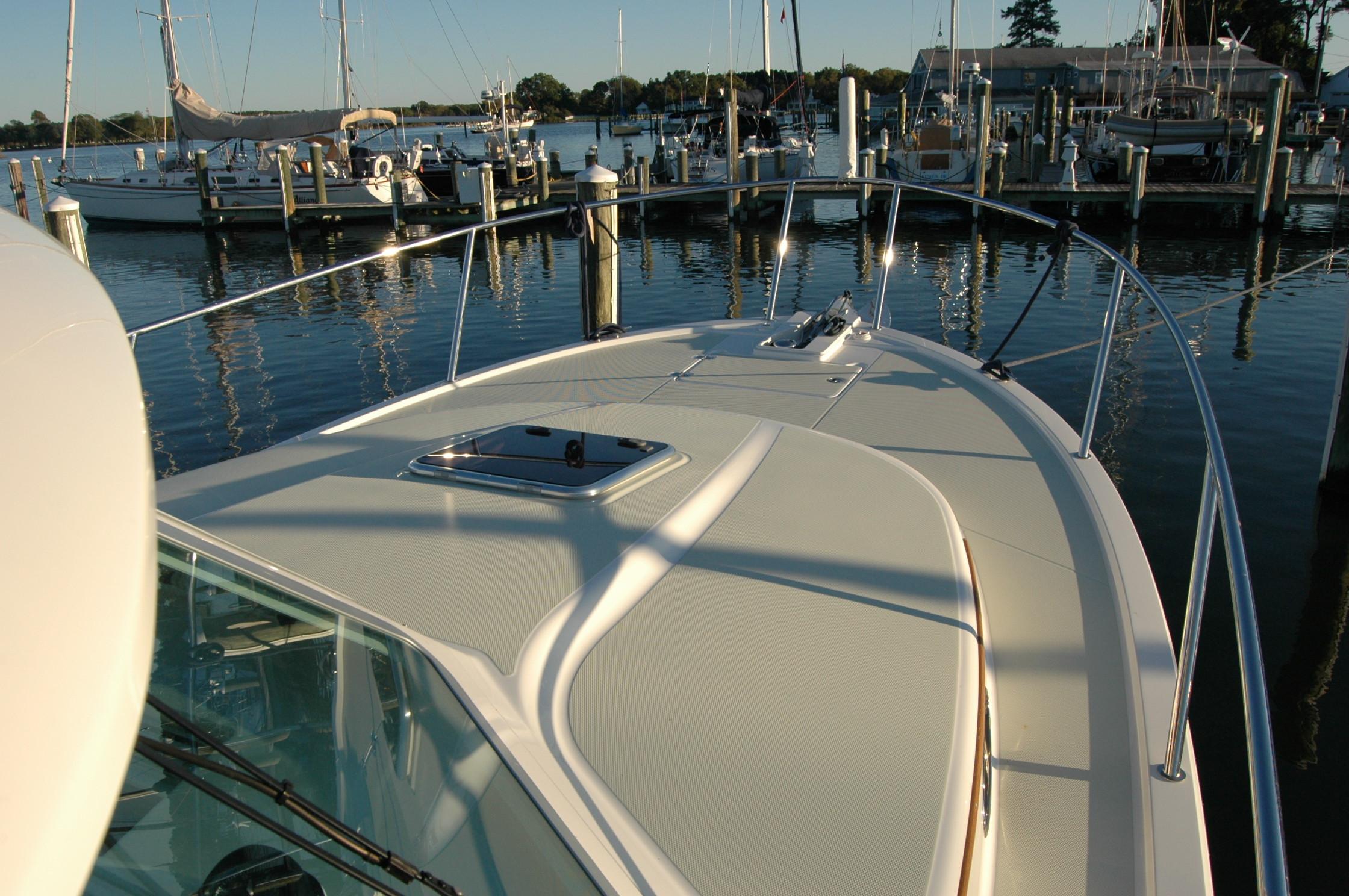

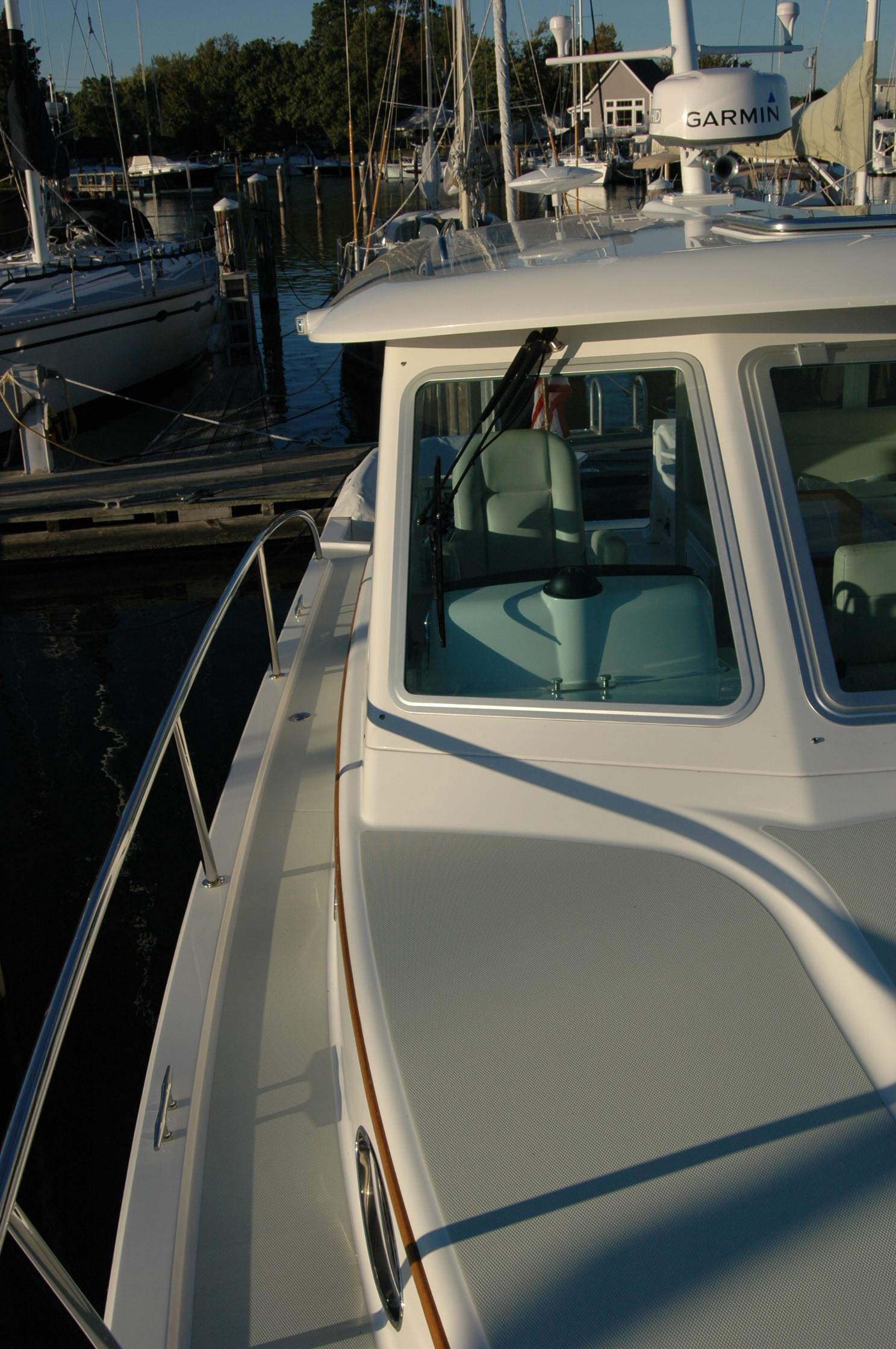

Deck
• Back Cove white iso-npg gelcoat w/ graystone anti-skid on walking
surfaces
• VIP Resin infused balsa core sandwich structure
• Mooring cleats forward, aft and spring line. Aft cleats are pull-up style

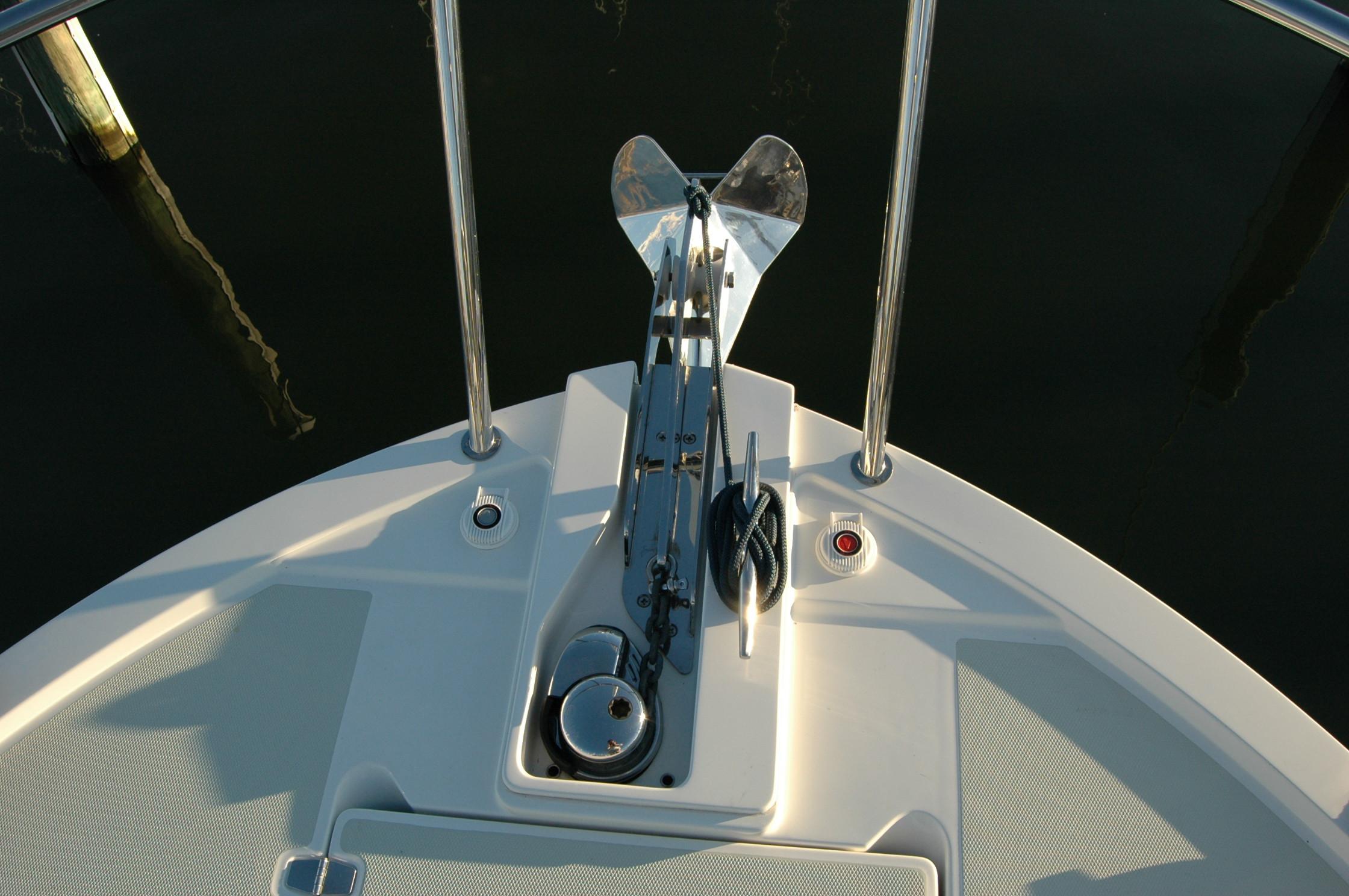

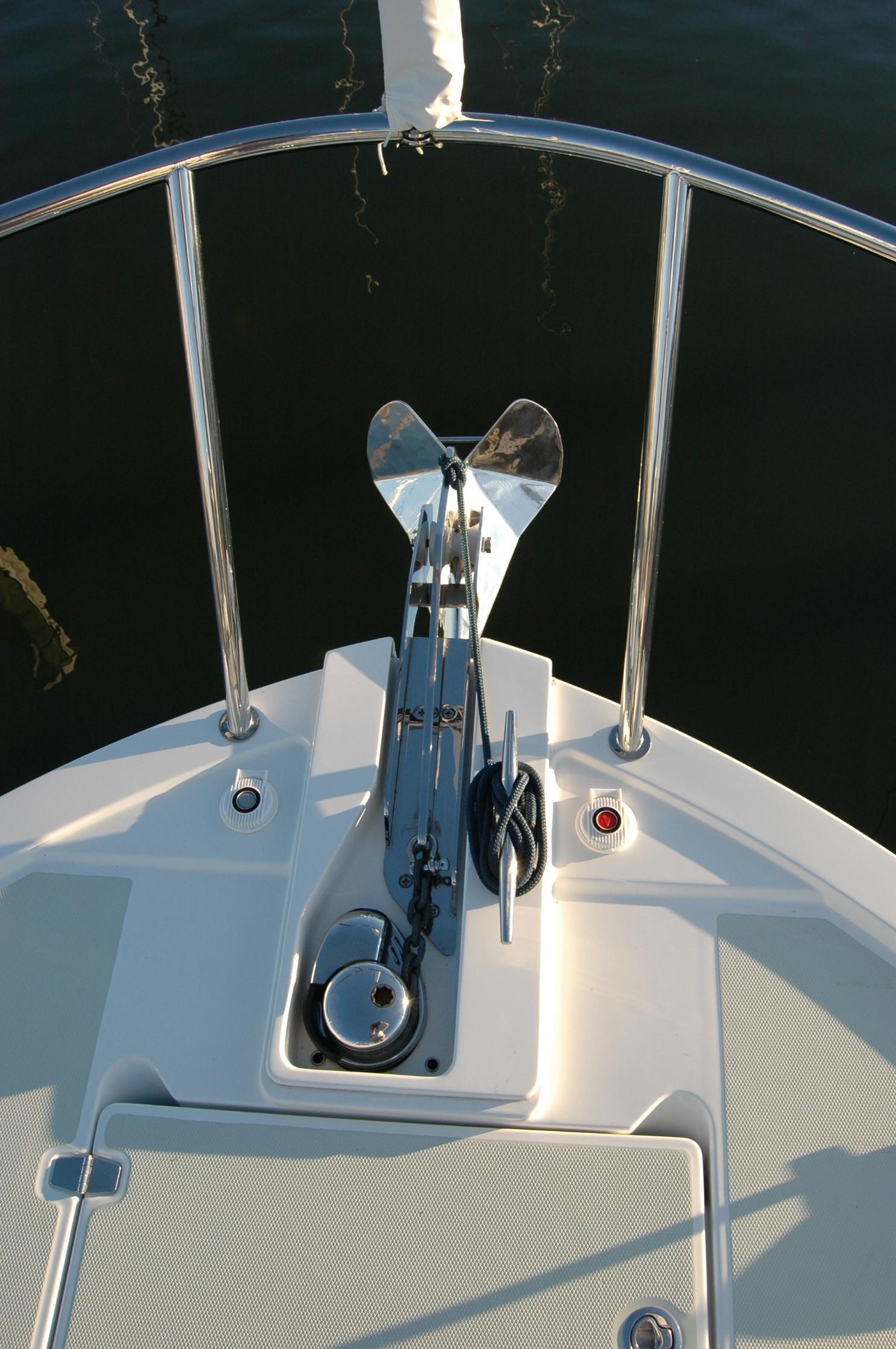

• Molded Composite bow sprit w/ stainless steel anchor roller
• Anchor locker w/ ground tackle storage
• Hard top mounted running lights LED
• LED all-around anchor/nav light on hard top
• Teak accent stripe on cabin side

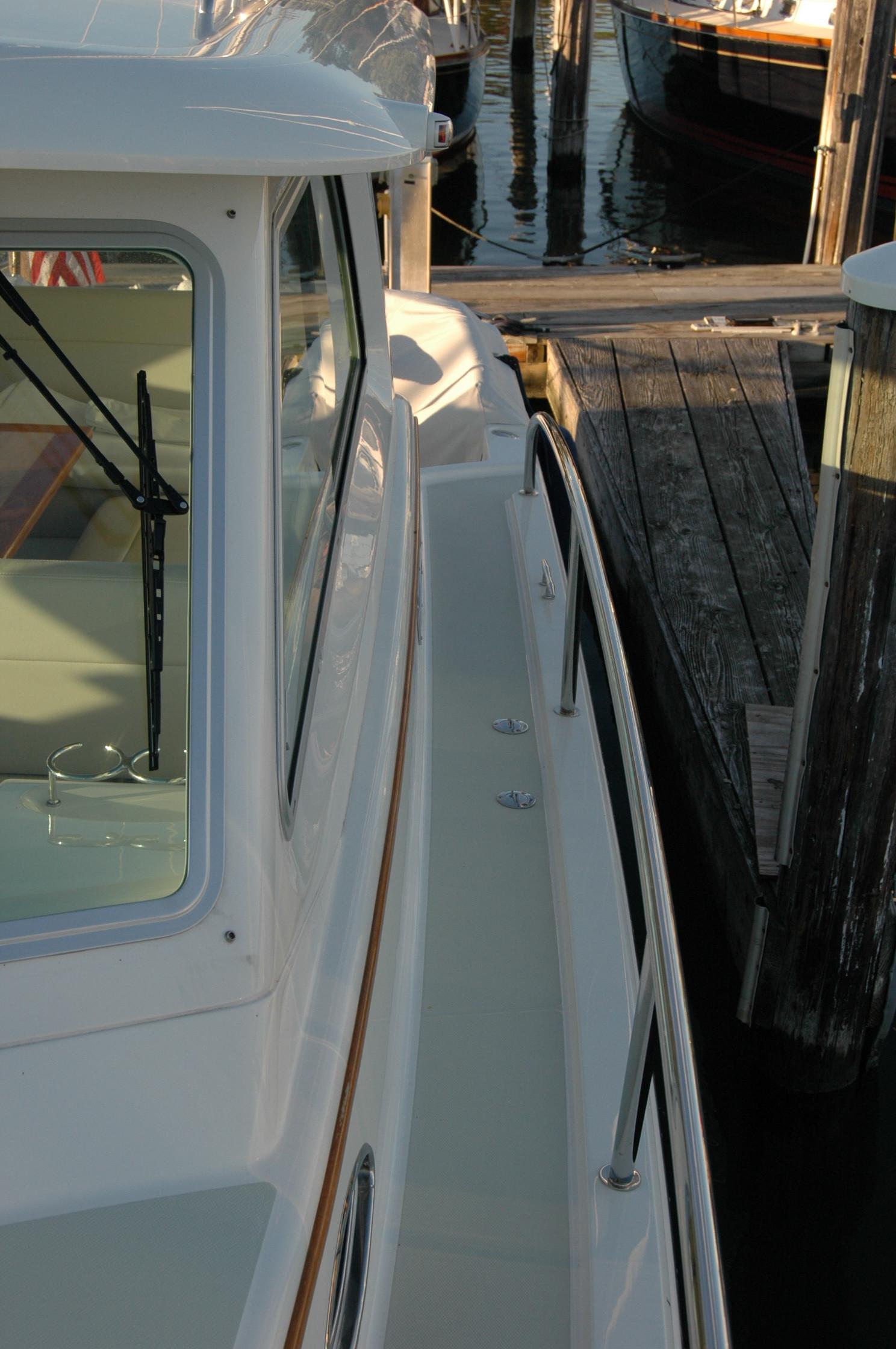

• Custom 1-1/4’’ 316L stainless steel perimeter rail
• SS handrails on hard top, port and starboard
• Compressed air horn on hardtop (mast opt.)
• (4) opening Port lights w/ insect screens
• Port & starboard molded steps leading to side & fore deck

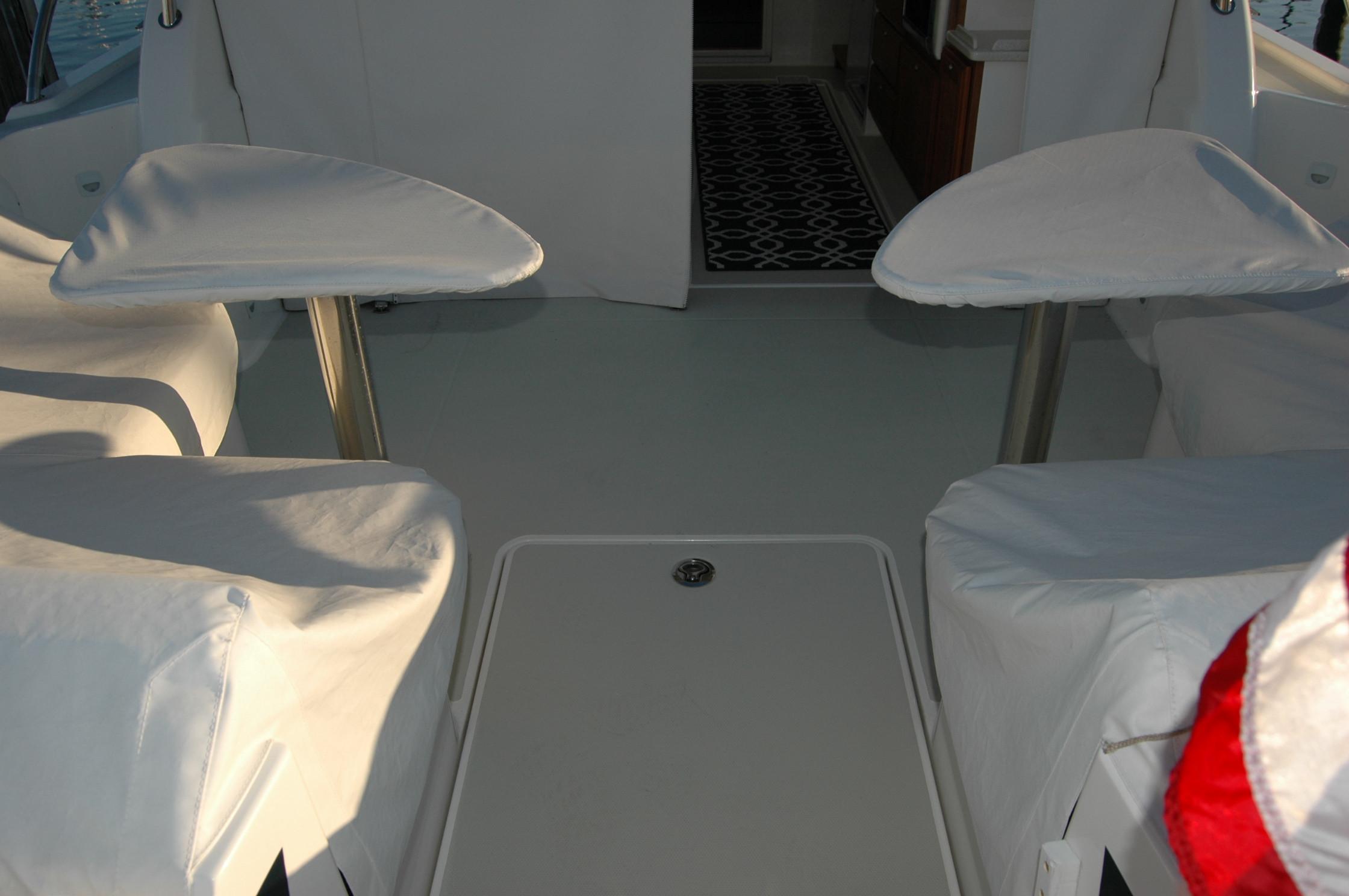

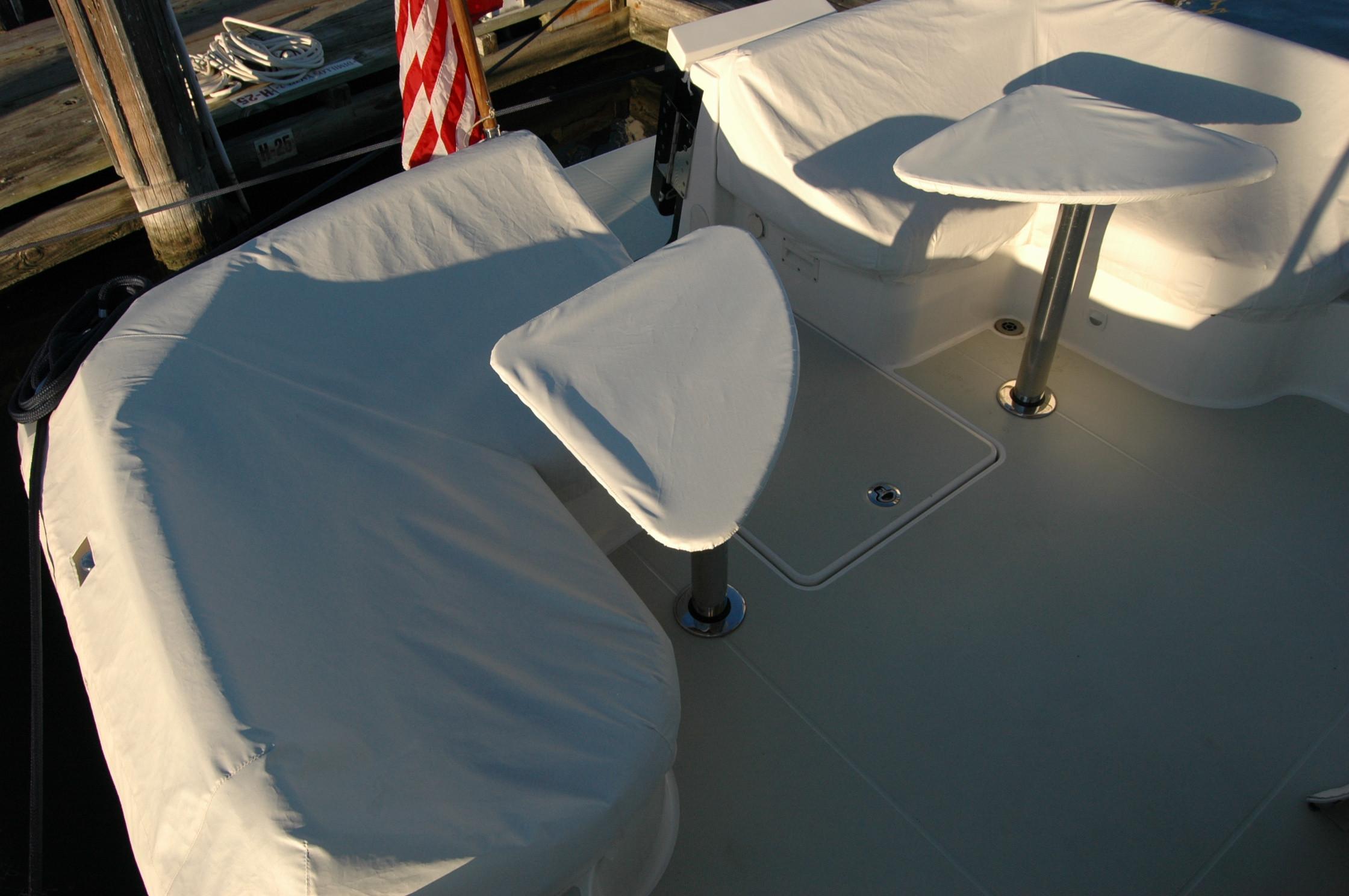

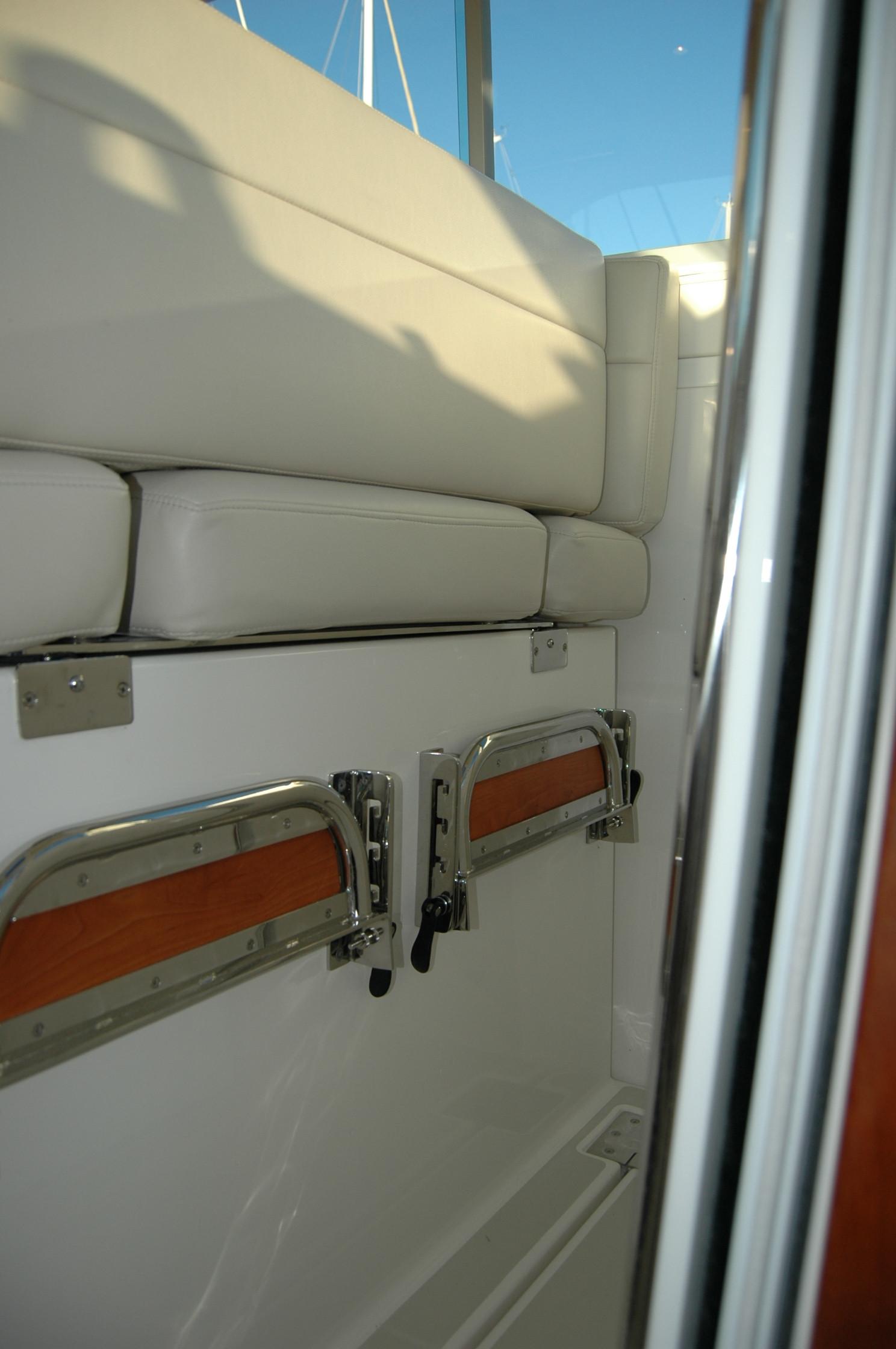

• Molded cockpit seating w/ storage, and aft facing removable seat to port
• Transom Door on centerline
• Cockpit hatch to lazarette
• Swim platform w/ SS under mount swim ladder

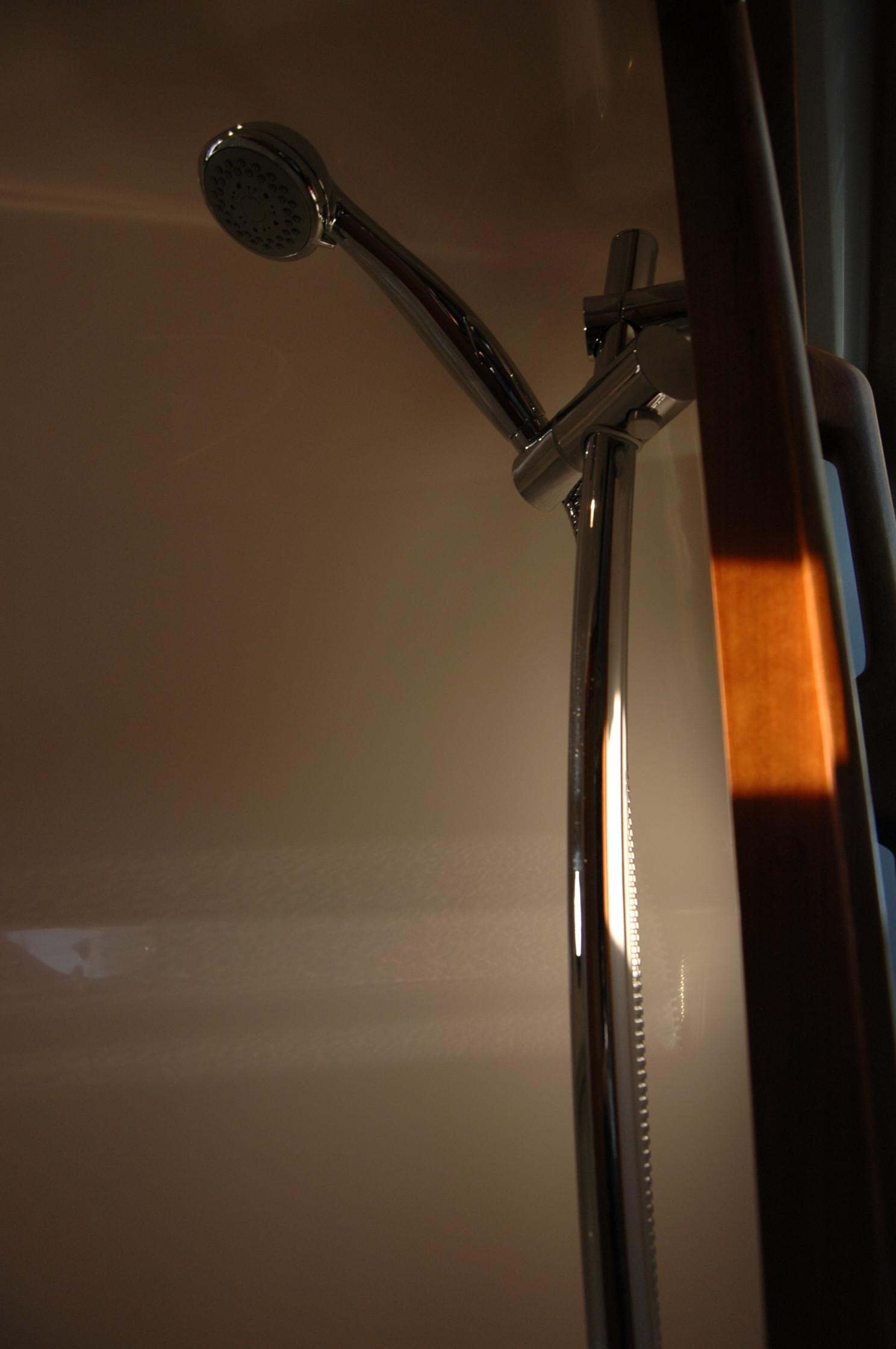

• Hot and cold cockpit shower
• Self draining cockpit
• Lewmar cabin hatch with Oceanair screen
• Acrylic, companion way sliding door with screen
Mechanical Systems

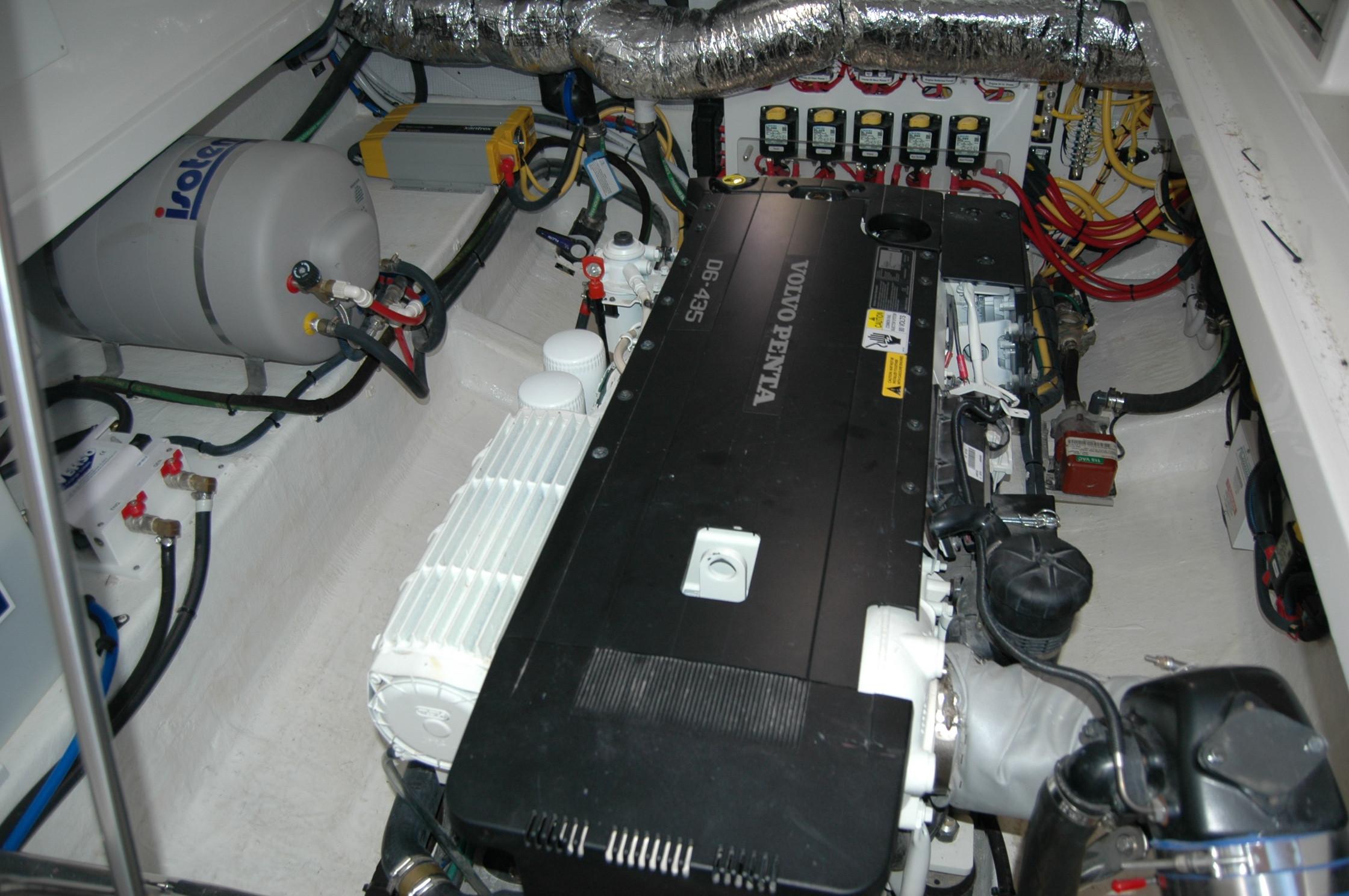

• Volvo D6 330hp electronic engine with ZF marine gear

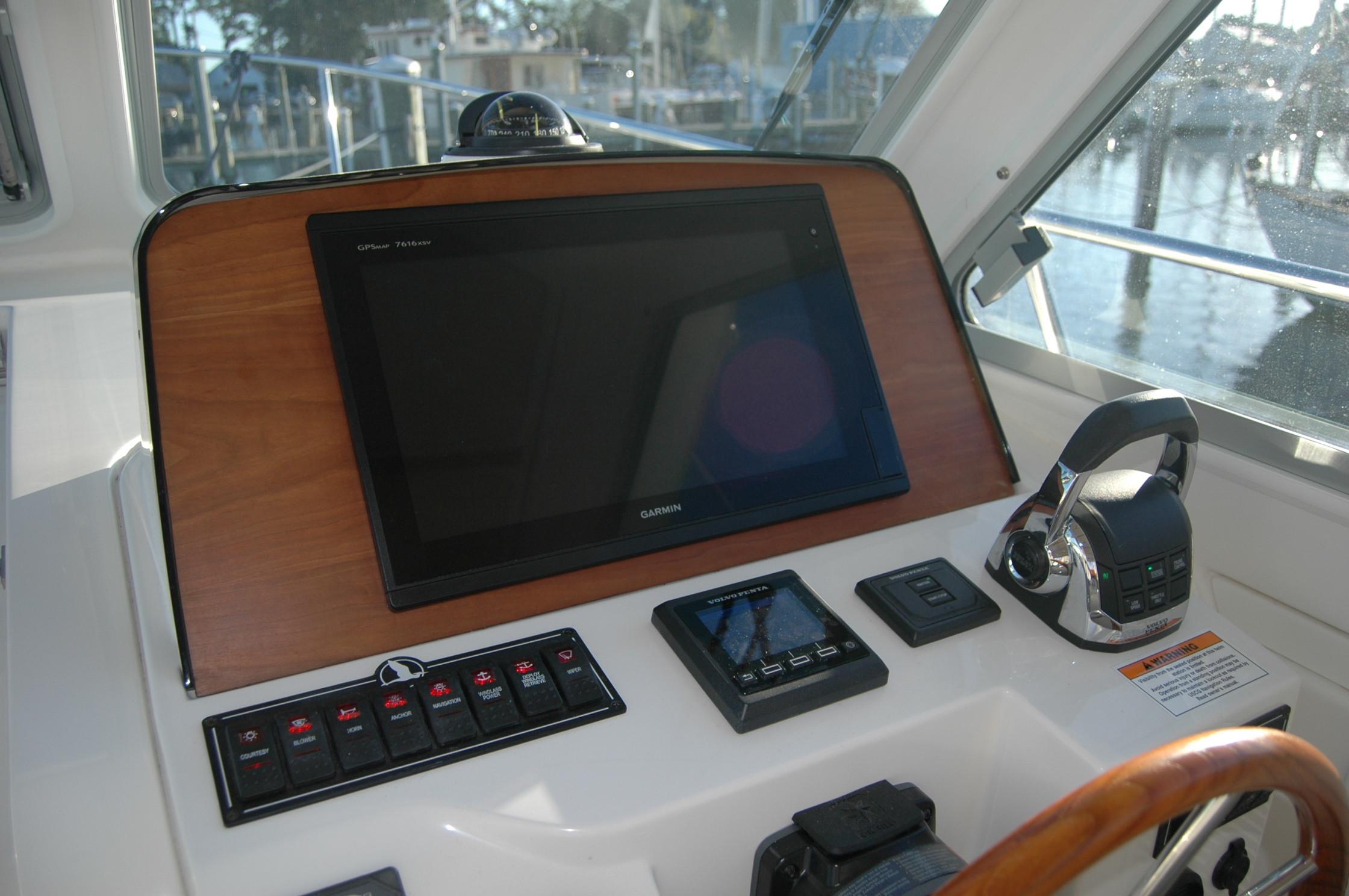

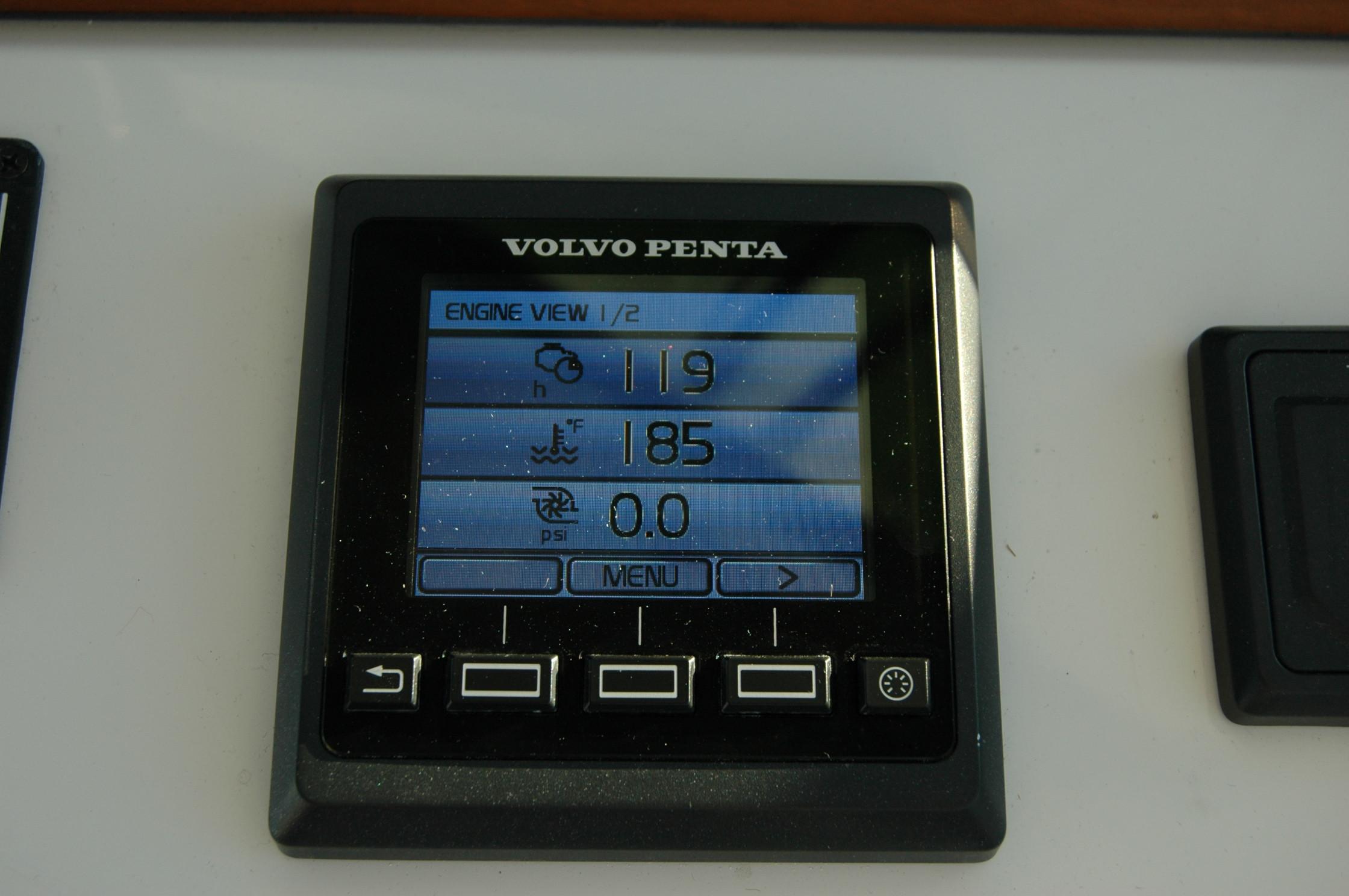

• Volvo color display
• 1.75” Aquamet shaft
• 4 Blade NiBrAl propeller
• PSS Dripless shaft log
• Binnacle mount Volvo electronic single lever engine control
• Internal sea strainer
• 185 US gallon fuel tank w/ 2” fill
• Racor Fuel Filter

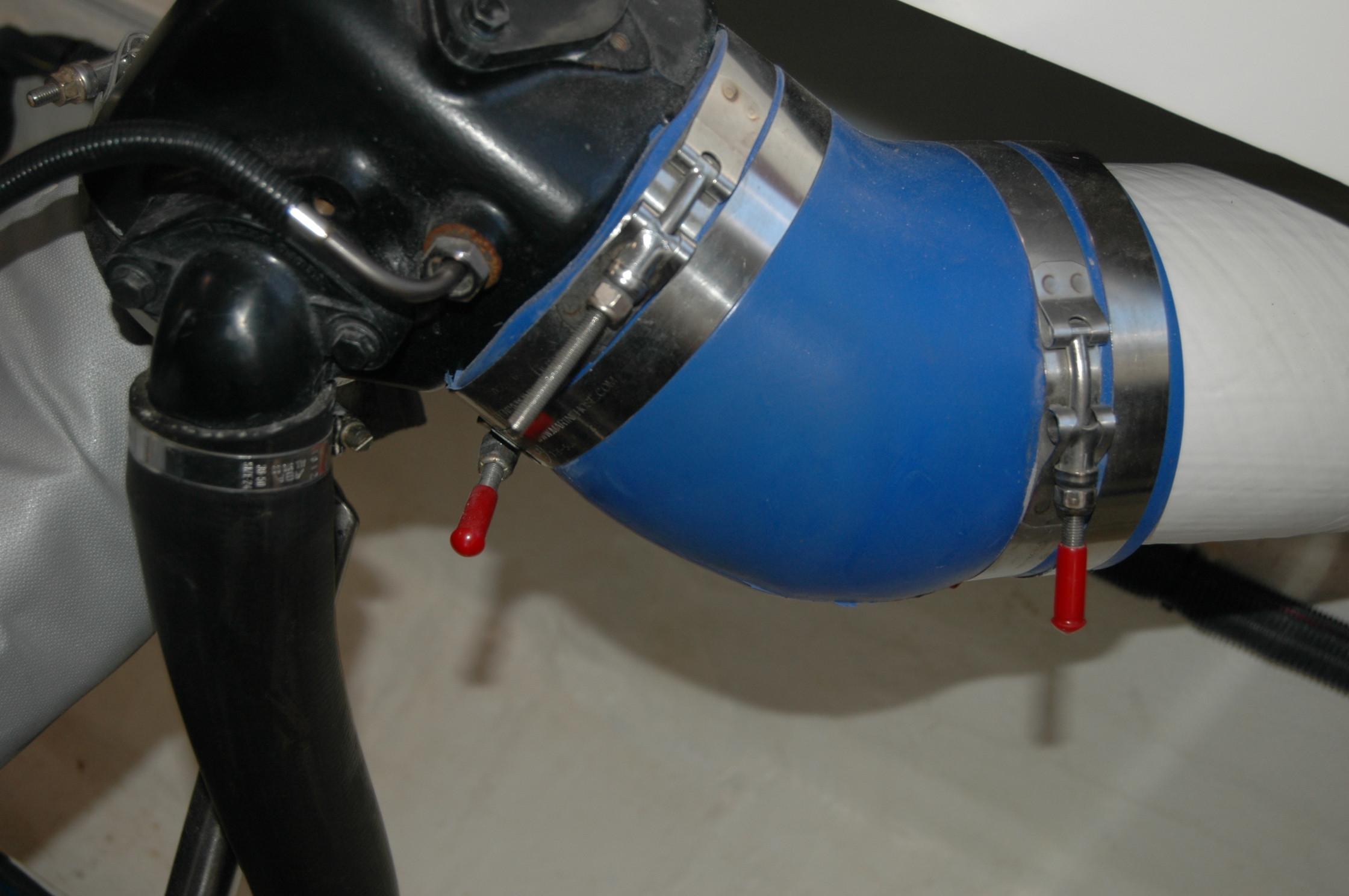

• 6” Wet exhaust w/ two stage horizontal muffler
• Electric actuated trim tabs port and starboard w/ helm controller
• SeaStar hydraulic steering w/ tilt helm pump

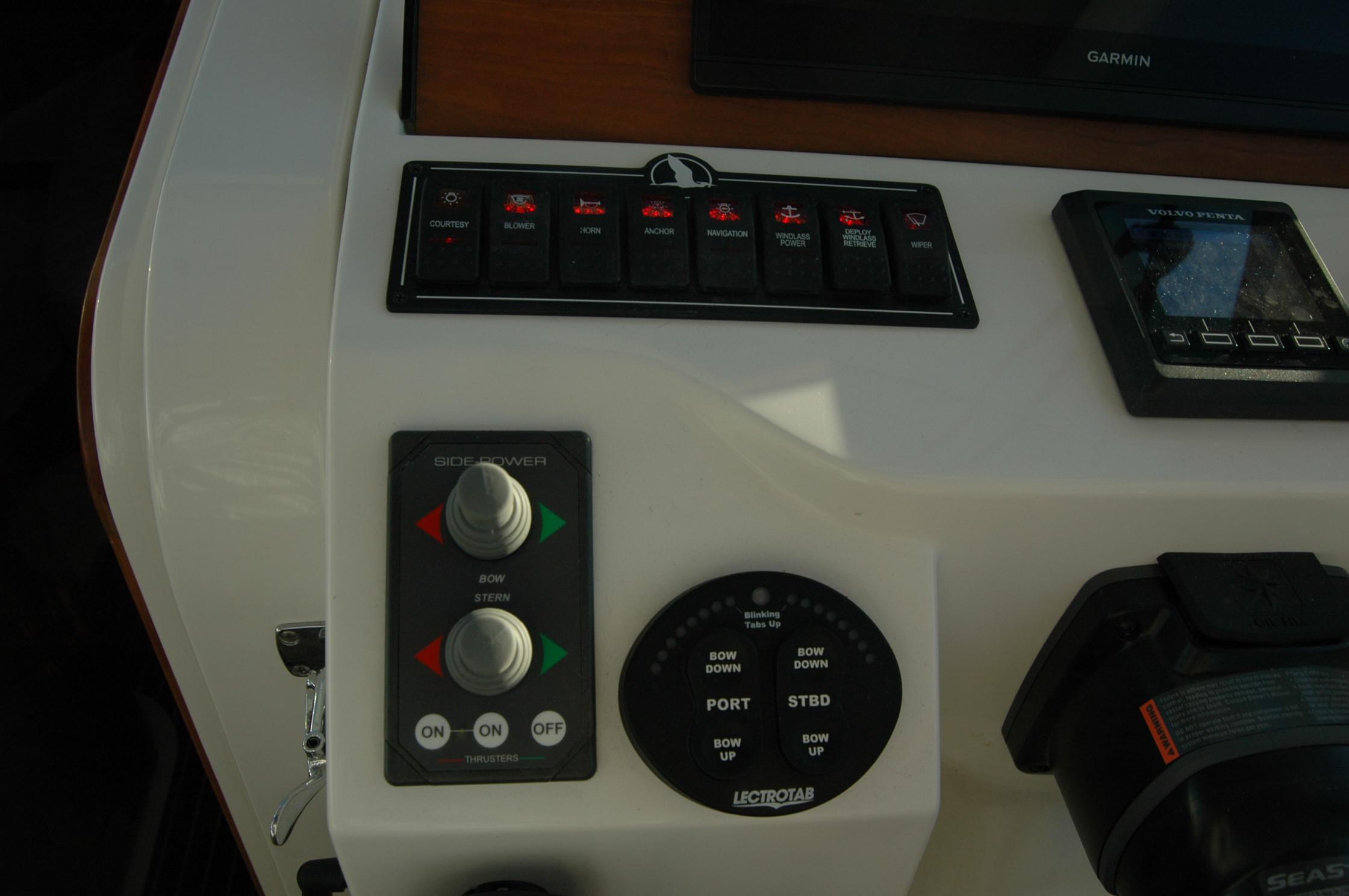

• Sidepower bow thruster w/ joy stick control (SE40i)
• Hot and Cold pressurized water

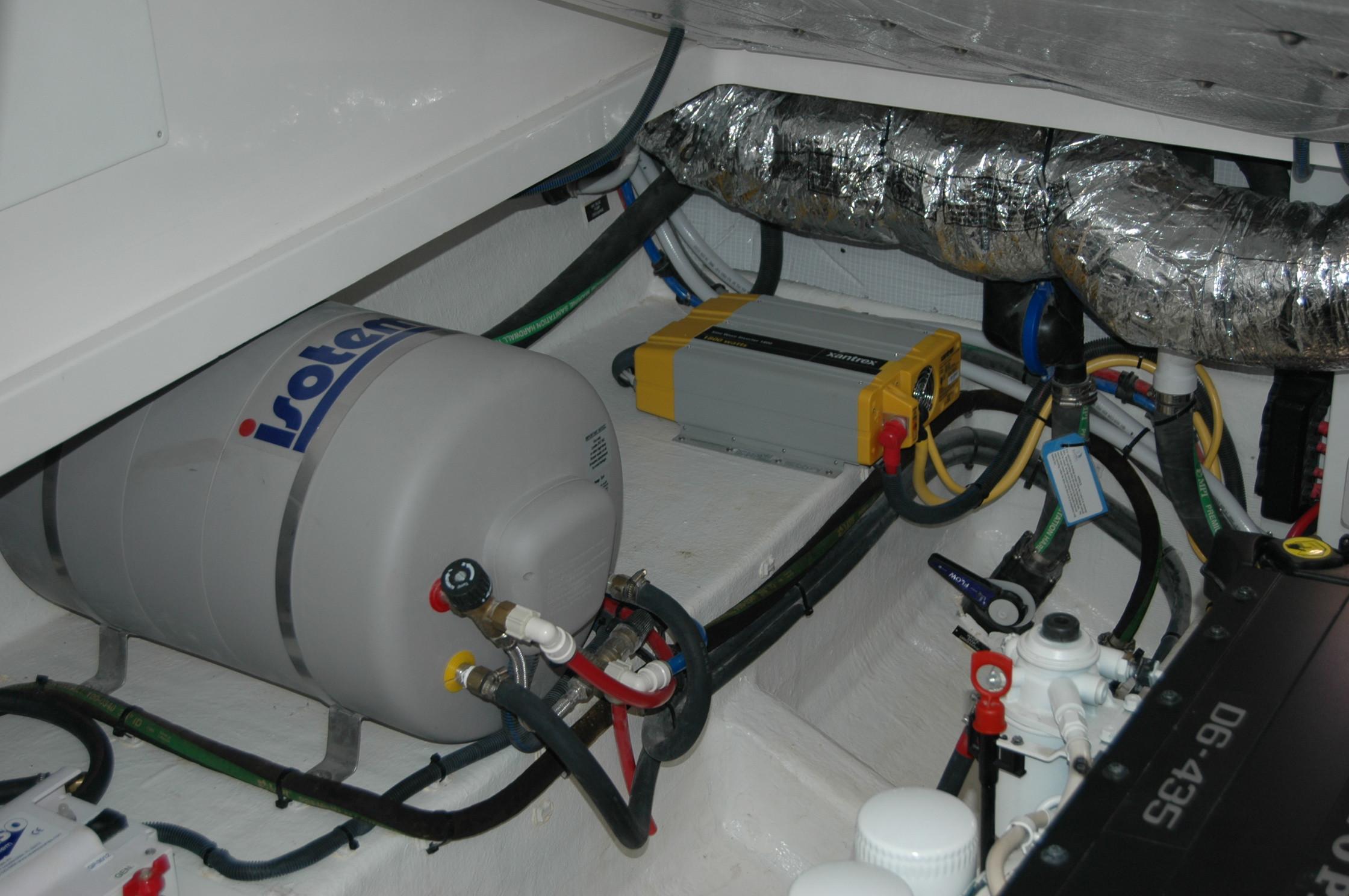

• 11 gallon hot water heater w/ heat exchanger
• Marelon sea valves on underwater thru hulls
• Automatic Fireboy extinguisher system w/ manual back-up
Electrical Systems

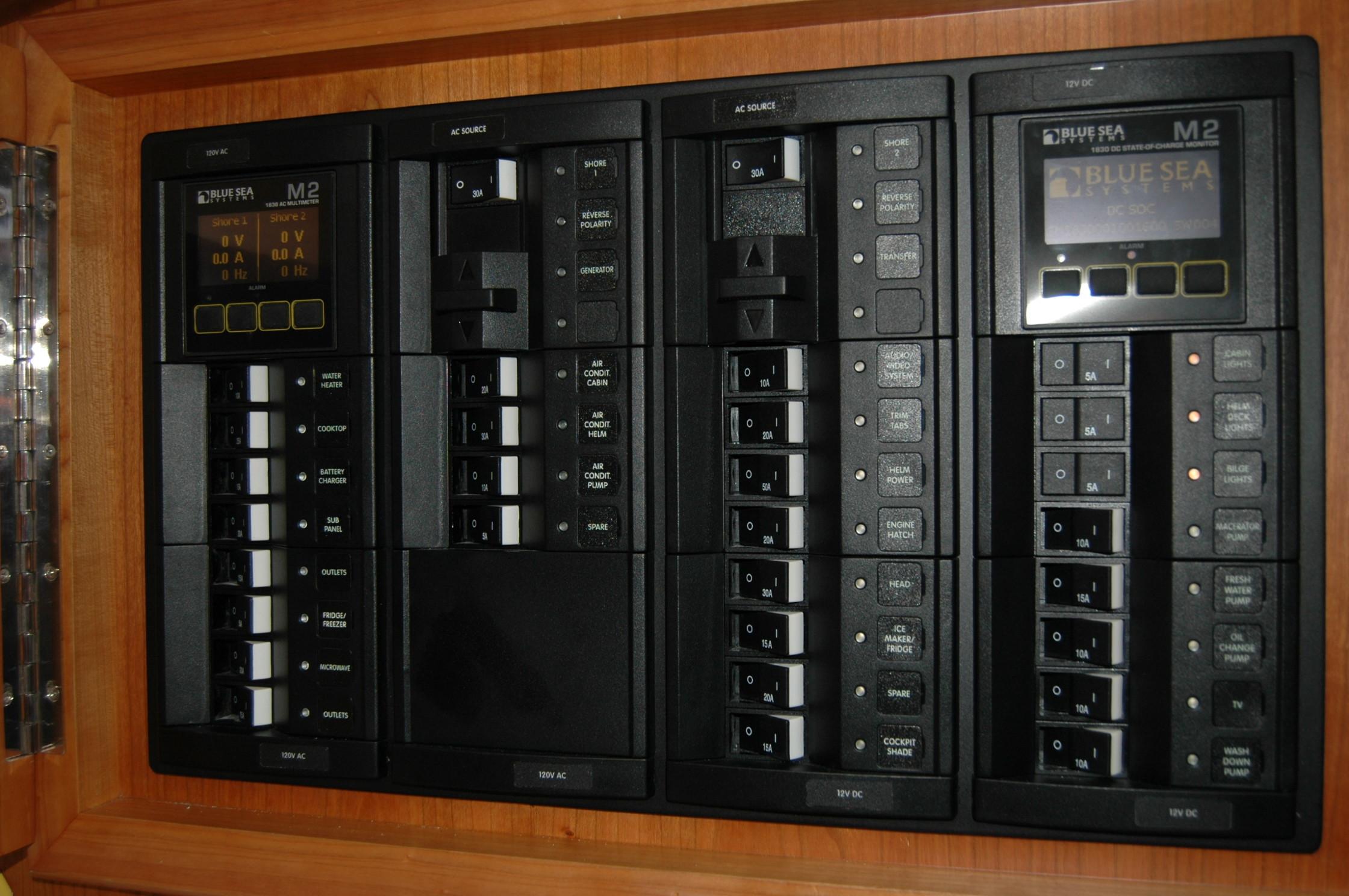

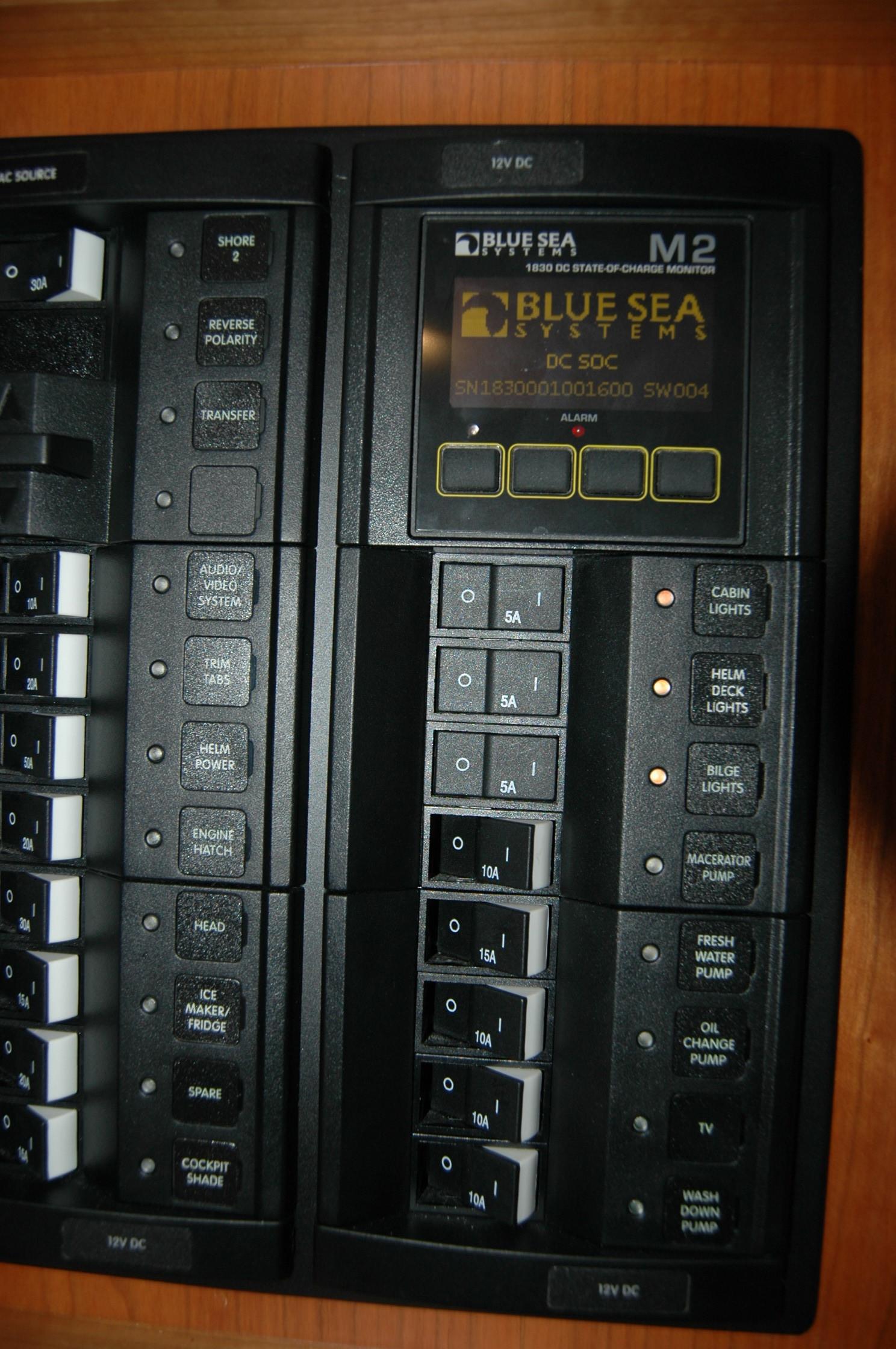

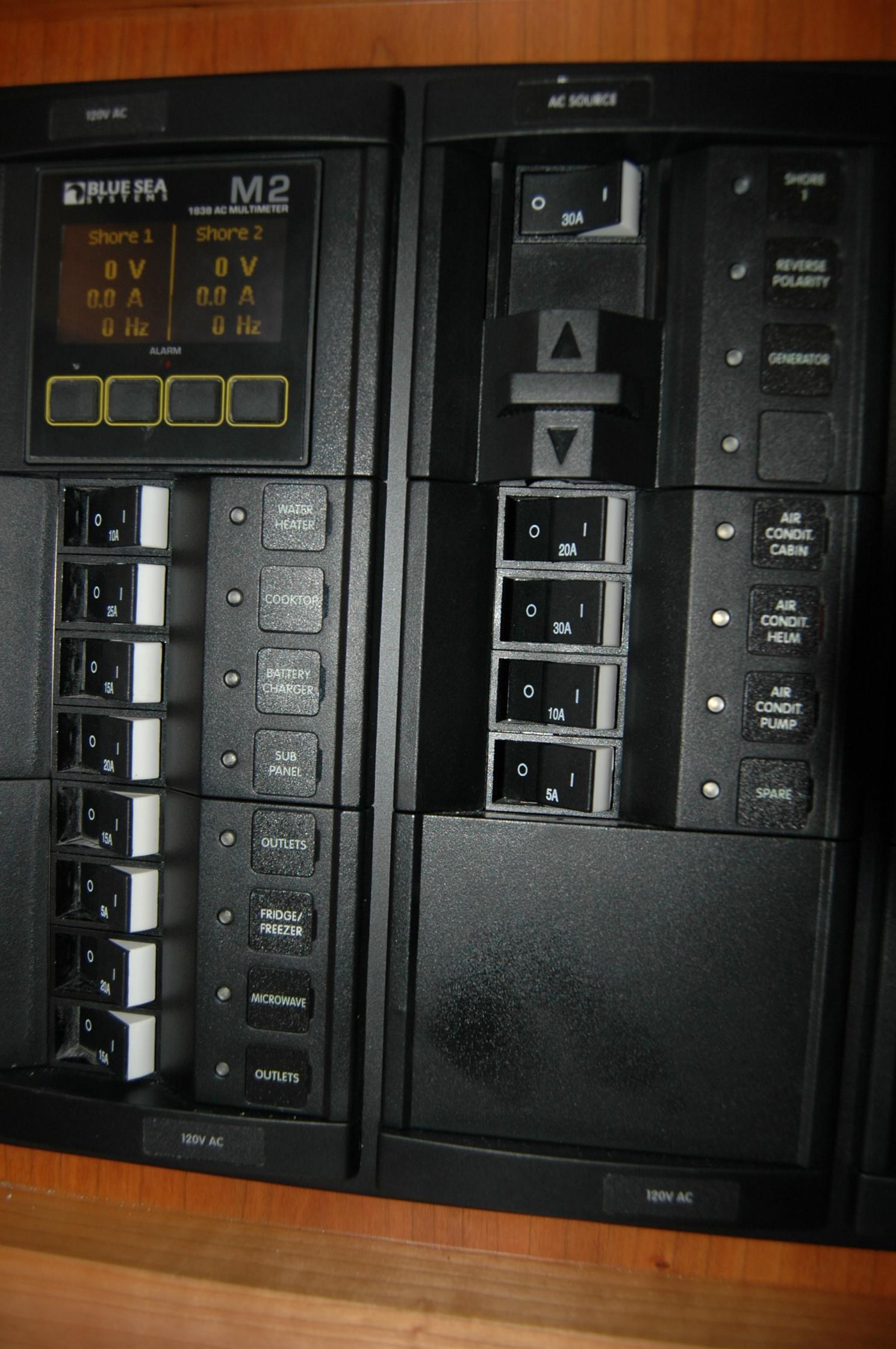

• AC and DC control panels with polarity indicator

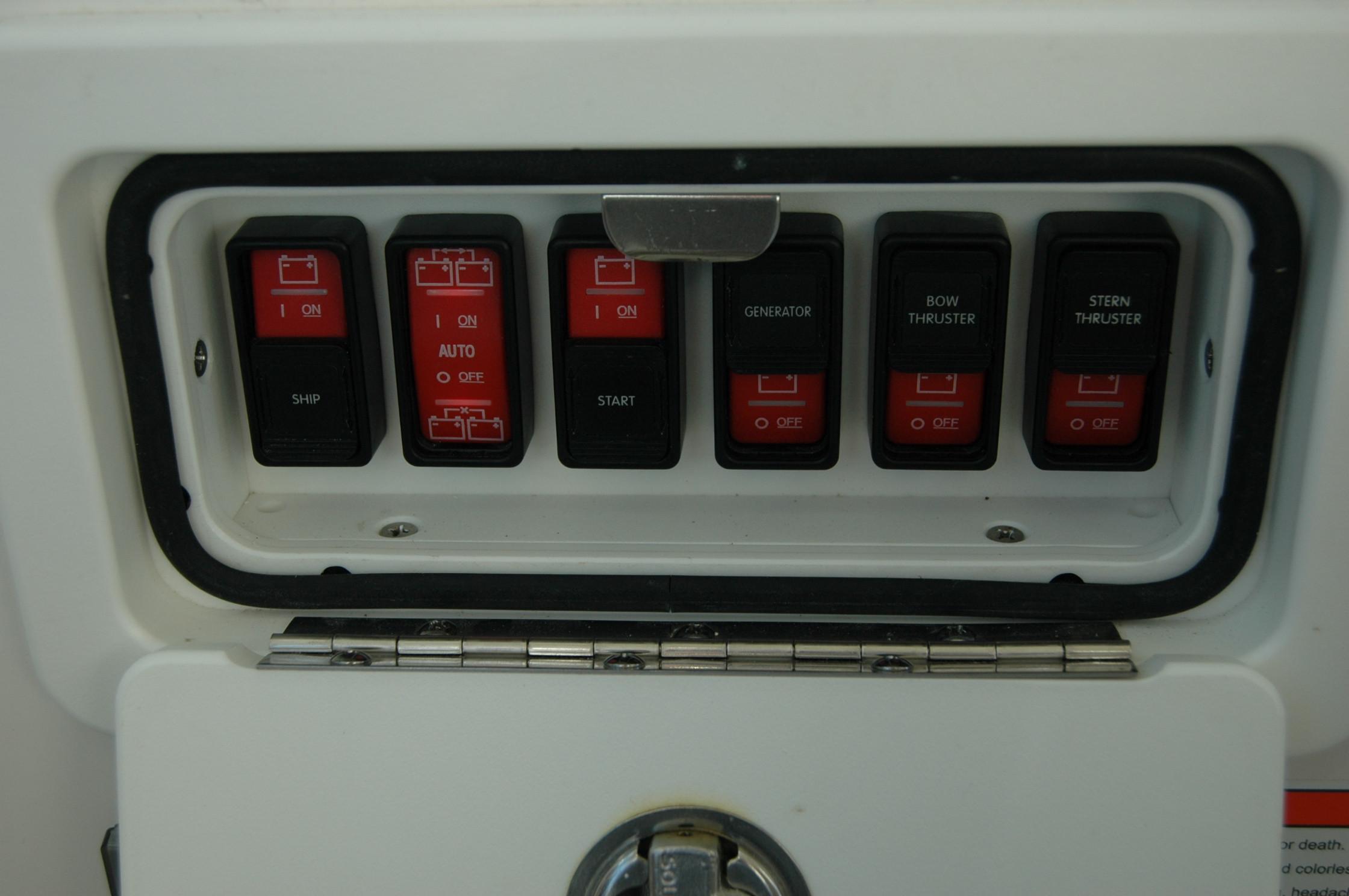

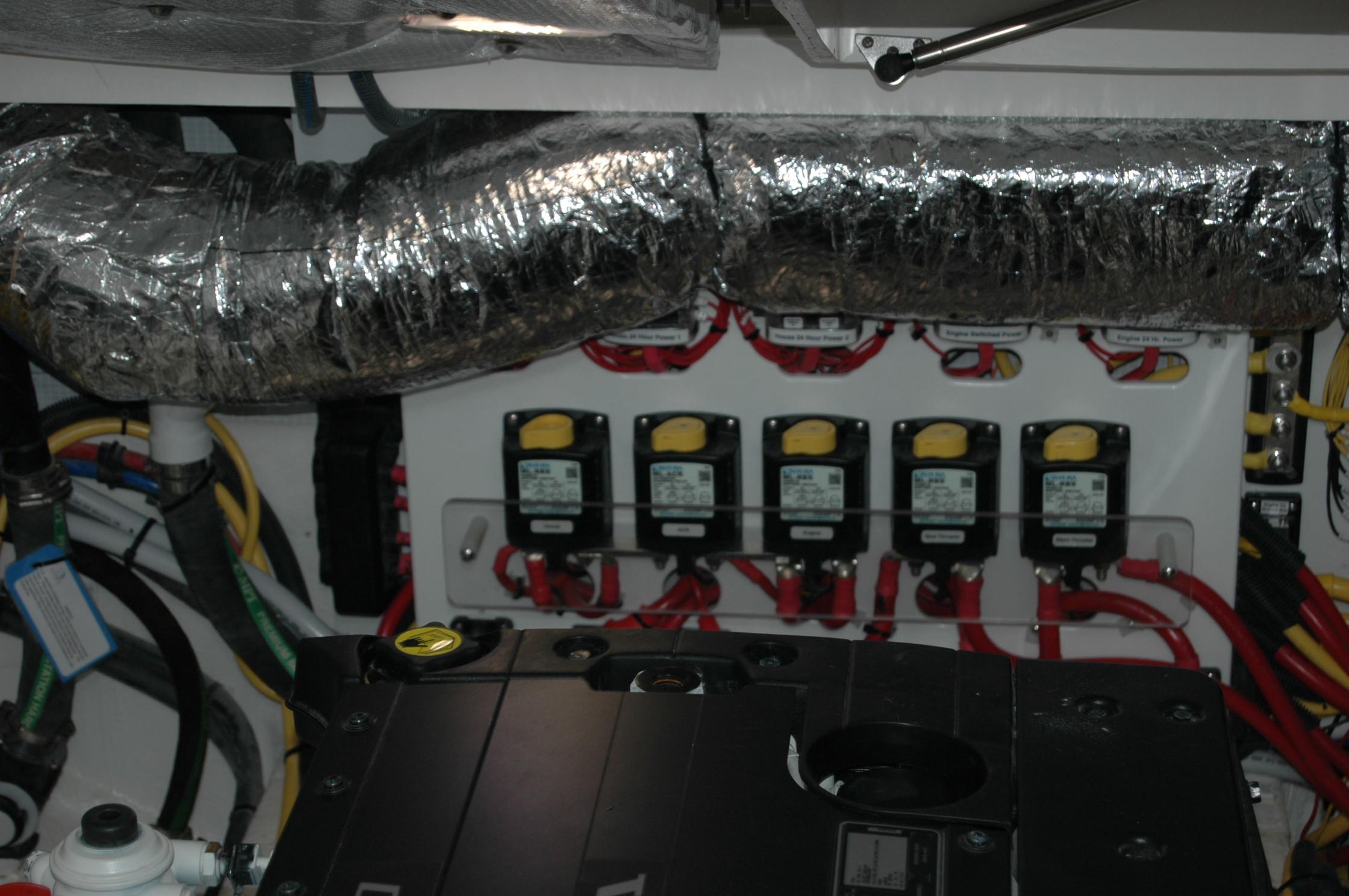

• DC system battery management switching
• DC breakers for electronics
• Emergency cross over switch / ACR
• (2) 110V AC 30 amp shore power w/ 50 foot cord sets
• AC shore power system ELCI protected
• Galvanic isolator
• GFI protected 110V circuits
• Battery Charger

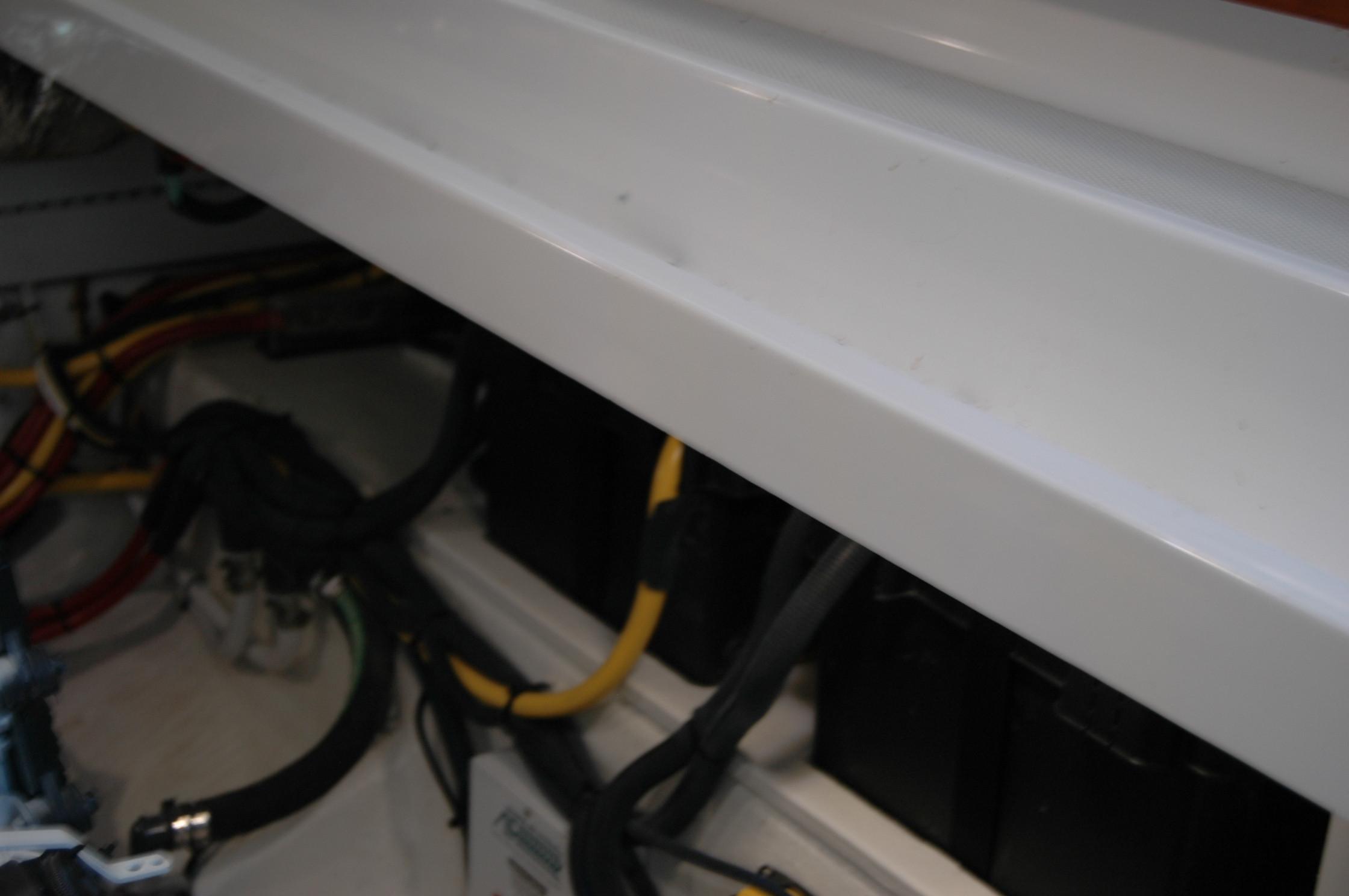

• (2) 4D AGM house battery
• (3) Group 31 AGM engine start battery
• (3) 12VDC automatic bilge pumps
• Bonding system w/ zinc transom anode
• LED Engine room lighting (2) w/ bezel switch
• Cockpit courtesy lights switched at transom door and helm
• Overhead LED cabin lights, with dimmer control
• Reading lights in salon / berth area
• Overhead tri-color LED helm deck light w/ switch
• 12V outlet at helm and in cabin

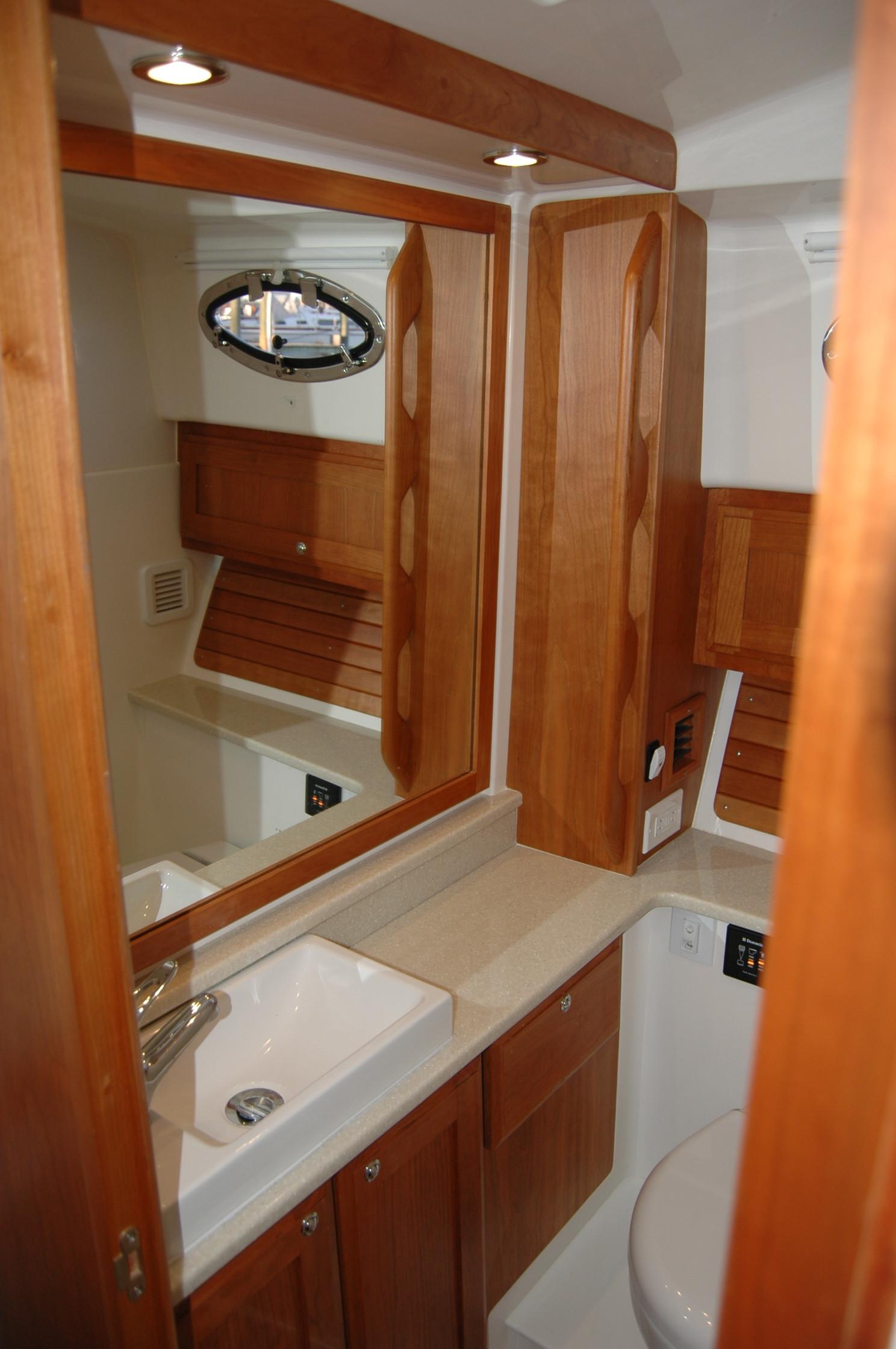

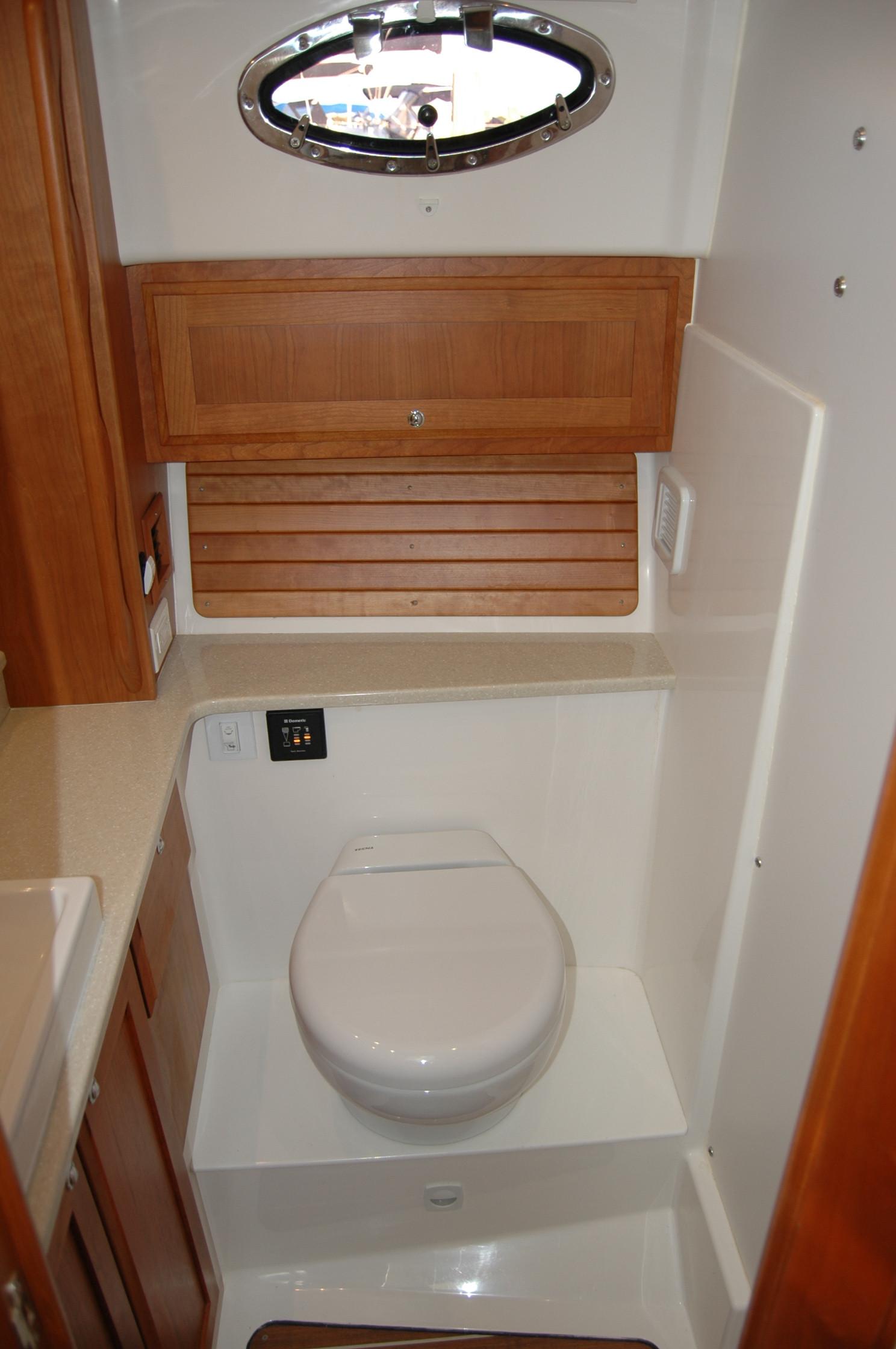

Head / Sanitary System

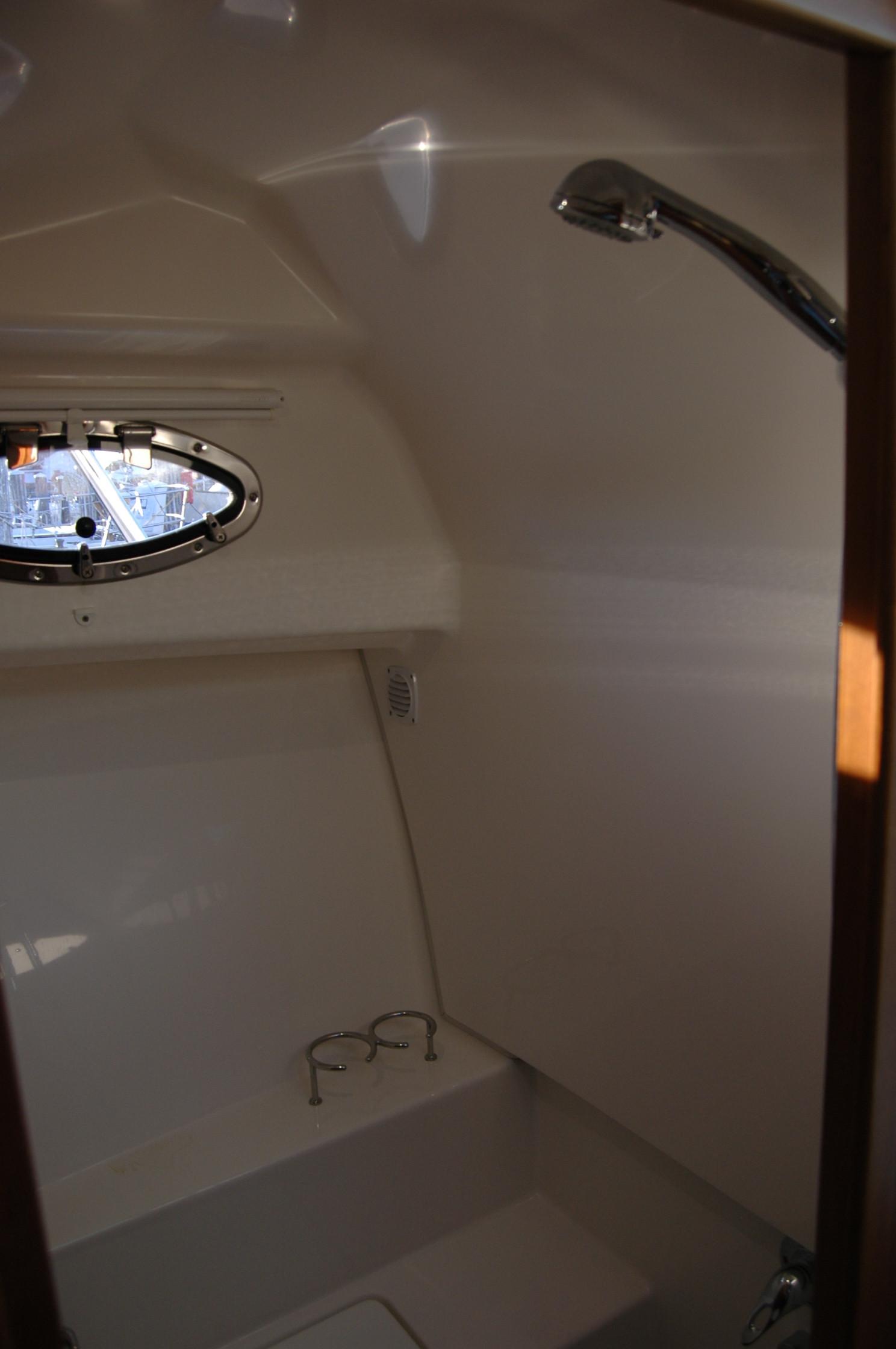

• Head to port w/ separate shower stall to starboard
• Molded seat in shower stall w/ storage beneath
• Built-in vanity w/ sink and storage in head
• Borrowed light in head with screen
• Stainless steel opening ports w/ insect screen and shade
• Cherry framed mirror in head
• Full length mirror on head door
• Solid surface countertop
• Single lever faucet
• Shower drain sump pump system
• Standard size fresh water electric MSD w/ holding tank
• Macerator for holding tank overboard discharge as permitted
• Holding tank pump-out fitting on deck
• Sealed overhead lighting w/ bezel switch
• Powered exhaust fan (12V)
• Waste and fresh water level gauge

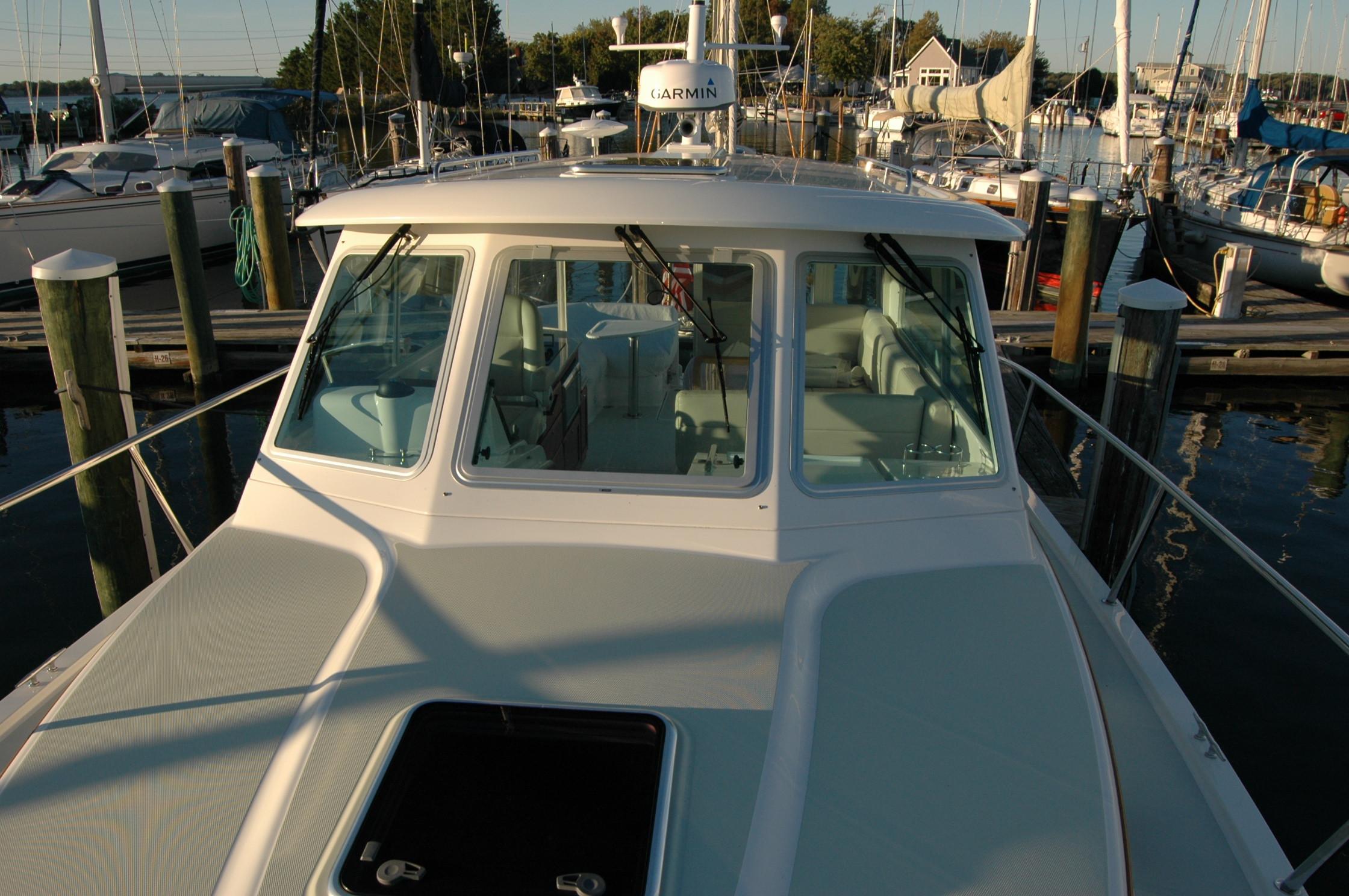

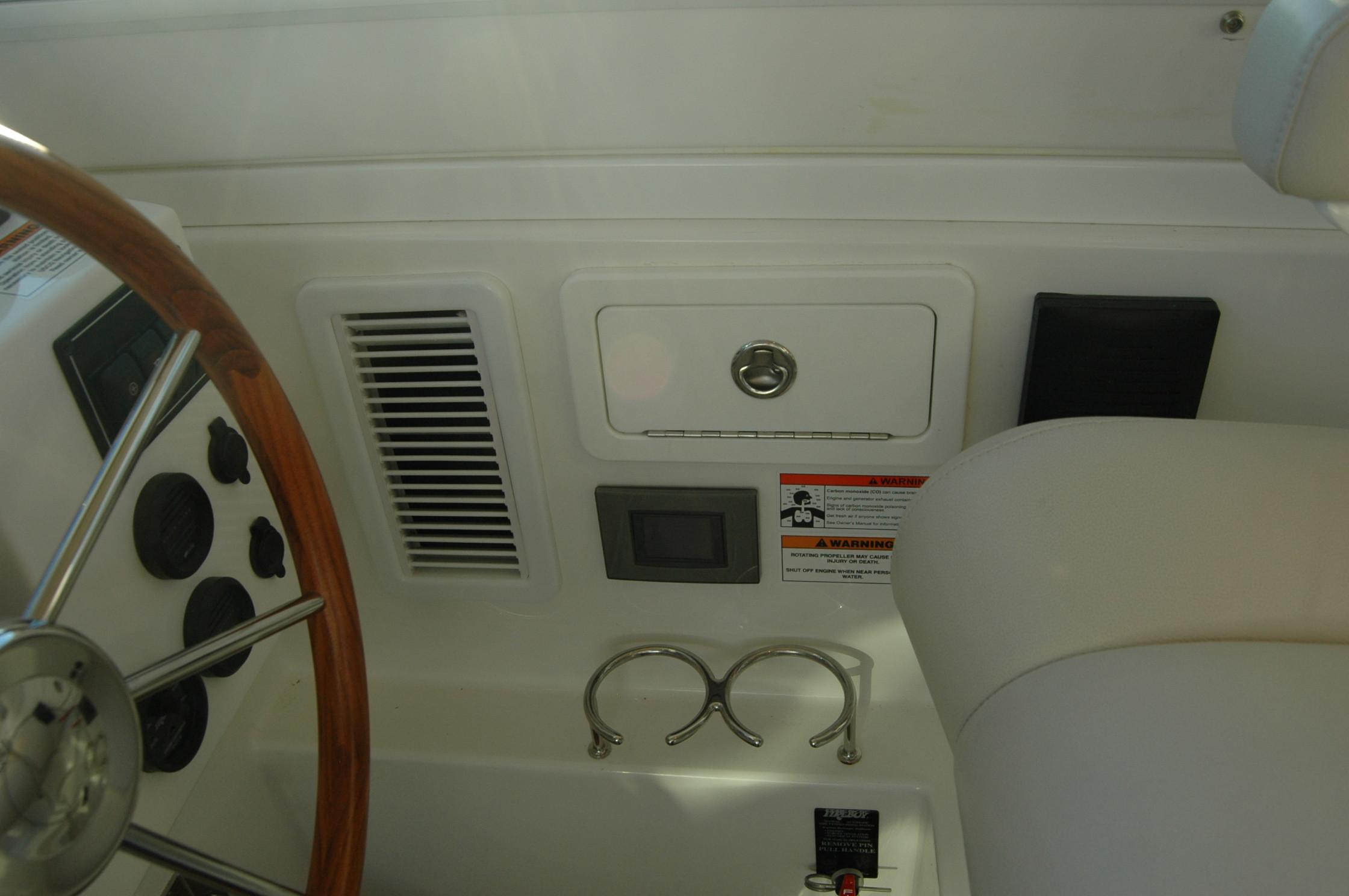

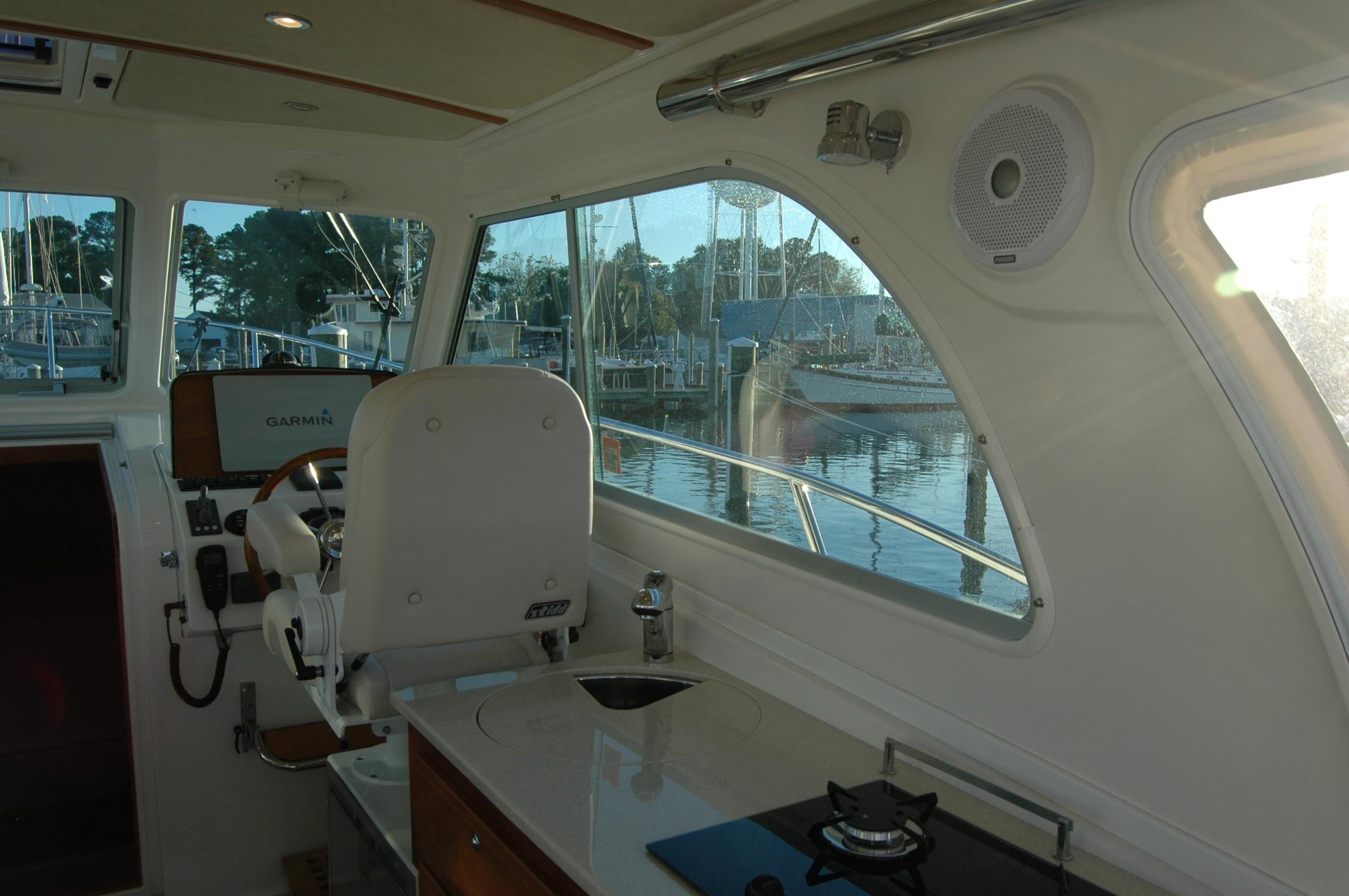

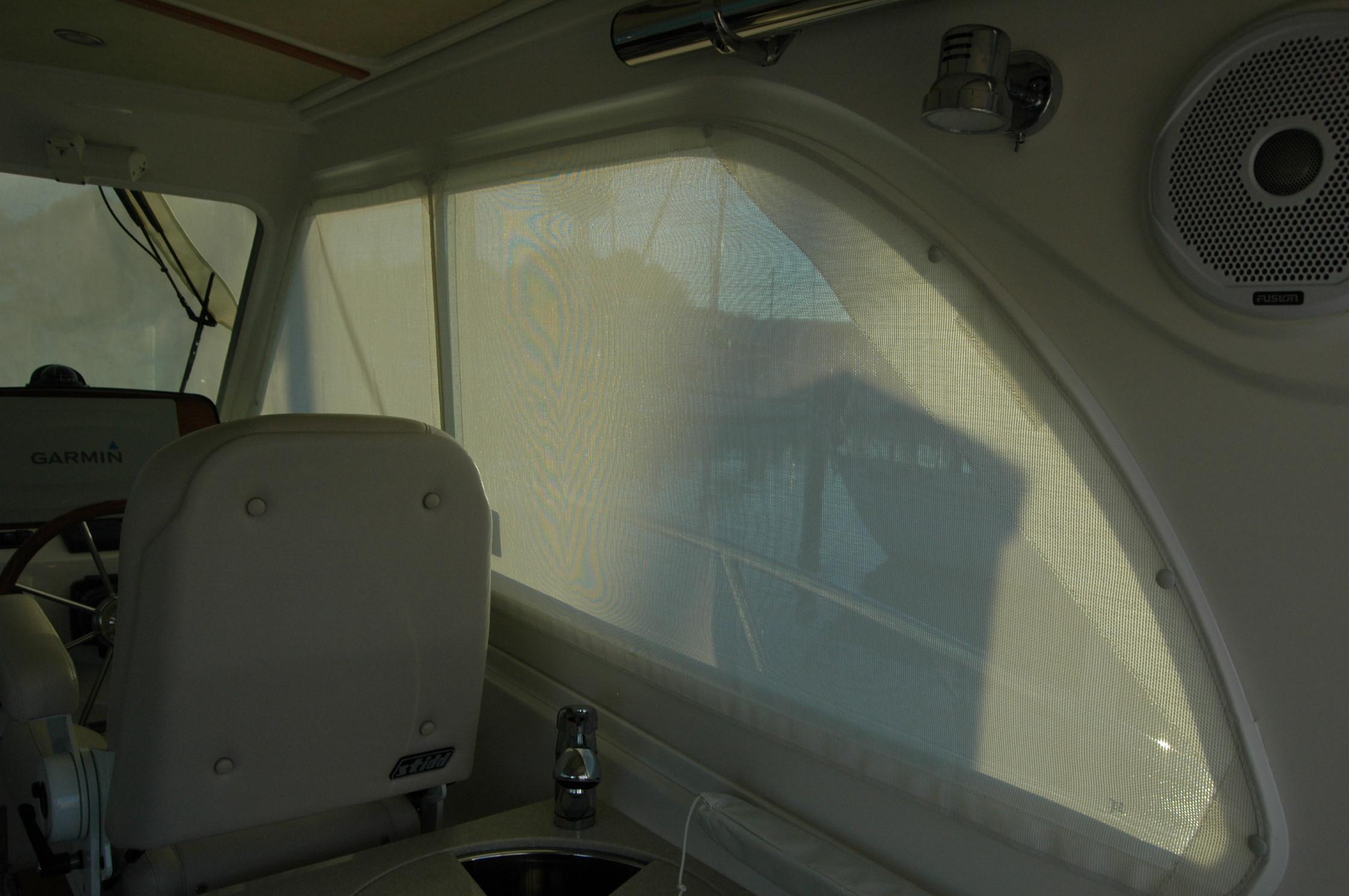

Helm Deck

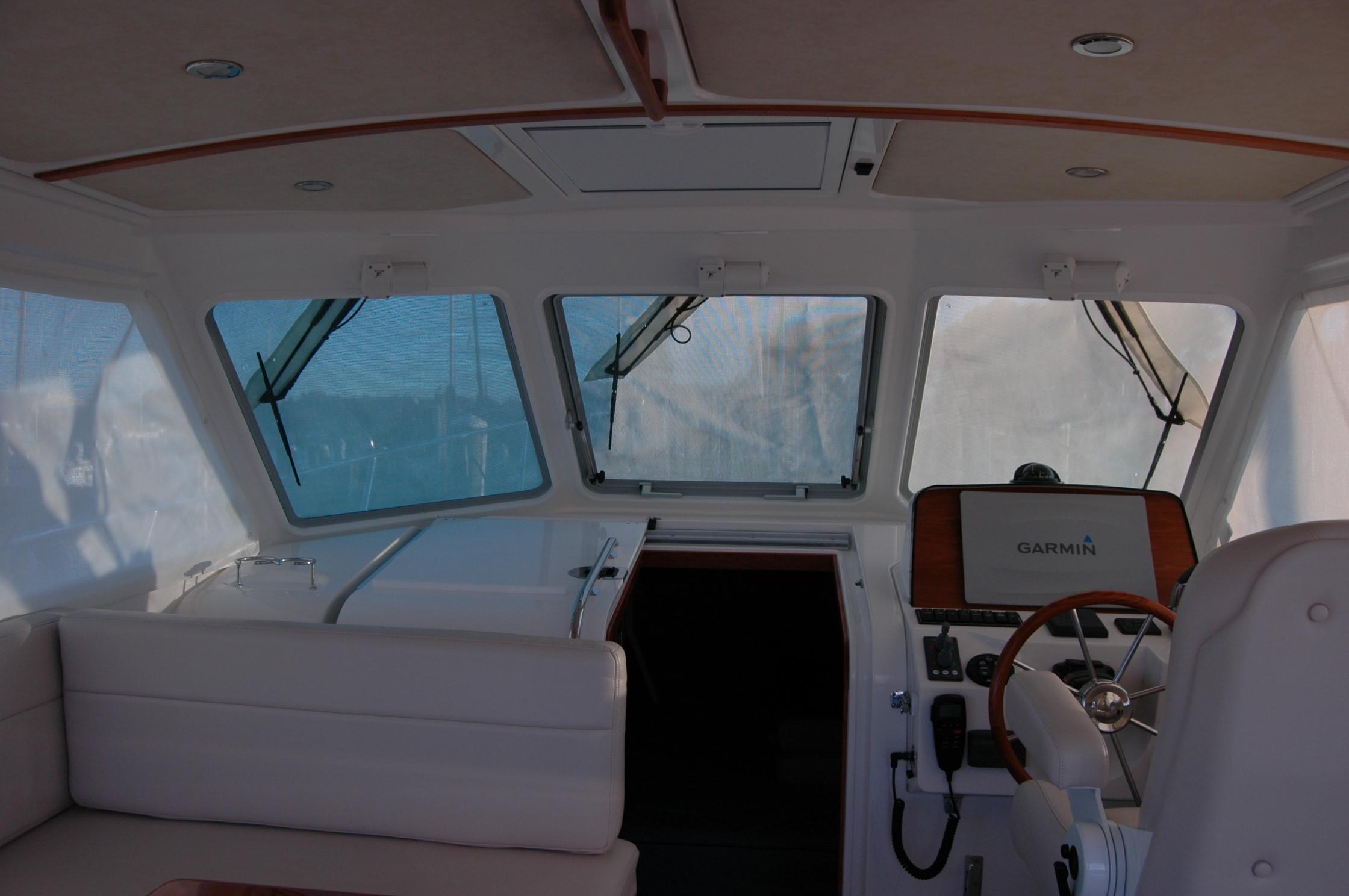

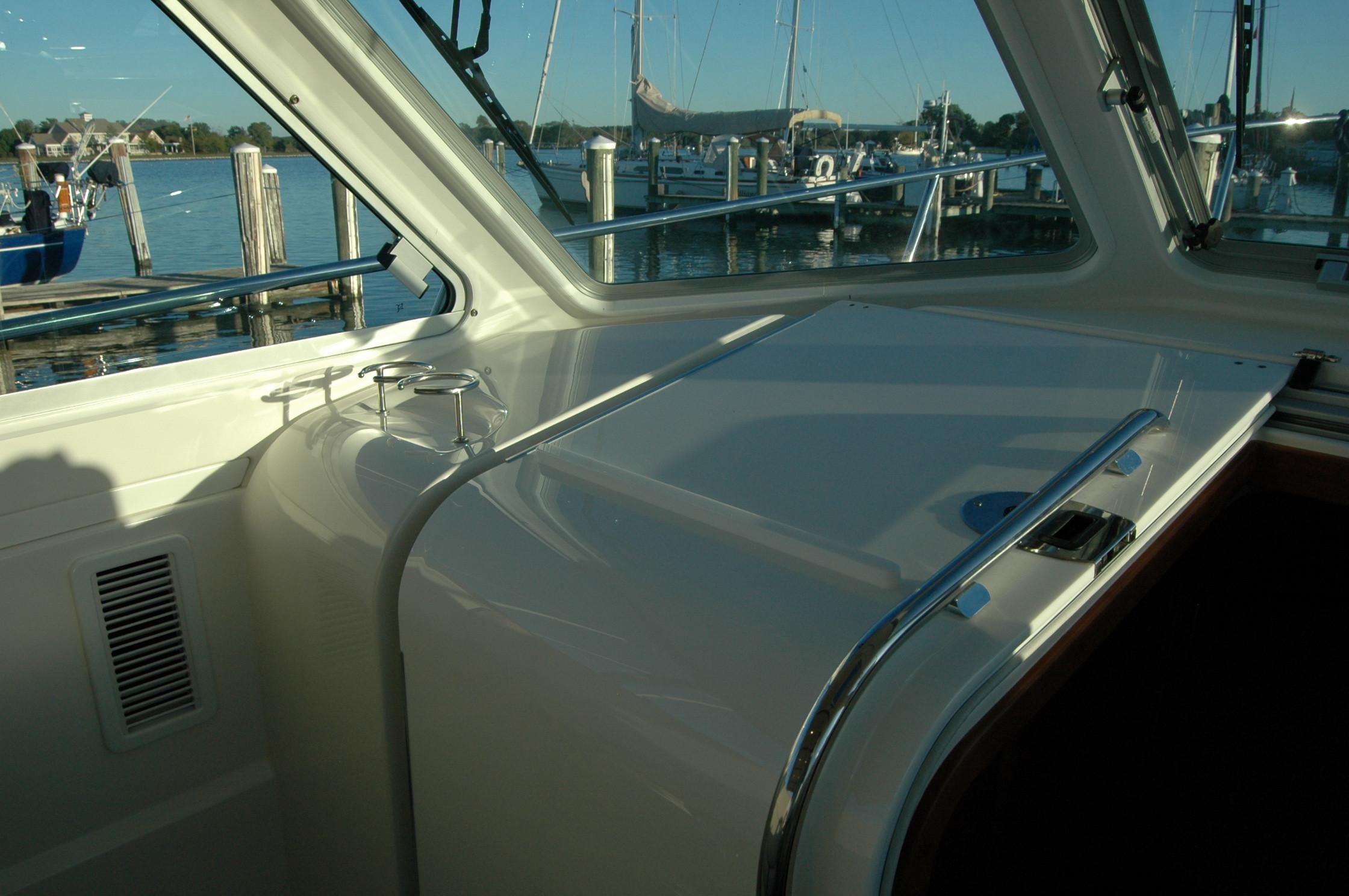

• Clear anodized aluminum windows w/ opening windows port, starboard
and center
• (3) windshield wipers w/ fresh water washer system

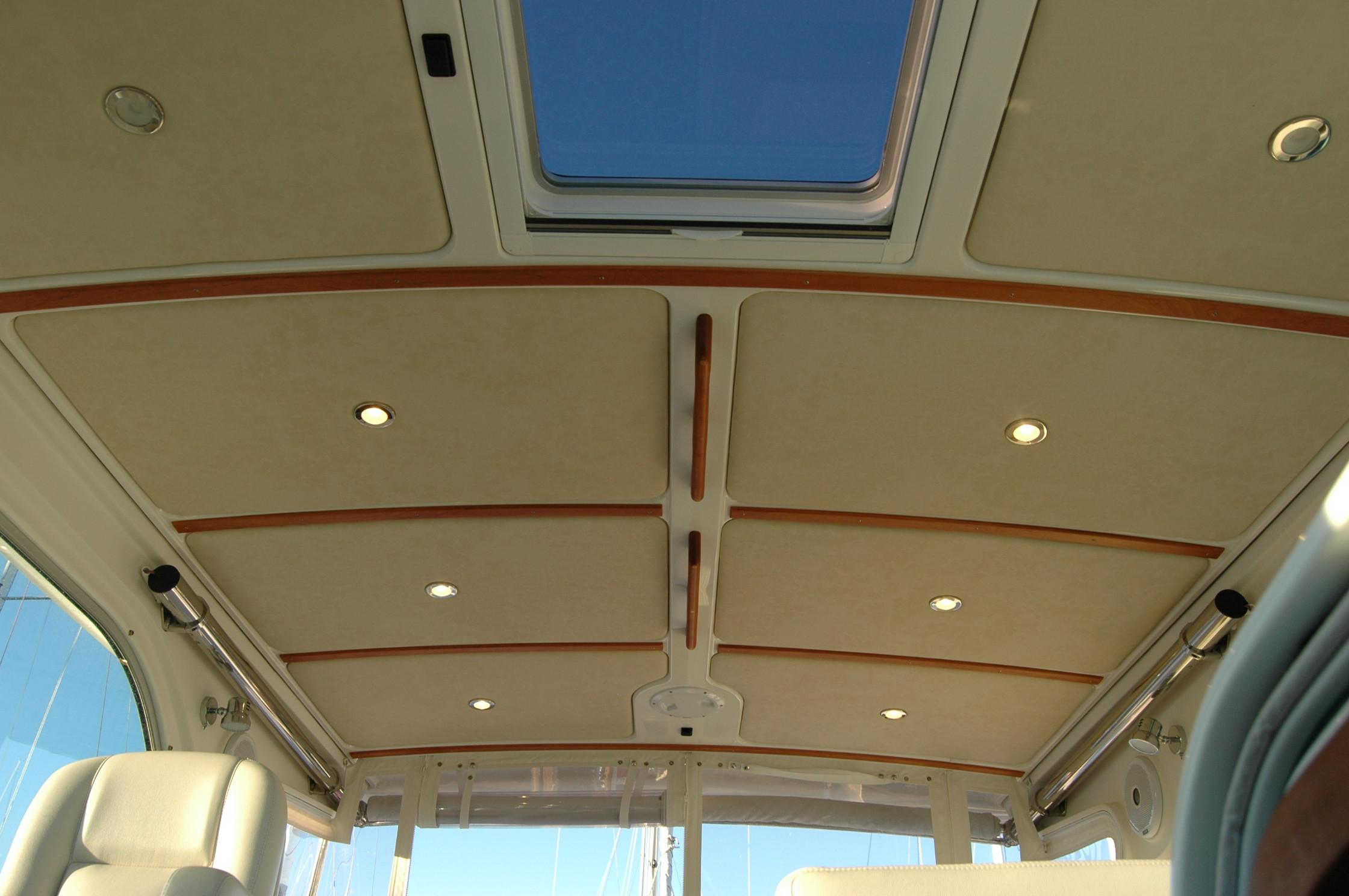

• Lewmar sliding hatch w/ OCEANair Skyscreen
• Compass, illuminated

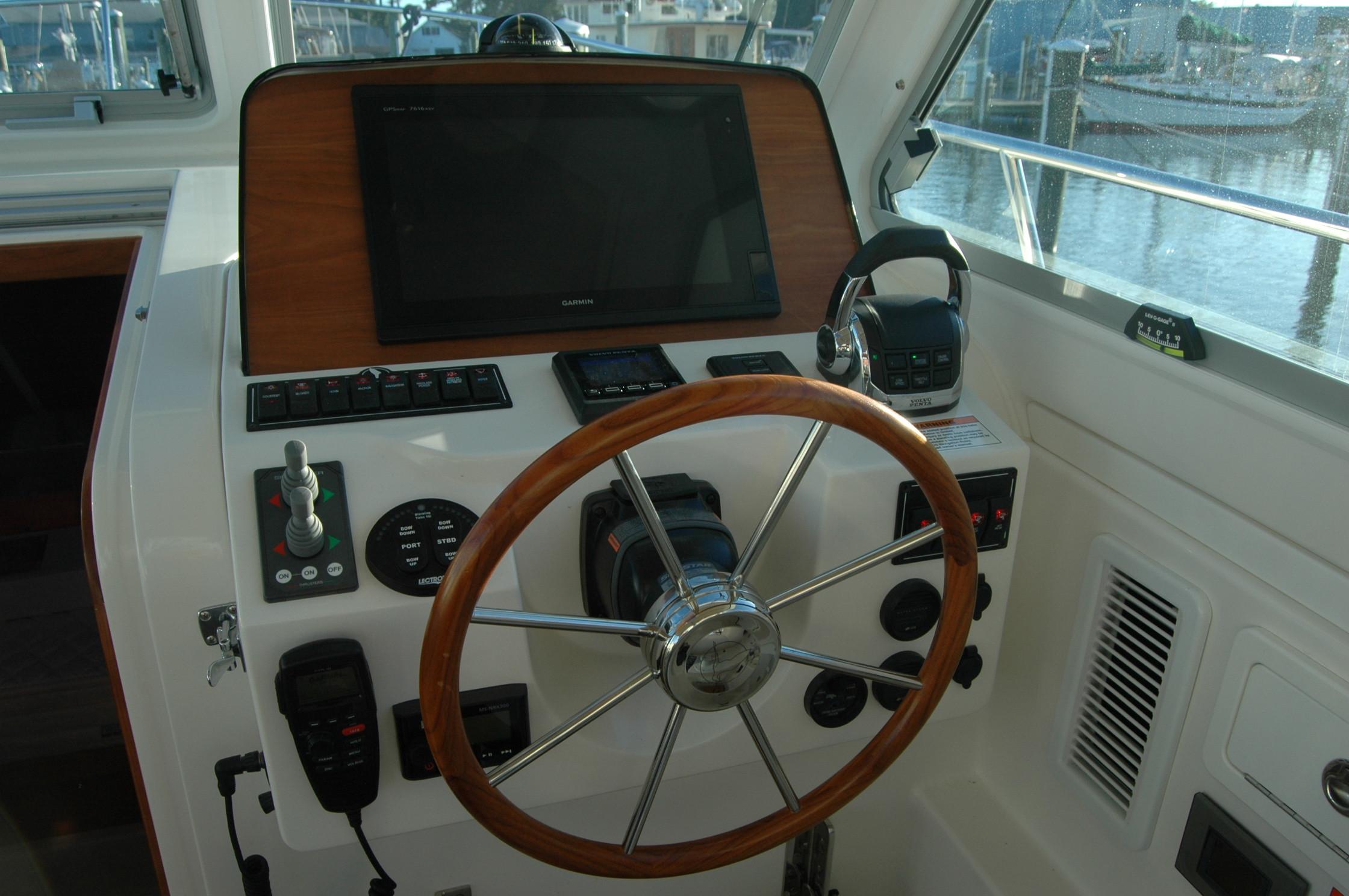

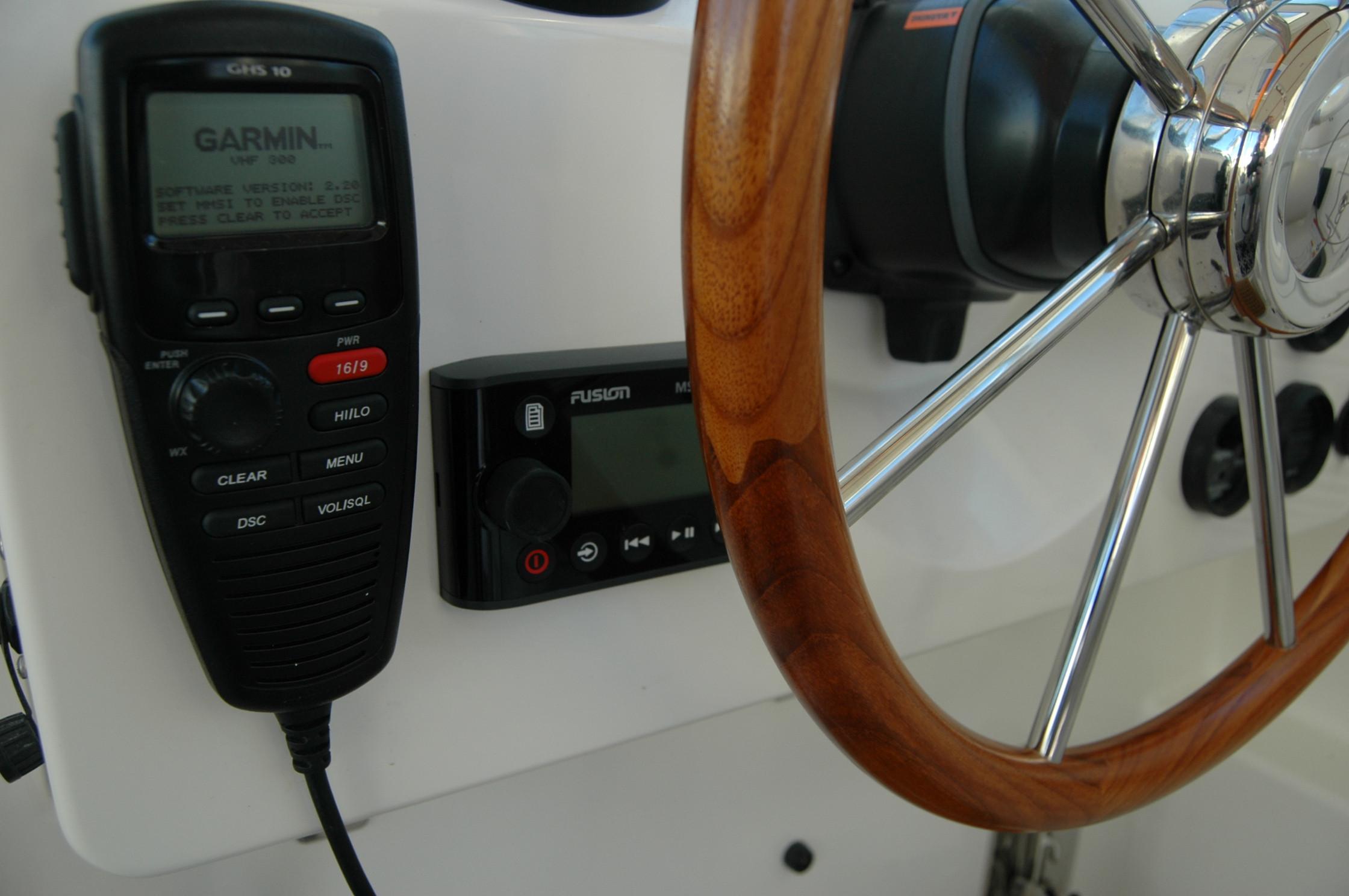

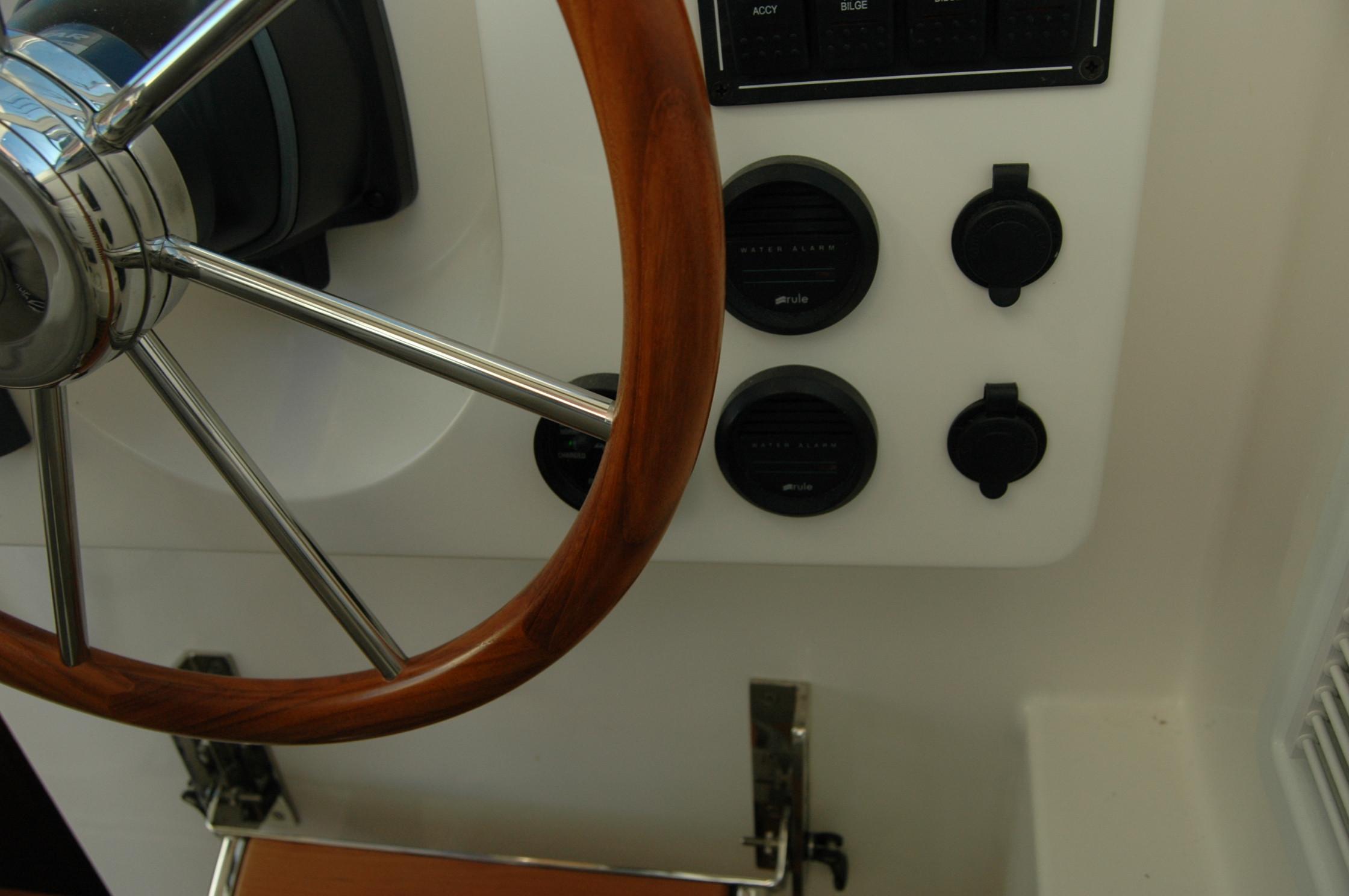

• Stazo wood grain steering wheel
• Arrigoni helm seat
• Smoked acrylic companionway slider with screen and lockable latch
• Engine hatch opens by electrical linear actuator
• Day hatch to engine room on centerline

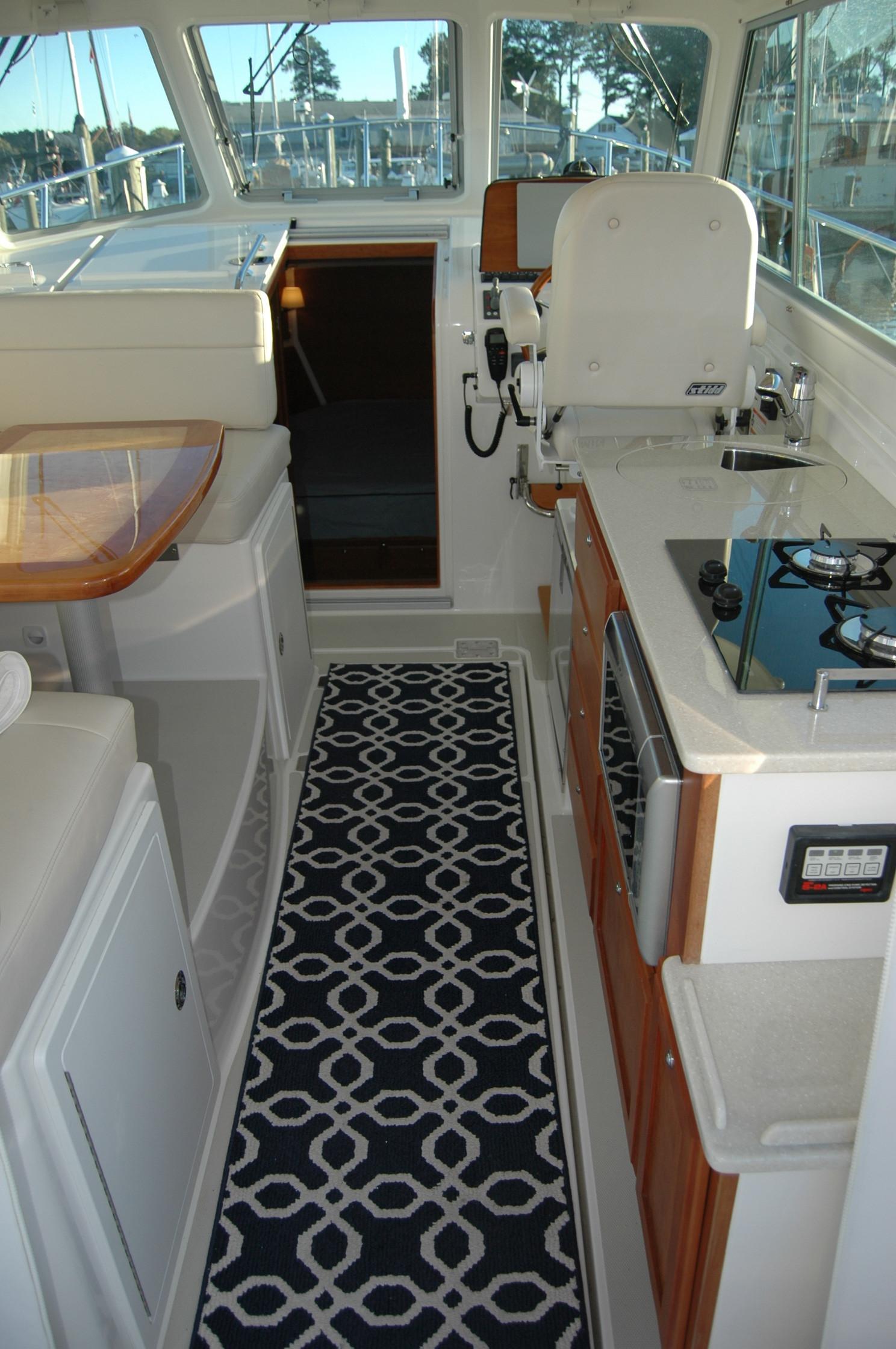

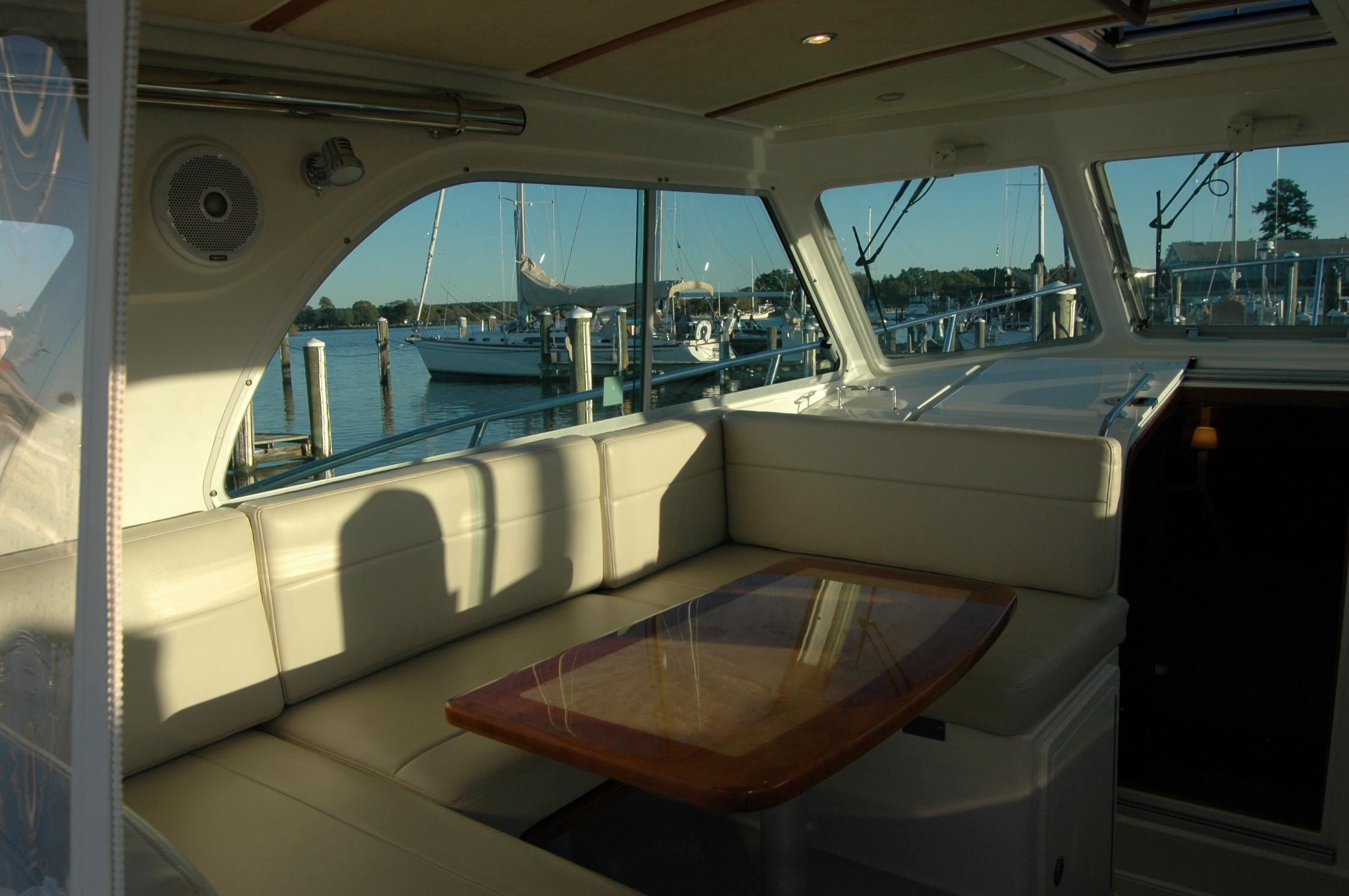

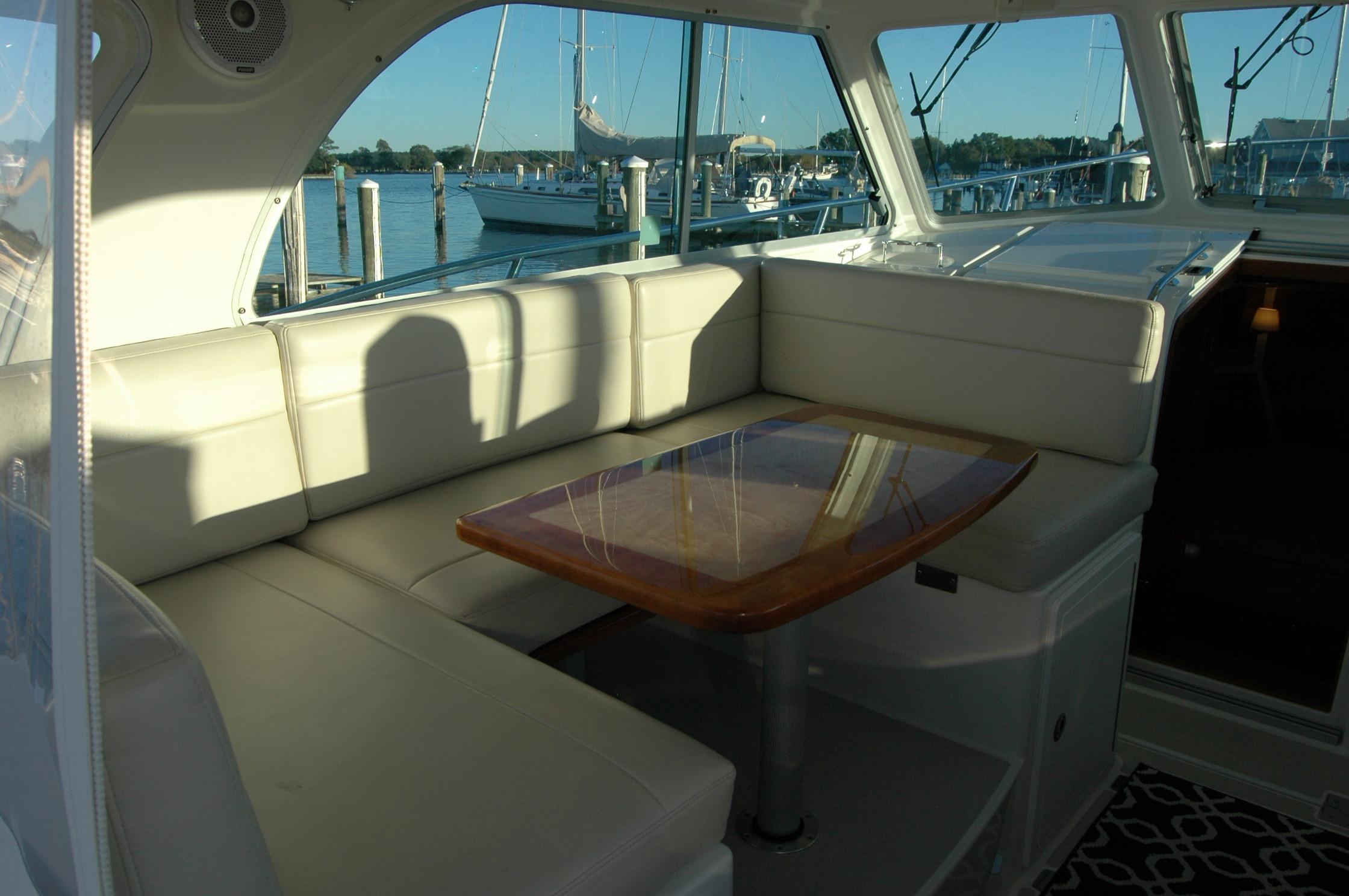

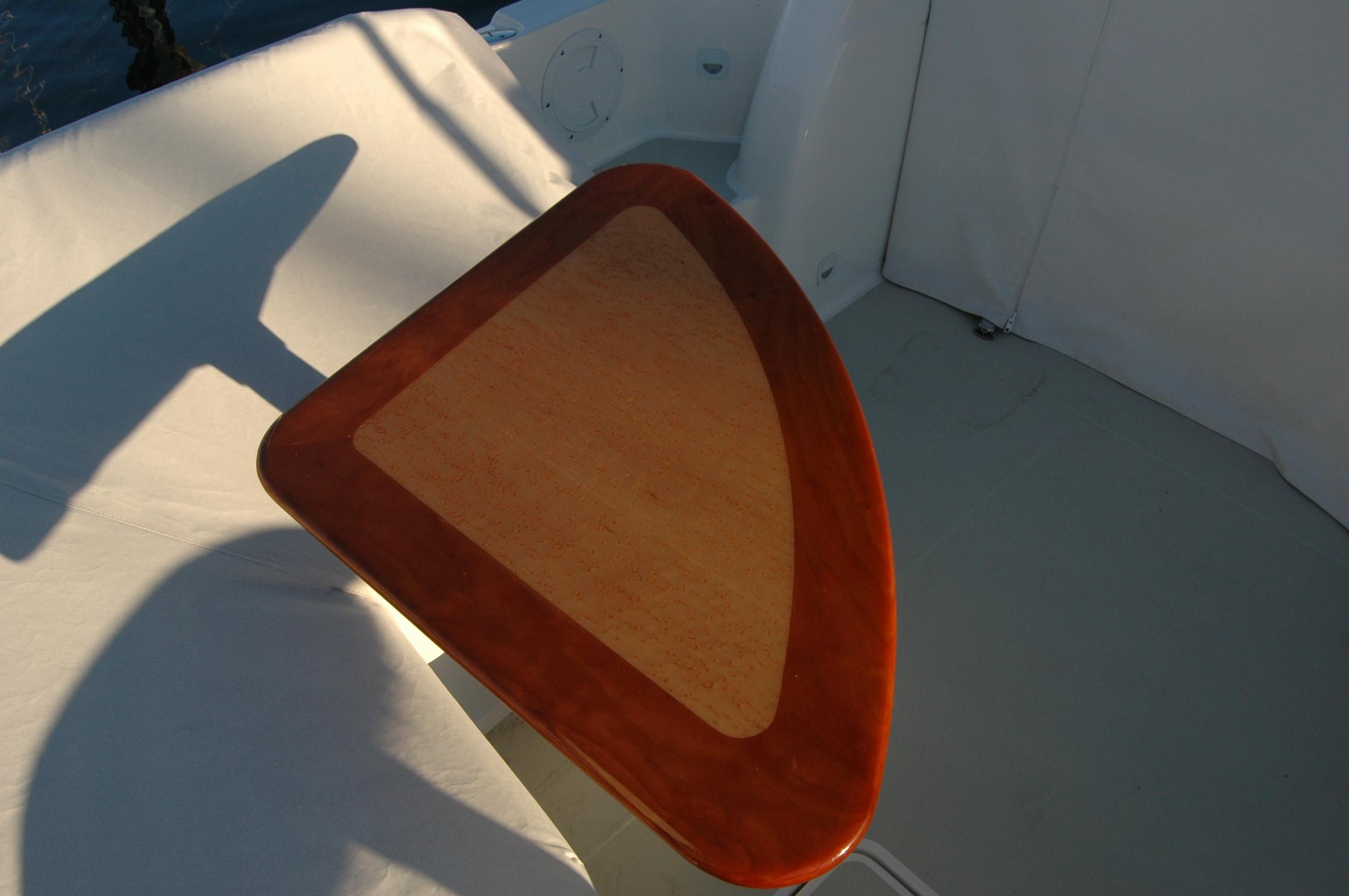

• Convertible dinette with Back Cove high gloss inlaid table

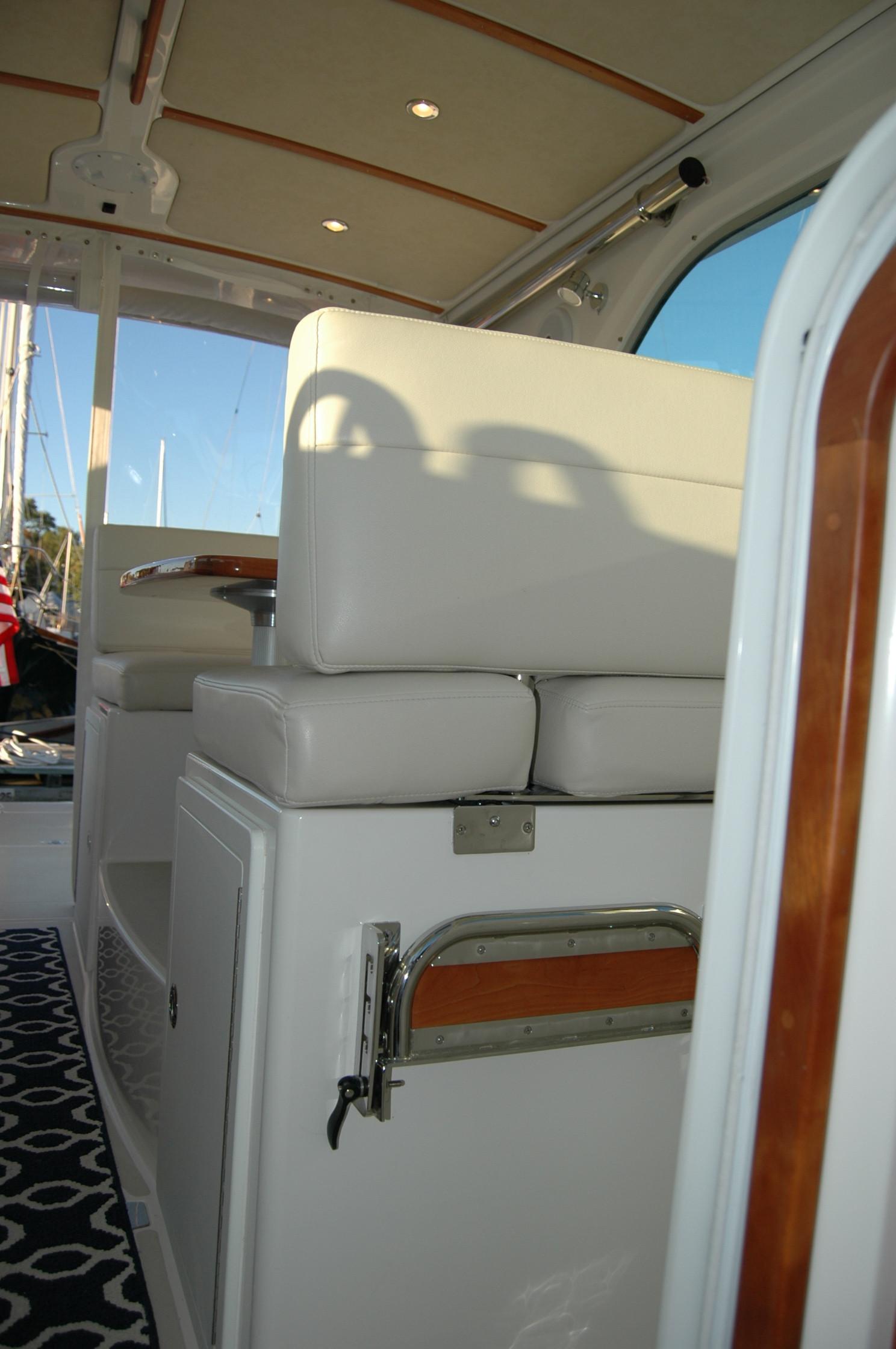

• Mates seatback moves fore and aft for helm or settee positioning
• Storage beneath seats
• Charging station AC/DC/USB

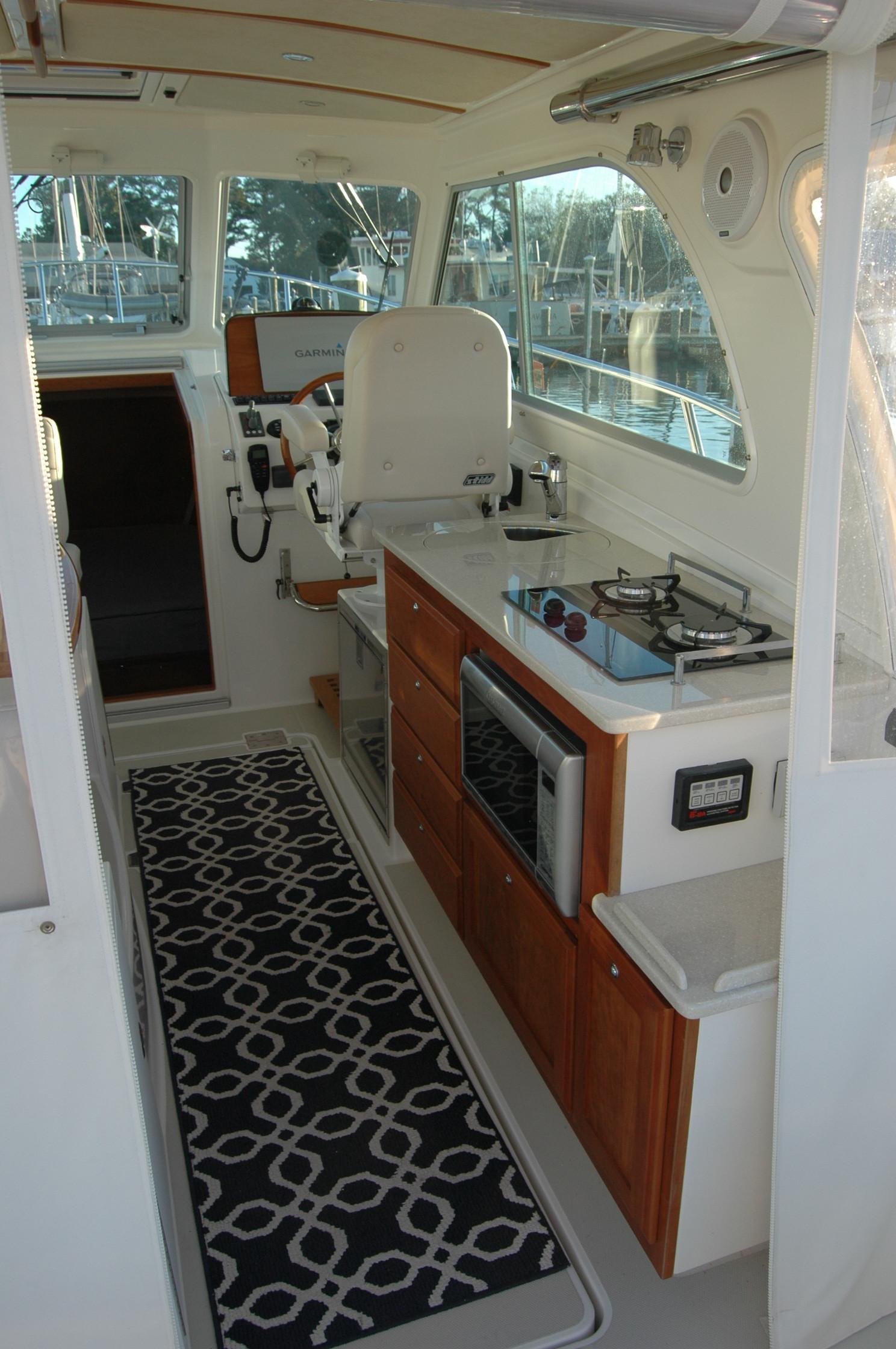

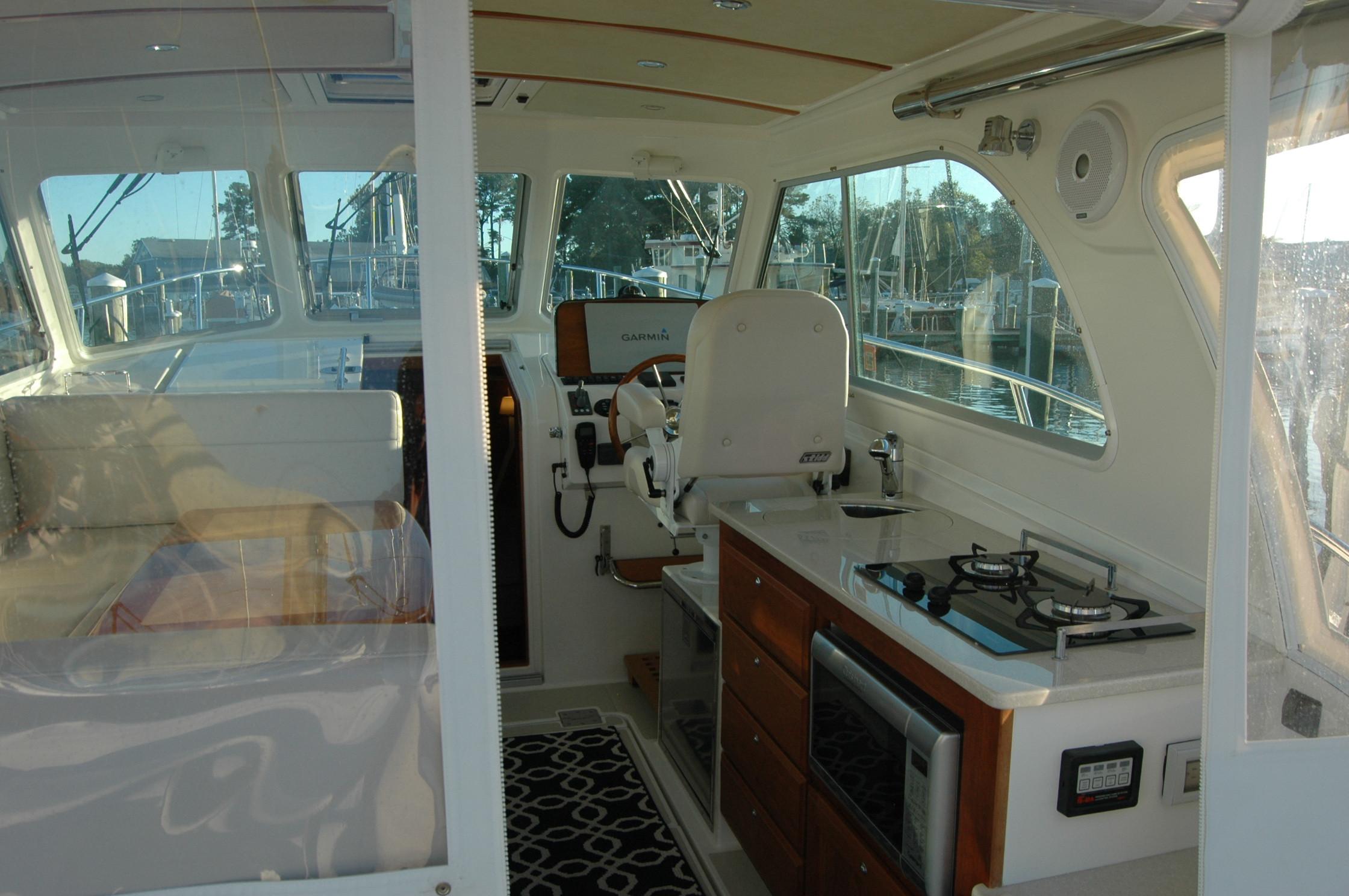

Galley

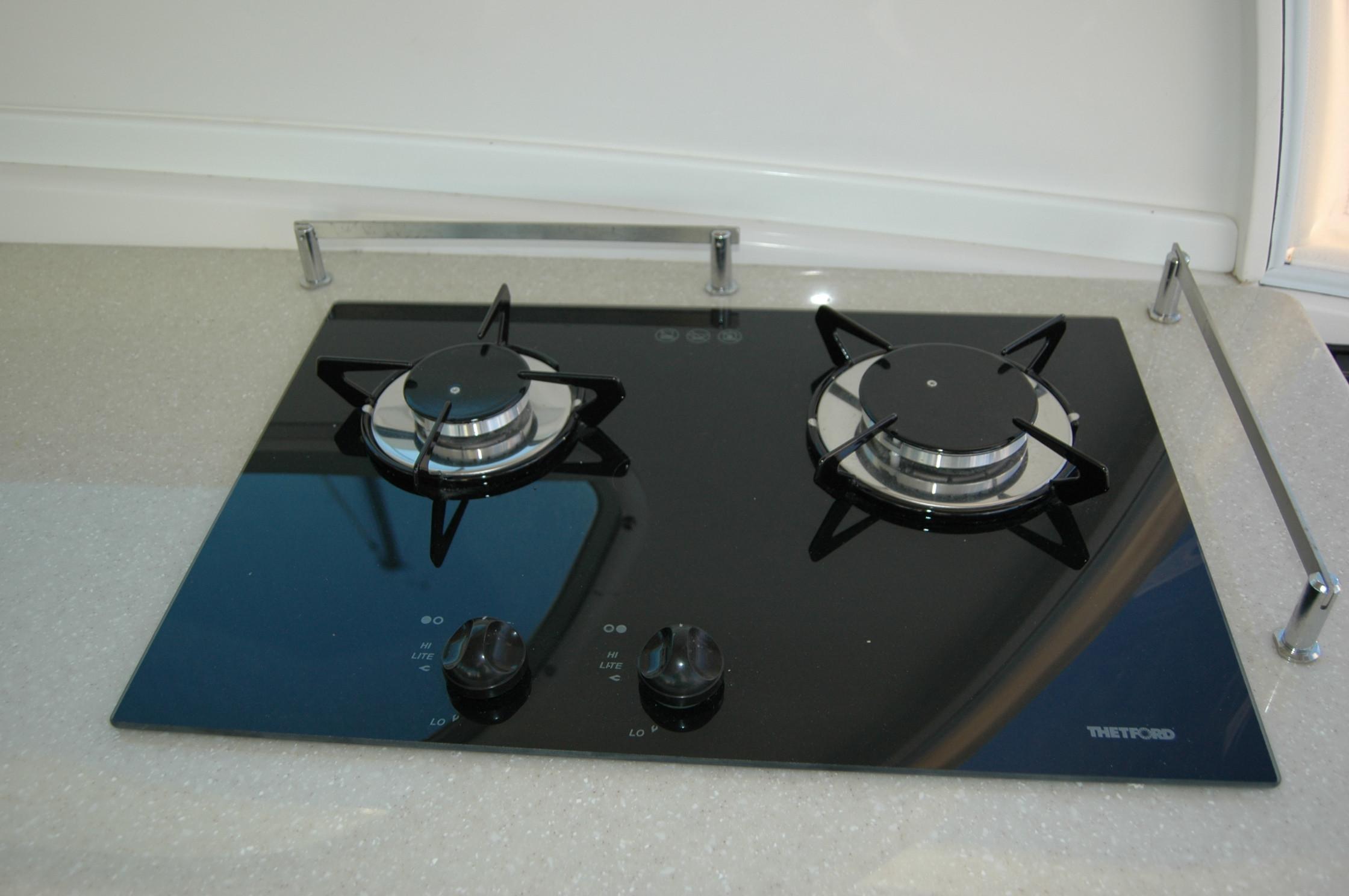

• Electric two burner cook-top with cover

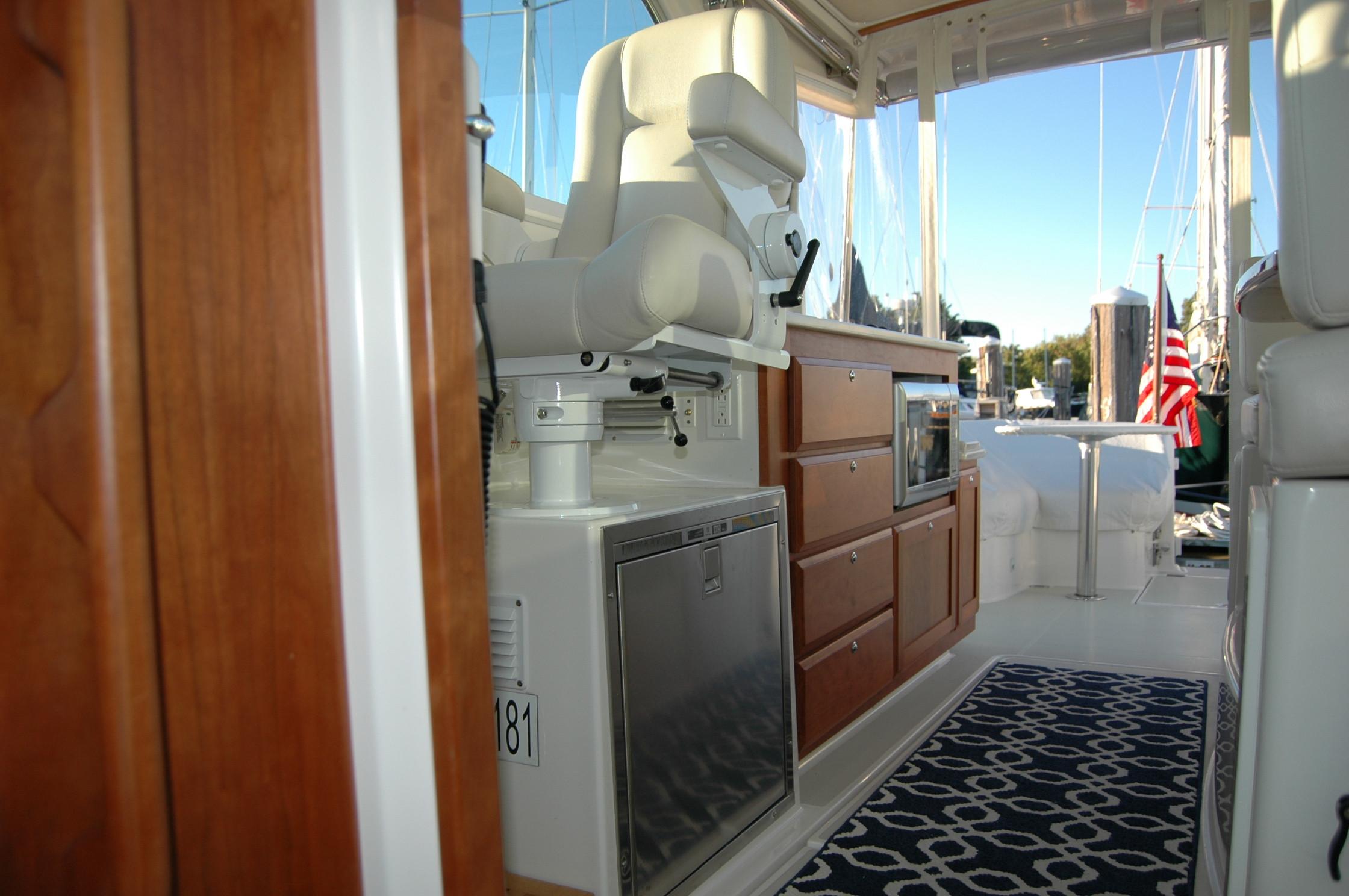

• Drawer style AC/DC fridge/freezer

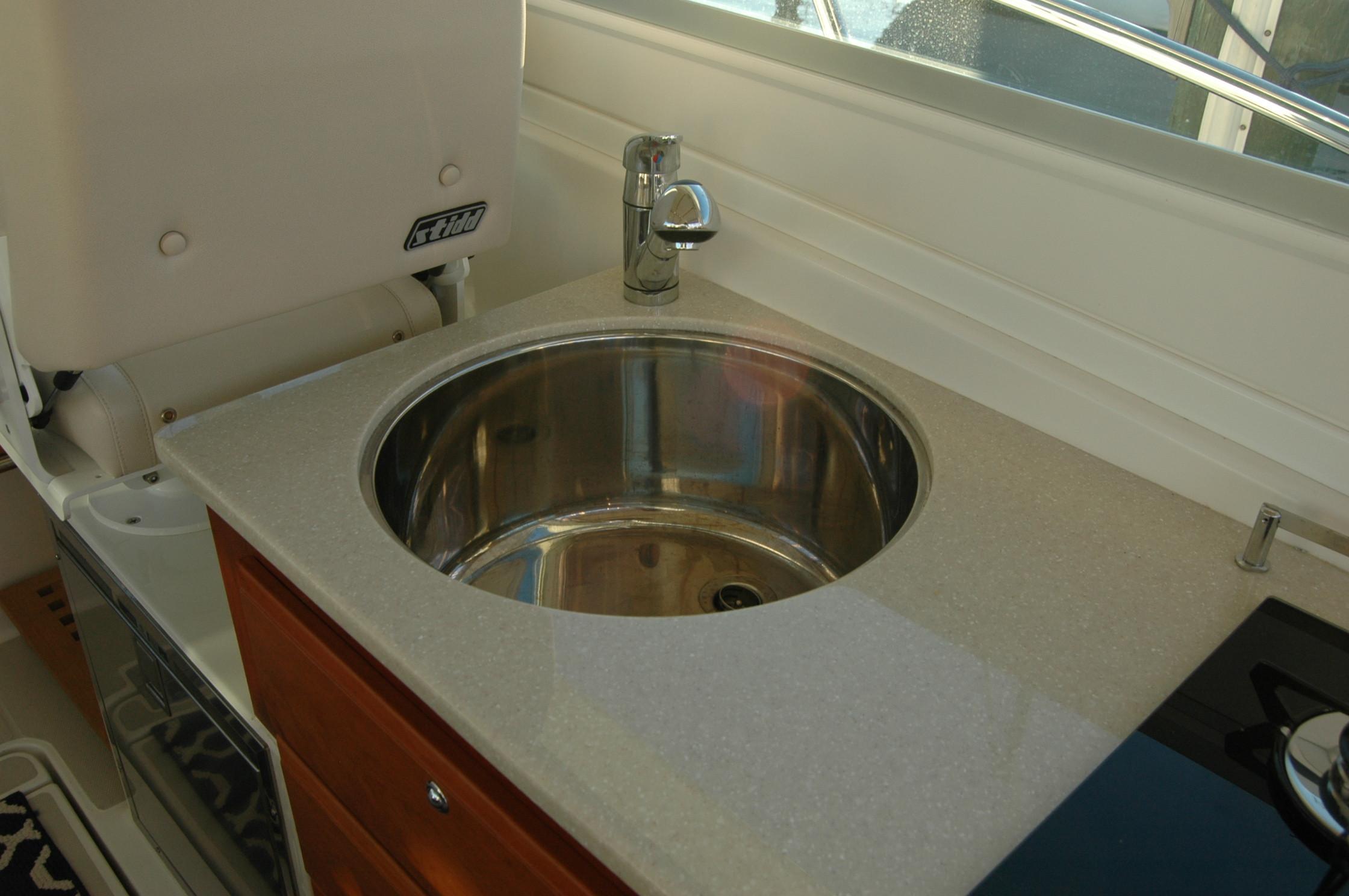

• Large SS Galley sink w/ single lever faucet & drop in cover
• Solid surface countertop
• Built-in convection microwave
• Drawer and doors storage below counter

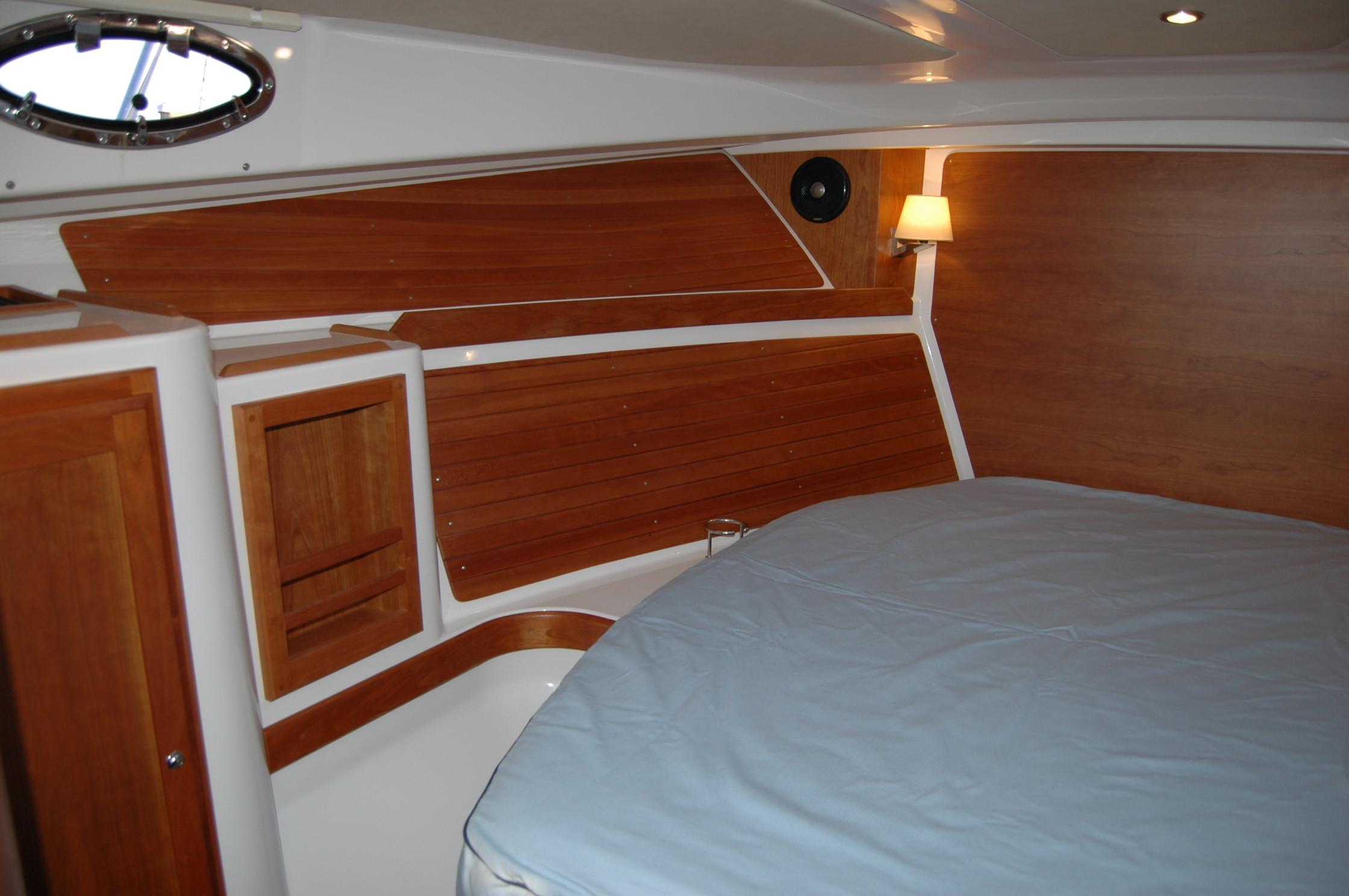

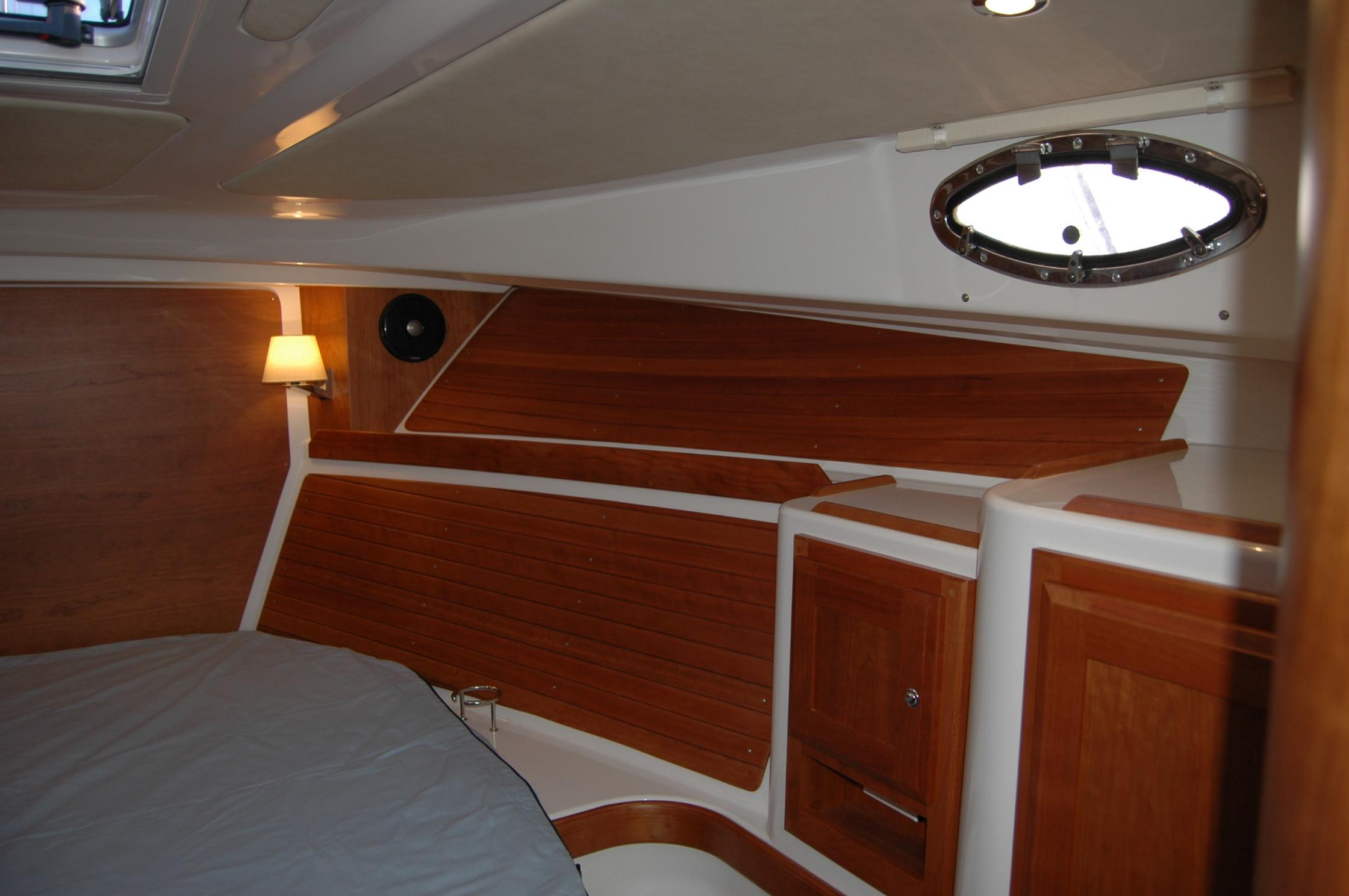

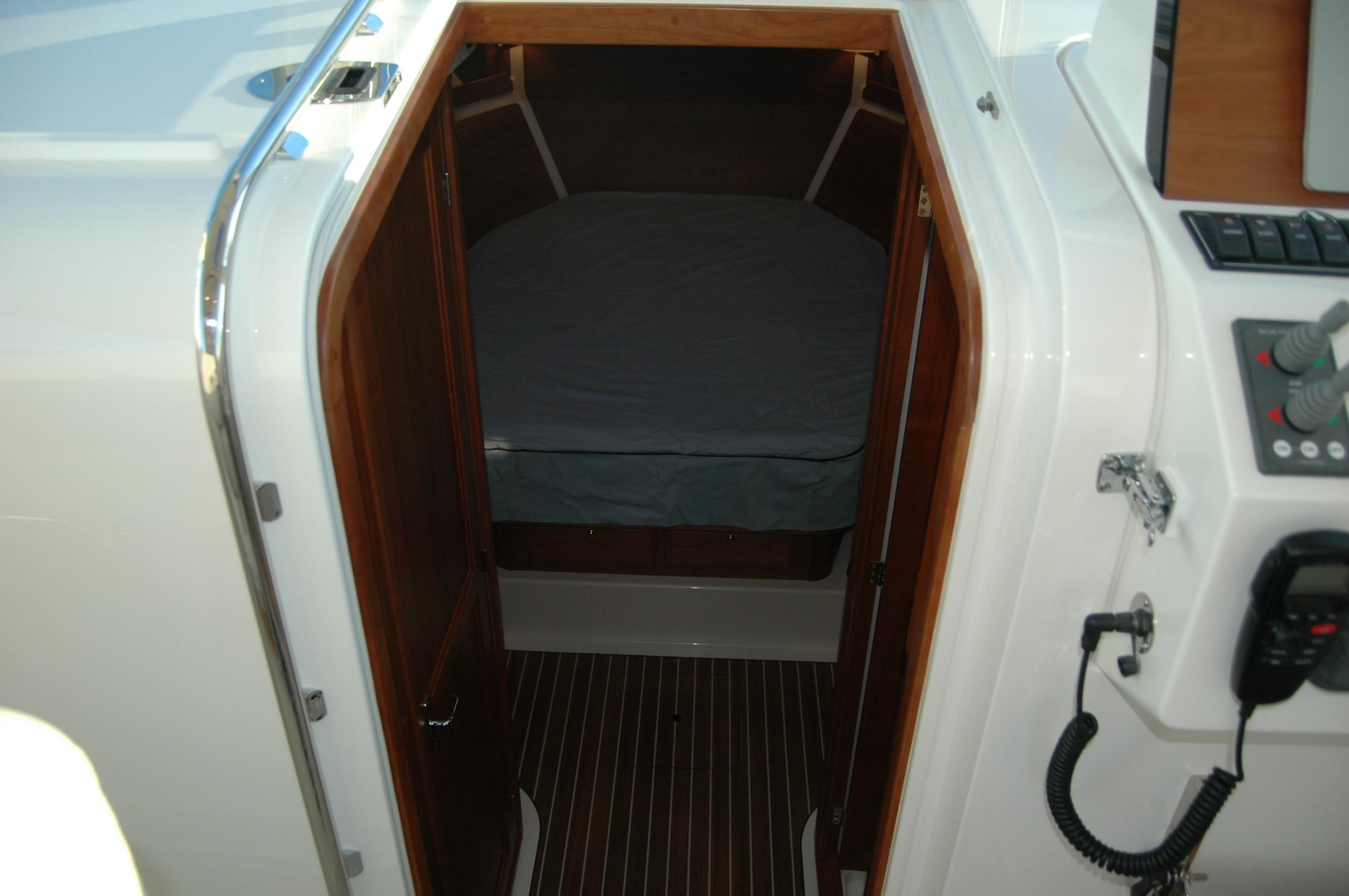

Cabin

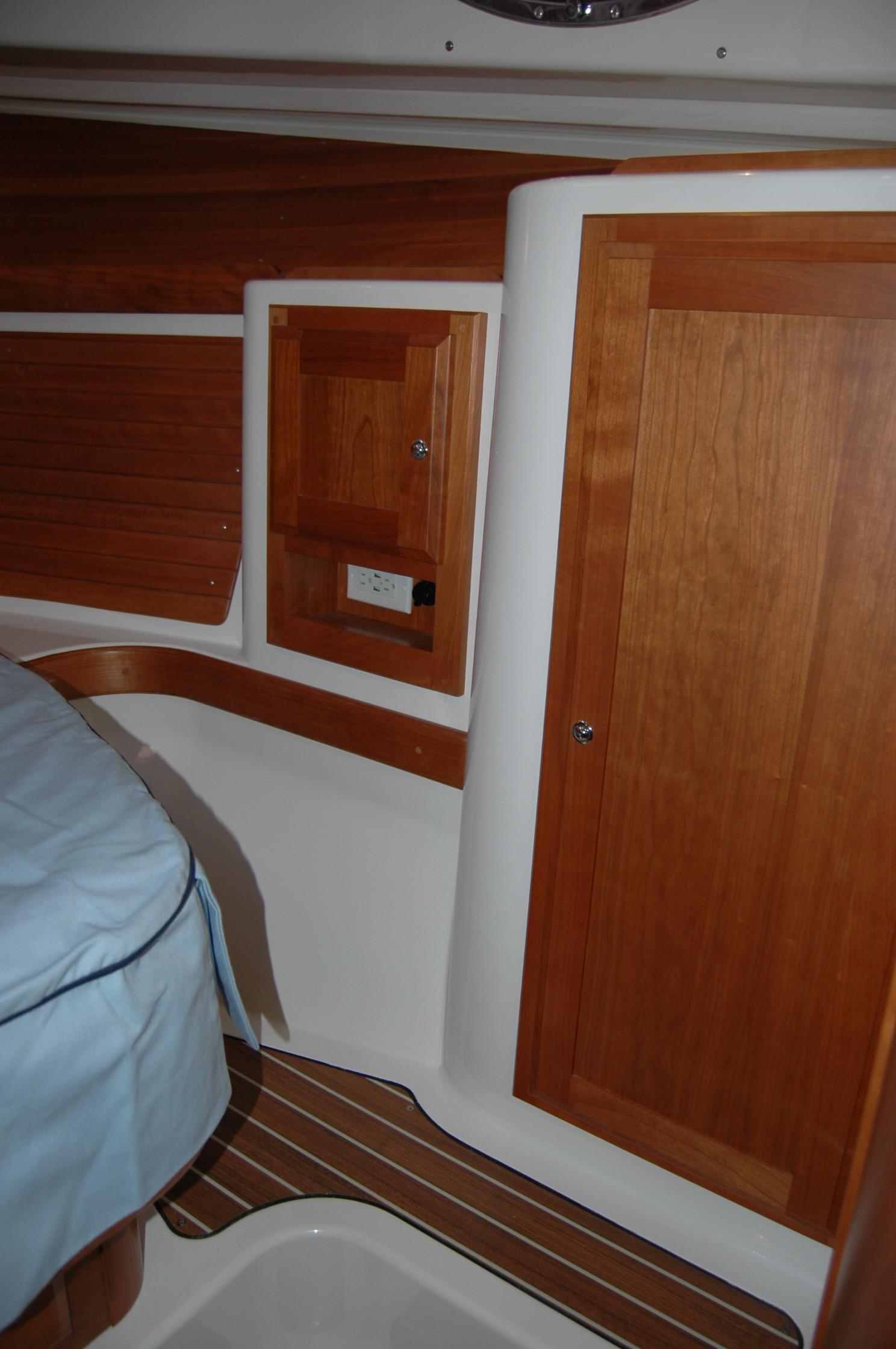

• Varnished Cherry interior on molded composite hull liner
• Lewmar hatch w/ screen
• (2) stainless steel opening portlights with screens

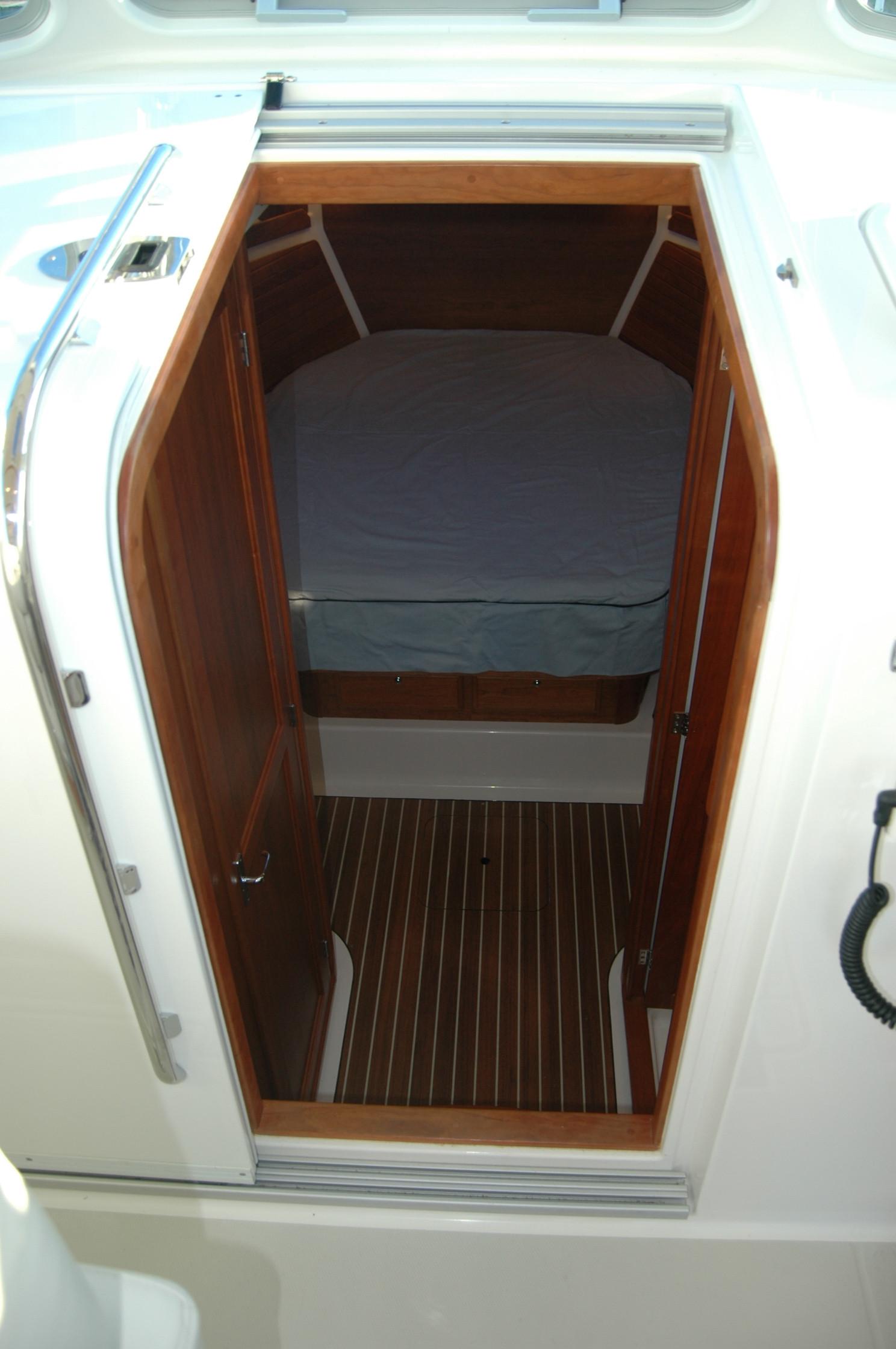

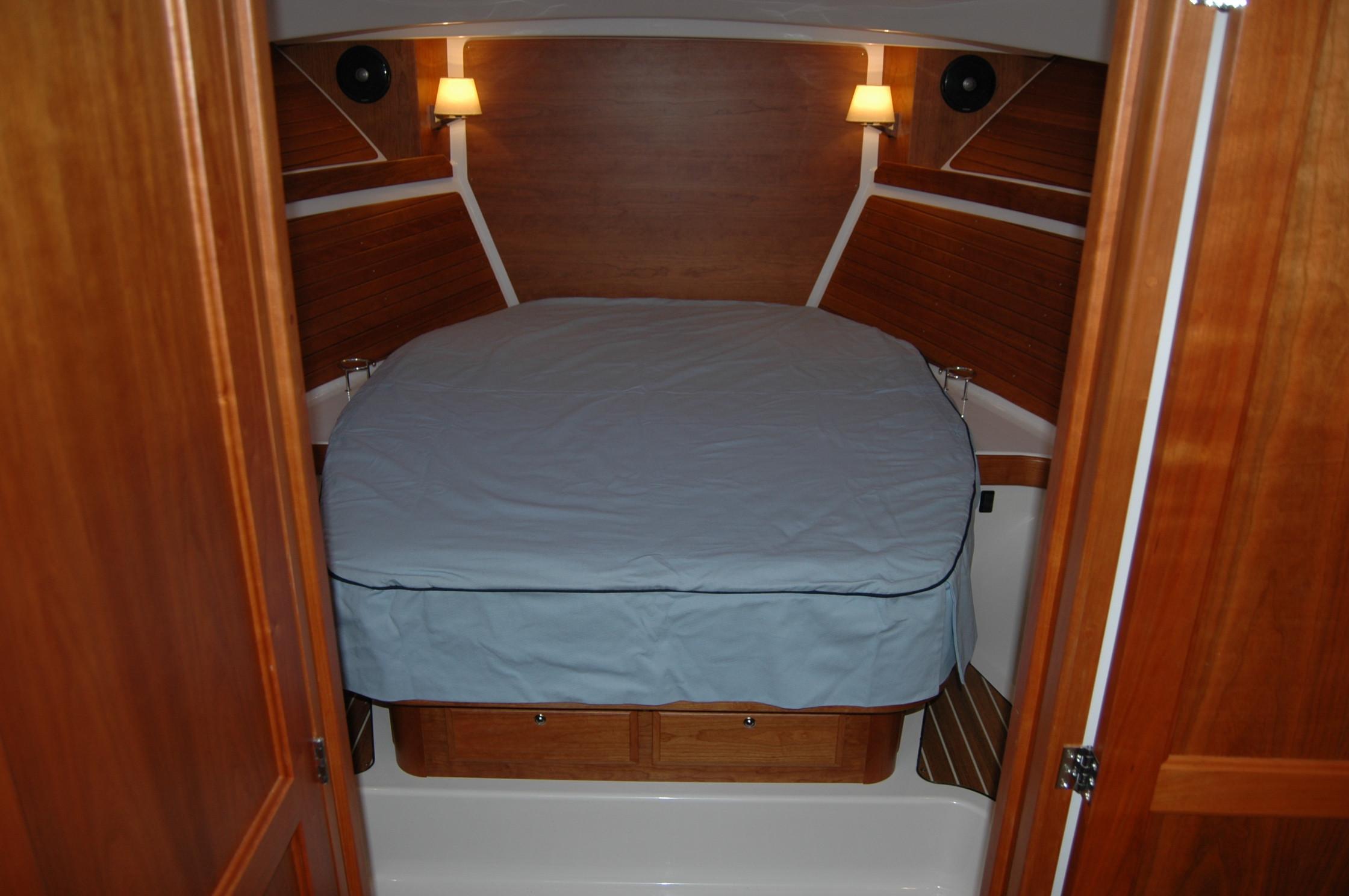

• Island double berth w/ drawers and storage below
• Shelves above berth
• Cedar lined hanging locker to starboard
• Drawer / Shelf locker to port
• Cherry hull ceilings

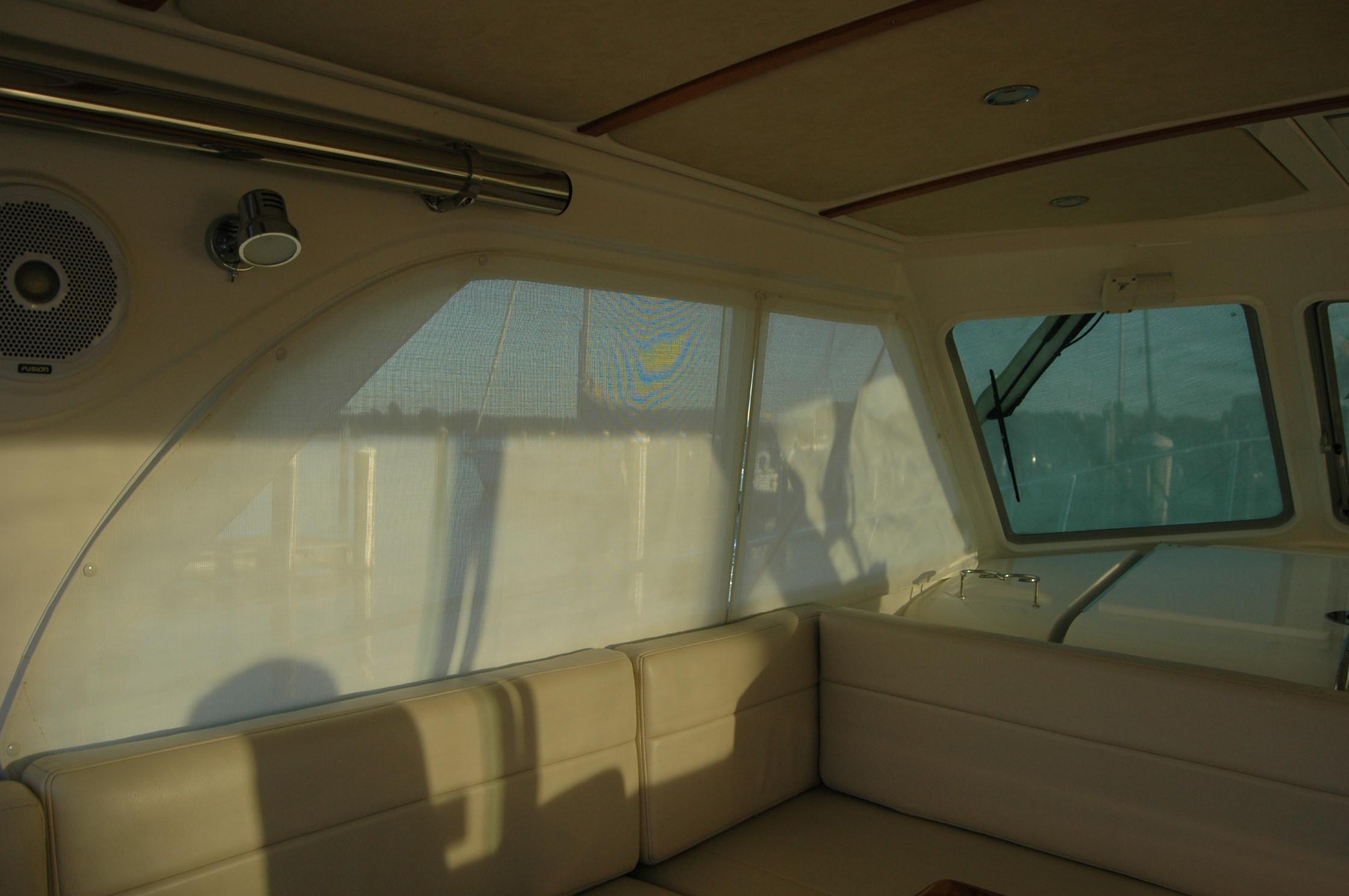

• L-settee converts to a second berth with curtain to enclose
• Storage above and below L-settee
• Sirius - XM ready Fusion stereo system
