(2) Stidd helm seats with Ultraleather fabric in Promessa Barley, mounted on a high-gloss cherry cabinet; Stidd seats only slide fore and aft (no height adjustment or swivel). Set in position 2" aft of the standard pedestal location. Underside of Stidd seat frame 28" above sole. Stidd seat foot rests are installed on the fwd face of cherry cabinet.
Icemaker installed in cabinet under Stidd seats
Custom cherry dropbox built into port side of helm pod, above the standard drop box
(2) additional stainless handrails installed on vertical surface of the helm pod and covered with Ultraleather Promessa Bronze;
Navigational Electronics
(2) Raymarine Glass Bridge Displays (15")

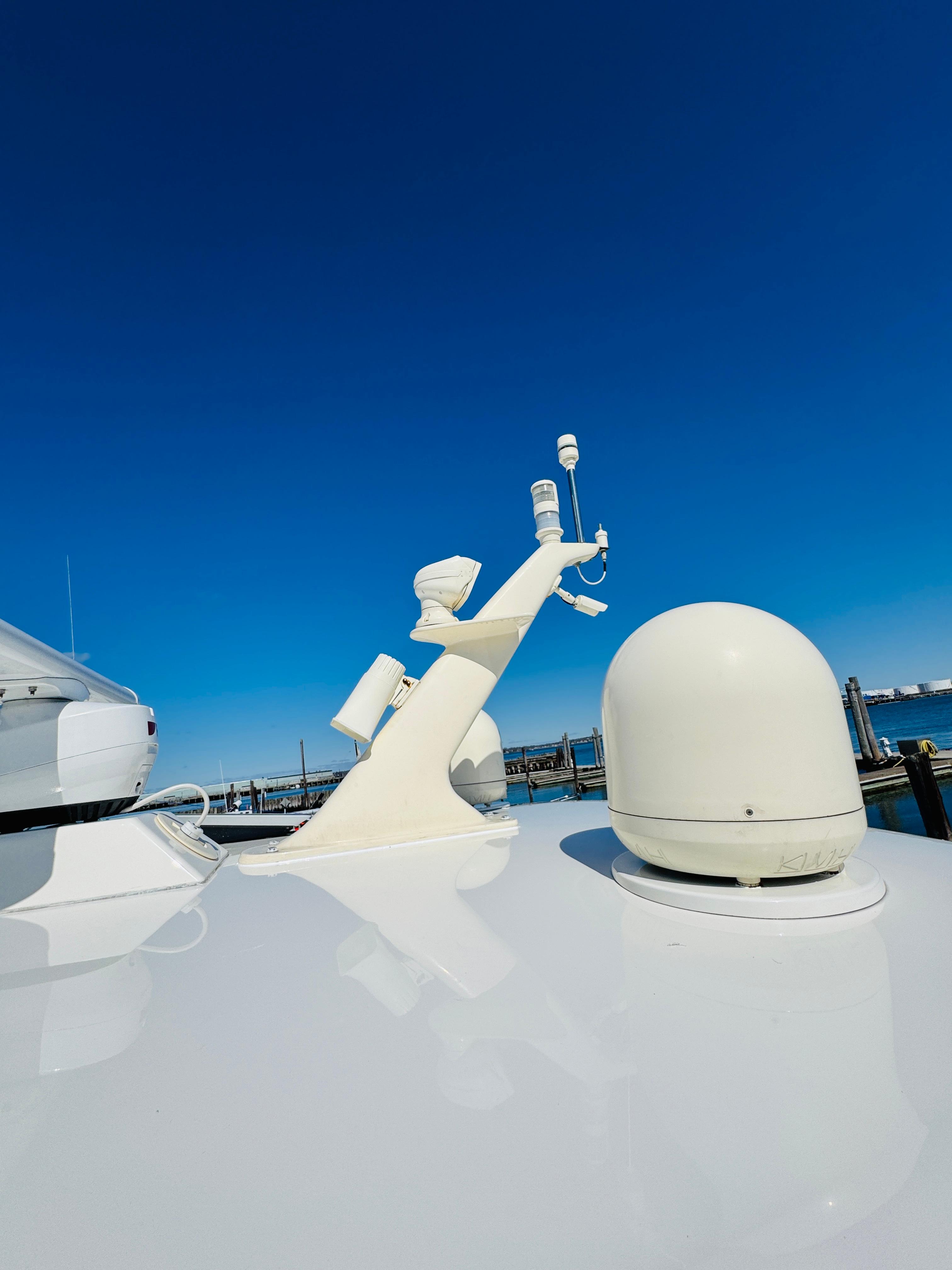

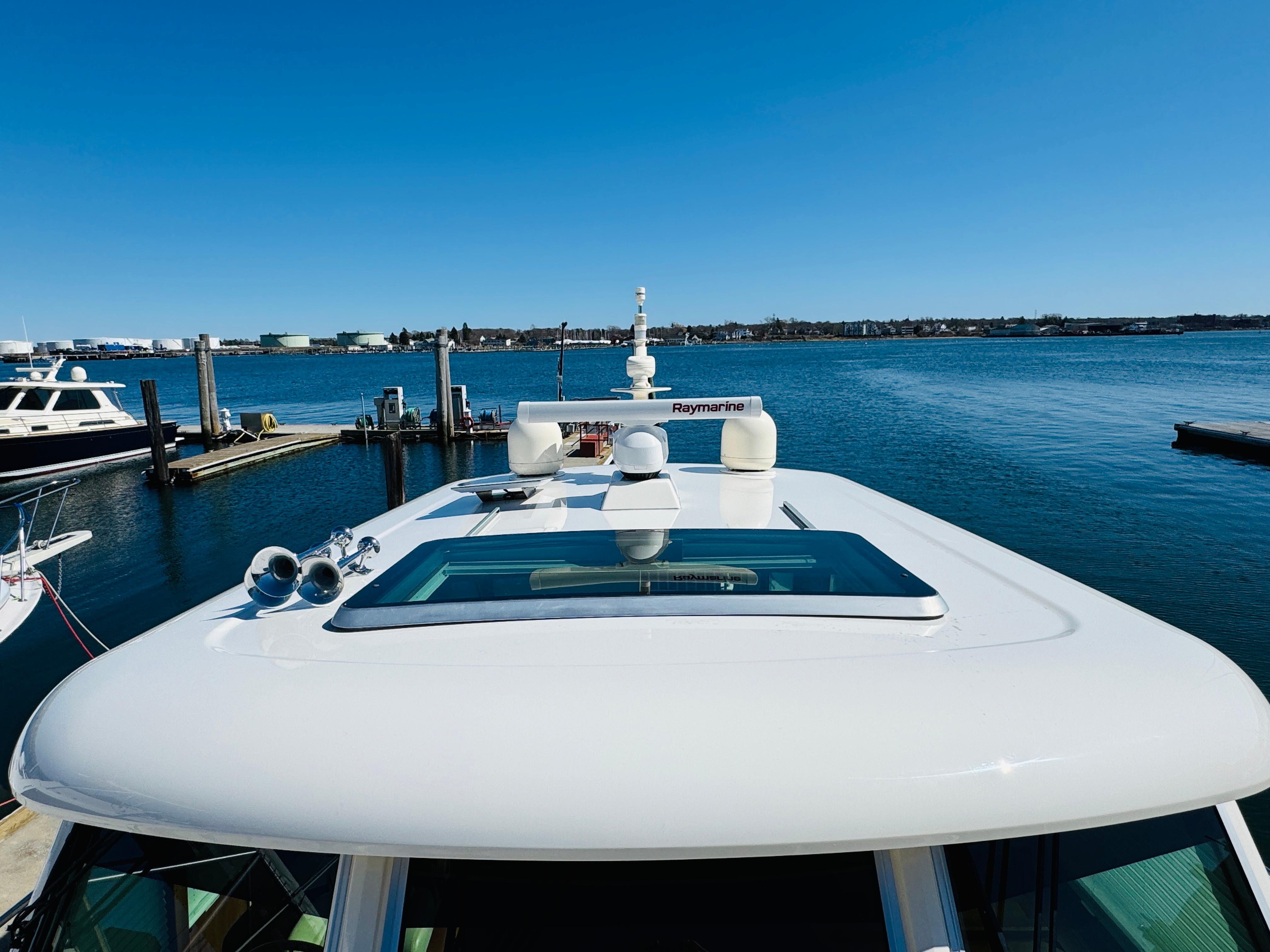

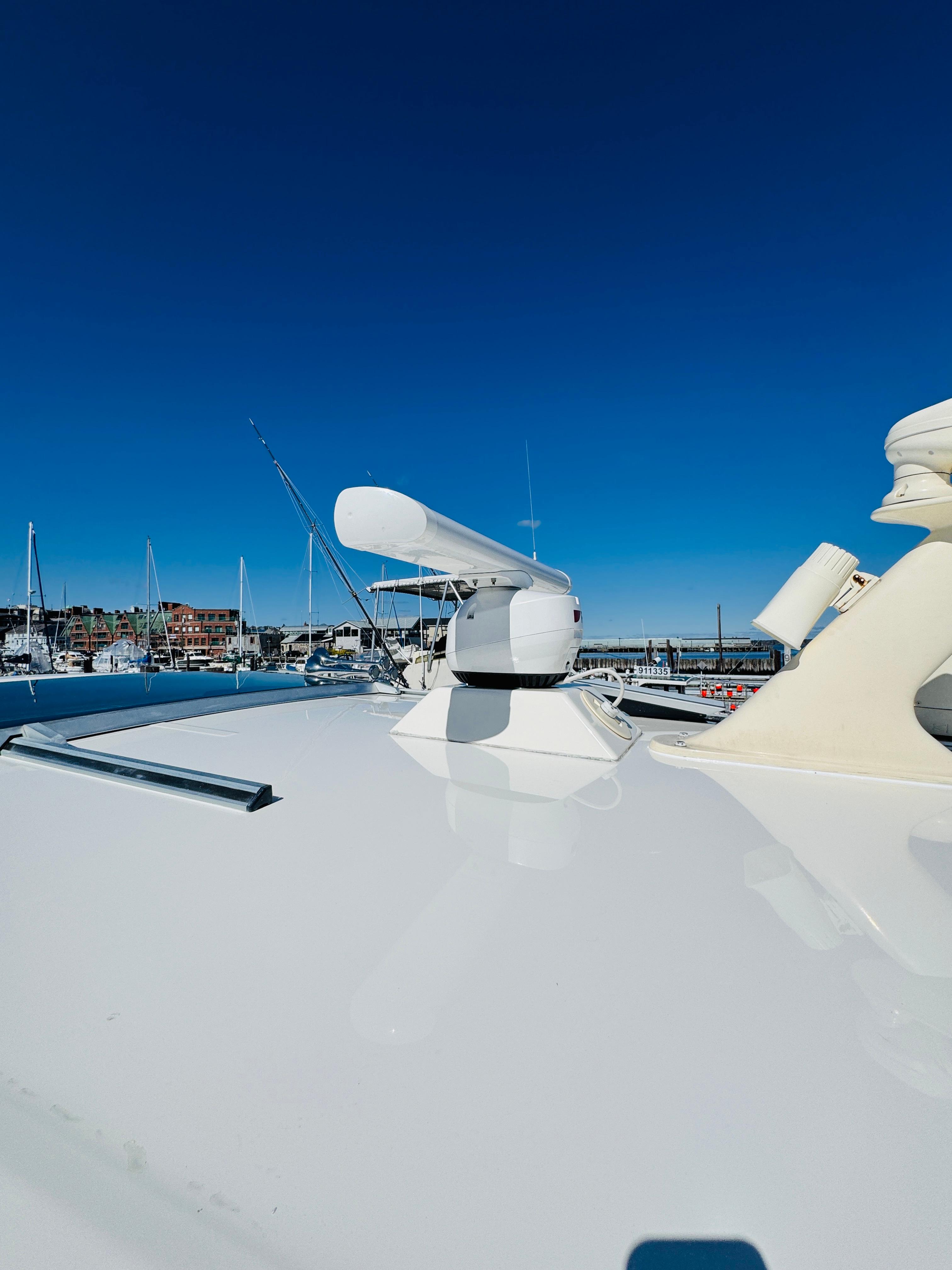

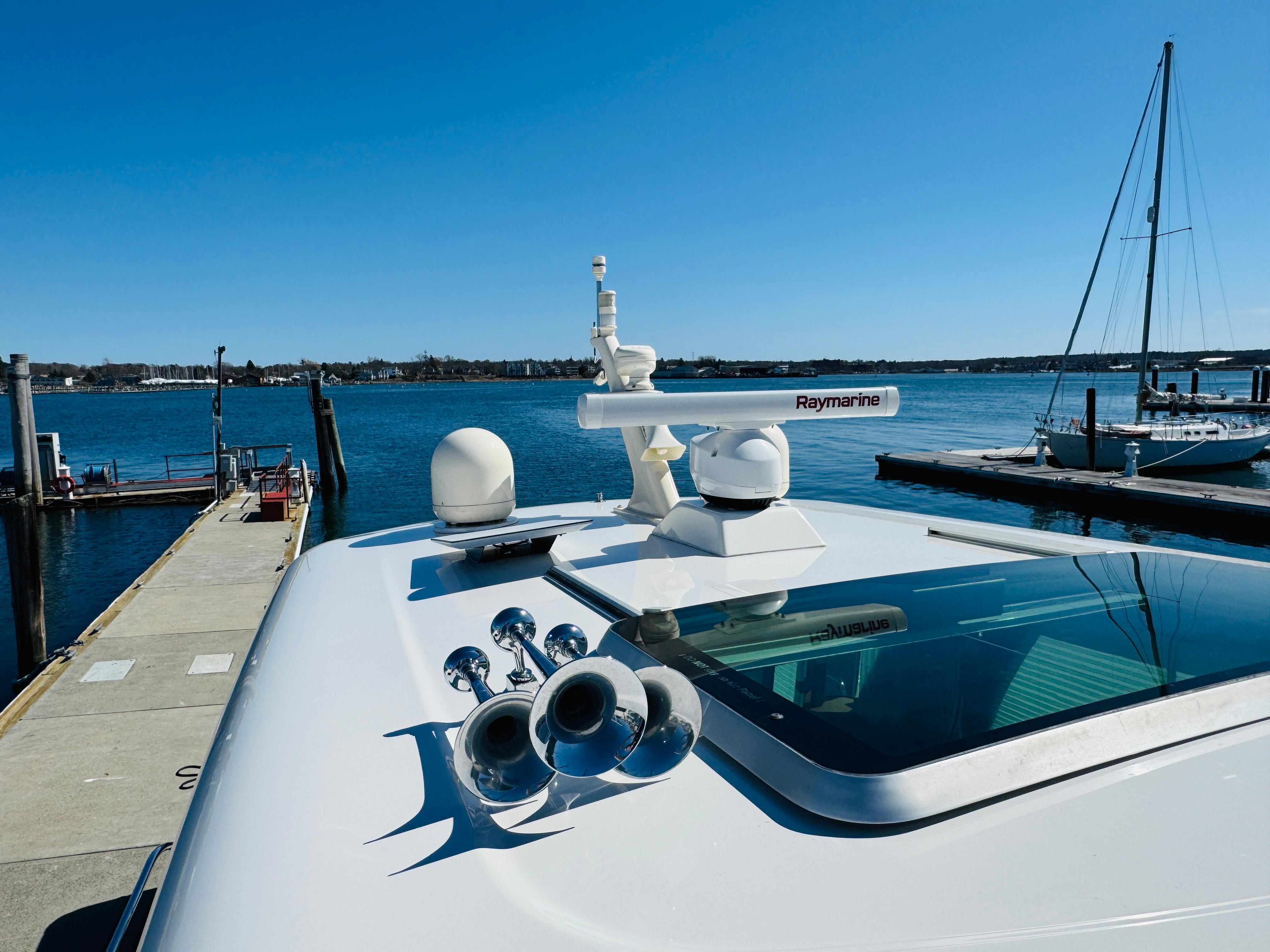

Raymarine Super HD 4kW Open Array Radar with RayNet
Raymarine SR150 SiriusXM Weather Receiver
Shakespeare SRA 40 Sirius Satellite Radio Antenna
Raymarine RAY218 VHF Radio
Raymarine Raystar 130 GPS Antenna
AIS 650
Raymarine i70 4" Instrument
Gem/Airmar NMEA2000 Solid State Compass
12V ACR RCL 75 Remote Control Spotlight

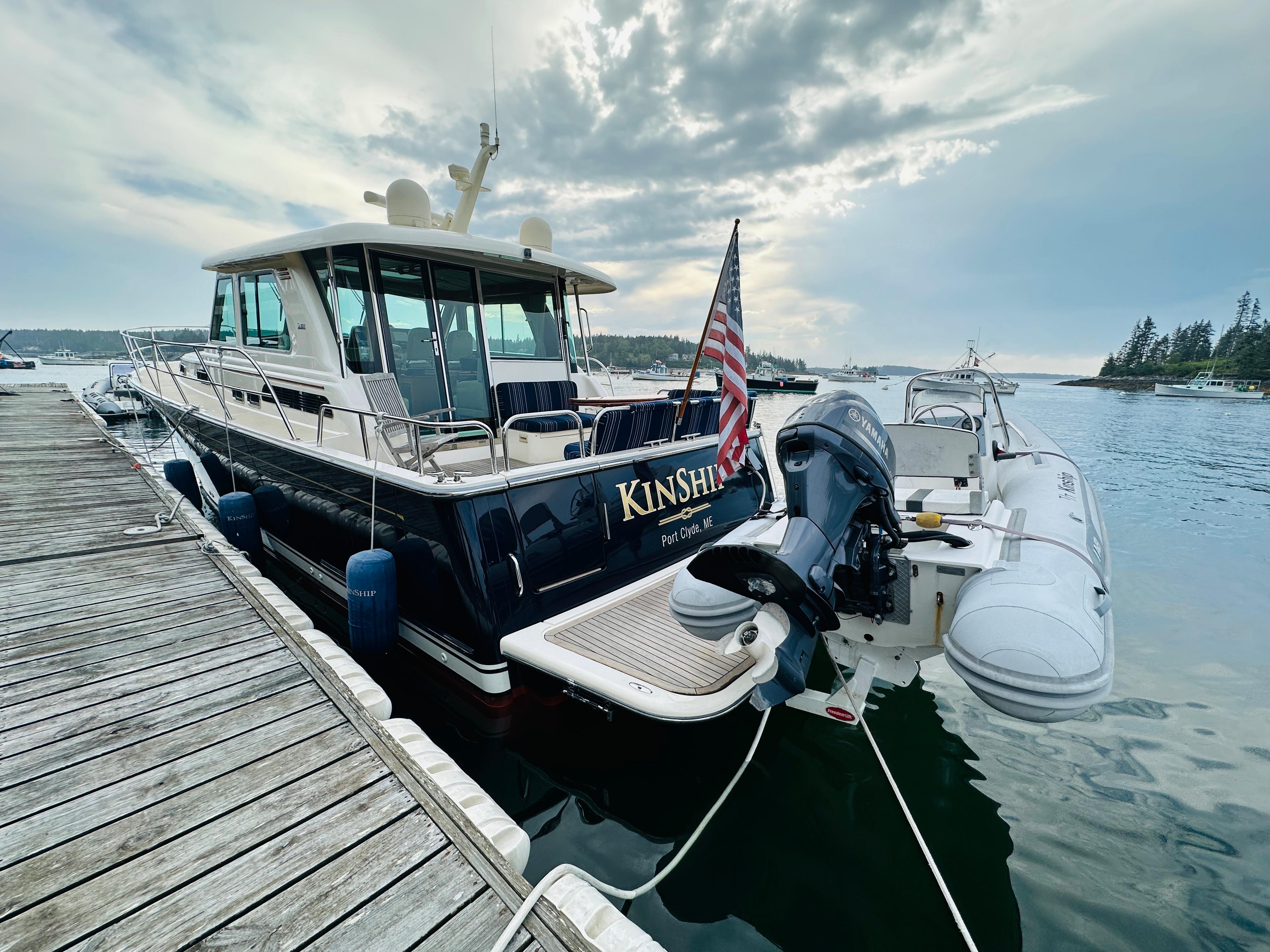

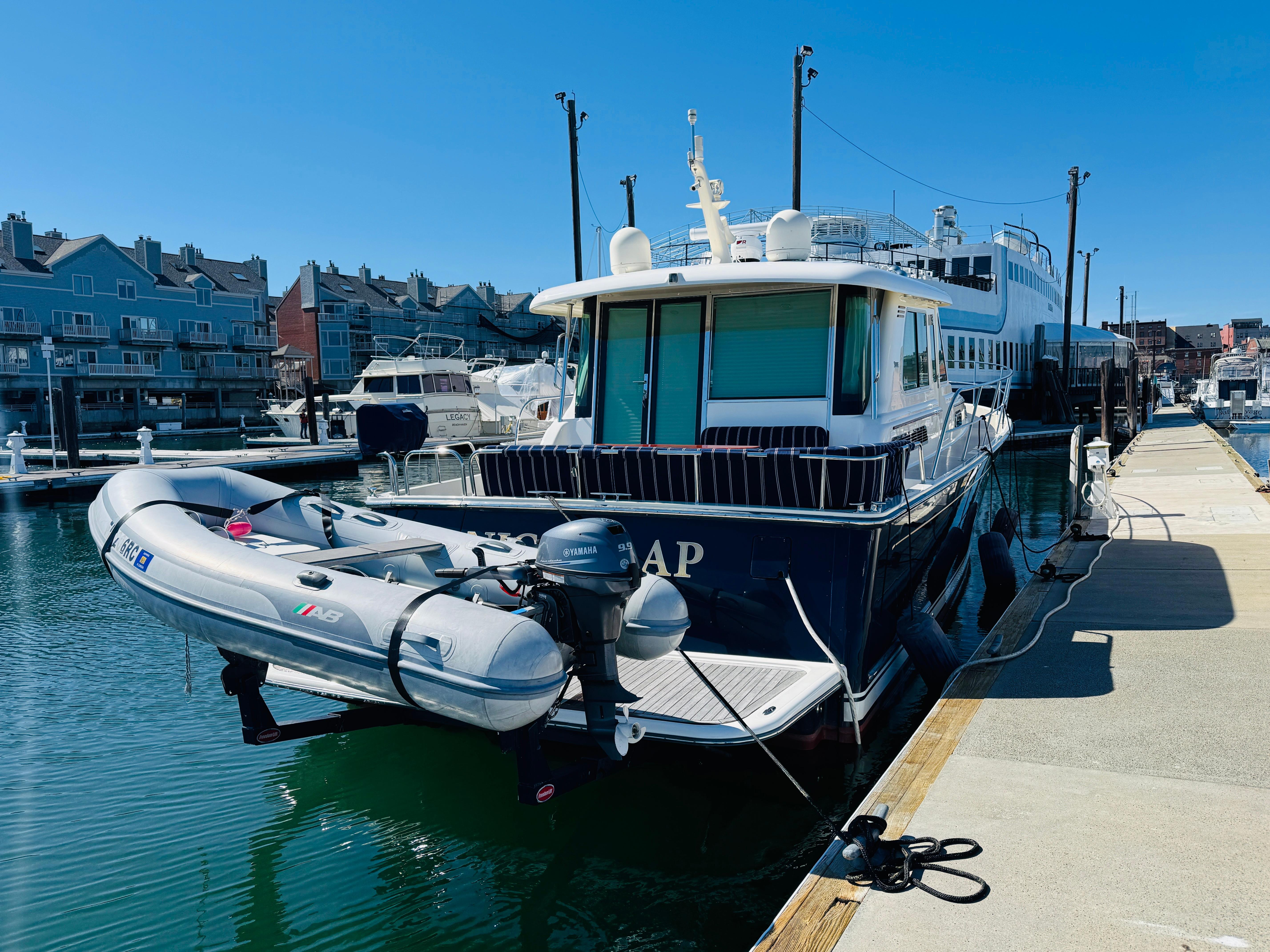

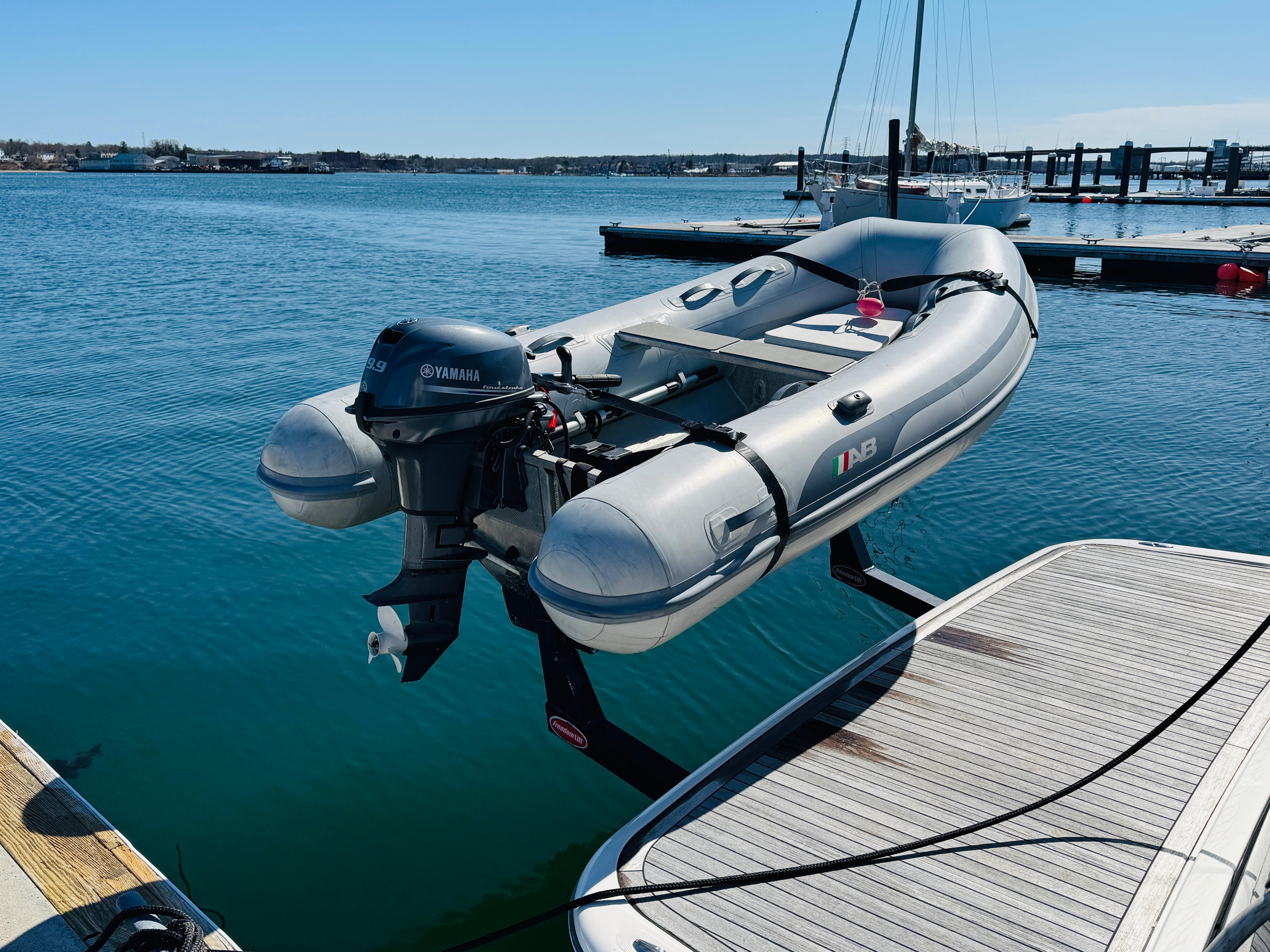

Dinghy
2014 AB 11 VST
Yamaha F40
Freedom Lift tender lift
Galley
Solid surface galley countertop in Corian Sandalwood;
Custom cherry doors on glass cabinet aft of galley sink;
(2) additional stern cleats on coaming cap behind cockpit seat backrest, one on each side of the center rail stanchion with chafe guards
Propulsion
Twin Cummins QSC 8.3L 550 hp electronic, freshwater-cooled engines
Twin CMD Zeus 3800 pod drives, with integrated steering and trim
120A, 12V alternators each engine
(2) Exhaust by-passmufflers
Engine roomblower
Engine room ventducts
Engine room floor with FRPanti-skid
White gelcoated engineroom
Mylar face foam noisebarrier
Steering & Trim Systems
CMD helm, with joystick
Trim tabs integrated in CMD Zeus pod drives
Autopilot integrated in CMD Zeus system
“Skyhook” GPS position hold system with dedicated GPS receiver
Fuel System
(2) 260 USG diesel fuel tanks port and starboard
Racor fuel filters with water in fuel probes
(2) 2” “Diesel” deck fill plates
Electrical System
12VDC ELECTRICAL SYSTEM
Two AGM Group 31 dedicated engine start batteries
Three AGM 4D deep cycle ship's service batteries
One AGM Group 24 generator start battery
Remote control battery switches with controls athelm
Manual emergency battery crossover switch
Illuminated main circuit breaker distribution
Digital battery monitor
Marine-grade, tinned wire throughout
120VAC ELECTRICAL SYSTEM
Onan 13.5 KW generator - Onan E series display Dedicated start battery, Water drop muffler, Cooling water intake strainer, Sound shield, Transfer switch
50A shore power service with Glendinning Cablemaster & 50 ft. cord
Fail safe galvanic isolator
Illuminated main circuit breaker distribution panel
Digital AC system monitor
120V GFCI protected outlets in each cabin and engine room
120VAC outlet installed outboard of the washer/dryer cabinet in crew quarters
12V USB charger centers installed at head of master berth, both sides
12V USB charger centers installed at head of fwd berth, both sides
12V USB charger centers installed in crew quarters
Separate dimmer switch for cockpit overhead lights
Mechanical
Reverso Oil Change System
Freedom Lift dinghy lift
Shore water inlet
Single Seagull water purifier on galley cold water plumbed to separate spigot
Single Seagull water purifier on icemaker
Salt water wash down system fore and aft
Fresh water wash down, forward
Galley air conditioning system reconfigured to forward salon and increased to 16K BTU; supply grille added to top of chart table and tee to galley and crew quarters; control panel is mounted in standard location in the galley;
Fresh Water System
Water capacity 160 gals
Stainless steel, 20 gal. water heater, operates on 110-VAC or engine heat
Temperature control valve on hot water supply
Hot and cold water pressure system
Fresh water spigot in engine room
Cockpit shower, hot and cold
Fresh water wash down in anchor locker
Waste Disposal
Polyethylene holding tank with 70 gallon capacity
Jabsco Quiet Flush fresh water MSD in guest head
Tecma Eco MSD in master head
Diaphragm waste pump on holding tank
Safety

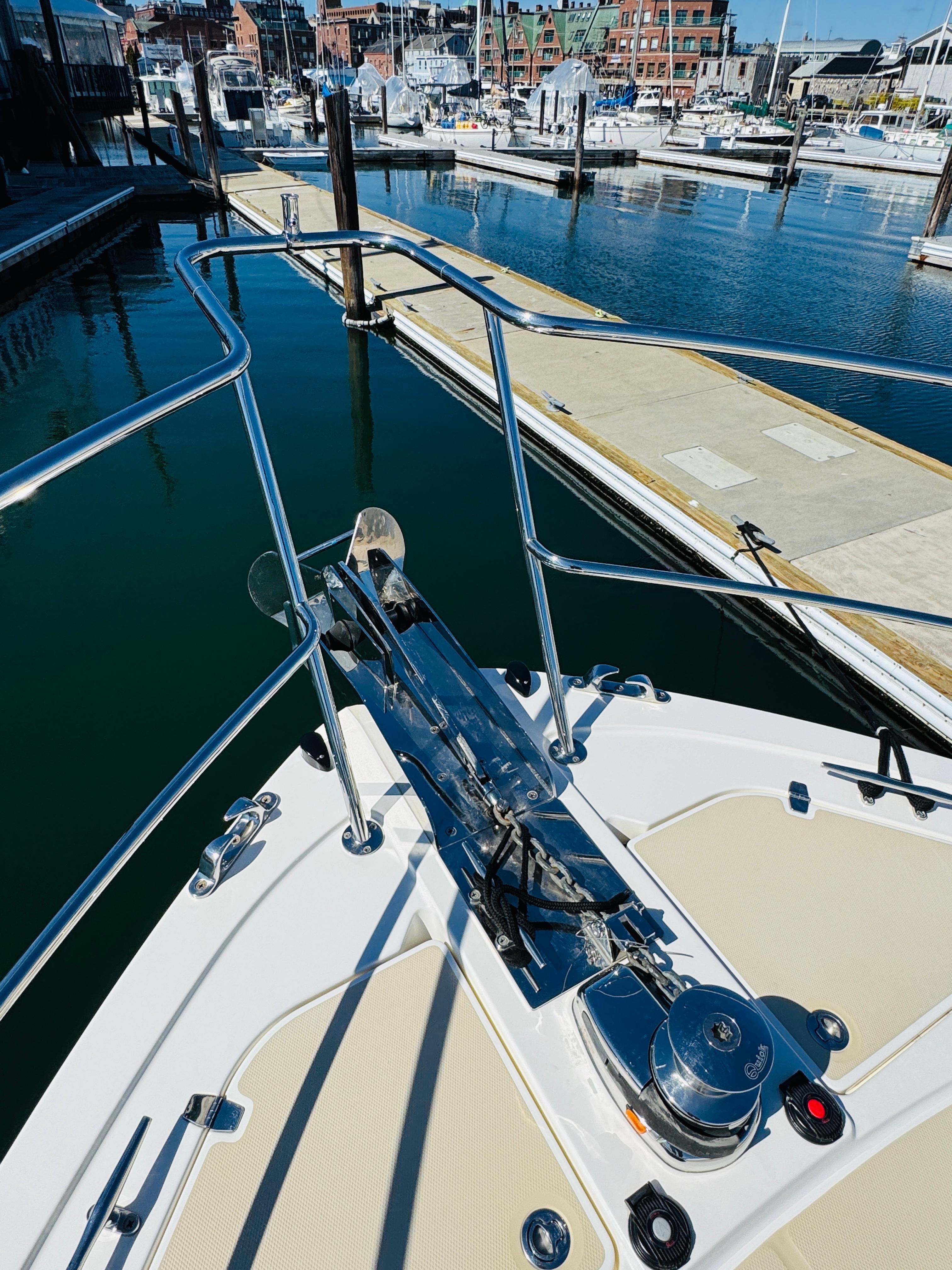

SS anchor with 250' 3/8" chain
Kahlenberg Dual Chrome Horns
Single Kahlenberg chrome trumpet horn with compressor
Fire extinguishers, (5) at 2 1/2lbs
Marelon sea valves on all thru-hull fittings below waterline.
Bonding system to safeguard against galvanic corrosion
Automatic fire extinguishing discharge system in engine space with override
(3) Automatic 12V electric bilge pumps
(3) high water switches and alarm
