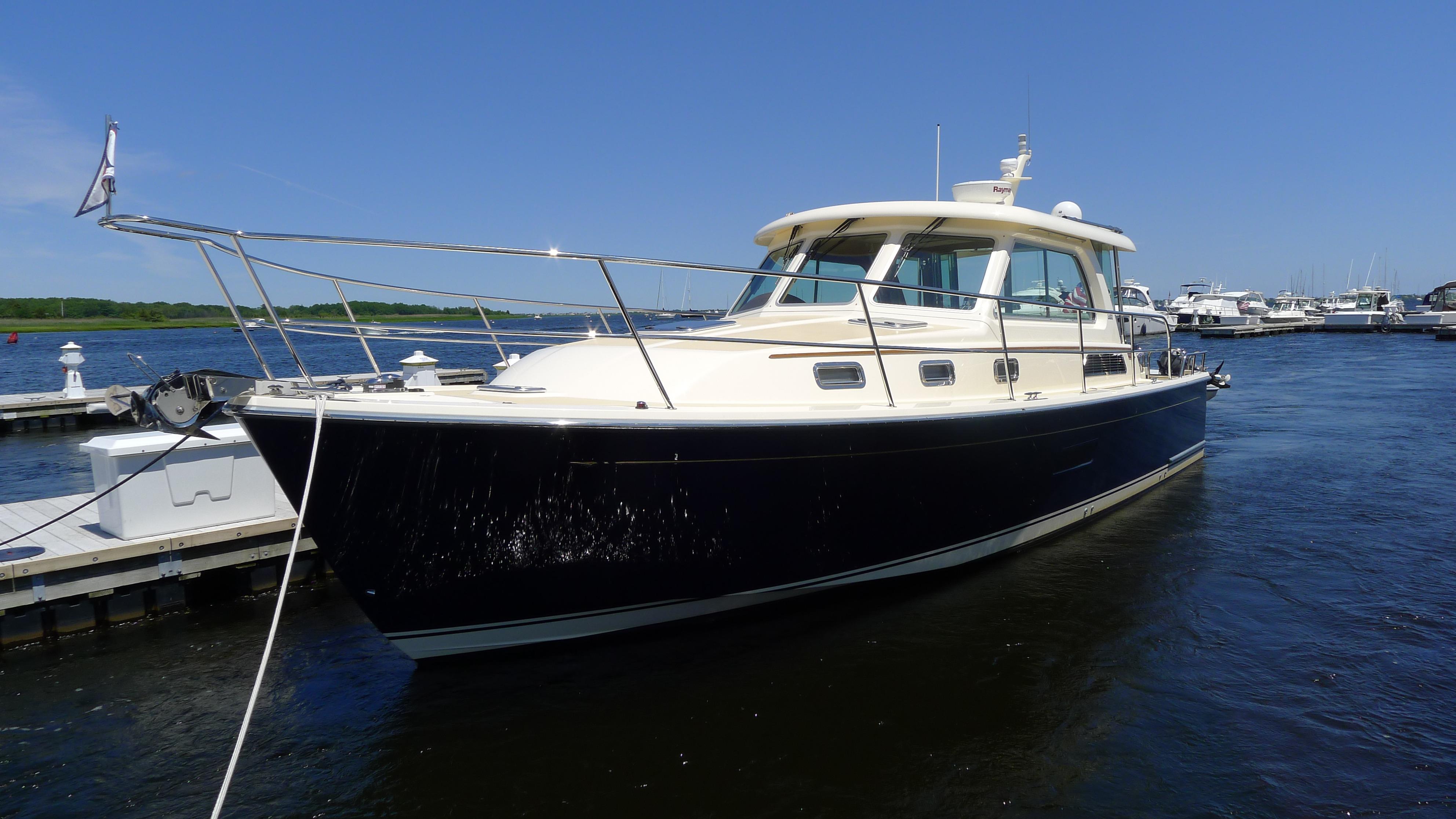

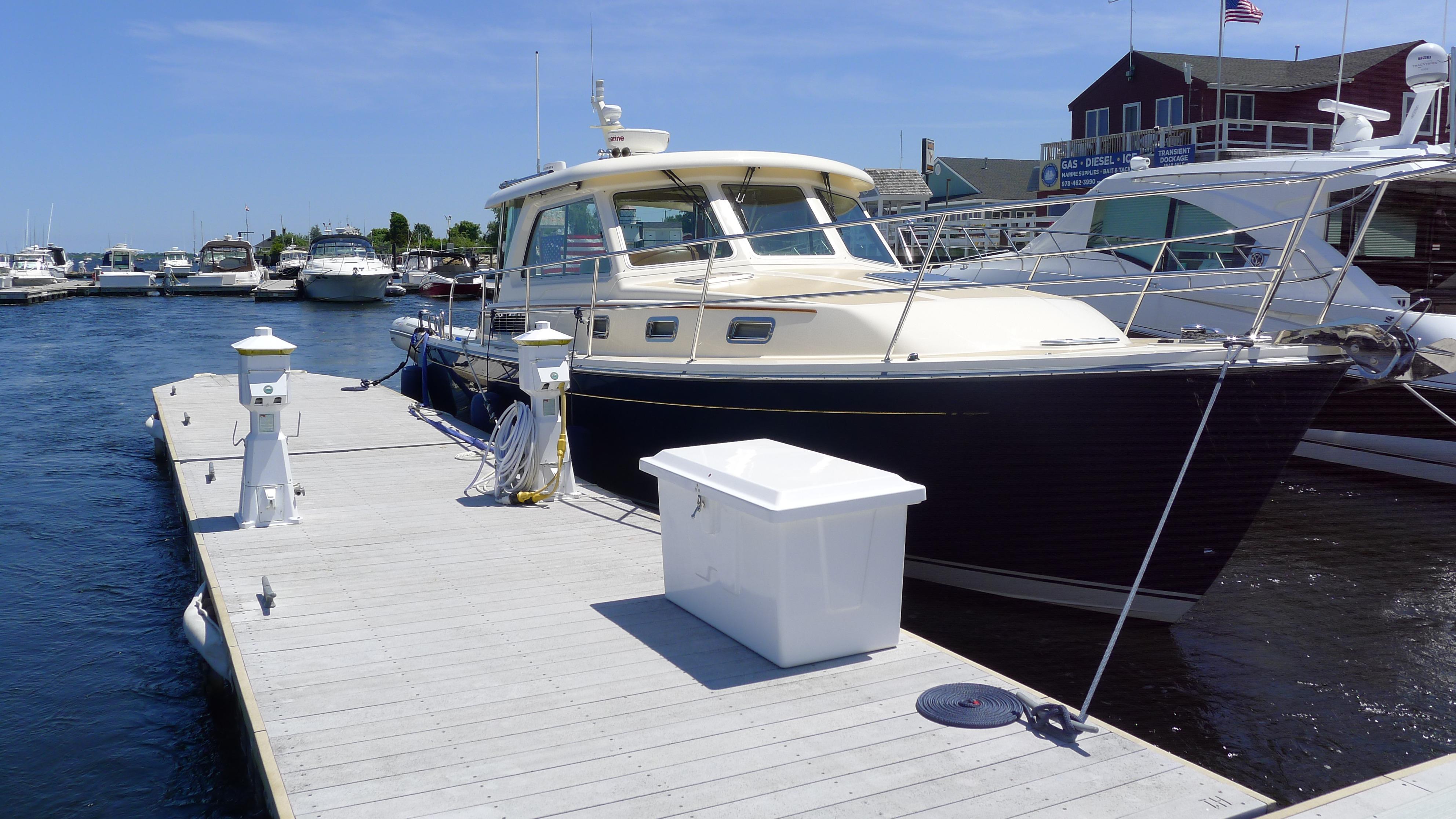

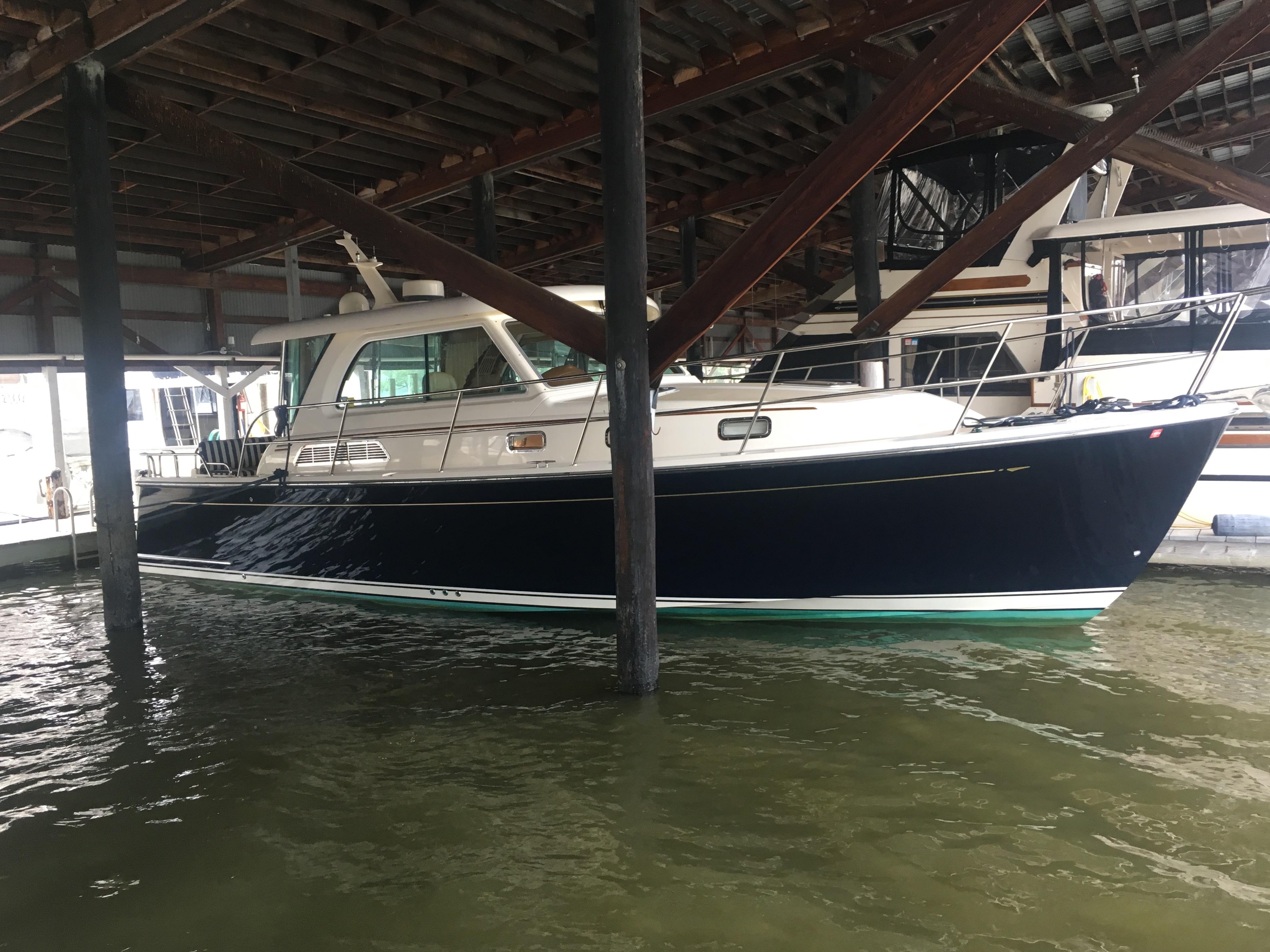

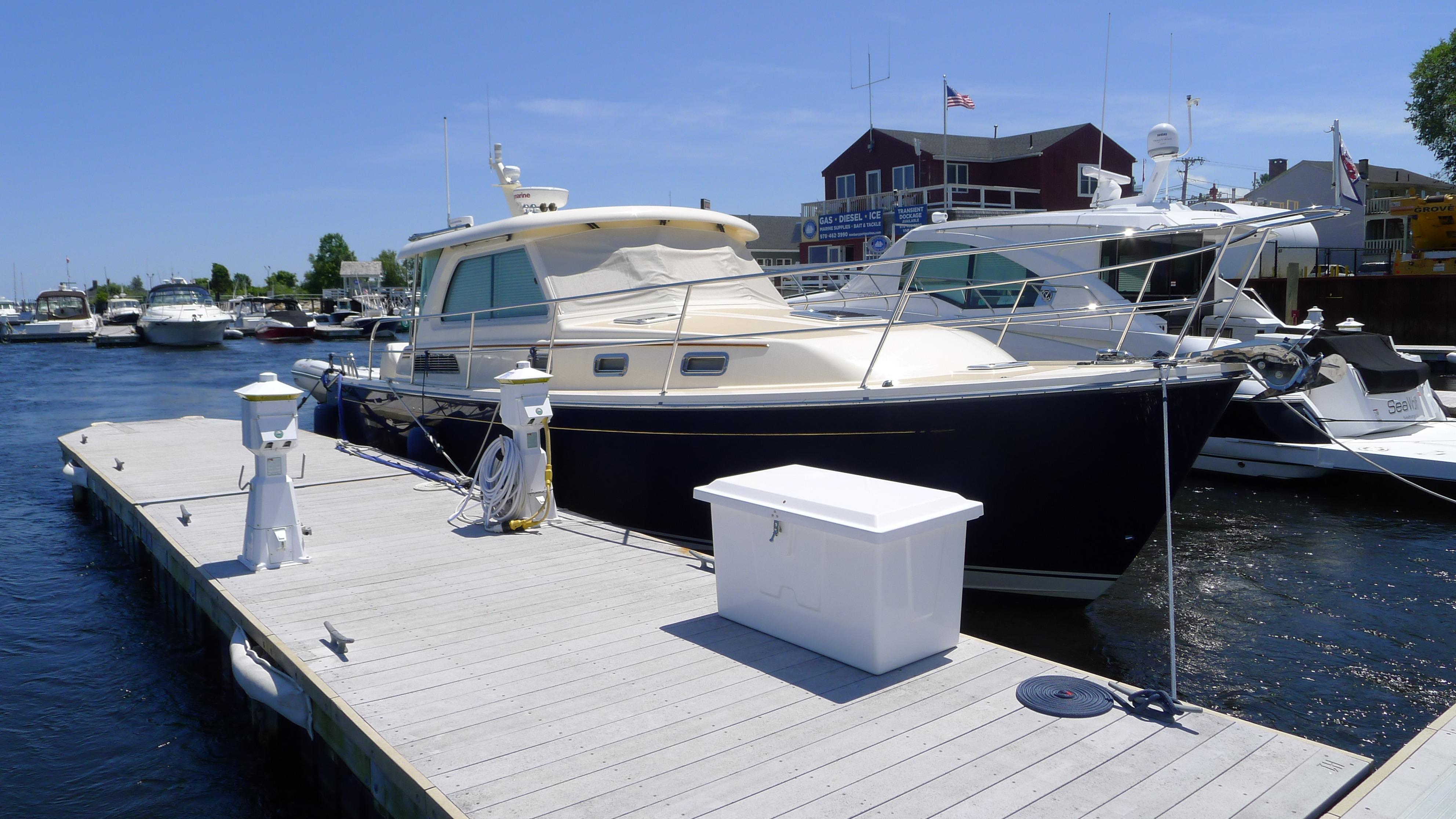

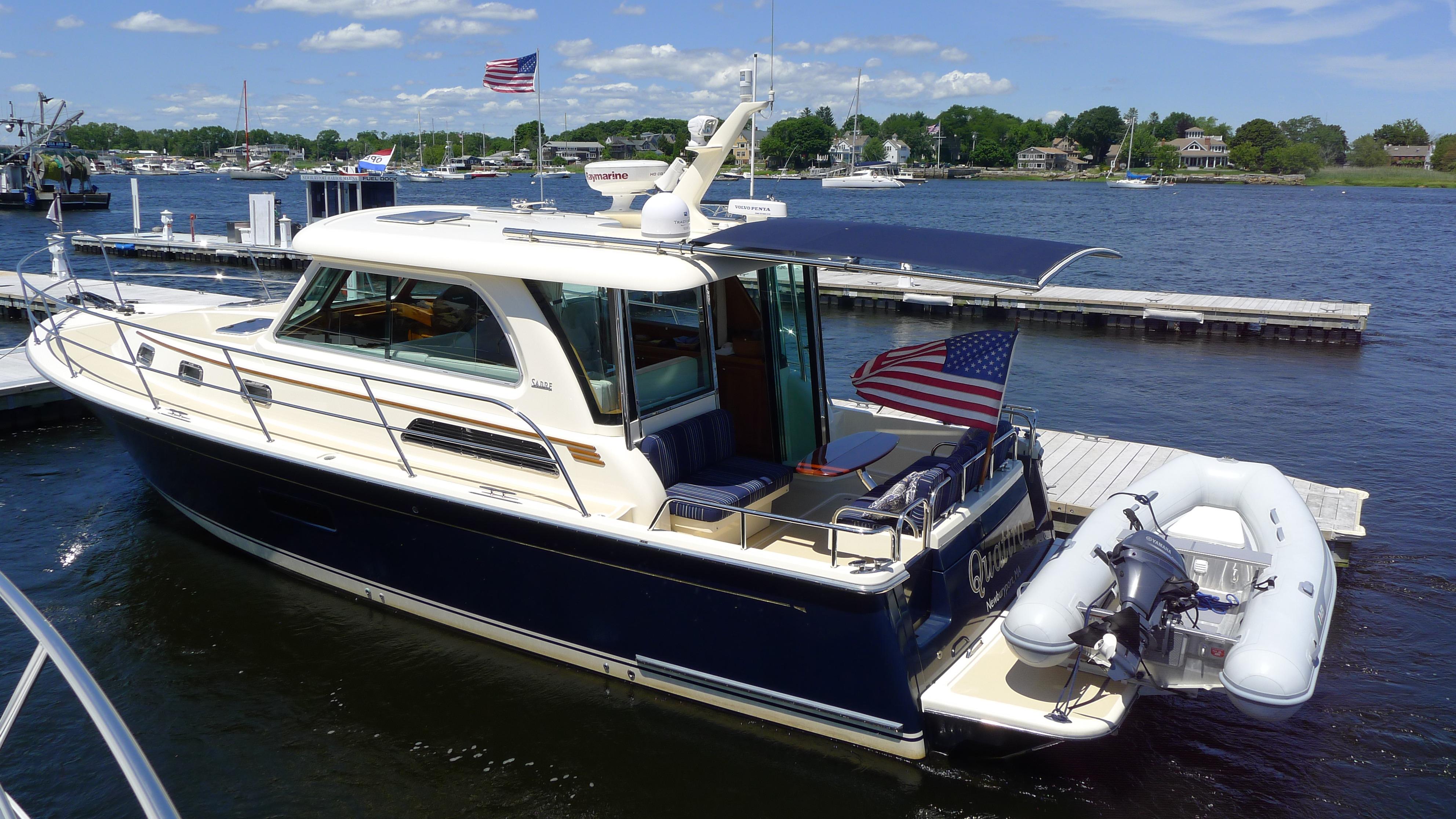

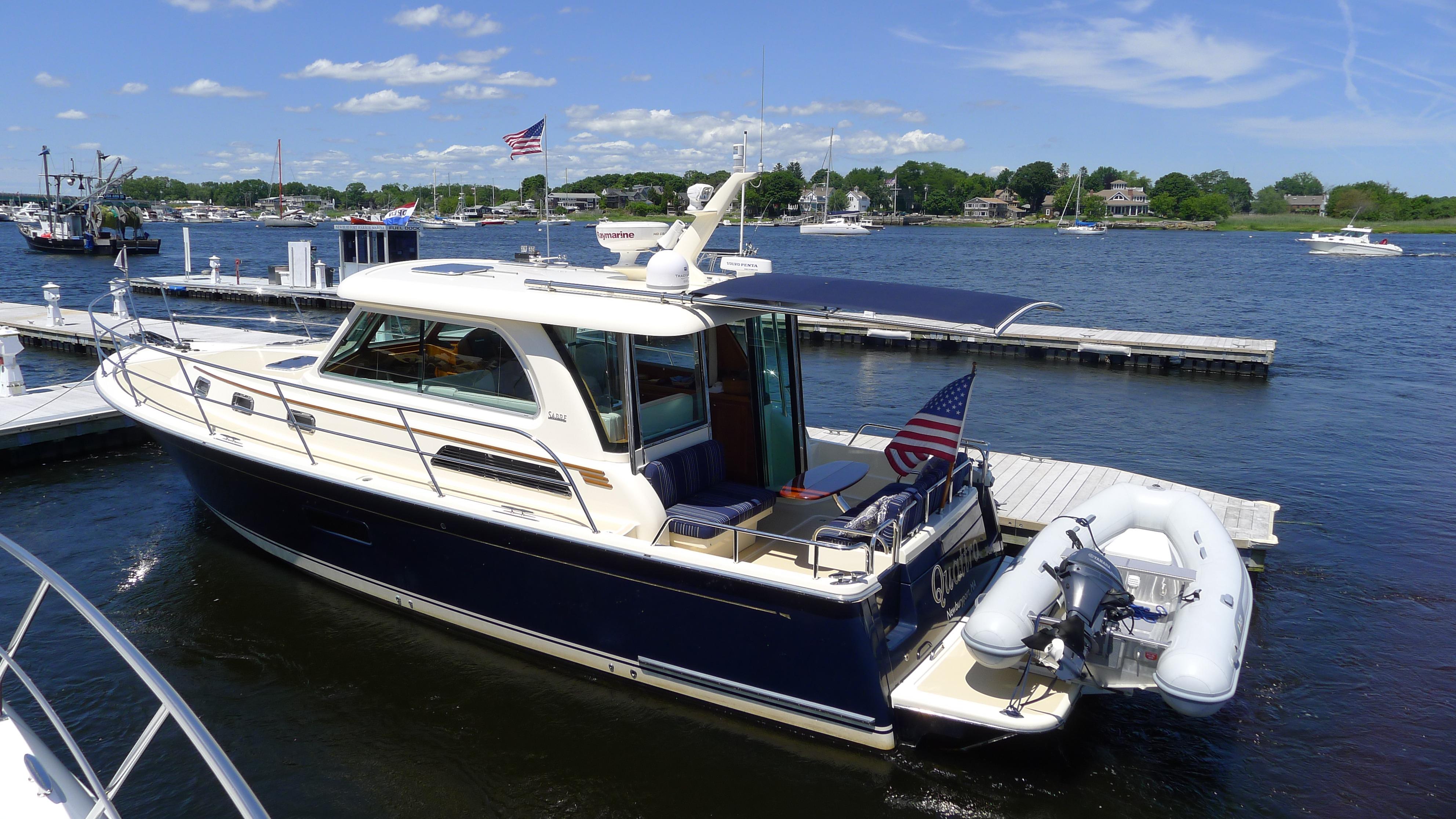

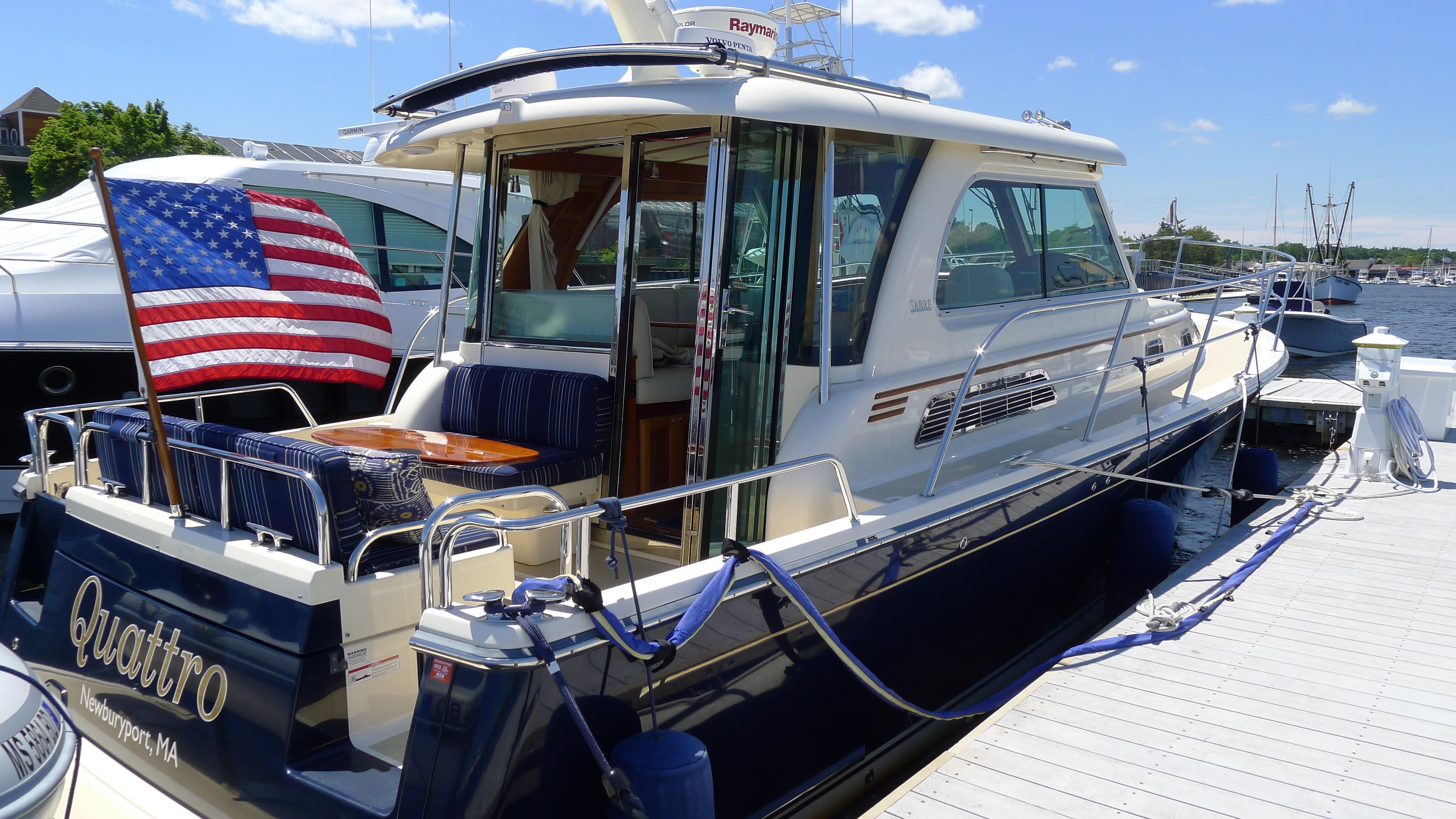

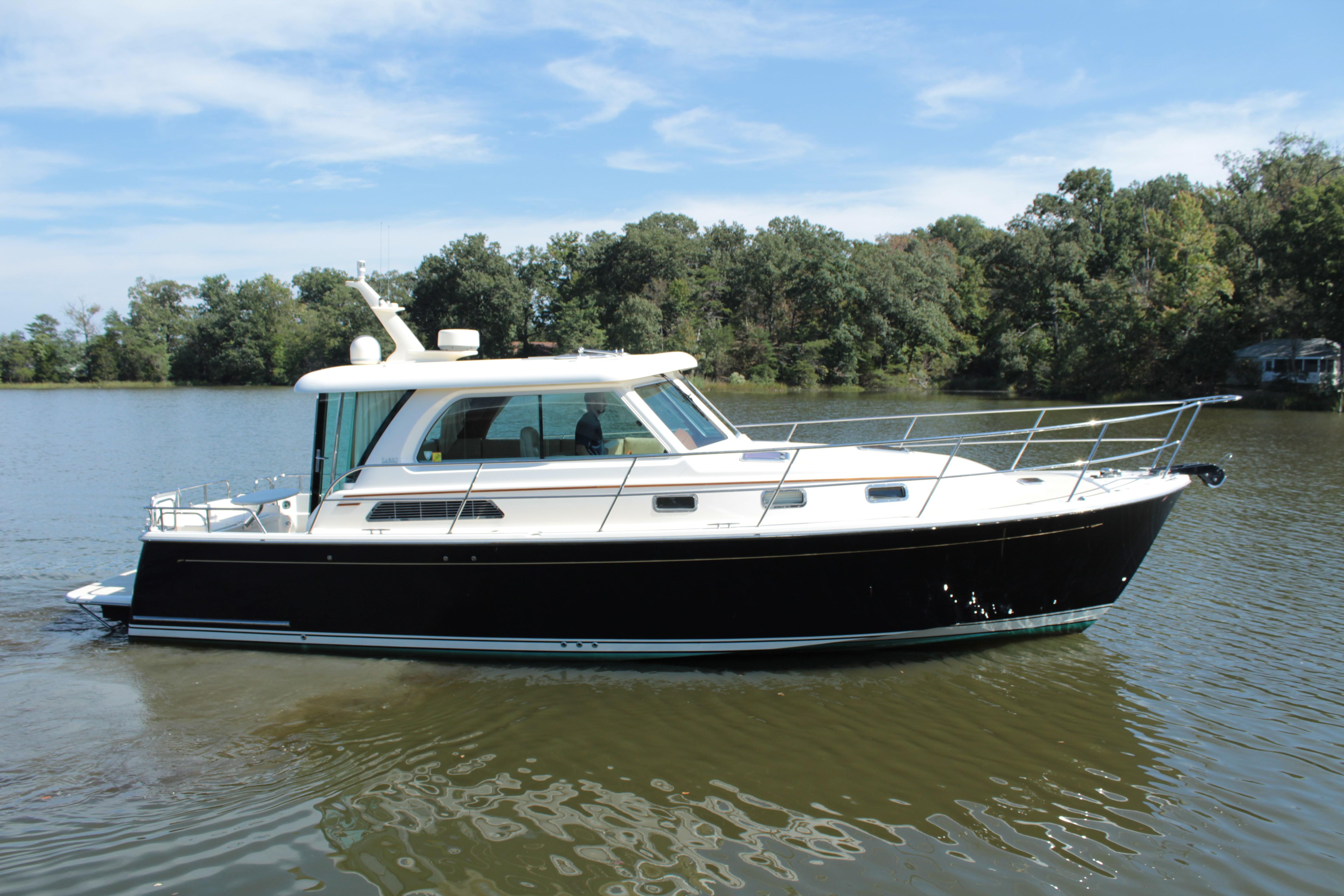

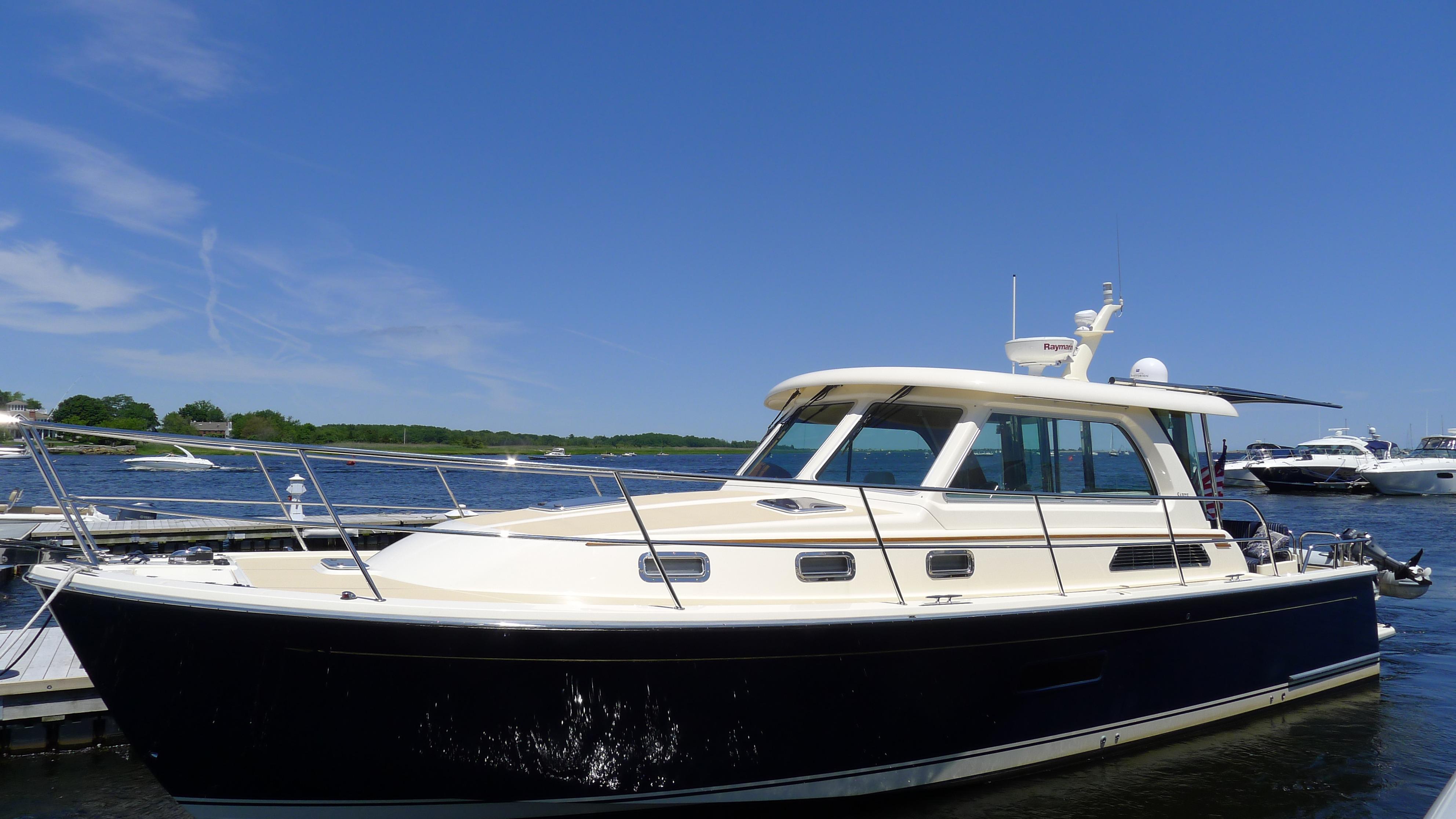

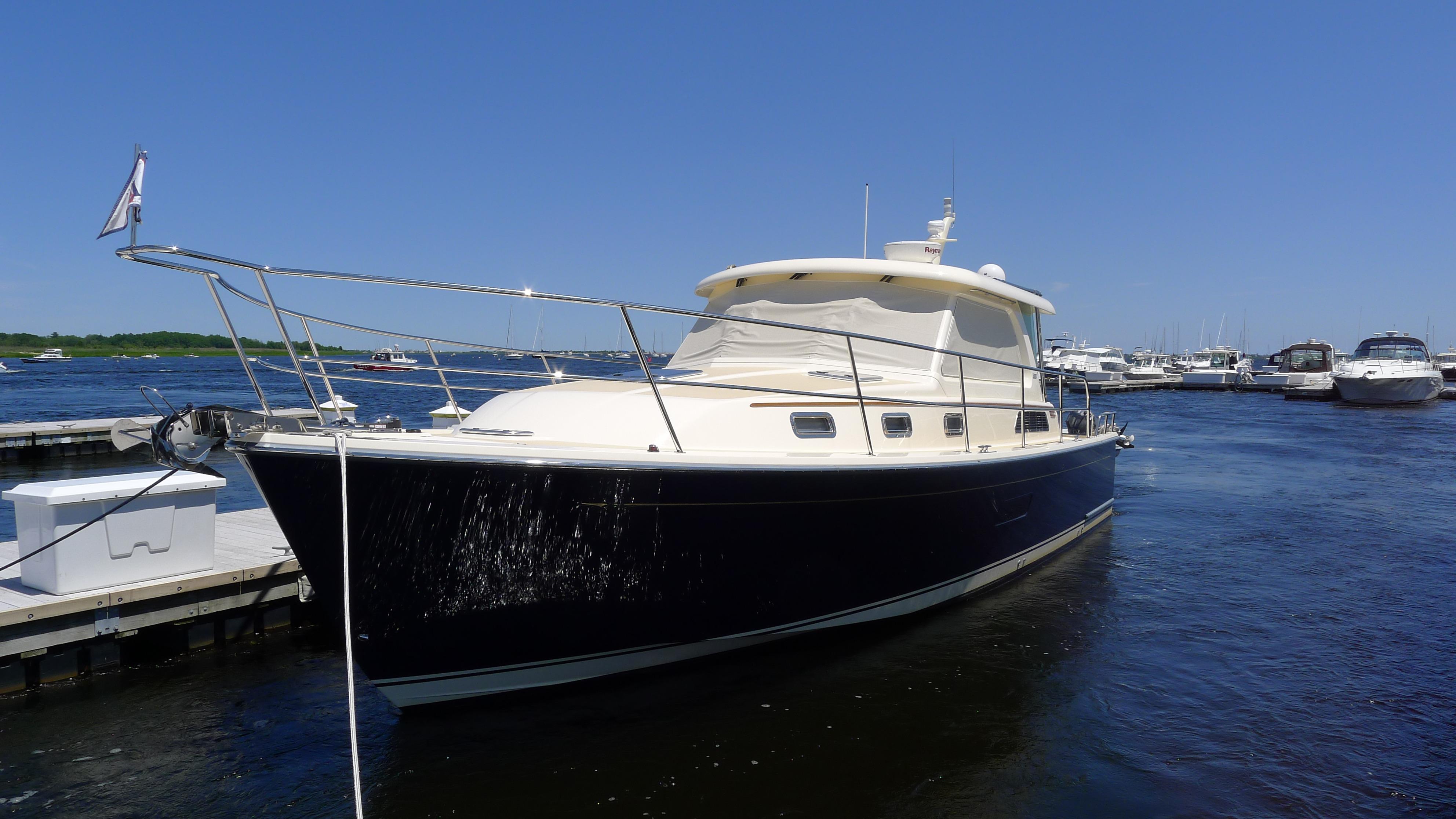

(SOLD) 2014 Sabre 38 Salon Express

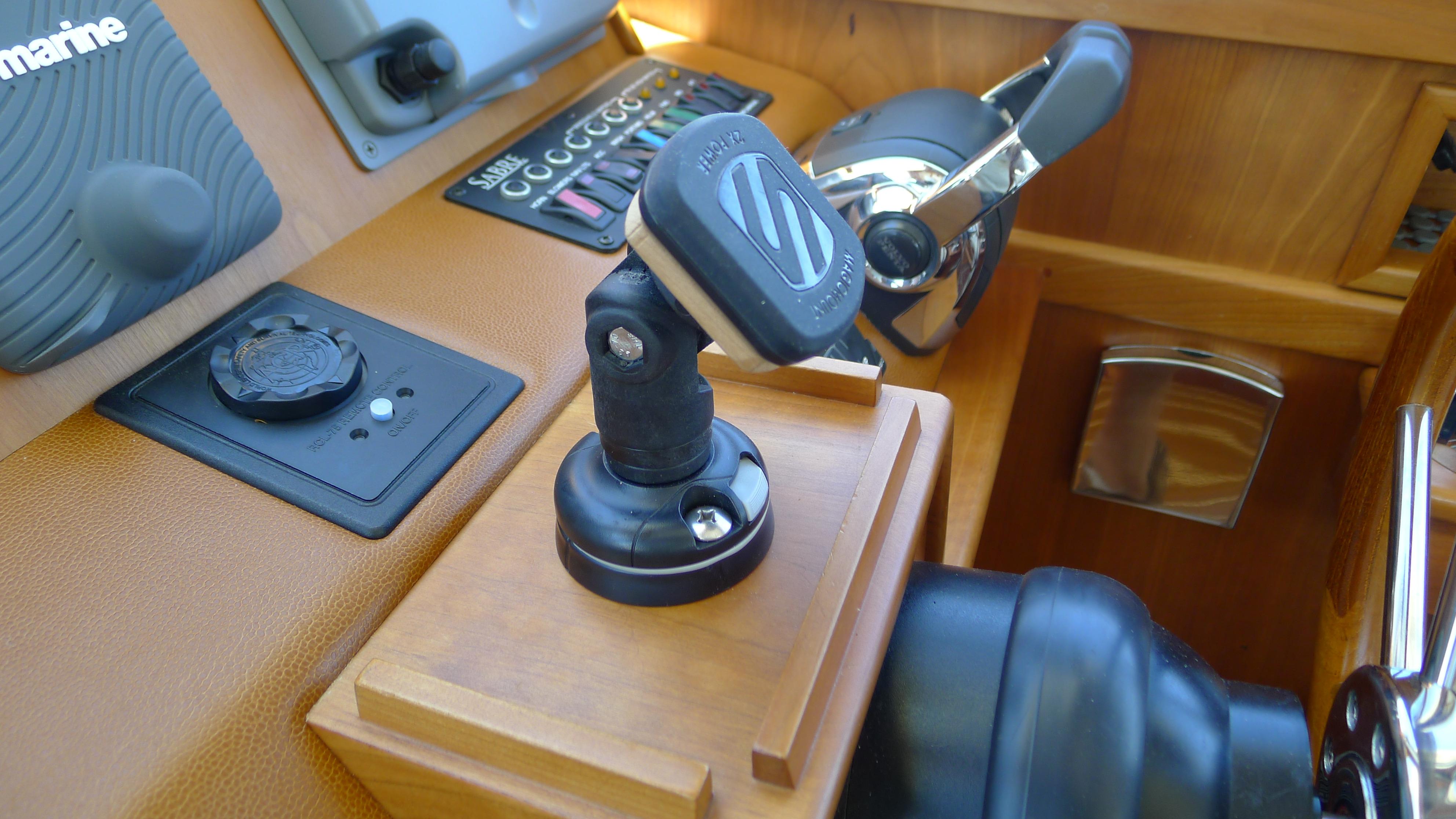

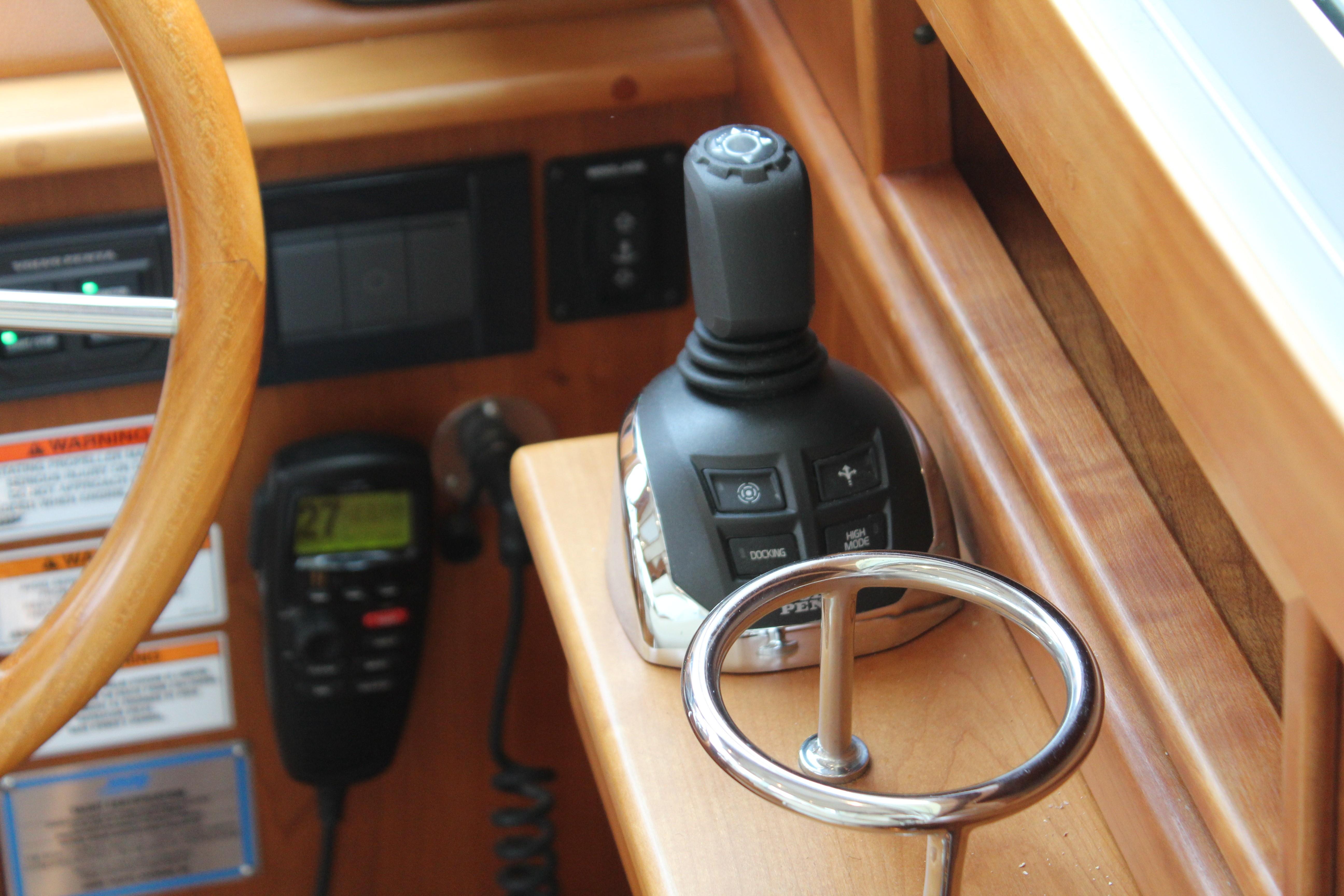

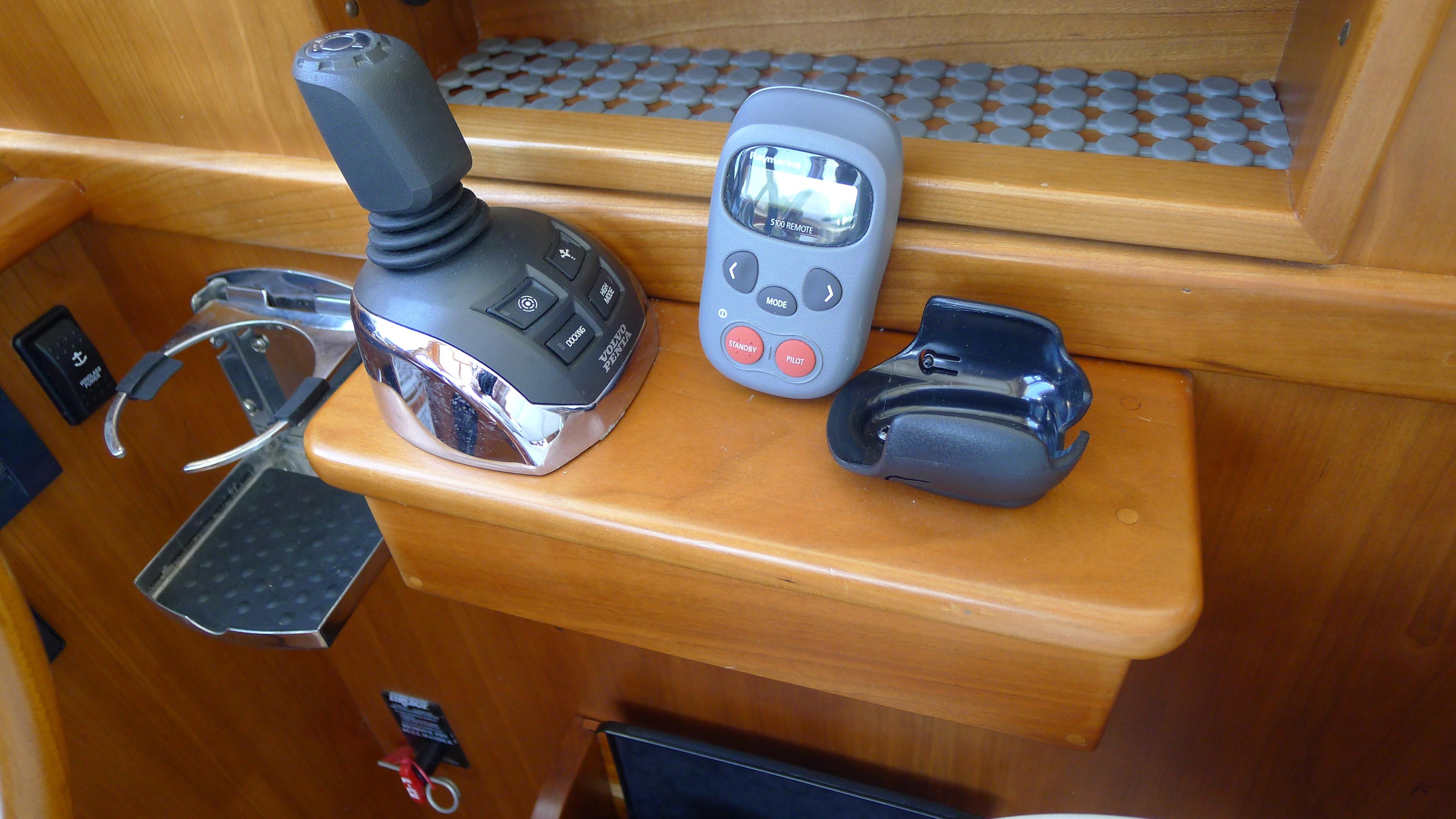

Steering SystemJoystick Control

Factory & Dealer Installed Options

• MECHANICAL
• Dynamic Positioning System (DPS) for Volvo IPS

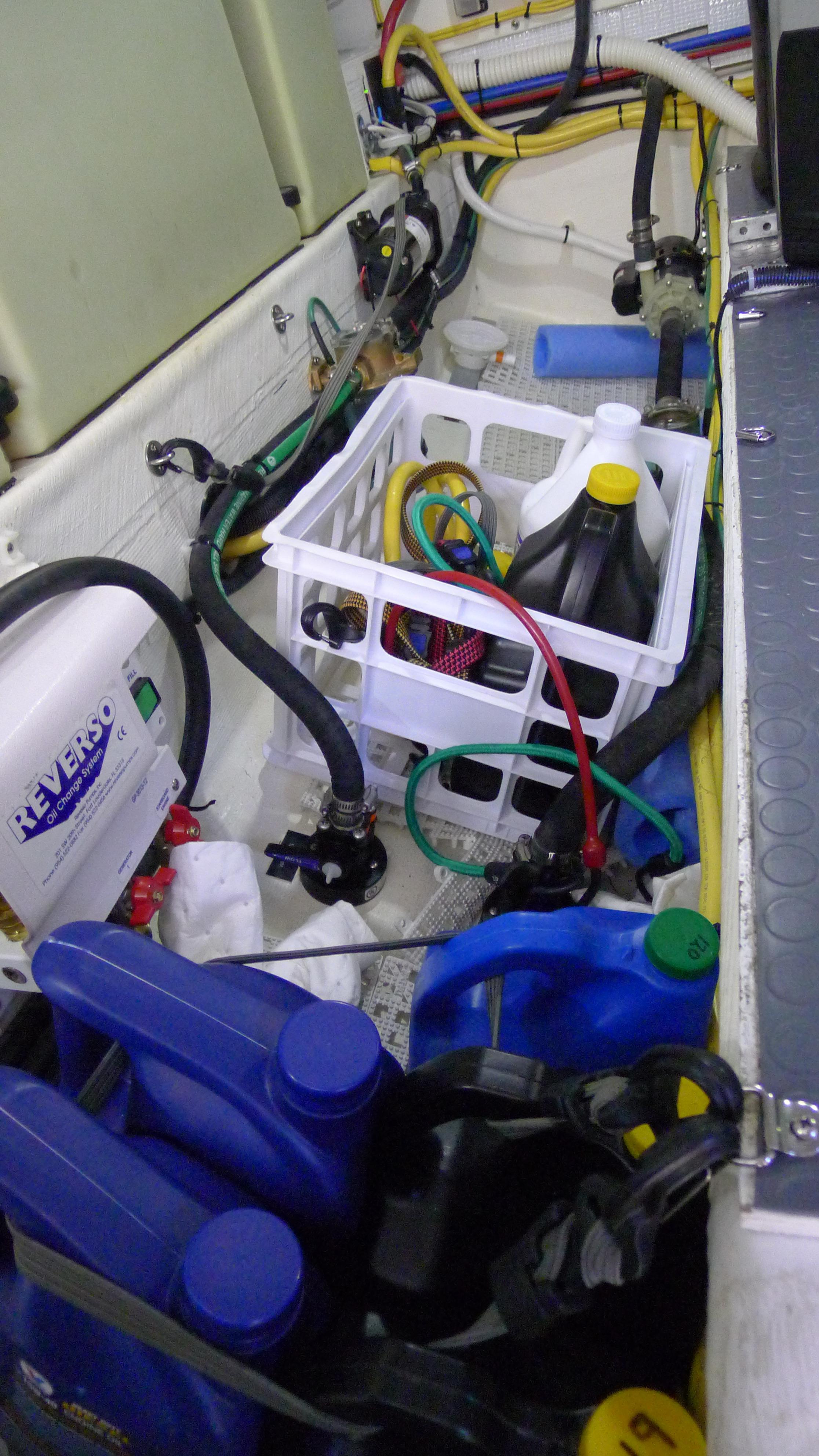

• Reverso Oil Change system
• Fresh water wash down forward
• Shore water inlet
• Single Seagull water purifier at galley with separate spigot
• Install larger shower sump box in lieu of standard
• Salt water wash down forward only
• ELECTRICAL
• (2) Additional 12 volt DC outlets. 1 in fwd cabin at fwd end of port side cabinet. 1 in fwd cabin at fwd end of stbd side cabinet.
• (2) Additional dimmer switches in the galley and lower lounge. Main salon is standard
• 22" LED Television in lower lounge area
• Inverter/charger 2800 watt true sine wave with remote control
• (2) i2Systems courtesy lights, on the transom centered between the bottom of the transom step and the swim platform on both port & stbd sides. Install 2 additional on/off switches at each transom door, tied to std cockpit courtesy lights.
• Add 120VAC GFI outlet in cockpit near stbd side rear corner, near shore power inlets
• Prewire for SureShade system with switch located next to aft window switch. Switch style same as aft window switch. Switches organized like this: SureShade switch on top and aft window switch just below.
• Add 110VAC outlet beside light switches lined up horizontally in main salon
• EXTERIOR AND DECK

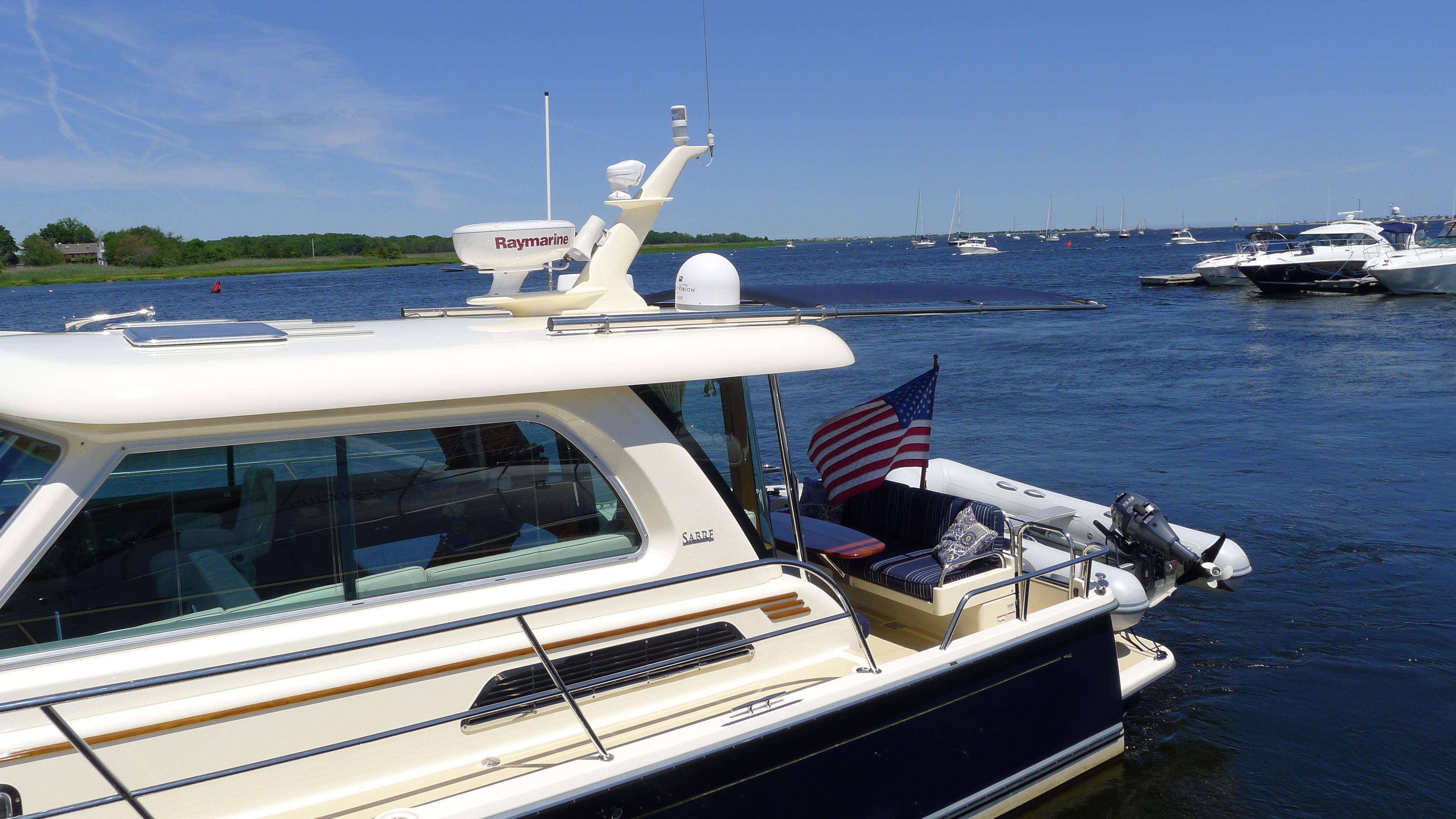

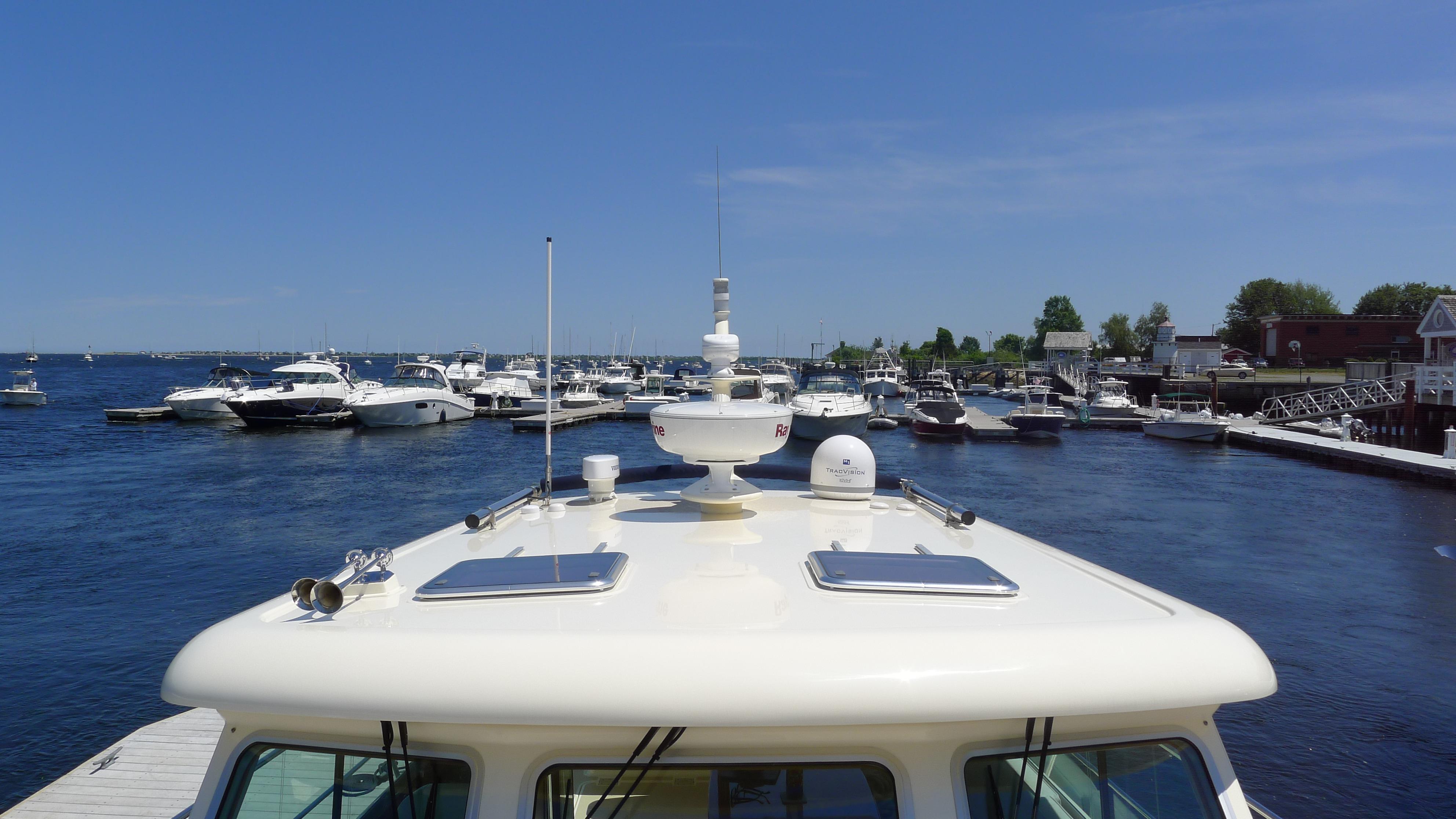

• FRP molded electronics mast for hardtop
• Fixed hull side portlight, port side only in lower lounge
• Hot and cold transom shower
• INTERIOR
• Accord Shades on all opening ports
• GALLEY
• Delete fwd cabin TV and electric lift, replace with a wall in the fwd cabin. Build 3 adjustable shelves in a larger cabinet with fiddles on the front of the shelves above the cooktop with 1 120VAC outlet, on the inboard side of space below the cabinet. Add a piece of cherry trim flush between the two pieces of Corian. See drawing.
• All refrigeration unit in galley, no freezer on top.
• MAIN SALON
• Filler cushion and telescoping table base to create berth in main salon
• Blinds & Curtains for Main Salon
• Ultraleather upholstery main salon only, includes helm seat
• Overhead cherry handrail in center of salon ceiling. Install handrail from aft position to just aft of the opening hatches.

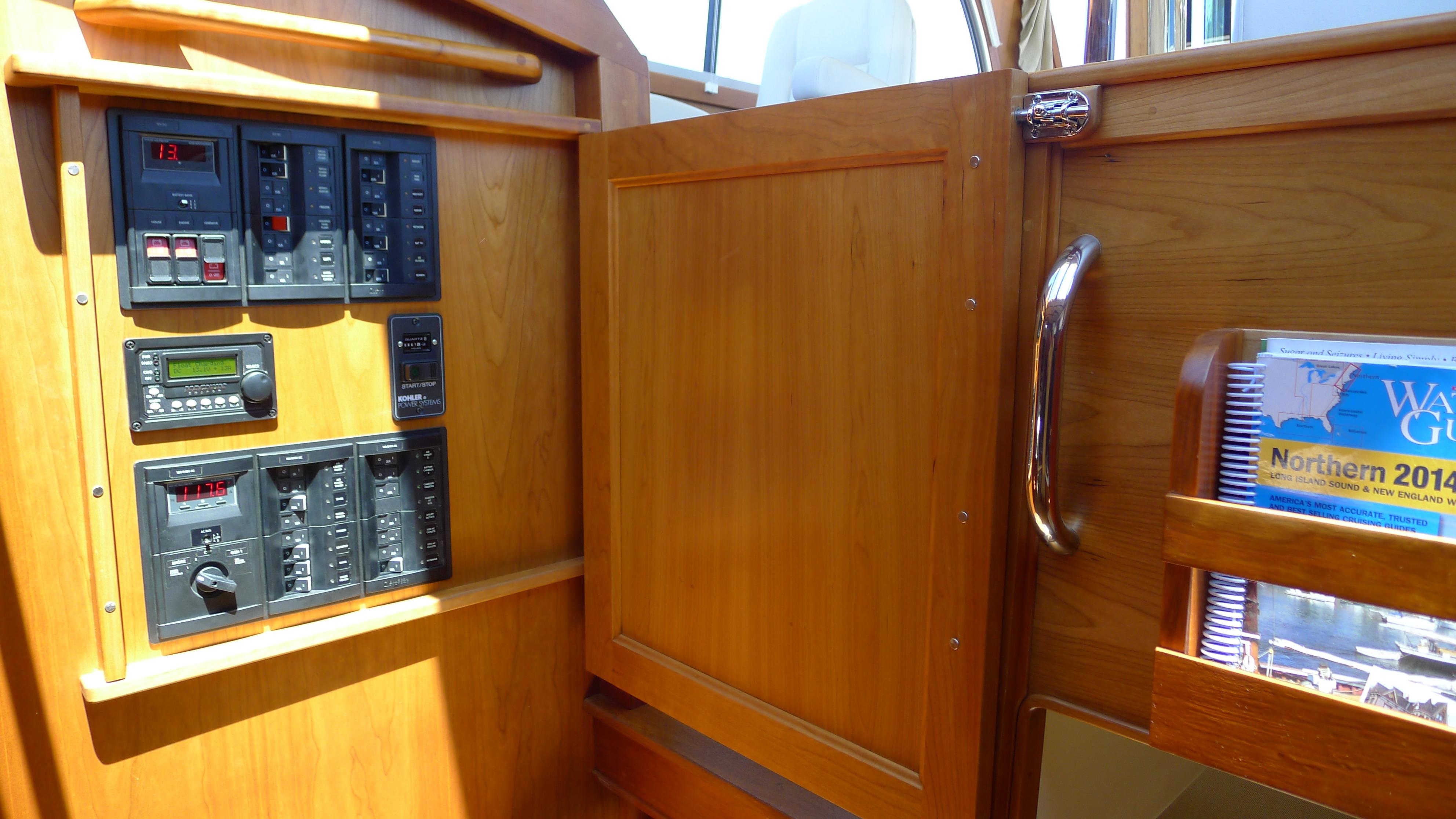

• Build gate at top of salon companionway stairs that will double as the door over the electrical cabinet. Build a piece of trim over the top of the electrical cabinet so people will not grab the door when they go up the companionway. Relocate ss handrail horizontally above electrical panel.
• Install trim on entertainment cabinet top matching the trim to the fwd cabin dresser.

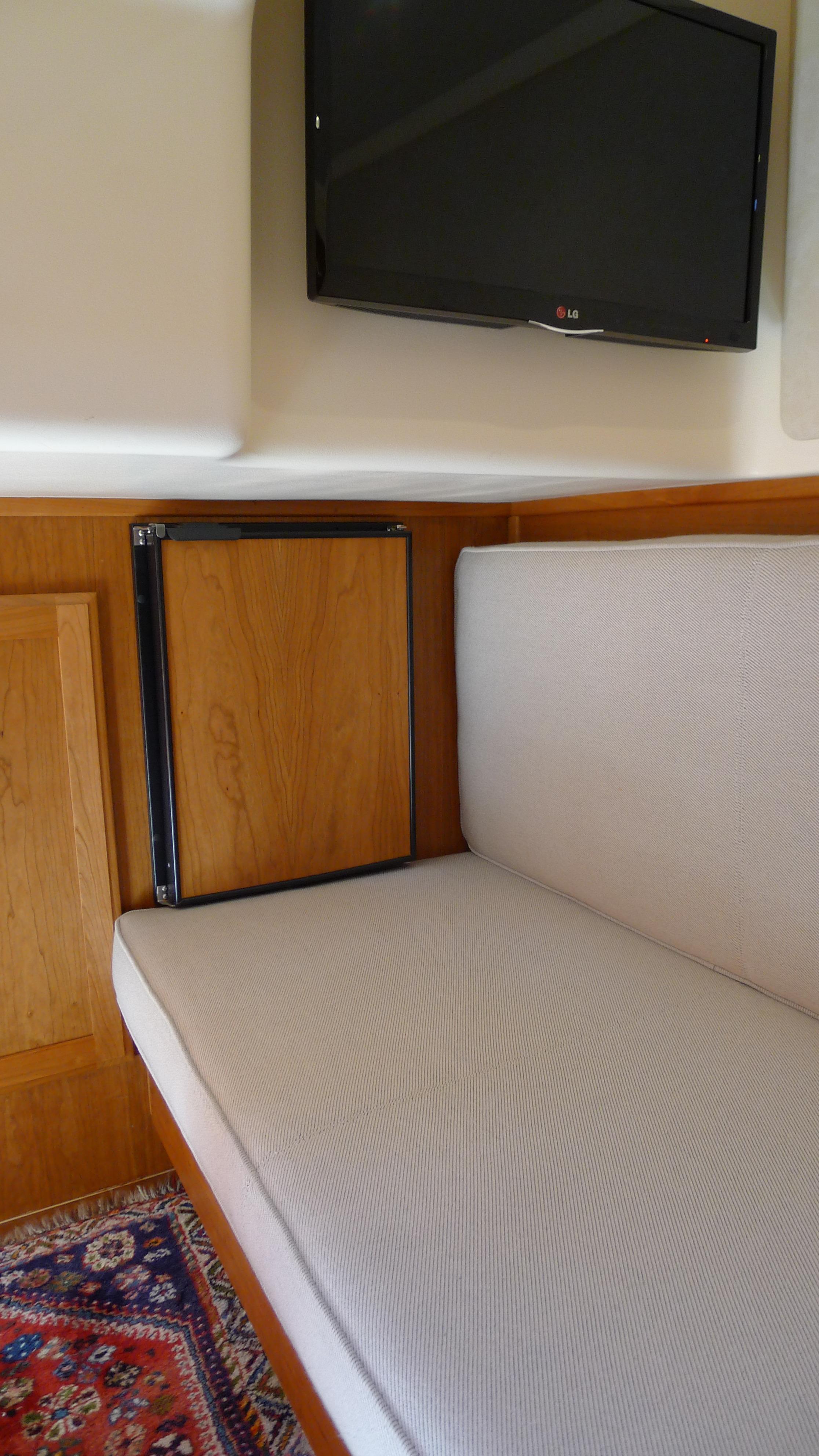

• LOWER LOUNGE
• Shade on optional hull port
• Freezer installed into dry storage on lower lounge bulkhead.
• FORWARD CABIN

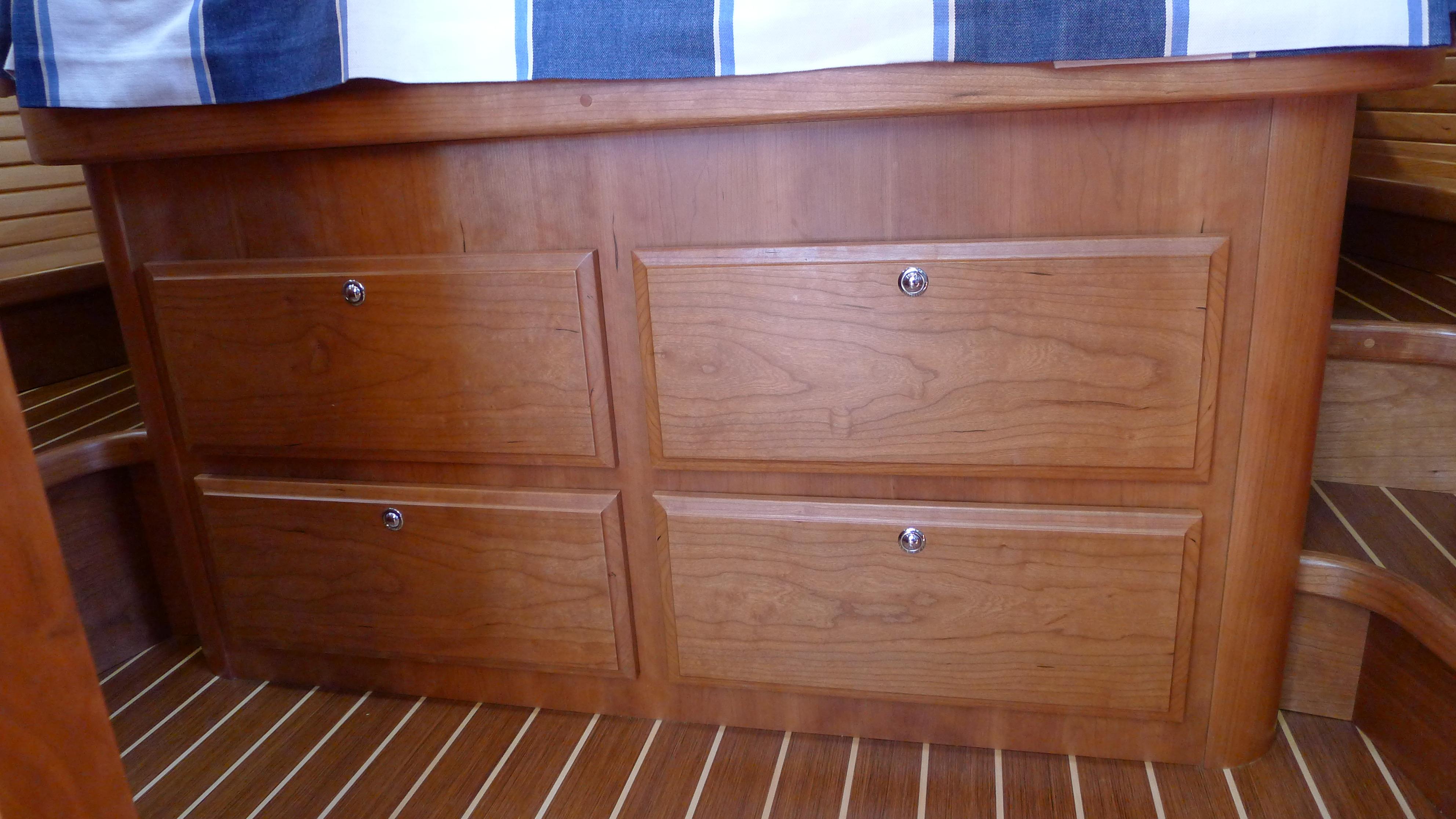

• Build 2 large drawers under the fwd berth, same size as bottom drawers, in lieu of std top 3 drawers. 4 large matching drawers total
• ADDITIONAL EQUIPMENT

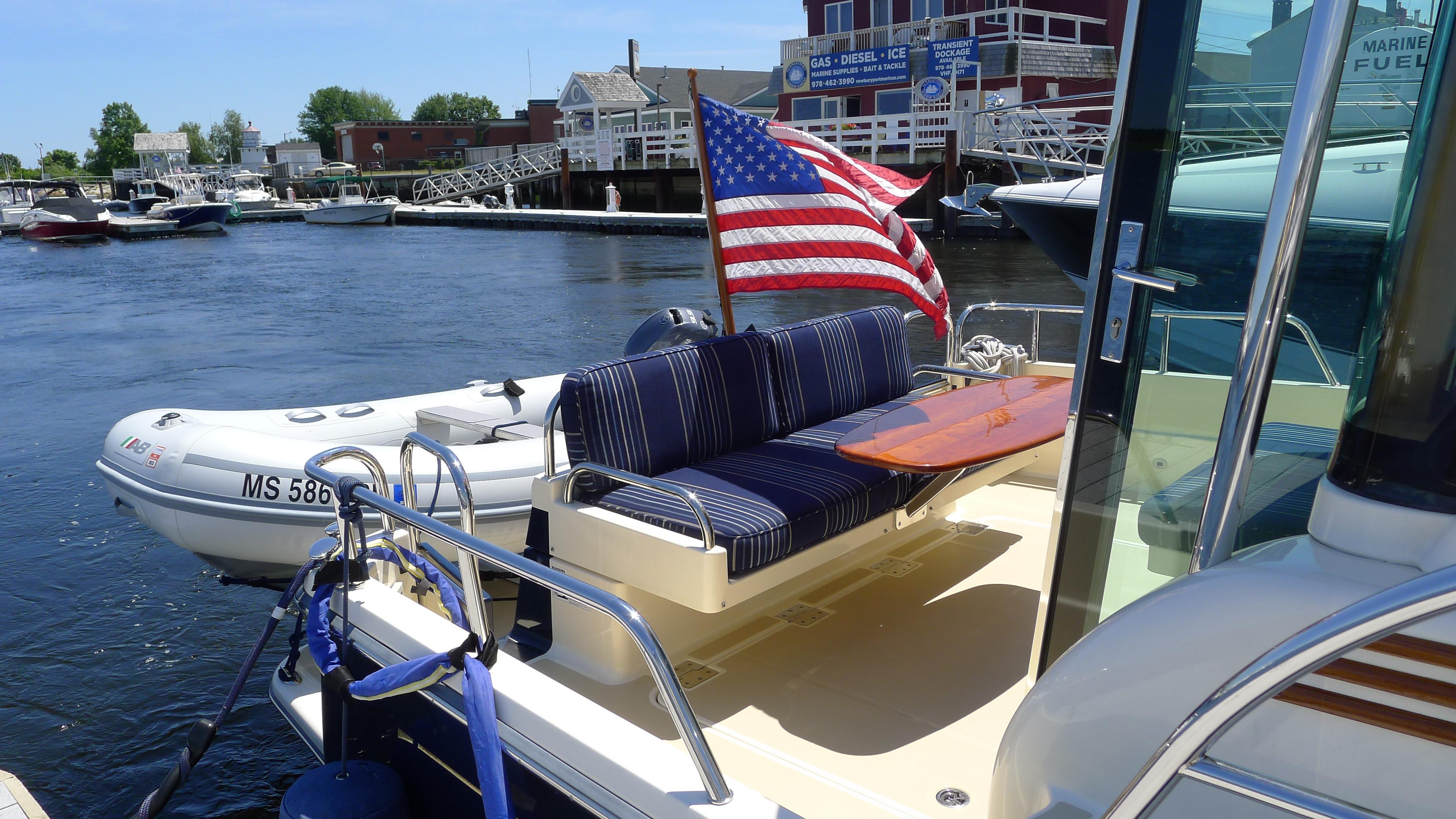

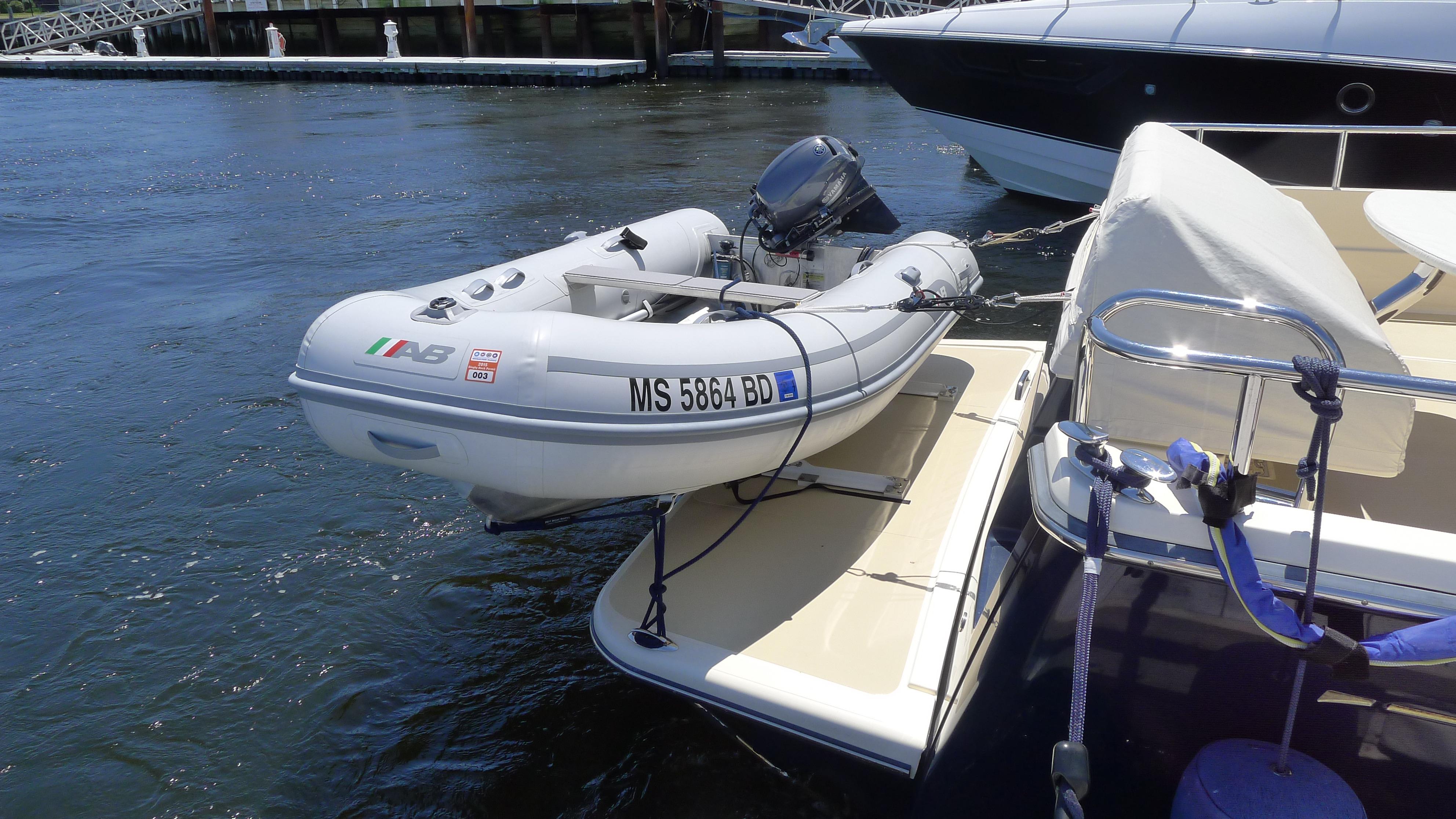

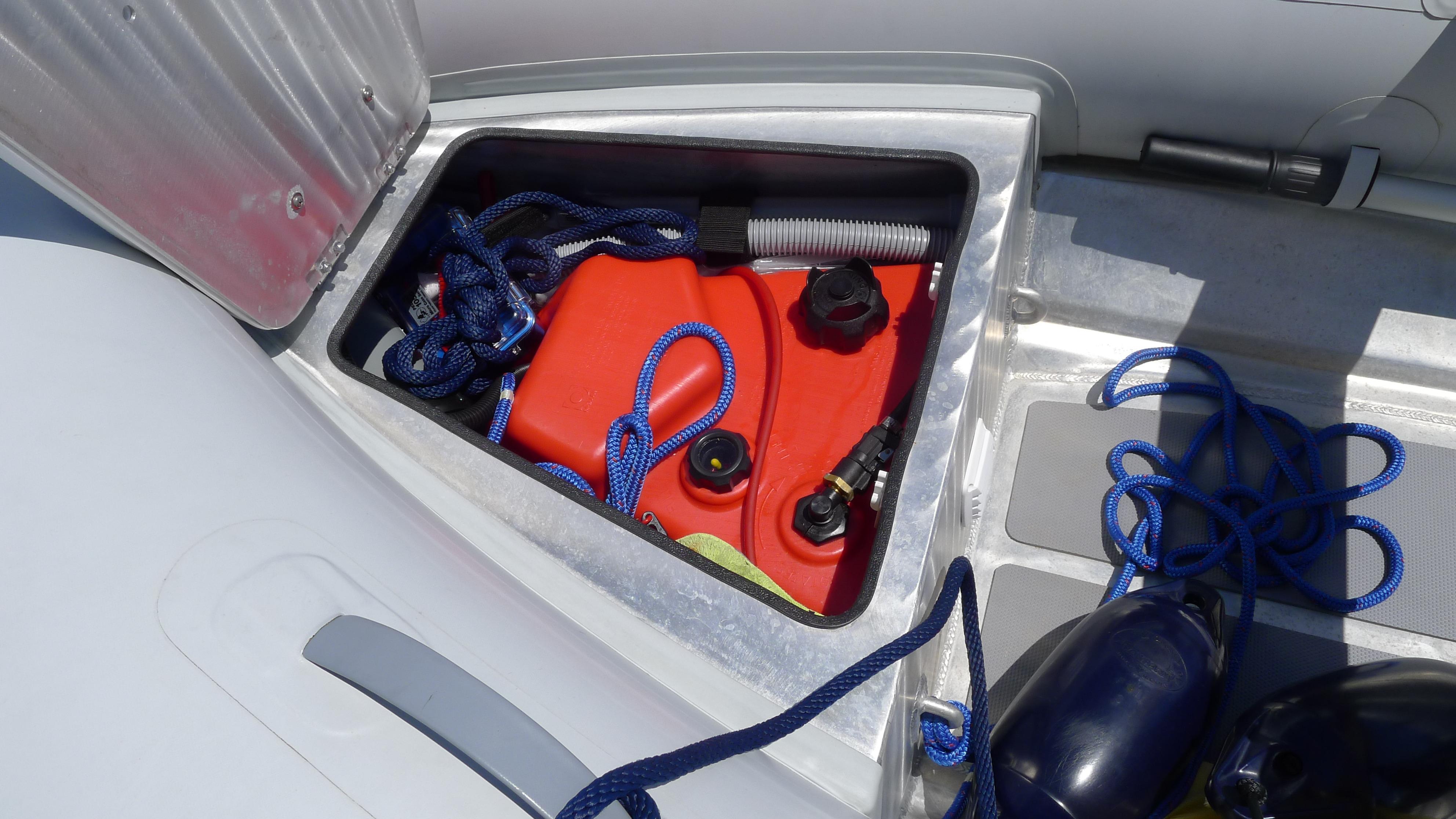

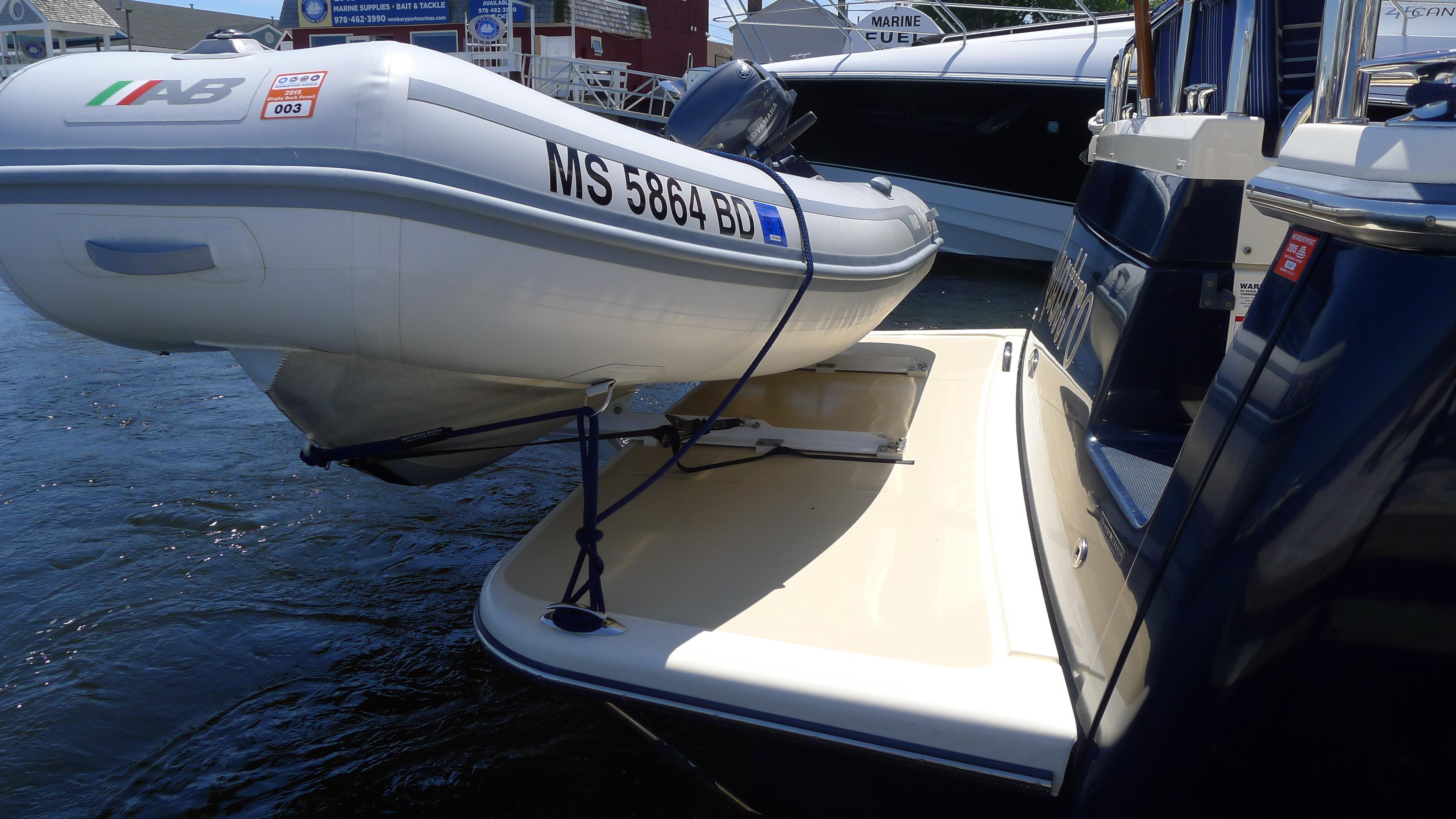

• 2015 AB Inflatable 9AL w/ Yamaha 9.9hp four stroke outboard
• Nautley Marine Roll-On XL davit

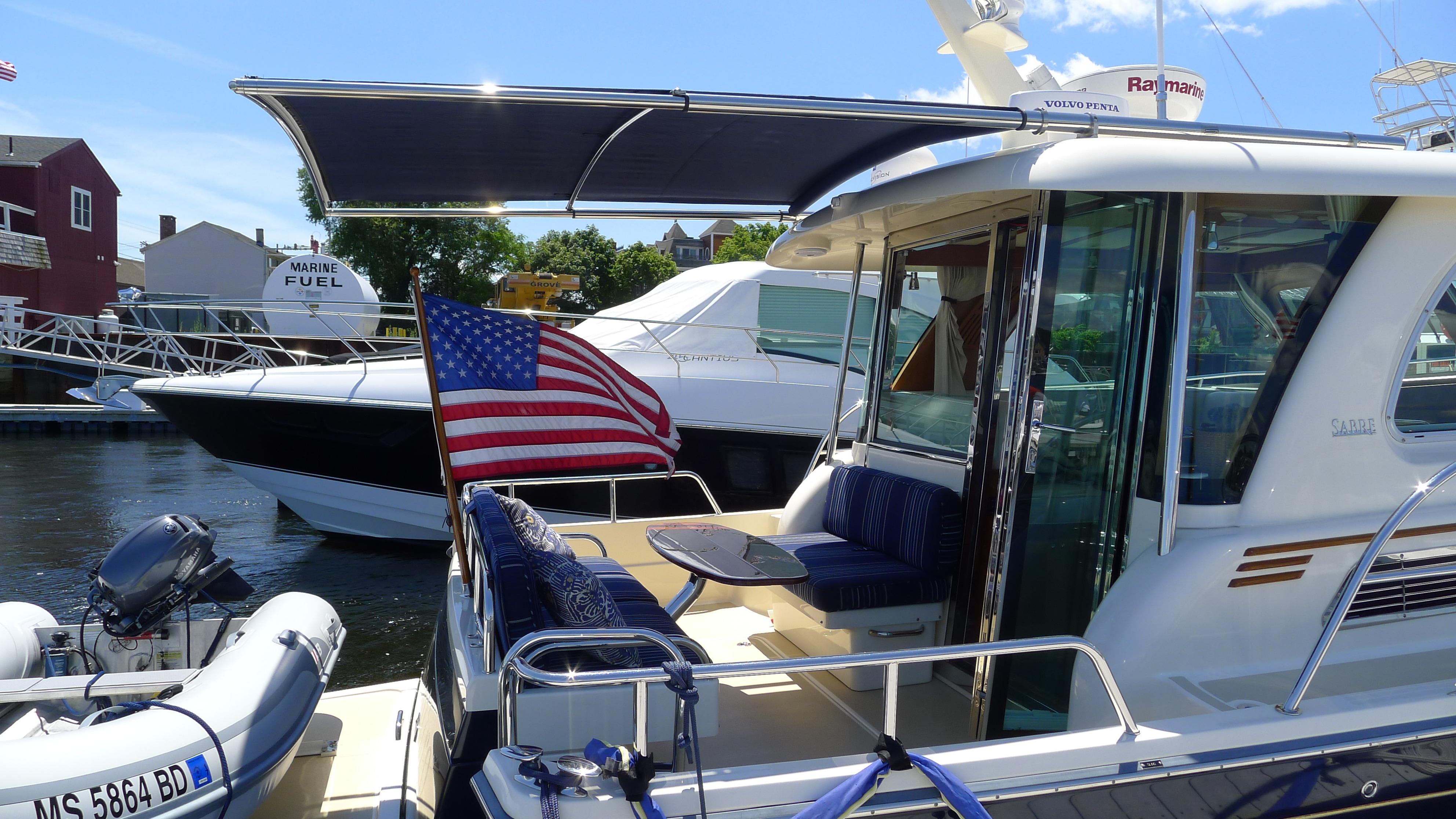

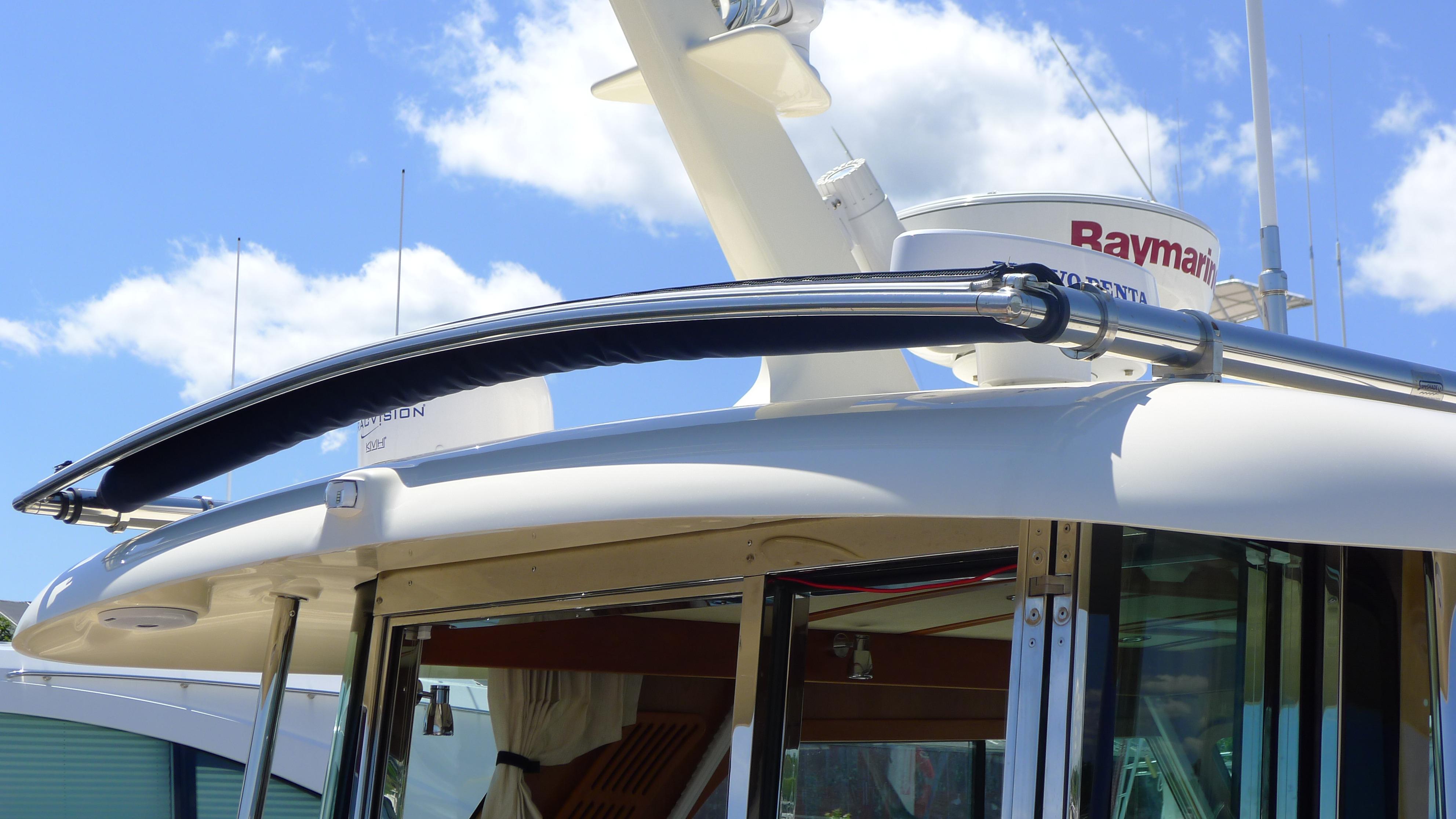

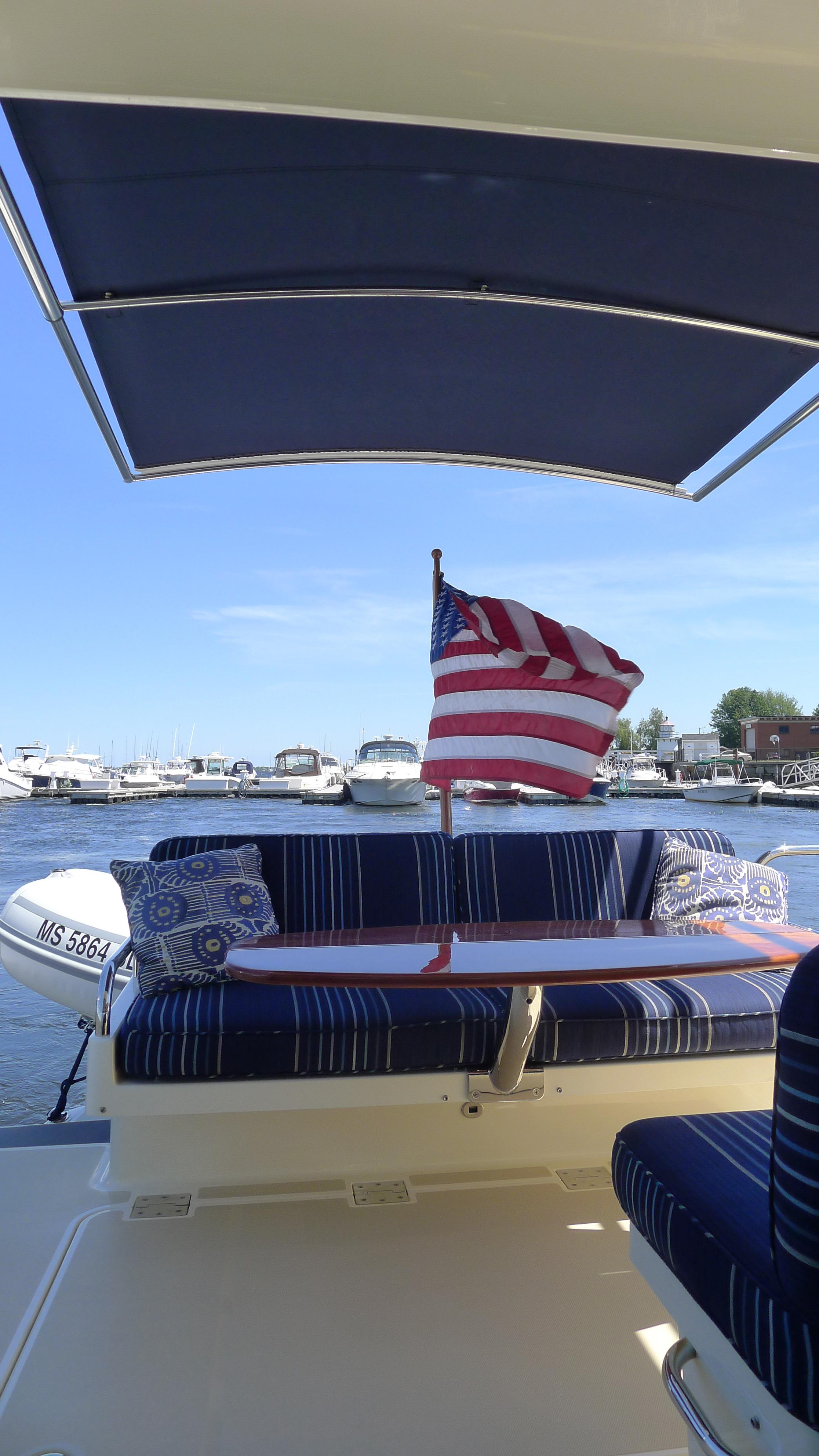

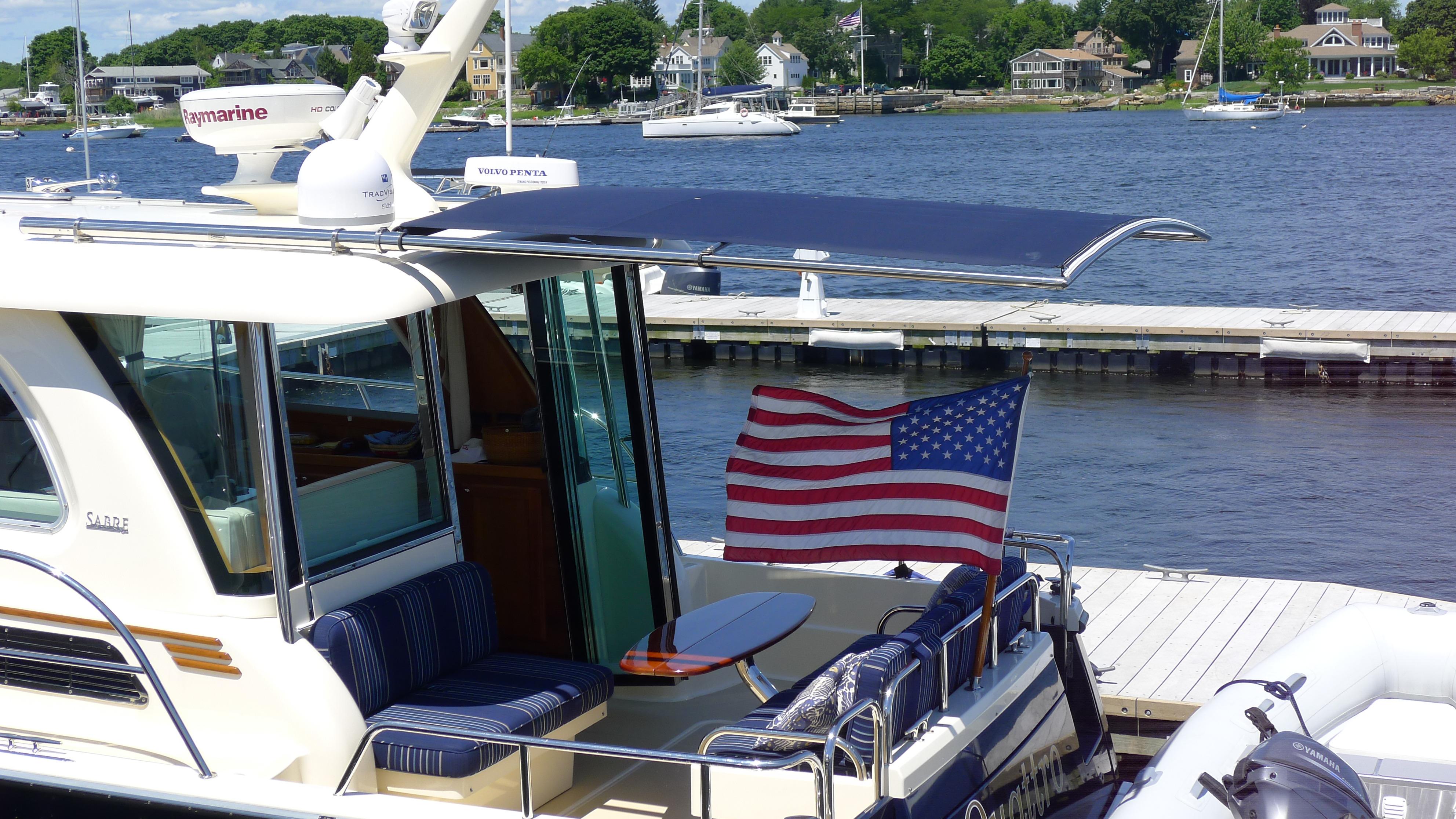

• SureShade system hardtop mounted with curved design with Sunbrella Canvas Navy

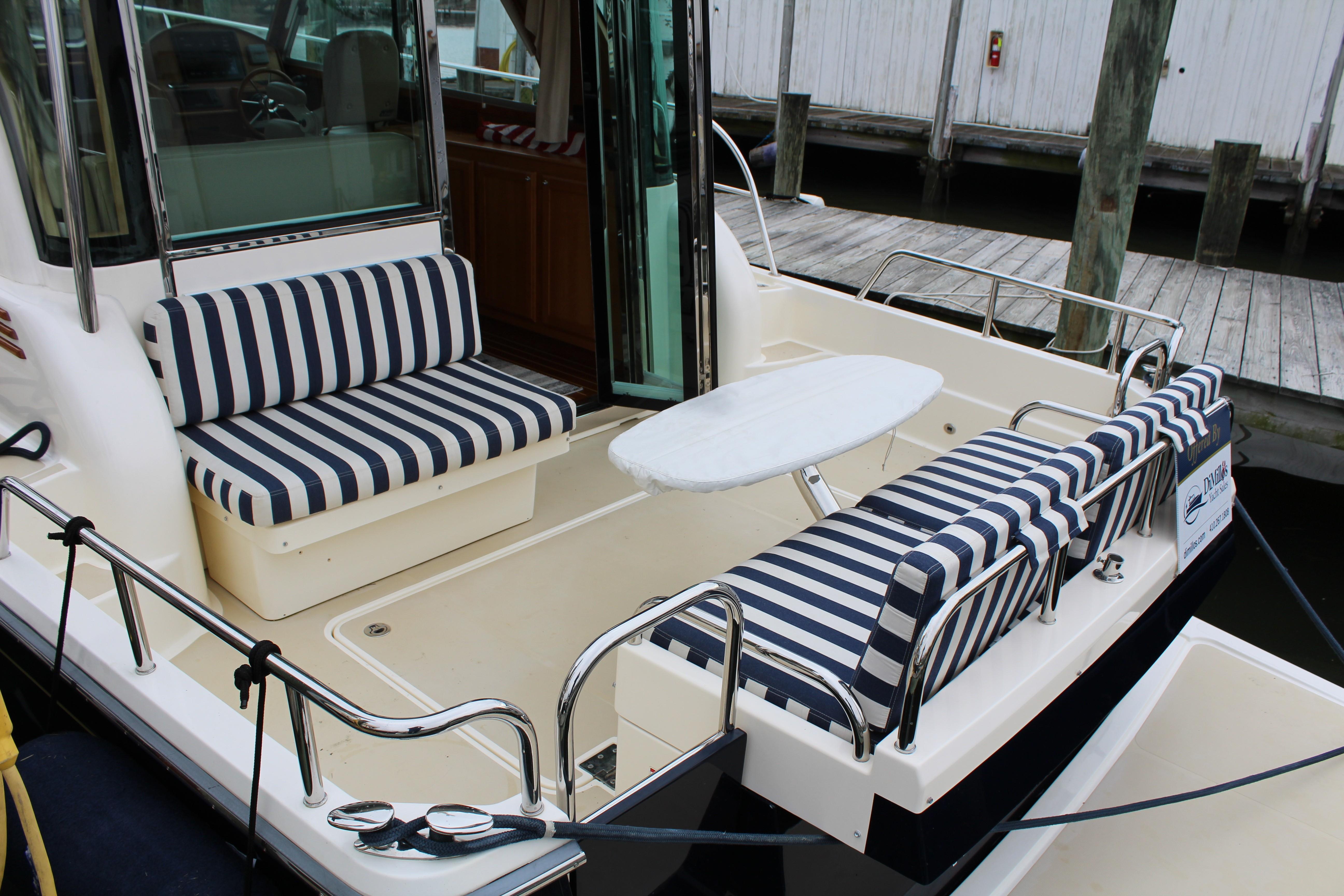

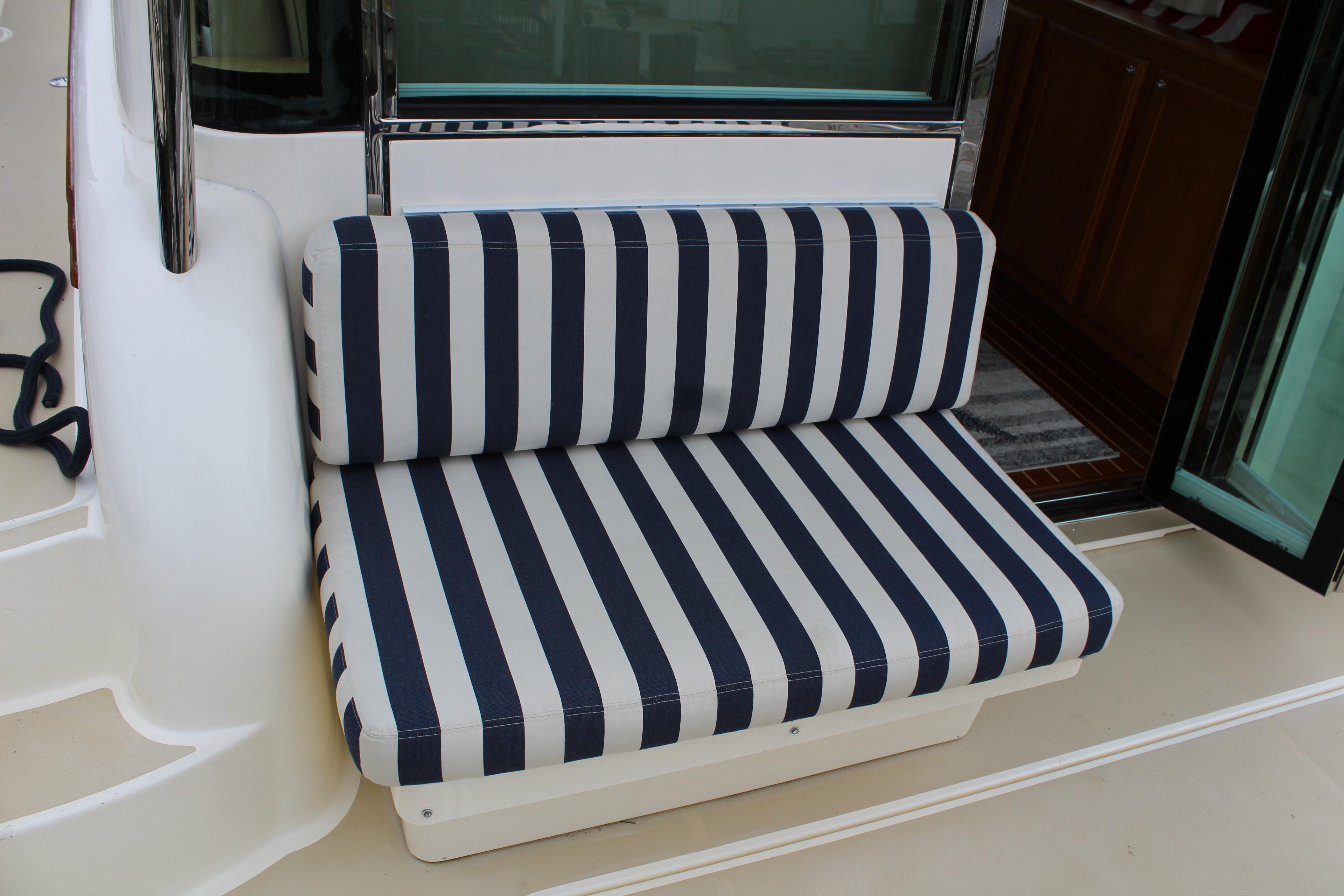

• Canvas covers for all outside seating - Cream Stamoid, Cockpit Table in open position - Cream Stamoid, Windshield cover one piece - Cream 90% SunSure, Port & Starboard side salon window cover - Cream 90% SunSure
• Forward Cabin Custom Mattress by Portland Mattress Makers
• Magma electric grill w/ rail mount system

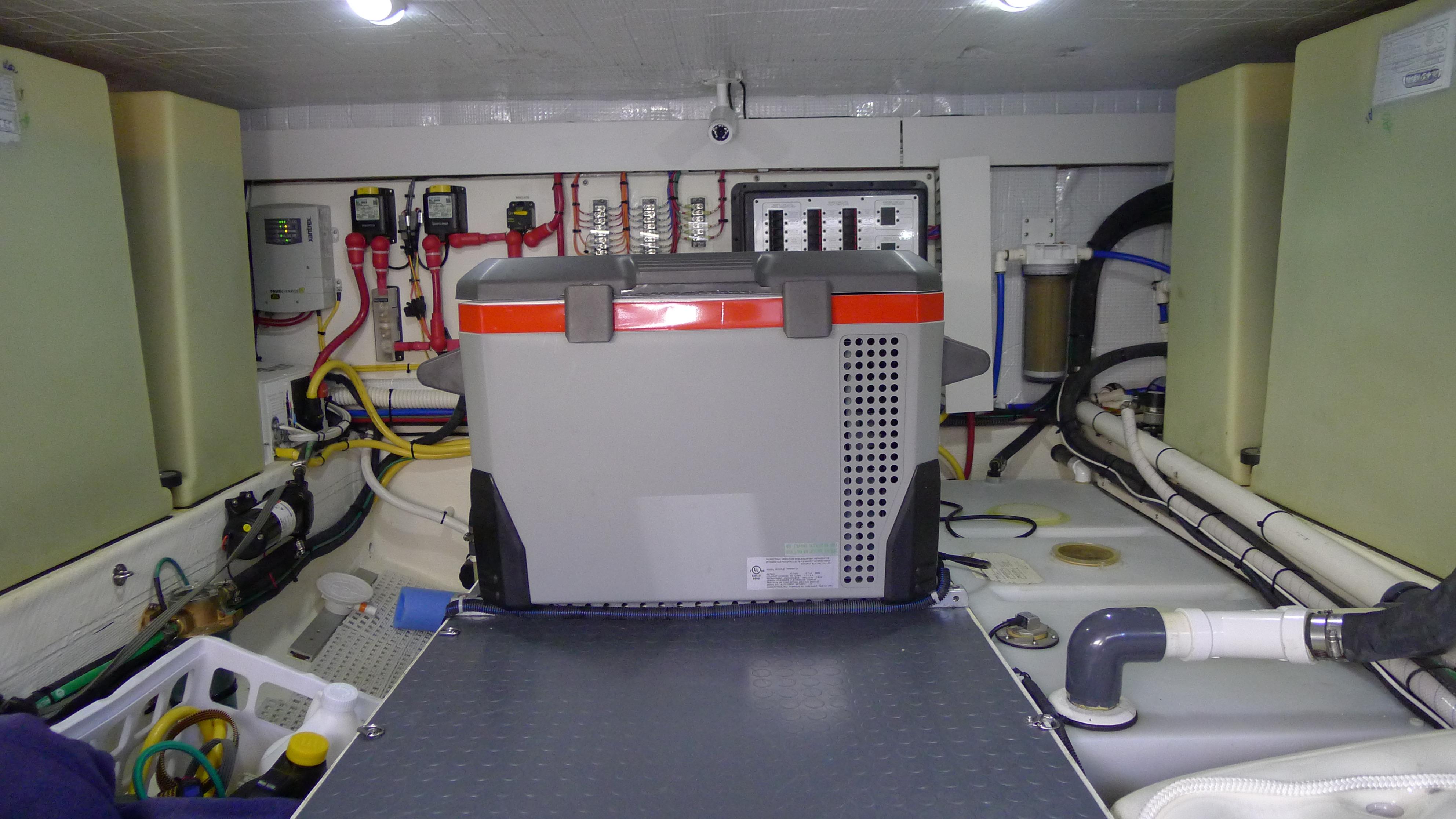

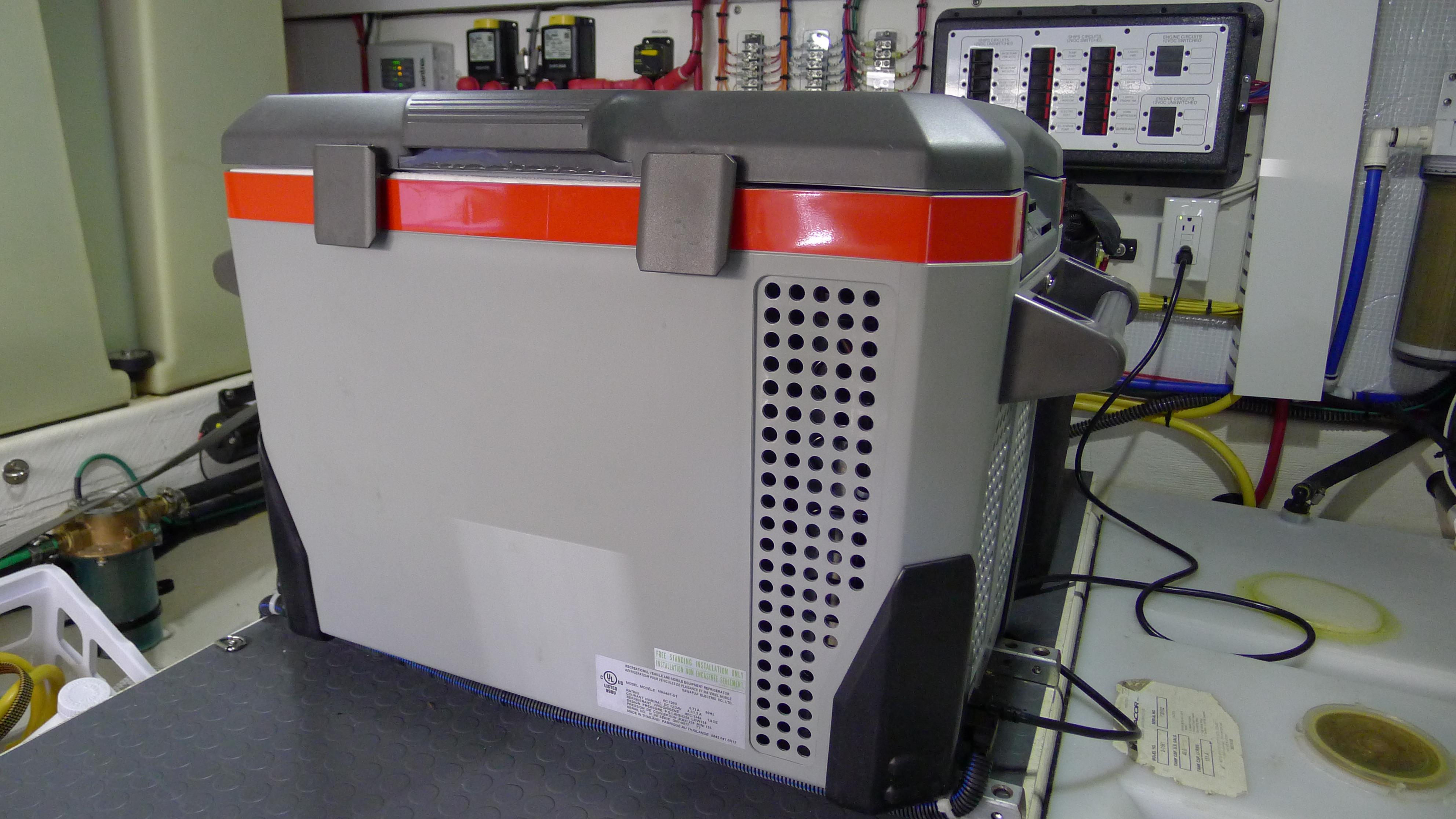

• Engle MRO40F 40 quart AC/DC portable refrigerator/freezer in engine room

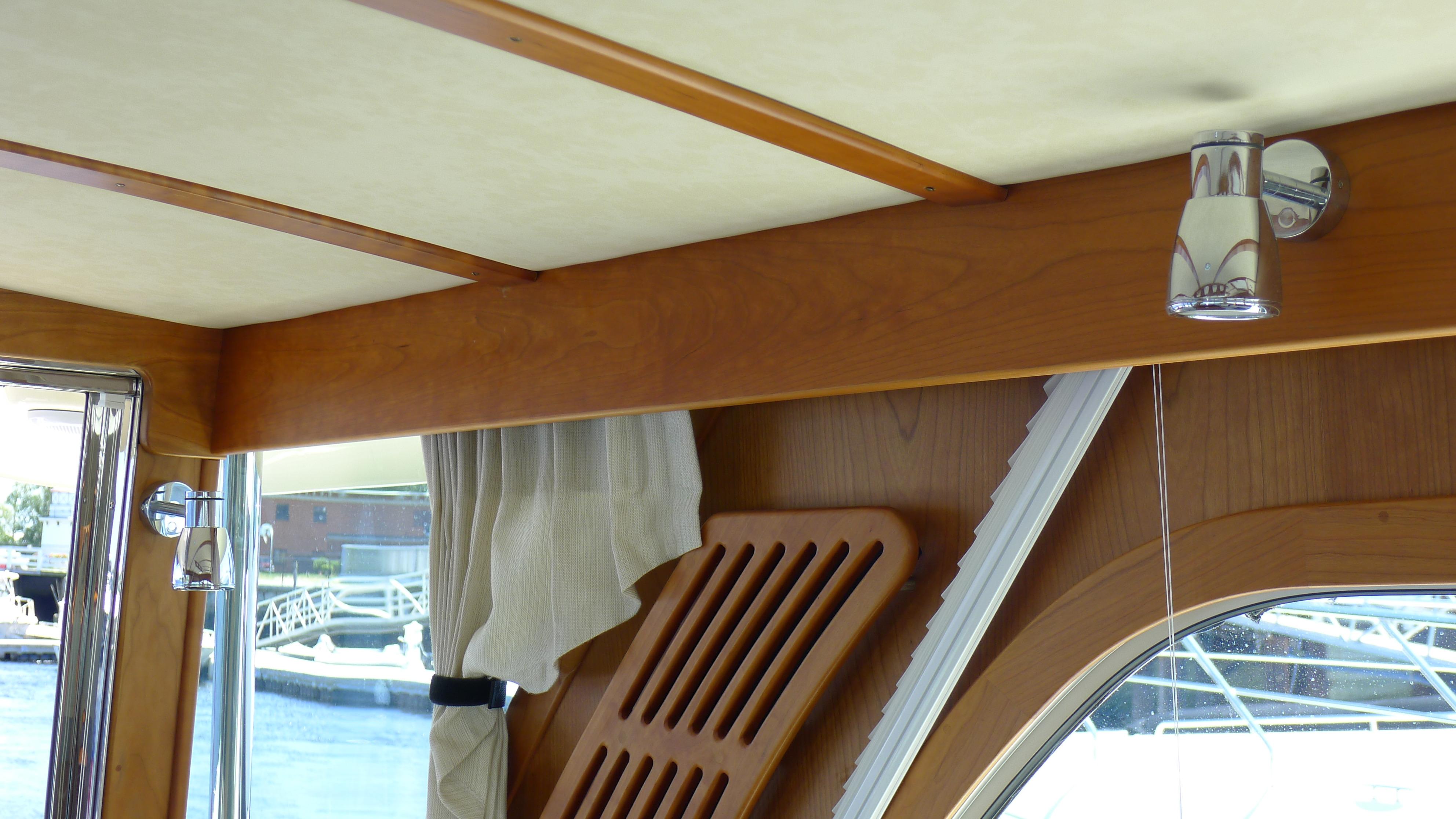

• (4) Imtra Munich chrome LED salon lights w/ built in dimmers

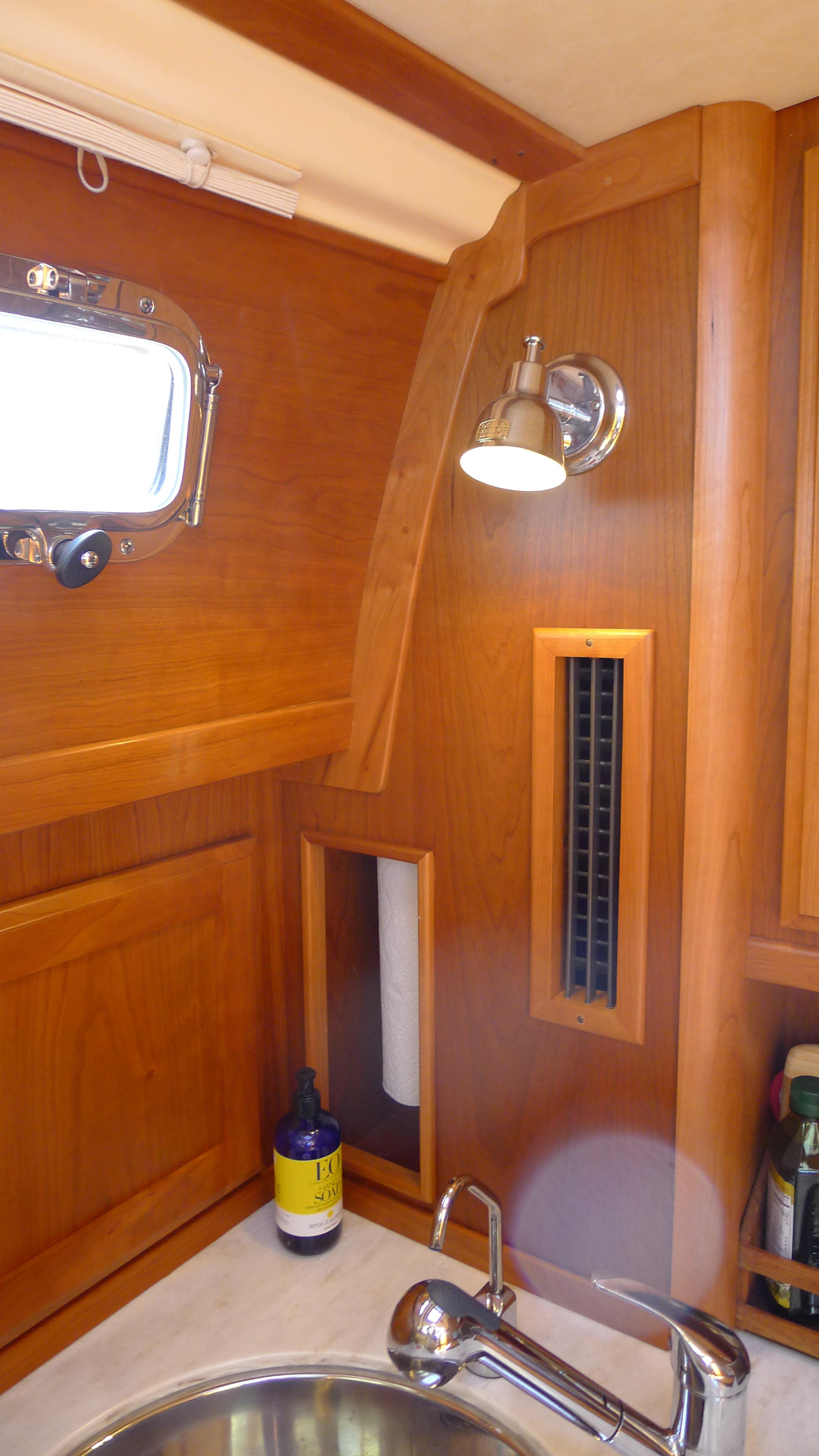

• Imtra Ocean LED wall mounted over galley sink
• Many extra spares for generator and engines - filters, impellers, belts, zincs
• Spare outboard propeller
• Fenders & lines

Electronics / Audio / SAT TV

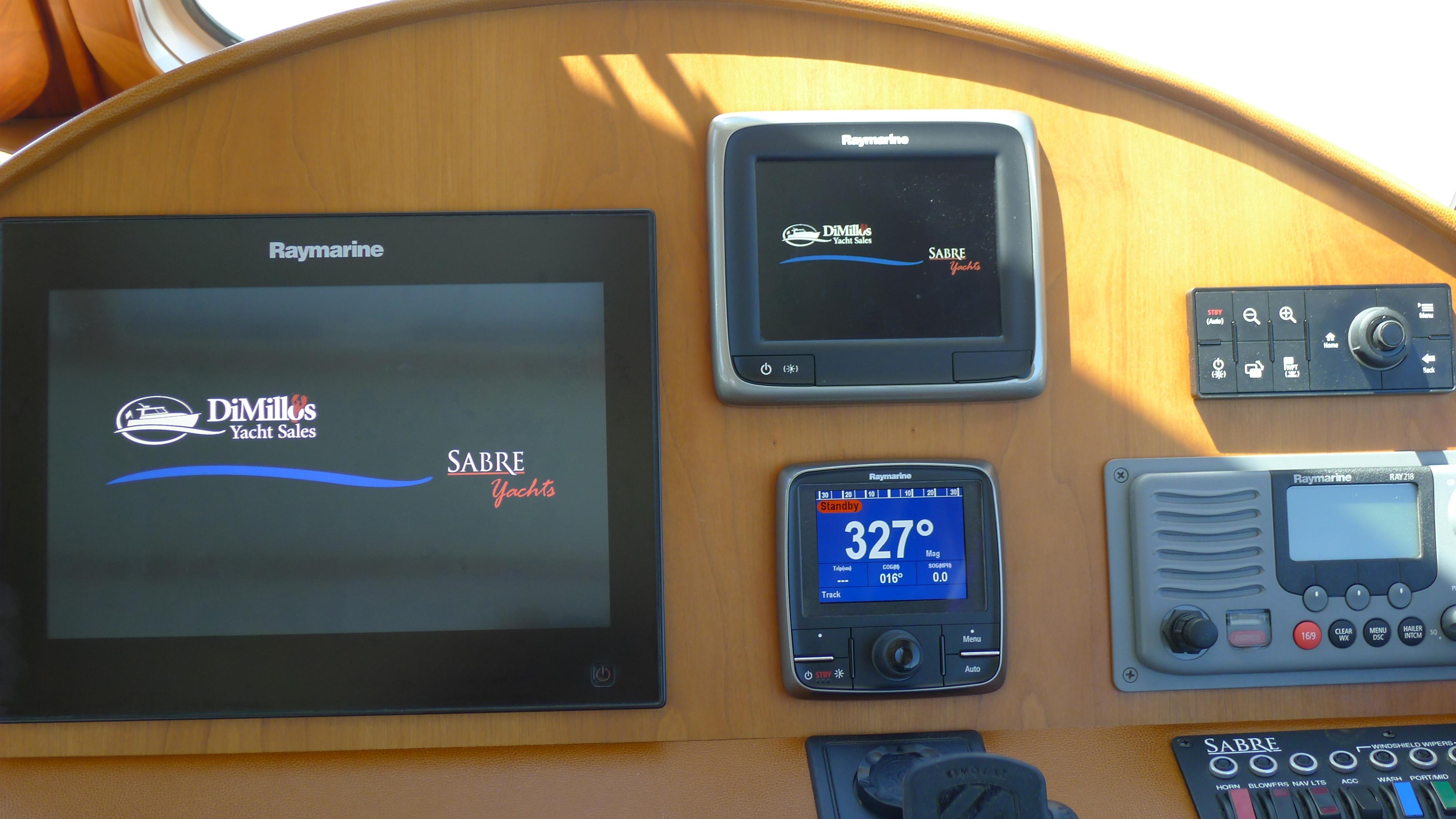

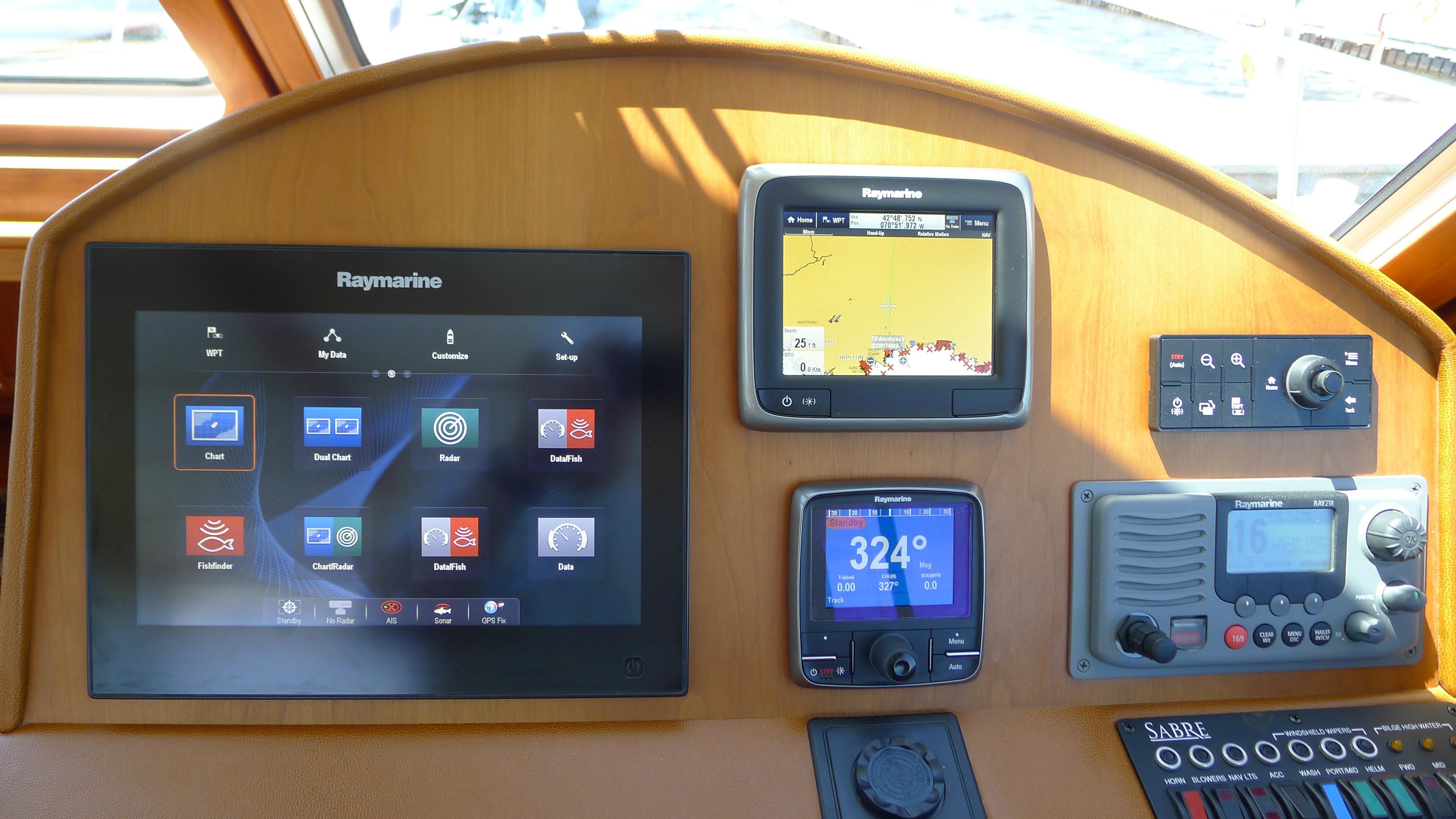

• NAVIGATION ELECTRONICS

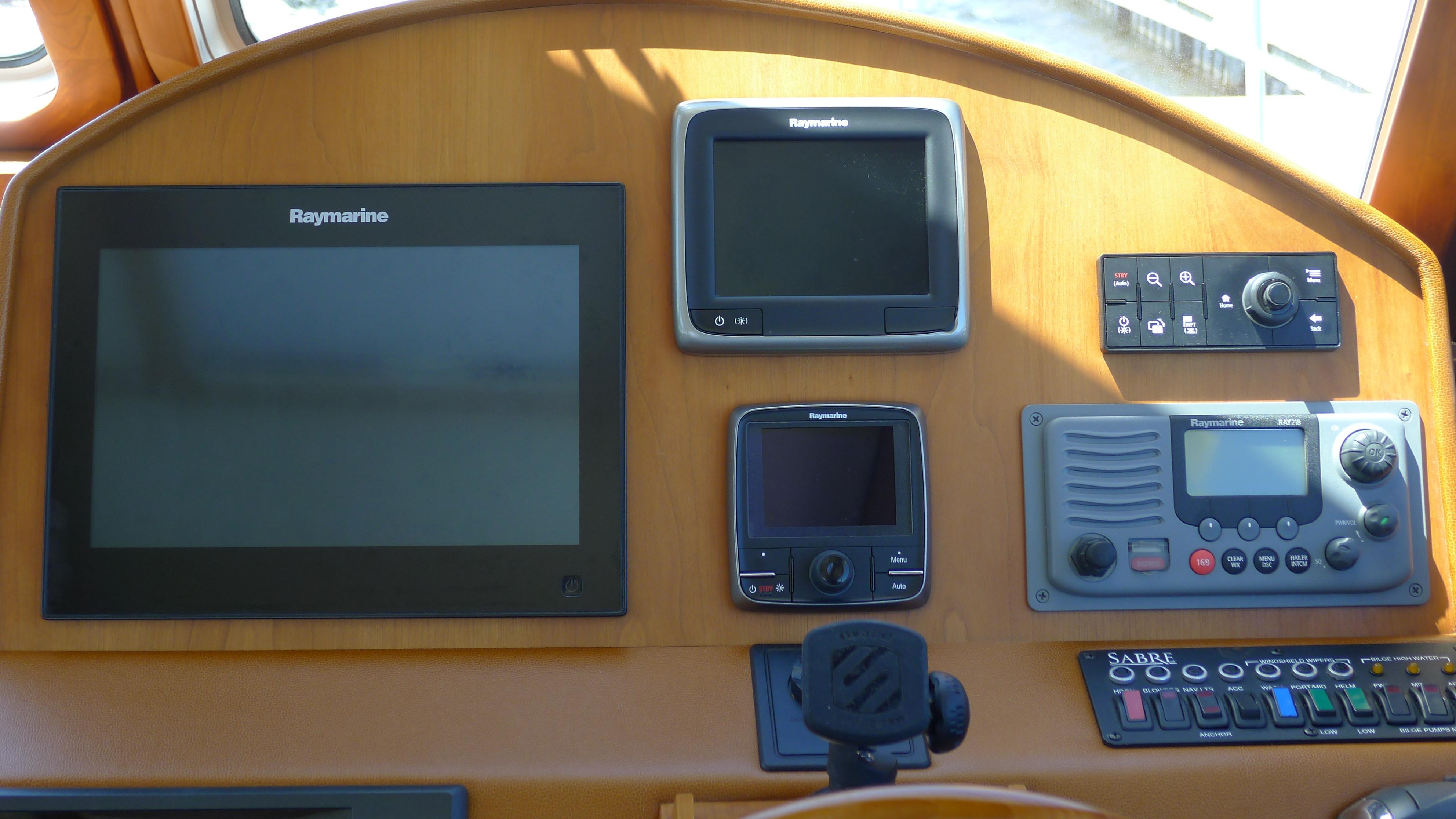

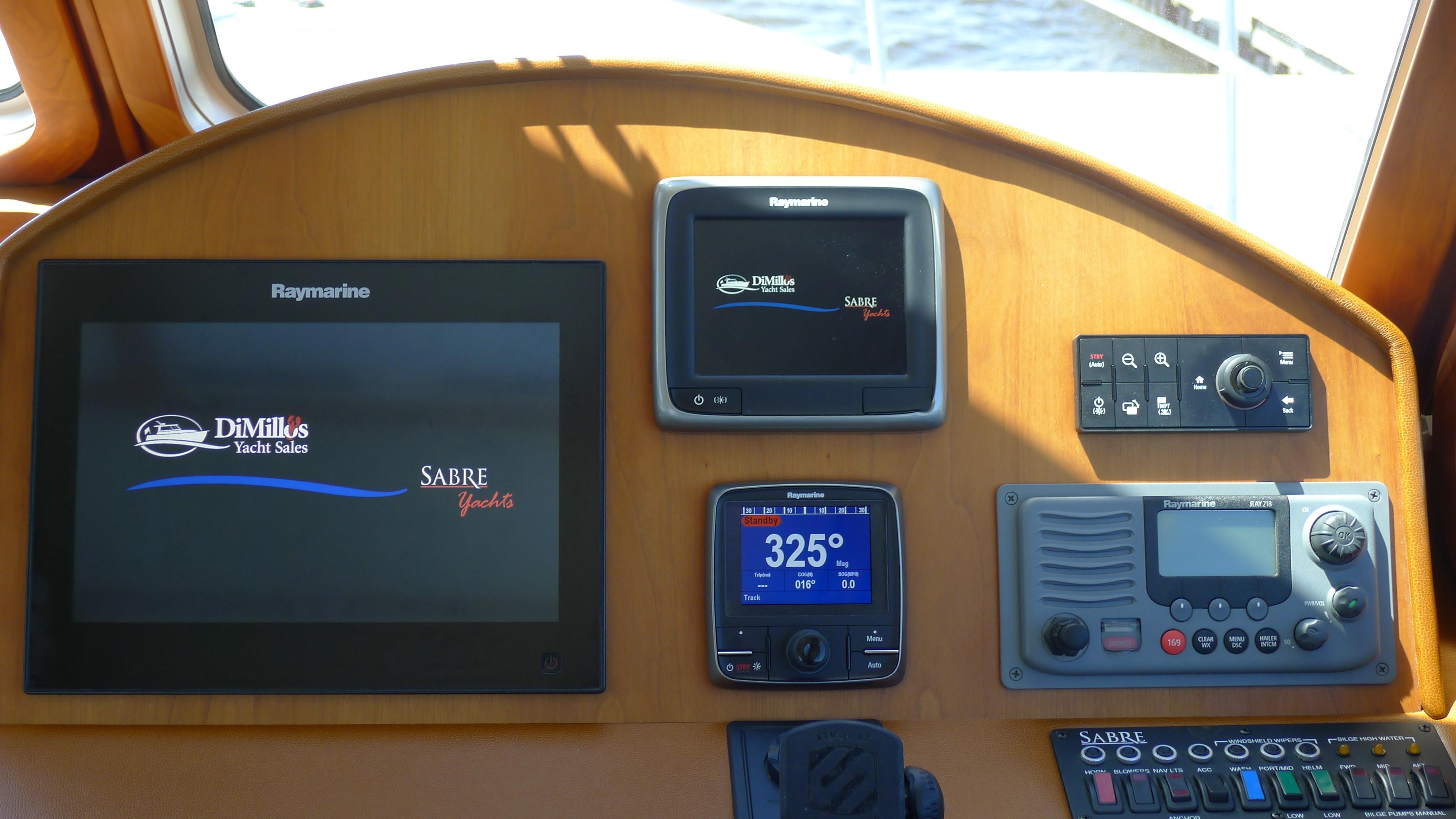

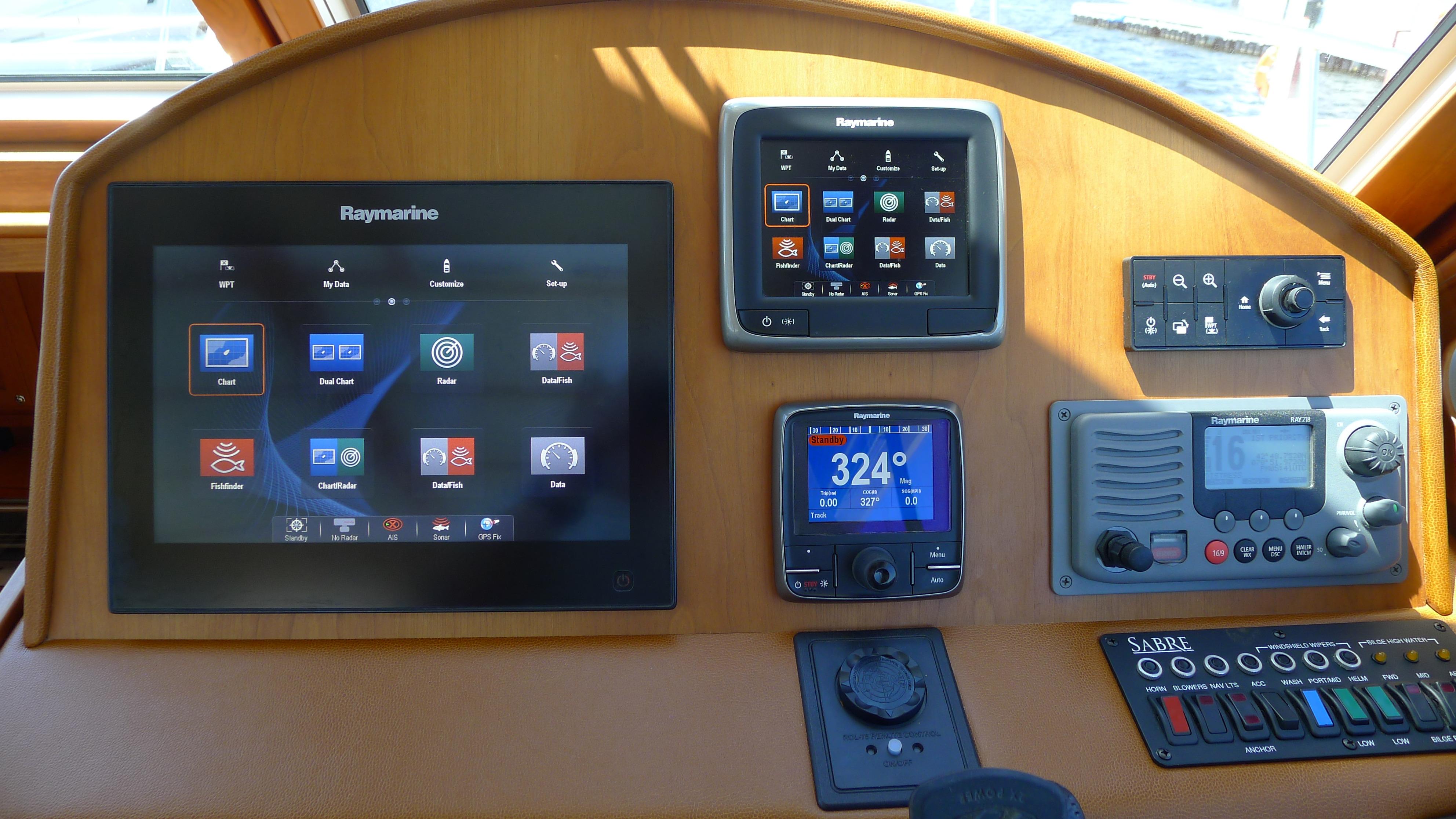

• Raymarine gS125 glass bridge MFD
• Raymarine 5.7" MFD display w/ sonar
• Navionics 904P+ US Northeast and Canyons
• gS Series RMK-9 digital remote keypad

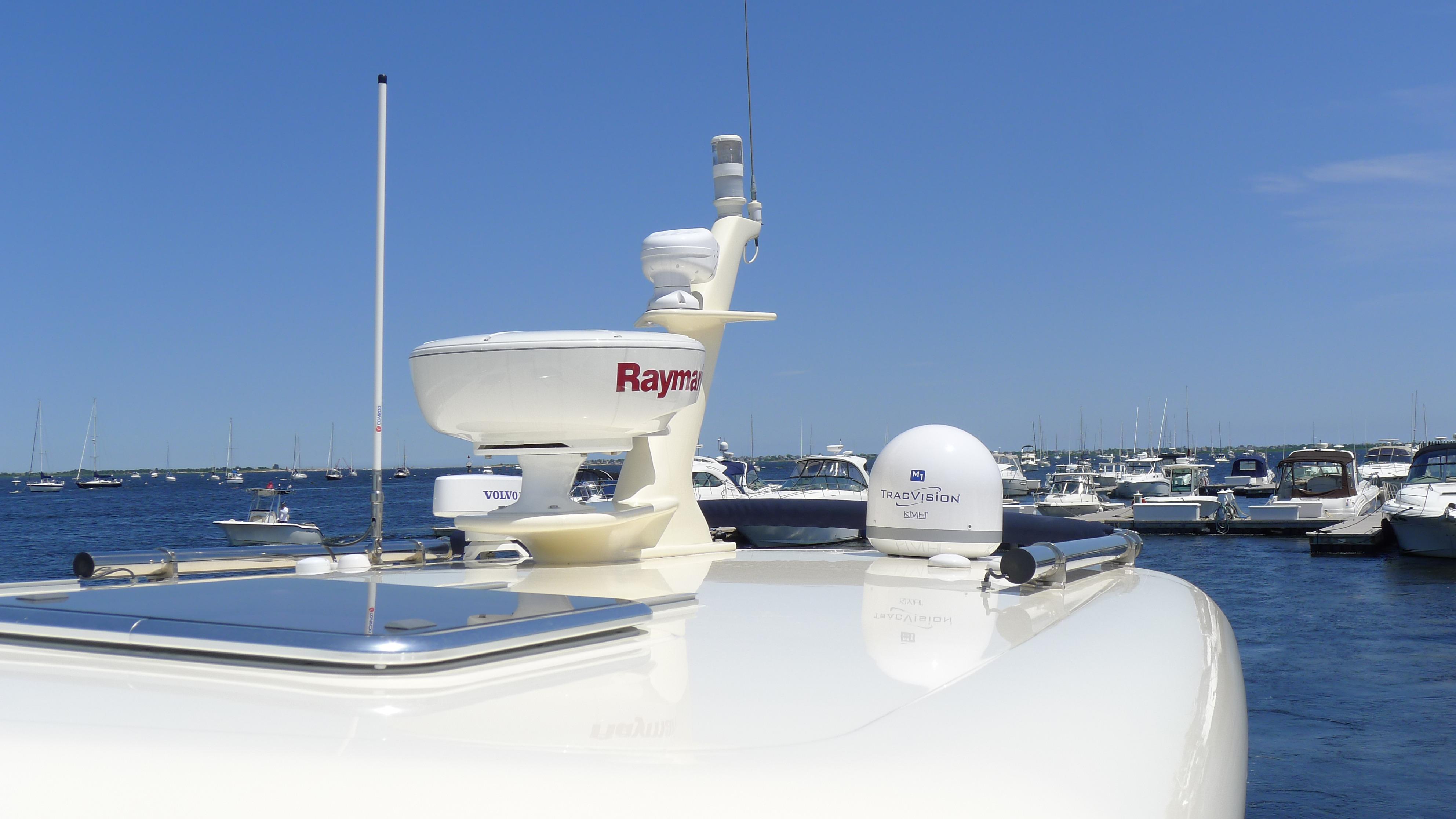

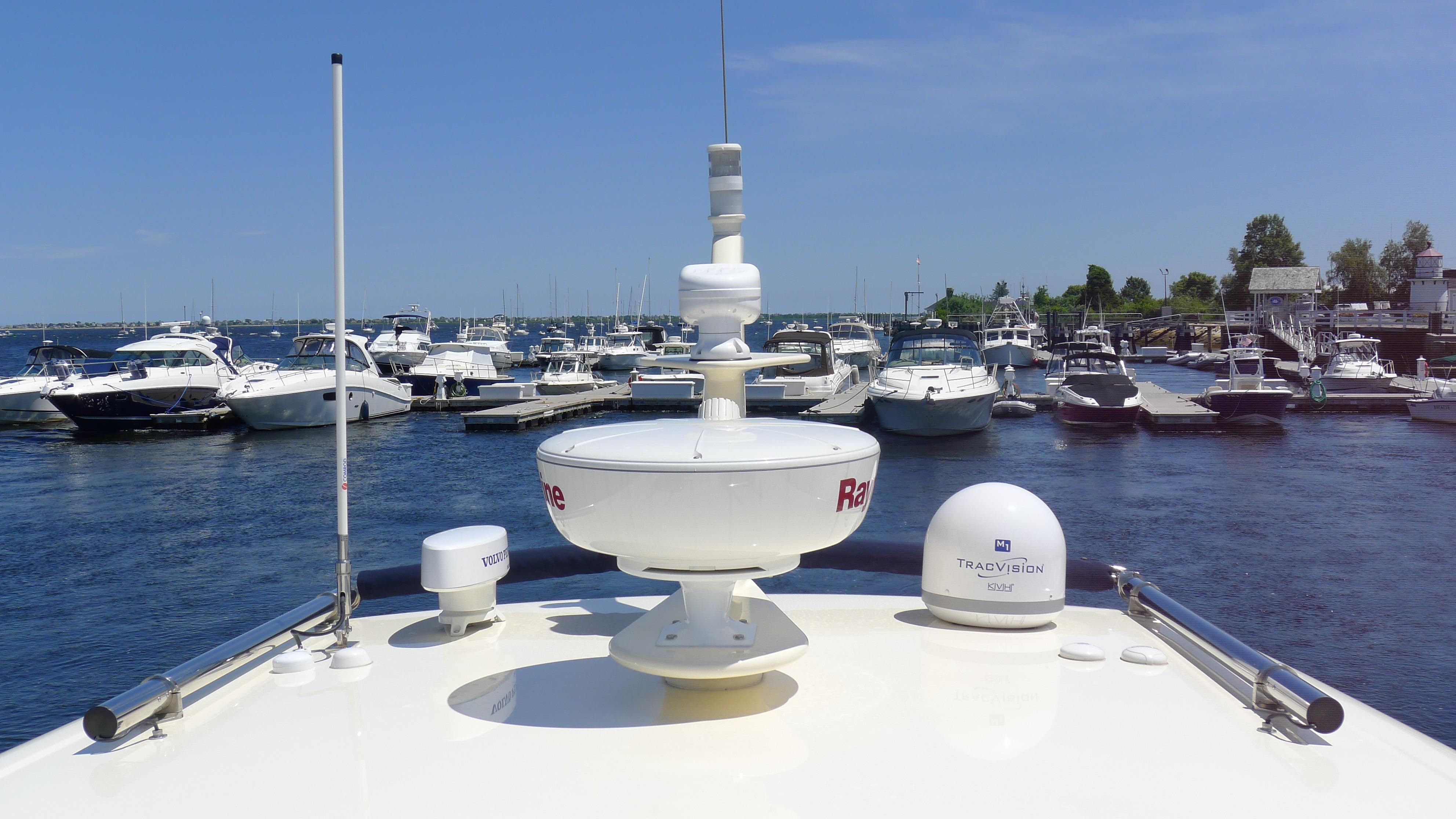

• Raymarine RD424HD 24" HD digital radar w/10M cable-Raynet
• Raystar 130 GPS antenna
• Evolution AP for drive by wire - Add Gateway, Volvo IPS interface unit, P70R Autopilot Control Head, ECI-1-- Universal Engine Interface and Control Adapter, Volvo Link Cable for ECI-100

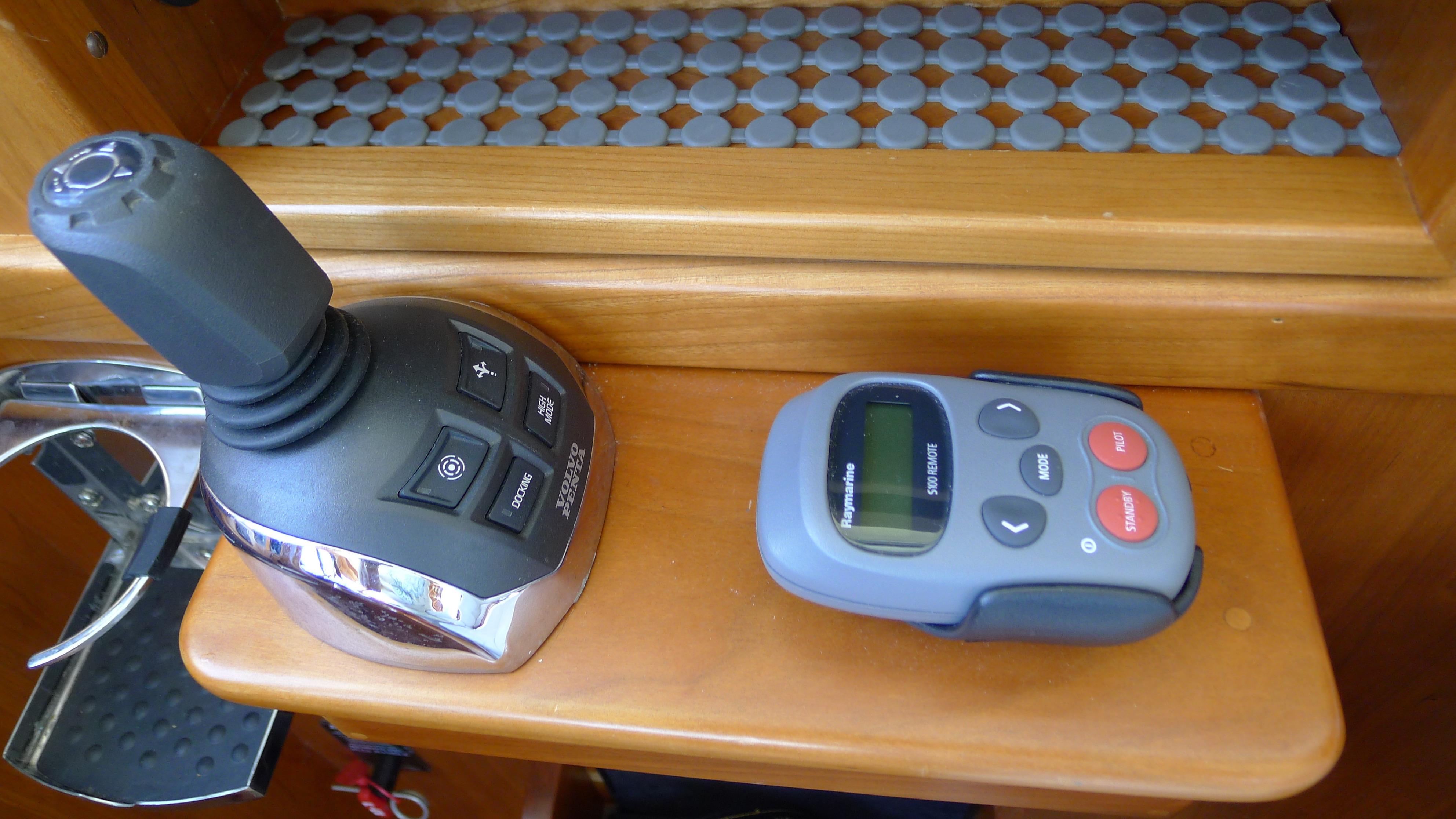

• Raymarine S100 remote control for autopilot

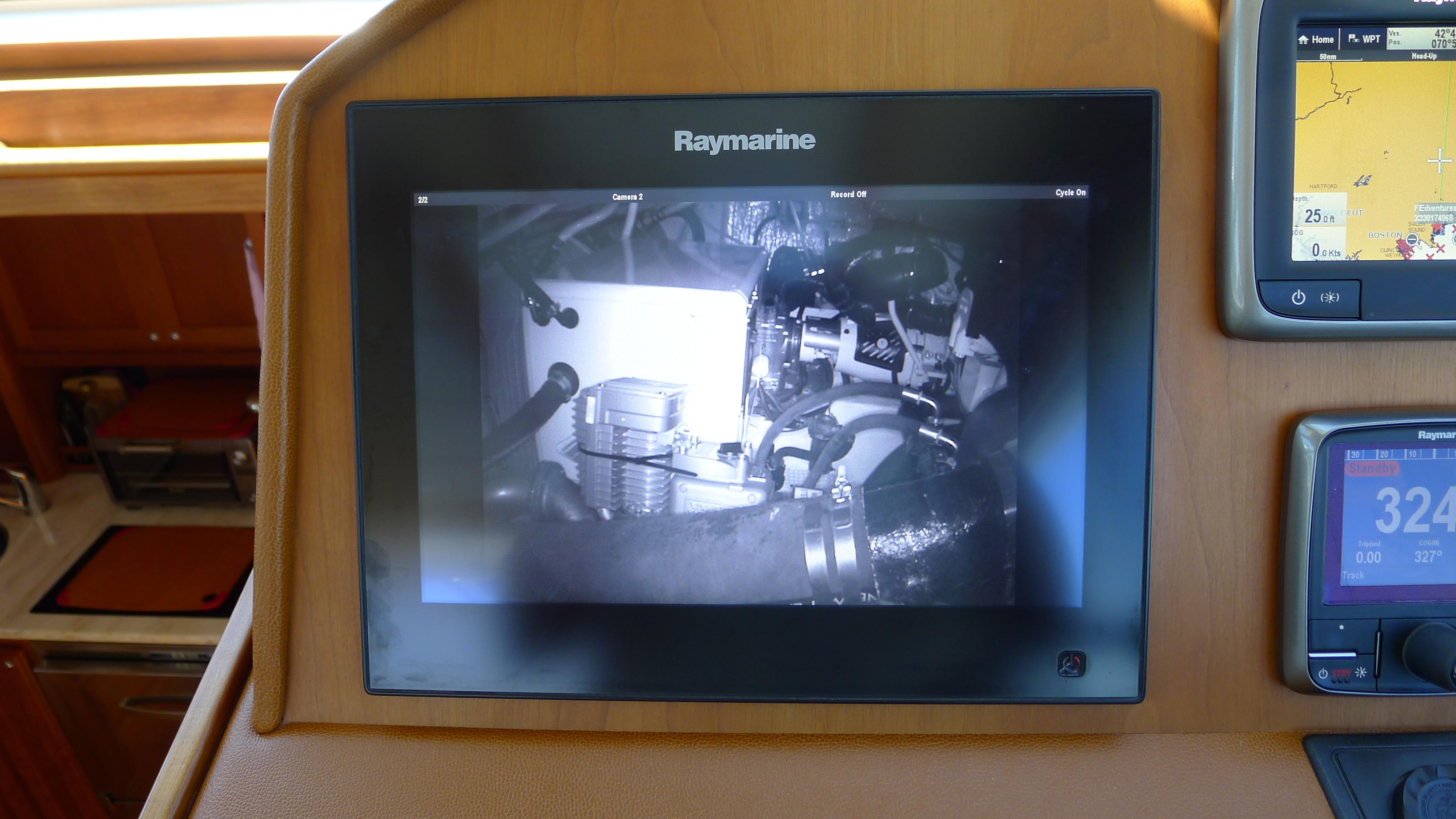

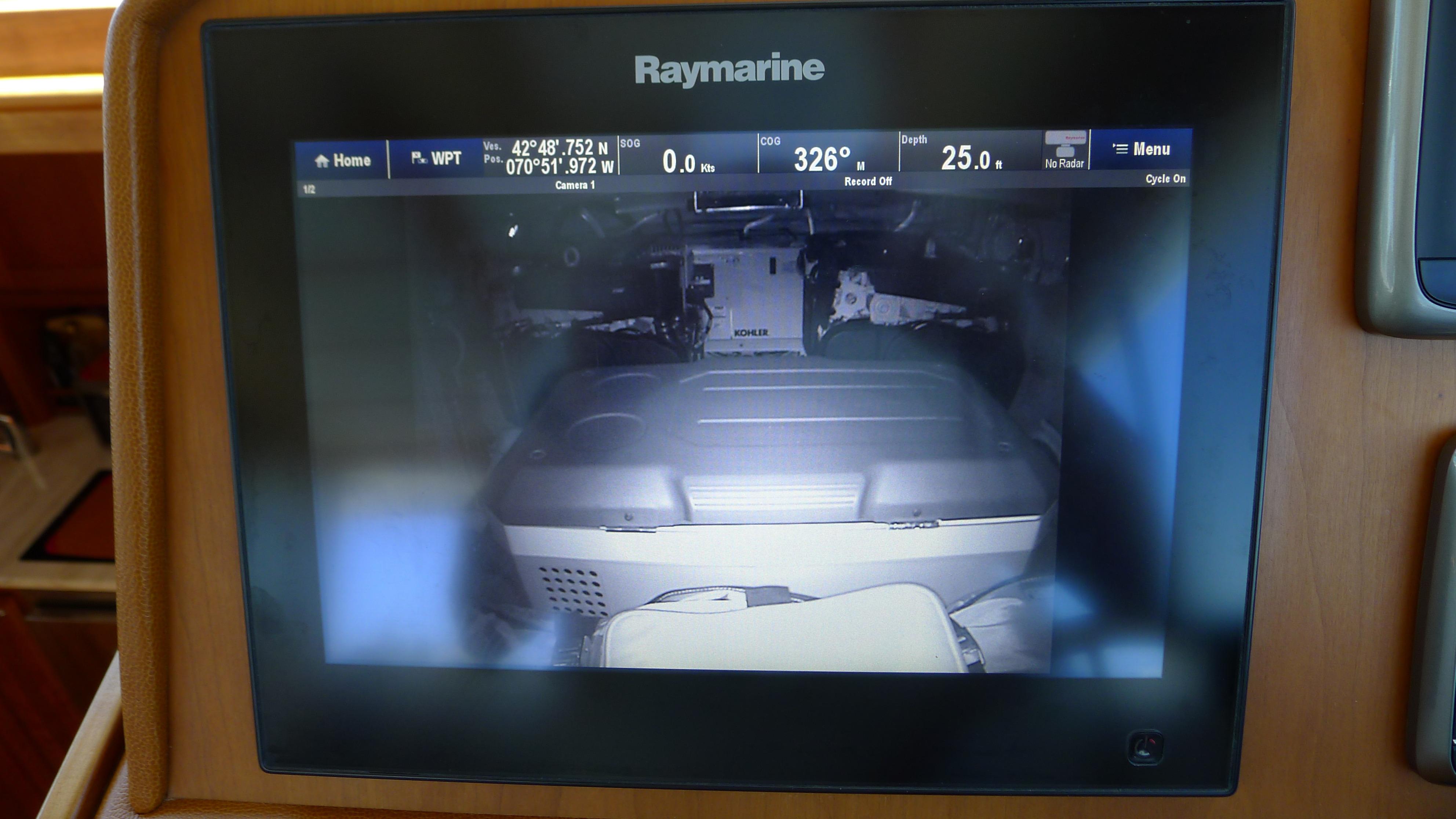

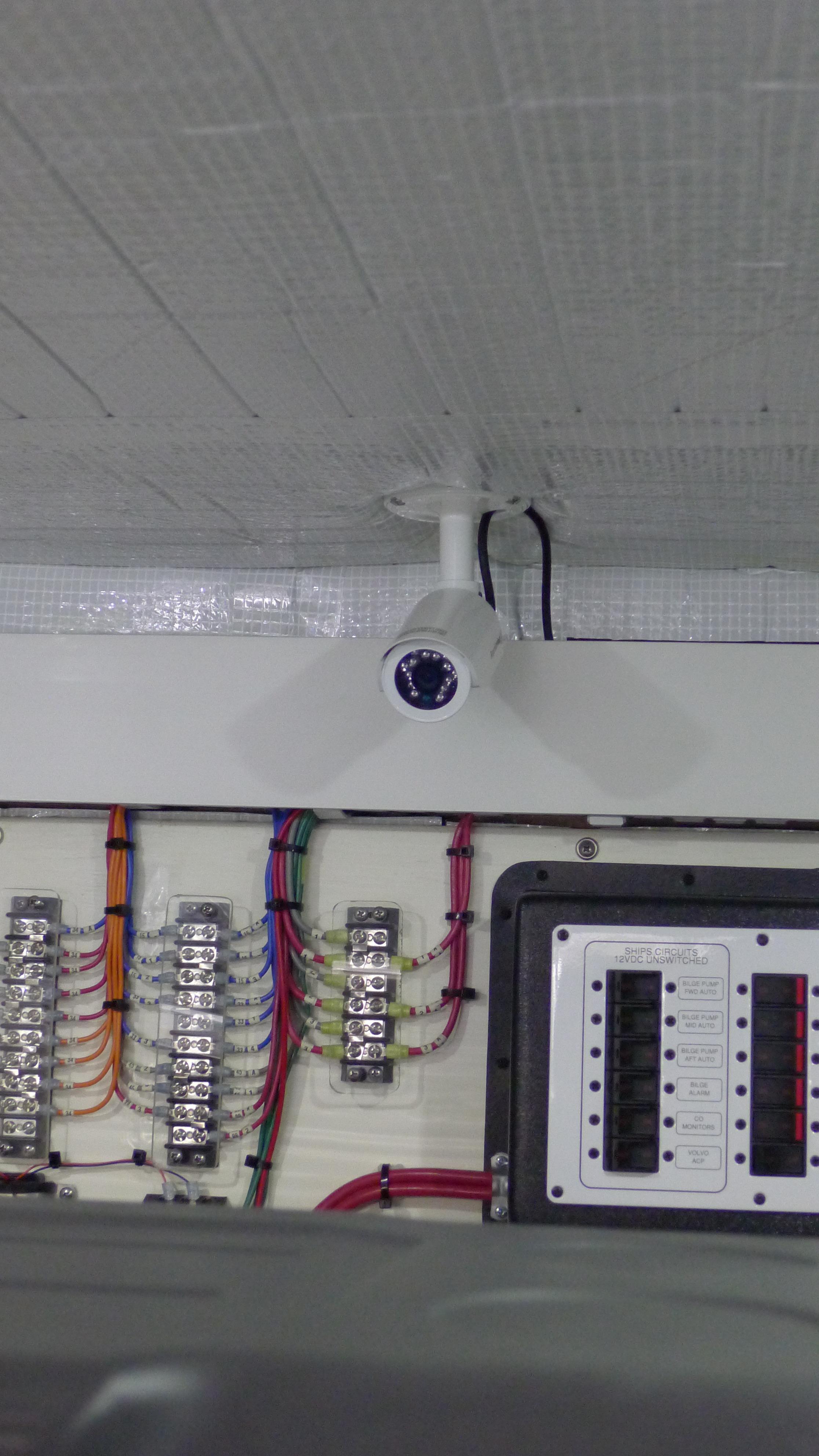

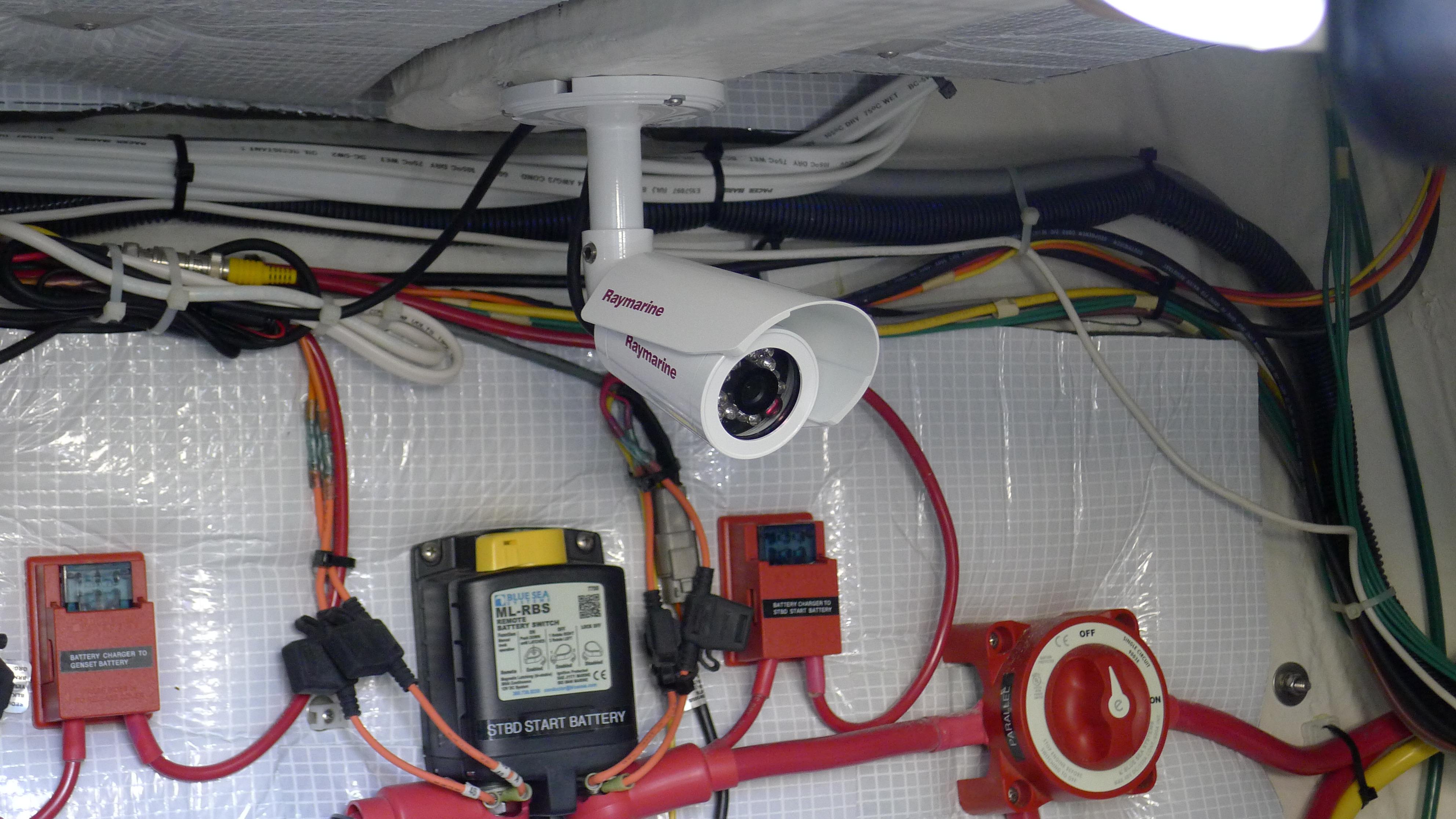

• (2) CAM100 Engine Cameras
• AIS100 splitter for Antenna
• AIS650 Class B AIS Transceiver
• HS5 Network Hub - Raynet
• GEM B60 20 Degree tilted element
• Raymarine cable for 600W transducer

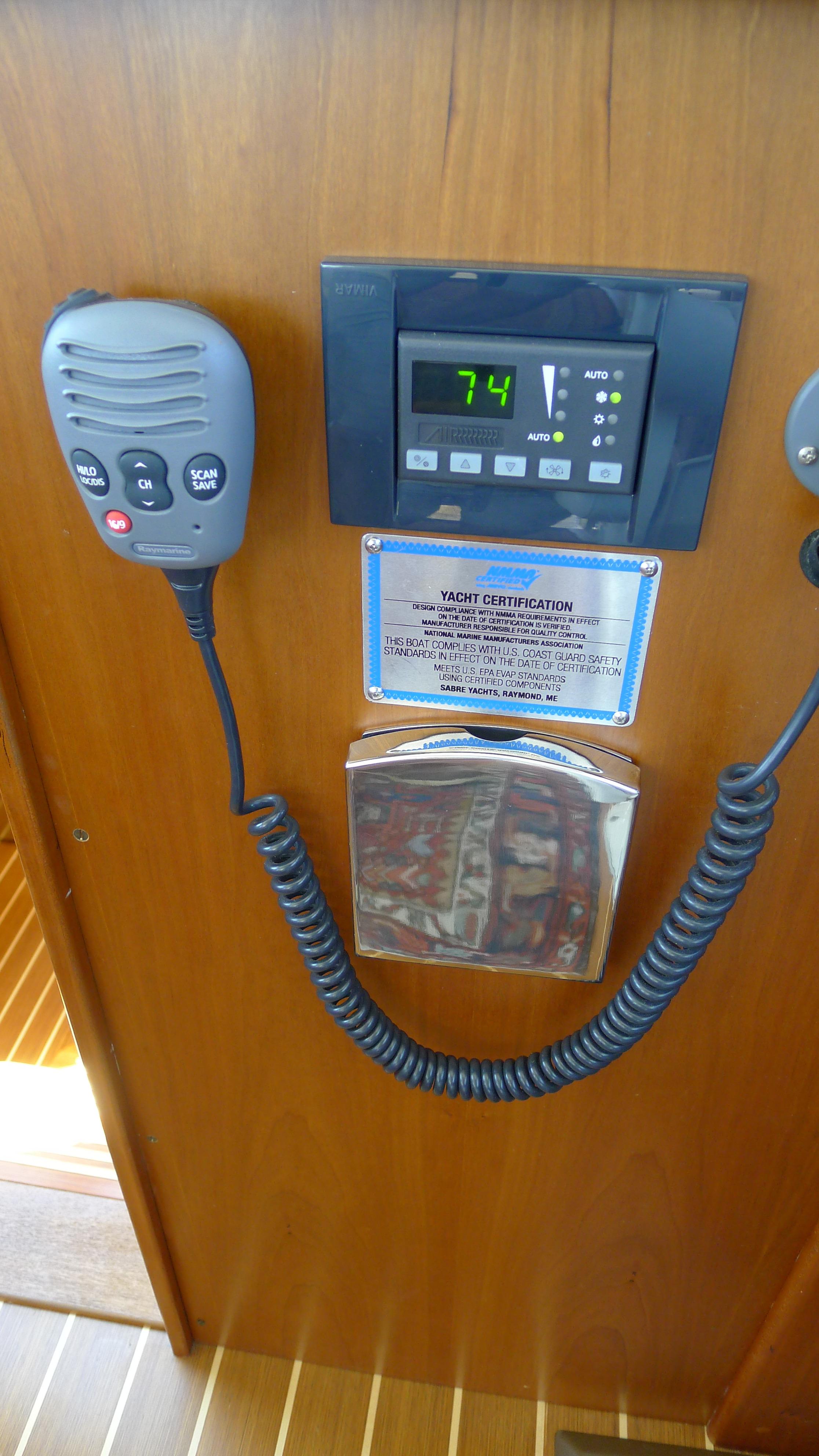

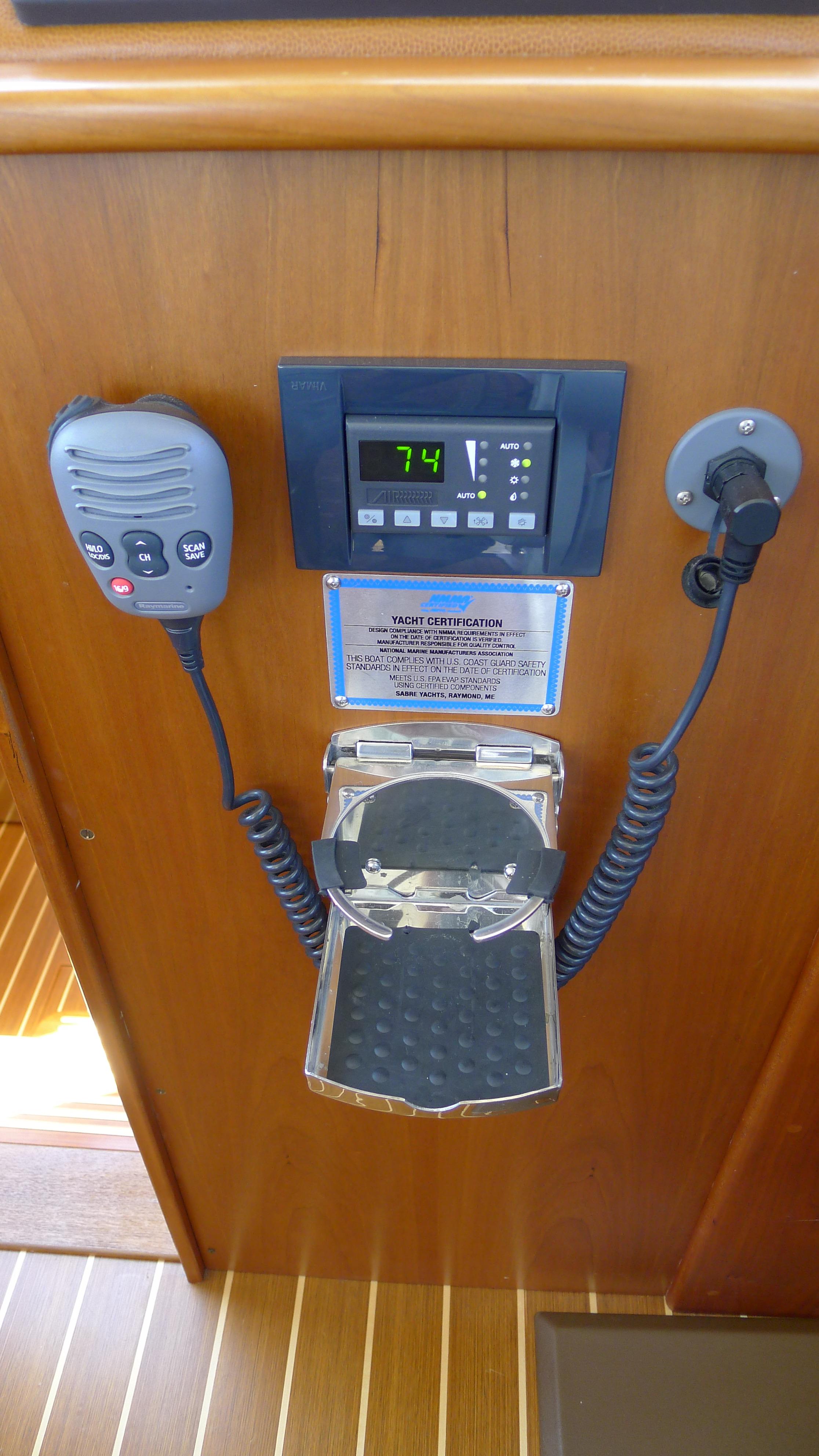

• Raymarine Ray218 VHF radio w/ front flush mount kit and hand mic relocation kit
• 3' VHF digital 3dB Gain antenna (white)
• Speco 5x8 Hailer Horn
• ACR RCL-75 remote control spotlight
• ACR SAT3 406 EPIRB CAT II
• AUDIO / SAT TV
• KVH M1 SAT system w/ (2) 12V DirecTV receivers

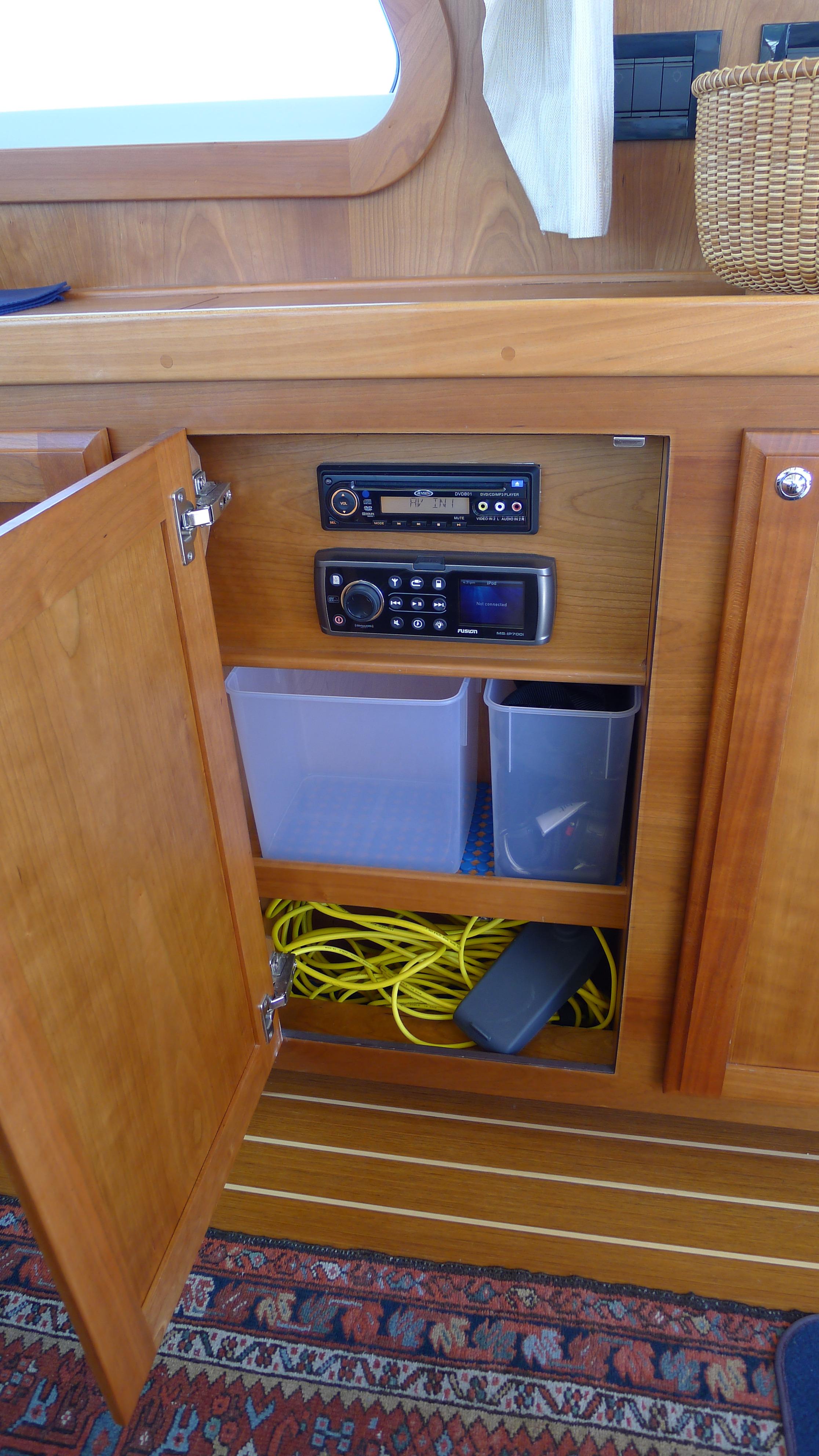

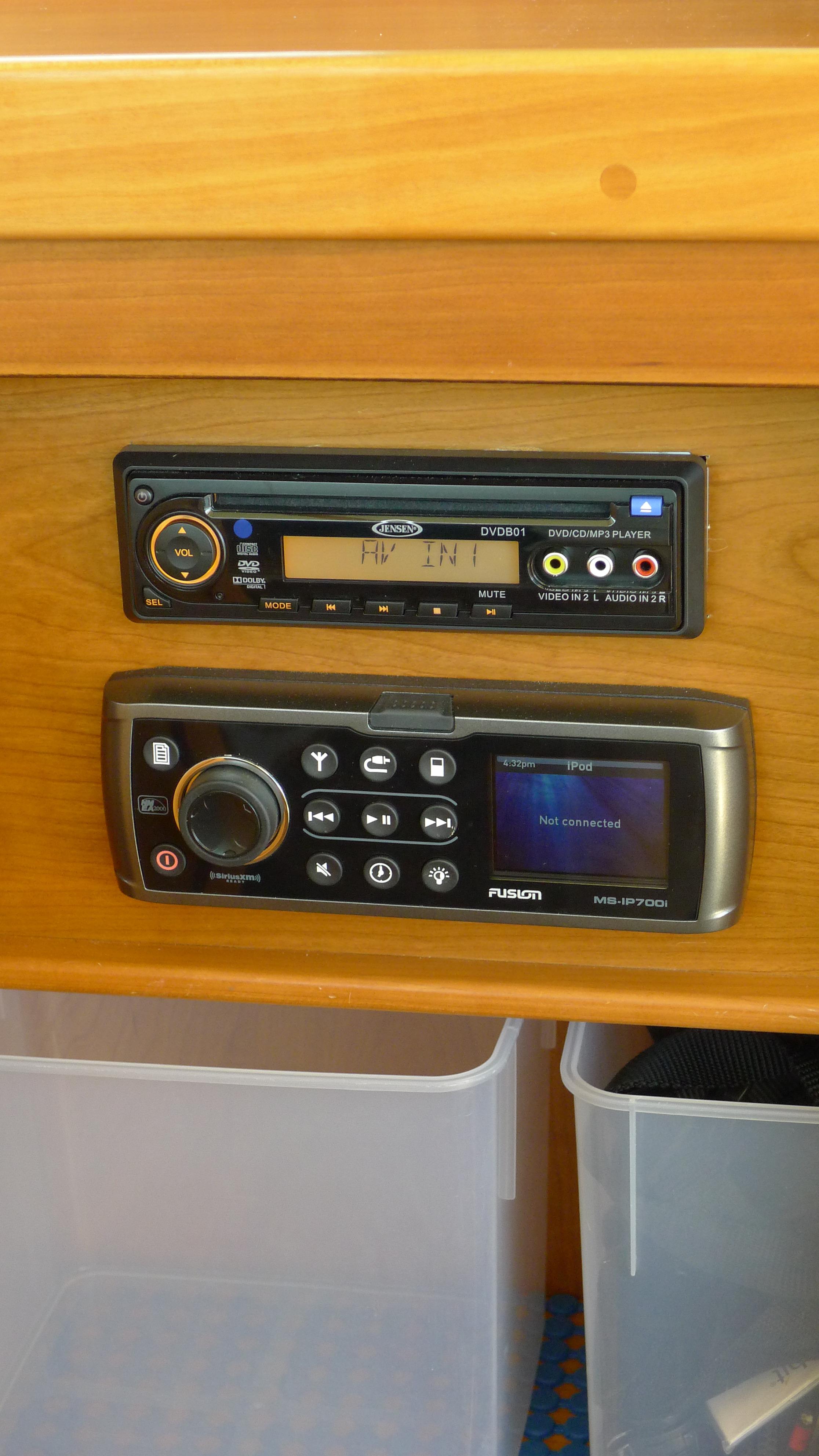

• Fusion AV700 DVD/AM/FM stereo unit, Fusion RA200 iPod dock, (2) Fusion 700 Series wired remote, Fusion Bluetooth Dongle for IP700, RA205, (2) Fusion 4" 120W speakers, pair (black), (1) Fusion 6" 200W speakers, pair (black), (1) Fusion 6" 200W speakers, pair (white), (2) Fusion 2-channel zone amplifier,
• Linksys E900 wireless router
• Shakespeare SRA40 Sirius SAT radio antenna
• Shakespeare 50 SRA40 SAT radio antenna cable
• Fusion XM/Sirius radio receiver for 700 Series Head unit
• Wave Pro WiFi amplifier

Accommodations

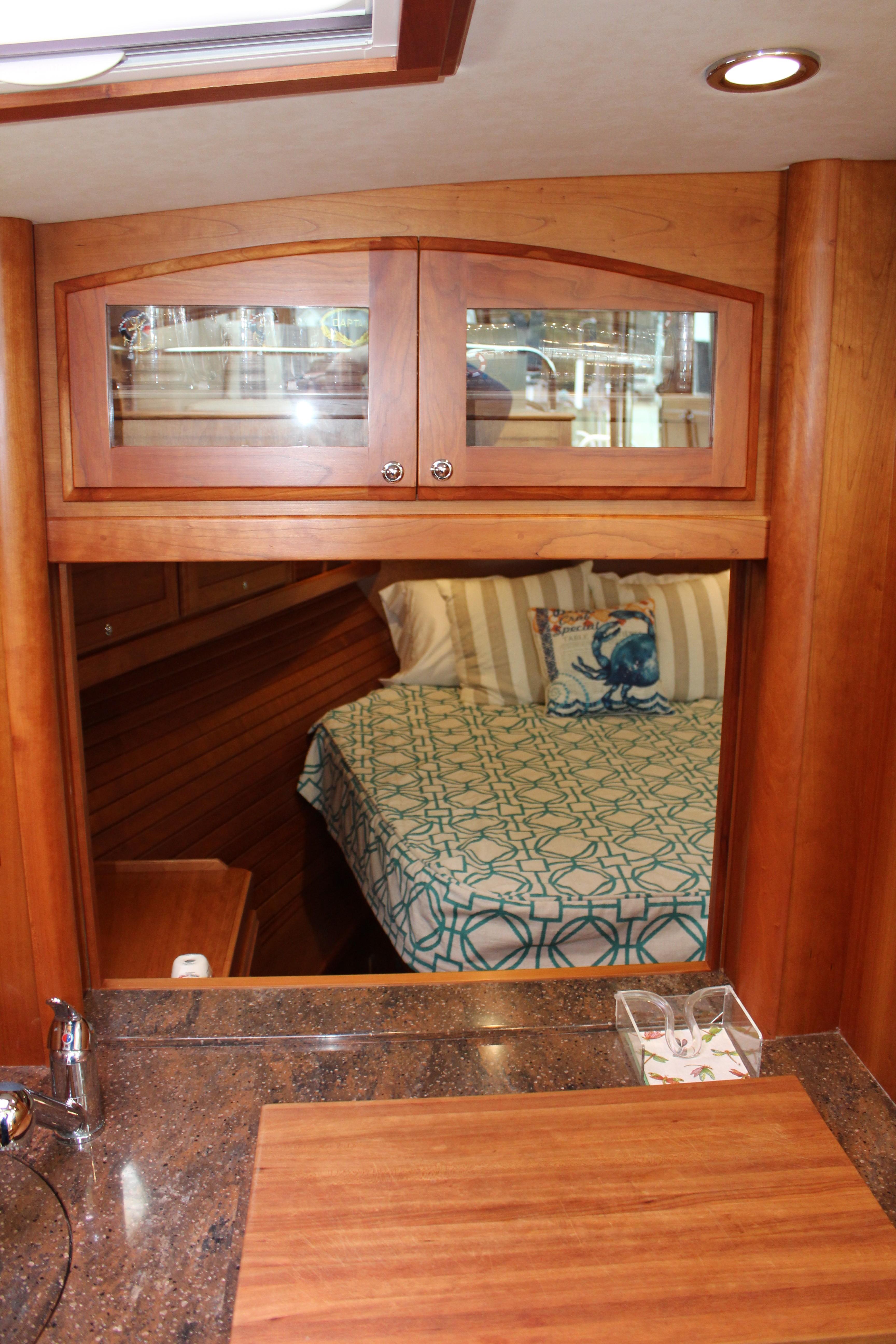

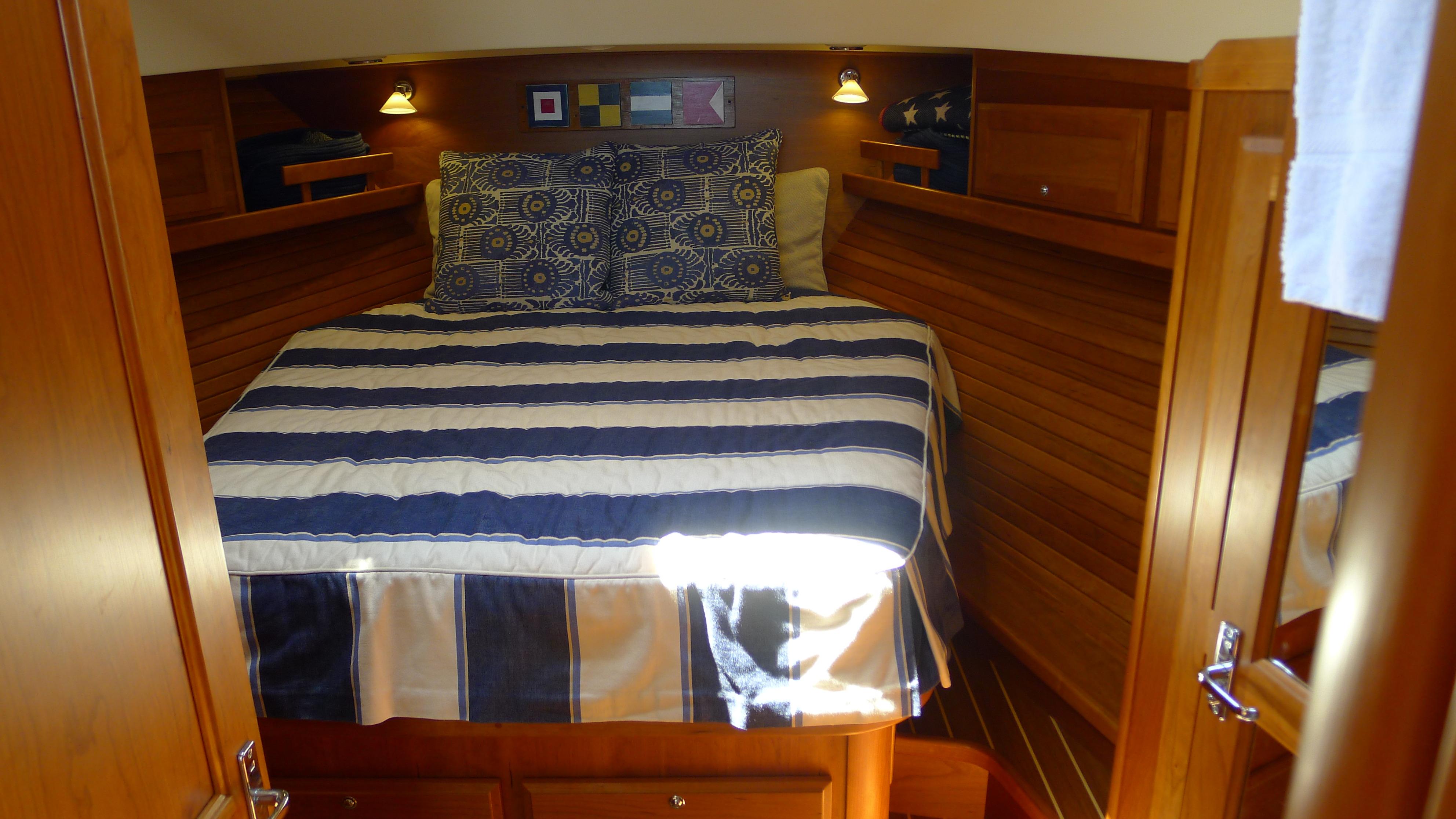

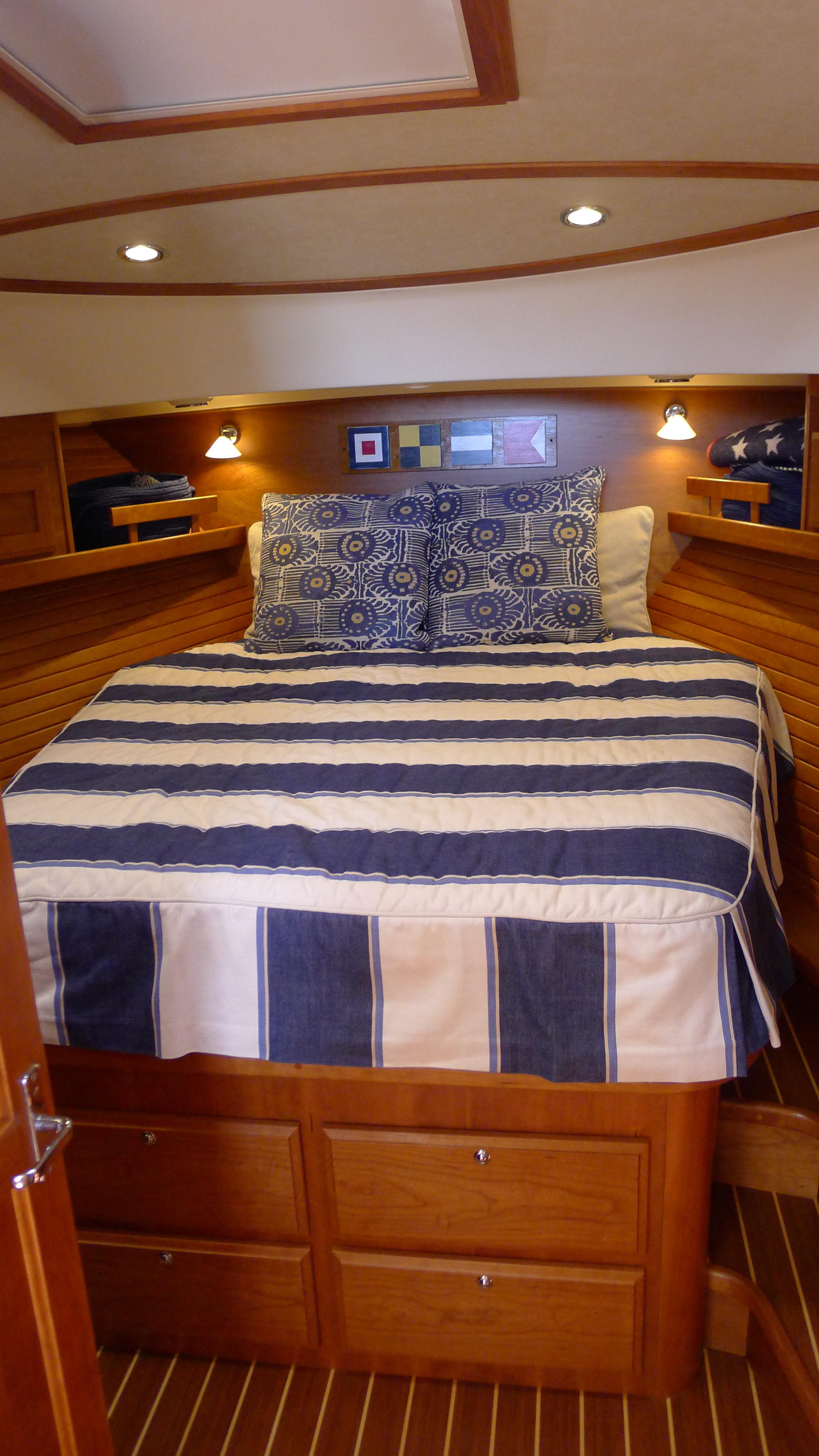

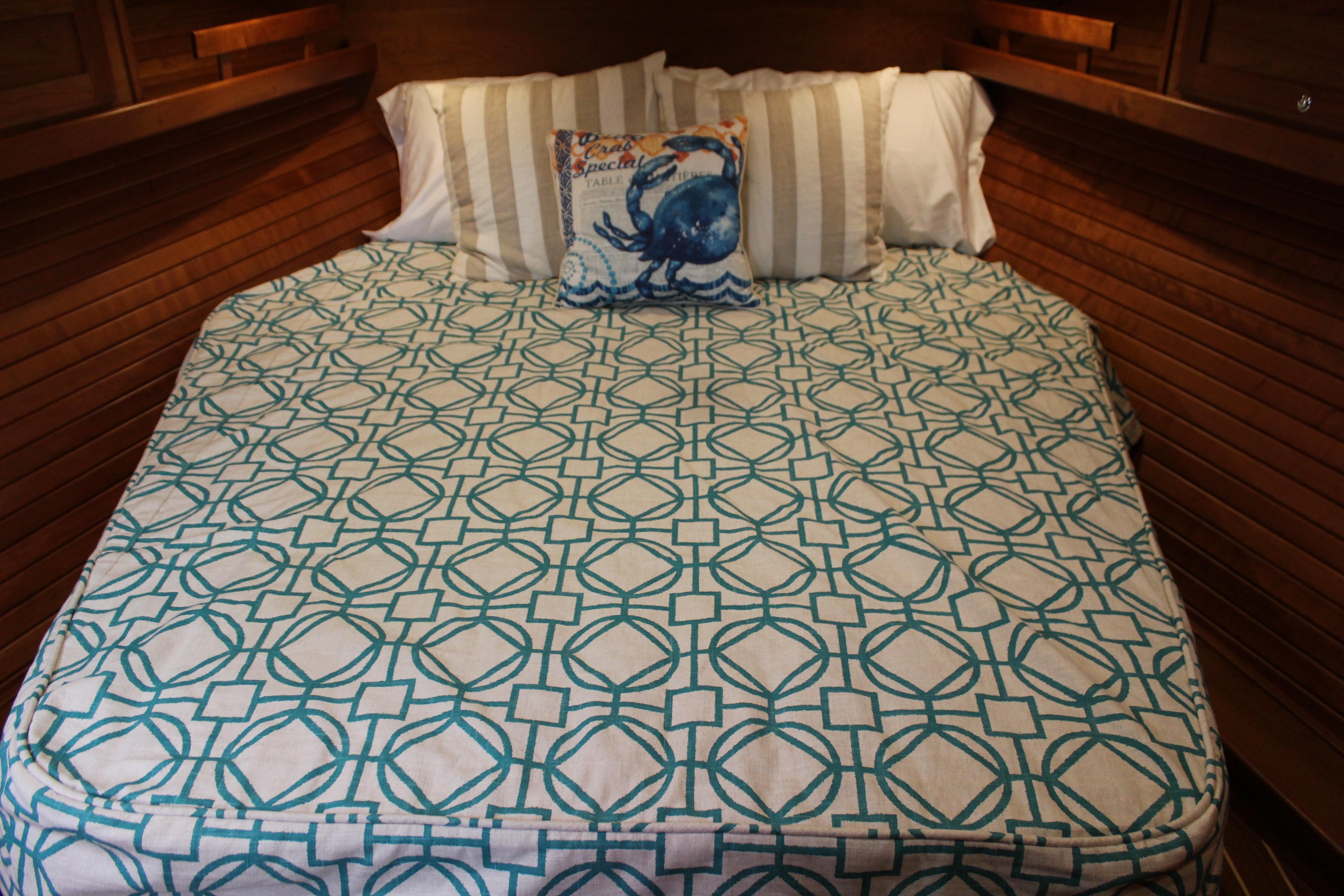

MASTER / FORWARD STATEROOM

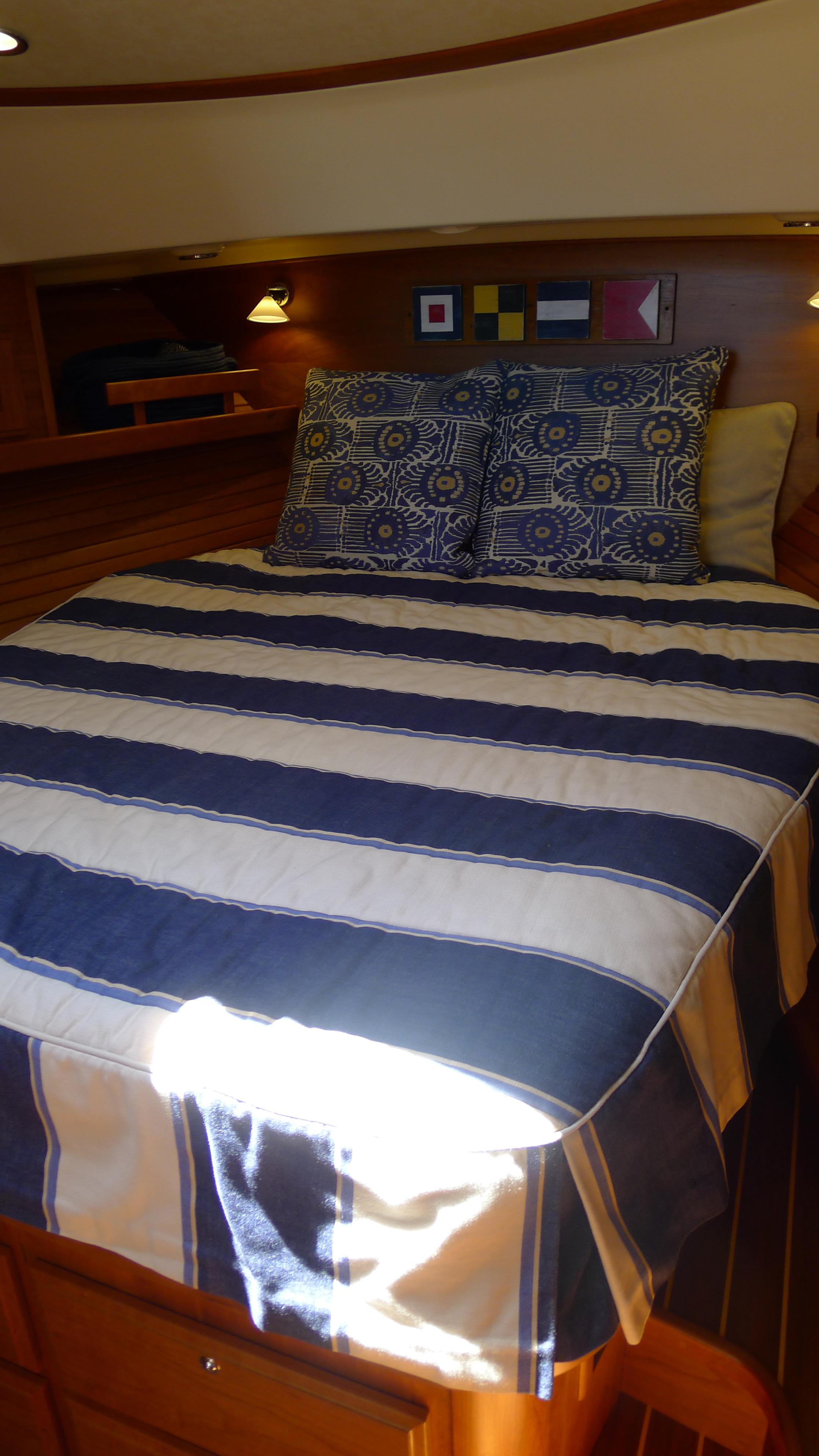

• Spacious Island Berth layout with 5" mattress. ¾” laminated trim on berth top
• Cherry hull ceilings
• Drawers under bed. A/C return grills under drawers
• Drawers in bureau w/locker w/shelf above and single louvered door
• Upper enclosed shelves with storage behind. Locker face with 2 louvered doors. Each door to access partitioned space with shelves in the aft two compartments.
• Large Hanging Locker to starboard, cedar lined with shelf and hangar pole. Open shelf above. Louvered door.
• Teak and holly sole
• Soft headliner panels
• Passageway door between galley and forward cabin
• Flat screen mounted TV

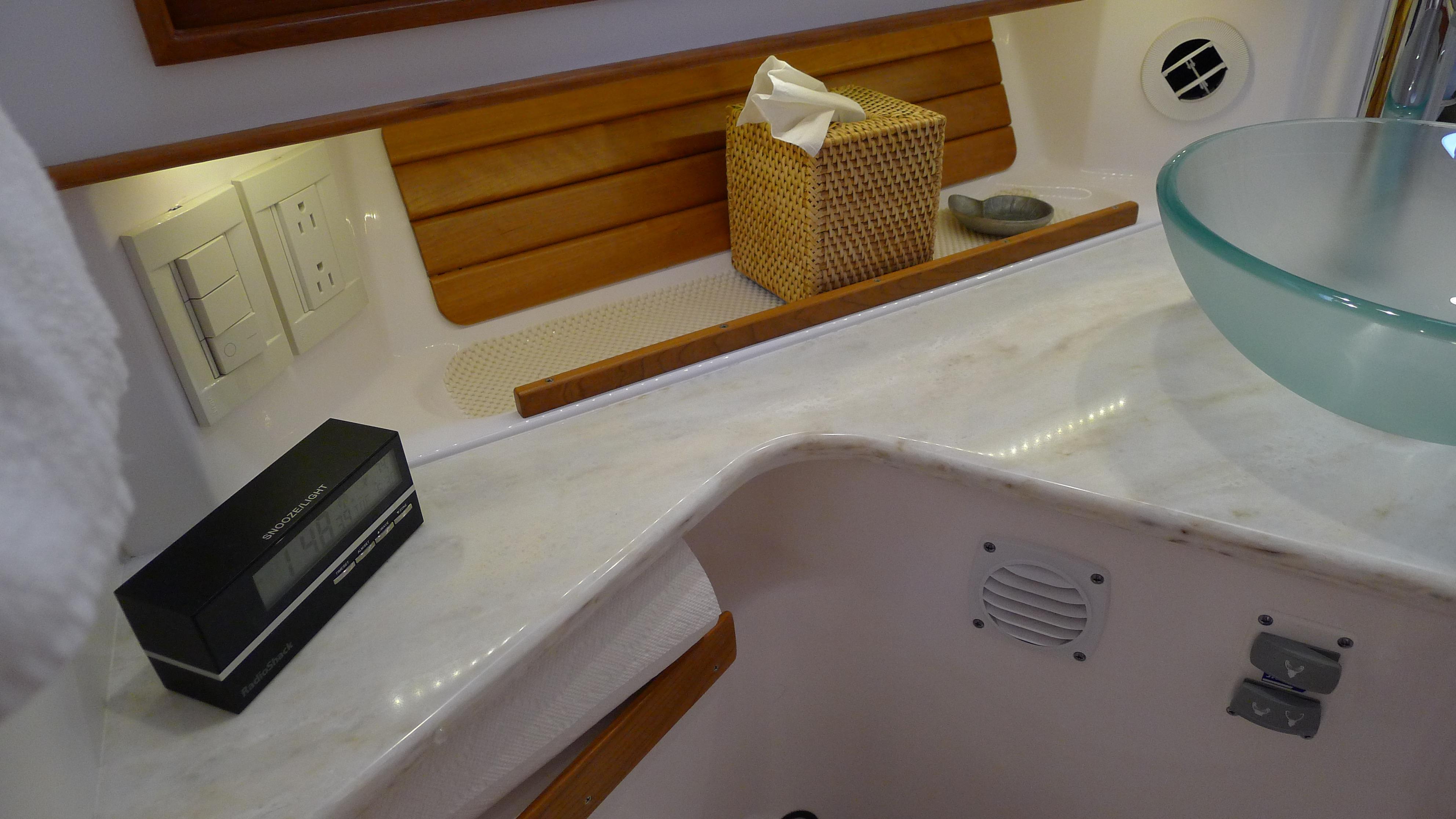

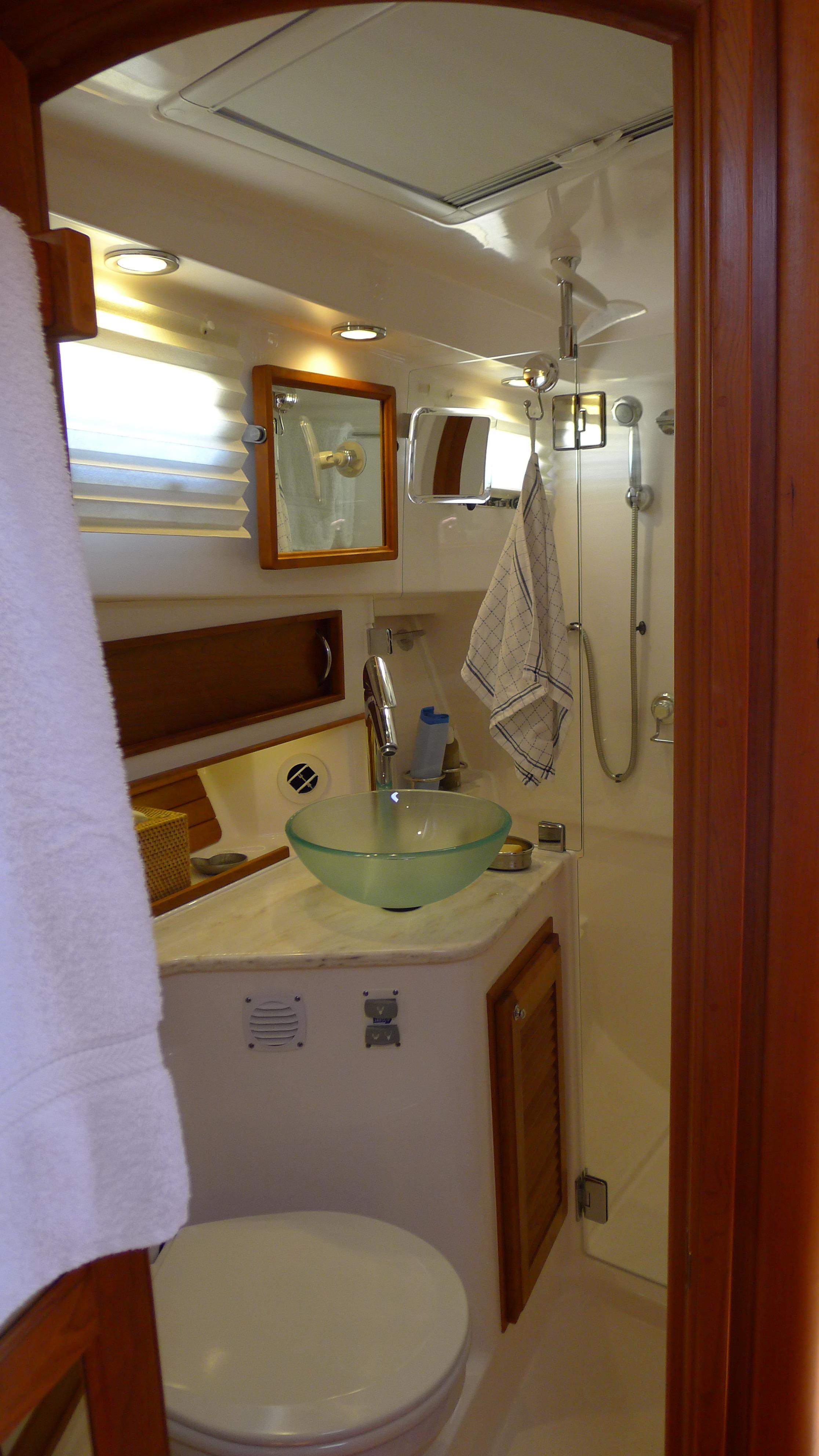

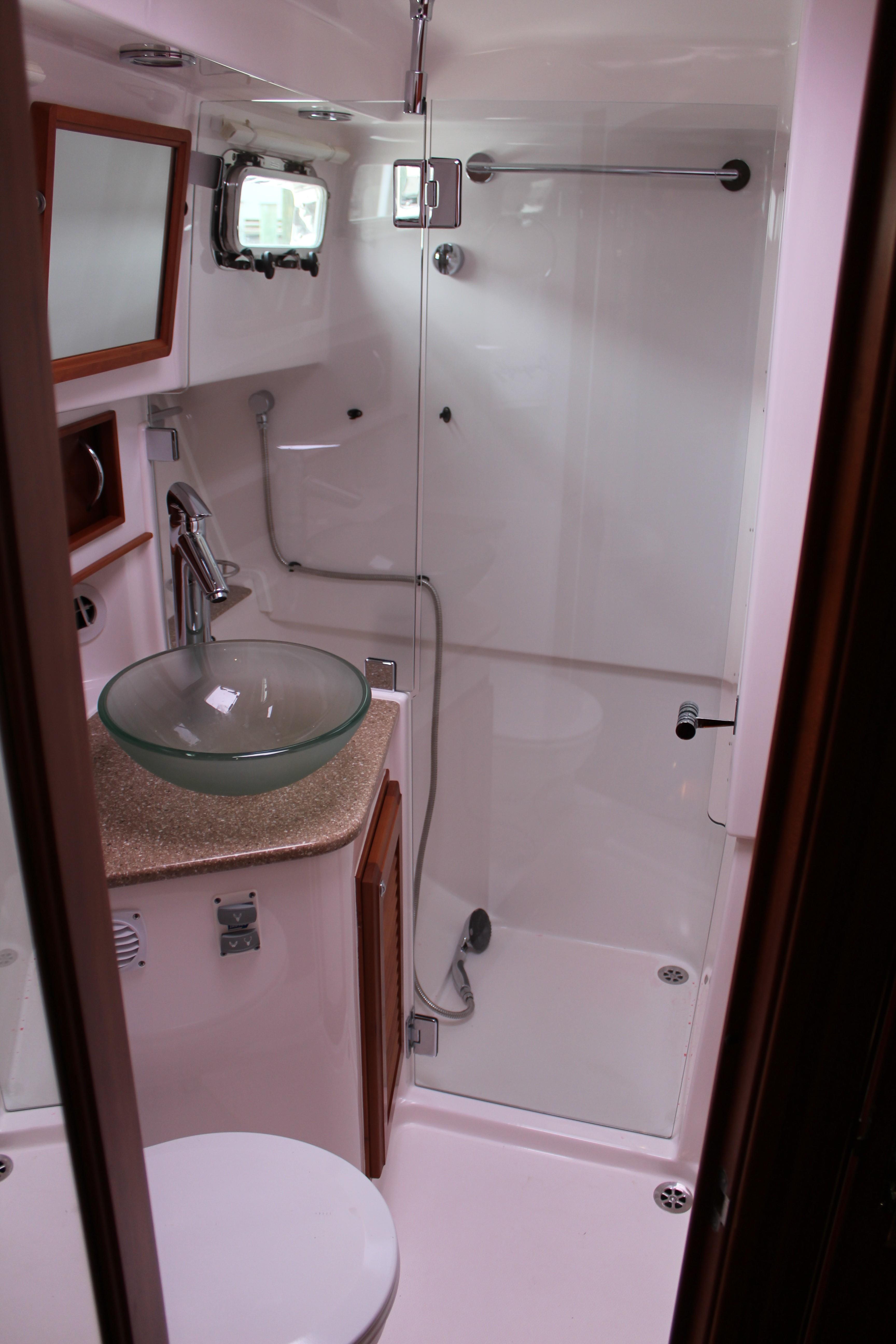

HEAD

• Stainless steel sink with faucet
• Shower stall with seat and locker outboard
• Hot and cold pressure water
• Electric shower sump pump
• Storage lockers

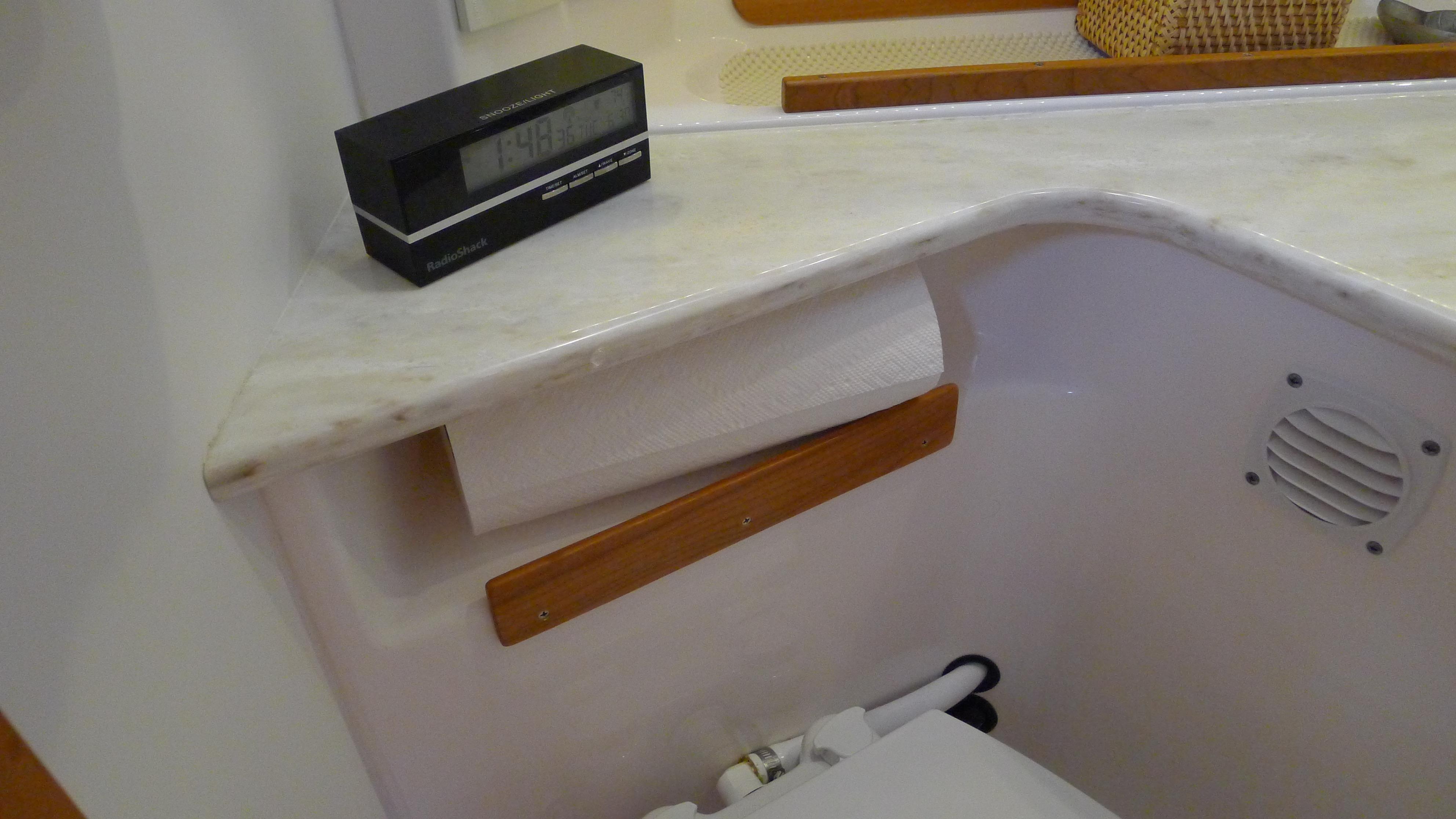

• Solid Surface Material countertop with bull nose

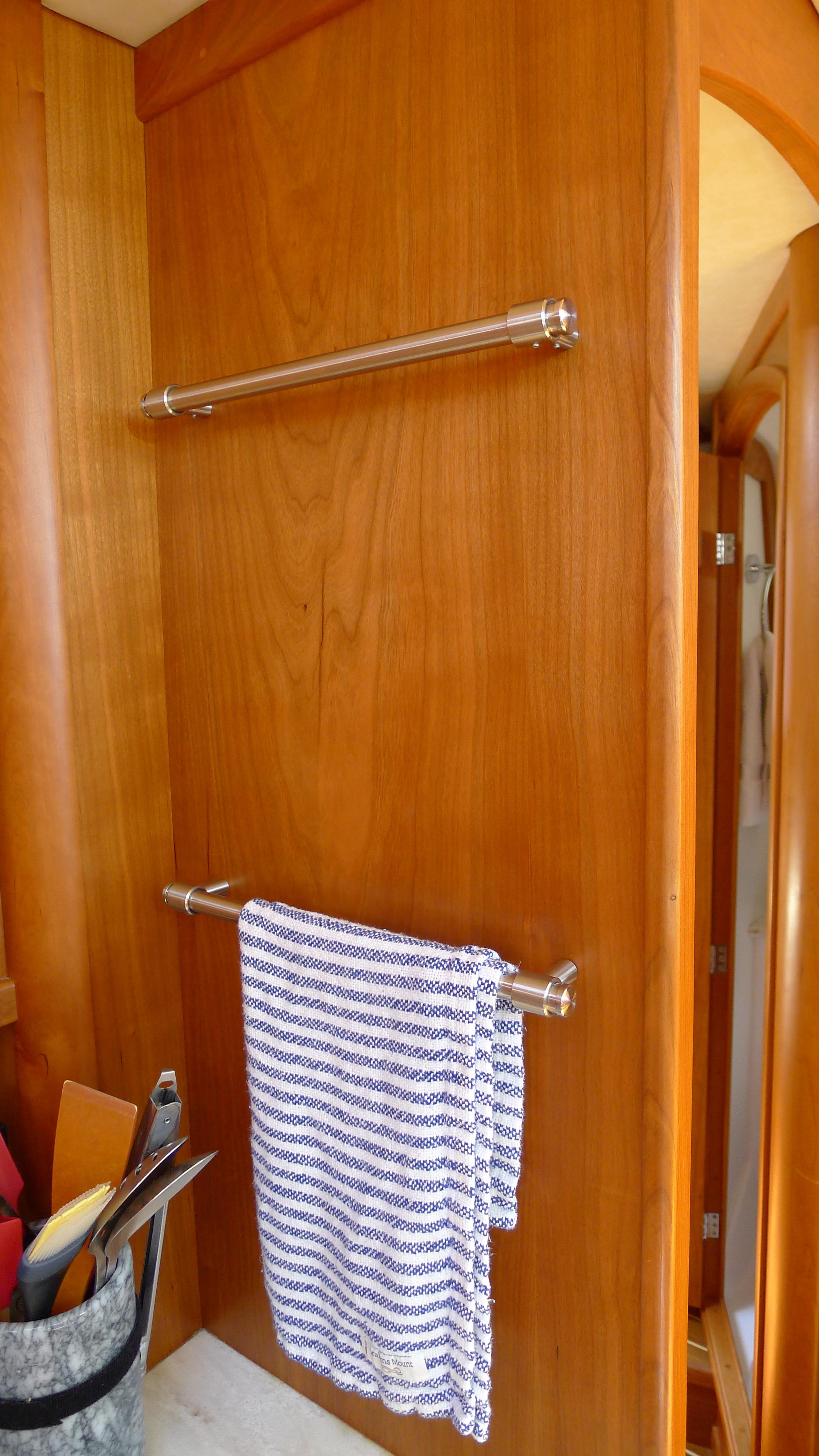

• Towel bars
• Wood trimmed mirror over sink
• Ventilation blower

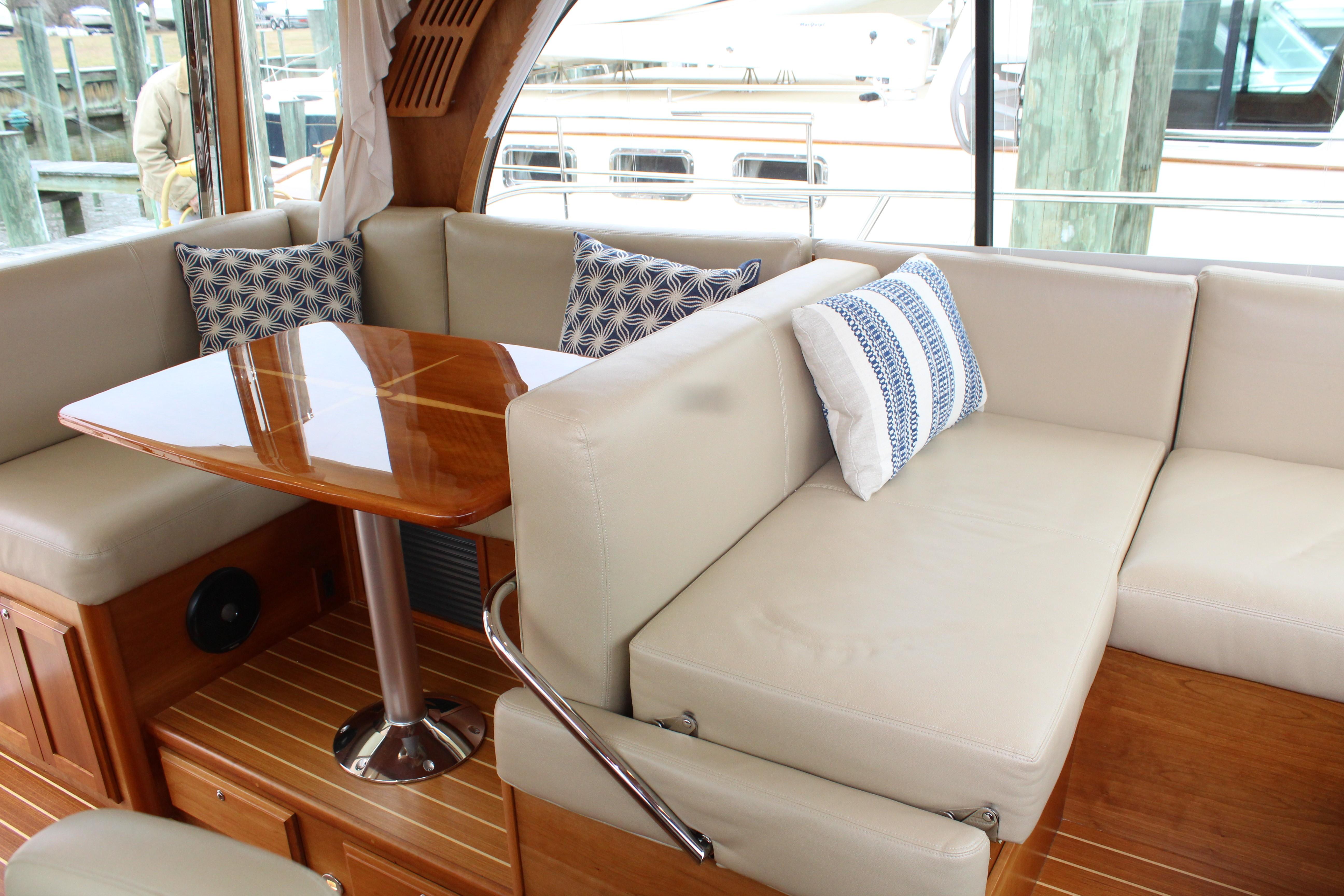

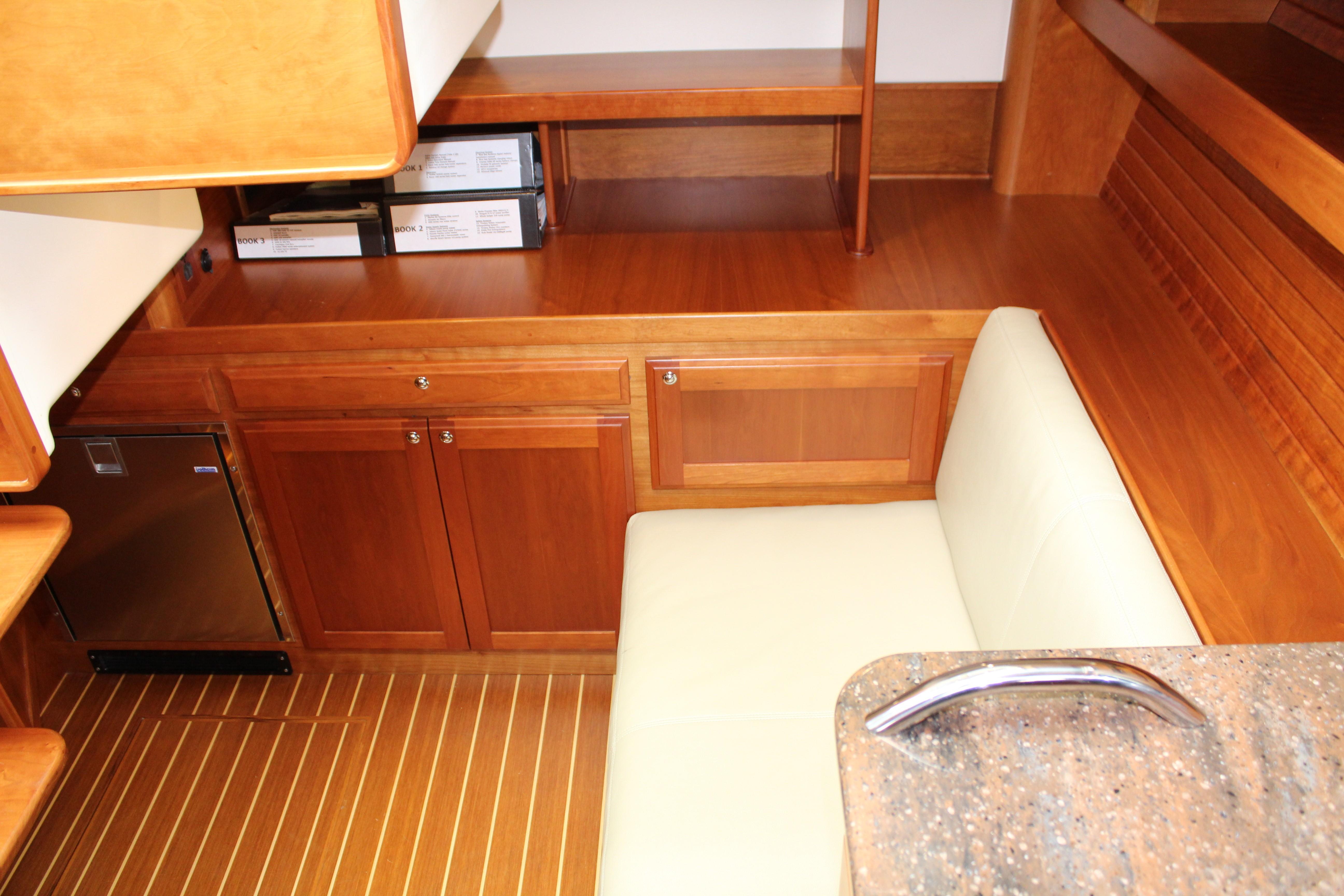

SALON

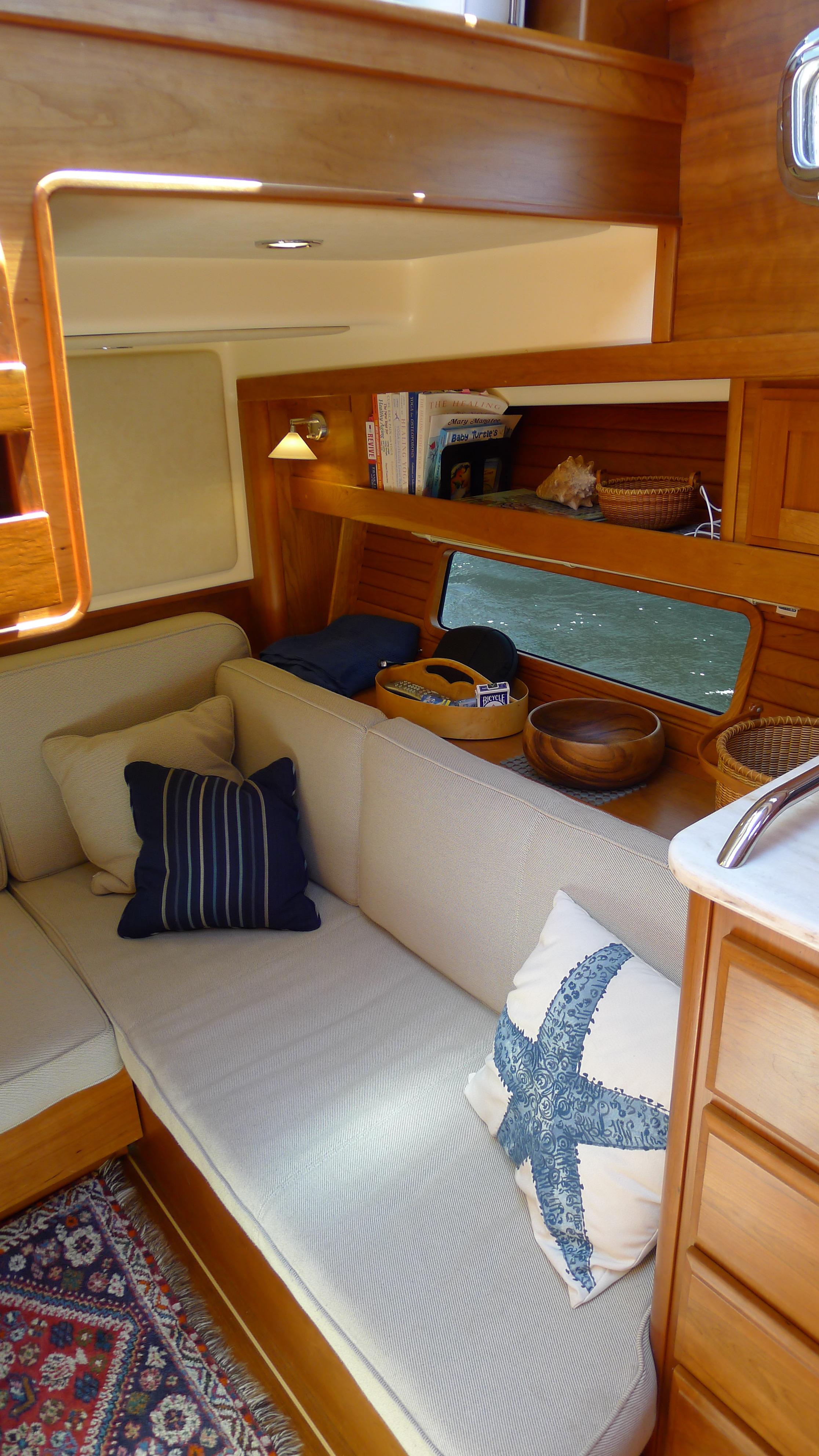

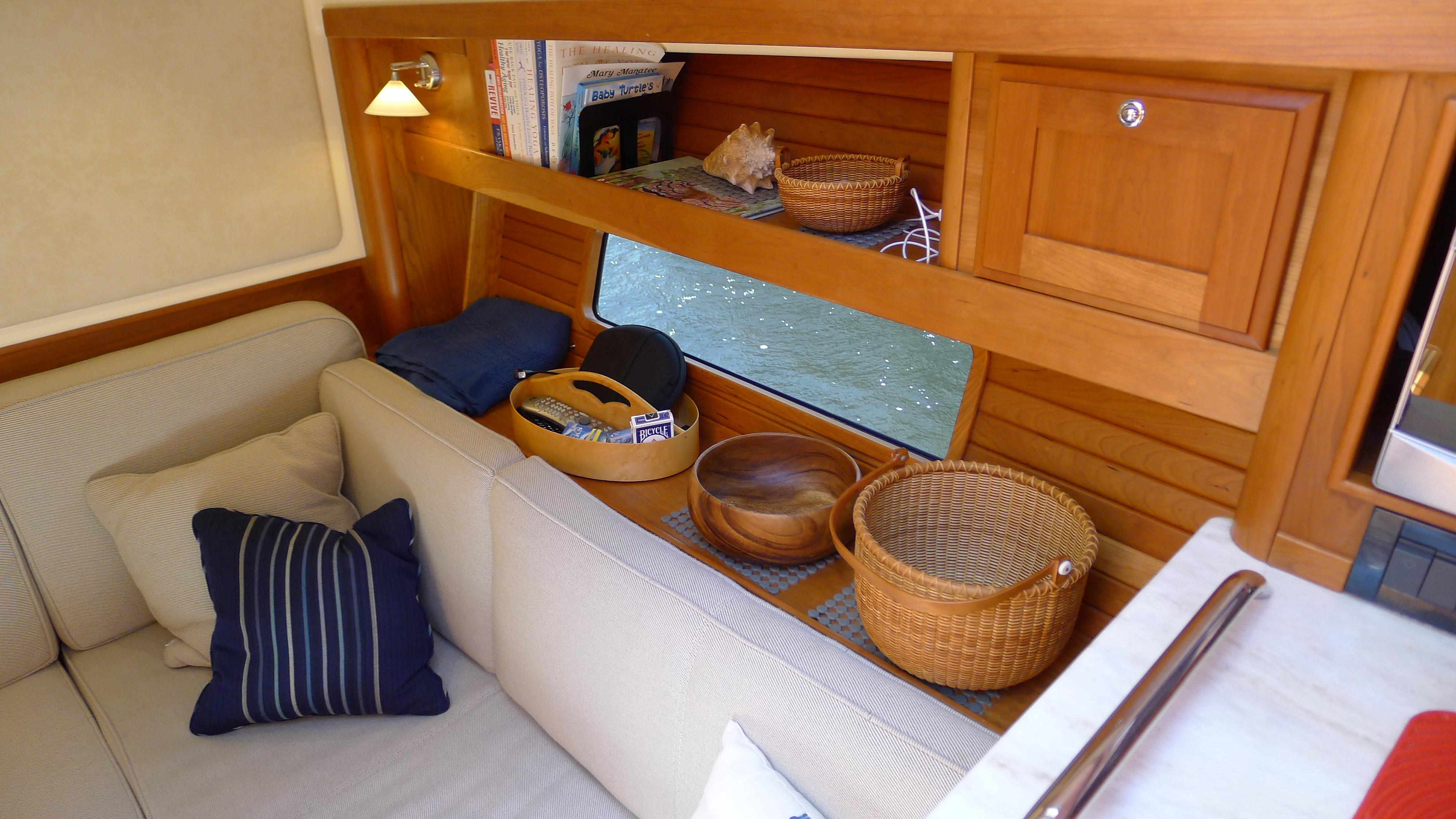

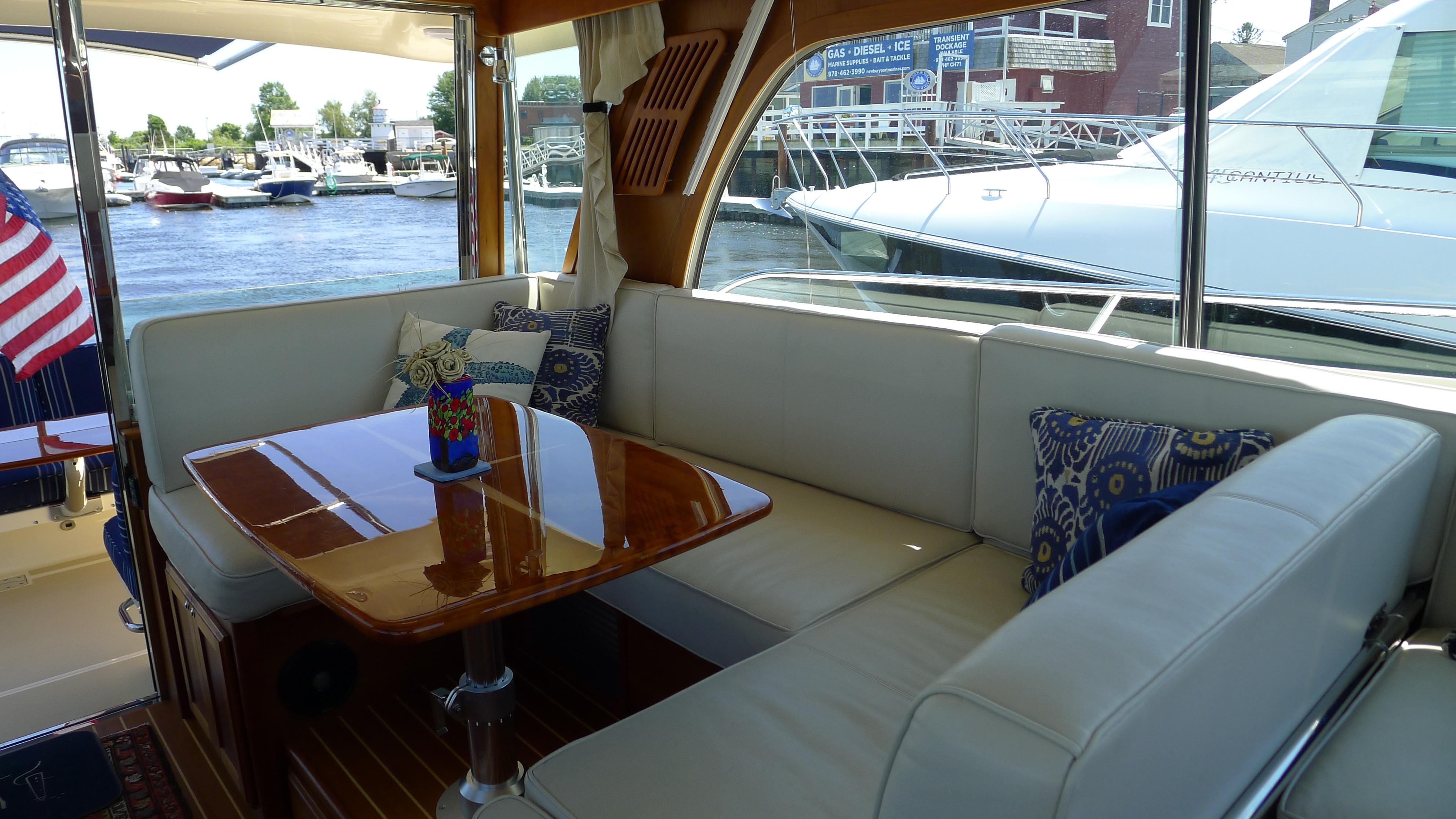

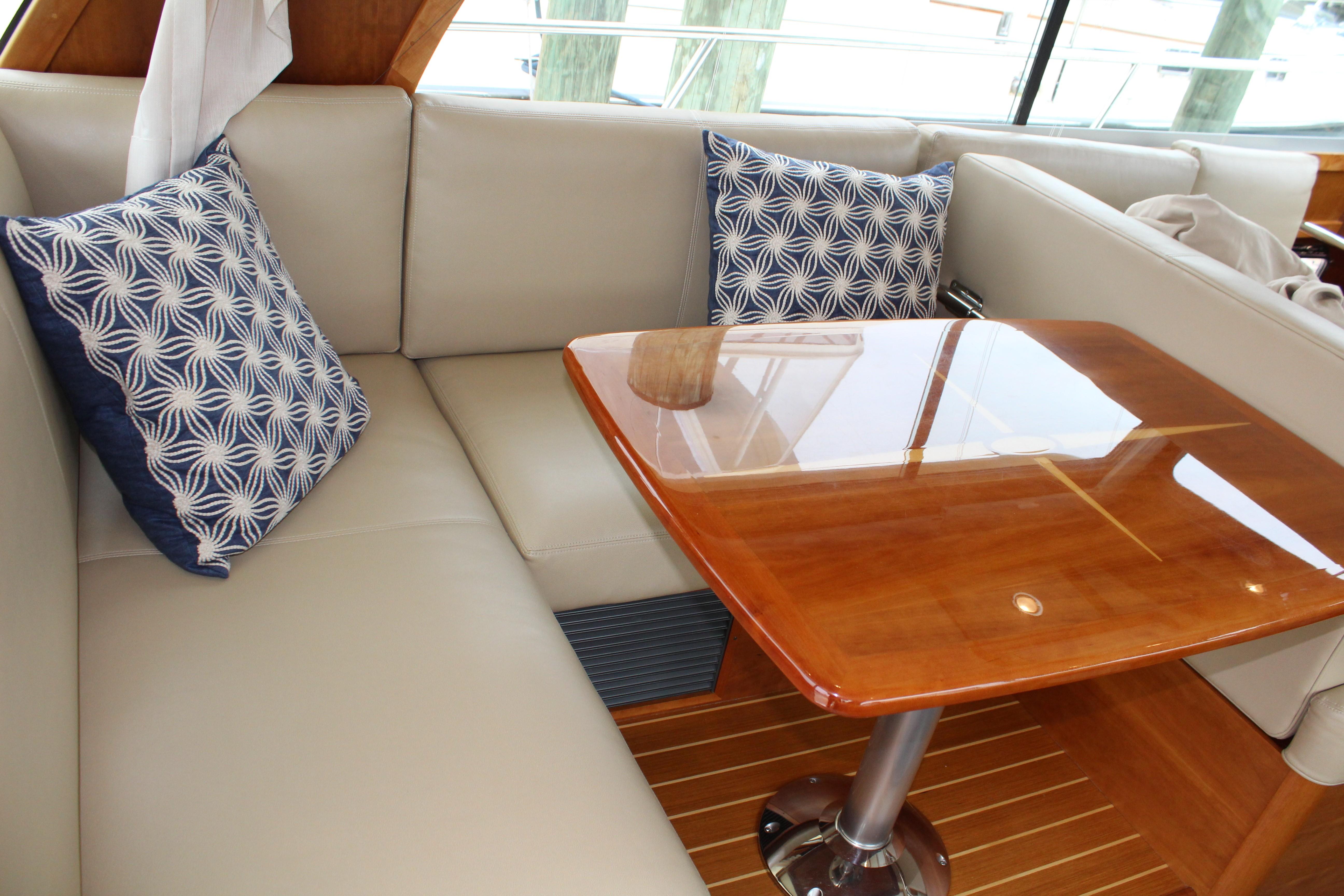

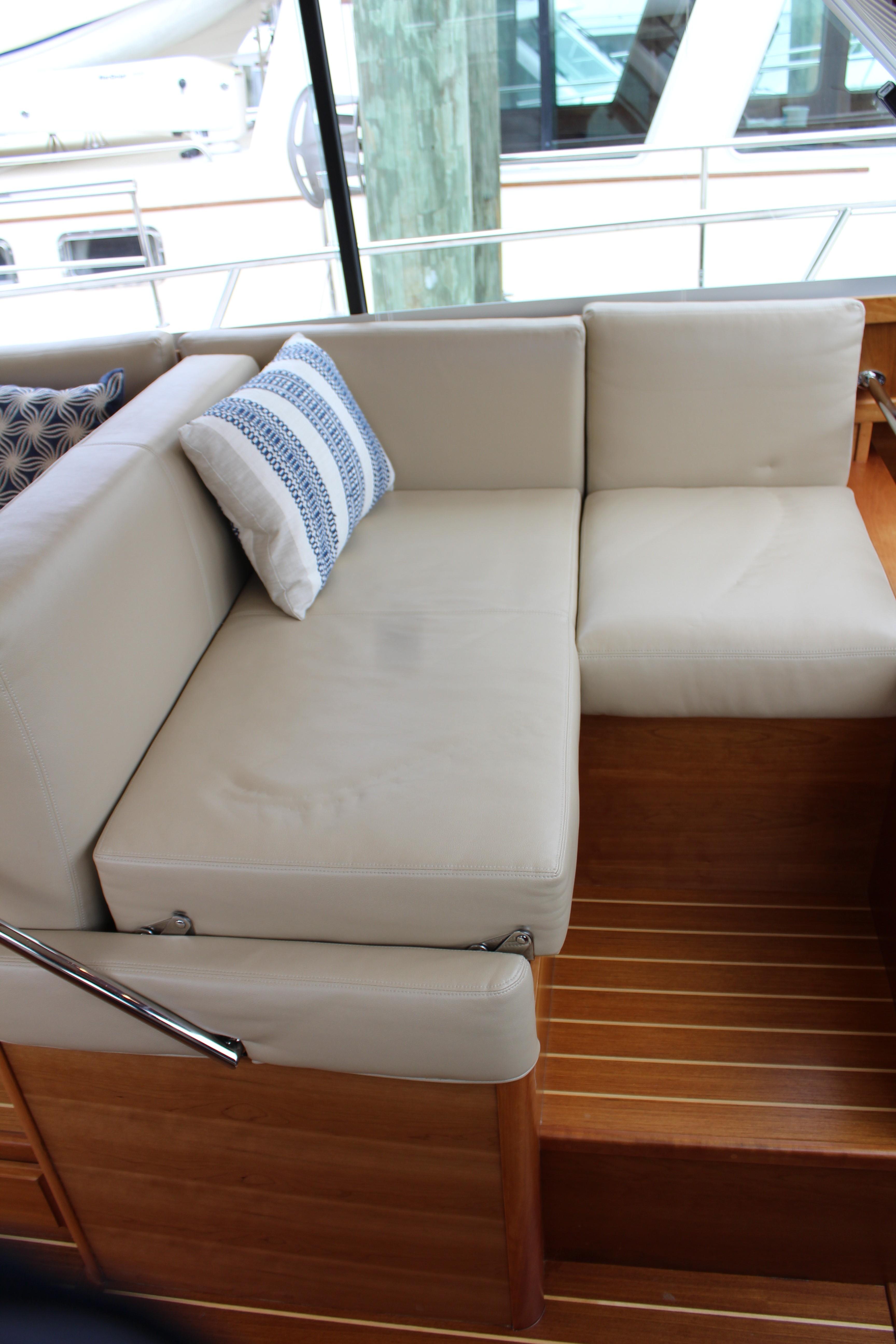

• Elevated "U" settee to port with fold over table. Converts to double berth. Storage under
• Mates L-shaped settee forward, open to galley with stainless steel hand rail
• Cabinet to starboard with storage and LED TV on electric lift

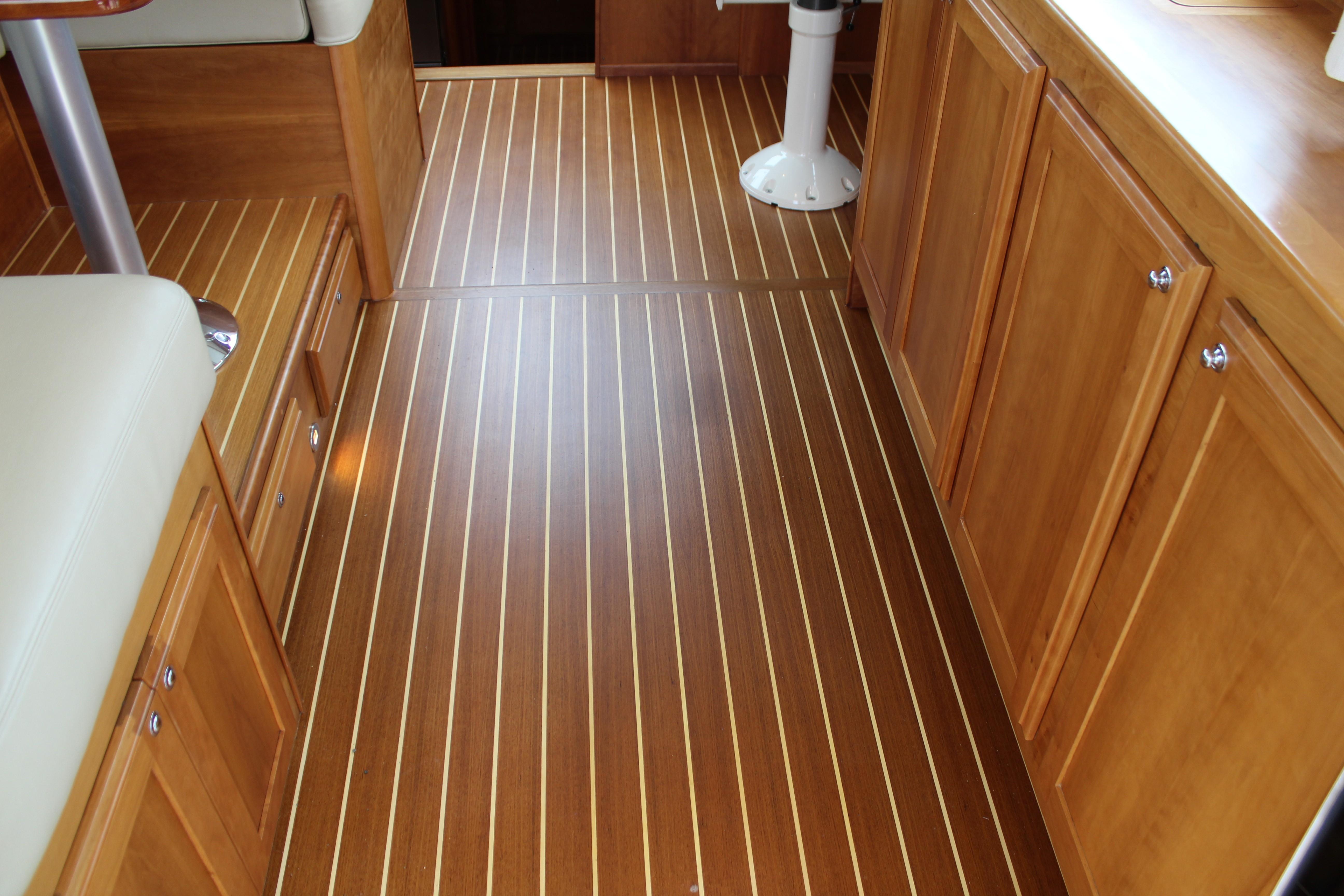

• Teak and holly sole
• Sound deadening headliner panels

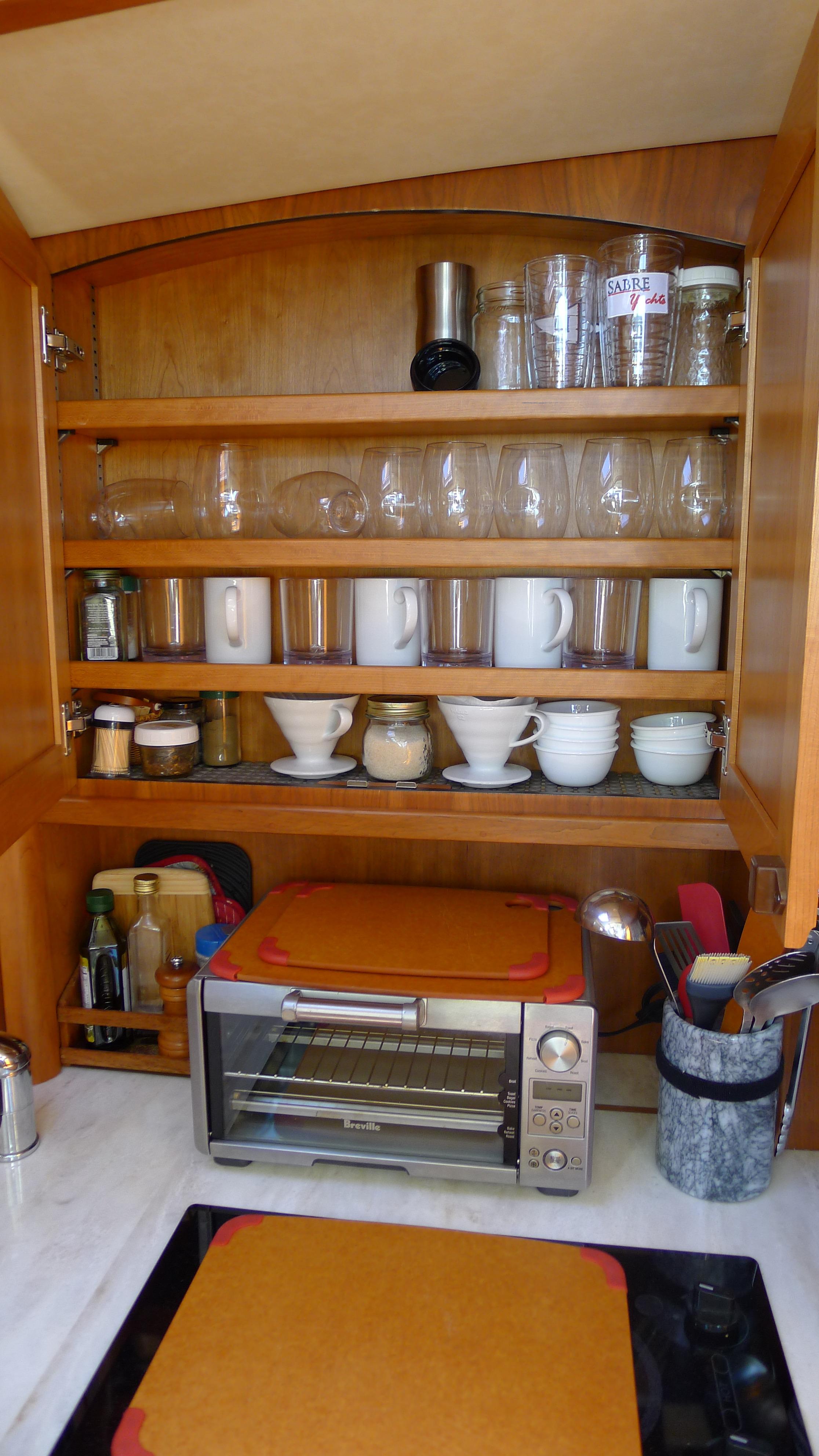

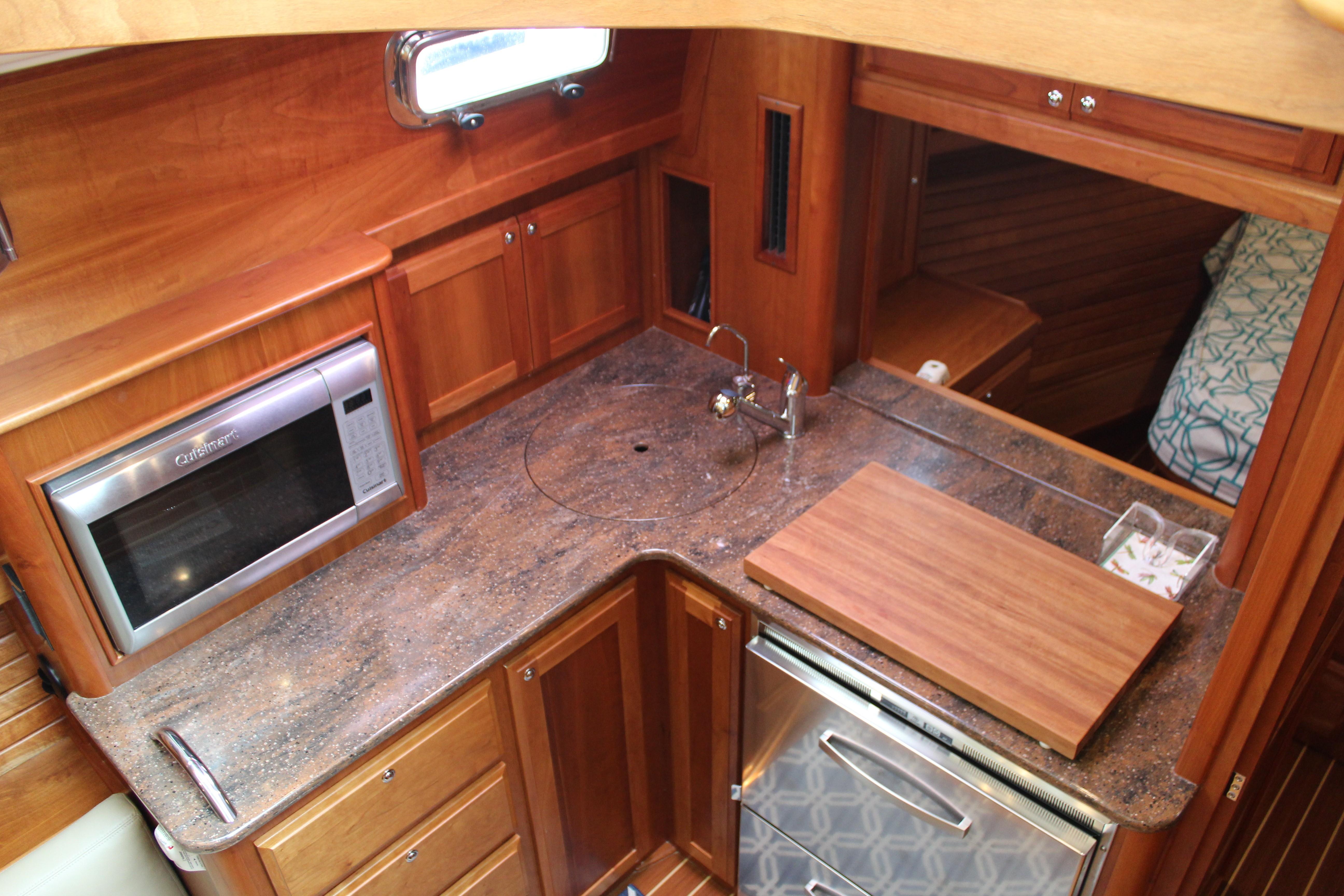

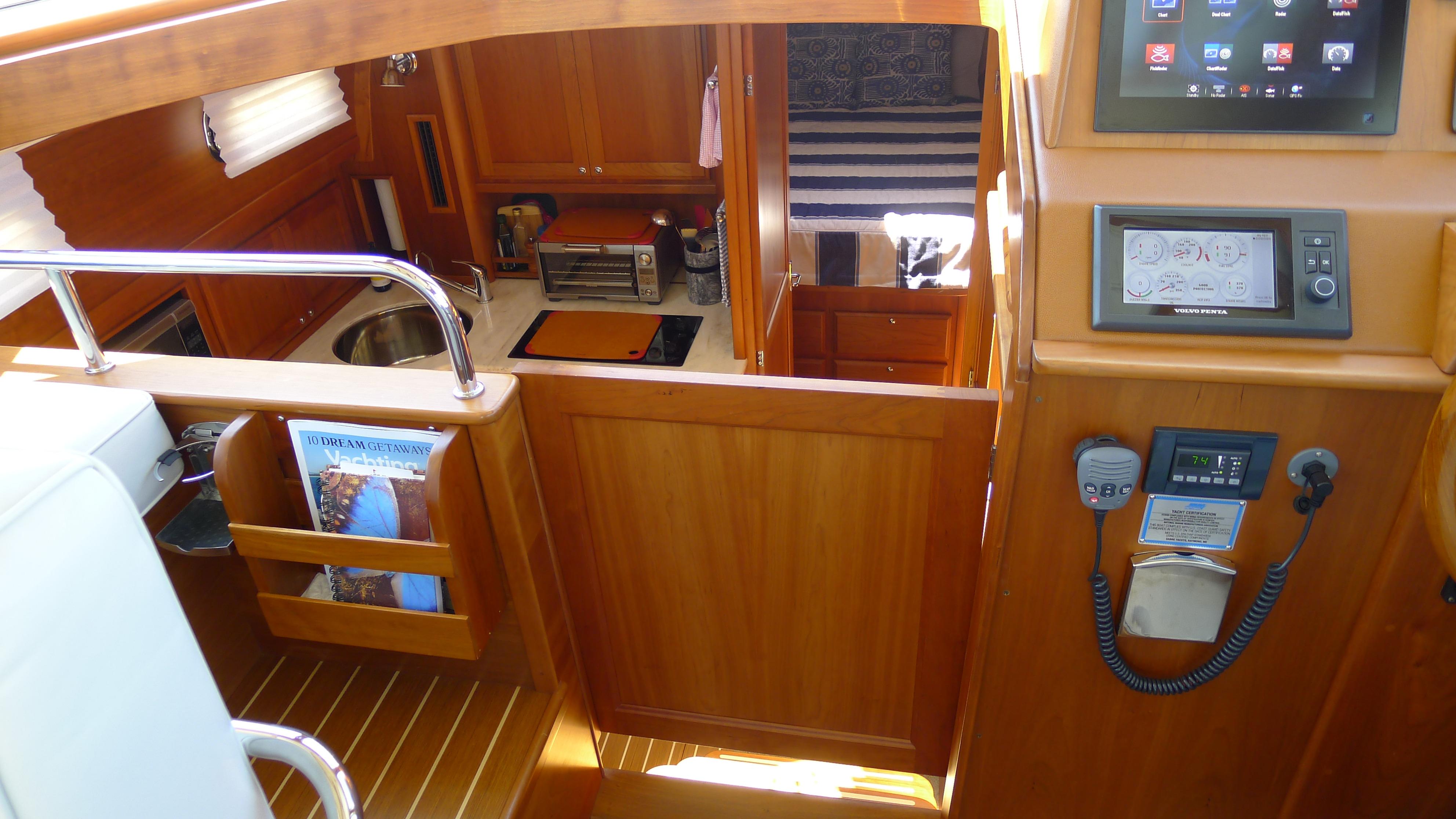

GALLEY

• Solid Surface galley counter
• Stainless steel sink with faucet
• Built-in waste basket
• Drawers and storage lockers below counter
• Storage cabinets outboard and above aft counter
• Lockers above stove
• Two burner electric cook top
• Convection microwave

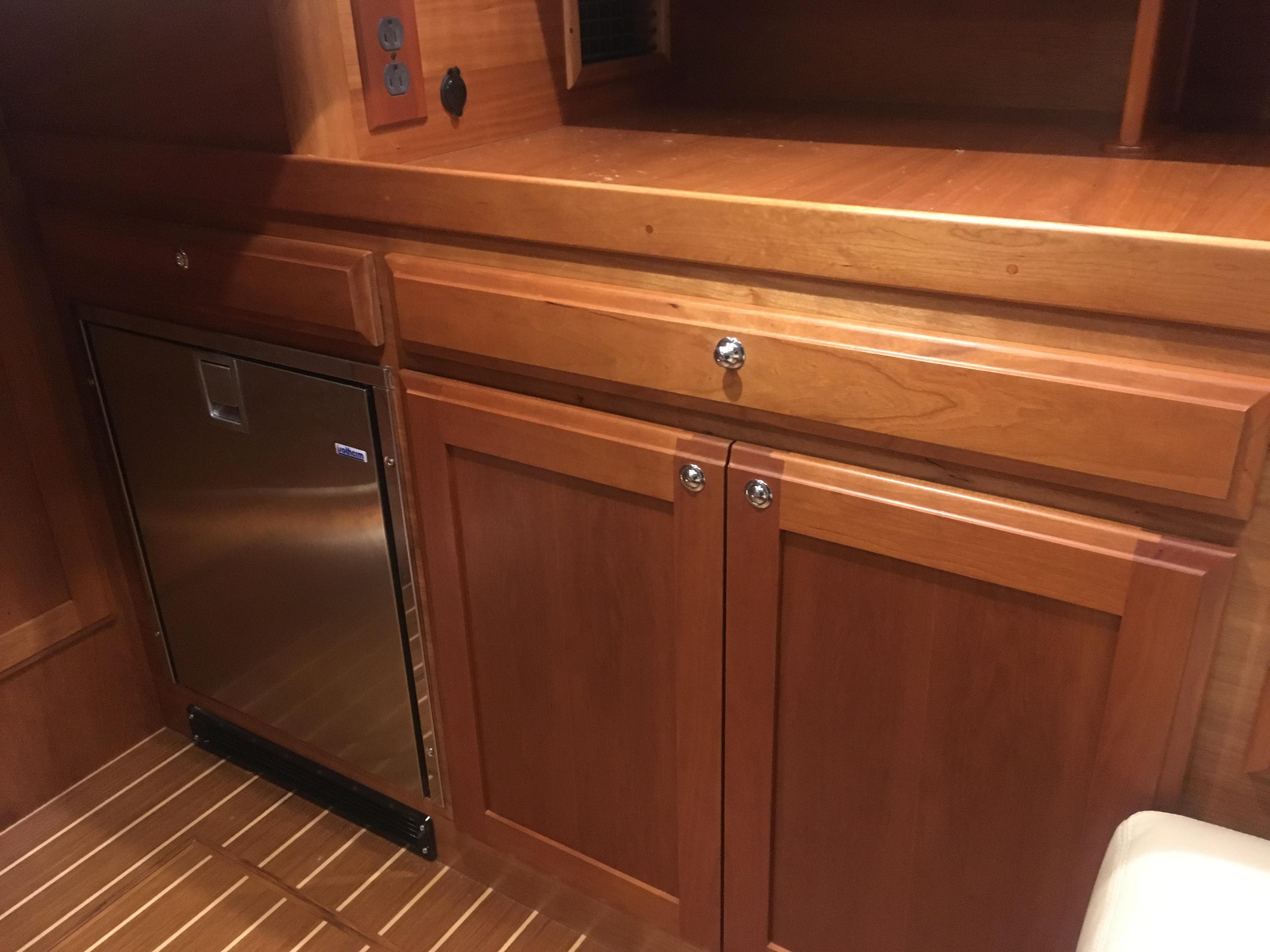

• Stainless steel drawer style refrigerator/freezer
• 12DC/120VAC

DÉCOR

• Varnished cherry interior finish
• Screens on all opening ports and hatches
• Optional fabric and drapery selections
• Laminated wood trims on counters and shelves
• Dovetailed maple drawer boxes

Helm Station/Deck/Hull

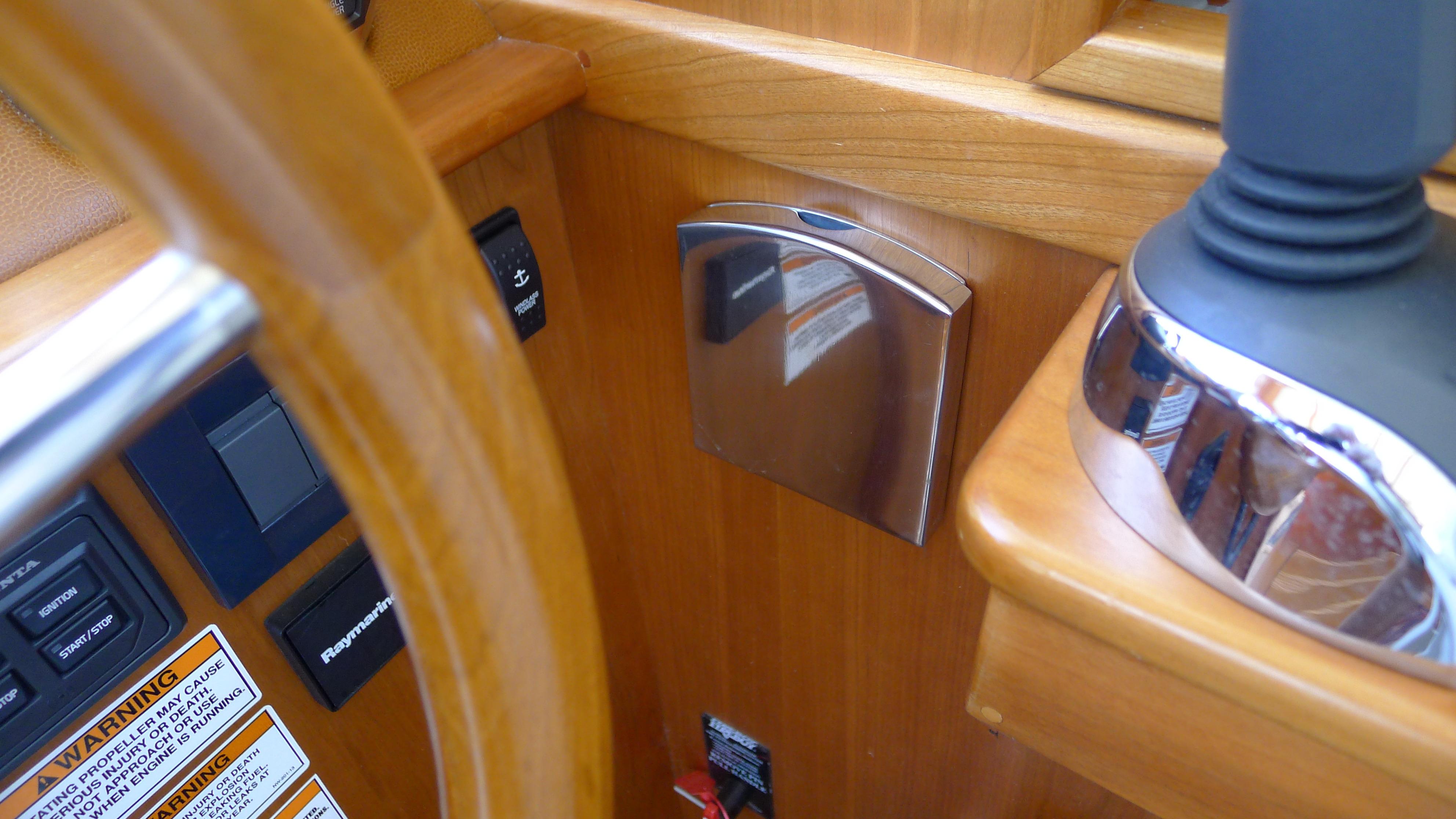

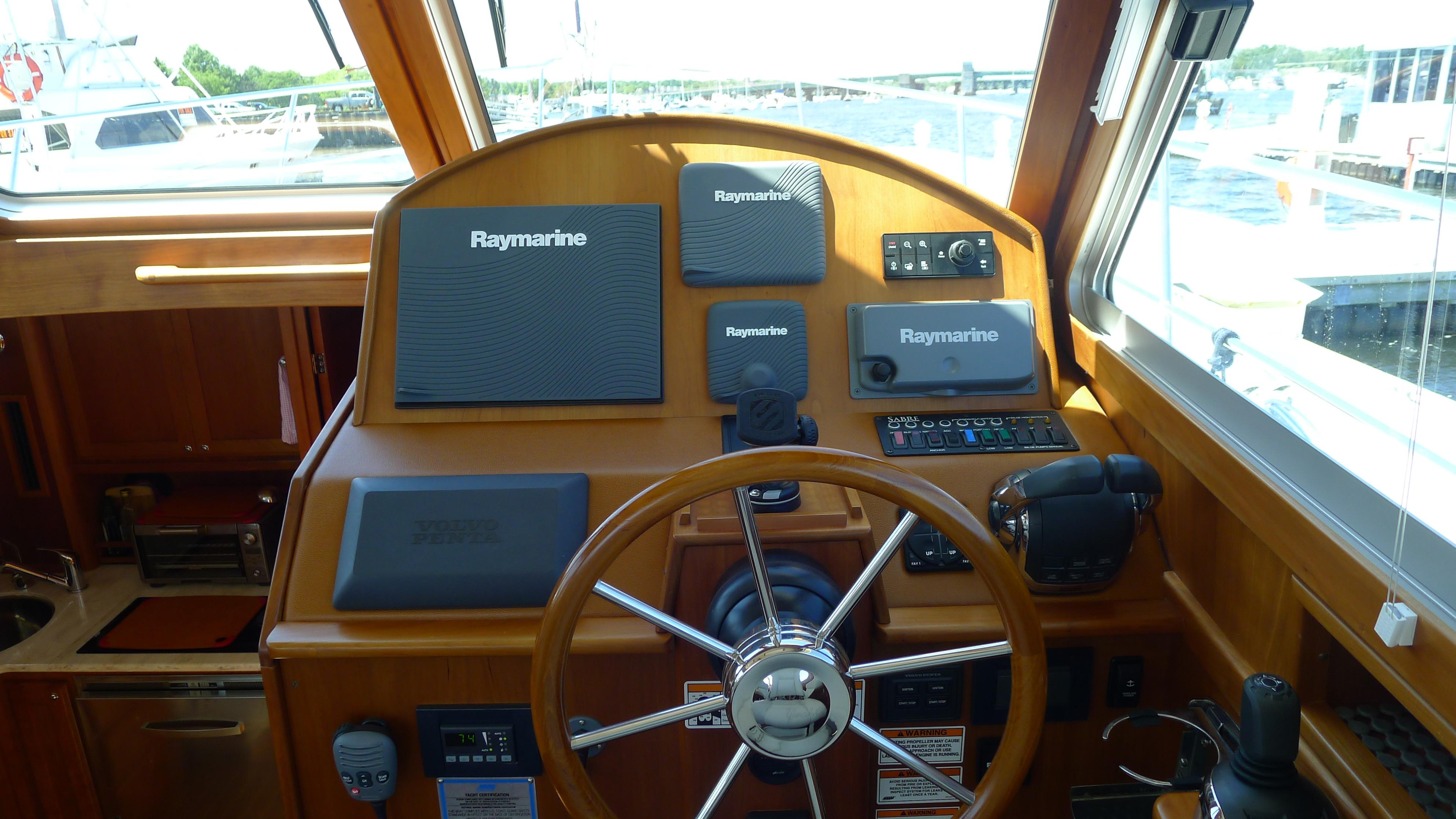

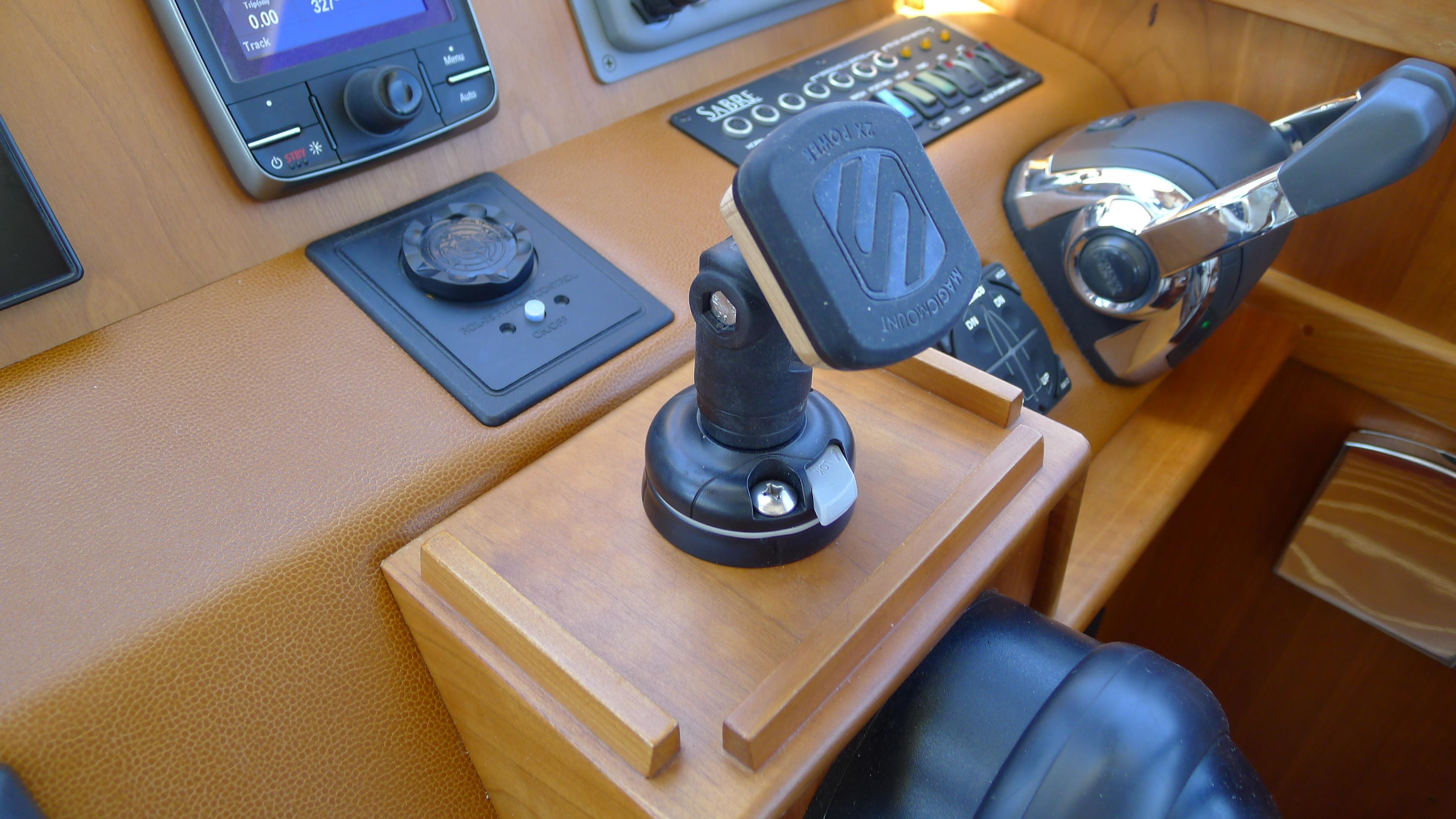

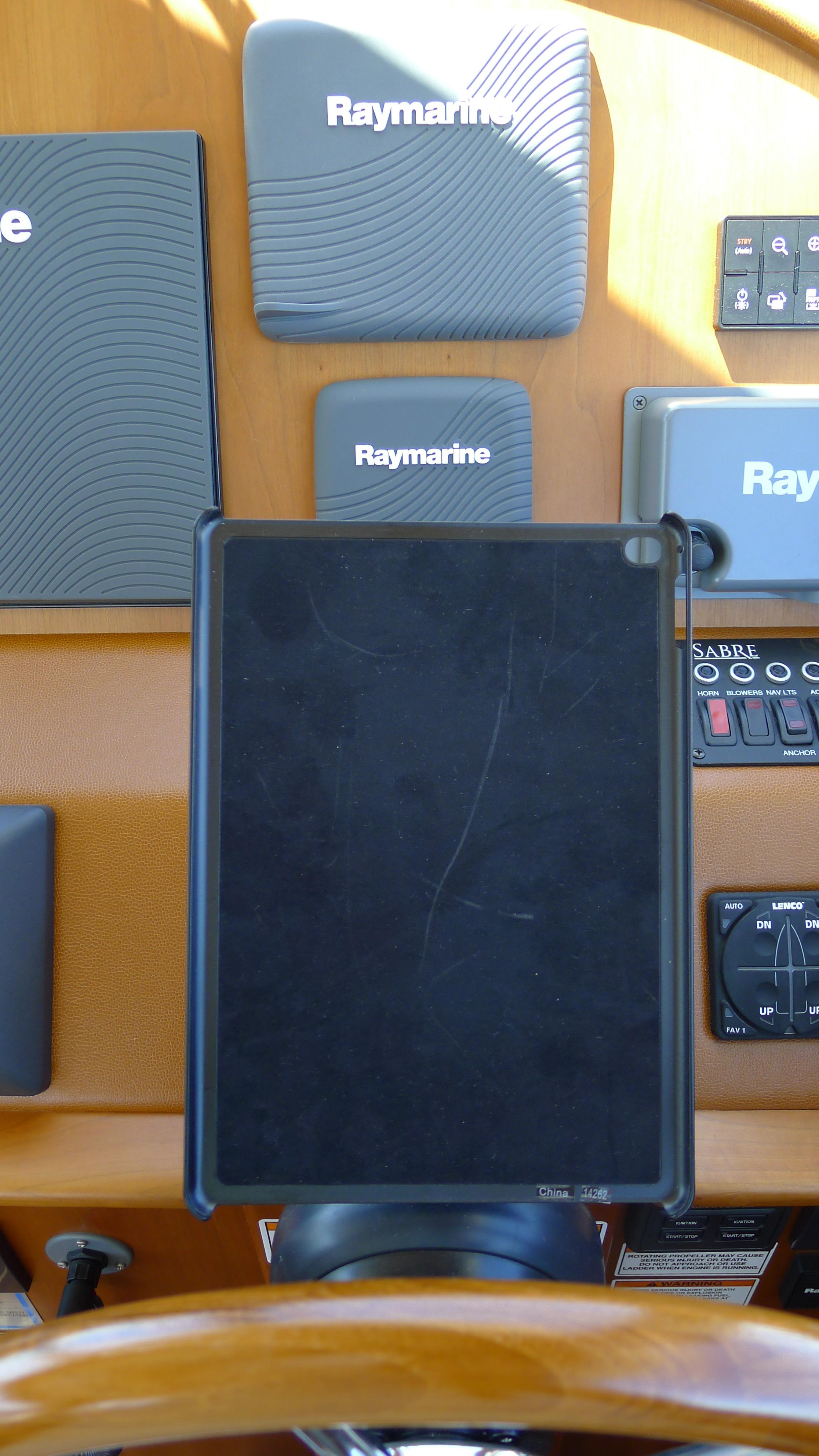

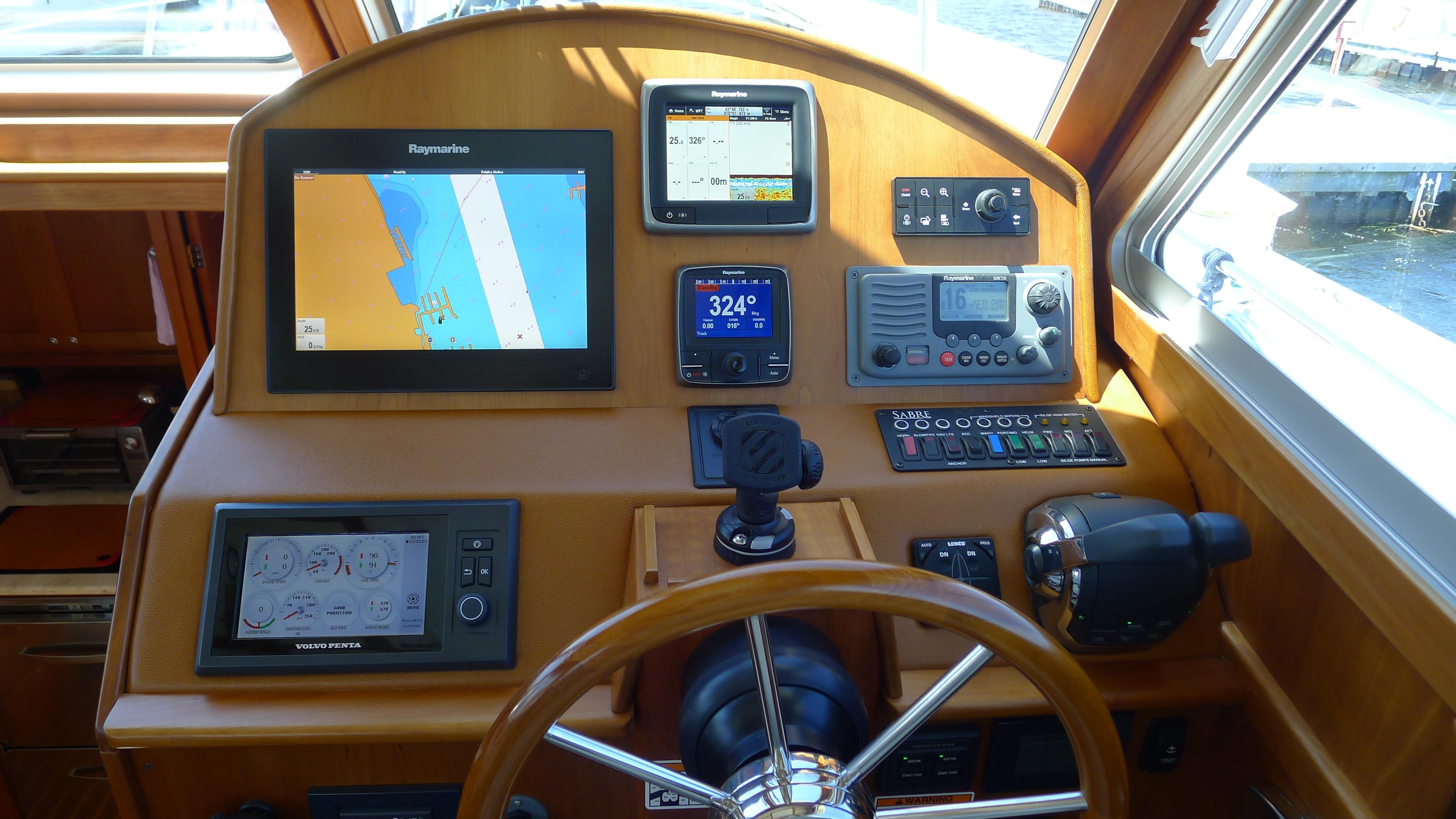

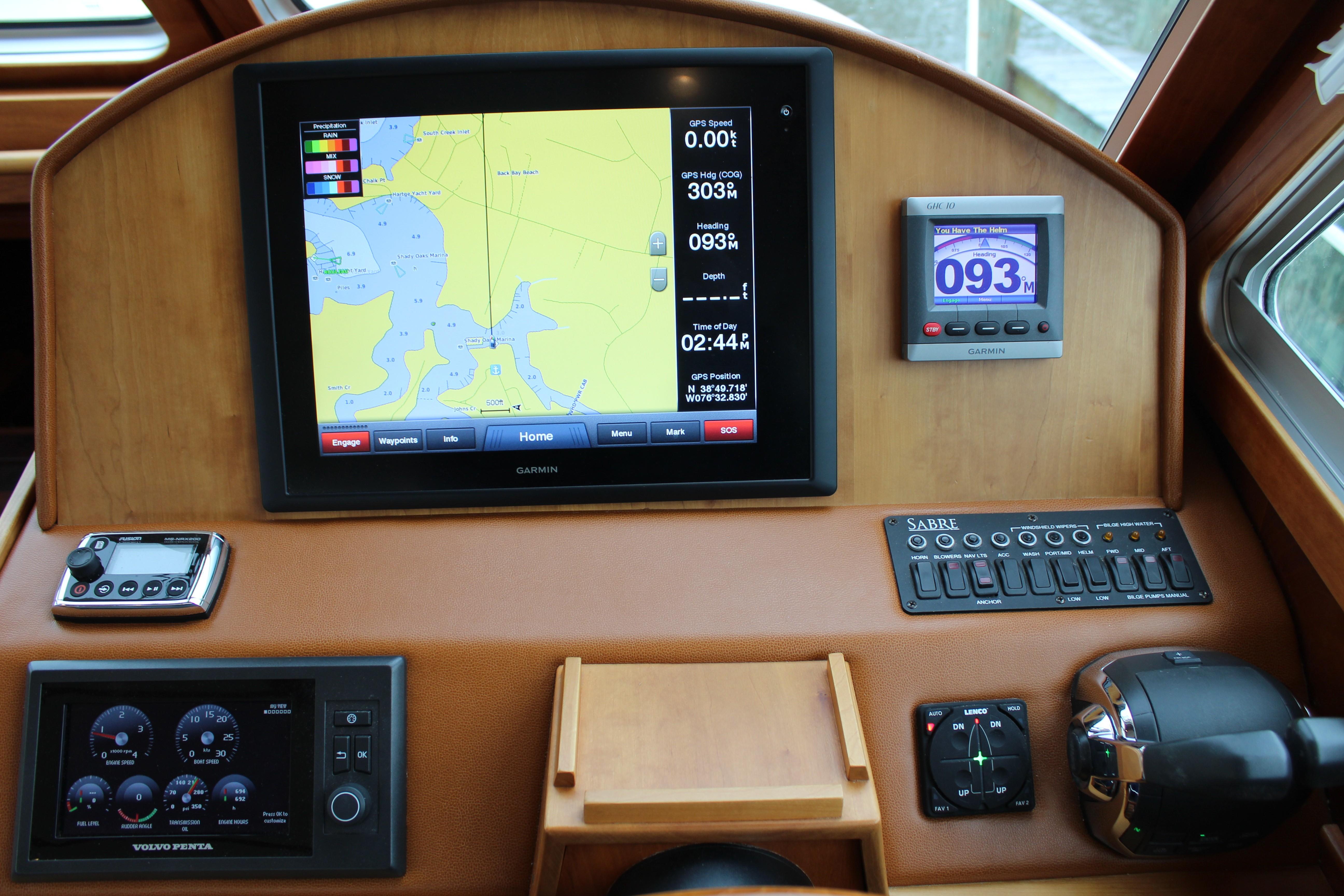

HELM STATION

• Single 500N Series Stidd helm chair
• Volvo IPS electronic controls
• Engine Start/Stop control panel

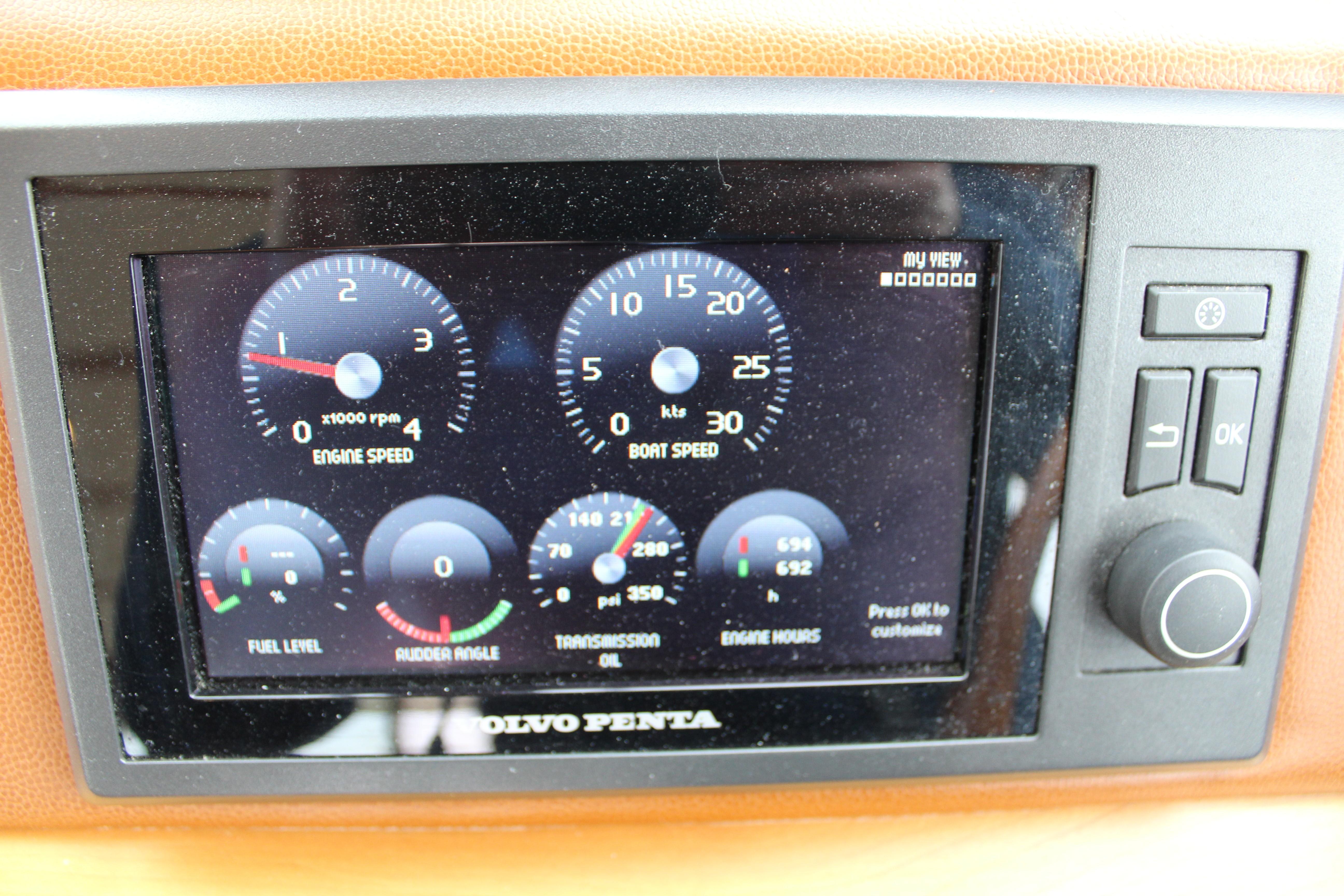

• Volvo Penta color display
• Tachometer w/hour meter
• Engine temperature
• Engine oil pressure
• Transmission oil pressure
• Voltmeter
• Water in fuel warning light
• Fuel remaining function
• Fuel consumption function
• Hi water temp and low oil pressure alarm
• Triple windshield wipers with washers
• Compass
• Switch controls for horn, running lights, anchor light, engine room blower and optional equipment. Control for red instrument lights w/dimmer
• Stazo wood trimmed steering wheel

HELM DECK

• Stidd helm N Series helm seat
• Wood in helm area is cherry
• Two overhead pilot hatches with shades
• Hinged stainless steel companionway door with drop down windows port and starboard

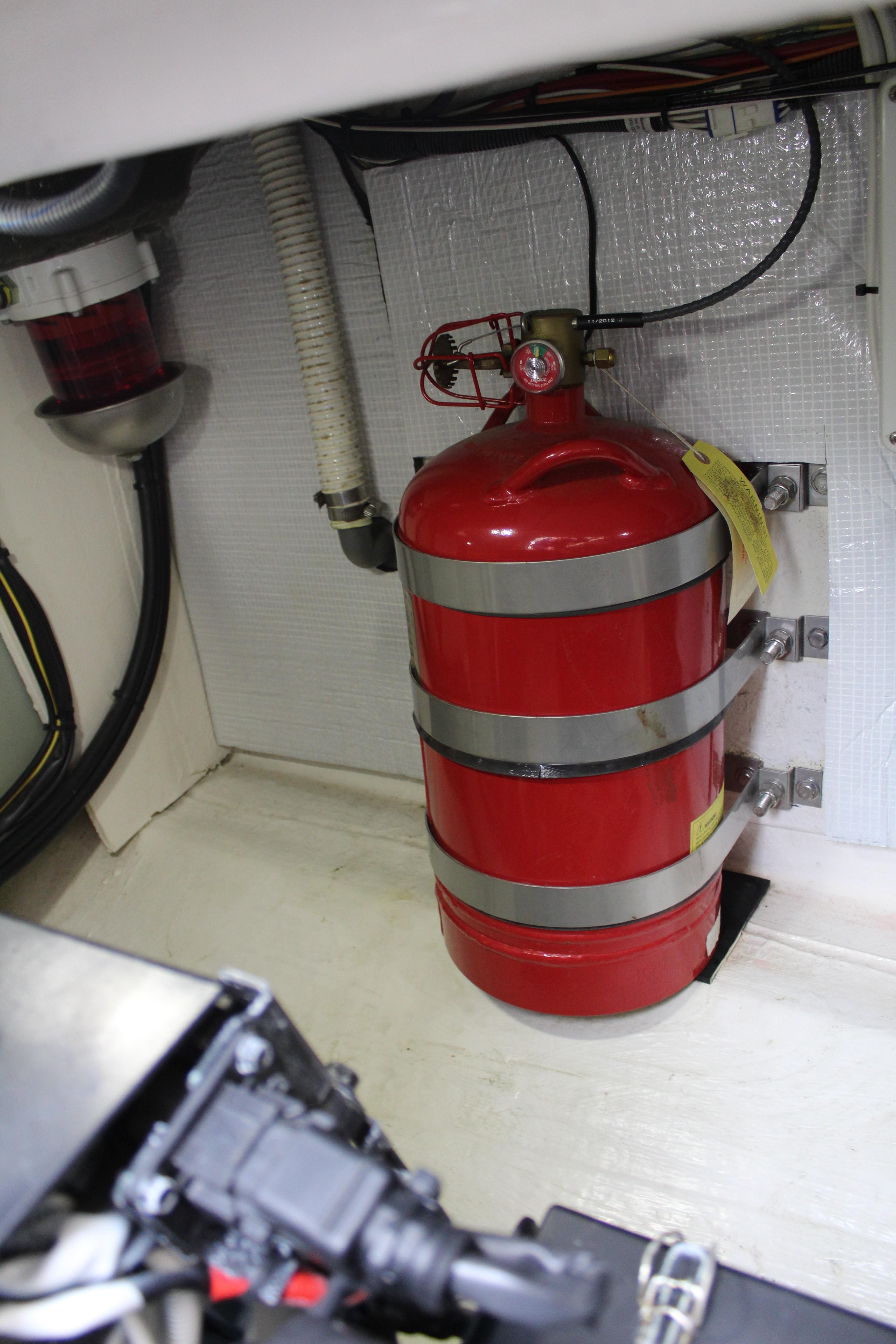

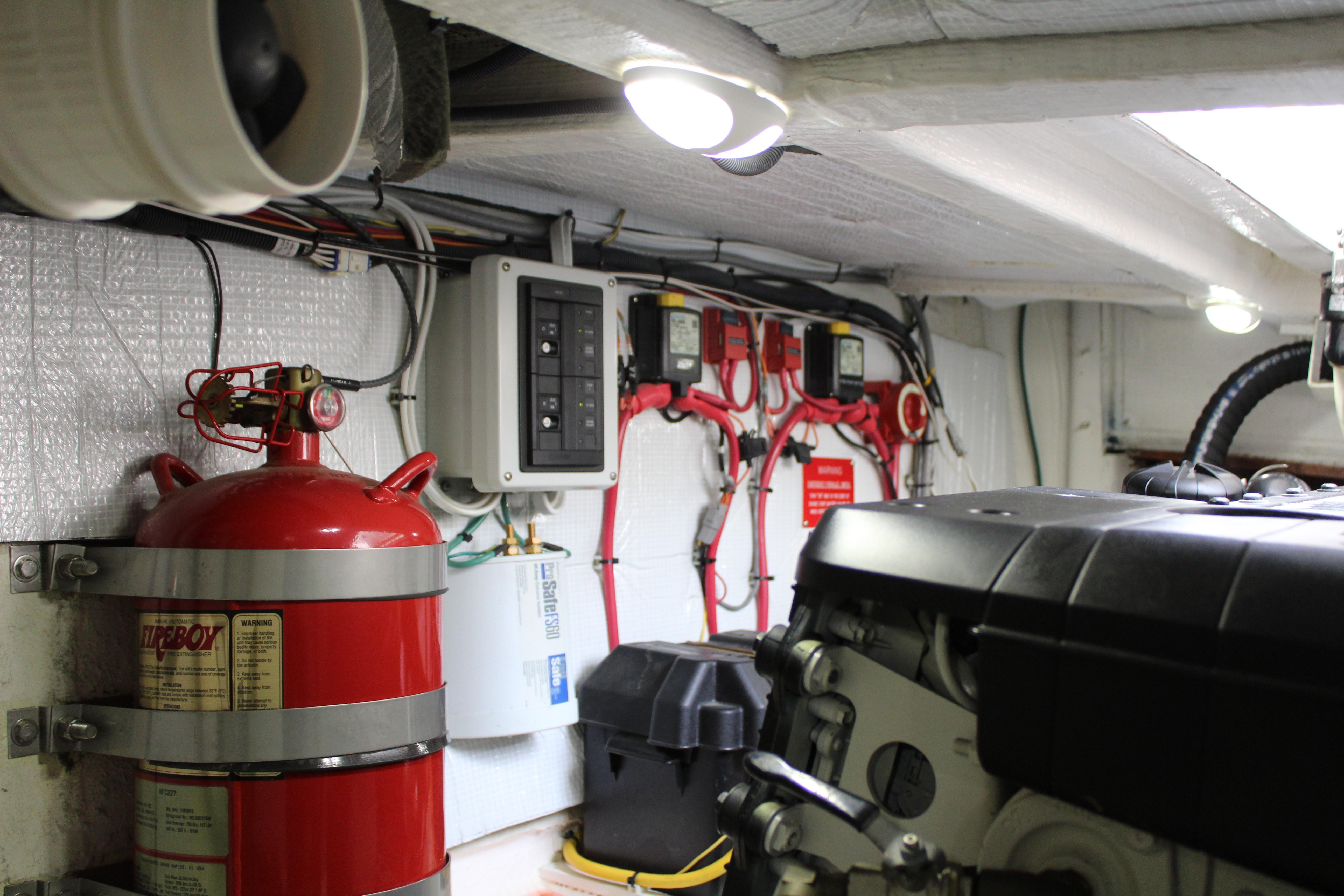

• Automatic fire extinguishing discharge system with override
• Automatic 12V electric bilge pumps

DECK AND HARDTOP COMPOSITE

• VIP resin infused, knitted Biaxial Structural E-Glass
• Reinforcements with balsa coring
• Molded in anti-skid deck surfaces
• Windows recessed into hard top
• Port and starboard transom gates

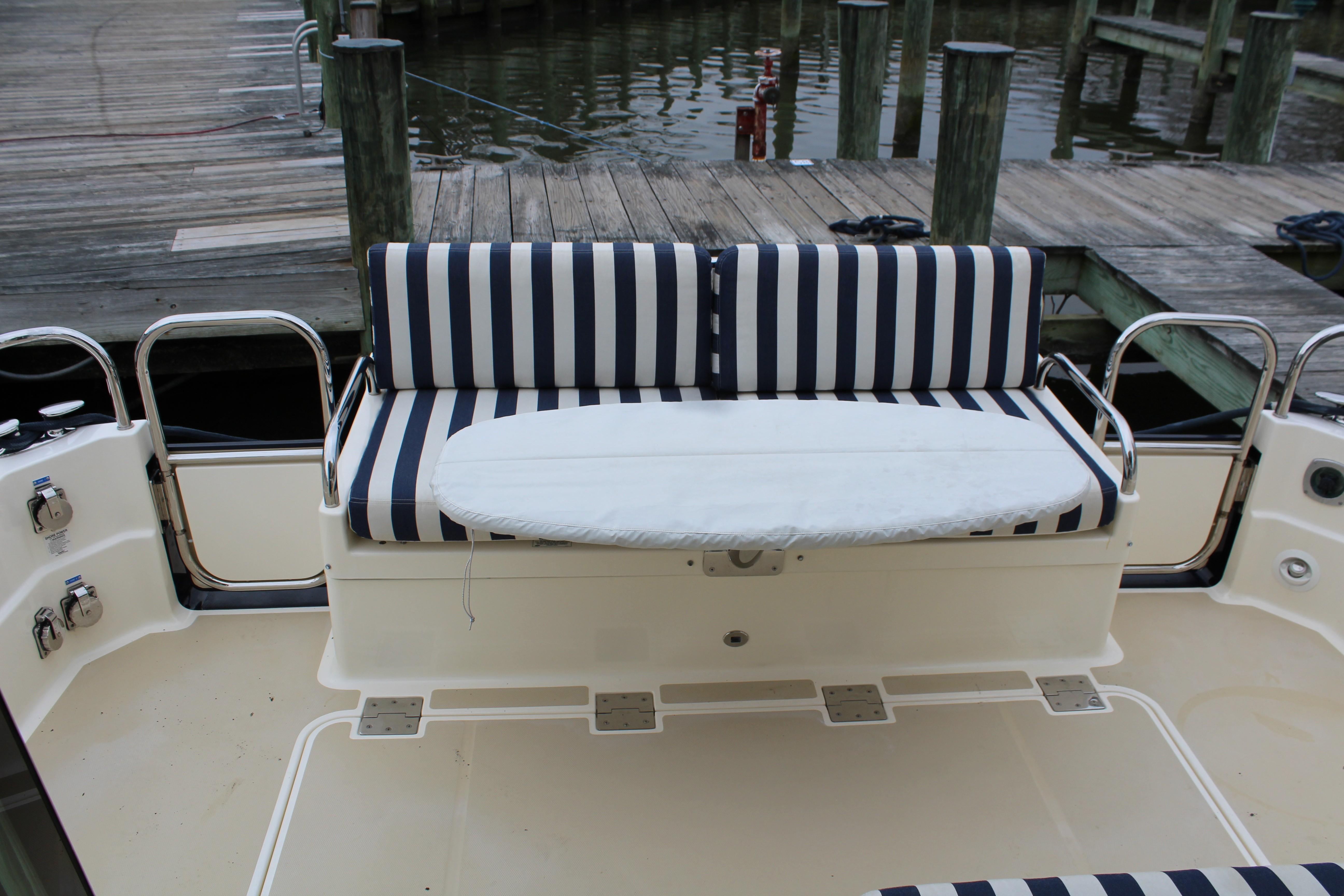

• Aft seating slides to expand cockpit dimension
• FRP hybrid composite bow pulpit with anchor roller and windlass
• Anchor locker w/Southco slam latch #M1-64-8

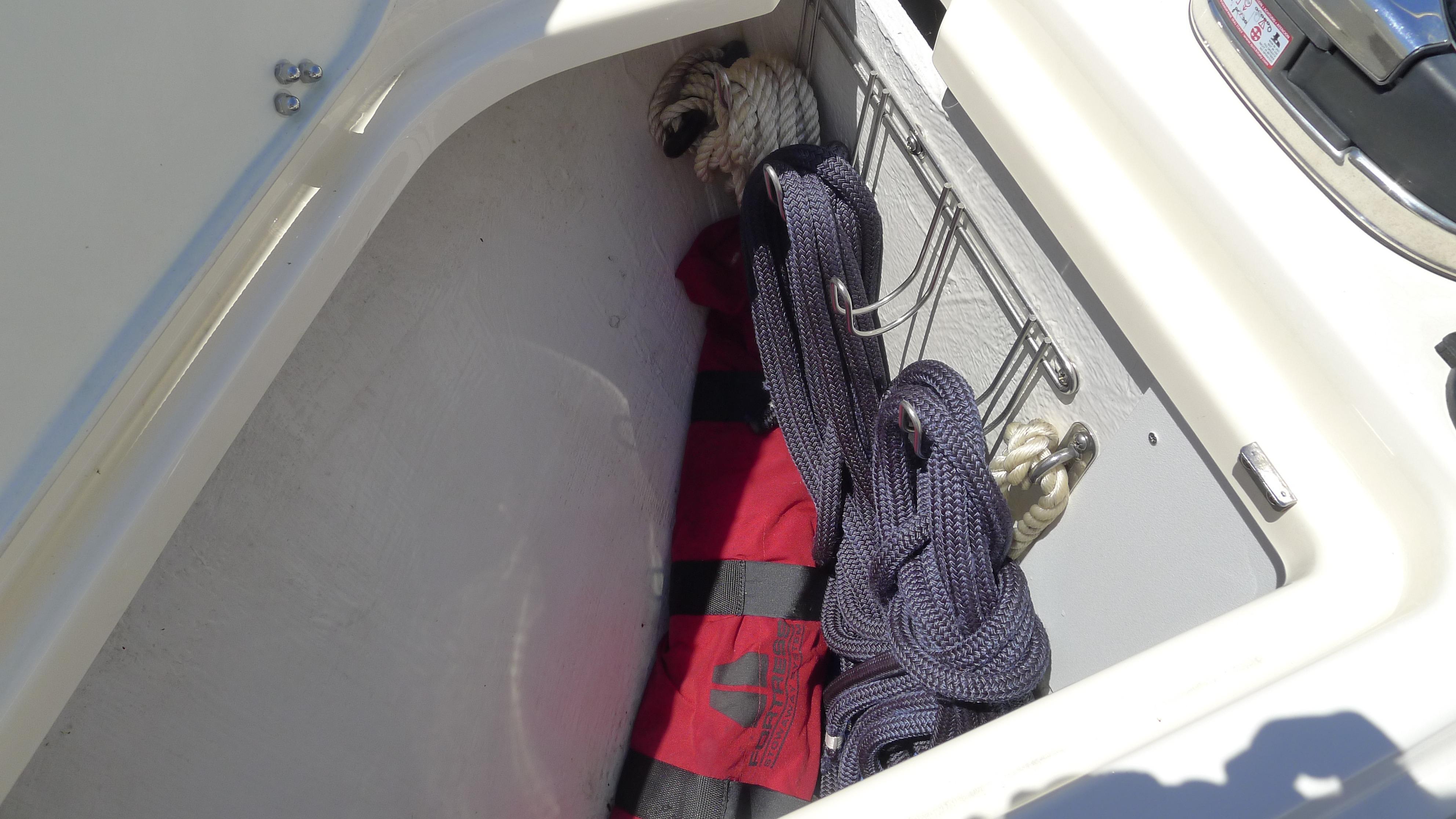

• (1) Large Aft hinged lazzarette locker hatch with gas struts and Southco (2) 3”dia compression latches for engine room access
• Electronics pod at the helm station

DECK HARDWARE

• 1 1/4" Diameter type 316 stainless steel perimeter rail system
• (8) 12” Stainless Steel Cleats (2 fwd, 4 mid ship spring, 2 in aft cockpit)
• (1) 10” Stainless Steel Cleat to starboard of windlass as anchor rode tie off
• Windlass rope/chain
• Single anchor roller sizes for 35# CQR or Delta
• Flagpole holder and flag staff
• Burgee staff on pulpit
• Low Profile polished hatches w/screens (2) #44 on foredeck, (2) #10 port and starboard
• Custom stainless steel opening ports
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion
• Horn cleats in aft transom corners

HULL COMPOSITE

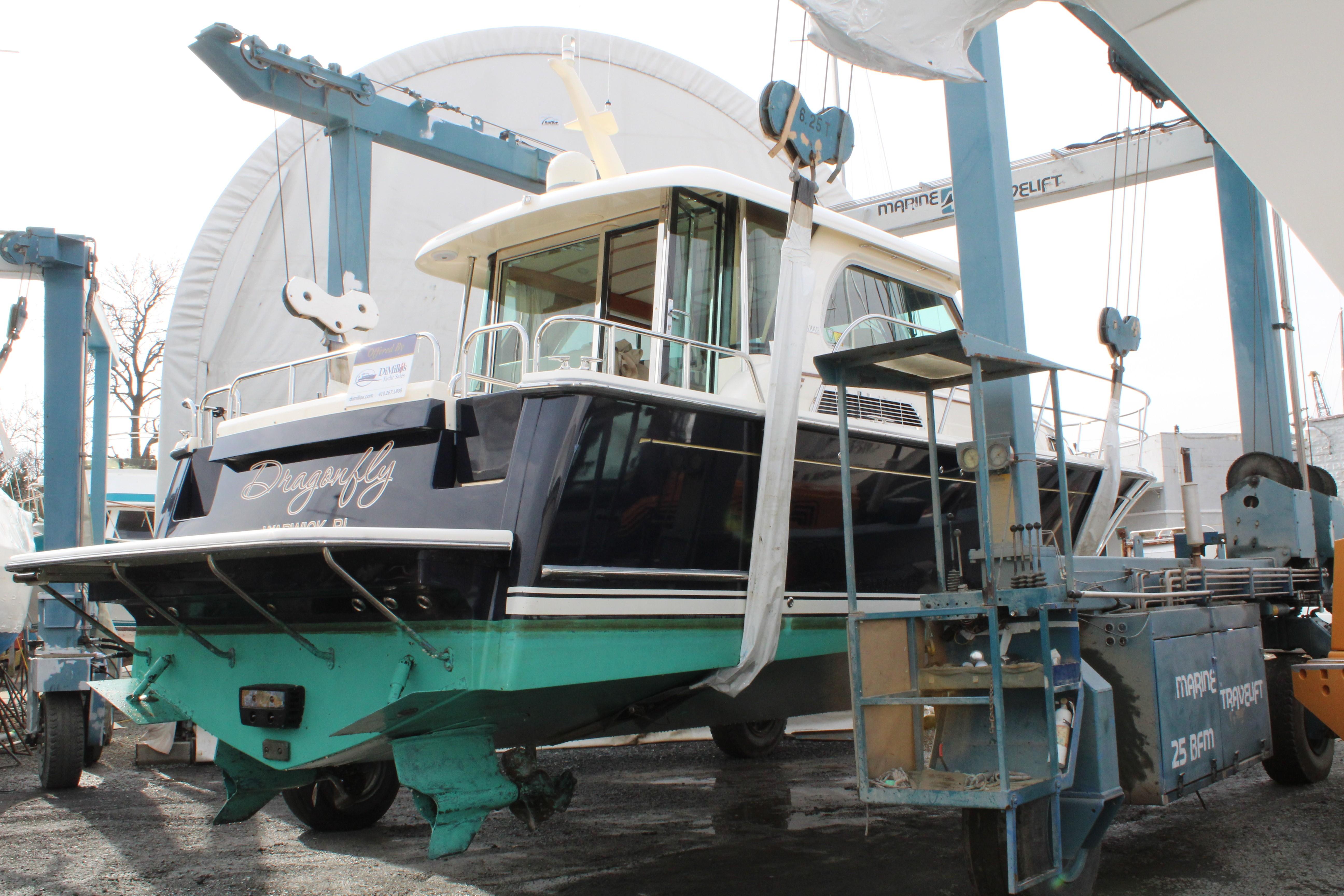

• “Vee” hull design with 24 degree deadrise amidships and 17 degrees at transom
• VIP Resin Infused laminate with ISO NPG white gelcoat and blended vinylester back-up resin
• Knitted Biaxial Structural E-Glass Reinforcements
• PVC foam core in hull bottom and topsides
• Foam/plywood cored fiberglass stringer system
• Swim platform with under mounted telescoping ladder
• Hull side rubbing strakes
• PVC rub rail with stainless steel cap
• Painted (IMRON) Double Boot Stripe
• Gold Cove Stripe

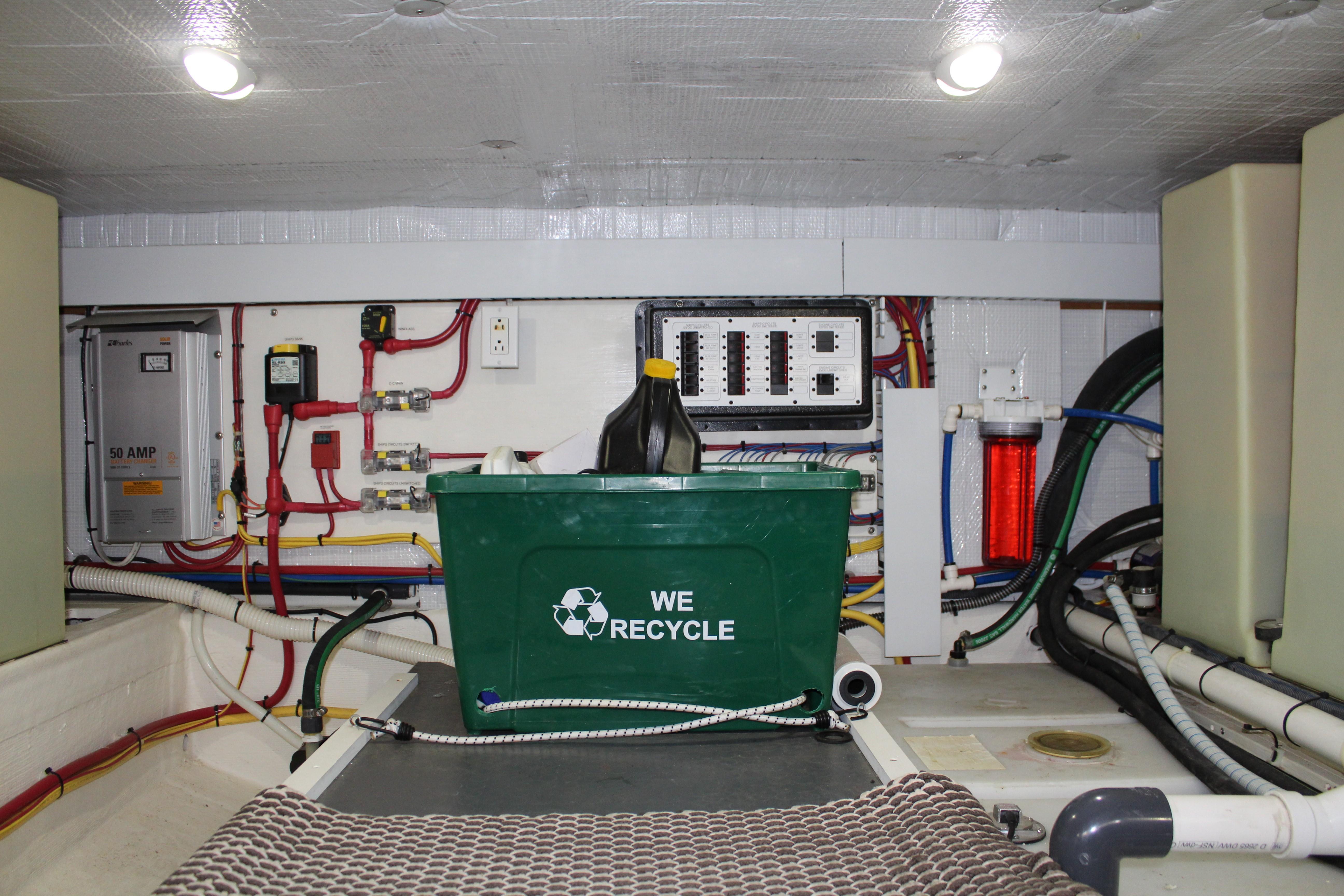

Mechanical/Electrical/Systems

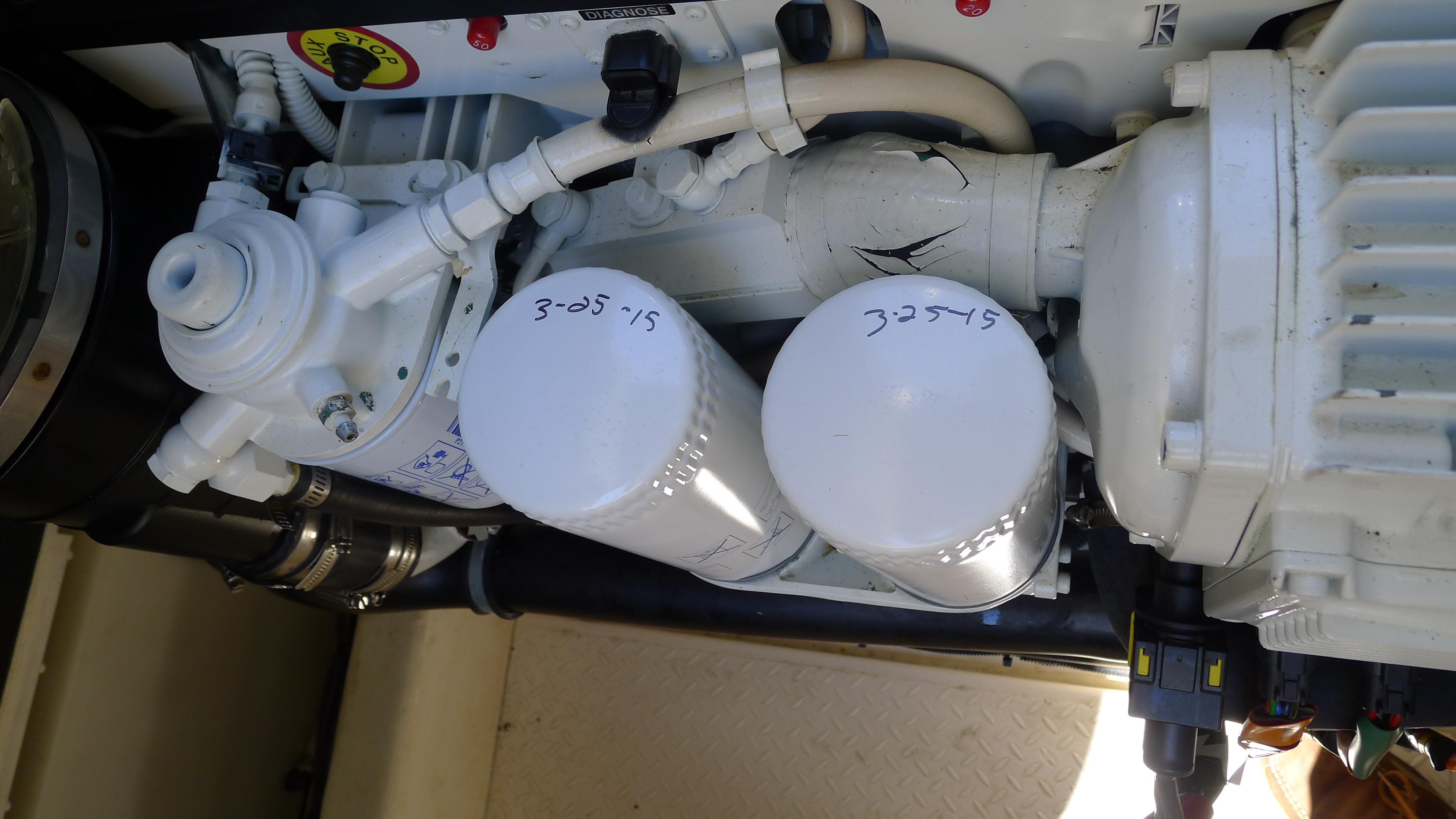

STANDARD ENGINE/GEN SET SYSTEM

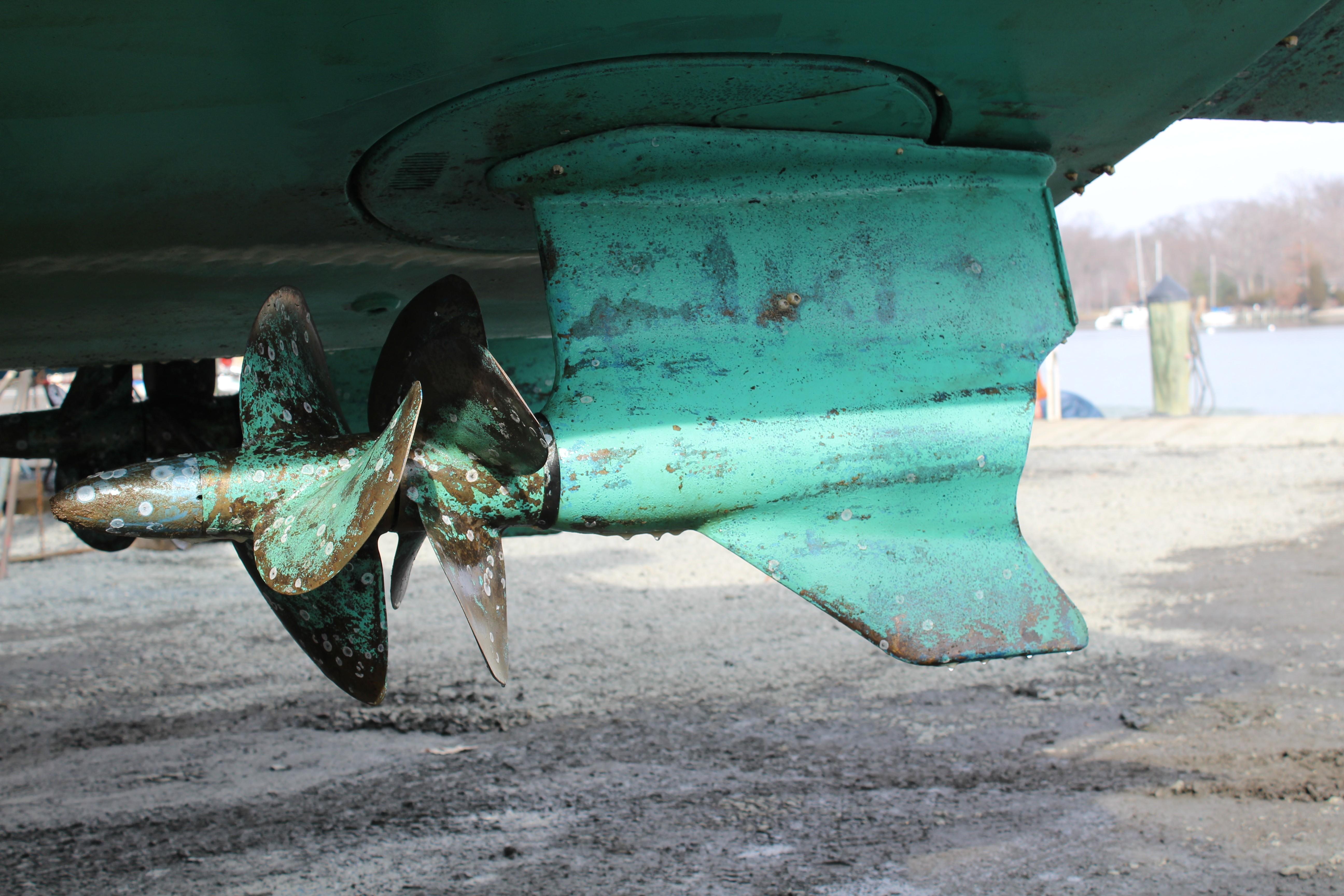

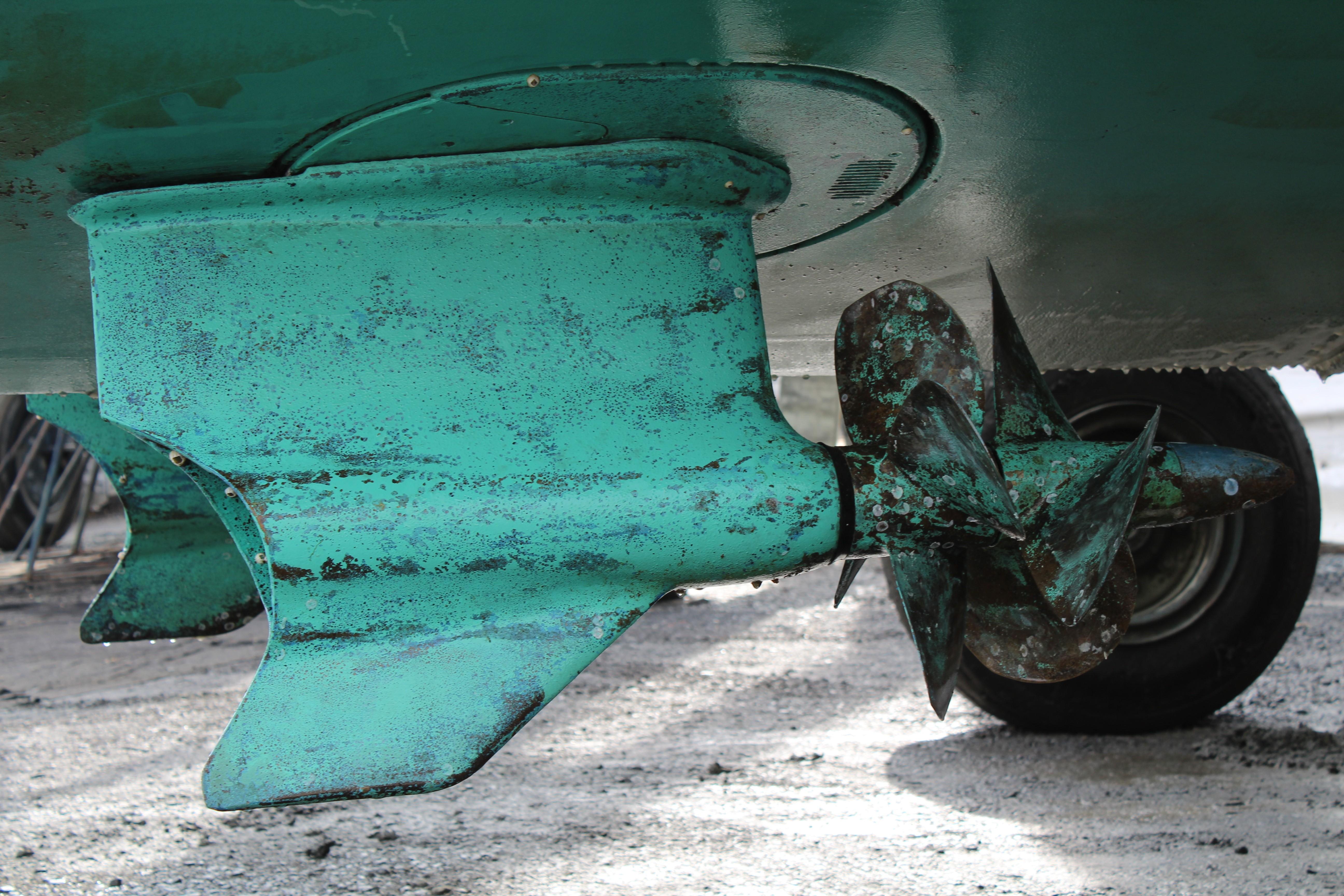

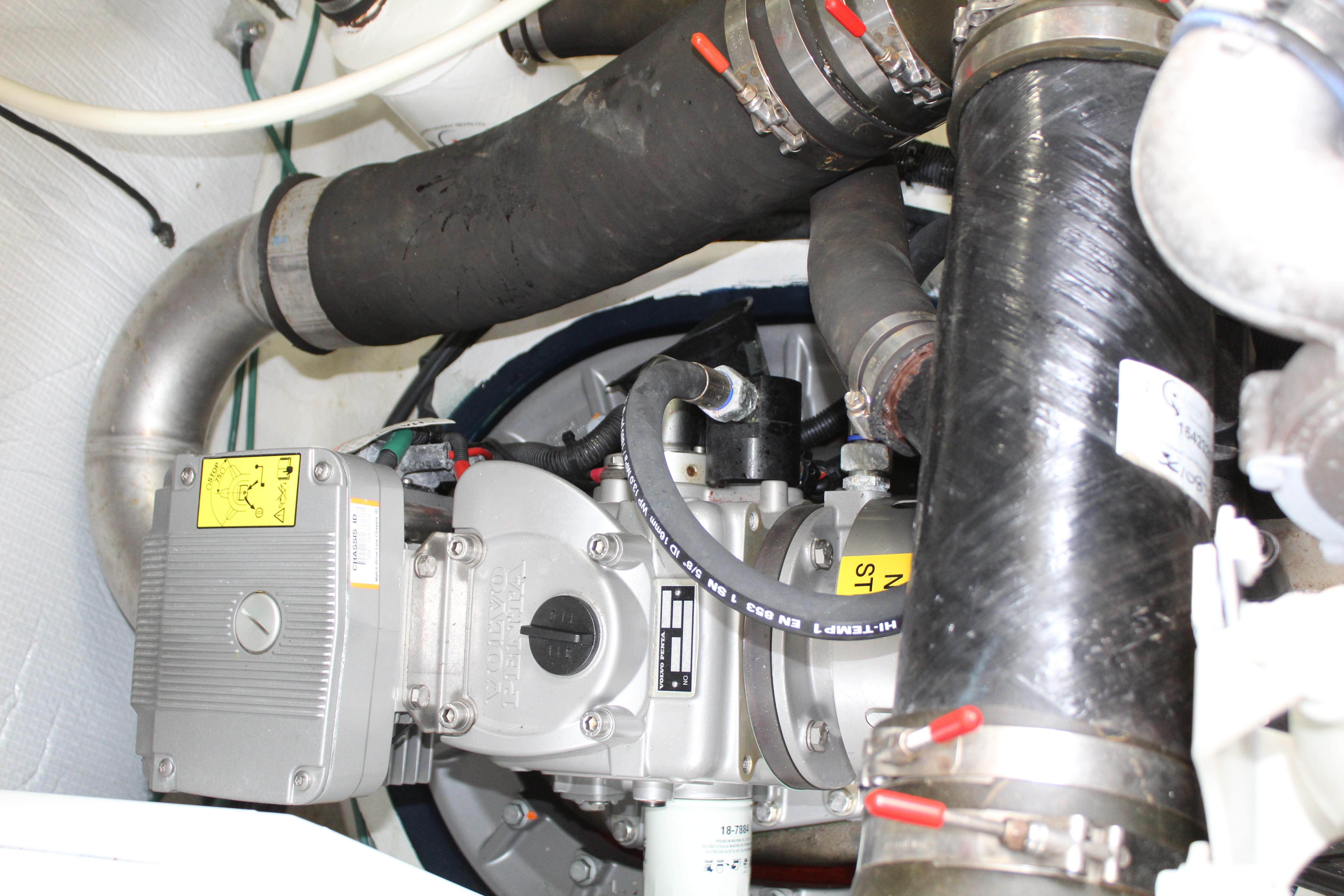

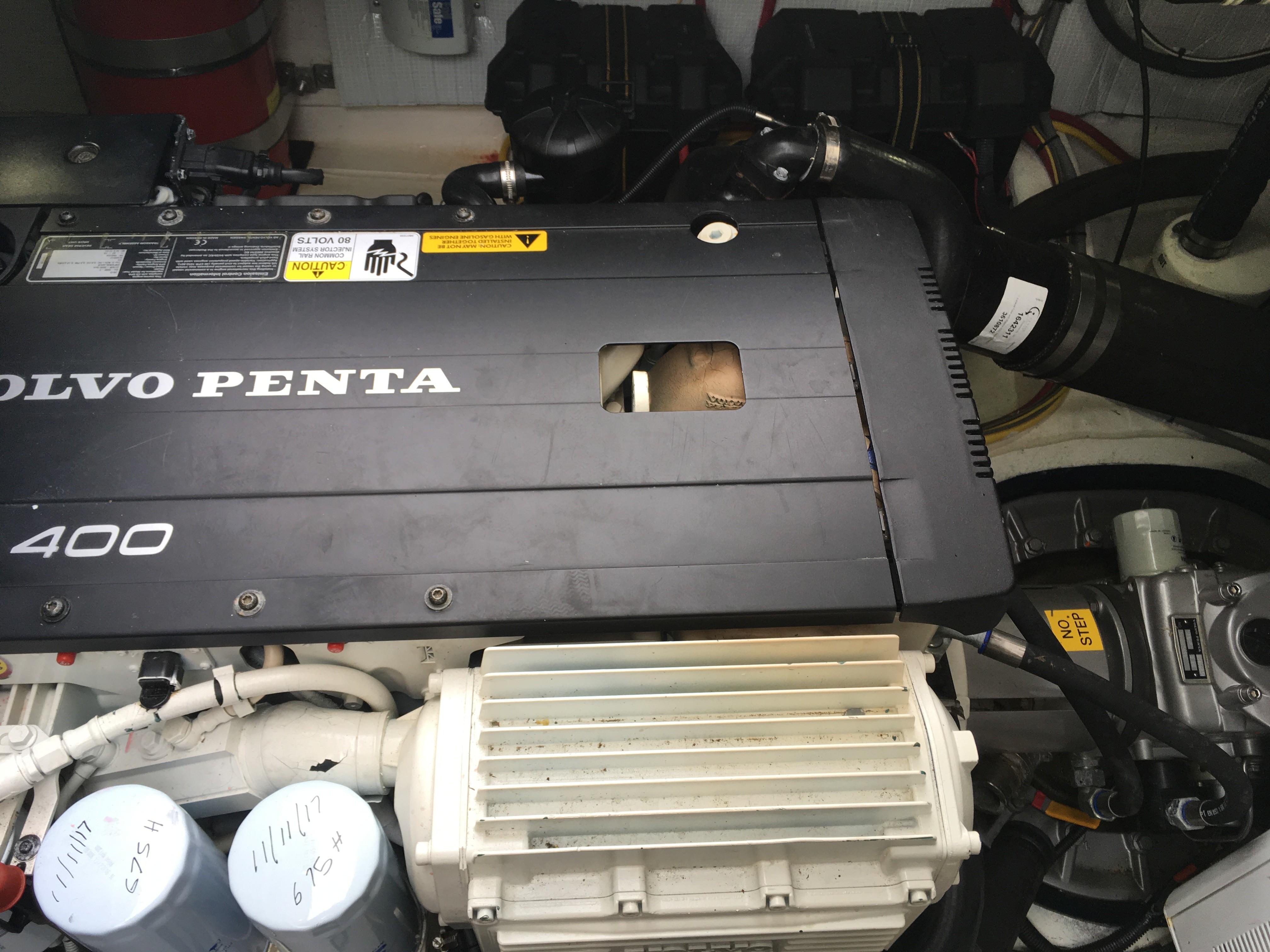

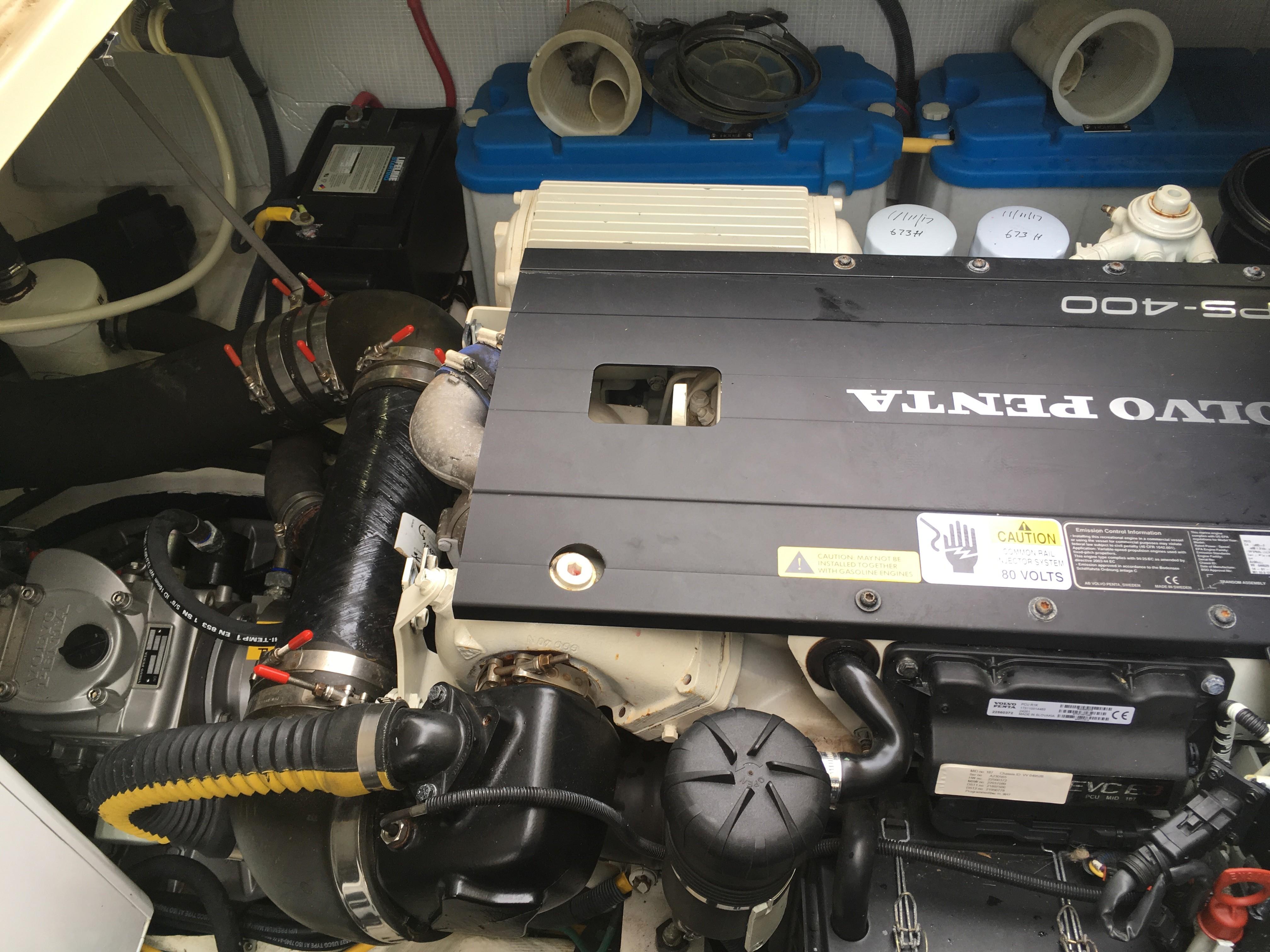

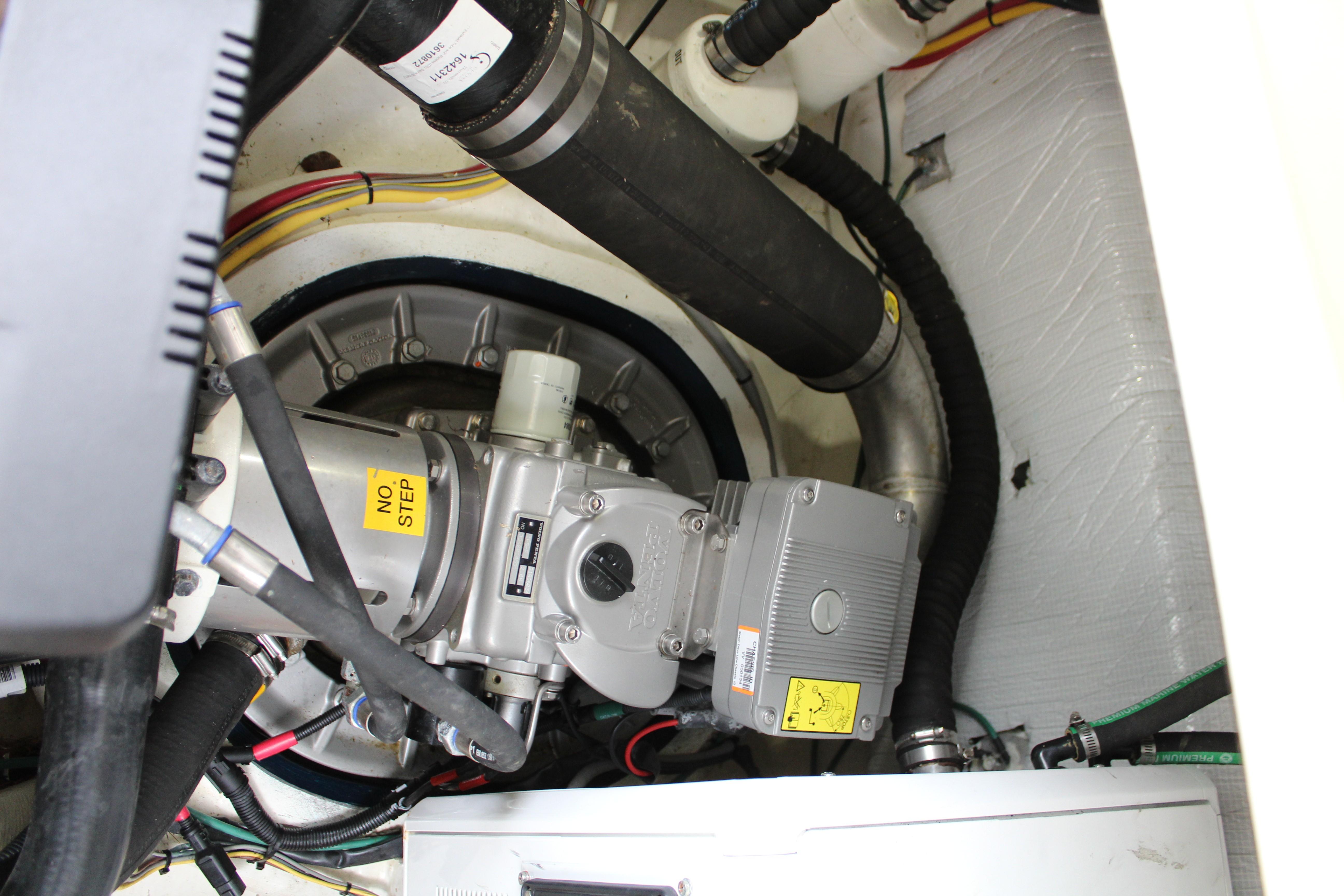

• Twin Volvo Penta D4 300HP engines with IPS drives
• 3.7L 4-cylinder fresh water-cooled Includes Volvo electronic controls
• 12V alternators each engine
• Groco raw water intake strainers

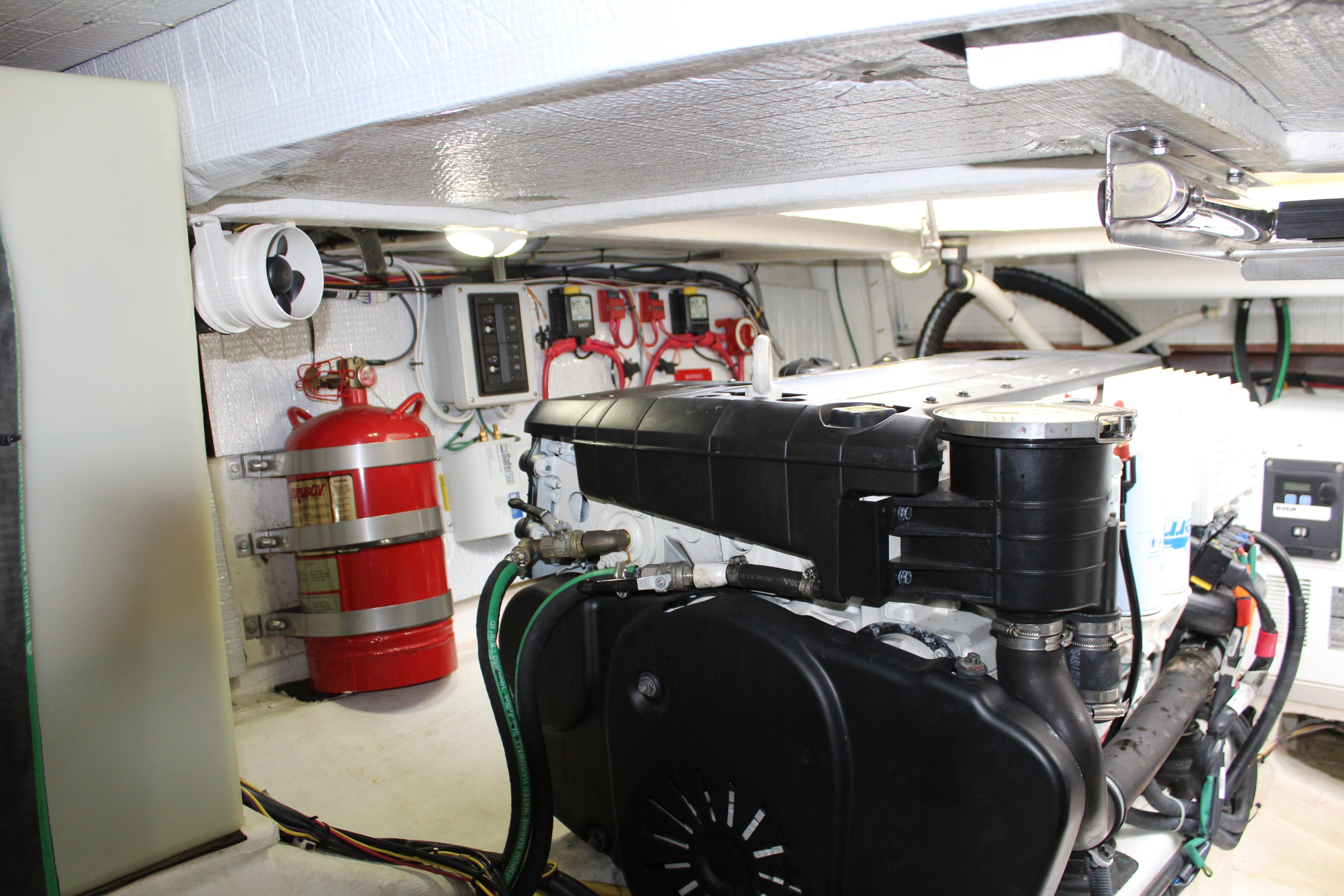

• Engine room blower
• Engine room vent ducts
• White gelcoated engine room
• Foil face foam noise barrier

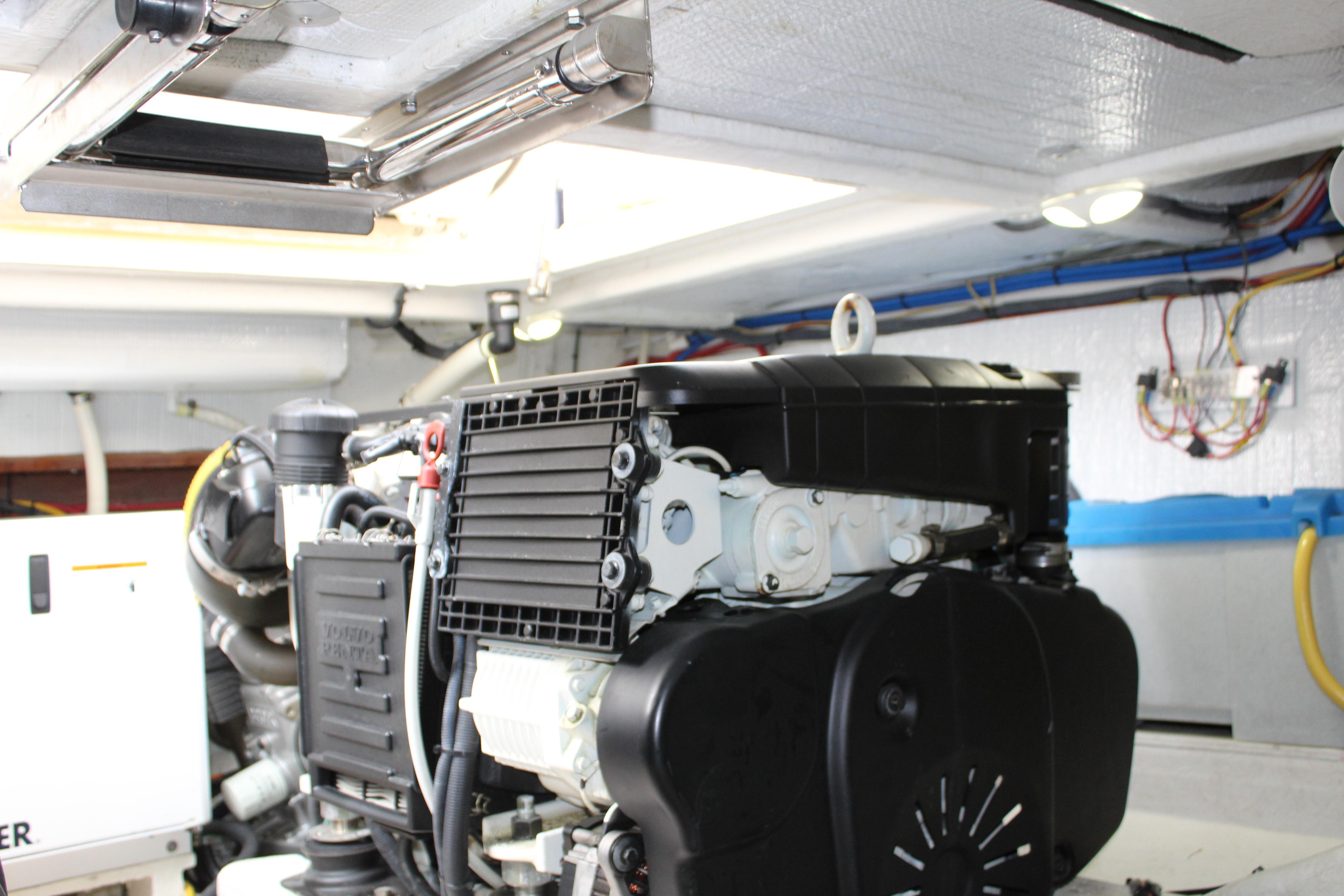

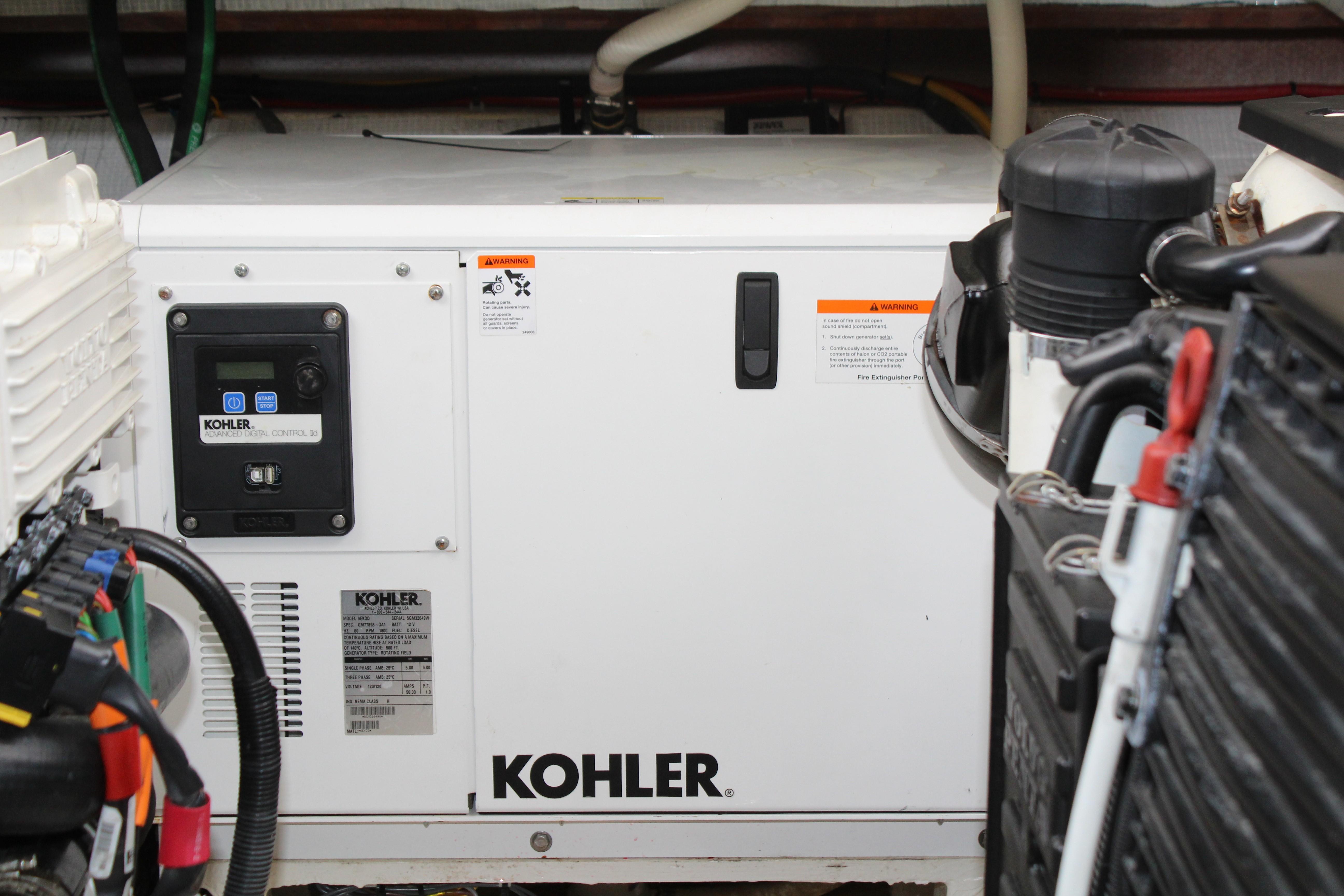

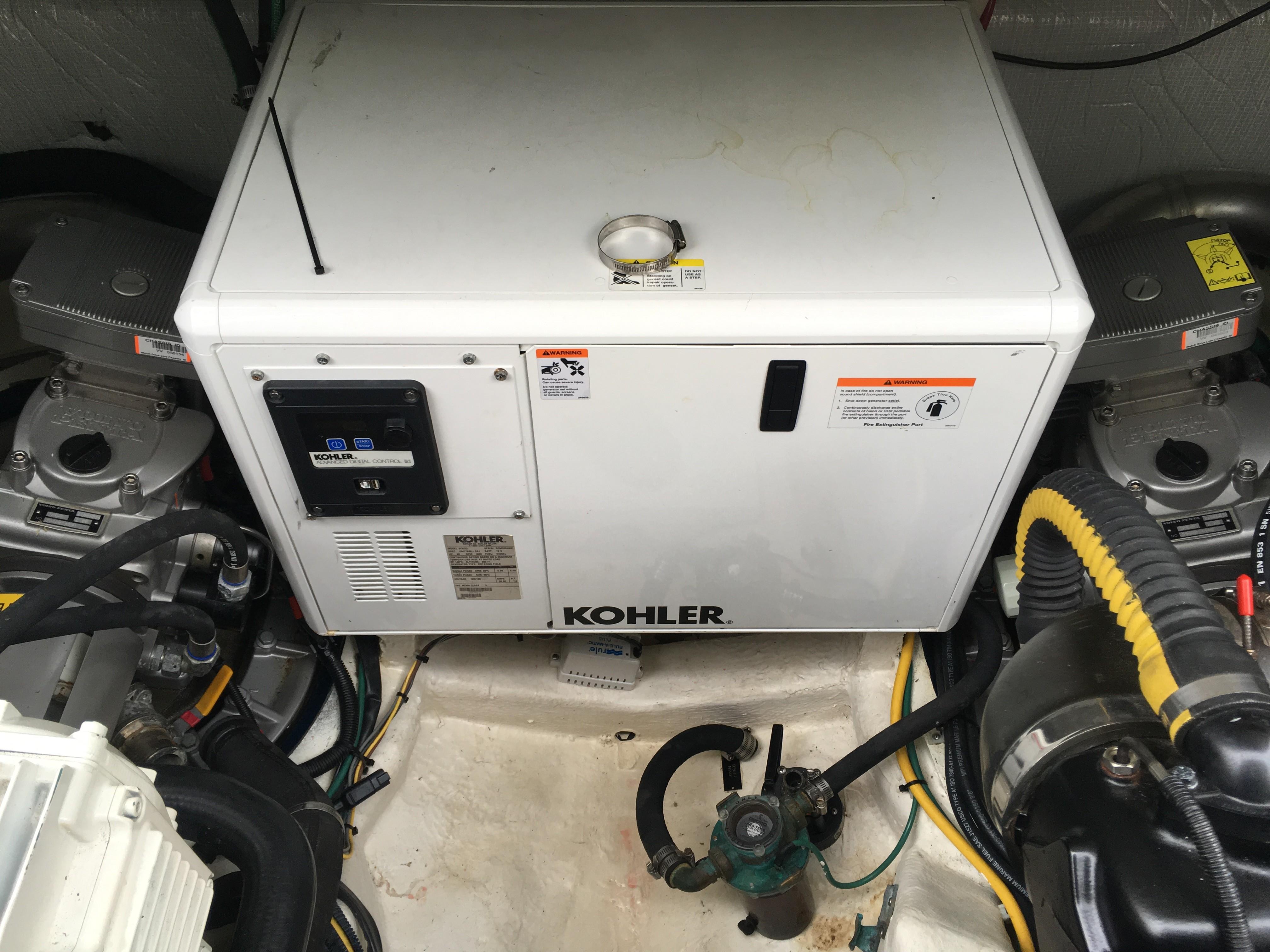

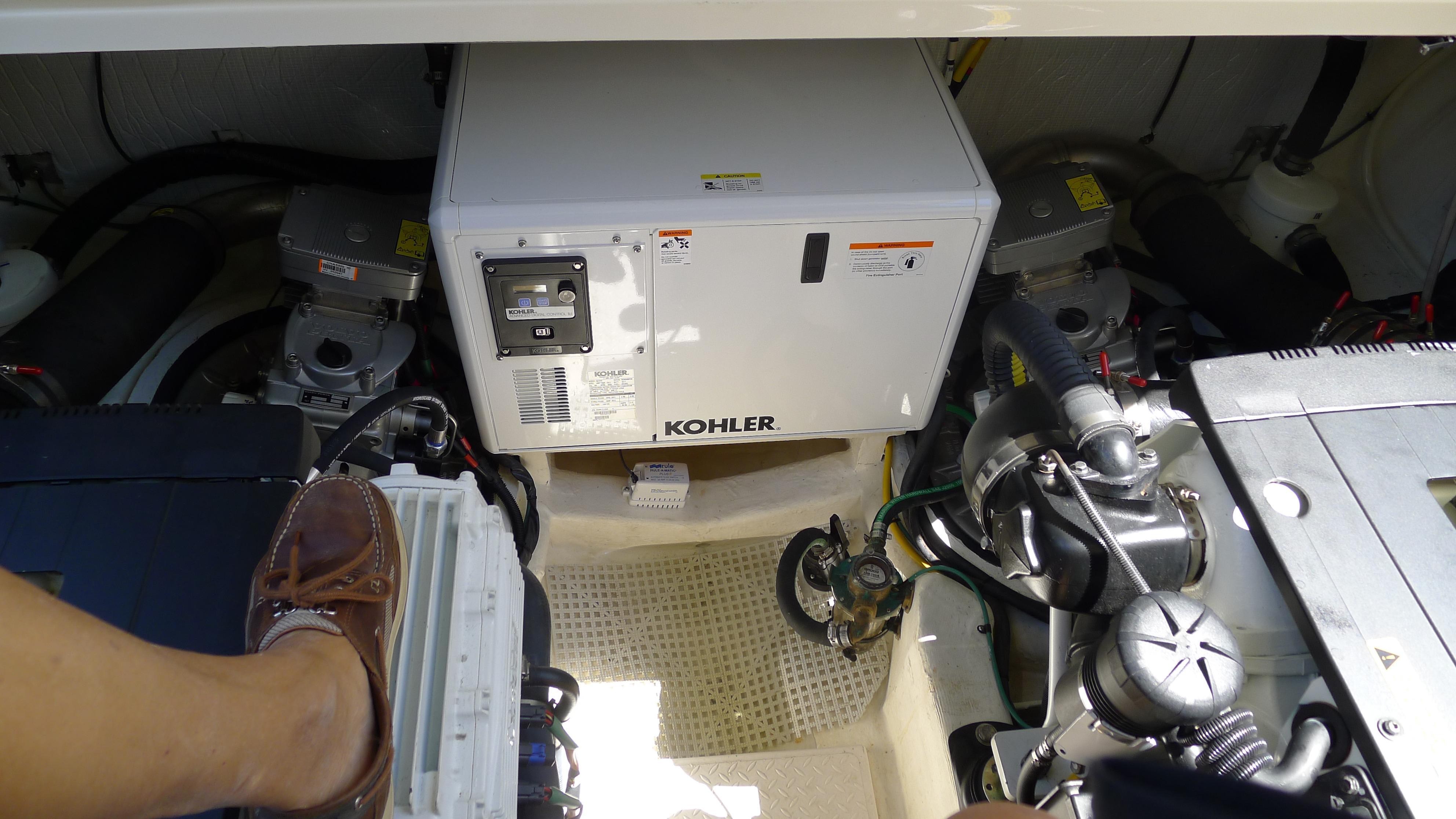

• Generator

FUEL SYSTEM

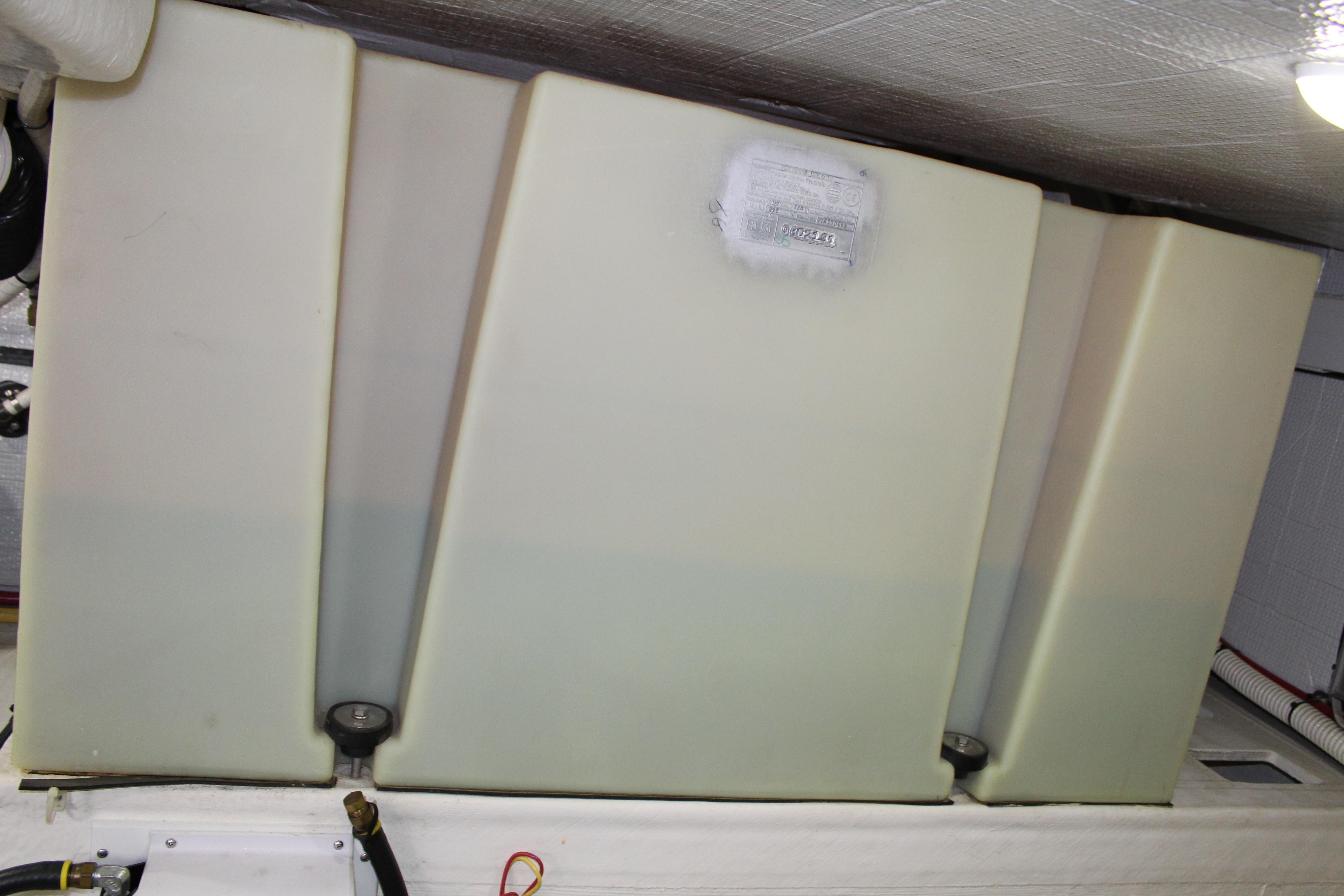

• Twin 150 USG roto-molded diesel fuel tanks

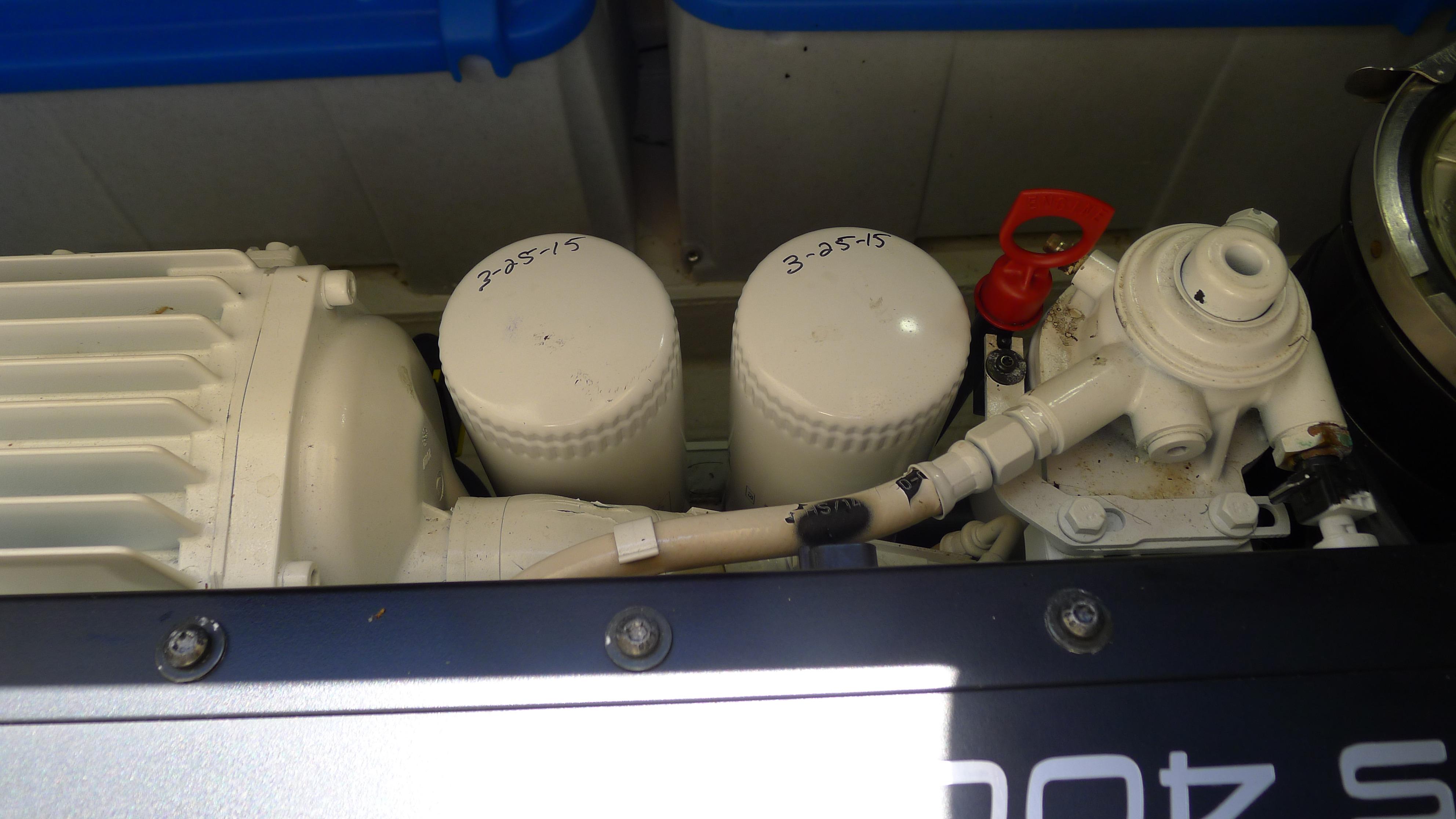

• Racor fuel filters
• 2” “Diesel” deck fill plate

STEERING AND TRIM SYSTEMS

• Volvo Penta IPS helm
• Lenco Auto Glide trim tab system

120VAC ELECTRICAL SYSTEM

• Two 30 A. AC shore power inlets and two 50 ft. cords
• Galvanic isolator
• Illuminated main circuit breaker distribution panel
• 120V outlets in each cabin and one in engine room
• All galley and head receptacles are GFI protected
• Additional outlets positioned in locations as appropriate
• Charles Industries 50amp, 3-bank battery charger
• Reverse cycle heat/air conditioning in (3) zones

12VDC ELECTRICAL DISTRIBUTION SYSTEM

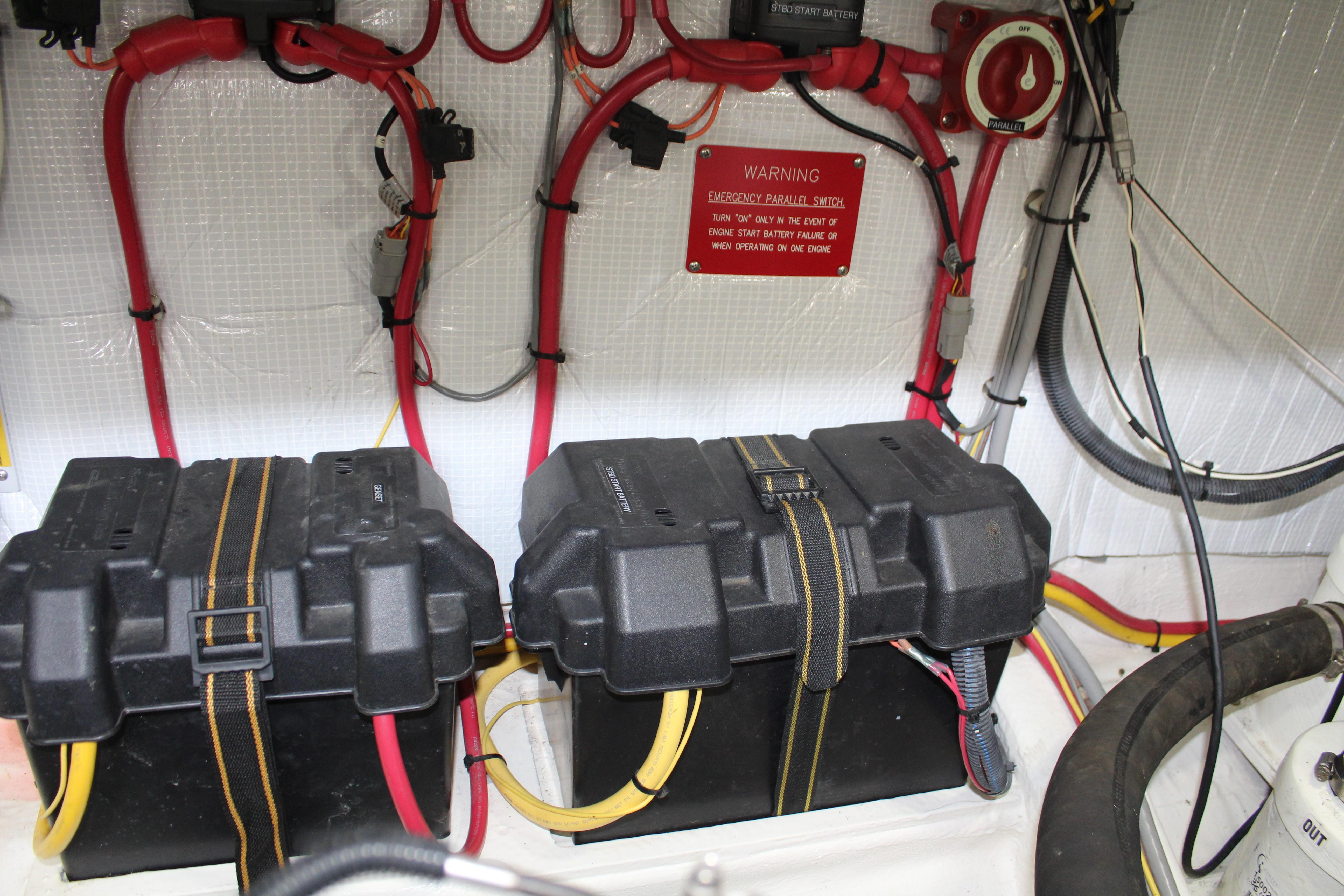

• Two dedicated engine starting batteries

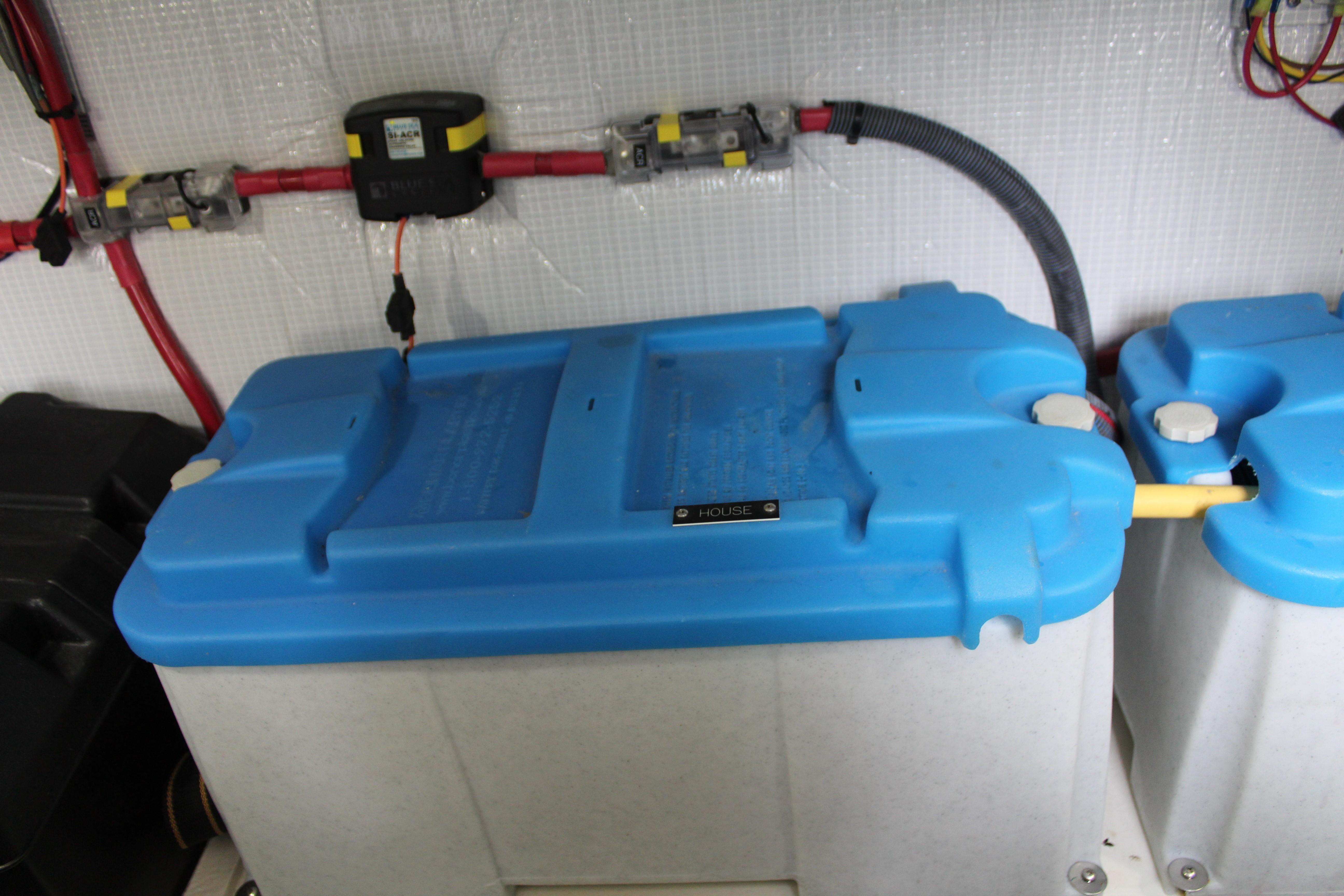

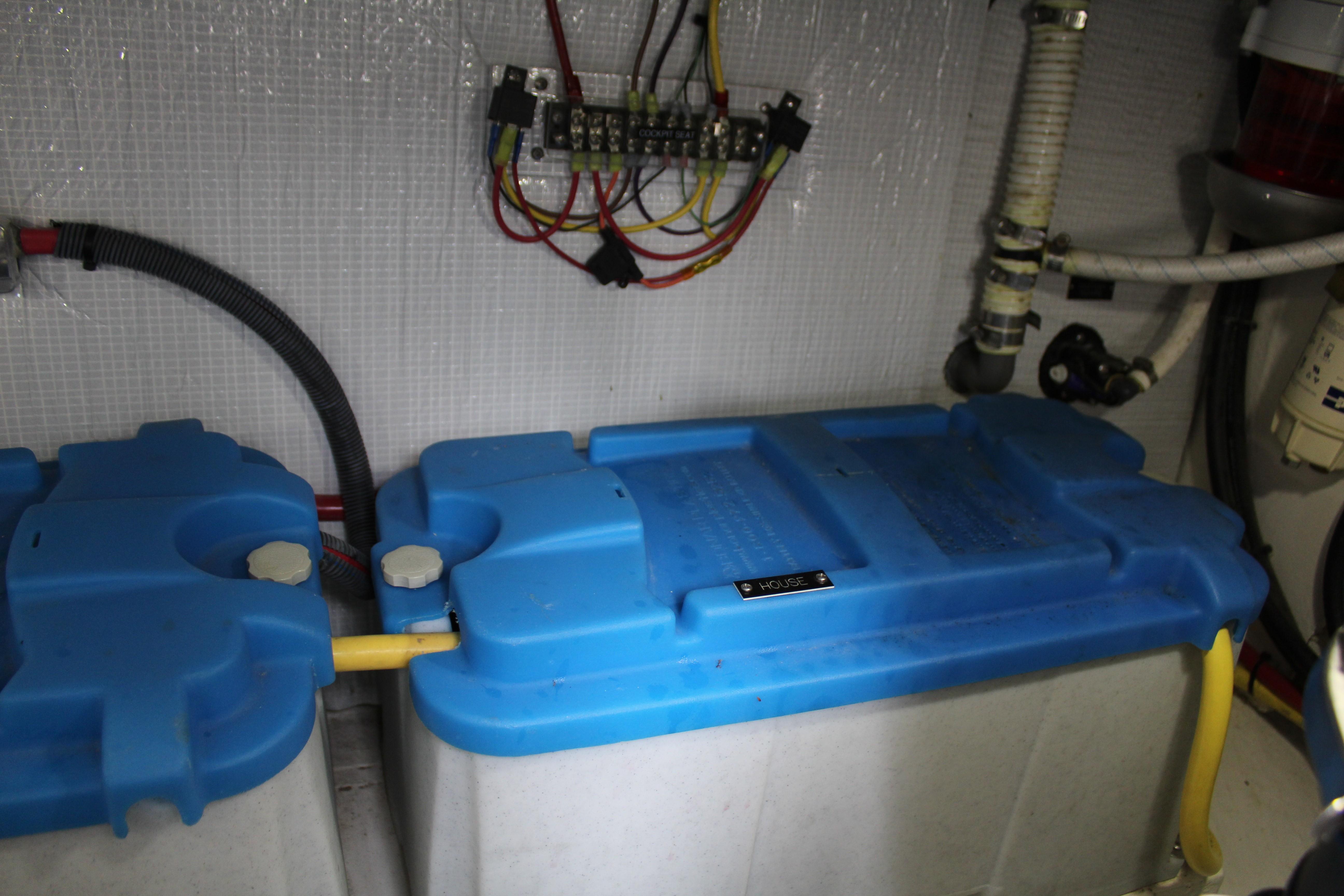

• Two 4D 210 Amp hour deep cycle ship's service batteries
• Battery Management panel including
• Emergency crossover switch
• Ships power switch
• Starting Battery switch

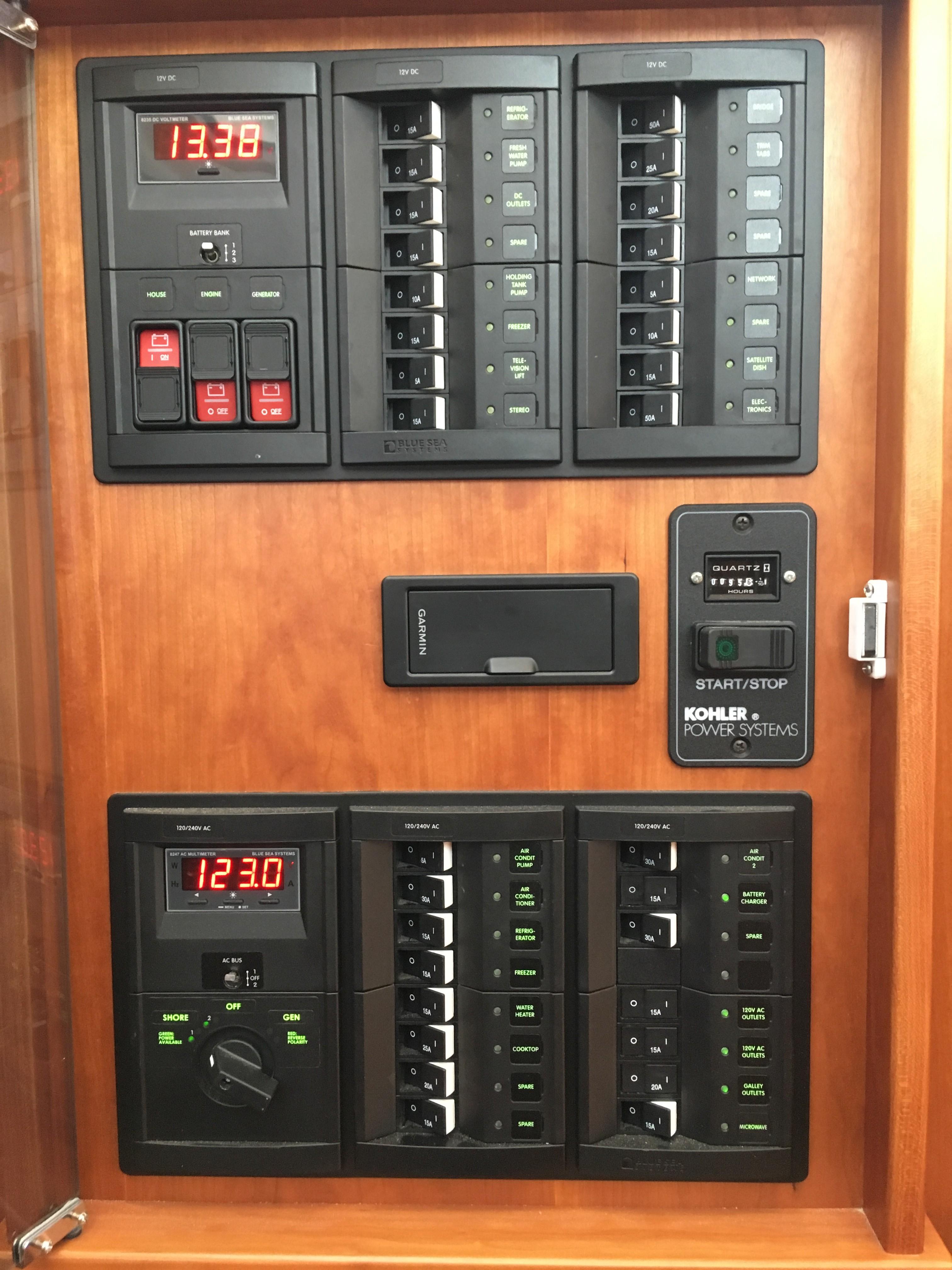

• Illuminated main circuit breaker distribution panel w/battery condition gauge

LIGHTING

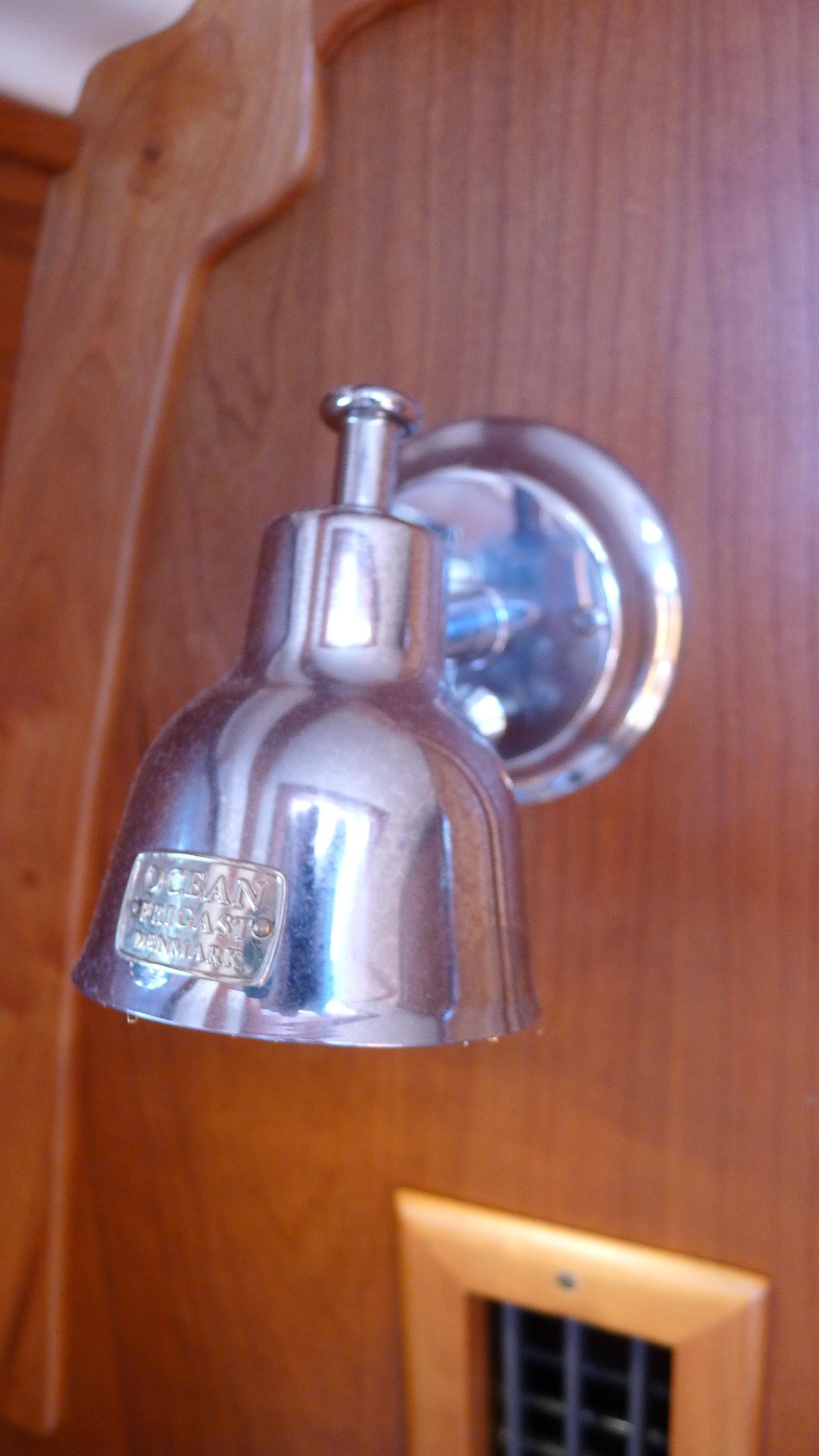

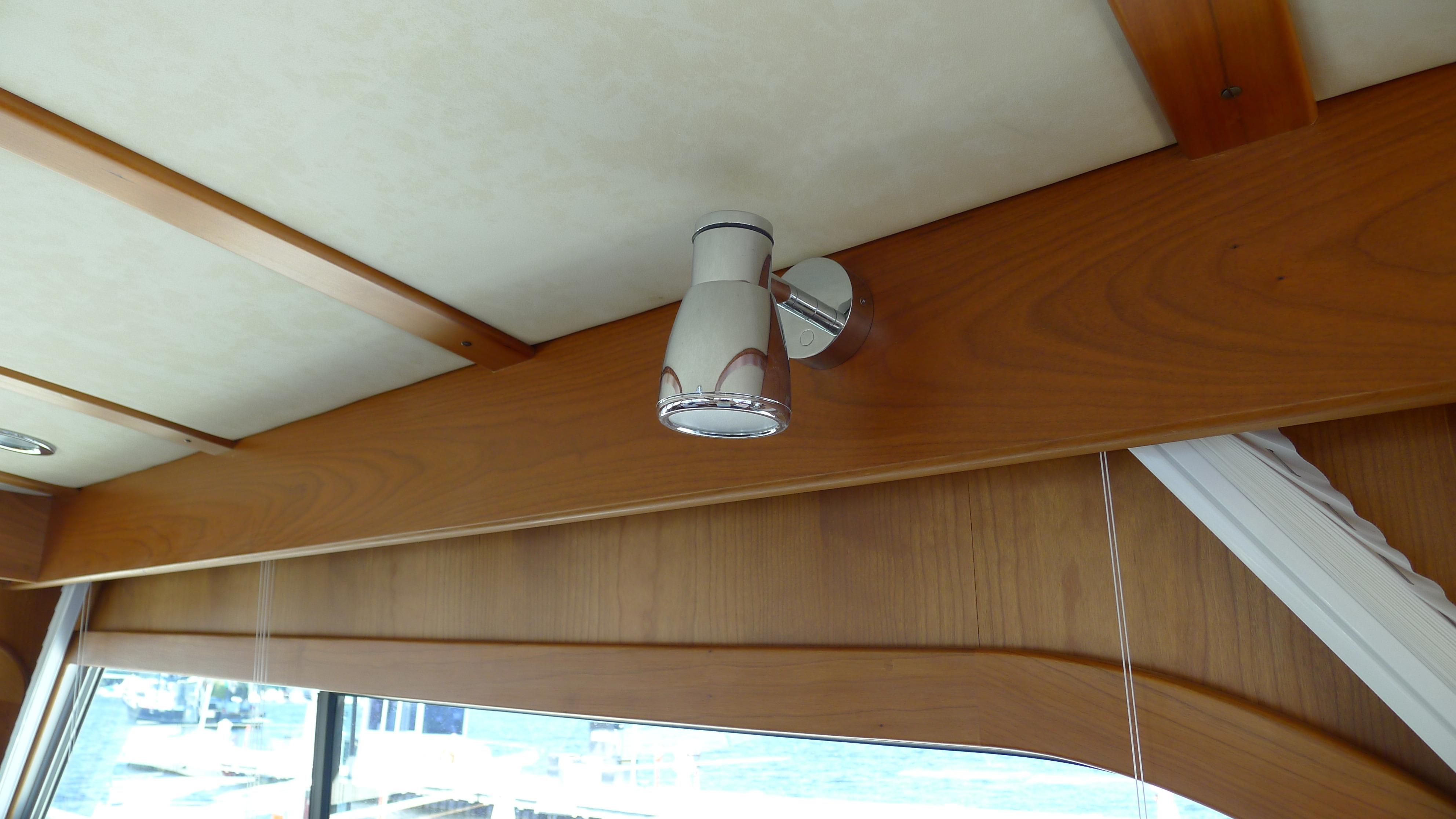

• Danish Cabin reading lights
• LED lights in the overhead
• LED strip lighting in appropriate locations
• Engine room lighting
• Cockpit courtesy lights w/remote switch at transom
• Tinned wire throughout

FRESH WATER SYSTEM

• Water capacity 100 gals
• 11 gal. Stainless steel hot water heater 110V and engine heat exchanger
• Hot and cold water pressure system 12V

WASTE DISPOSAL

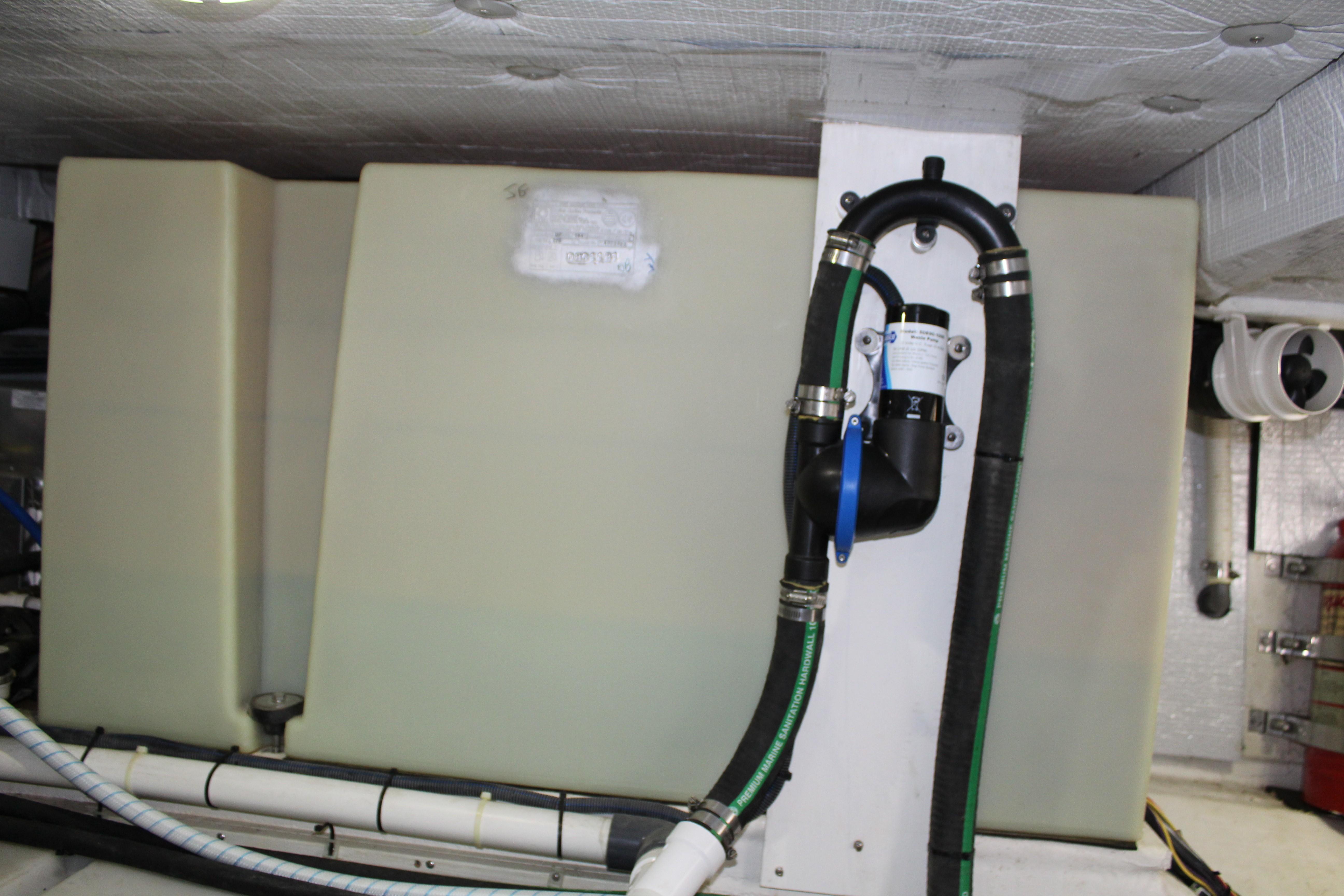

• Polyethylene holding tank with 40 gallon capacity
• Jabsco Quiet Flush fresh water MSD
• Macerator pump on holding tank

SAFETY

• Fire extinguishers, (4) at 2 1/2 lbs
• Marelon sea valves on all below waterline fittings
• Bonding system to safeguard against galvanic corrosion
