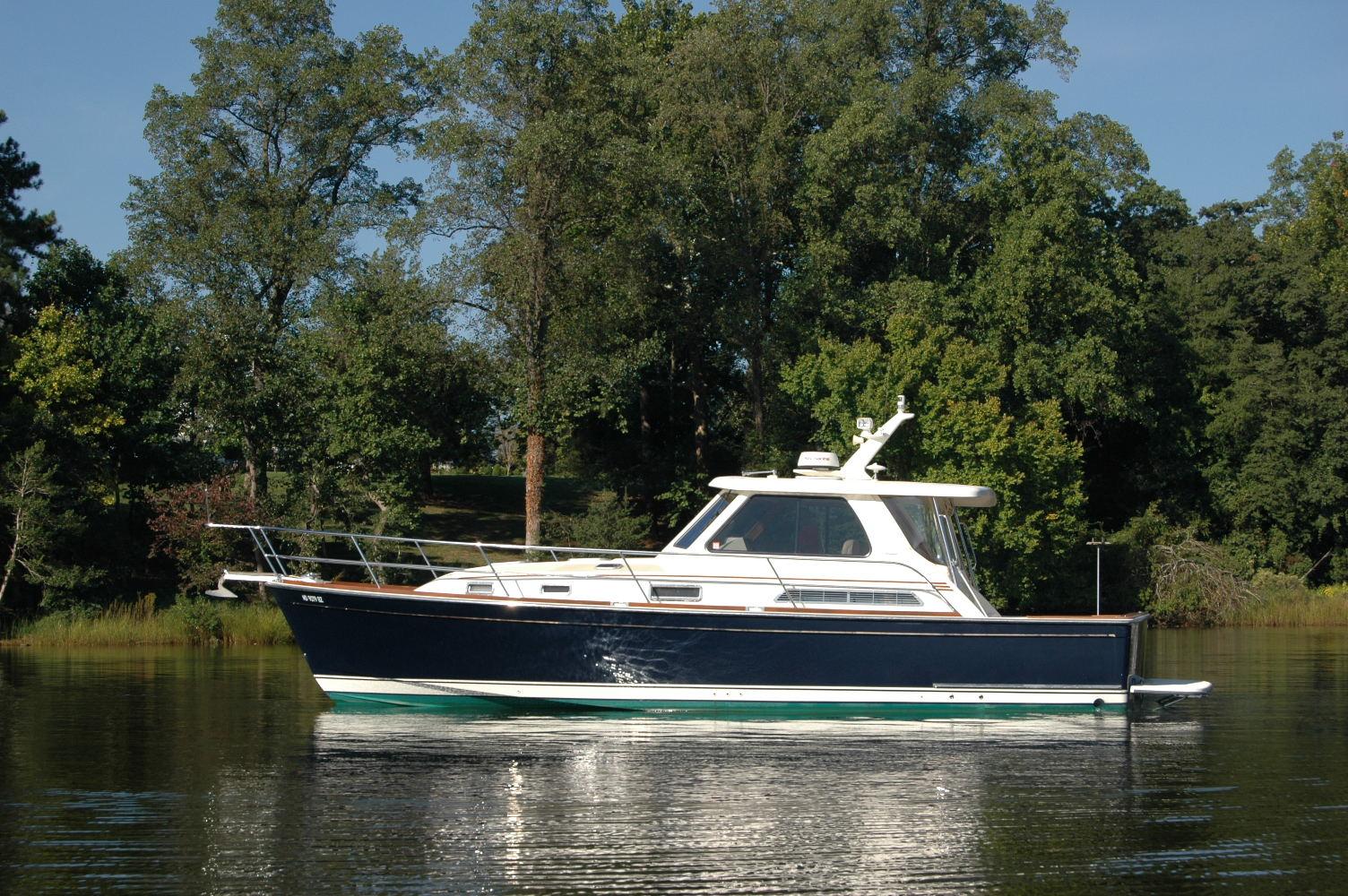

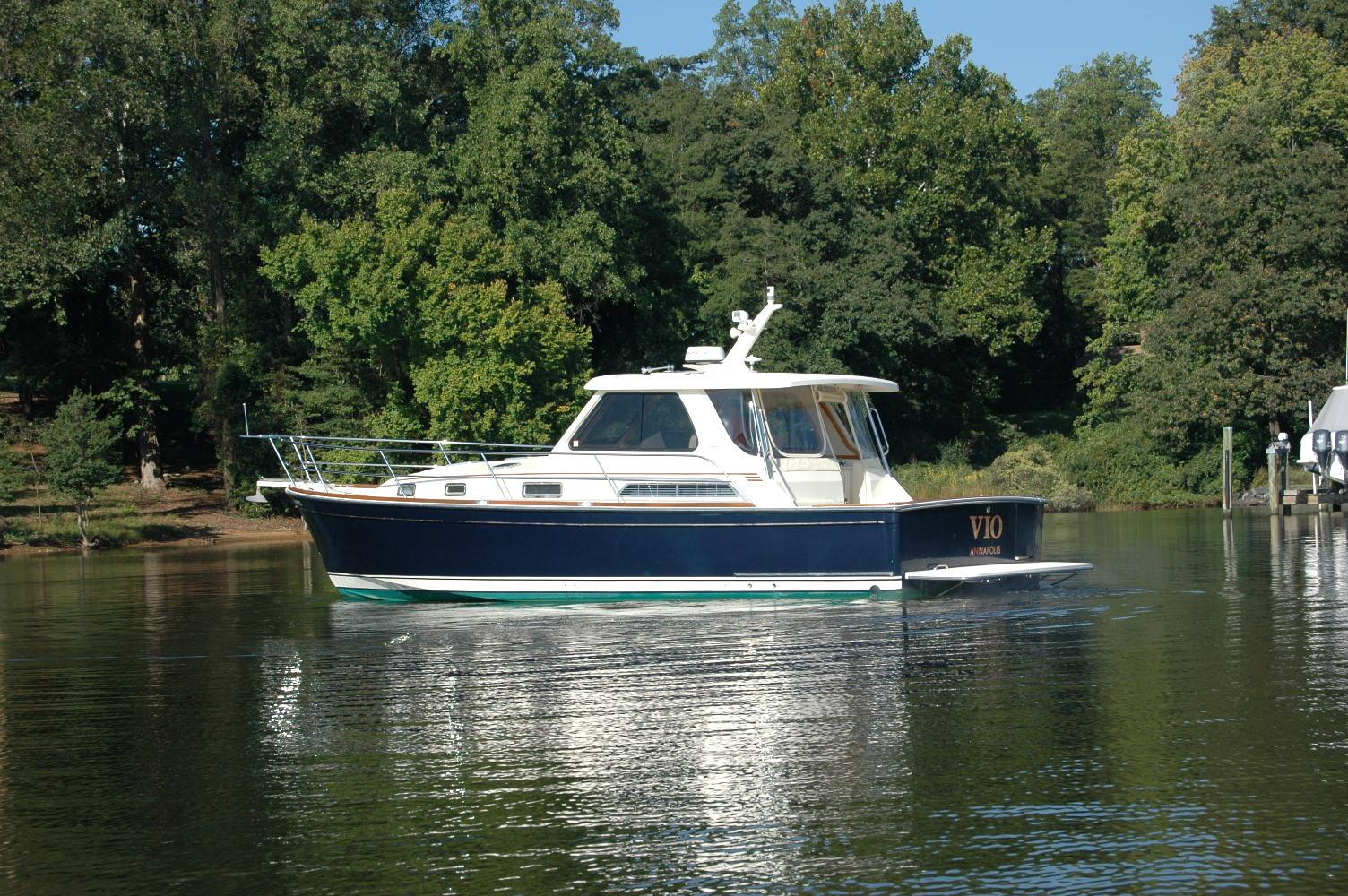

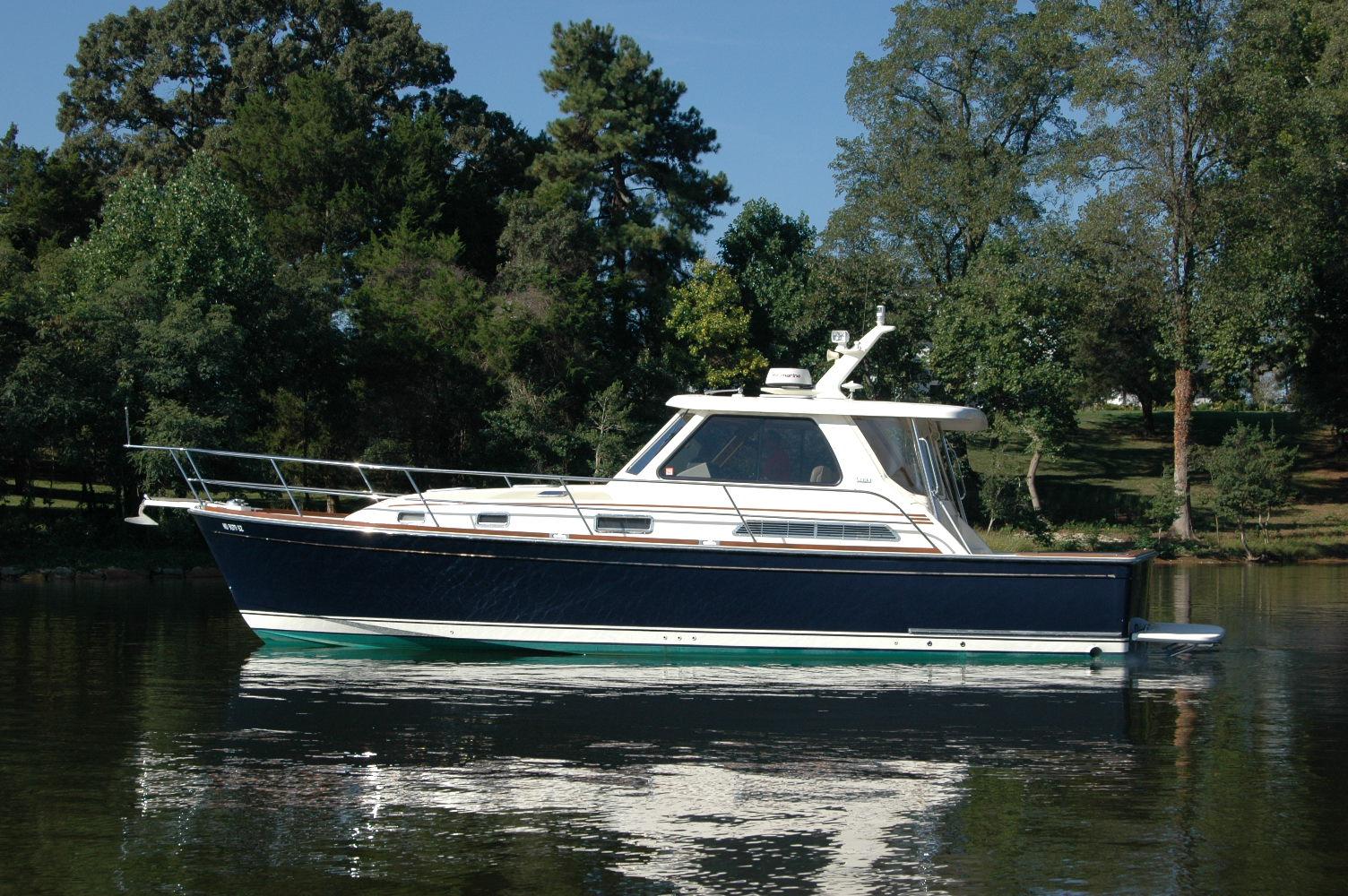

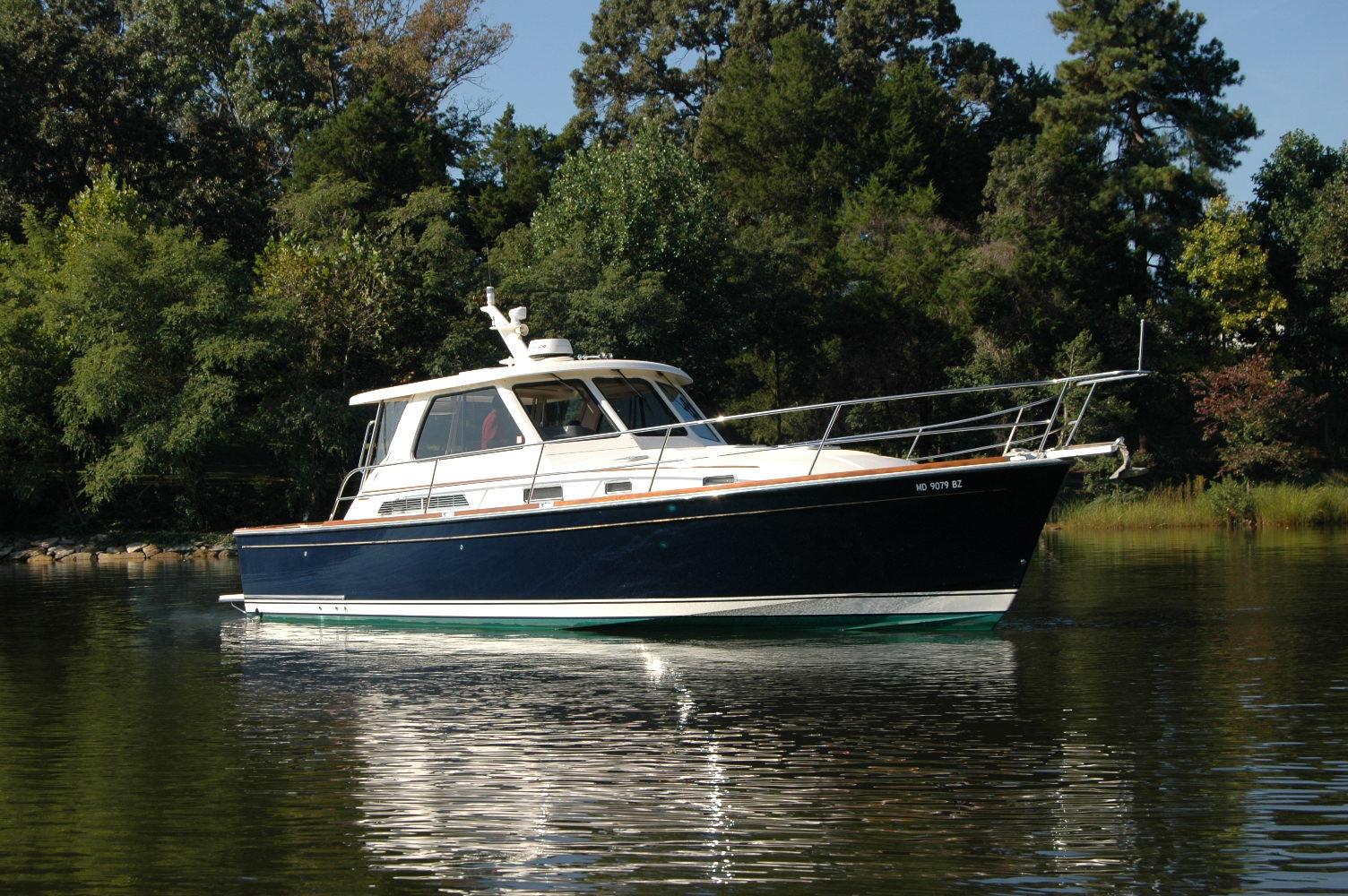

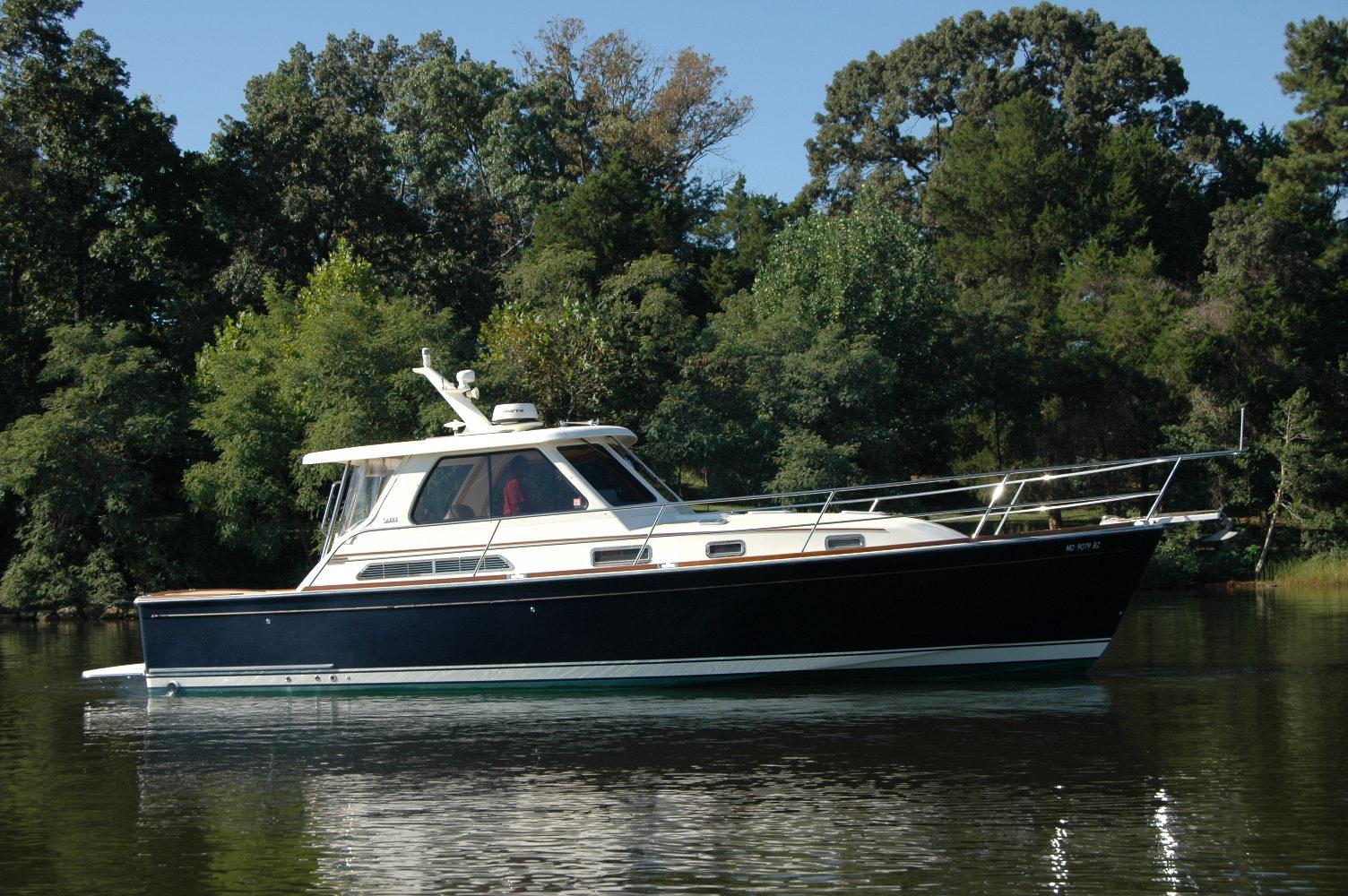

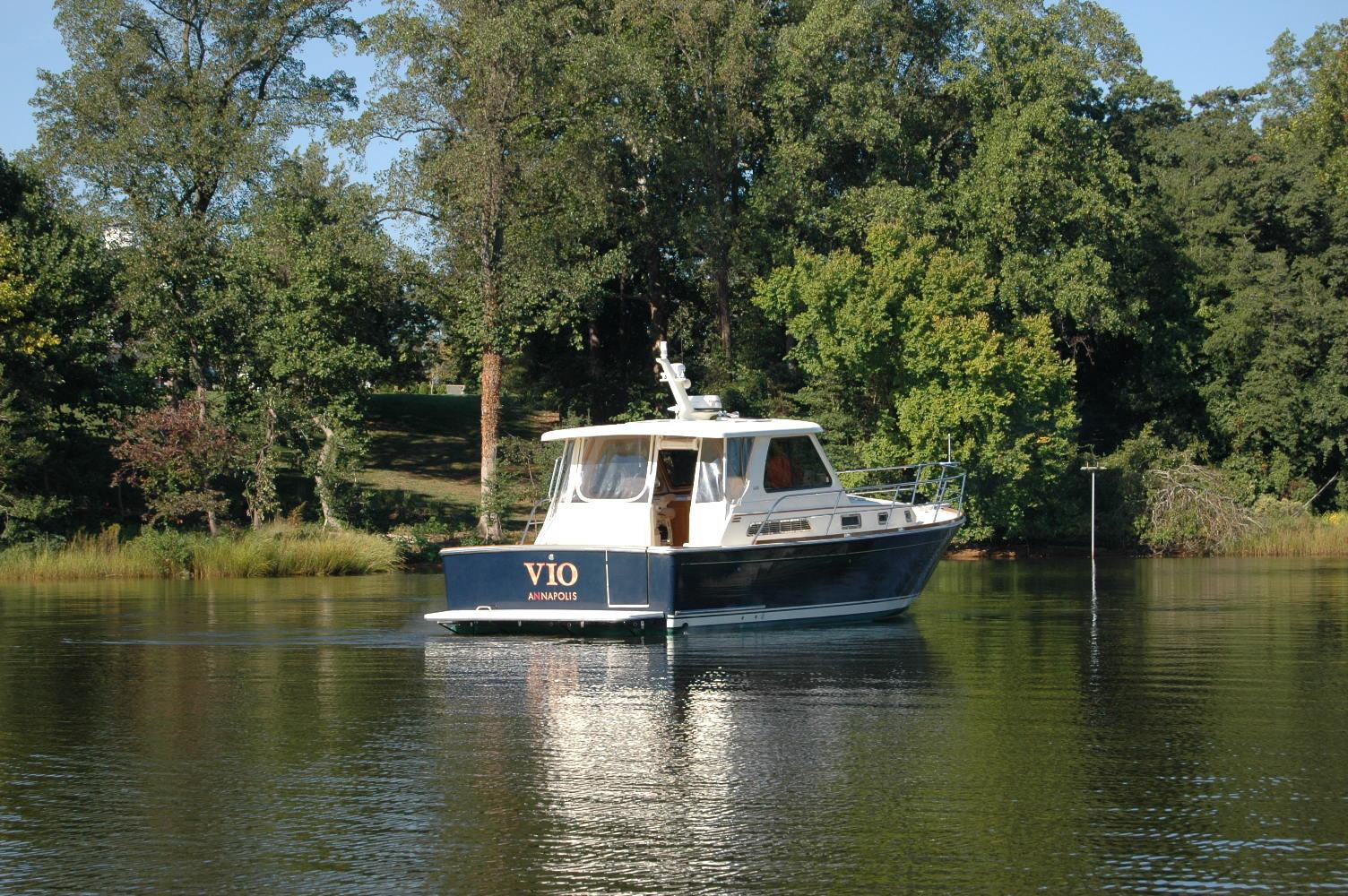

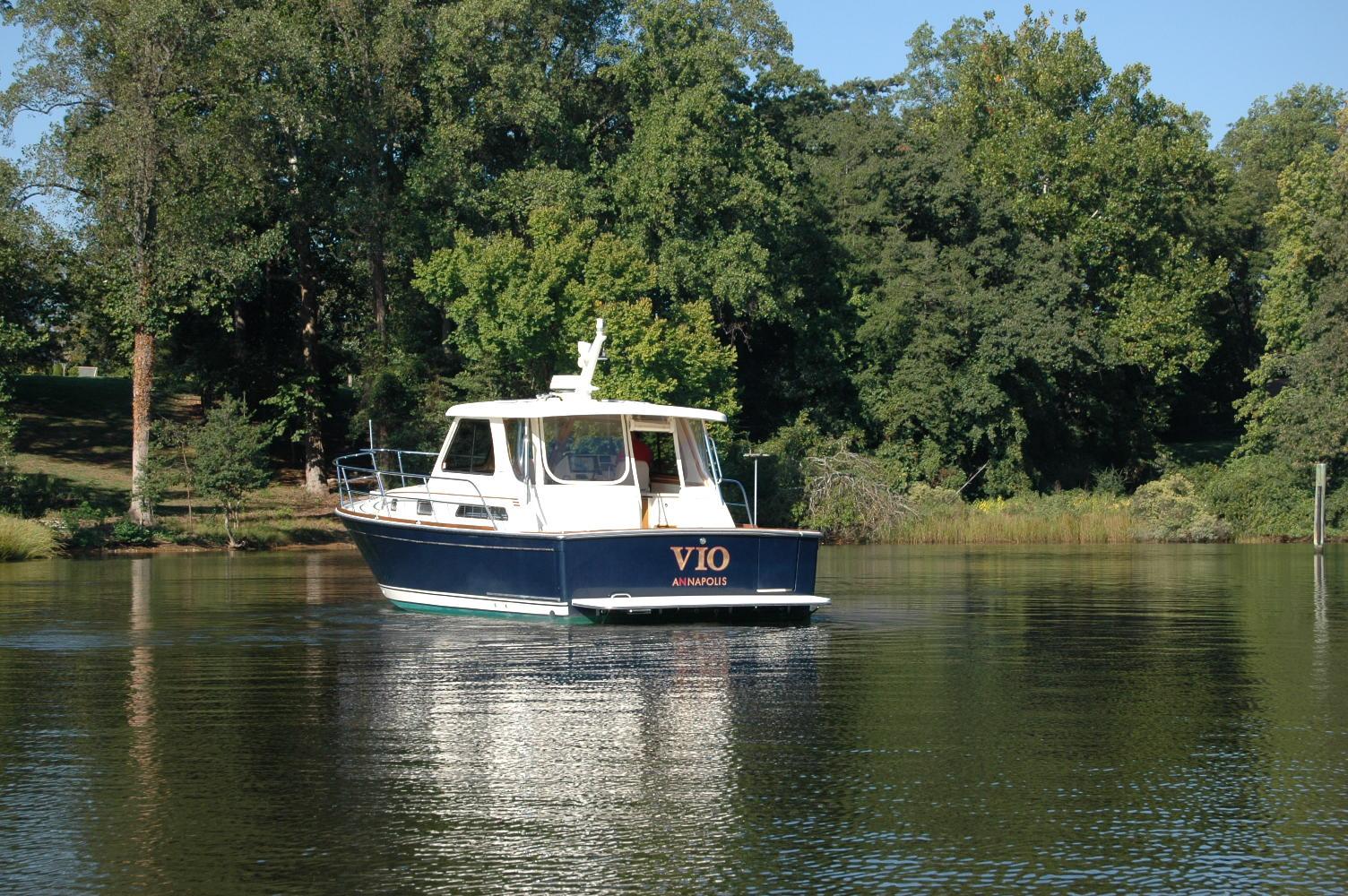

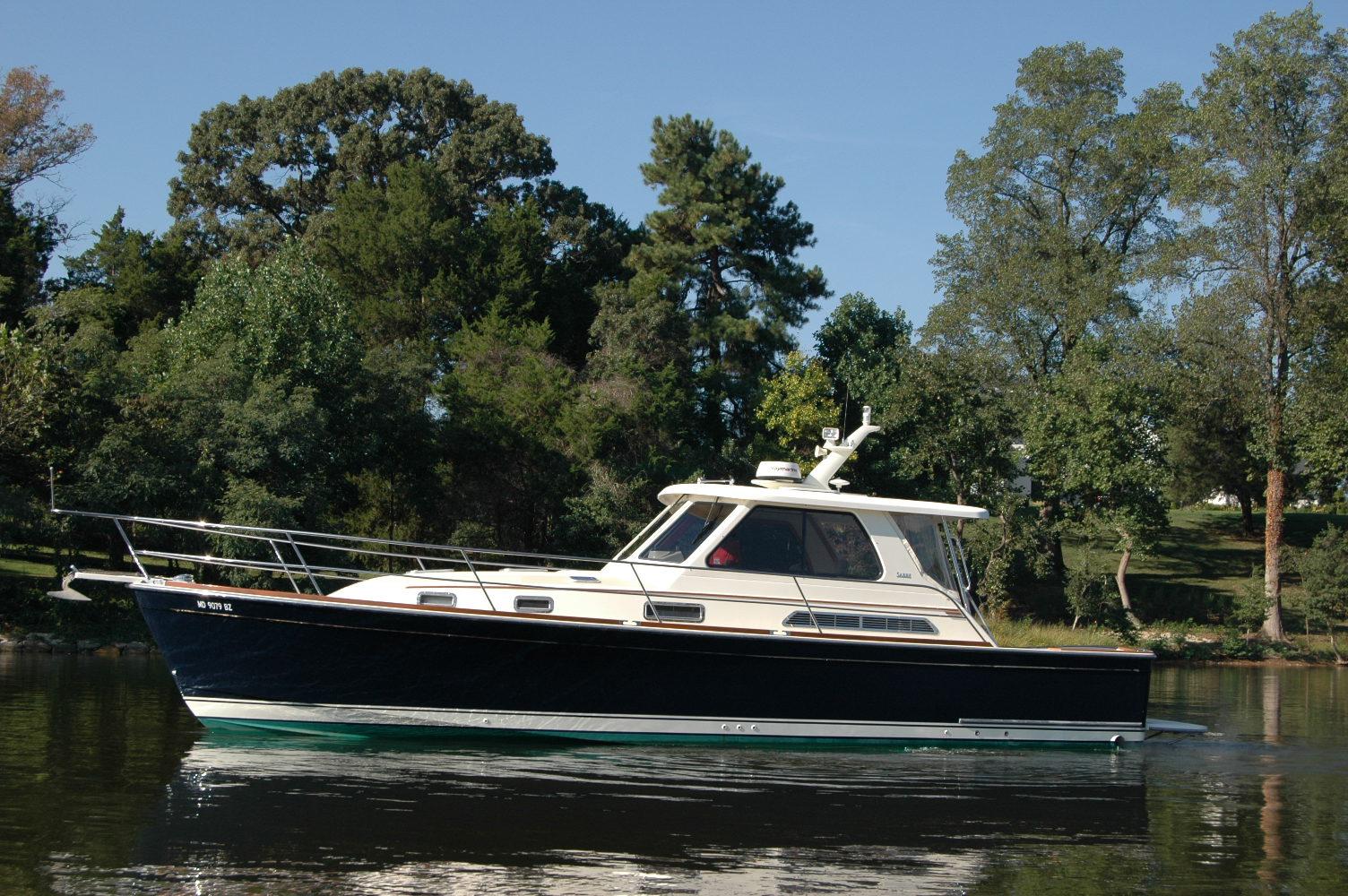

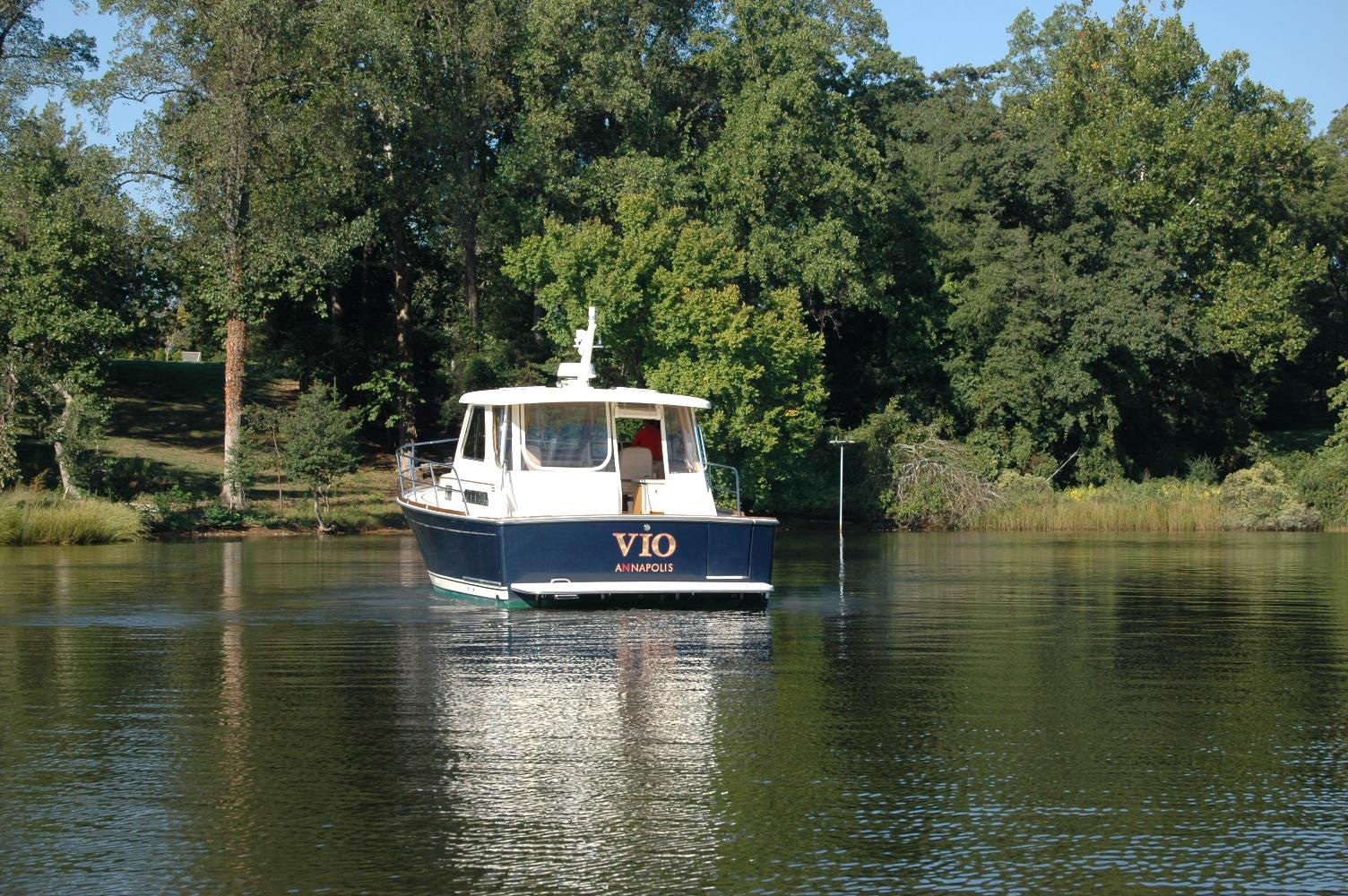

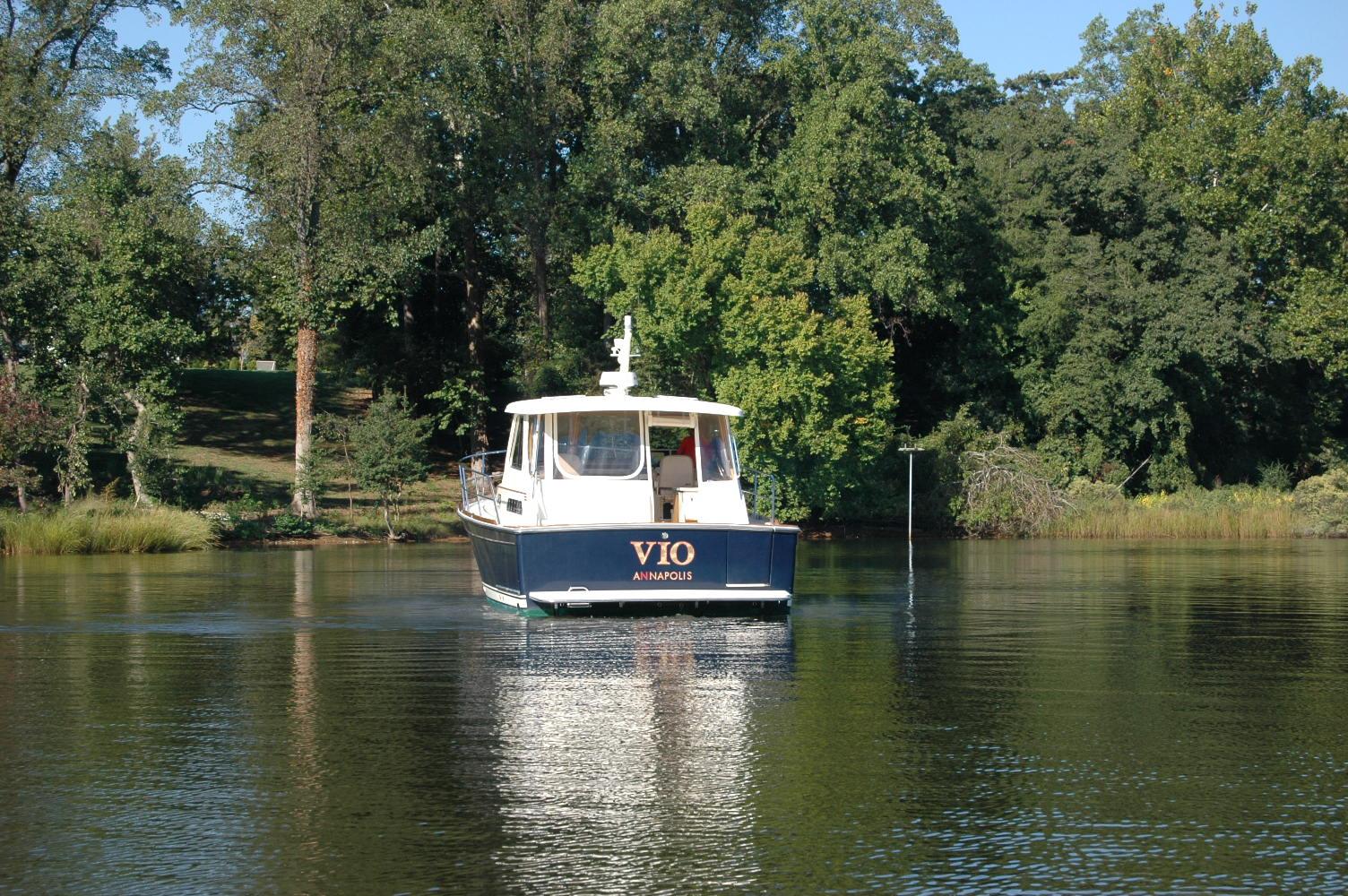

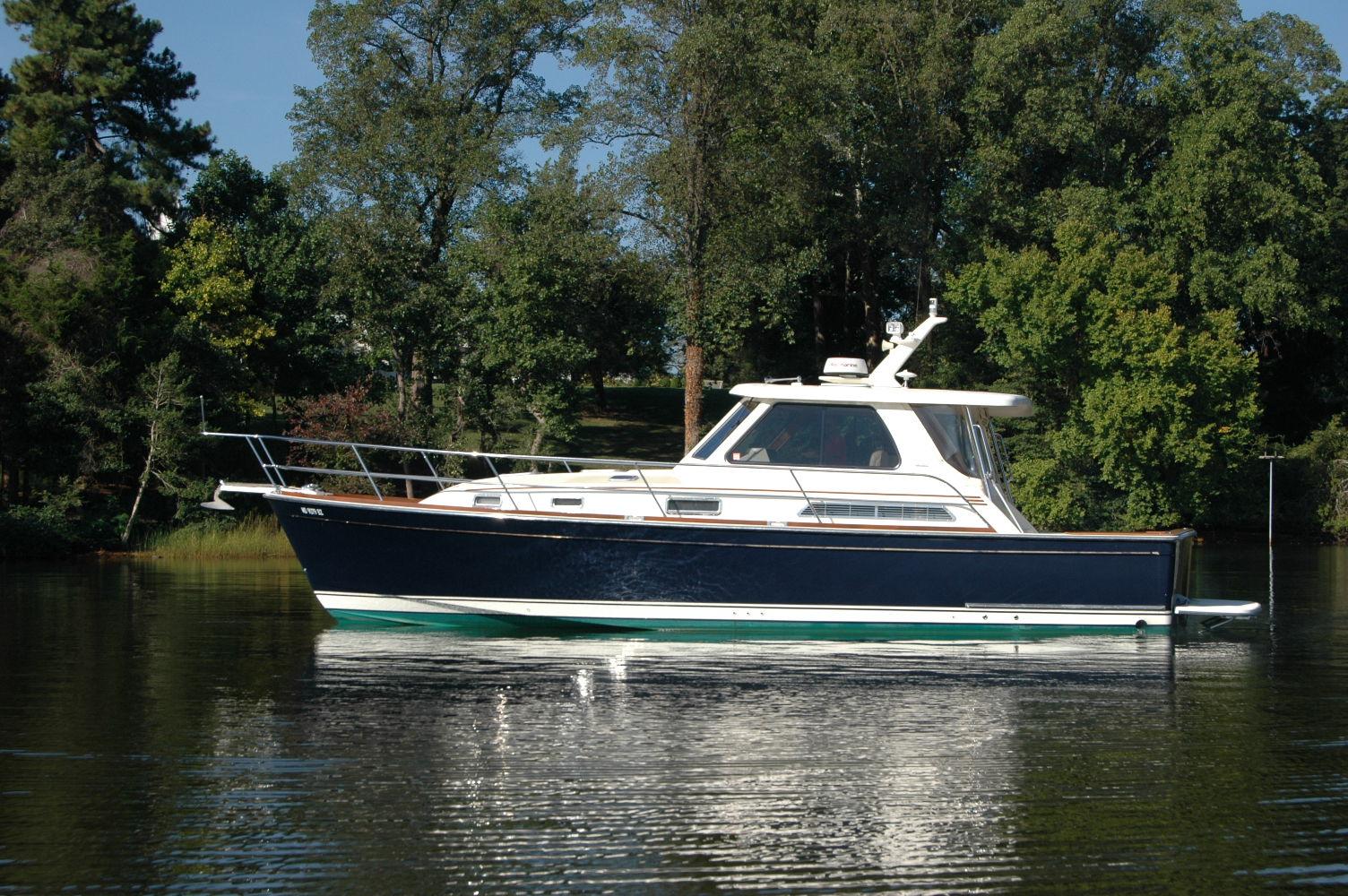

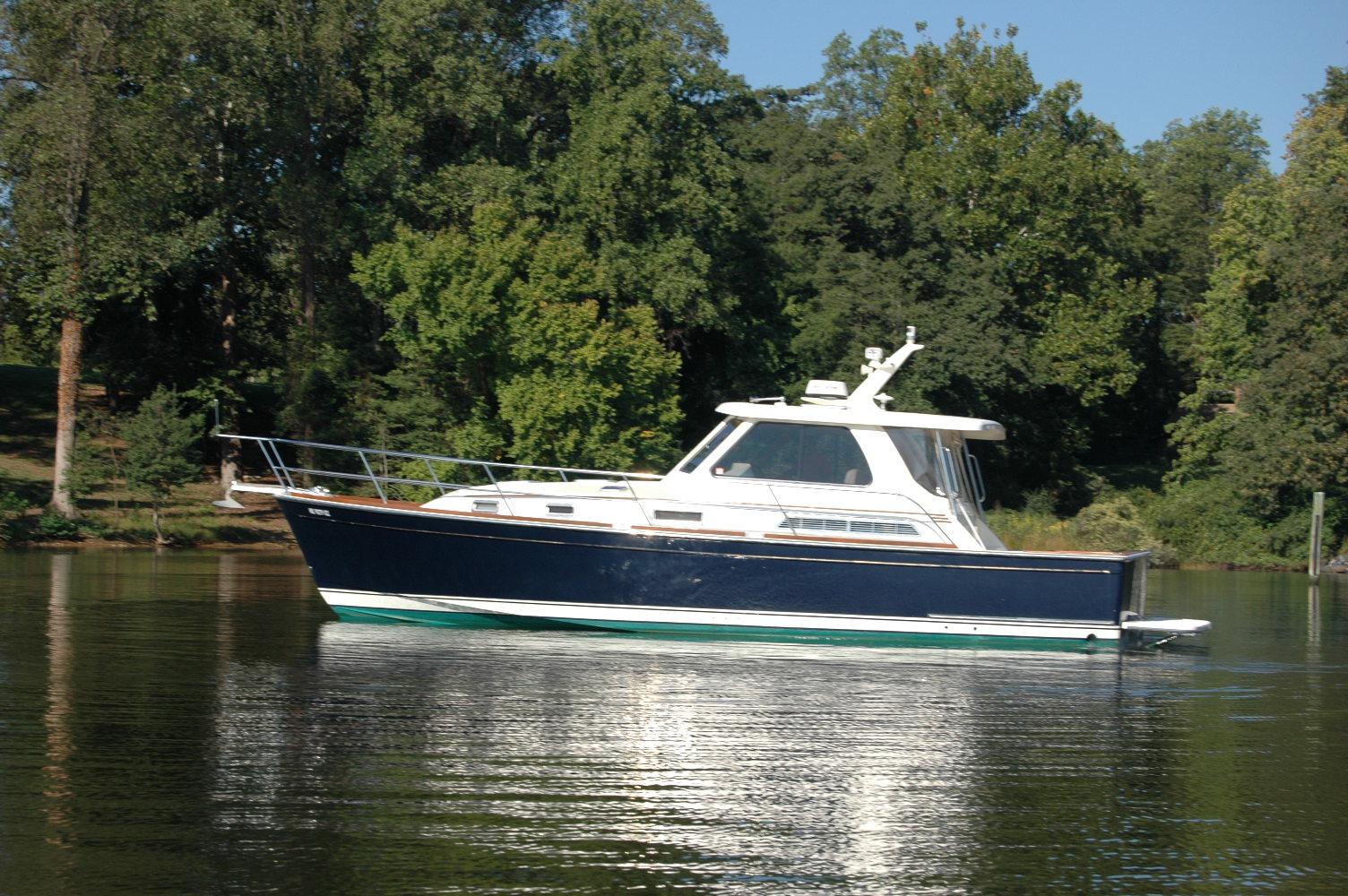

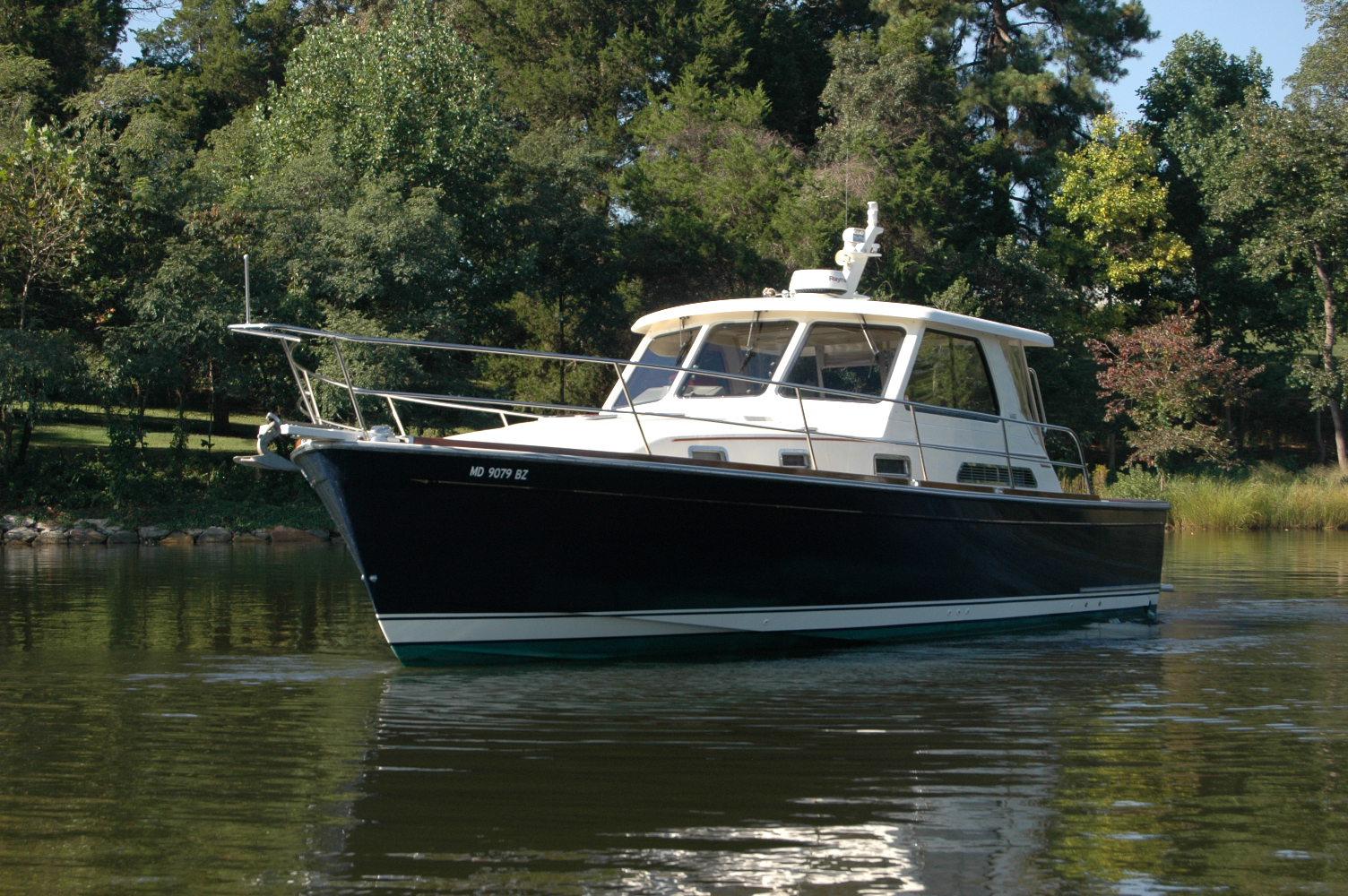

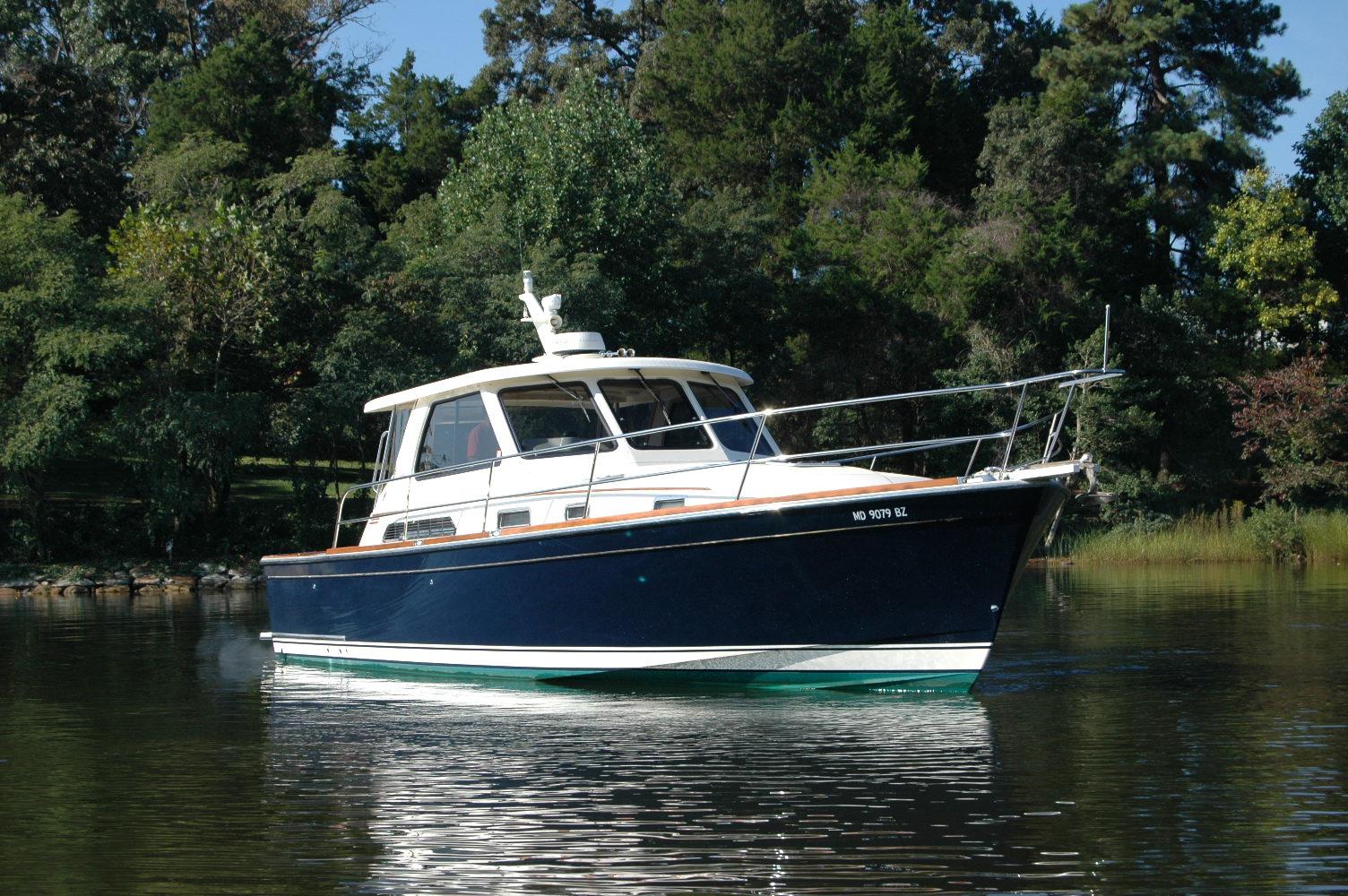

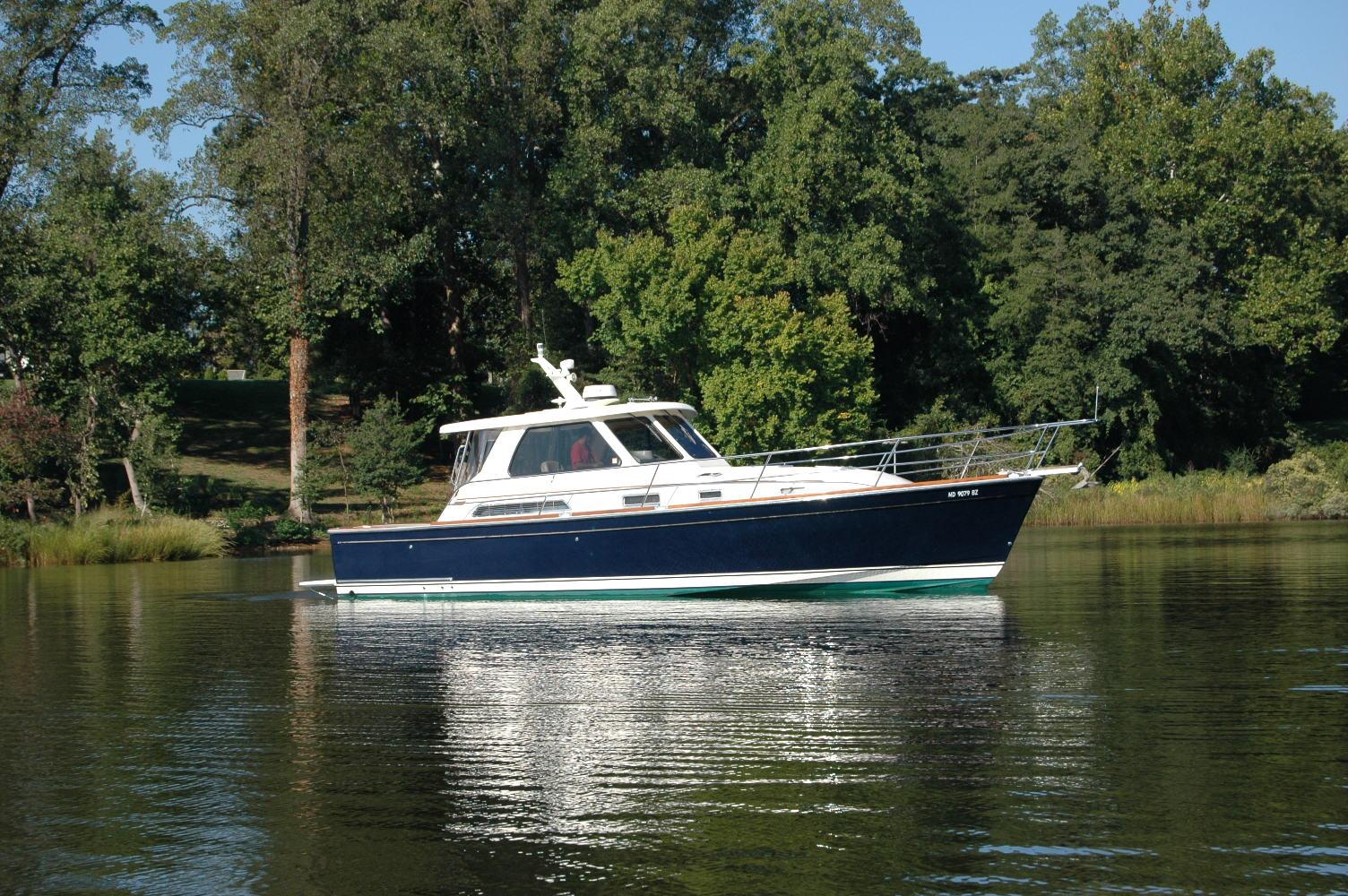

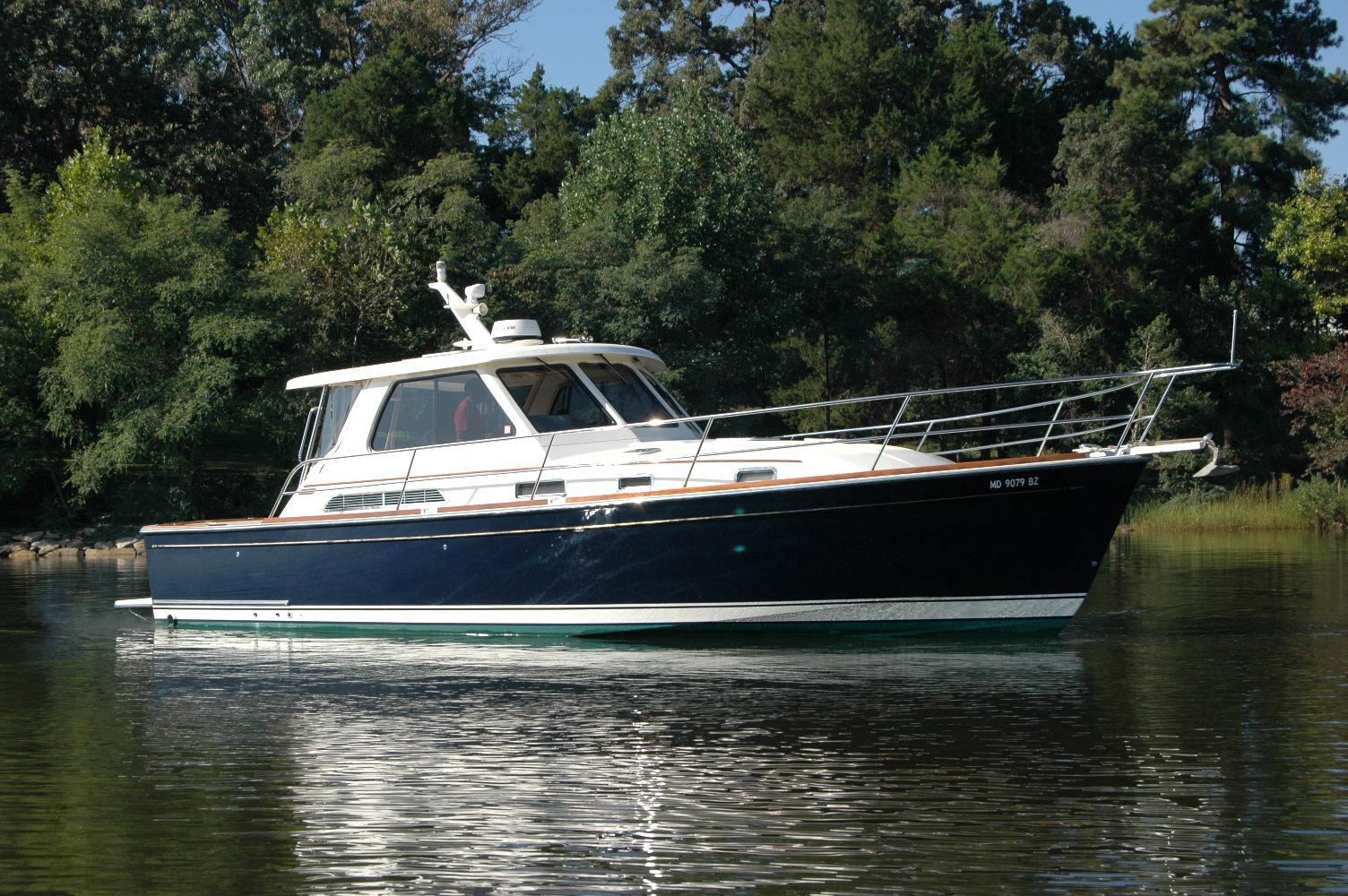

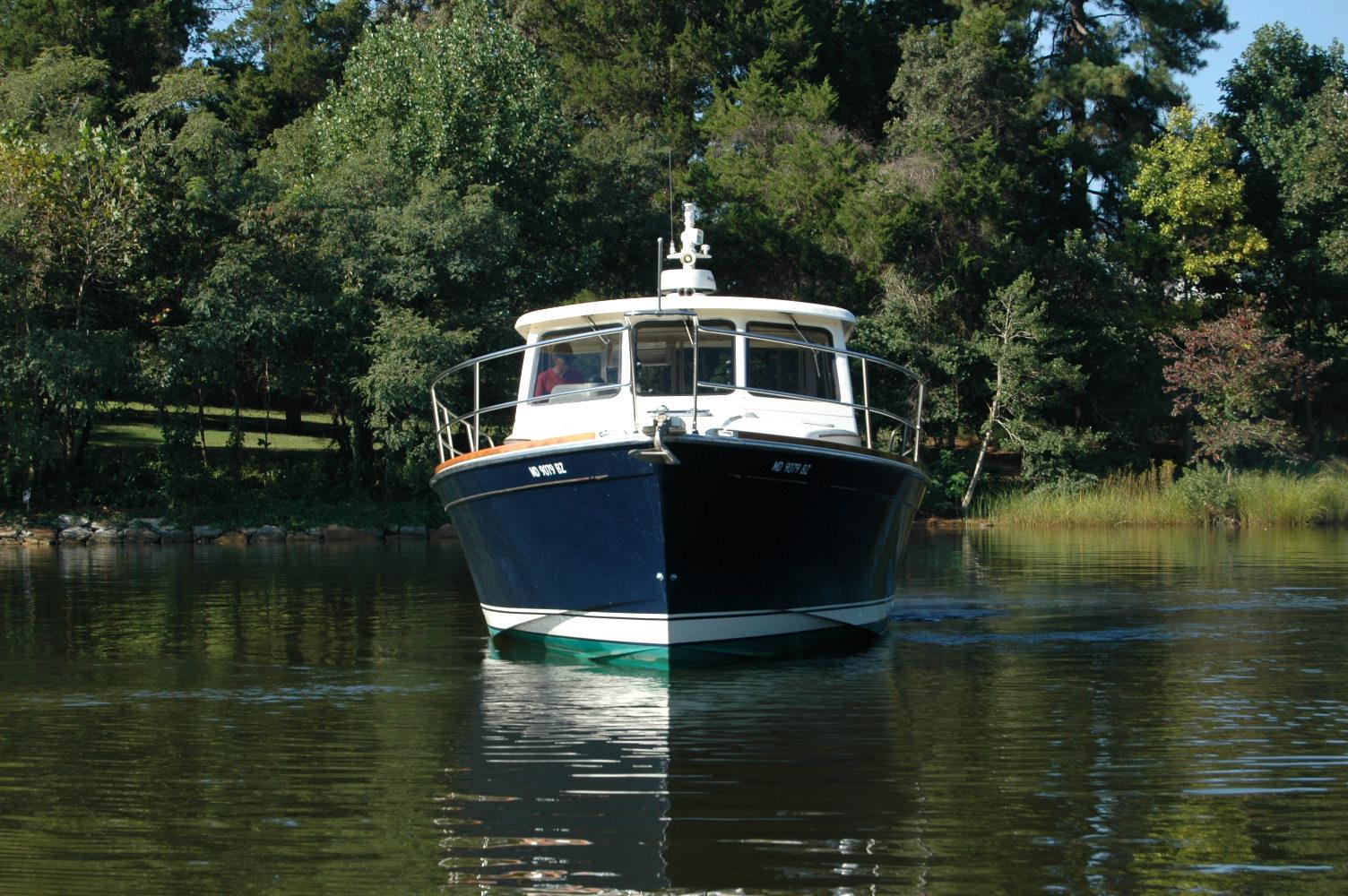

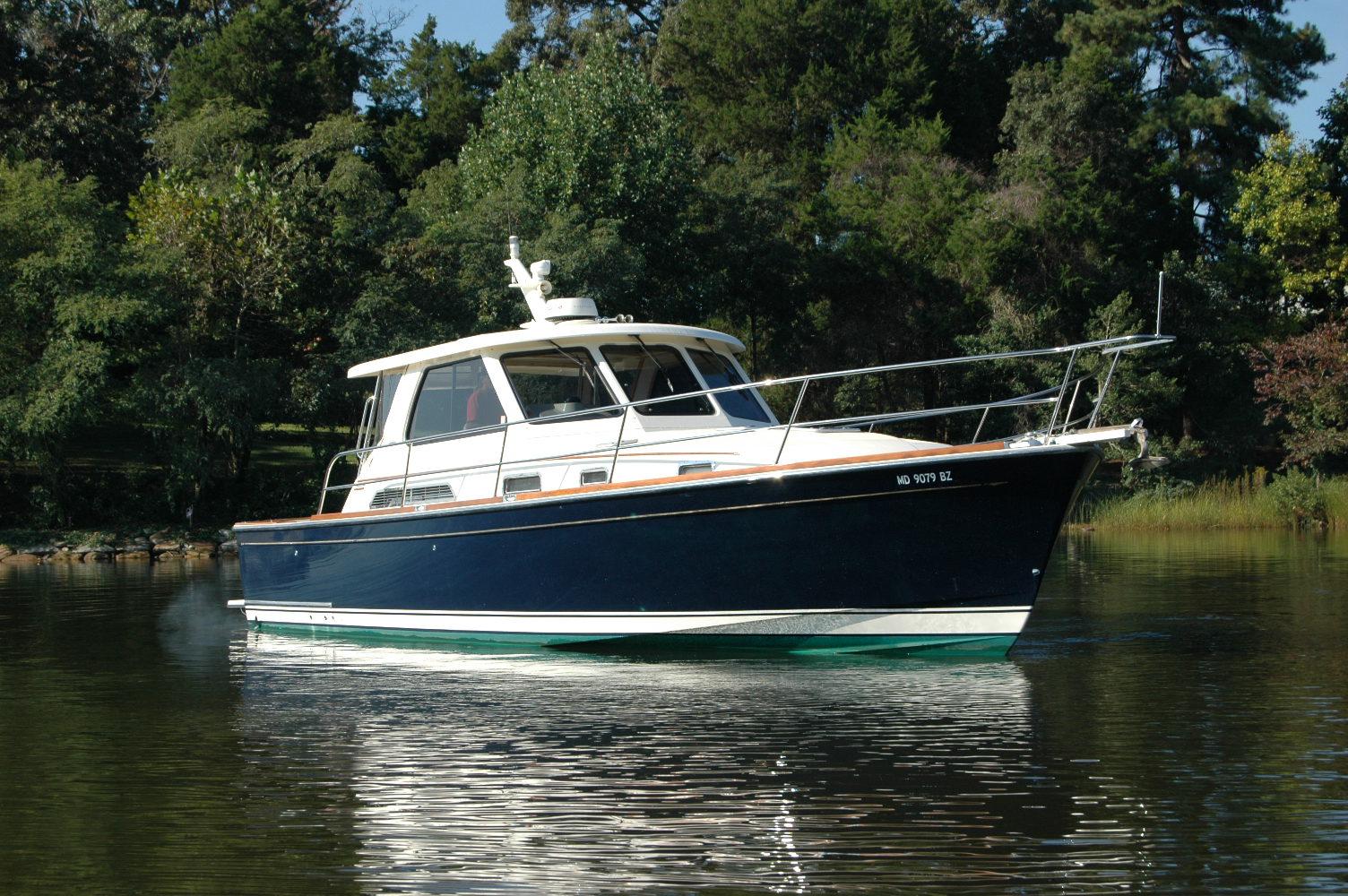

"VIO" is a very well-kept example of the time-tested and well-loved Sabre 38 Express. She has low hours on her engines and generator, and is ready for your Fall cruising adventures. Do not miss this beautiful Sabre as the Sabre 38s in this condition are difficult to find!
SPECIFICATIONS
BASIC INFORMATION
Manufacturer:Sabre
Model: 38 Express
Year: 2006
Category:Power
Condition:Used
Location: Annapolis US

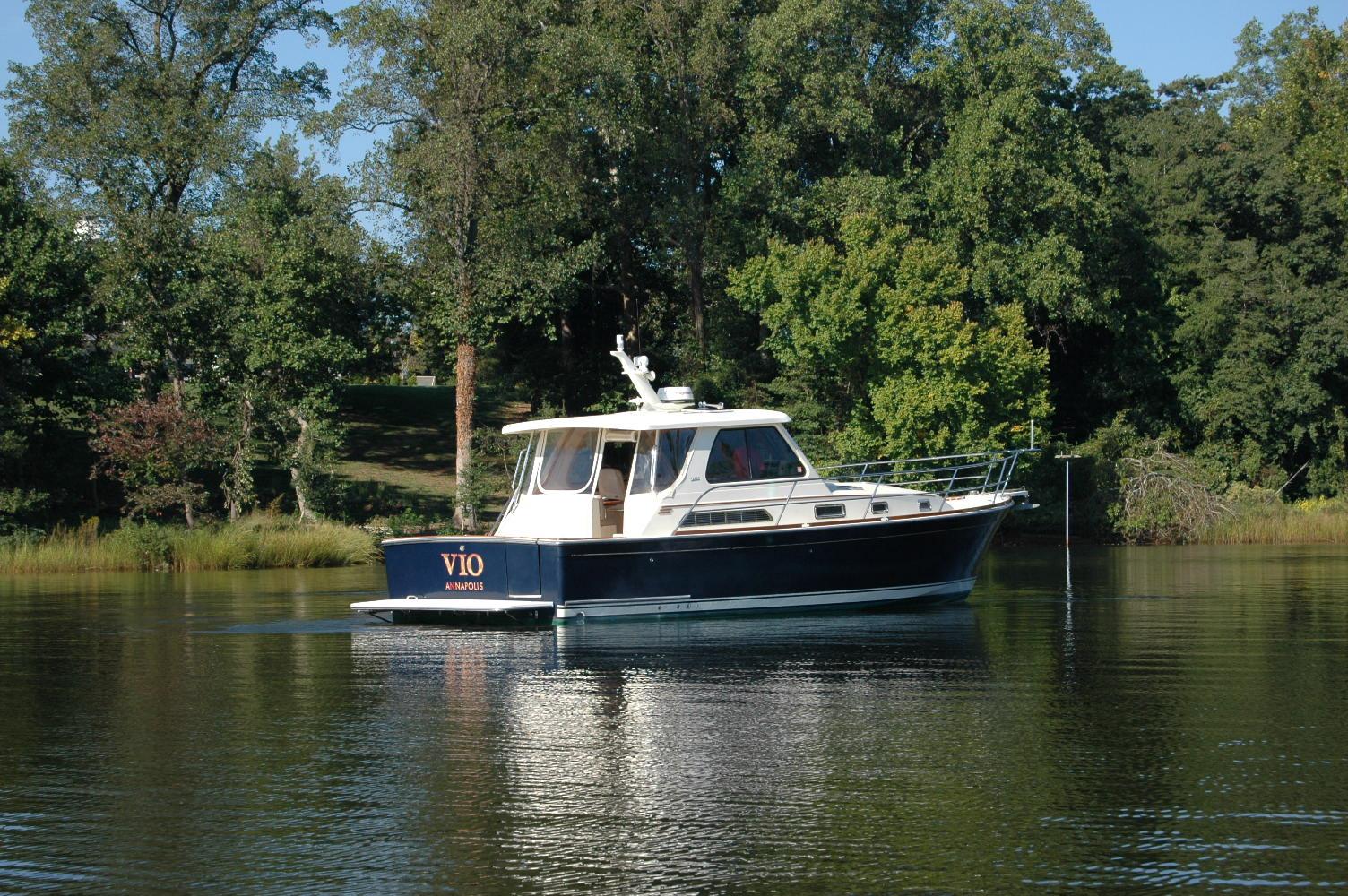

Vessel Name:VIO
Hull Material:Fiberglass
Designer:Sabre Design Team
ENGINE
Make:Yanmar
Model:6LY2A-STP
Engines(s):2
Hours:665
Engine Type:Inboard
Fuel Type:diesel
Horsepower:440|horsepower
ACCOMODATIONS
Total Heads:1
DIMENSIONS & WEIGHT
Length:38 ft
Beam:13.67 ft
Draft - max:3.33 ft
TANK CAPACITIES
Fuel Tank:350|gallon
Fresh Water Tank:100|gallon
Holding Tank:350|gallon
GALLERY
DESCRIPTIONS
Manufacturer Provided Description
Elegant, traditional designs, luxurious accommodations and excellent performance are the hallmarks of the Sabre 38 Express. Quiet and economical to operate, the Sabre 38 will impress the most experienced yachtsman. The helm deck is a careful study in ergonomics. Surrounded by large opening windows and overhead hatches for maximum ventilation and light. Views for the helmsman and crew are virtually unobstructed. The Stidd helm and mate's chairs, covered in Ultraleather upholstery, provide a degree of comfort rarely found in other boats. To add to cruising comfort, Sabre's engineers have reduced noise and vibration levels substantially with a careful study of engine room ventilation and insulation. Wide side decks with large diameter stainless steel hand rails, standard rope chain windlass and highly polished aluminum hatches all add to the beauty and functionality of her deck. A large anchor roller makes anchoring work a breeze. An optional hard back enclosure closes off the helm deck from the cockpit with the addition of two elegant curved windows in the corners, a sliding window to port and an aluminum entry door.Below decks her hand-crafted cherry interior adds to the sense of luxury, evident throughout. The stateroom berth is low and wide, making it both comfortable and easy to access. A pocket door separates the salon and stateroom while the head with stall shower has private access from the stateroom and from the salon. The main salon is configured with a long L-shaped settee and, her maple-inlaid salon table drops to form a guest berth. A standard thin screen TV and DVD player are recessed in to the furniture of the main cabin bulkhead. Her well equipped galley offers an electric cook top, convection microwave oven and coffee maker as well as ample storage for extended voyages.The Sabre 38 Hard Top Express is a yacht destined to become a classic for years to come.

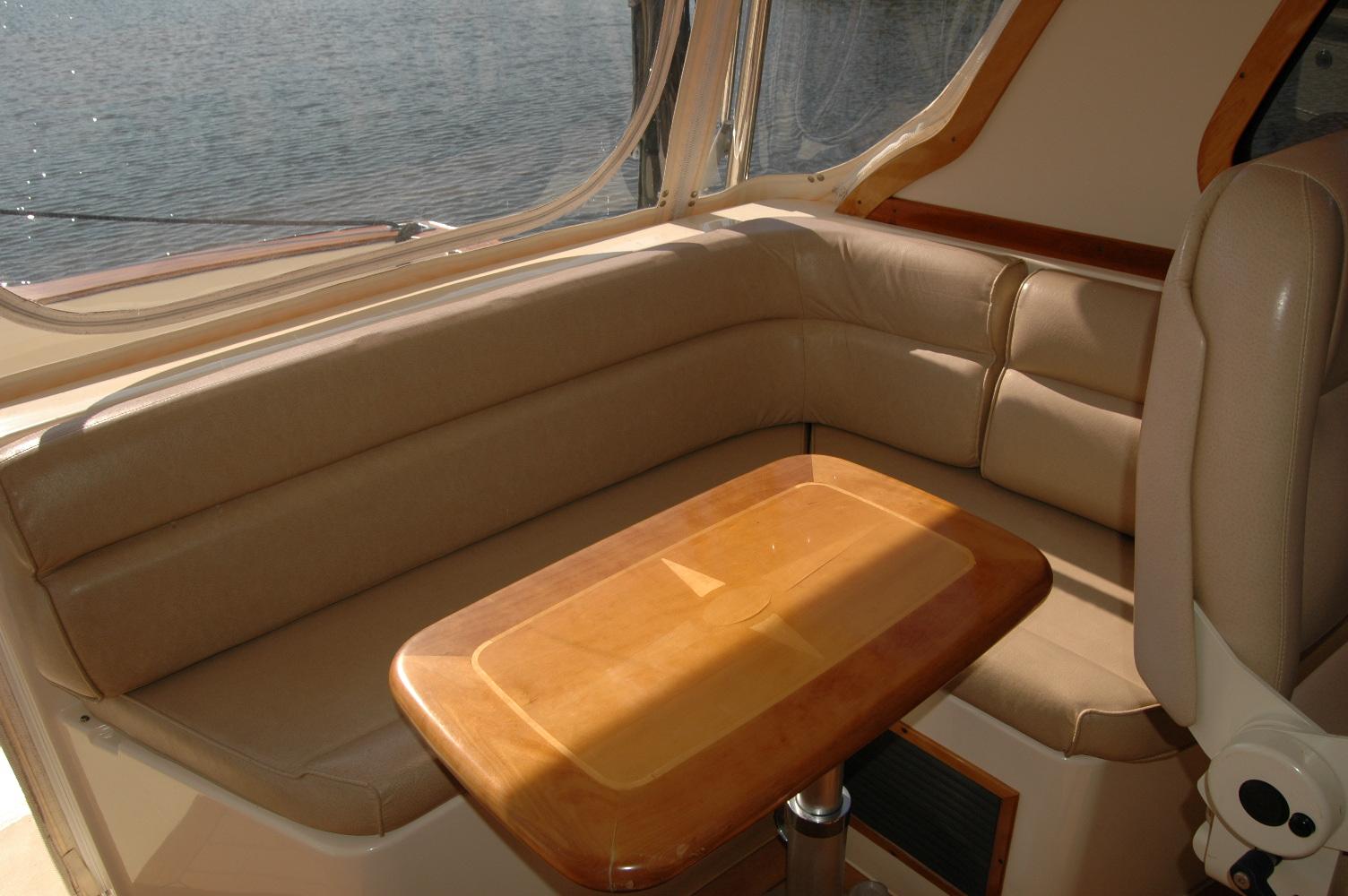

Short L-settee retaining port side Stidd seat w/fixed table

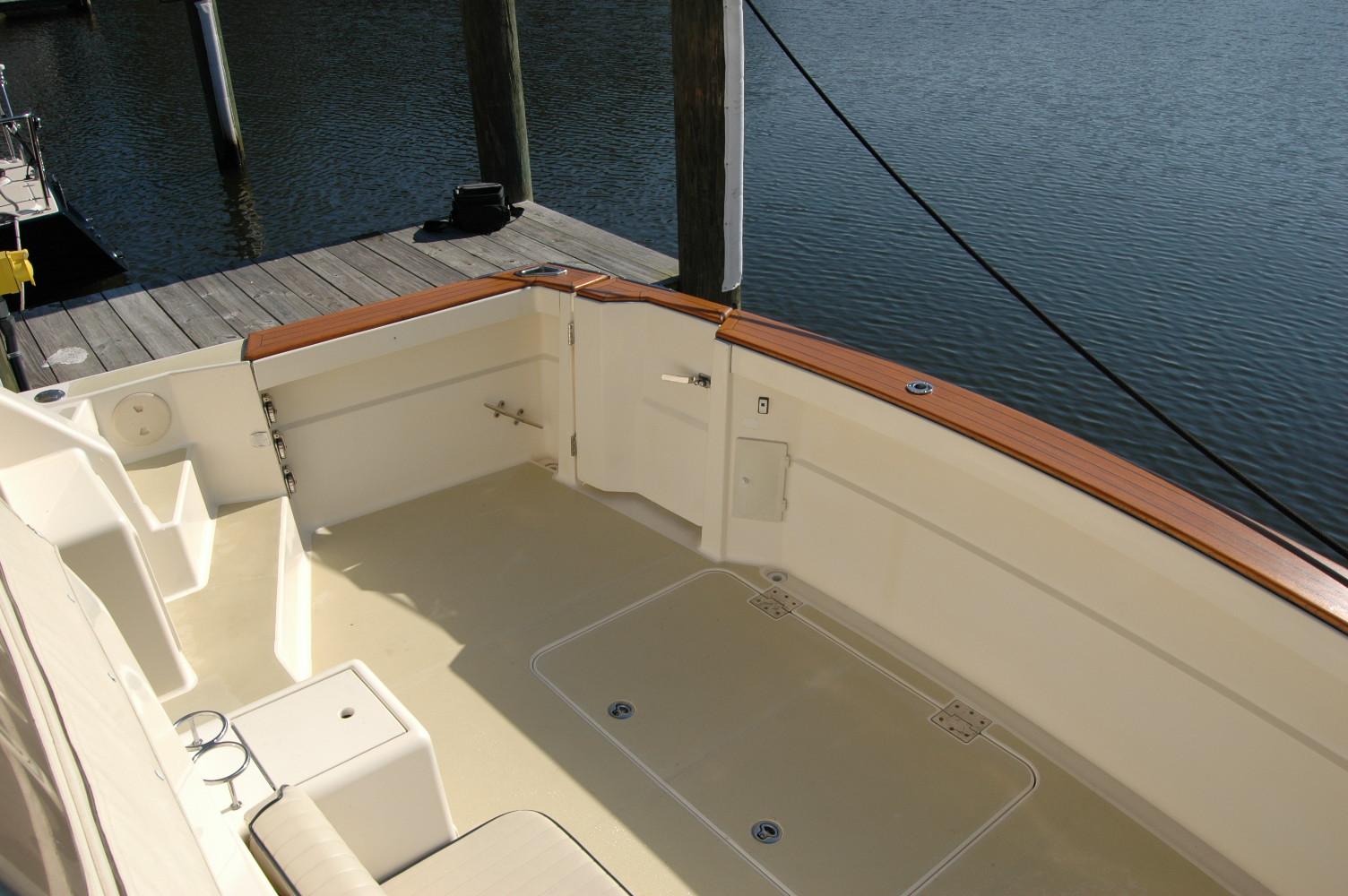

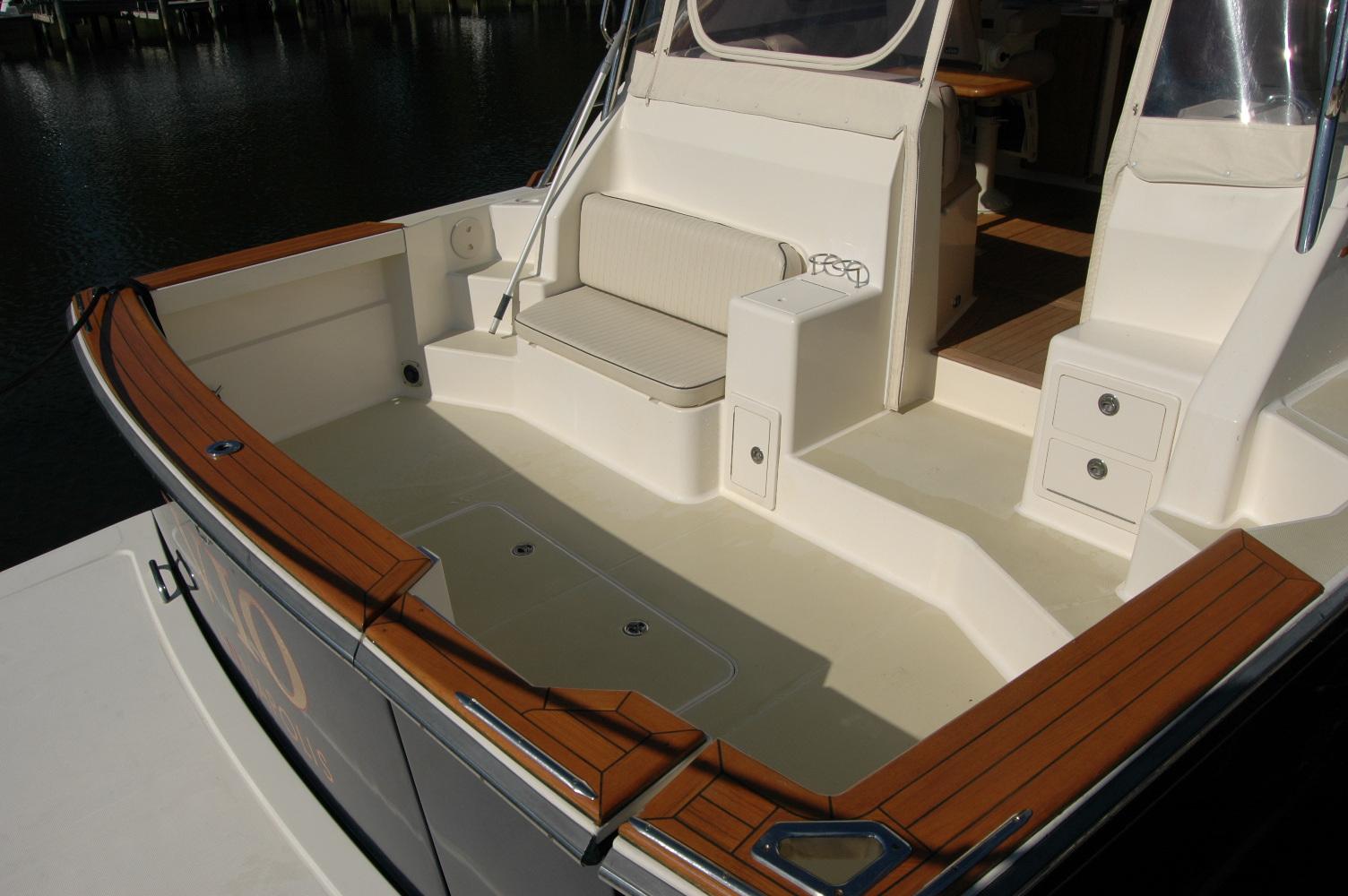

Laid teak on cockpit coamings

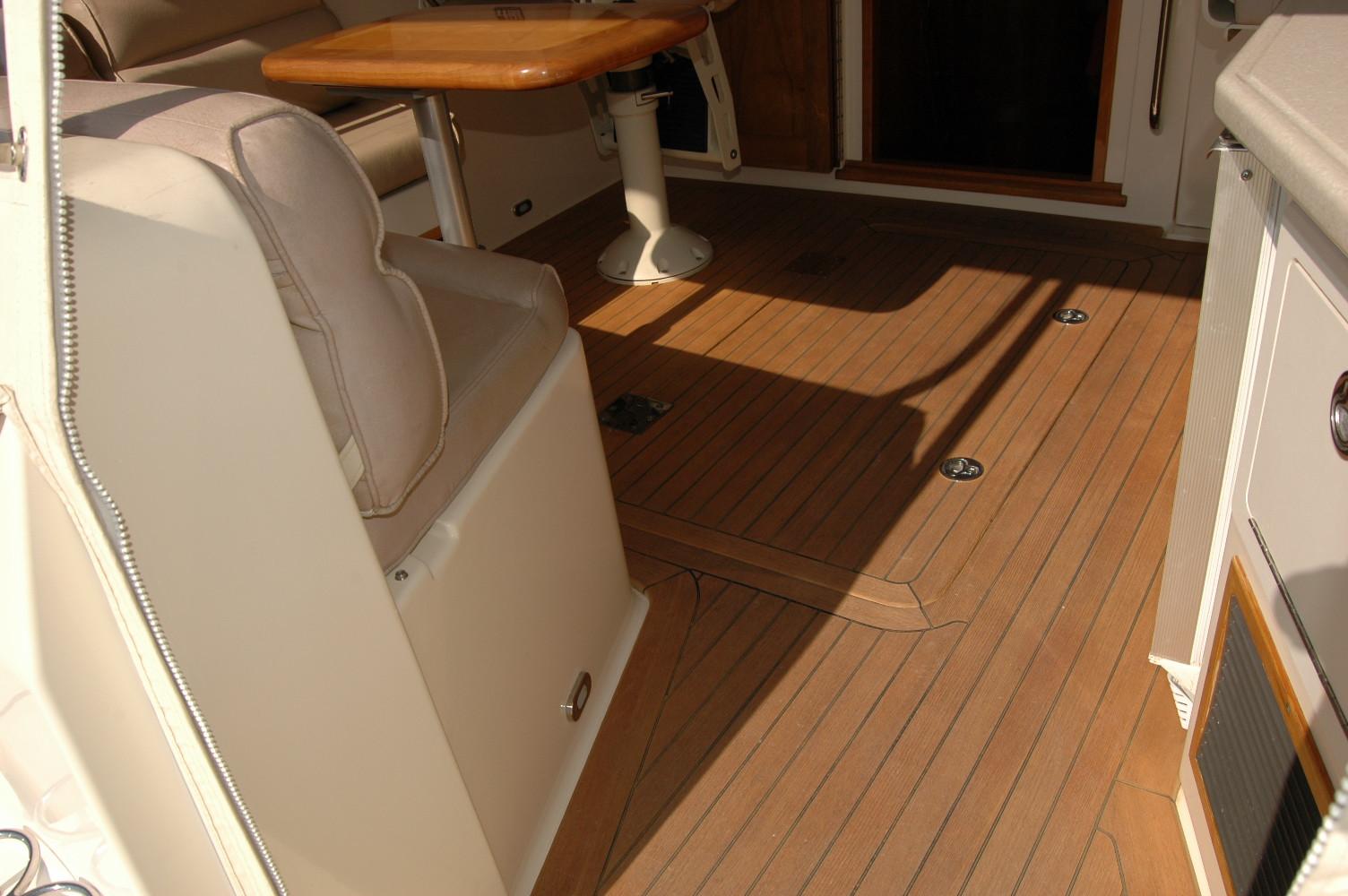

Teak deck on helm deck area
Additional dimmer switches (1) in main salon
Prewire for stereo and four speakers
Dark hull colors
Anti-skid color (fore & side deck, coach roof, aft cockpit, hard top)
Accord Shades on all opening ports
Corian counter in galley
Ultrasuede upholstery main salon only
Yanmar 6LY2A-STP engines @440 HP in lieu of Yanmar 370hp 6LY

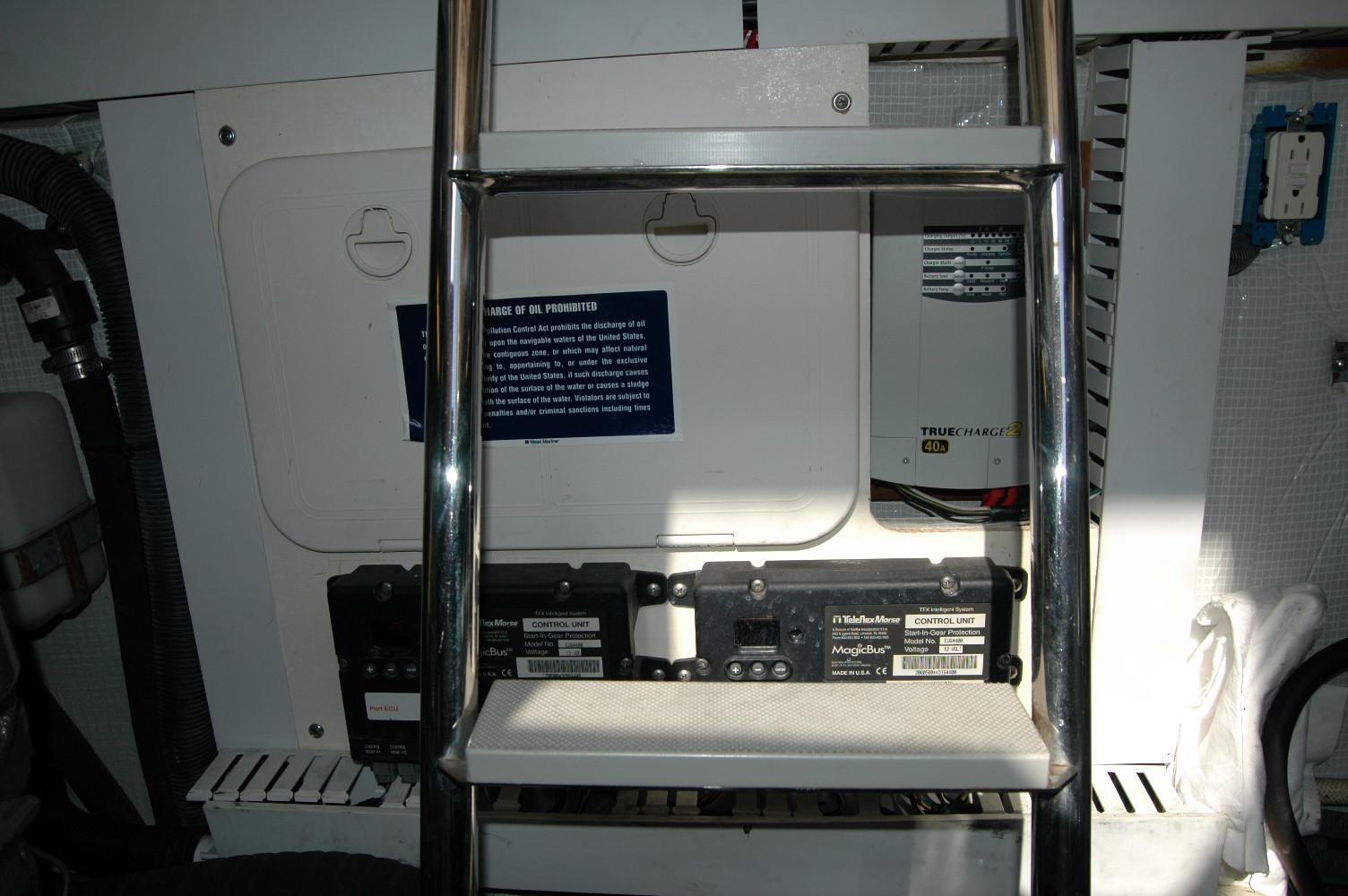

Teleflex Morse Magic Bus throttle and shift controls w/synchronizer
Reverso Oil Change system
Side Power bow thruster Model SP75T
Helm deck air conditioning 2 x 12, 000 BTU
Groco engine intake valves w/quick release plug & service adapter

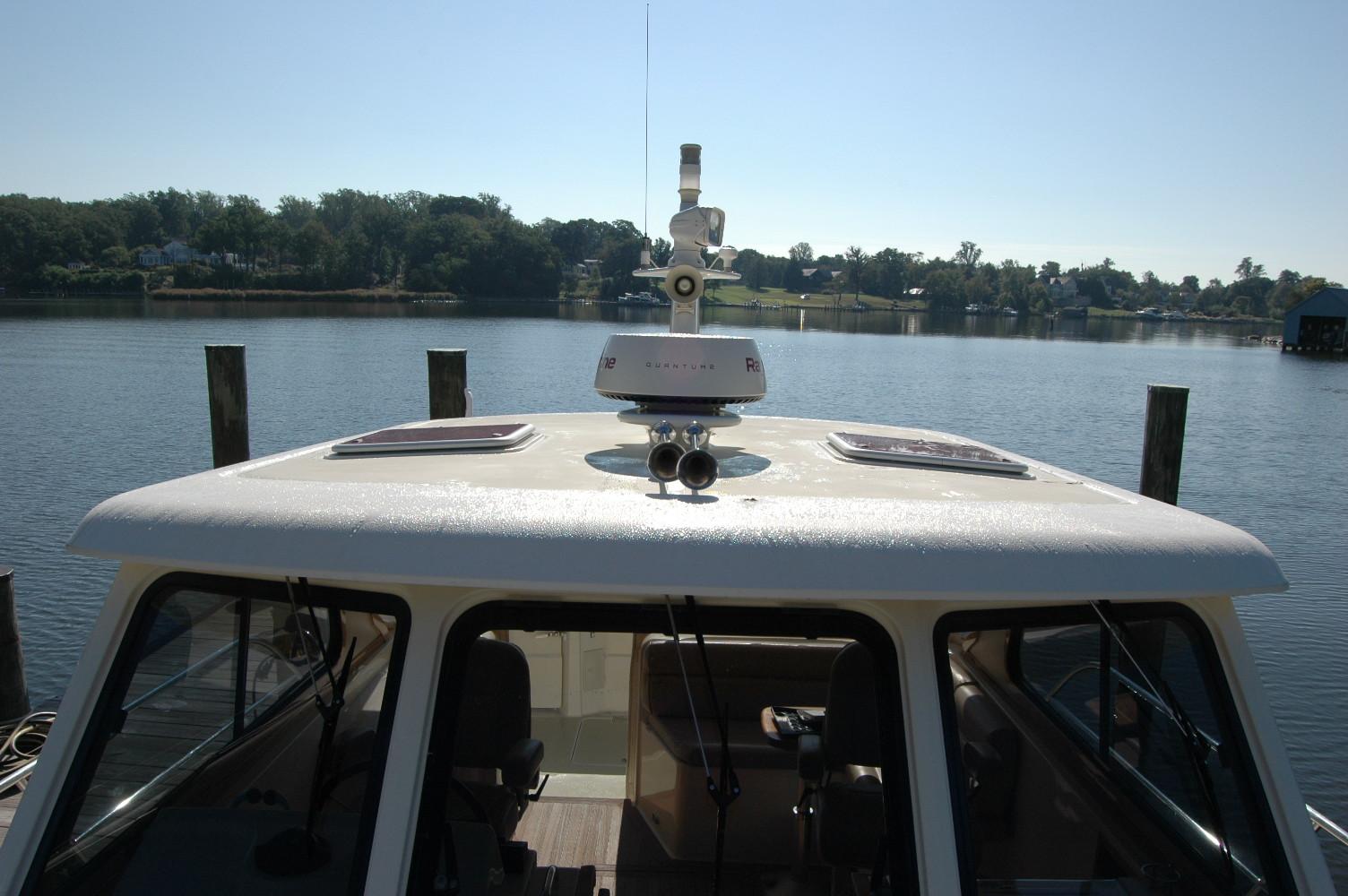

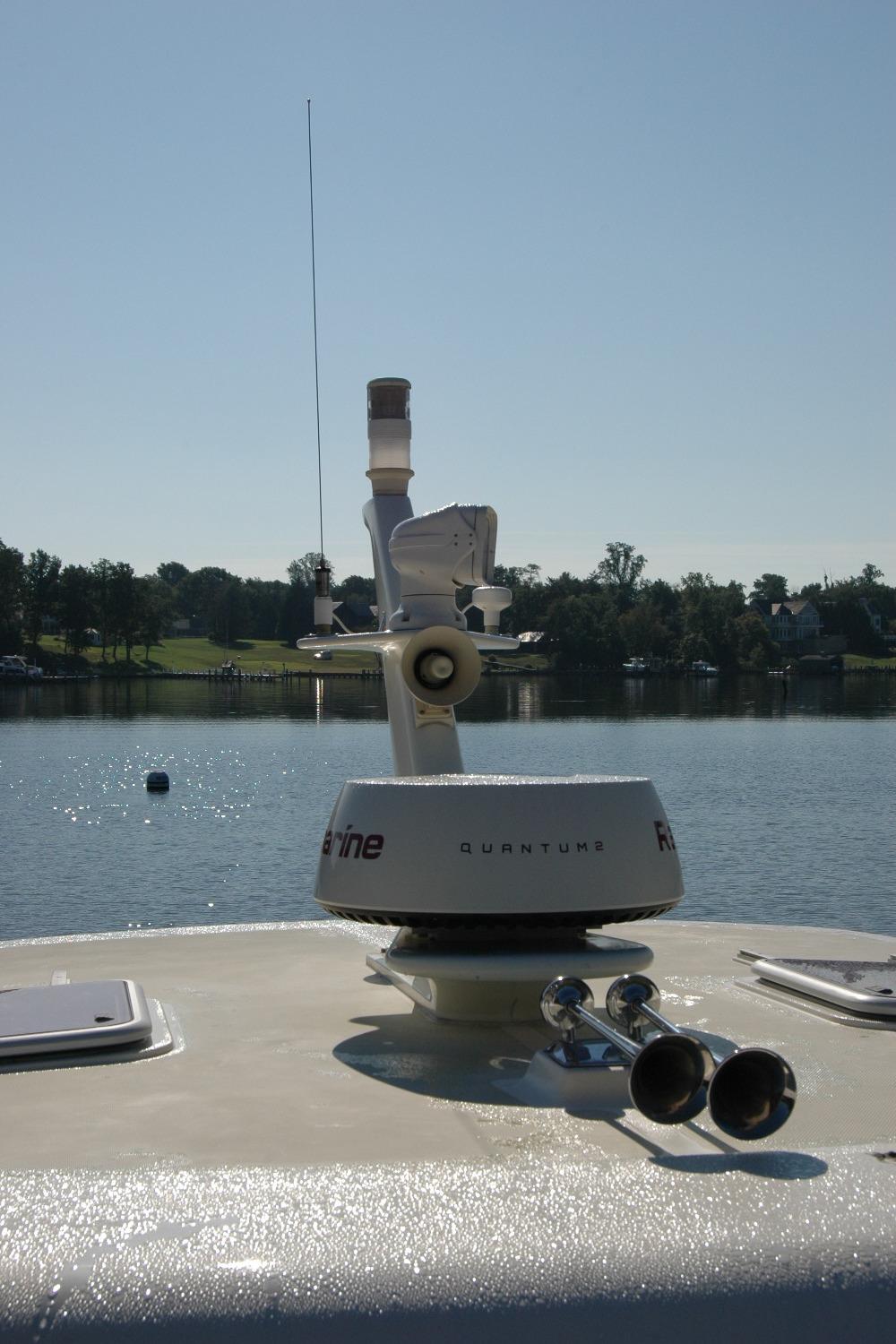

Searchlight mounted on optional hardtop mast
Incremental tank gauge on head
Hot and cold transom shower
Fresh water wash down forward
Shore water inlet
Single Seagull water purifier on galley cold water
Single Seagull water purifier on ice maker
Vessel Inventory
In addition to items permanently affixed to the boat, the sale of VIO will include the boat inventory, which consists of the following:
35 lb CQR anchor
250 foot chain/braided line anchor rode
3 fenders
Anchor wash down hose
Boat Hook
5 dock lines
50 foot water hose
Two 50 foot, 30 Amp shore power cords

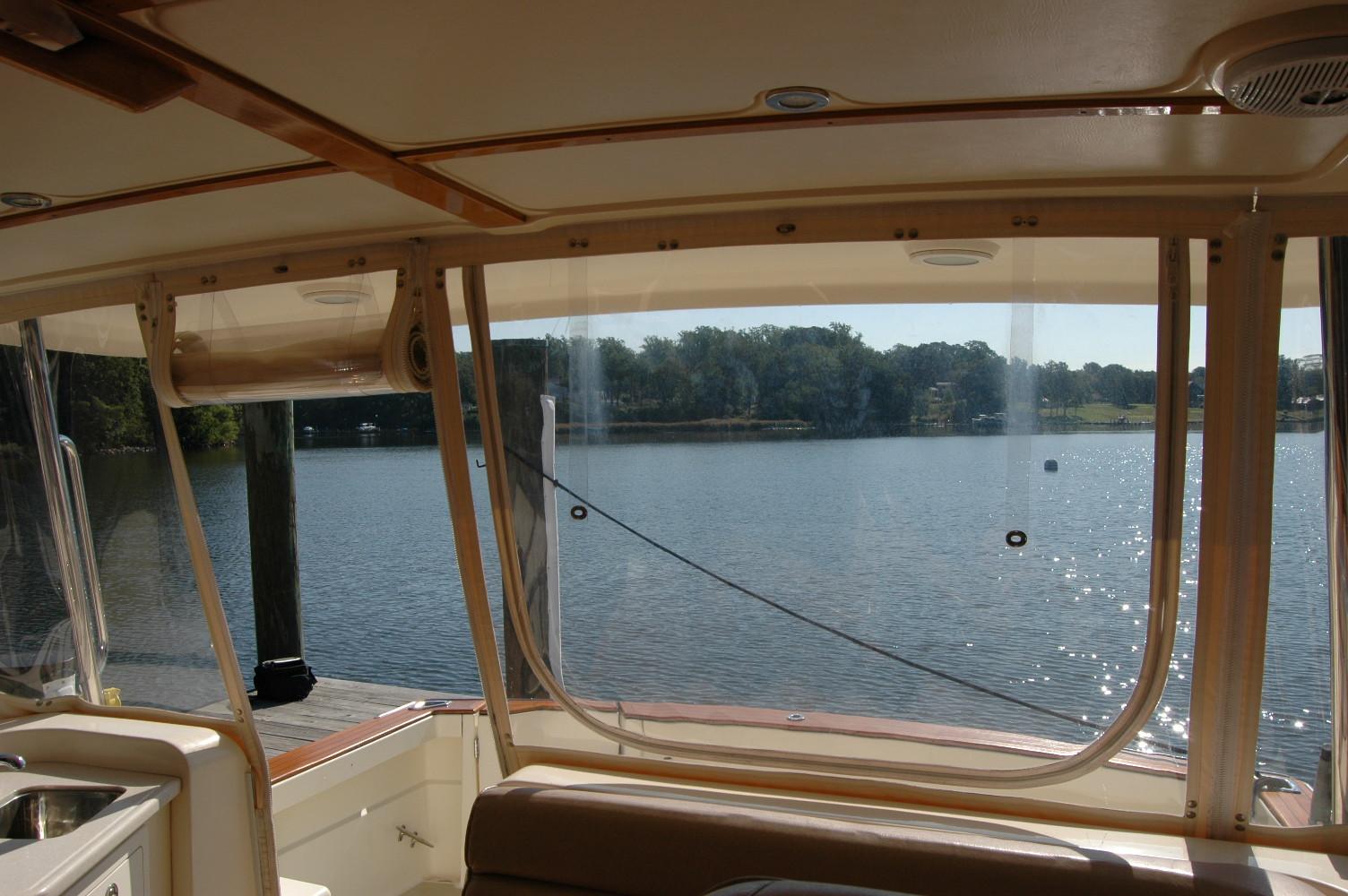

Canvas exterior covers for pilot house windows and Isinglass
8 USCG certified life jackets
Throwable flotation device
4 fire extinguishers
Boat manual and manufacturers’ manuals for most onboard components
Cushion for conversion of salon table to a berth
Sabre tool kit under lowest companionway step
Dimensions
Length (without anchor pulpit or swim platform) 38’6” 11.85m
Beam (overall) 13’8” 4.20m
Draft 3’4” 1.01m
Deadrise (at transom) 16 degrees
Displacement (approx., Dry ) 21,500 lbs. 9773kg
Fuel capacity 350 gal. 1591L
Water capacity 100 gal. 455L
Holding tank capacity 40 gal. 150L
Headroom (maximum) 6’6” 1.98m
Sleeping accommodations 4 - 6’6” 4/1.98m
Height over waterline w/mast 13’5” 4.09m
Built to CE Category B, NMMA, ABYC and USCG standards

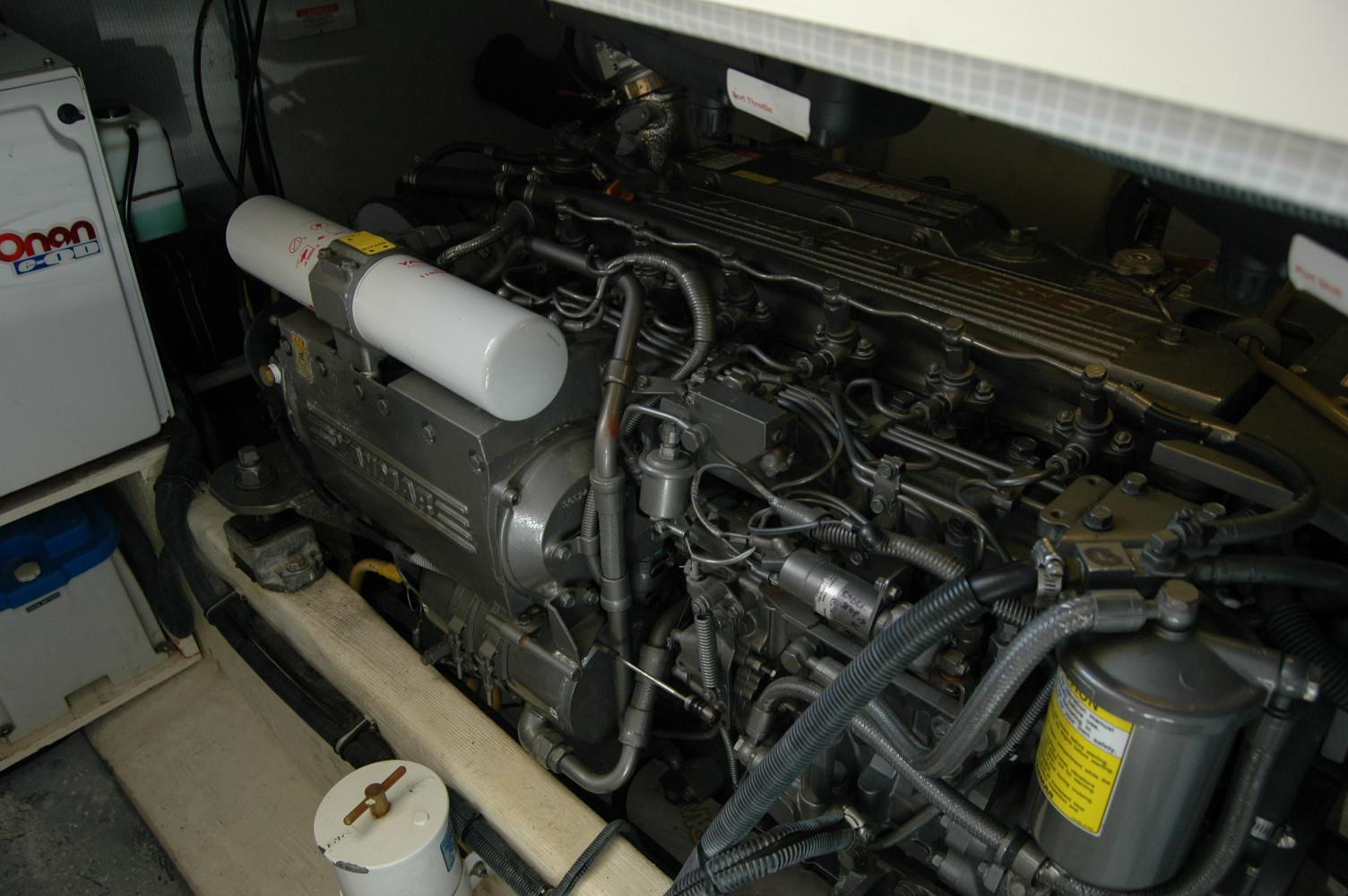

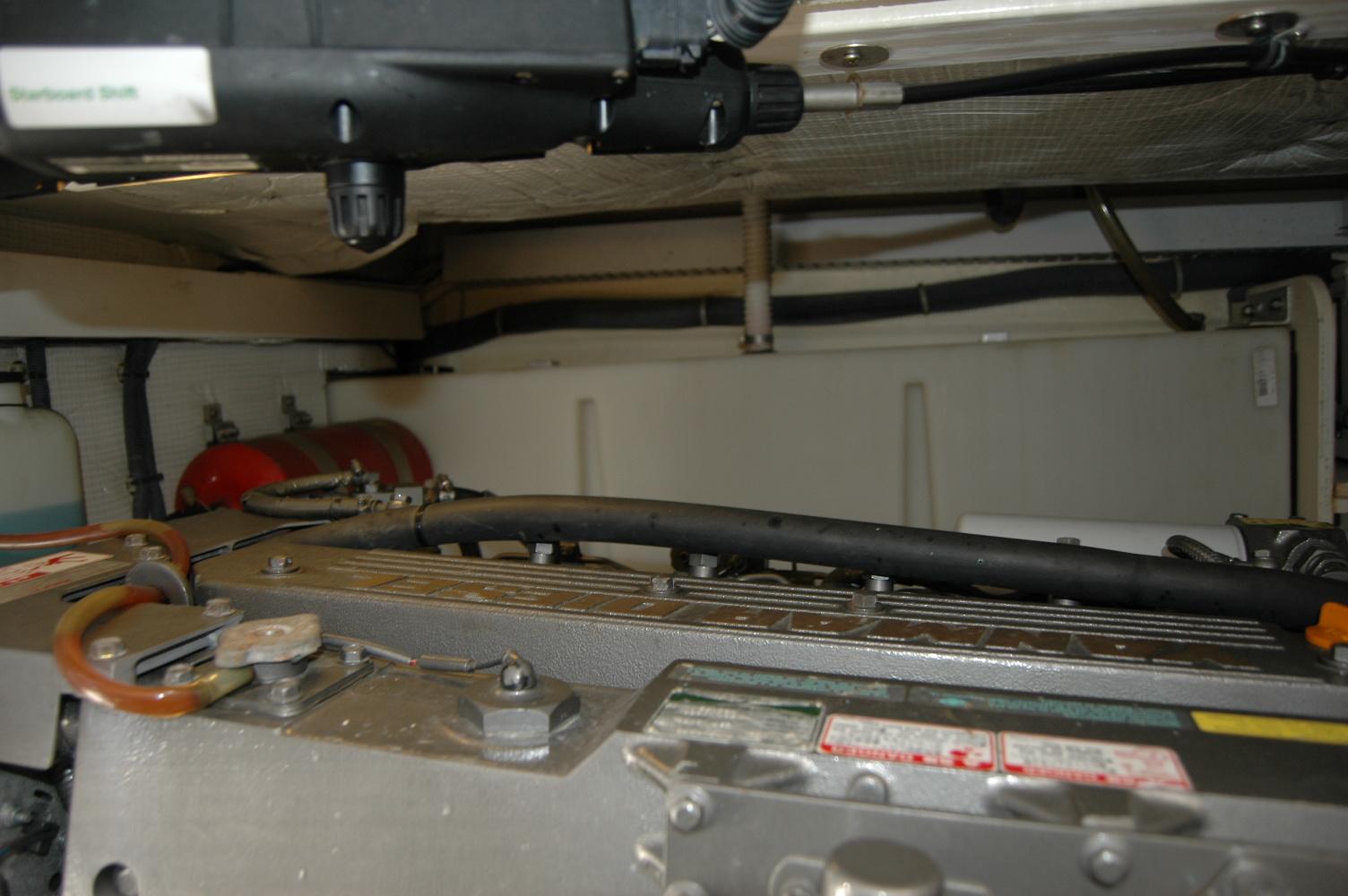

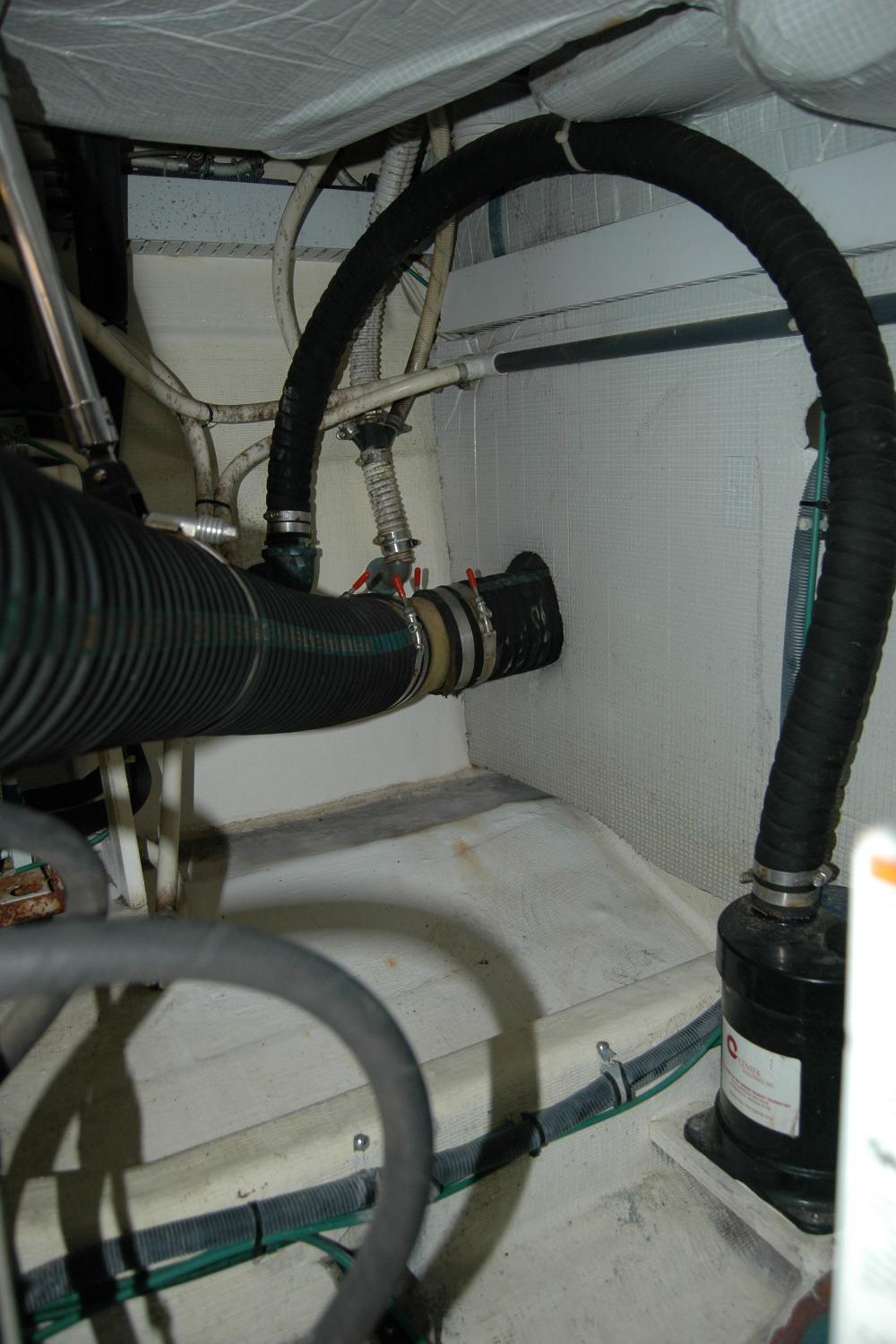

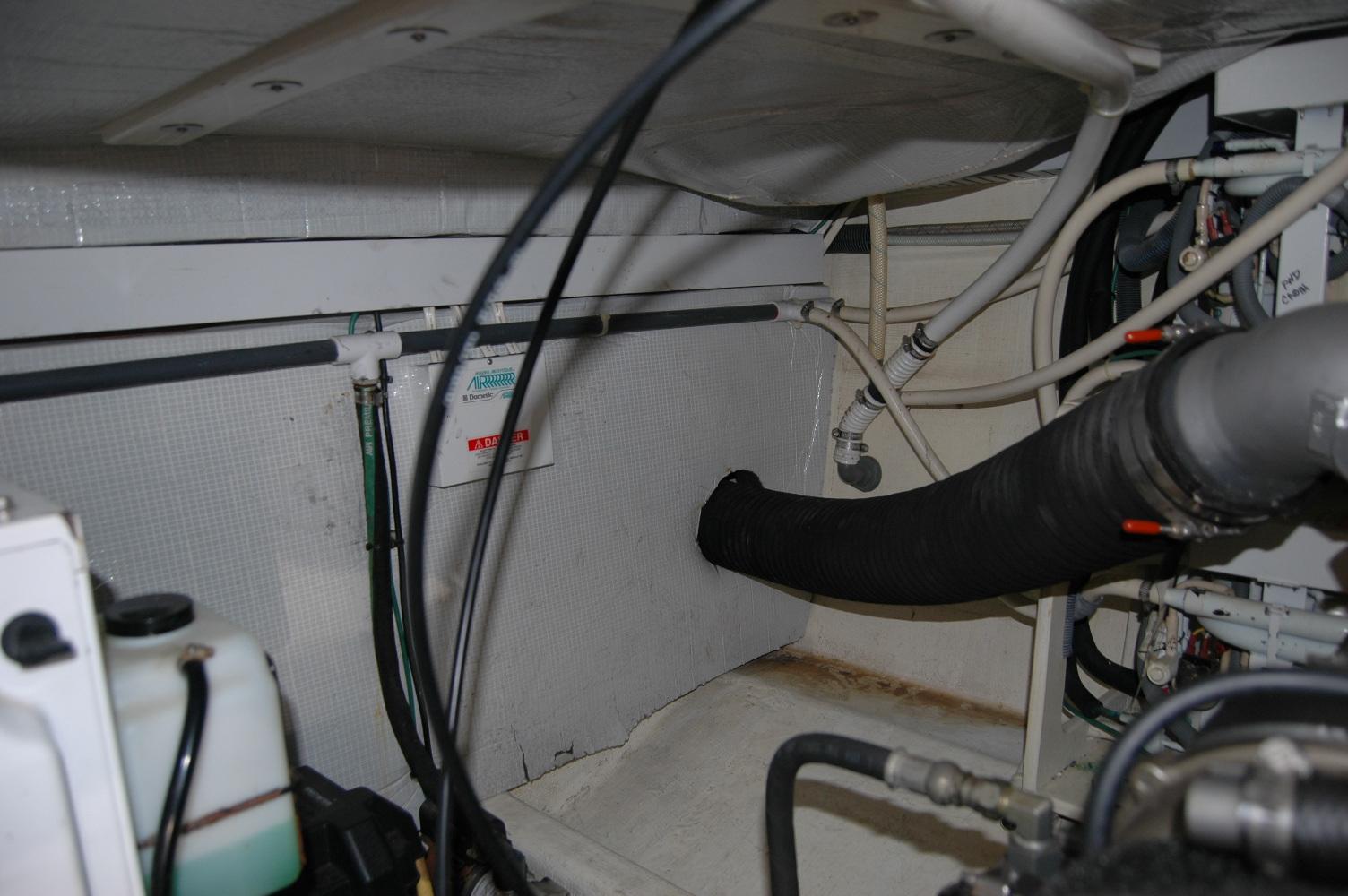

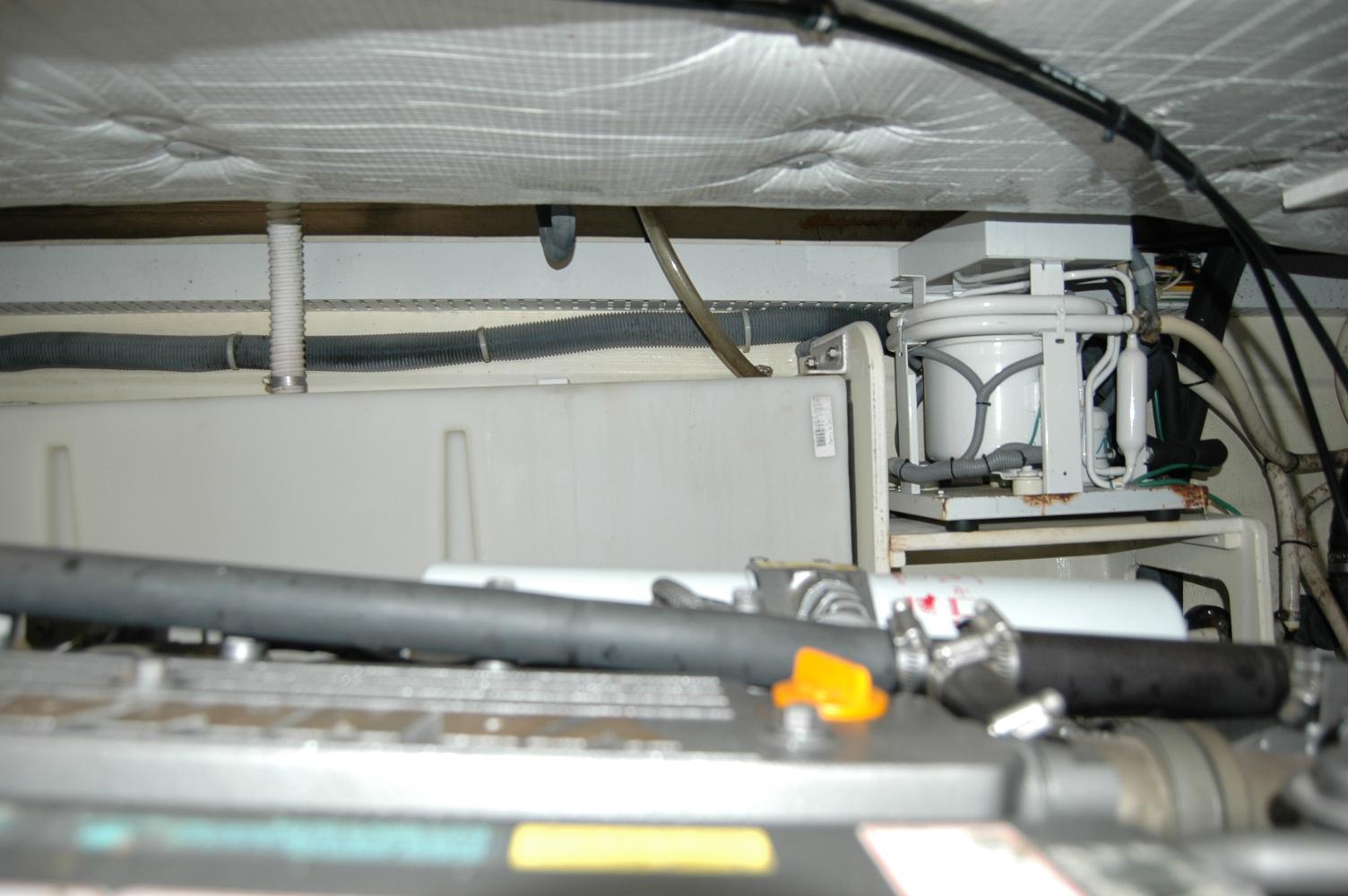

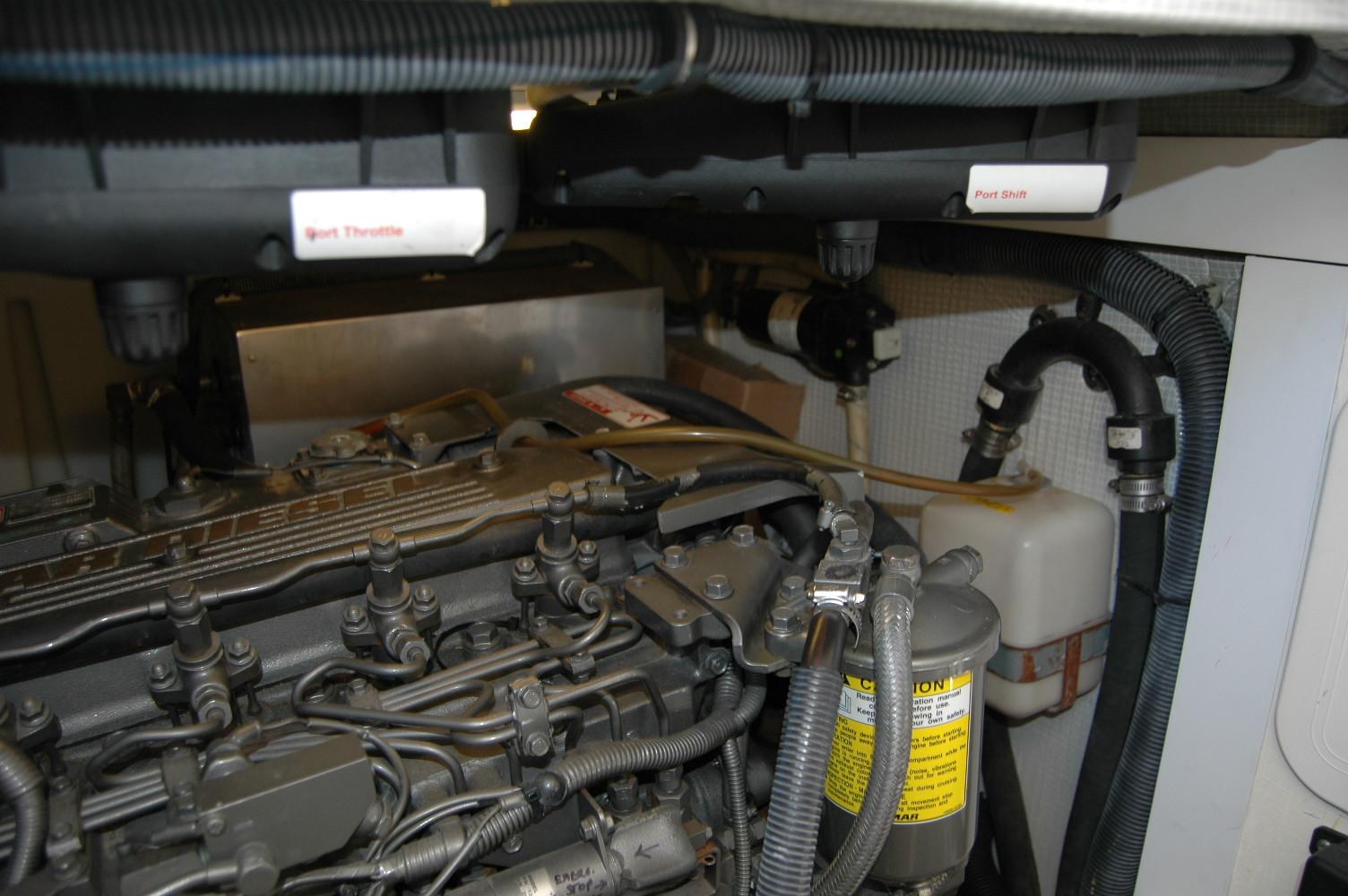

Yanmar Engines & Mechanical

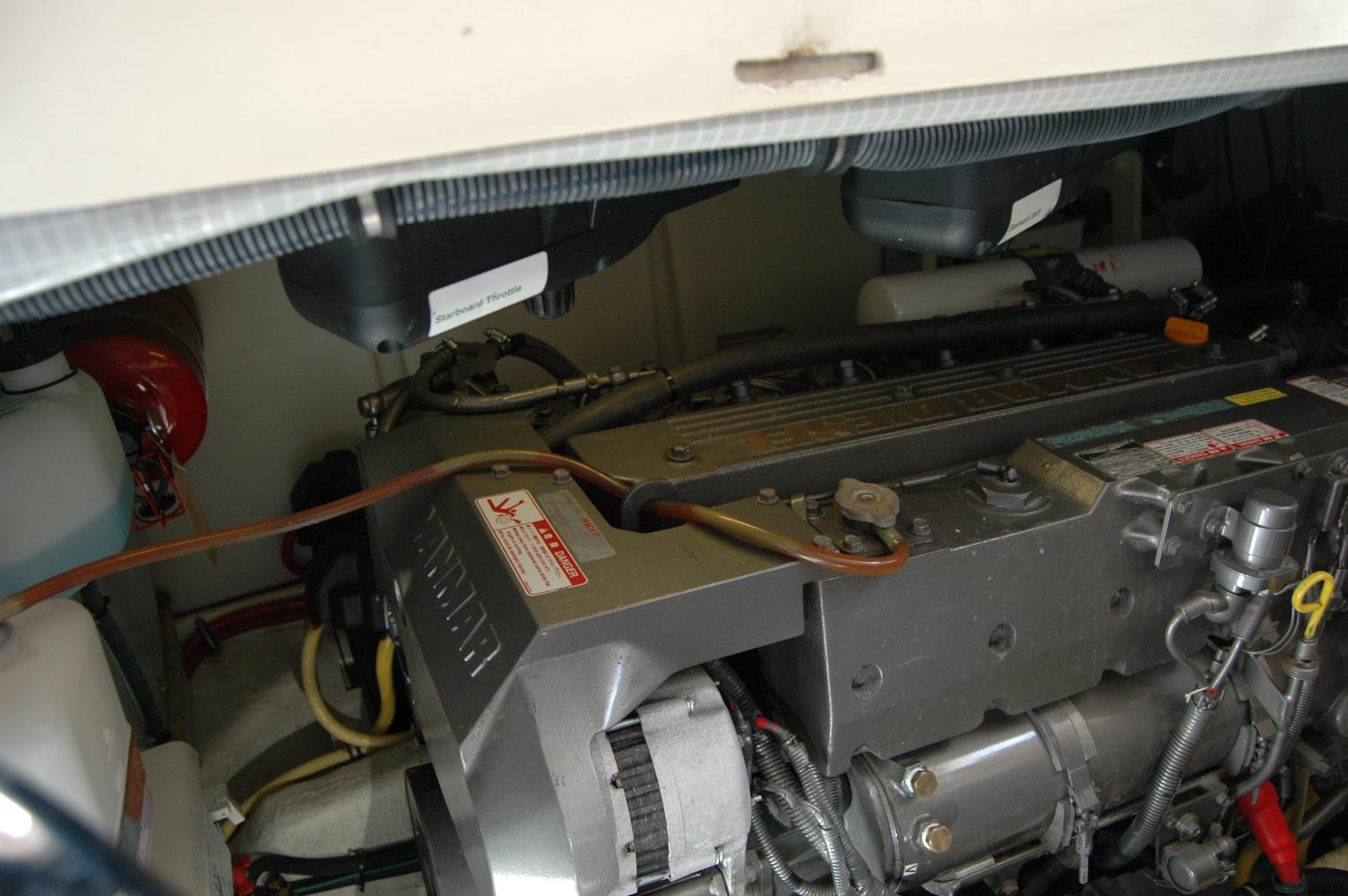

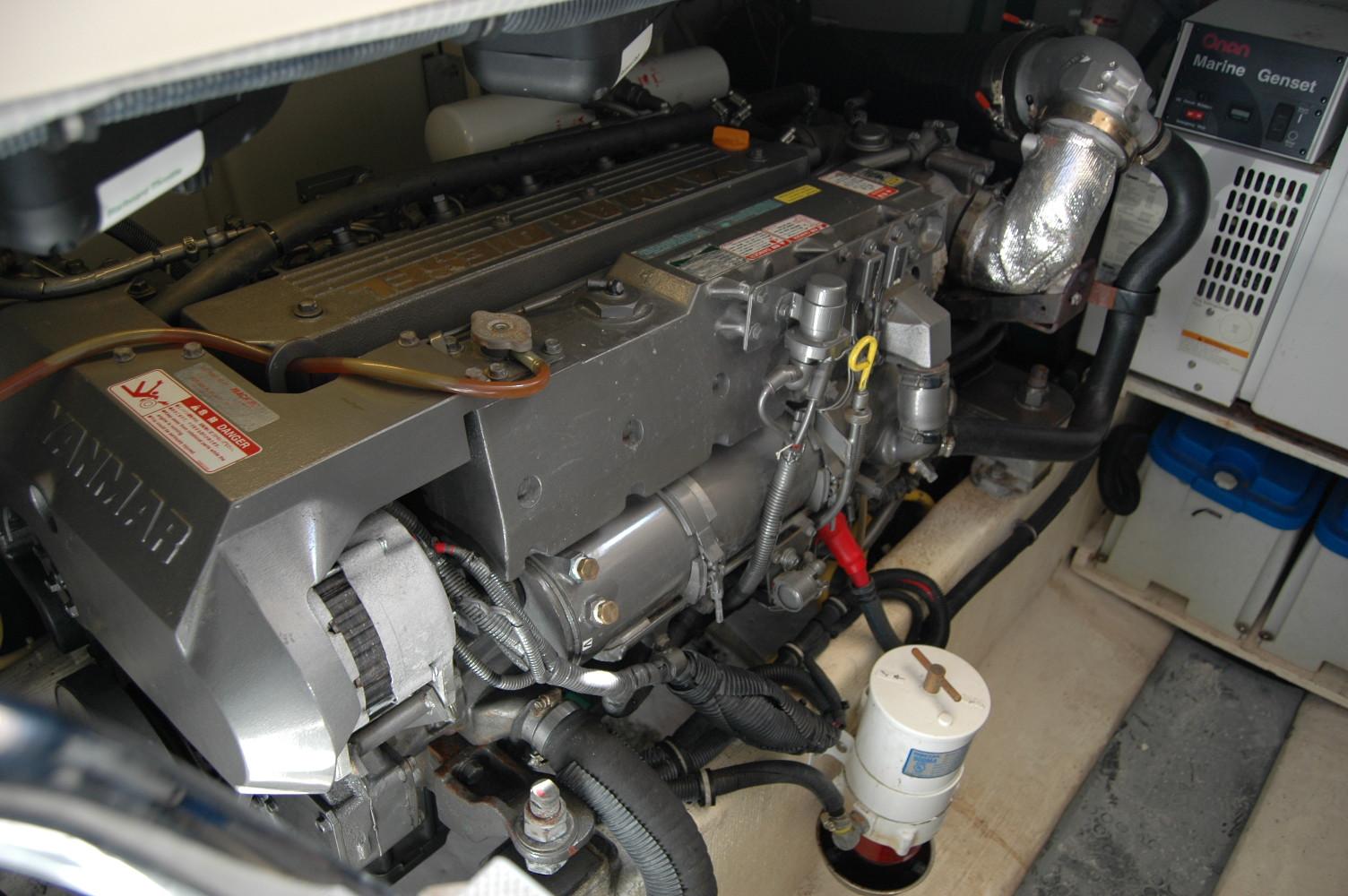

Twin Yanmar 6LY2A-STP 440hp. 6 cylinder, fresh water-cooled engines. Total hours are 665 hours (at time of listing). 500 hour service has been completed. Engine hour meters replaced at 382 hours.
Yanmar electronic controls
ZF 220-A Transmission
1 3/4" Aquamet 22 stainless steel shaft
PSS drip-less shaft seals
Manganese bronze struts with cutlass bearing
Four blade NiBrAl propellers to ISO Class S
80Amp, 12V alternators each engine.
Seawater cooled 5" side exhaust system.
Groco raw water intake strainers
Engine room blower.
Engine room vent ducts.
Engine room floor with gray anti-skid rubber.
White gelcoated engine room
Foil face foam noise barrier.

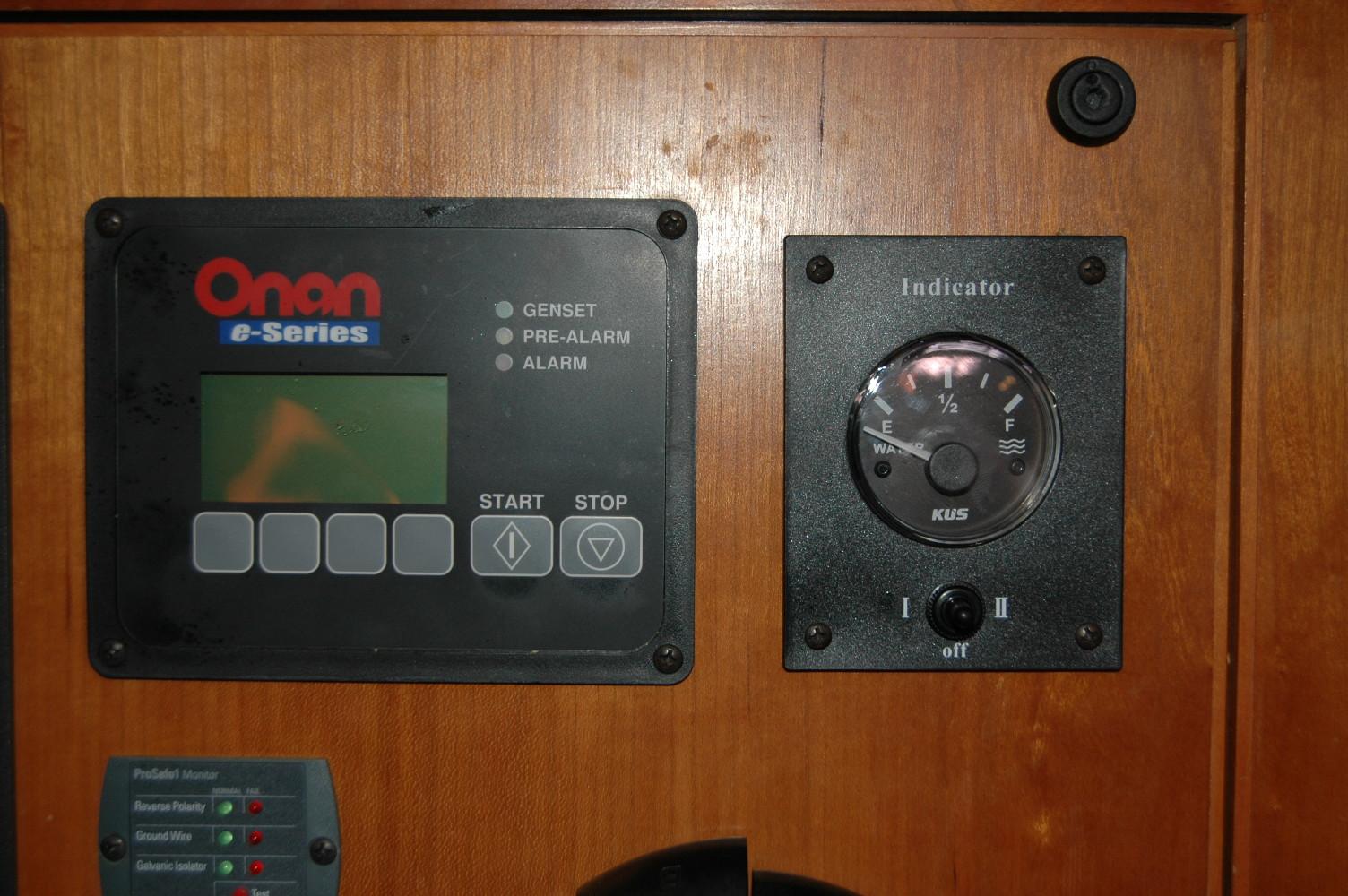

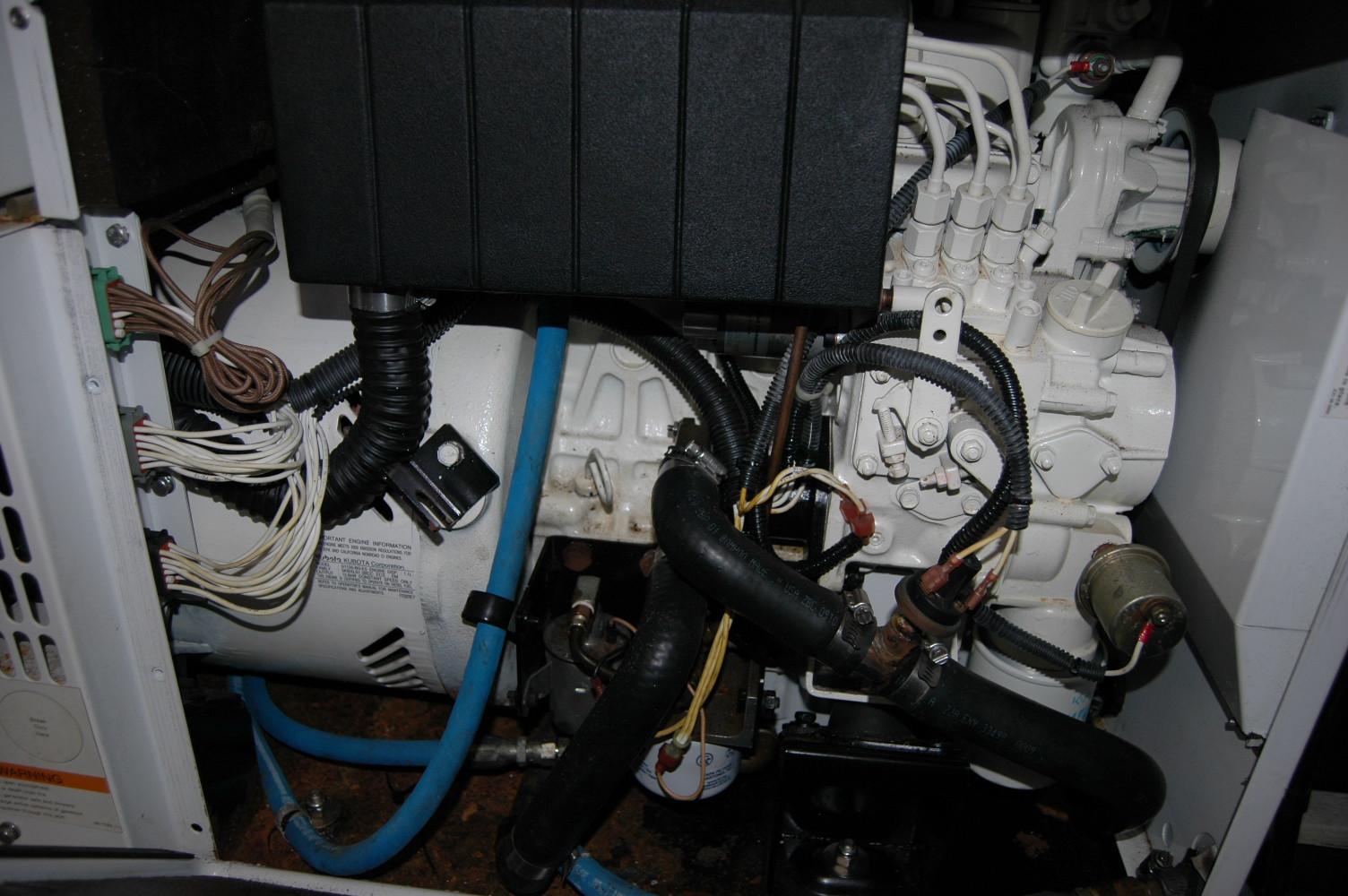

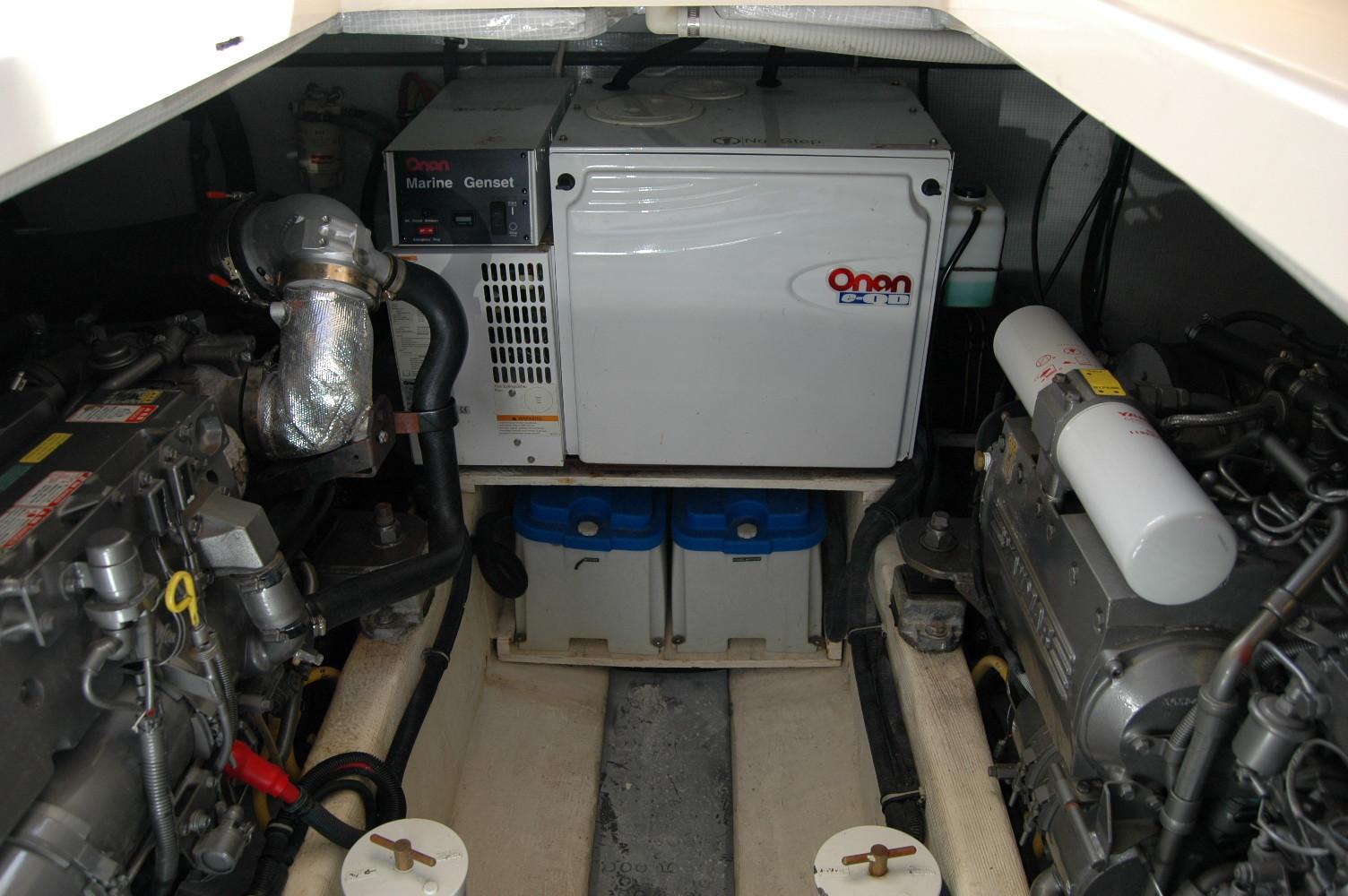

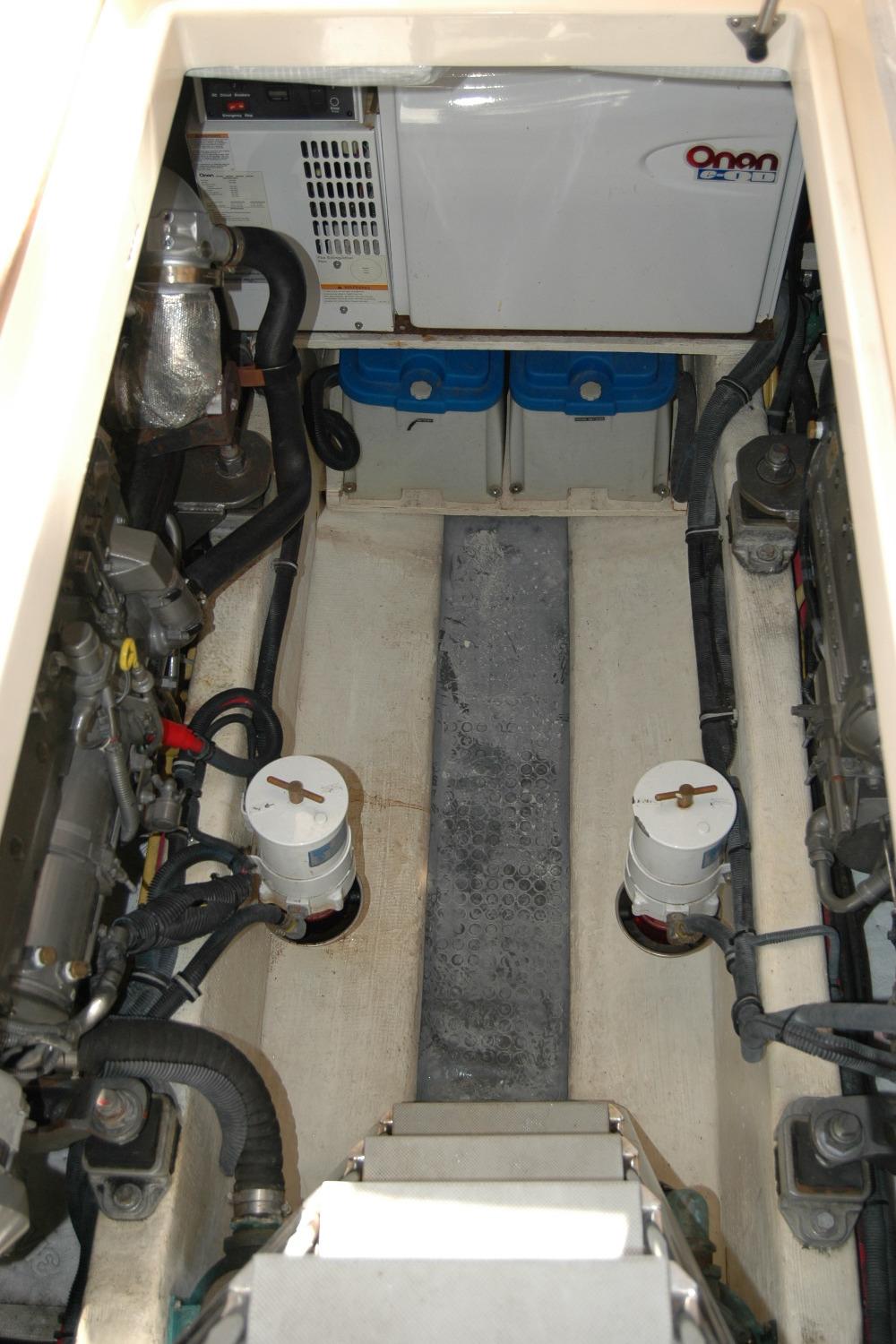

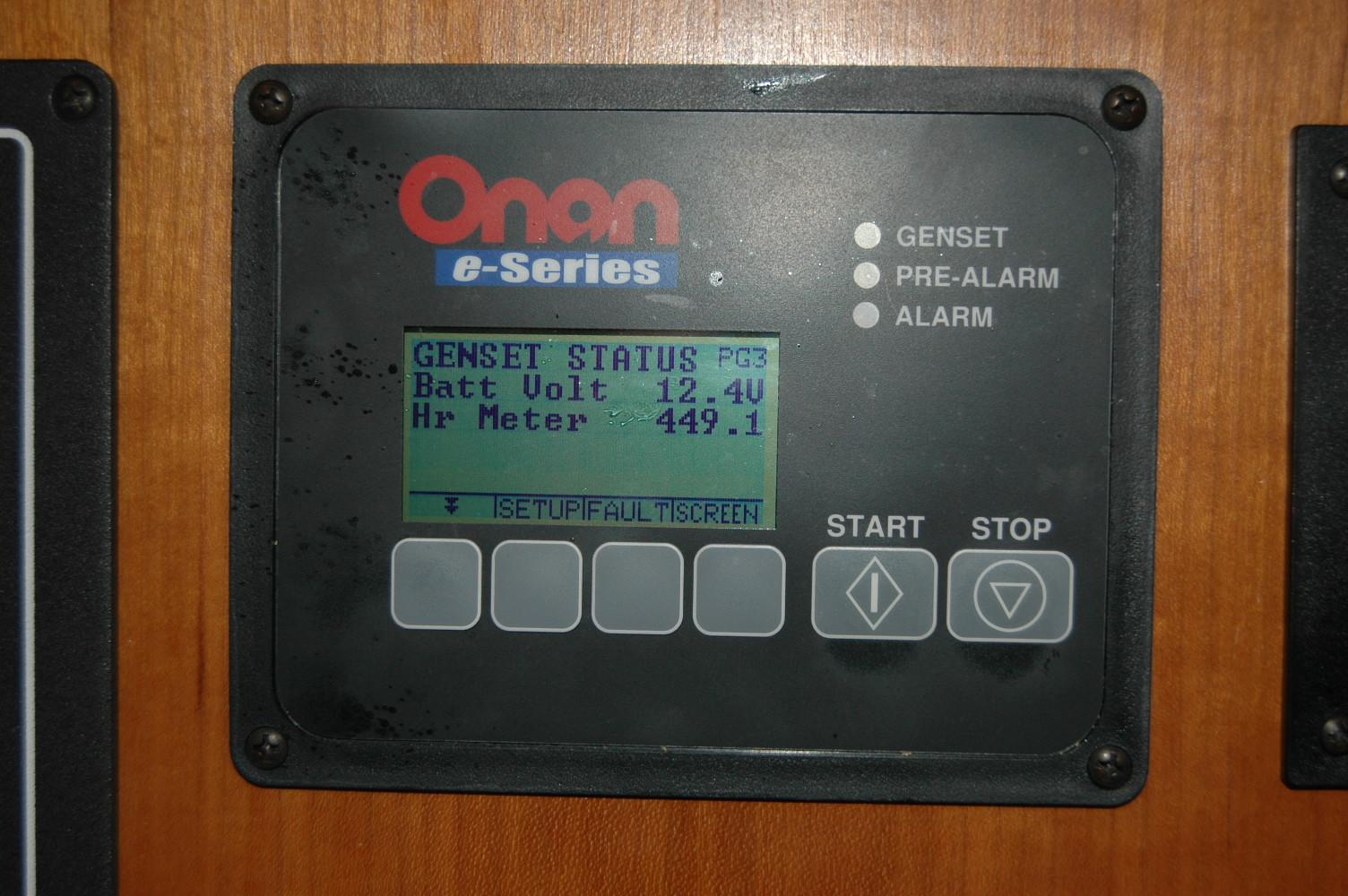

Onan 9.0Kw EQD generator (442 hours at time of listing).
Fuel System
Single 350 gal aluminum diesel fuel tank.
Racor fuel filters.
2” “Diesel” deck fill plate
Fuel Level Indicator at helm.
Steering & Trim System
Teleflex hydraulic steering system (BA135-7ATM cylinder)
Tilting Teleflex helm pump
Twin bronze rudders w/adjustable tie-rod. (1 3/8” dia rudder post.)
Twin Bennett stainless steel trim tabs.

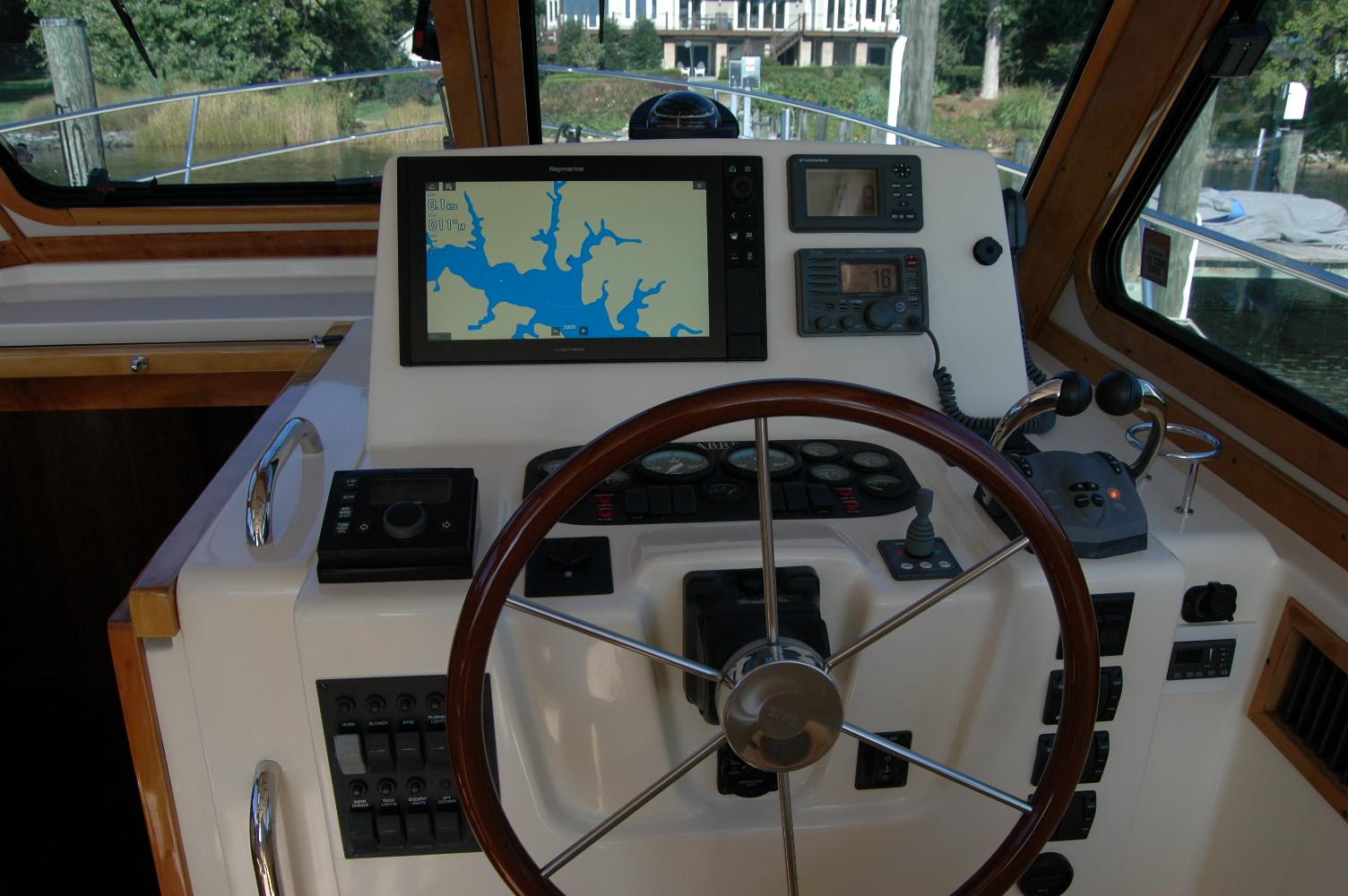

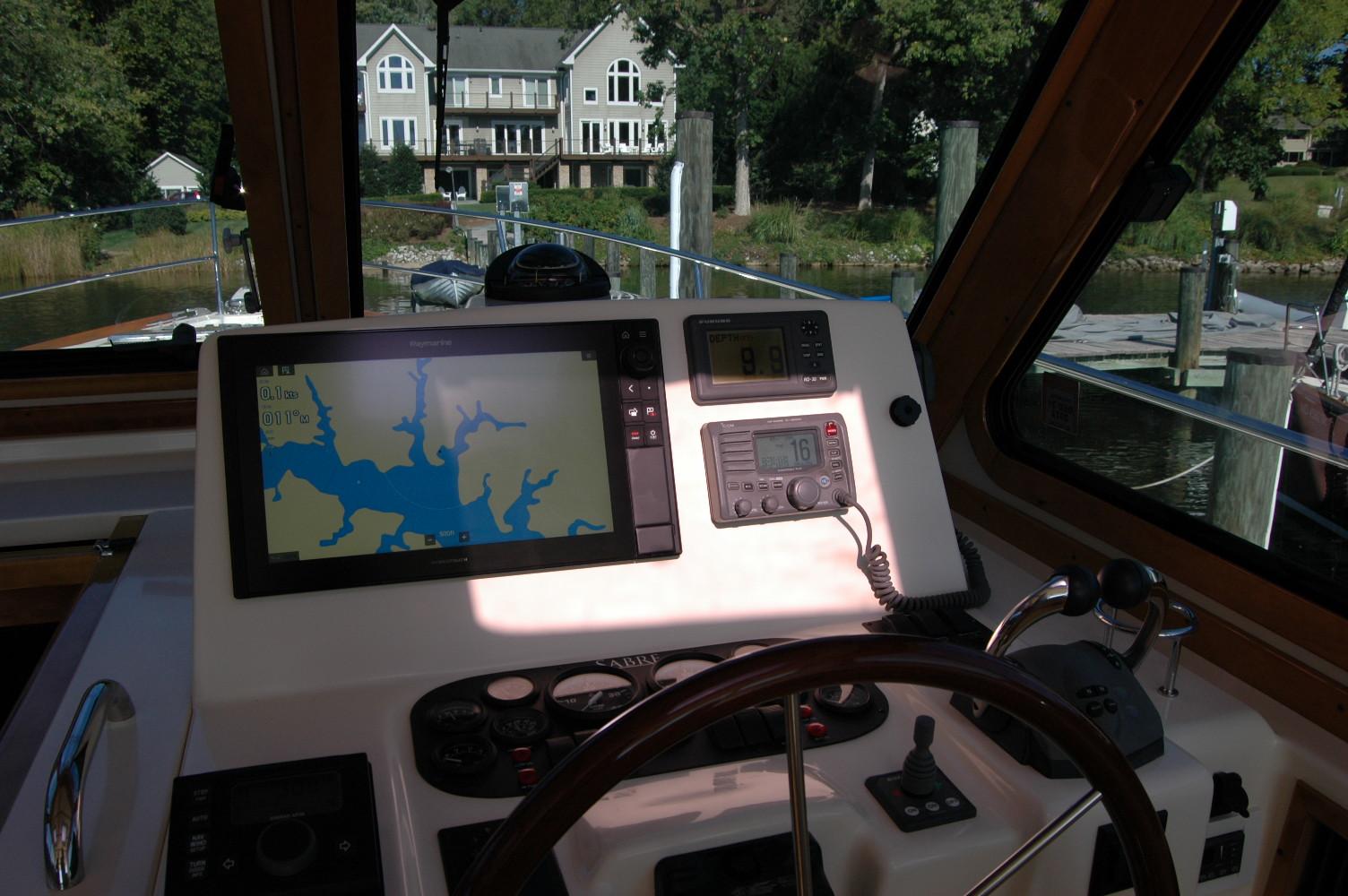

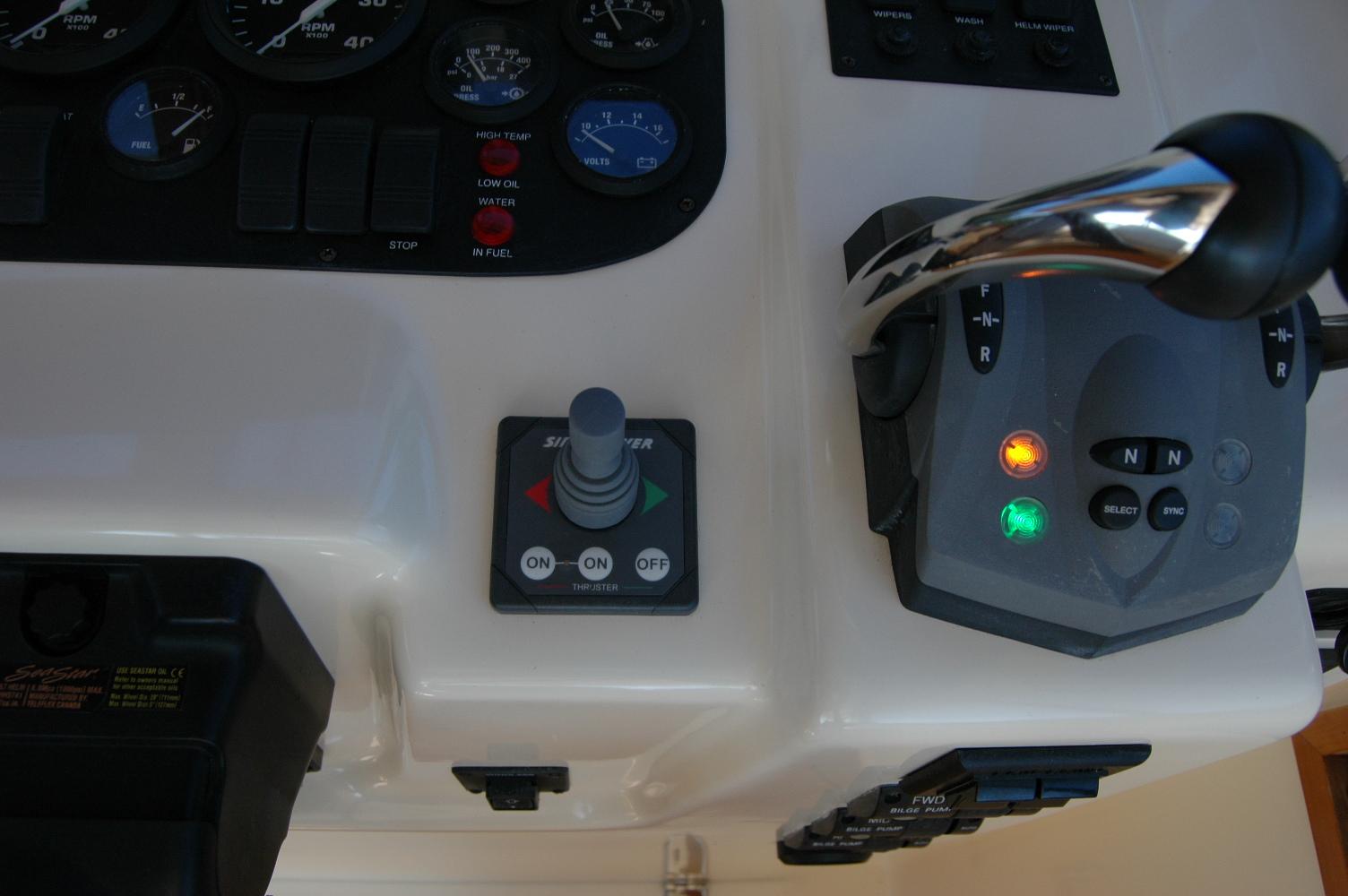

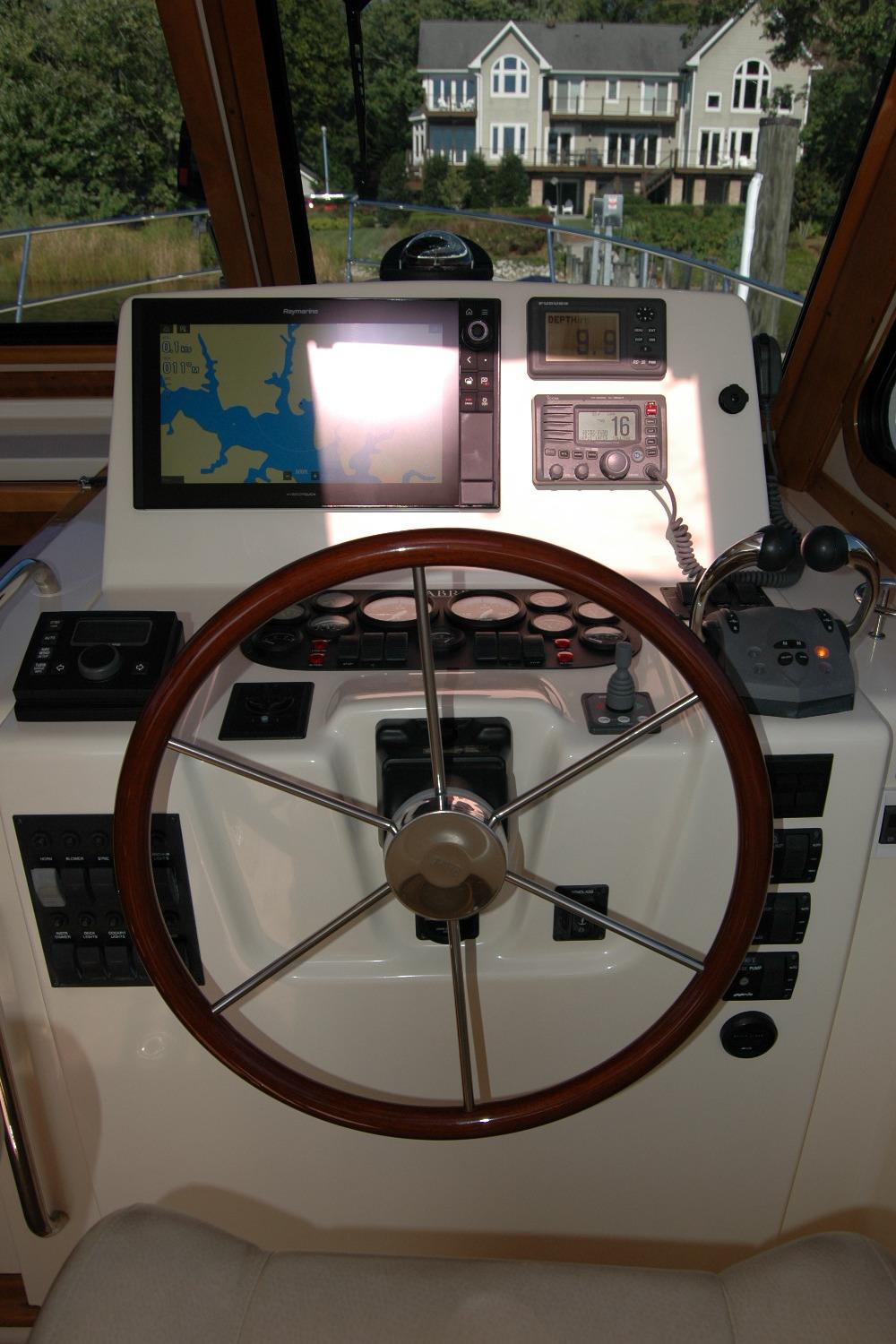

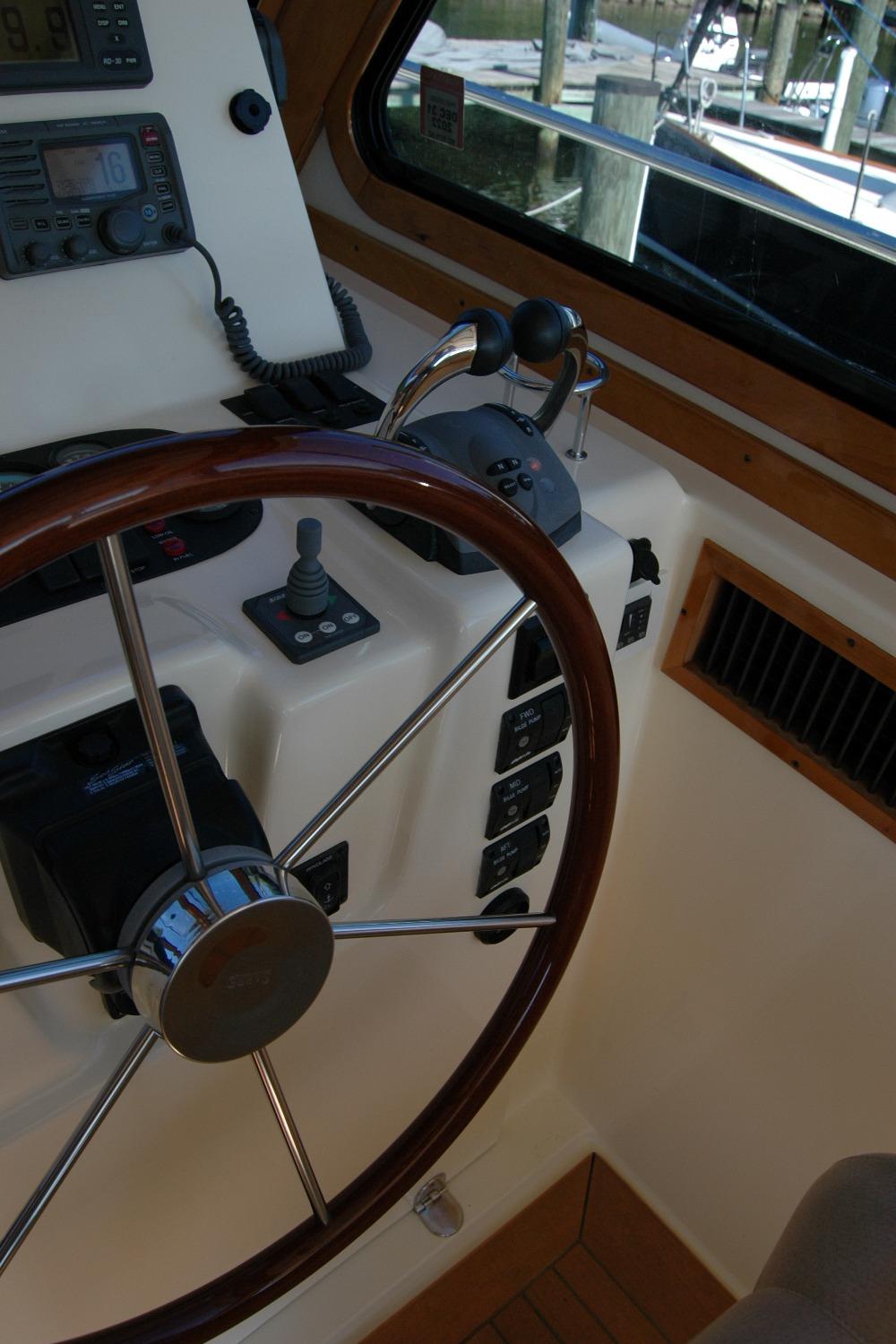

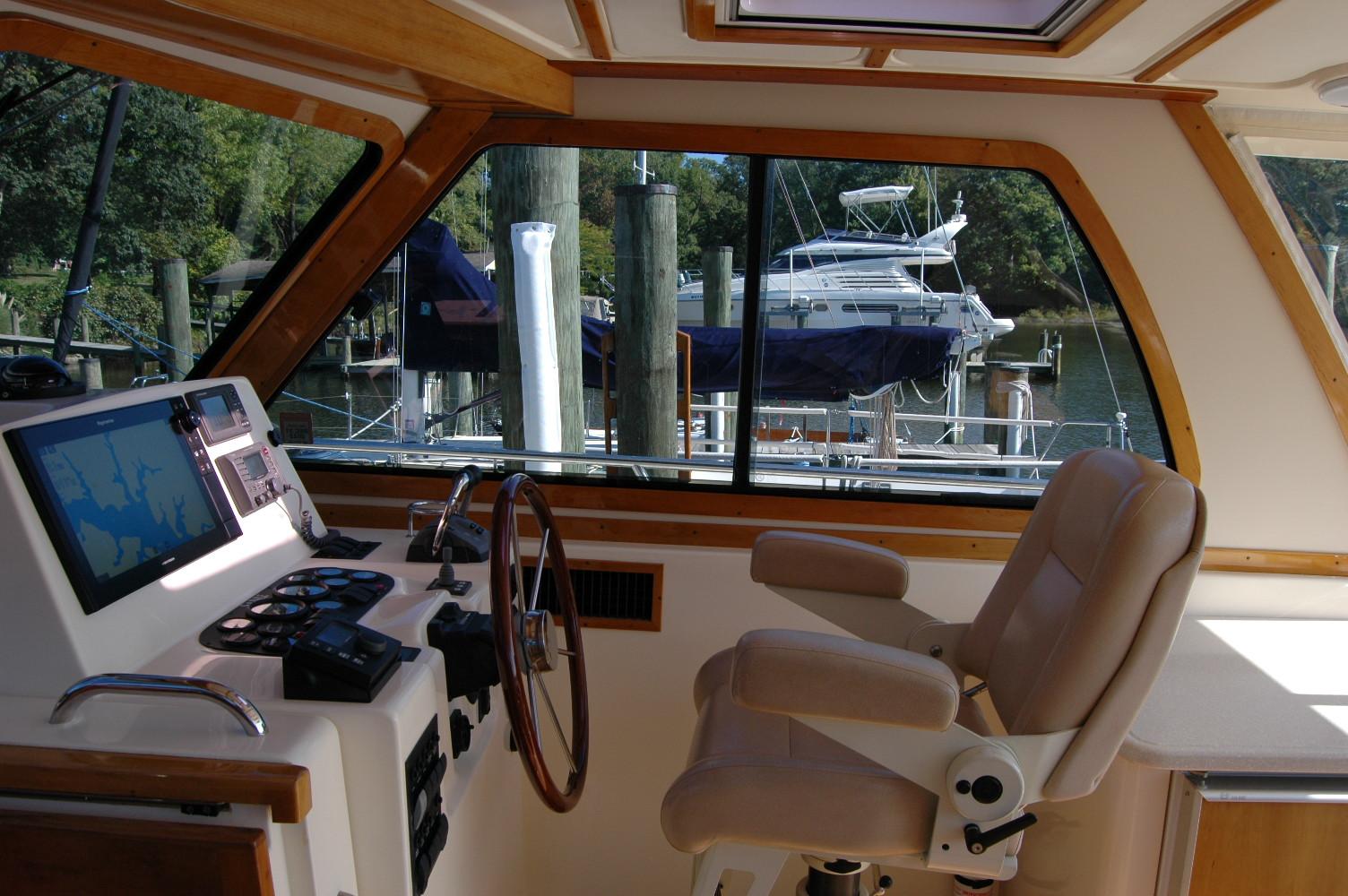

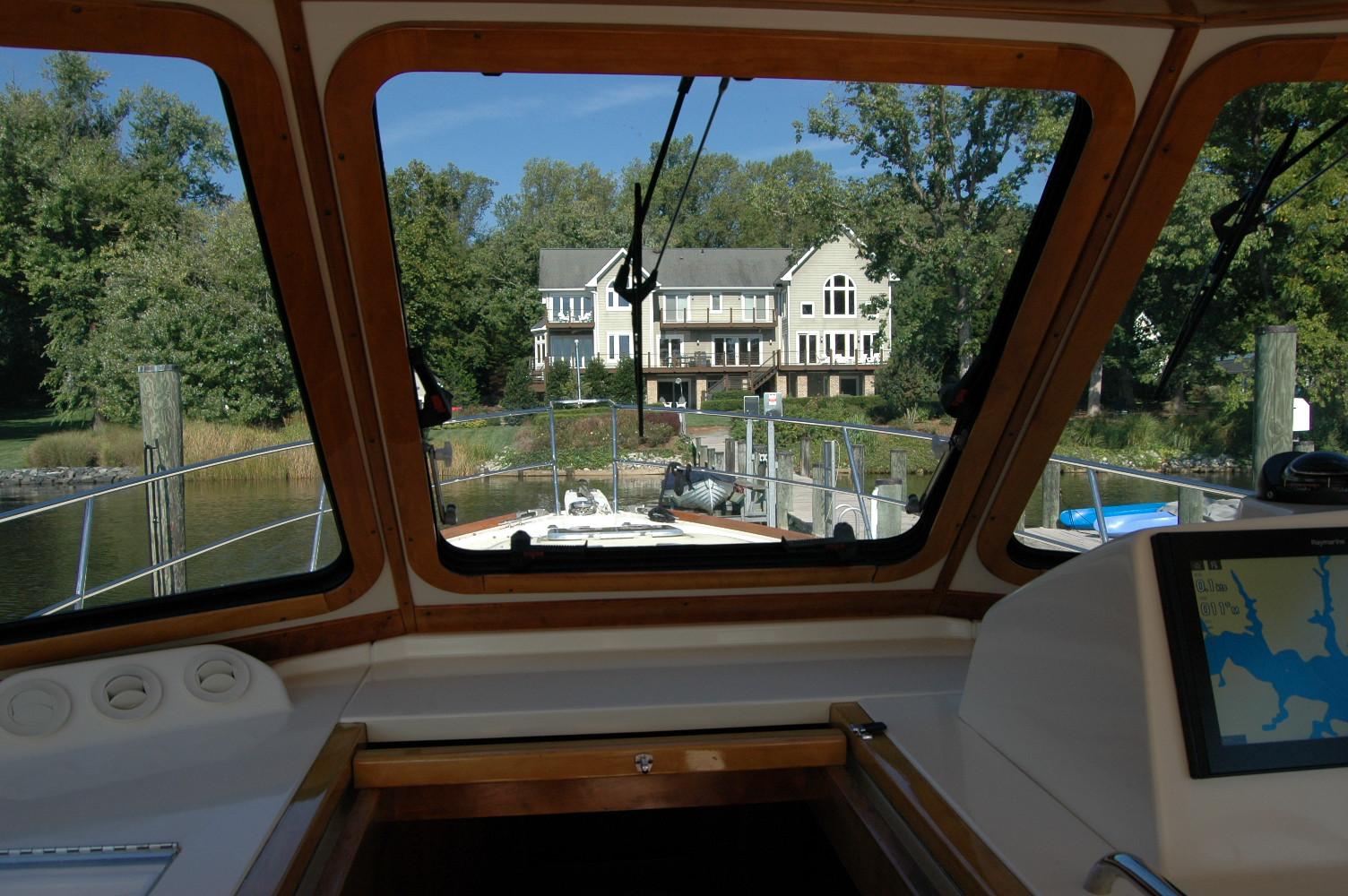

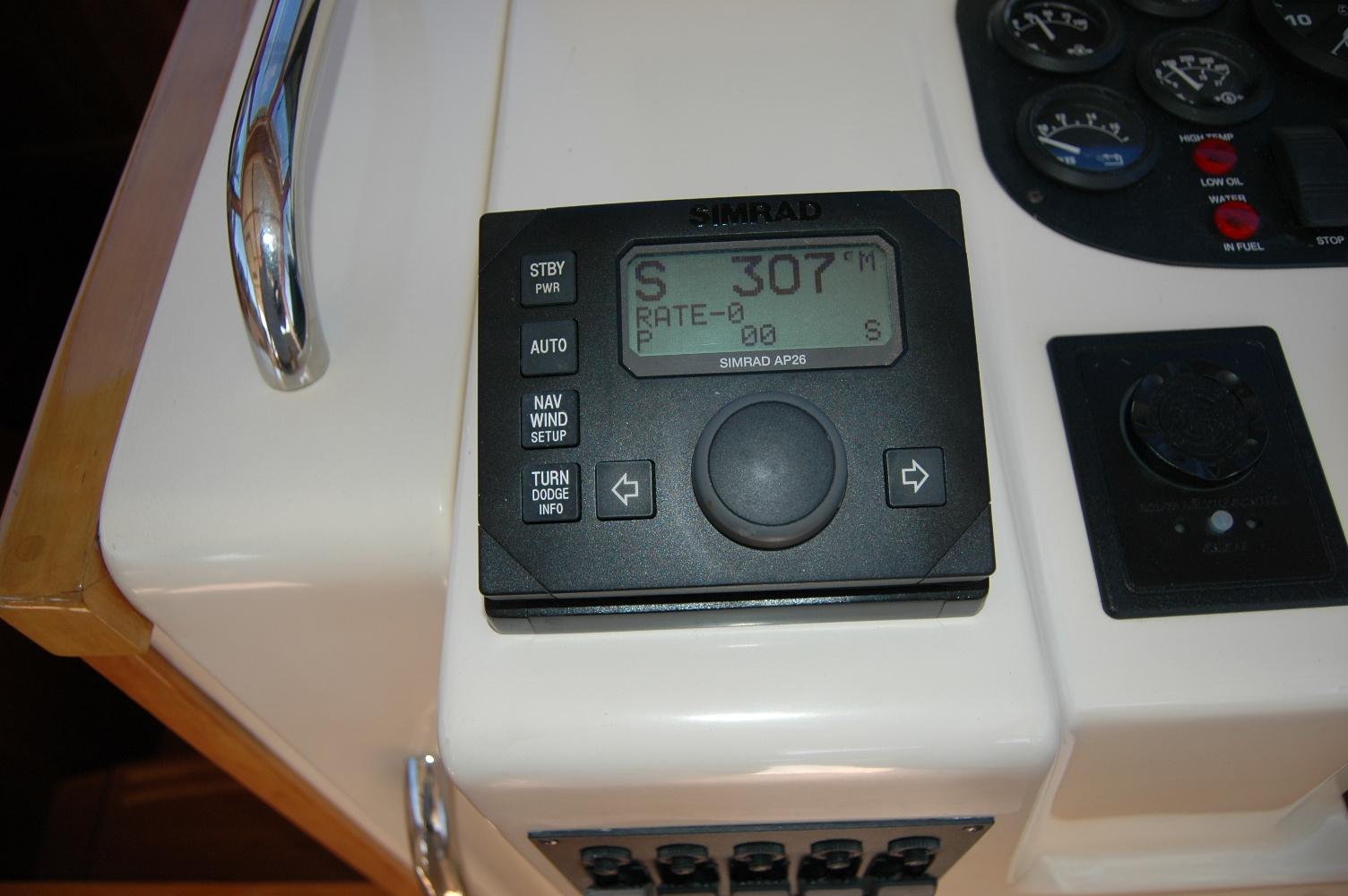

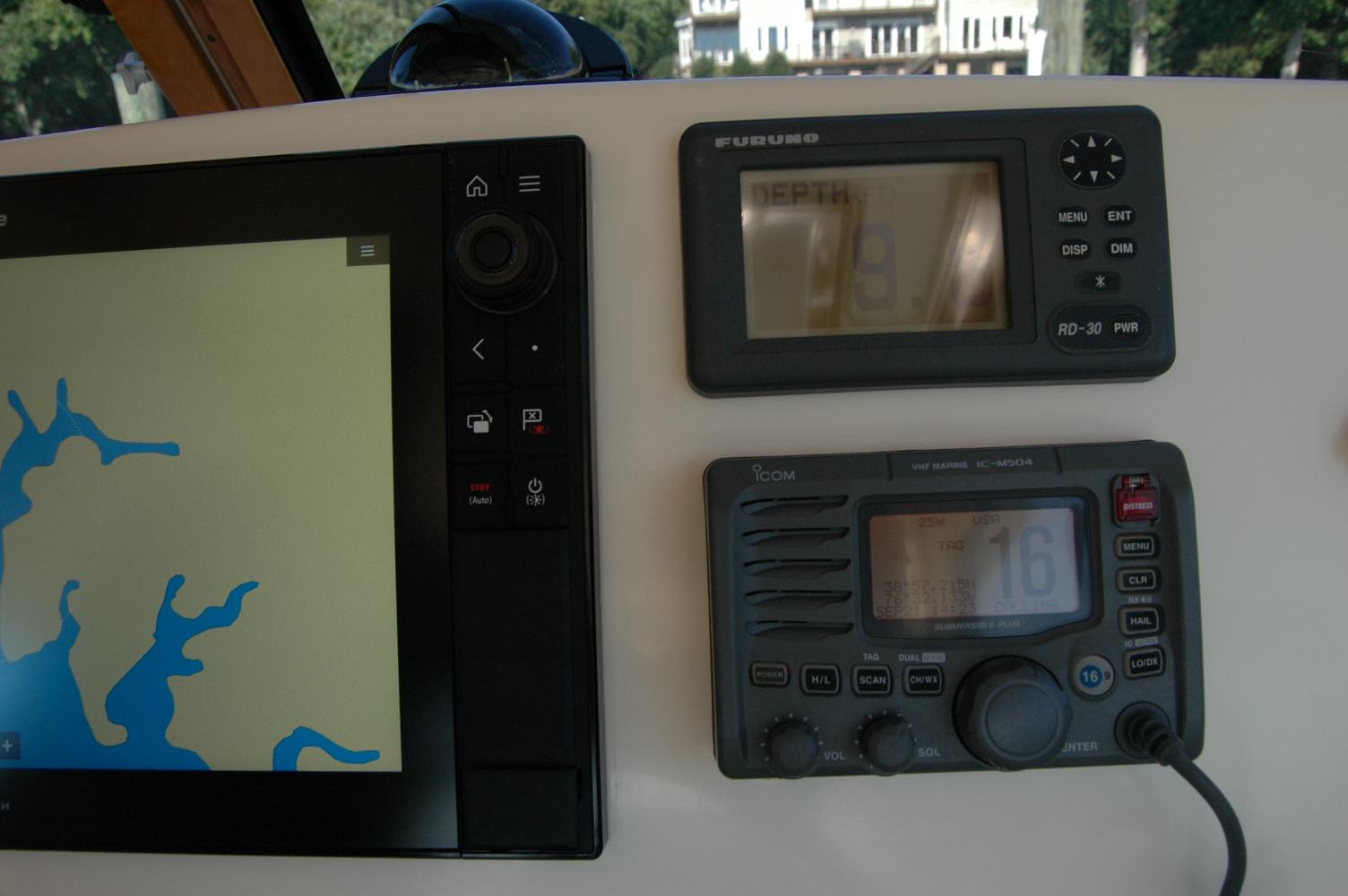

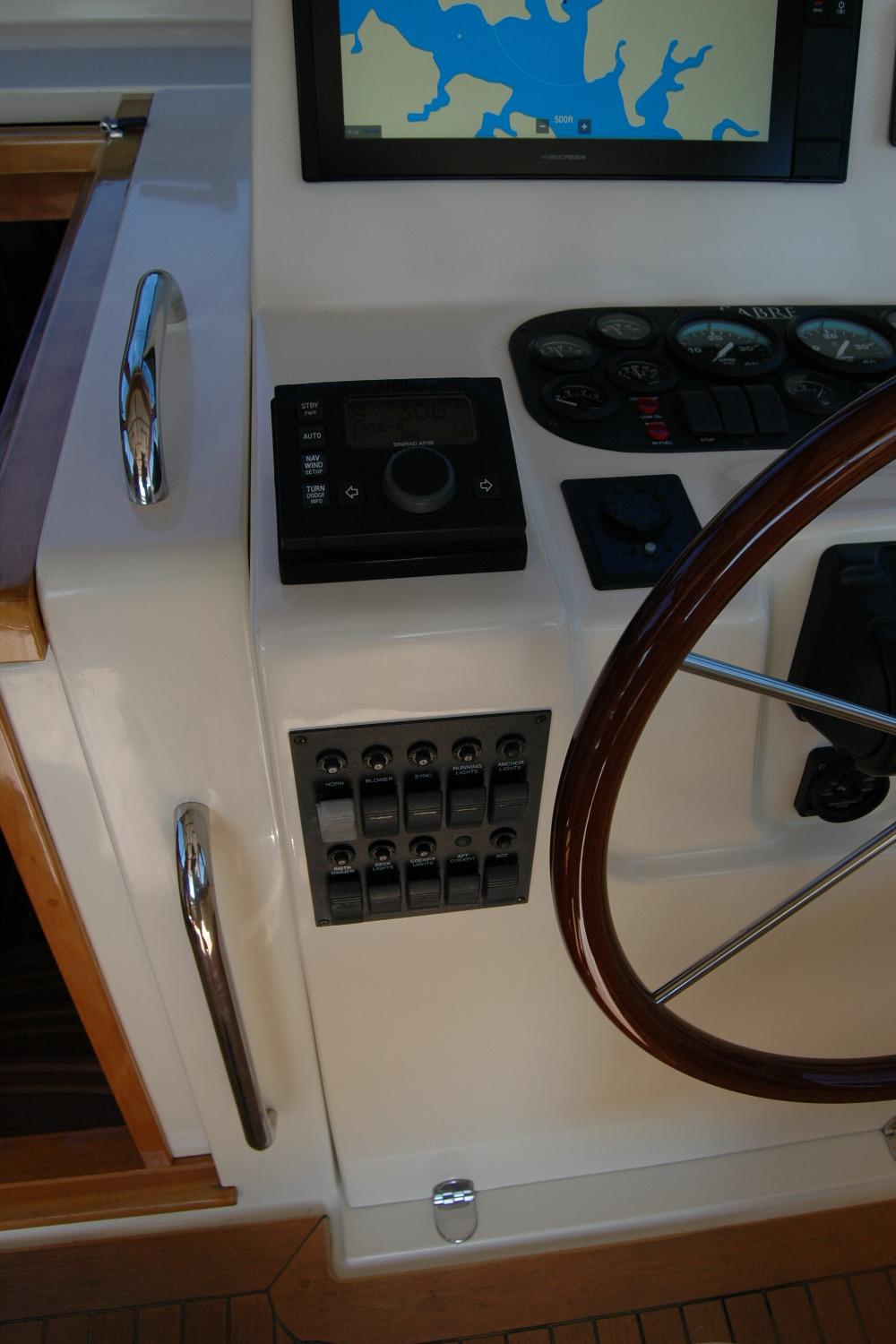

Helm Station
Yanmar single lever electronic controls
Engine Start/Stop control panel

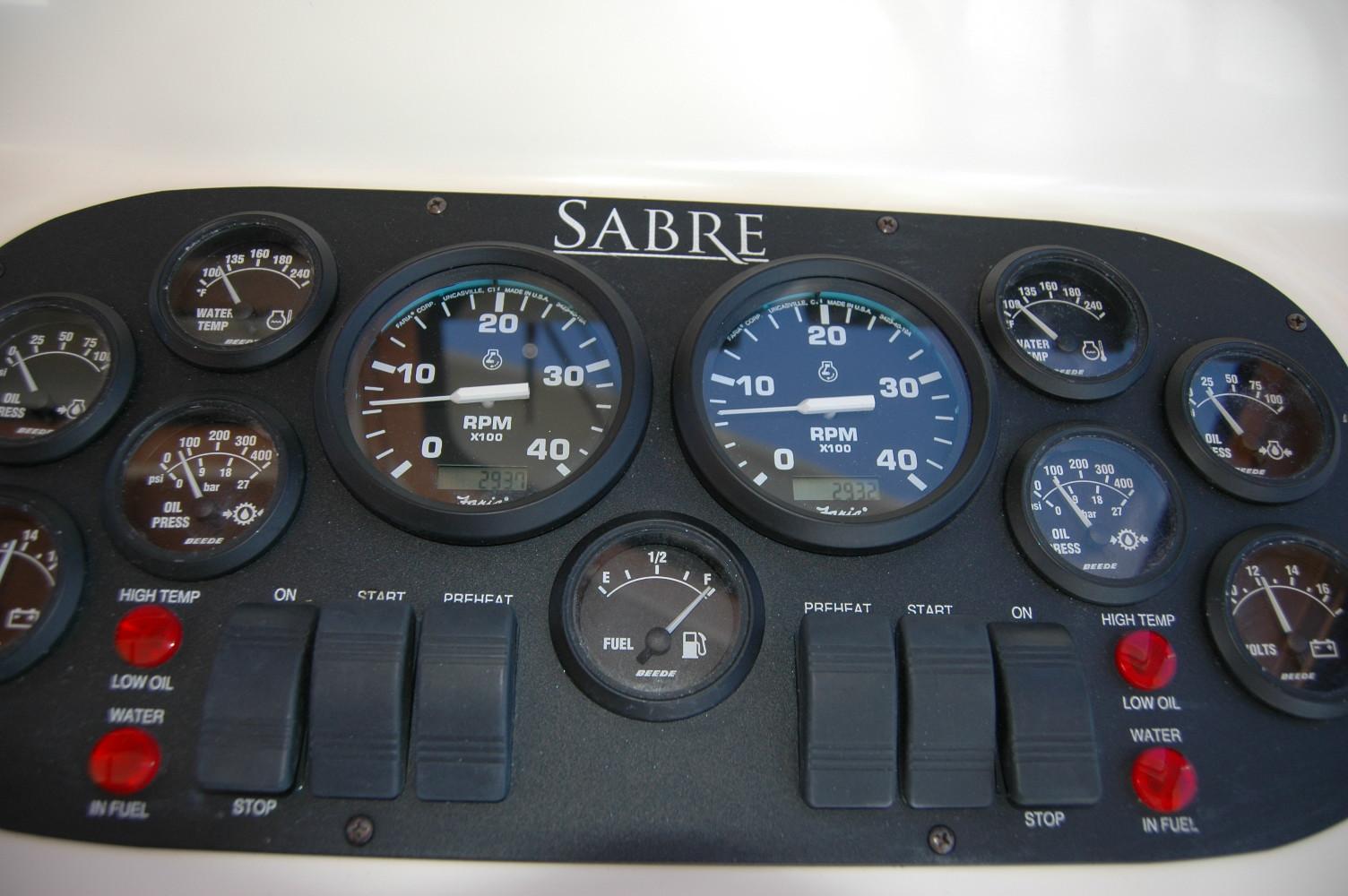

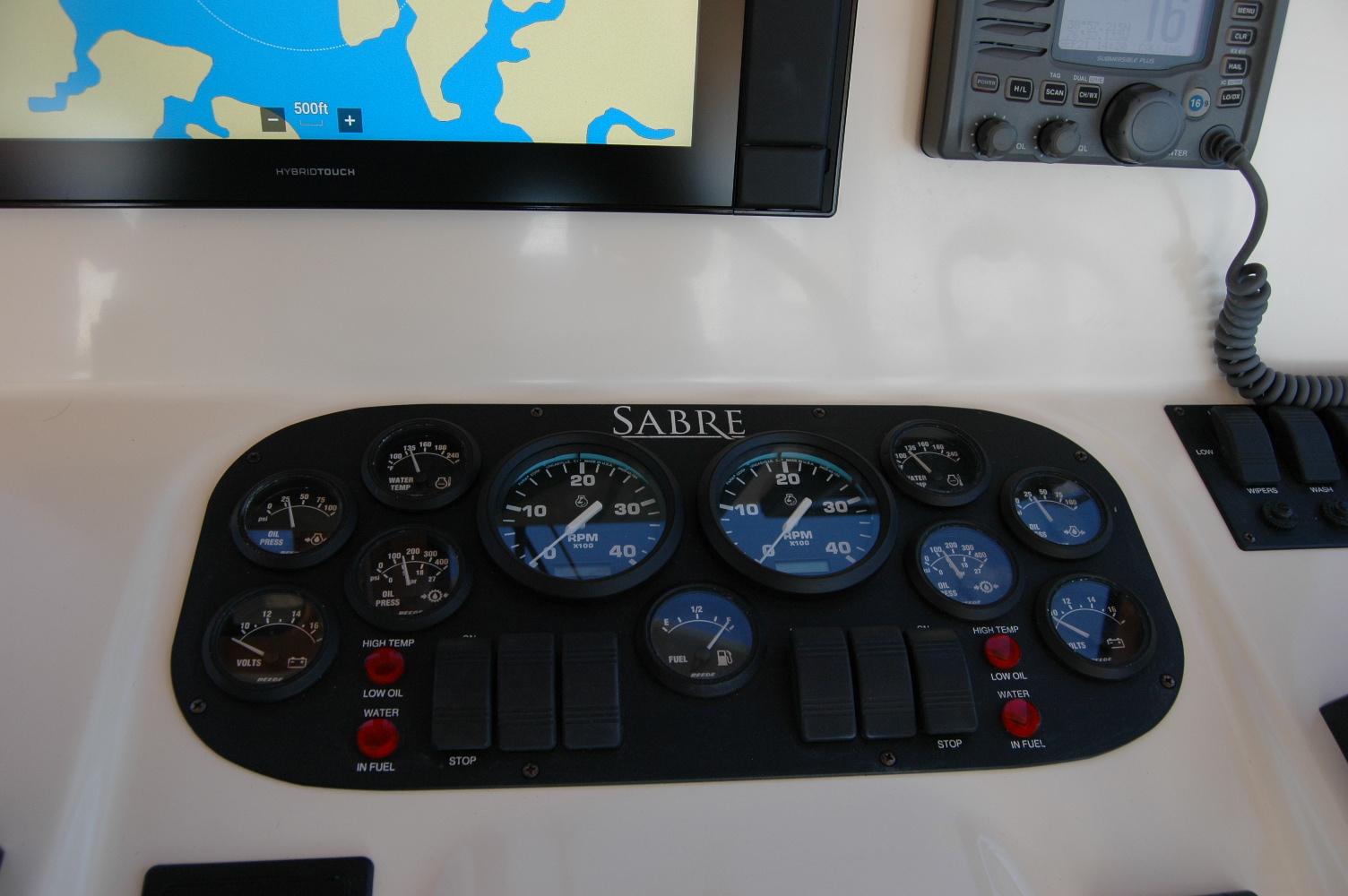

Custom gauge panel to include for each engine:tachometer w/hour meterengine temperatureengine oil pressuretransmission oil pressurevoltmeter
Water in fuel warning light.
Hi water temp and low oil pressure alarm
Triple windshield wipers with washers.
Ritchie Compass
Fuel gauge

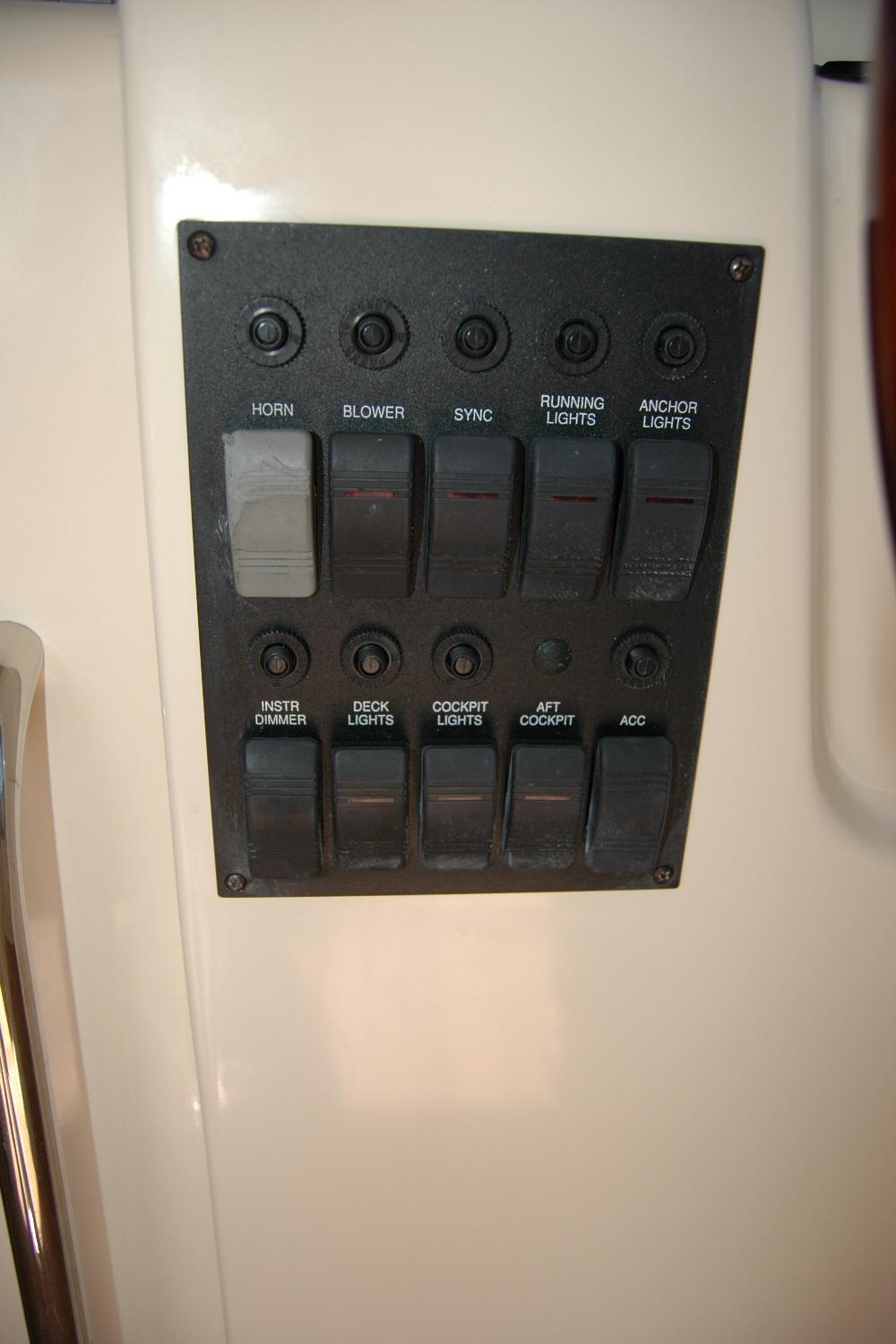

Switch controls for horn, running lights, anchor light, engine room blower and optional equipment.
Control for red instrument lights w/dimmer
120V AC Electrical System
Two 30 A. AC shore power inlets and two 50 ft. cords
Galvanic isolator w/monitoring system
Illuminated main circuit breaker distribution panel.
120V outlets in each cabin and one in engine room.
All galley and head receptacles are GFI protected.
Additional outlets positioned in locations appropriate for entertainment systems in main cabin and fwd cabin
One outlet located on the upper helm deck.
Professional Mariner 50amp, 3-bank battery charger
Cabin reverse cycle heat/ air conditioning in (2) zones.
12V DC Electrical Distribution System
Two Group 27 dedicated engine starting batteries.
Two 4D deep cycle ship's service batteries.
Battery Management panel including:Emergency crossover switch.Ships power switchStarting Battery switchIlluminated main circuit breaker distribution panel w/battery condition gauge
Lighting:Danish Cabin reading lightsCantalupi halogen lights in the overheadHalogen bar lighting in appropriate locationsImproved engine room lightingCockpit courtesy lights w/remote switch at transom door
Tinned wire throughout.

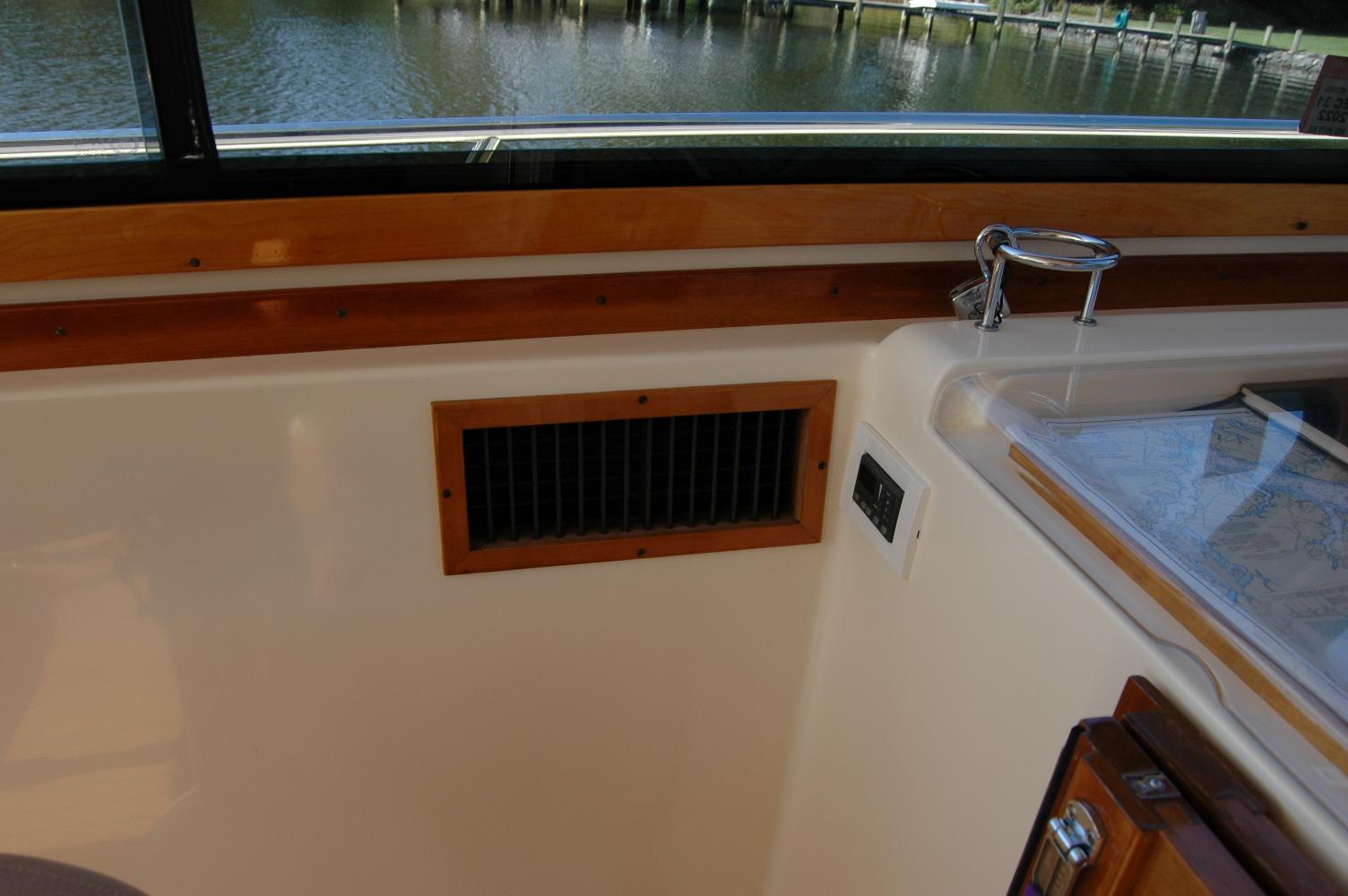

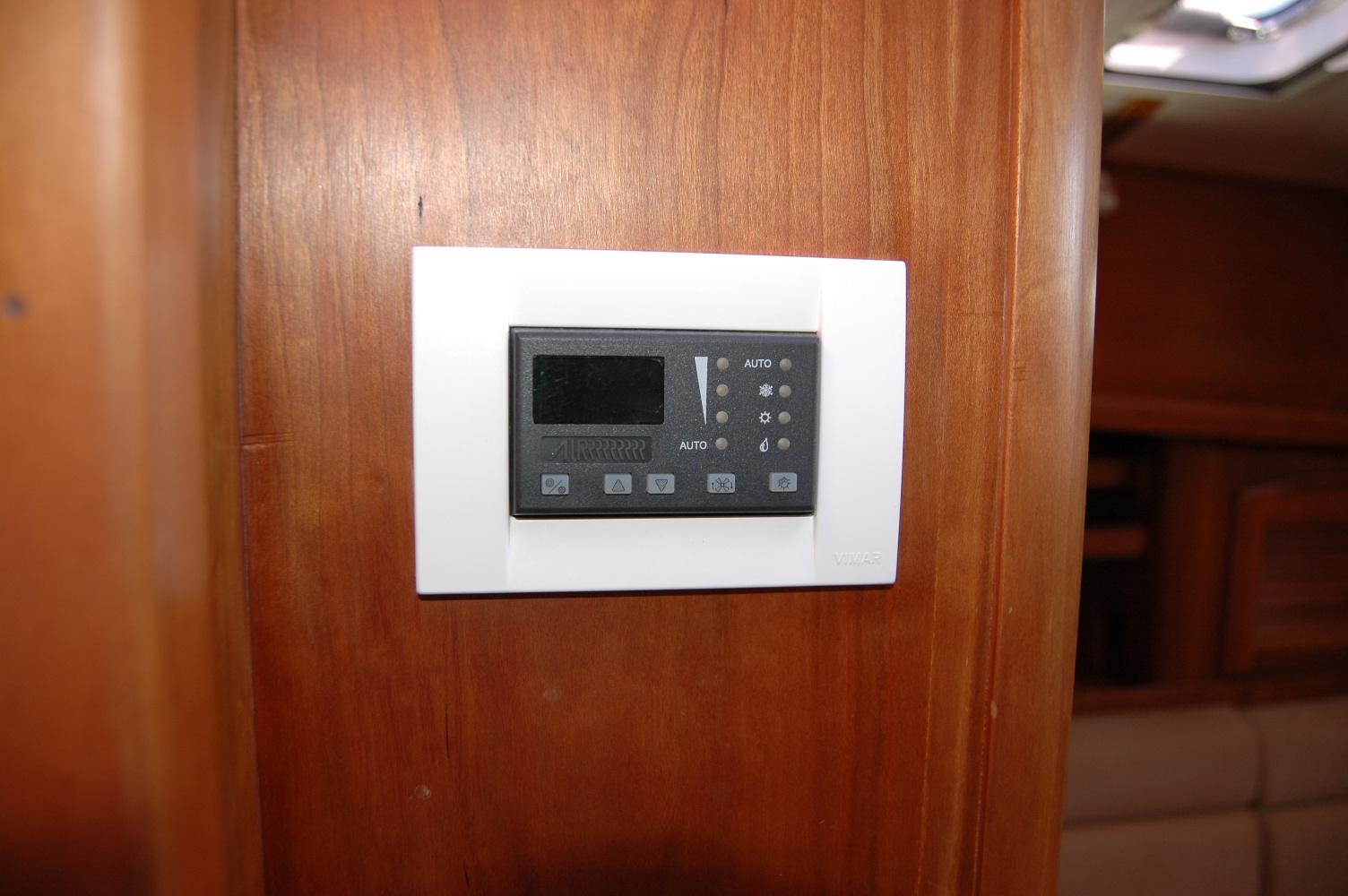

HVAC Systems

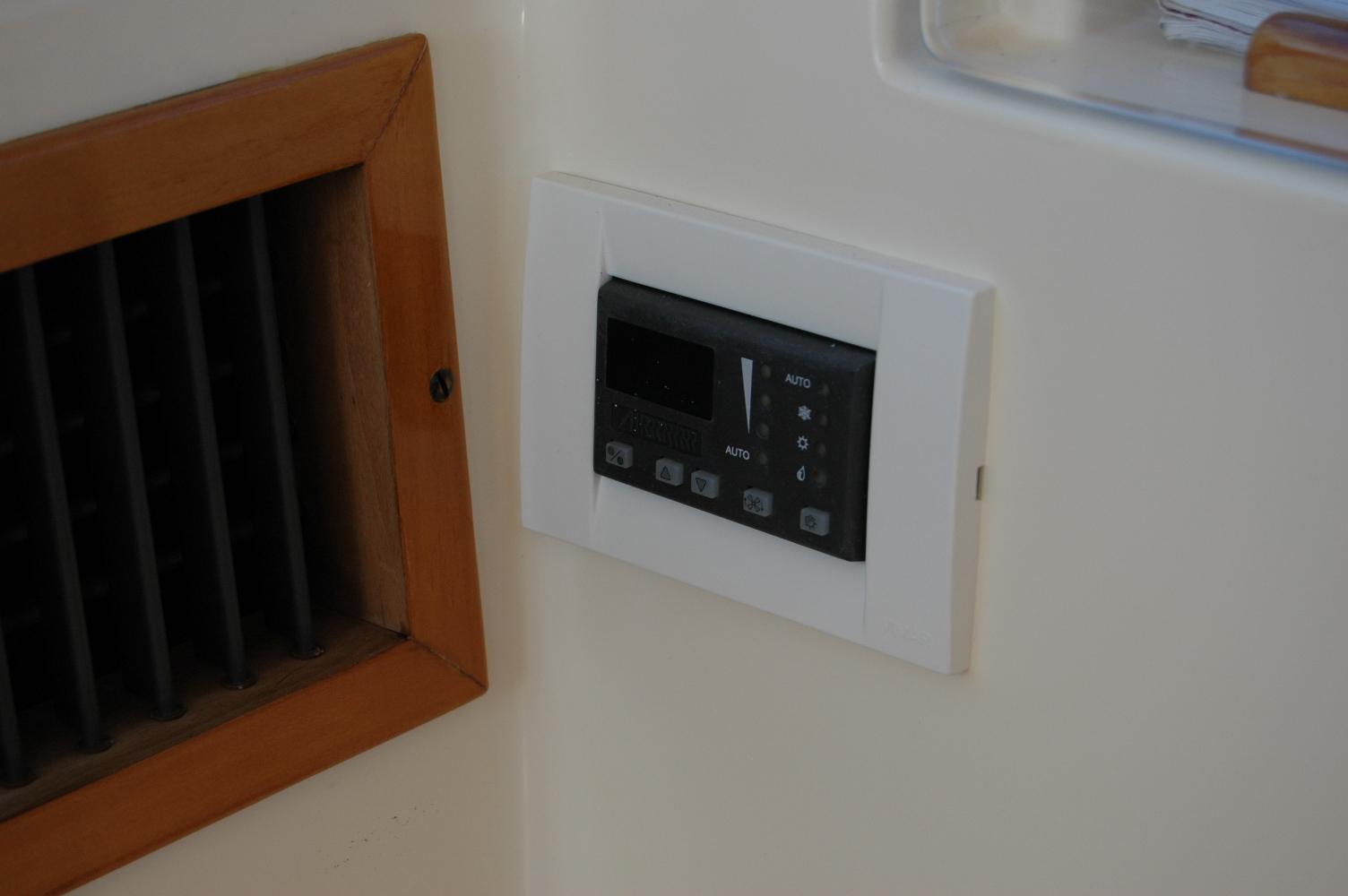

There are a total of four HVAC units and four zones aboard. They are located in the master stateroom, galley, pilot house port, and pilot house starboard areas. They can be run either from shore power or from the generator.
Hull Composite
Deep “V” Planing hull design with Shallow prop pockets.
23 degree deadrise amidships and 16 degrees at transom.
ISO NPG Sport Yacht white gelcoat w/ vinylester back-up resin.
Knitted Biaxial Structural E-Glass Reinforcements
Vacuum Bagged Divinycell foam core in hull bottom and topsides.
Foam/plywood cored fiberglass stringer system.

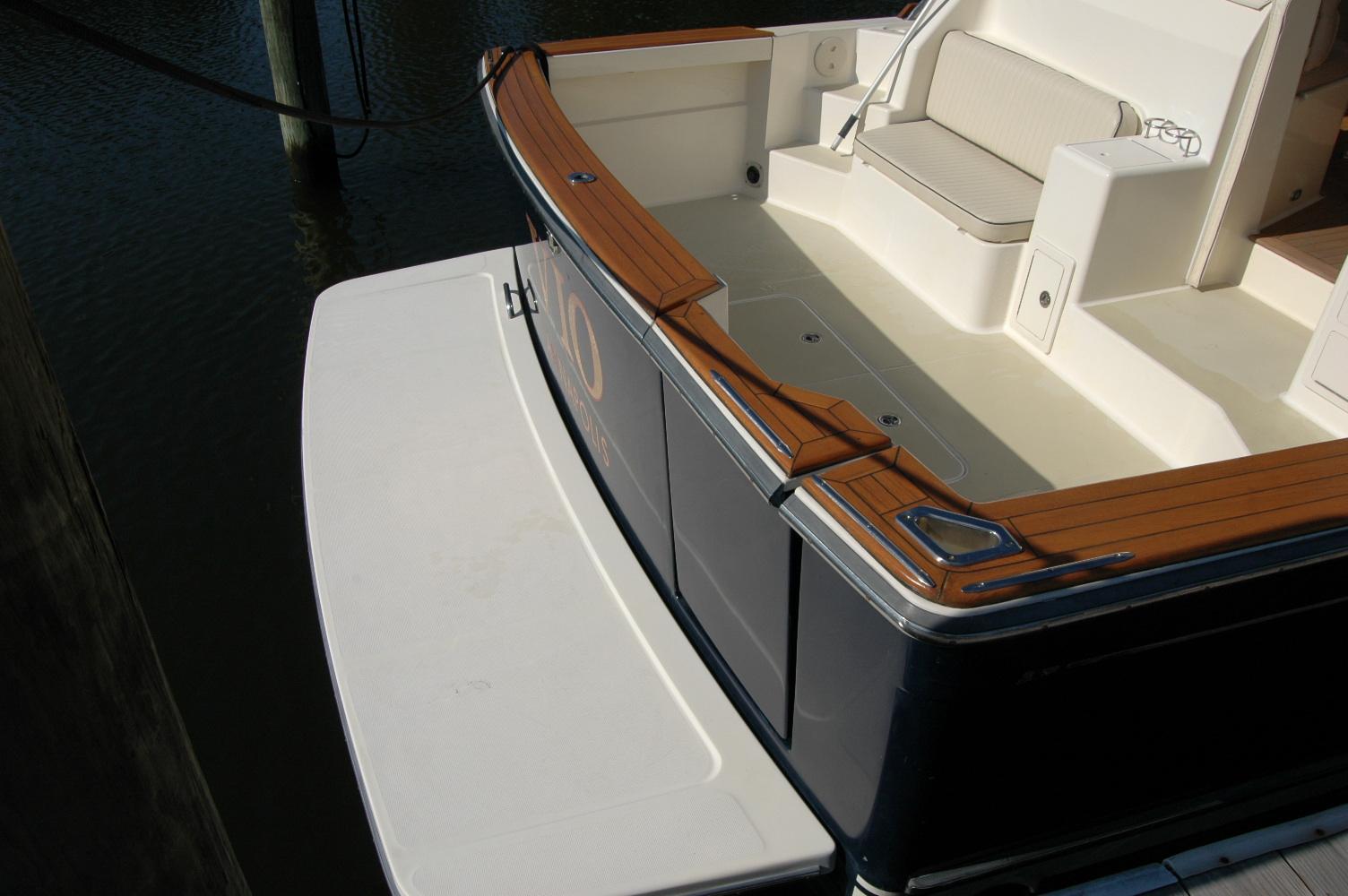

Swim platform with under mounted telescoping ladder.
Hull side rubbing strakes.
PVC rub rail with stainless steel cap.
Painted (IMRON) Double Boot Strip
Gold Cove Stripe

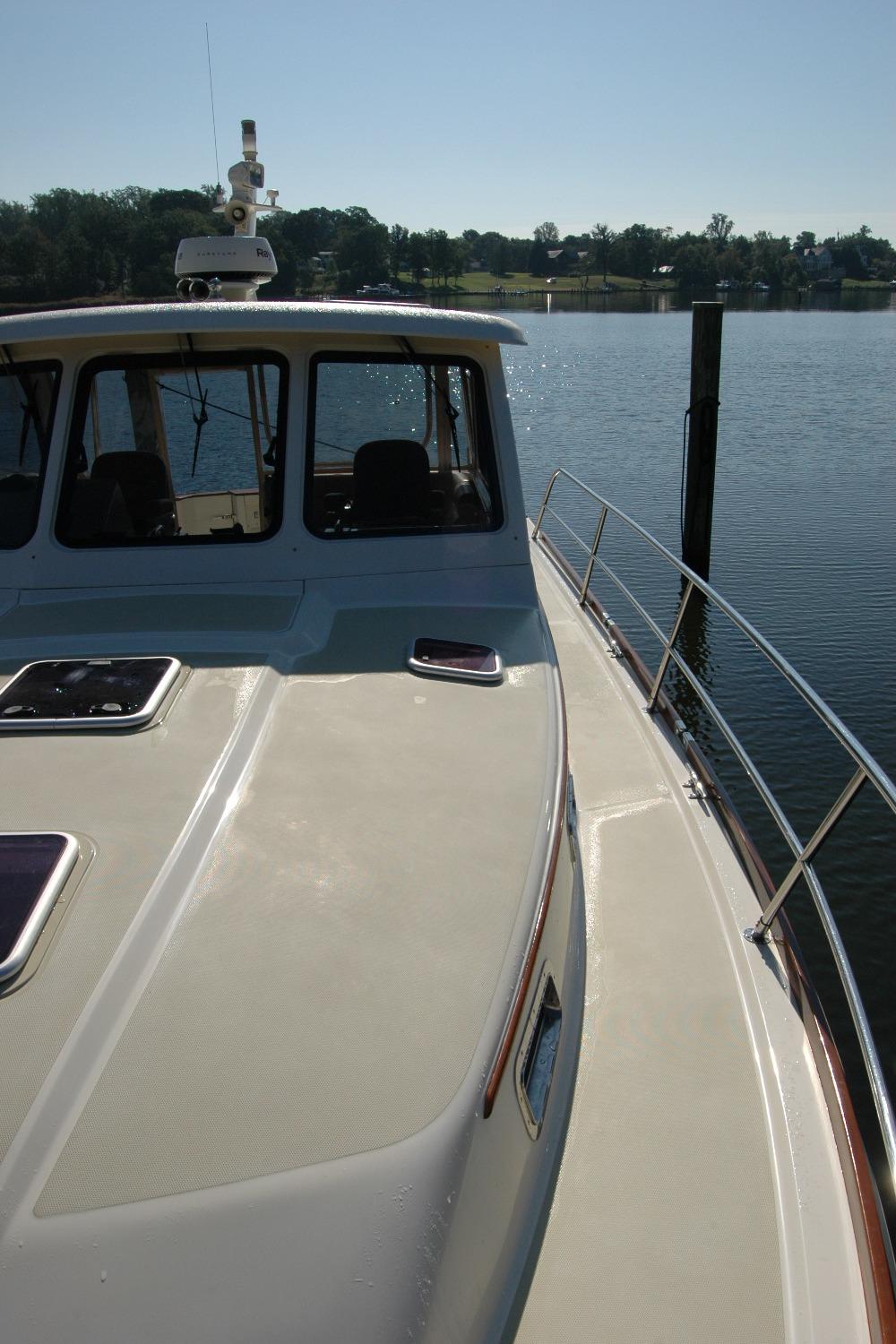

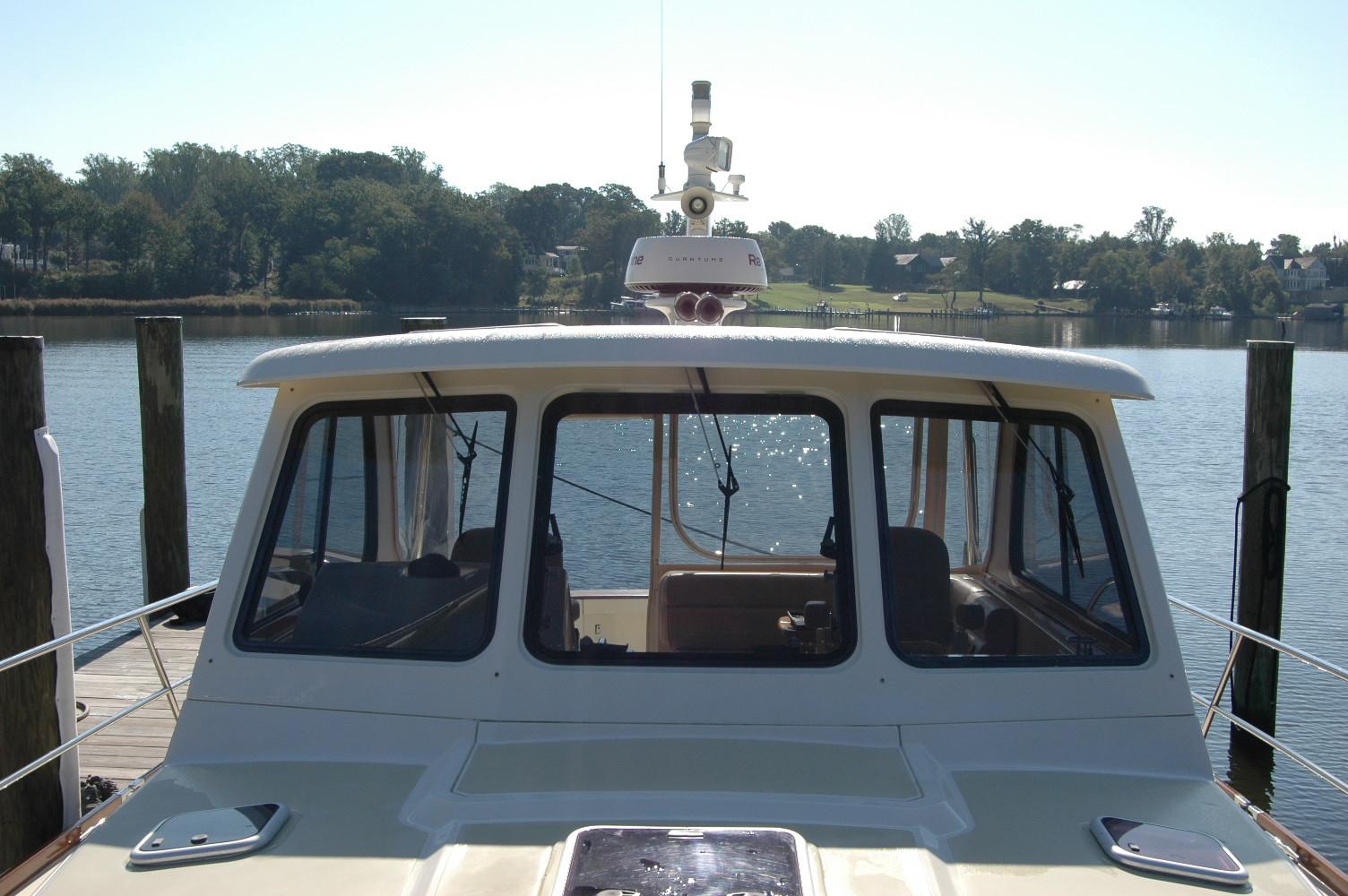

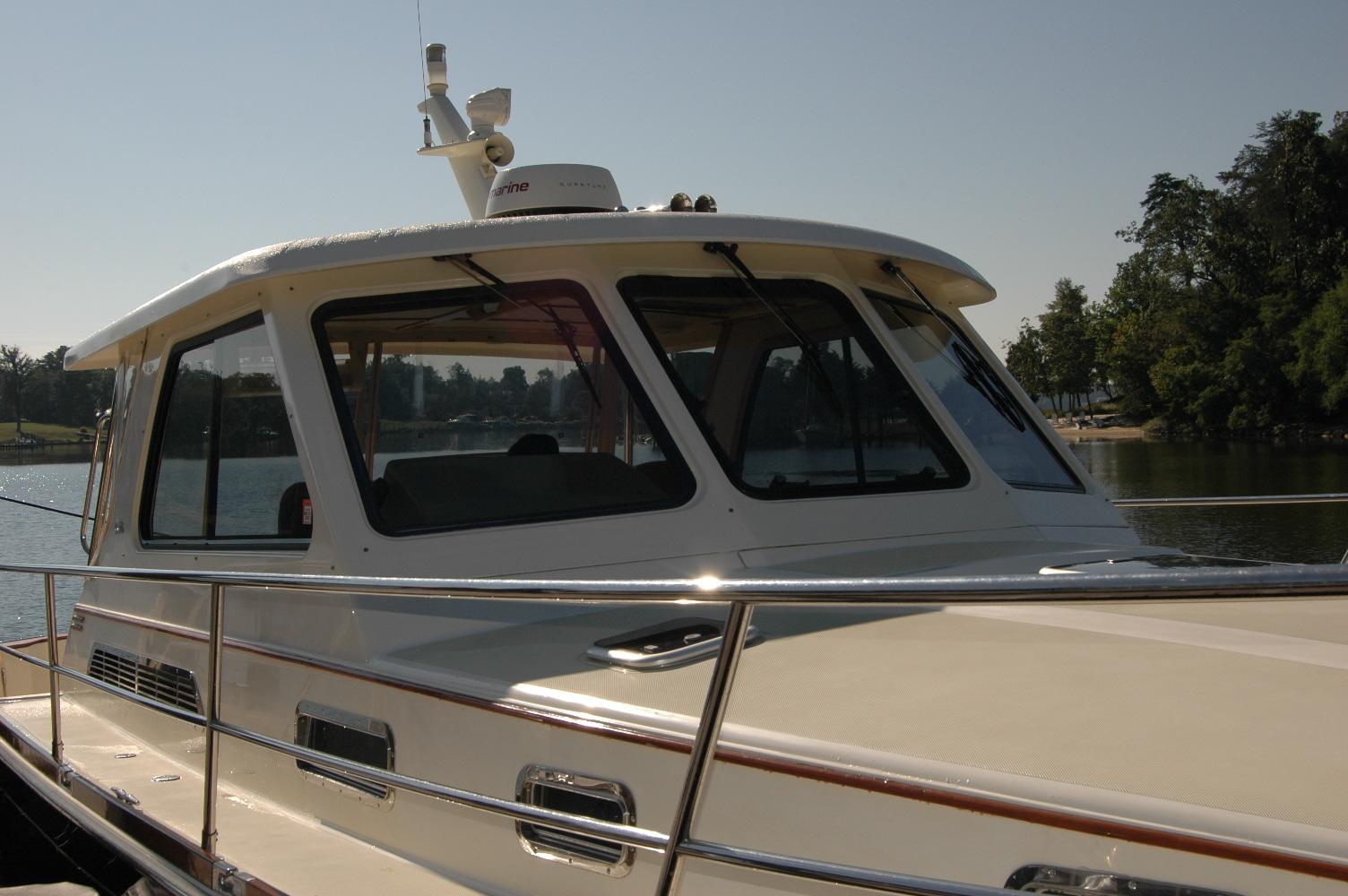

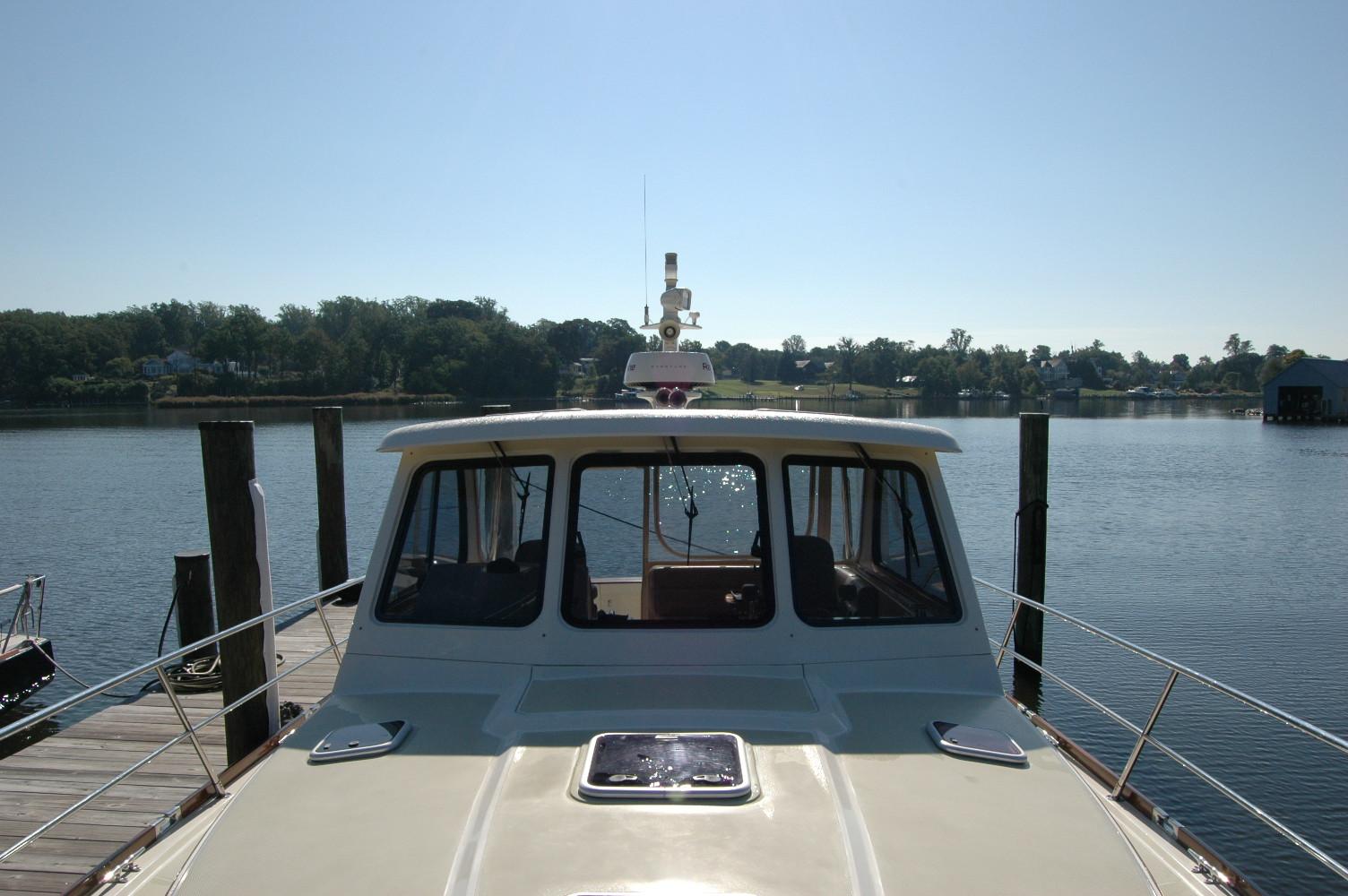

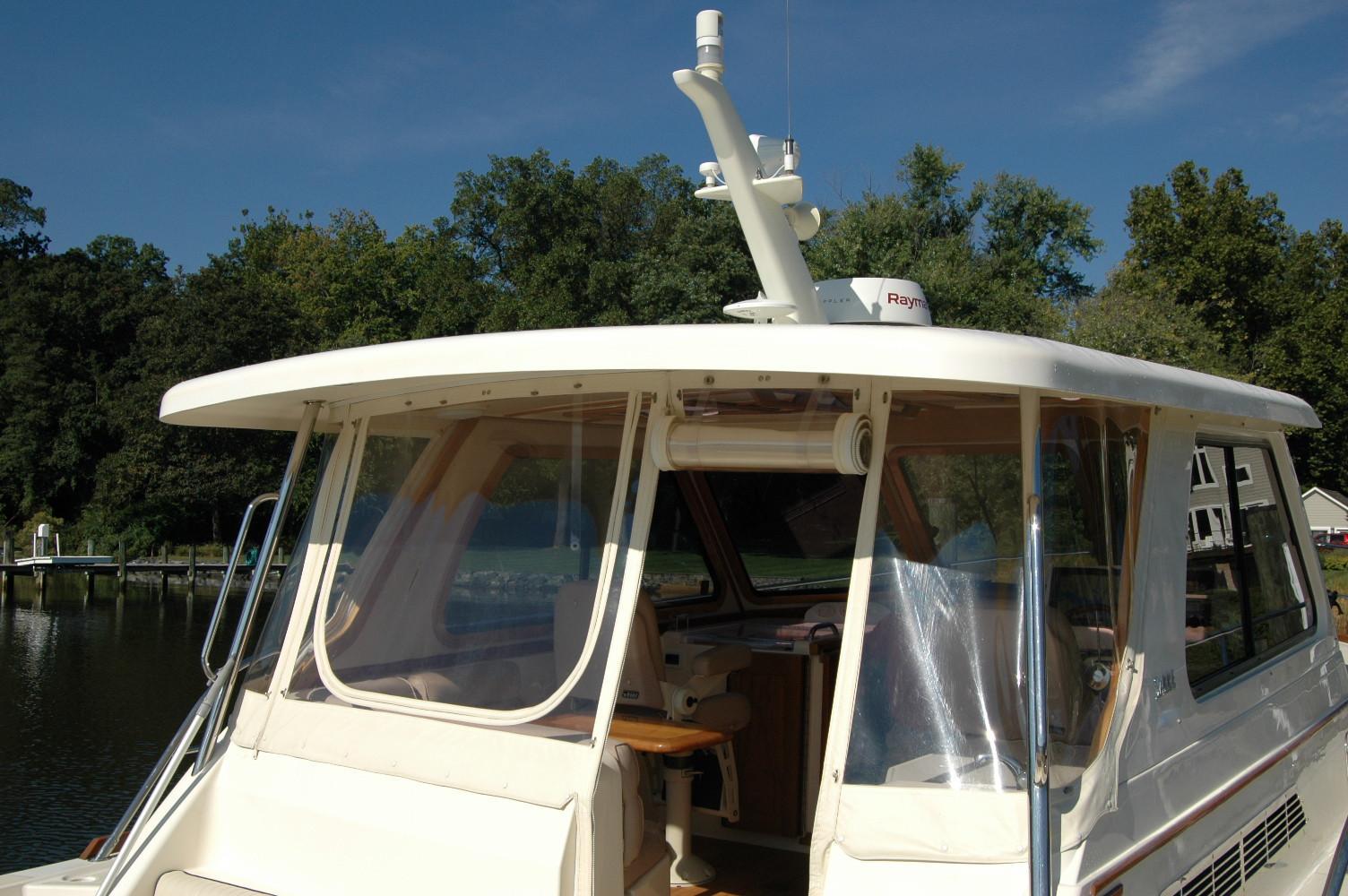

Deck, Windshield, and Hardtop Composite
ISO NPG gelcoat
Knitted Biaxial Structural E-Glass Reinforcements with balsa coring.
Molded in anti-skid deck surfaces.

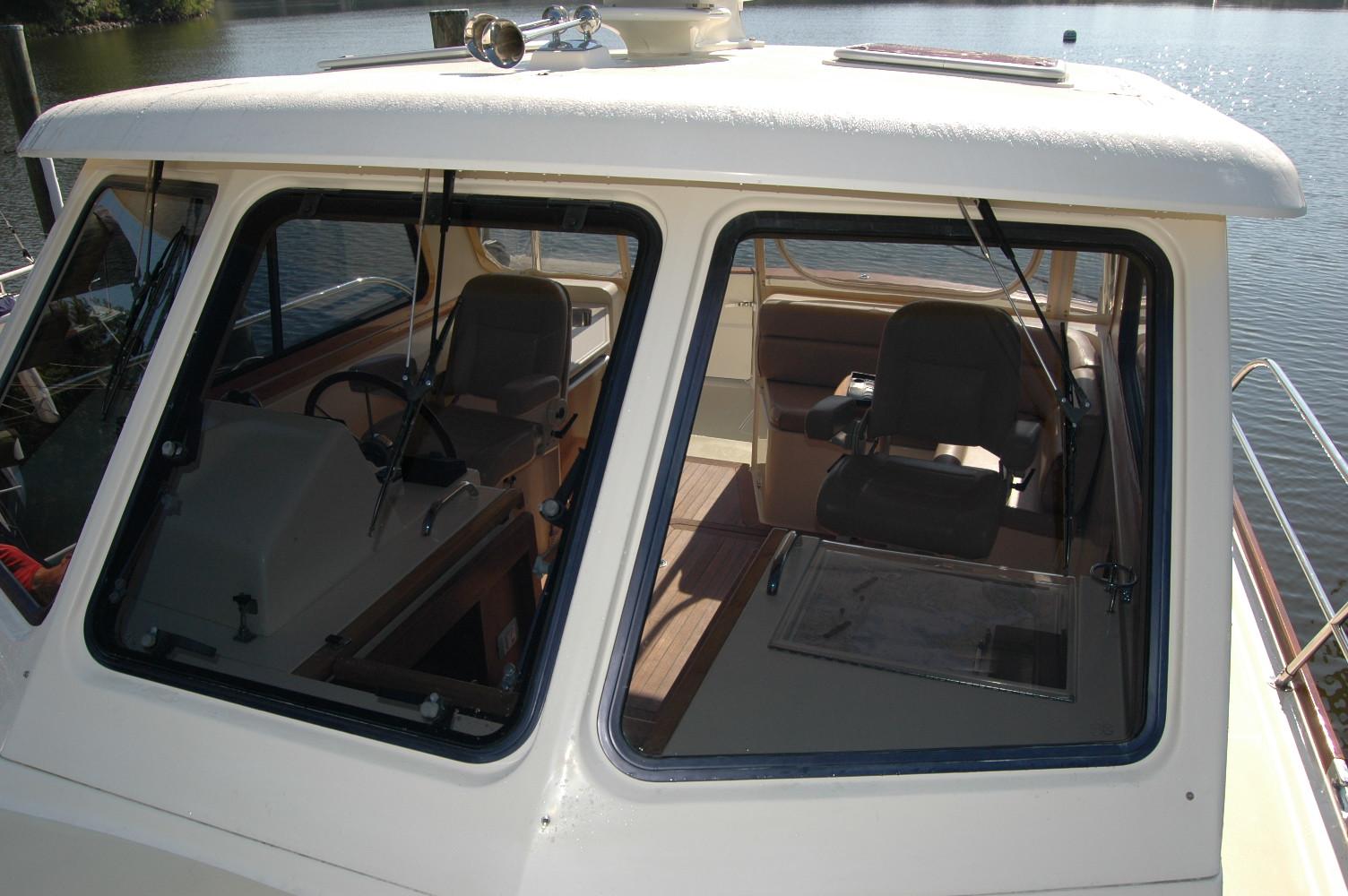

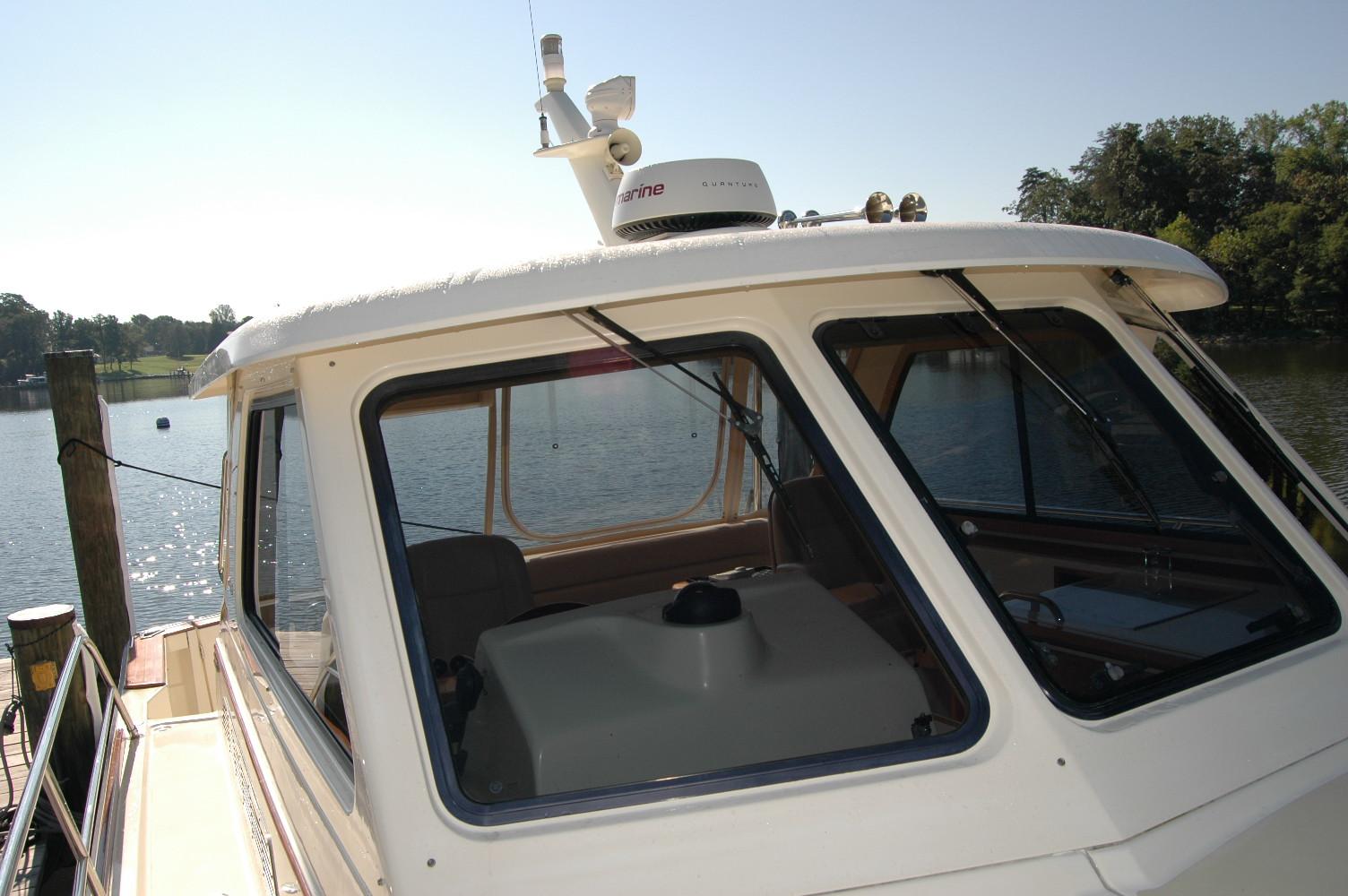

Windows with clear anodized frames recessed into hard top
Inside walls sheathed w/high pressure laminate

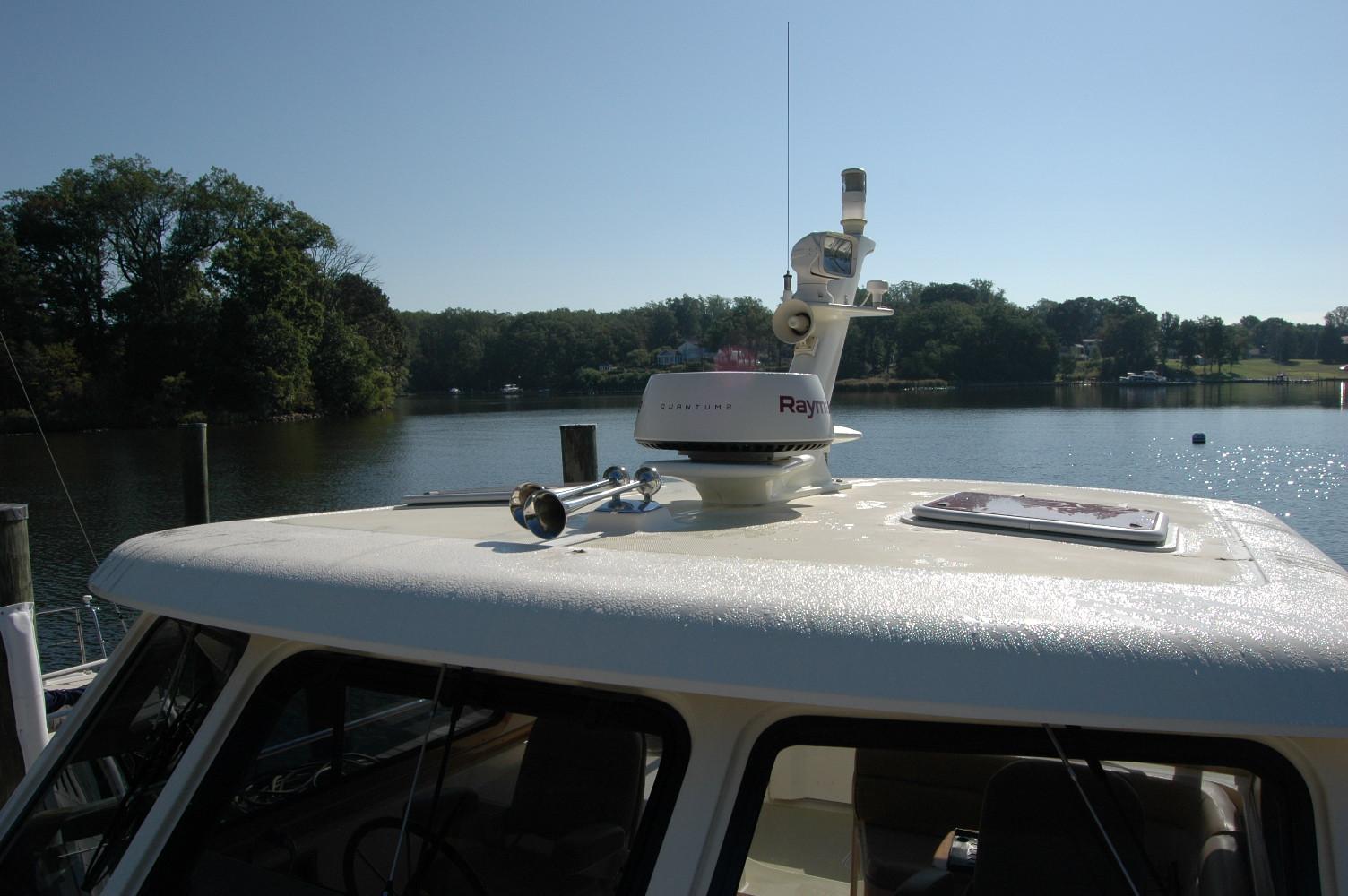

Hardtop w/ anti-skid surface on top

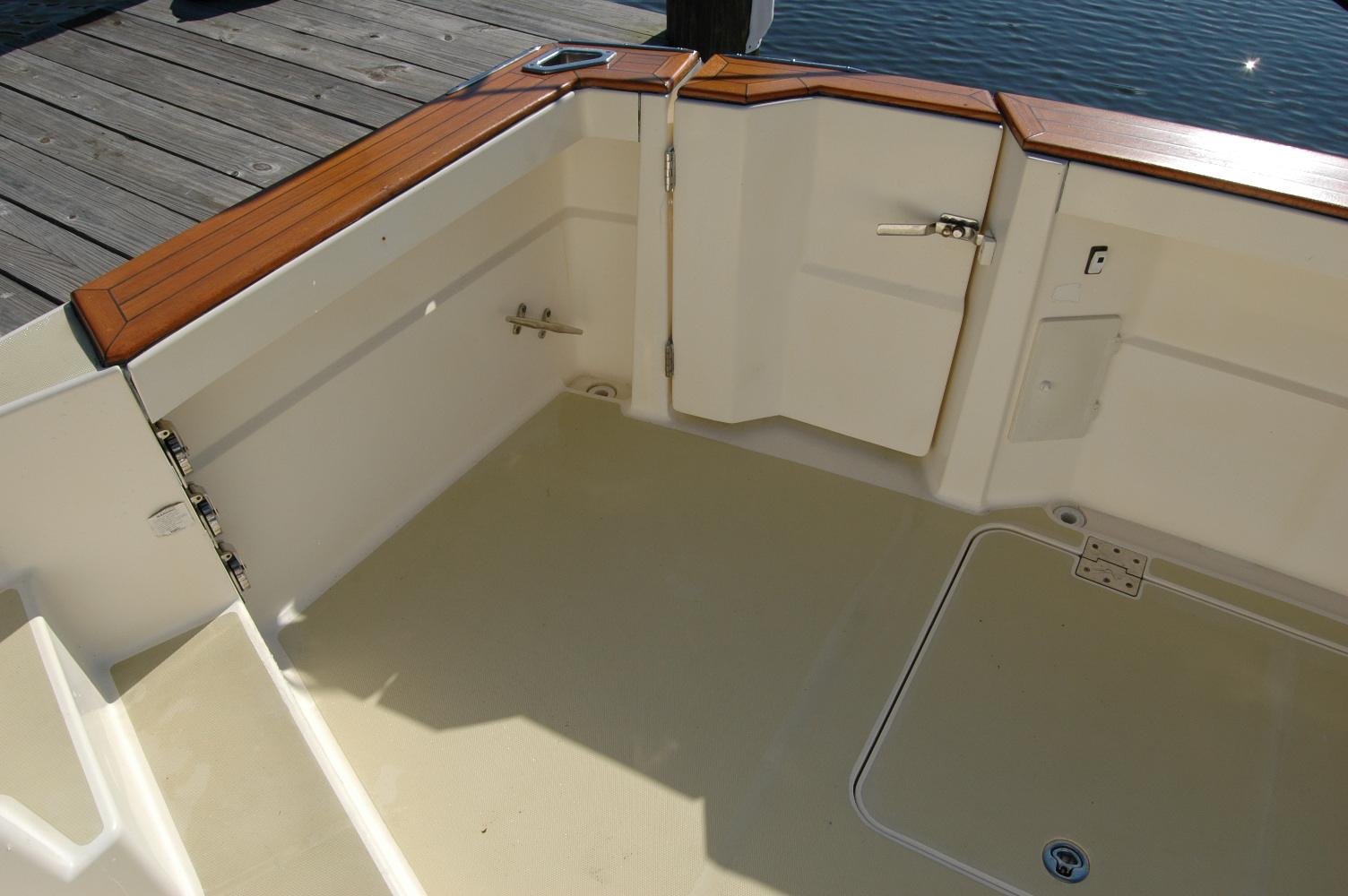

In-swinging Transom Door with latch system
Fiberglass bow pulpit with single anchor roller and windlass
Anchor locker w/Southco slam latch #M1-64-8

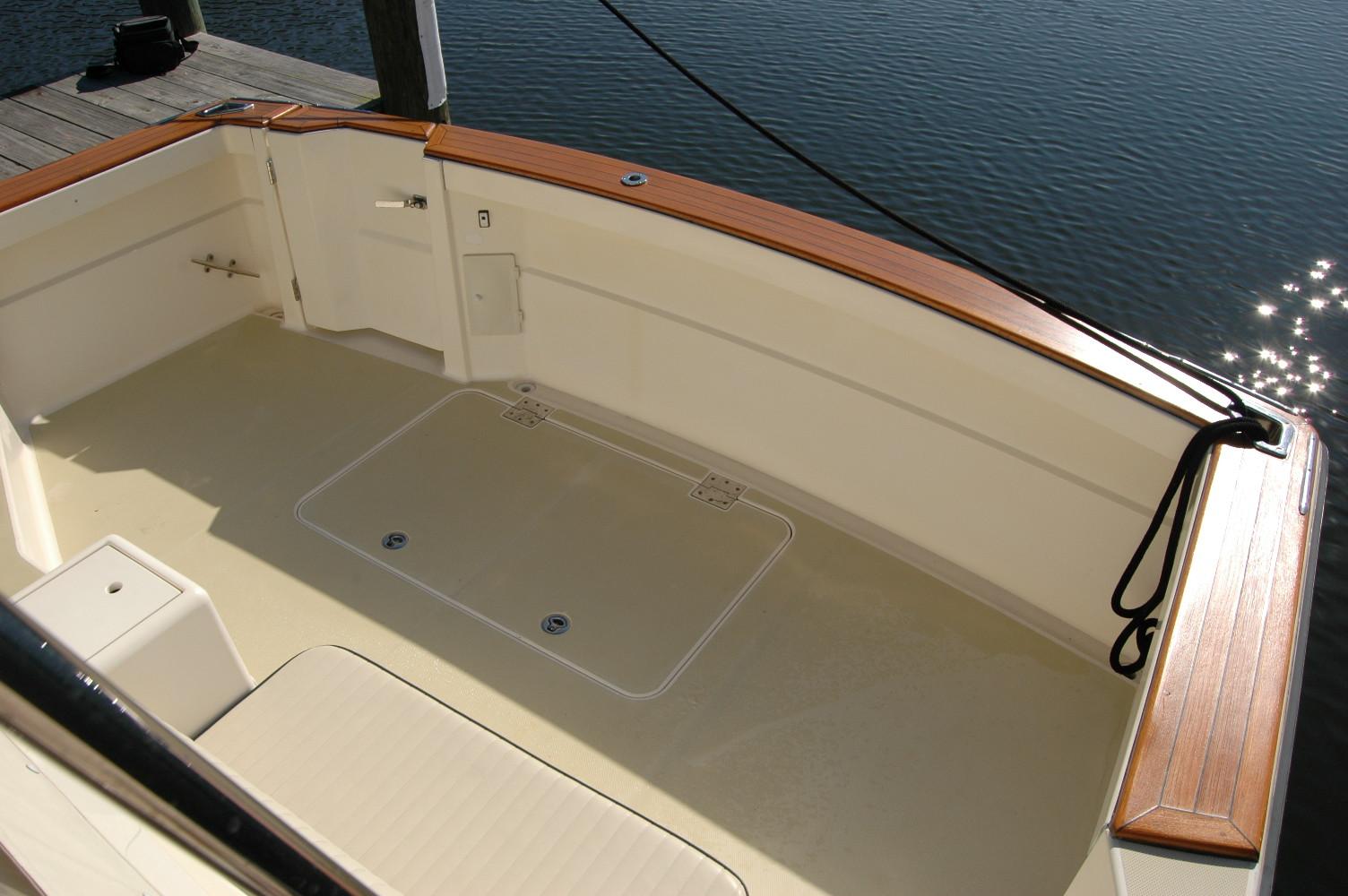

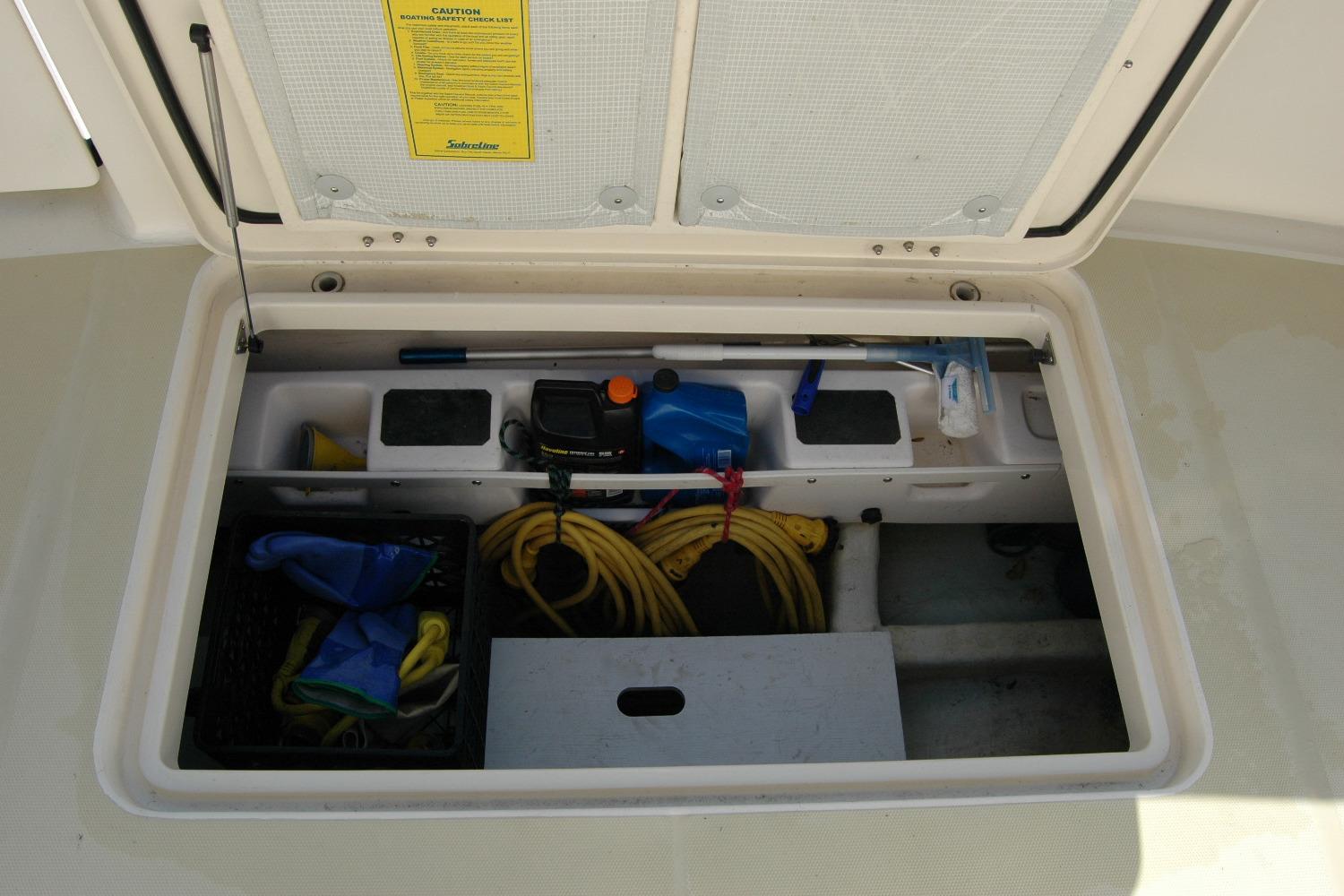

(1) Large Aft hinged double sided lazzarette locker hatch with gas struts and Southco (2) 3”dia compression latches
(1) Large double-sided Engine Room hatch with 3” compression latches, and heavy SS hinges
Hinged helm pod
Center opening windshield

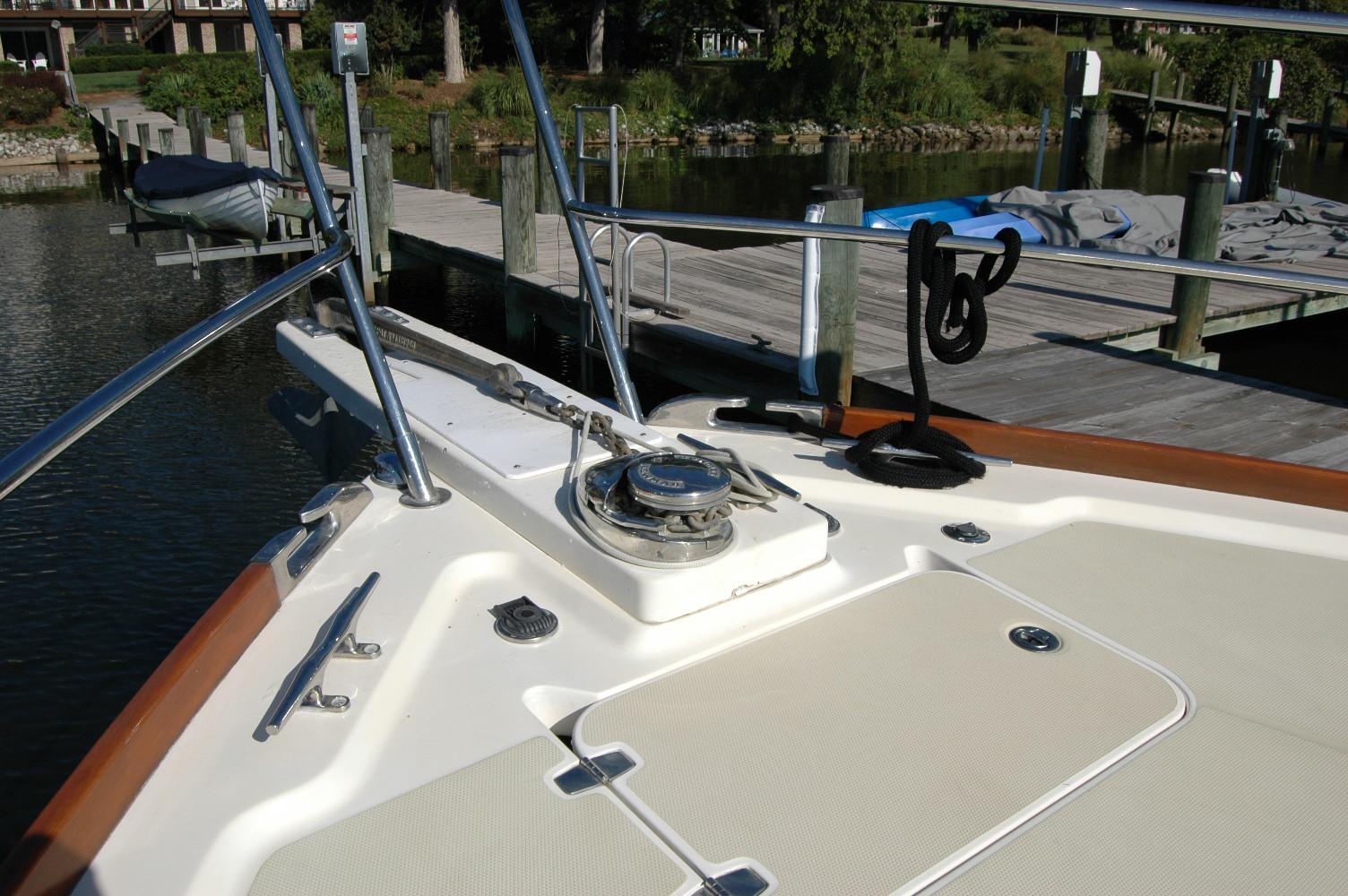

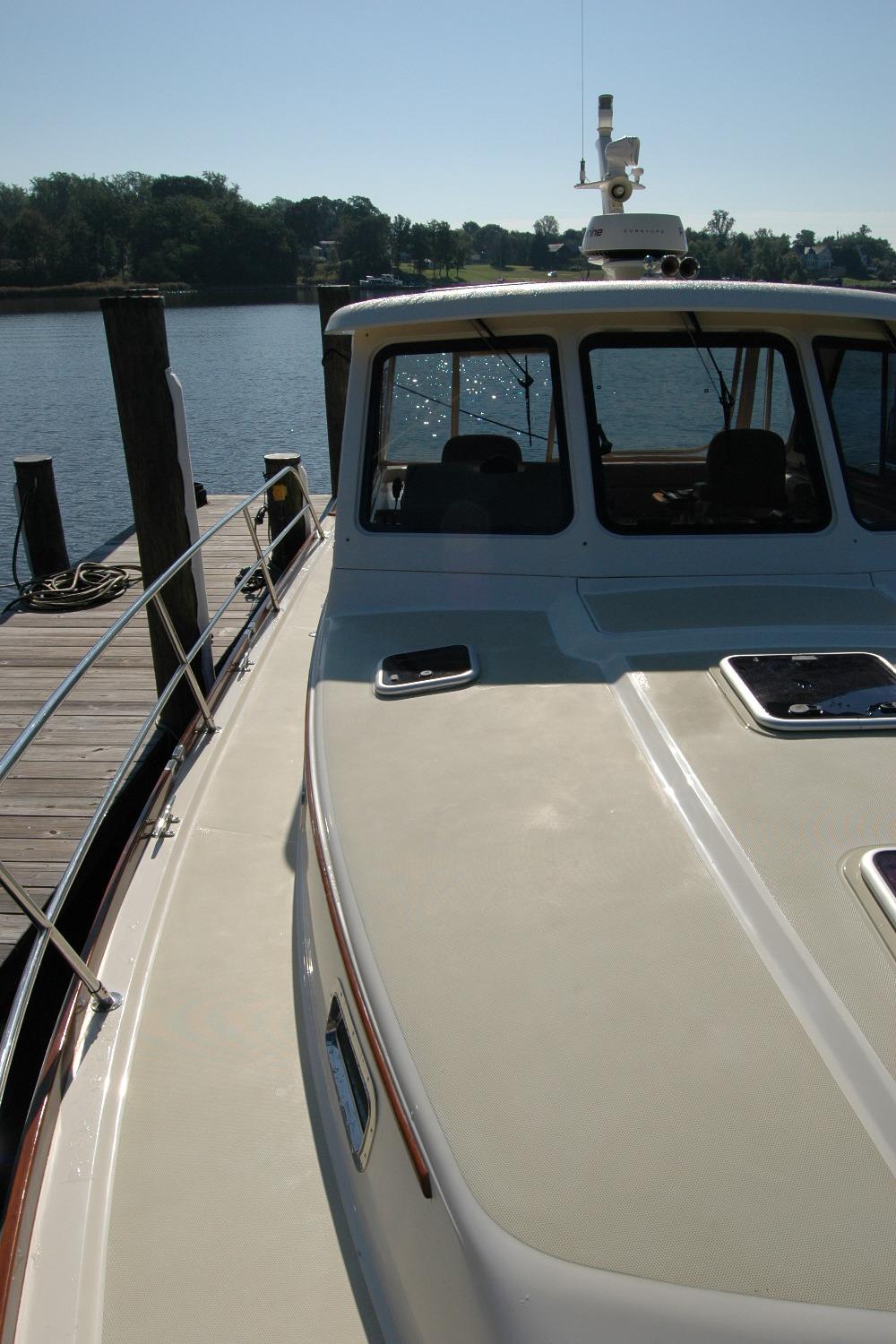

Deck Hardware

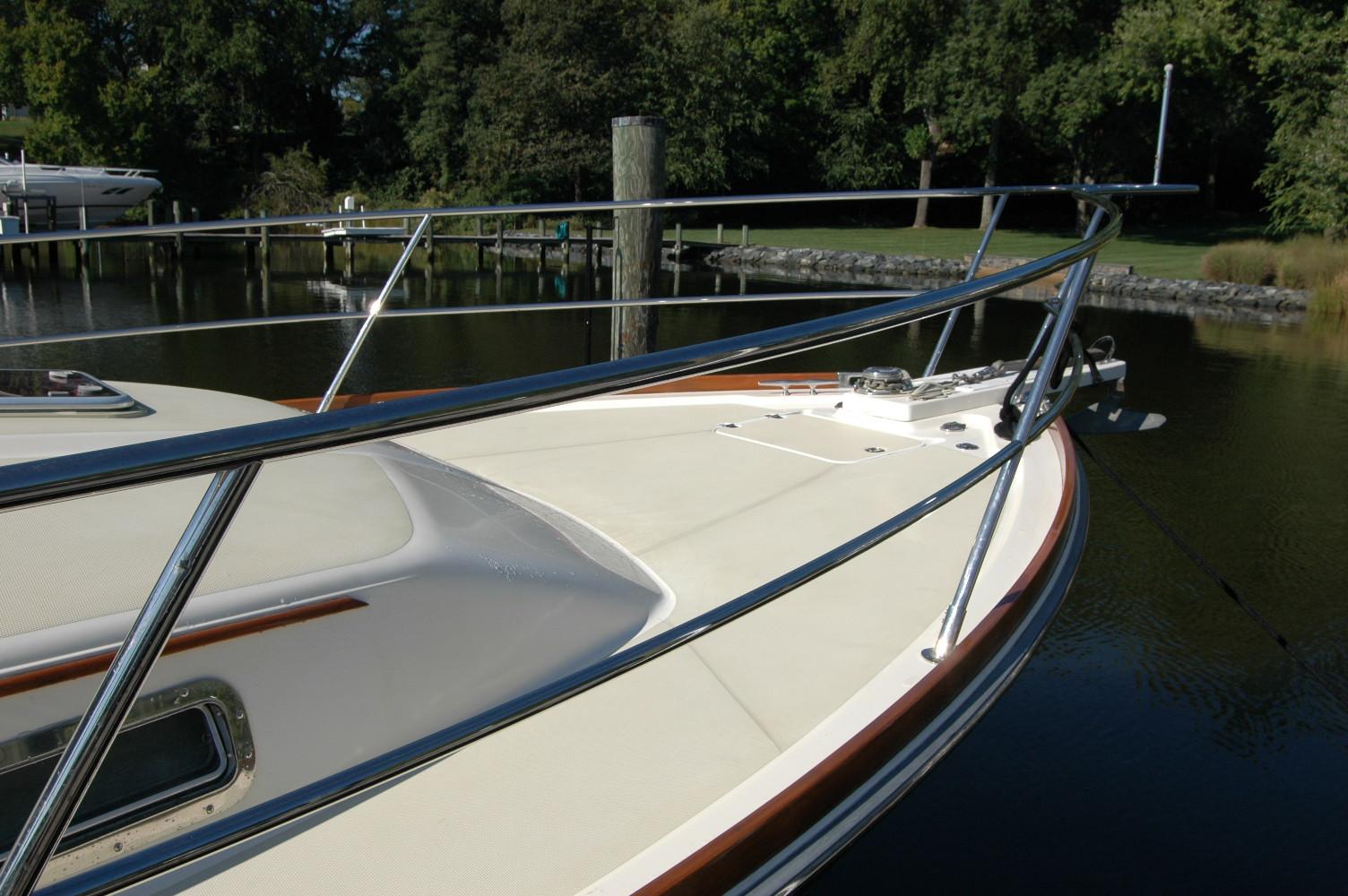

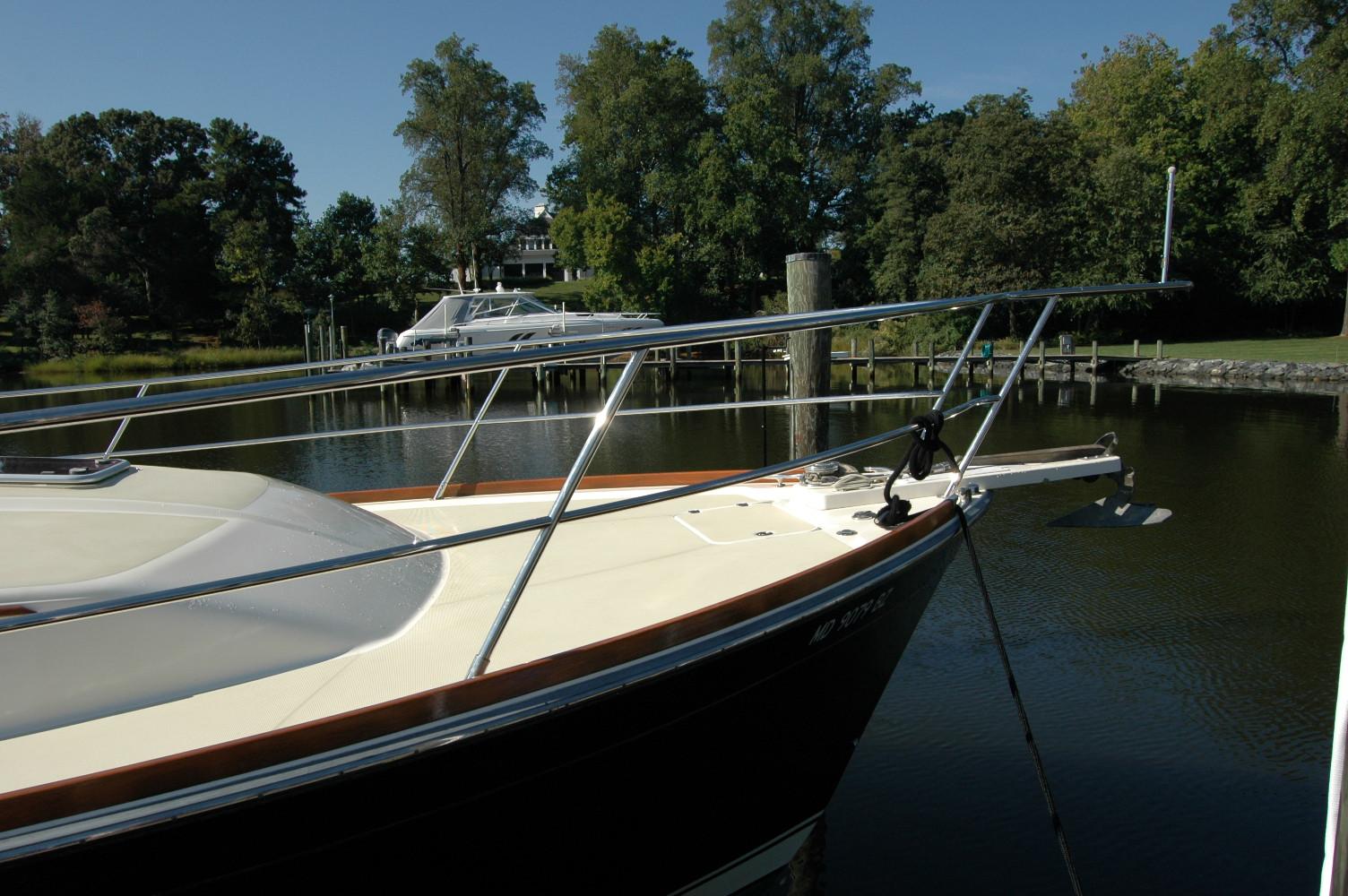

1 1/4" Diameter type 316 stainless steel perimeter rail system
(1) 10” Stainless Steel Cleat to starboard of windlass as anchor rode tie off.
Windlass Lewmar rope/chain
Single anchor roller sizes for 35# CQR or Delta
Flagpole holder and flag staff. Burgee staff on pulpit

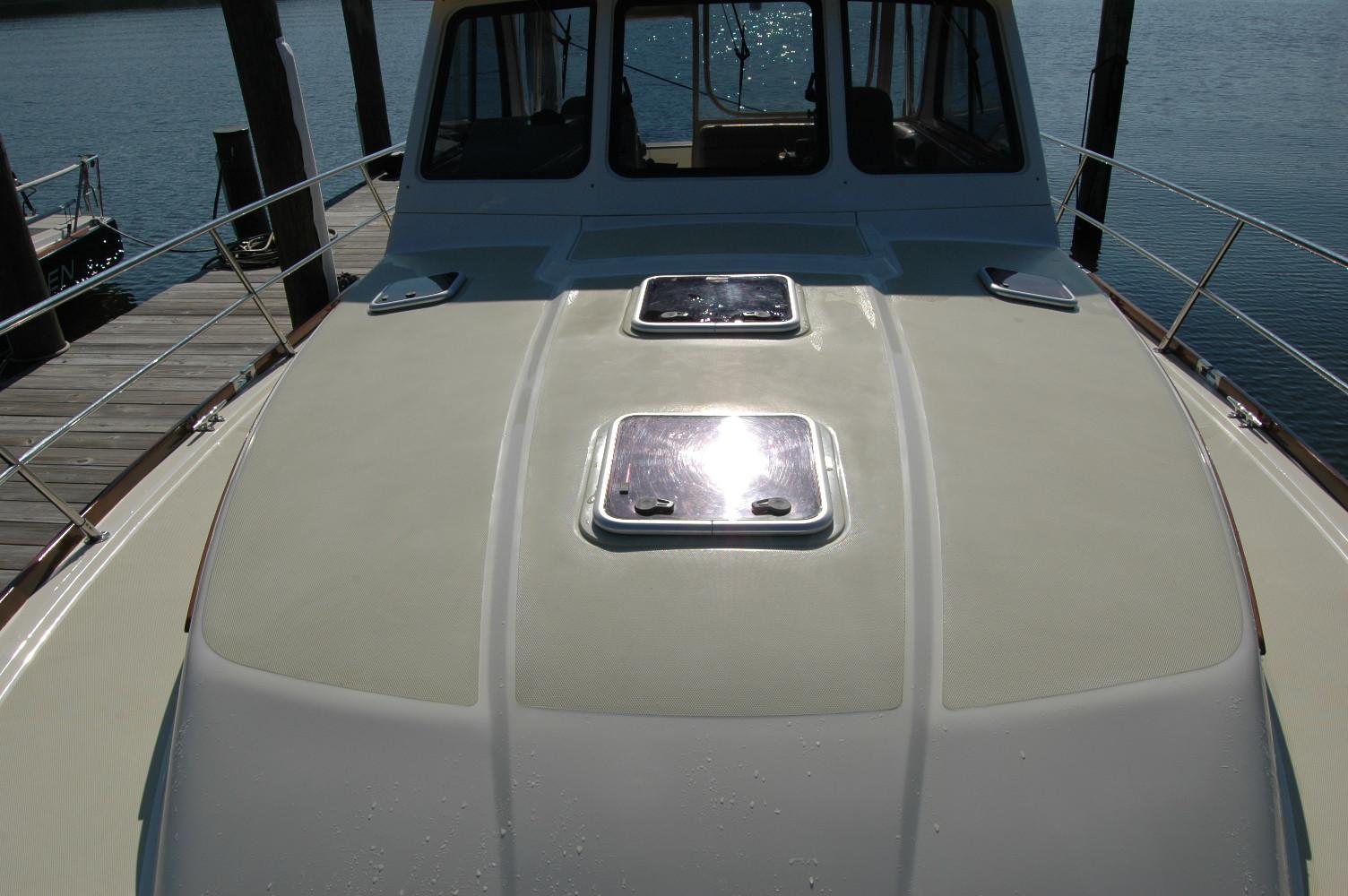

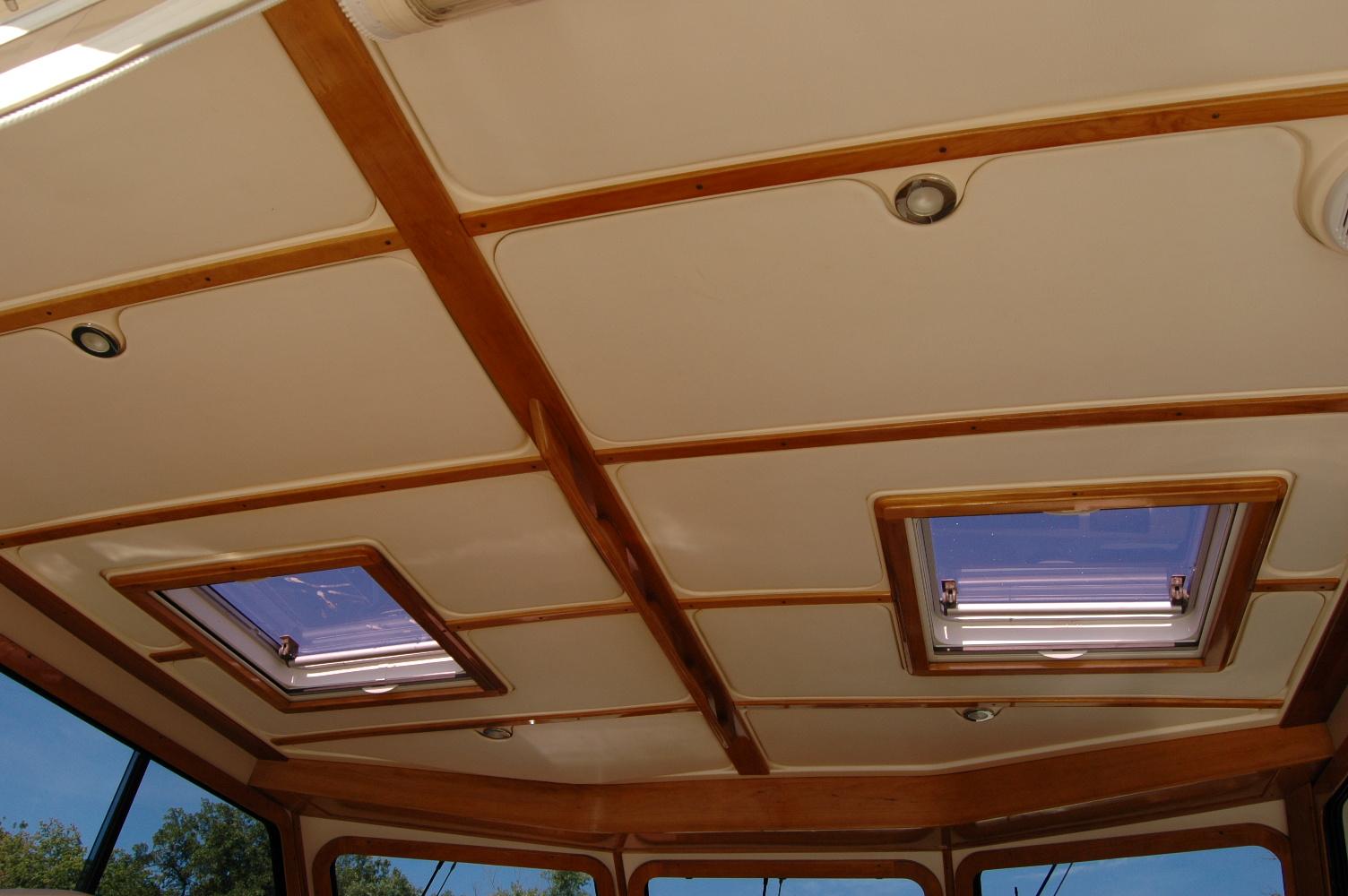

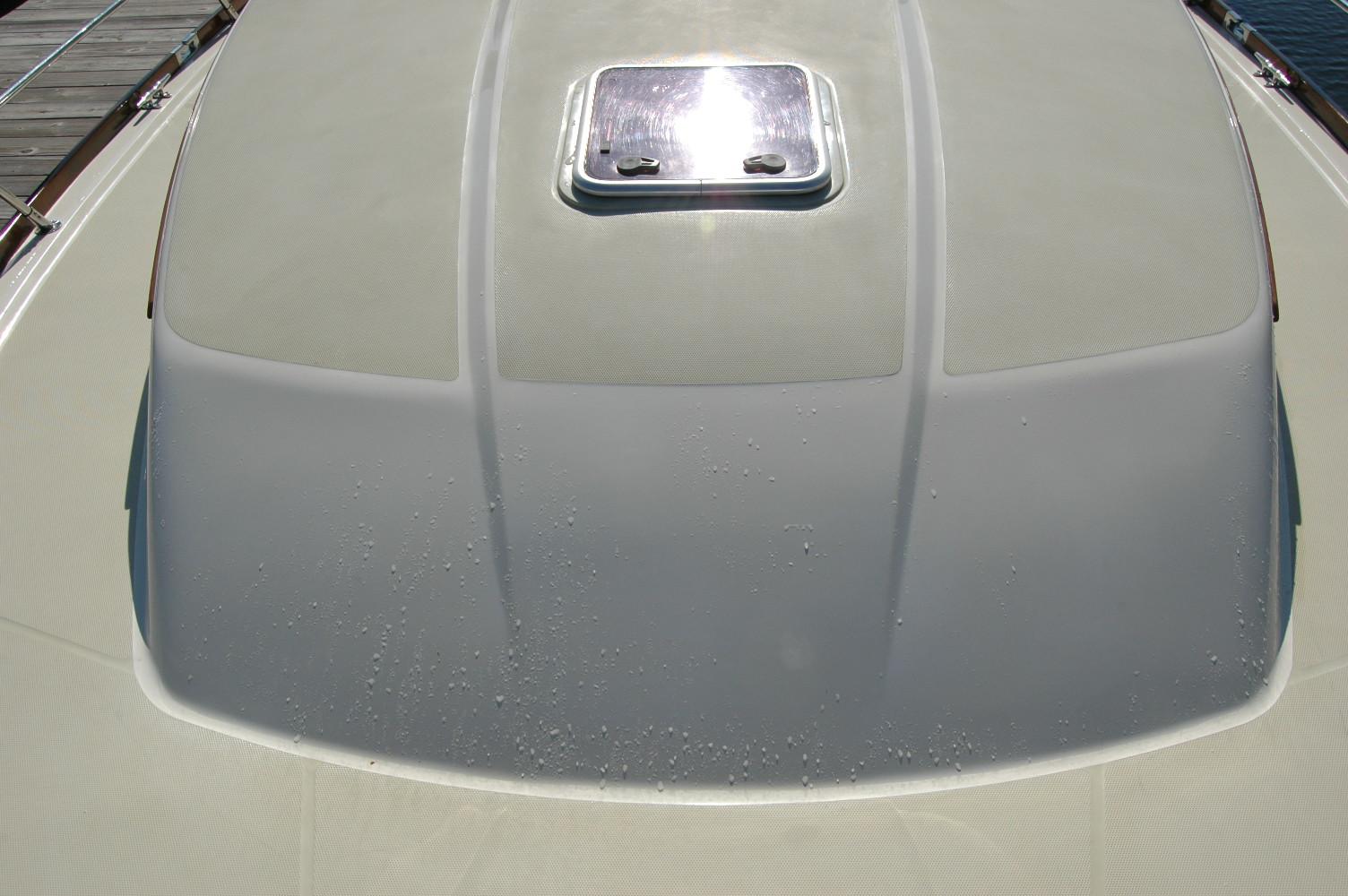

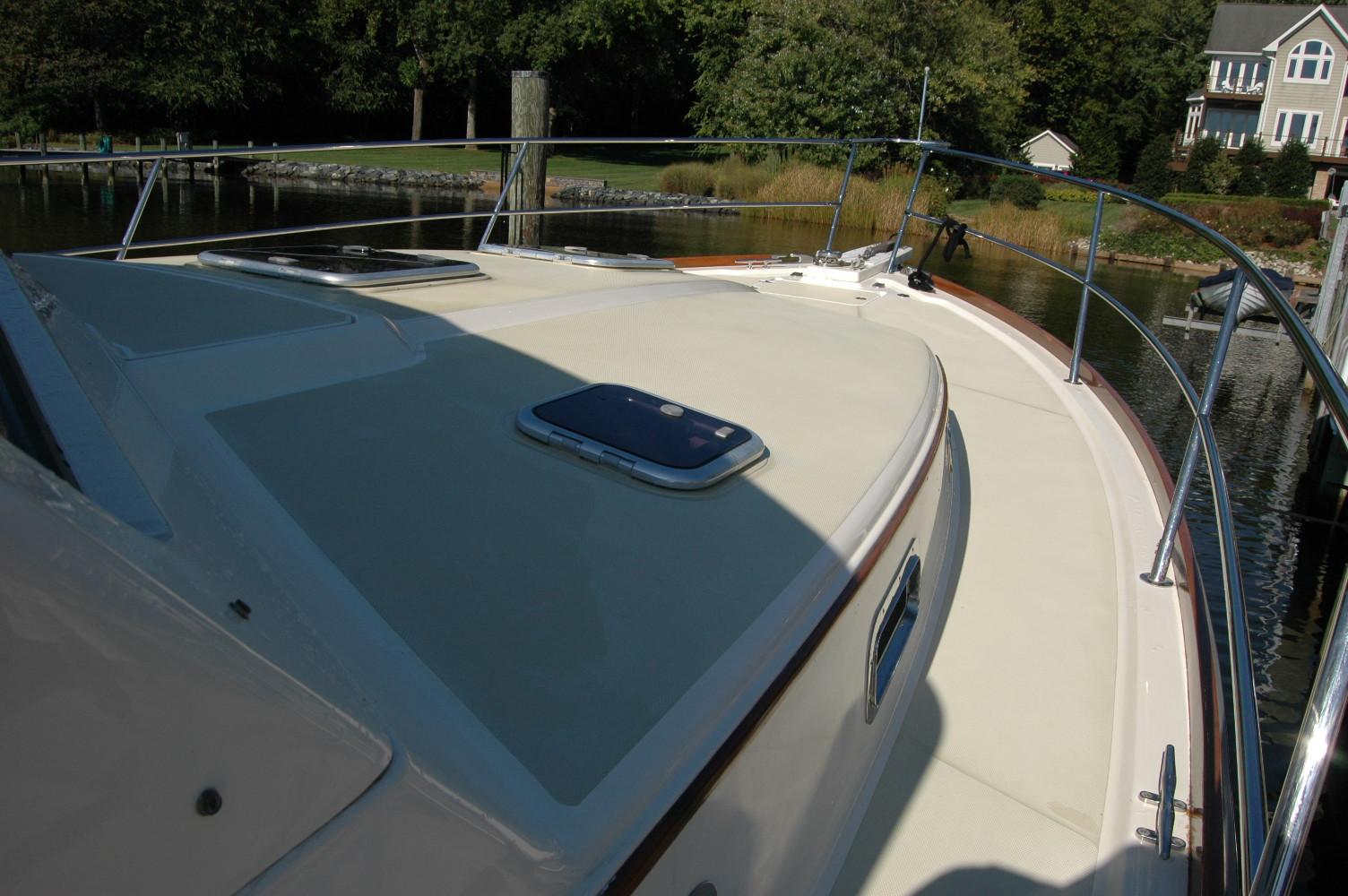

Lewmar Low Profile polished aluminum hatches w/screens (2) #44 on foredeck, (2) #10 port and starboard.
Custom stainless steel opening ports.
Teak toe rails port and starboard with custom stainless steel cast mid rail chocks and forward skene chocks
Teak cabin side eye-brow

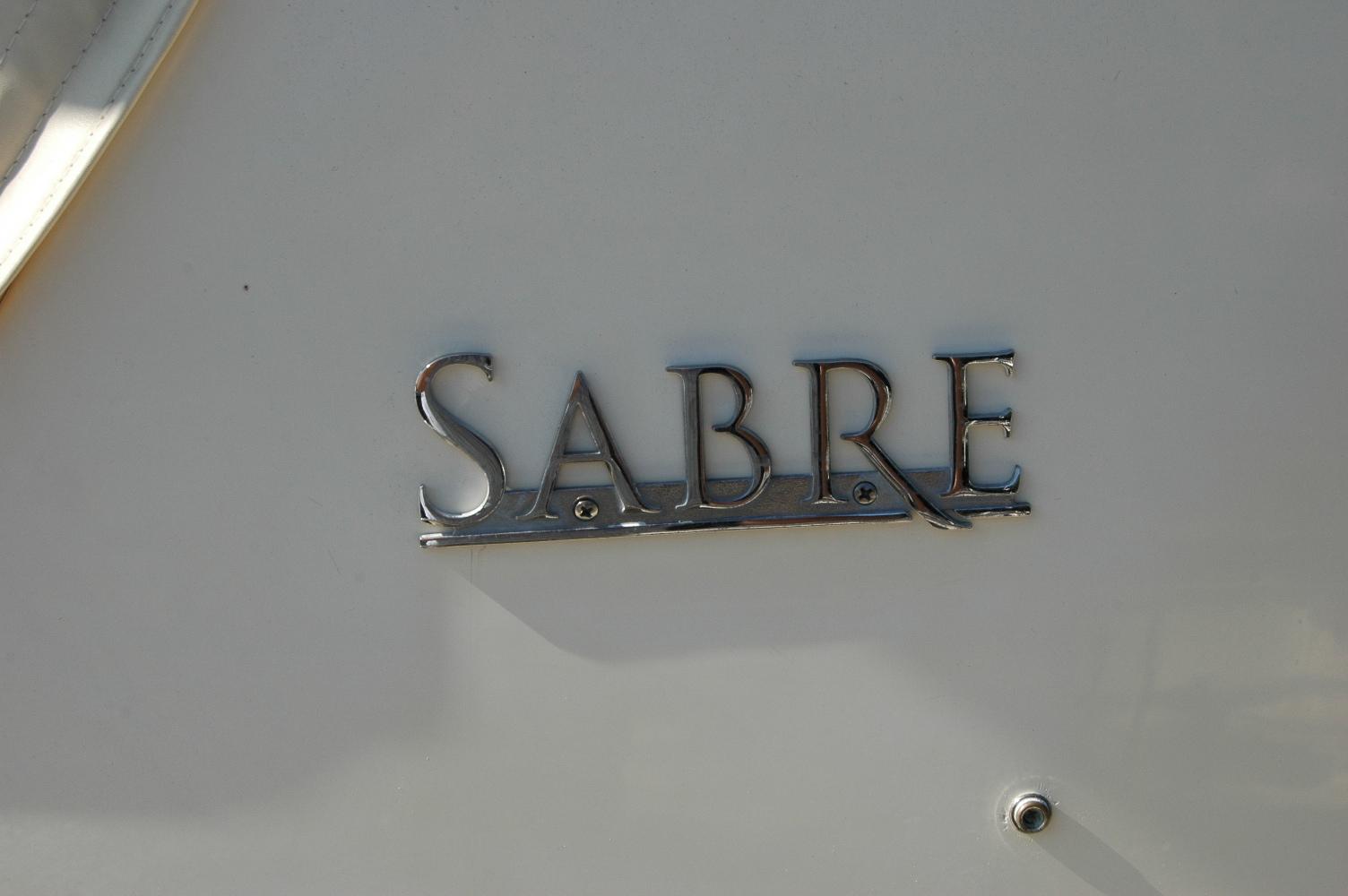

Custom cast stainless steel "Sabre" medallion
Cast stainless steel corner hawse pipes in cockpit coamings
Anchor wash down pump & connection (Freshwater)

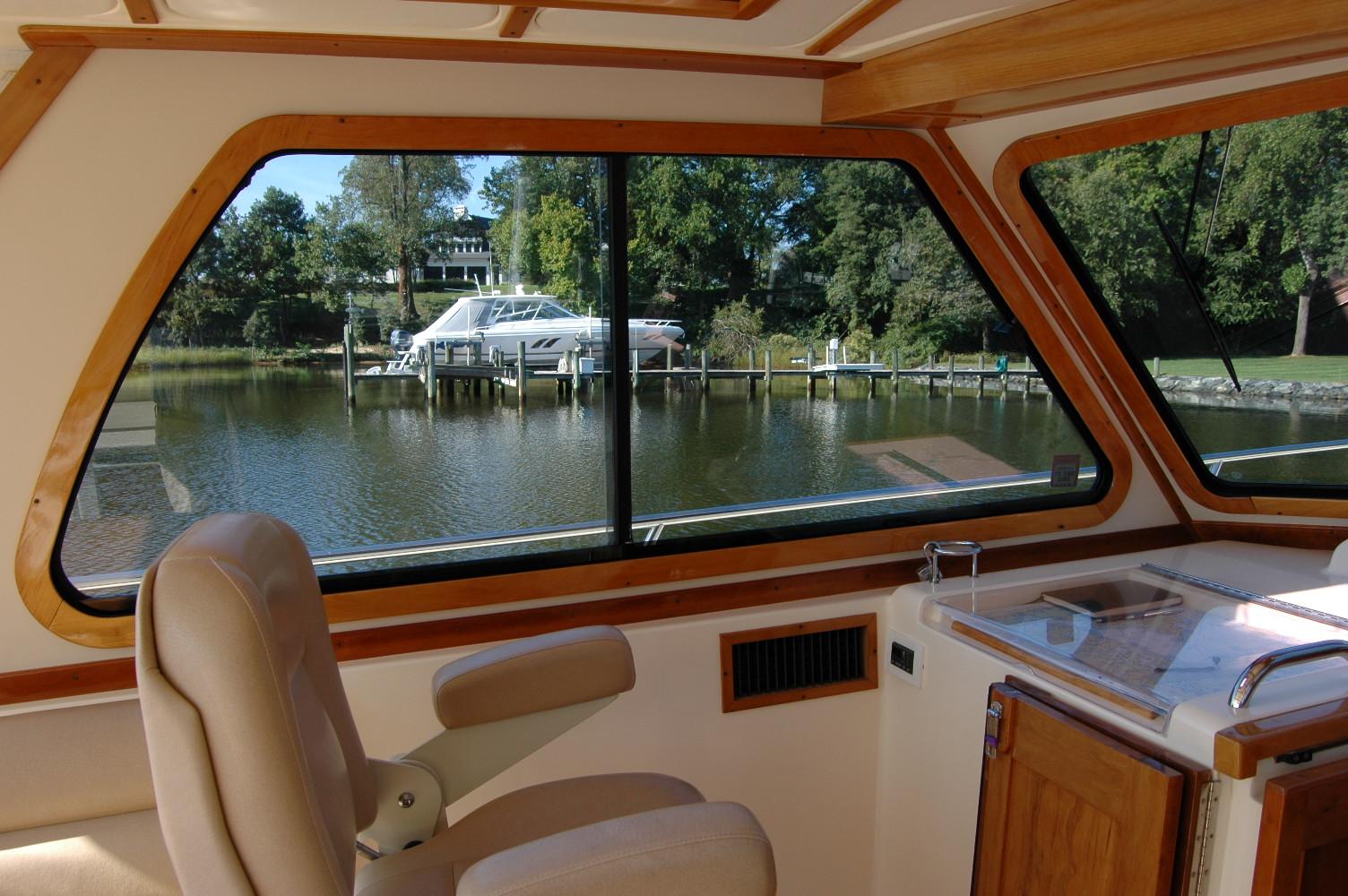

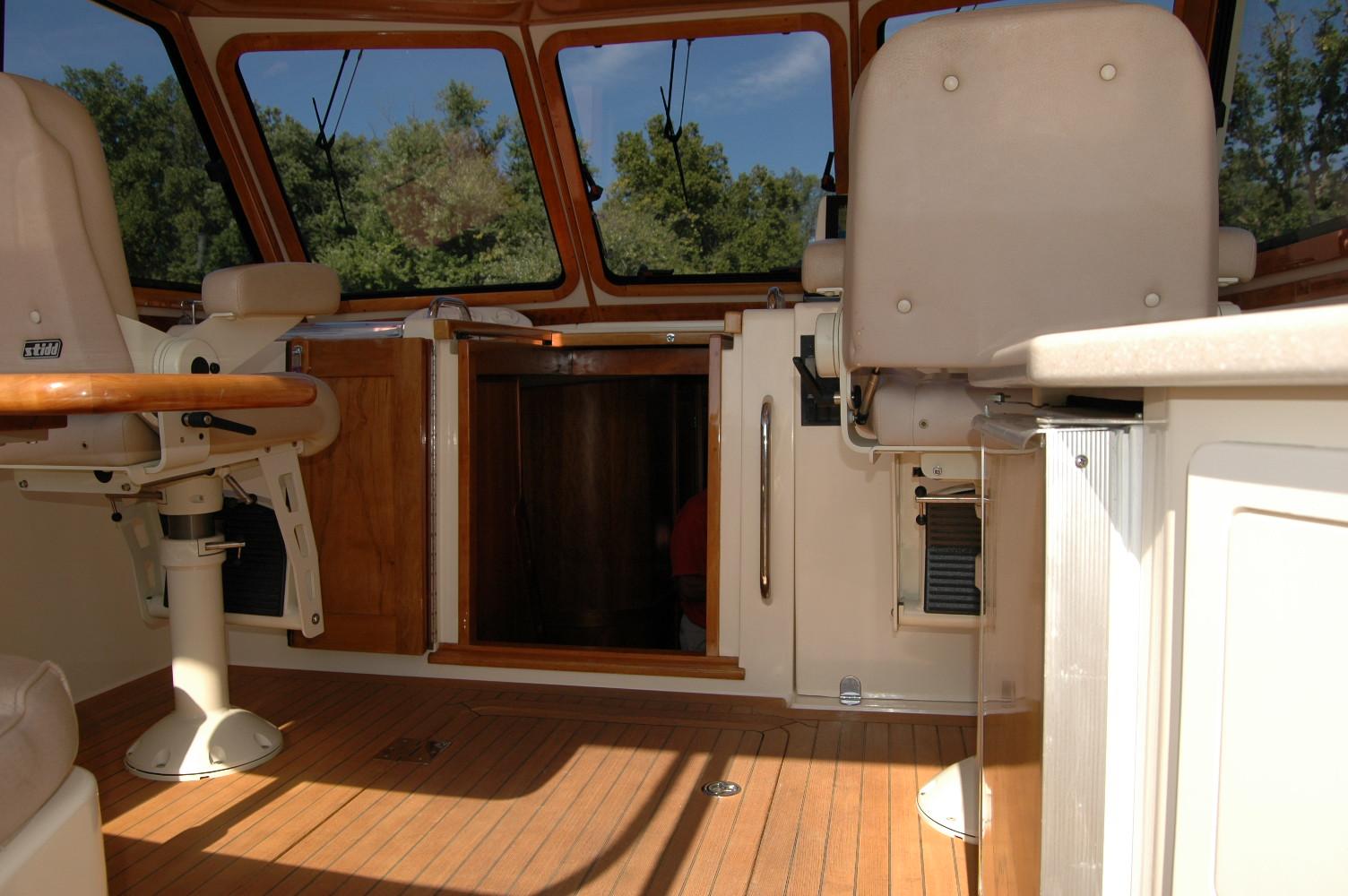

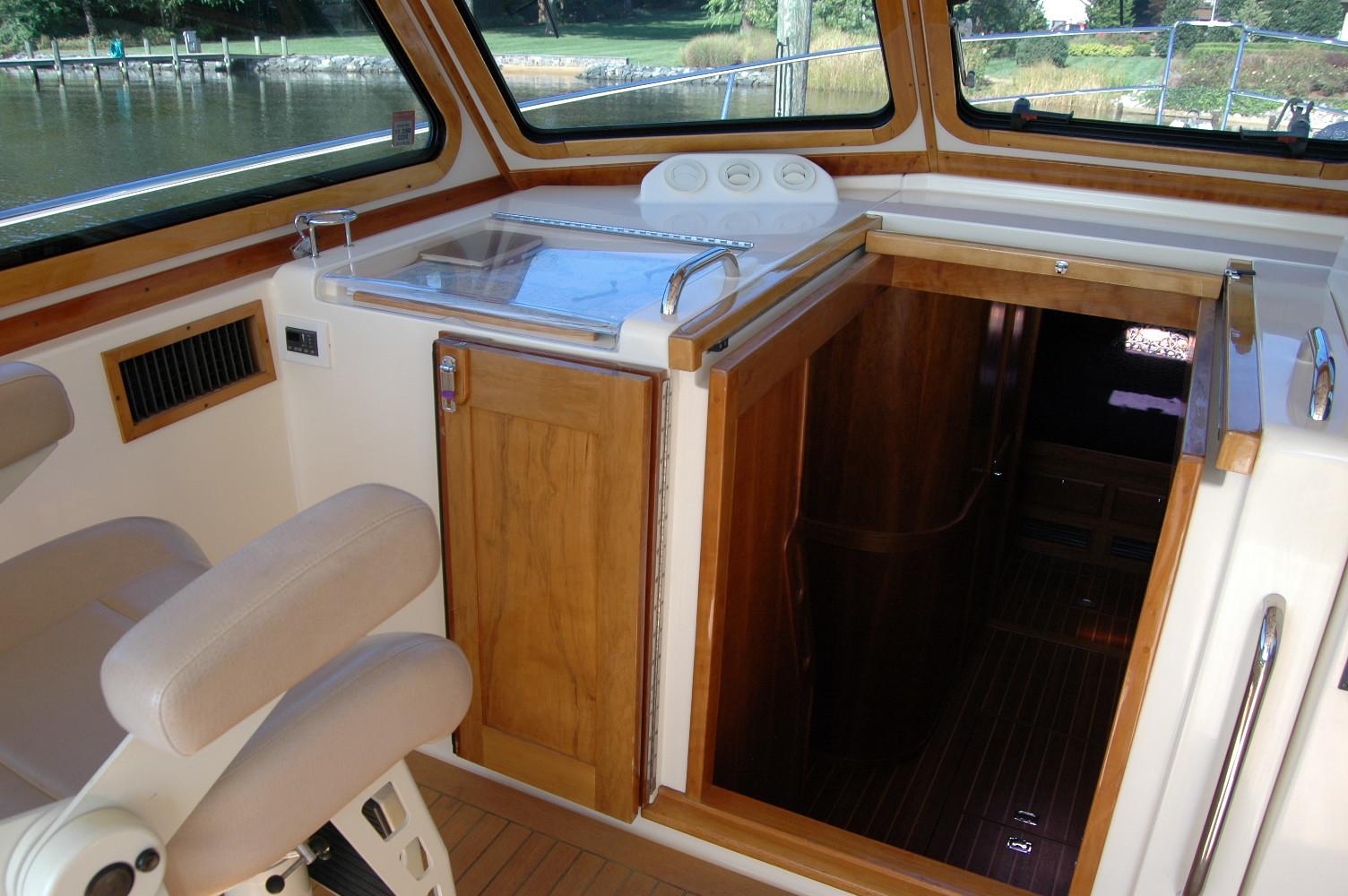

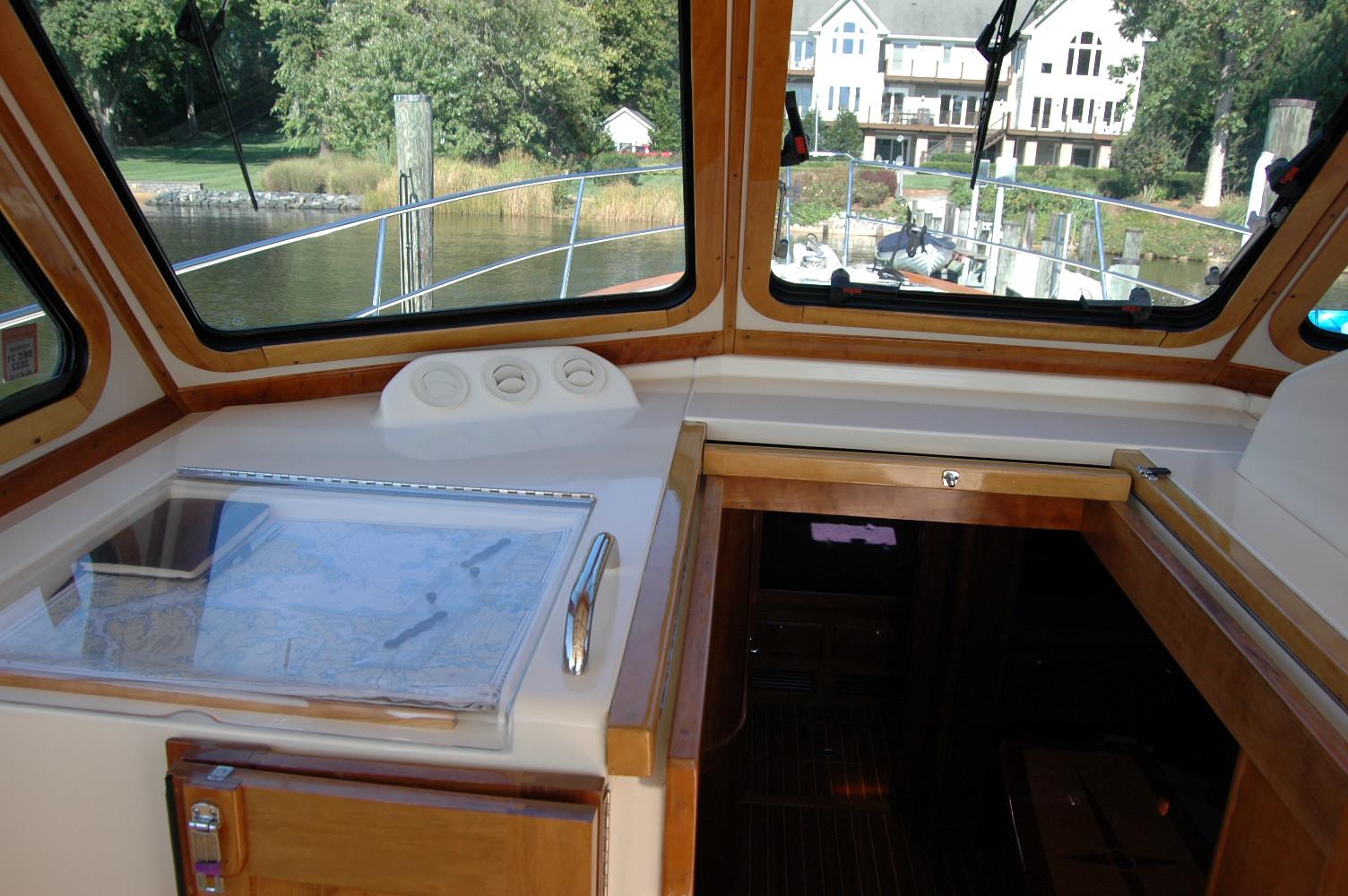

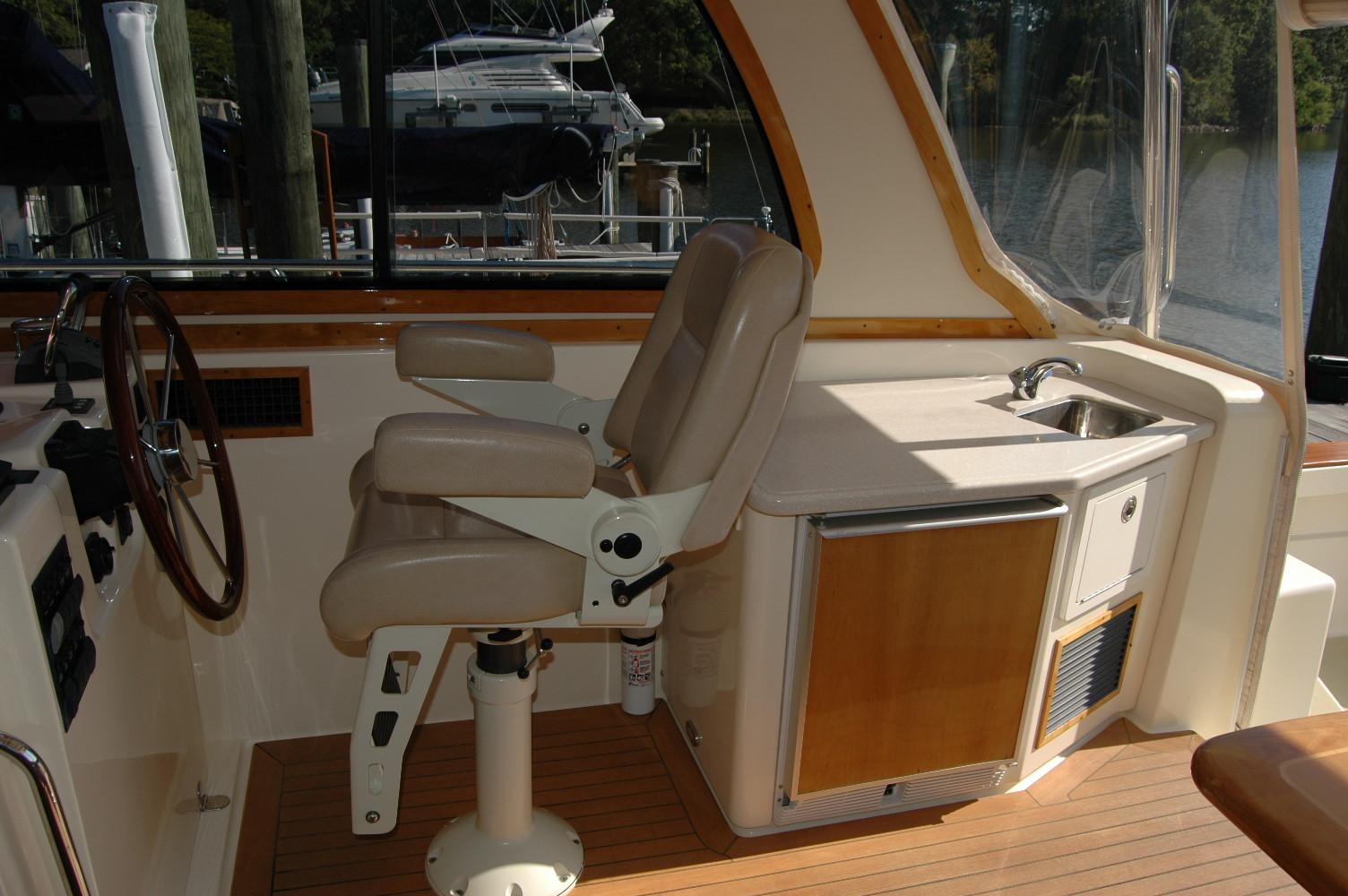

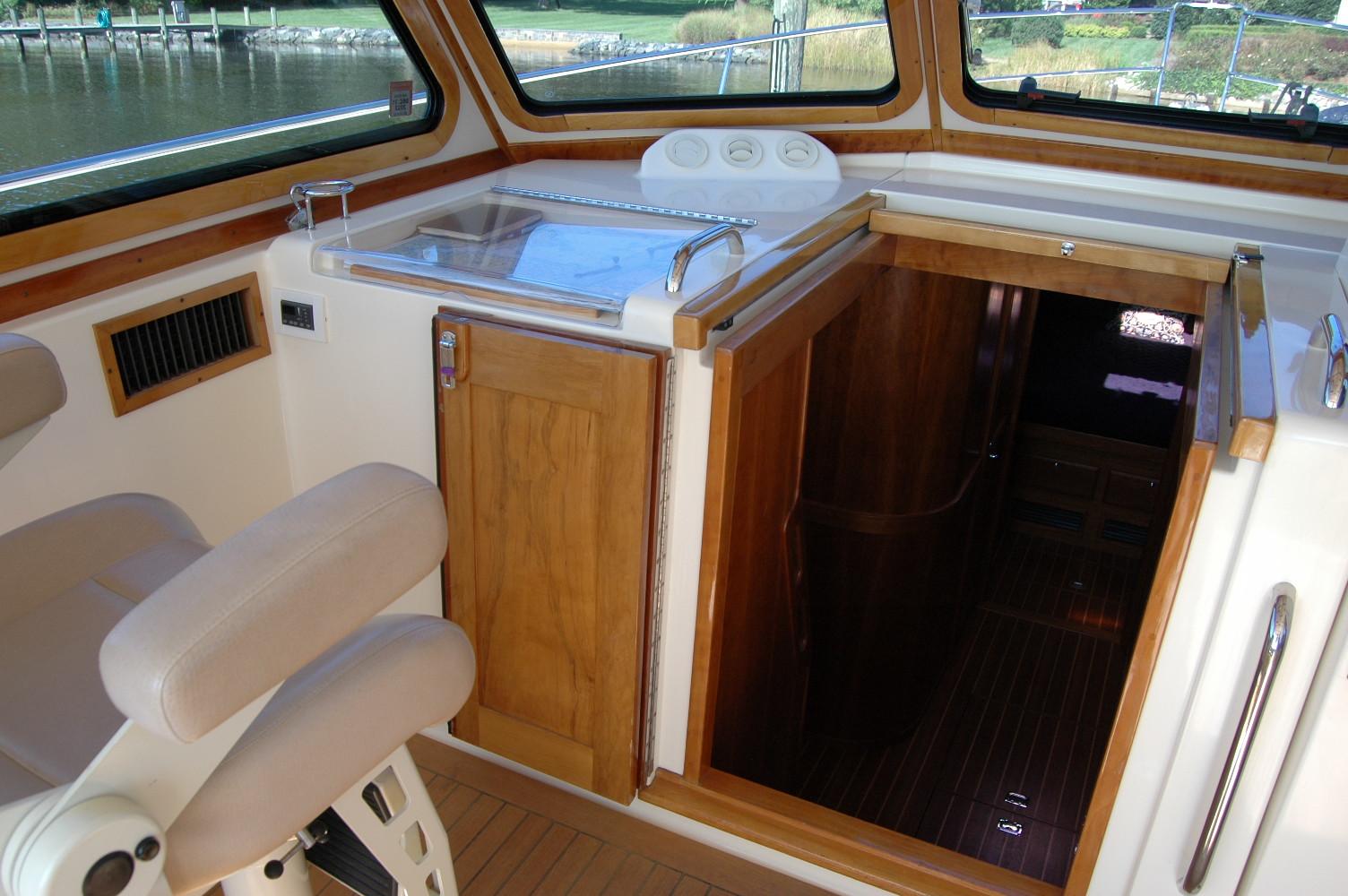

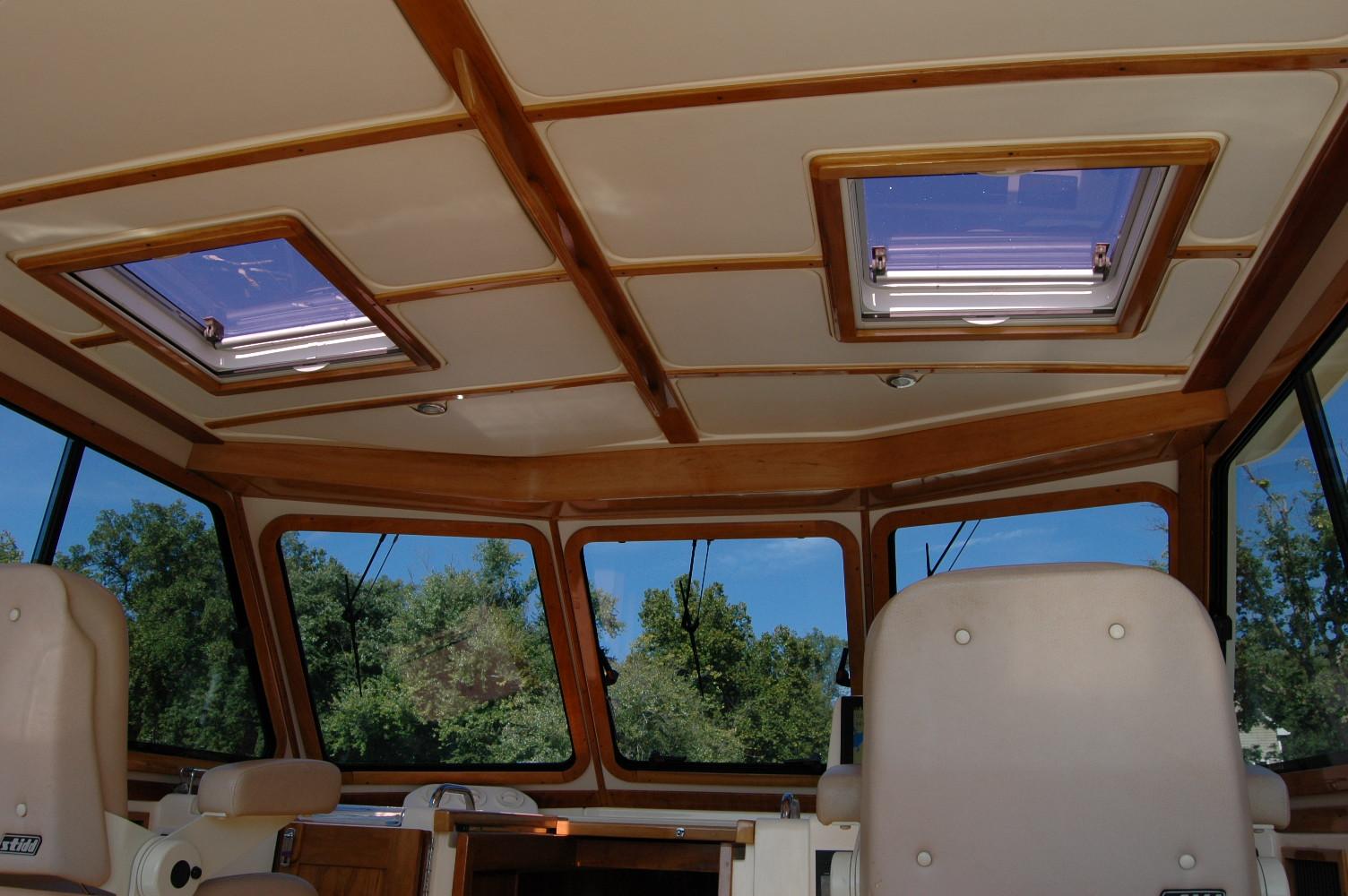

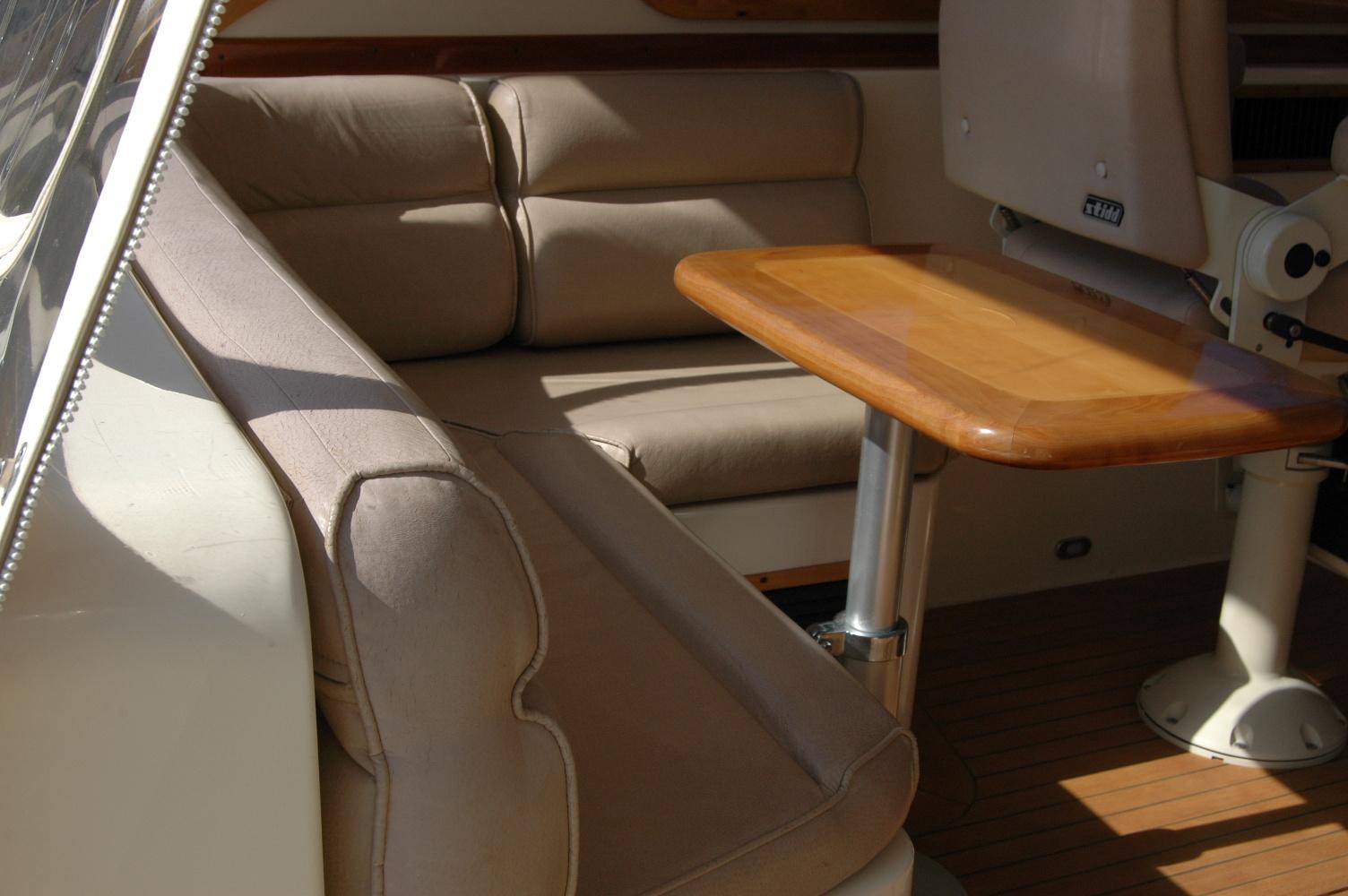

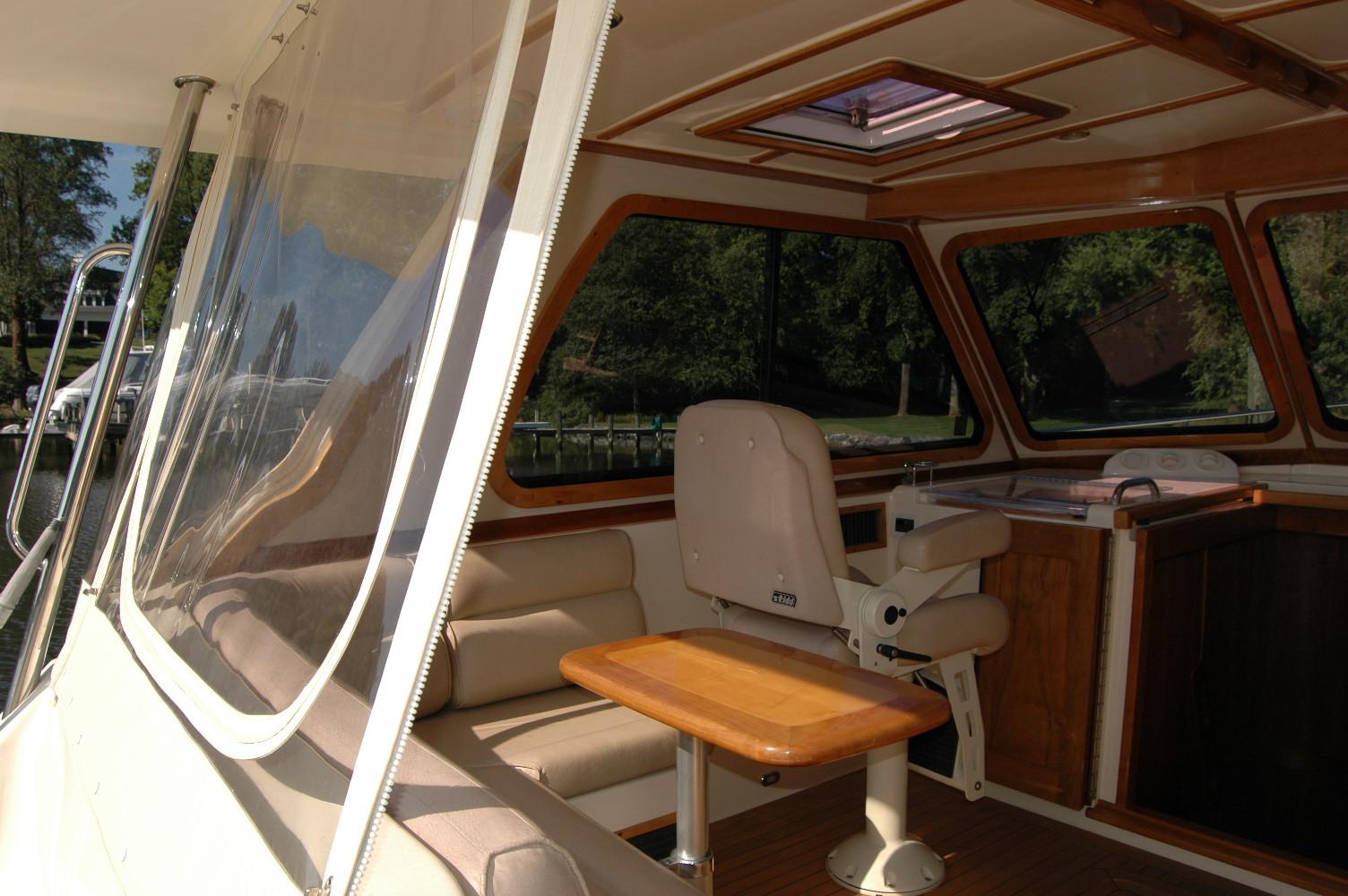

Upper Helm Deck

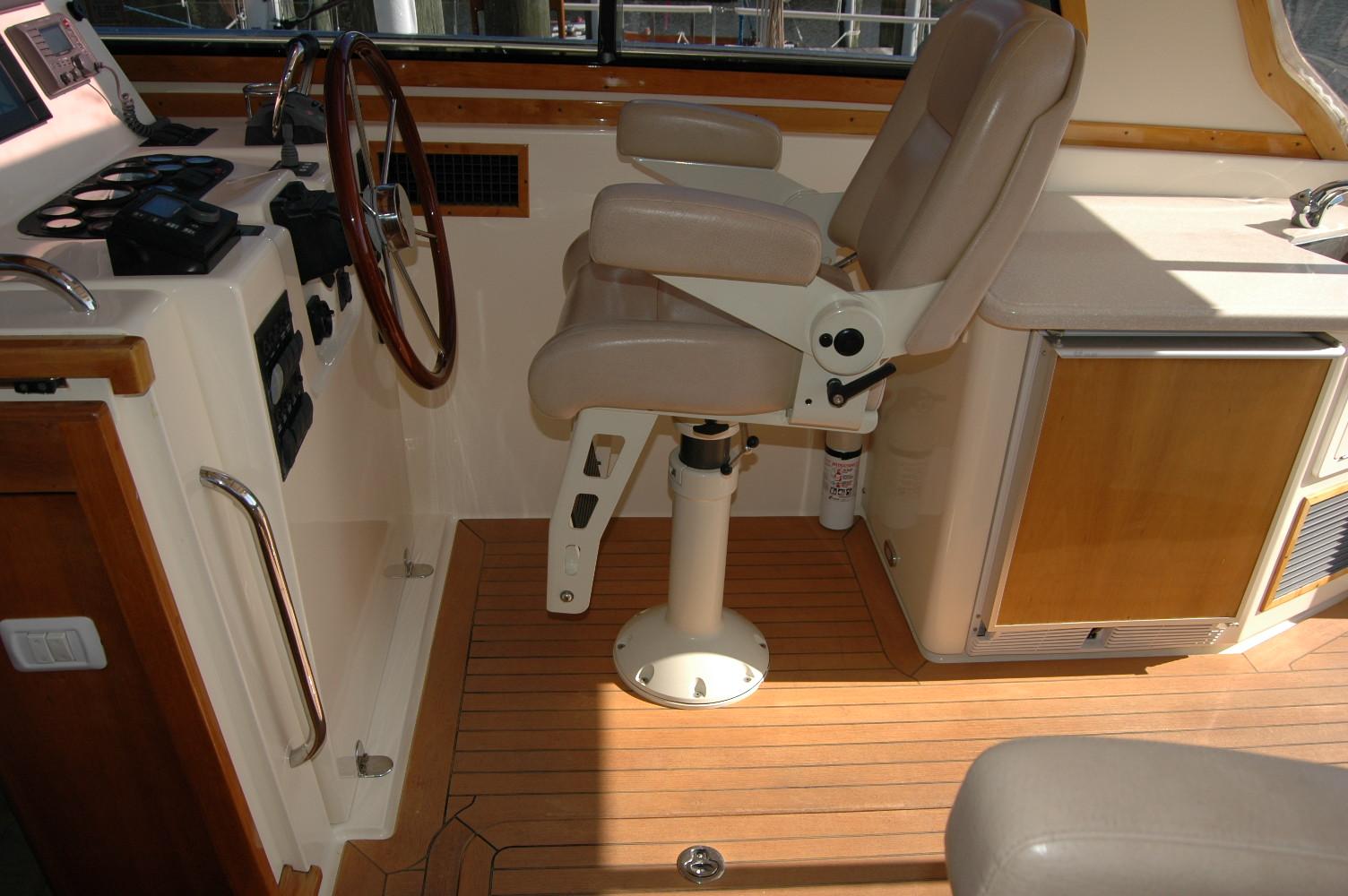

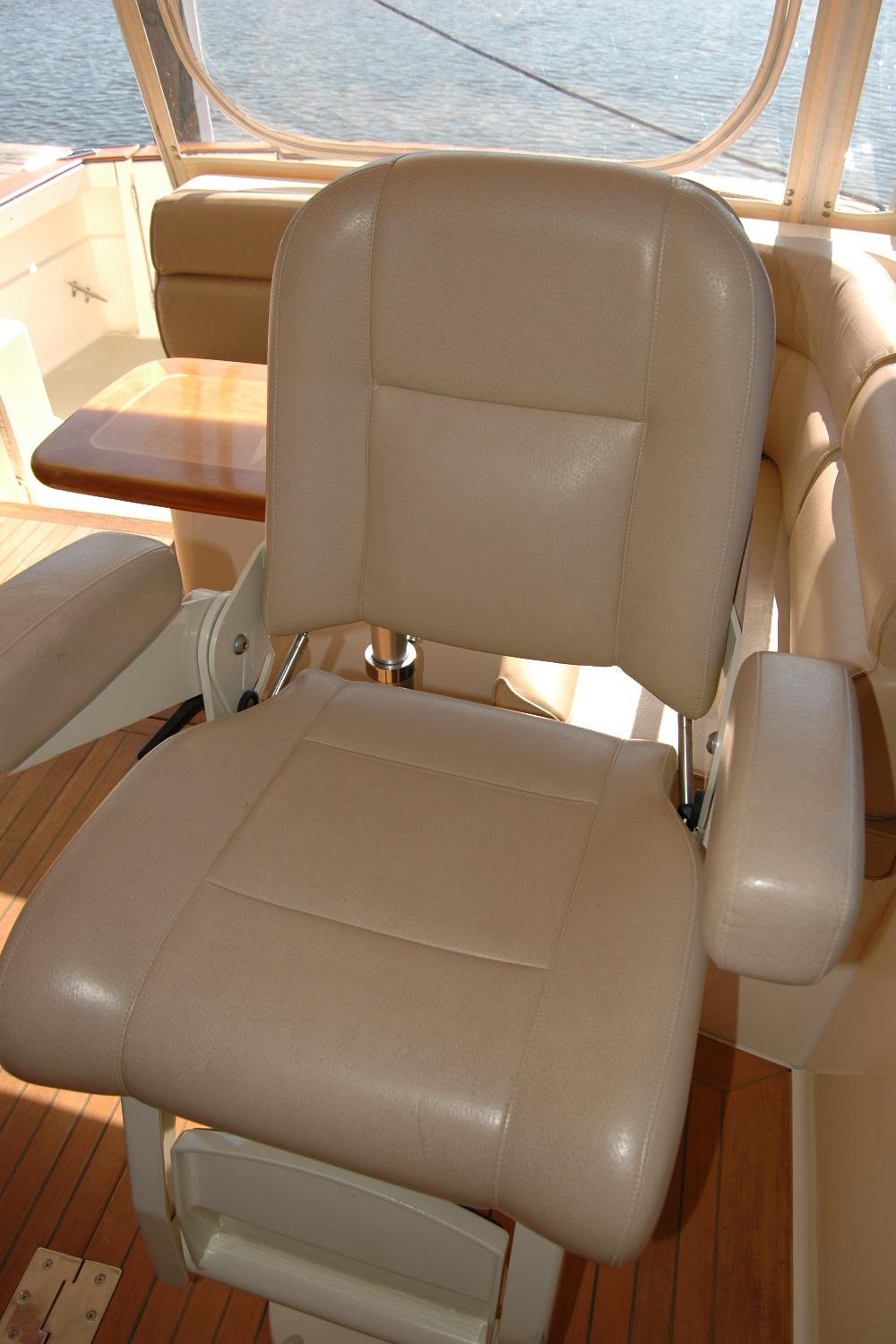

Stidd helm and mate’s seat
Standard wood in helm area is cherry

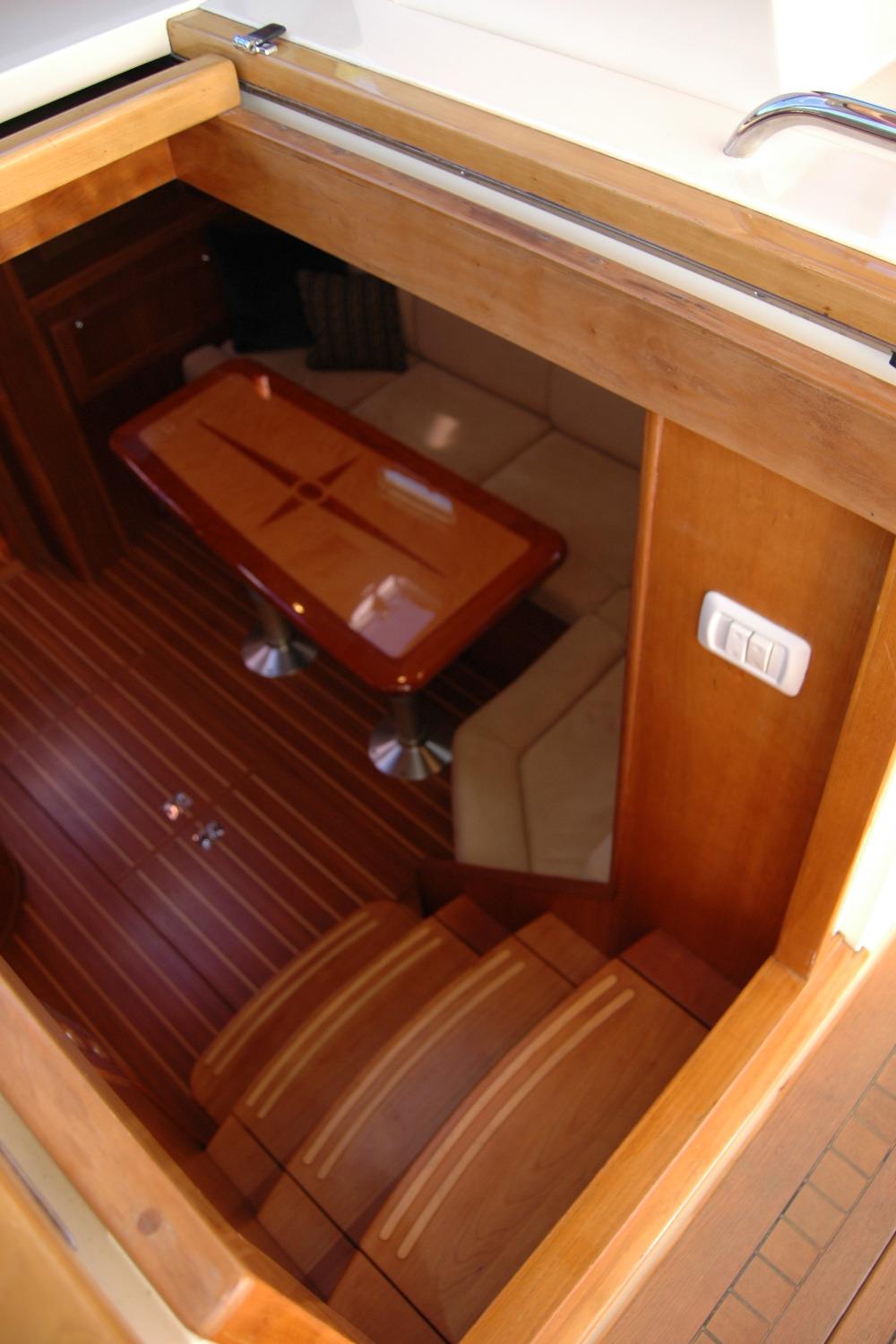

Sliding companionway hatch (smoked)

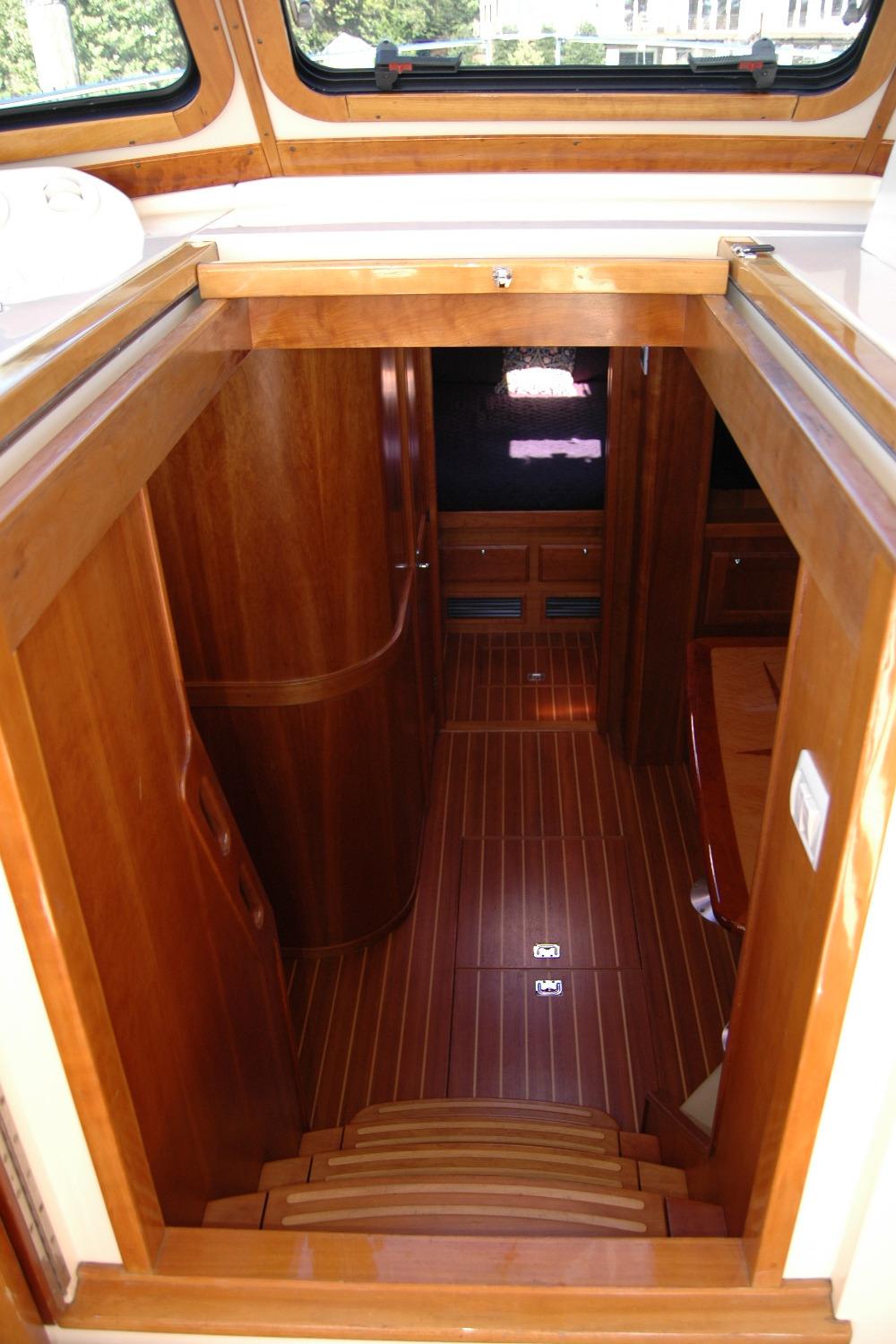

Bi-fold teak companionway door

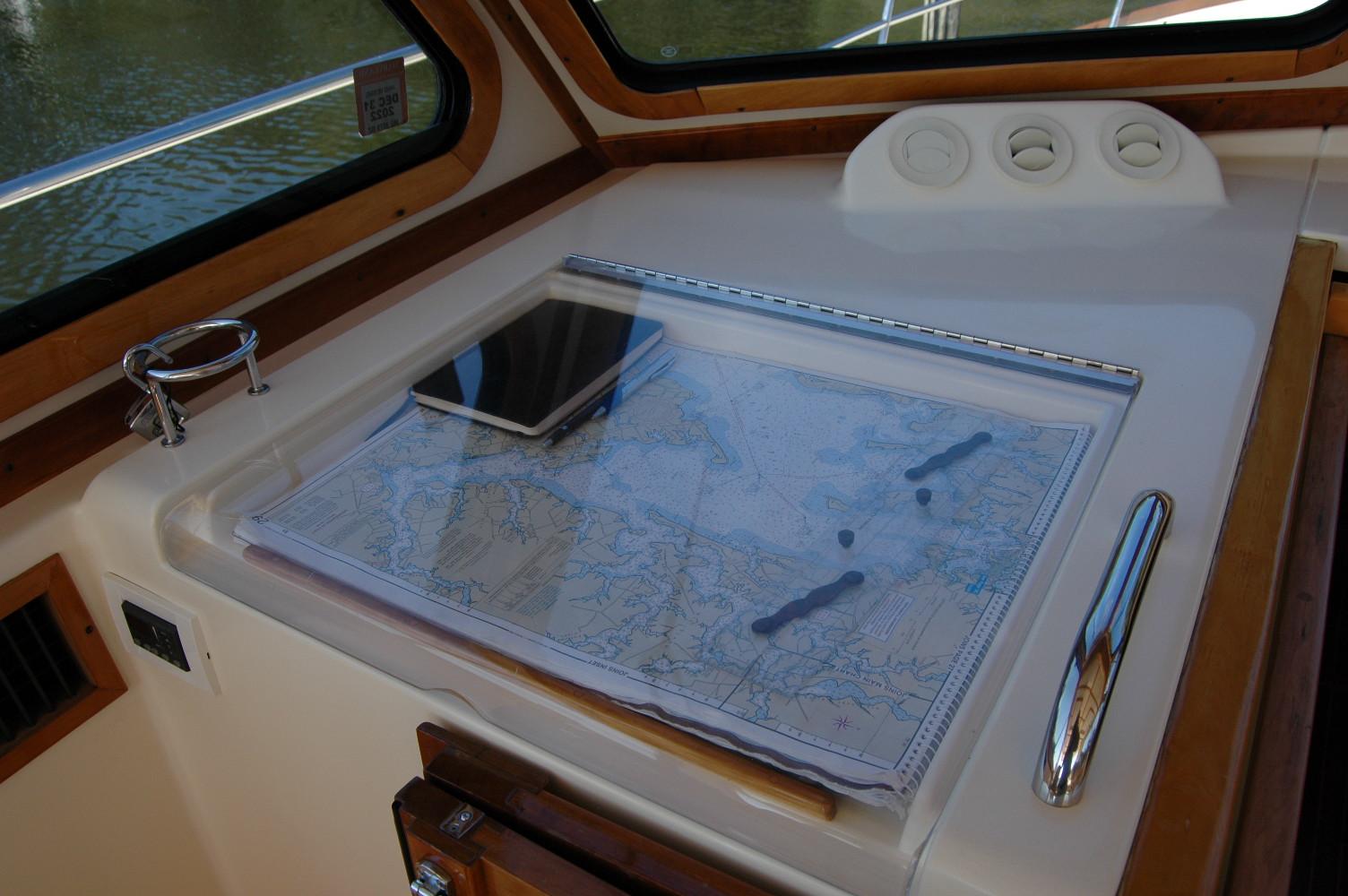

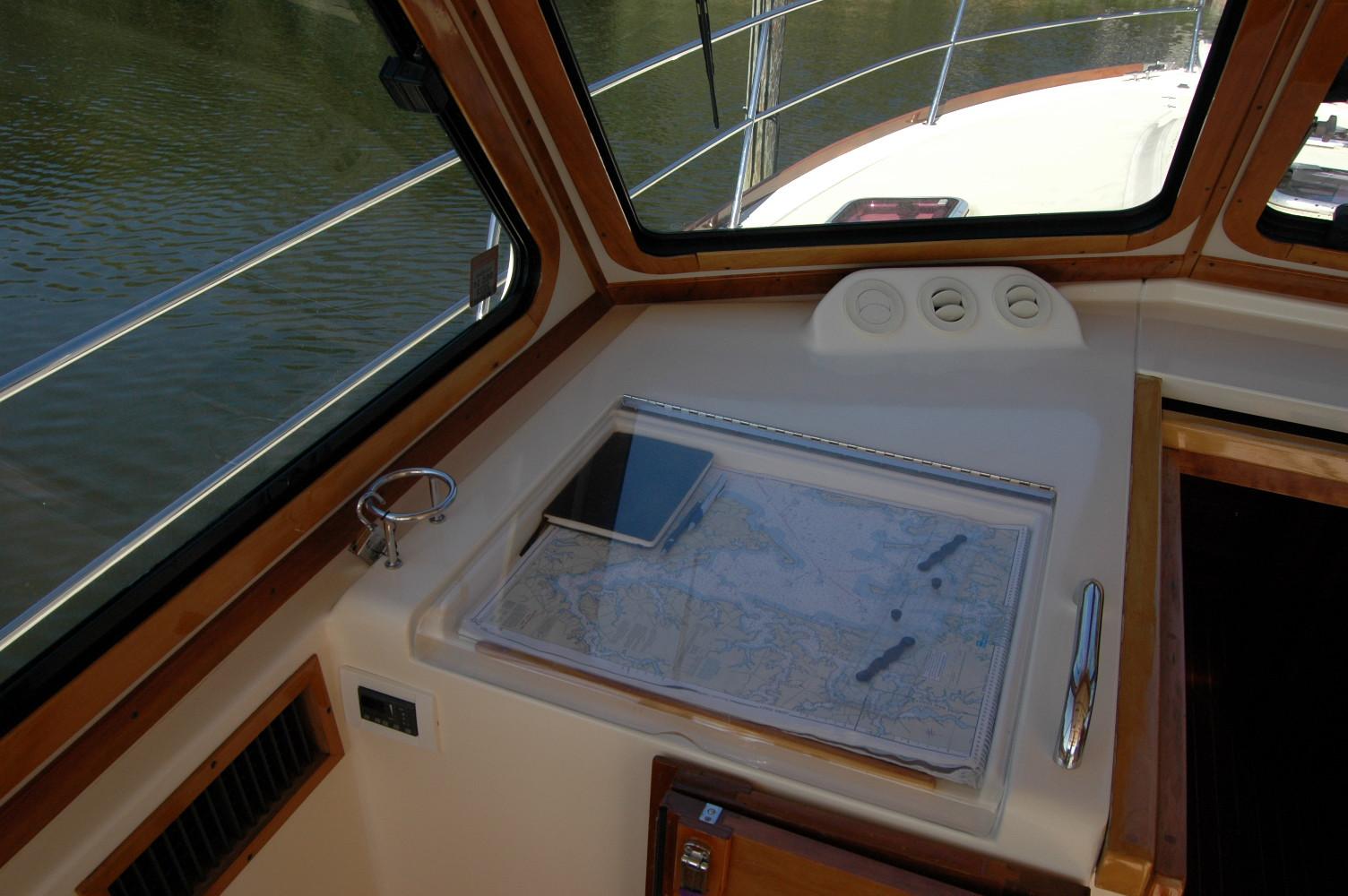

Clear chart locker cover

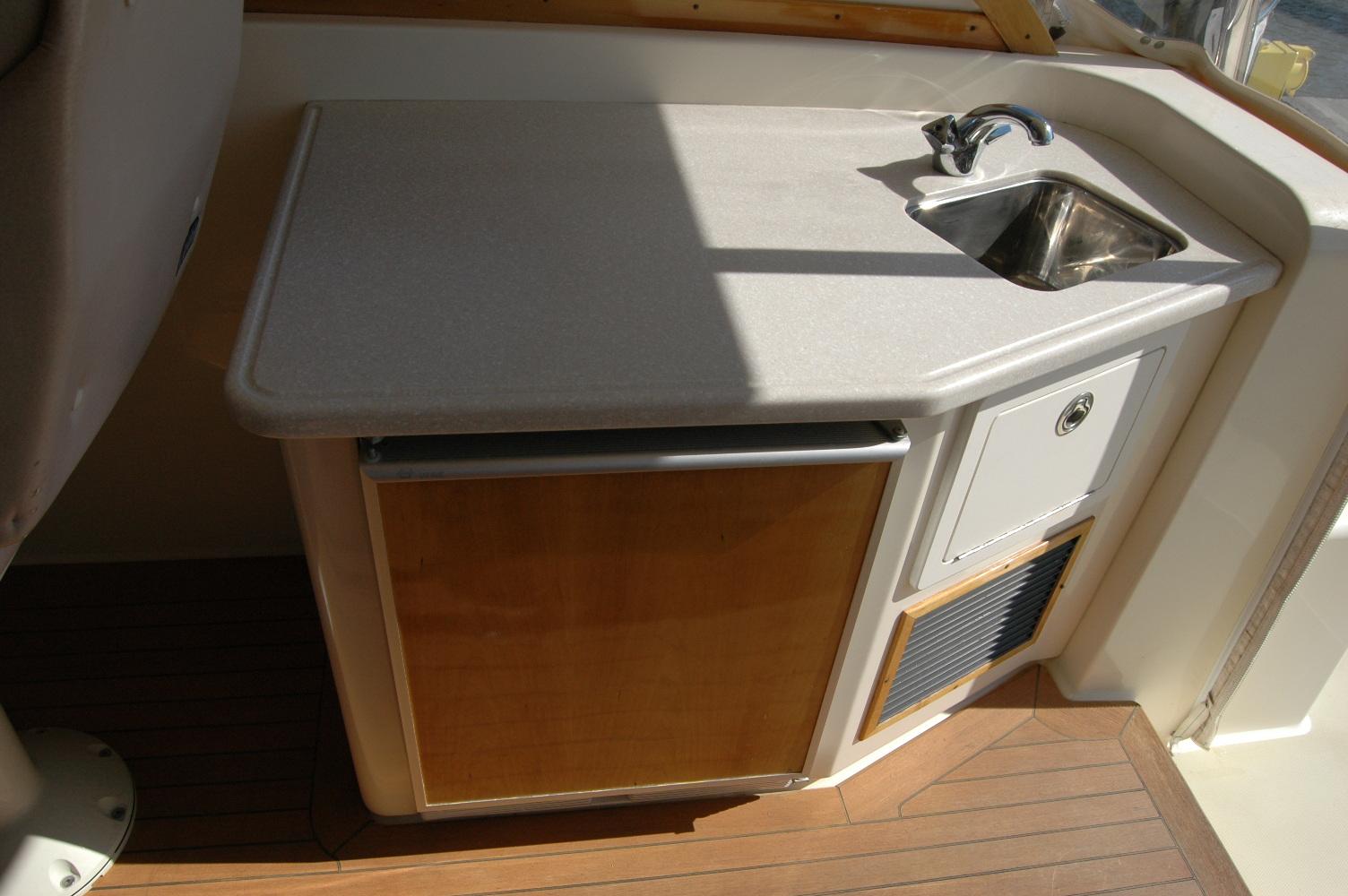

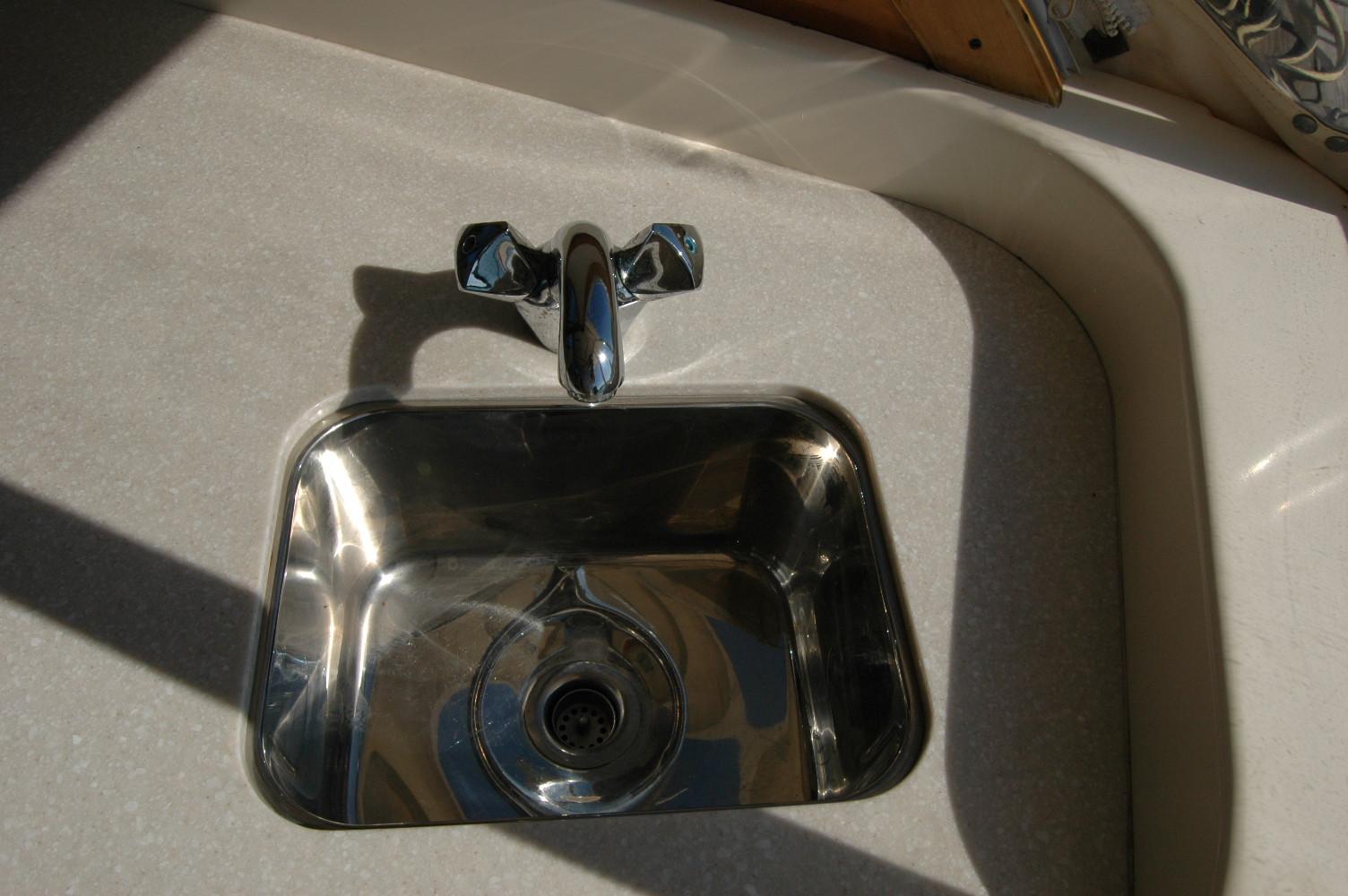

Wet bar with Corian countertop
U-Line Ice Maker/ Refrigerator model COMBO-29FF, surface mounted.
Forward facing bench with footrest. Dry storage below.
High-Gloss Pedestal mounted table

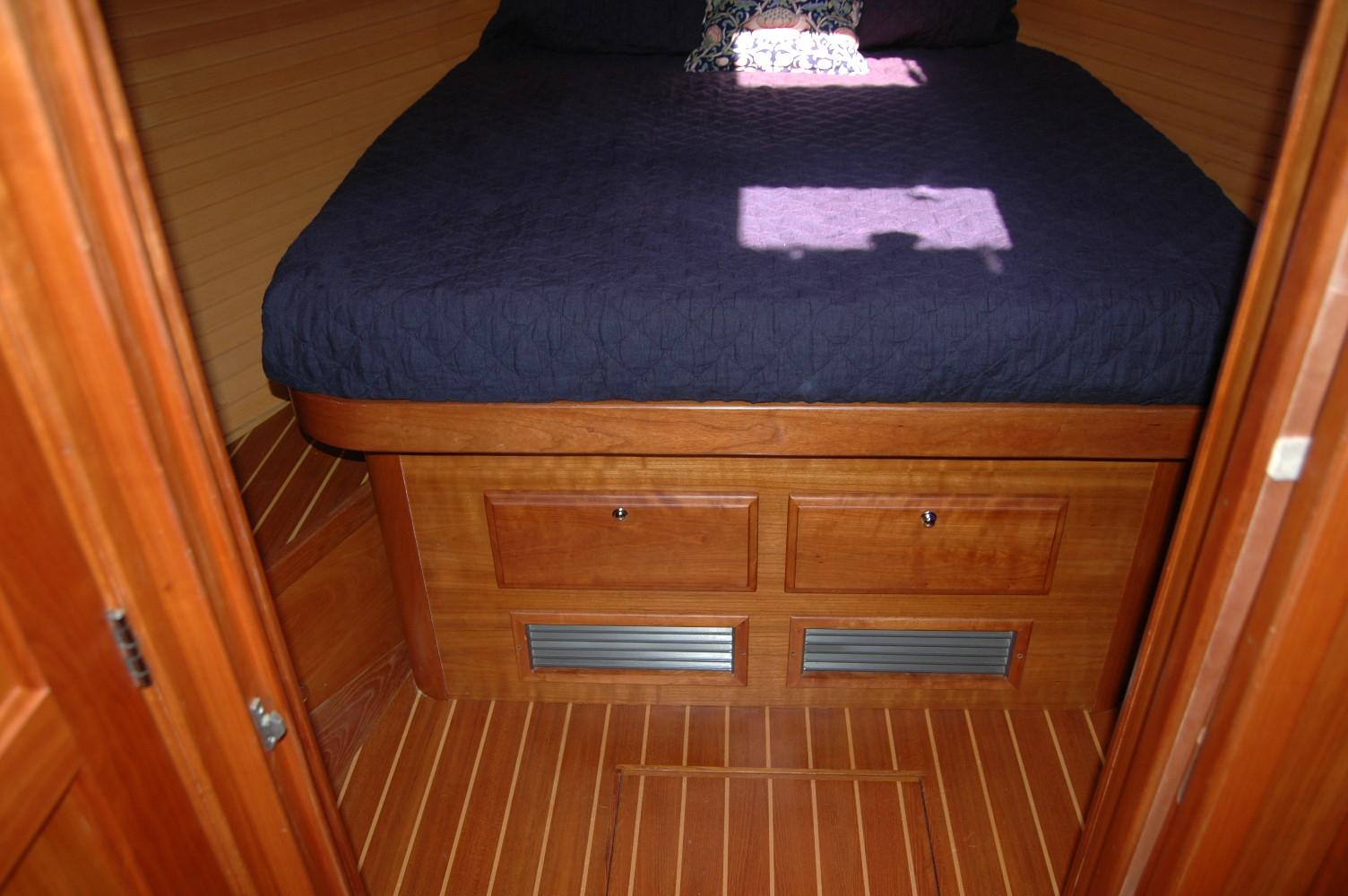

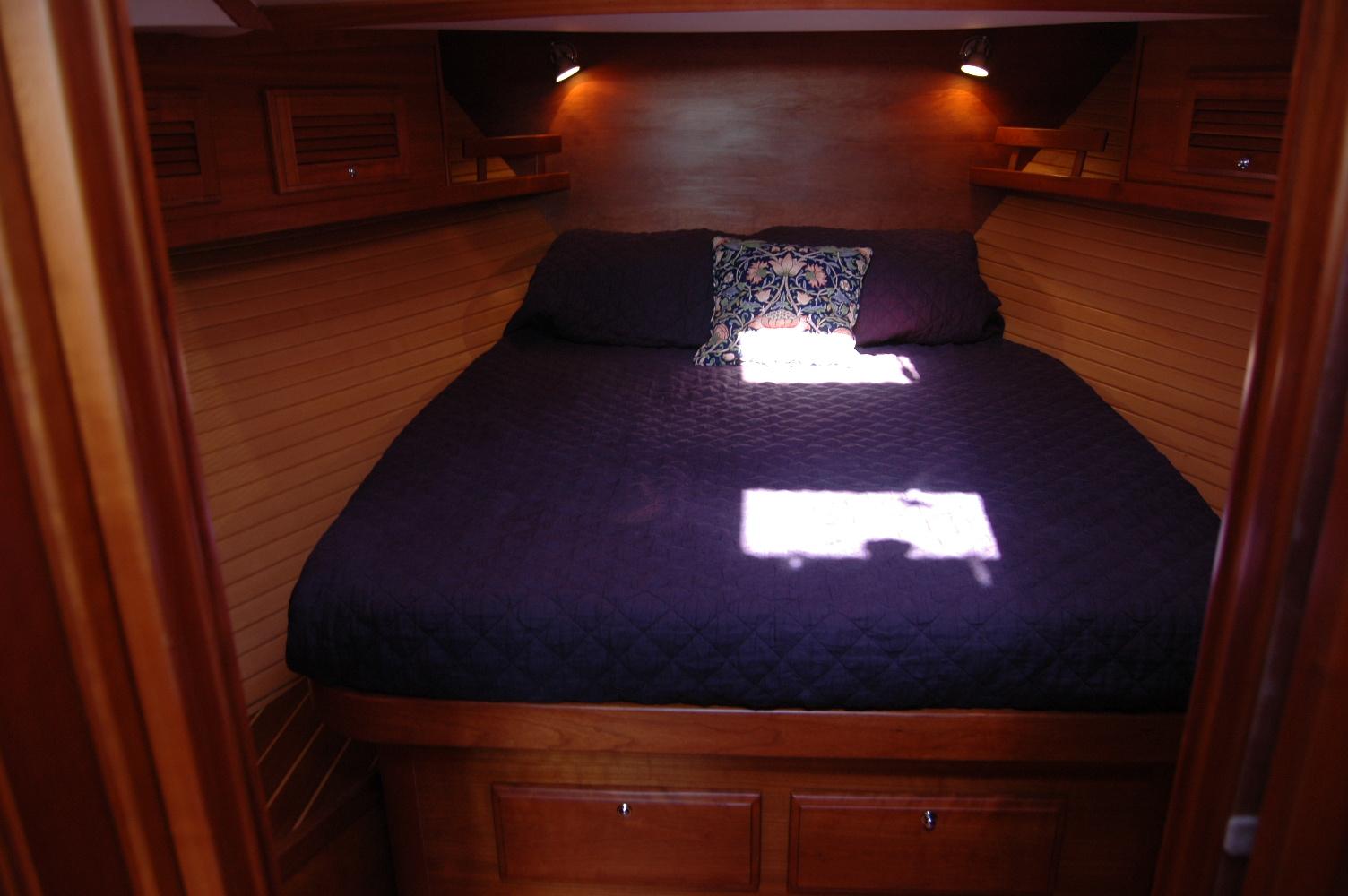

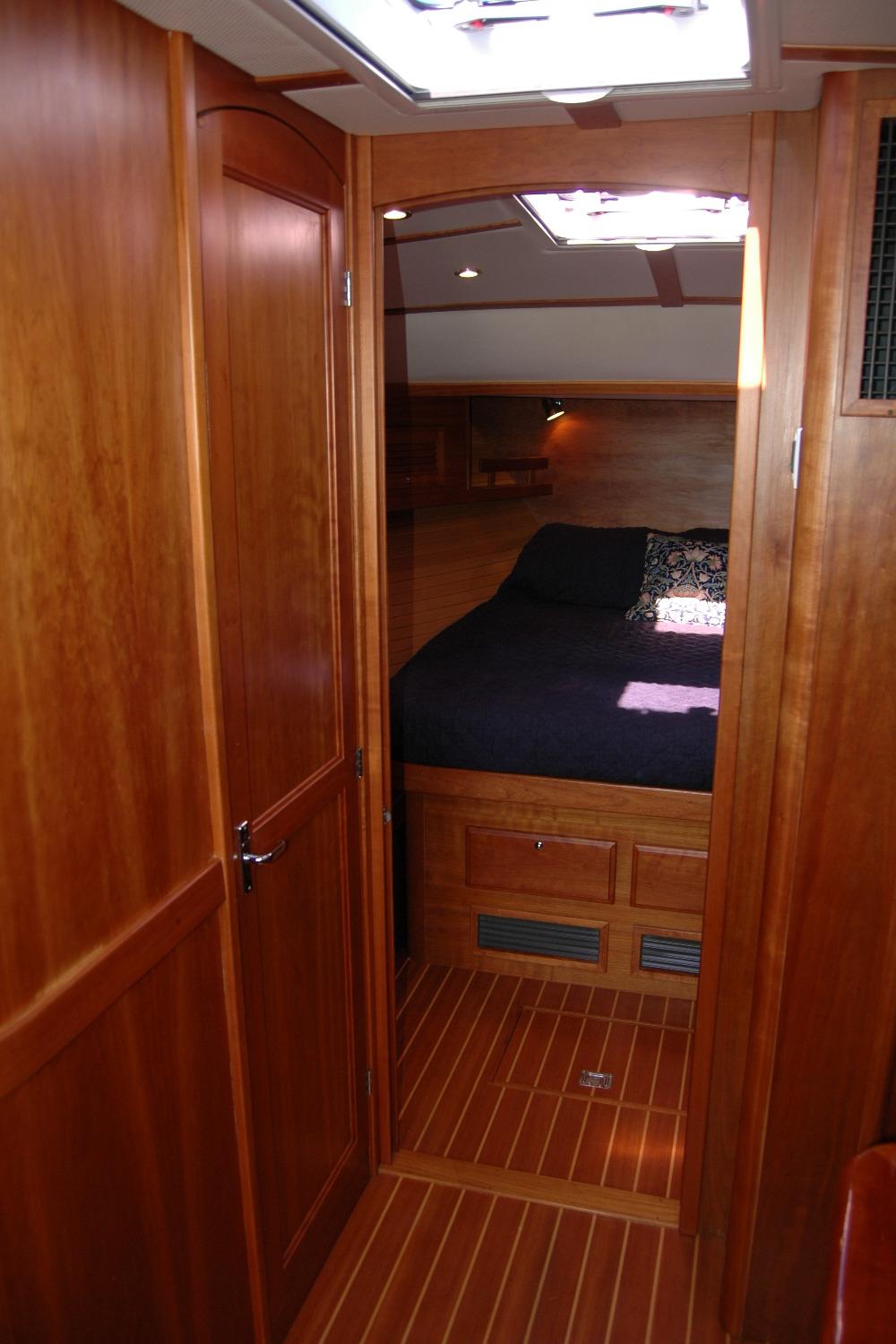

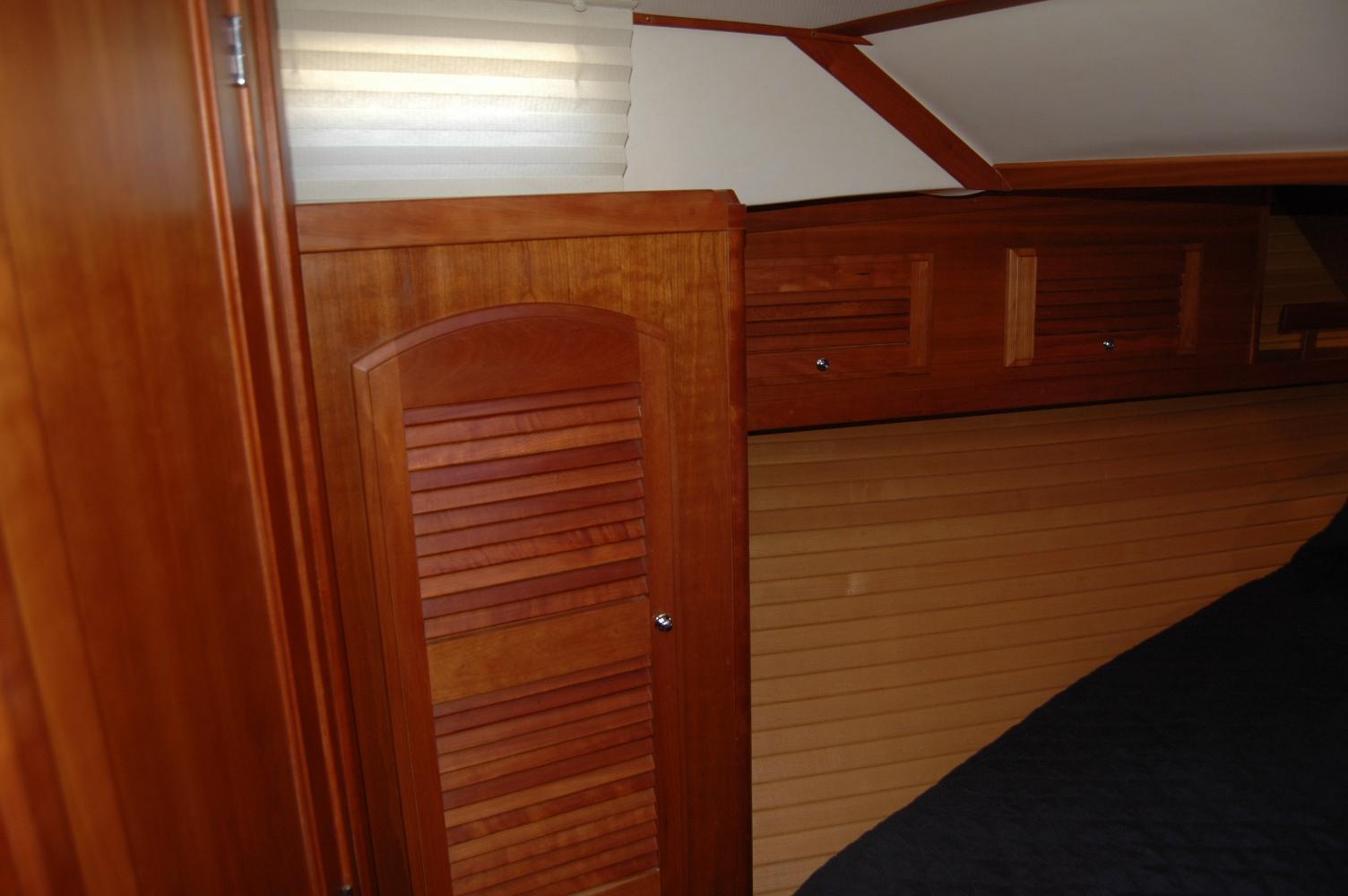

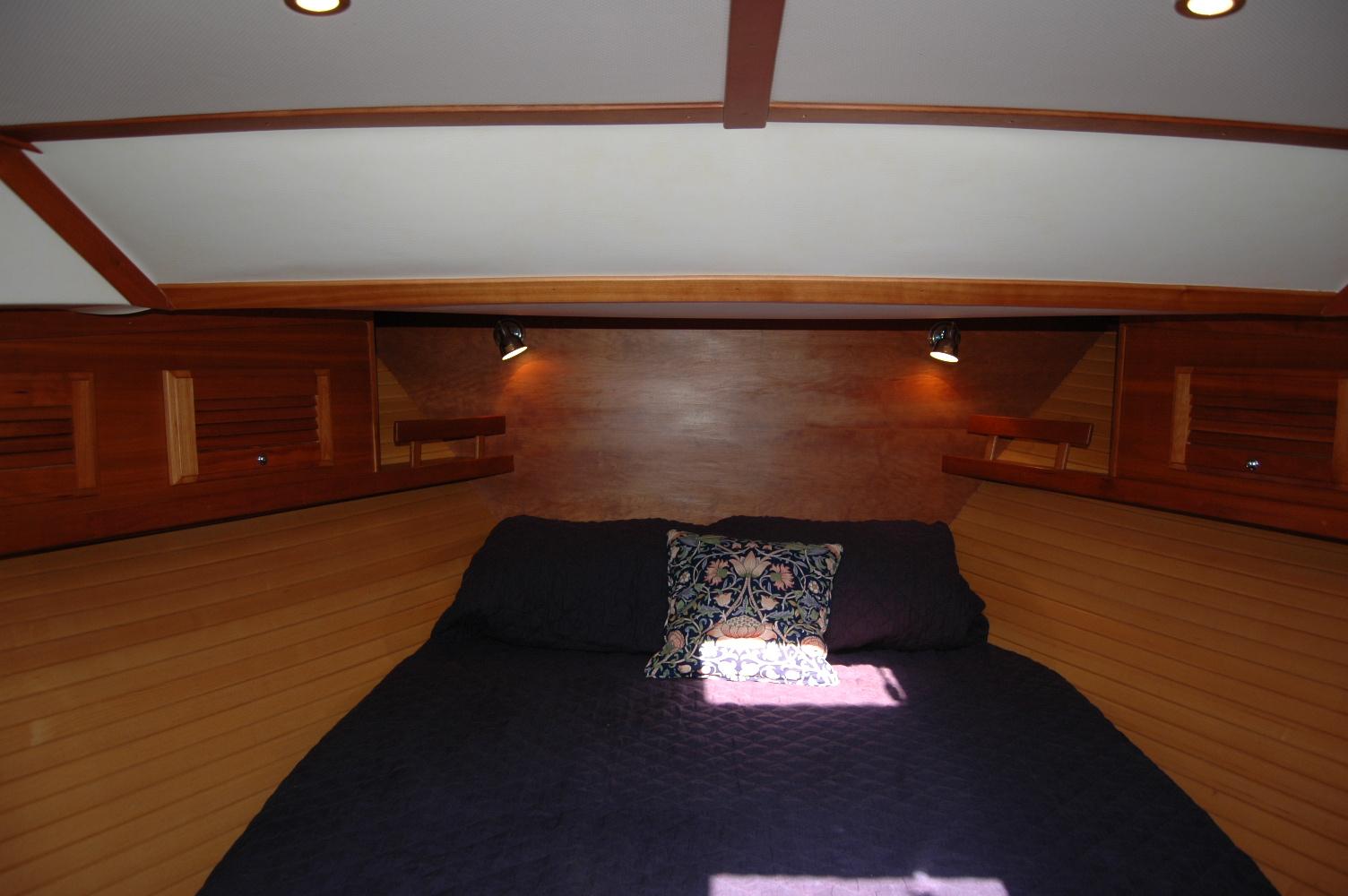

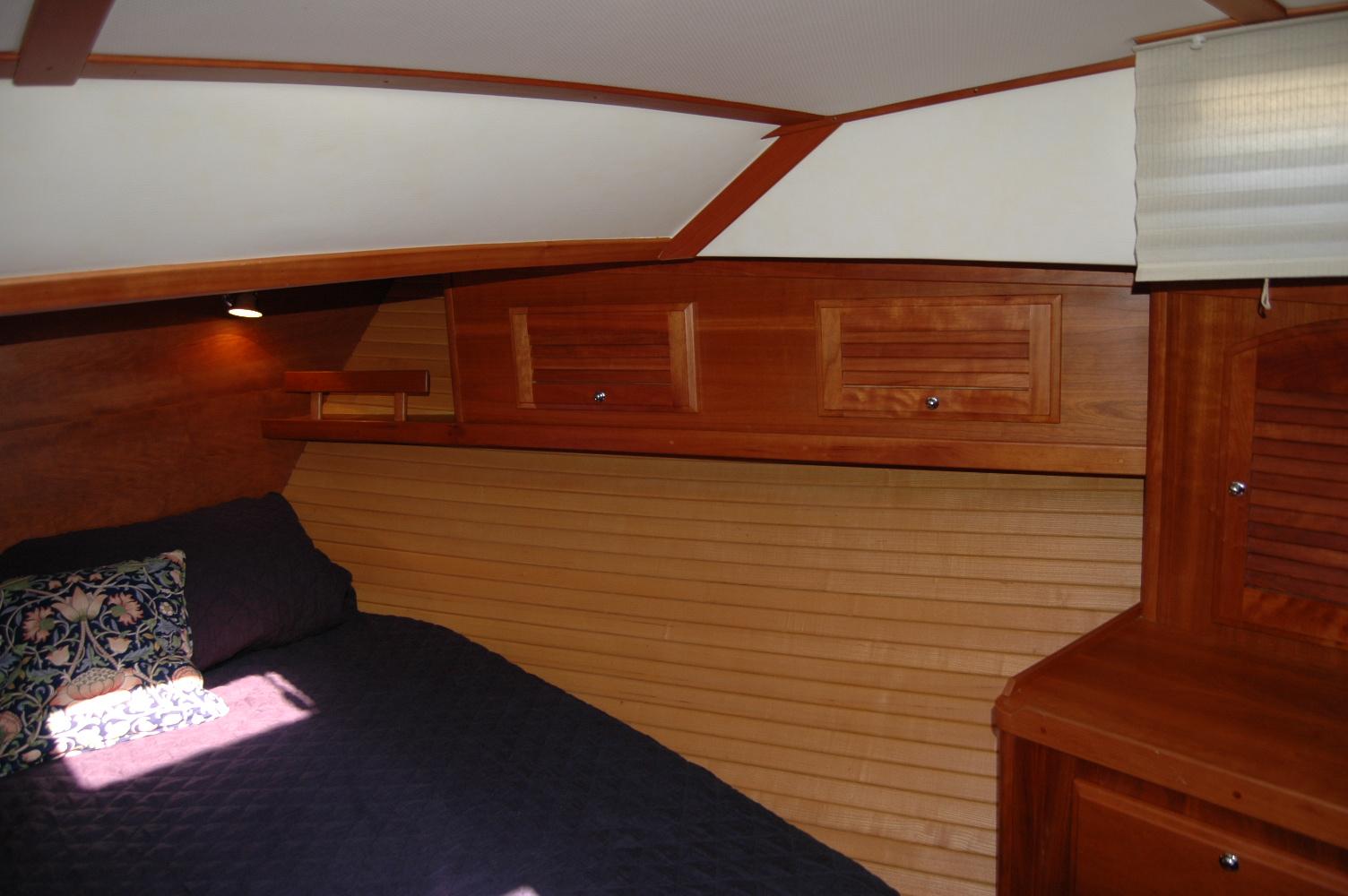

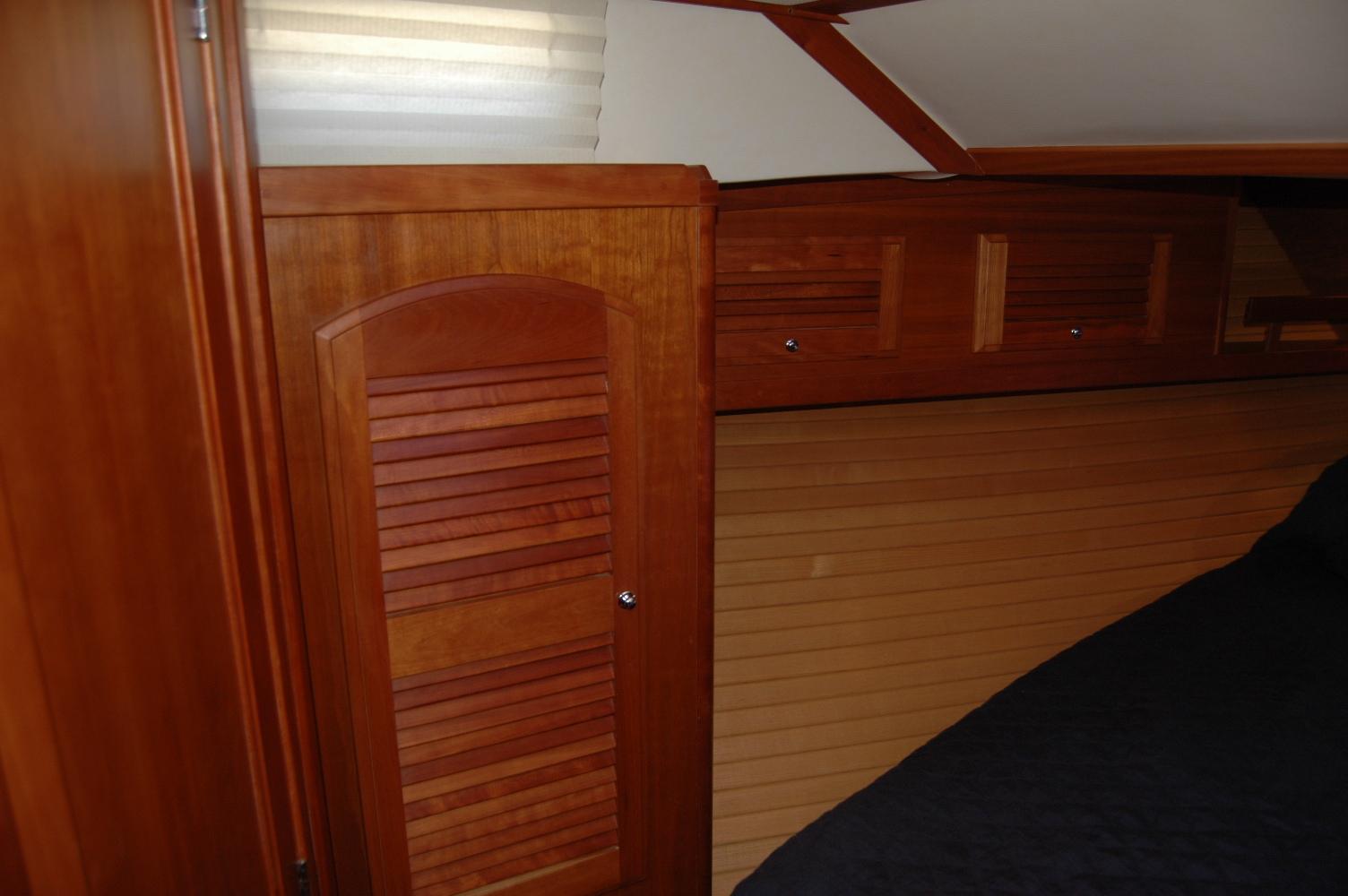

Master Stateroom
Spacious Island Berth layout with 5" cushion. ¾” laminated trim.
Ash hull ceilings.
2 Drawers under bed. A/C return grills under drawers
2 drawers in bureau w/locker w/shelf above and single louvered door.
Upper enclosed shelves with storage behind. Locker face to have 2 louvered doors. Each door to access partitioned space with shelves in the aft two compartments. Doors hinged at bottom.
Large Hanging Locker to port, cedar lined with cedar shelf and hangar pole. Open shelf above. Louvered door.
Teak and holly sole with 2 coats of sealer.
Soft headliner panels.
Large pocket door between salon and forward cabin.

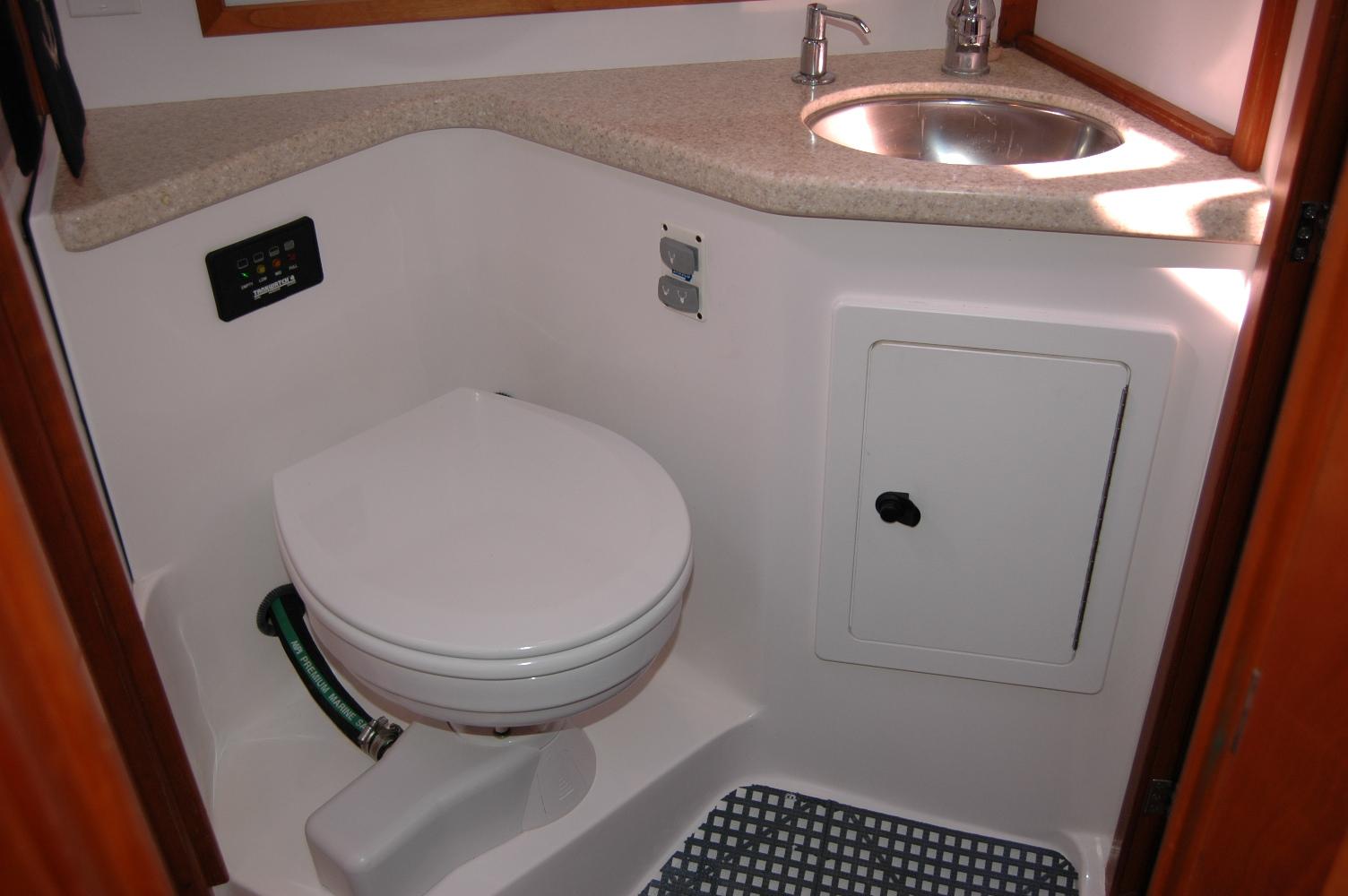

Head
Stainless sink

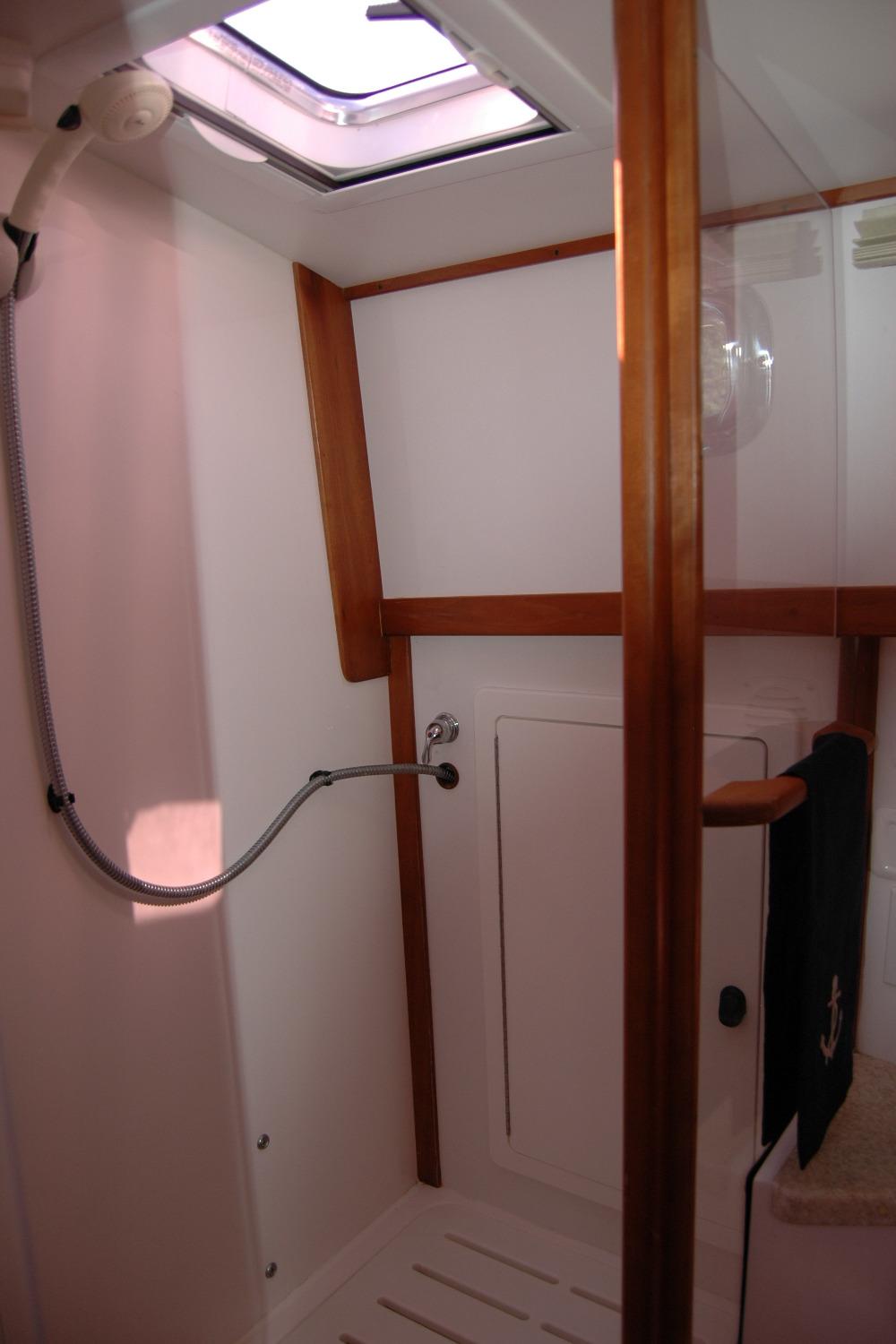

Circular shower stall with seat and locker outboard.
Hot and cold pressure water.
Electric shower sump pump.
Storage lockers.
Corian counter with bull nose
Towel bar.
Wood trimmed mirror over sink
Ventilation blower.

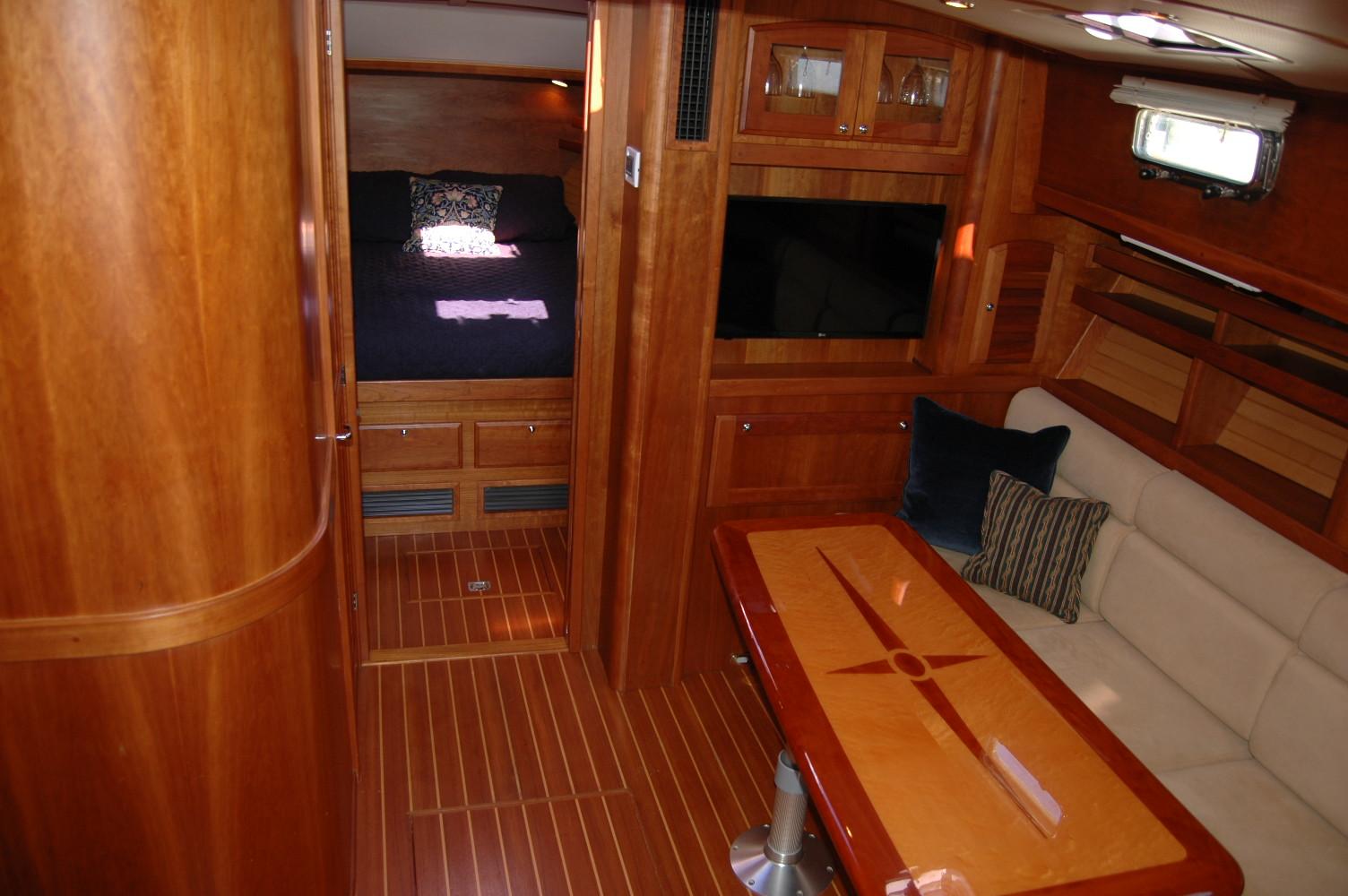

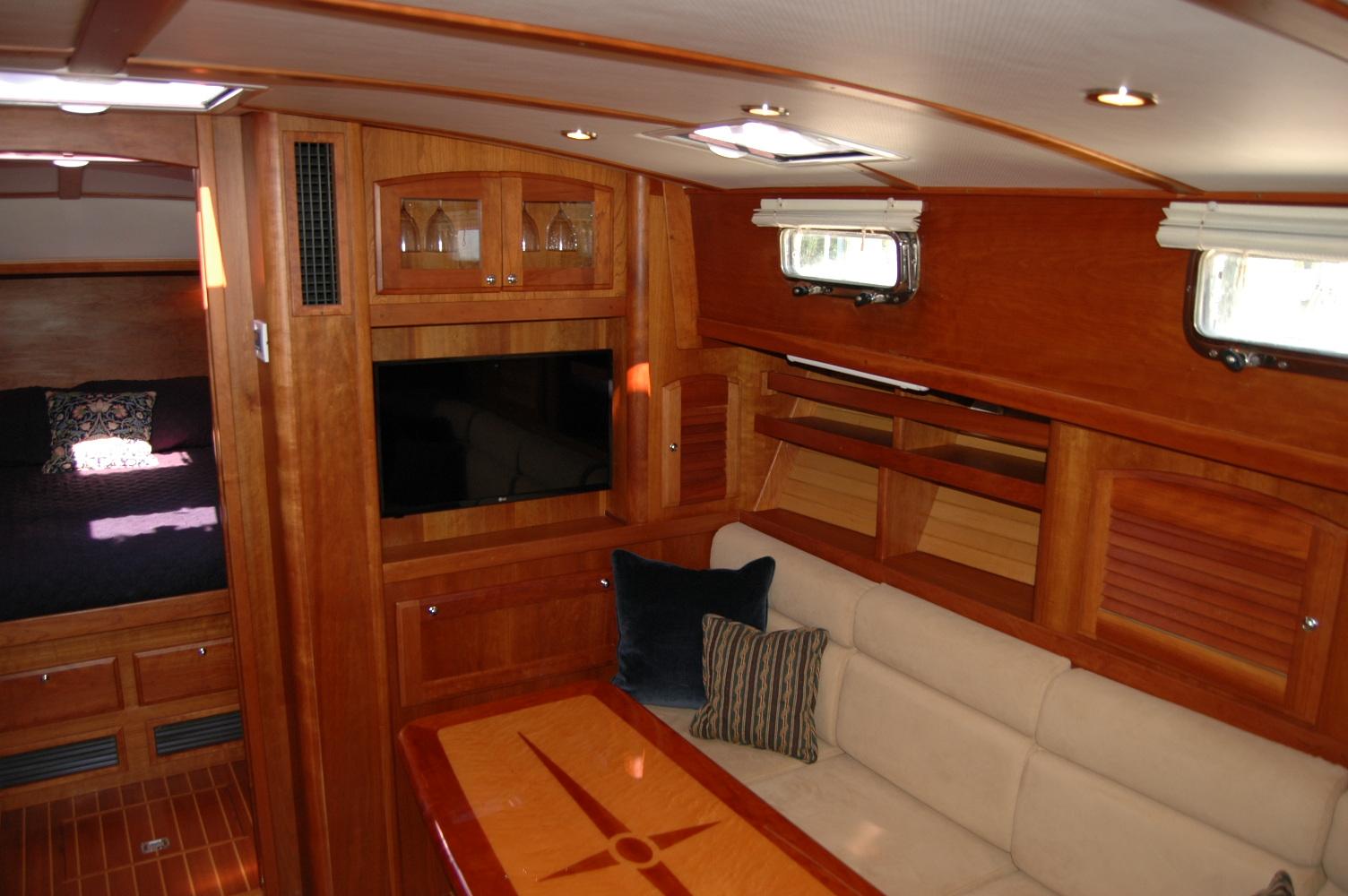

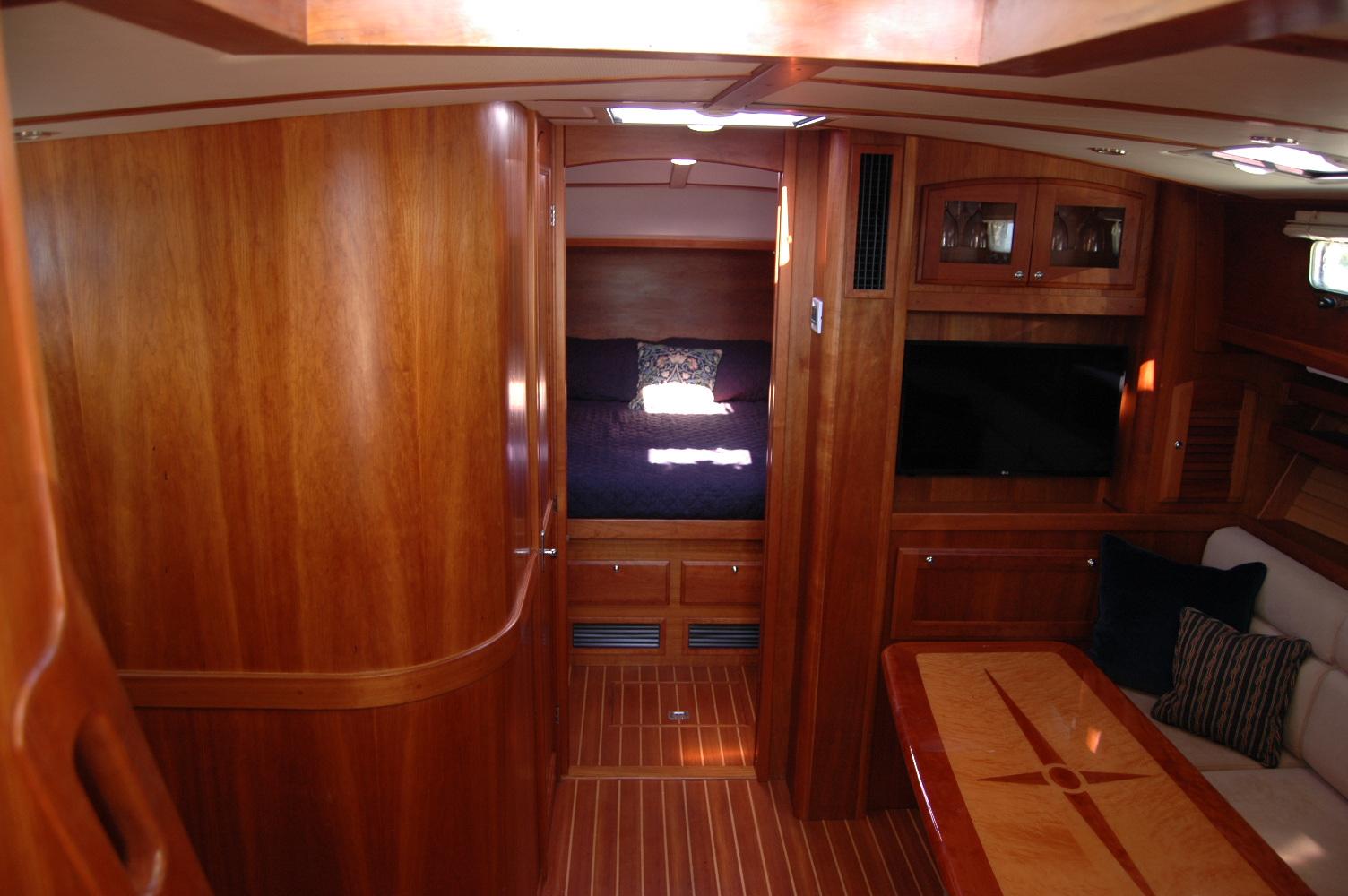

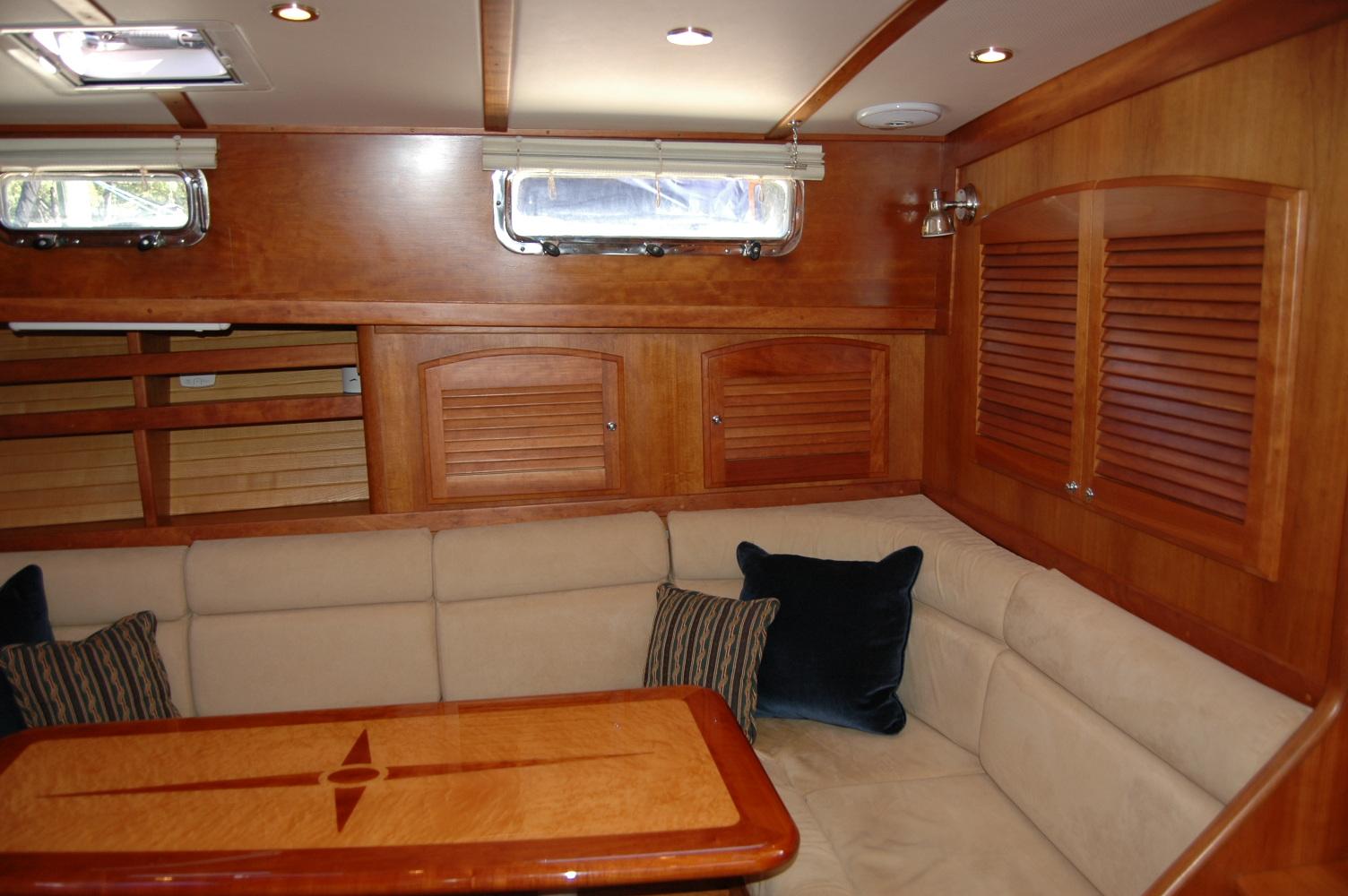

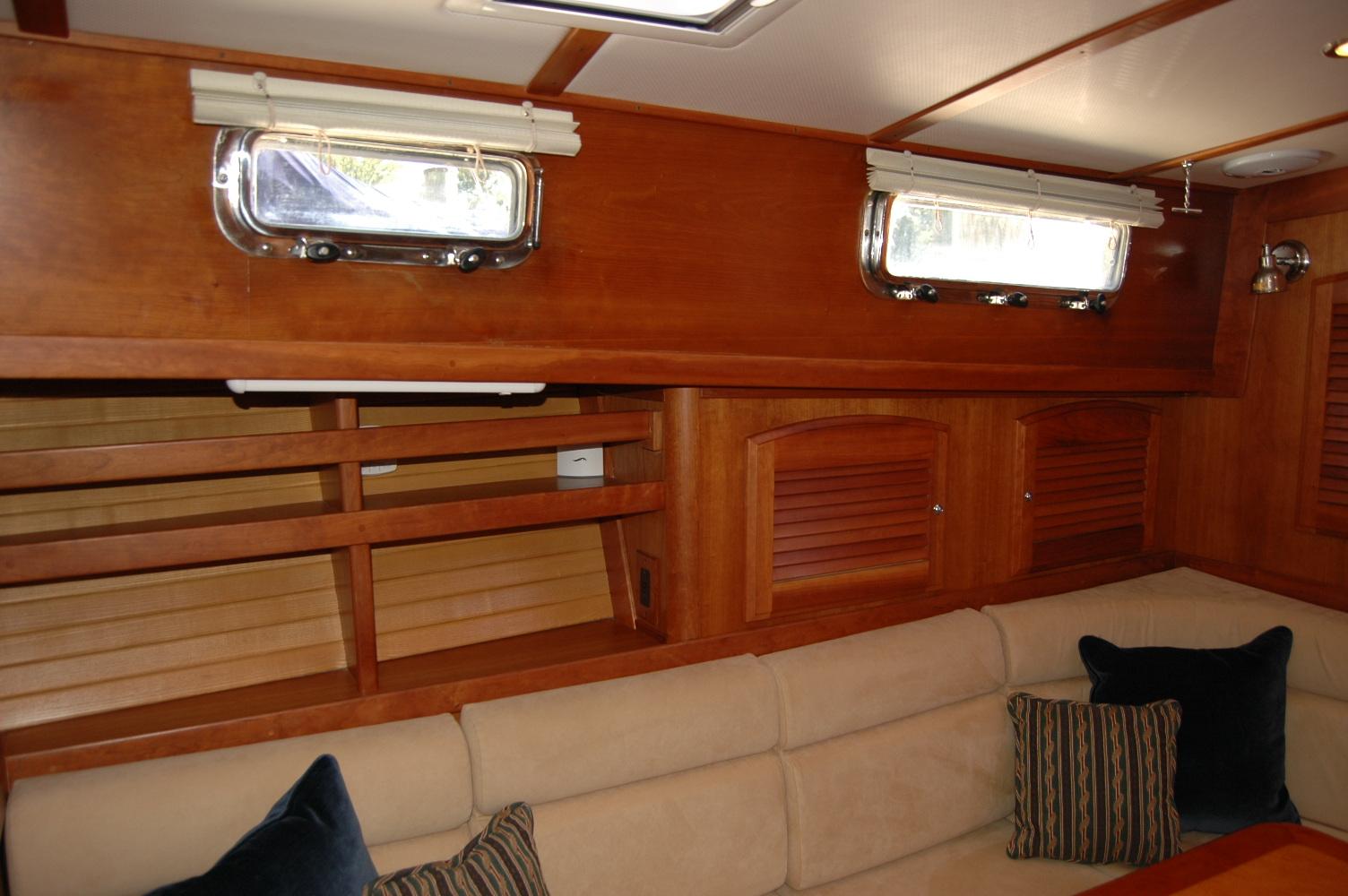

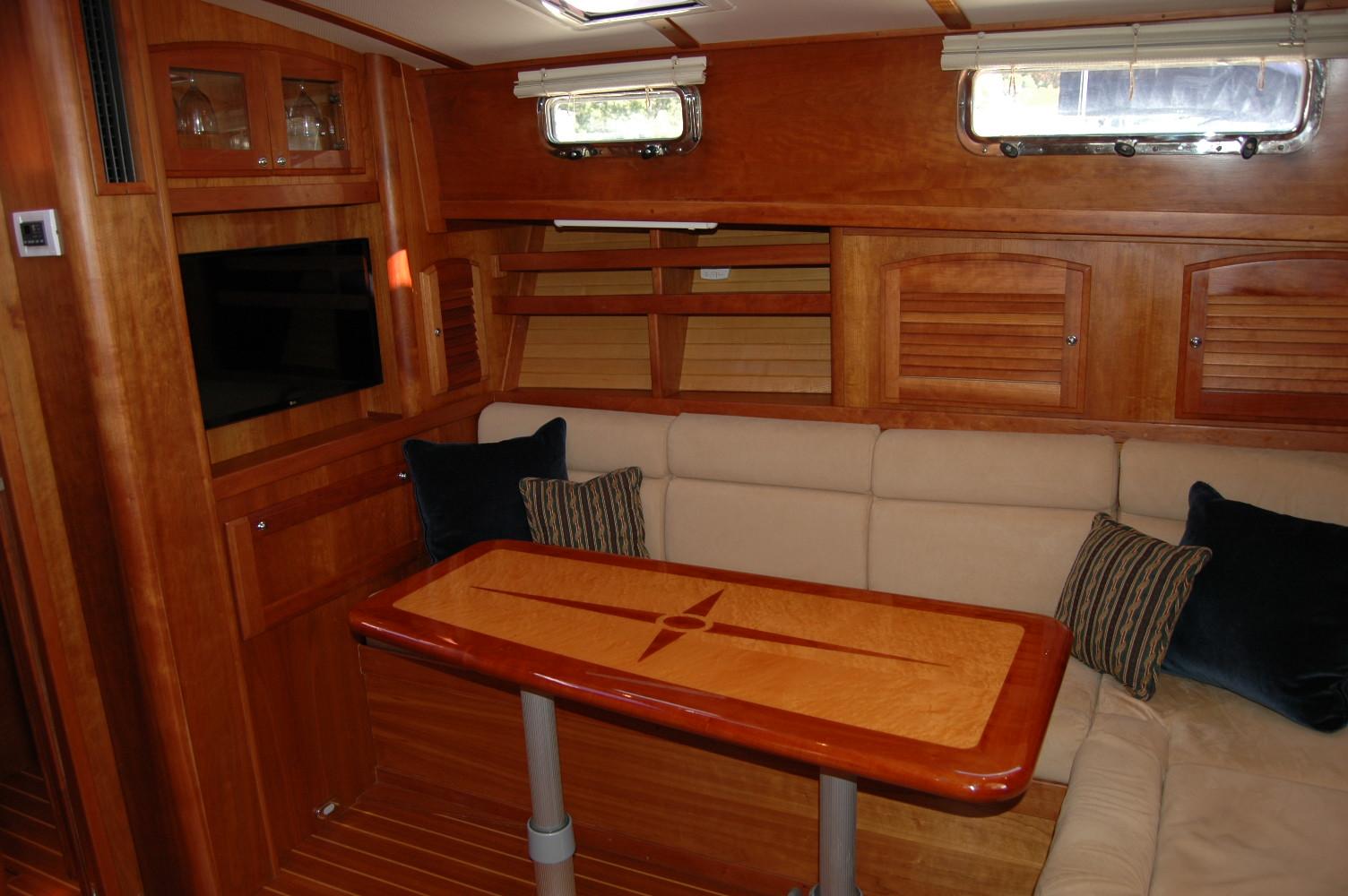

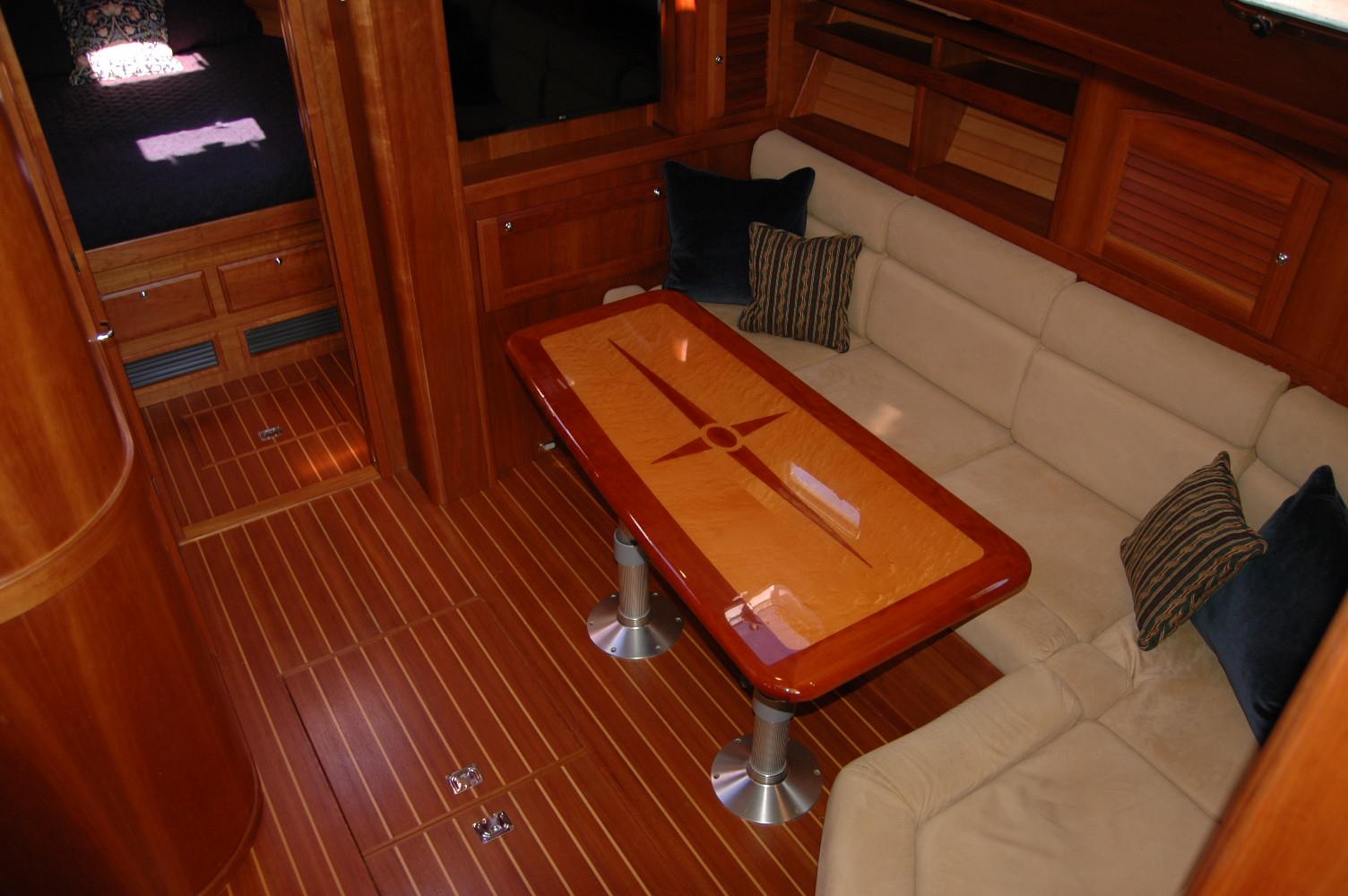

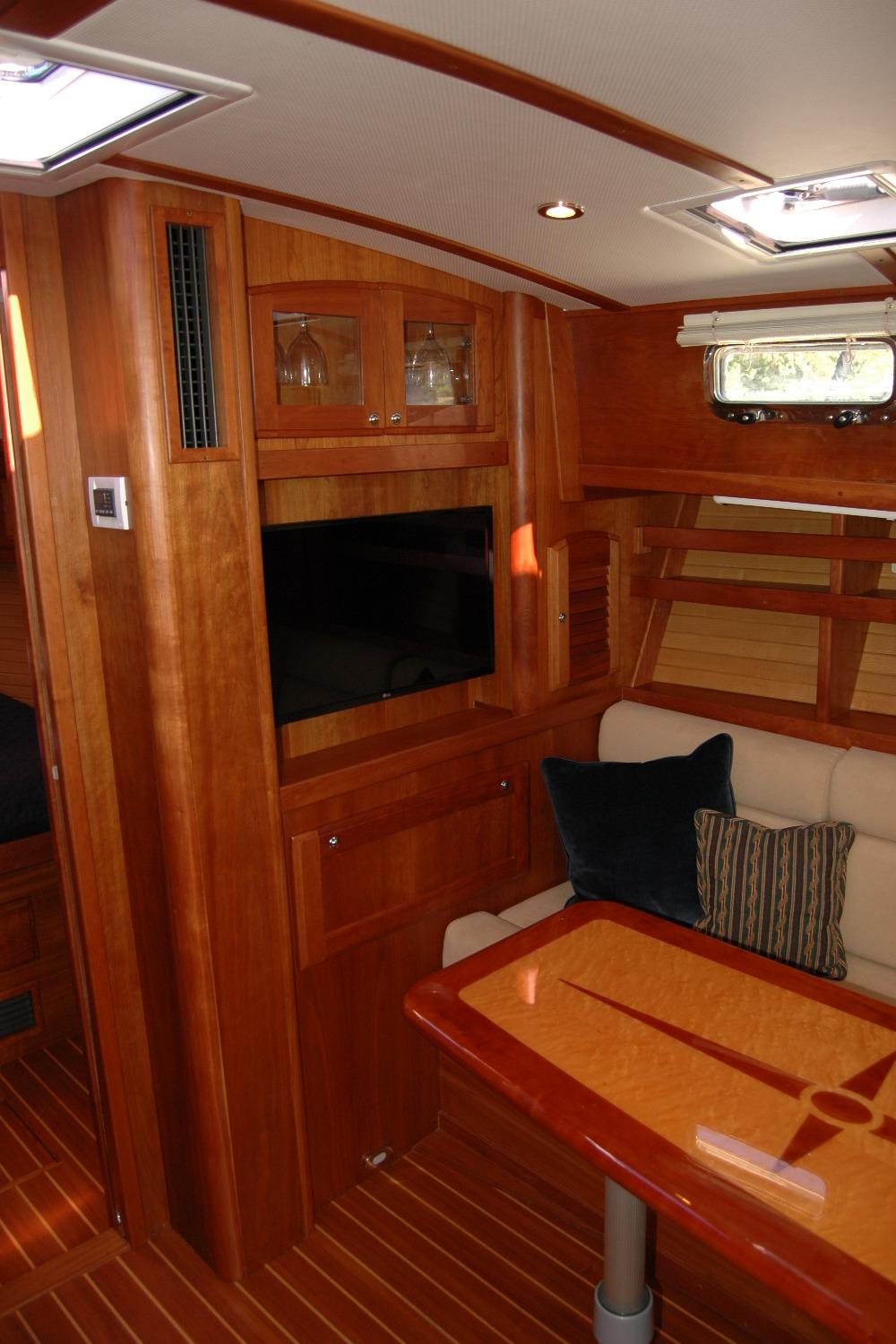

Main Salon

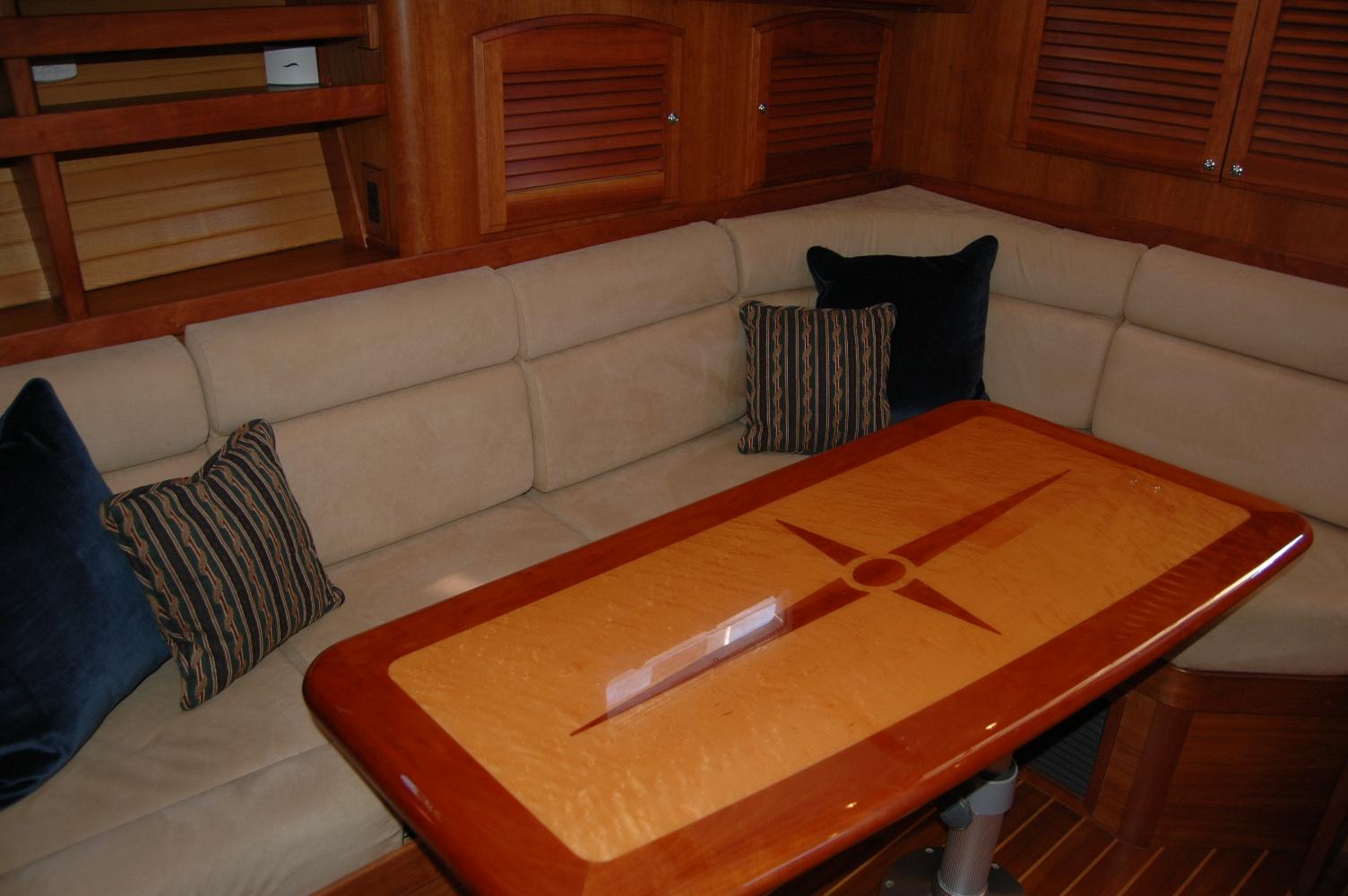

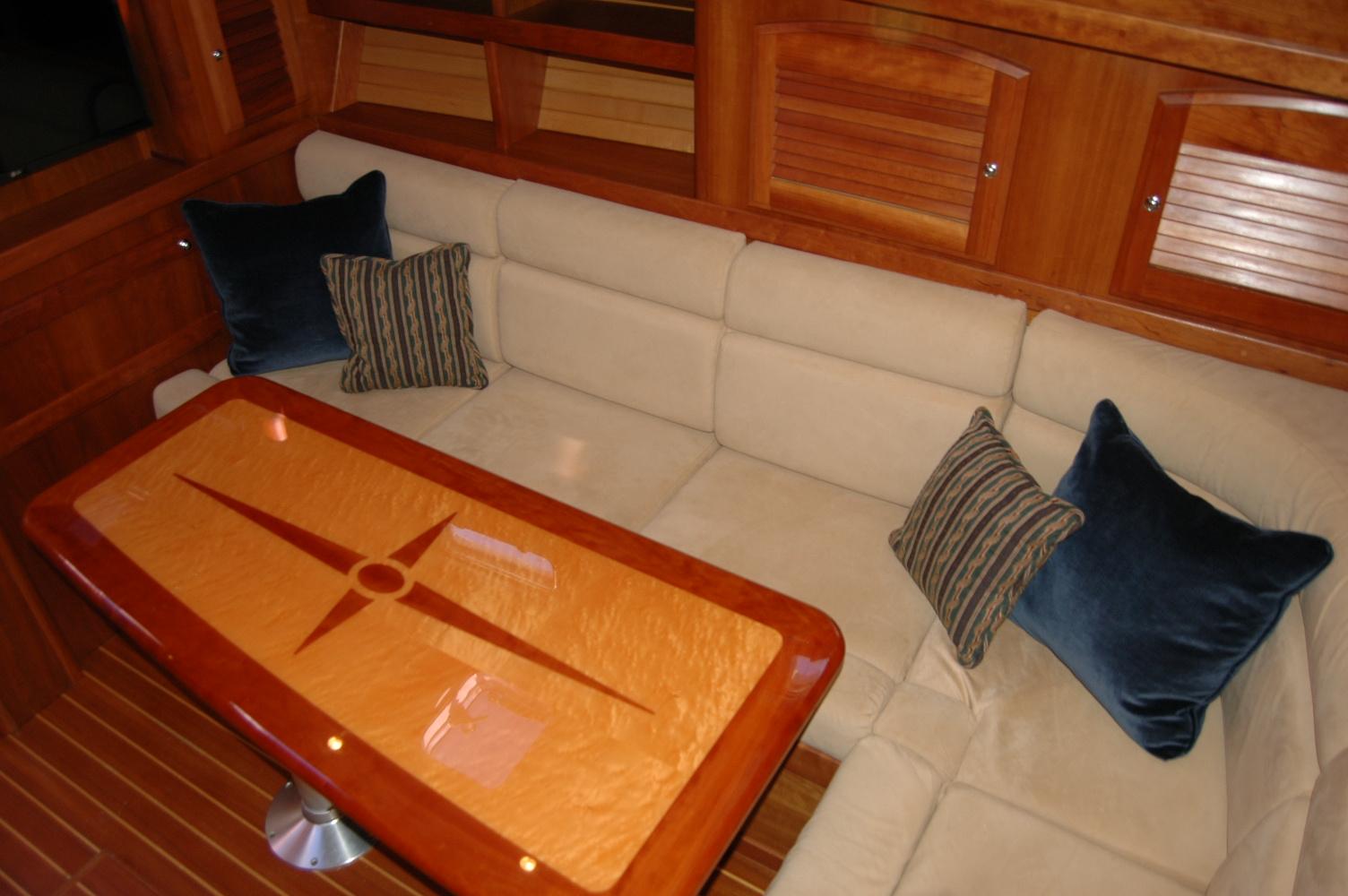

"L" settee converts to double berth, 4 1/2" foam cushions.
Storage under settee
(2) enclosed lockers outboard with open shelf and removable fiddle forward.

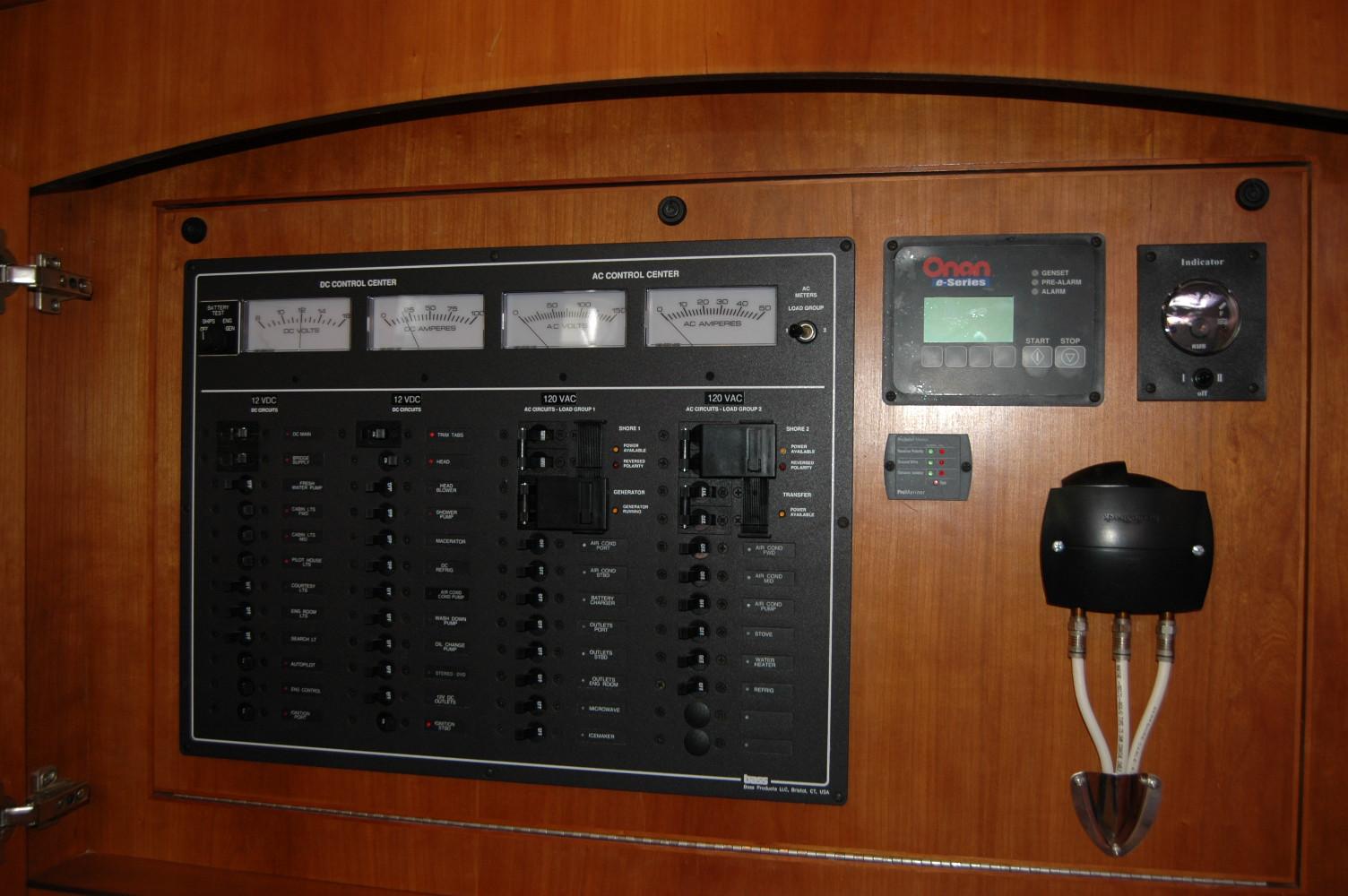

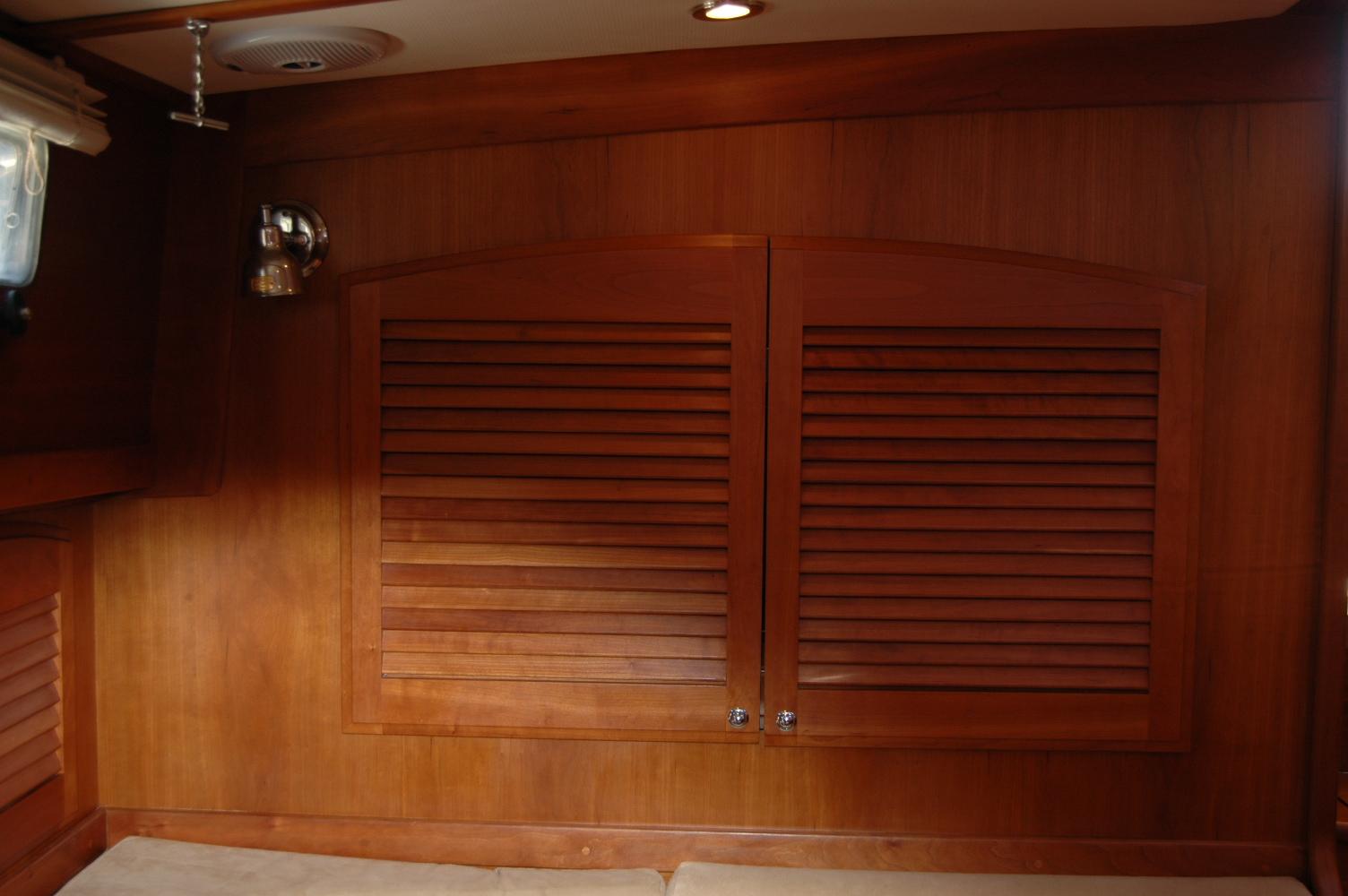

Master AC/DC breaker panel facing fwd on aft bulkhead behind pair of louvered doors.
Fwd starboard bulkhead forms entertainment center space for standard 20” flat LCD TV and DVD Player as well as chase for optional air conditioning duct and discharge grill.

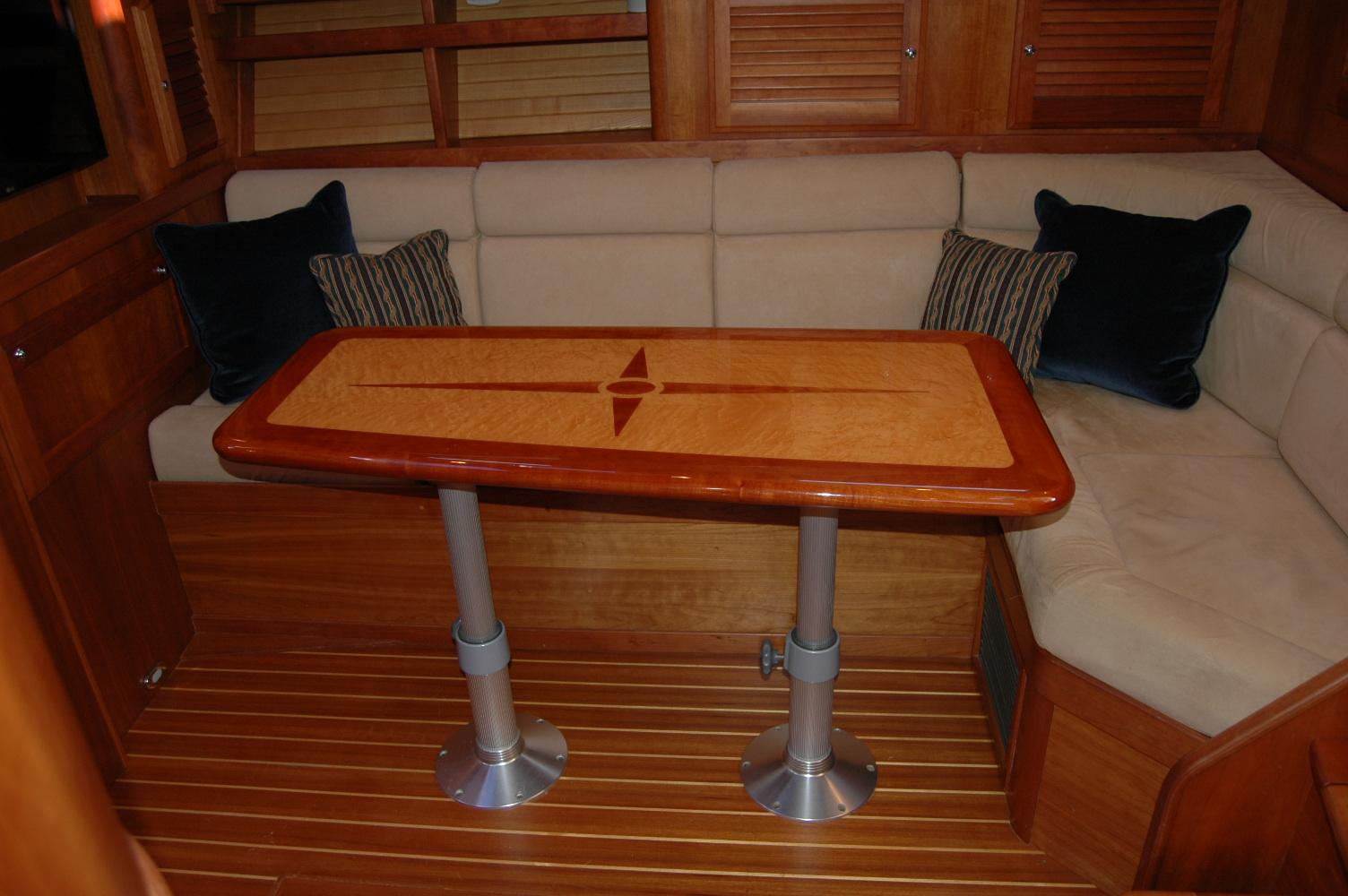

Salon table on (2) hi- low pedestals which lowers to form berth filler.

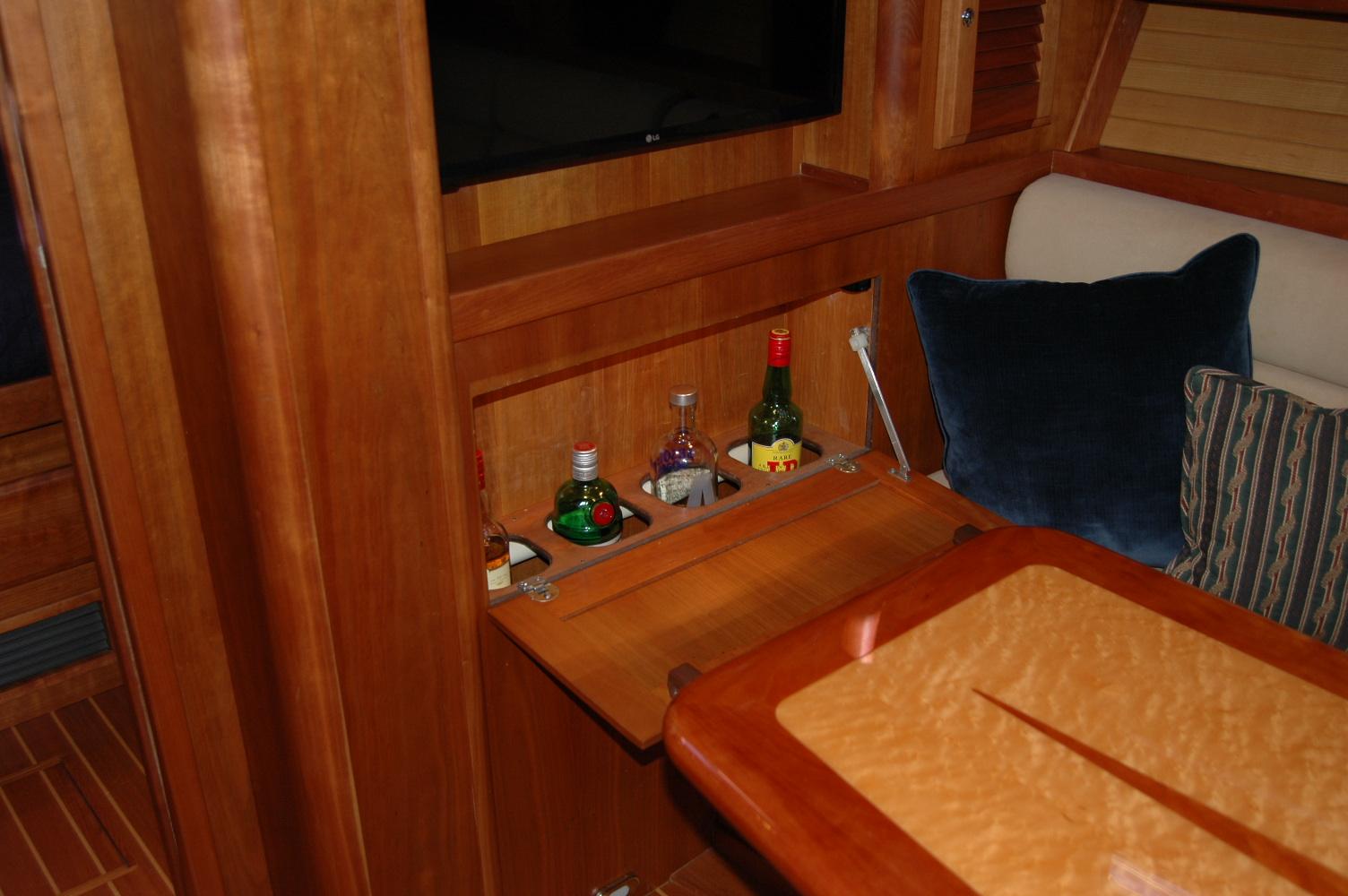

Bottle storage locker
Teak and holly sole w(2) coats of sealer.
Sound deadening headliner panels.

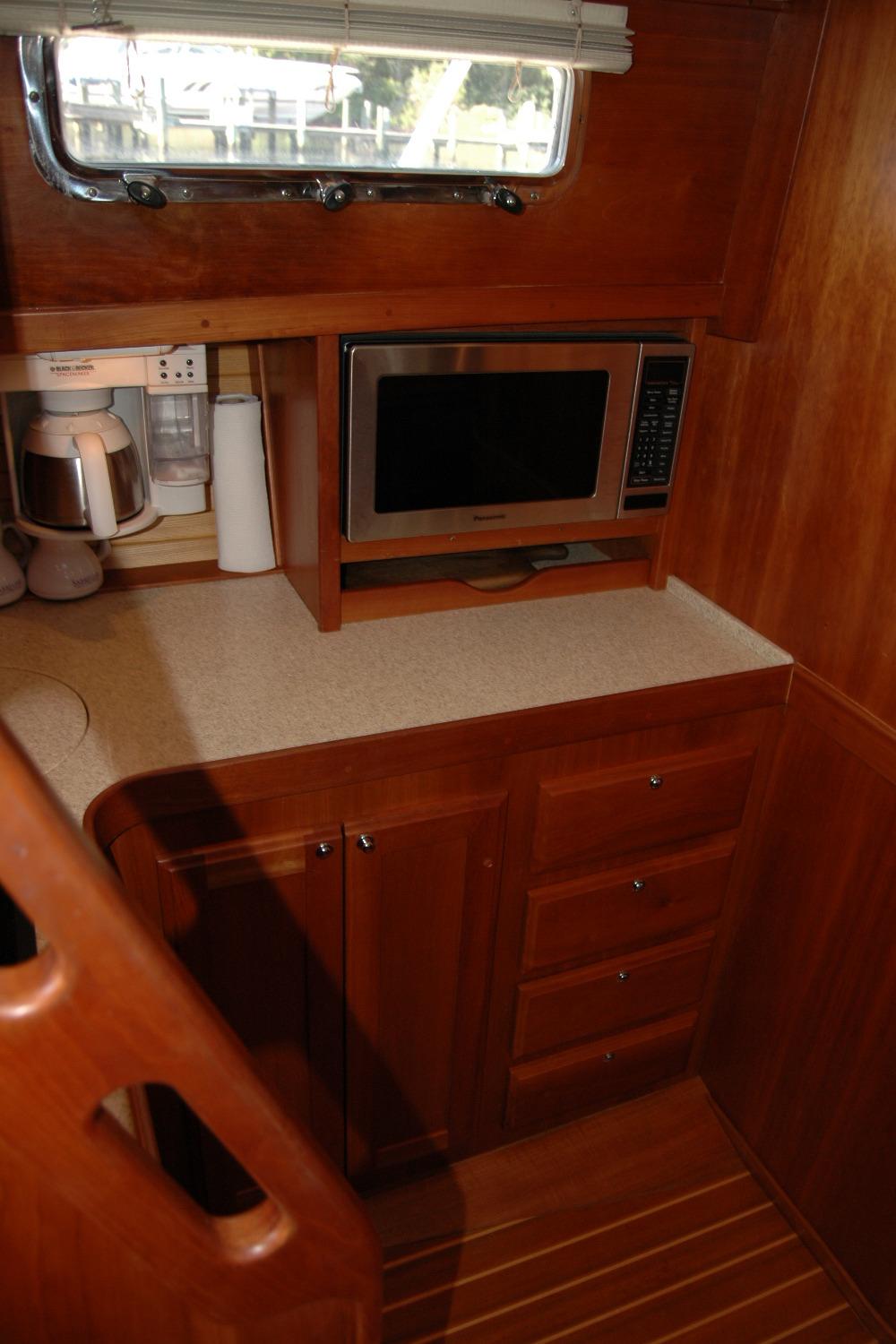

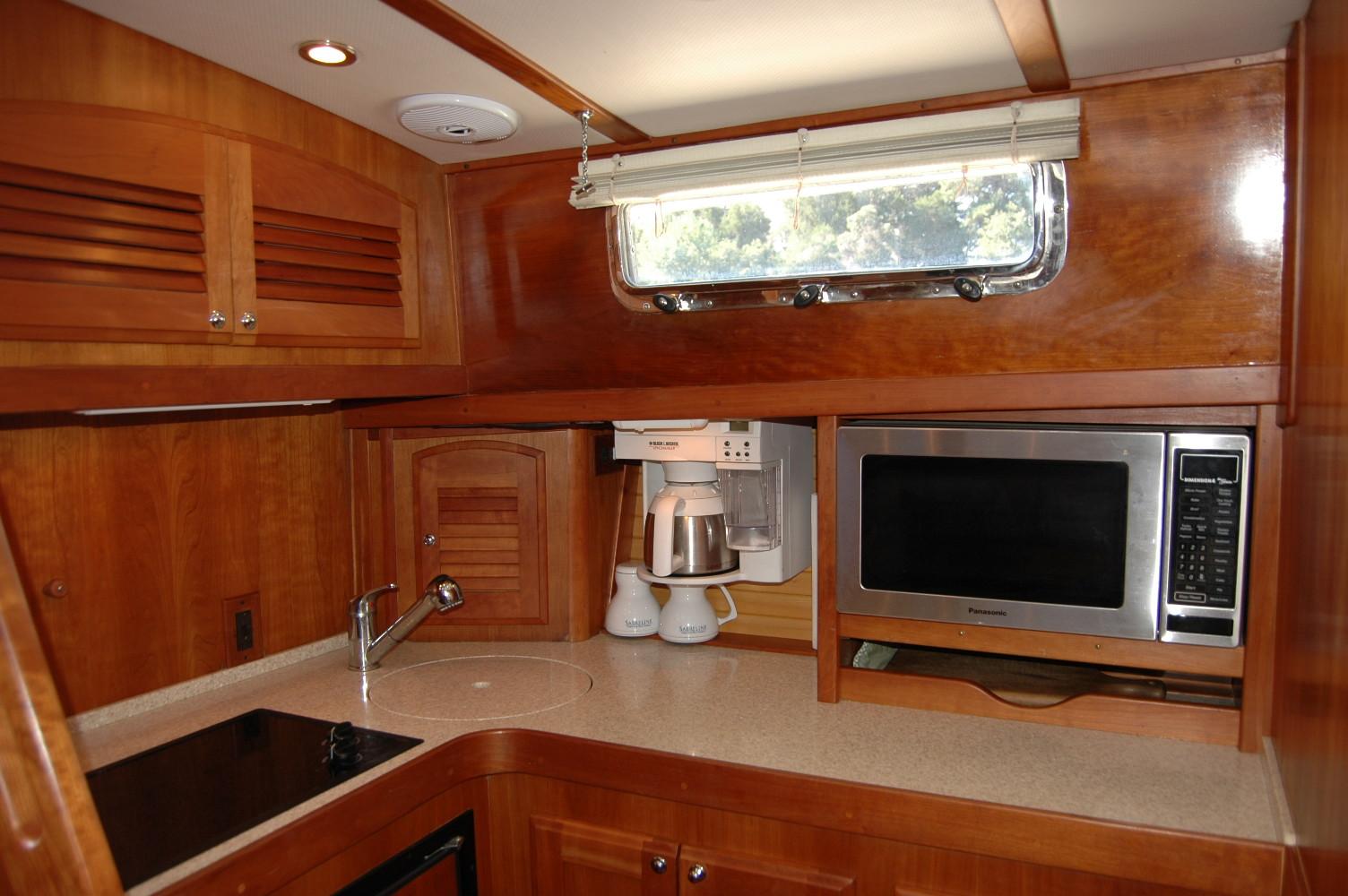

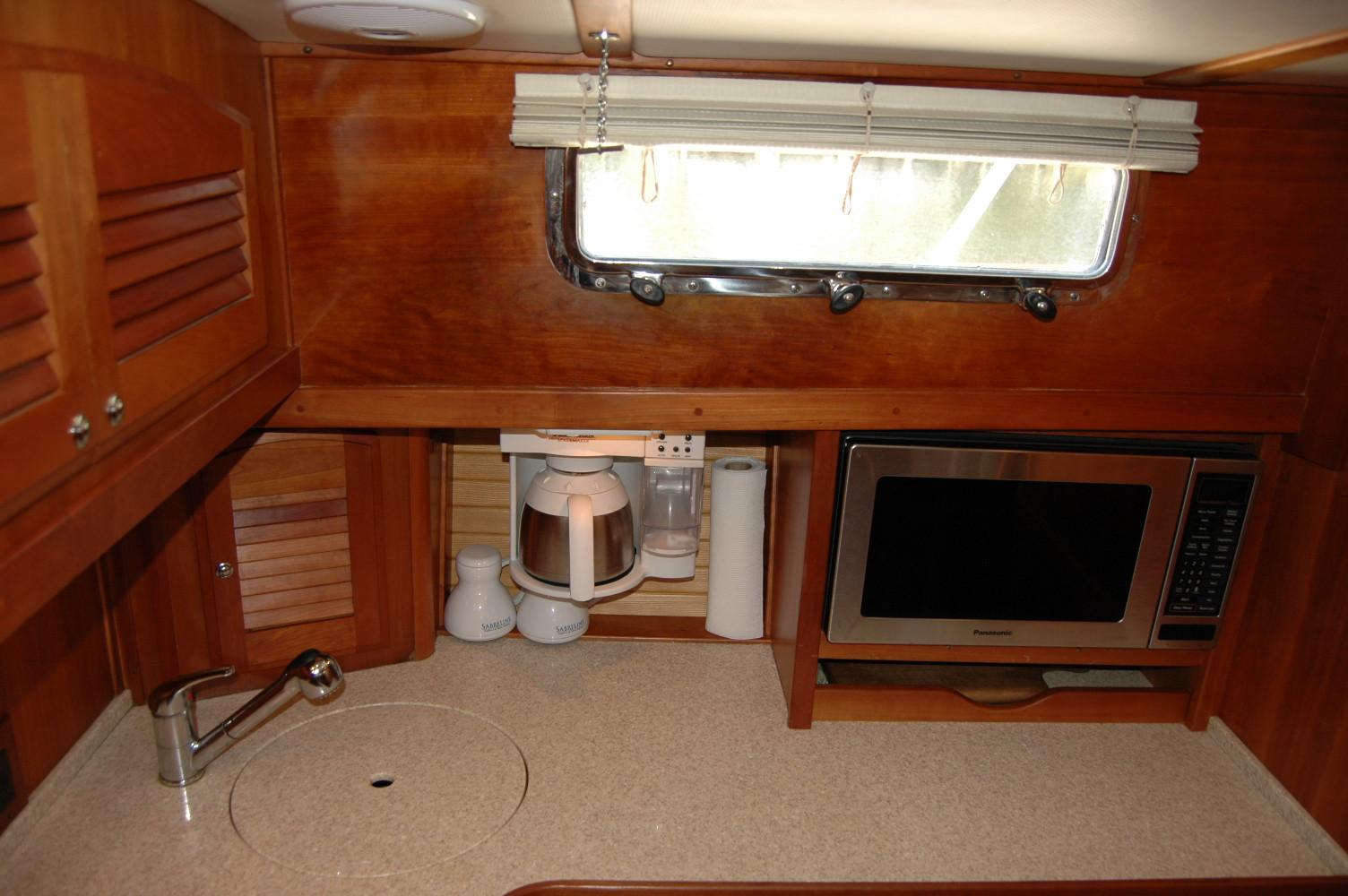

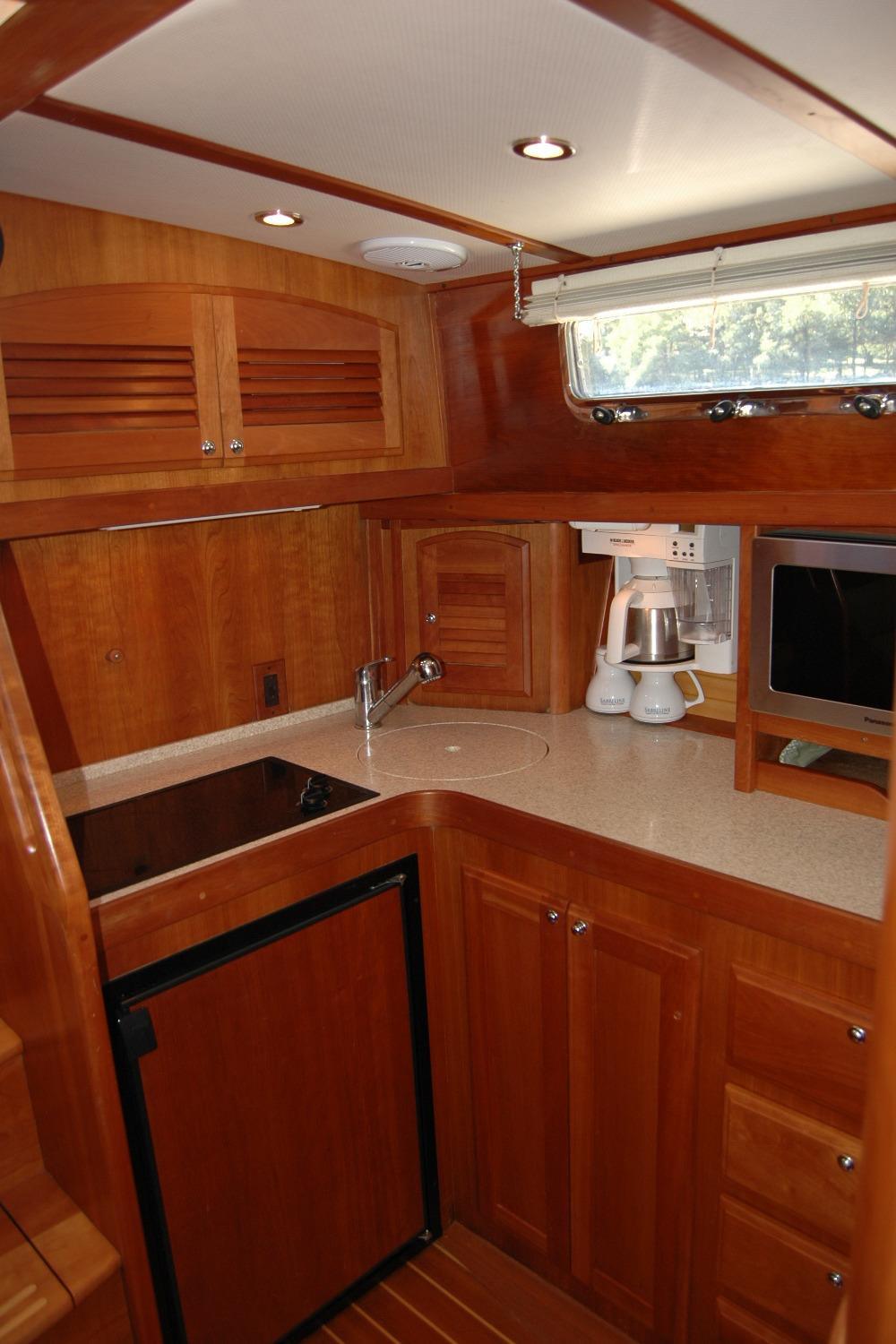

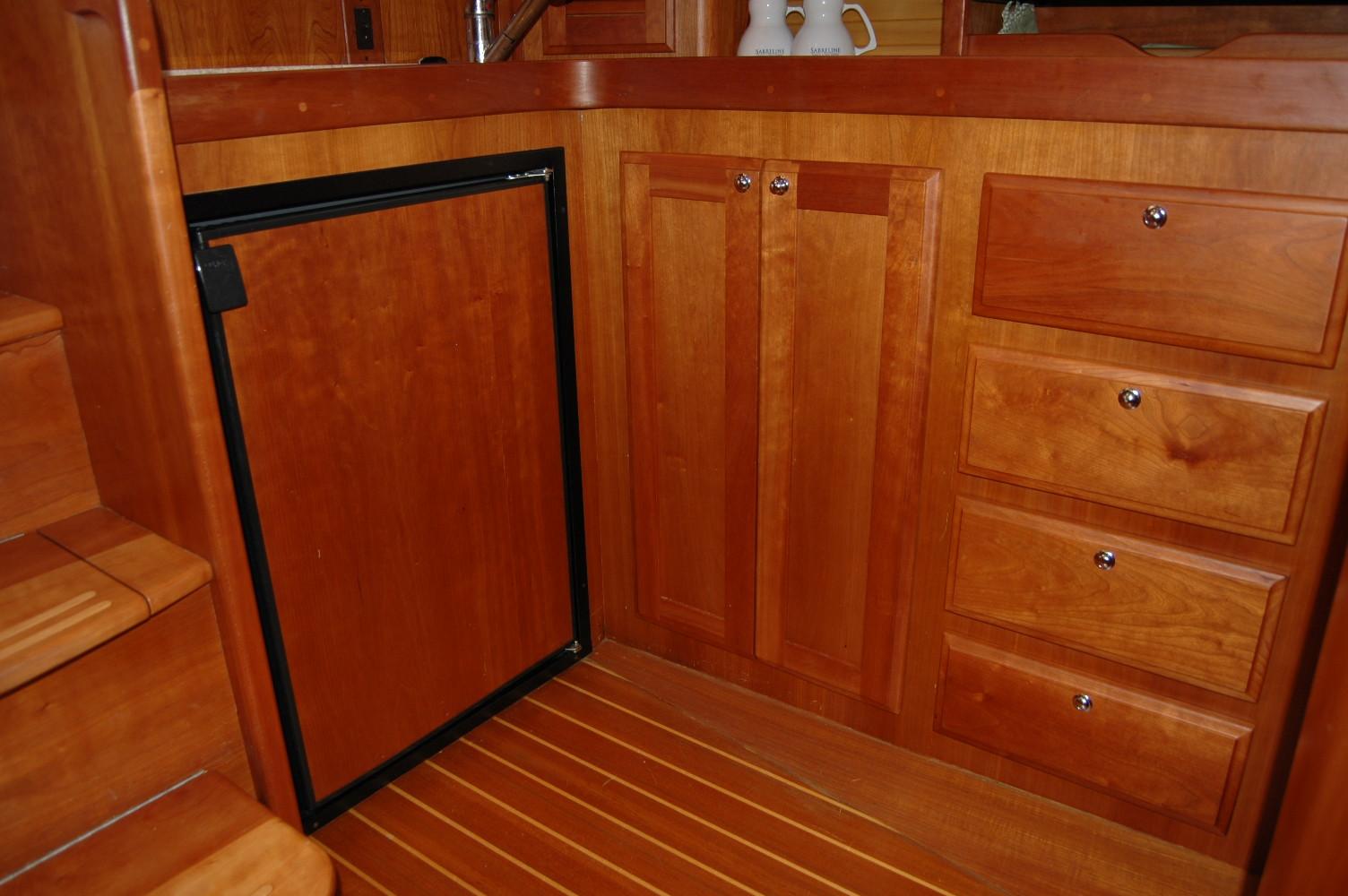

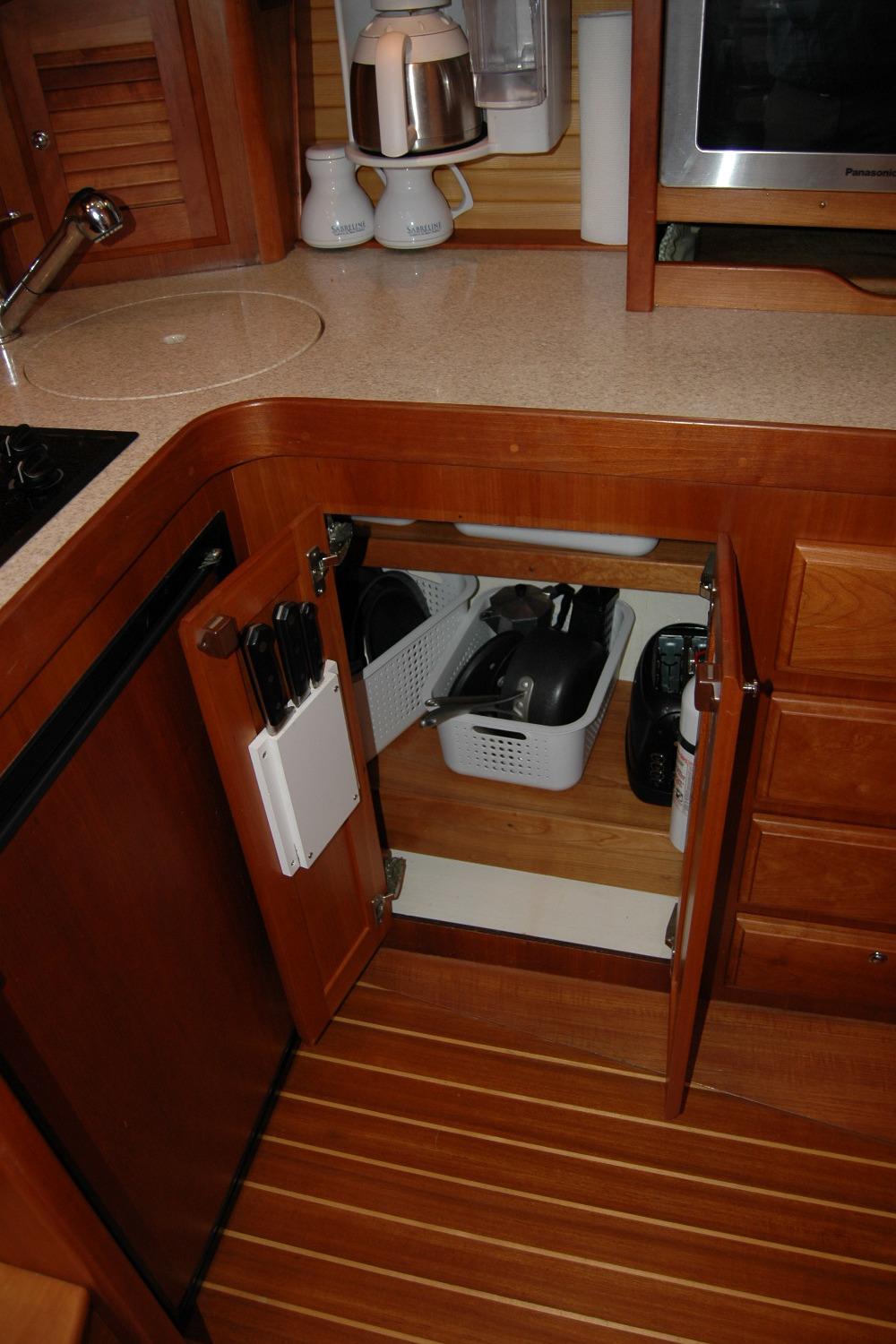

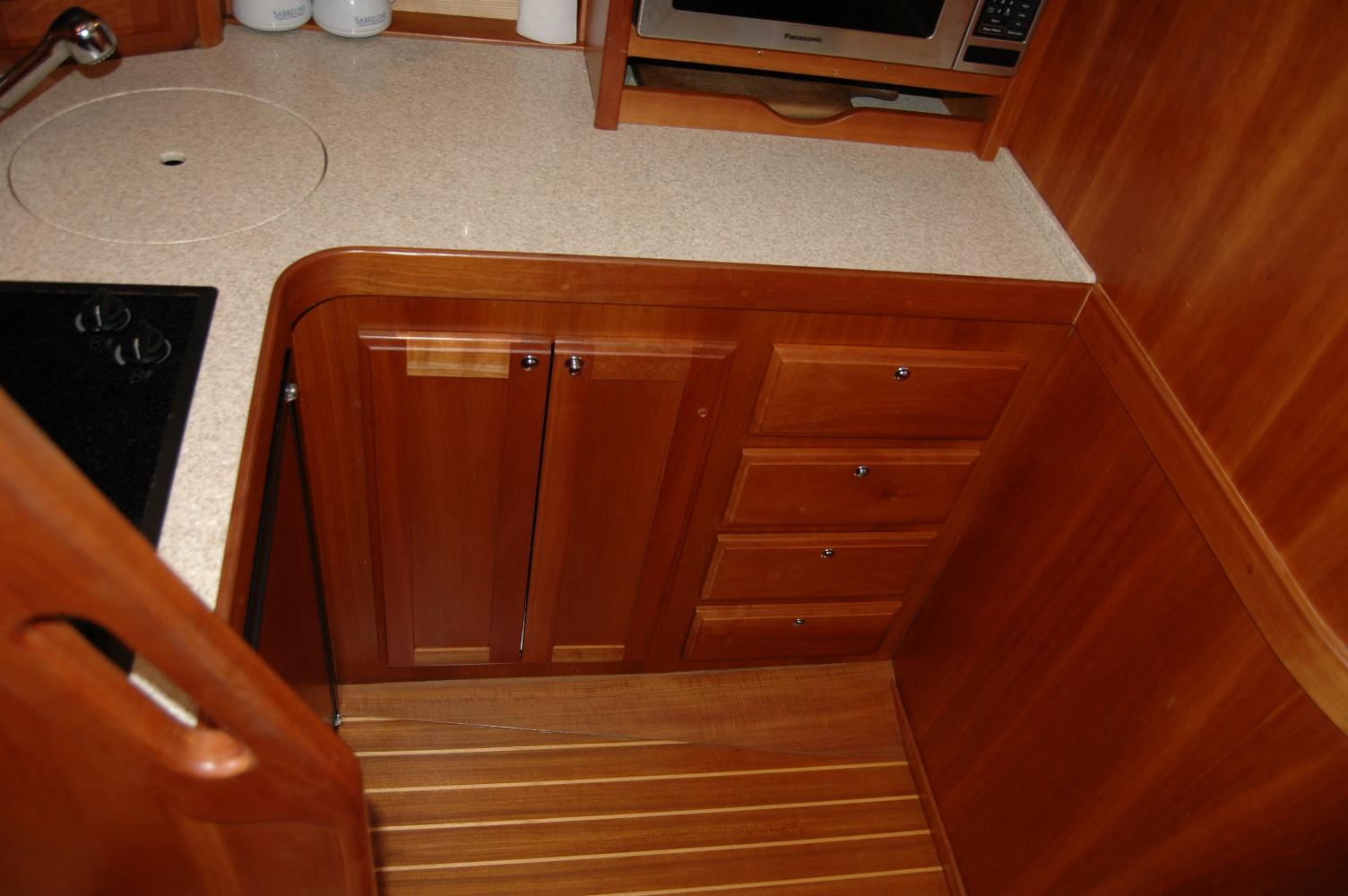

Galley
Corian countertop
High pressure laminate galley counter.

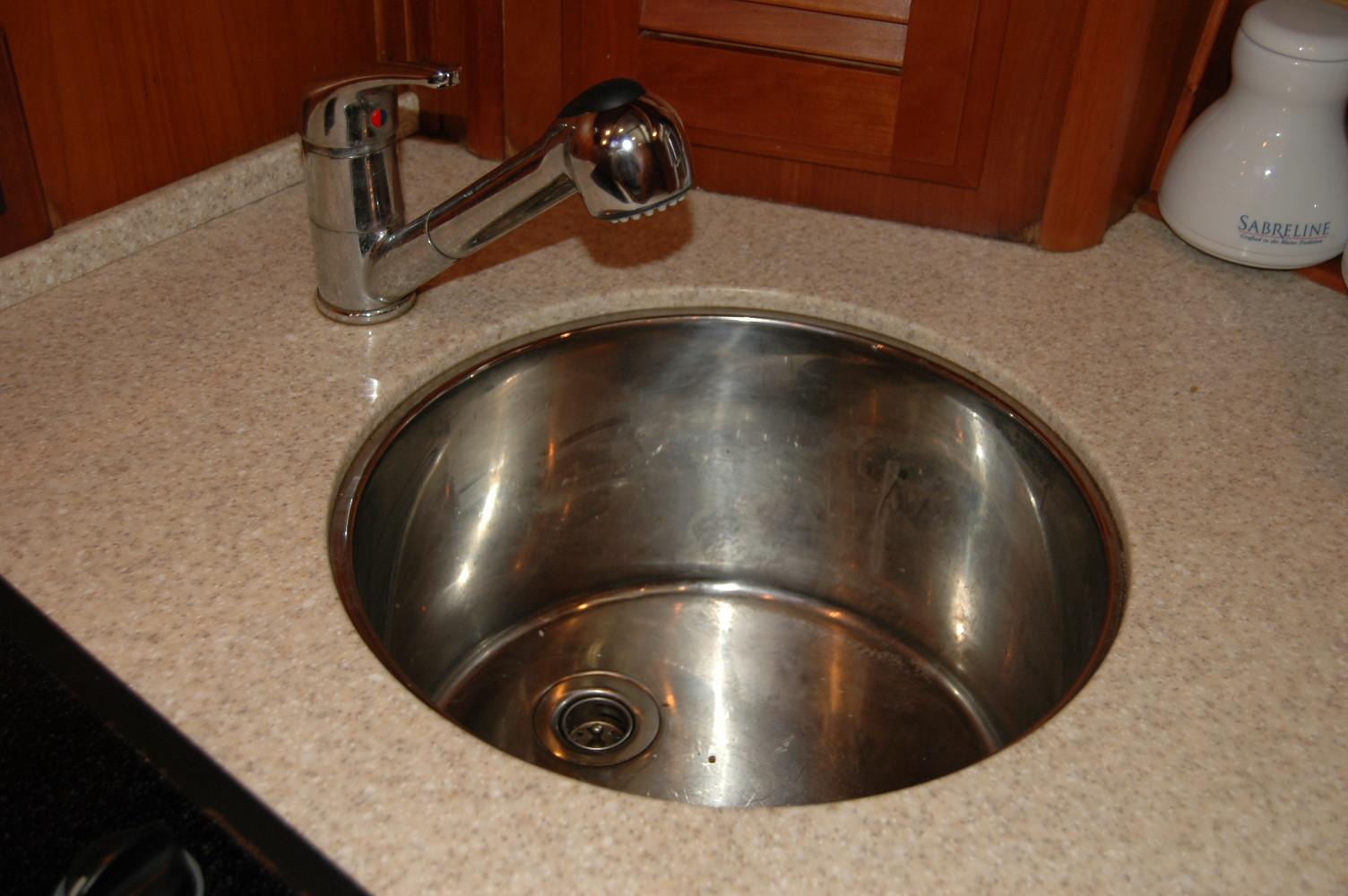

Stainless steel sink with Scandvik faucet.
Built-in waste basket
Drawers and storage lockers below counter.
Storage cabinets outboard and above aft counter

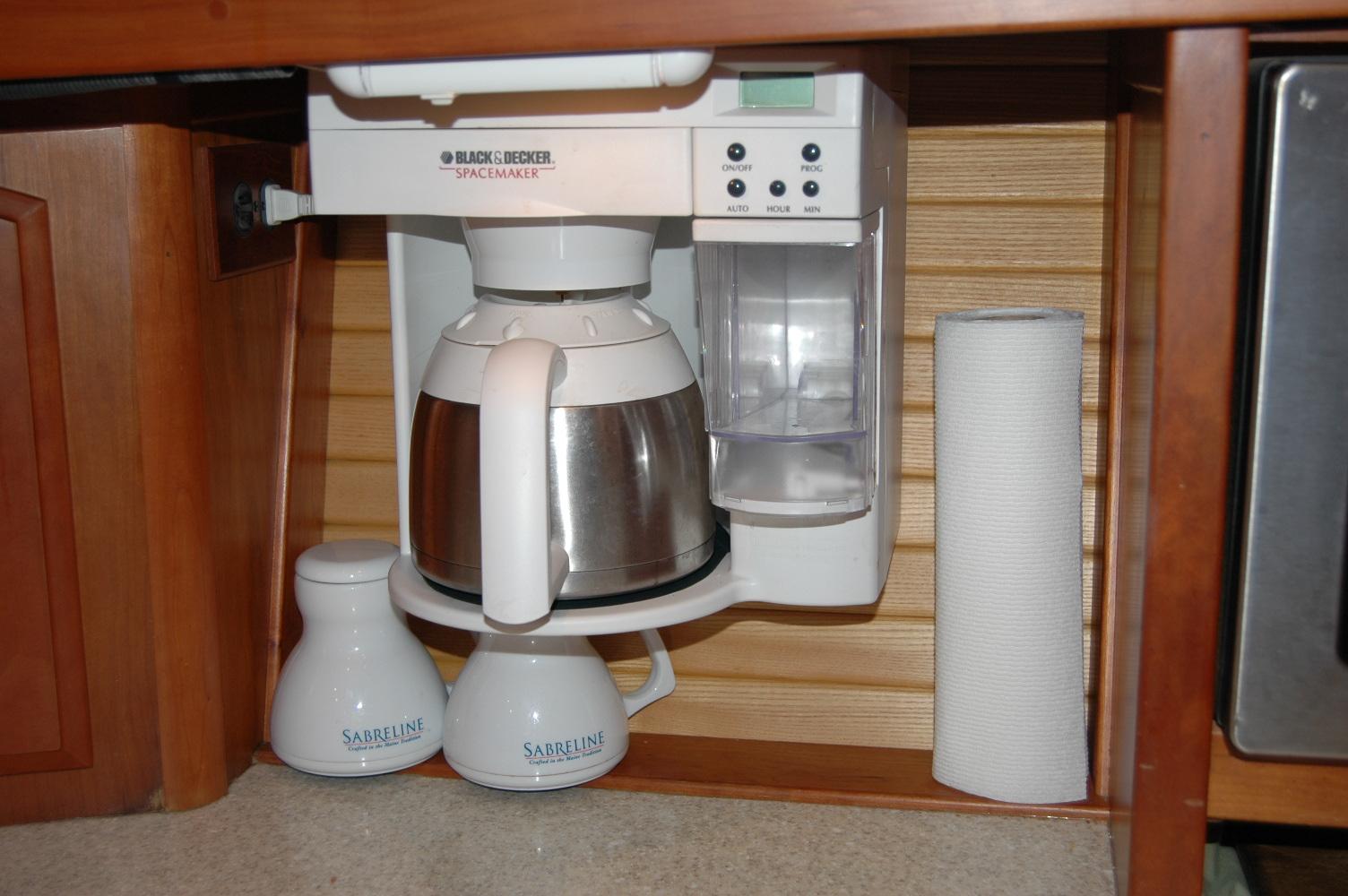

Coffee Maker (Space Saver overhead mount)

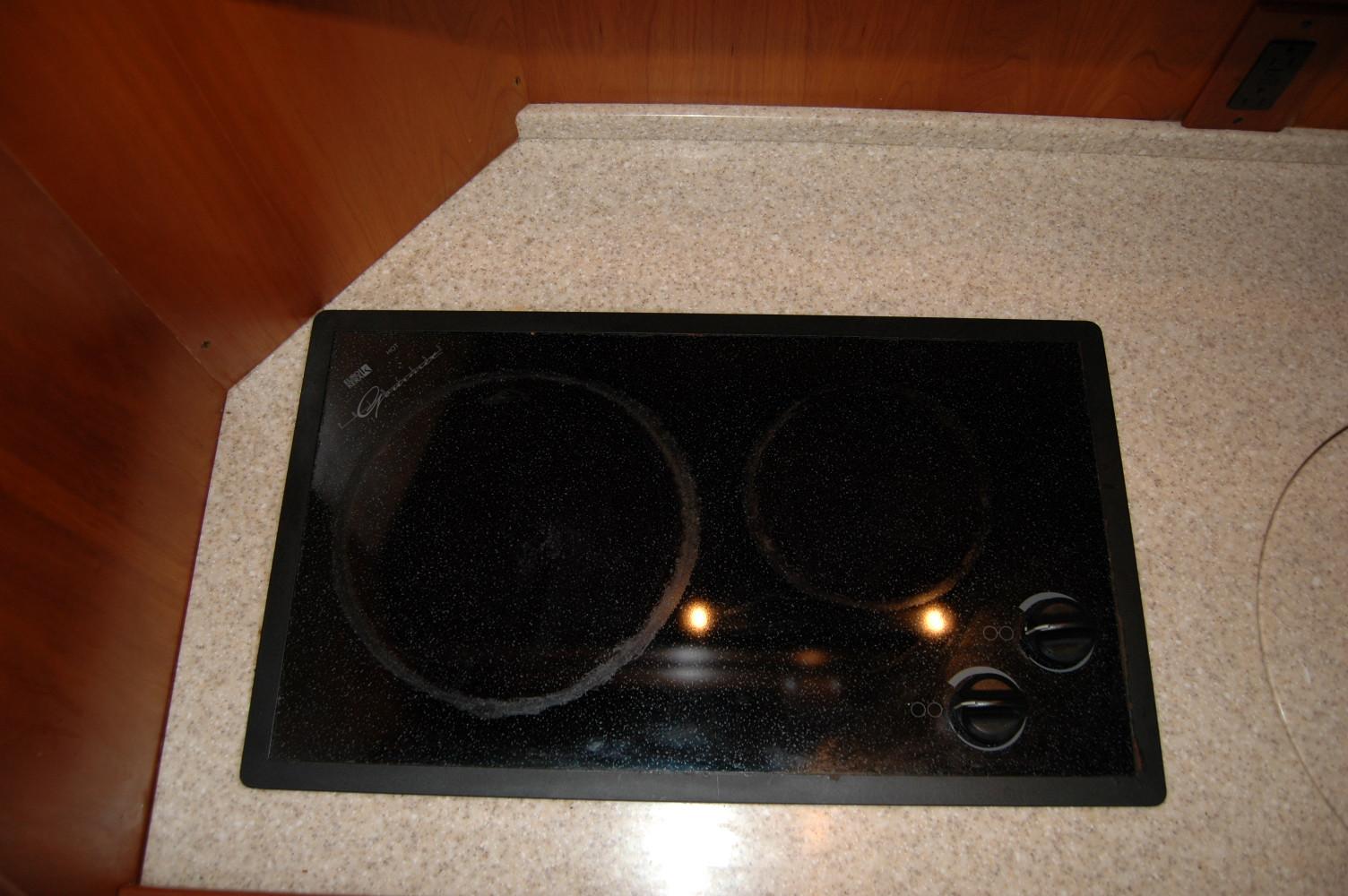

Two burner electric cook top with separate convection microwave.
Taylor Tundra 4.2 Refrigerator/Freezer 12DC/120VAC
Fresh Water System
Water capacity 100 gals. in Two 50 gal. tanks.
11 gal. Stainless steel hot water heater off 110V and engine
Hot and cold water pressure system 12V.
Decor
Varnished cherry interior finish
Screens on all opening ports and hatches
Ocean Air screen/blinds on deck hatches
Laminated wood trims on counters and shelves
Dovetailed maple drawer boxes
Waste Disposal
Polyethylene holding tank with 30 gallon capacity
Jabsco Quiet Flush fresh water MSD
Macerator pump on holding tank
Safety
Fire extinguishers, (3) at 2 1/2 lbs.
Marelon sea valves on all below waterline fittings.
Bonding system to safeguard against galvanic corrosion.
Automatic fire extinguishing discharge system with override.
Automatic 12V electric bilge pump.
