Standard Specifications
Hull & Deck
• Modified deep-V hull w/sharp entry, 3.8:1 length to beam ratio and 19.5-degree deadrise
• Vacuum-infused and post-cured, epoxy composite with biaxial E-glass and closed-cell foam core
• Solid E-glass and epoxy keel and transom corners
• Vinyl guardrail and ½ round SS rub rail
• High-density core and/or solid E-glass at thru-hulls and under hardware
• Engineered to ISO Category B Offshore standards
• Hull sides finished with urethane yacht paint
• Single vinyl 3/8” cove stripe
• Single painted chine stripe
• White gelcoat deck with non-skid
• White epoxy painted bilges

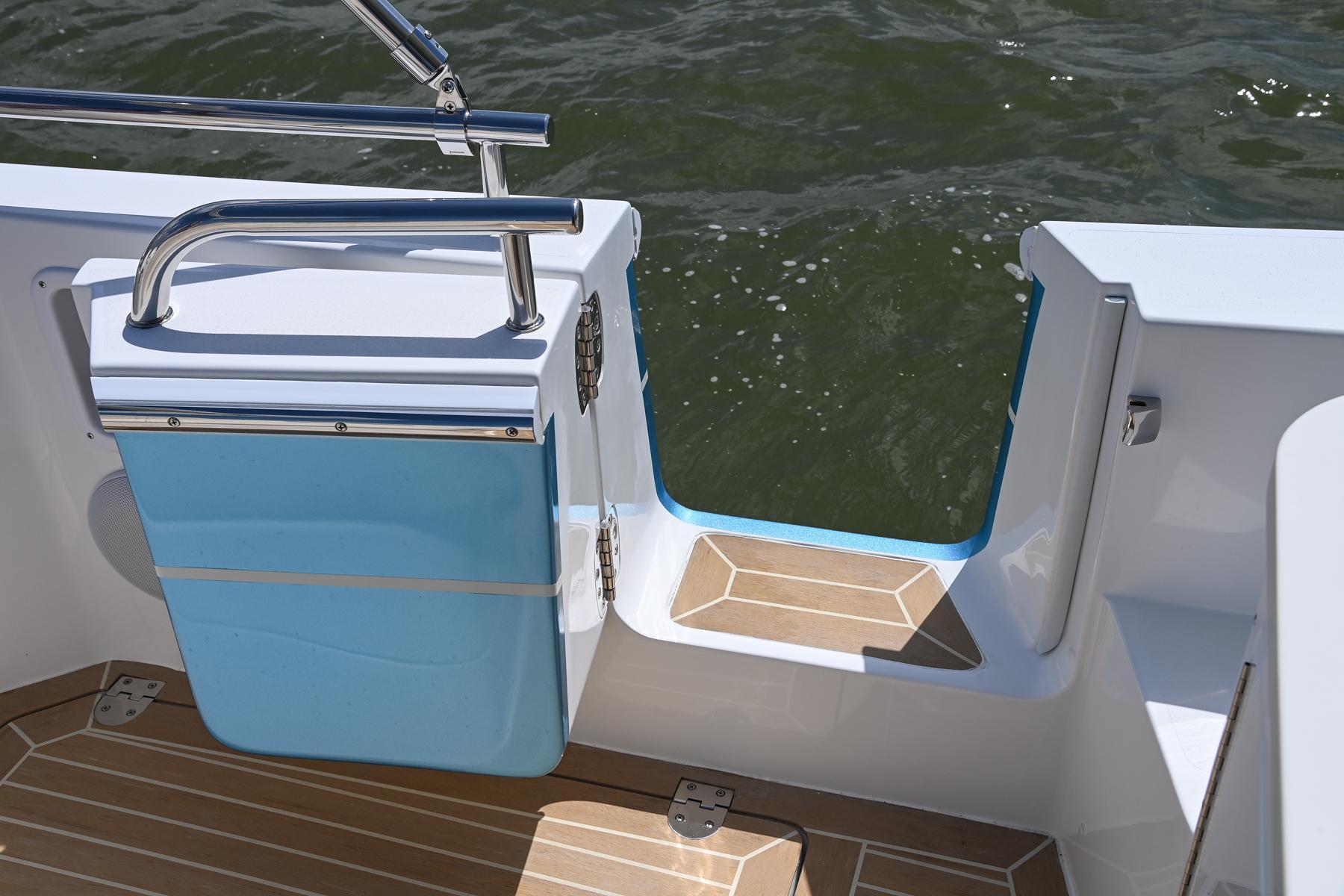

• Side and transom entry doors into cockpit sole
• Stainless Steel Bow rail
• SS custom deck cleats

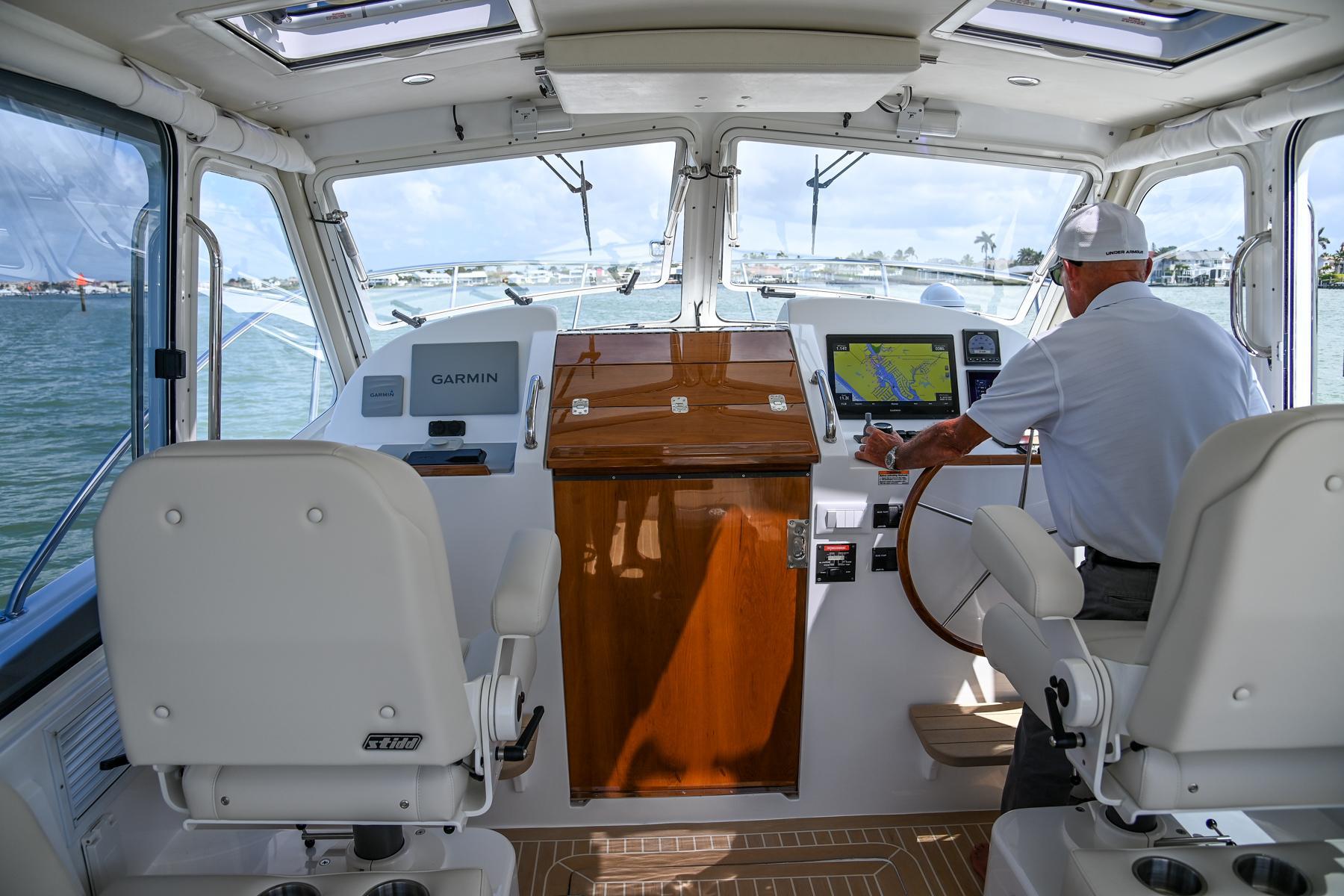

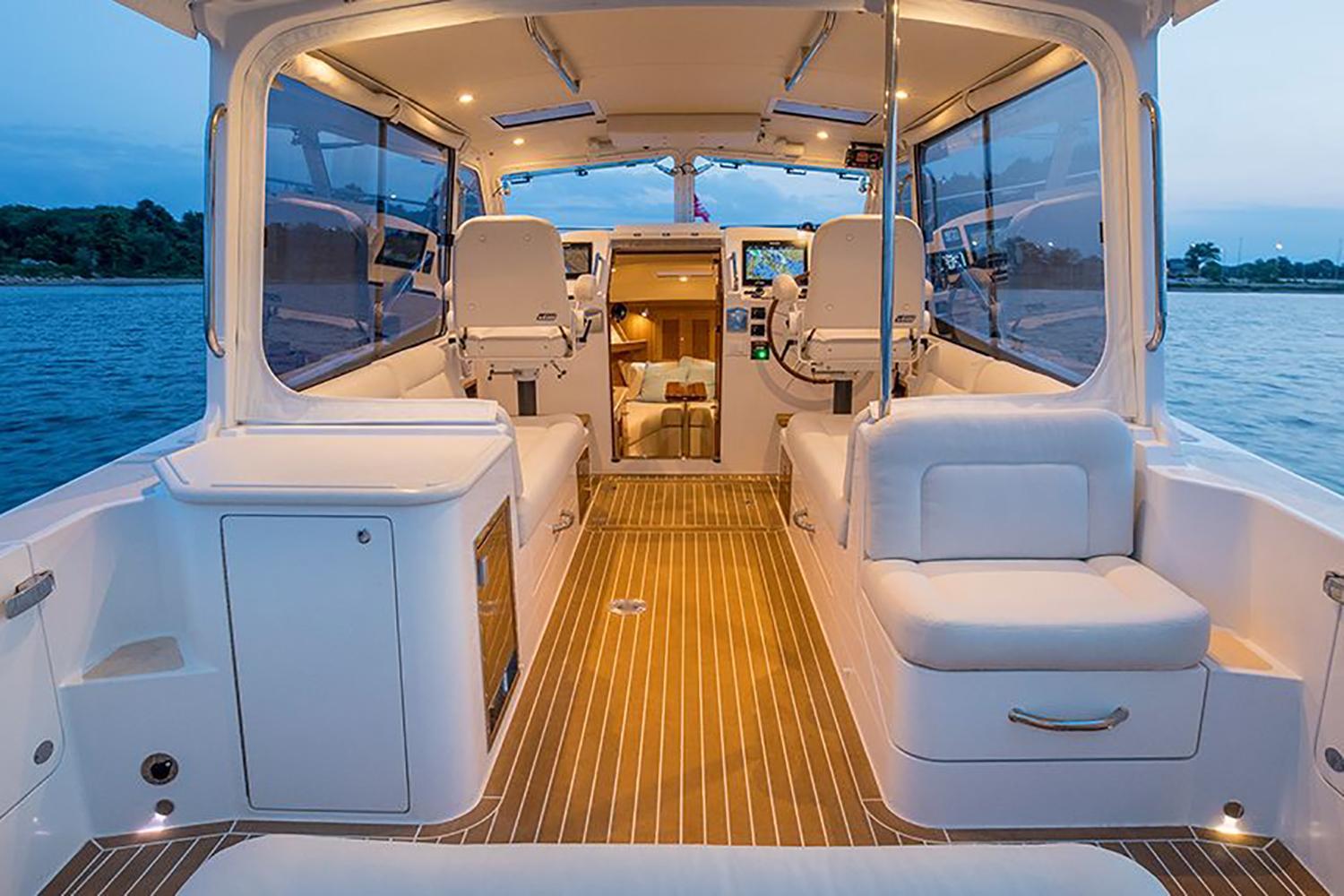

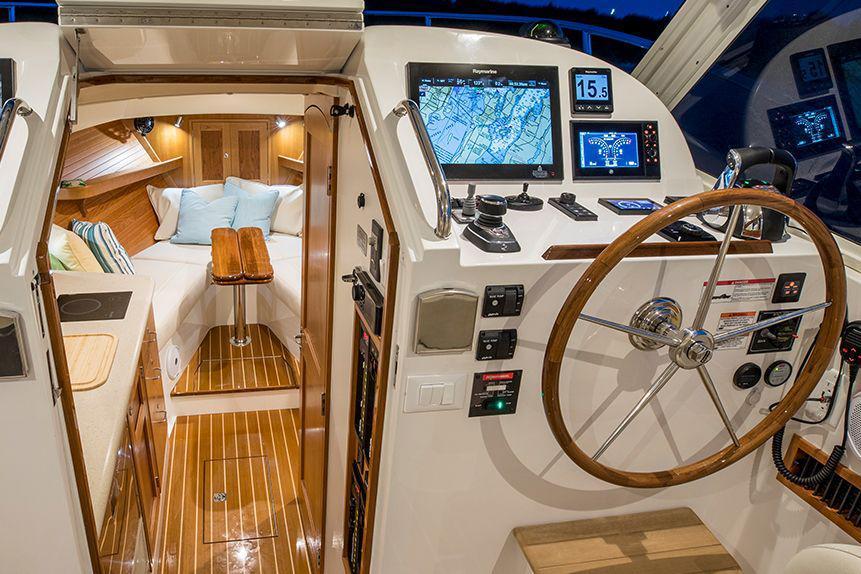

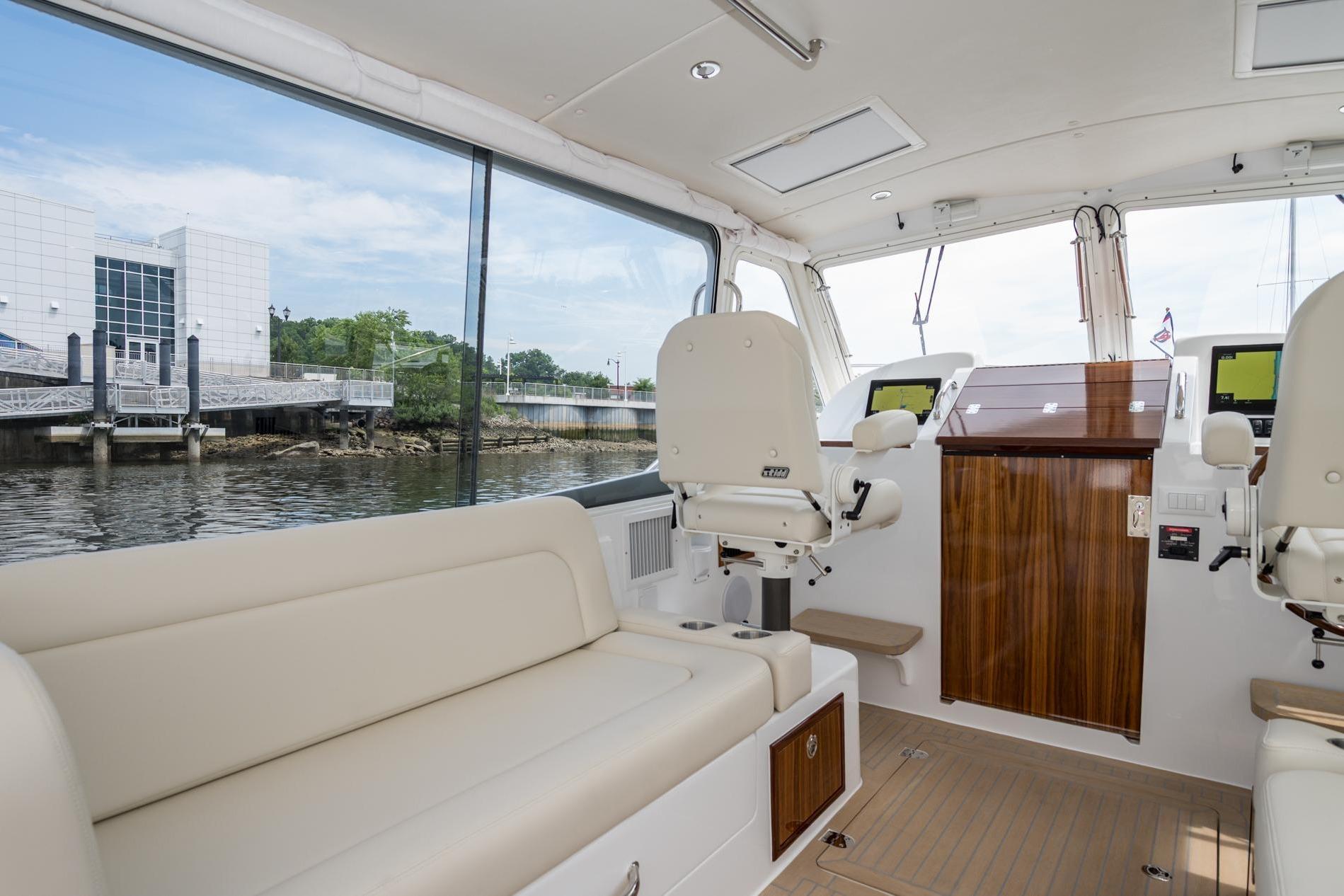

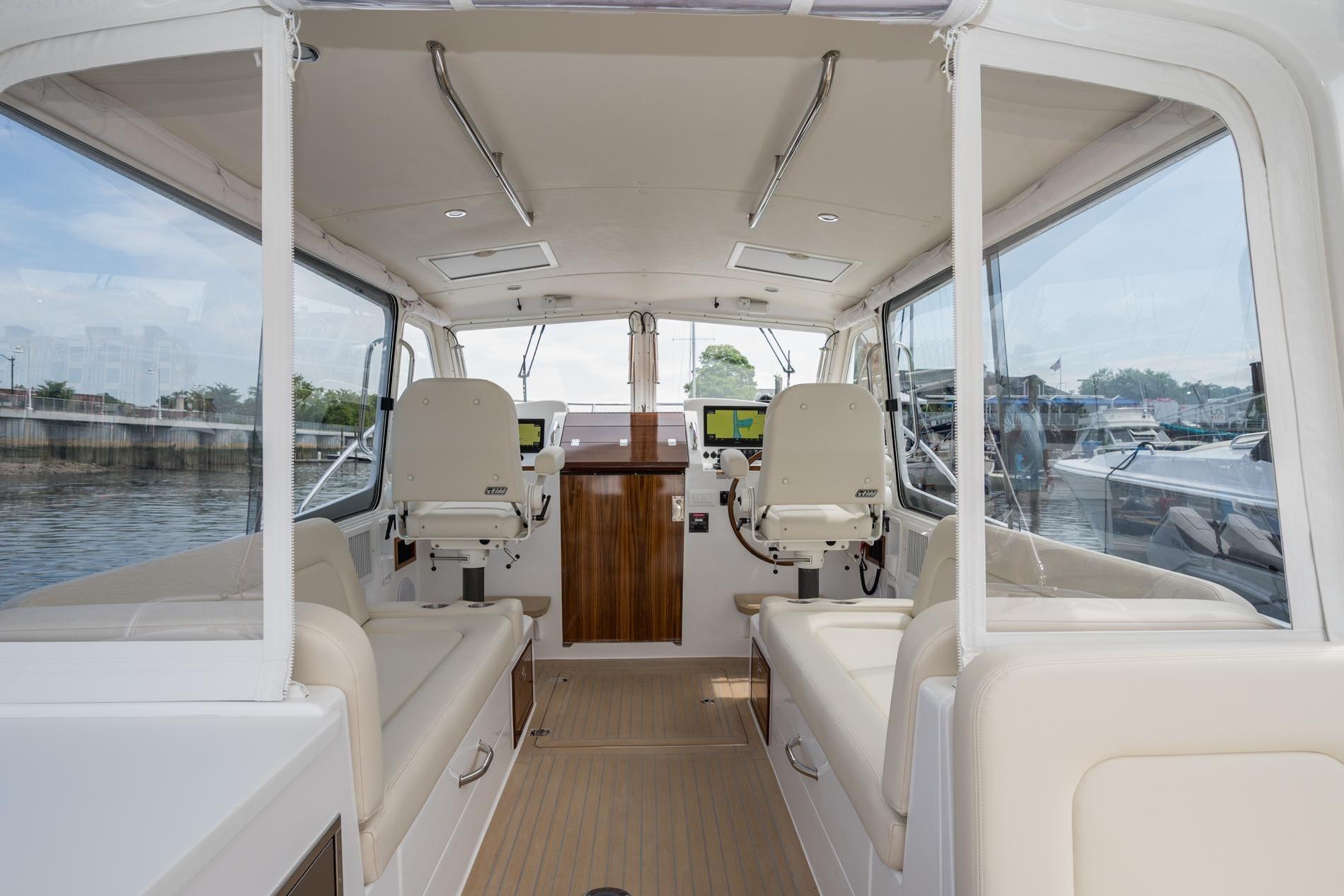

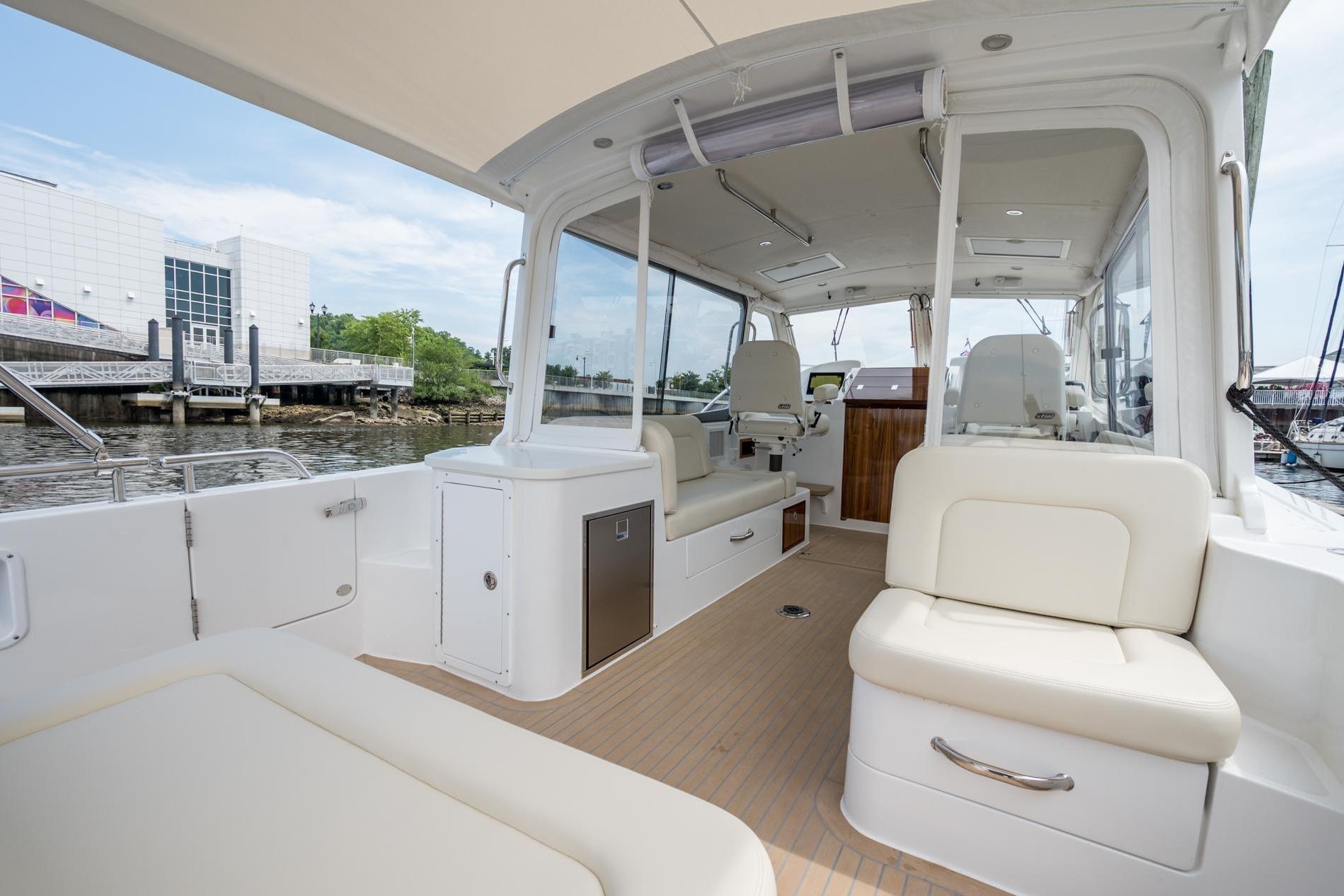

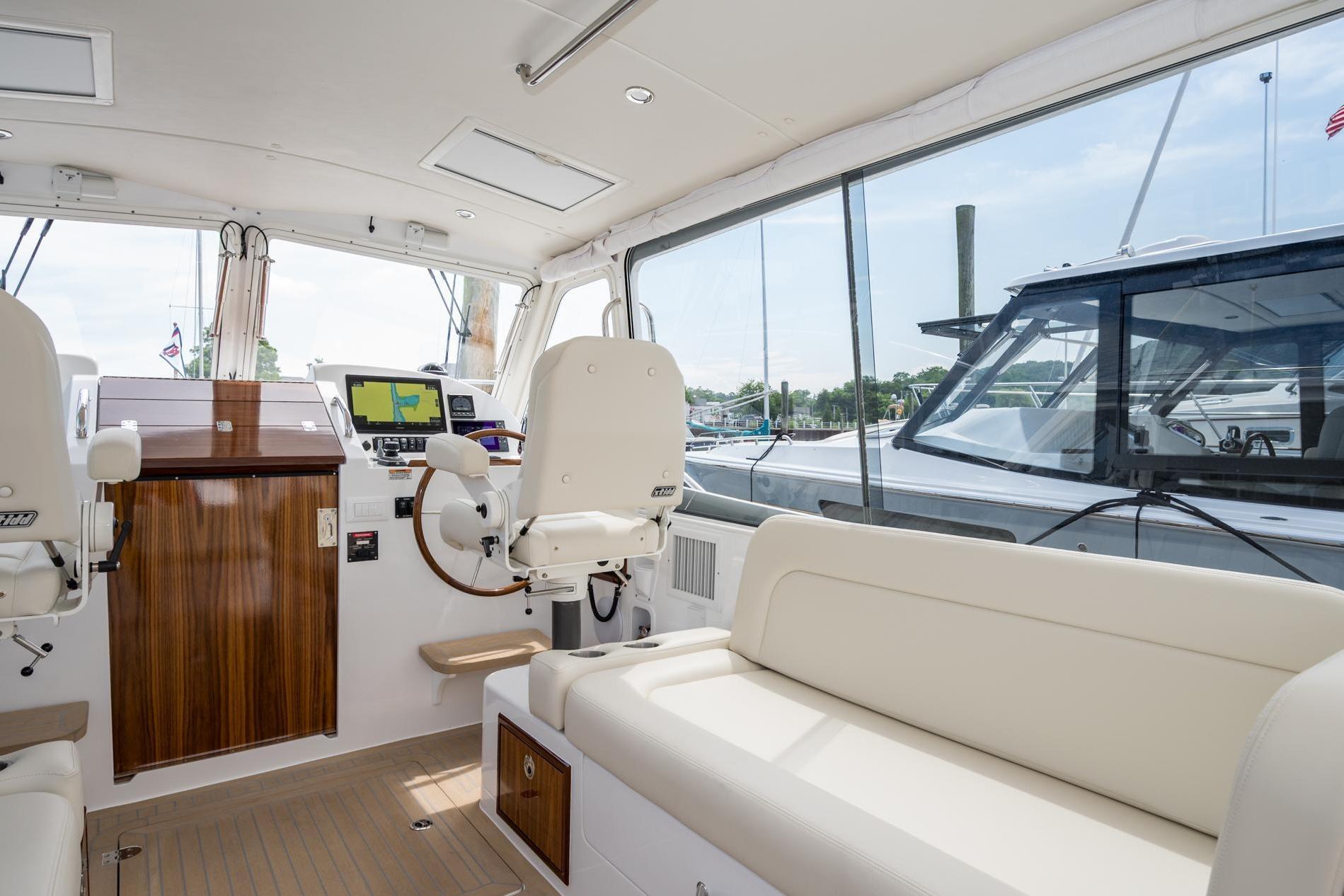

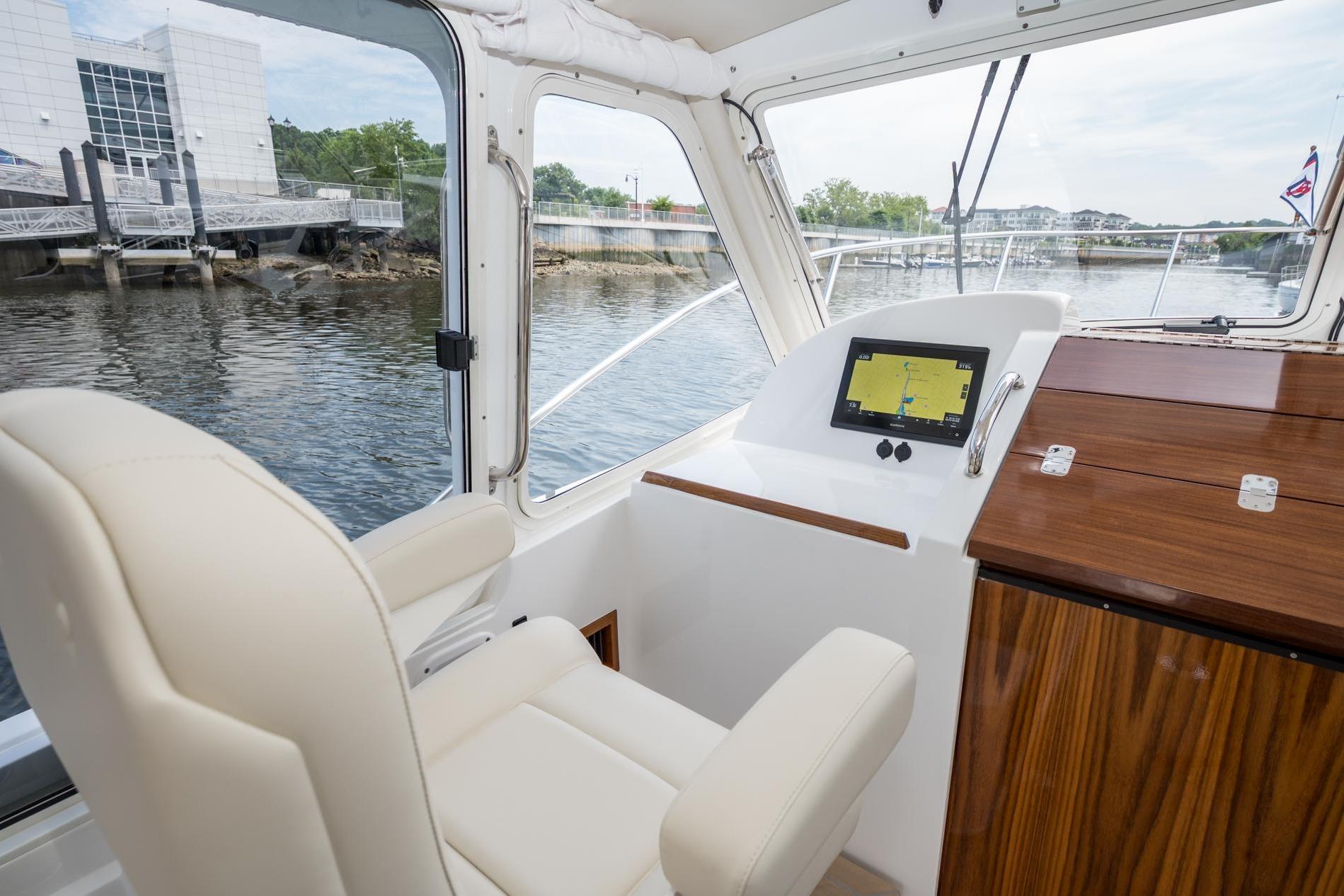

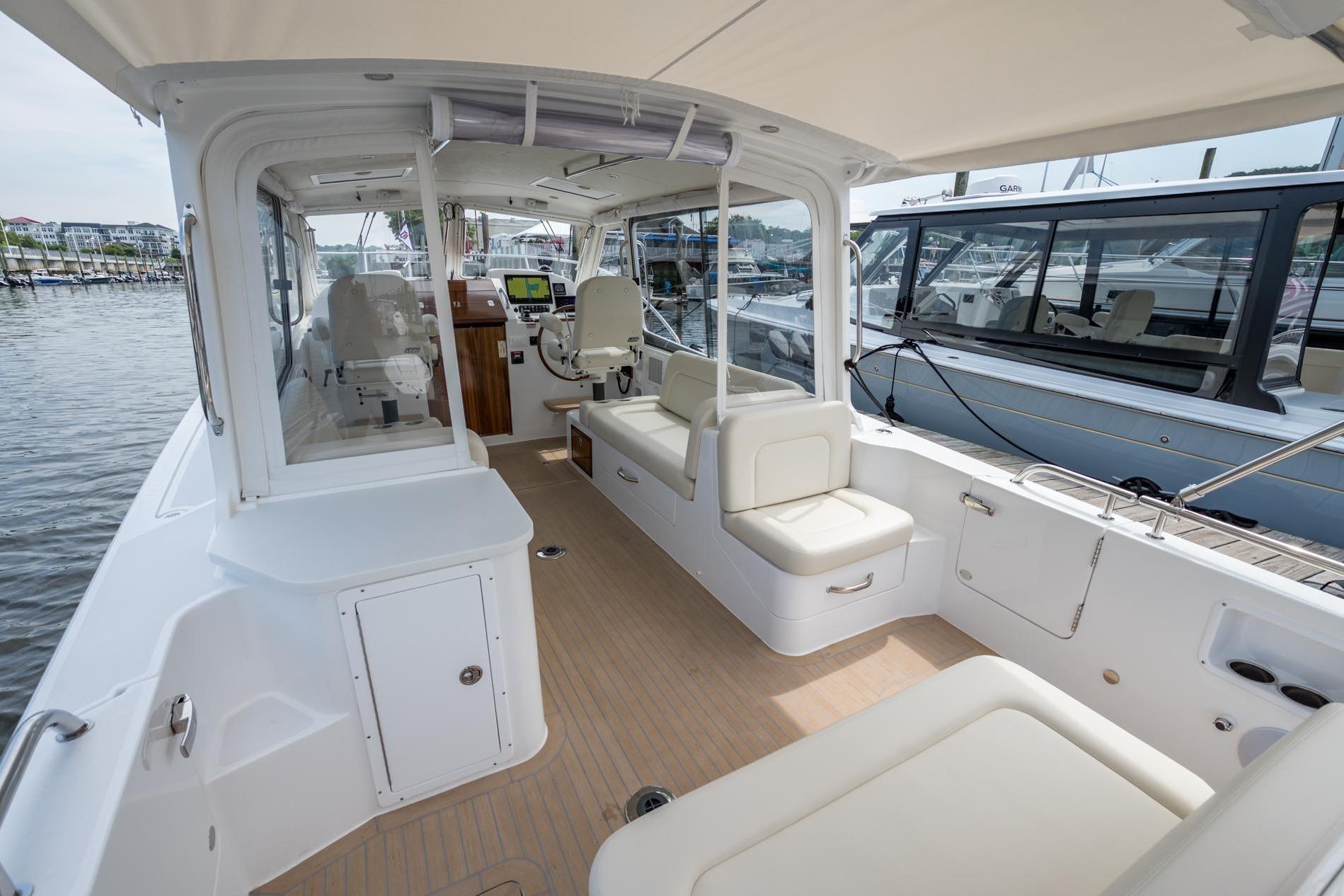

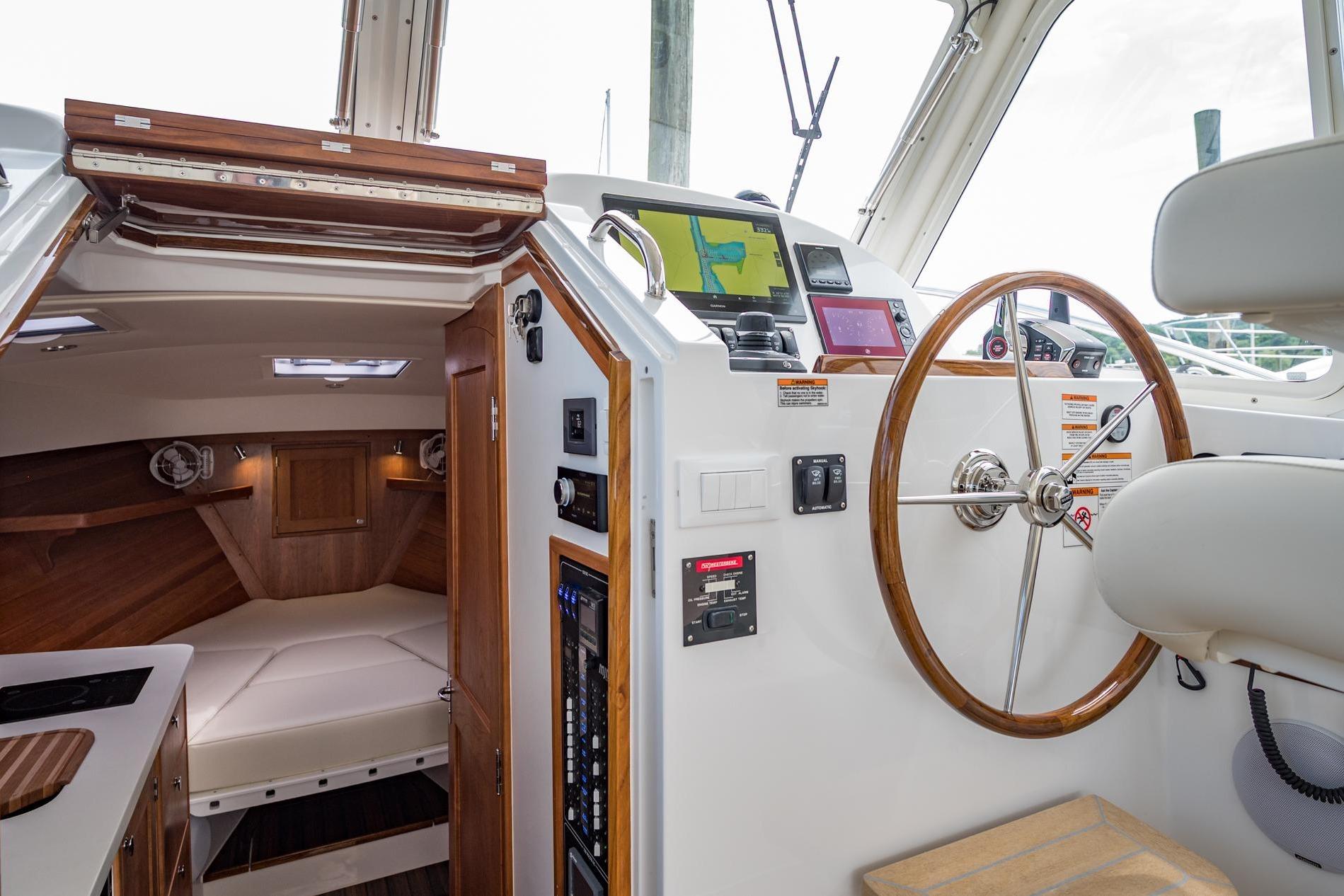

Pilothouse

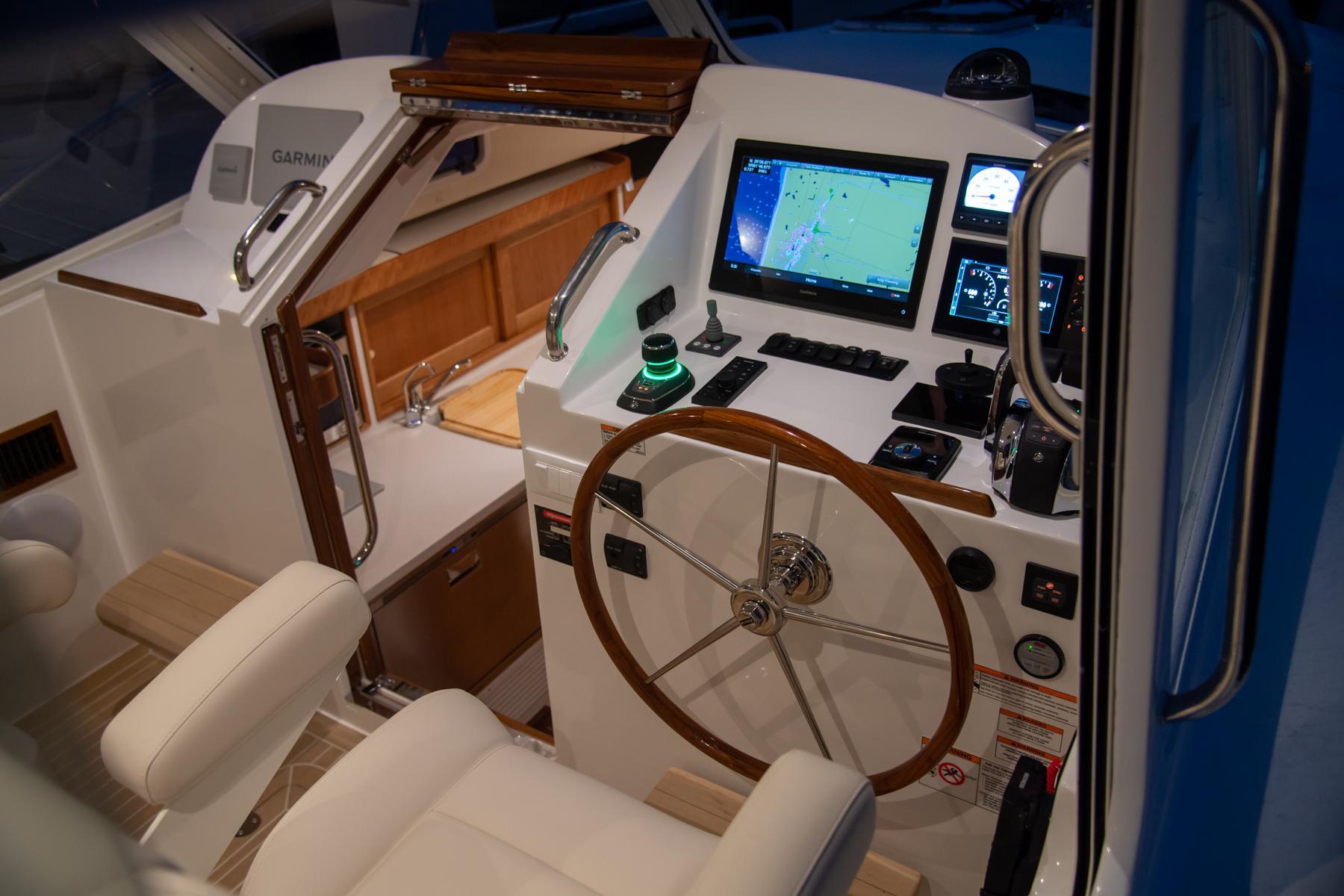

• Pilothouse with integrated glass system.

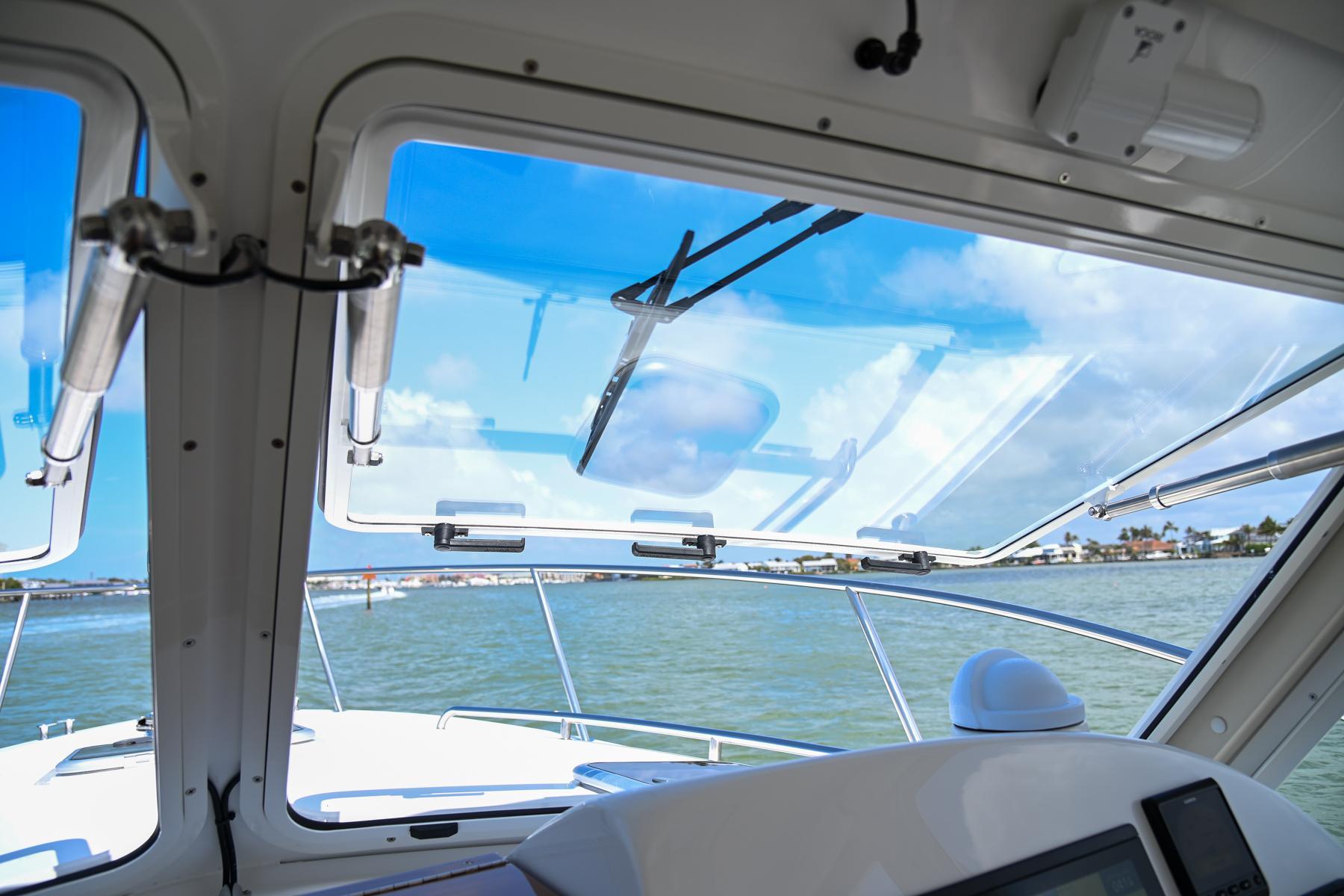

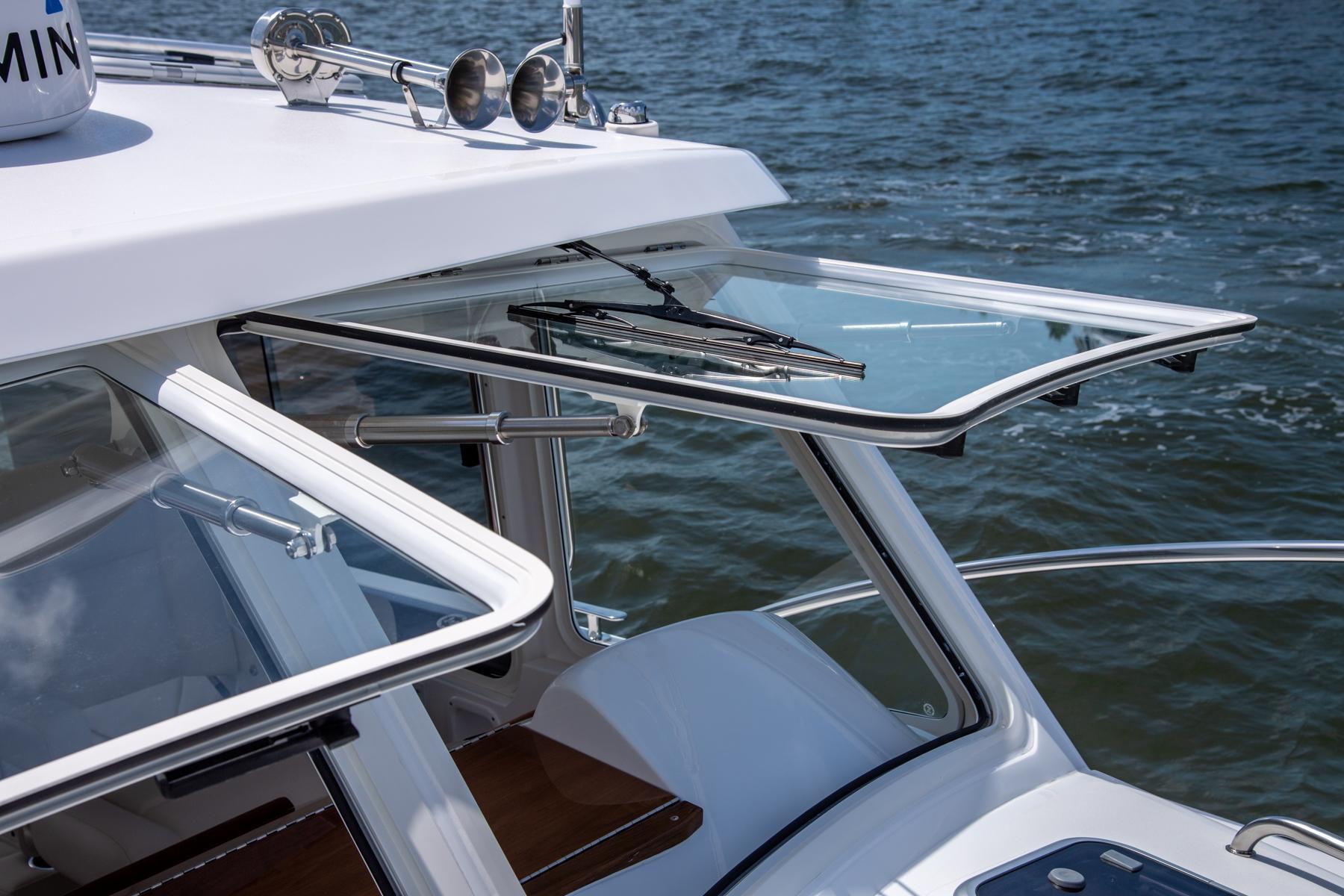

• Opening forward windows - electrically controlled
• Tinted sliding glass side windows

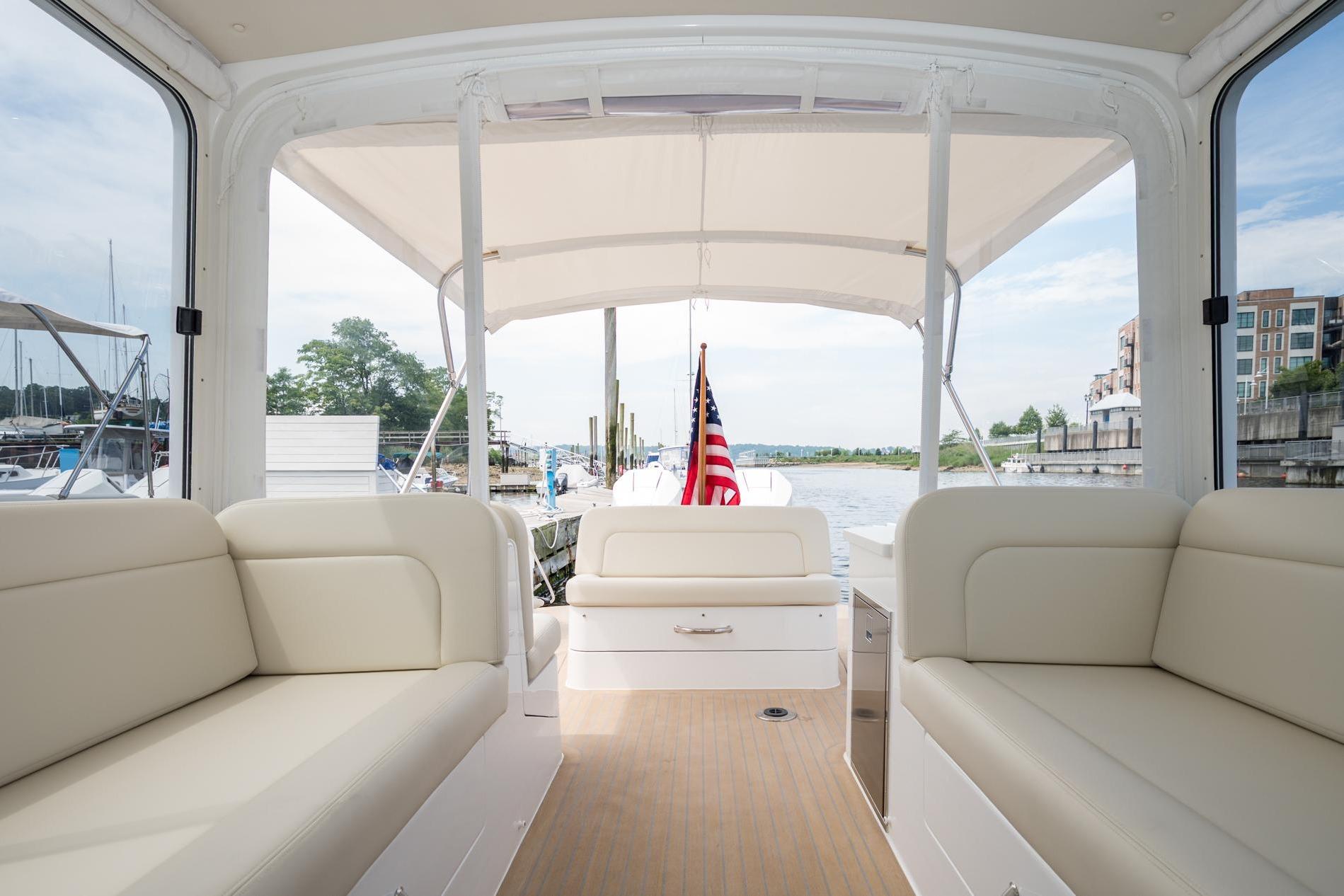

• Aft enclosure with roll-up door
• Roll-up Privacy Curtains on Bridge Deck
• Two overhead hatches

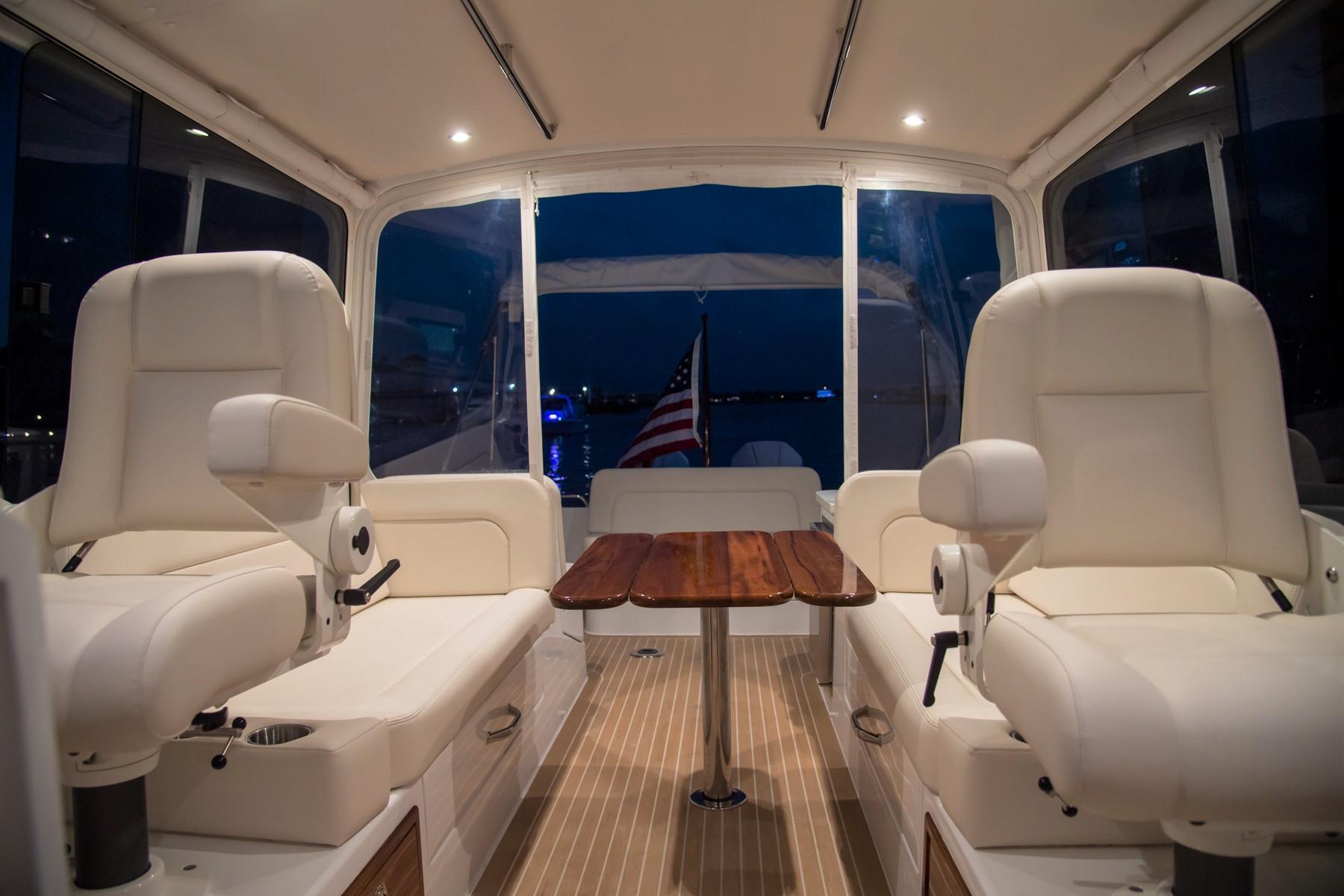

• Cushioned helm seats on telescoping swivel bases
• Gloss finished hand-picked teak drawers located in helm area

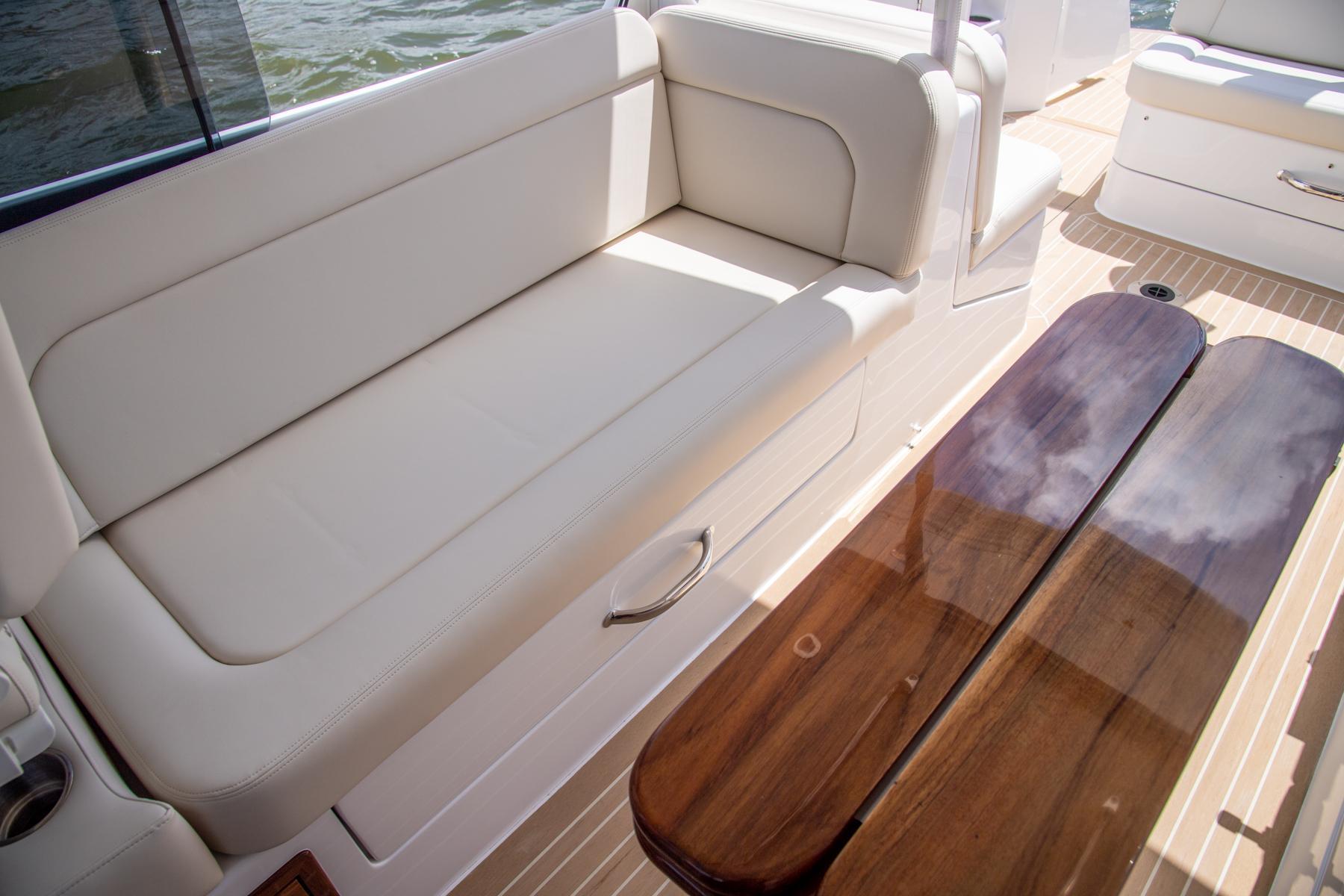

• Dual position gloss finished hand-picked teak table (cabin or pilothouse)

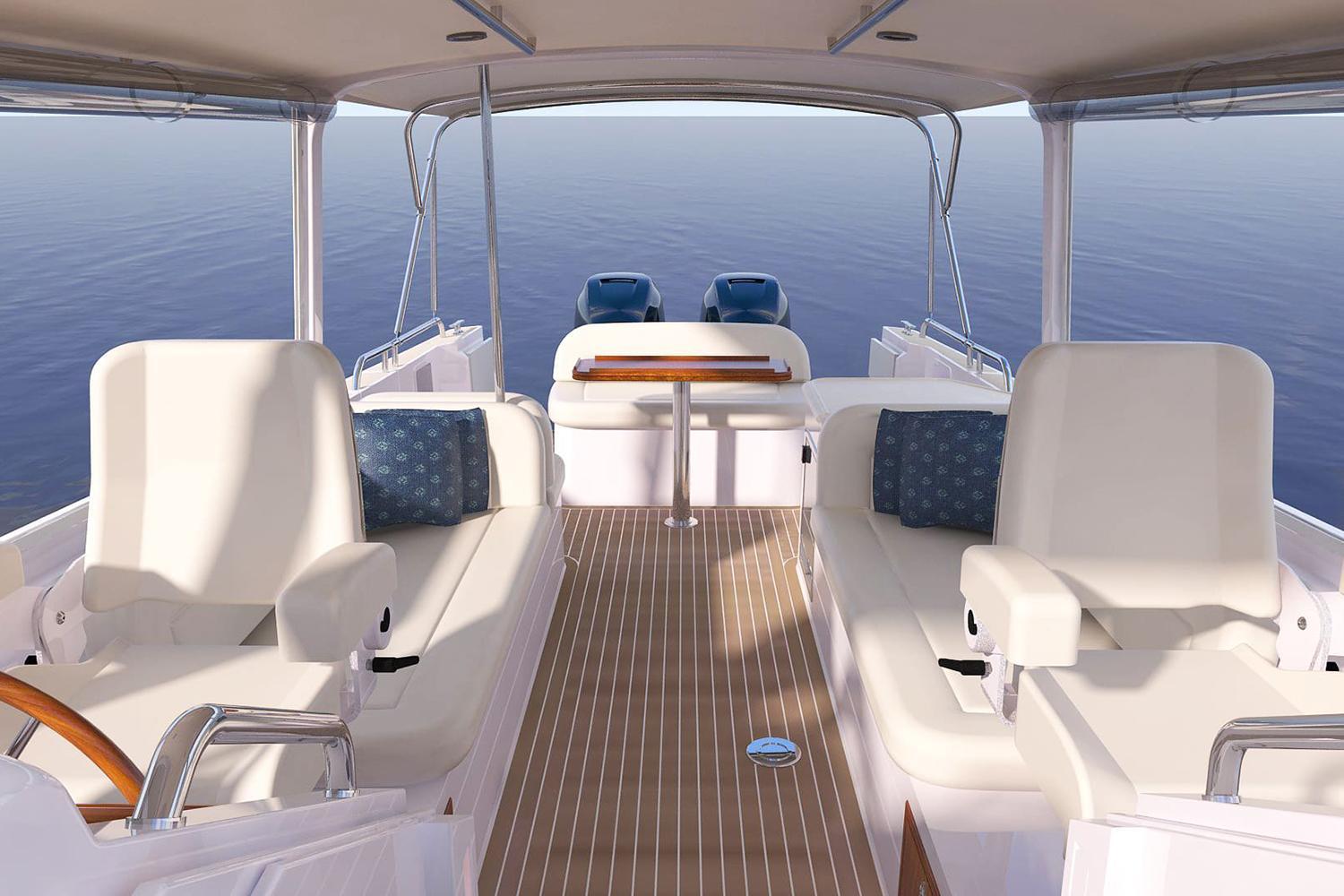

• Cushions
• Storage lockers conveniently located throughout
• Drink holders

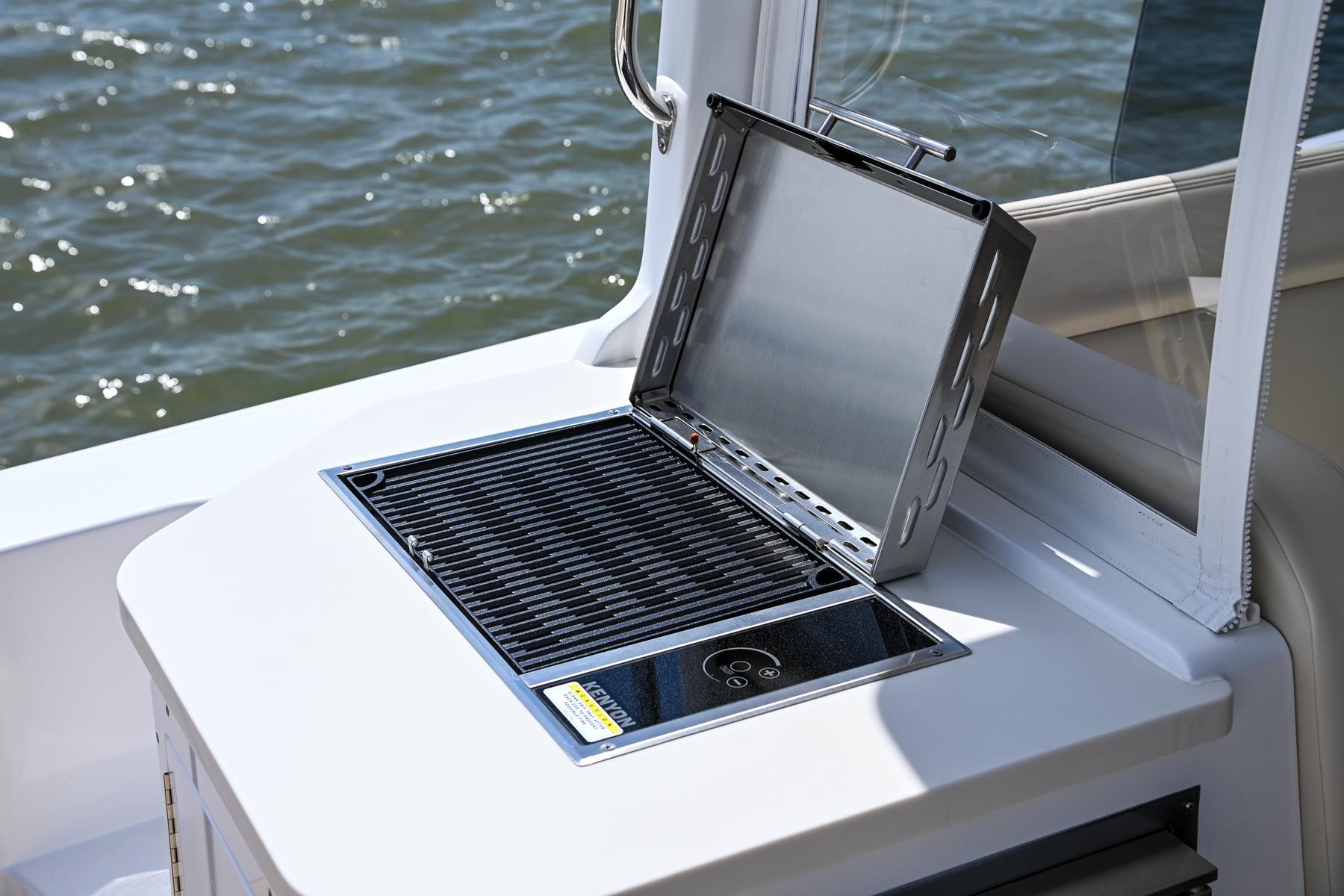

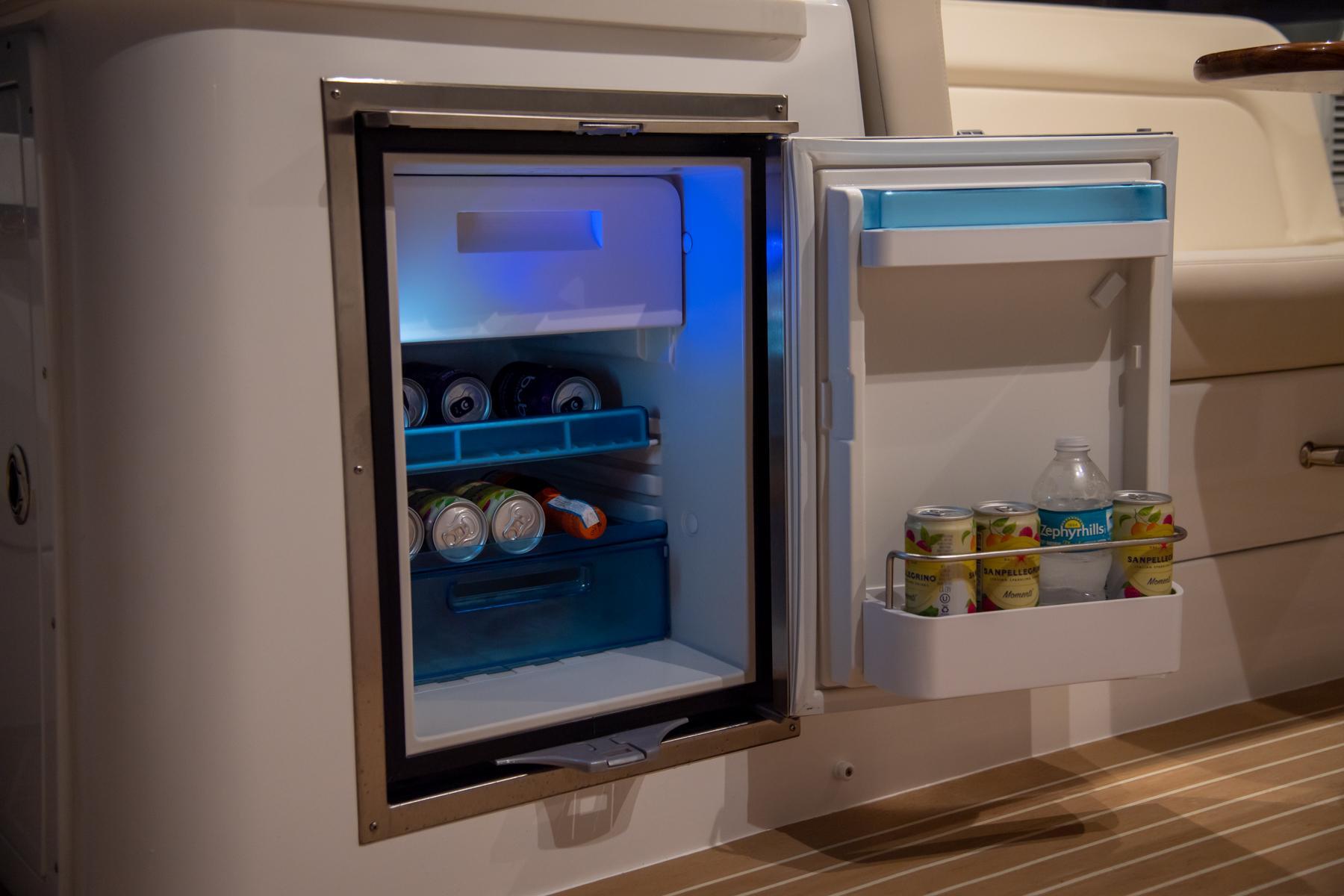

• Port cockpit serving bar with refrigerator
• Flip-panel to garbage bin
• SS handrails conveniently located throughout per ABYC
• Synthetic Teak Flooring

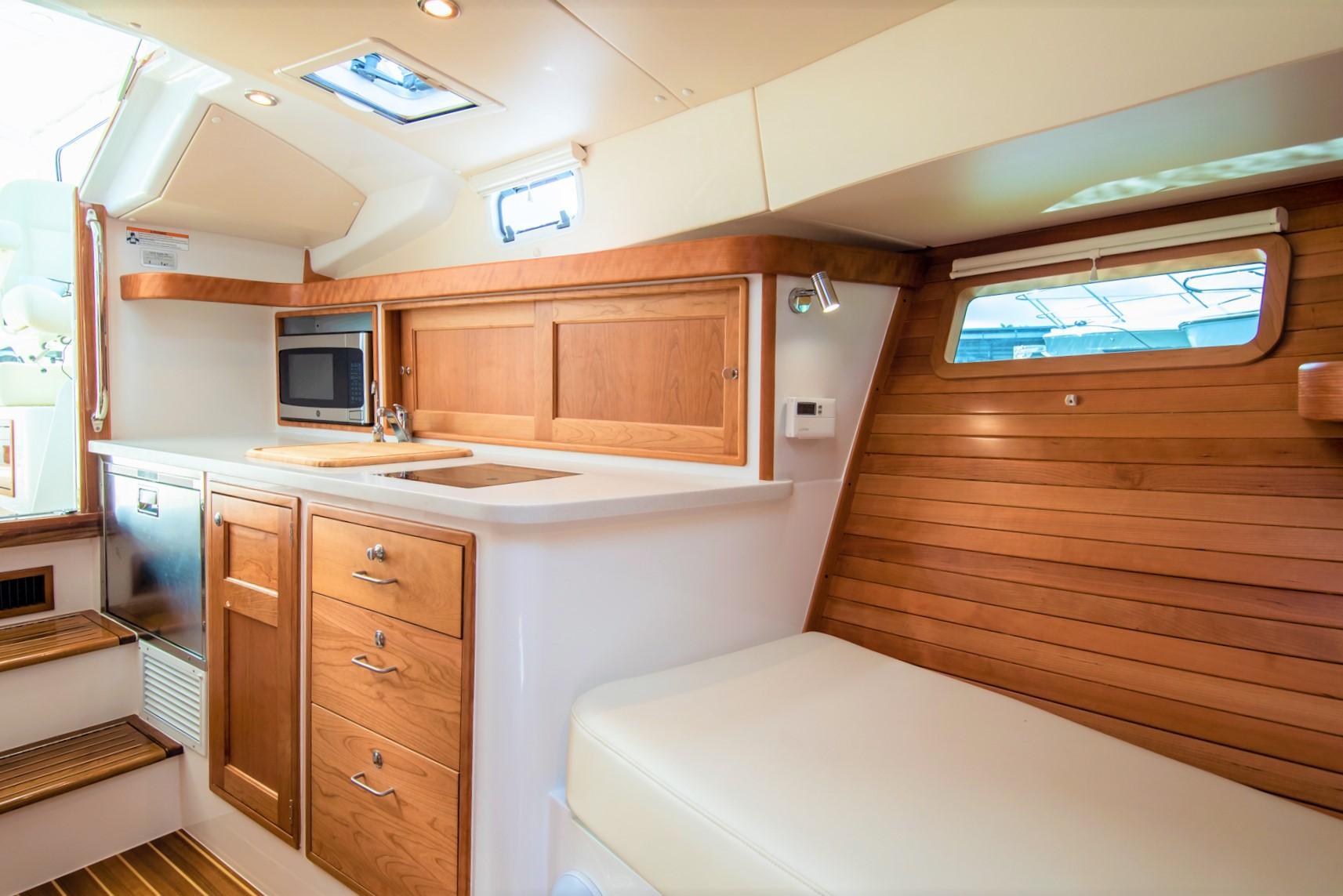

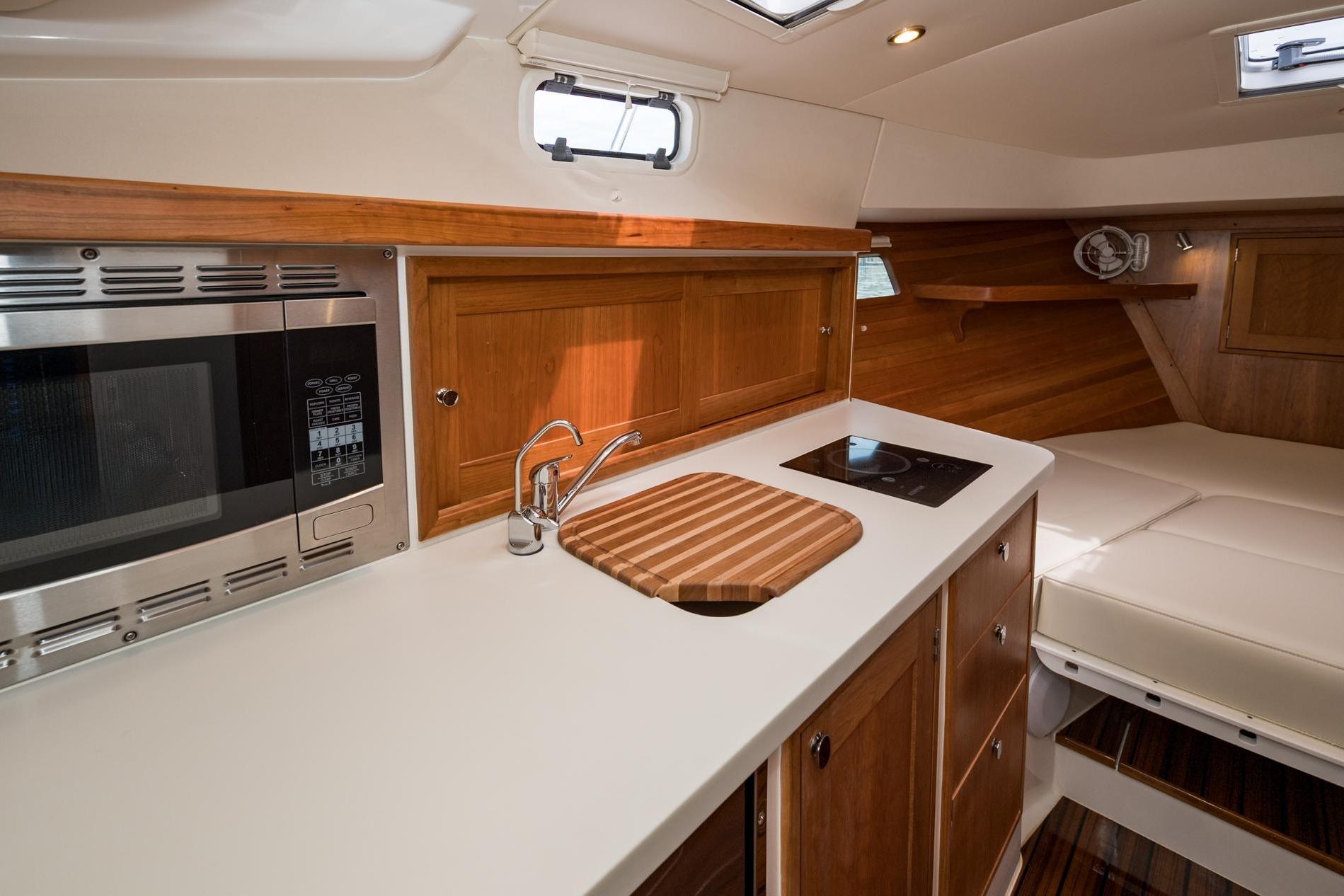

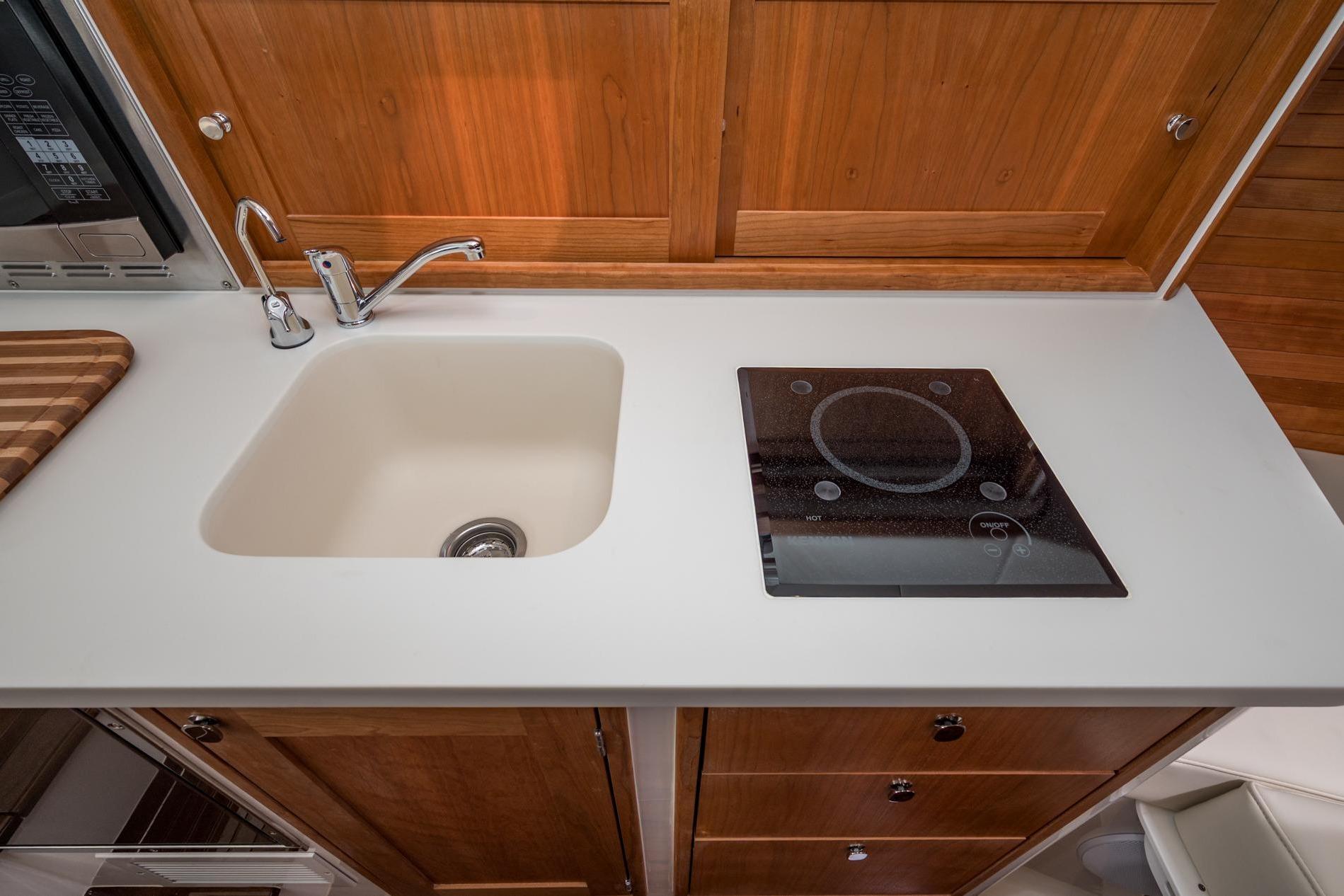

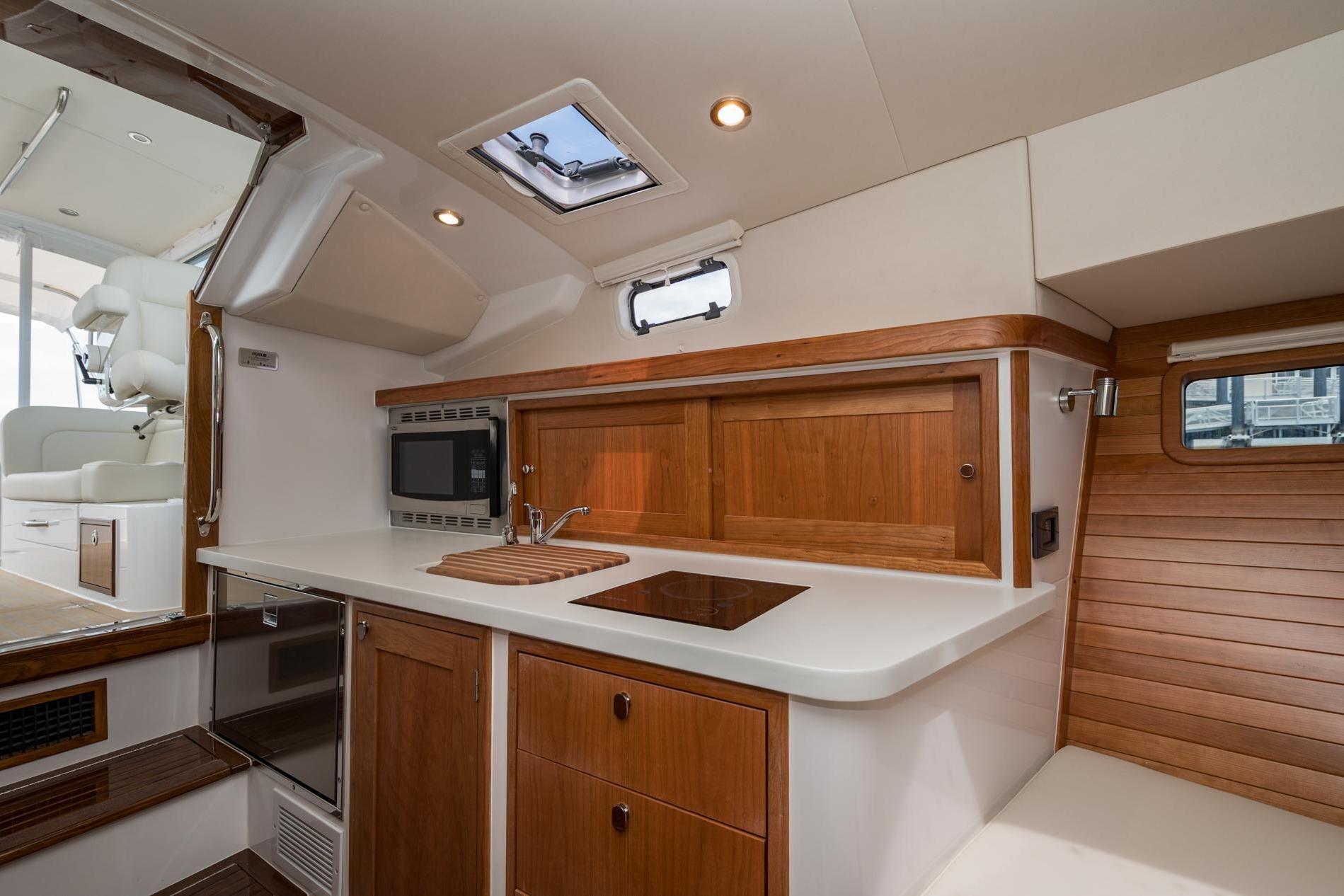

Galley

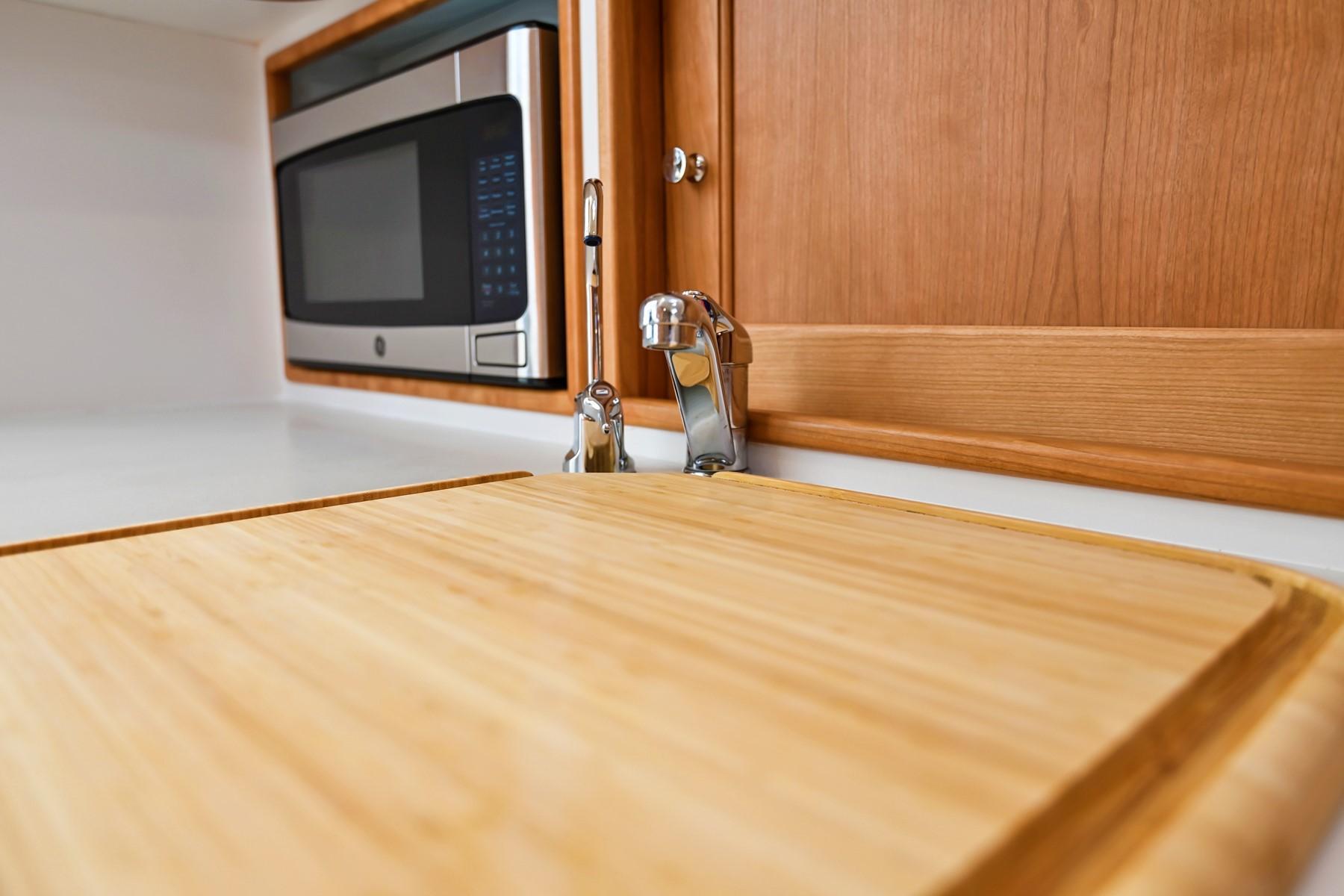

• Solid surface counter-top with recessed sink and cutting board cover
• Deep storage cabinet with sliding doors and shelf
• Induction cooktop
• Water Purifier
• Flip-panel to garbage bin

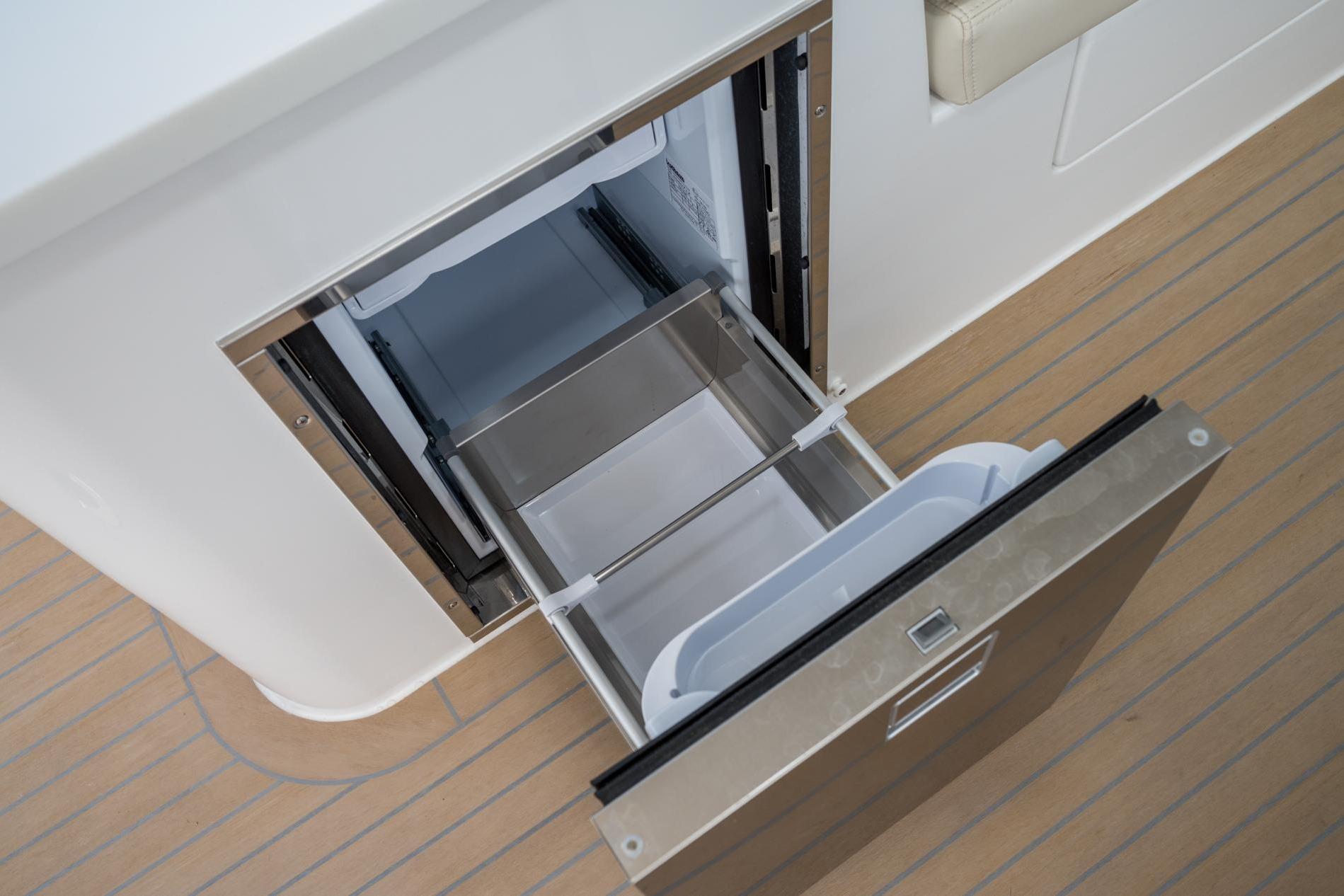

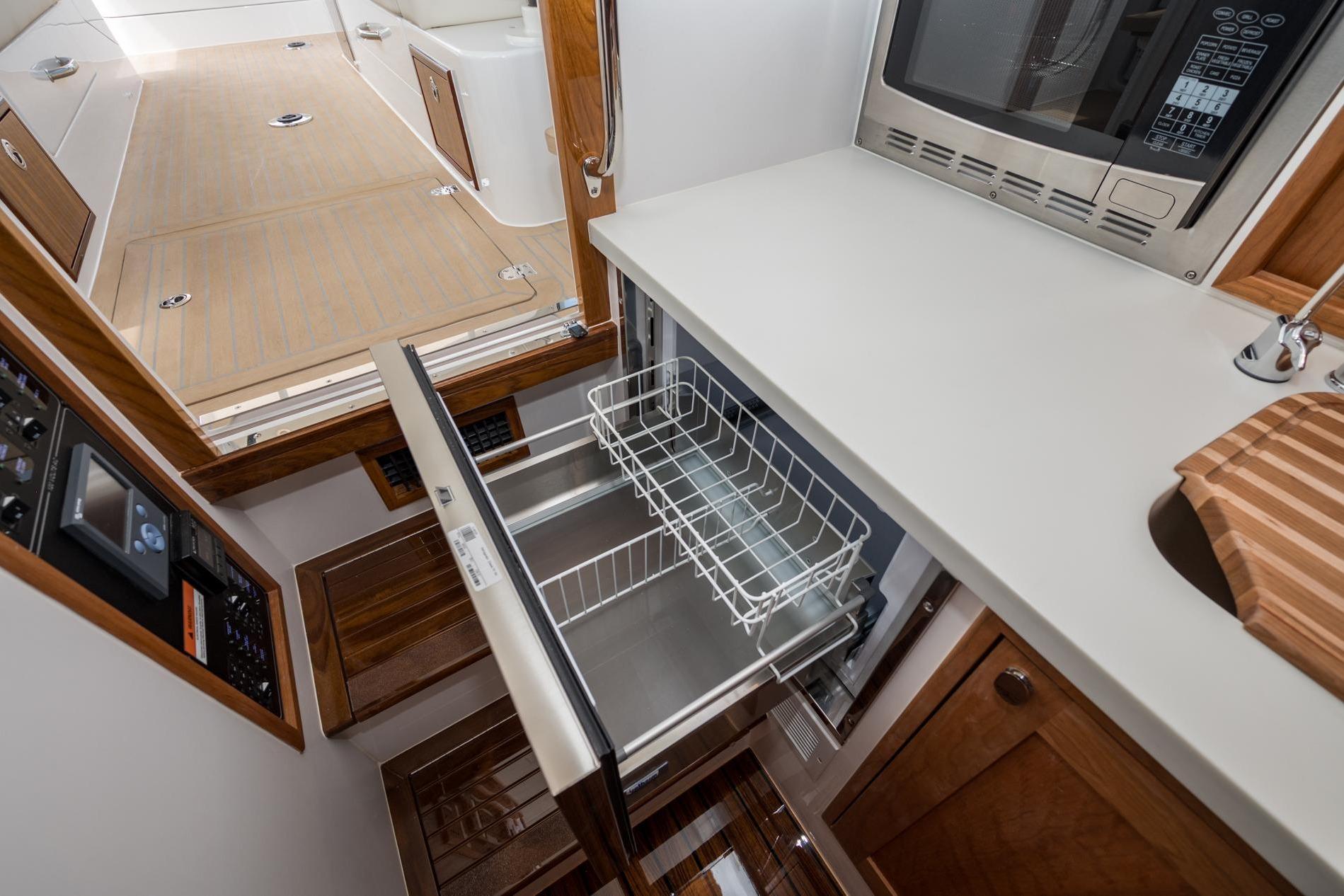

• Refrigerator drawer
• Gloss finished teak drawers

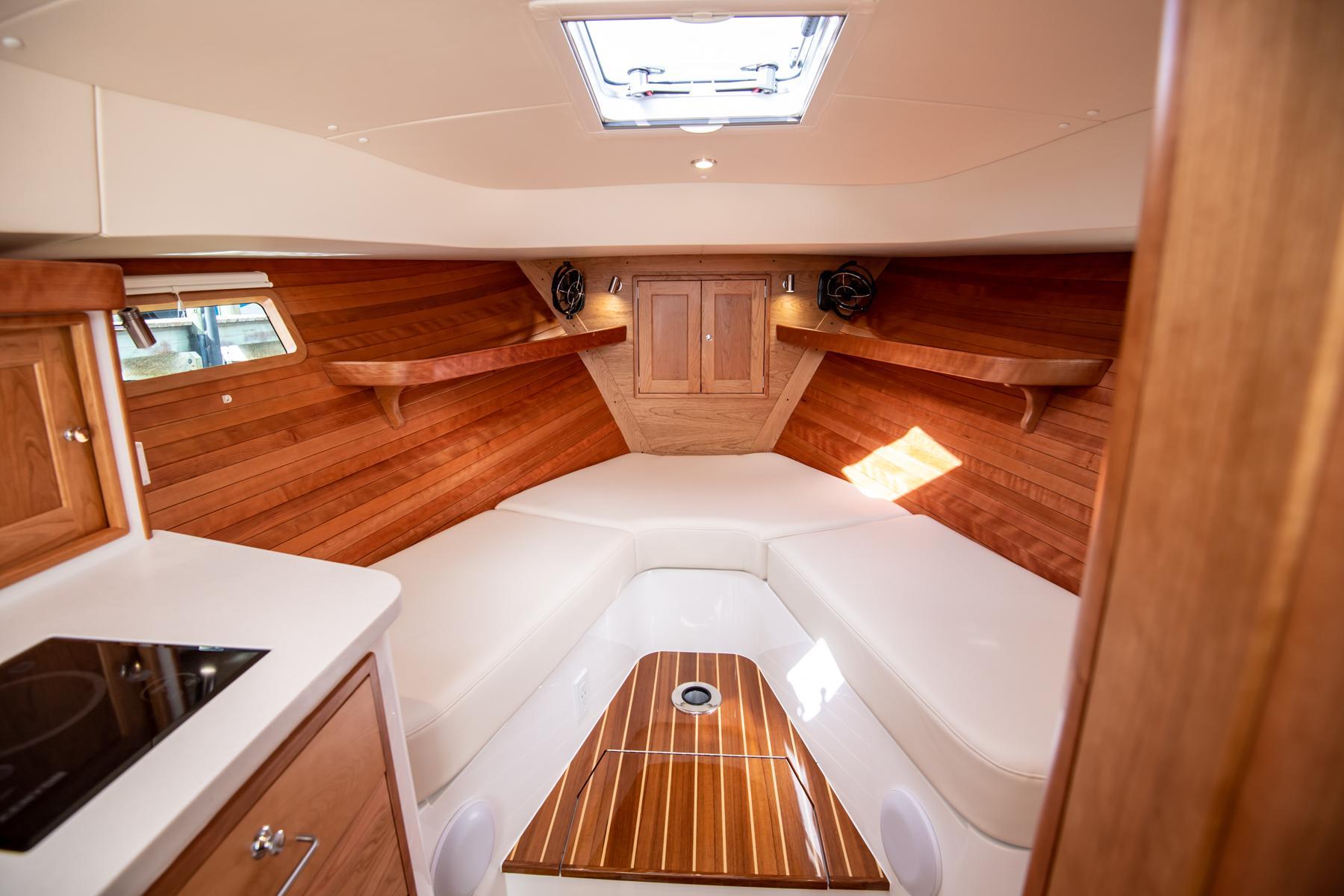

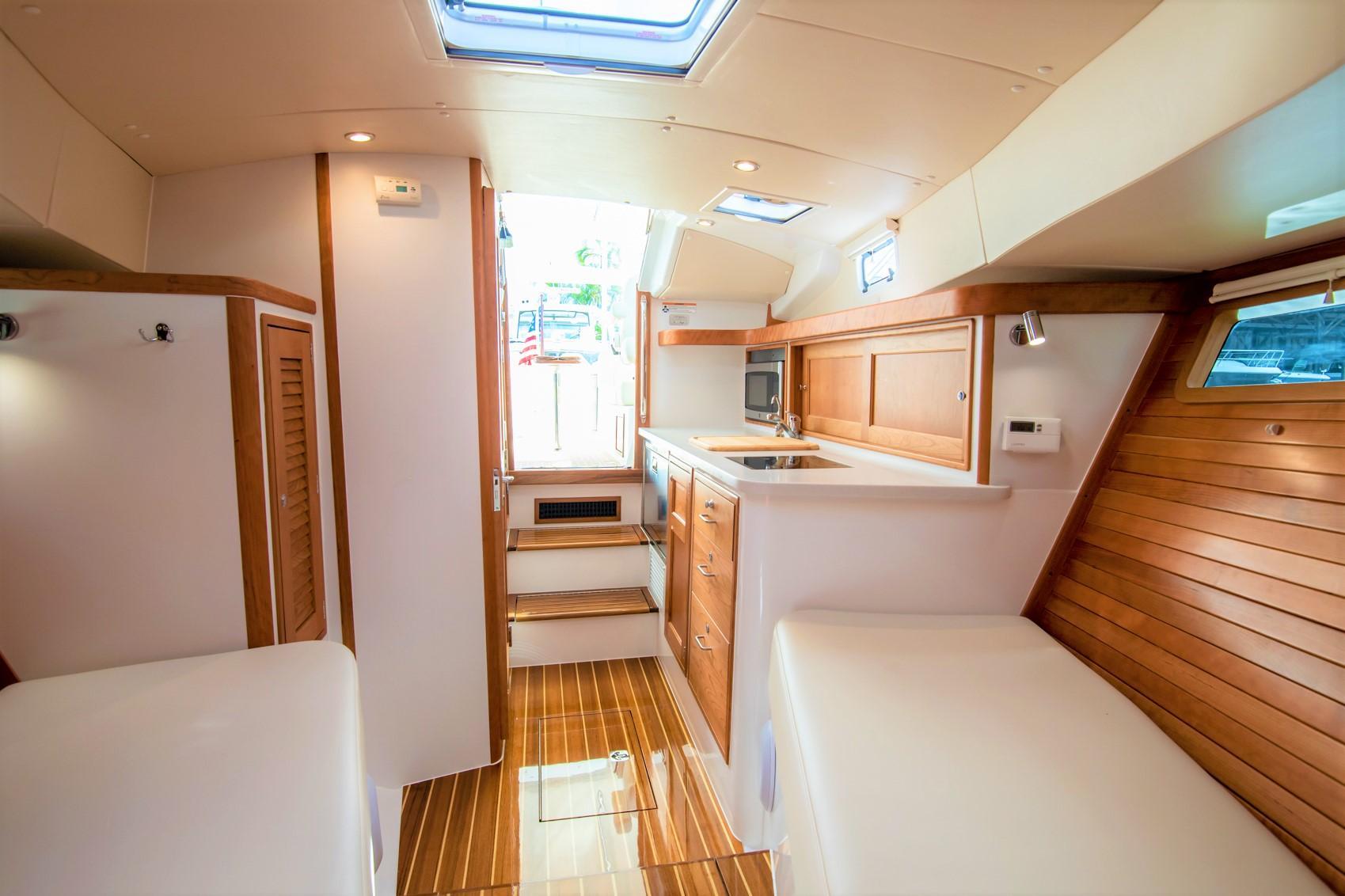

Interior

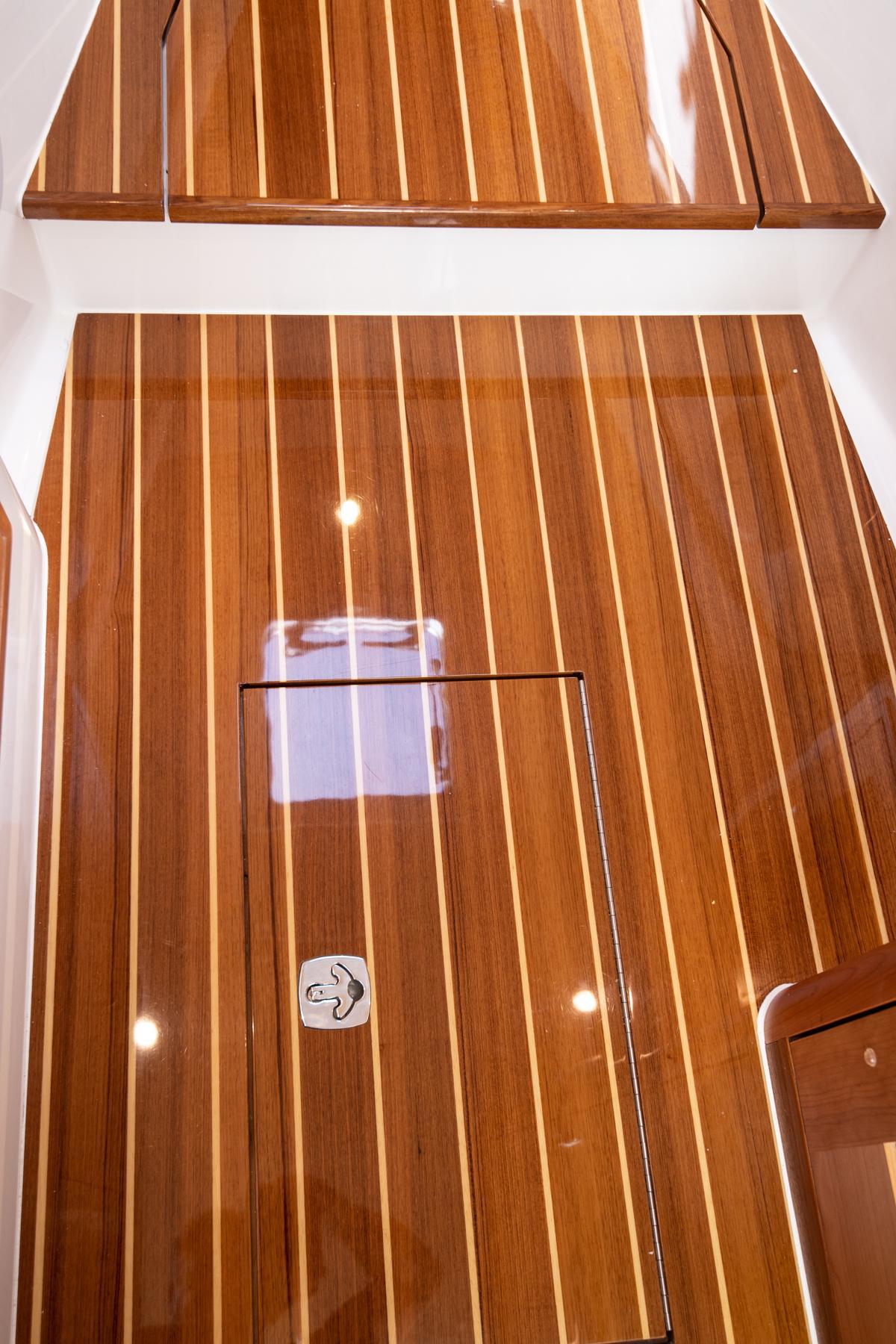

• Gloss finished teak and wenge sole with storage locker
• Two fixed hull ports, two cabin ports, and three overhead hatches
• Galley to port

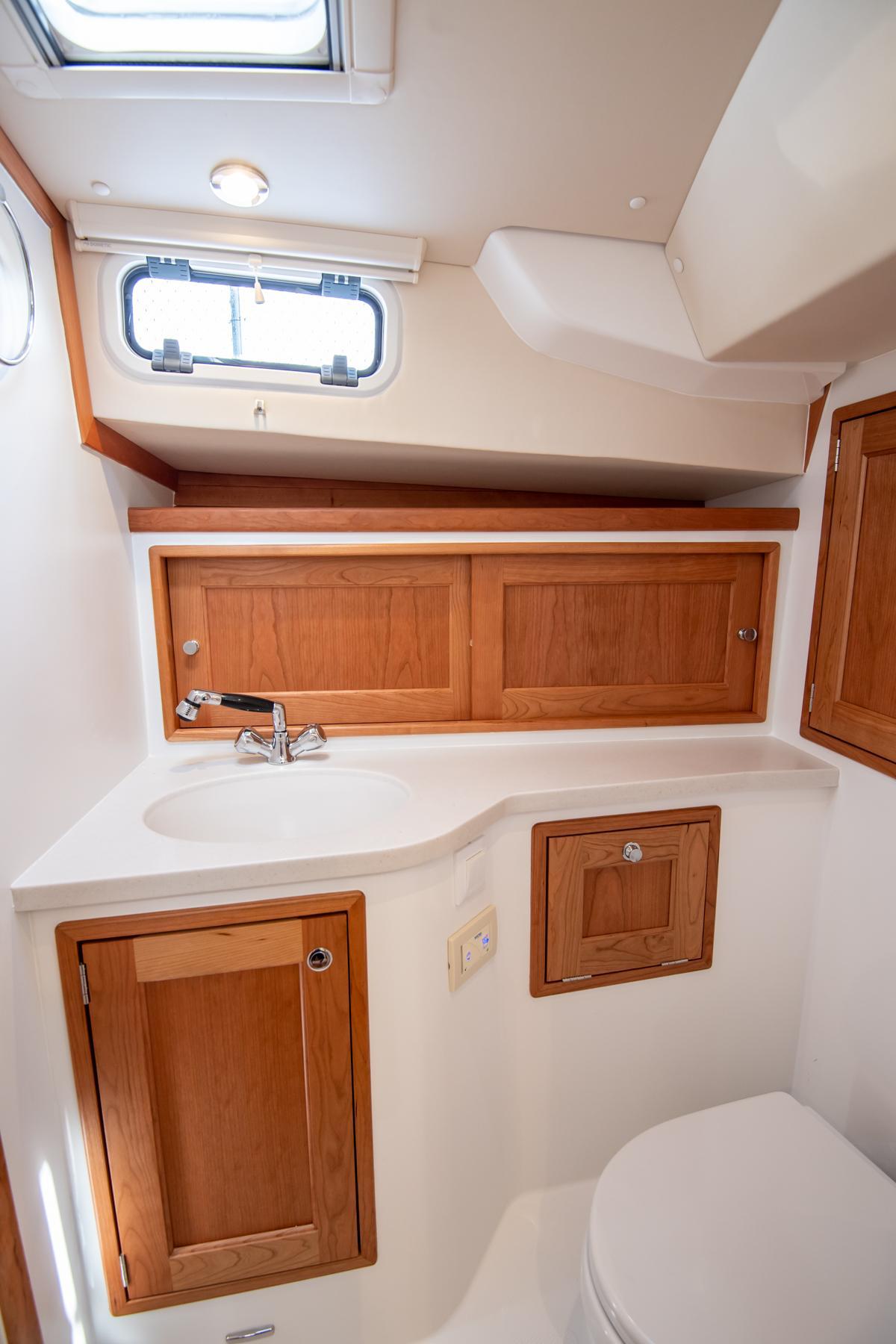

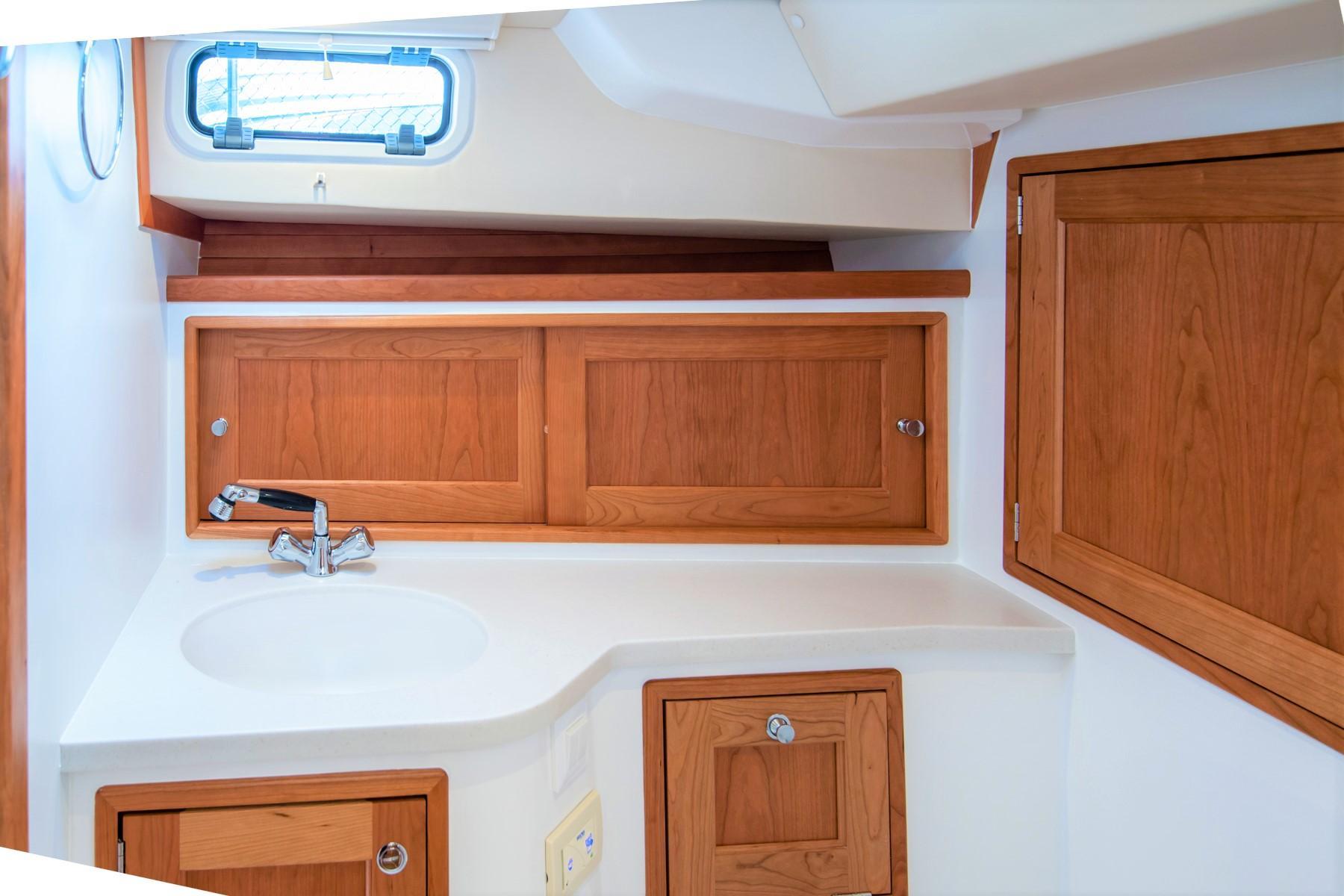

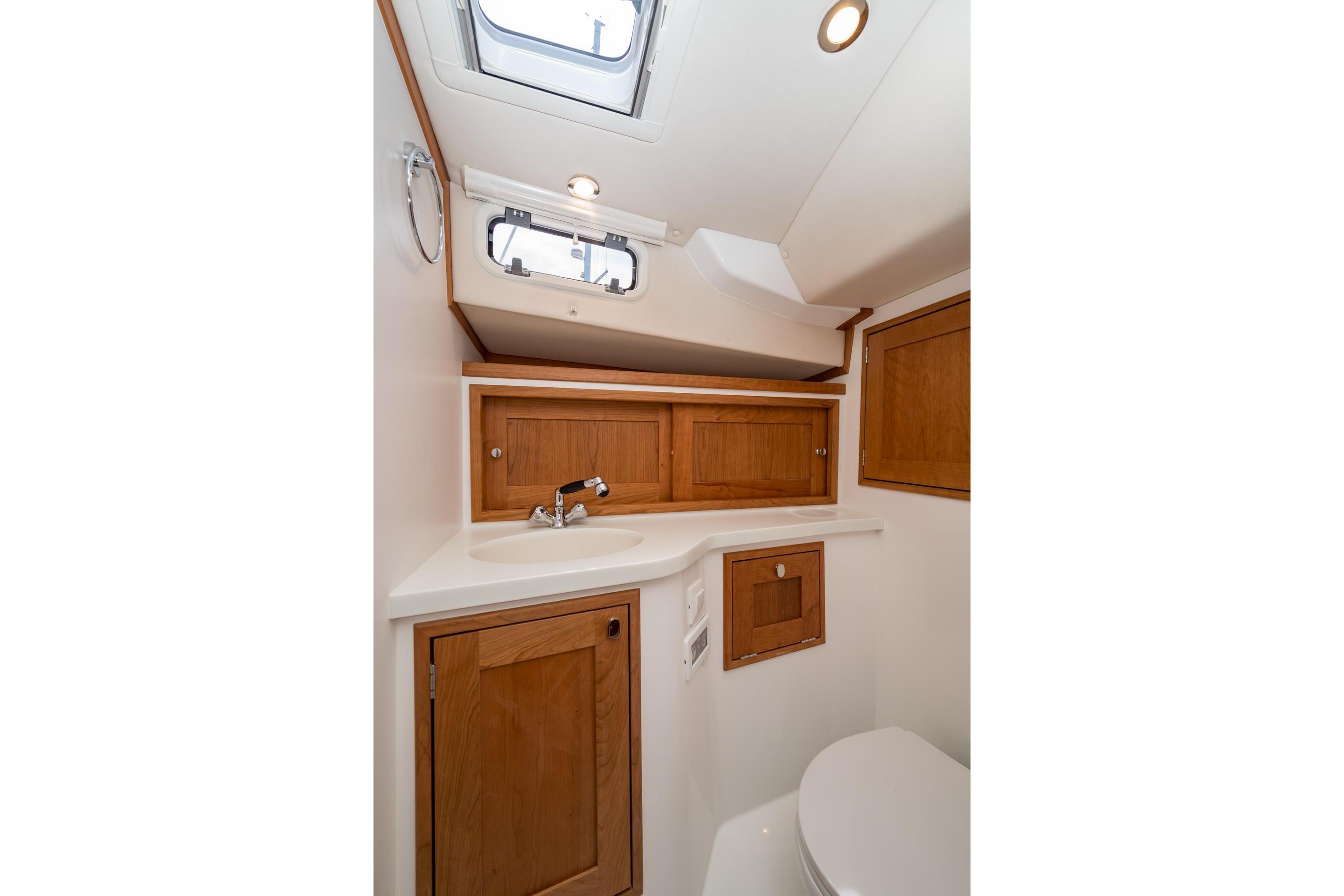

• Enclosed head/shower to stbd w/ solid surface countertop, sink, and vanity cabinets

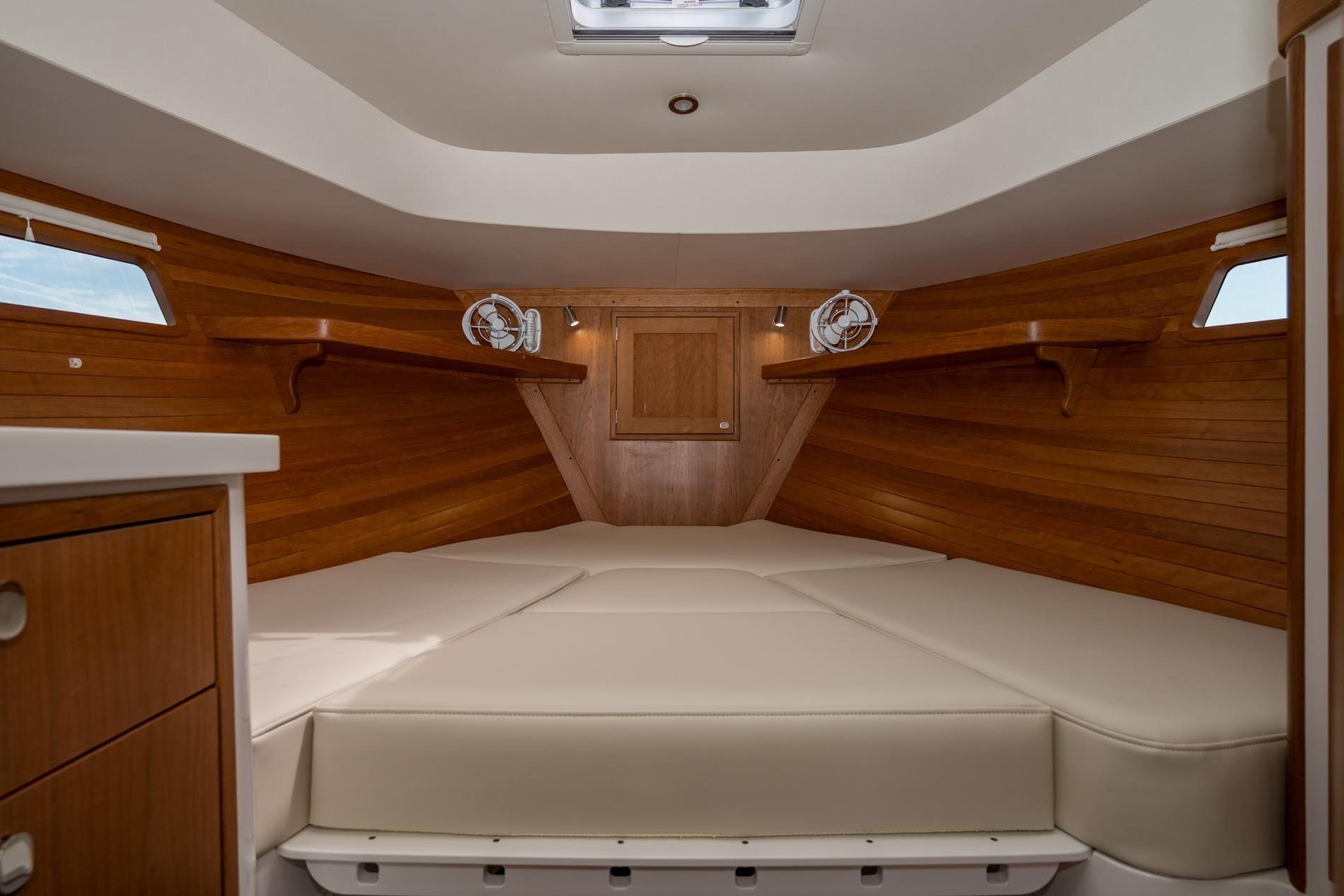

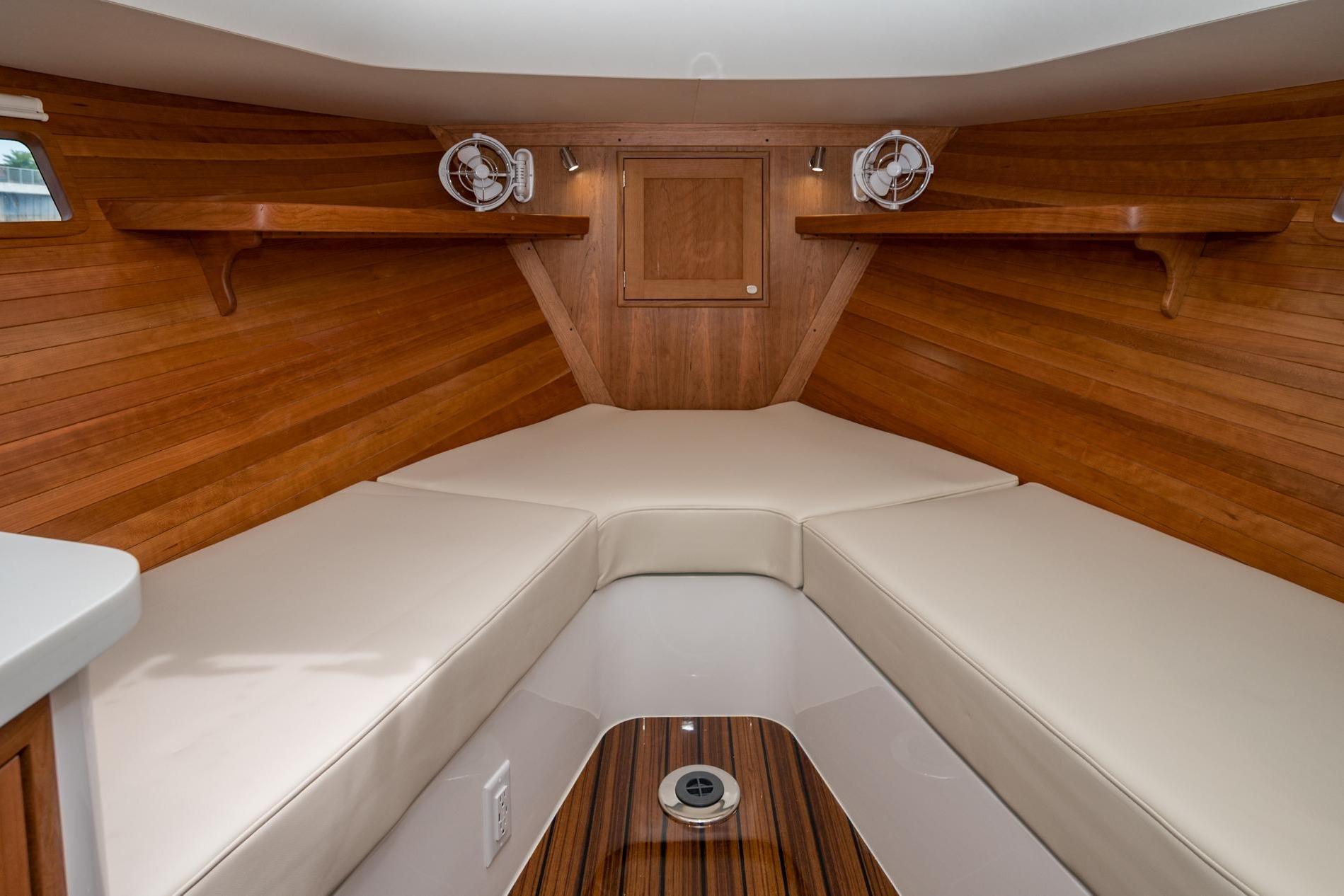

• V shaped settee converts into primary V-berth with supplied inserts
• Satin finished hand-picked American cherry paneling and trim
• Molded storage bins under V-settee
• Satin finished hand-picked American cherry storage shelves over V-settee
• Forepeak Locker
• Hanging locker with double hanging hooks

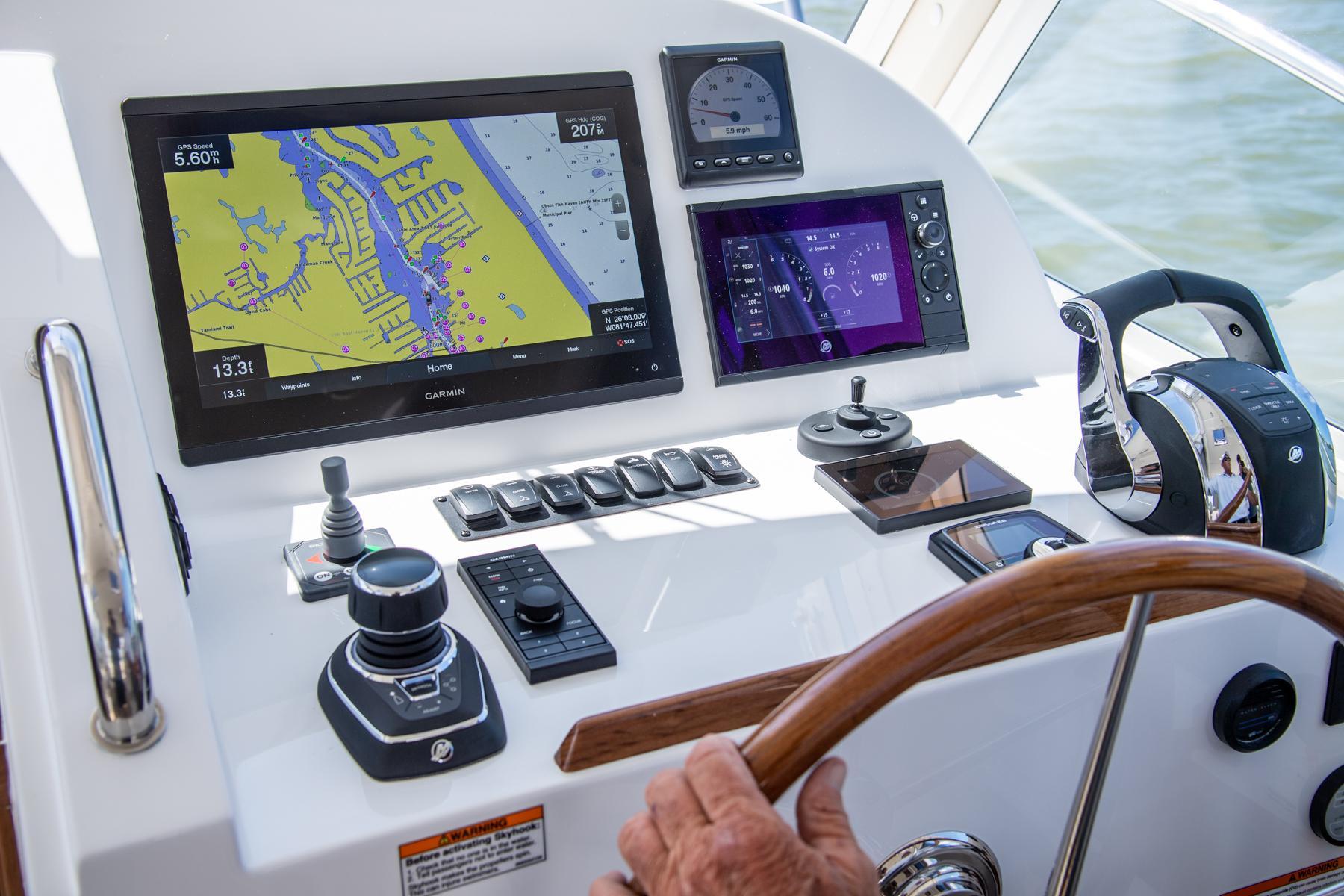

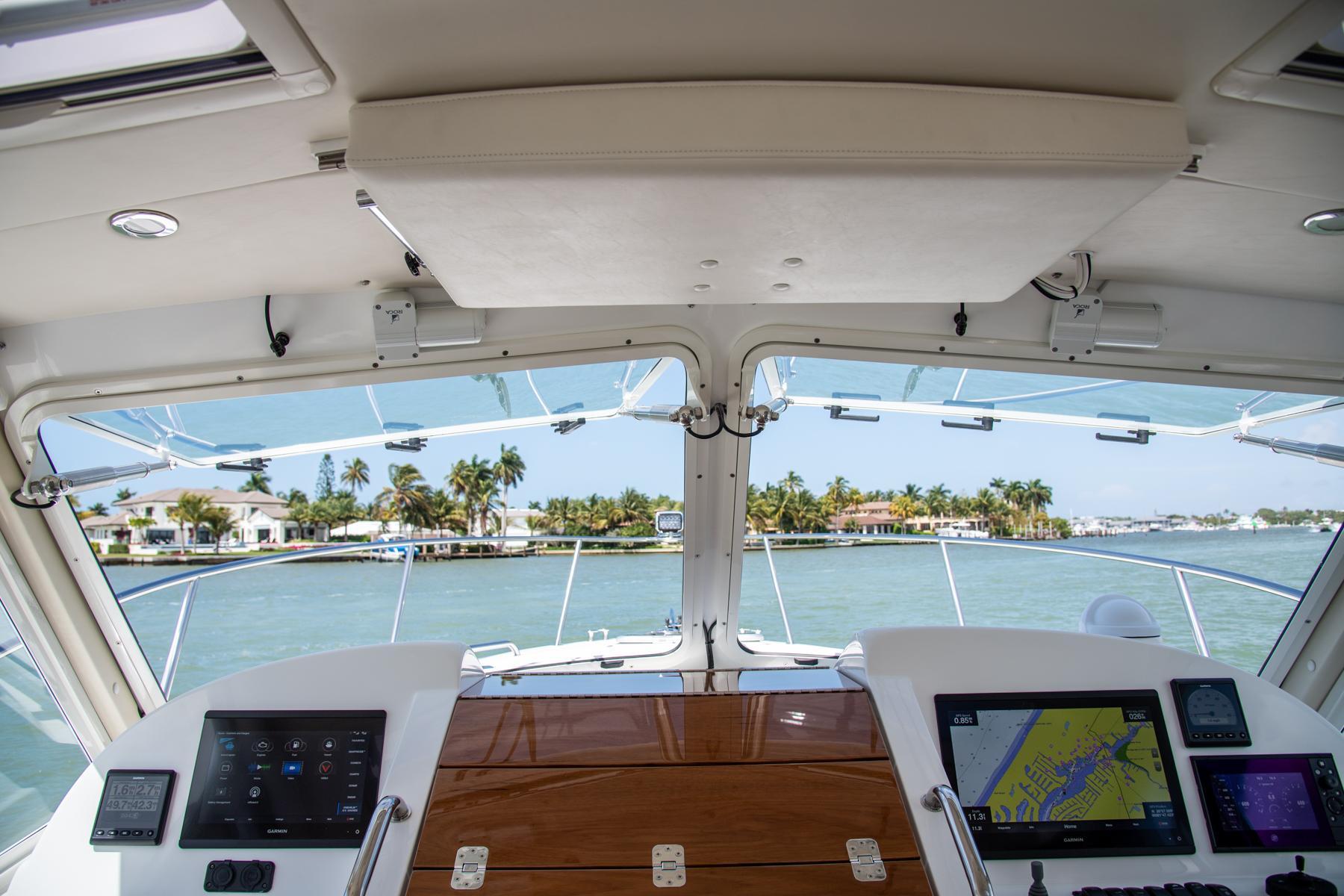

Navigation
• Compass
• LED Lightbar
• Stainless Dual Trumpet Electric Horn

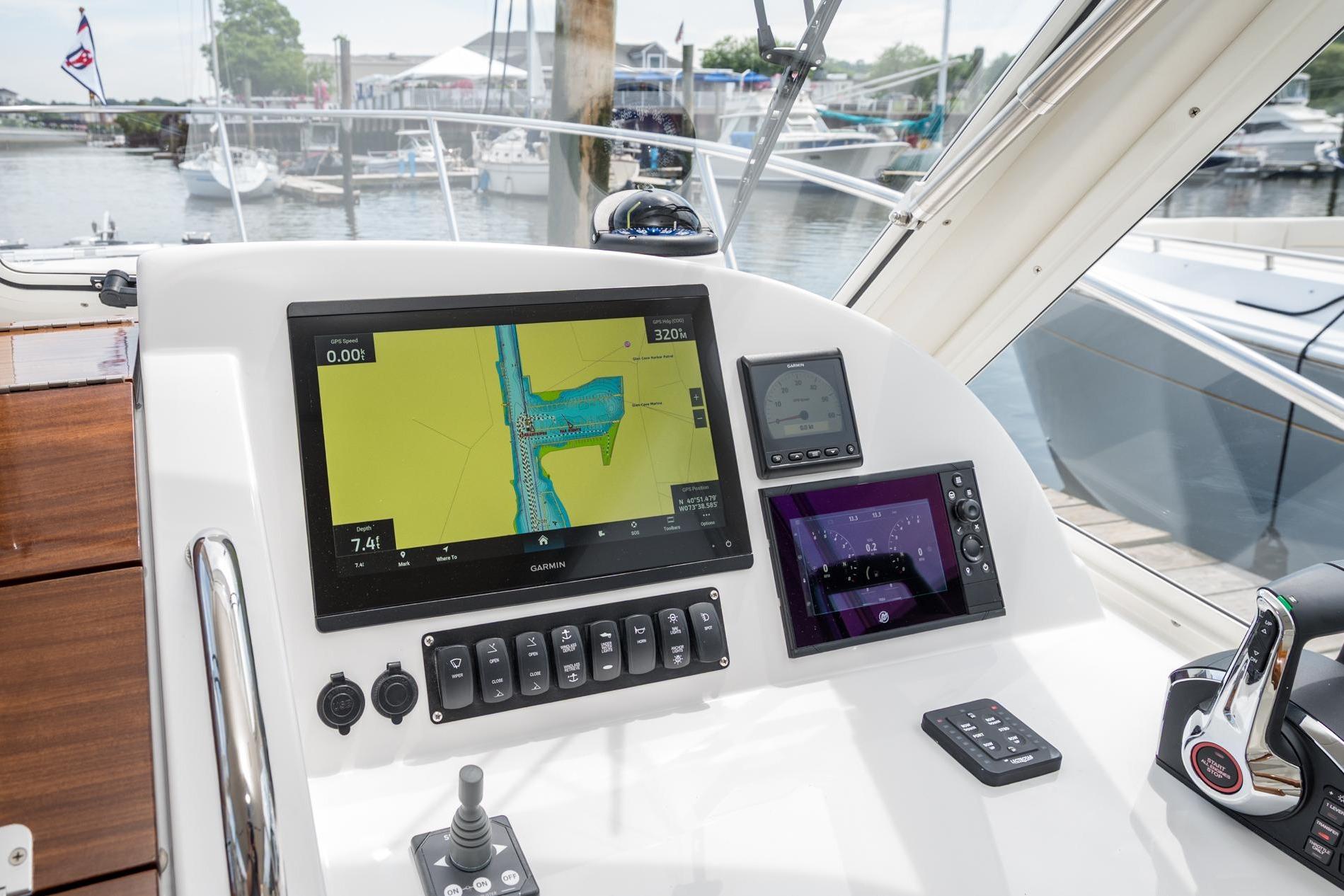

• Garmin GPSMAP® 12" plotter
• Garmin GMI™ 20 with 4" display
• VHF and AIS w/ handheld remote at helm
• Speed, depth, and temp transducer

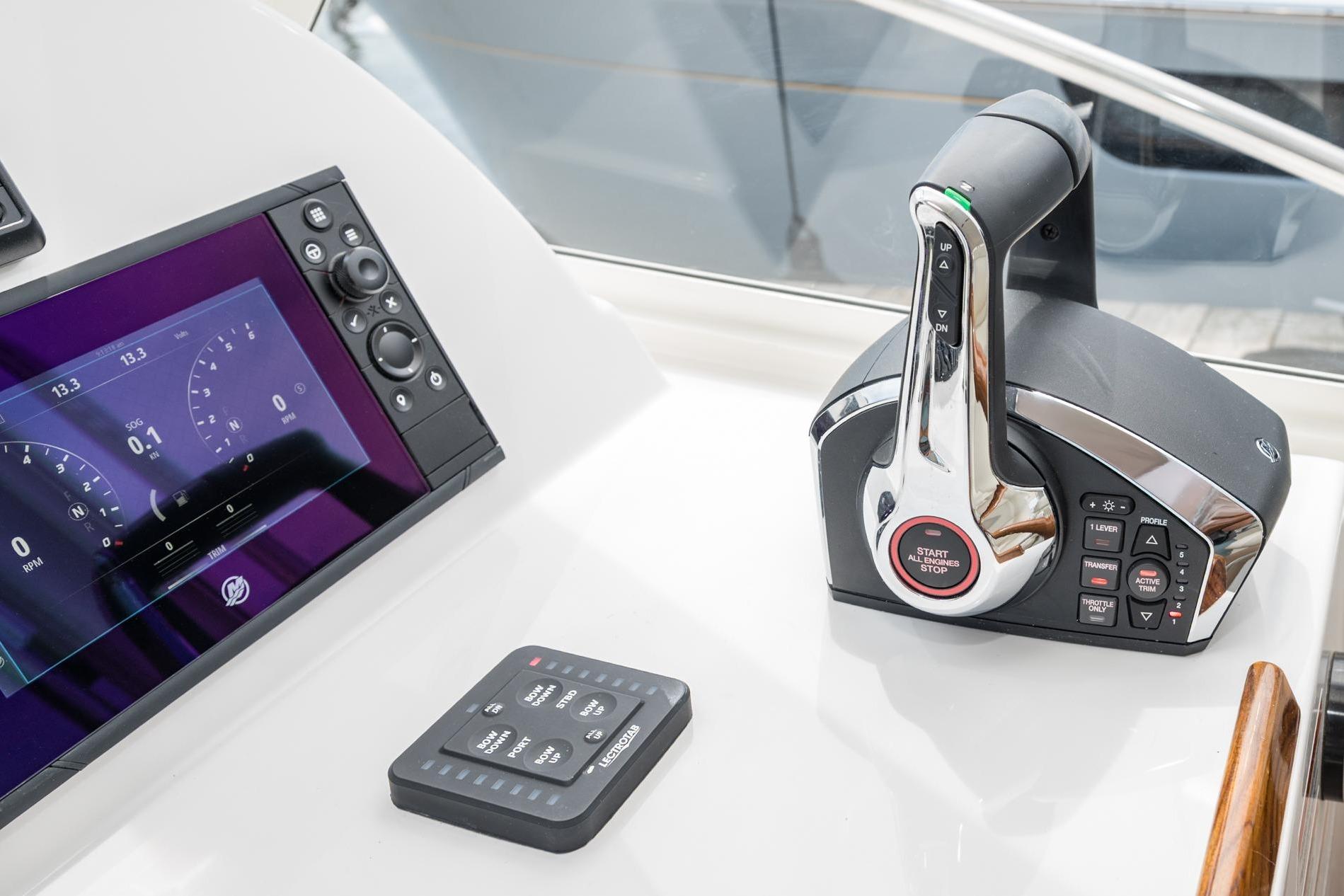

• Mercury Vessel View display
Propulsion & Steering

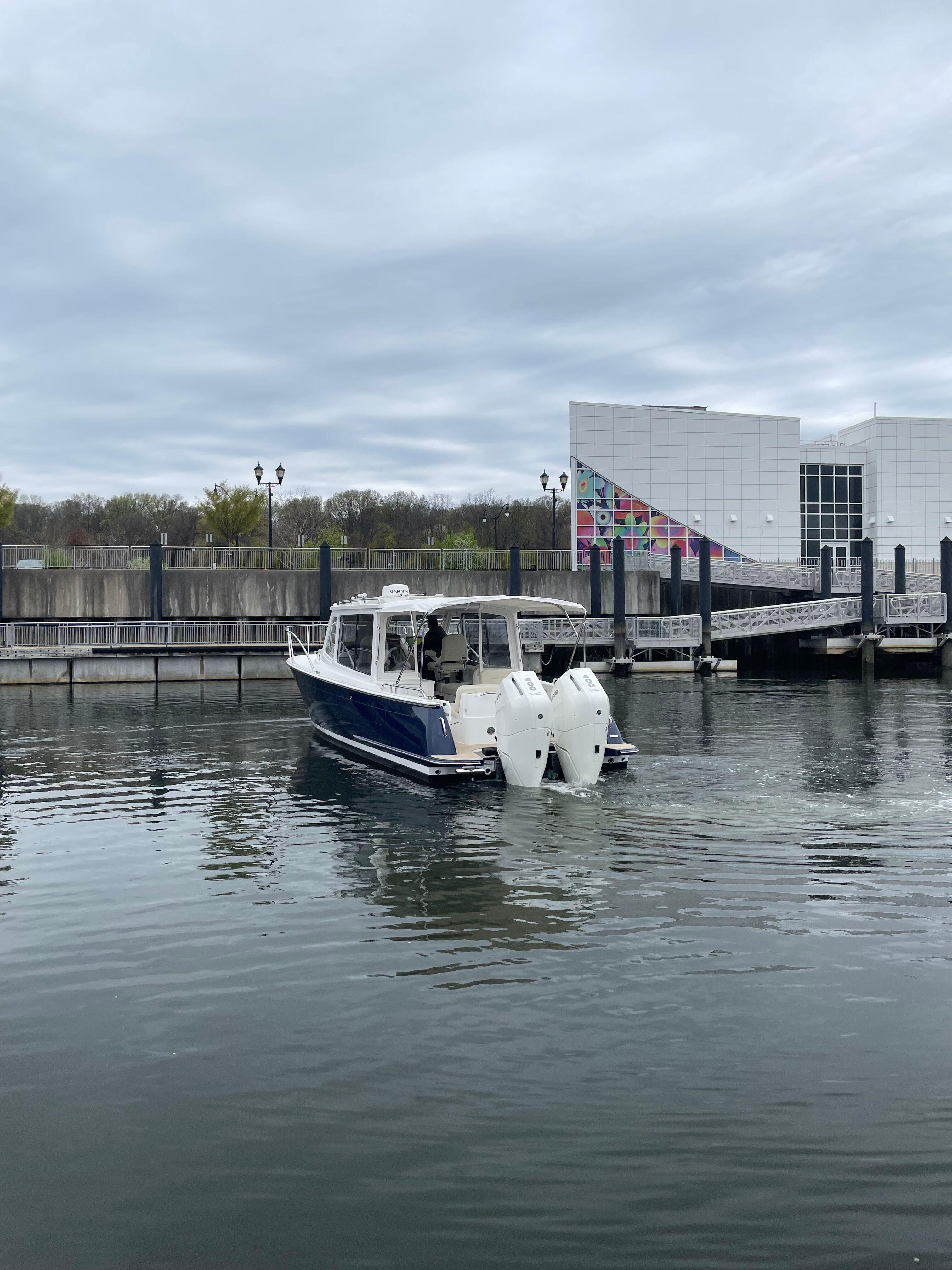

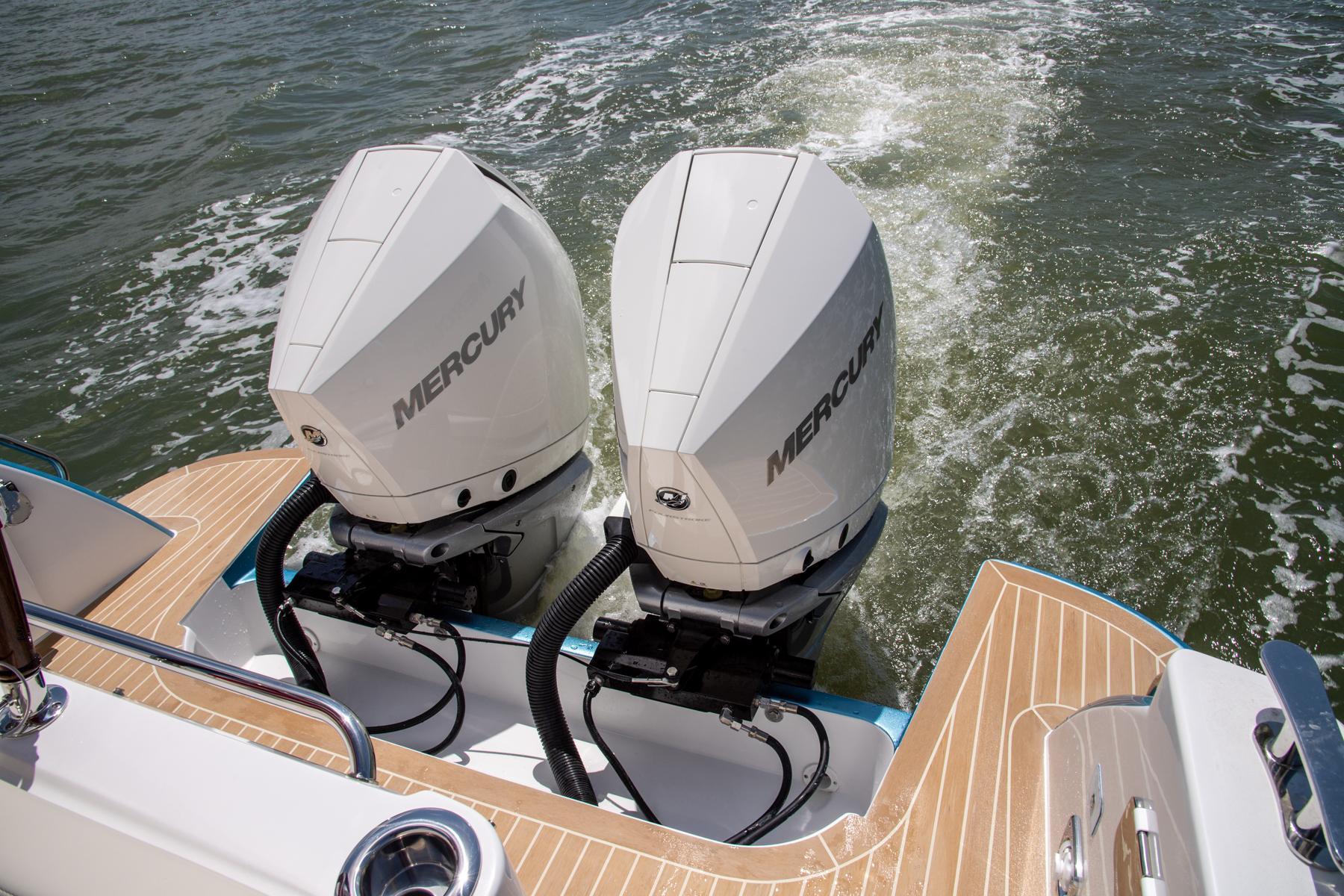

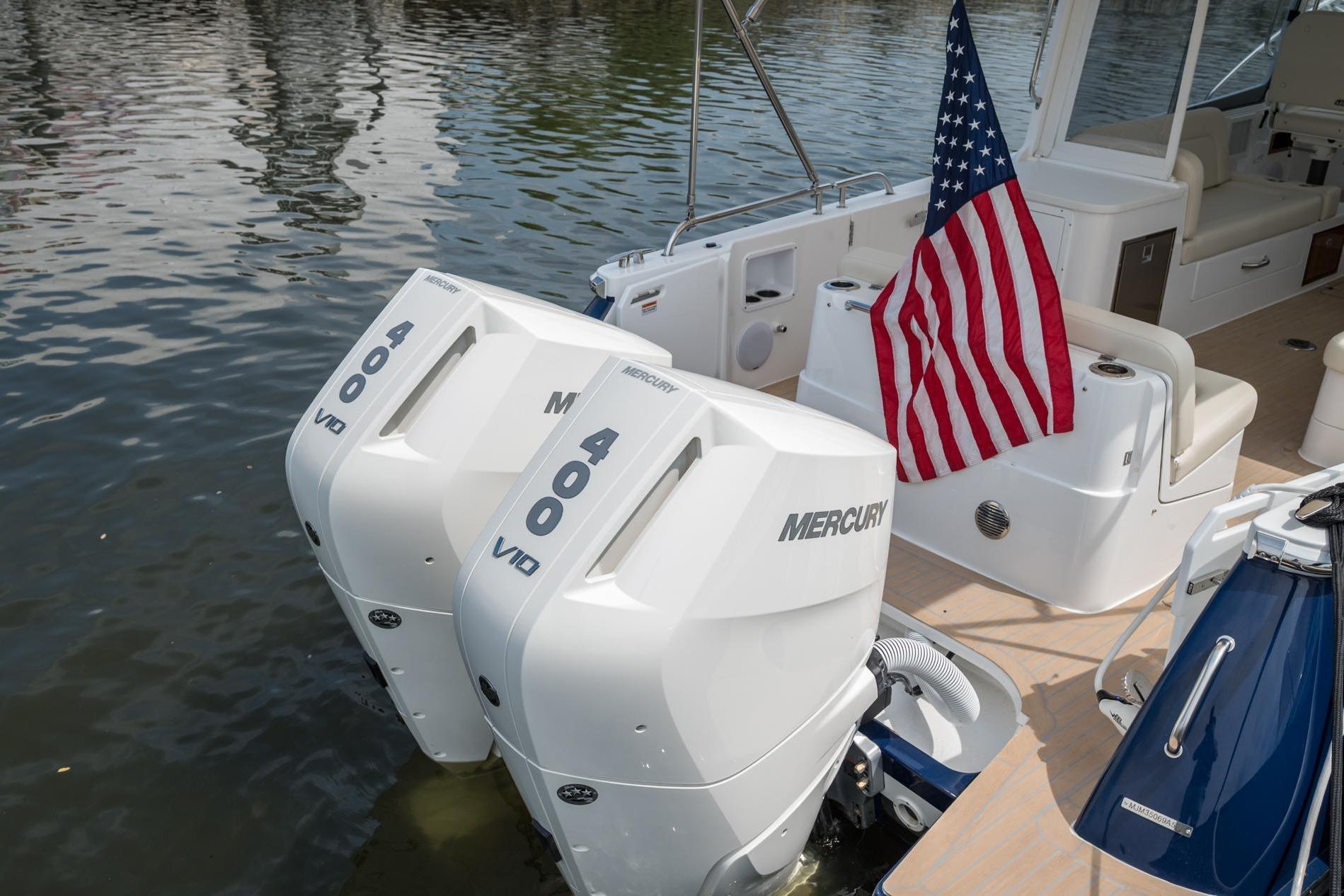

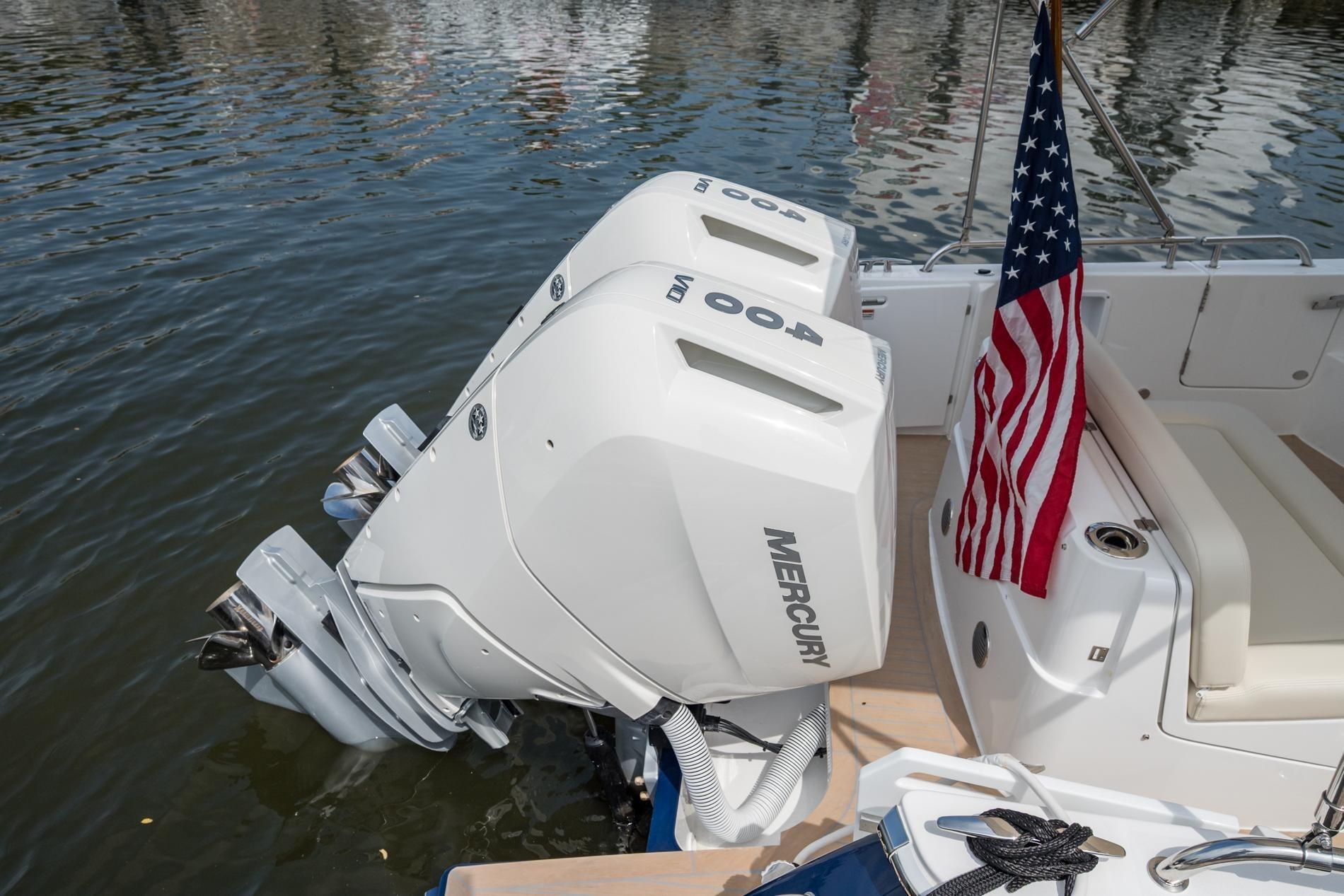

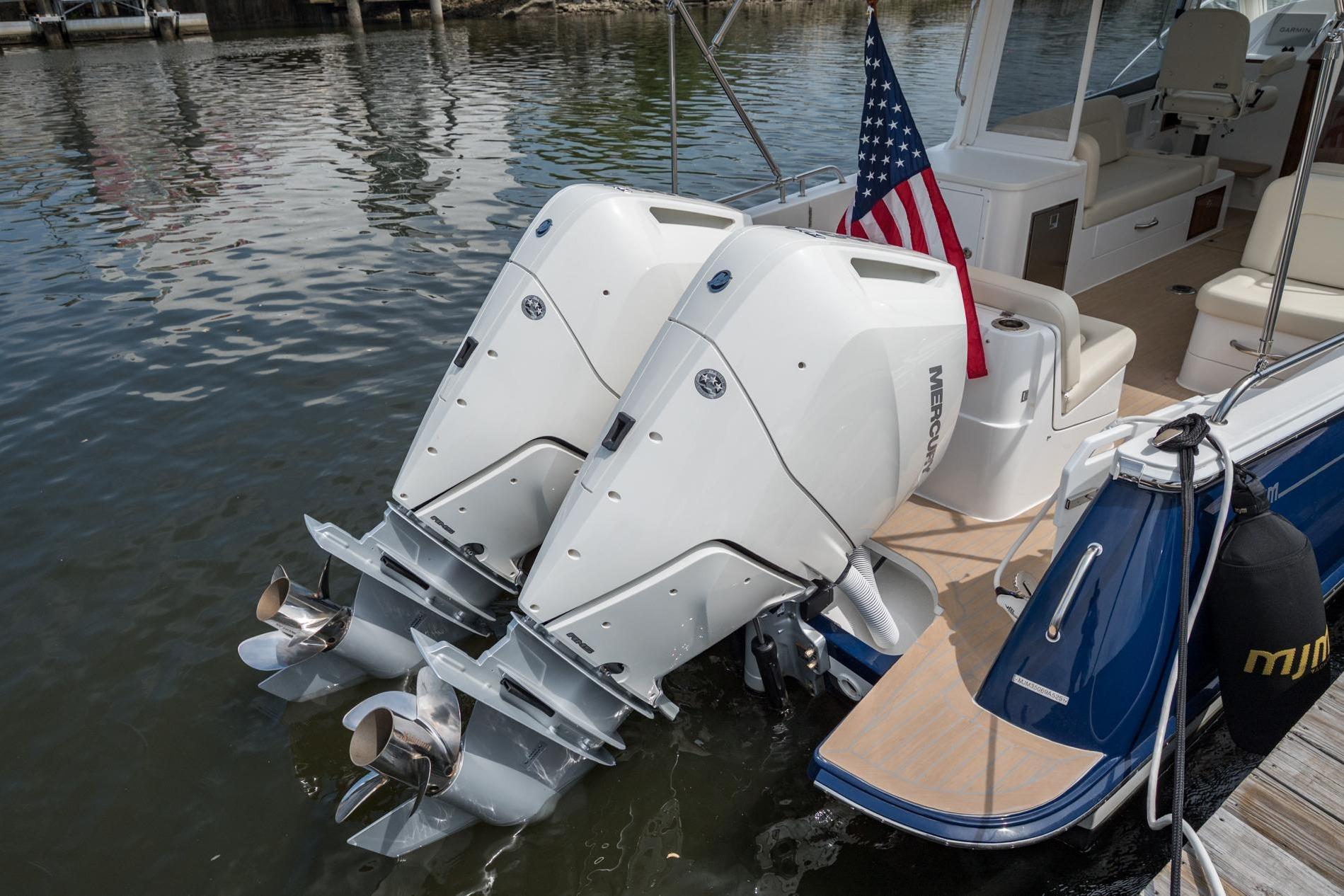

• Twin Mercury Verado V8 300 HP (Optional V10 400HP)
• Sea-fire automatic fire suppressant system
• 250 gallon vented, epoxy coated, aluminum fuel tank

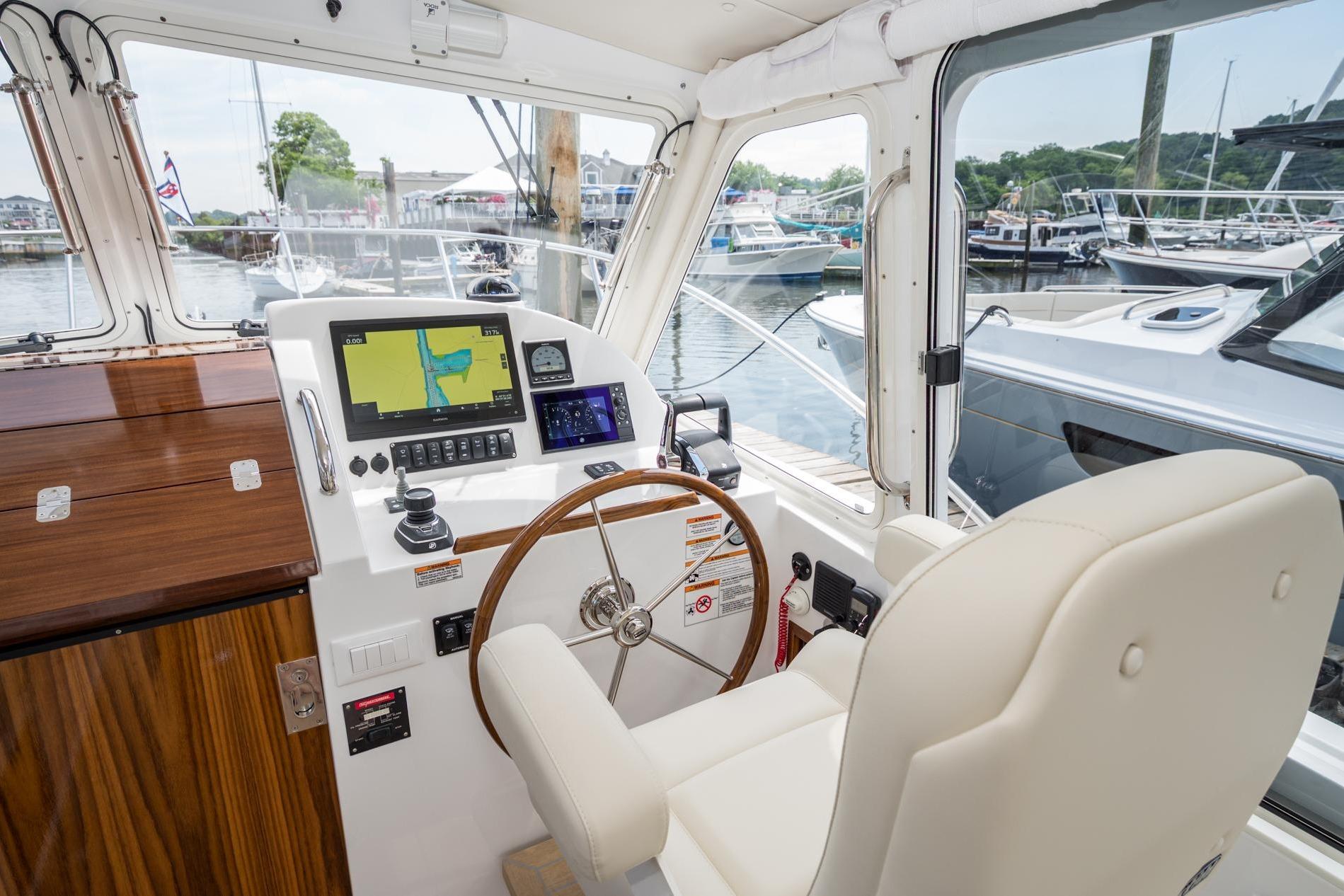

• 24” Stainless Edson destroyer wheel with teak rim
• Electric trim tabs

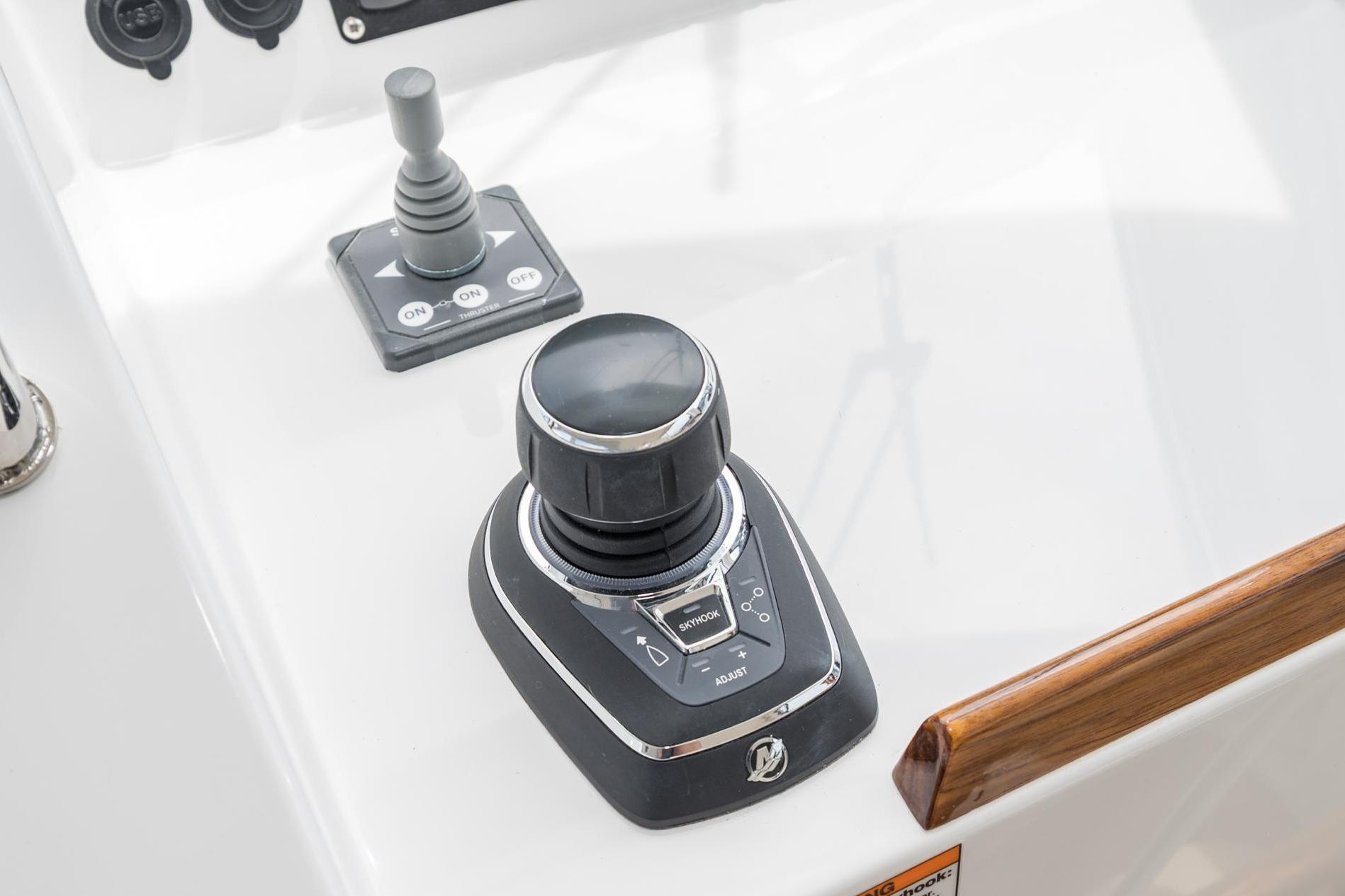

• Mercury joystick piloting with skyhook and auto-pilot
Systems
• 3.5KW Gas Genset
• Air Conditioning System with reverse cycle heat (24,000 BTU)

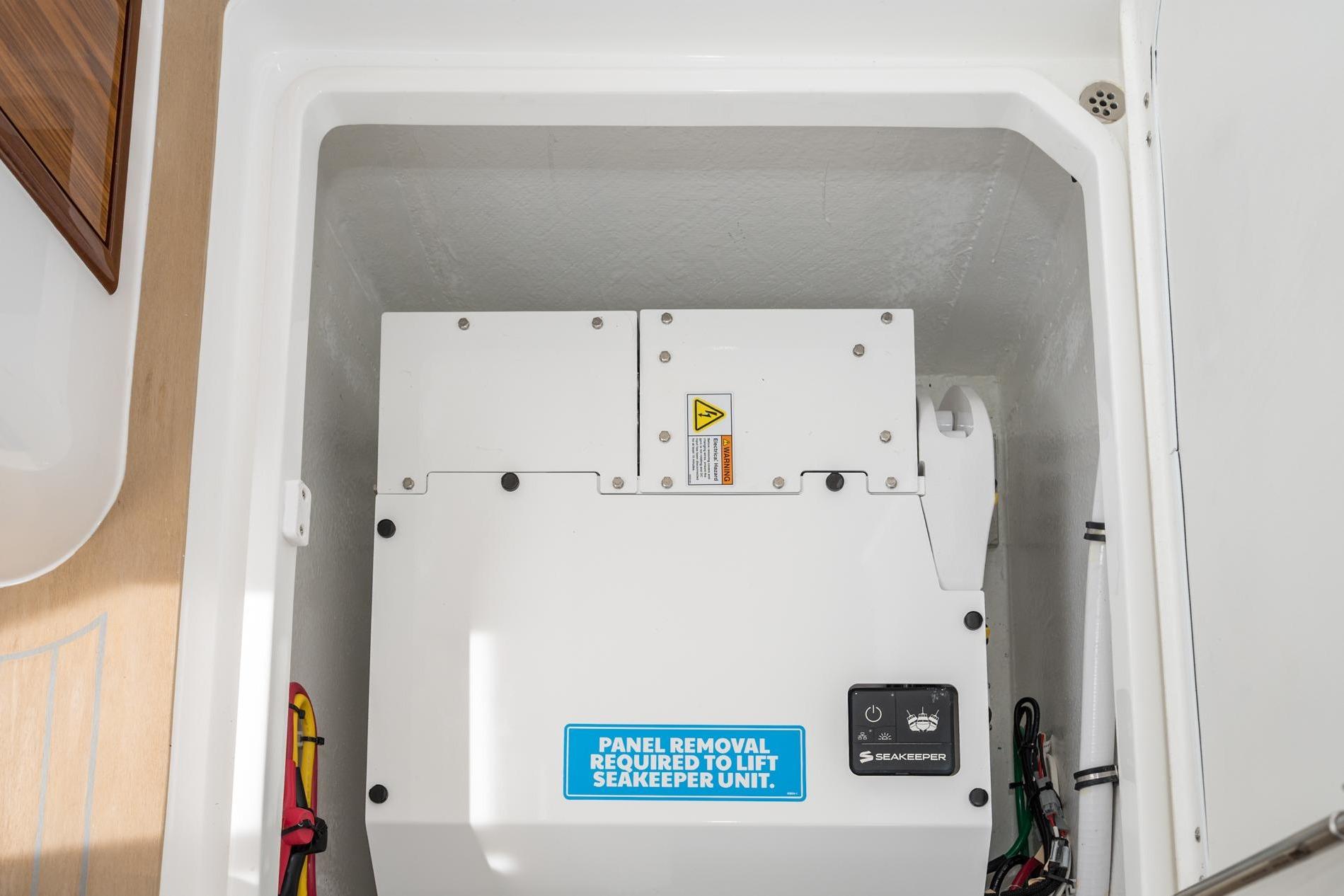

• Gyro Stabilizer
• Bow Thruster
• Outboard Engine Fresh Water Flushing System
• Marine Stereo System with one subwoofer and six speakers

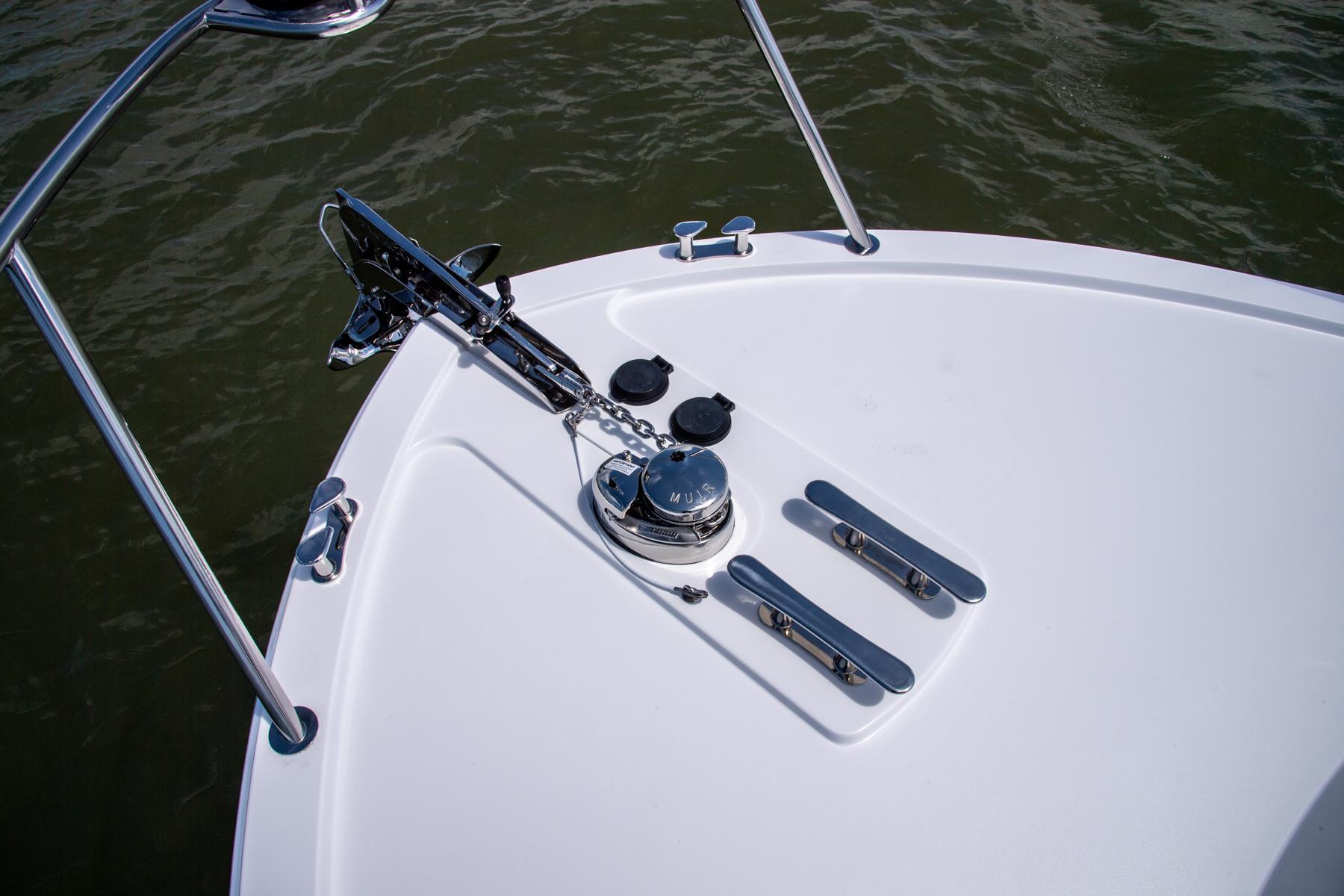

• Anchor, rode, freshwater spray down, & electric windlass
Electrical

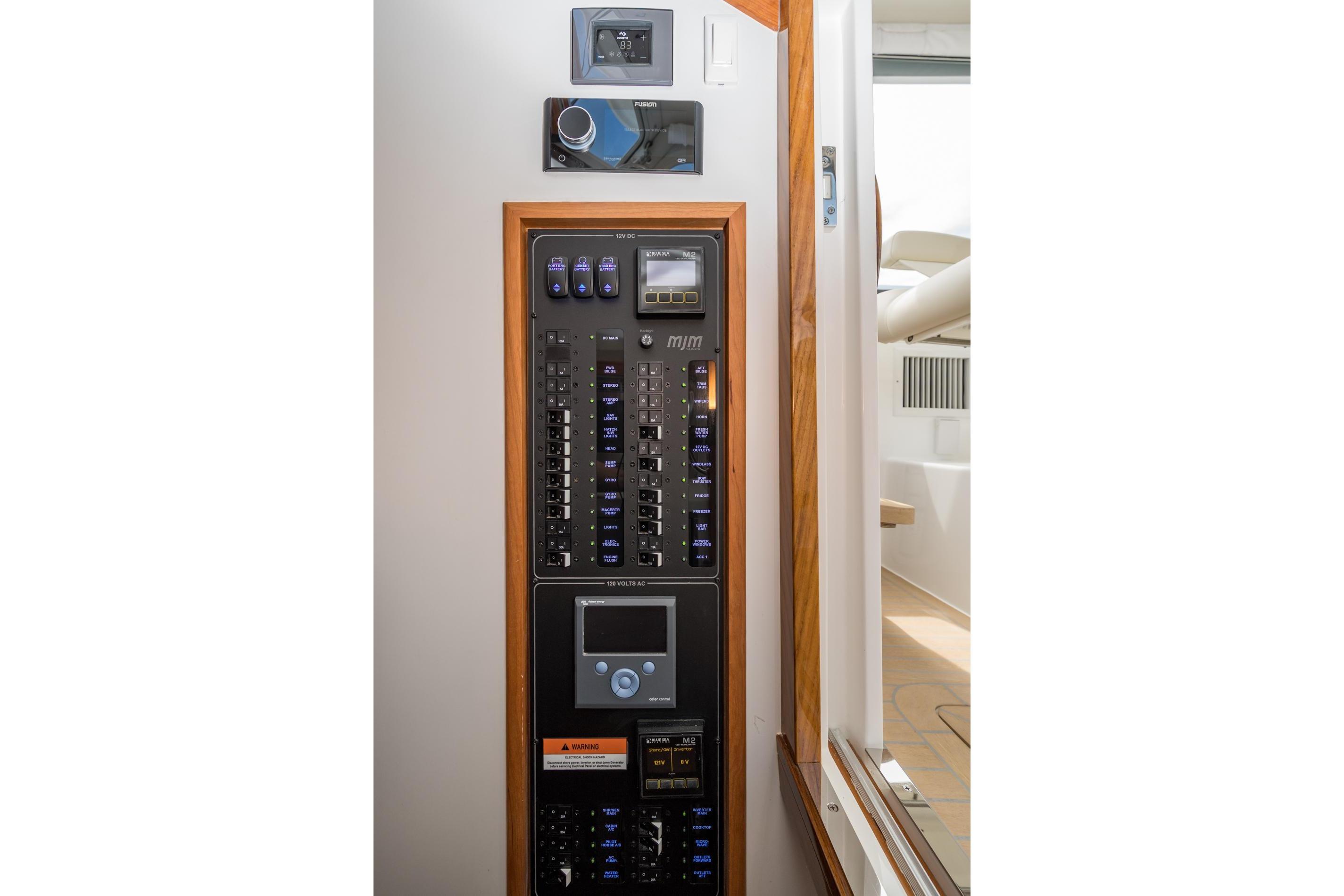

• 12V DC System with breaker switches and LED voltmeter
• 120V AC System w/ 30A shore power inlet and 50' shore cord
• 115A alternators with OB
• Charger/inverter with built-in automatic transfer switch, 3000w inverter, 150A charger and color control panel
• Electrical system engineered to ABYC standards
• Two house batteries for a total capacity of 440 amp- hours and two spiral AGM 800 CCA start batteries
• Dimmable overhead LED lights in pilothouse, head, and cabin
• Courtesy lights in bilge and large storage lockers
• LED navigation and anchoring lights
• Co-pilot electric window control
• 12VDC, 120VAC, and USB A/C charging ports throughout
• Bonded electrical system with galvanic isolator
Plumbing
• Two automatic bilge pumps with highwater alarms
• Electrically operated fresh water toilet w/25 gal. holding tank, marina pump-out & macerator discharge
• Gray water sump w/strainer and clear inspection port for shower and AC condensation
• 8 Gallon Hot Water Tank
• On-demand freshwater pressure system
• Water purifier
• Hot/Cold Transom Shower
• Marelon seacocks with oversized strainers and double clamped hoses
Complimentary Owner Package - Standard
• Transhield Transport Cover
• 16" Teak Burgee Staff
• Commissioning Kit - Spares, Tools, Docking & Safety Gear
• Complimentary Owner Orientation at MJM Factory
• 2.5’ x 4’ national flag with gloss finished teak staff
• Vinyl name and hail port on back of aft seat
• Retractable swim ladder

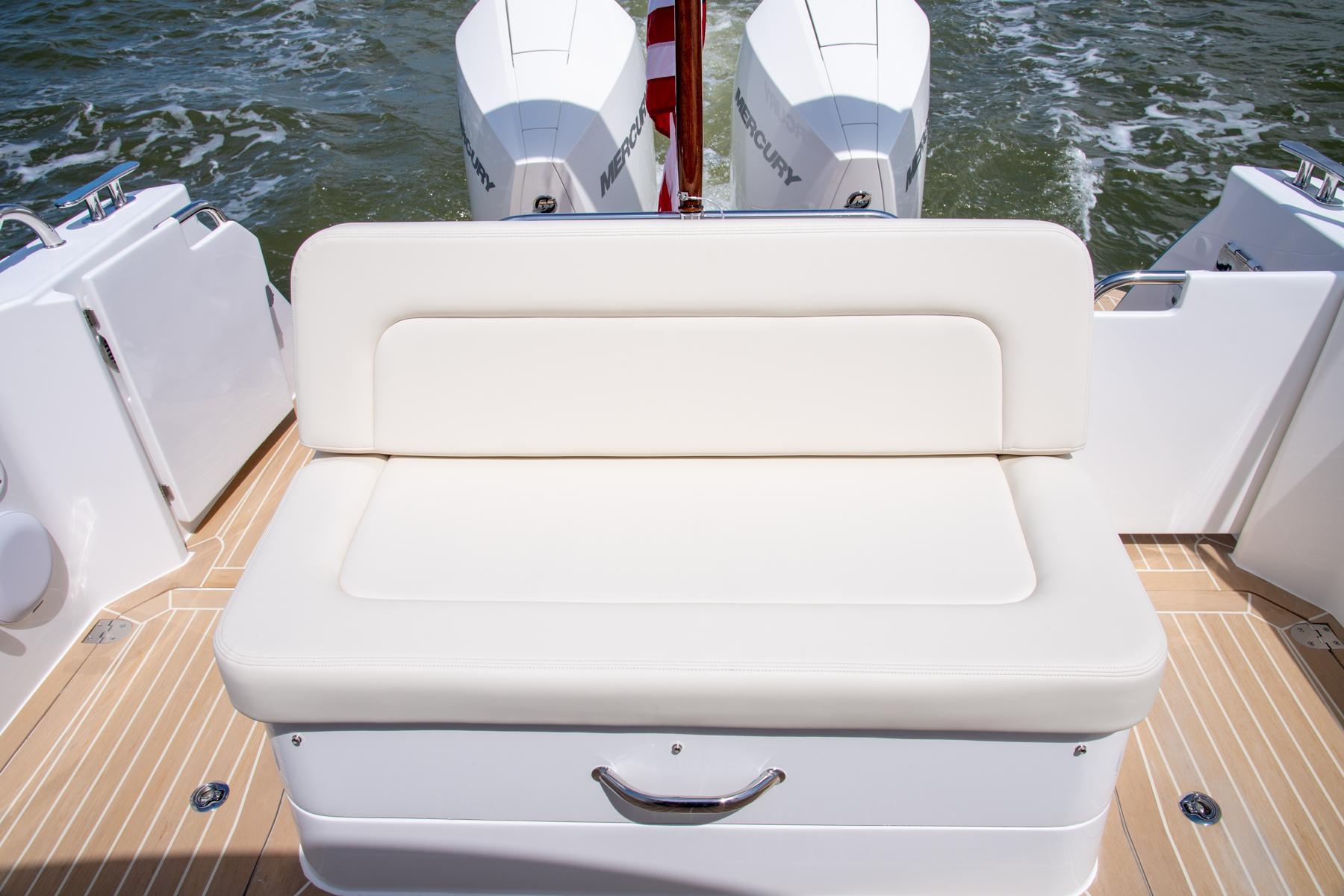

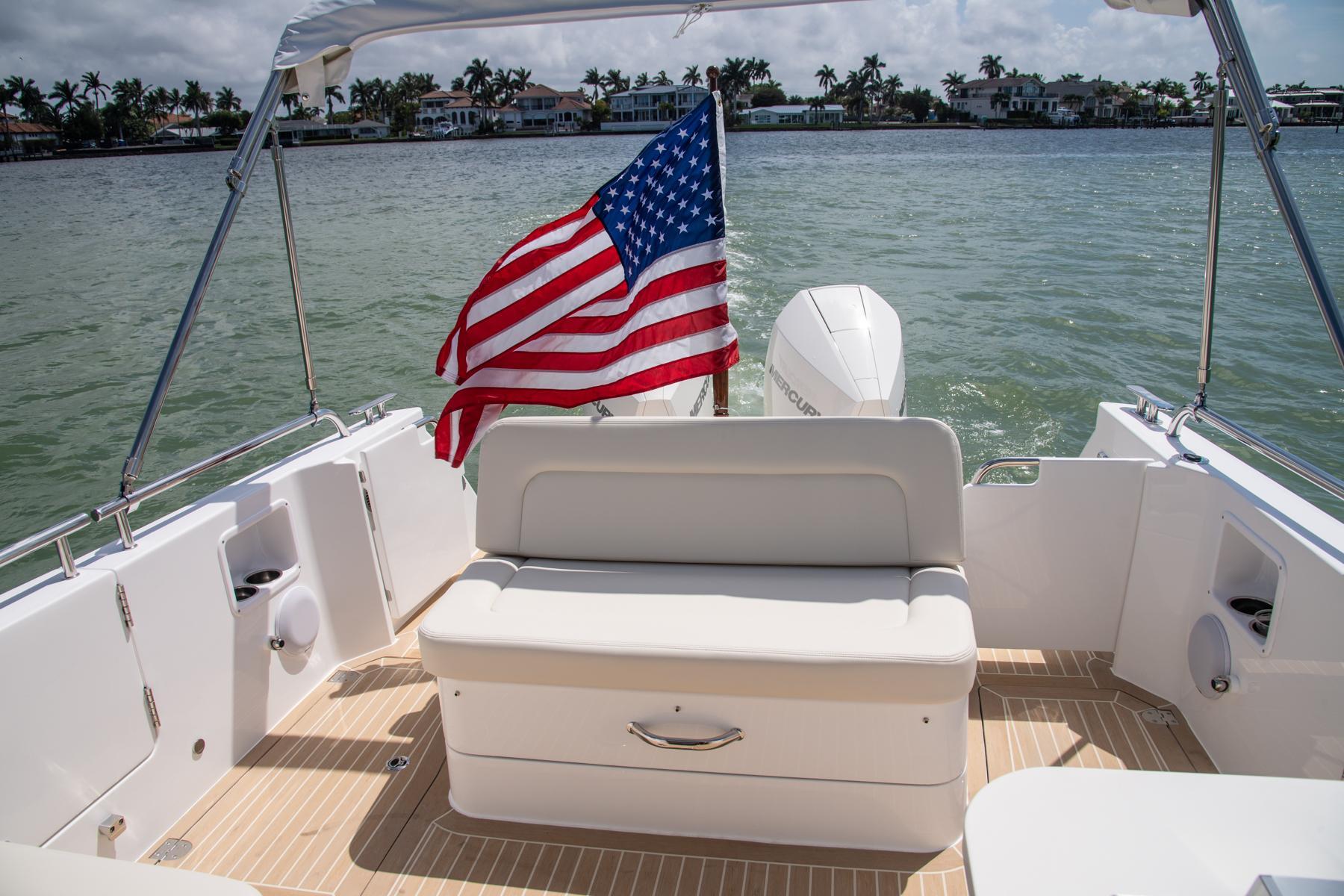

• Cover for aft cockpit seating
