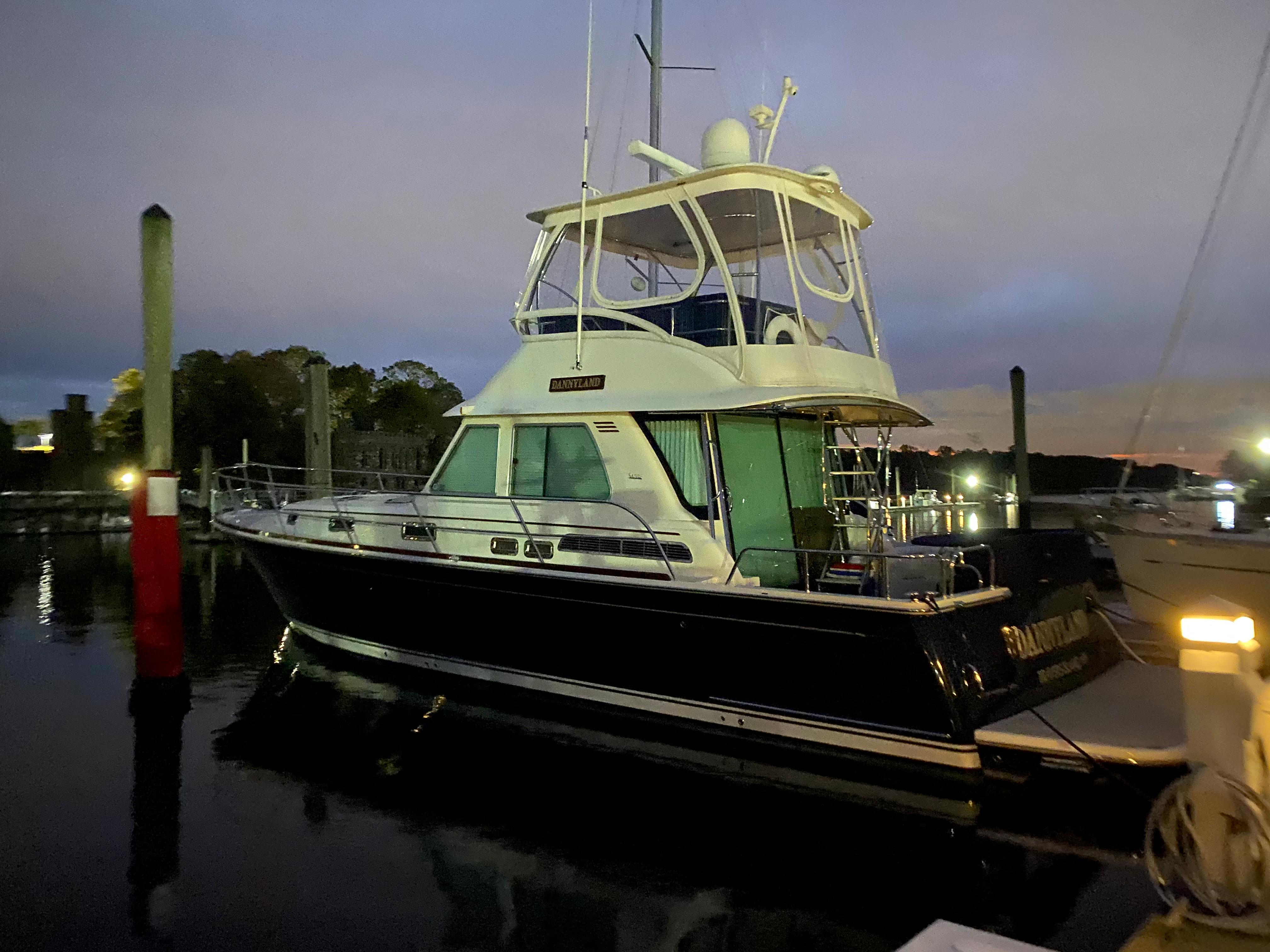

HIGHLY CUSTOMIZED SABRE 48 FLYBRIDGE WITH HARDTOP, AIR CONDITIONED FLYBRIDGE, AWLGRIP PAINTED HULL AND BALANCE OF A 5 YEAR EXTENDED WARRANTY
Dannyland was the second 48 the sellers have owned, and the build result was a very thoughtfully outfitted cruising yacht. They spared no expense in the build and the long list of options will demonstrate that. Some of the highlights include the following:
Seamless Marine Hardtop with EZ2CY Enclosure
Air Conditioning on the bridge
Stabilization with Quick gyro stabilizer and Volvo Active Ride
Dockmate wireless remote
Full crew quarters with wine refrigerator
Custom salon seating
Upgrades to electrical system throughout
Comprehensive Garmin Navigation package including
Spare set of props
The Volvo package offers the reliable performance and speed, and includes all the latest technology. With the painted hull, extended warranty and superb condition, Dannyland is truly turnkey for a new owner.
Model: 48 Fly Bridge
Location: Portland US
Designer:Sabre Design Team
DIMENSIONS & WEIGHT
Draft - max:4.08 ft
Bridge Clearance:22.25 ft
Fresh Water Tank:160|gallon
Optional and Custom Factory Equipment
Dark Hull Colors Gelcoat
Anti-Skid color (fore & side deck) - Beige
EXTERIOR & DECK
Flybridge with Volvo engine package, spiral stairs, U-shaped settee, folding high gloss table, 1 STIDD Helm seat and duplicate engine controls.
Corian in FB table to be Venaro White
Teak decking in aft cockpit including steps

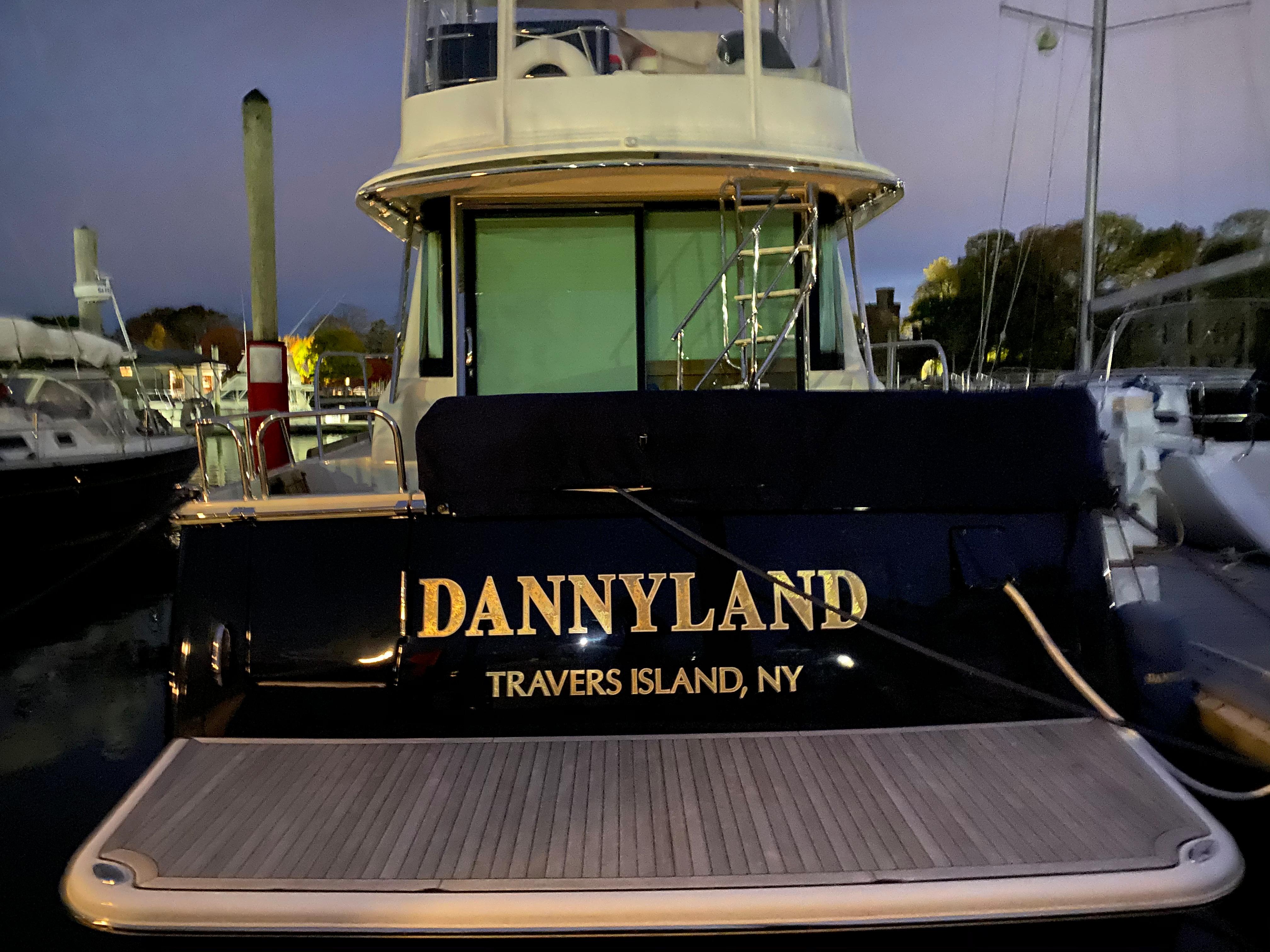

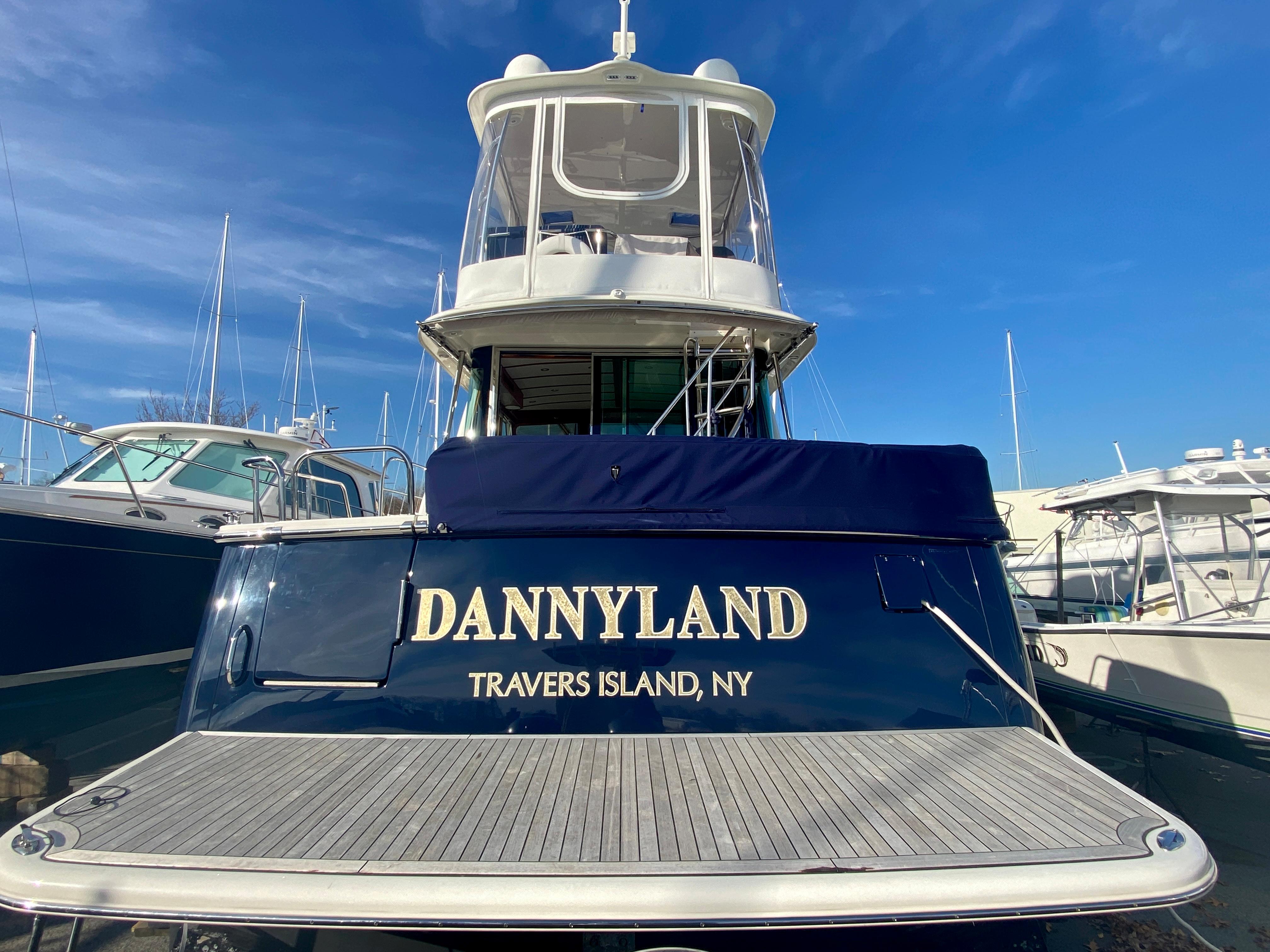

Teak deck on FRP swim platform
Sureshade color to be Oyster
Add teak handrails to cabin house.
See drawing for length
Flybridge Corian to be Venaro White
Raise the cross bar on the back of the flybridge steps as high as possible. Customer wants to store cooler there
Add a stainless steel hand rail on the port side of the settee in the cockpit.
Hand rail should be 6'' taller than the top of the seat cushion STIDD seat on flybridge to be 500W wide helm chair

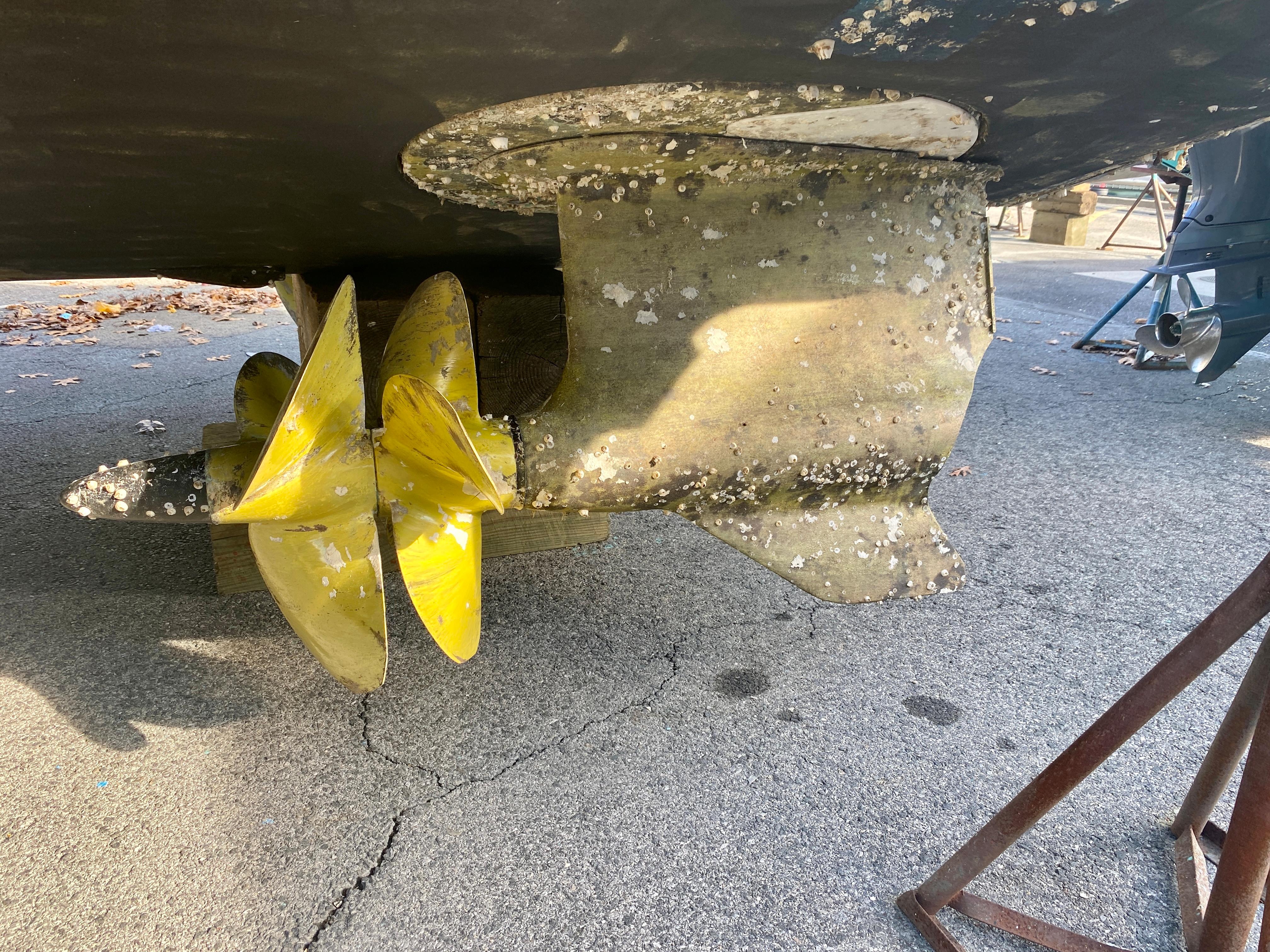

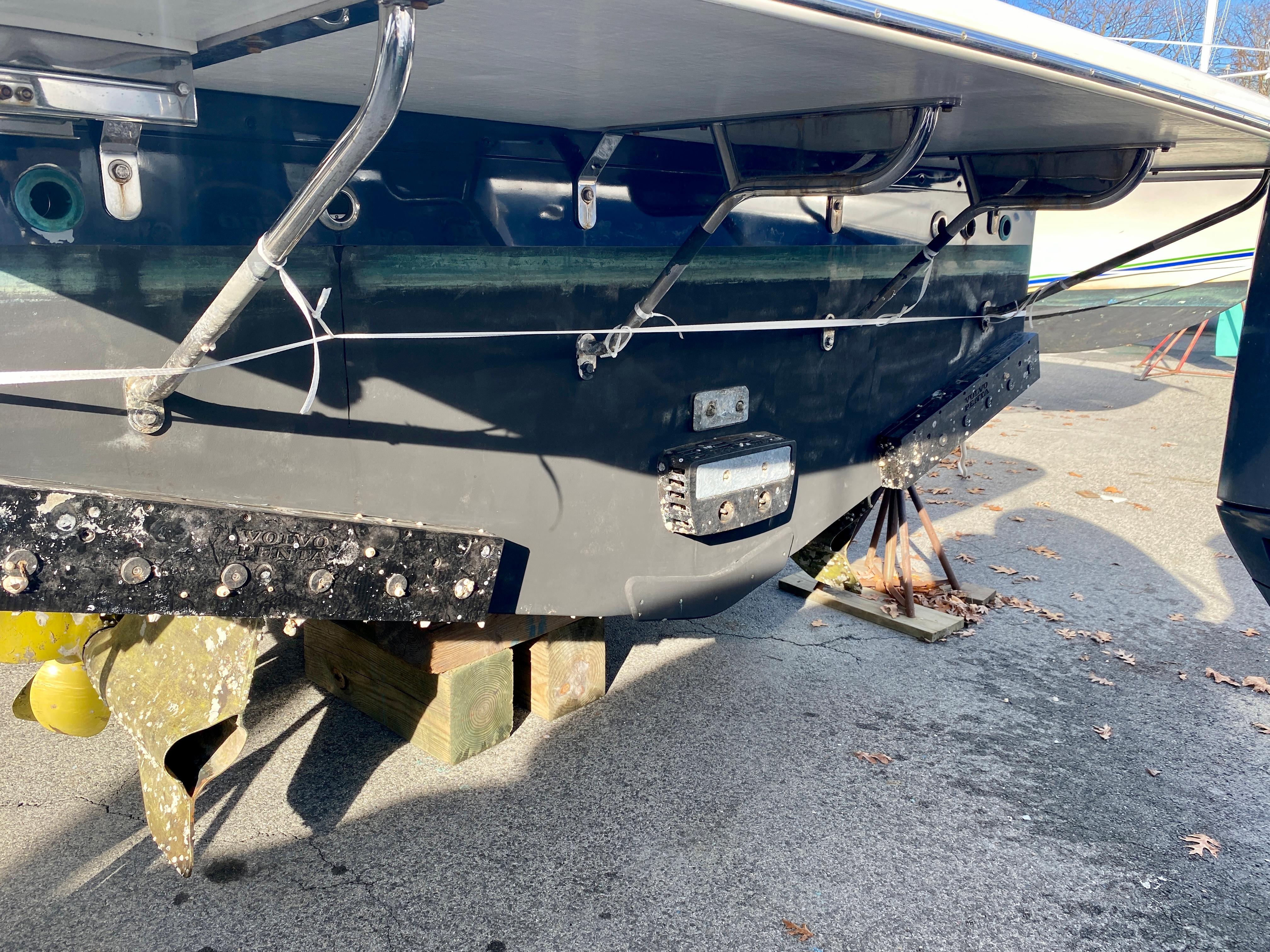

Volvo Package with D8 IPS 700, Volvo Automatic Interceptor Trim Tabs, 900mm, Volvo Active Corrosion Protection, Dynamic Positioning System, Volvo Autopilot incorporated into helm displays, Joystick Driving with the joystick on the STIDD armrest, Slow speed, single lever and cruise control software, Volvo Clear Wake Exhaust by-pass, Garmin GPS Receiver, (4) Volvo/Garmin 8617 glass cockpit for MFD displays with separate Garmin SD card reader Reverso Oil Change System
Single Seagull water purifier on galley cold water plumbed to separate spigot
Fresh water wash down forward
Prep for SeaKeeper 9 - Stringers only (install SeaKeeper stringer, rearrange fwd bulkhead to make room for SK9)
Air Conditioning on Flybridge
Stand alone 3000W inverter and separate 100A battery charger
Central vac system with (2) outlets and a 32' expandable hose
Kahlenberg triple chrome horns
(4) Additional dimmer switches in galley, master stateroom, forward cabin and cockpit Install 120VAC outlet outboard of washer/dryer cabinet in utility room
Install 12V/USB charger at head of master berth, on the forward end. (Aft is standard)
Install 12V/USB charger at head of forward berth, on starboard side. (Port is standard)
Install 12V/USB charger in utility room. Inboard of the dresser near the shelf.
Reconfigure high water alarm in engine room to reduce nuisance alarms
Prewire for chain counter at both helm stations
Add SS handles on all doors and drawer, and to the front of the companionway steps to assist in opening
FORWARD CABIN & HEAD
Fwd head cabinet to be 1/2 fully open and the another 1/2 to have shelf with fiddle. Install second cherry towel rack on inside of door, location 10'' below top of door
Delete standard forward cabin mattress and install 9'' Latex Supreme mattress
MASTER STATEROOM & HEAD
In master head install the standard semi recessed sink on cherry countertop with epoxy Standard master cabin mattress is 9'' latex supreme Install a rain shower head and wand like the S54SE master head (AA021)
Larger Tecma toilet in master head
Master Stateroom roman shade to be GH Fabrics White 97869 with blackout liner
Add a door on the small cabinet forward of galley sink. Remove fiddle and leave open inside. Build original wine glass cabinet aft of the galley sink above the cabinet. Cabinet to have glass doors, strip lighting and acrylic wine glass holder In the large cabinet below the galley counter forward, raise the shelf to 14'' from the bottom of the cabinet
Notch cover aft and outboard for opening and for wires to pass through, no thumbhole. Move double ss cup holder from Nav desk area and install outboard of mate seat (port) on window edge. Owner understands that this might interfere in lowering blinds. Move double ss cup holder from Nav desk area and install in TBD location from owner Add single SS cup holder on the flat outboard stbd of the wheel
Install the standard cherry grab rail at the helm Build a step below the helm door. Step should look like the companionway steps
Custom helm seating. Install a single Stidd seat (500 Luxury low back Admiral seat with cupholder, chrome upgrade, motorized controls with the joystick on the armrest) on a pedestal centered at the helm with electric up/down and fore/aft. Install Stidd seat as far aft as possible but not to interfere with the settee behind it. Build a custom cabinet to house the AC vent behind the Stidd seat and a drawer refrigerator inboard of the Stidd pedestal. Cabinet to be just big enough to house the refrigerator. Cabinet to be epoxy top with the same inlay as the main salon table running athwartship to make cabinet look like an end table.
Delete the cupholders behind the Stidd seat.
Main Salon settee to make up as a berth.
Electric hi-lo pedestal with standard folding table to drop to create berth. Owner does not want filler cushion or ottomans
Add a single loop cherry grab rail on the valance just forward of the side door
Build main salon mate's seat back to be tall like hull #001
Box style cushions to be same style as hull #008; self welting box style
Salon Curved windows to be GH Fabric Opal 97844 with blackout liner
Crew quarters with head in lieu of standard utility room
Modify the dresser in the crew quarters to include a 20 bottle wine refrigerator
Change lights to same style Martini glass lights in salon
Custom Hardtop and Canvas Package
Windshield Cover to match the beige antiskid, blocks UV rays but has some visibility
Aft Cockpit Seat Covers to be Sunbrella Night Navy
Flybridge Seat Covers to be Sunbrella Night Navy
Aft Cockpit Table Cover
Custom Hardtop - Cored top with Awlgrip finish, polished stainless frame work, 2 deck lights, 4 overhead lights, SAT TV pods, radar mount, antenna mounts, provision to install mast or hardtop mounted backup camera, travel and install.
Custom Hardtop Enclosure - EZ2CY enclosure, three sides, with center panel that pins up and vents. EZ2CY Aft enclosure. Add track to be able to slide door on the inside of the other aft curtain. Run Aft flybridge enclosure behind entry way to flybridge.
50W Fantom with 4' Open array radar
Sounder module, transducer
(2) VHF radio with antenna
(2) Garmin GMI20 Displays Electronics
Salon Camera for Flybridge
Spotlight and hailer
Backup camera Electronics
Engine room cameras
Quick Chain Counter Displays
Redundant N2K smart XDCR
KVH TV 5 with four DirectTV receivers
Fusion Black Box System with Bluetooth. Remote controls at helm and cockpit, four speakers: two in the main salon, two in the cockpit.
10” Kicker subwoofer
10” Kicker amplifier
32” LED TV in the main salon
28” LED TV in the master stateroom
24” LED TV in the forward stateroom
HDMI cables run from each TV to the master stateroom aft, below the helm
Modified Deep “V” Planing hull design, with shallow pod drive tunnels.
14º deadrise at transom, 23º deadrise amidships.
ISO NPG white gelcoat w/vinylester back-up resin.
Bottom, topsides and transom VIP resin infused biaxial E-glass with Corecell SAN foam core.
Stringer system biaxial E-glass with foam core.
Resin Infused E-glass swim platform with molded-in anti-skid surface.
Hull side rubbing strakes.
PVC rub rail with stainless steel cap.
Painted (Urethane) double boot top.
Gold recessed cove stripe.
ISO NPG gelcoat.
VIP resin infused biaxial E-glass with balsa core.
Molded-in anti-skid deck surfaces.
Companionway door to port.
Sliding windows in salon on cabin sides.
Electric opening window in salon aft bulkhead.
Hinged access door to side deck at helm.
Flush, outward opening, transom door with latch.
Anchor locker with slam latch.
Large lazarette/engine room access hatch in cockpit sole with compression latches.
Sure Shade system over cockpit
Stainless steel staircase with composite treads turning through 90 degrees
Volvo Autopilot with controls incorporated into helm screen
Joystick control installed in Stidd armrest
Slow speed, single lever, and cruise control software
Sabre exhaust by-pass system
Garmin GPS Receiver

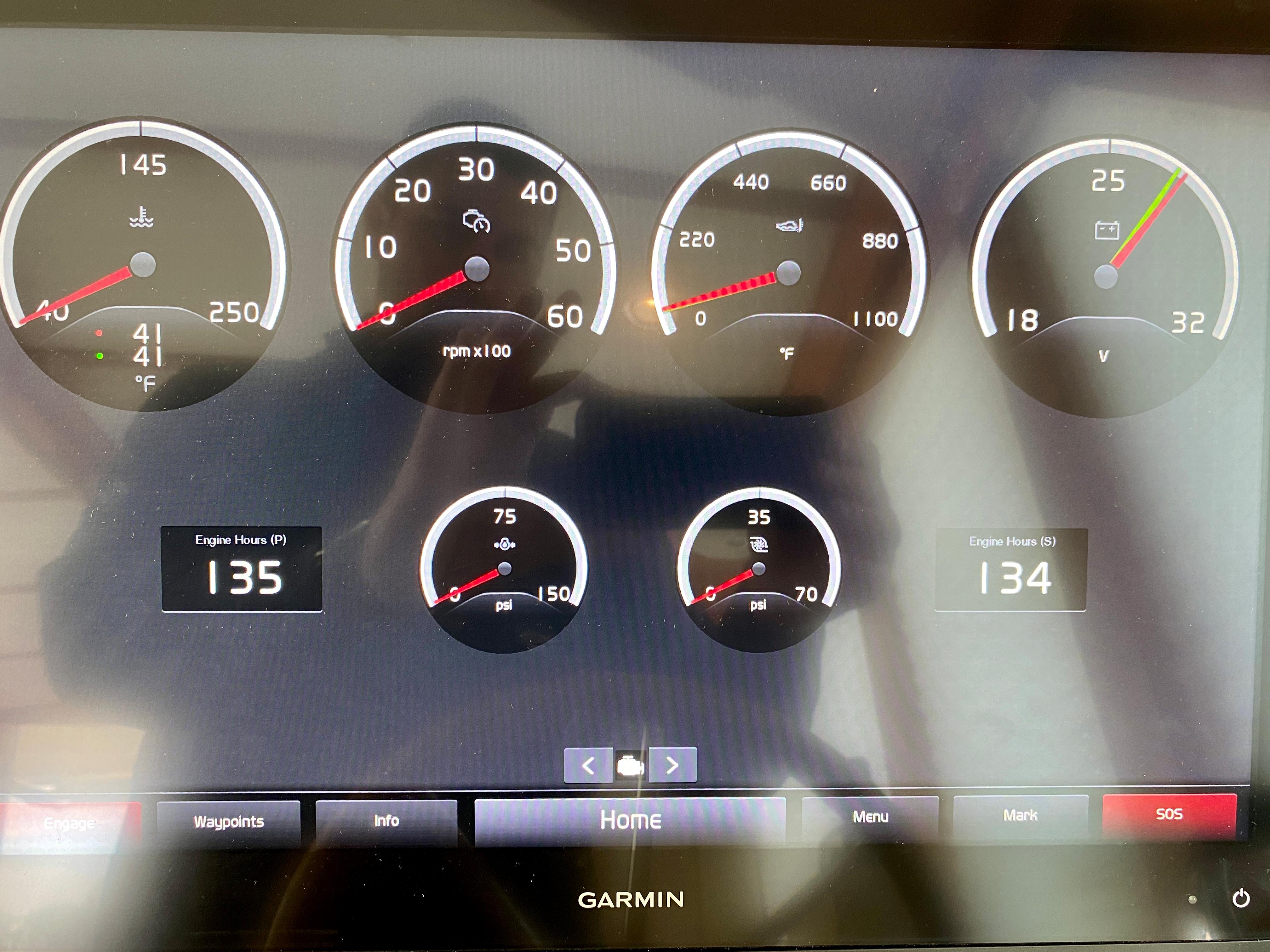

(2) Volvo/Garmin 8617 MFD with separate Garmin SD card reader at both lower and upper helm
120A, 12V alternators each engine.
(2) Exhaust by-pass mufflers.
Engine room blower.
Engine room vent ducts.
Engine room floor with FRP anti-skid.
White gelcoated engine room
Mylar-face foam noise barrier.
(2) 263 USG diesel fuel tanks port and starboard.
Dual Racor fuel filters with water in fuel probes.
(2) 2” “Diesel” deck fill plate
12VDC and 120VAC Electrical
(4) 2ea. AGM Group 24 dedicated engine start batteries.
(3) AGM 4D deep cycle ship's service batteries.
(1) AGM Group 24 generator start battery.
Remote control battery switches with controls at helm.
Manual emergency battery crossover switch.
Illuminated main circuit breaker distribution.
Digital battery monitor.
St. Maarten amber cabin reading lights. High output LED lights in the overhead. LED strip lighting in appropriate locations. LED engine room lighting.
Tri-color lights over helm station, red, white blue
Cockpit courtesy lights.
Marine-grade, tinned wire throughout
12VDC USB chargers at helm and in all cabins 120VAC ELECTRICAL SYSTEM
Onan 13.5 kW generator including:

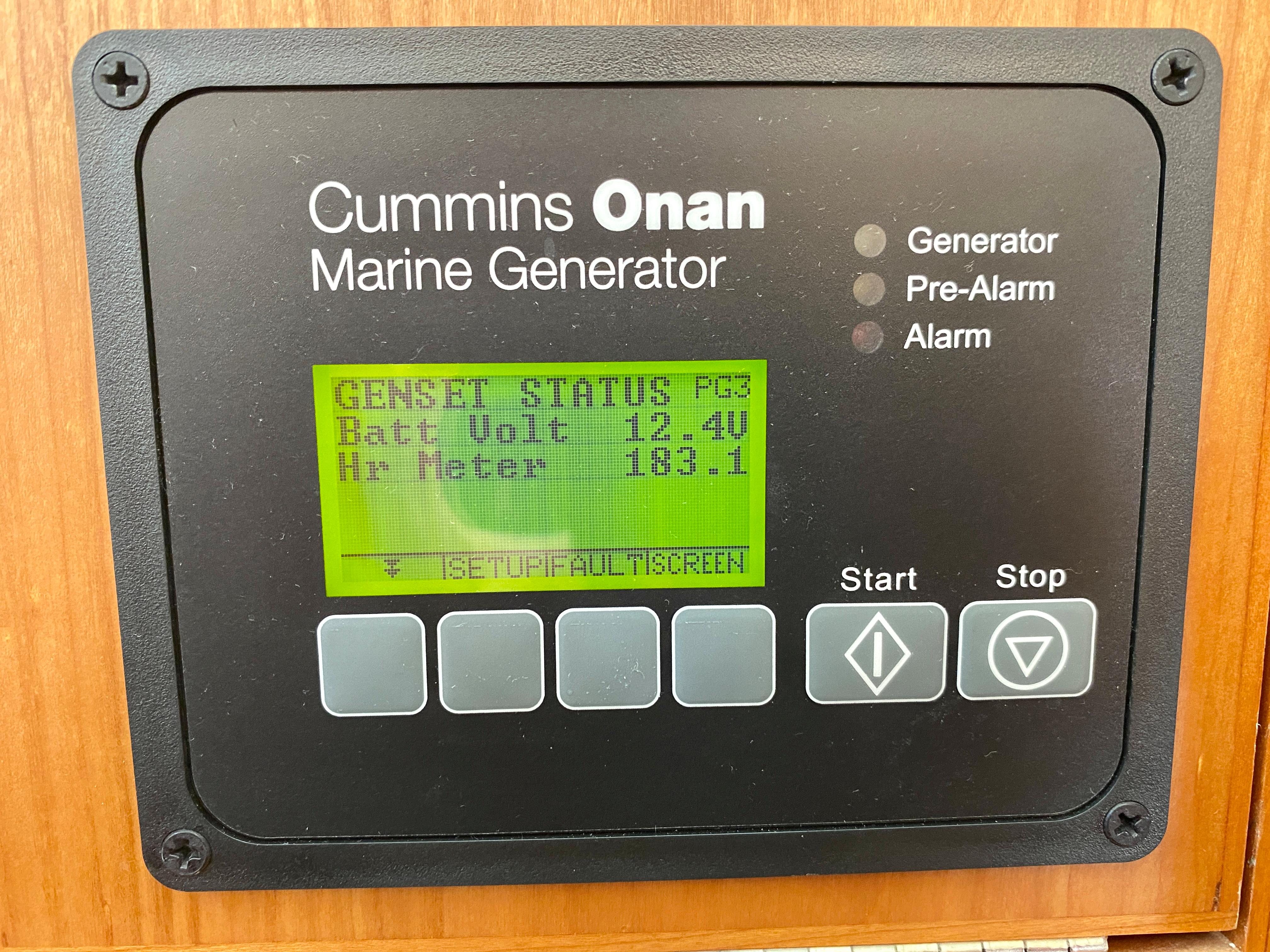

Onan E series display Dedicated start battery. Water drop muffler.Cooling water intake strainer. Sound shield.Transfer switch.
50A 70 ft shore power service with Glendinning Cablemaster
Illuminated main circuit breaker distribution panel.
Digital AC system monitor
120V GFCI protected outlets in each cabin and engine room.
50amp, 3-bank battery charger
Reverse cycle heat/air conditioning with 4 zones:
One 10k BTU in the forward cabin, one 10k BTU in the master cabin, one 16k BTU in the galley and one 24k BTU in the main salon.6k BTU in crew quarters
Corian galley counter top.
Stainless steel under mount sink with cover and pull-out faucet
Stainless steel under mount prep sink with cover.
Isotherm stainless steel stand-up refrigerator (top) and freezer
Two burner electric cook top.
Convection microwave with stainless steel face
Drawers and storage lockers below counter.
Built-in waste basket. Recycle bin below steps.
Spacious island berth athwartship layout with laminated trim.
Hull side deadlight over head board
Shoji style passageway and closet doors
Shoji style portlight screen panels
Cherry hull ceilings.
Drawers under berth and in bulkhead aft of berth.
(2) hanging lockers fore and aft of bed.
Teak and holly sole.
Sound deadening soft headliner panels.
Private access from master stateroom
Custom tile in WC and shower sole
Glass vessel style sink
High gloss finish over the solid cherry counter.
Vanity cabinet below sink
Mirror above vanity, cherry framed
Separate shower stall with clear bi-fold enclosure and glass tile accent wall within
Electric shower sump pump
Opening port to side deck
Deck hatch with blind/screen overhead
Stainless steel towel bars
Stainless steel under mount sink.
Shower stall with seat and locker outboard.
Hot and cold pressure water
Electric shower sump pump.
Solid surface vanity top with bull nose.
Cherry wood trimmed mirror over the sink.
Spacious island berth, with laminated trim.
Cherry hull ceilings.
Drawers under berth, A/C return grille beside.
Storage lockers, drawers and shelves.
Teak and holly sole.
Sound deadening soft headliner panels.
Private access to forward head and shower
“L” settee to starboard, 5” foam cushions, with storage and Sabre tool drawer beneath.
High Gloss finished table with hi-low pedestal and angled slide mechanism; lowers to coffee table height.
Sound deadening, soft headliner panels.
Raised mates L-shaped settee to port of helm
Stainless steel swing door to cockpit
Electrically operated window aft of L-settee
Swing door at helm to starboard side deck
Deep chart table forward of L settee seat port
Fiddles at nav station
Sliding Glass Door
Varnished cherry interior finish
Screens on all opening ports.
Ocean Air screen/blinds on deck hatches.
Ocean Air pleated blinds on side windows and side door
Drapes on curved aft windows
Accord Shades on opening port except for master stateroom
Sabre offered fabric and Corian décor package
Dovetailed, varnished maple drawer boxes
Fresh Water System
Water capacity 160 gals.
Stainless steel, 20-gallon water heater operates on 110-VAC
Temperature control valve on hot water supply.
Hot and cold water pressure system 12V with dual pumps
Fresh water spigot in the engine room.
Transom shower, hot and cold.
Shore water inlet with a filter.
Polyethylene holding tank with a 70-gallon capacity.
Jabsco Quiet Flush fresh water MSD in guest head
Tecma Eco MSD in master head
Diaphragm waste pump on holding tank.
Single Kahlenberg chrome trumpet horn with compressor
Fire extinguishers, (5) at 2 1/2 lbs.
Marelon sea valves on all thru-hull fittings below waterline.
Bonding system to safeguard against galvanic corrosion.
Automatic fire extinguishing discharge system in engine space with override.
(3) Automatic 12V electric bilge pumps.
(3) high water switches and alarm.
Manufacturer Provided Description
Designed with our experienced and adventurous owners in mind, the Sabre 48 Fly Bridge is the perfect combination of the traditional Downeast style and the wind-in-your-hair freedom of a fly bridge. Nautically sensible design choices preserve the living space inside the pilothouse, meaning our owners do not have to compromise between their indoor and outdoor experience.
The Sabre 48 Fly Bridge offers unparalleled views, providing unrestricted sightlines while underway and clear views of your surroundings while docking. An endearing space for al fresco dining and entertainment, with the full power and control of a traditional helm including joystick controls, makes the 48 Fly Bridge a practical and elegant addition to our successful Salon Express series. The expertly designed stairs leading from the cockpit to the bridge provide security during ascent and descent with full steps and handholds everywhere they are needed.
