2016 Standard Factory Specifications

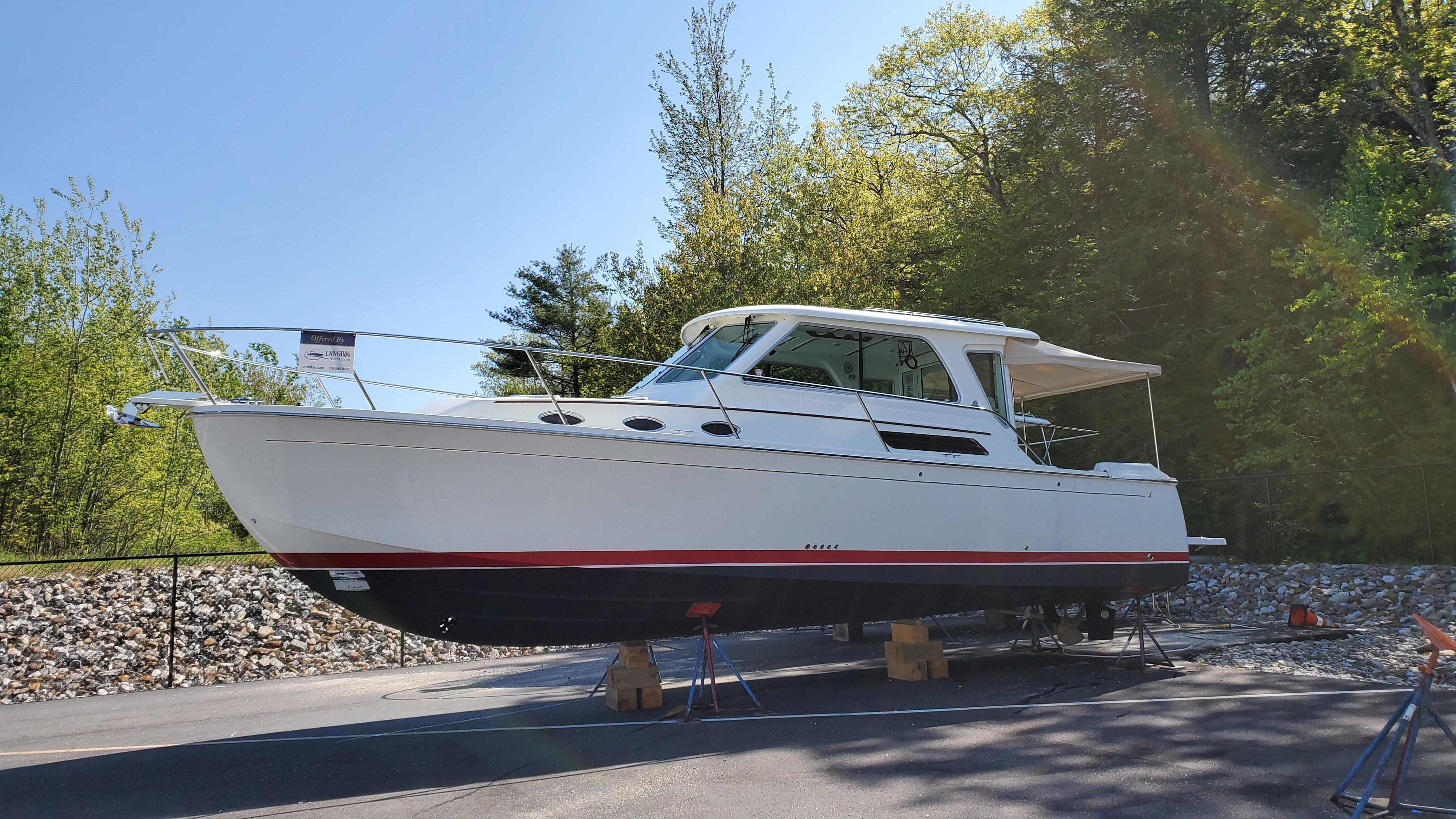

Hull
• Back Cove white iso-npg gelcoat
• Vinylester backup resin
• VIP Resin Infused hull w/ PVC foam core sandwich
• VIP Resin Infused foam core stringer system
• Advanced prop pocket hull design
• Awlgrip boot top
• Molded cove stripe depression w/ “gold leaf” style stripe

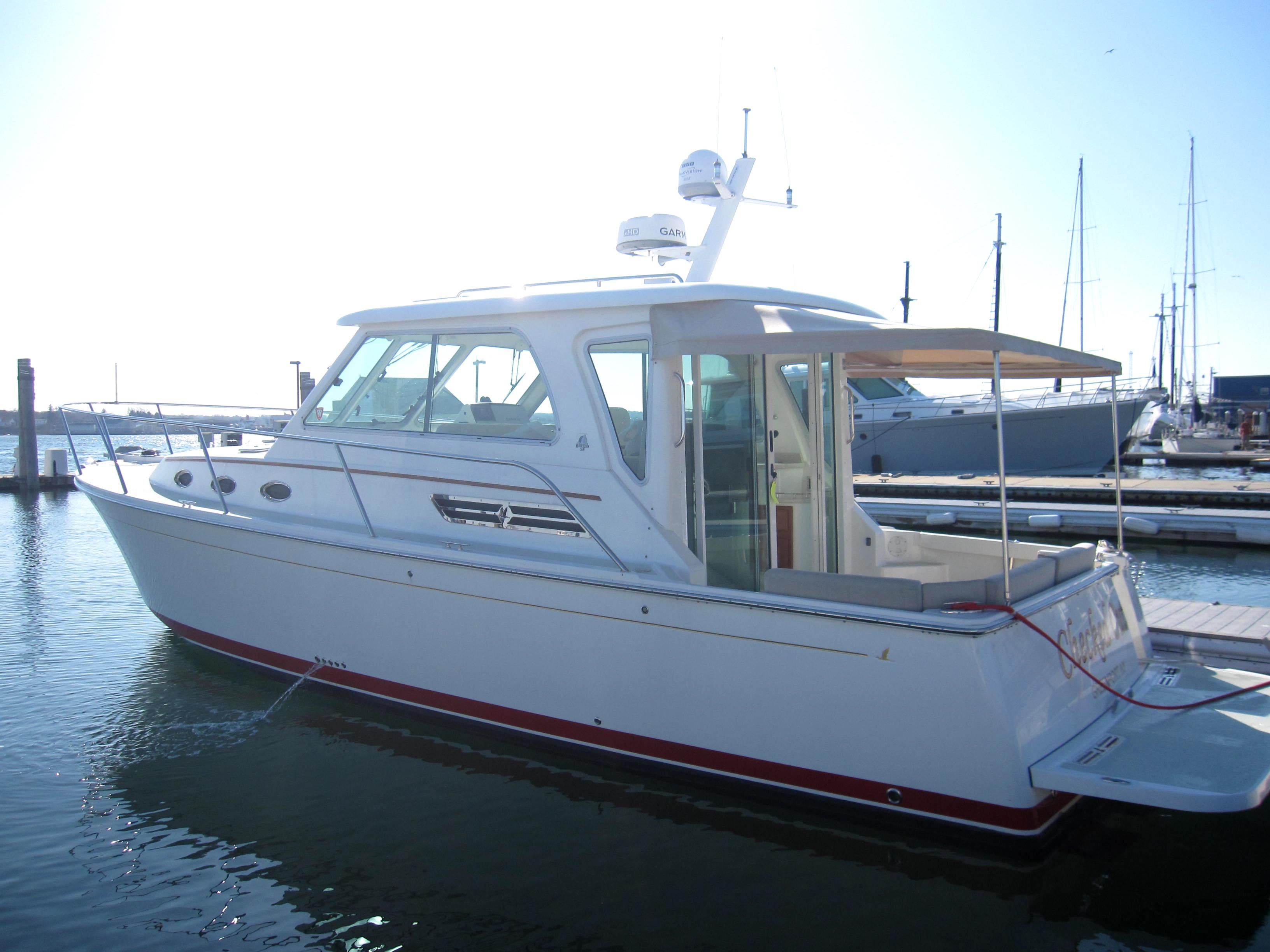

Deck
• Back Cove white iso-npg gelcoat w/ graystone anti-skid on walking surfaces
• VIP Resin infused balsa core sandwich structure
• Mooring cleats forward, aft and spring line cleats. Aft cleats are pull-up style
• Molded Composite bow sprit w/ stainless steel anchor roller
• Anchor locker w/ ground tackle storage
• Running lights LED
• Teak accent stripe on cabin side
• Custom 1-1/4’’ 316L stainless steel perimeter rail
• SS handrails on hard top, port and starboard
• Compressed air horn on hardtop (mast opt.)
• (6) opening Port lights w/ insect screens
• Port & starboard molded steps leading to side & fore deck

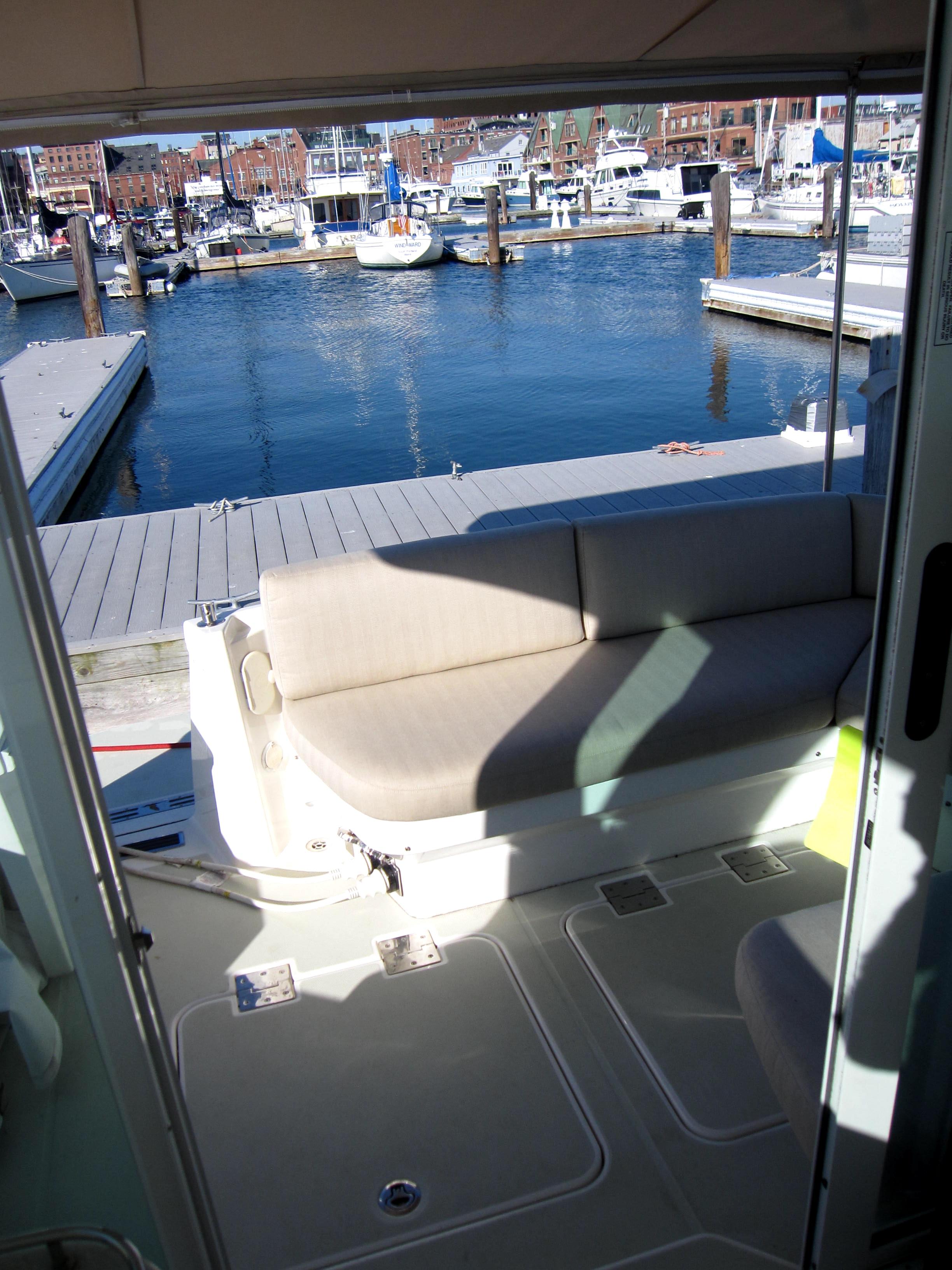

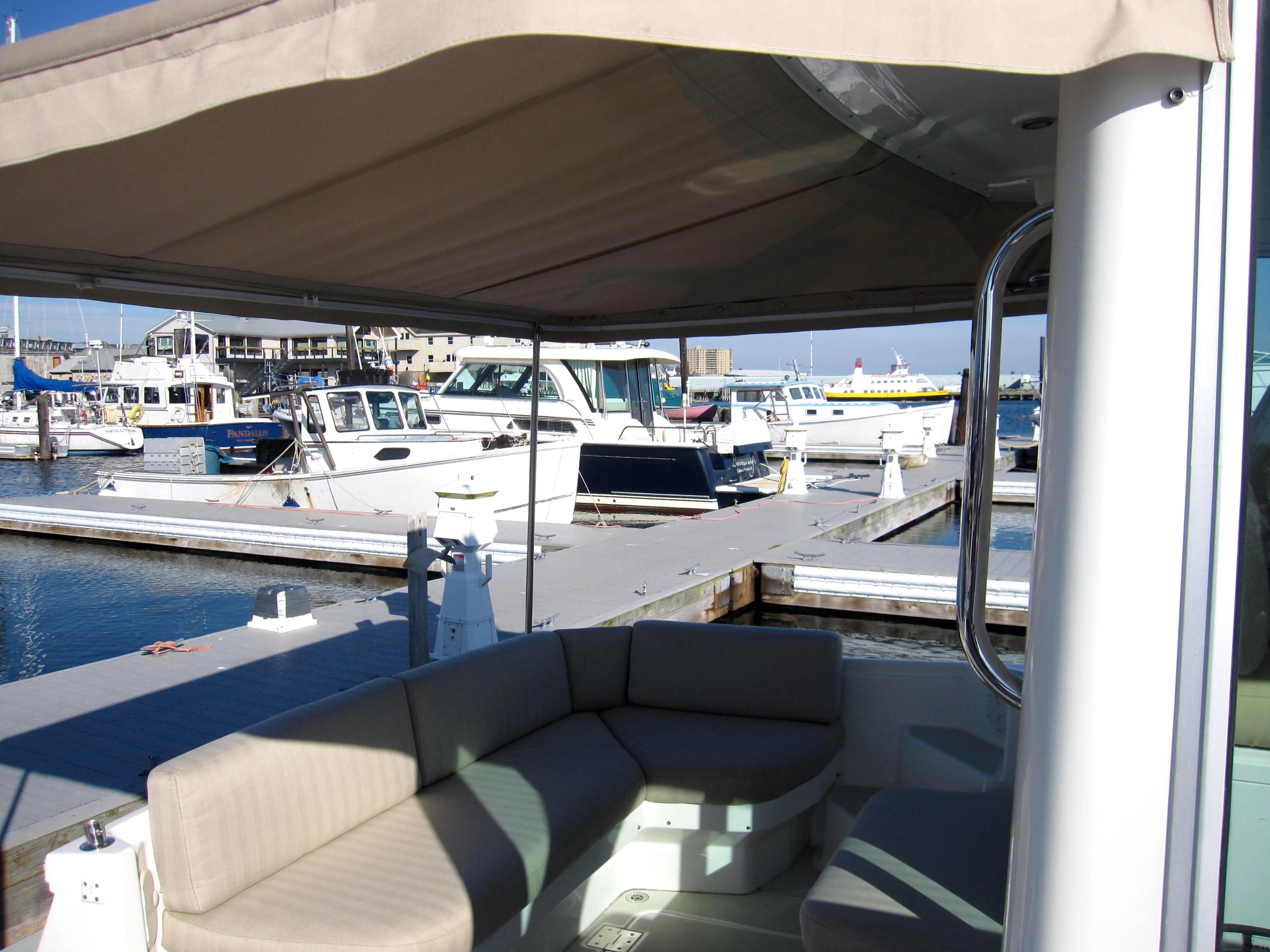

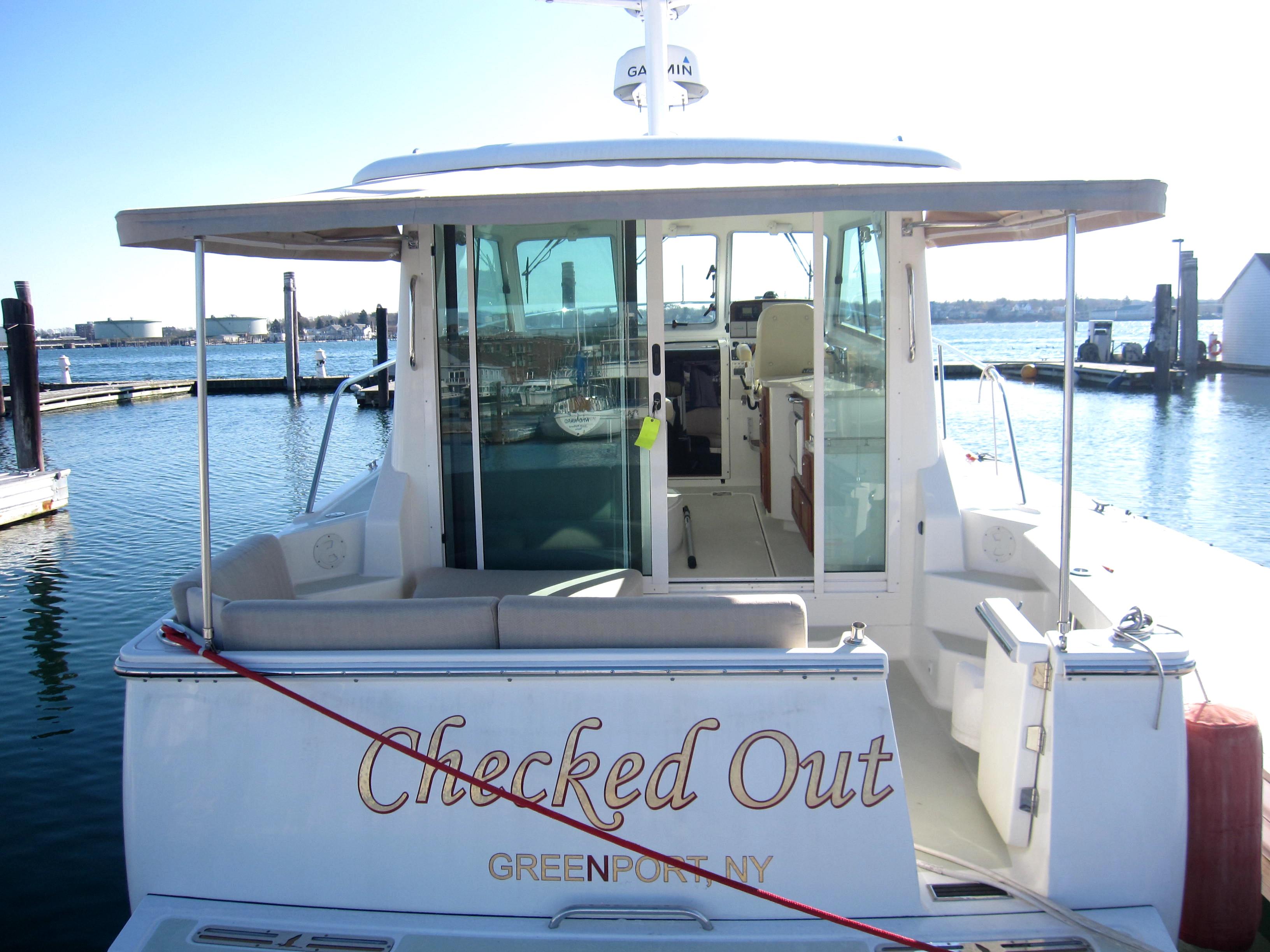

• Molded cockpit seating w/ storage, and aft facing removable seat to port
• Transom Door to starboard
• Swim platform w/ SS under mount swim ladder
• Hot and cold cockpit shower
• Self draining cockpit
Mechanical Systems
• Cummins QSB 380 mhp electronic engine and marine gear
• Cummins Smartcraft display
• Gen set 5KW Onan with sound shield
• 2” Aquamet shaft
• 4 Blade NiBrAl propeller
• PSS Dripless shaft log

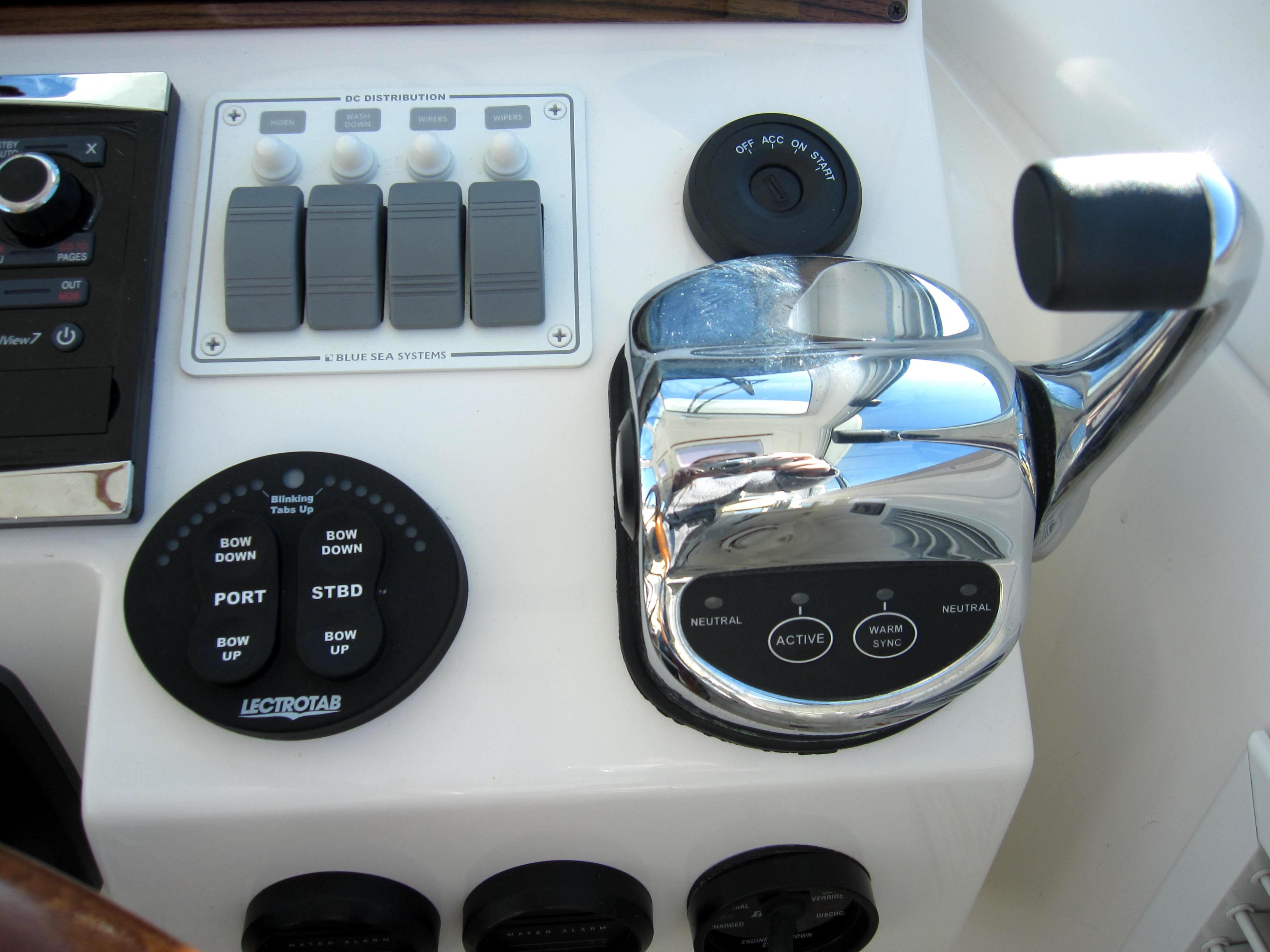

• Binnacle mount electronic single lever engine control
• Internal sea strainer
• 185 gallon fuel tank w/ 2” fill
• Racor Fuel Filter
• 6’’ Exhaust w/ two stage horizontal muffler
• Electric actuated trim tabs port and starboard w/ helm controller
• SeaStar hydraulic steering w/ tilt helm pump
• Below deck air conditioning/heat 9000 BTUs

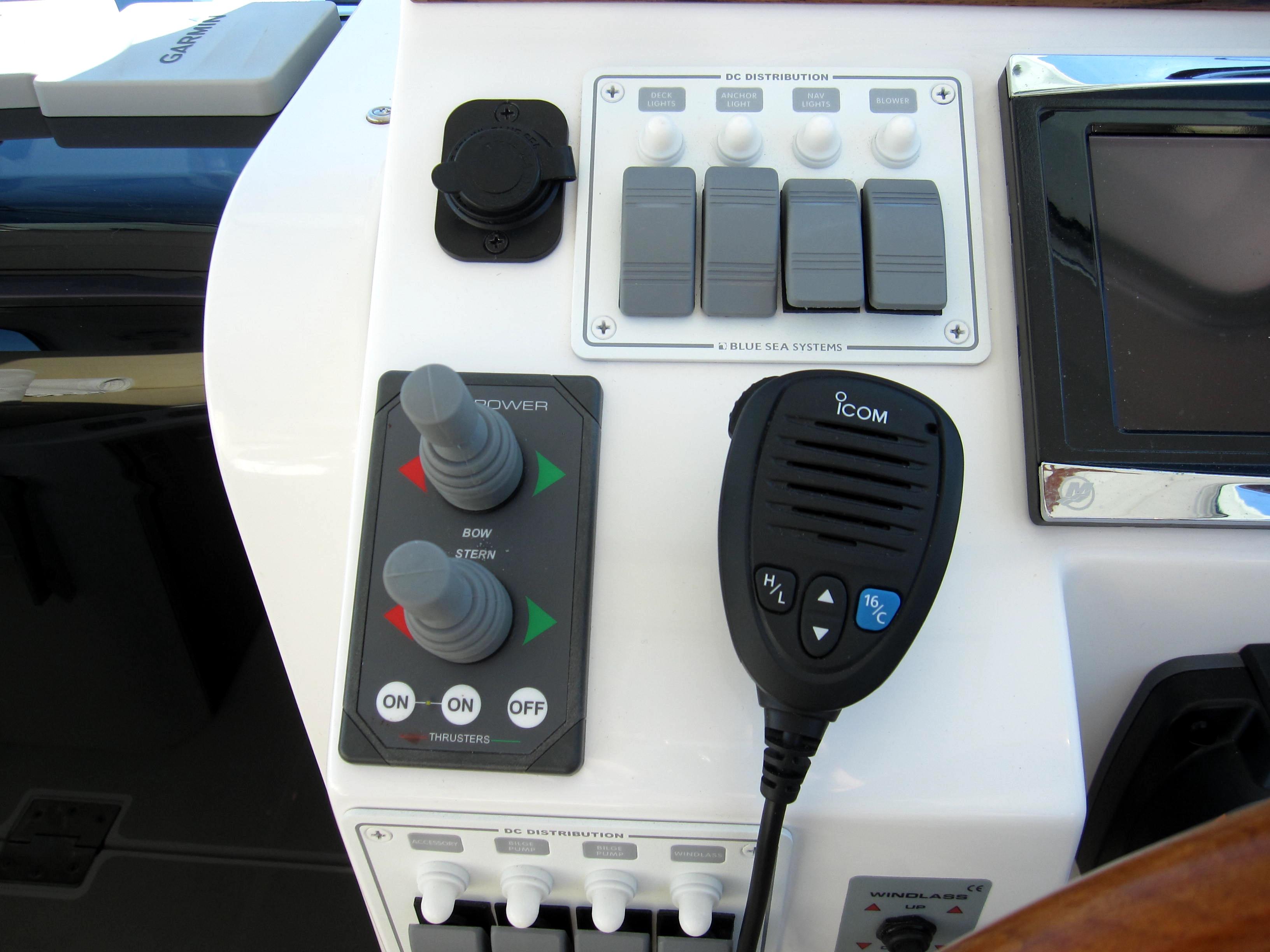

• Sidepower bow thruster w/ joy stick control (SE60i)
• Hot and Cold pressurized water
• 11 gallon hot water heater w/ heat exchanger
• Marelon sea valves on underwater thru hulls
• Automatic Fireboy extinguisher system w/ manual back-up
Electrical Systems
• AC and DC control panels with polarity indicator
• DC system battery management switching
• DC breakers for electronics
• Emergency cross over switch / ACR
• 110V AC 30 amp shorepower w/ 50 foot cord set
• AC shorepower system ELCI protected
• Galvanic isolator
• GFI protected 110V circuits
• Battery Charger
• (2) 4D AGM house battery
• (2) Group 31 AGM engine start battery
• (2) 12VDC automatic bilge pumps
• Bonding system w/ zinc transom anode
• Engine room lighting (2) w/ bezel switch
• Cockpit courtesy lights switched at transom door and helm
• Overhead LED cabin lights, with dimmer control
• Reading lights in salon / berth area
• Overhead tri-color LED helm deck light w/ switch
• 12V outlet at helm and in cabin

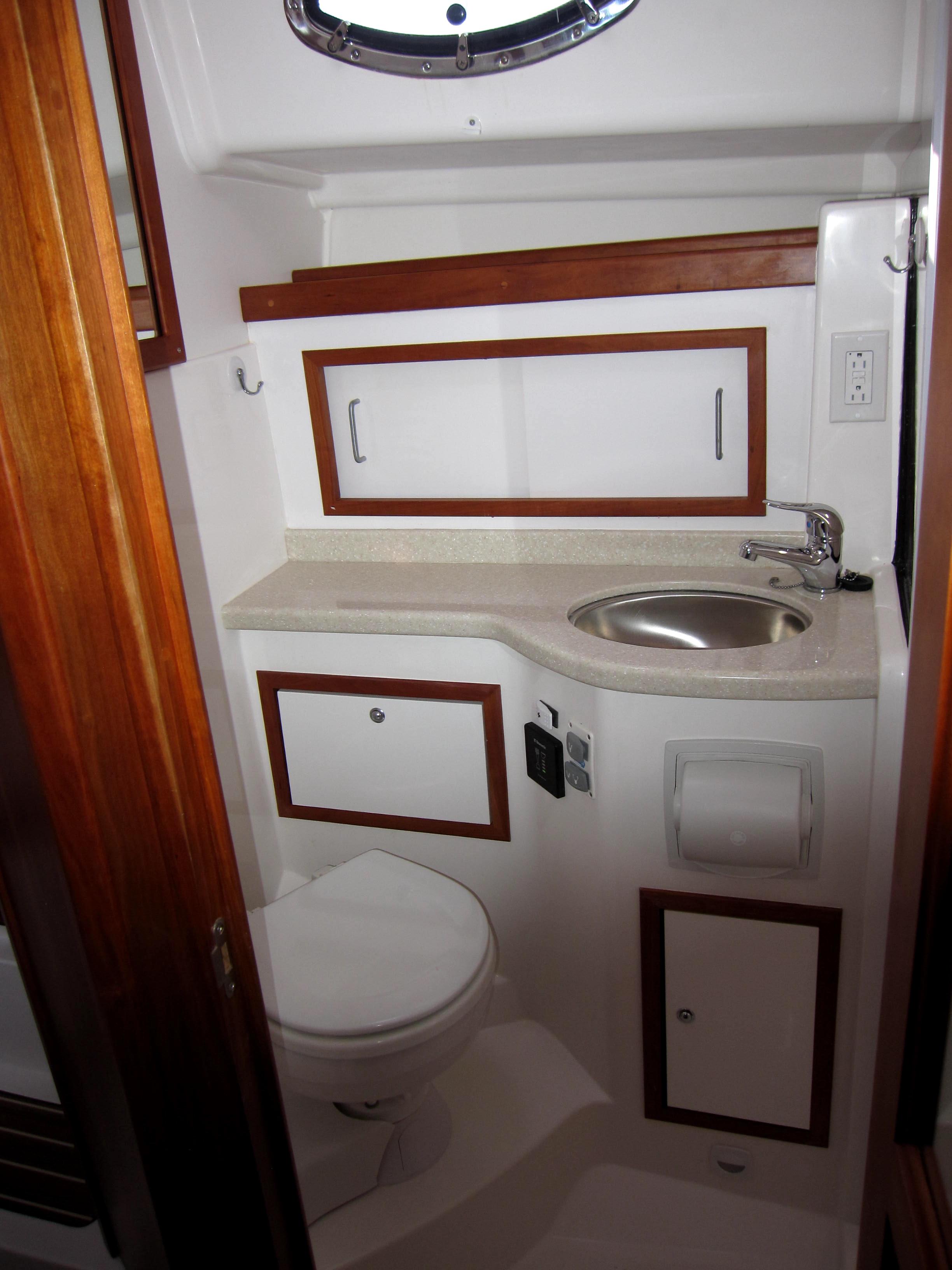

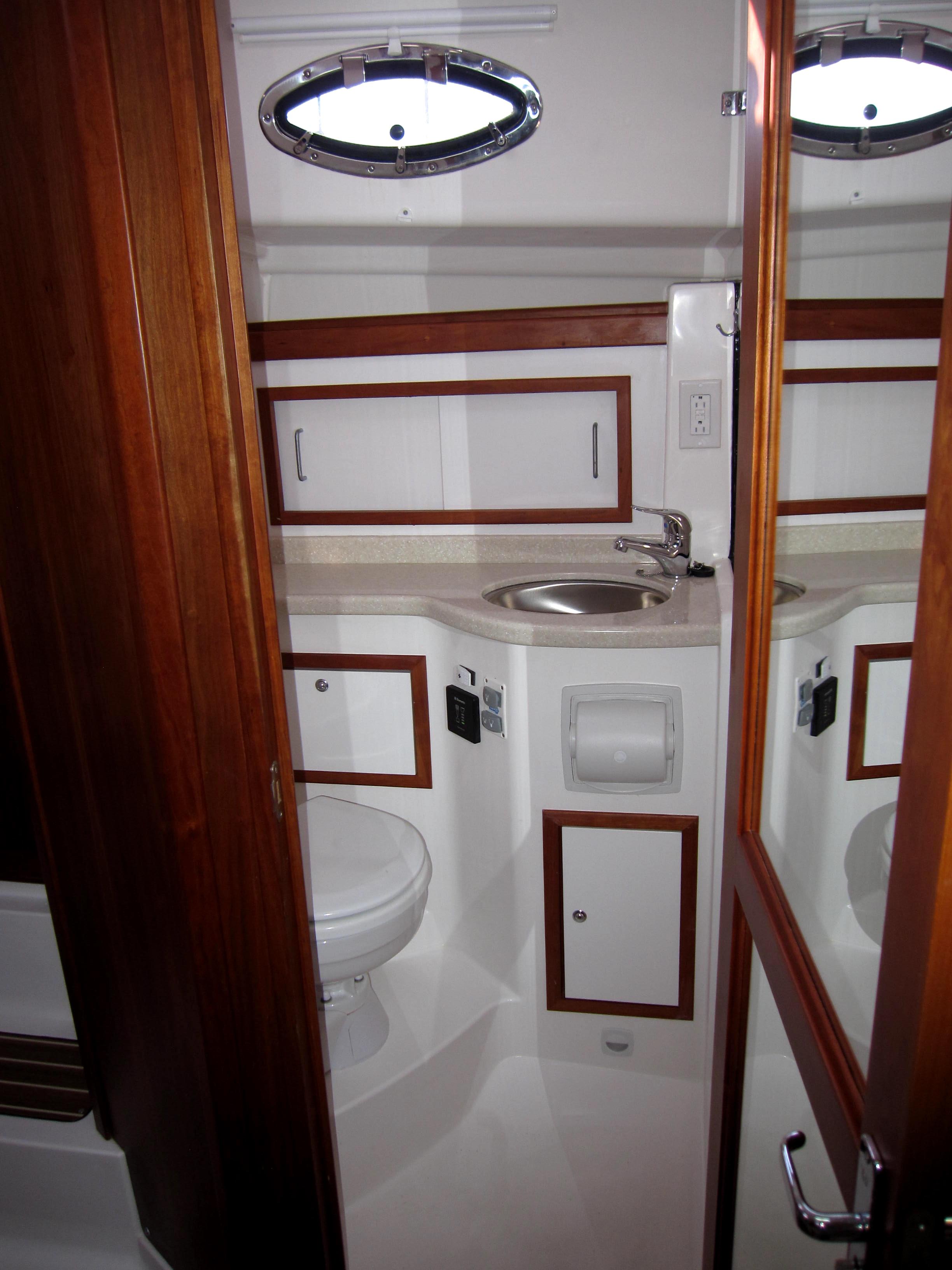

Head / Sanitary System
• Head w/ separate shower stall w/ bi-fold door
• Molded seat in shower stall w/ storage beneath
• Built-in vanity w/ sink and storage
• Lewmar hatch w/ screen
• Stainless steel opening ports (2) w/ insect screen and shade
• Cherry framed mirror
• Full length mirror on door
• Solid surface countertop
• Single lever faucet
• Shower drain sump pump system
• Standard size fresh water electric MSD w/ holding tank
• Waste tank gauge
• Macerator for holding tank overboard discharge as permitted
• Holding tank pump out fitting on deck
• Sealed overhead lighting w/ bezel switch
• Powered exhaust fan (12V)
• Fresh water level gauge

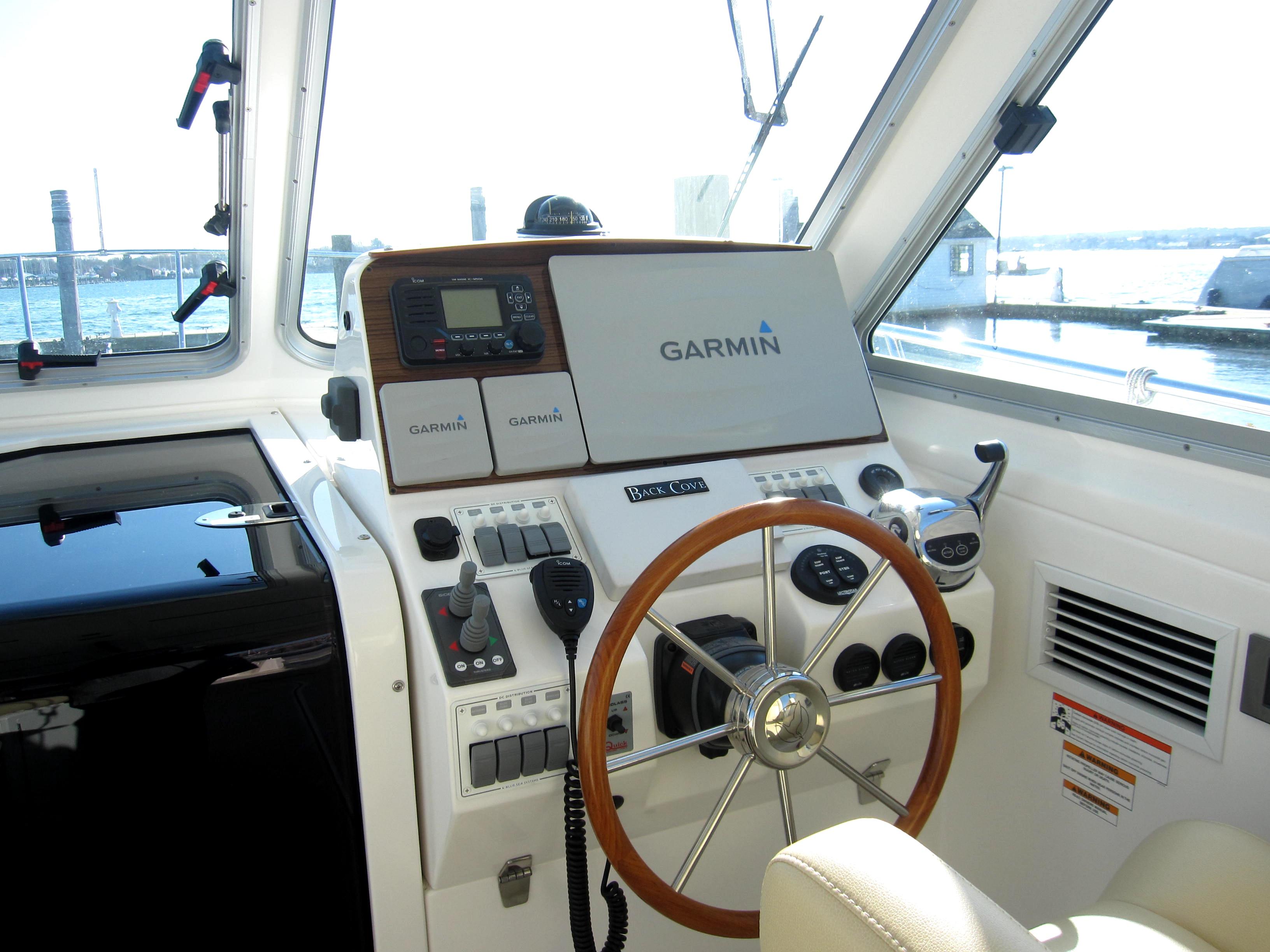

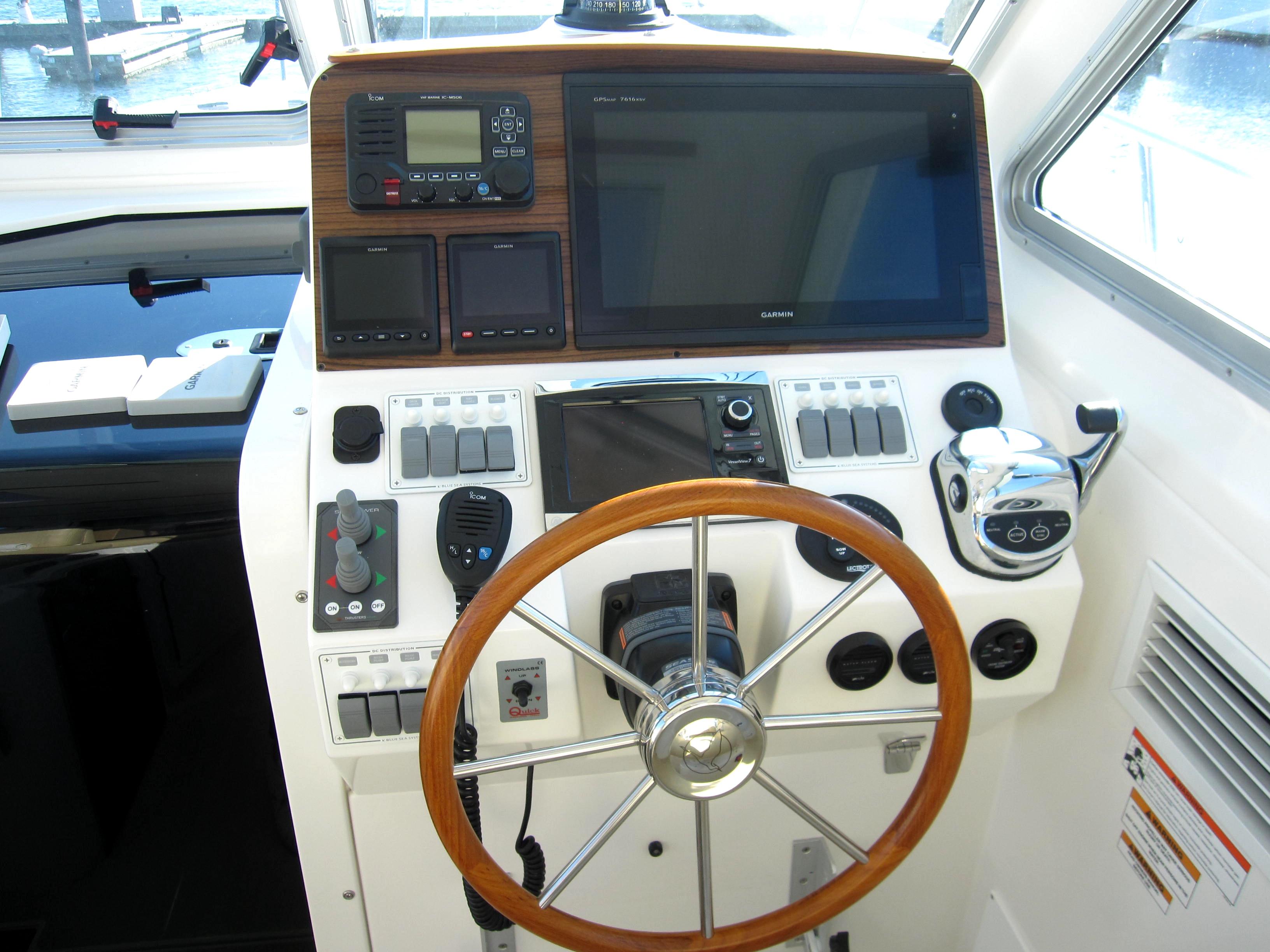

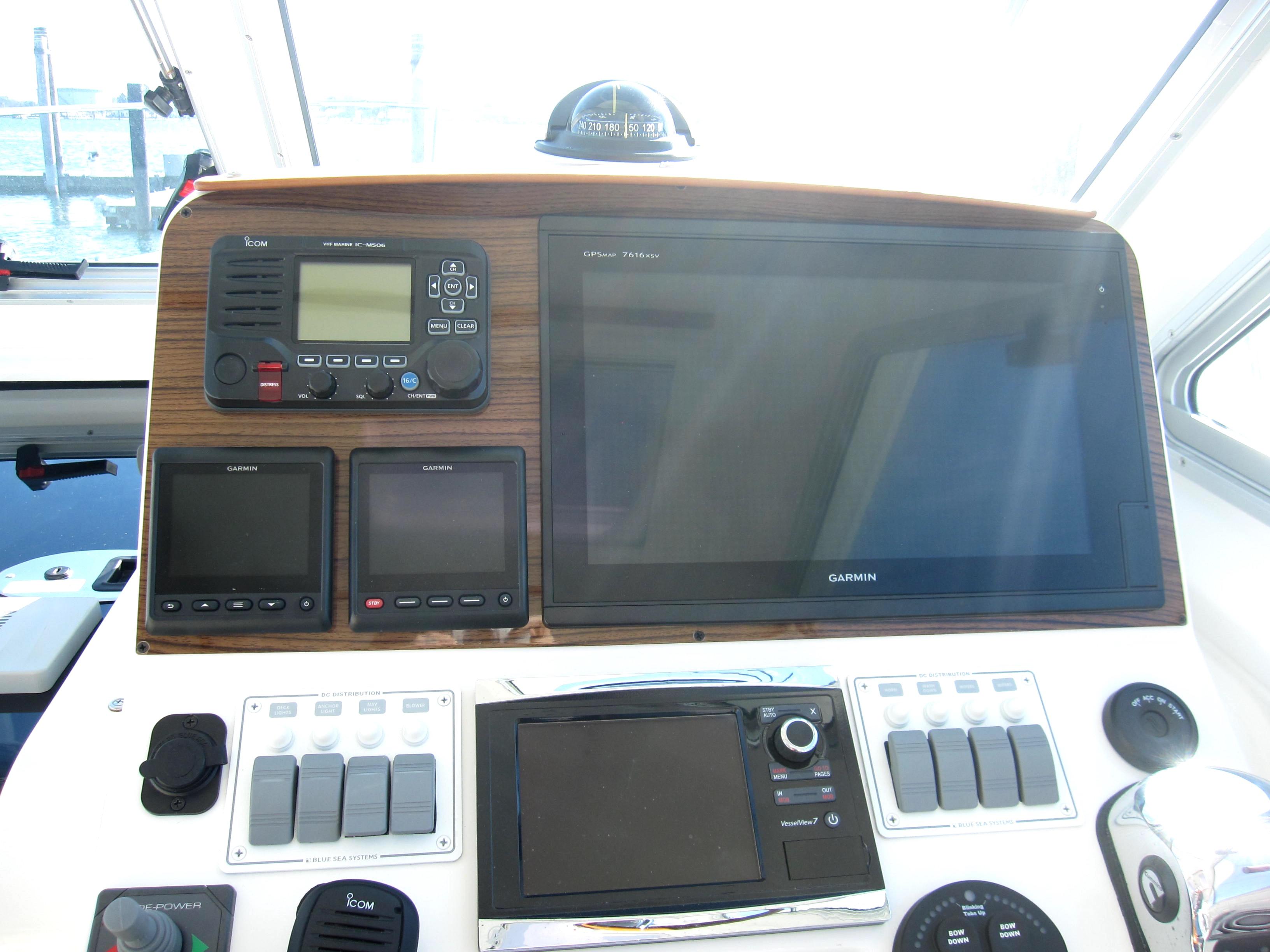

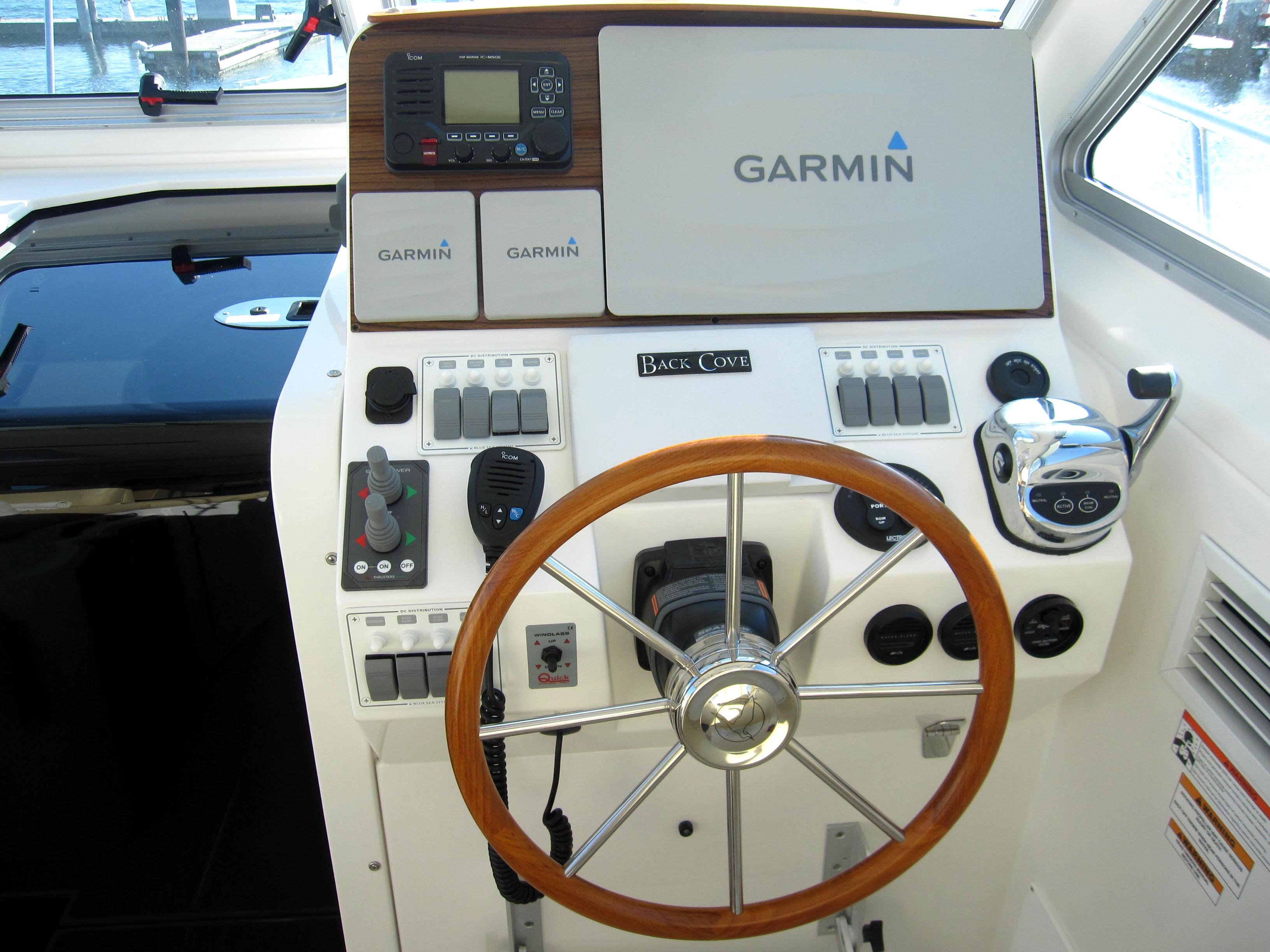

Helm Deck
• Clear anodized aluminum windows w/ opening windows port, starboard and center
• (3) windshield wipers w/ fresh water washer system
• Lewmar sliding hatches w/ OCEANair Skyscreens
• Compass, illuminated
• Stazo wood grain steering wheel

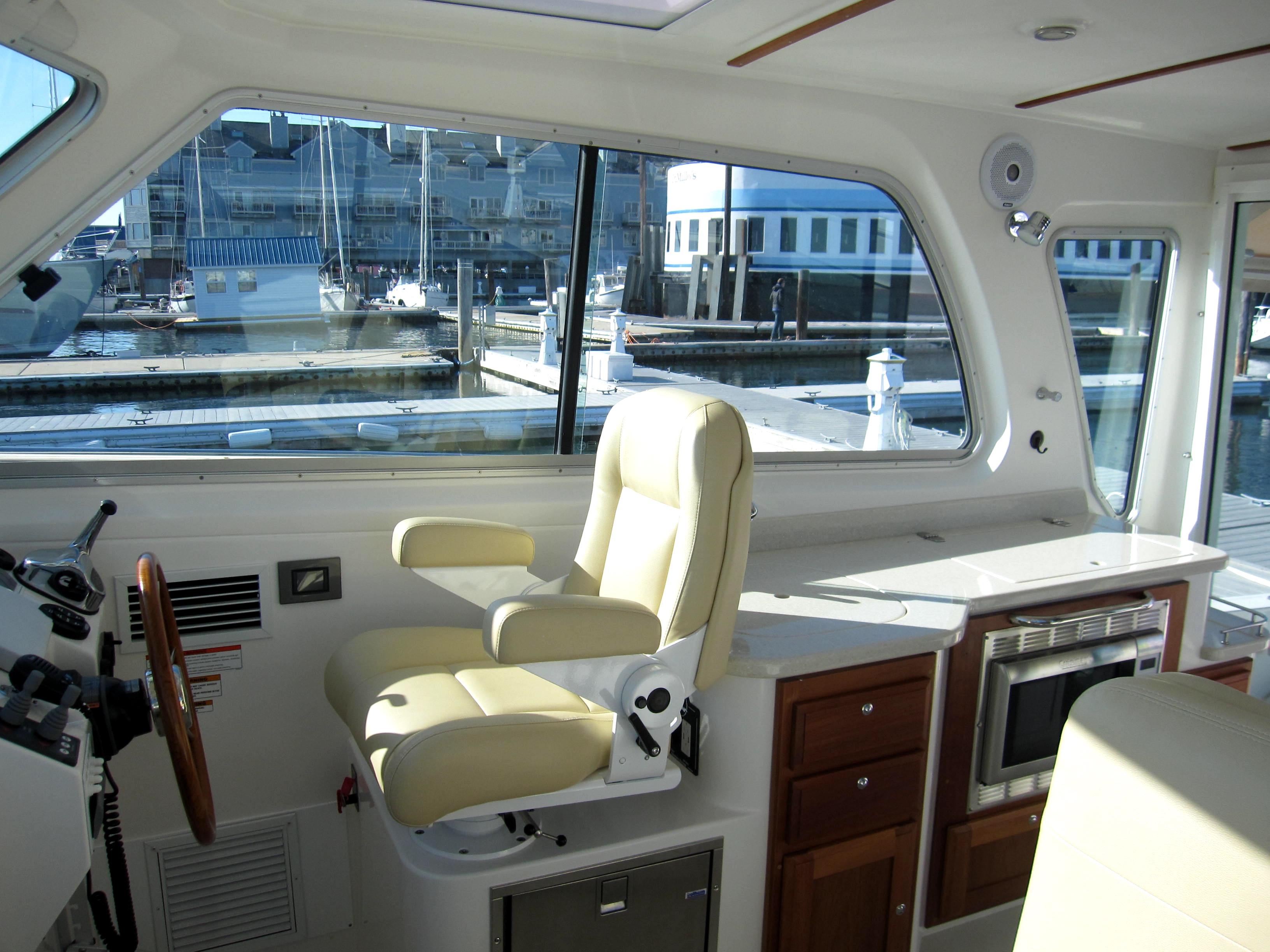

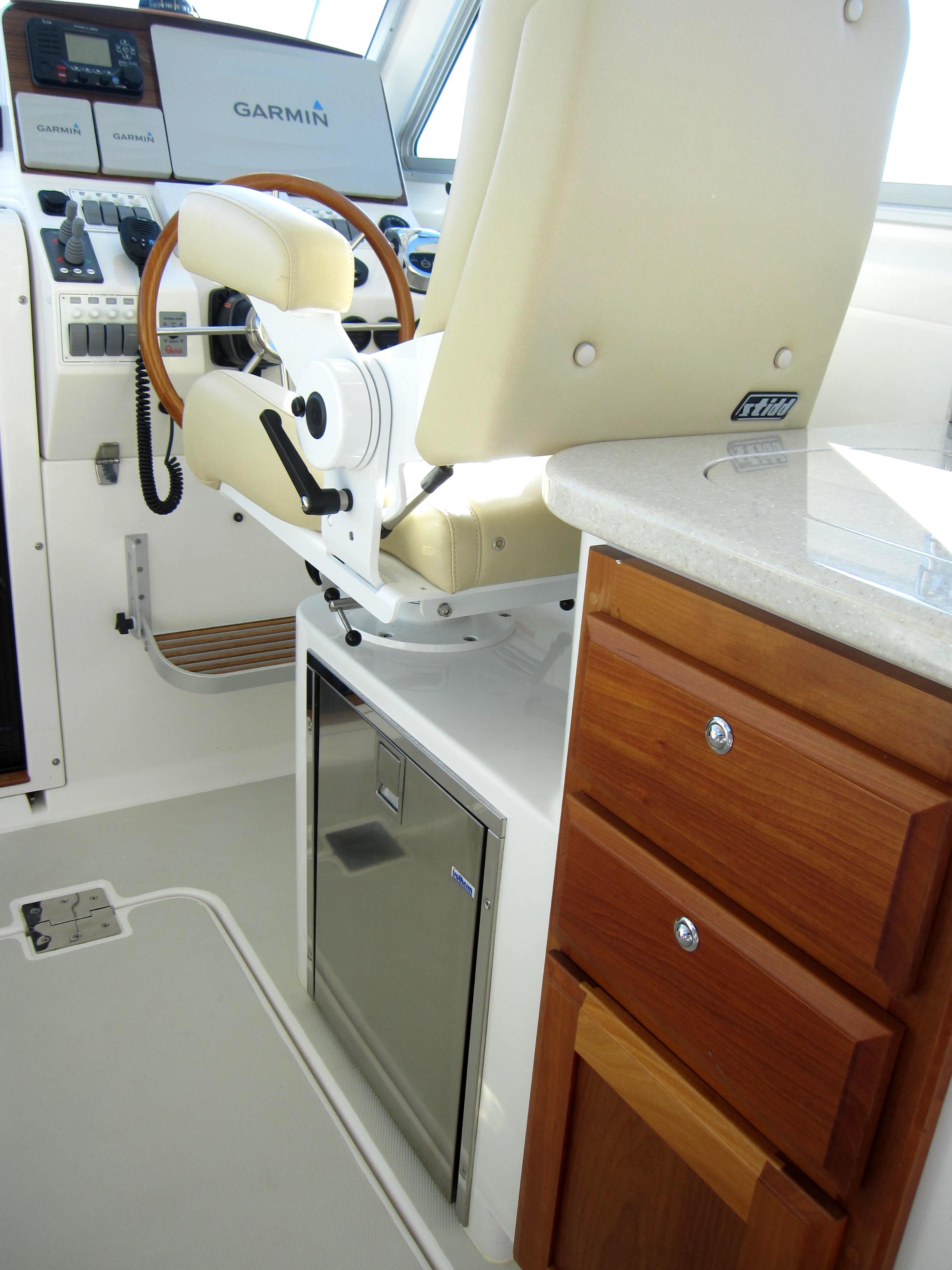

• Stidd 500N series helm seat
• Smoked acrylic companionway slider w/ lockable latch
• Engine hatch opens by electric/hydraulic linear actuator
• Large engine room hatch incorporates dinette & mate’s bench

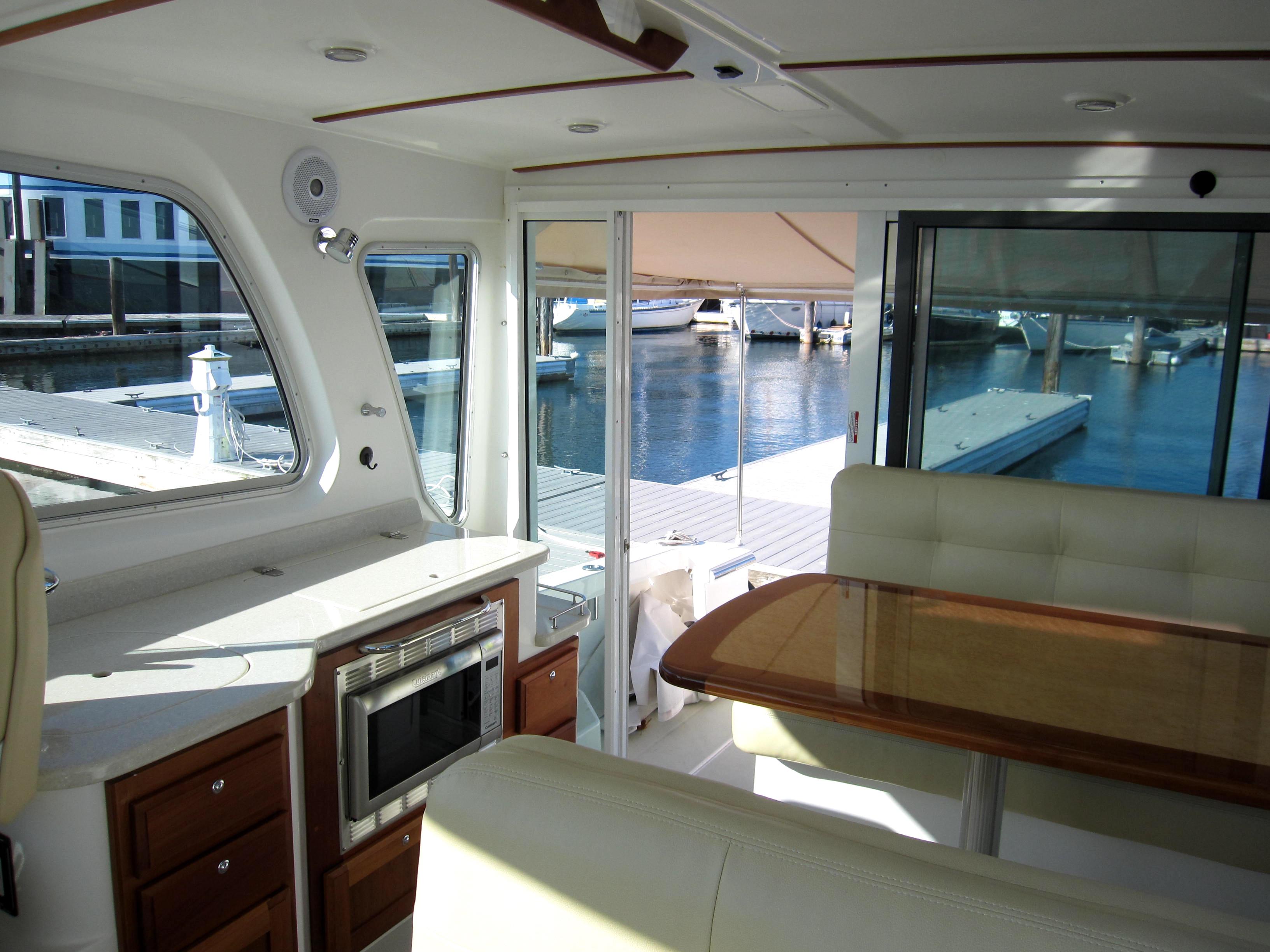

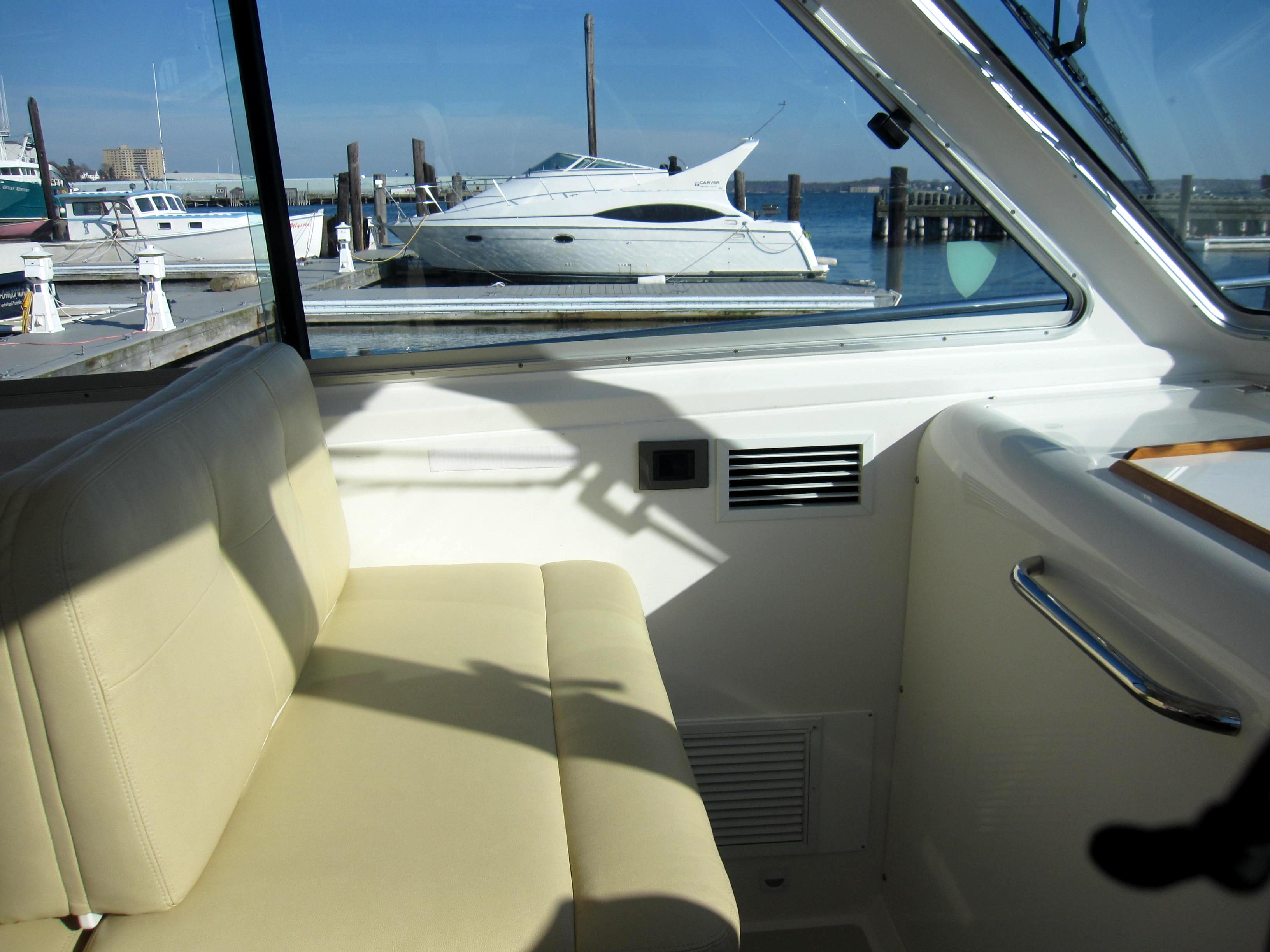

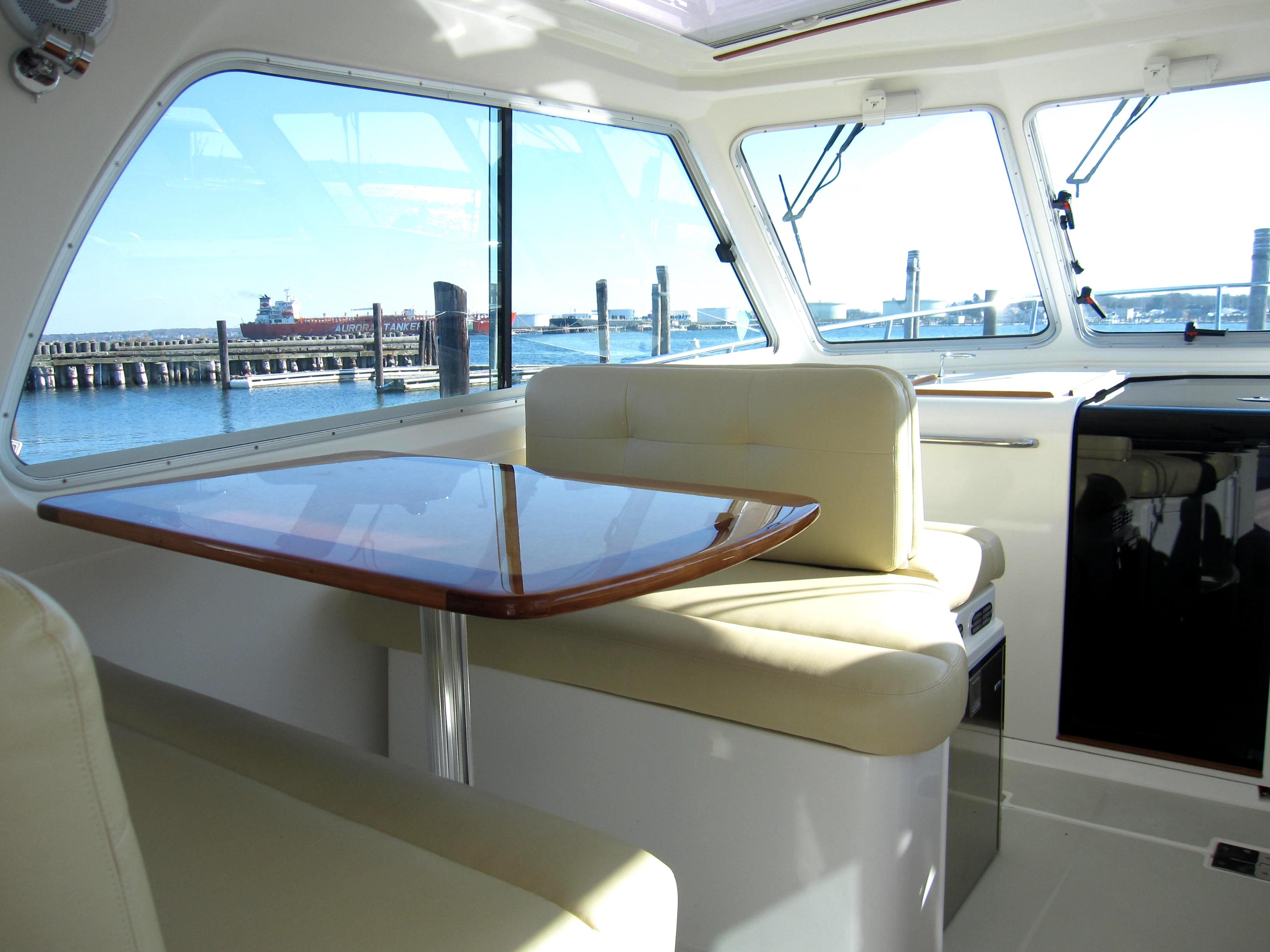

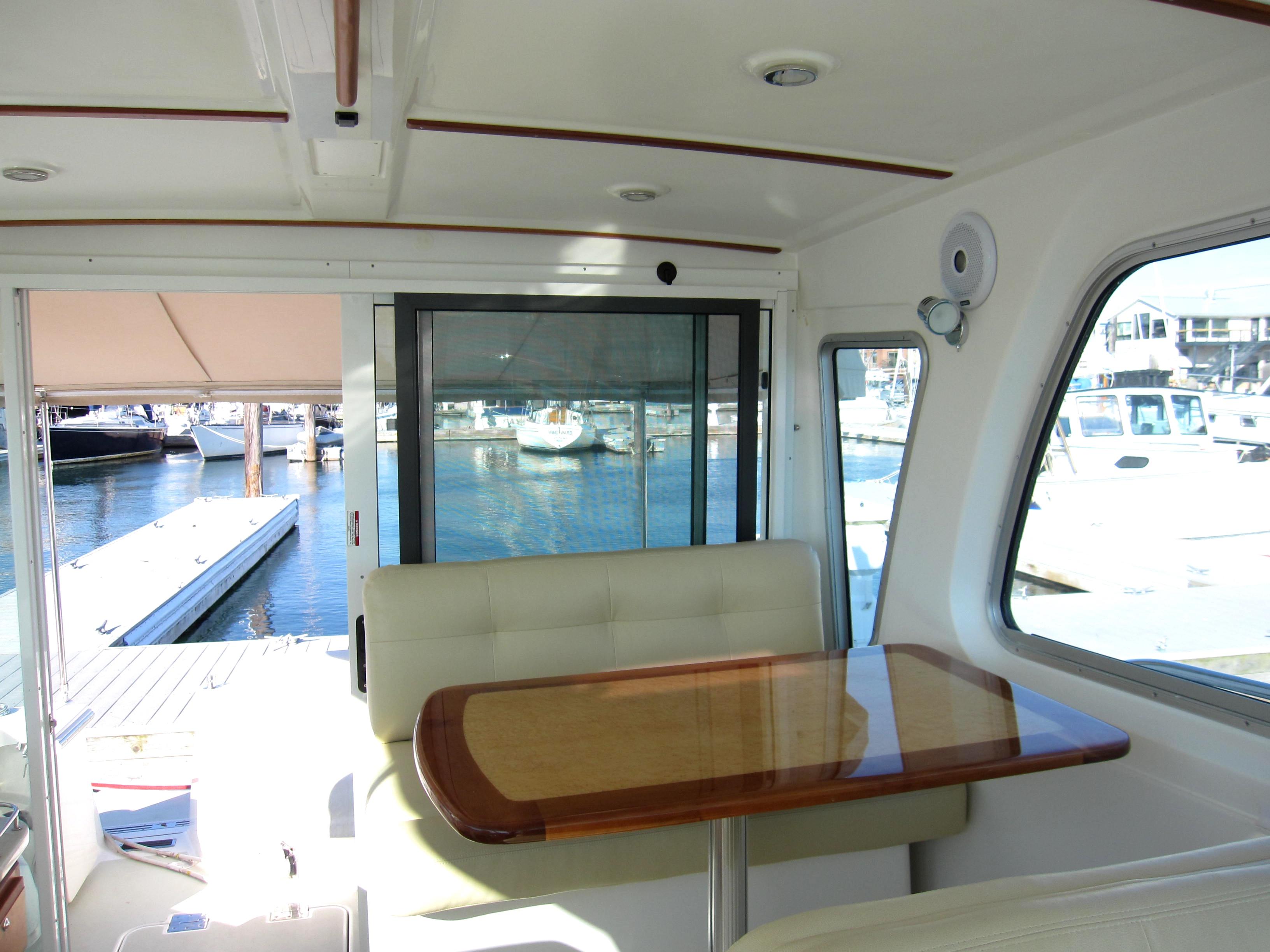

• Dinette seating w/ hi-low Back Cove high gloss table w/ decorative inlay
• Dinette and mate convert to double berth
• Storage beneath dinette benches
• Charging station for AC/DC/USB

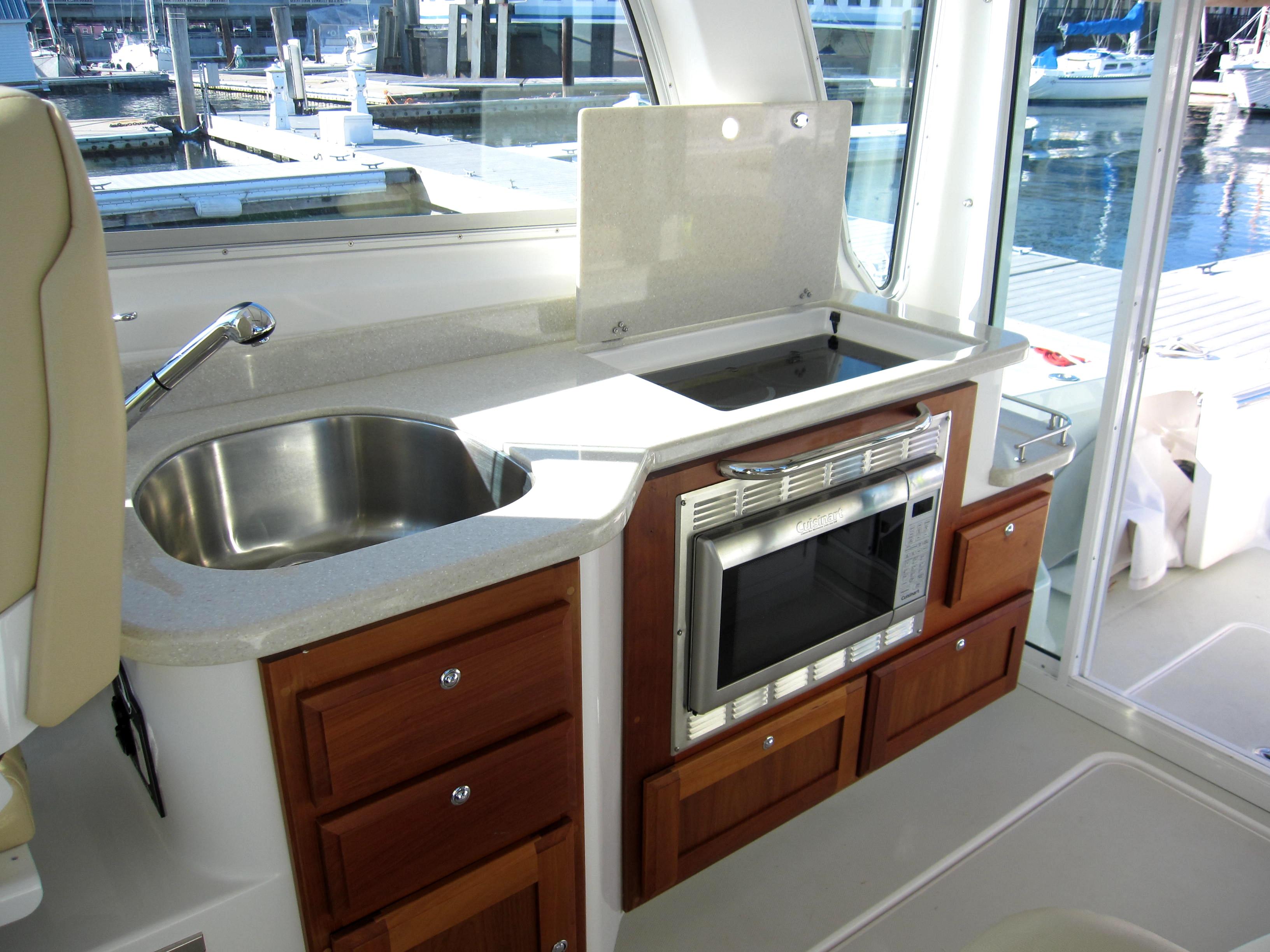

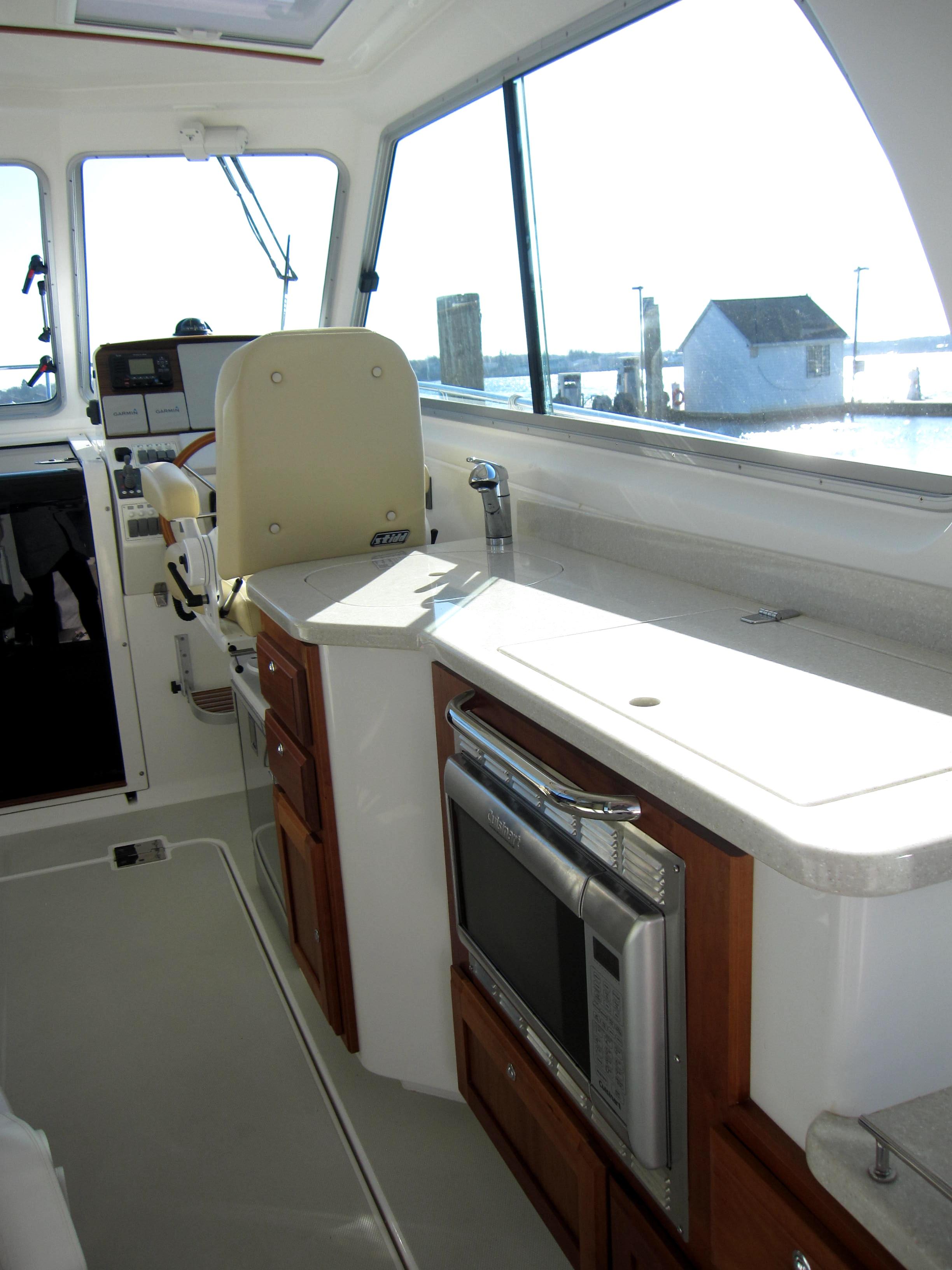

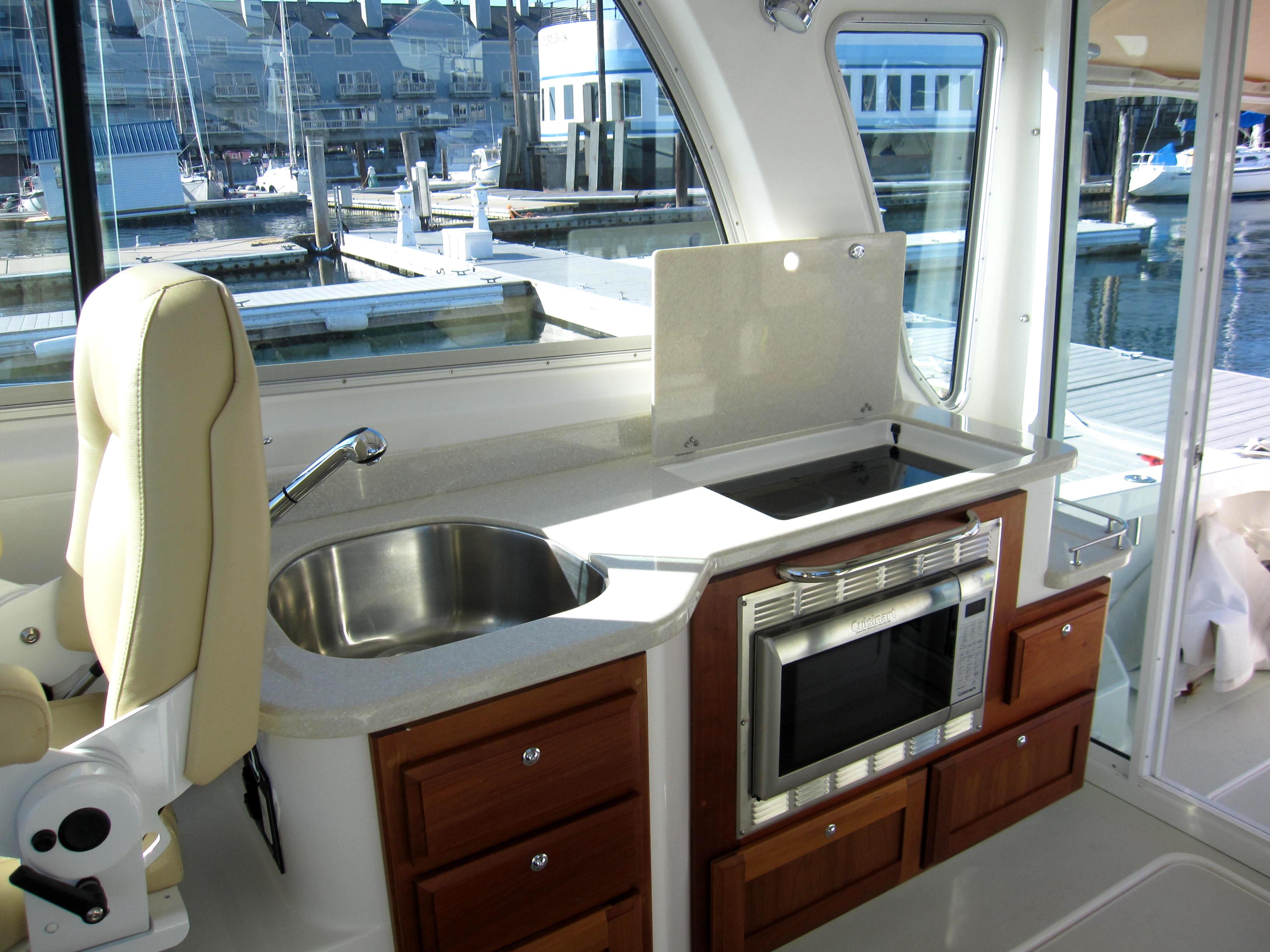

Galley
• Electric two burner cook-top with cover
• (2) SS Drawer style AC/DC fridges w/ freezer compartment
• Large SS Galley sink w/ single lever faucet & drop in cover
• Solid surface countertop
• Built-in convection microwave
• Drawer and doors storage below counter
Cabin
• Varnished Cherry interior on molded composite hull liner
• Lewmar hatches w/ screens

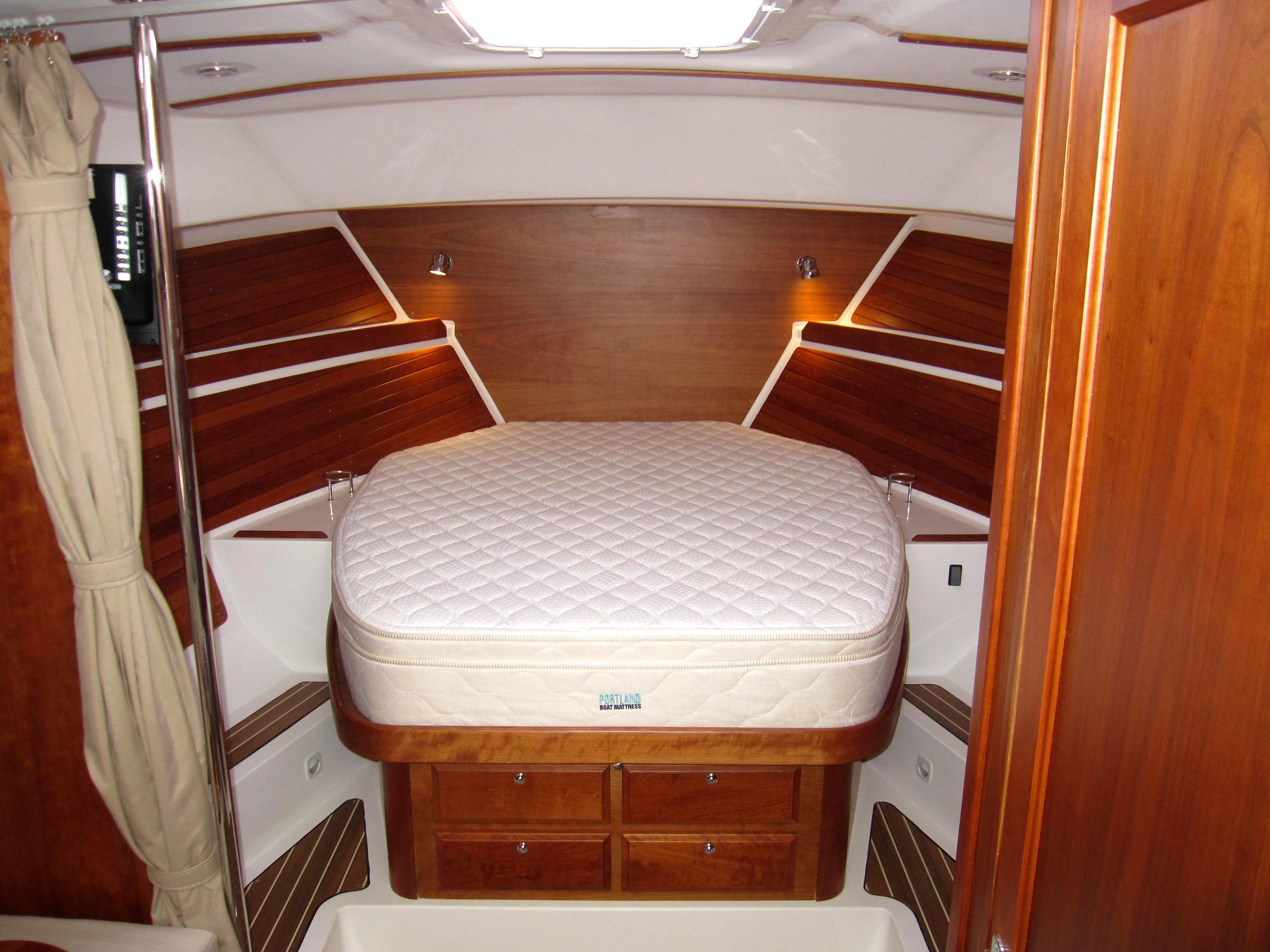

• Island double berth w/ drawers and storage below
• Shelves above berth
• Cedar lined hanging locker to starboard
• Drawer / Shelf locker to port
• Cherry hull ceilings

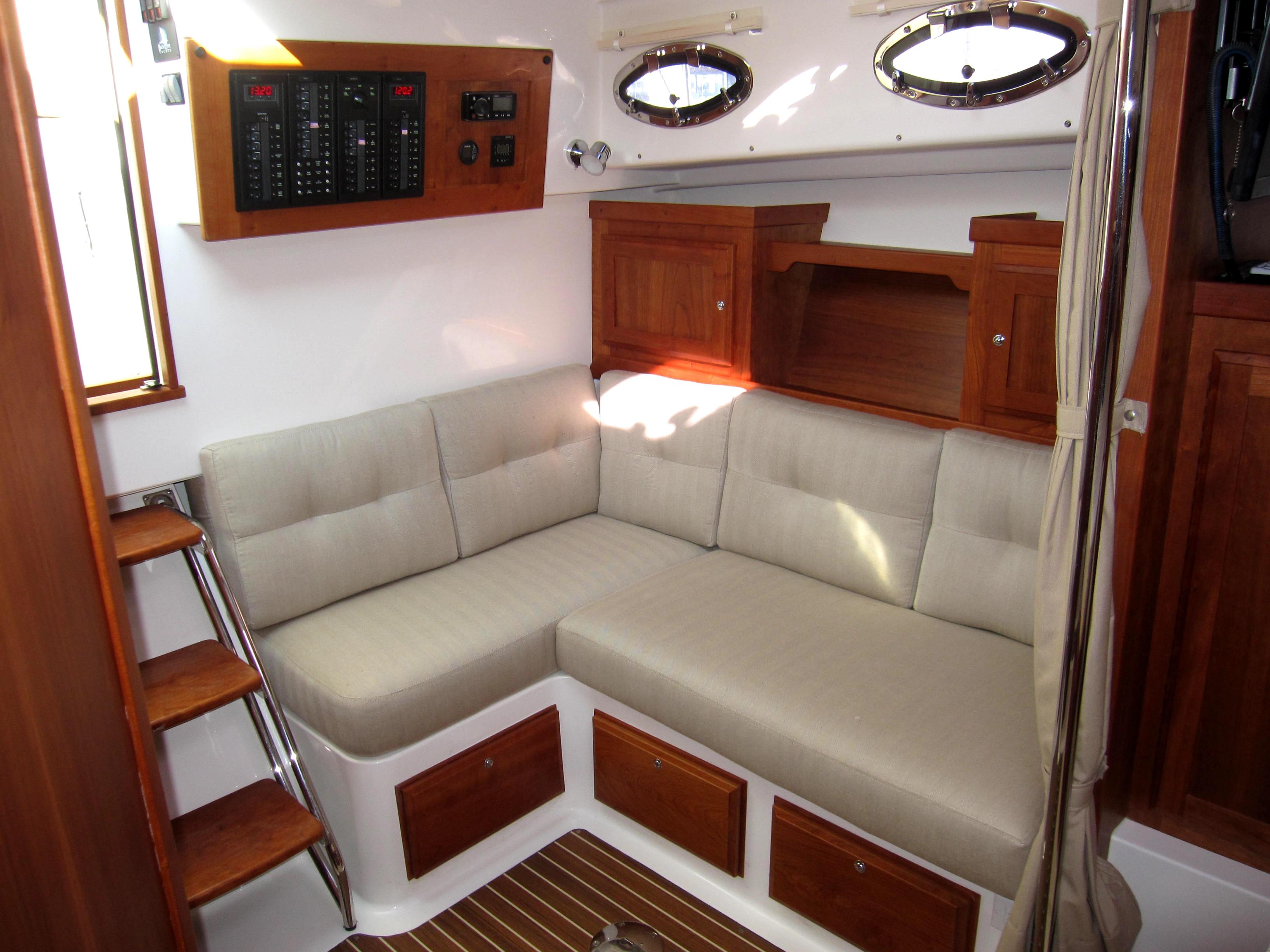

• L-settee converts to a second berth with curtain to enclose
• Storage above and below L-settee
• Sirius - XM ready Fusion stereo system w/ Bluetooth connectivity & interior and exterior speakers
