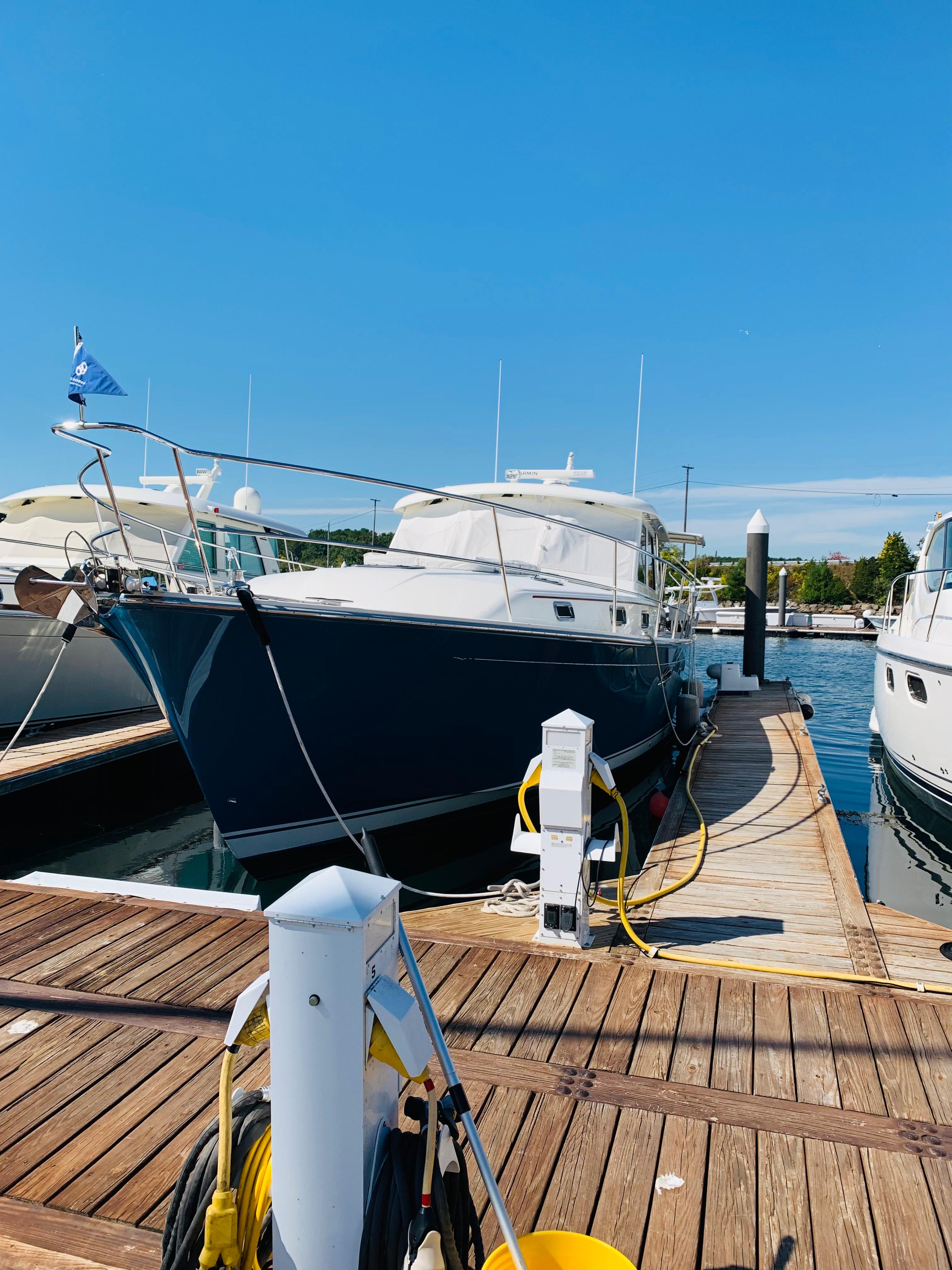

(SOLD) 2015 Sabre 48 Salon Express

Design Background

As an early adopter of pod drive systems, Sabre Yachts has a clear understanding of how these revolutionary drives can best be used to increase efficiency, maximize ease of operation and owner confidence. The all-new Sabre 48 Salon Express is our fifth pod driven model and she takes full advantage of this technology in both her performance and in her interior accommodation plan.

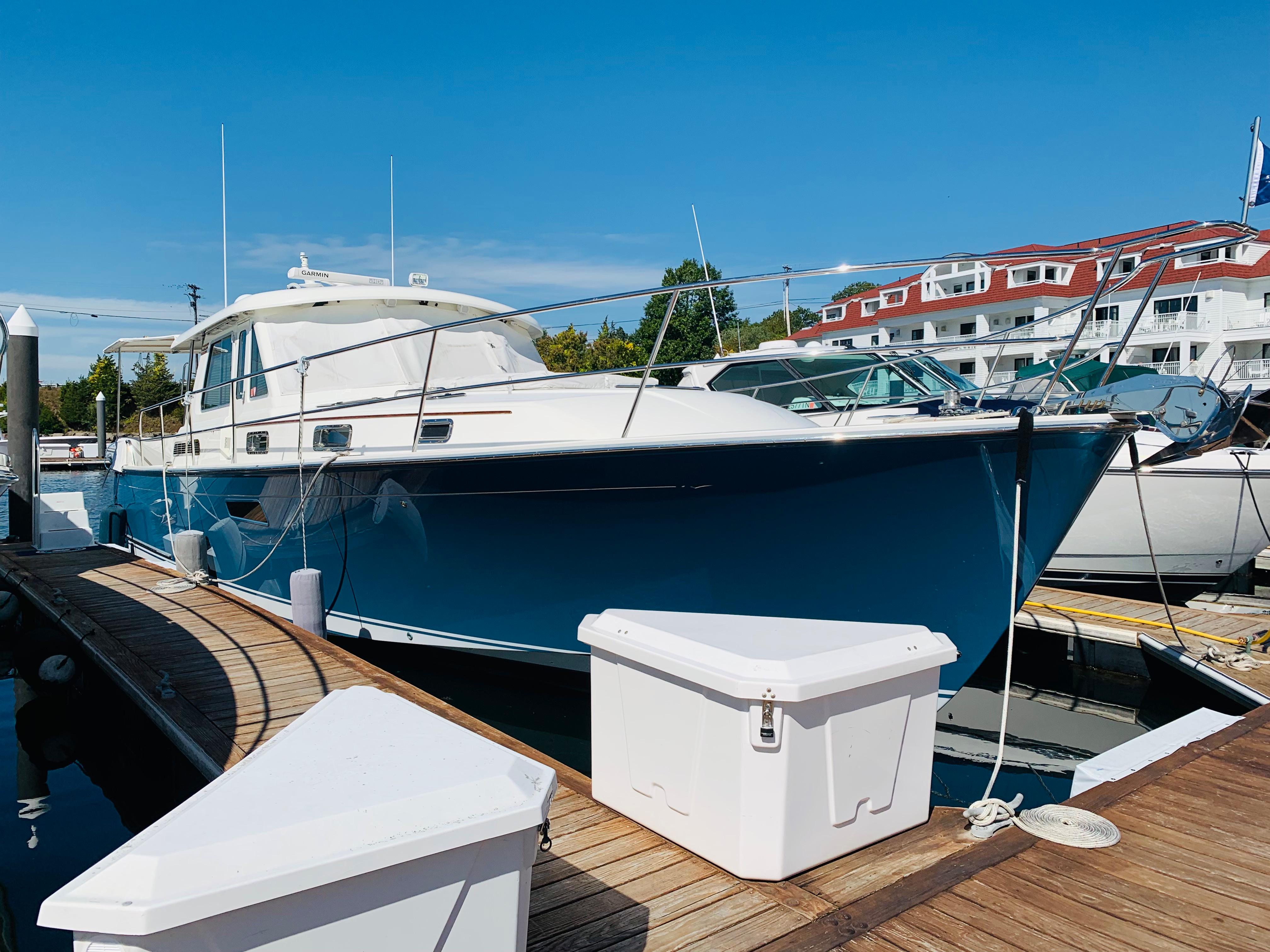

The 48's traditional exterior profile belies the contemporary performances of her vee-hull. She cruises at 27 knots and at wide open throttle she'll attain more than 32 knots. With the Zeus pod drive system, turns at speed are as exciting as they are in a fine sports car but perhaps even more exhilarating is the quiet that one experiences at cruise speeds. Less than 75 Dba makes her one of the quietest motoryachts available today. The joystick and Skyhook operations give every Captain the confidence to dock her in the most difficult of circumstances.

Her raised cockpit sole brings together the social aspects of the cockpit and main salon and the aft end of the house opens up fully to connect the spaces. Her main salon offers ample seating surfaces for entertaining or simply relaxing to read or enjoy the standard entertainment systems. While underway the raised settee to port of the Stidd helm chair is a perfect place for the crew to enjoy the ride. And when docking, a standard side deck door serves her helmsman and crew, well. The two cabin, two head layout is supplemented by a living space forward of the engine room, accessed through the salon sole.

Hull

• Modern planning V-Hull
• VIP Resin infused laminate
• SAN Corecell foam coring
• Knitted bi-axial structural reinforcements
• Foam/Plywood stringer system
• Swim platform with under mounted ladder
• PVC rub rail with stainless steel cap
• LP painted boot strip
• Gold cove stripe

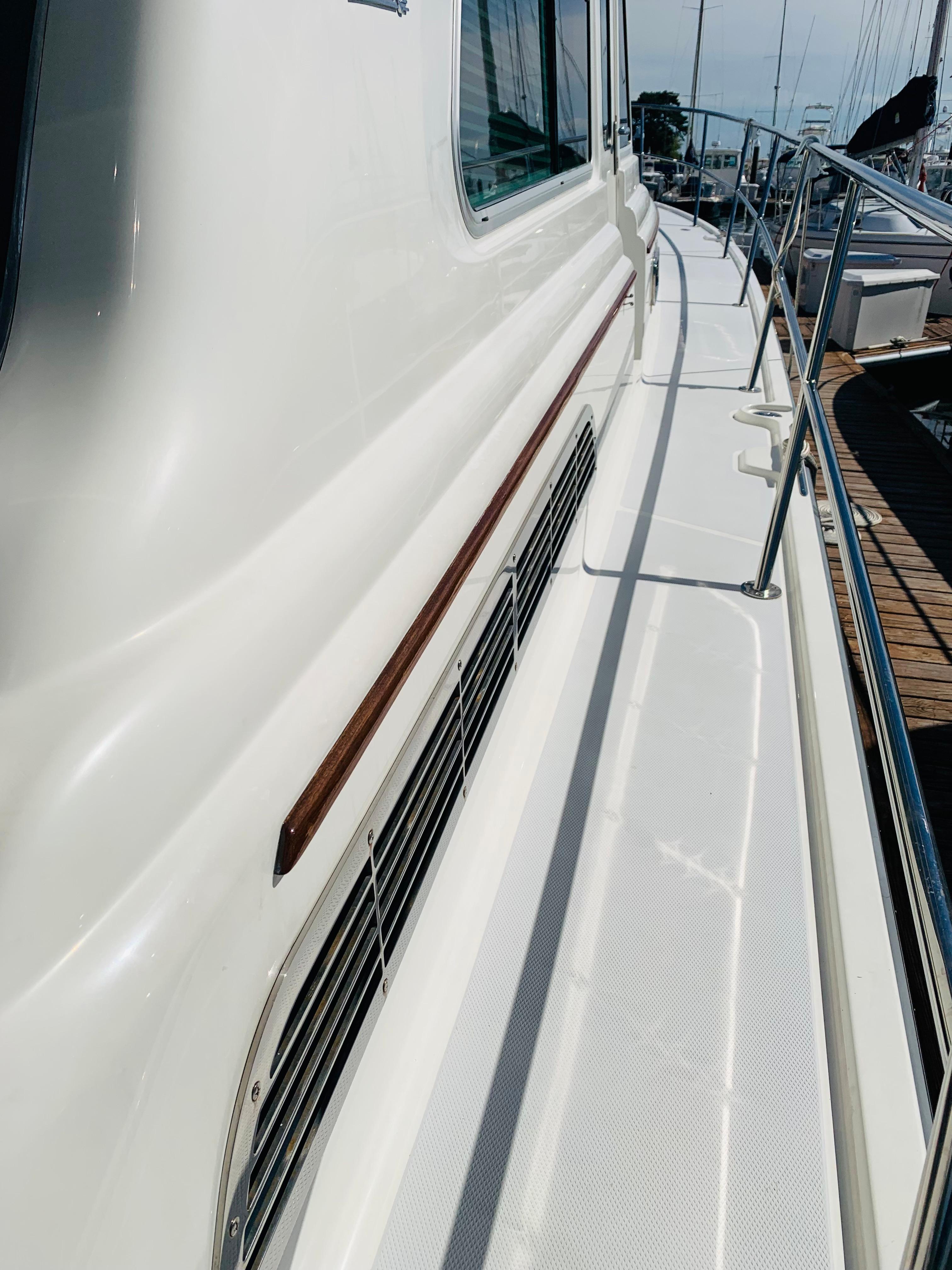

Deck

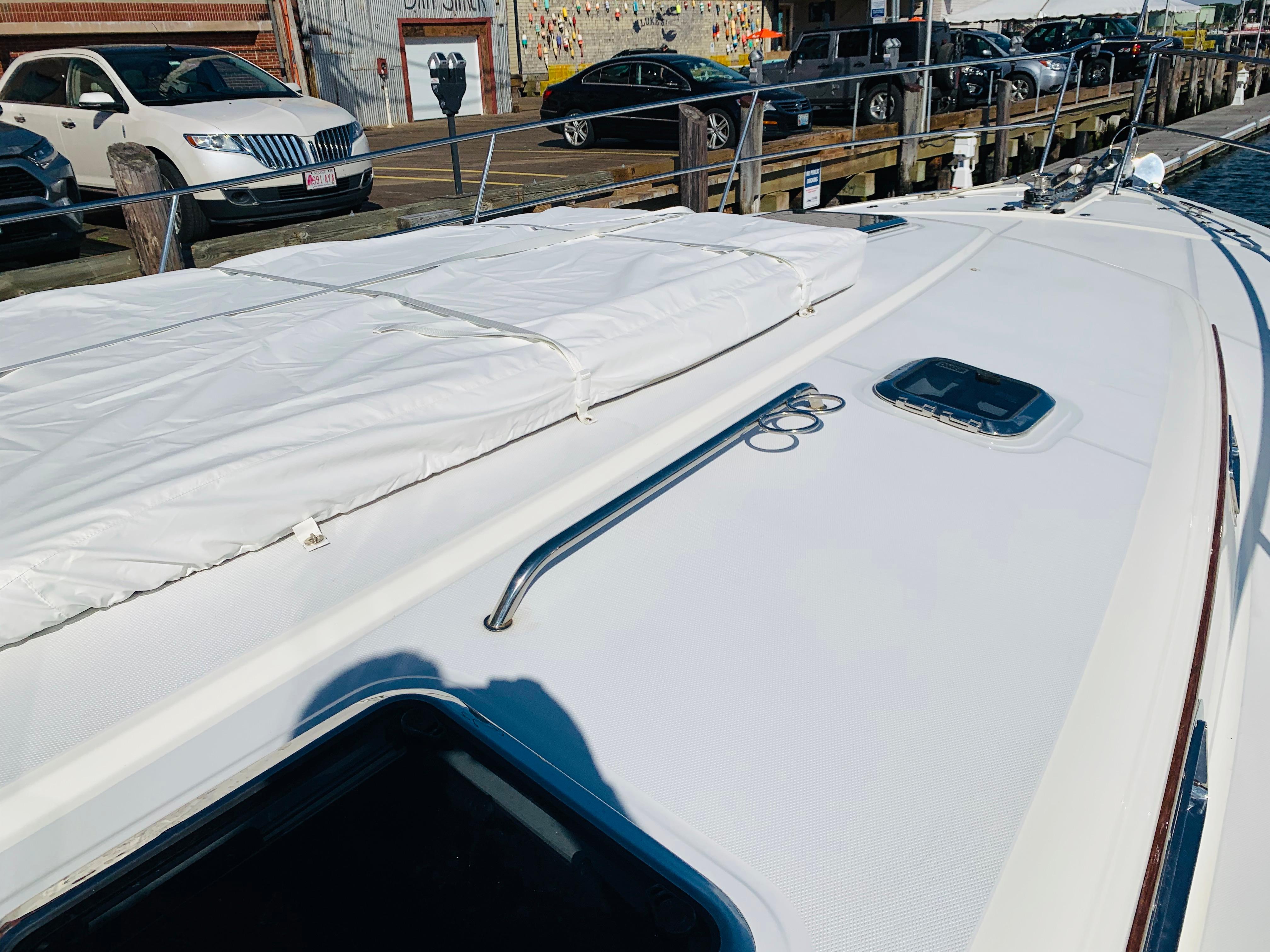

• VIP resin infused laminate
• Molded in anti-skid surfaces
• Anodized Aluminum framed windows
• Helm deck door to starboard side deck
• Large diameter stainless steel perimeter rails
• Herreshoff  bow and spring cleats
• Horn style aft mooring cleats
• Low profile stainless steel opening hatches with shades and screens
• Low profile pilot hatches in hard top
• Stainless steel anchor roller

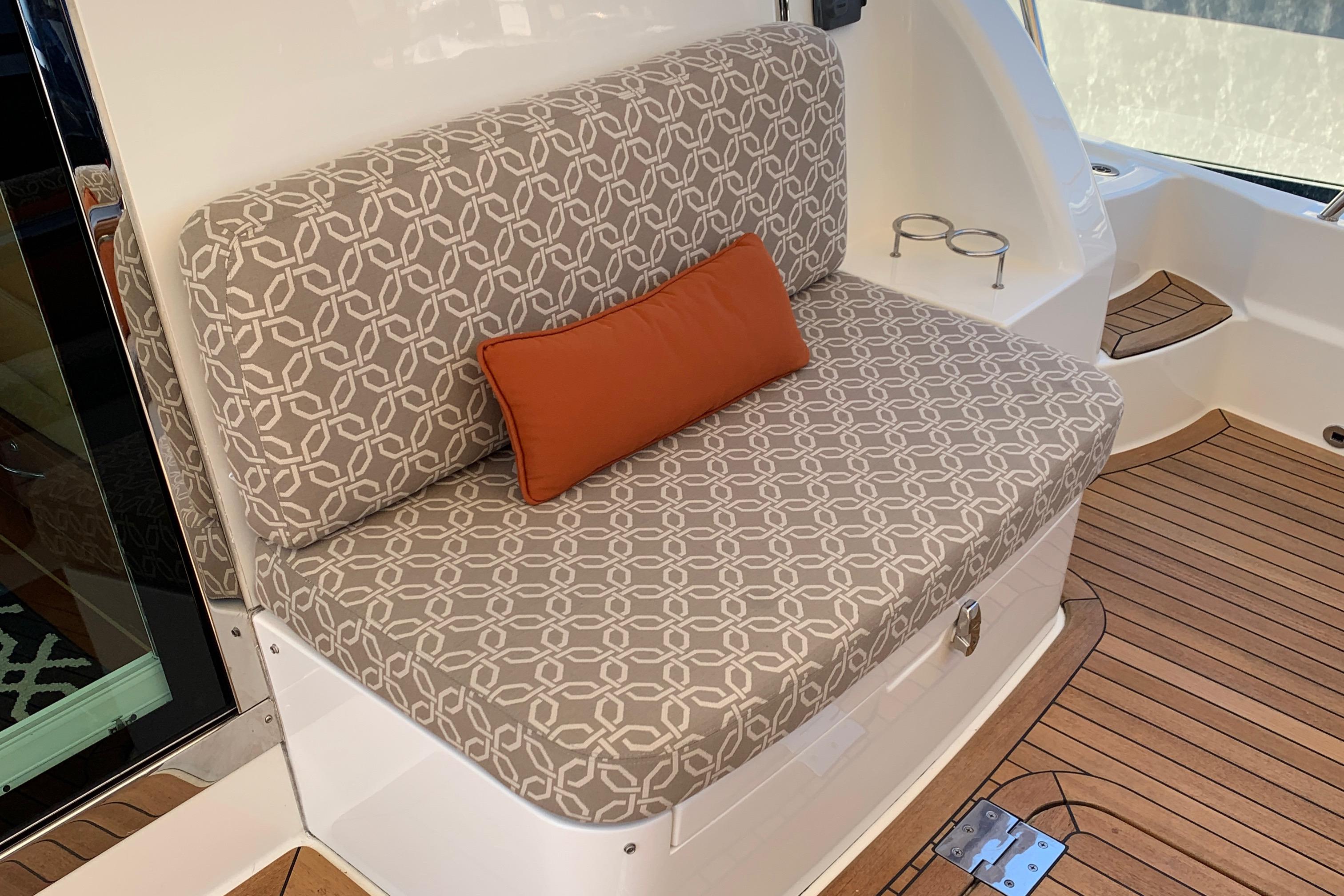

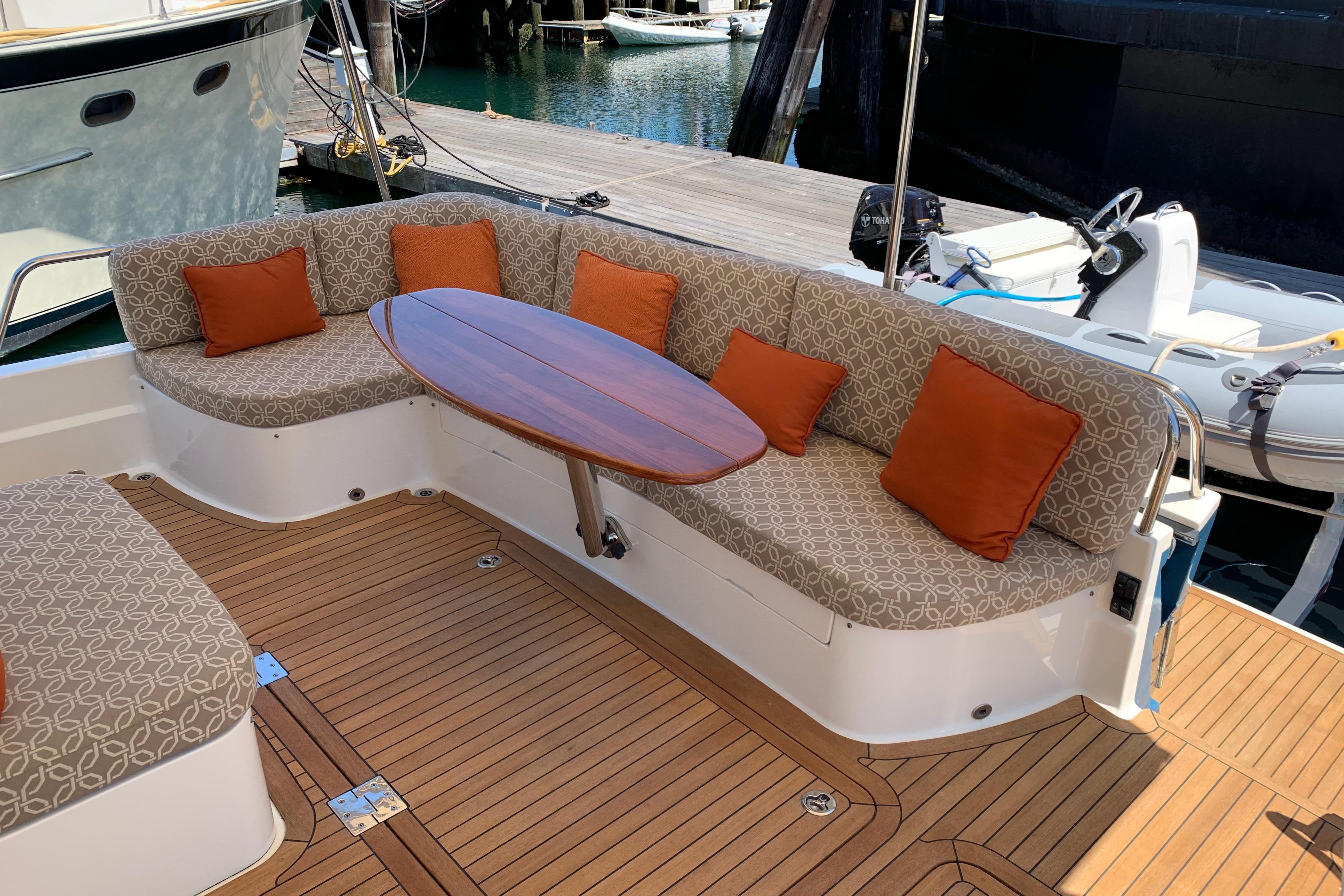

• L-shaped cockpit seating with folding, high gloss table

Mechanical

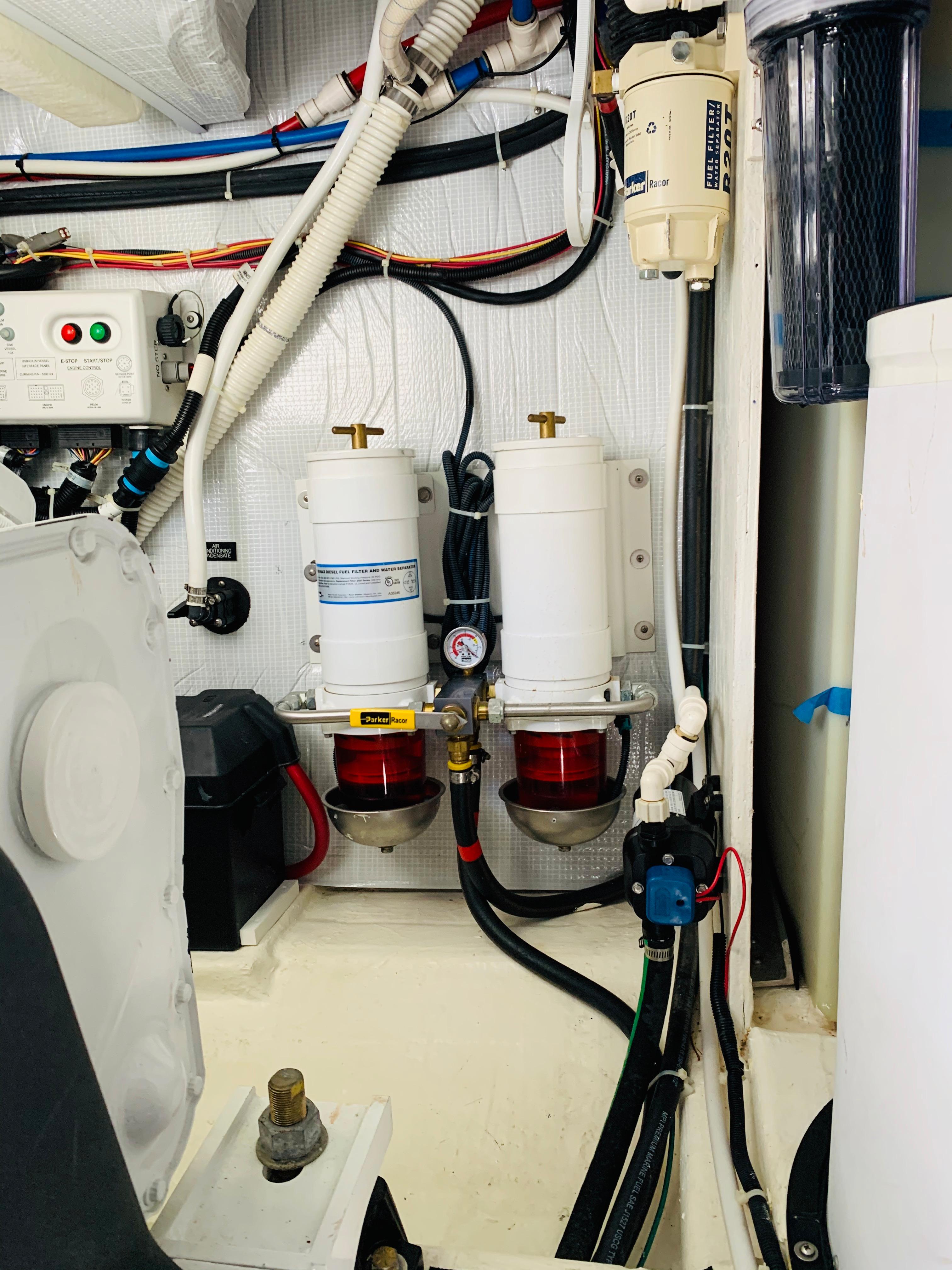

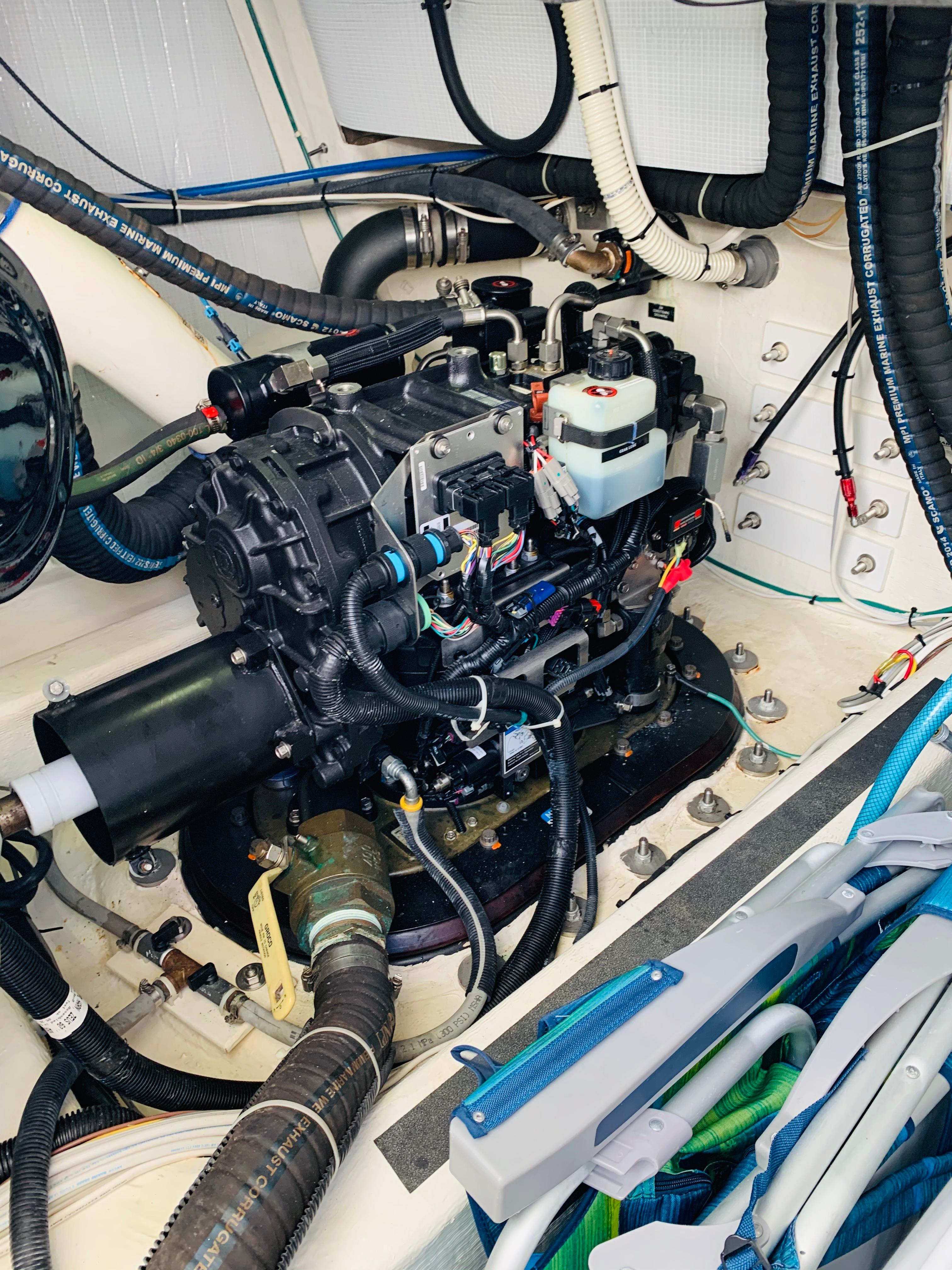

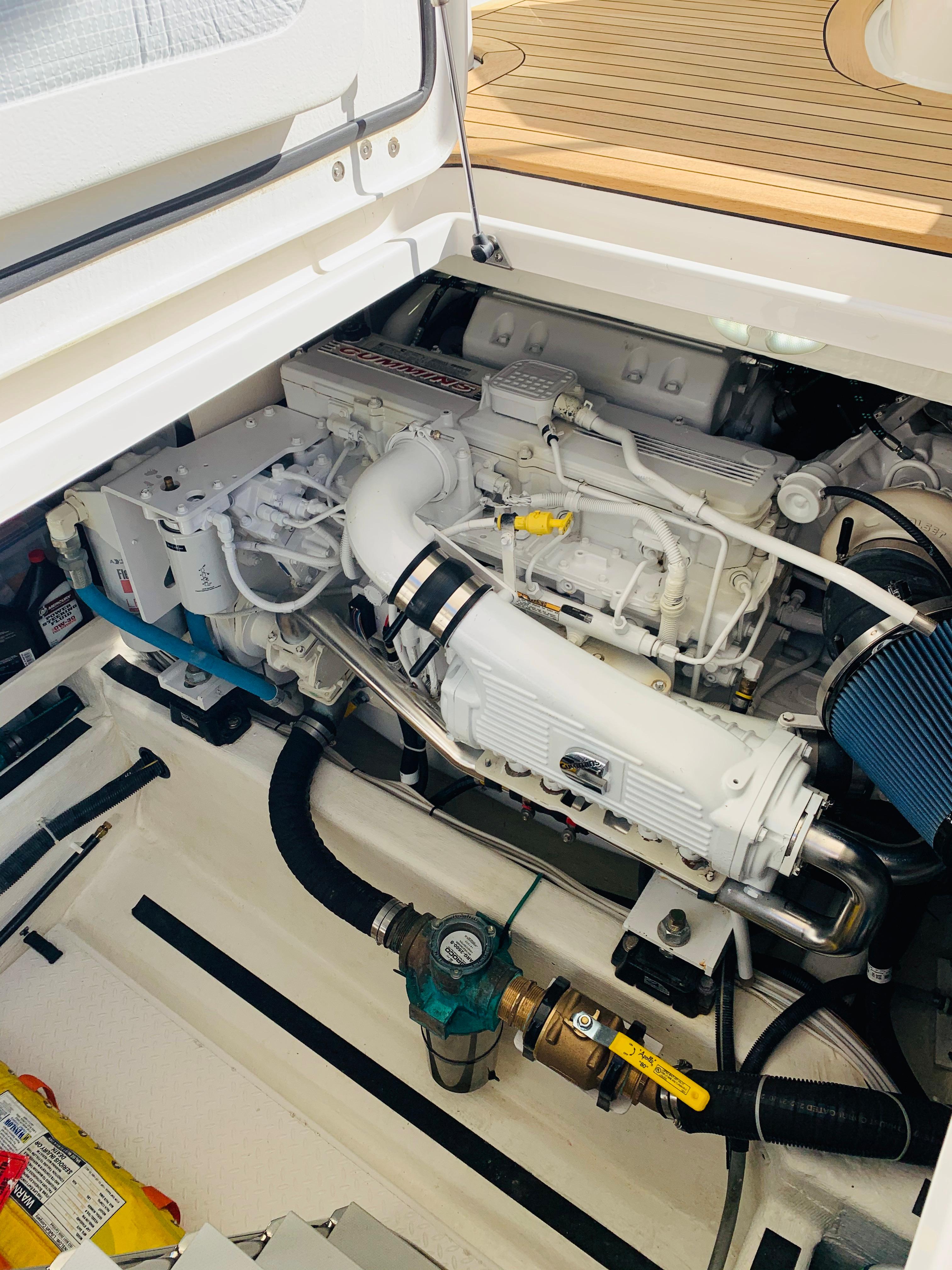

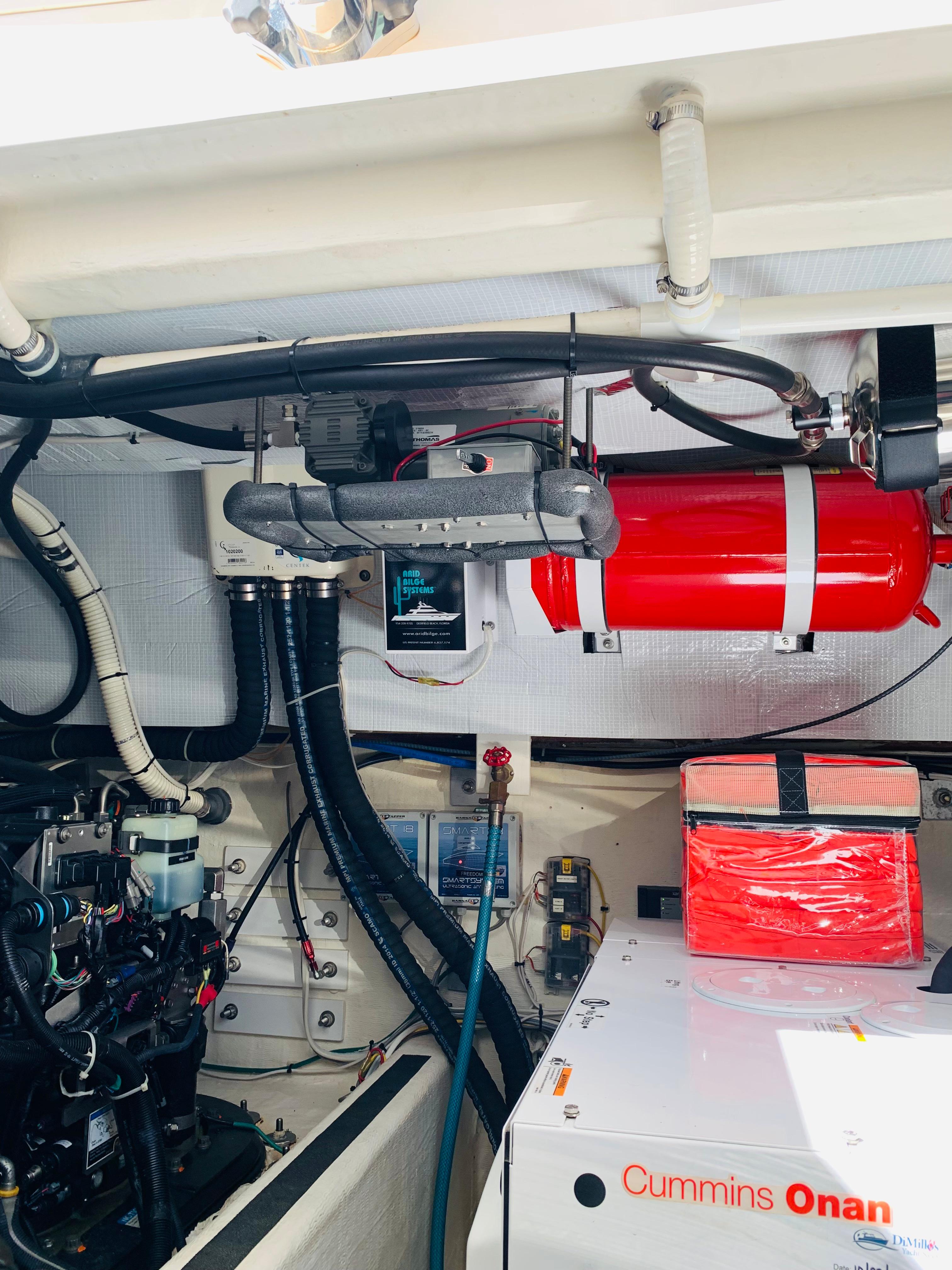

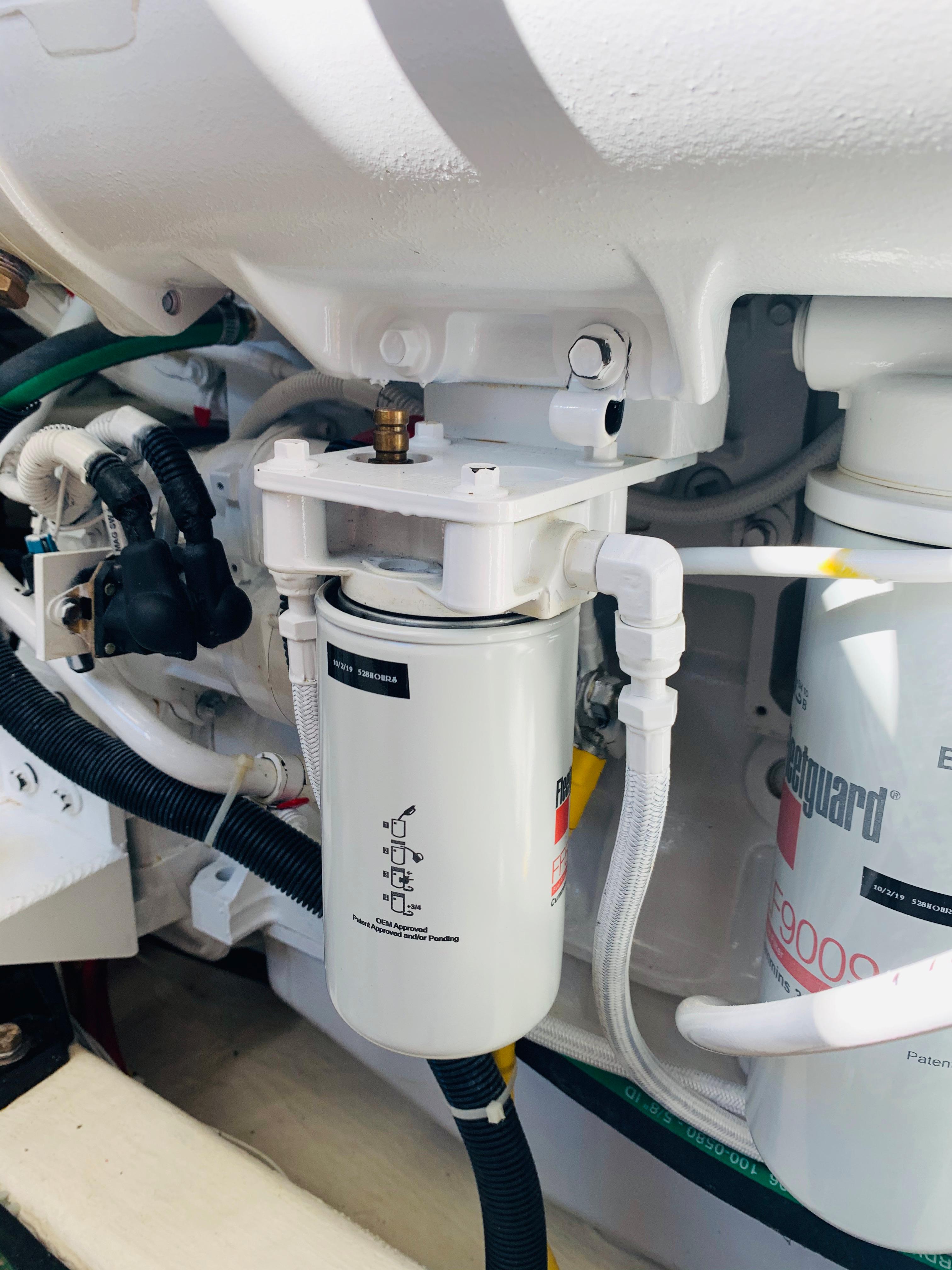

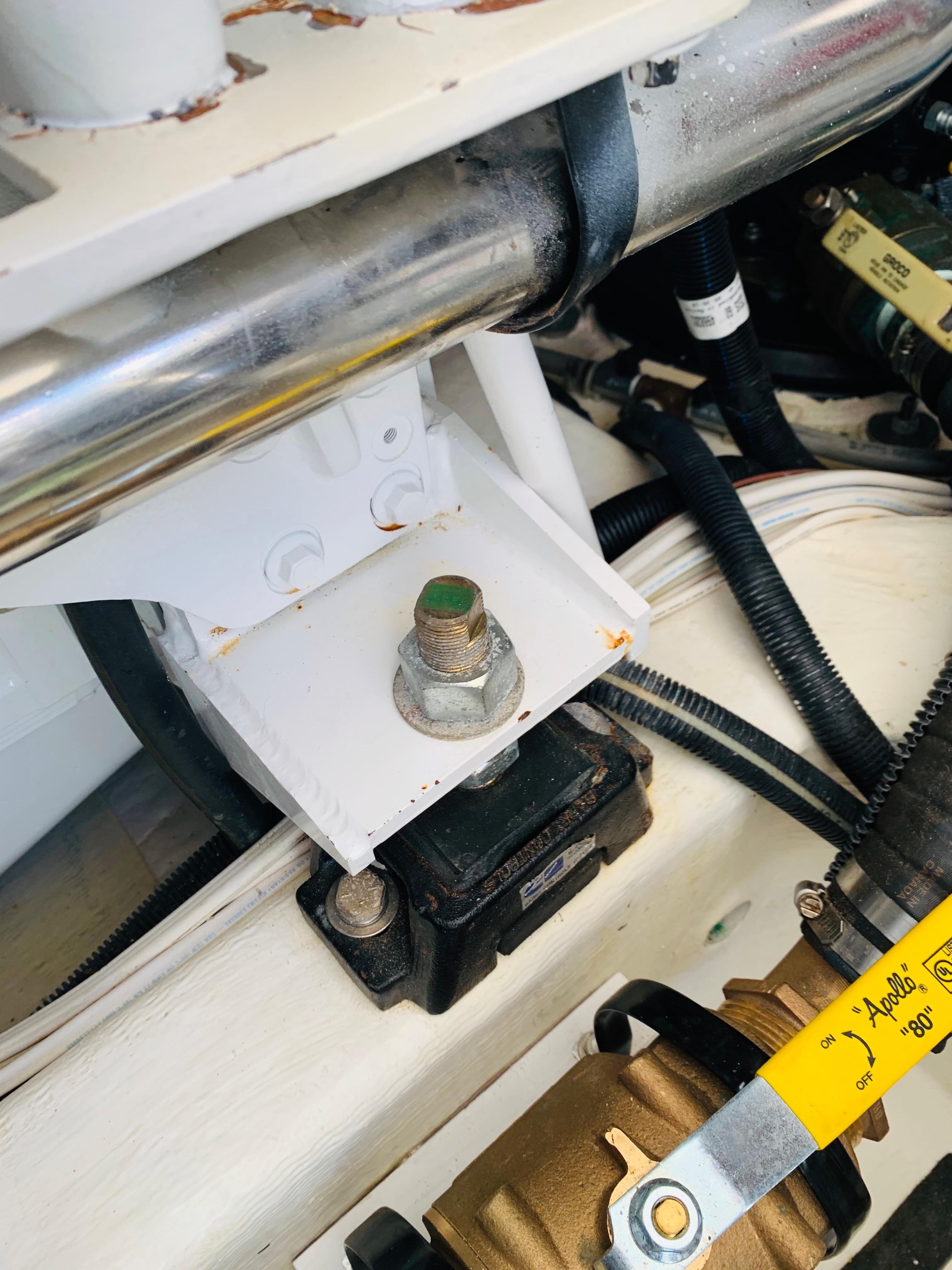

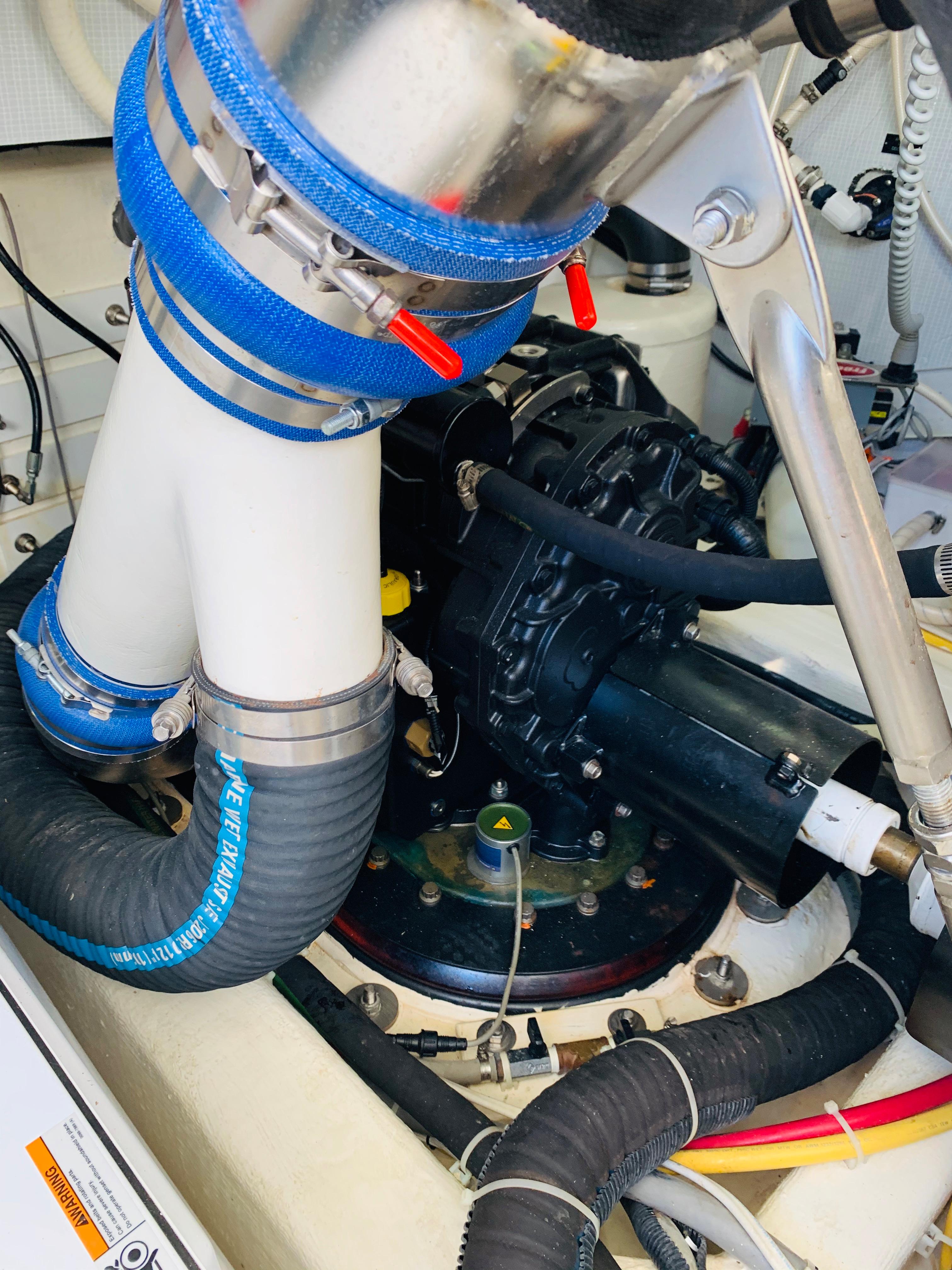

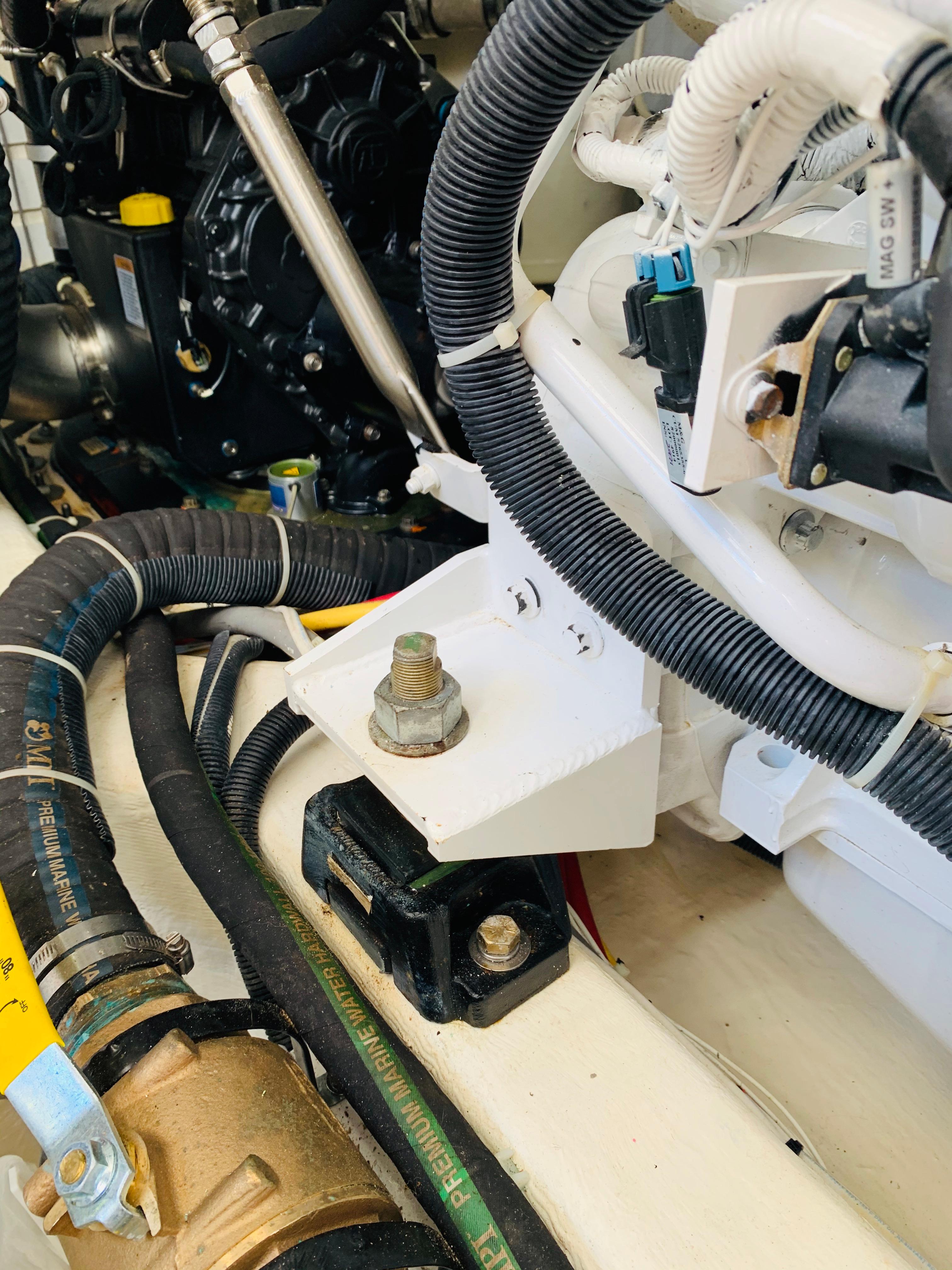

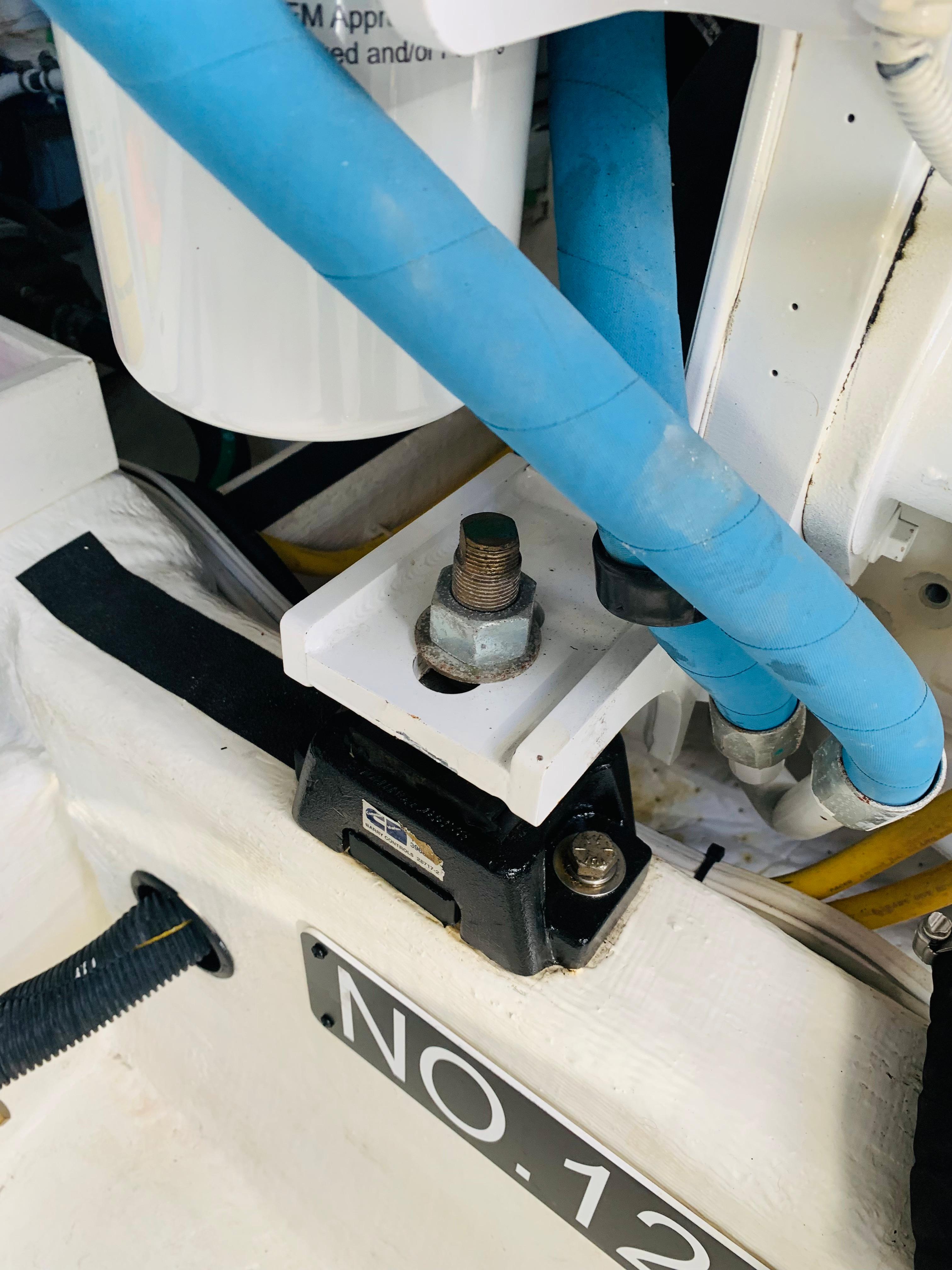

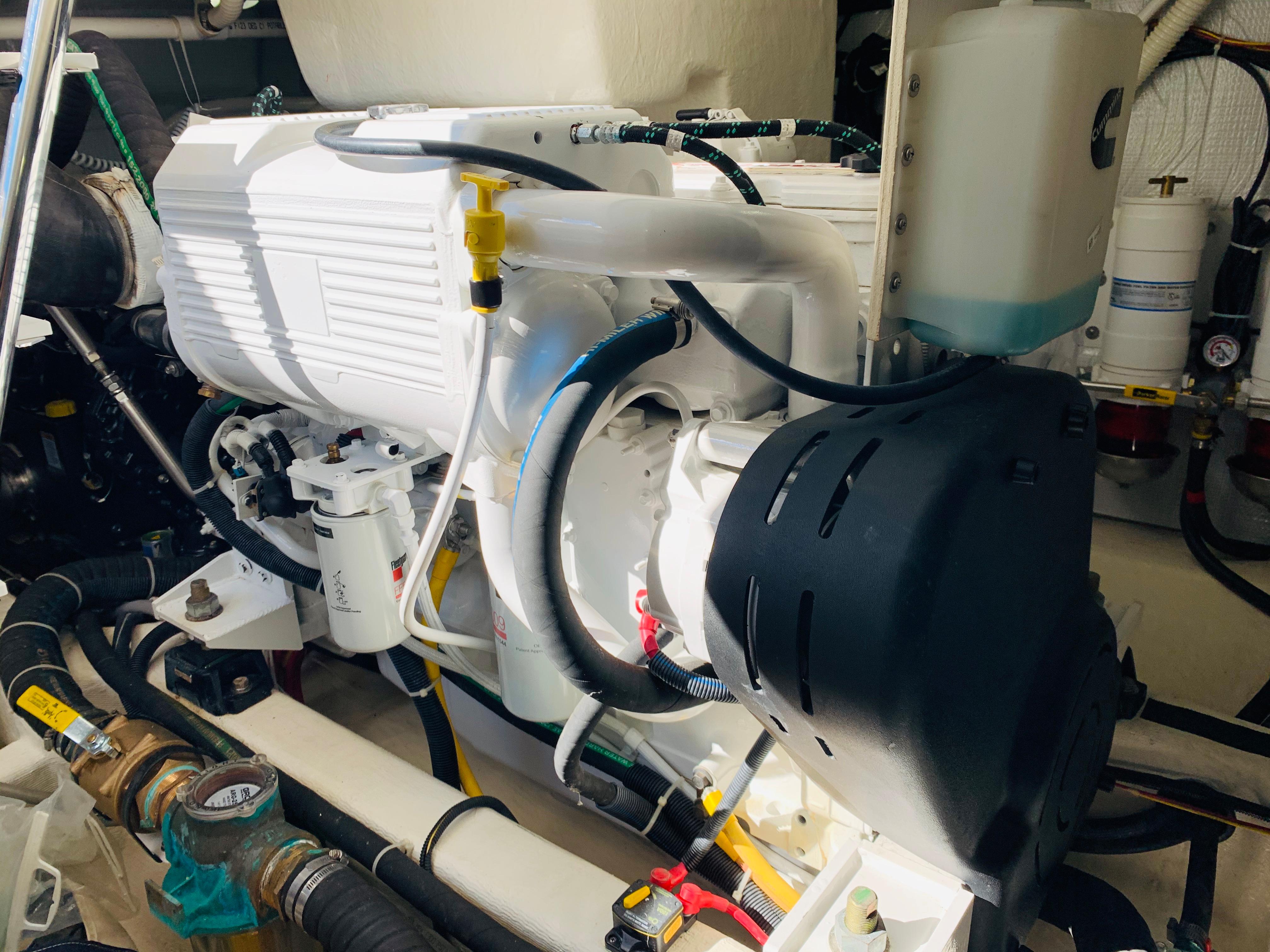

• Cummins QSC 8.3 550hp engines with pod drives
• Cummins electronic controls and Smartcraft display
• Joy stick for low speed maneuvering
• Triple windshield wipers with washers

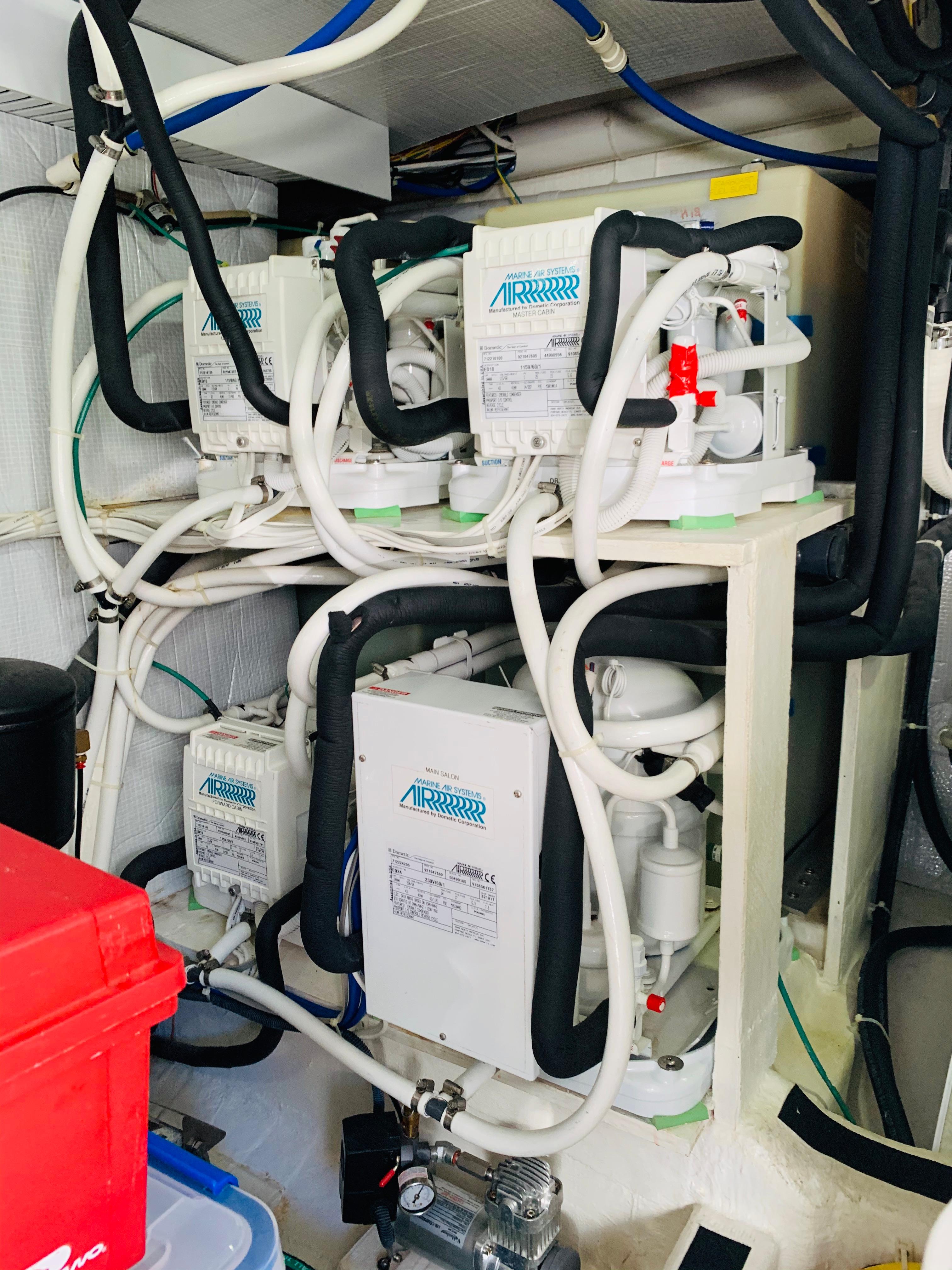

• Reverse cycle heat and air conditioning
• Zeus automatic trim tab system
• Anchor windlass with rope/chain gipsy

Electrical

• 50 Amp shore power cord with cord reel
• Galvanic isolator

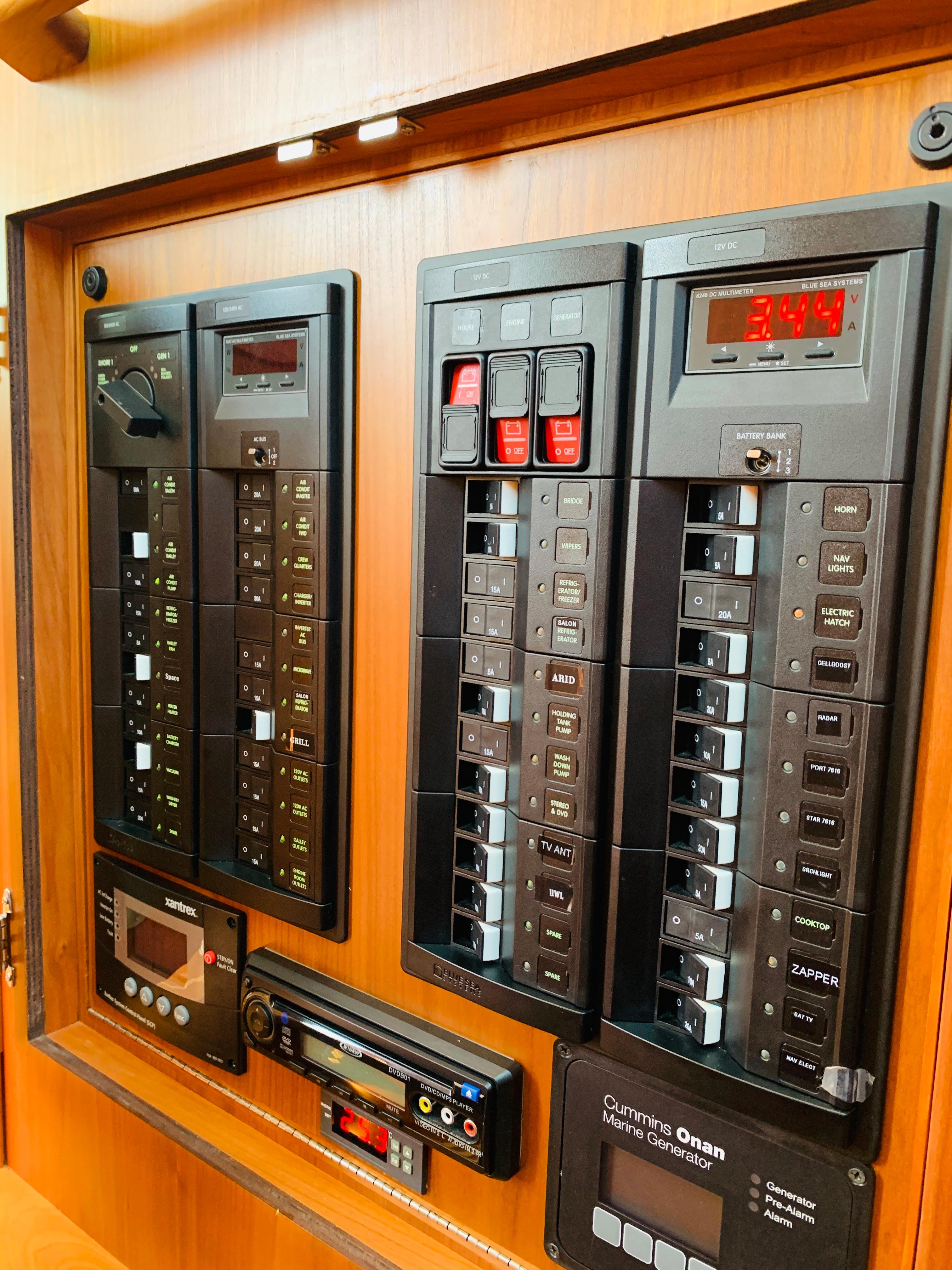

• Illuminated circuit breaker panel at galley steps
• 120v outlets throughout interior and in engine room
• Galley and head receptacles are GFI protected
• (2) Group 31 AGM Dedicated engine start batteries
• (3) Group 4D AGM house batteries
• LED overhead and reading lights
• 60 Amp 3-bank battery charger
• Tinned wire used throughout

Plumbing

• Polyethylene 160usg. water tank
• 20usg stainless steel hot water tank
• Stainless sink in galley
• Vessel sink in head
• Fresh water flush MSD w/holding tank and macerator
• Shower stall in head with tempered glass door
• Solid surface material and galley and head countertops

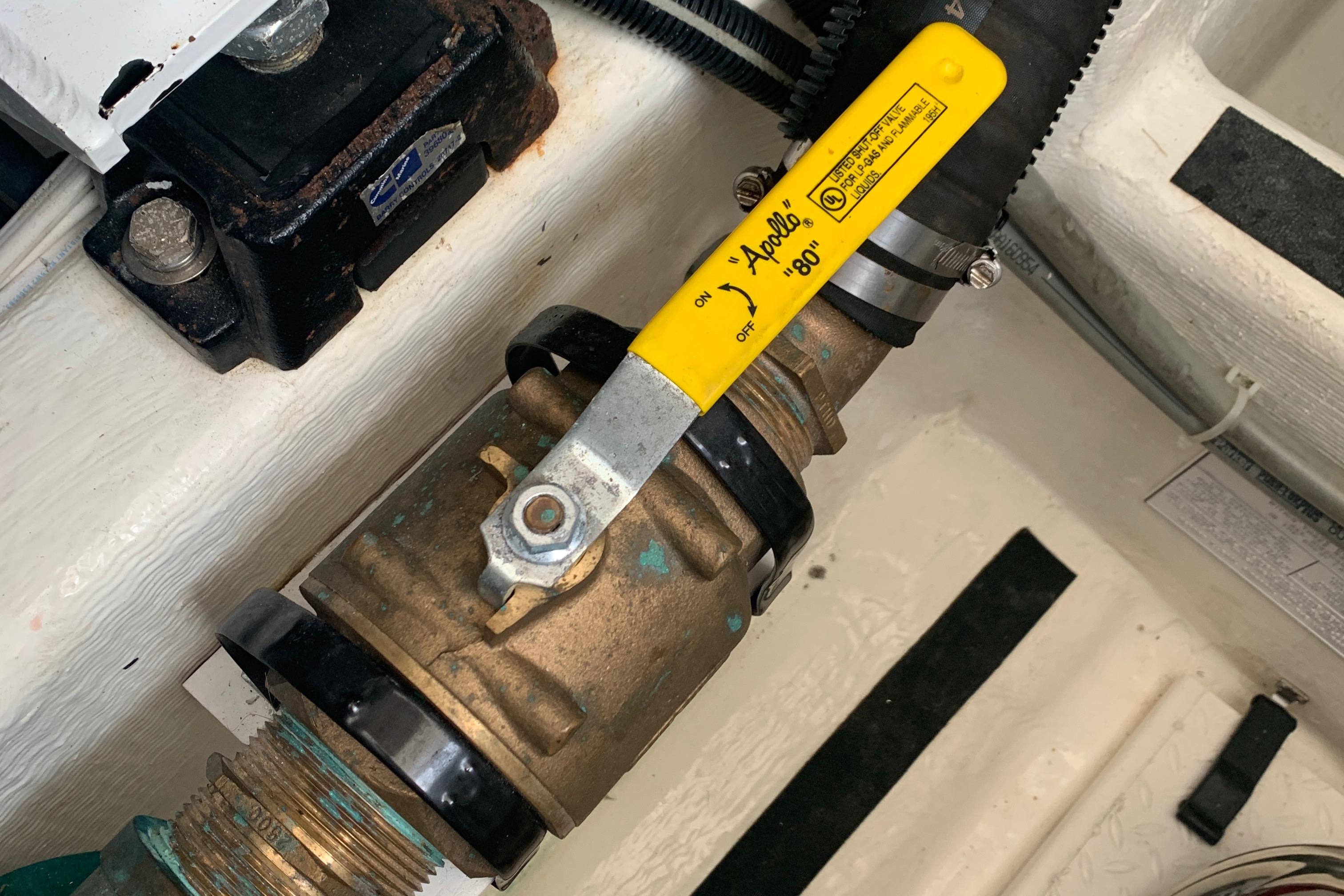

• Marelon sea valves on all below waterline fittings

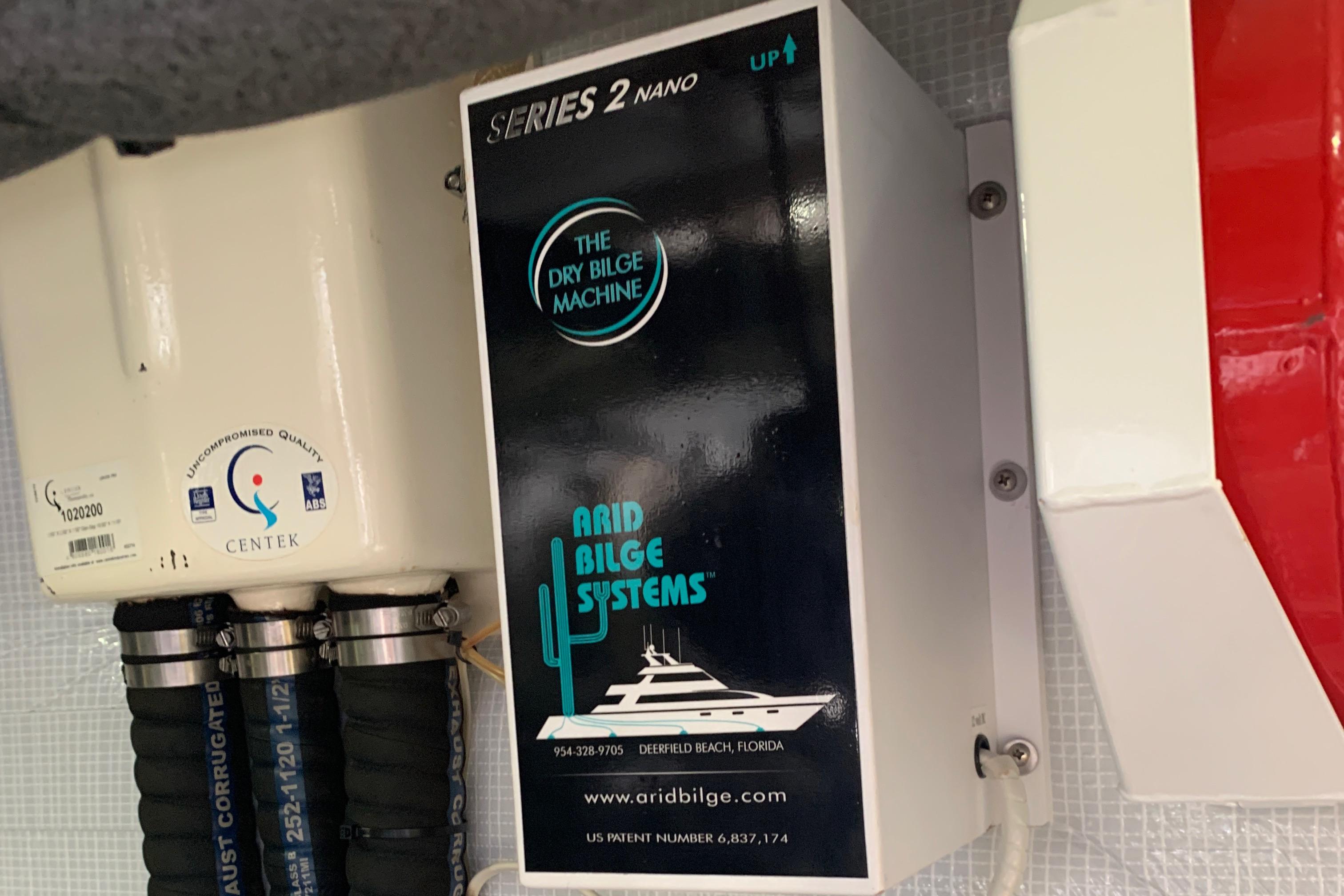

• (3) bilge pumps with high water alarms

Salon / Helm Deck

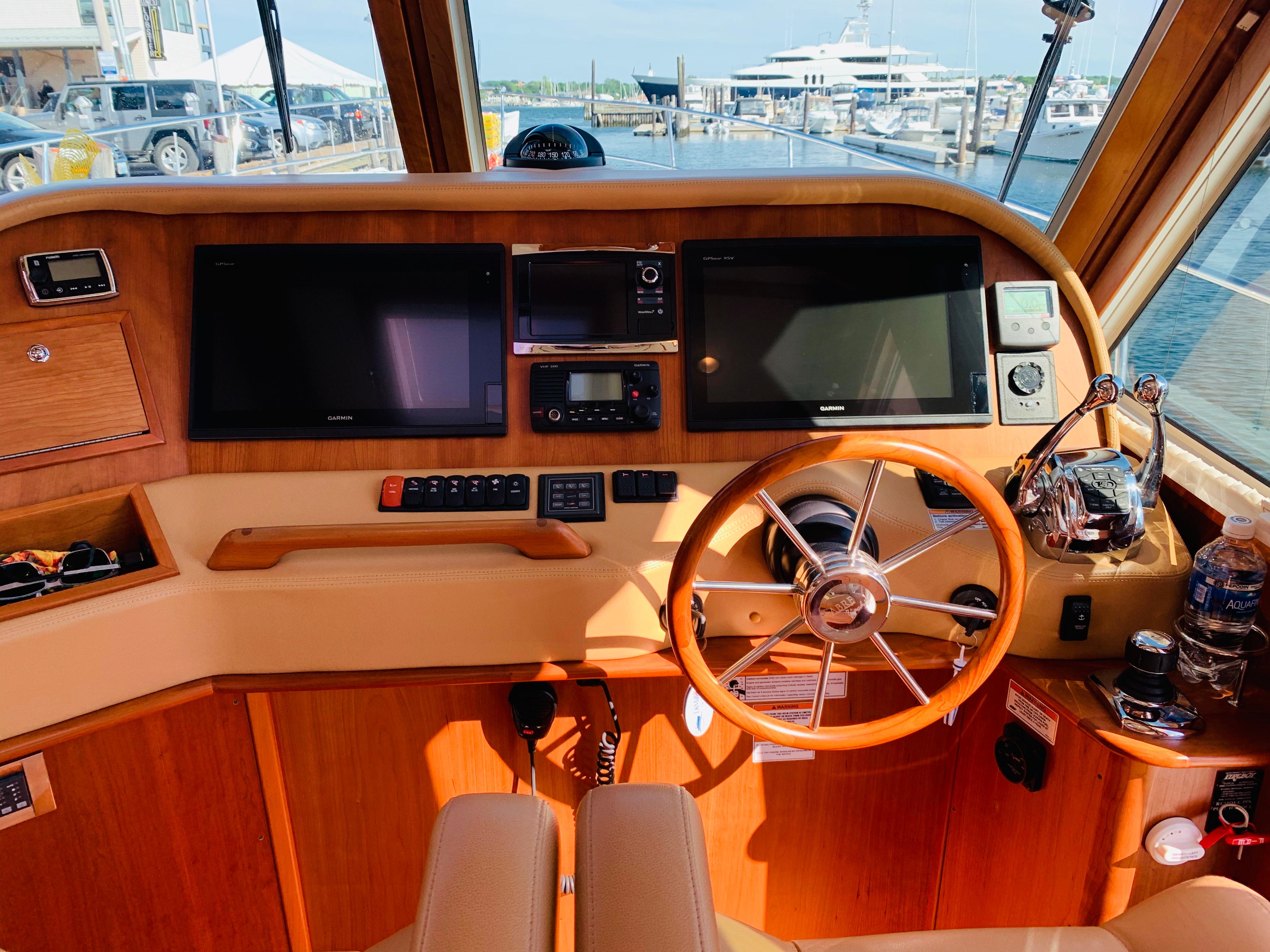

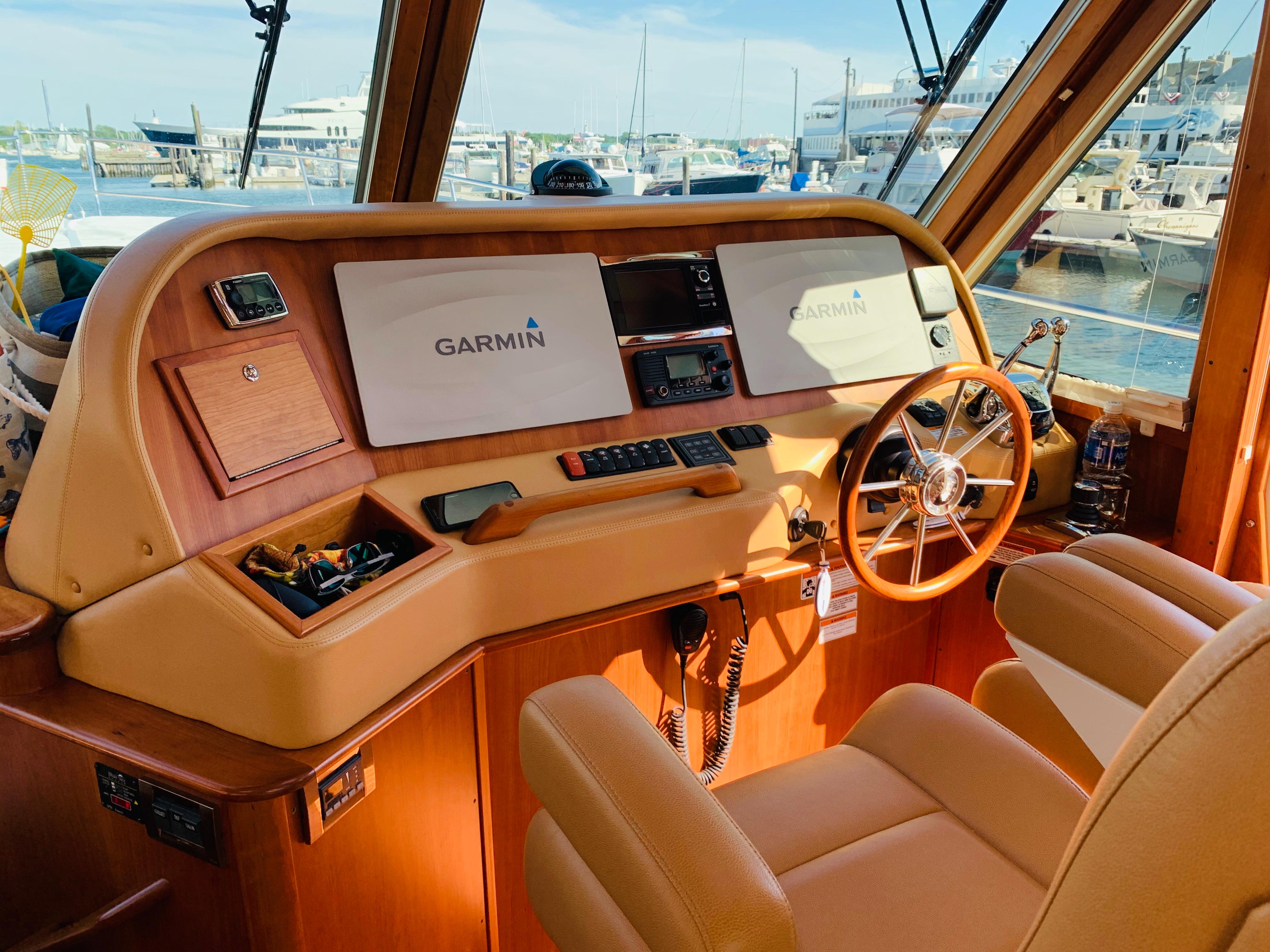

• Stidd 500N series helm seat and Stazo wood steering wheel
• Ultraleather wrap on helm/ navigation pod

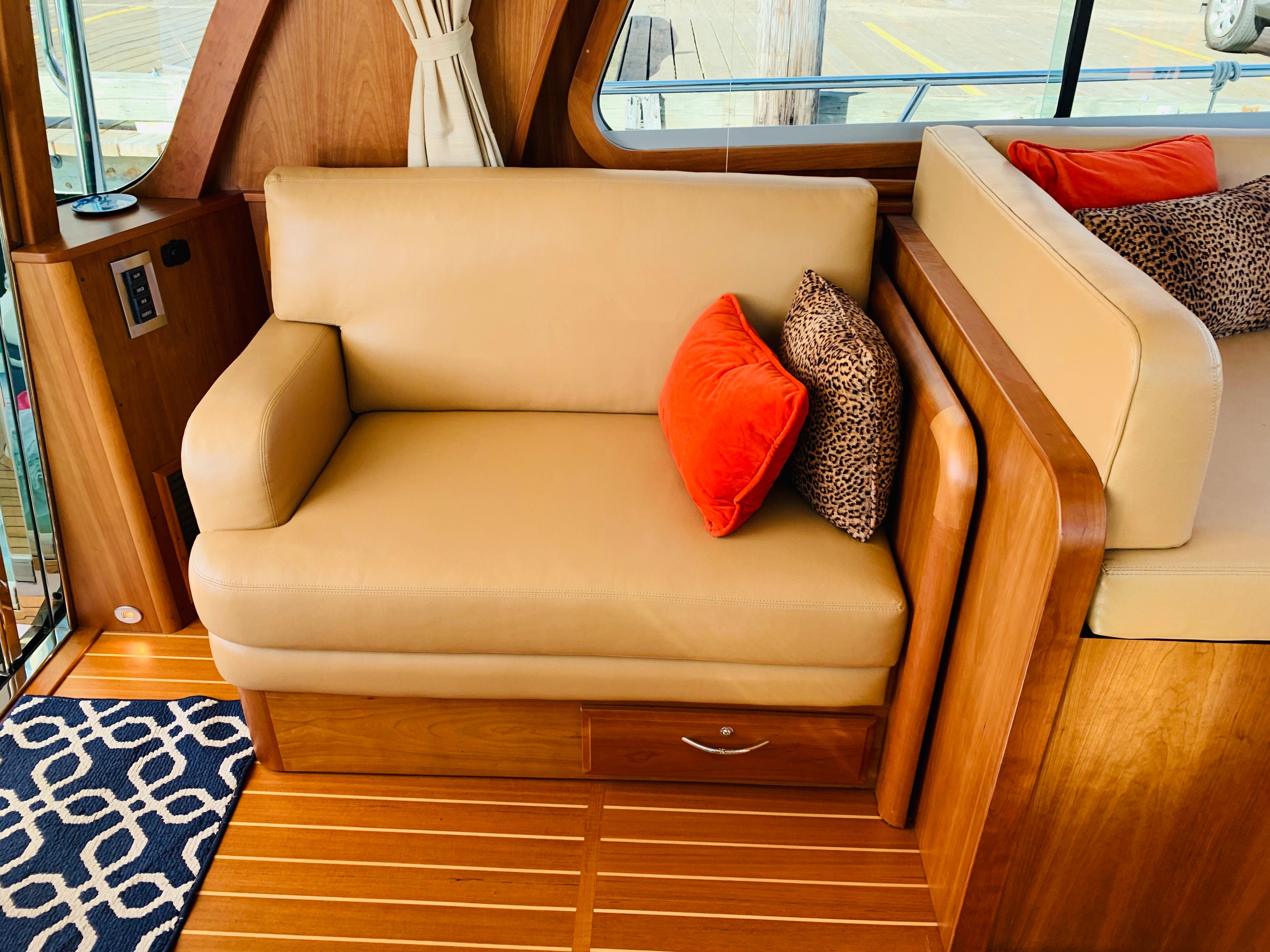

• Port side settee slides to expose utility space below

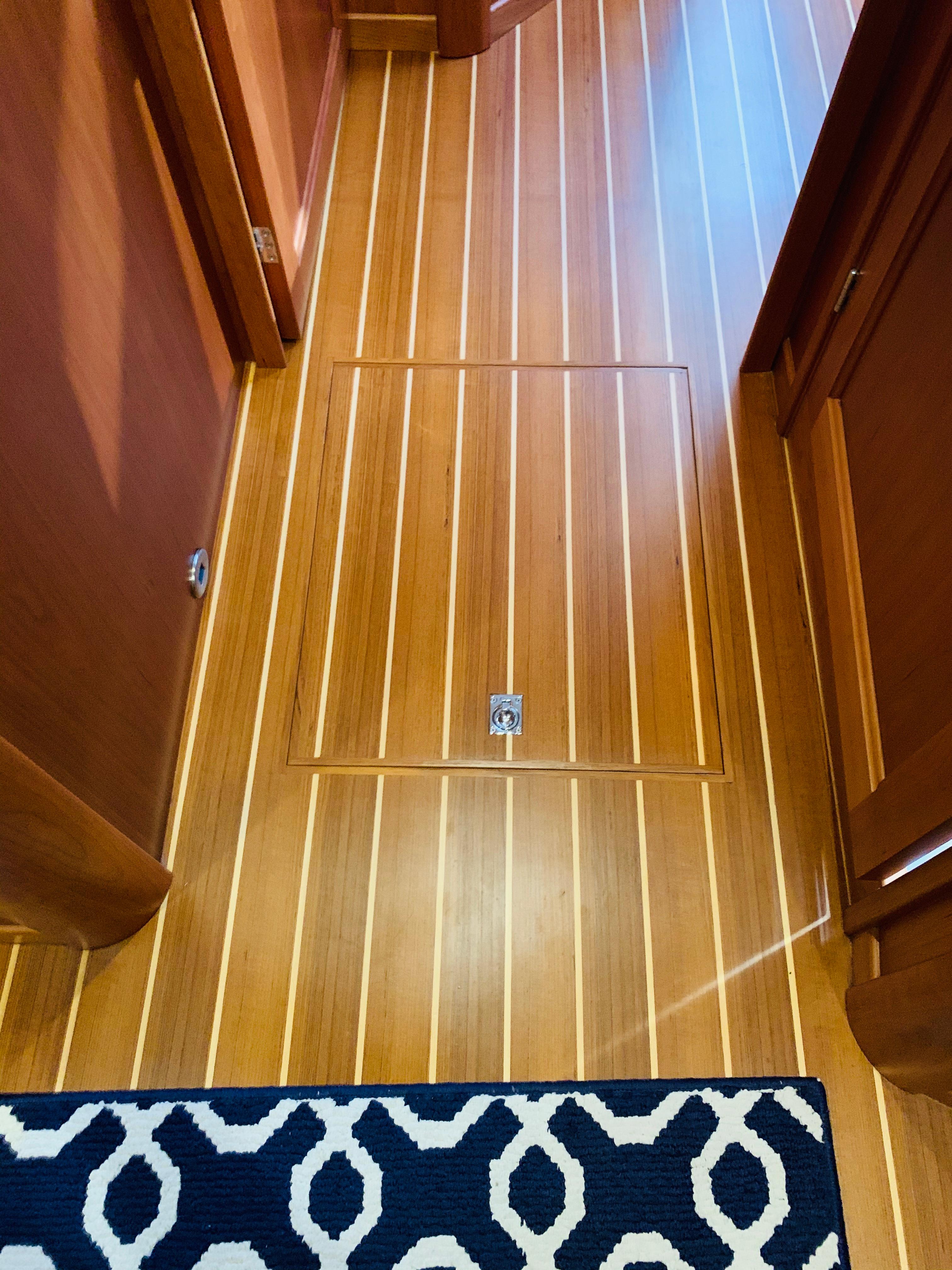

• Optional crew quarters below main salon deck

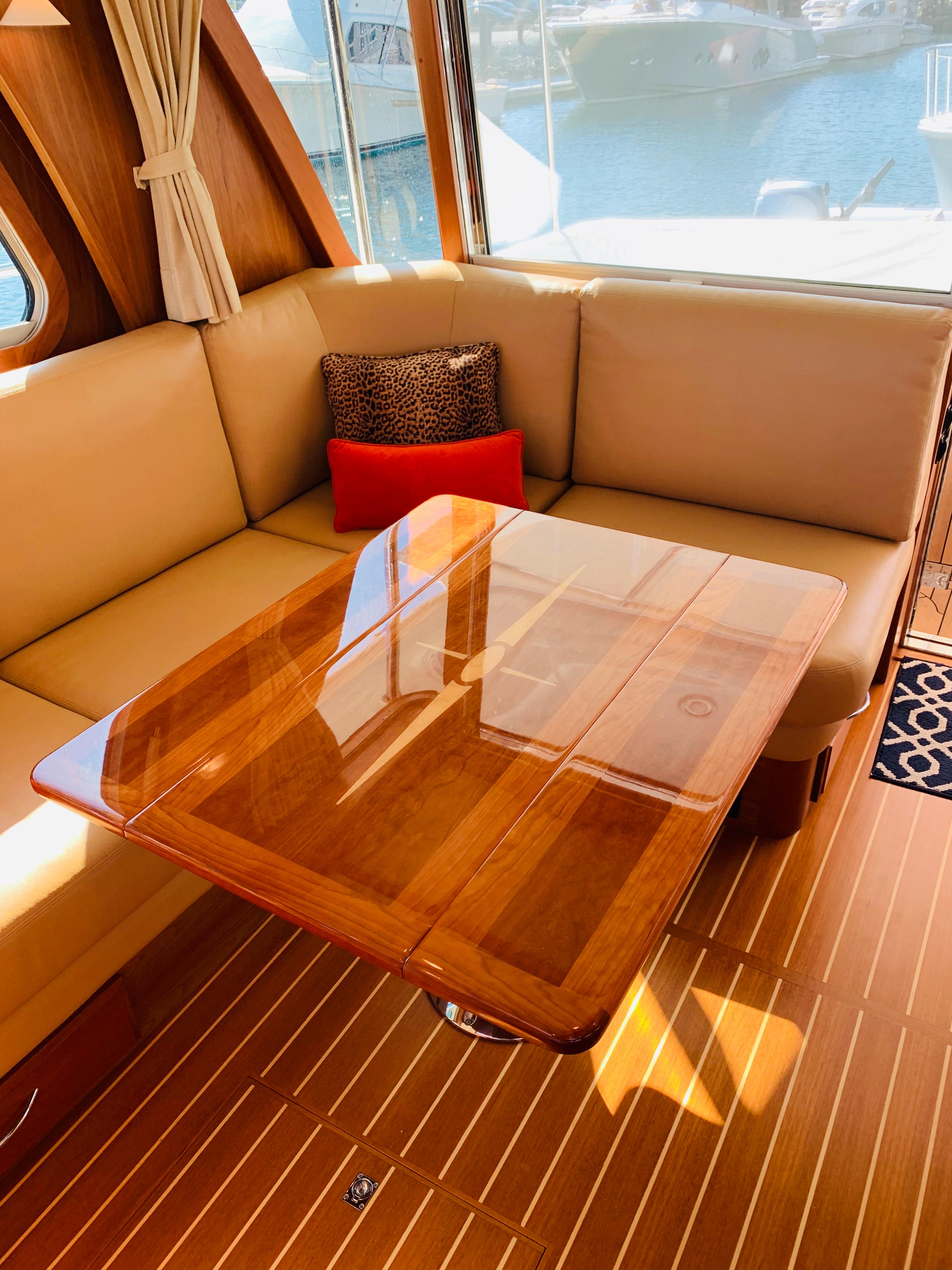

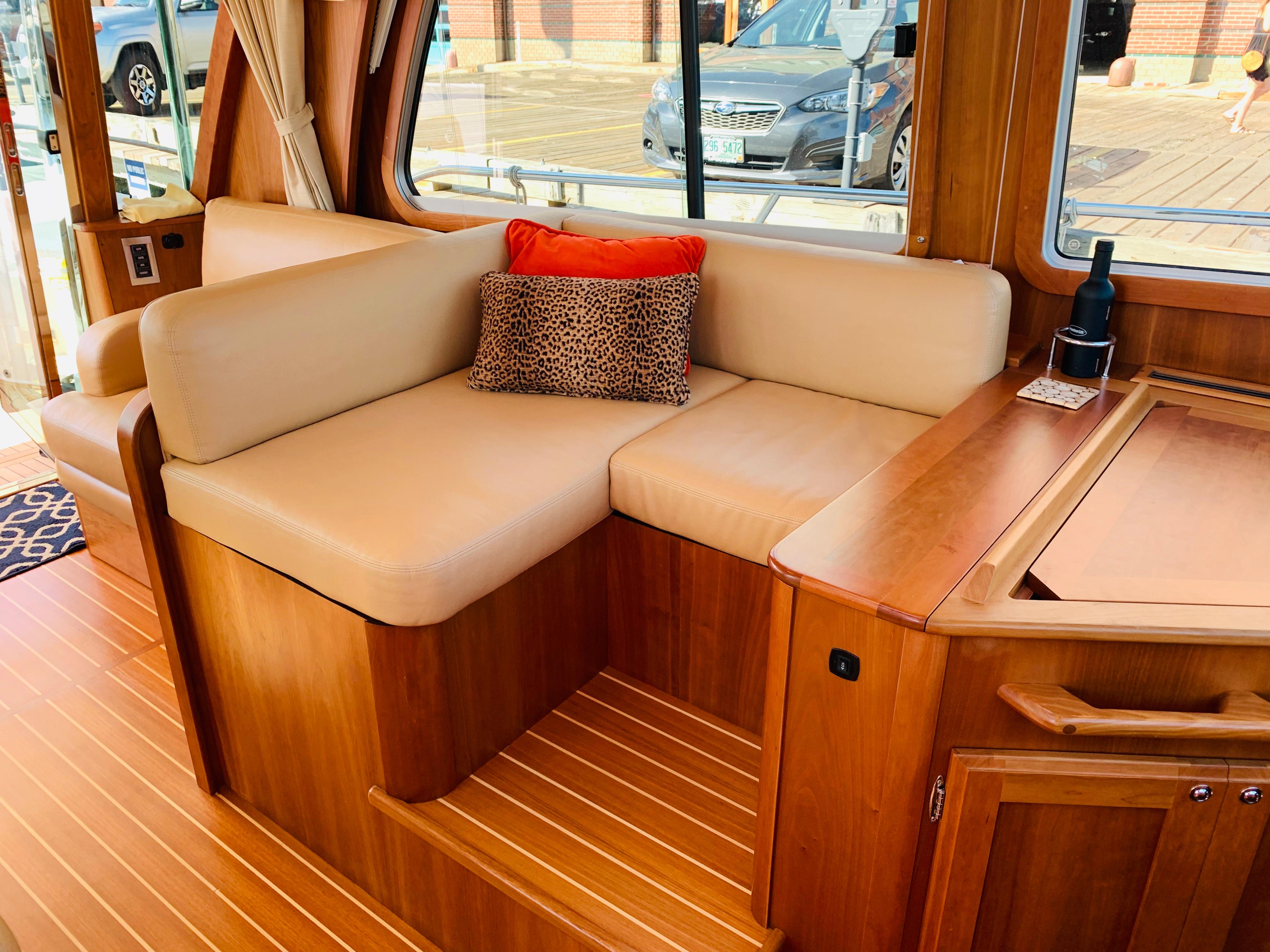

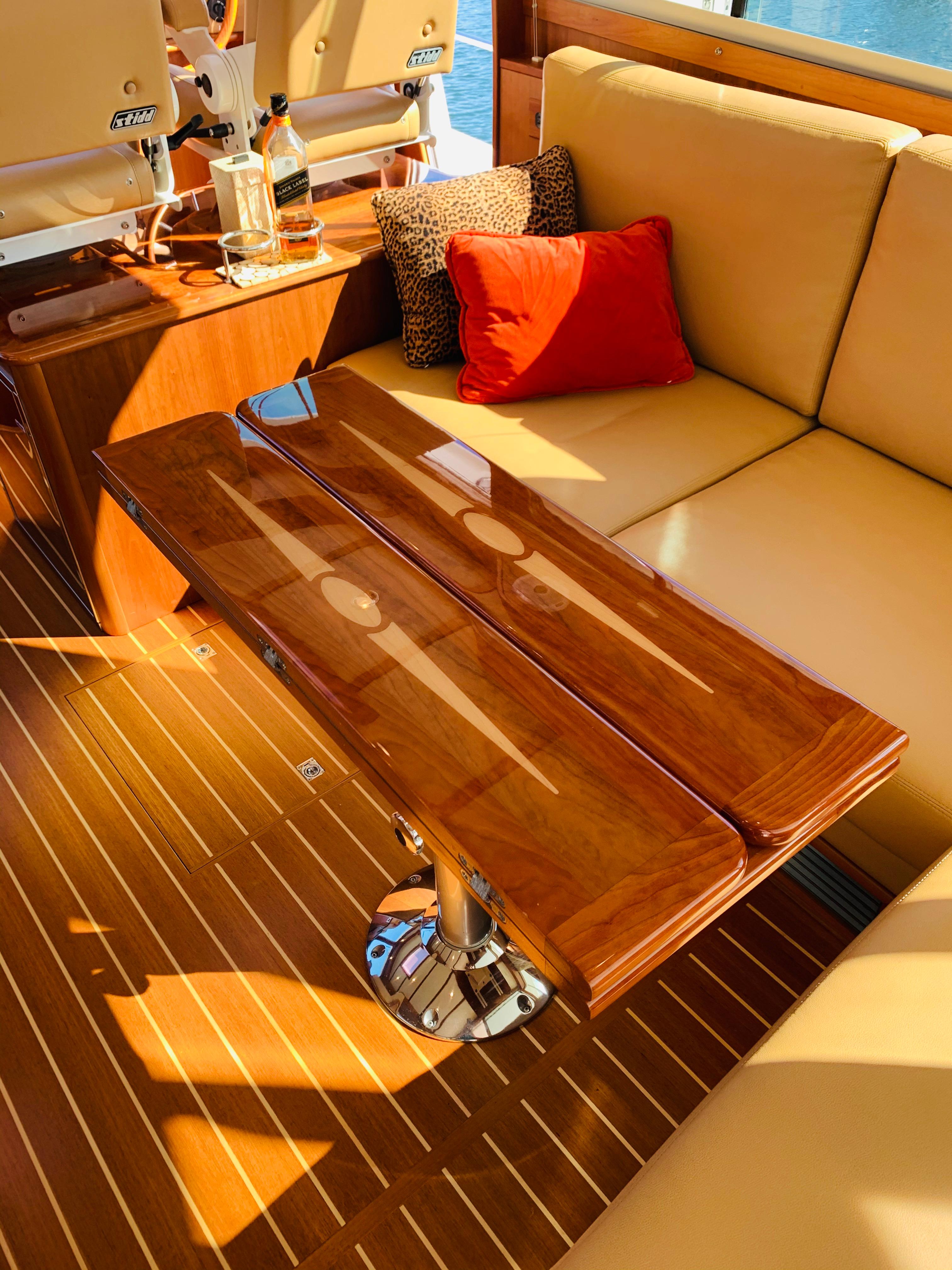

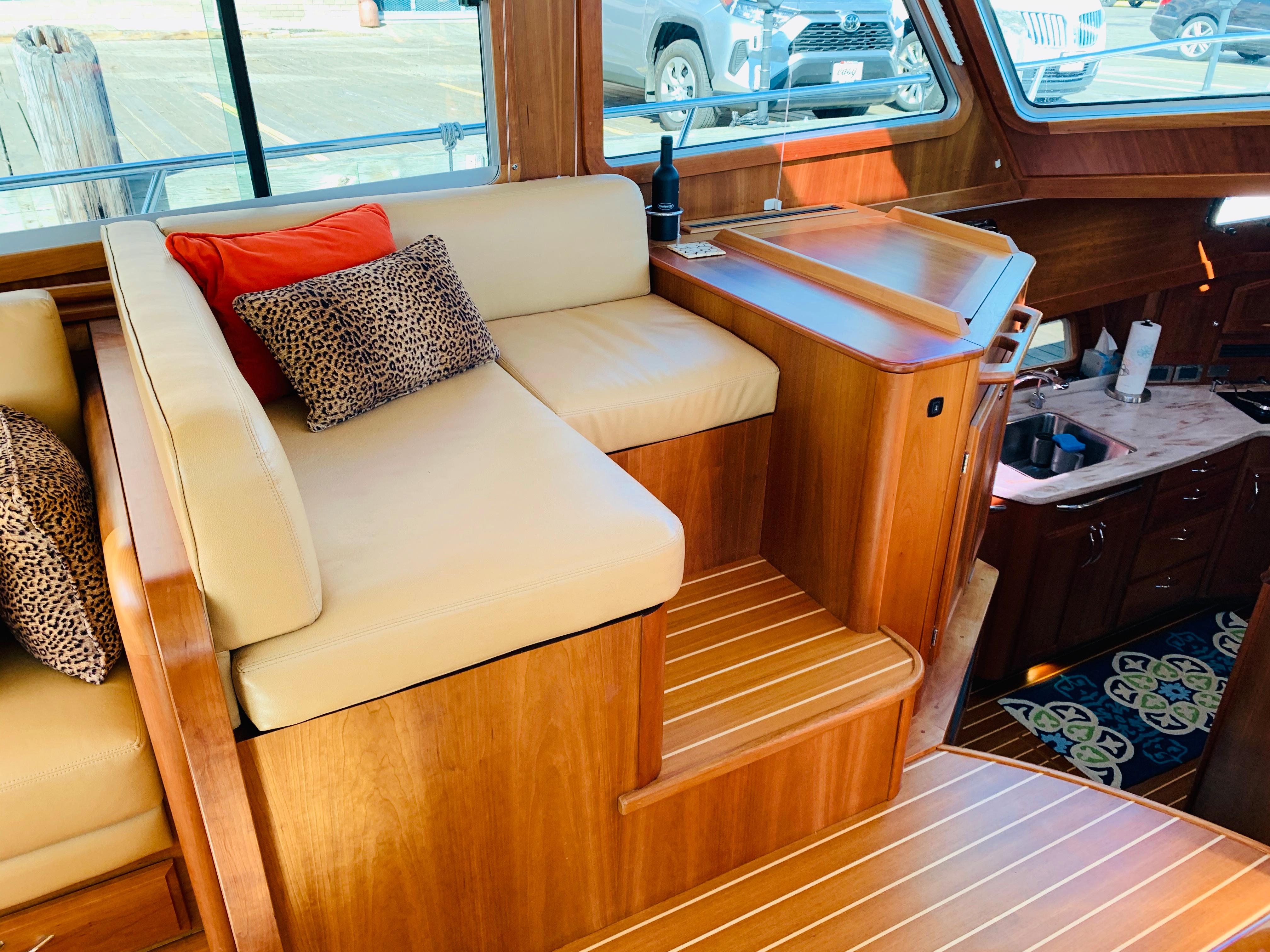

• L-settee to starboard with elegant high gloss inlaid table
• Mates lounge forward with chart locker
• 32” LED Television on lift
• Stainless steel aft bulkhead with bi-fold door
• Electrically operated drop down window to starboard
• Curved safety glass windows in aft corners

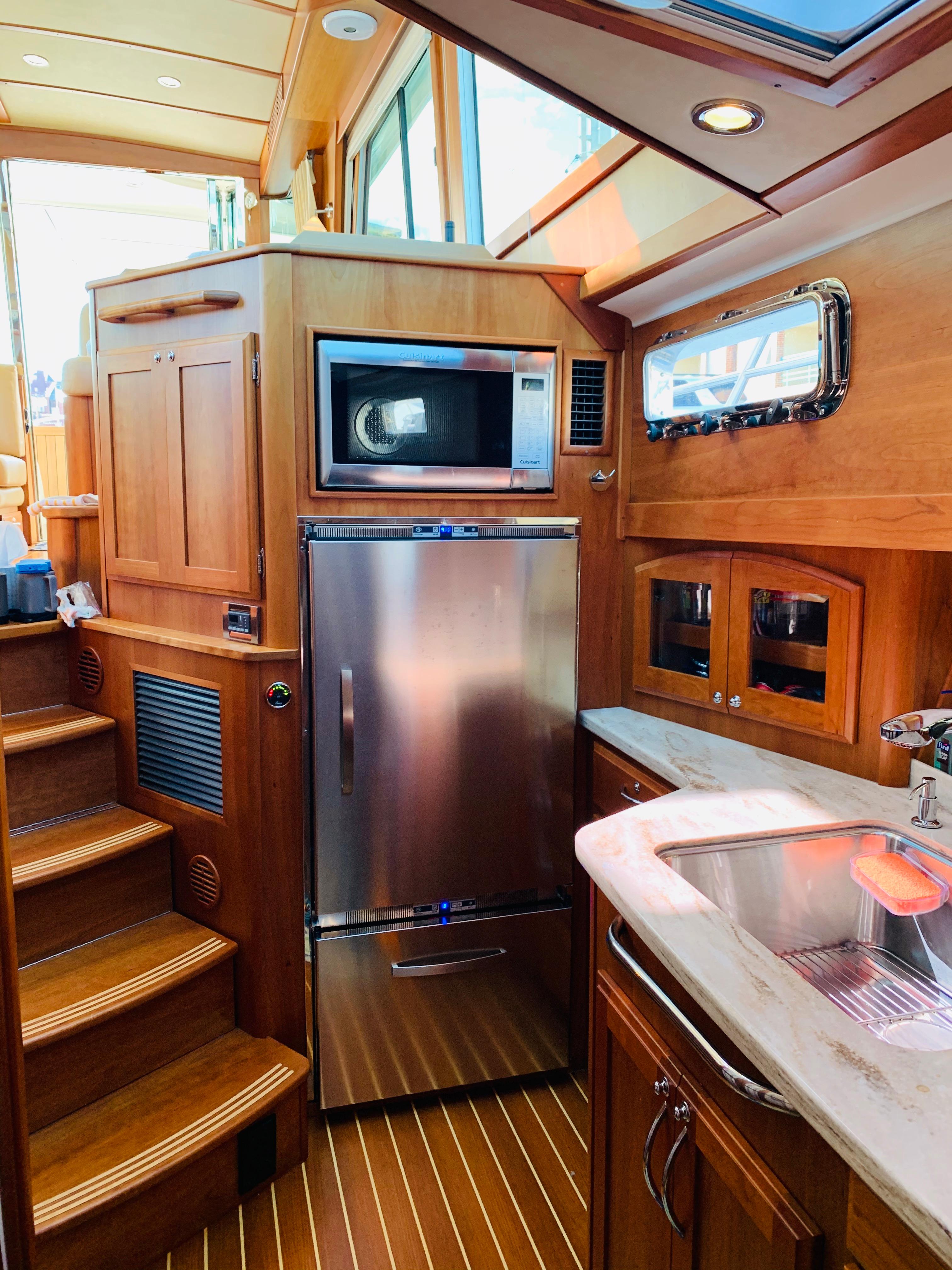

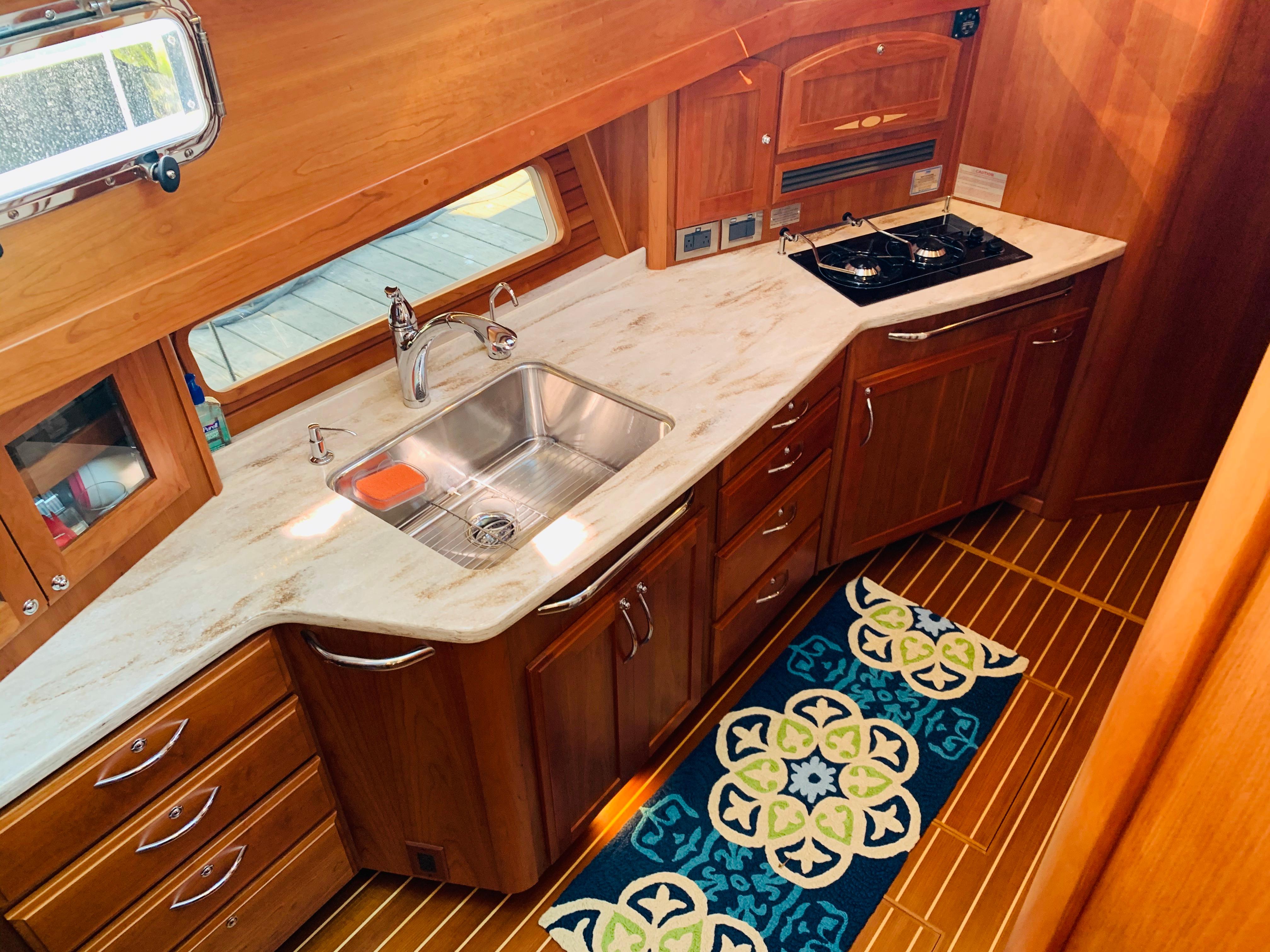

Galley

• Solid surface countertop
• Stainless steel sink and faucet
• Convection microwave oven

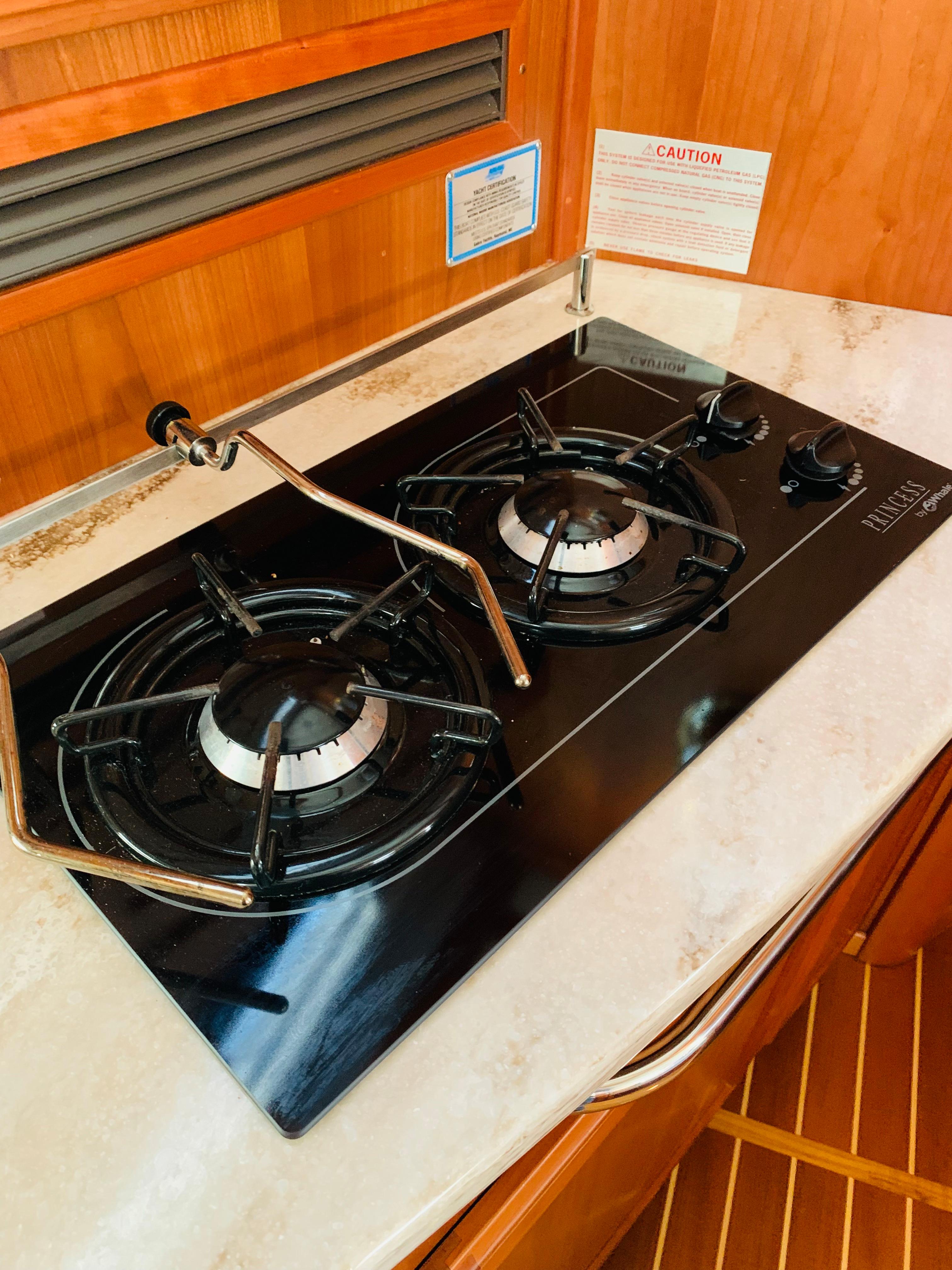

• Ceramic two burner cook top

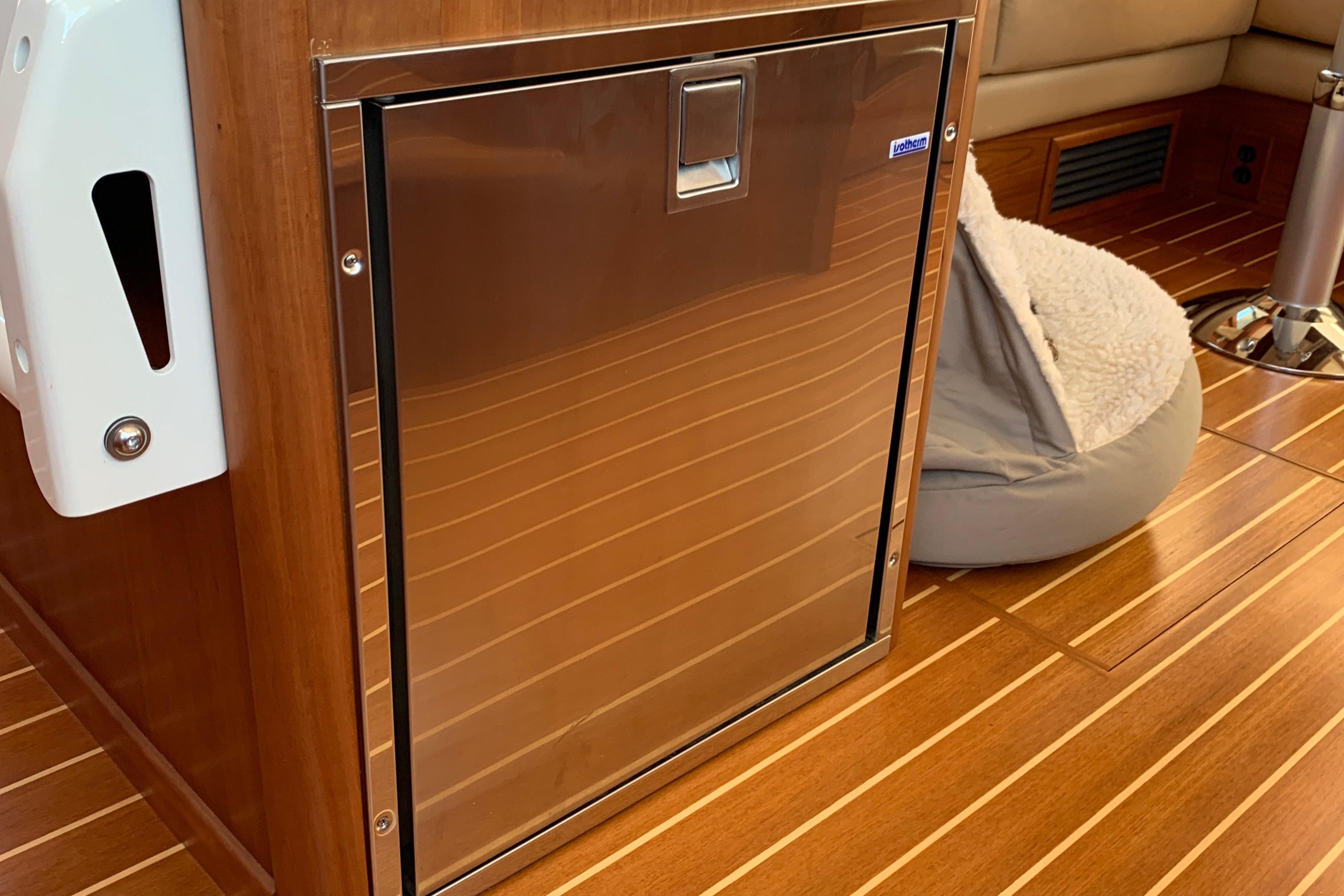

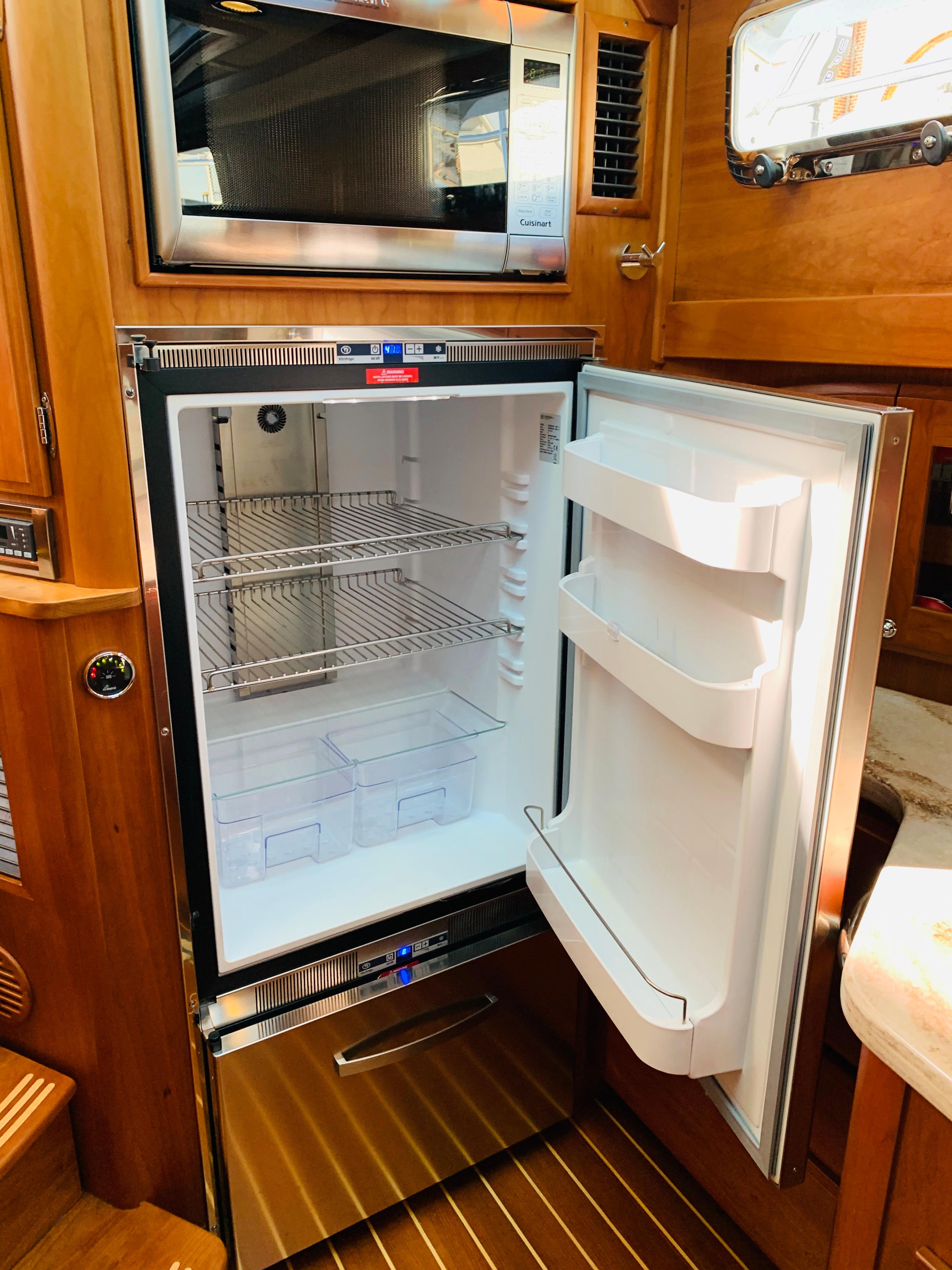

• Stainless steel fridge with freezer compartment
• Storage in galley lockers
• Fixed deadlight in hull over galley counter
• Opening stainless steel portlight over galley

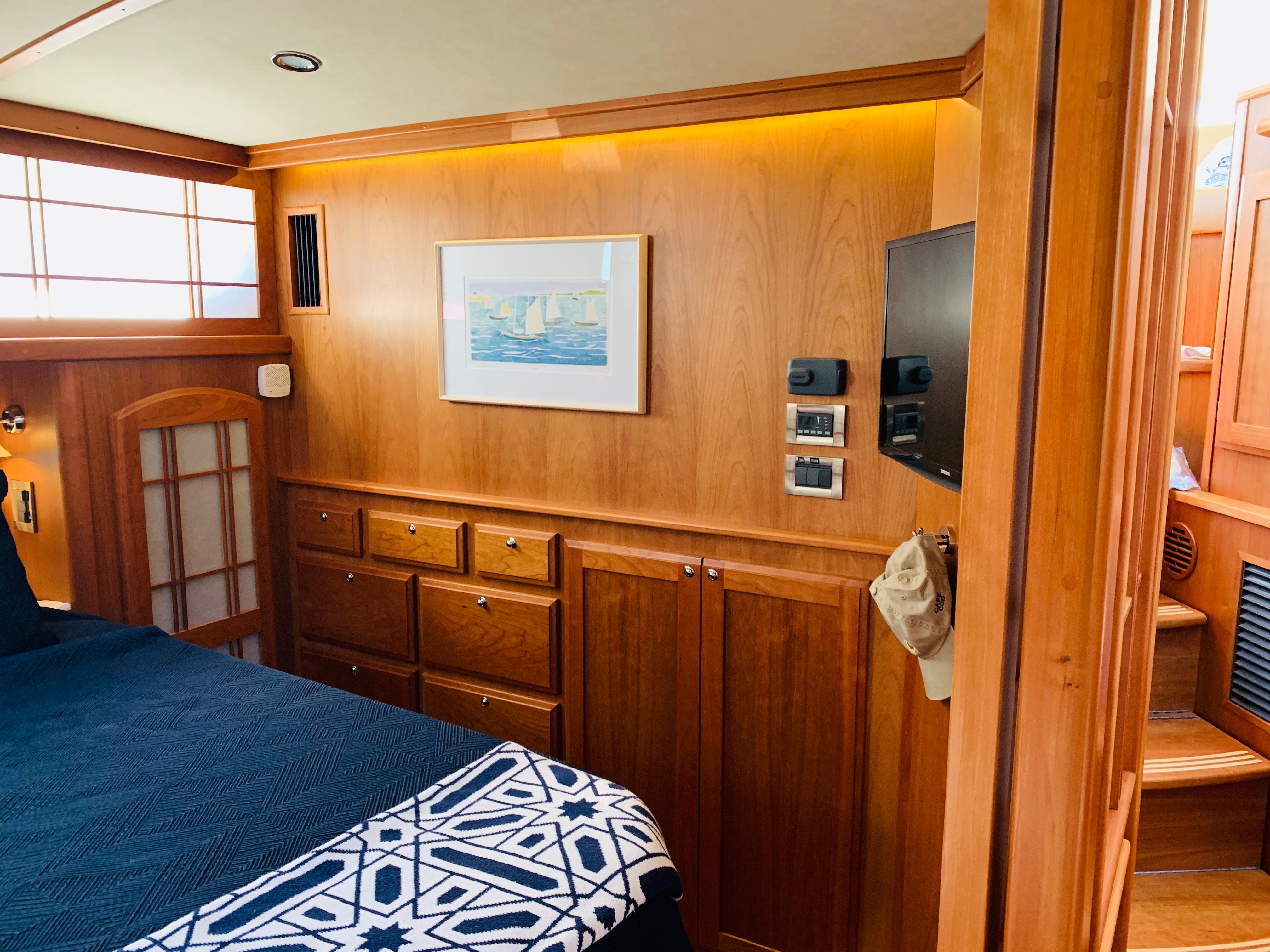

Cabins

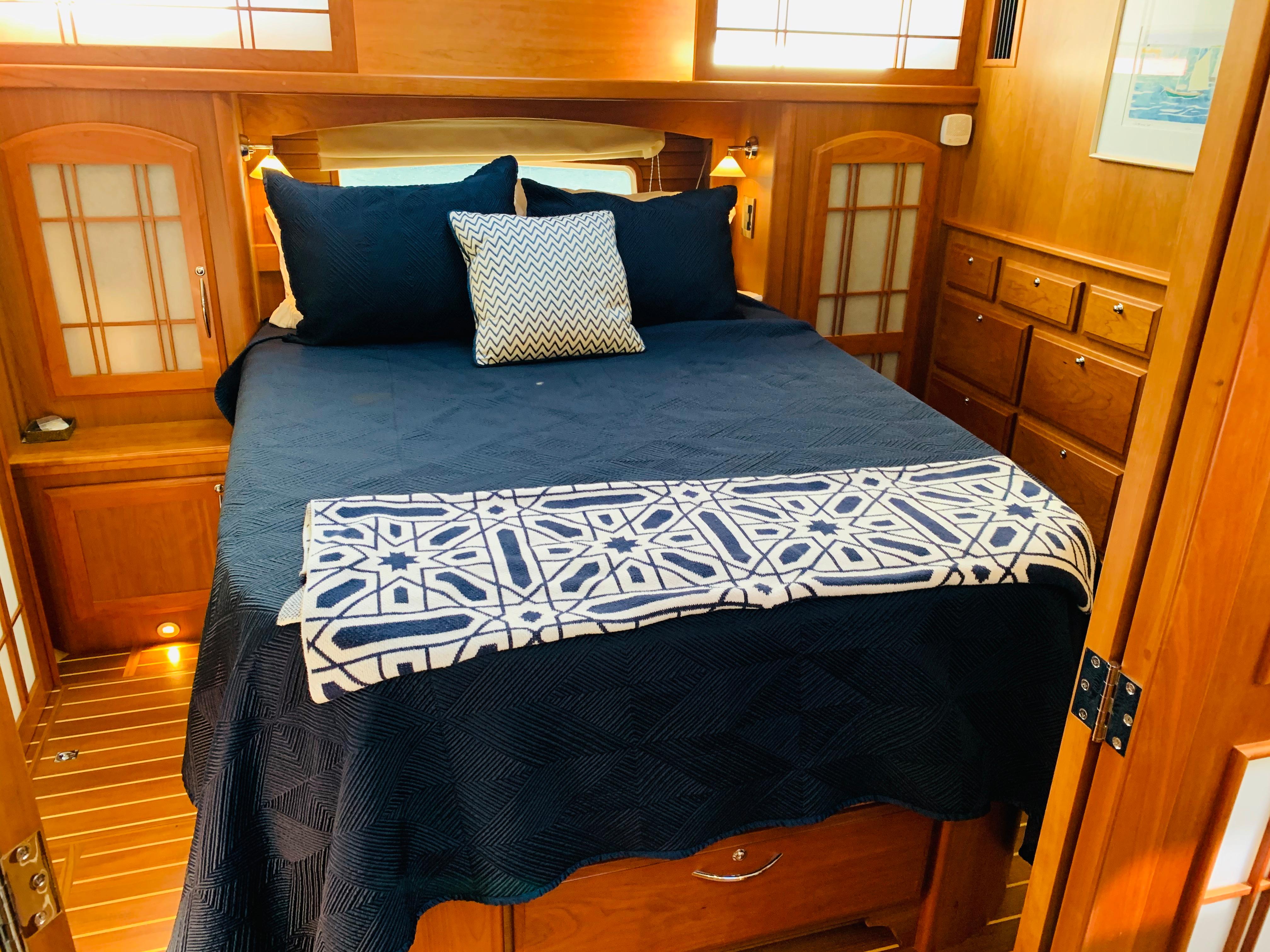

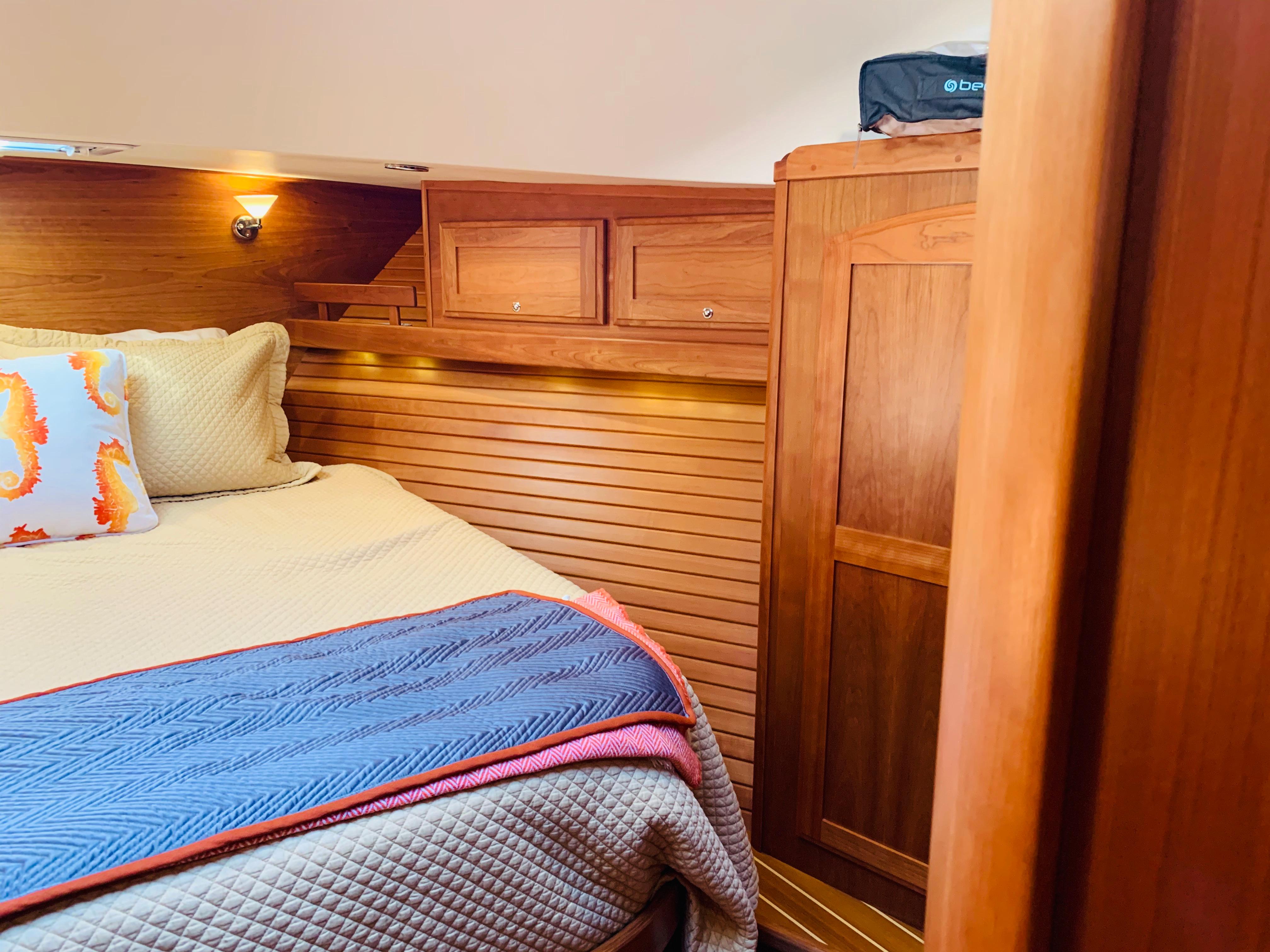

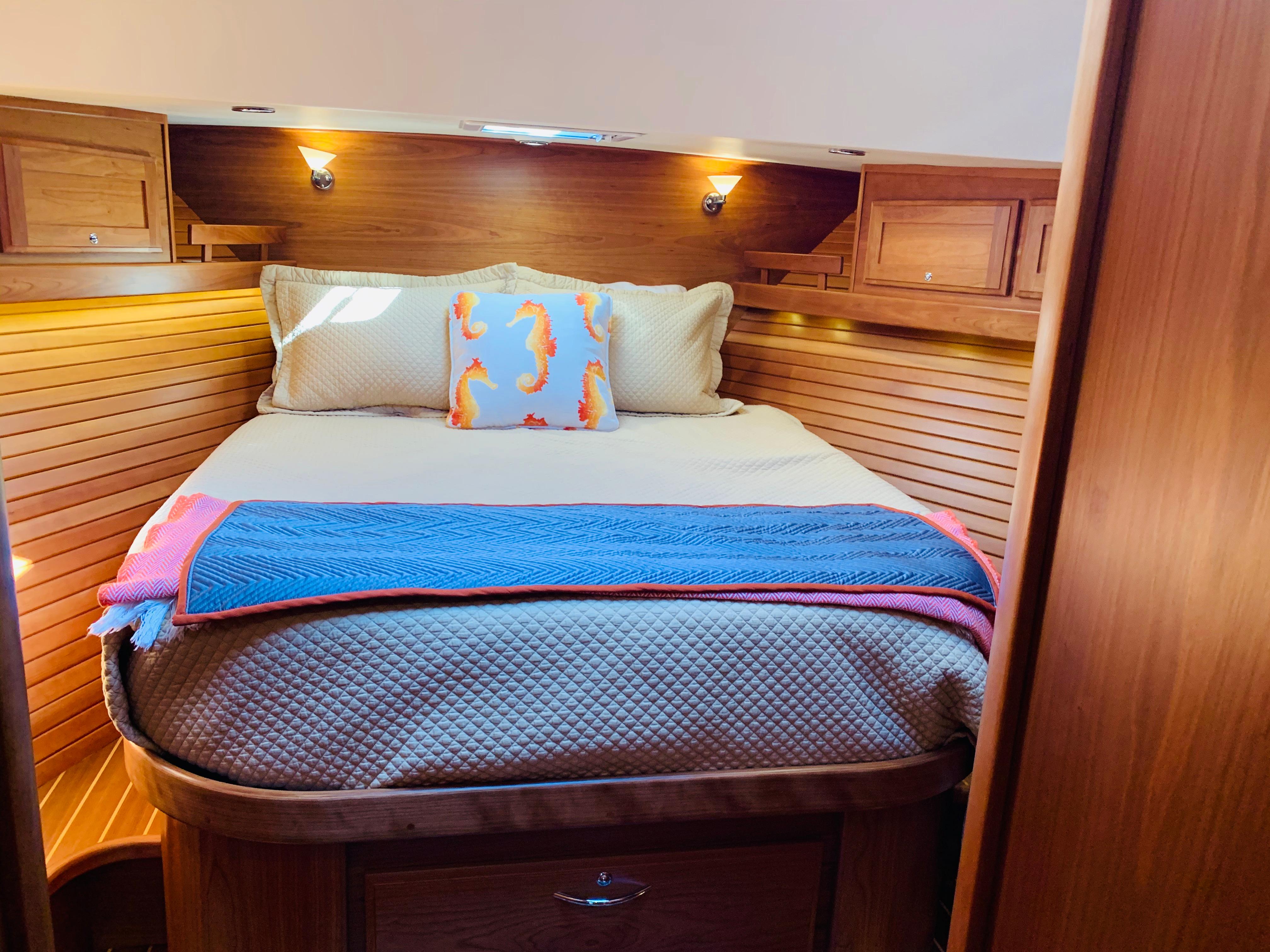

• Master stateroom amidships with queen size island berthGuest cabin forward with queen sized island berth

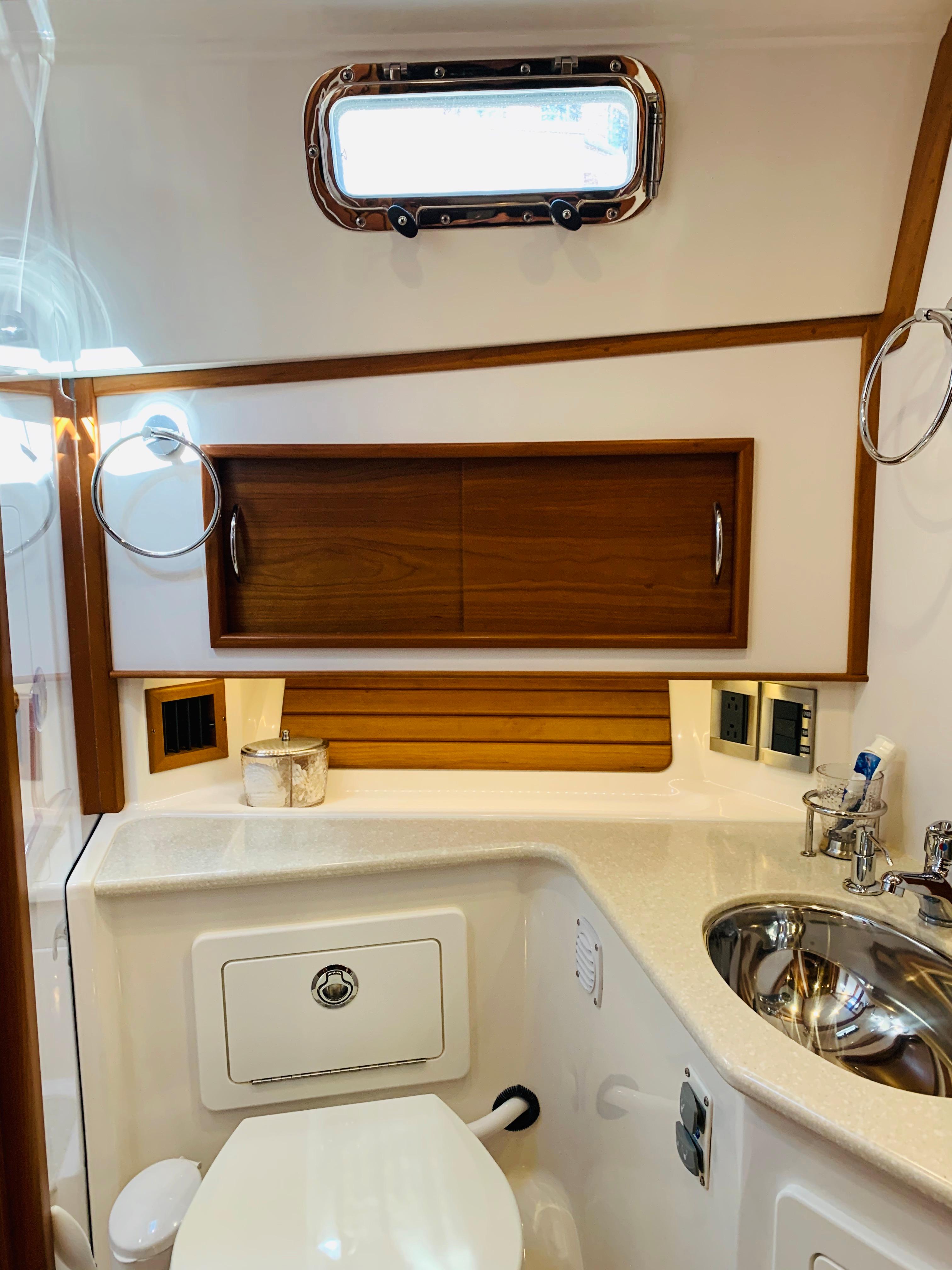

• Master head with glass vessel sink, ceramic tile sole
• Deadlight in hull side over master berth headboard

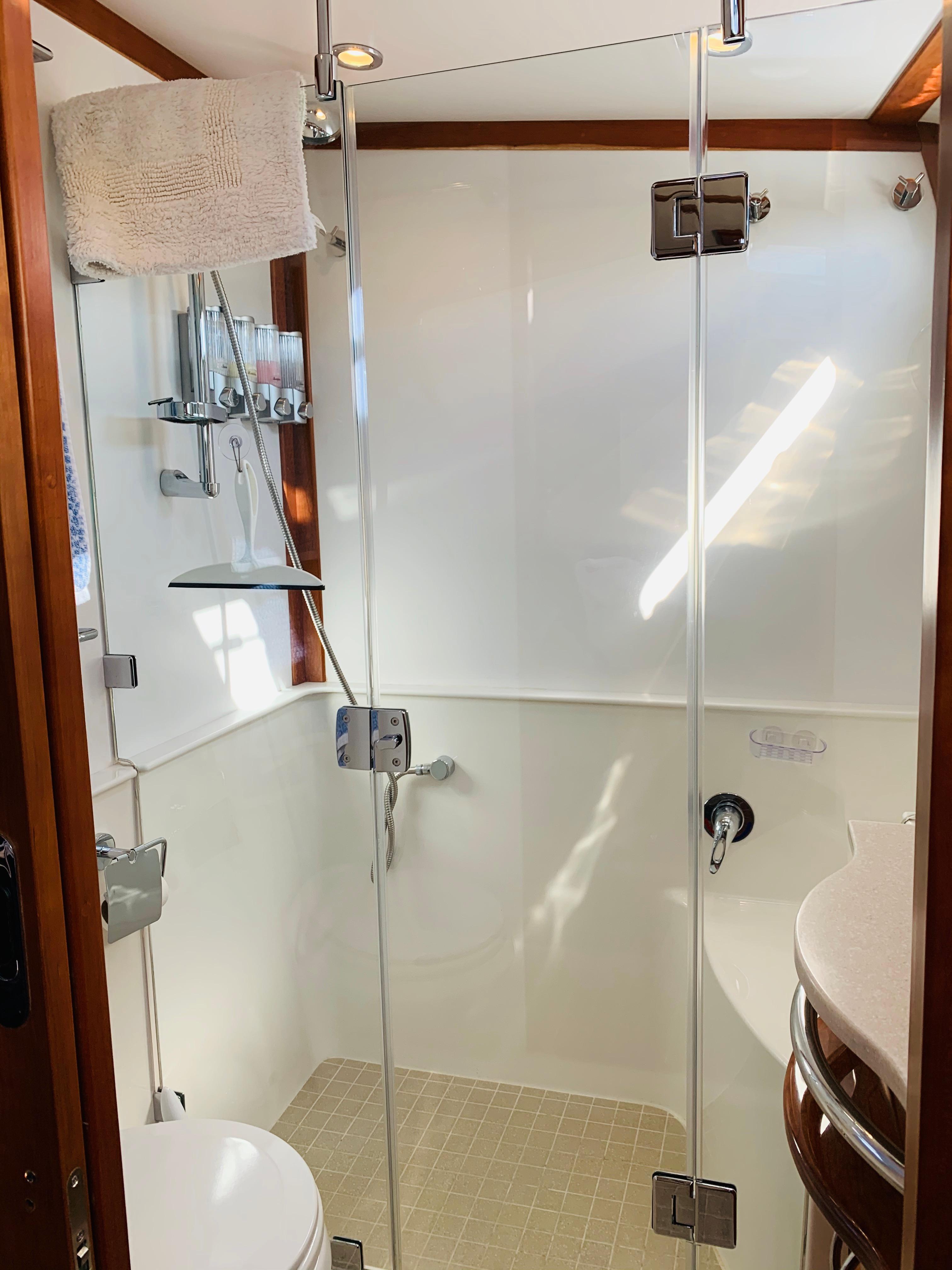

• Master shower stall with glass divider and glass tile decor

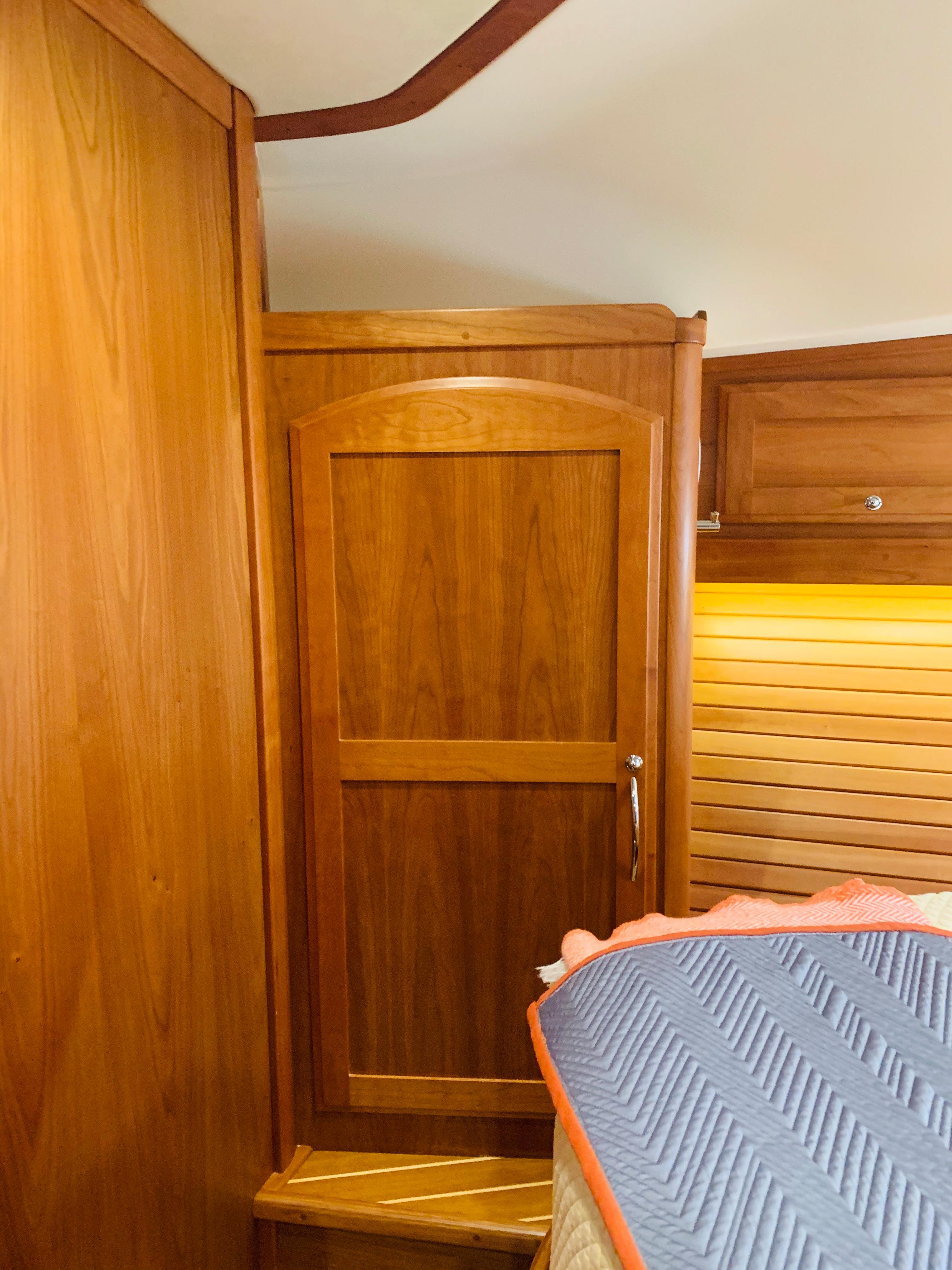

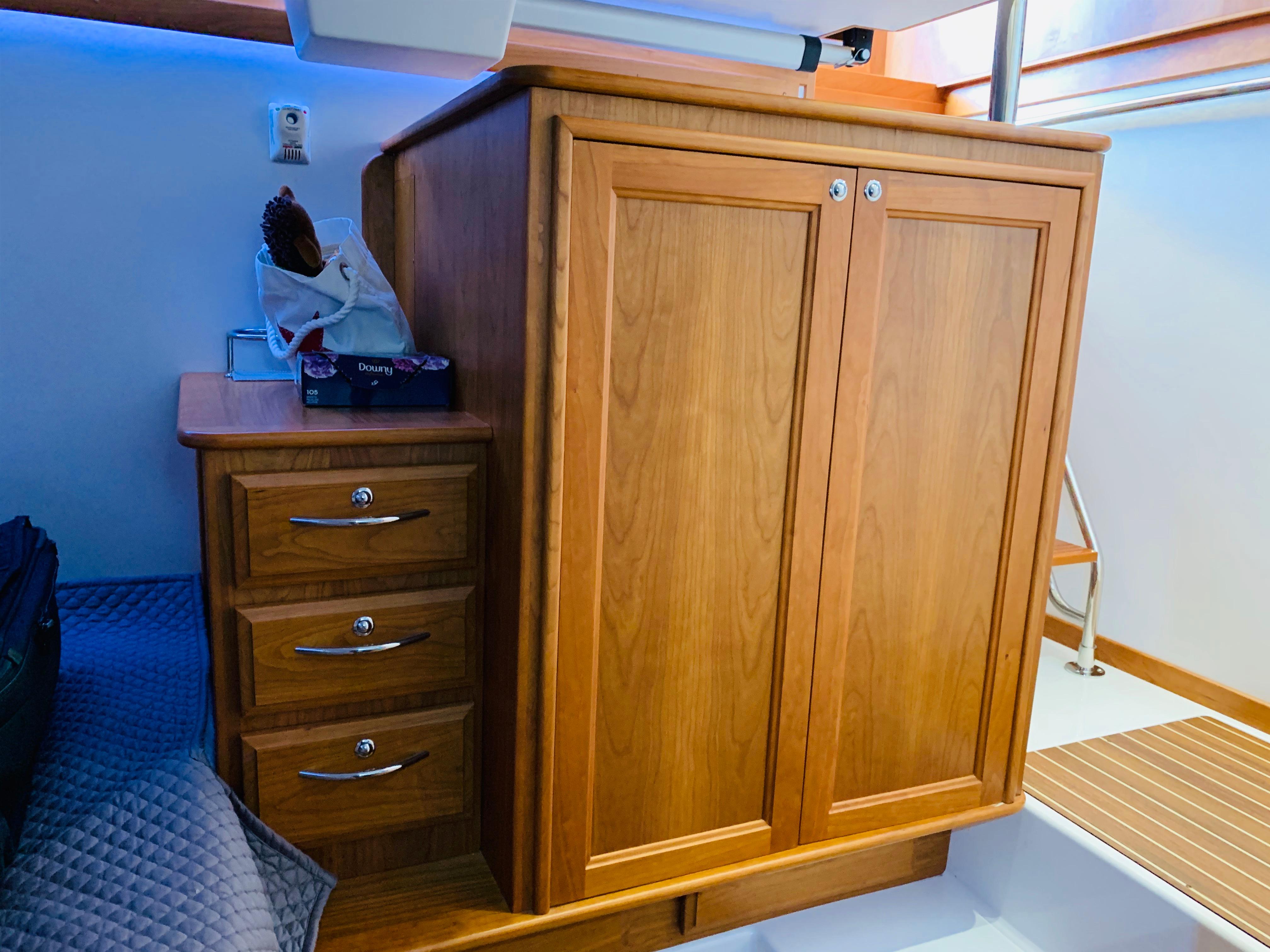

• Abundant hanging and drawer storage throughout

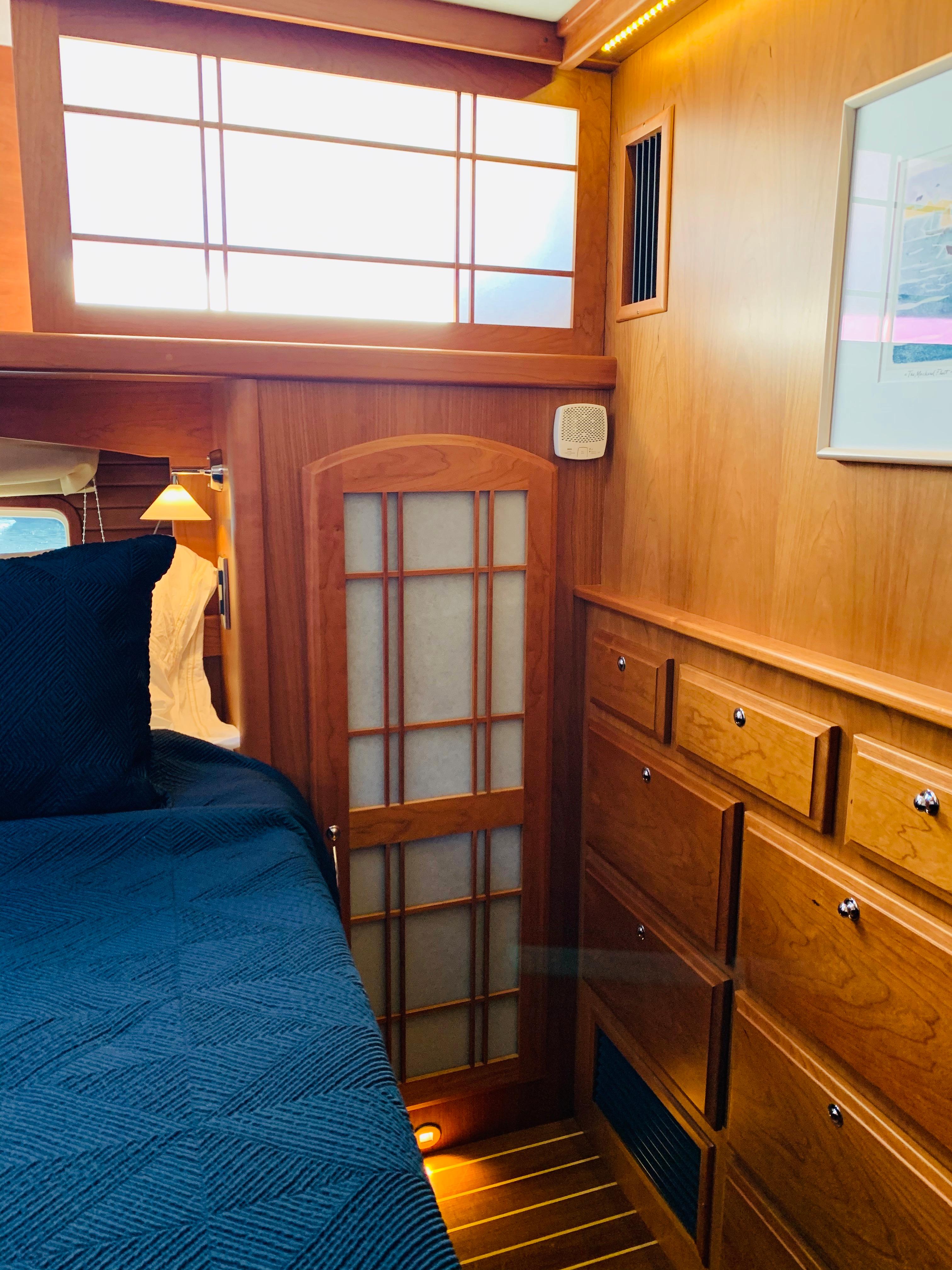

• Shoji style passageway doors to master and master head
• LED televisions

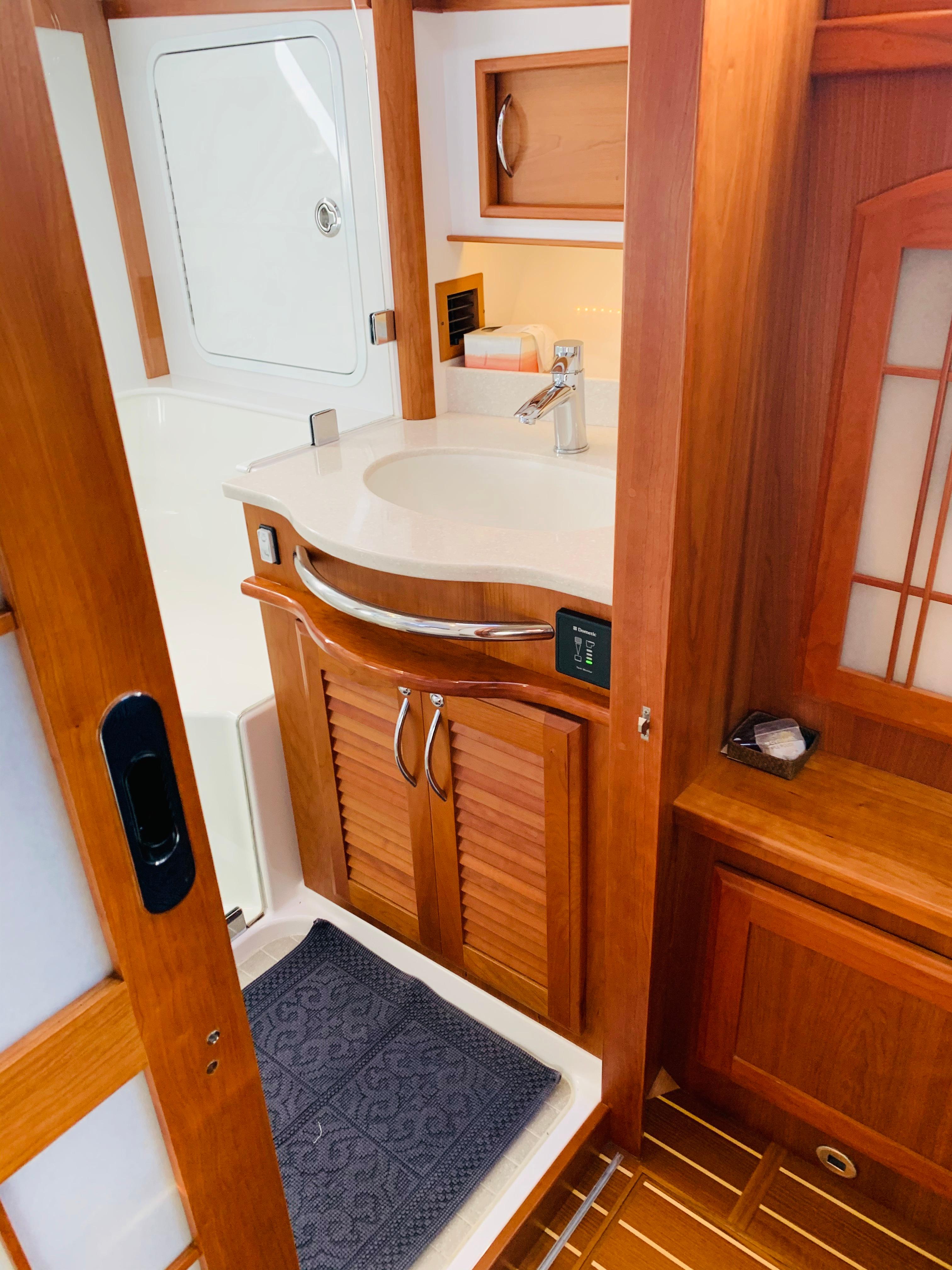

• Guest/day head with circular shower enclosure
• Large overhead hatches and opening portlights
• Reverse cycle heat and air conditioning

Factory Options

OPTIONS FROM OPTION SHEET

Dark hull Color - Flag Blue

Anti-Skid color (fore & side deck) - Beige

Reverso Oil Change system

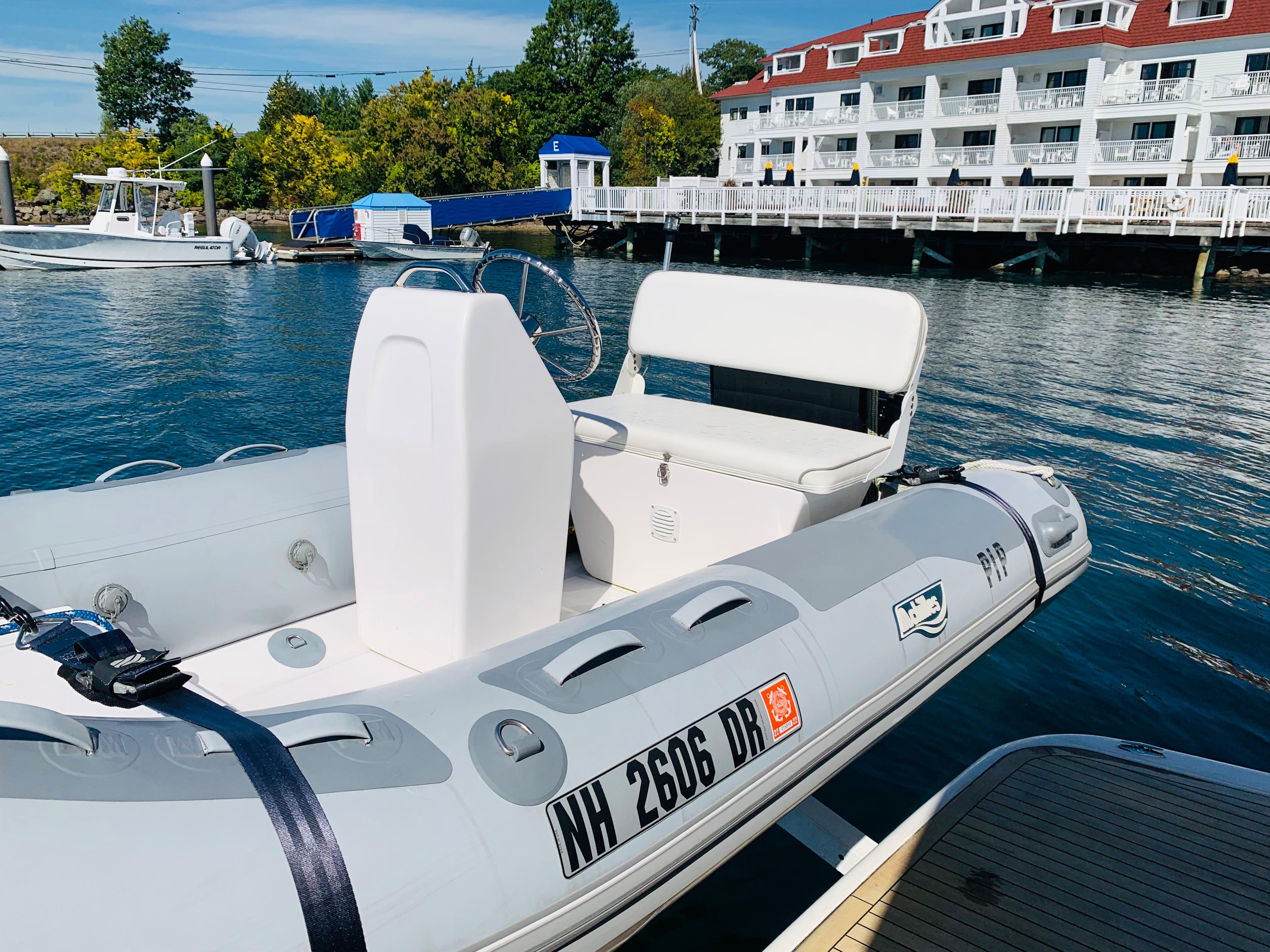

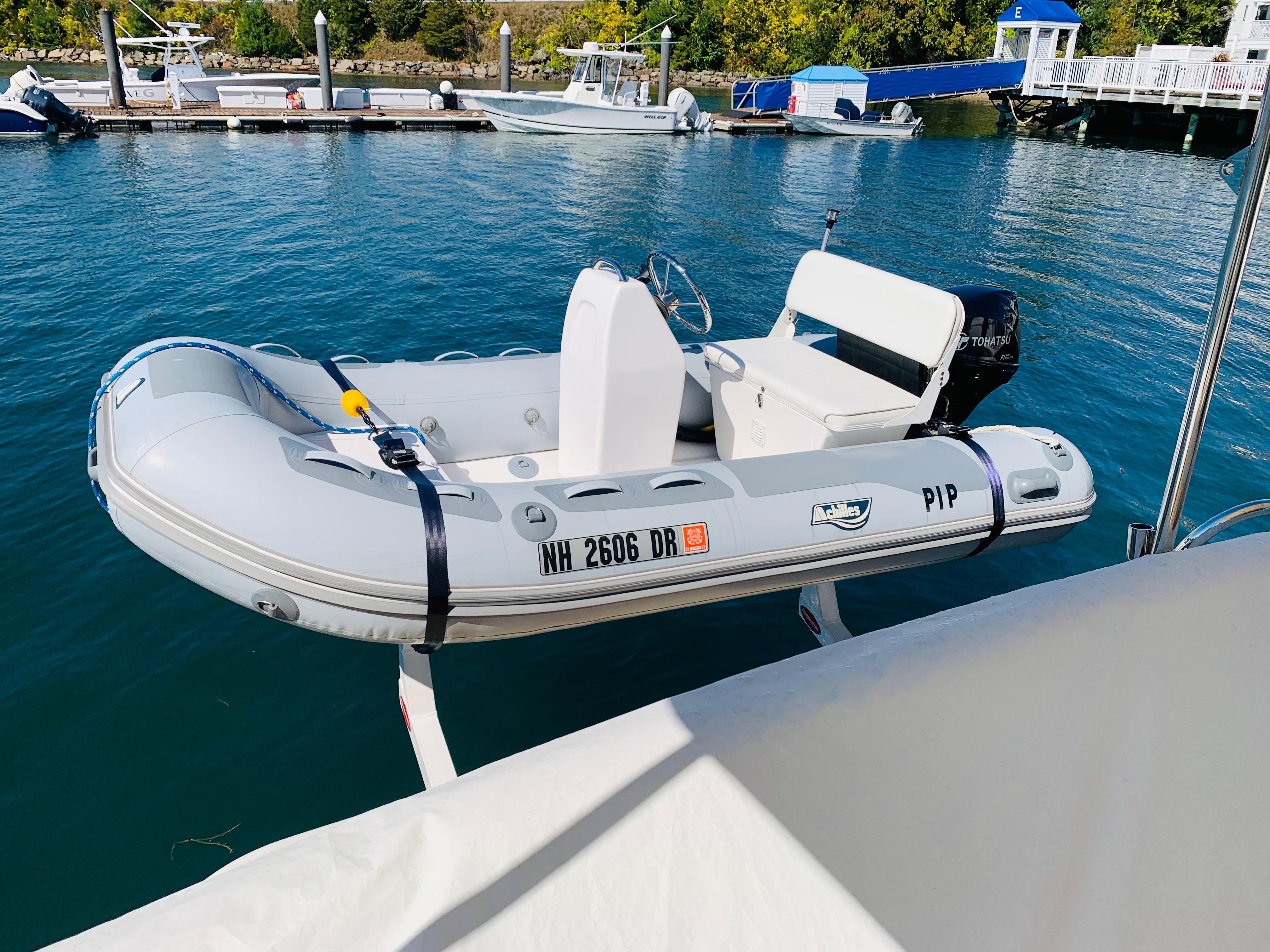

Freedom Lift dinghy lift

Shore water inlet

Salt water wash down fore and aft

Fresh water wash down forward

Single Seagull water purifier on galley cold water plumbed to separate spigot Single

Seagull water purfier on ice-maker

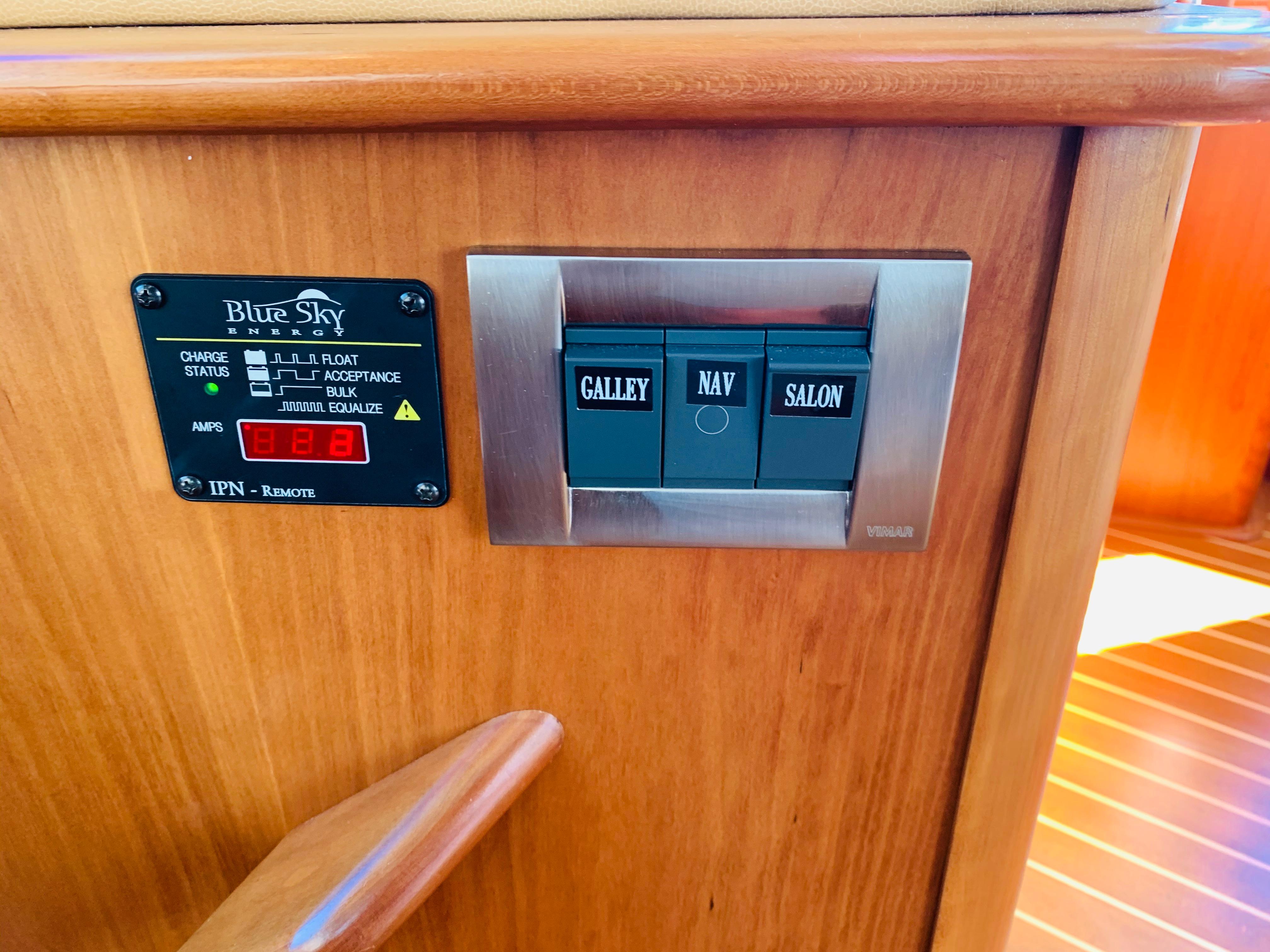

(3) Additional dimmer switches in galley, master stateroom, and forward cabin Inverter/charger 3000 watt true sine wave with remote control

Beam central vac system with (2) outlets and a 32' expandable hose

Kahlenberg dual chrome horns

Electric Sunroof with sunscreen in lieu of standard two (2) pilot hatches

FRP molded mast, separate radar pla@orm & satellite pads for sedan hardtop

Teak deck on FRP swim platform

Hot and cold transom shower

Accord shades on opening ports

Custom Options

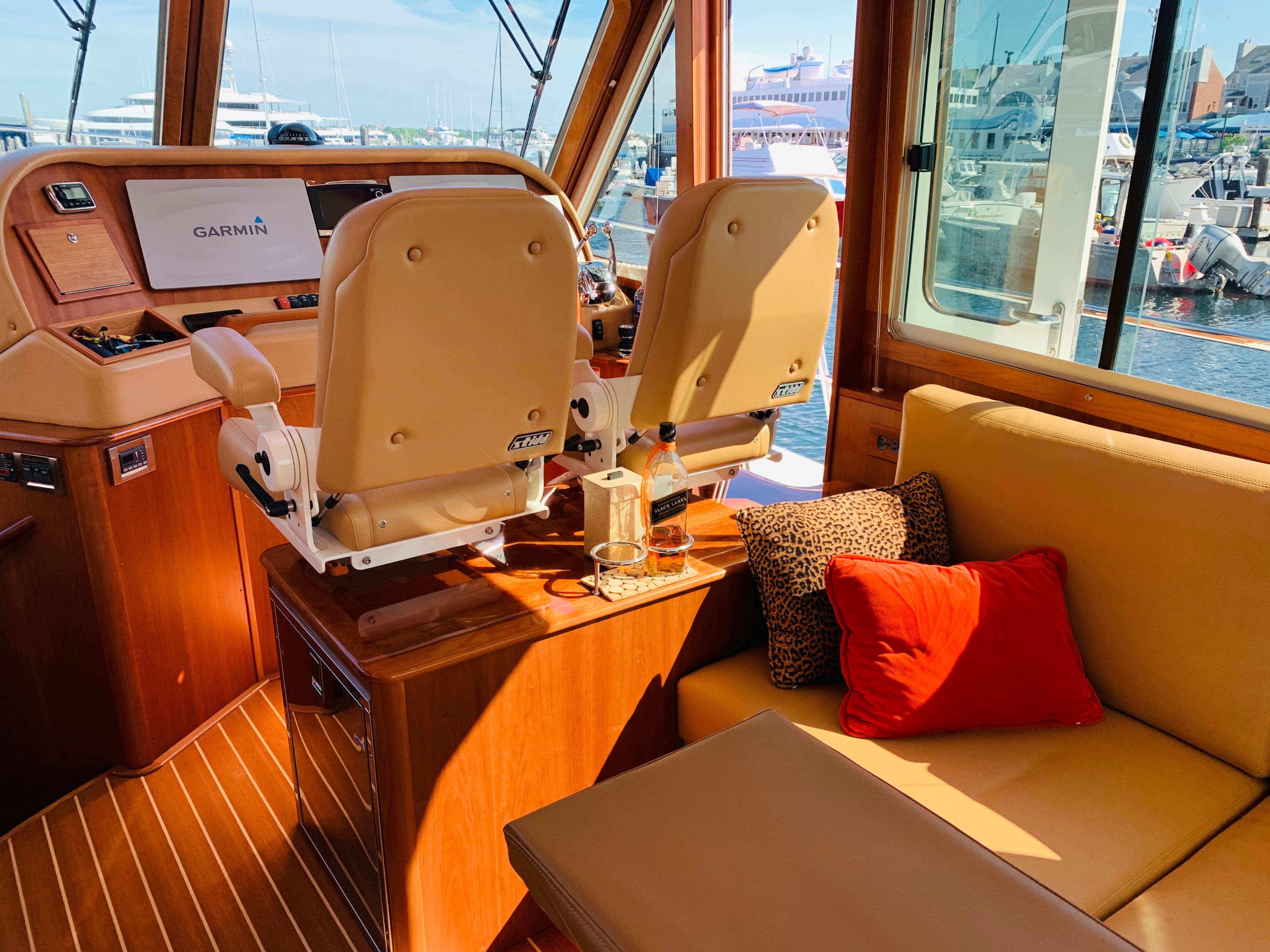

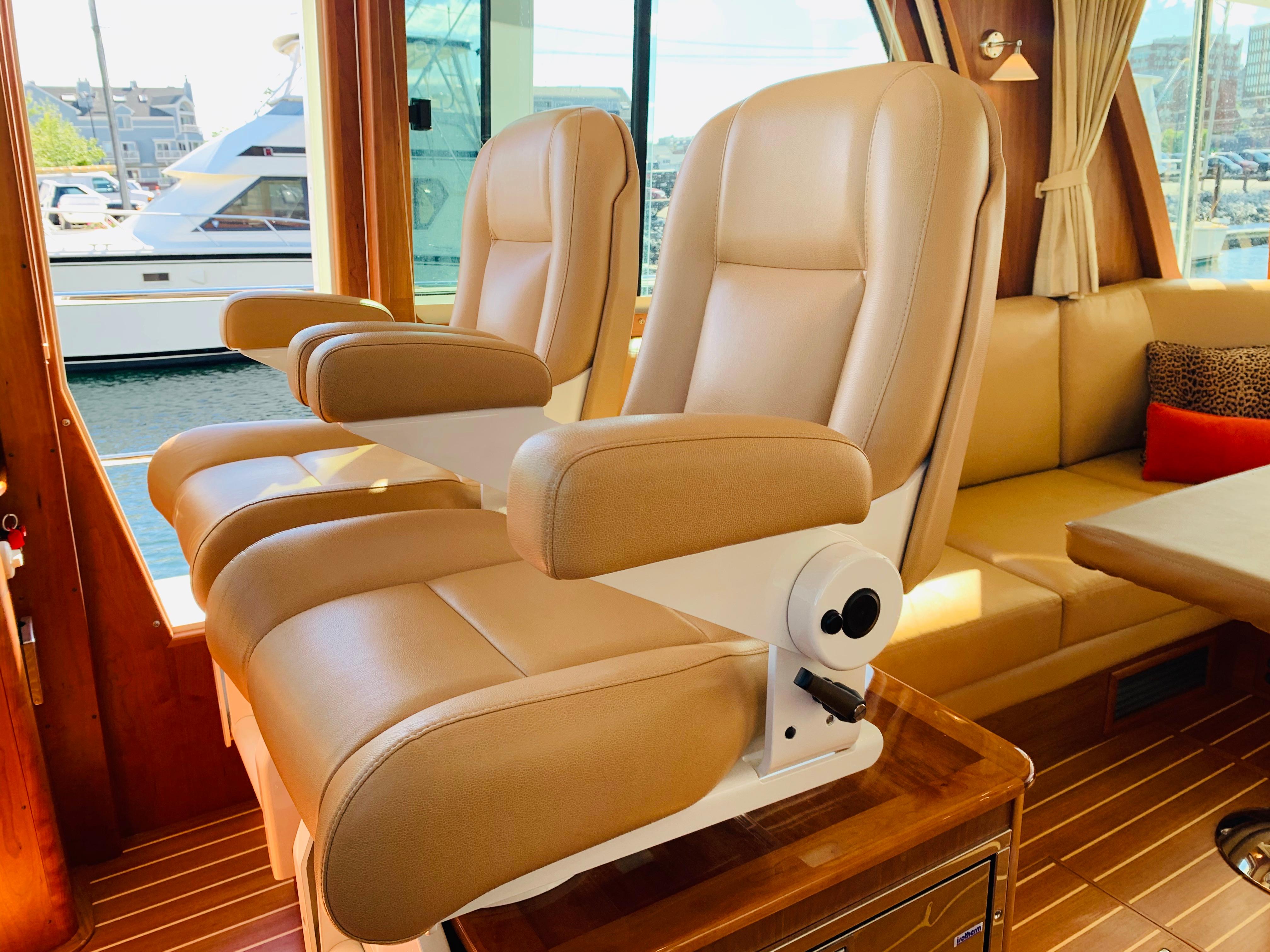

Replace standard single helm chair with two Stidd 500N fixed height mounted on a cabinet. Cabinet top to be Hi-Gloss finish. Stidd seats only slide fore/aft, no height adjustment or swivel. Set in position 2" aft of the standard pedestal location. Underside of Stidd seat frame to be 28" above sole. Install Stidd foot rests on the forward face of the cabinet. Cabinet under seats to have an icemaker.

Build longer settee to end at box under Stidds. Install std table.

Custom color on Oceanair Blinds: Pebble Ivory

Move double ss cup holder from Nav desk area and install outboard of mate seat (port) on window edge.

Add single SS cup holder outboard of joystick

Ultraleather upholstery in main salon

Increase two salon armrests another 4'' in height on both settee

Install a fixed fiddle on forward end of nav desk the same length and location as hinge on fwd end of cover. Add another fixed fiddle between the chart and TV covers 32" length. Fiddle should end at the end of the nav desk cover.

Notch cover aft and outboard for opening and for wires to pass through, no thumbhole. Add a additional cherry drop in box on port side of helm pod face above standard helm drop in box. Additional box to be rectangular with inside opening 6H"x8W"x10D". Leave enough room below the box for the dealer to install Fusion 700 stereo.

Dettro Proposal.xlsx

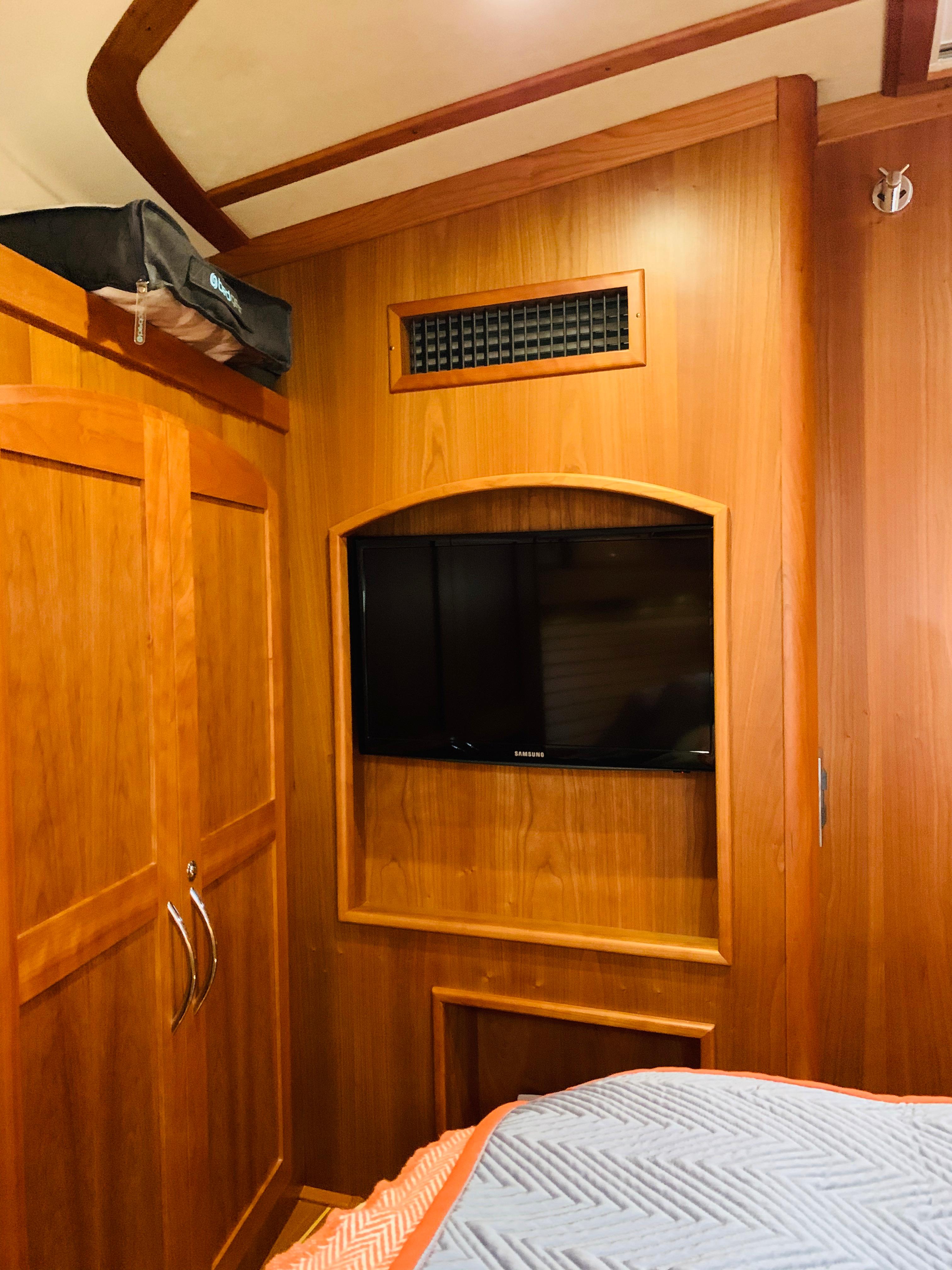

Install a 29" TV with separate DVD in Master Stateroom. Install TV 47" from cabin sole.

Install a tall mirror recessed (no frame) into the bulkhead behind master head shoji door

Sandlewood Corian counter with radius and Corian Cameo White undermount sink in master head in lieu of cherry counter and vessel sink with vessel faucet. Add 3" Sandlewood fiddle behind sink.

Fwd head cabinet to be 1/2 fully open and the another 1/2 to have shelf with fiddle

Optional scissor berth forward

Install second cherry towel rack on inside of door, location 10'' below top of door

Add two 12" stern cleats on coaming cap behind cockpit seat backrest, one on either side of the center rail stachion. Install chafe guards.

Delete standard teak toe rails. Install Skene chocks to forward cleats, same chocks as used on the SL47. Install 24" rub strakes at the 4 midship cleats. The strakes to be notched around the cleat bases.

Install fresh water spigot in engine room

Build shelf above house babery bank with fiddles on all four sides, rubber material base. Shelf to be made removeable.

Reconfigure the galley air conditioning system to be forward salon system. Increase size to 16K BTU. Add supply grille to top of chart table and tee some air to galley and crew quarters. Control panel is mounted in standard location in the galley

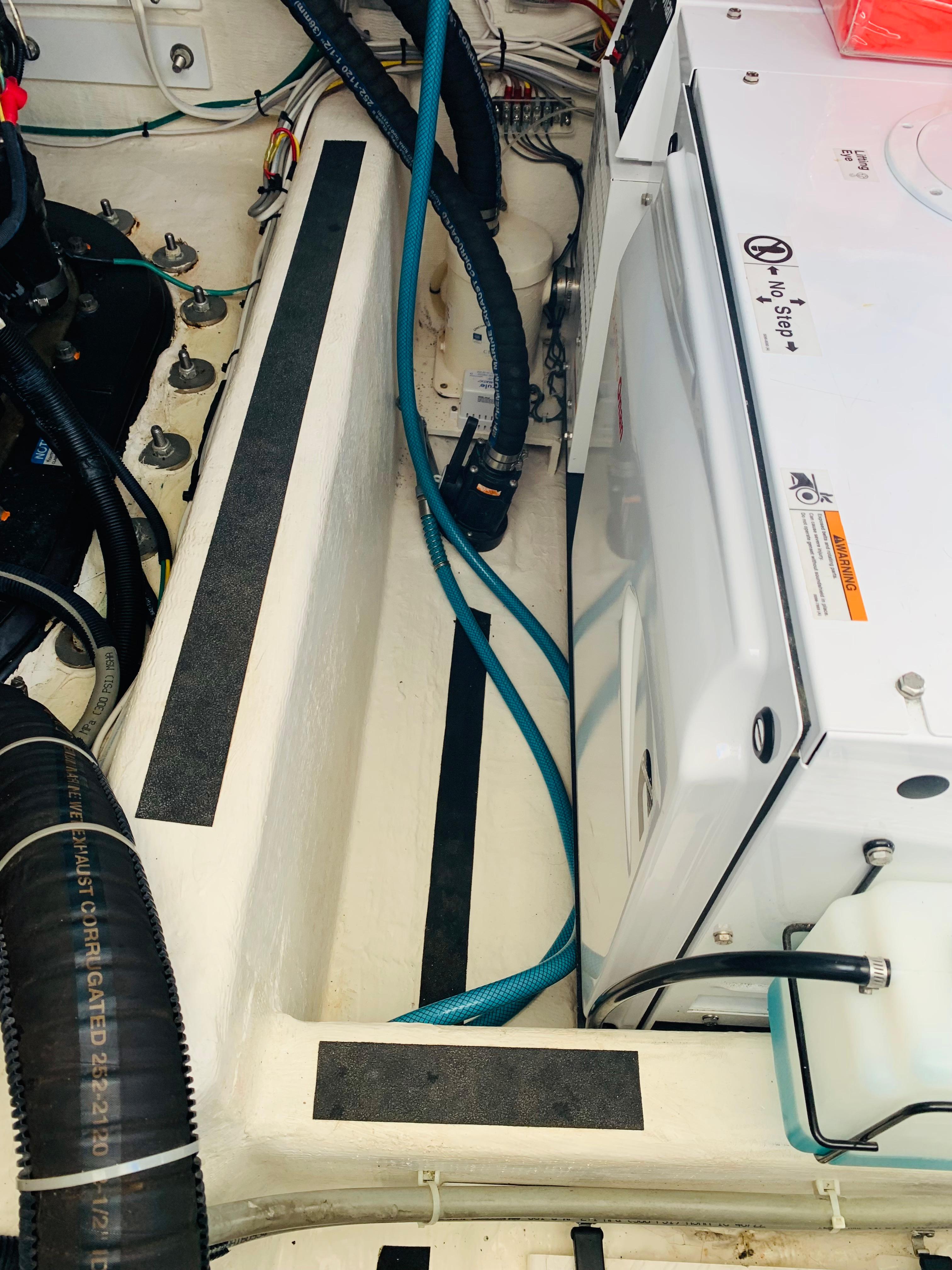

Relocate windshield washer fluid to more accessible location in engine room near water heater & water pump on the bulkhead.

Install 120VAC outlet inside chart storage locker. Outlet location to be aft and outboard

Install 120VAC outlet outboard of washer/dryer cabinet in crew quarters

Separate dimmer switch for cockpit overhead lights. Note: This renders the keypad "deck lights" position useless and inoperative.

Install 12V/USB charger centers at head of master berth, both sides of shelf

Install 12V/USB charger centers at head of forward berth, both sides of shelf

Install 12V/USB charger centers in crew quarters inboard of the washer/dryer near the shelf

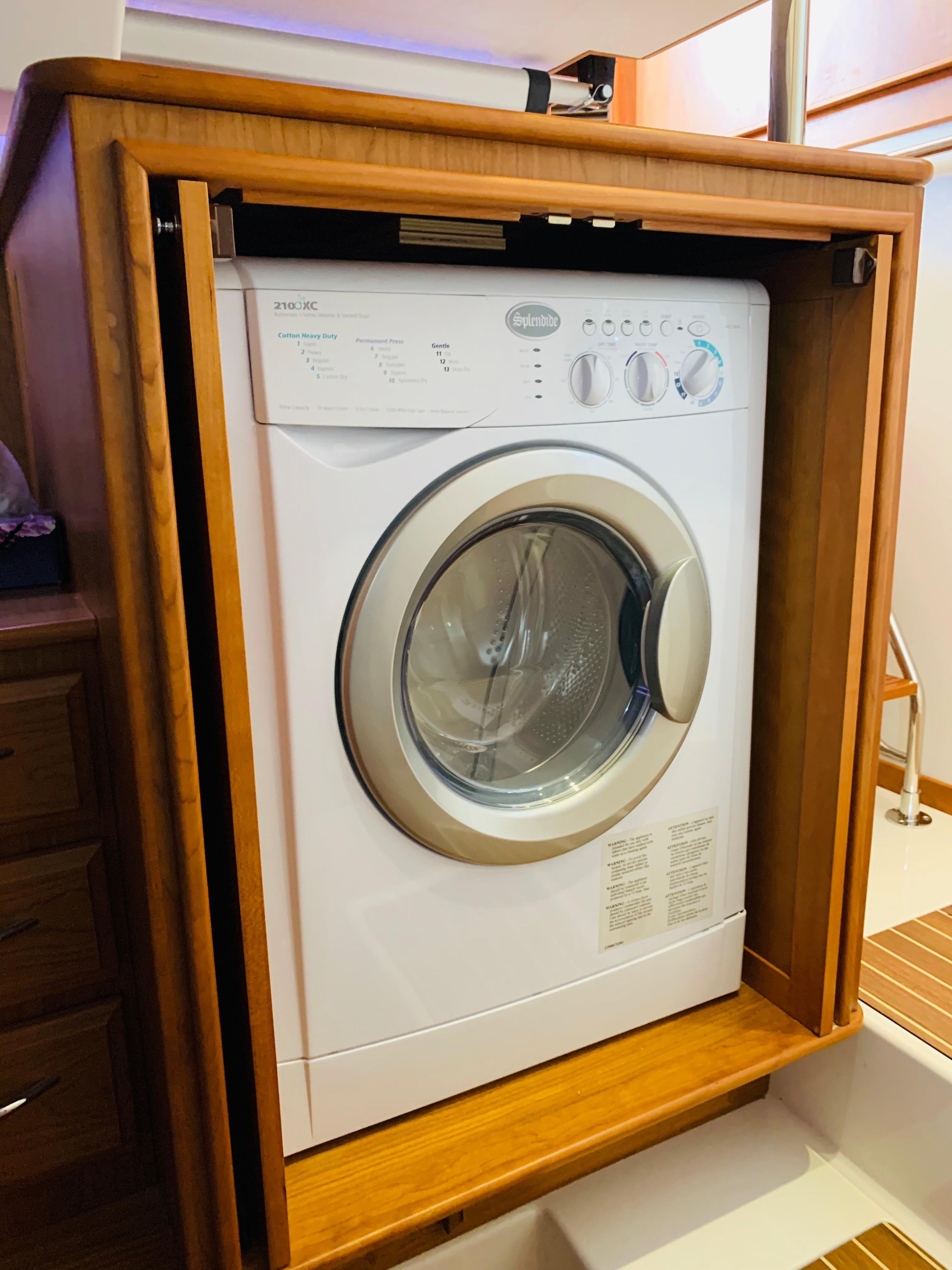

Install Slendide combo washer/dryer with half bureau enclosed with cherry cubby(no door over washer/dryer). Washer/Dryer sits down on FRP and inboard next to berth. Cherry top over washer/dryer extends inboard to become top of bureau. Mirror above washer/dryer and bureau. Outlets, A/C control, etc. to be relocated.

Dealer Work

Custom 9" Box top Latex Mabress in Master and Guest Stateroom

Custom Décor Package Allowance including all bedding, rugs, pilllows, & decorative items

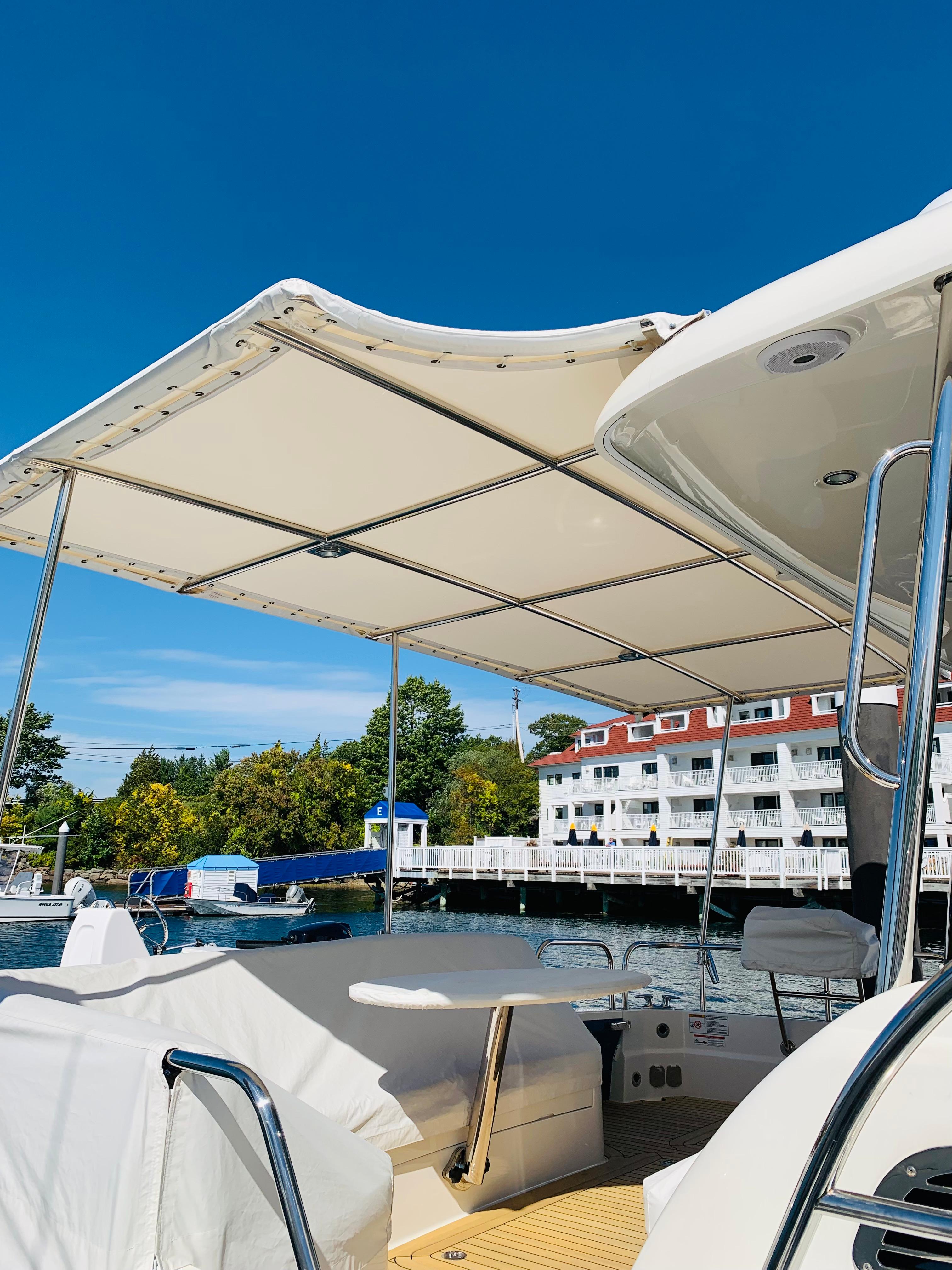

Canvas package with windshield covers and exterior seat covers

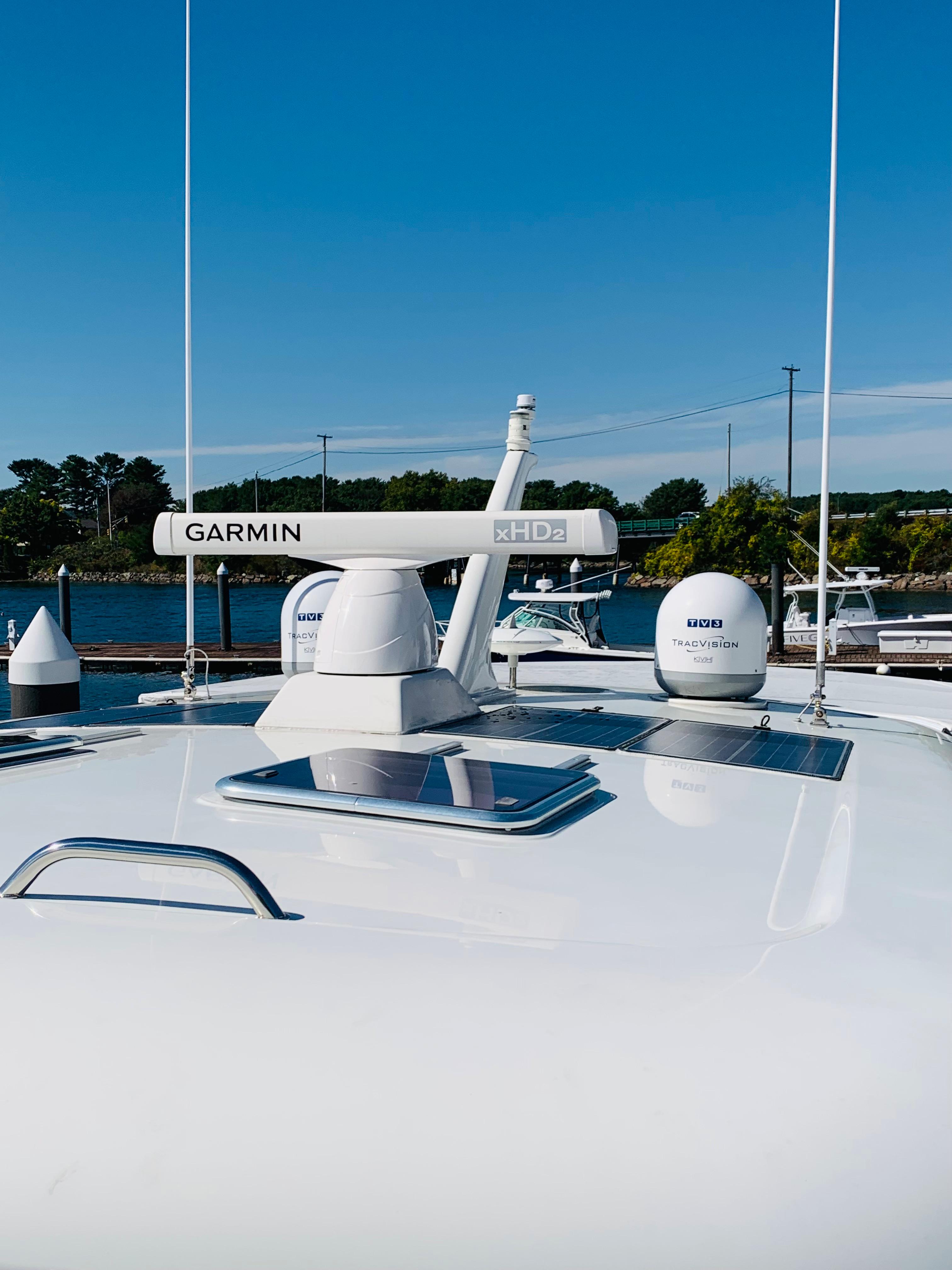

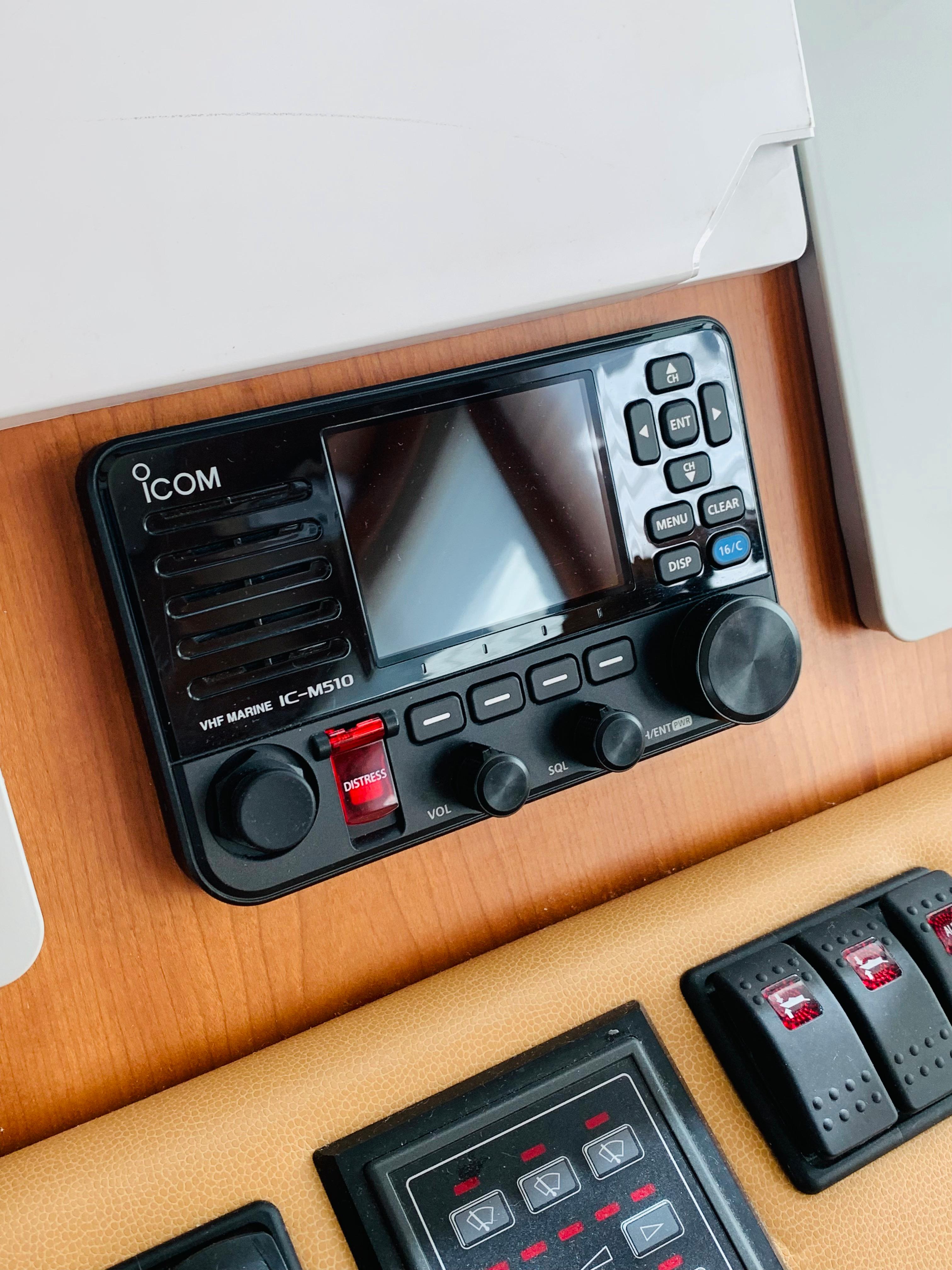

Ellectronics Package--Includes (2) Garmin 8215 MFD with open array radar, sounder, GPS, VHF, AIS, SAT TV with three receivers, dummy dome for balance, Fusion Stereo and speakers, three zones
