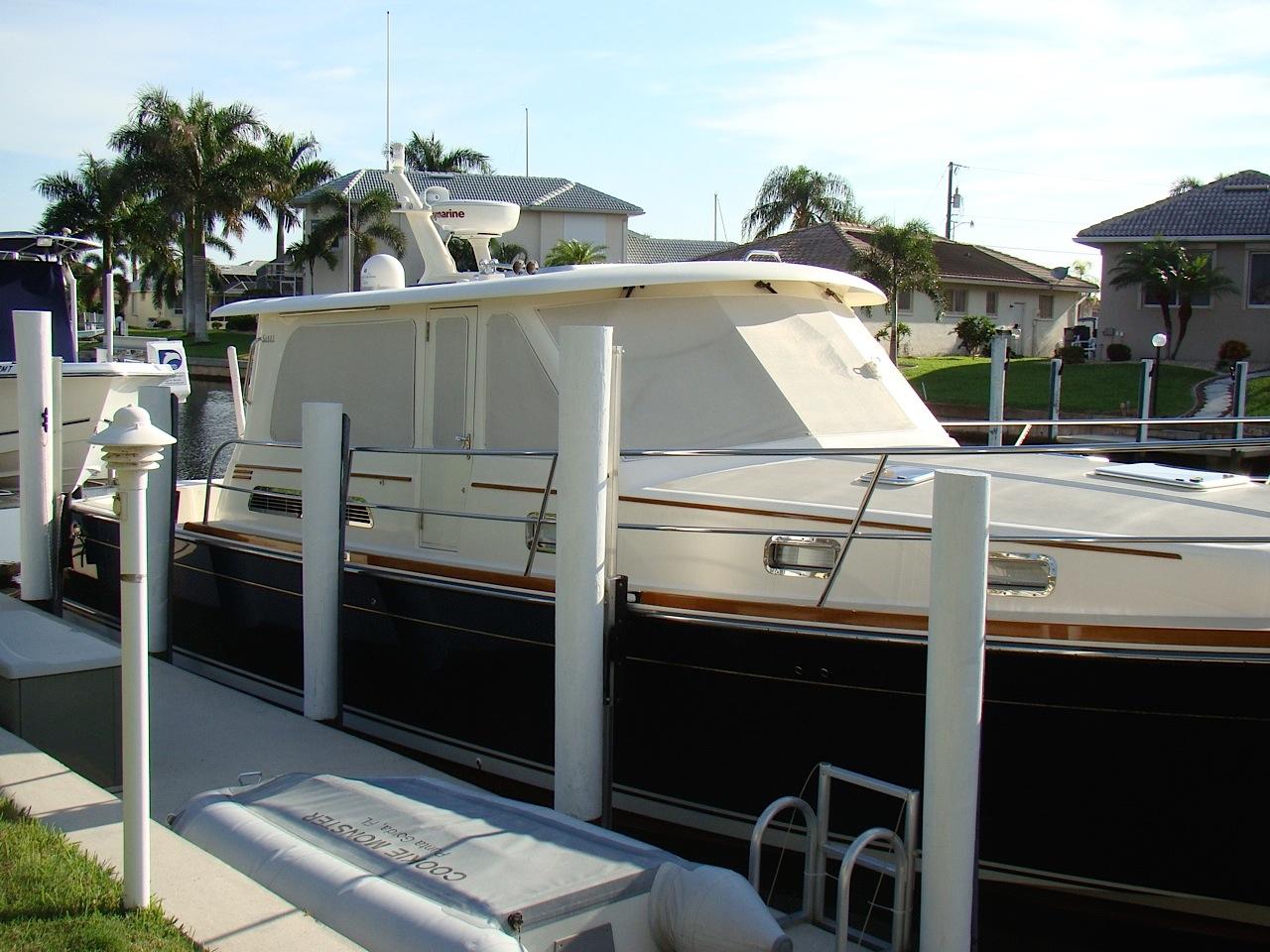

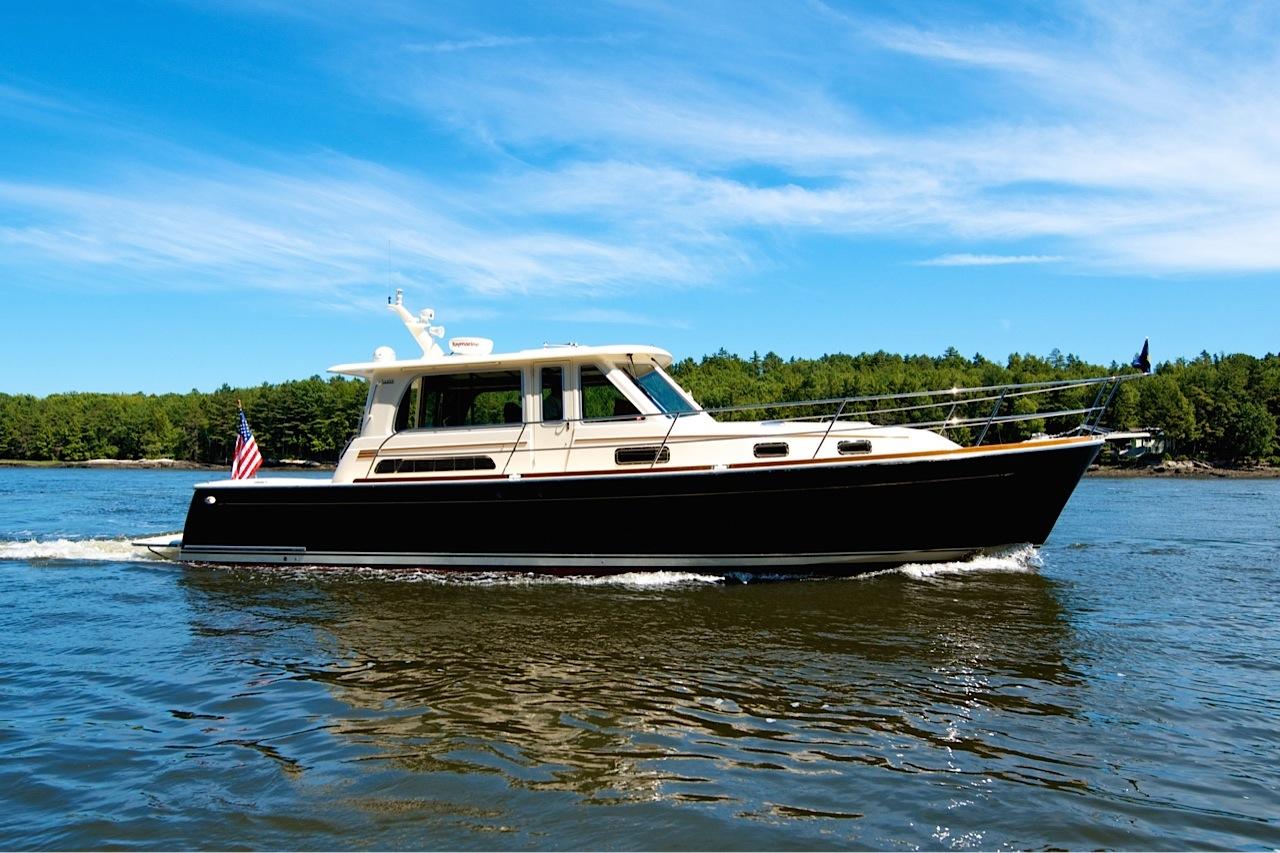

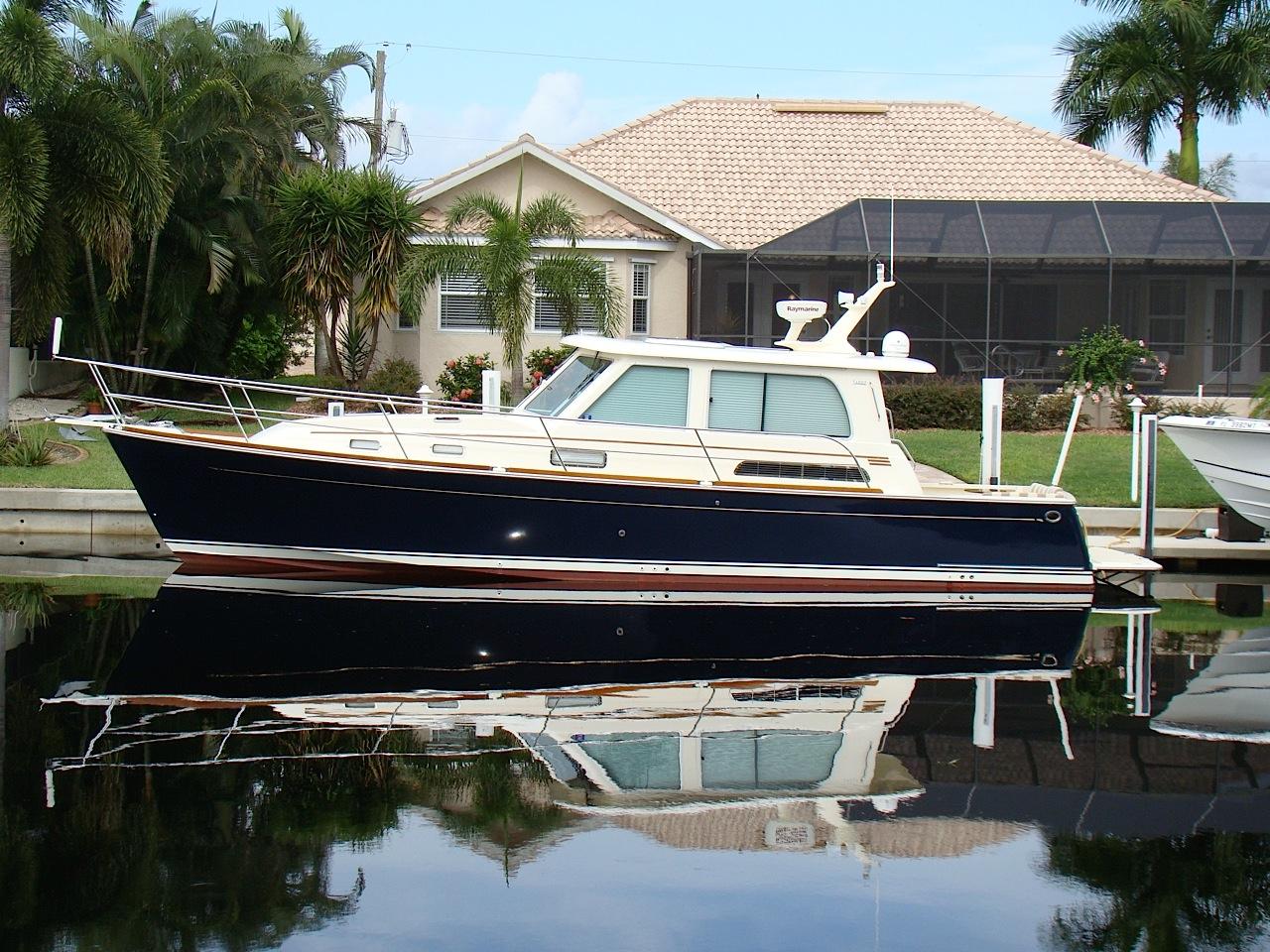

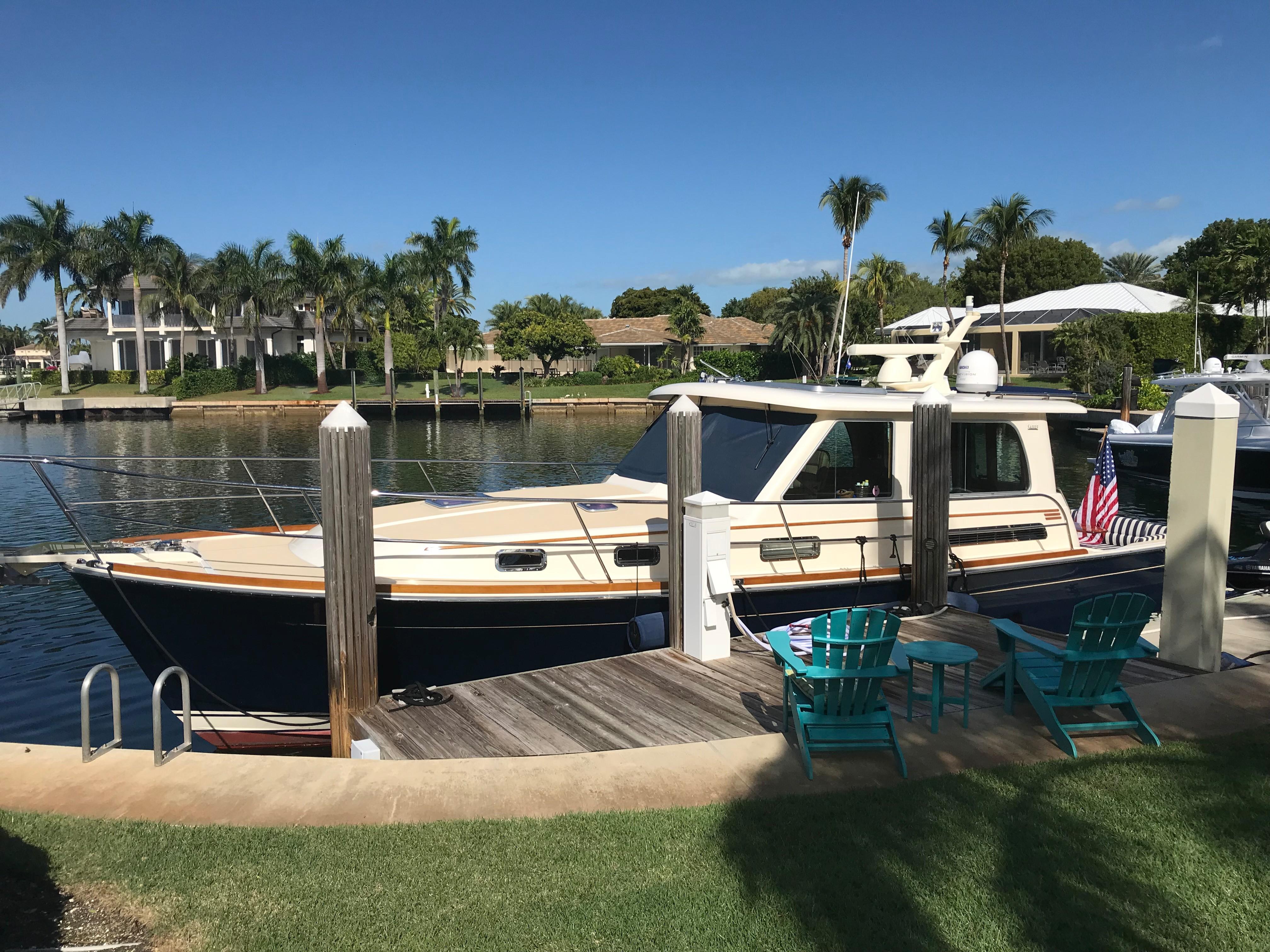

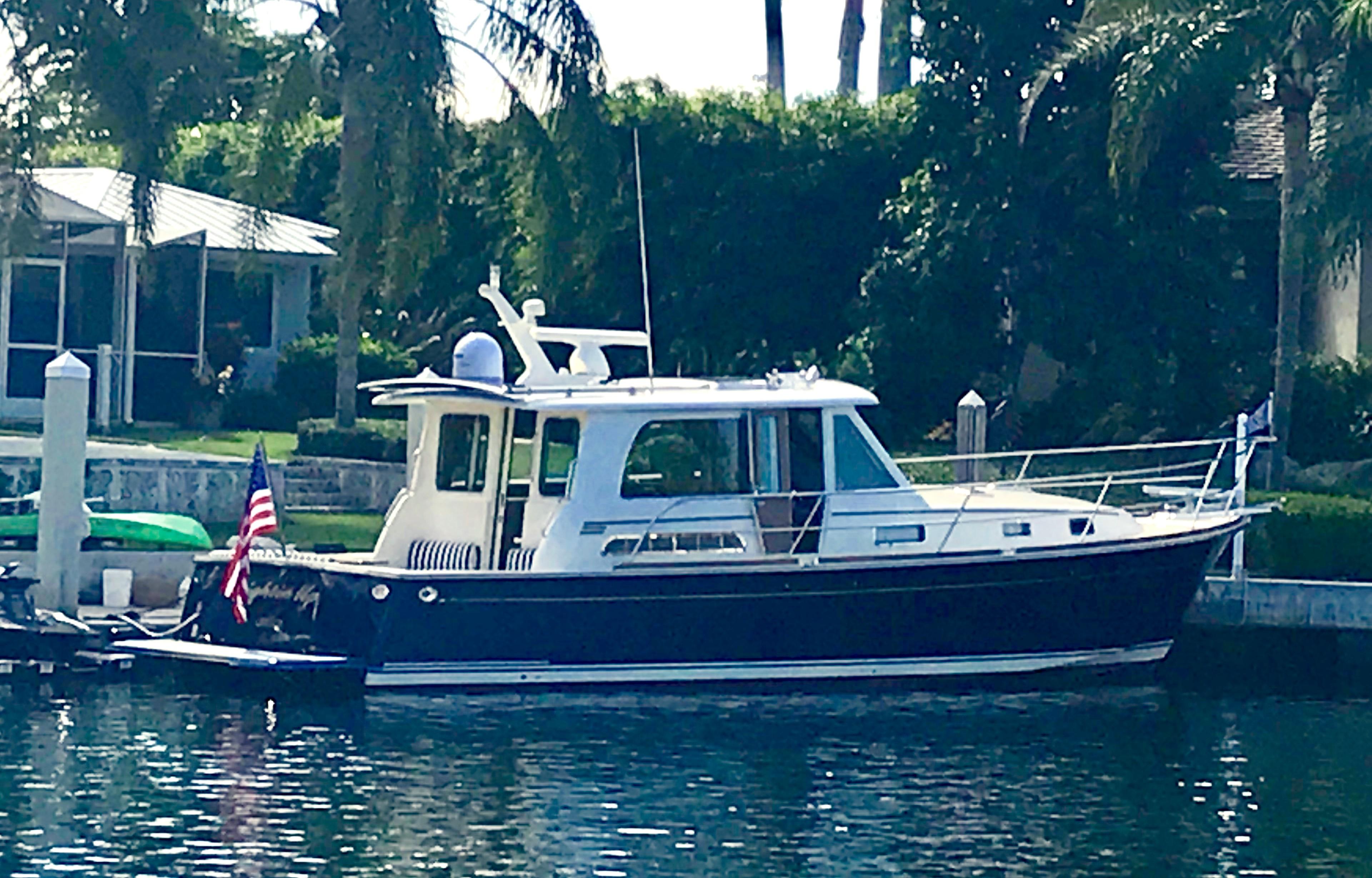

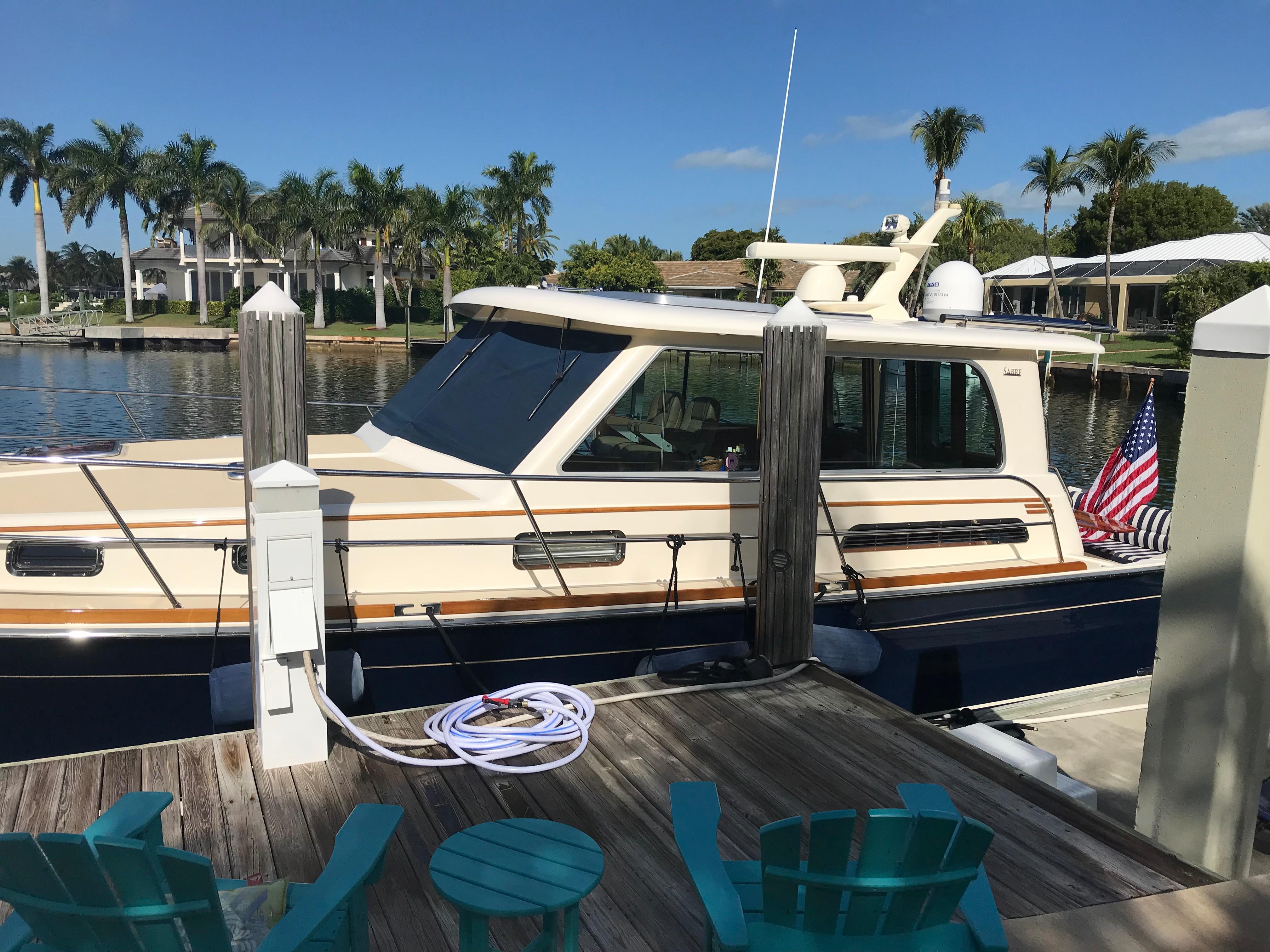

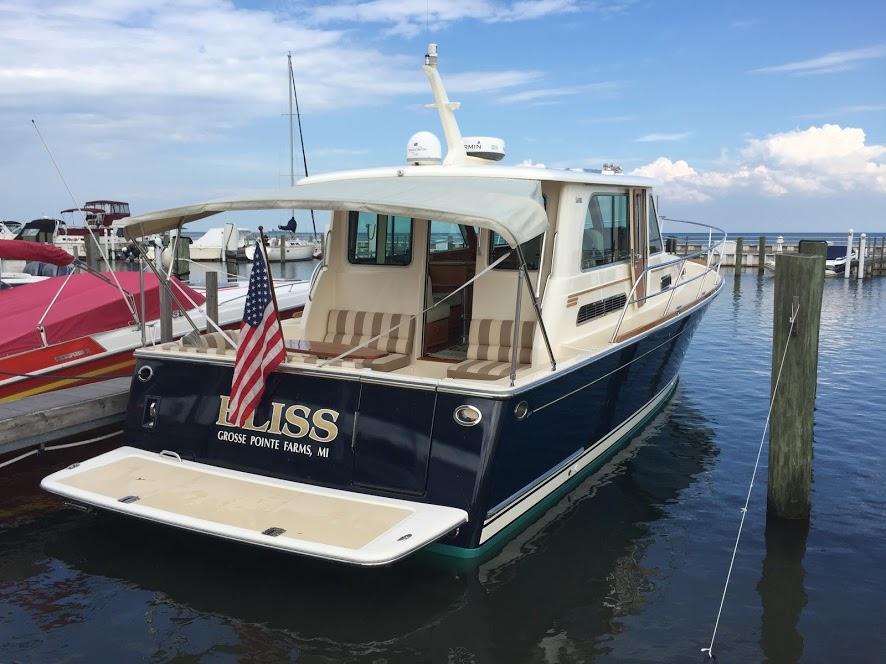

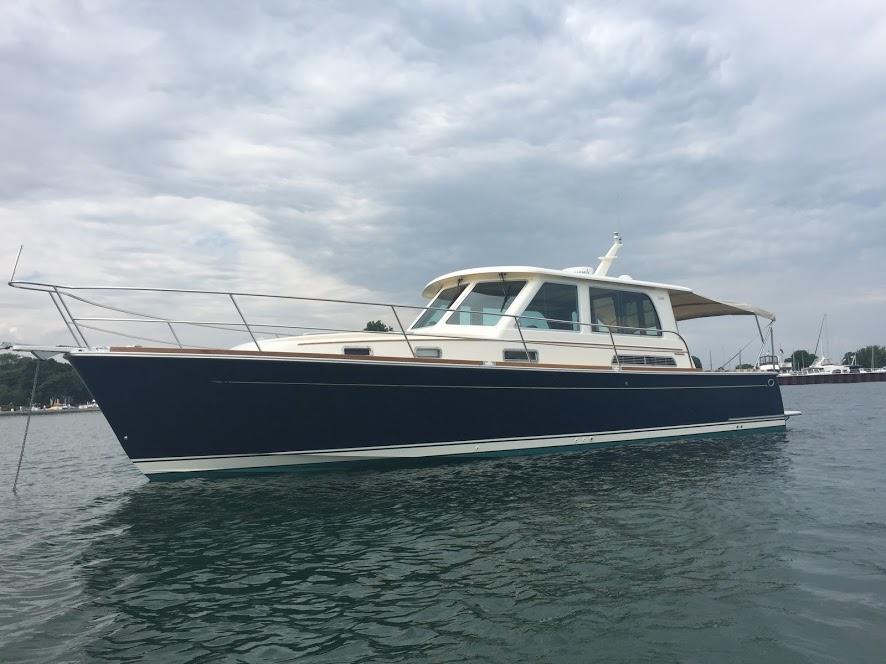

(SOLD) 2011 Sabre Salon Express

Optional Equipment

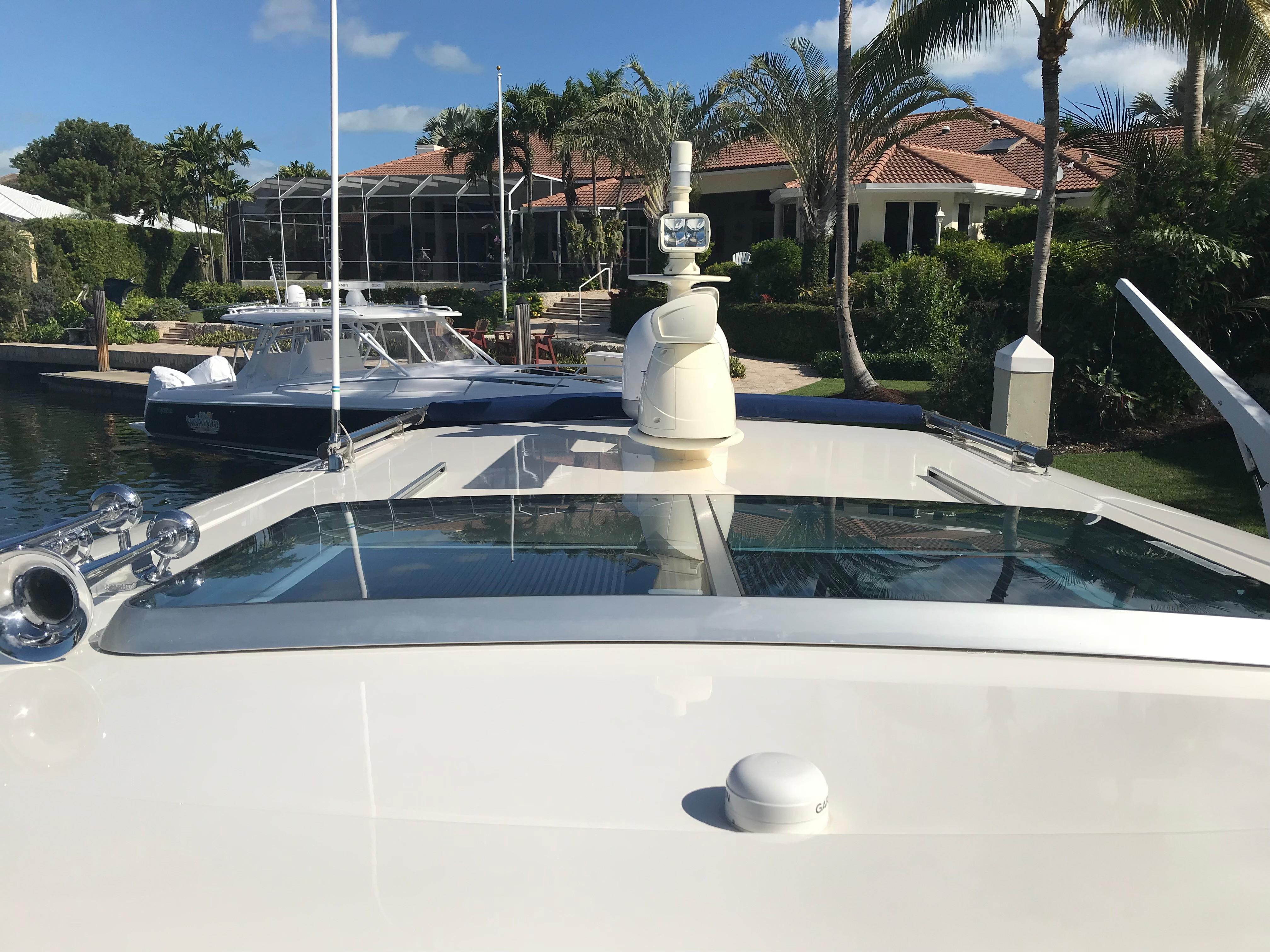

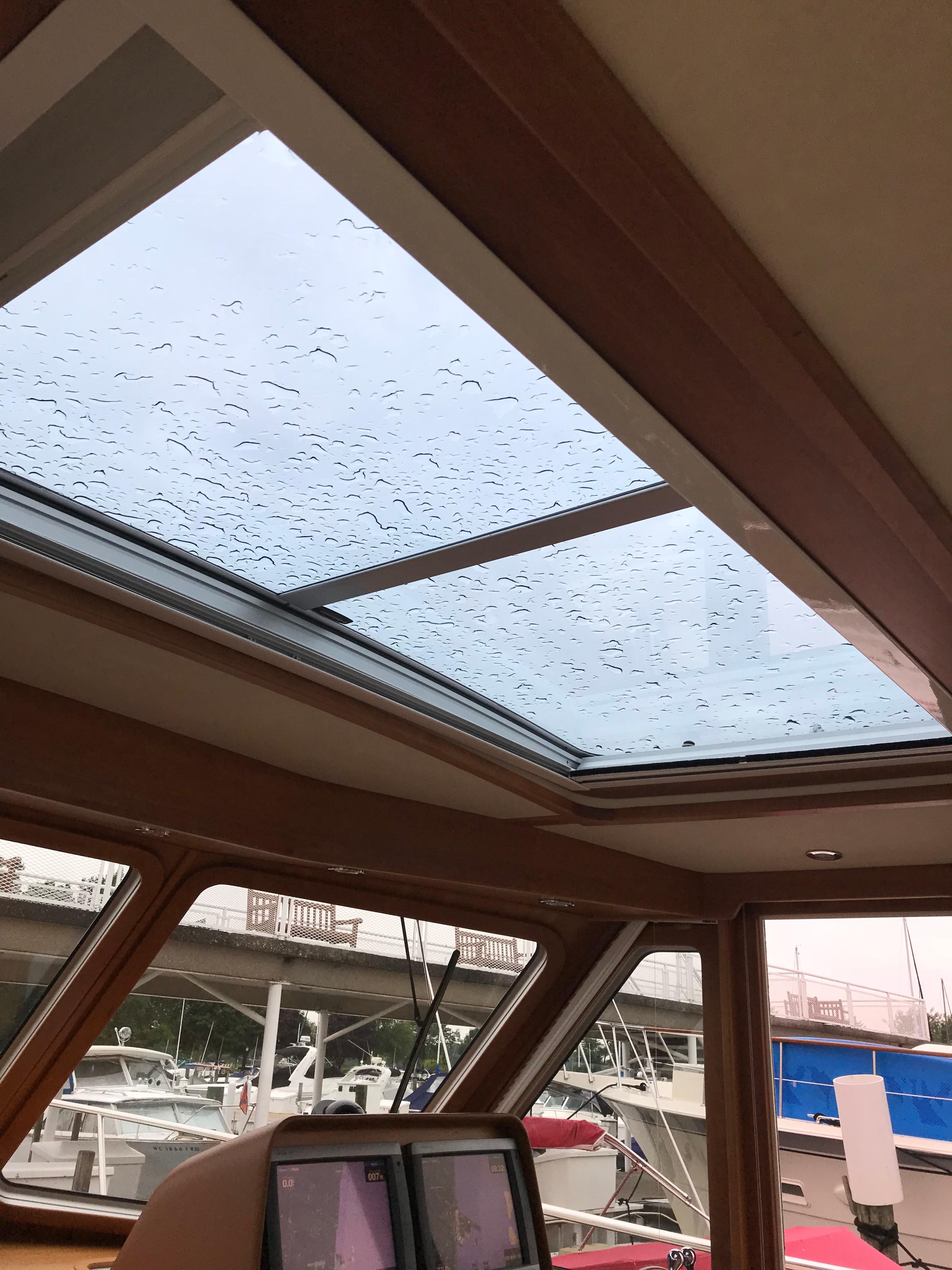

• Electric sunroof
• FRP molded electronics mast
• Additional dimmer switches in galley dinette and forward cabin, salon standard

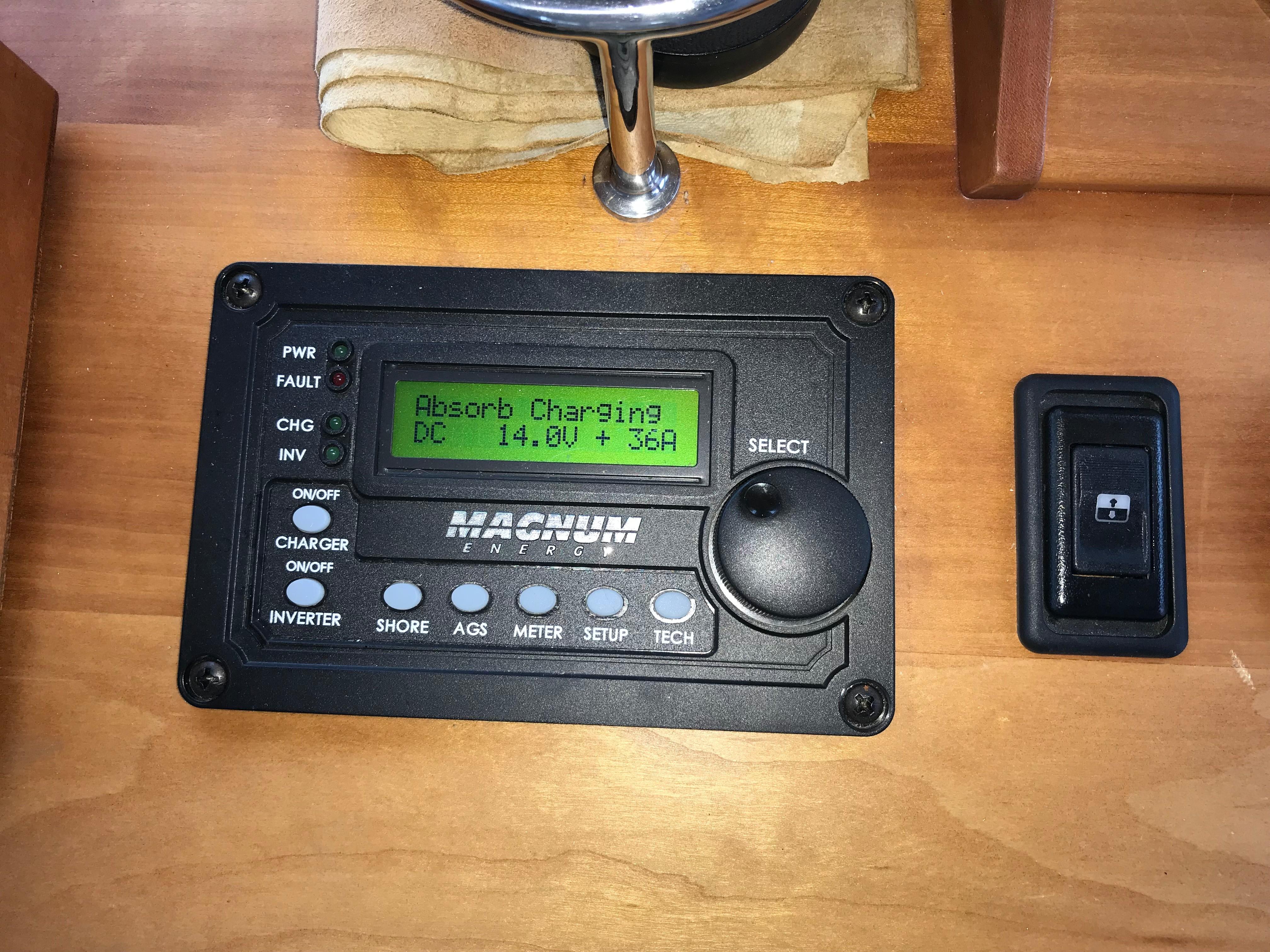

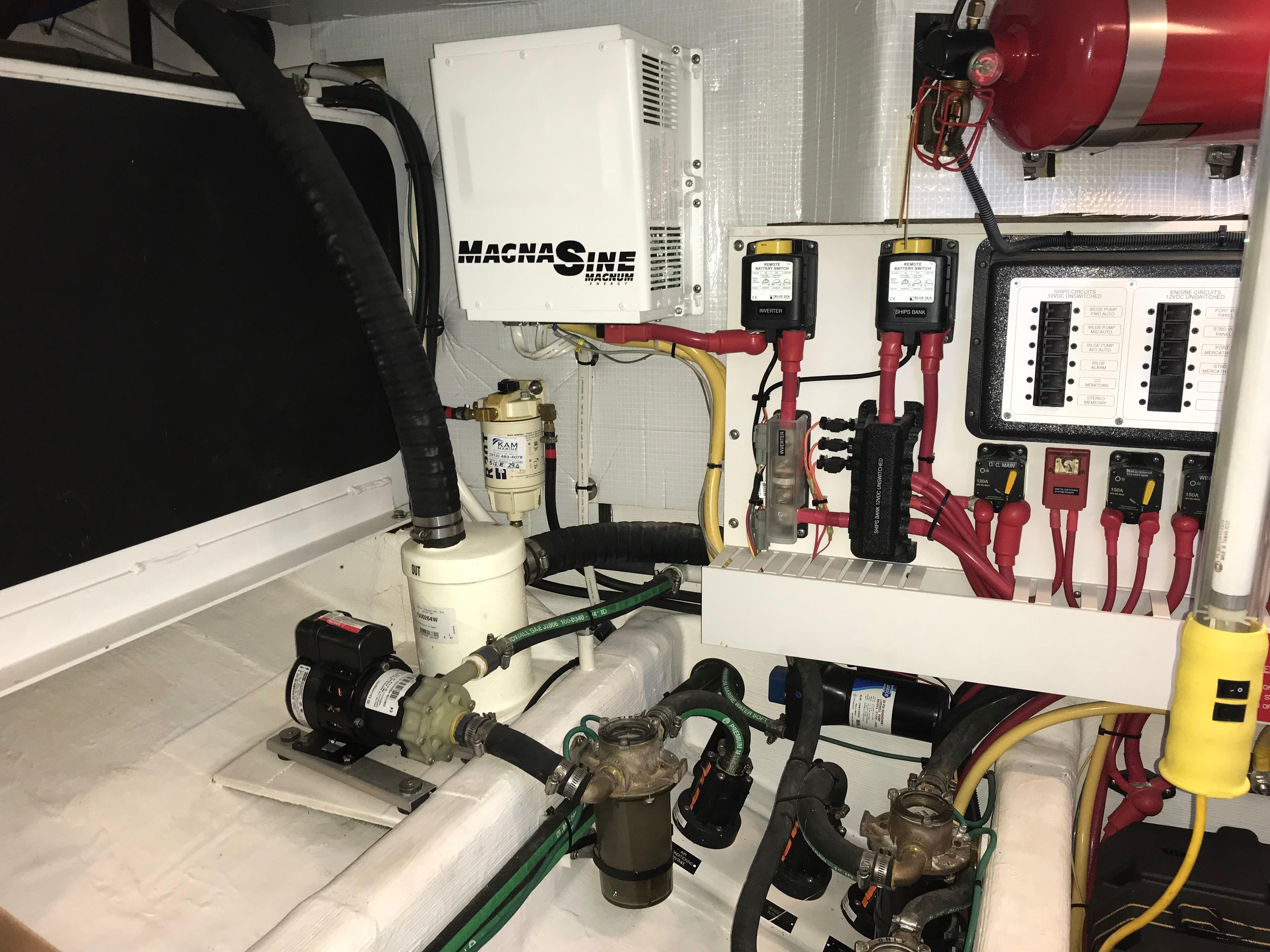

• Inverter/charger 3000 W true sine wave with remote

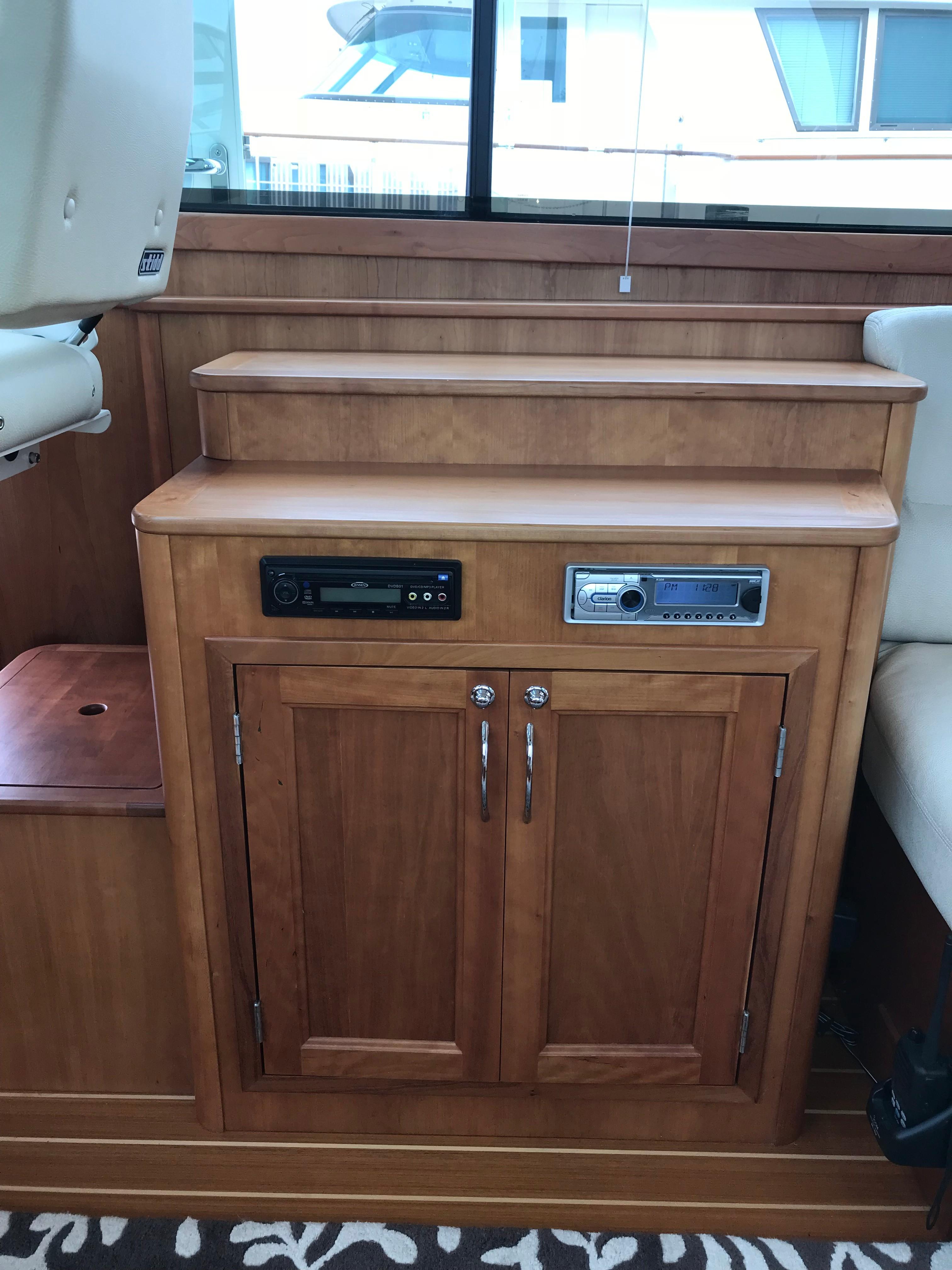

• Clarion AM/FM CD
• 50A shower power with cord reel in lieu of dual 30A
• Beige contrasting antiskid
• Flag blue gelcoat hull
• Ultraleathr interior fabric
• Reverse Oil change system
• Hot and cold transom shower
• Raw water wash down fore and aft
• Shore water inlet
• Single seagull water purifier on galley cold water
• Mirror in upper and lower panel of door between head and forward cabin
• Cherry town bars on inside of head doors
• Replace white cabinet doors in head with cherry tambour
• Teak and holly galley sole in lieu of maple

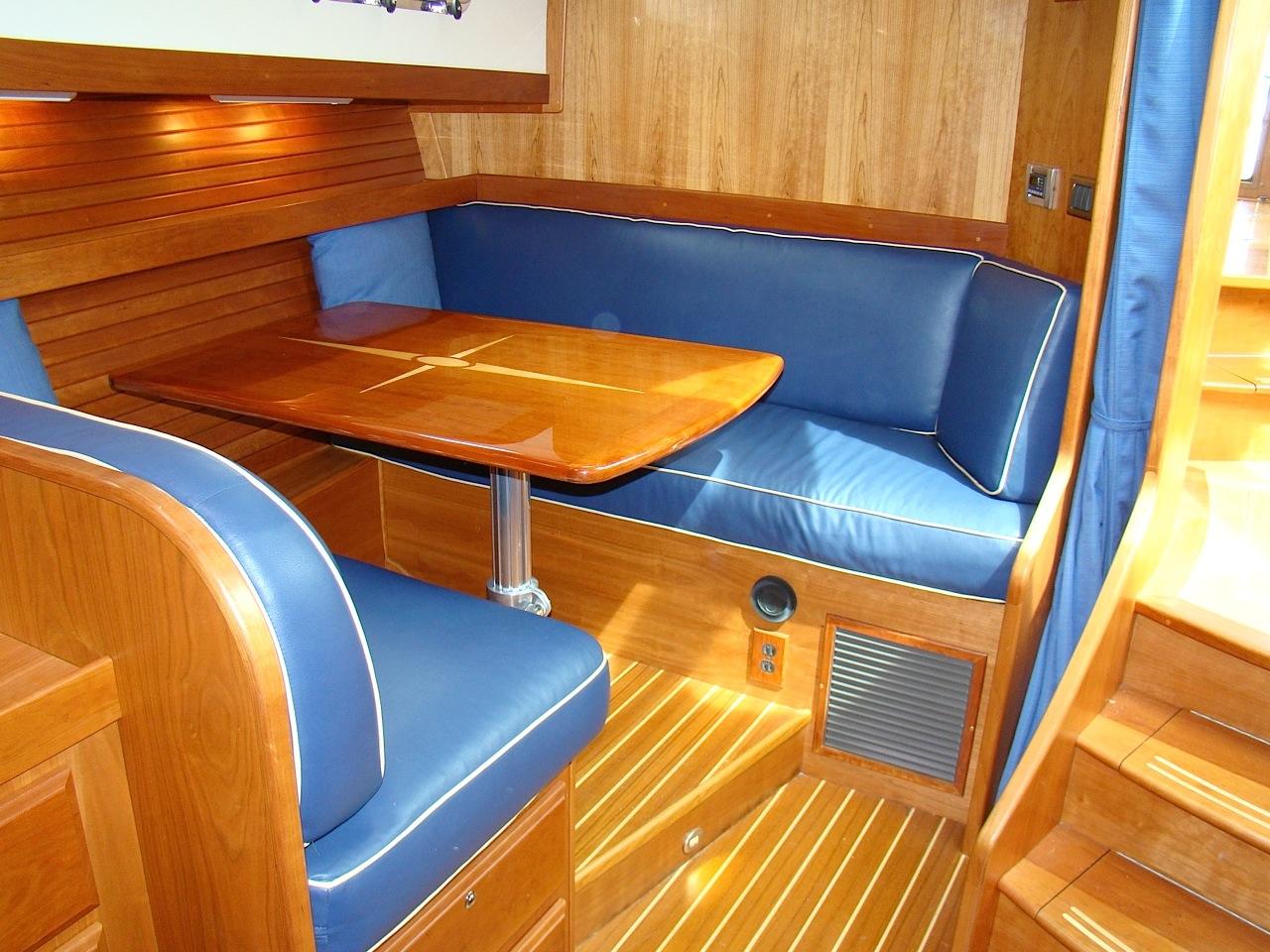

• Salon table lowers for berth

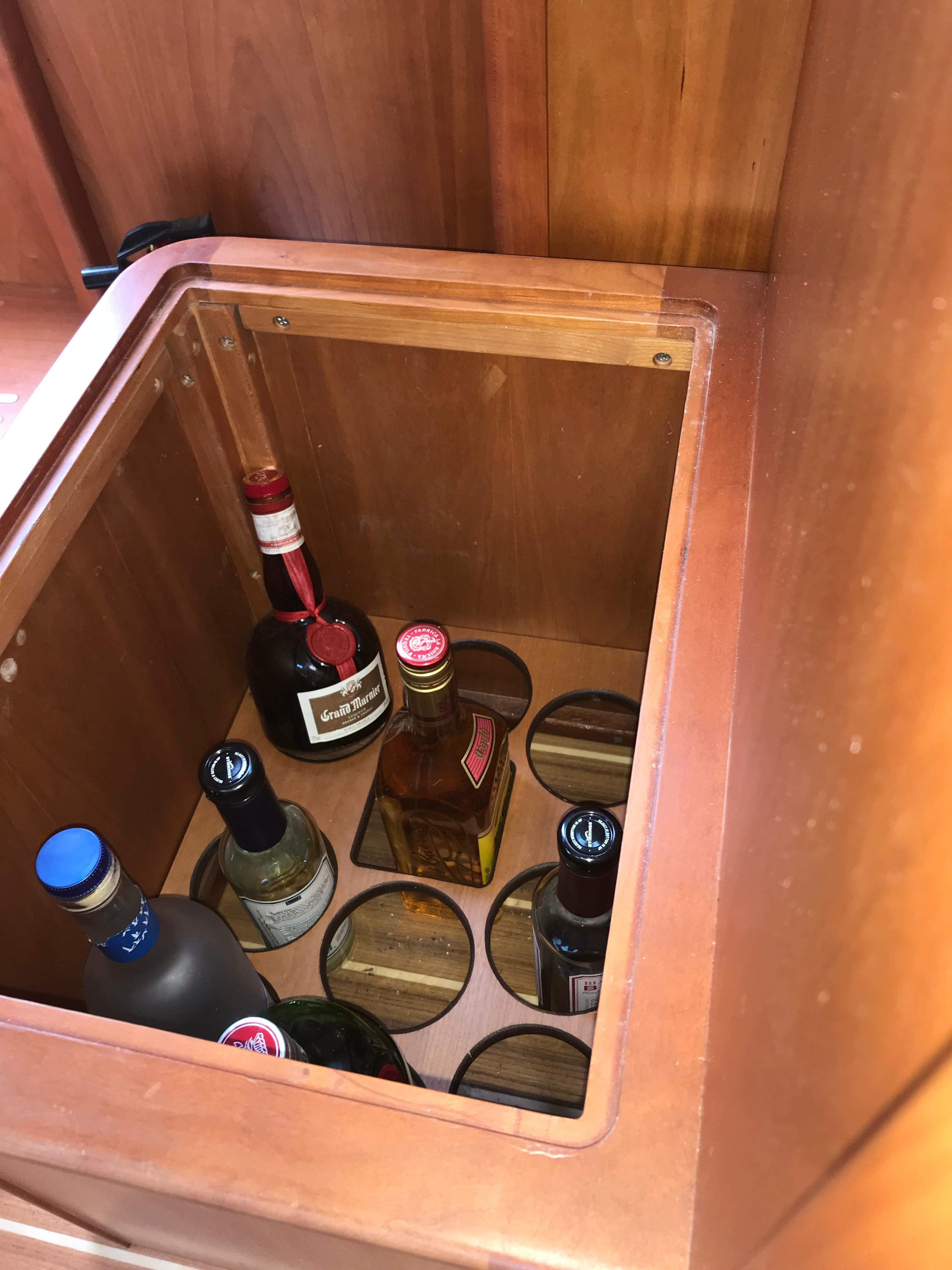

• Liquor locker with top opening hatch

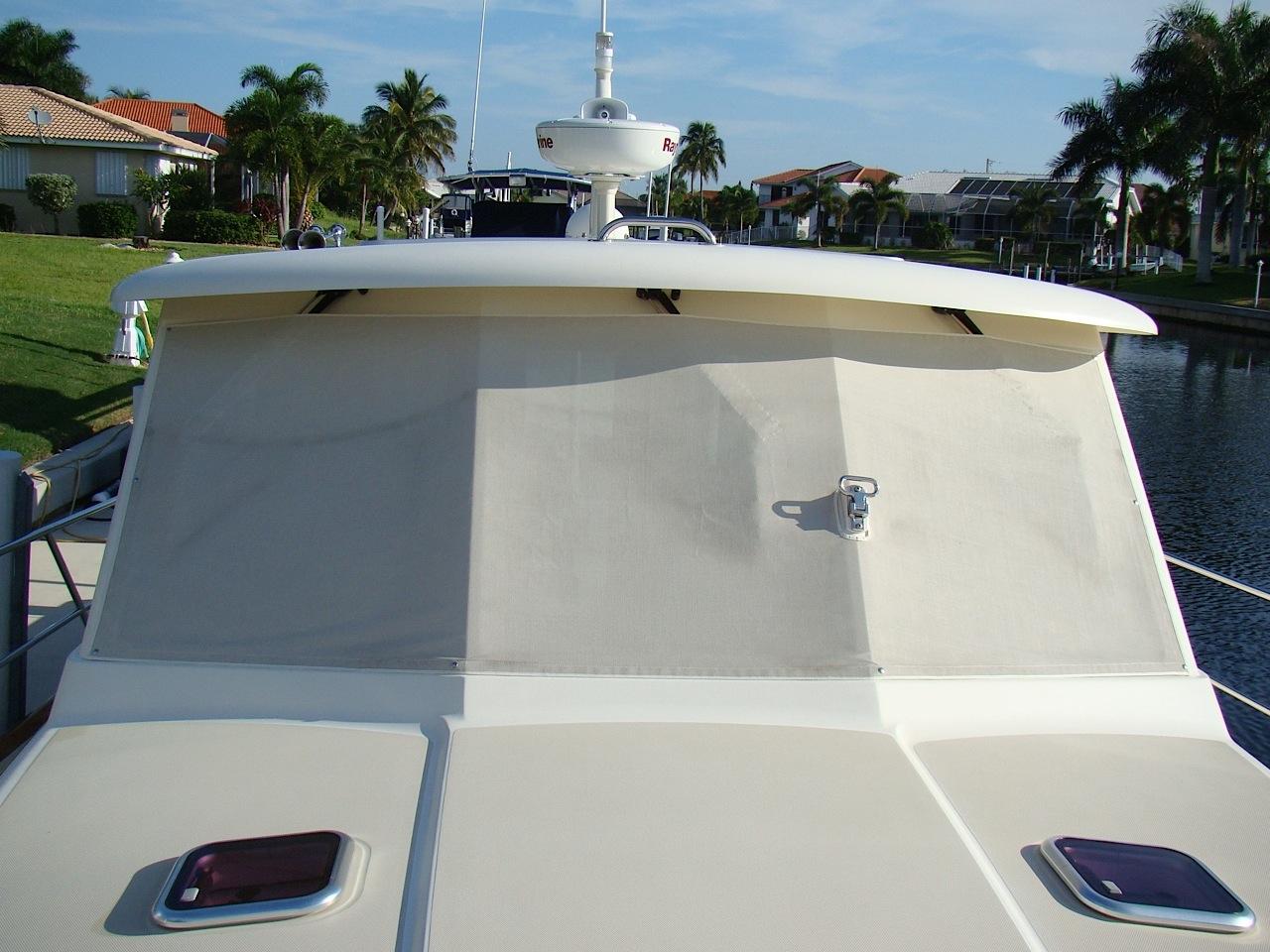

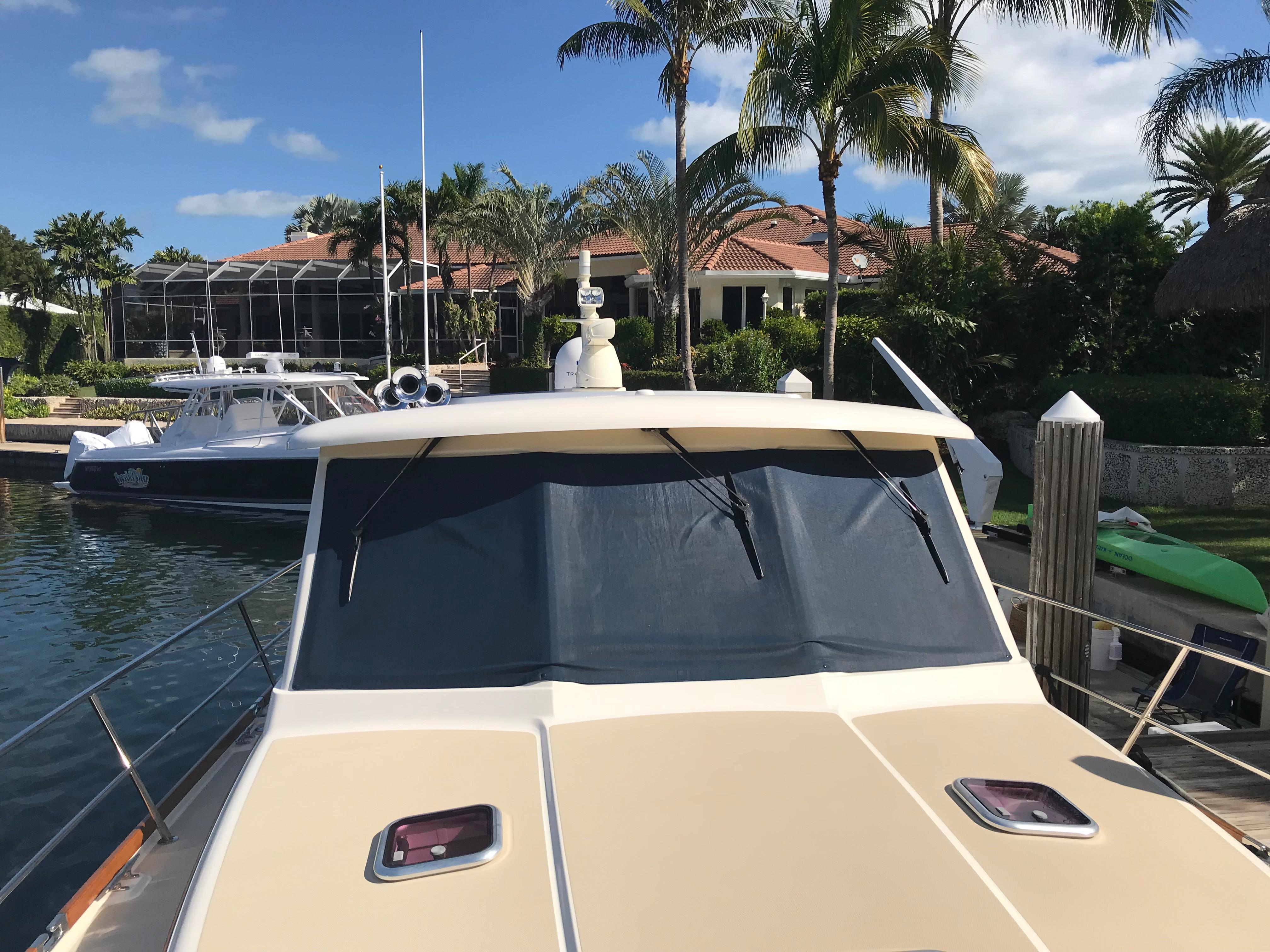

• Textaline exterior windshield covers
• Stamoid seat covers
• Stamoid cockpit bimini top

Electronics

• Dual 12" Garmin 5212 MFD RayMarine Digital Depth Sounder / Temperature Module

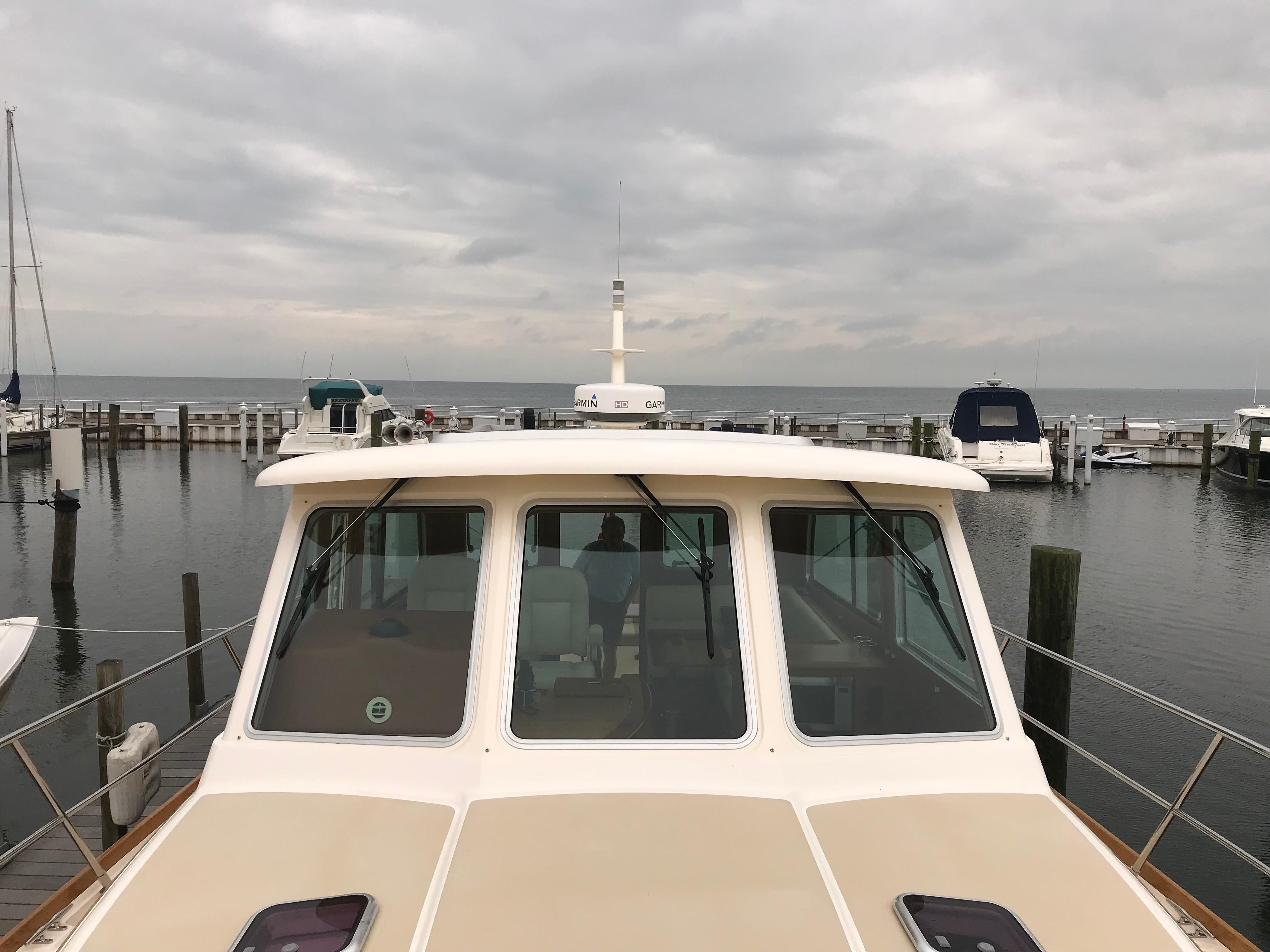

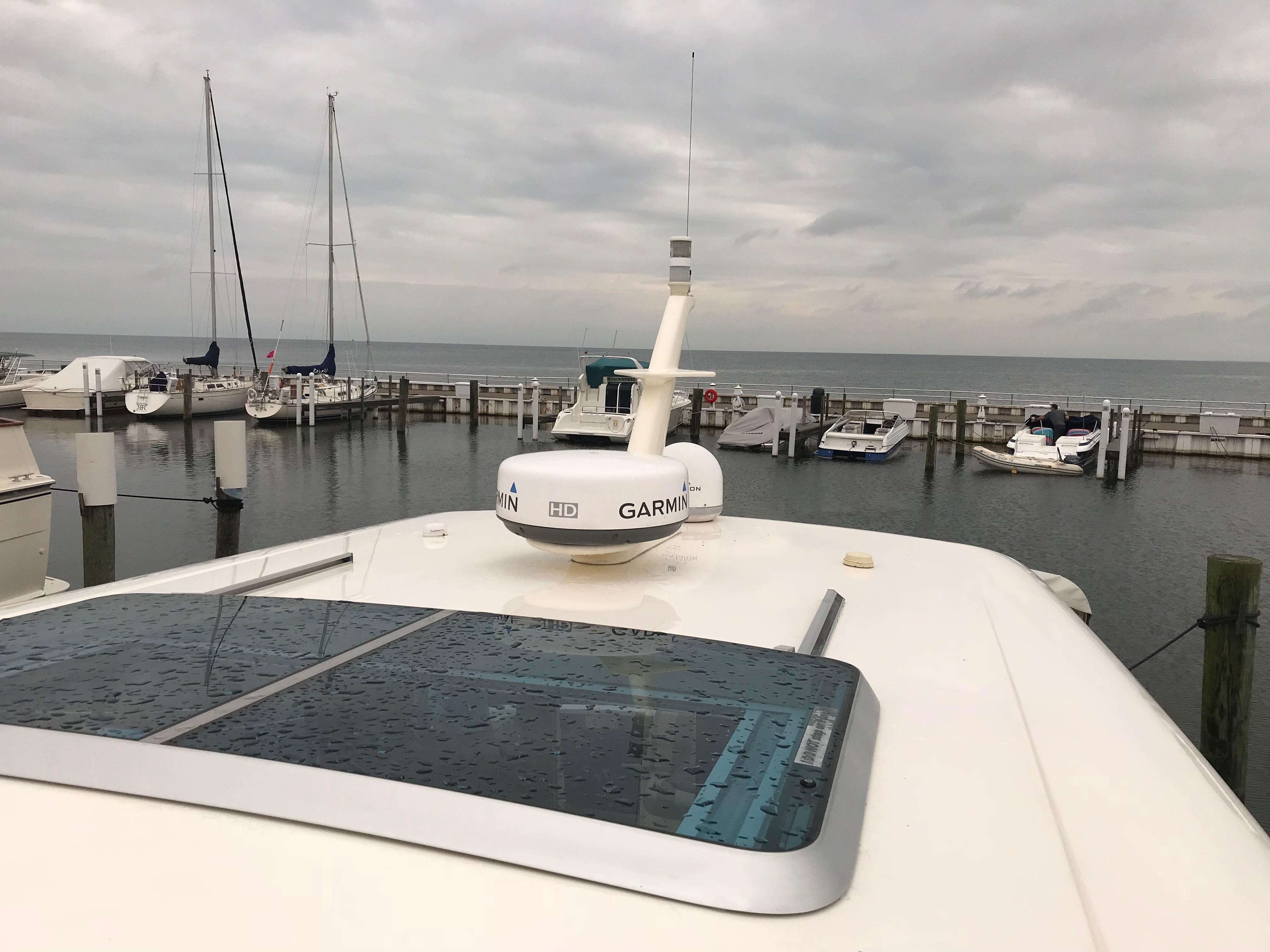

• Garmin 4 kW HD Radar Dome

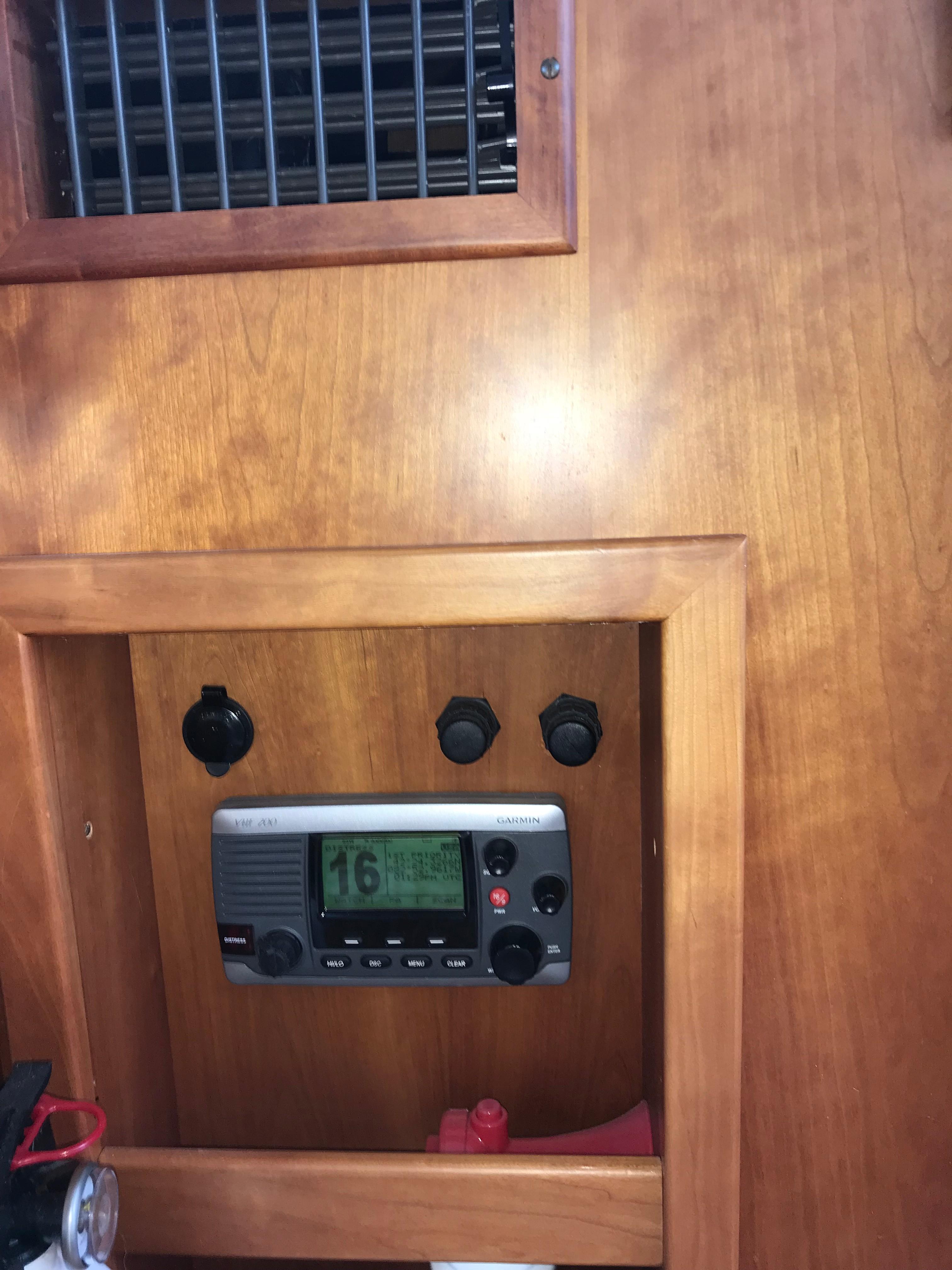

• Garmin VHF
• Trac Vision Satellite TV with (2) Receivers
• Zeus/Maretron Autopilot integrated into Garmin Navigation Equipment

Decor

• - V arnished cherry interior finish.
•  Screens on all opening ports.
• Ocean Air screen/blinds on deck hatches.
• Ocean Air blinds on side windows and side door
• Optional fabric and drapery selections.
• Dovetailed maple drawer boxes

Hull

• -  Modified Deep “V” Planing hull design, with shallow pod drive tunnels.

• -  16o deadrise at transom, 23o deadrise amidships.

• -  ISO NPG white gelcoat w/vinylester back-up resin.

• -  Bottom, topsides and transom vacuum-infused biaxial E-glass

  with Airex C70 foam core.

• -  Stringer system biaxial E-glass with foam core.

• -  Bulkheads vacuum-bagged biaxial E-glass with polypropylene

  honeycomb core.

• -  Molded E-glass swim platform with molded-in anti-skid surface.

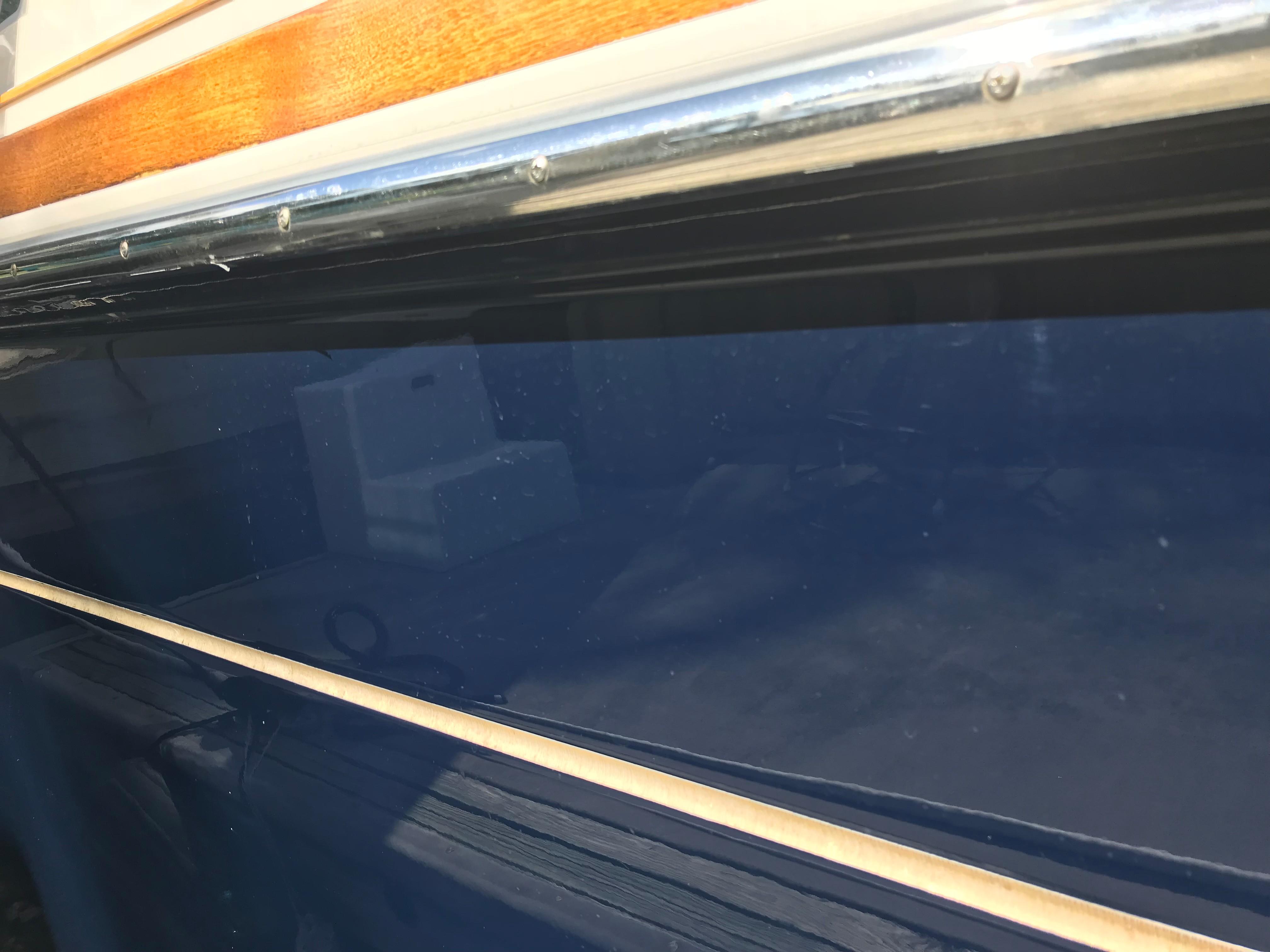

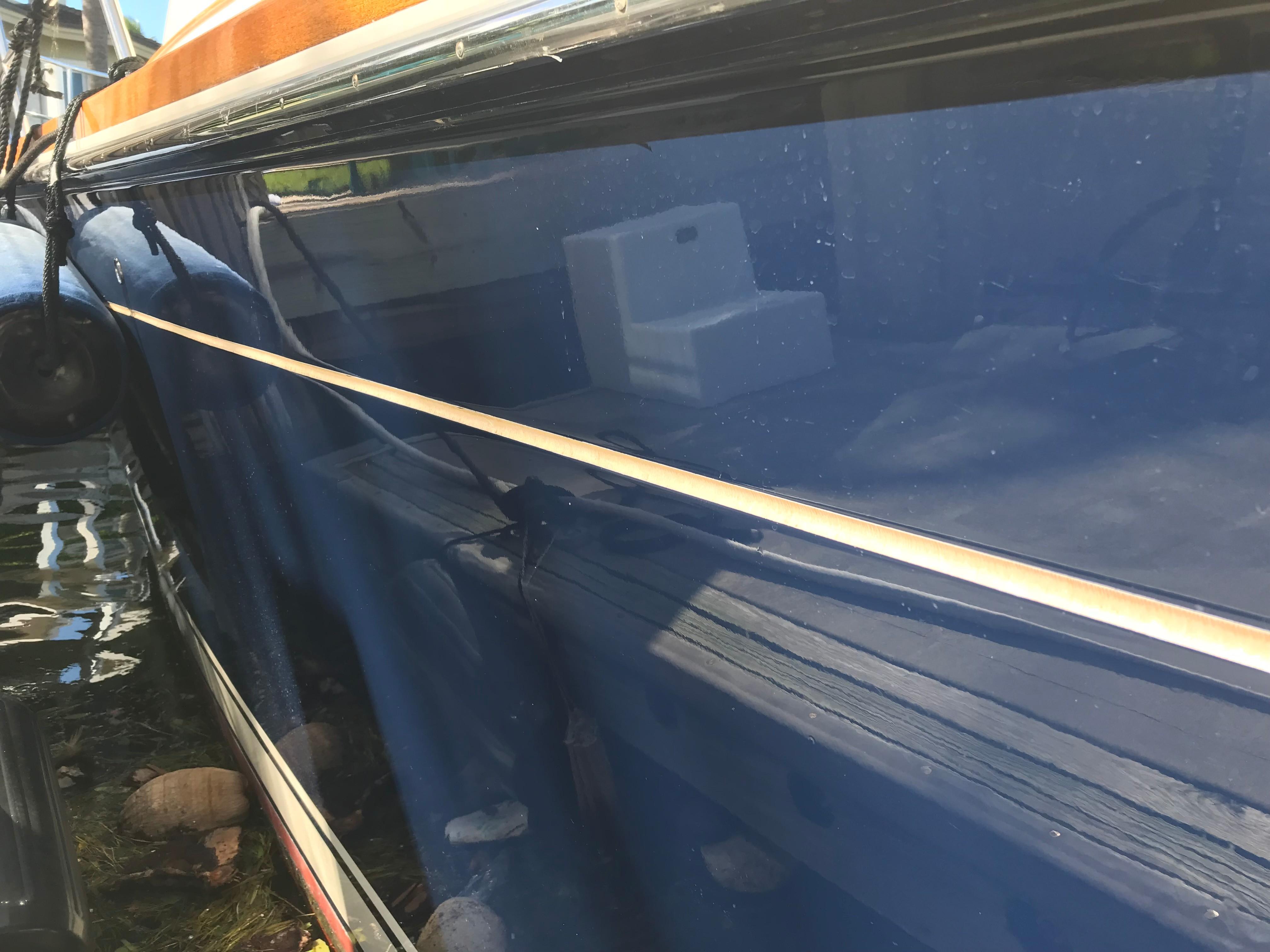

• -  Hull side rubbing strakes.

• -  PVC rub rail with stainless steel cap.

• -  Painted (IMRON) double boot top.

• -  Gold recessed cove stripe.

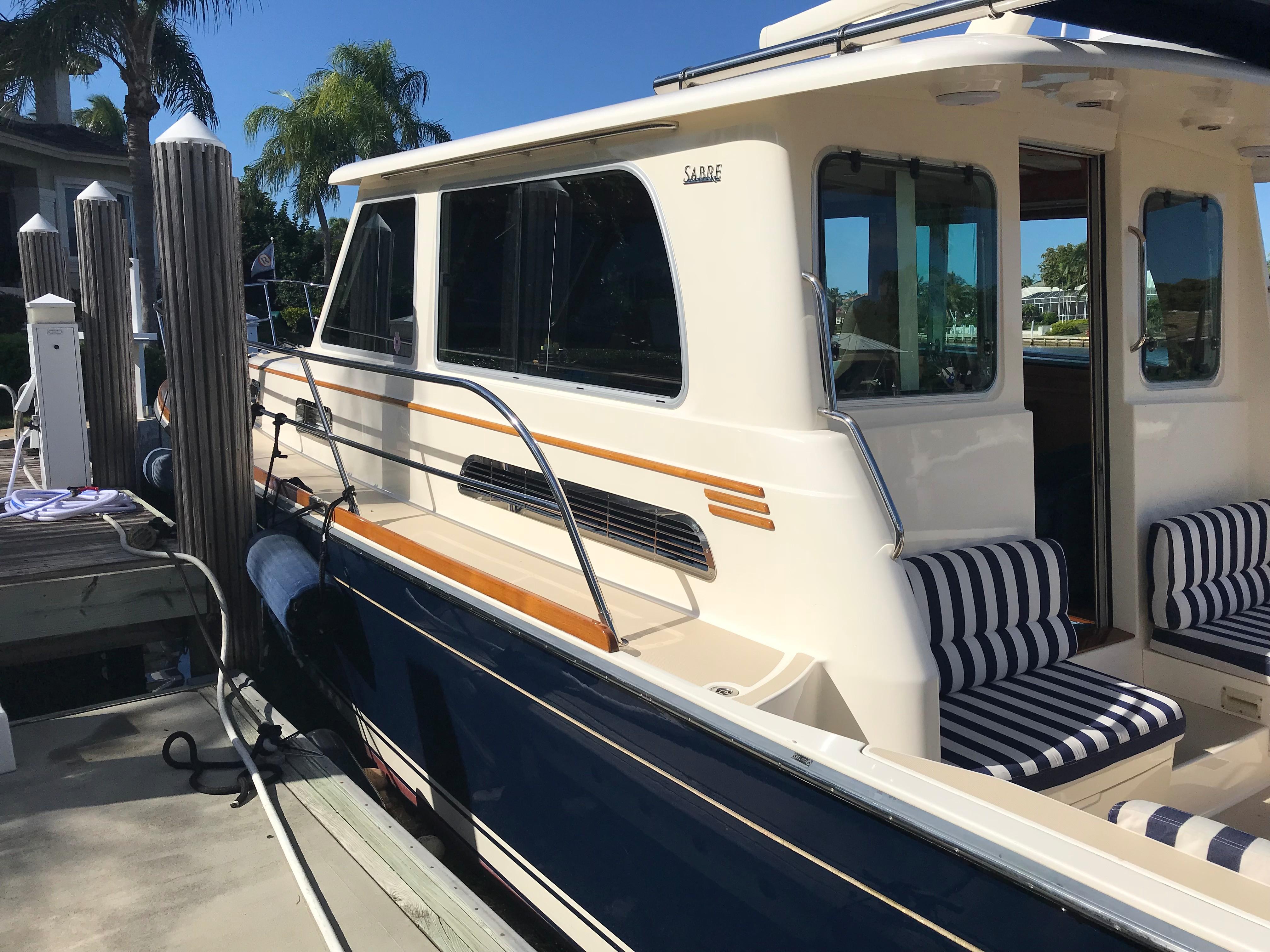

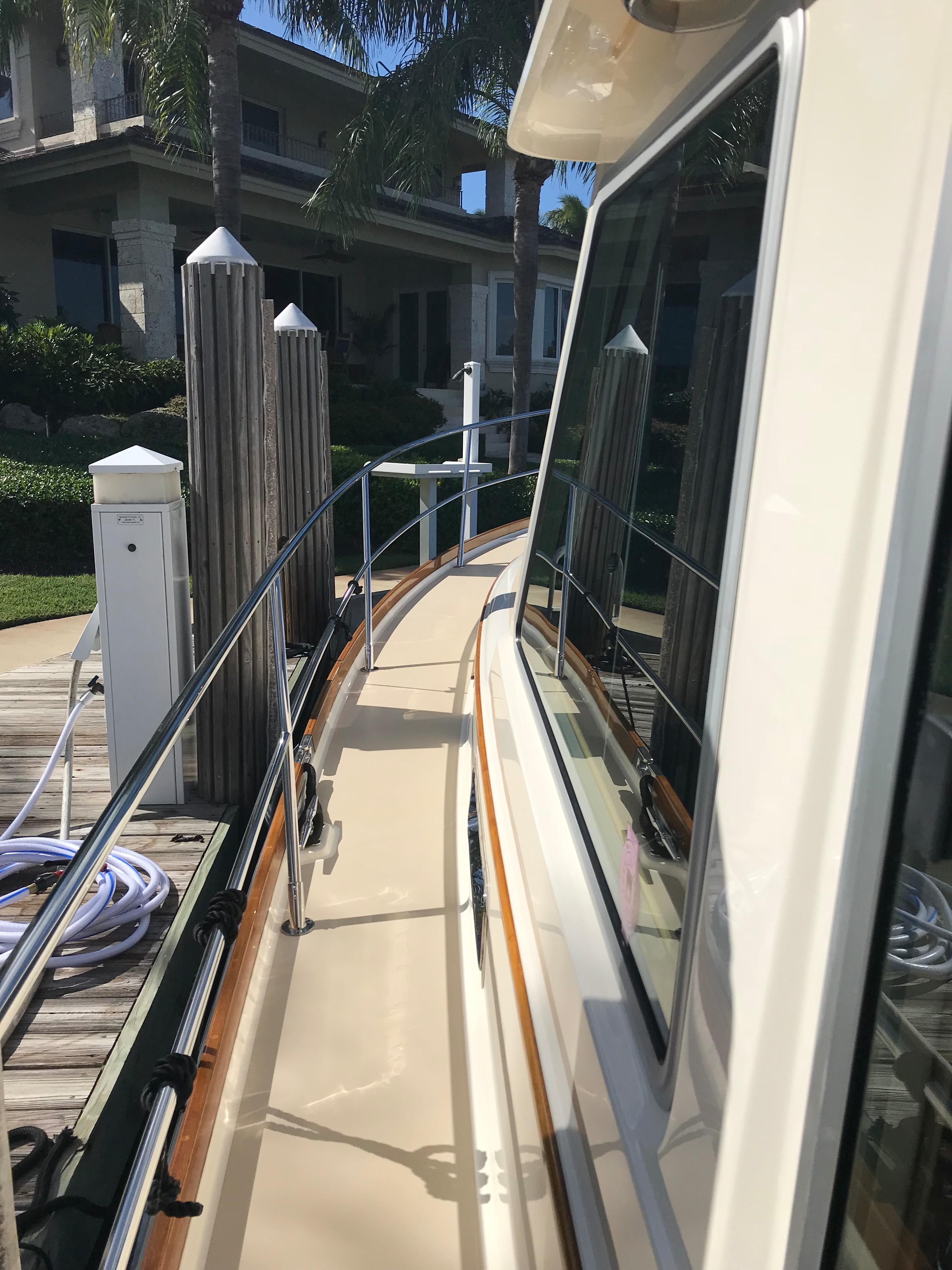

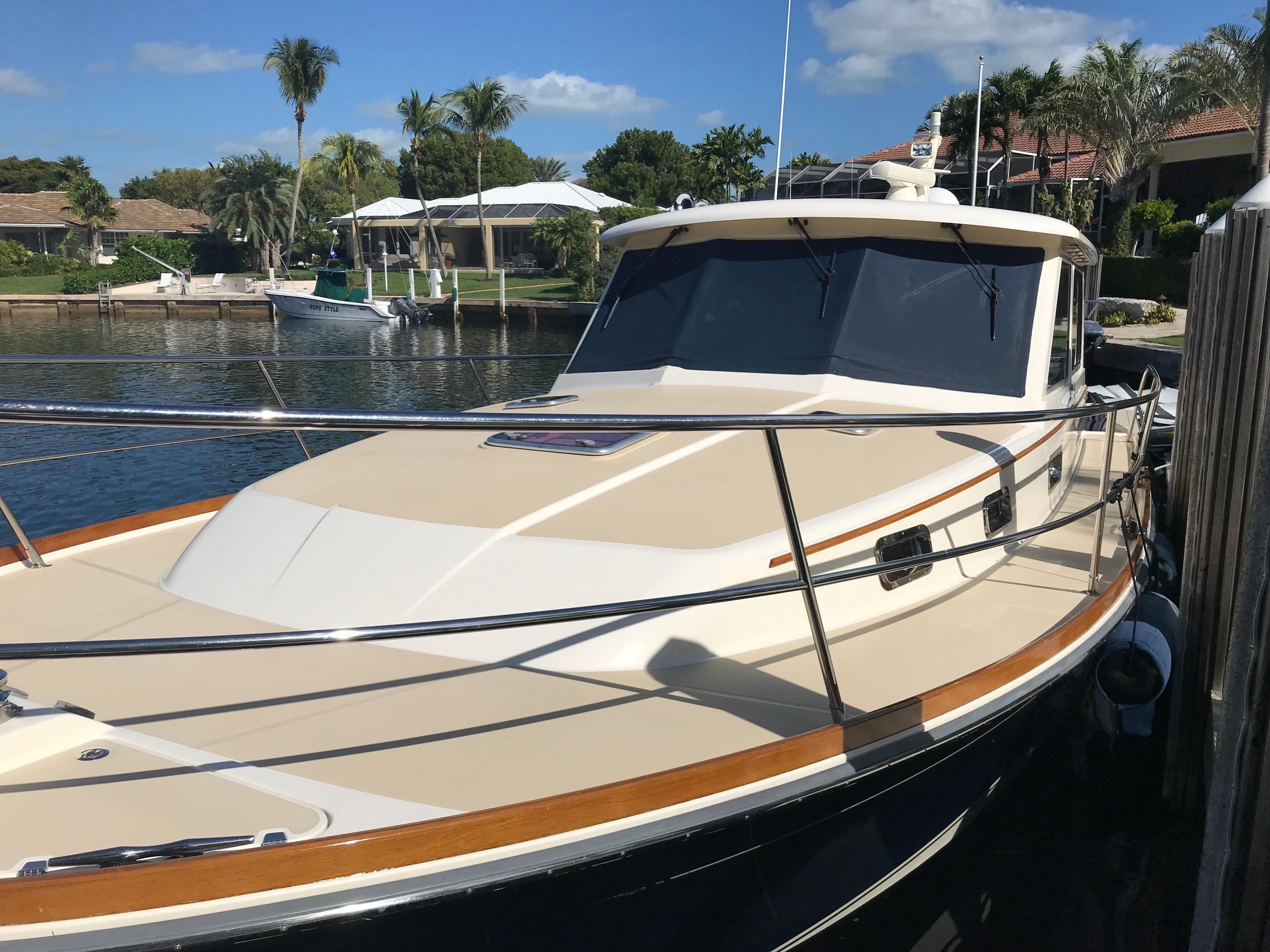

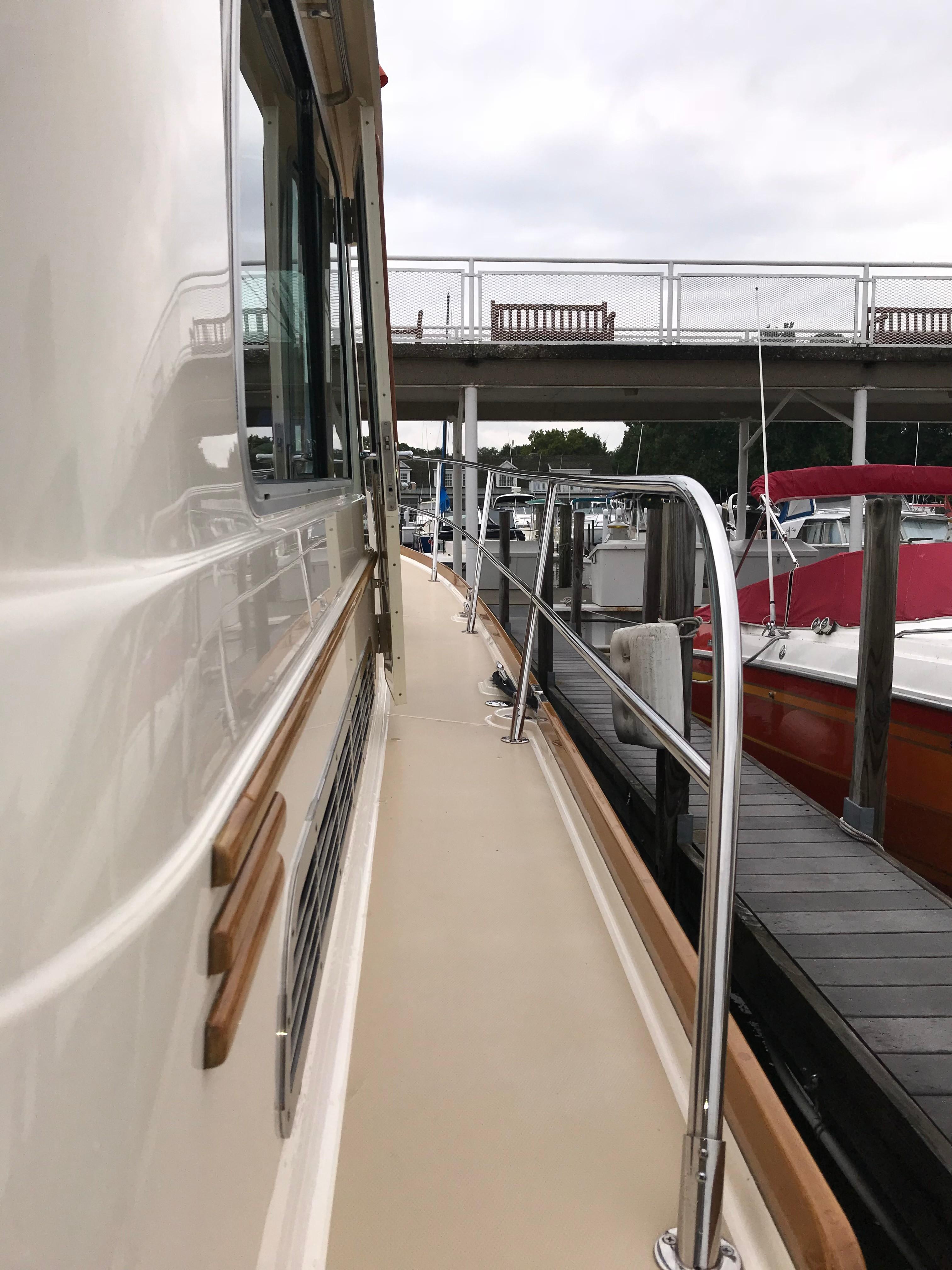

Deck and Hardtop

• -  ISO NPG gelcoat.

• -  V acuum-infused biaxial E-glass with balsa core.

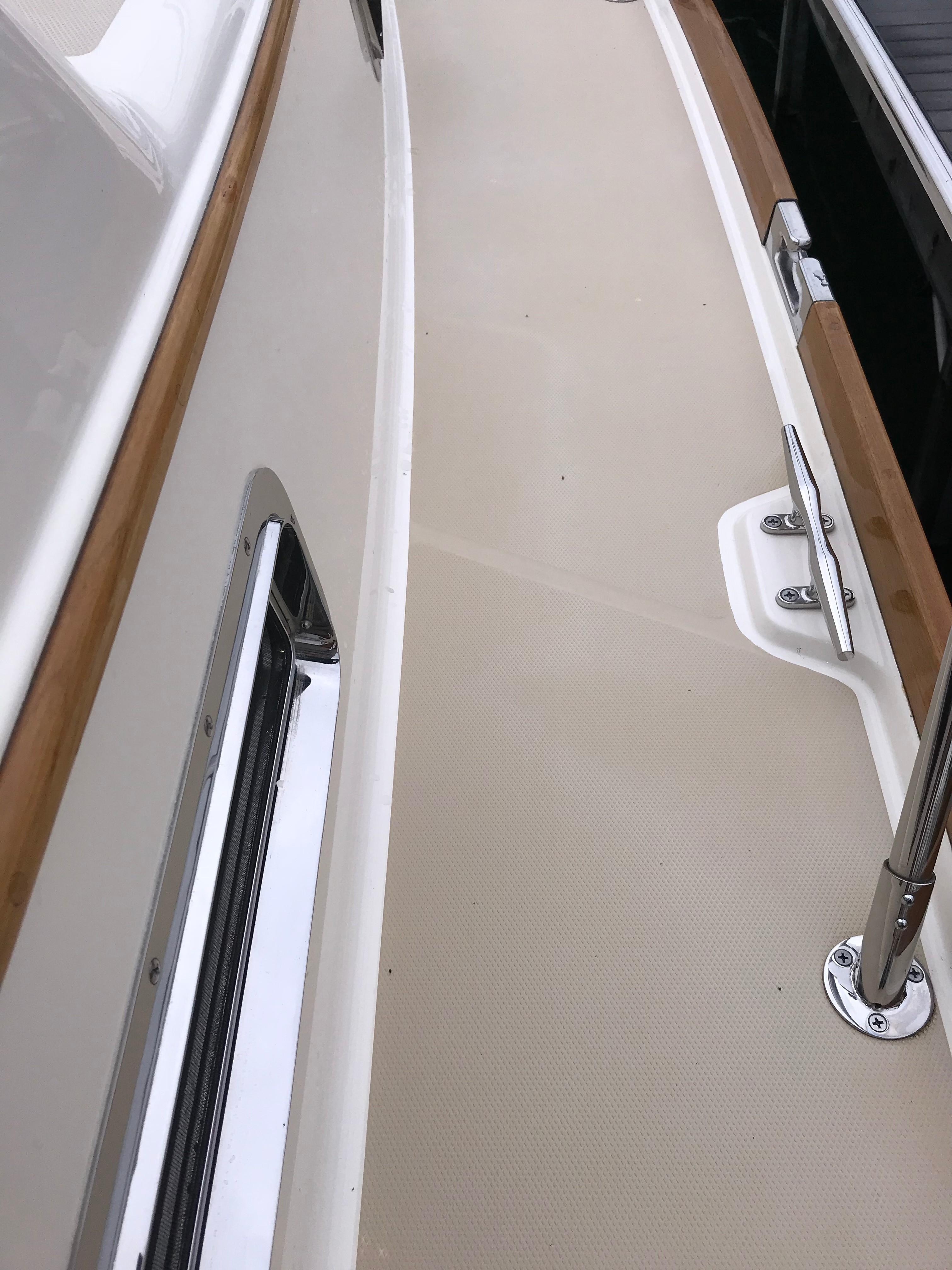

• -  Molded-in anti-skid deck surfaces.

• -  Sliding aft salon door slides starboard to port.

• -  Sliding windows in salon on cabin sides.

• -  Top hinged windows in salon aft bulkhead.

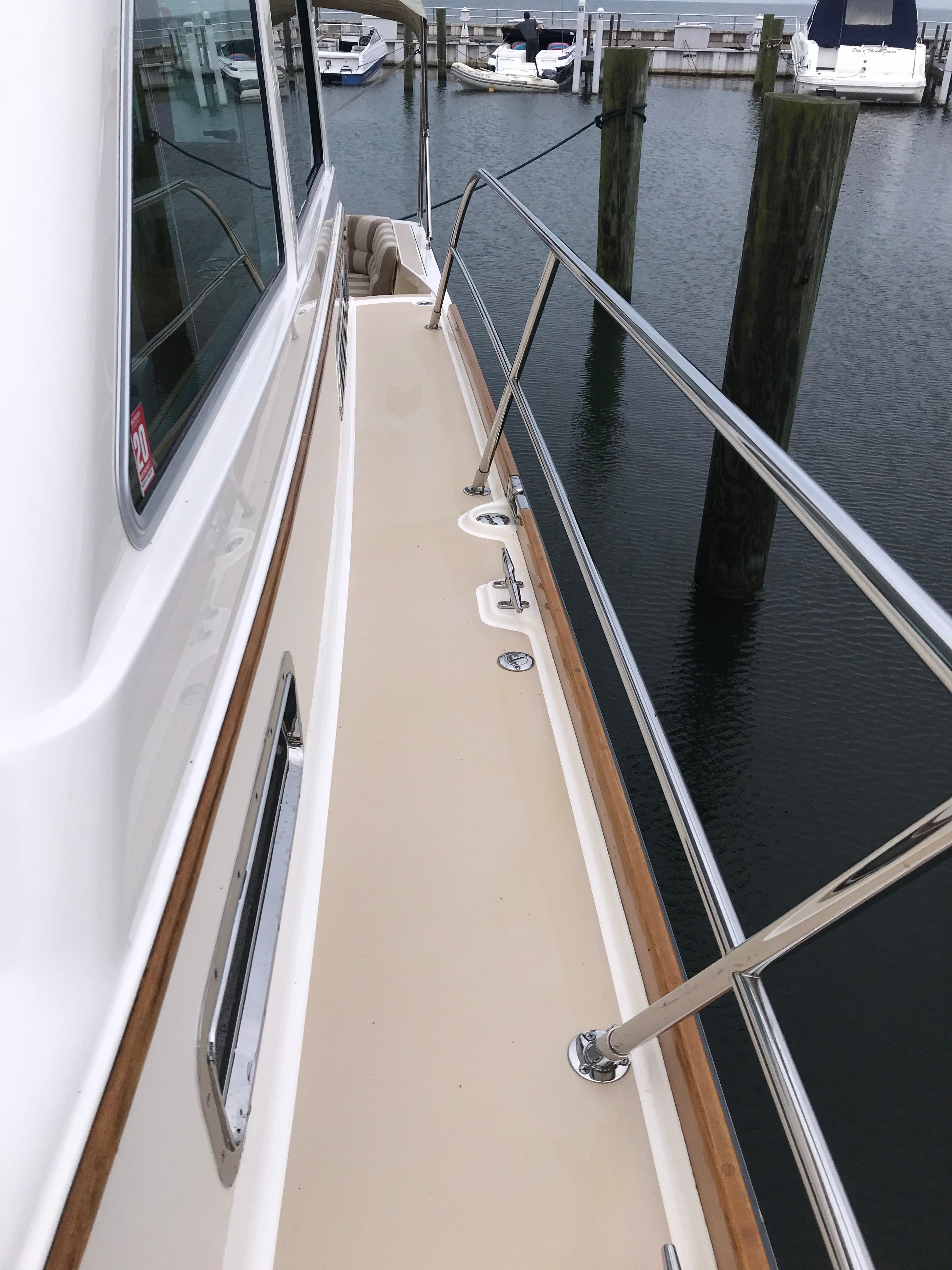

• -  Hinged access door to side deck at helm.

• -  Flush, outward opening, transom door with latch.

• -  Anchor locker with slam latch.

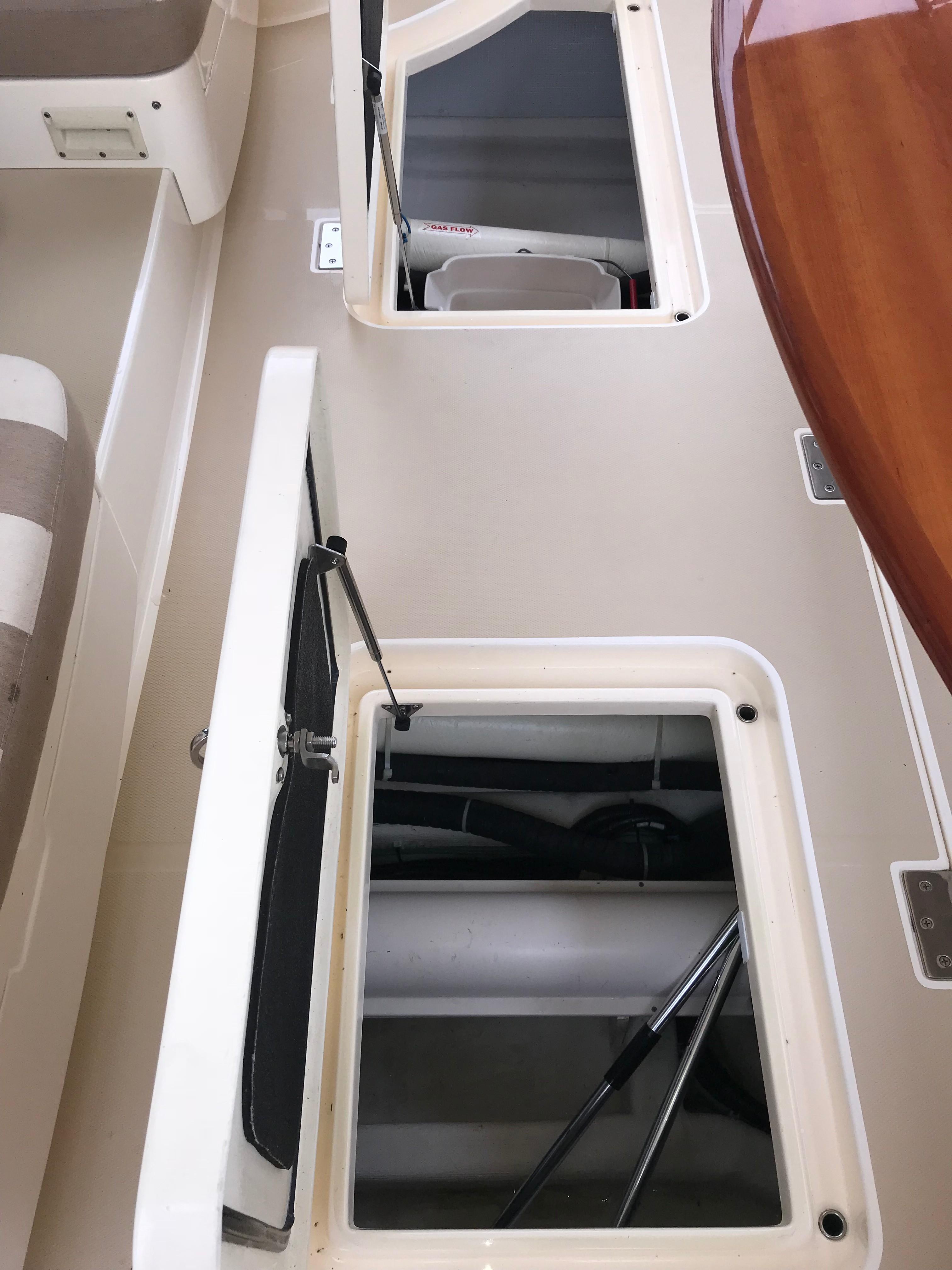

• -  Large lazarette locker hatch with gas struts and compression

  latches.

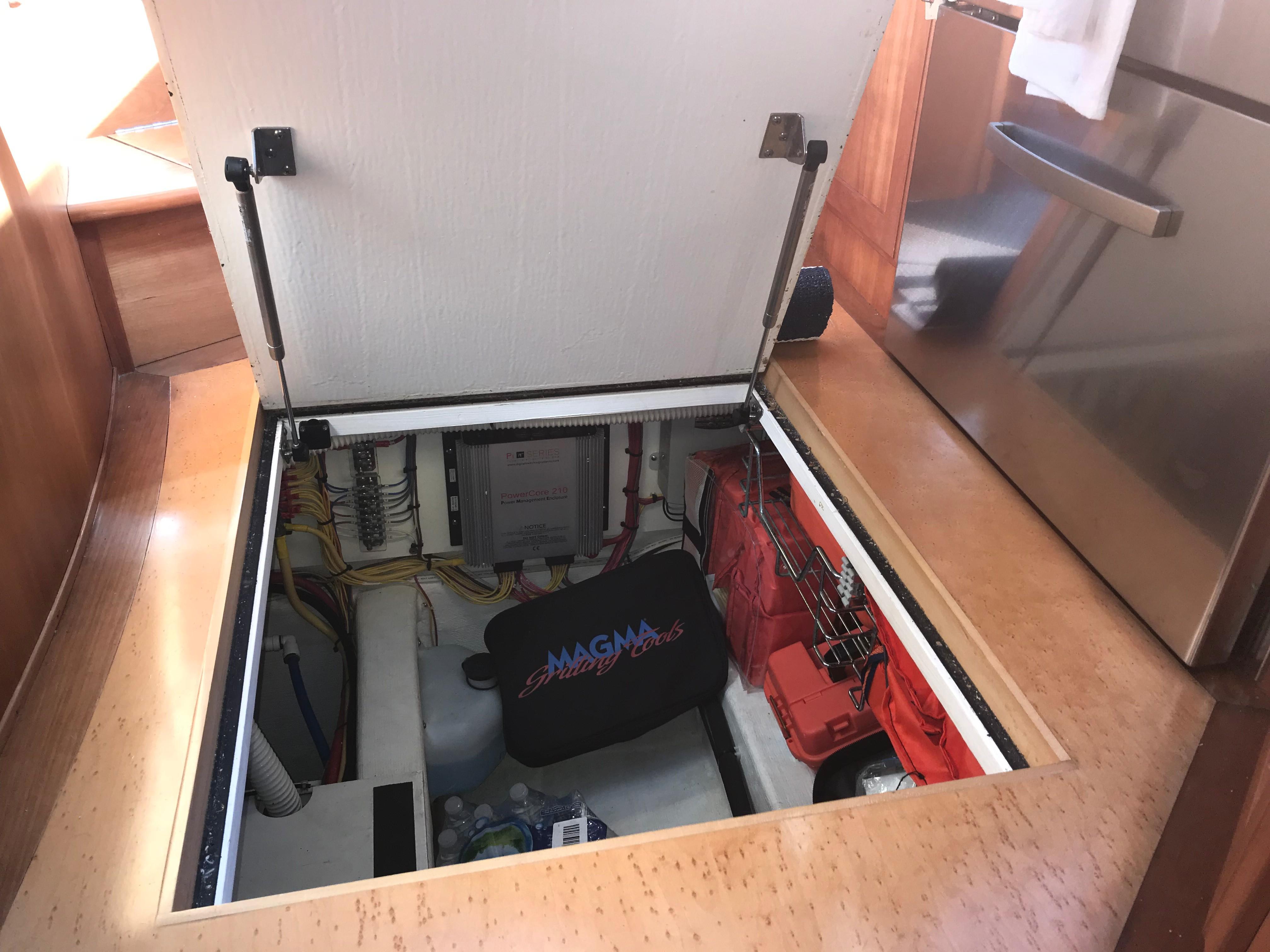

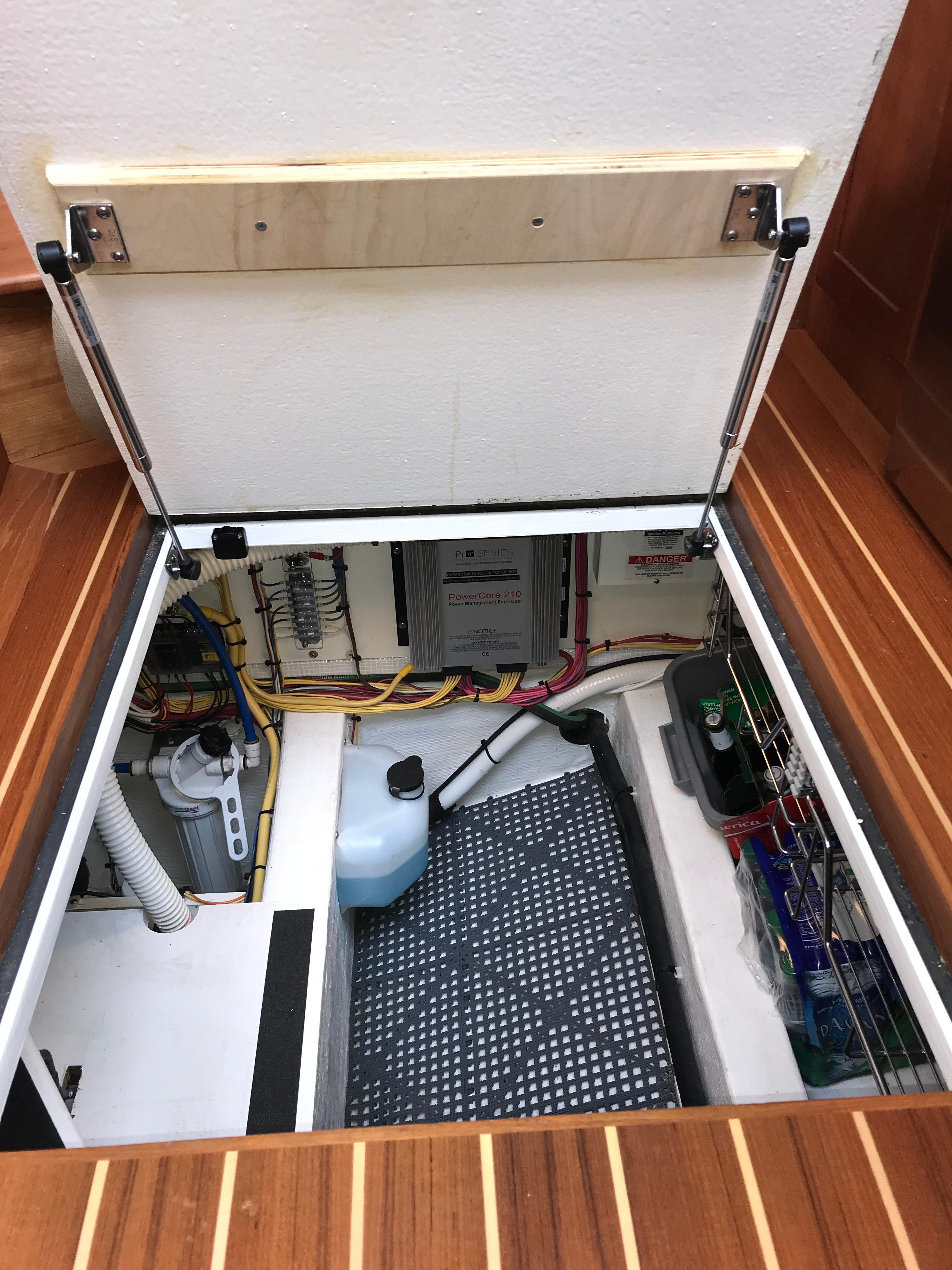

• -  Large engine room hatch in main salon with compression latch.

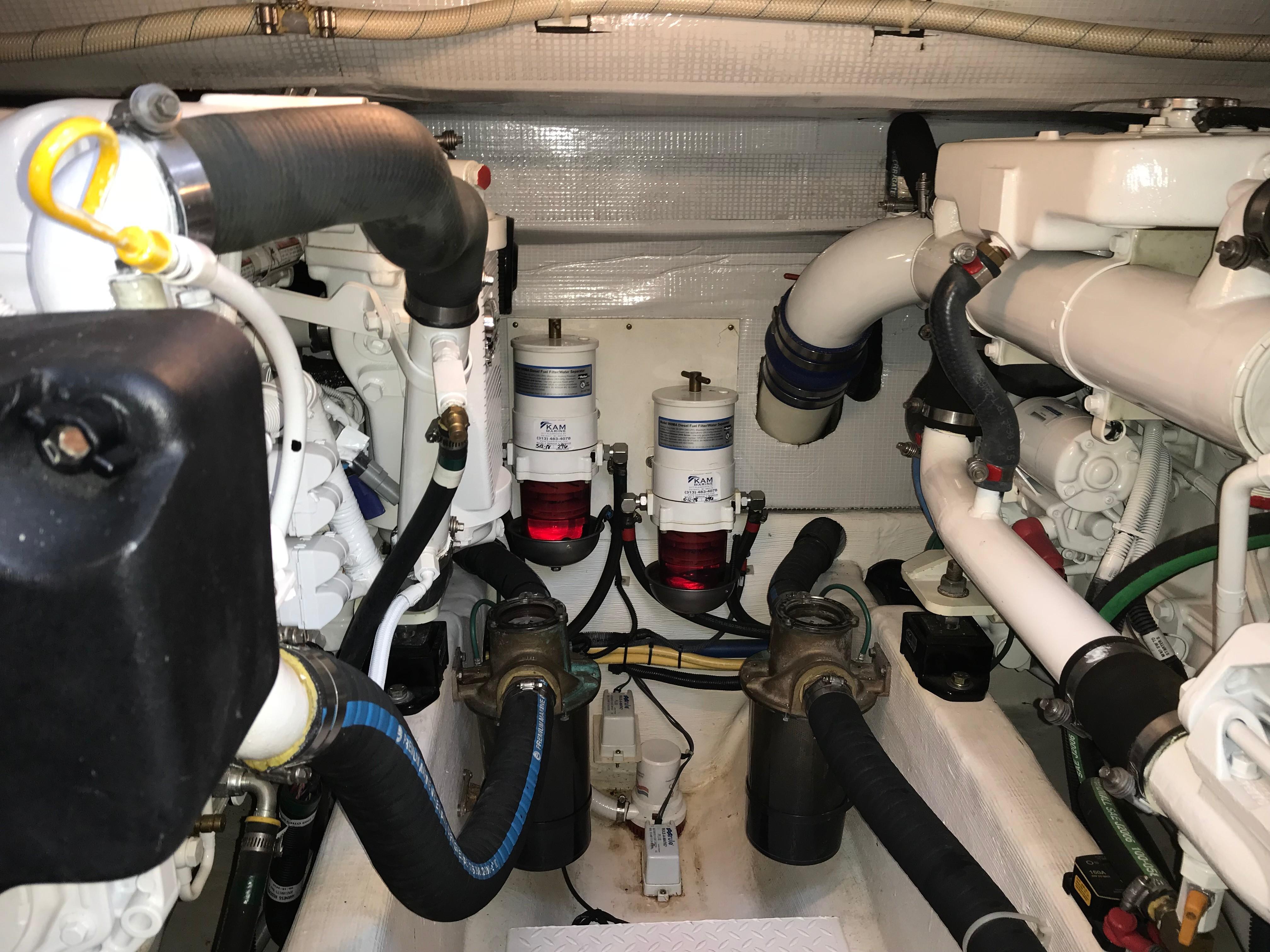

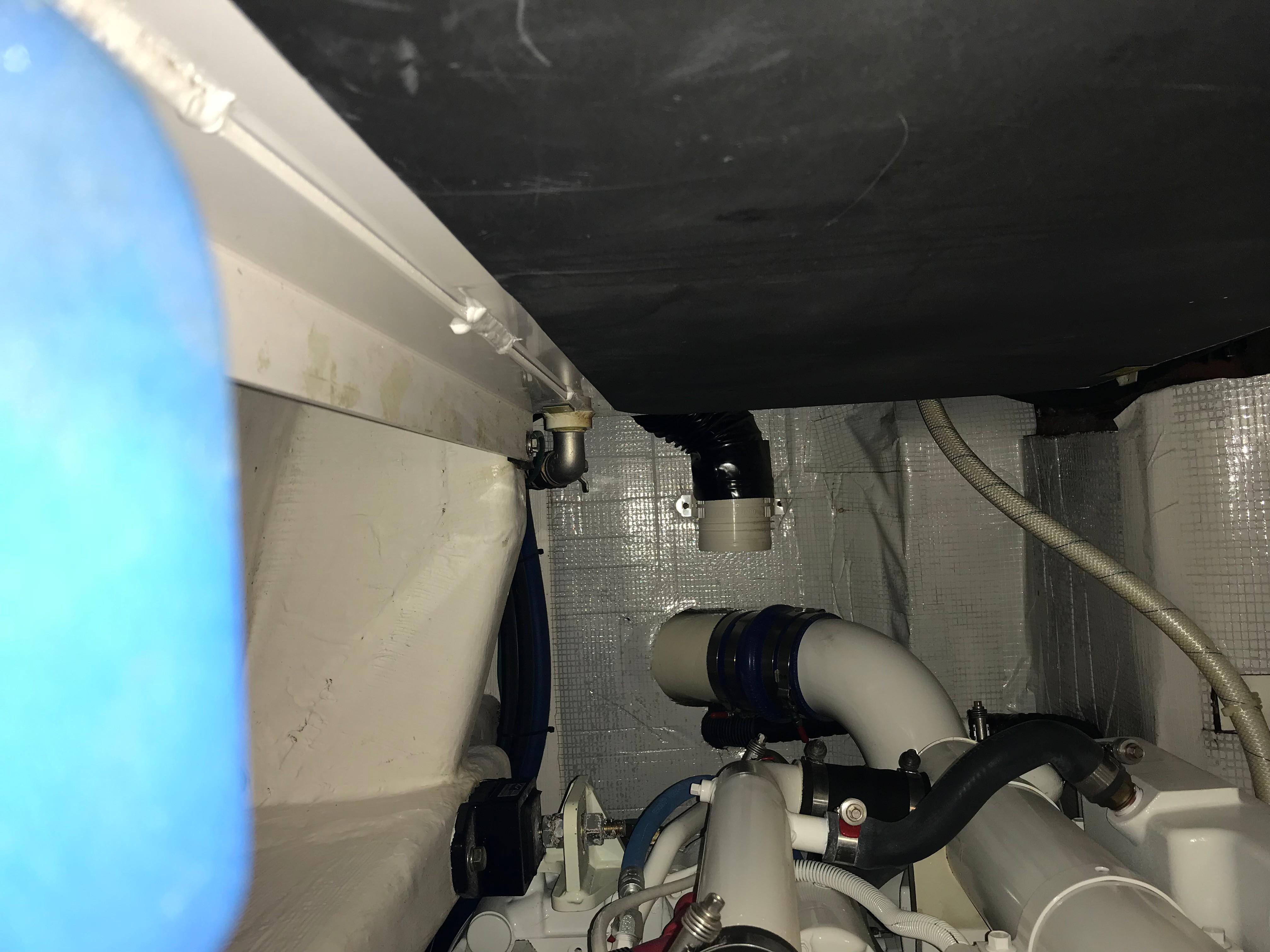

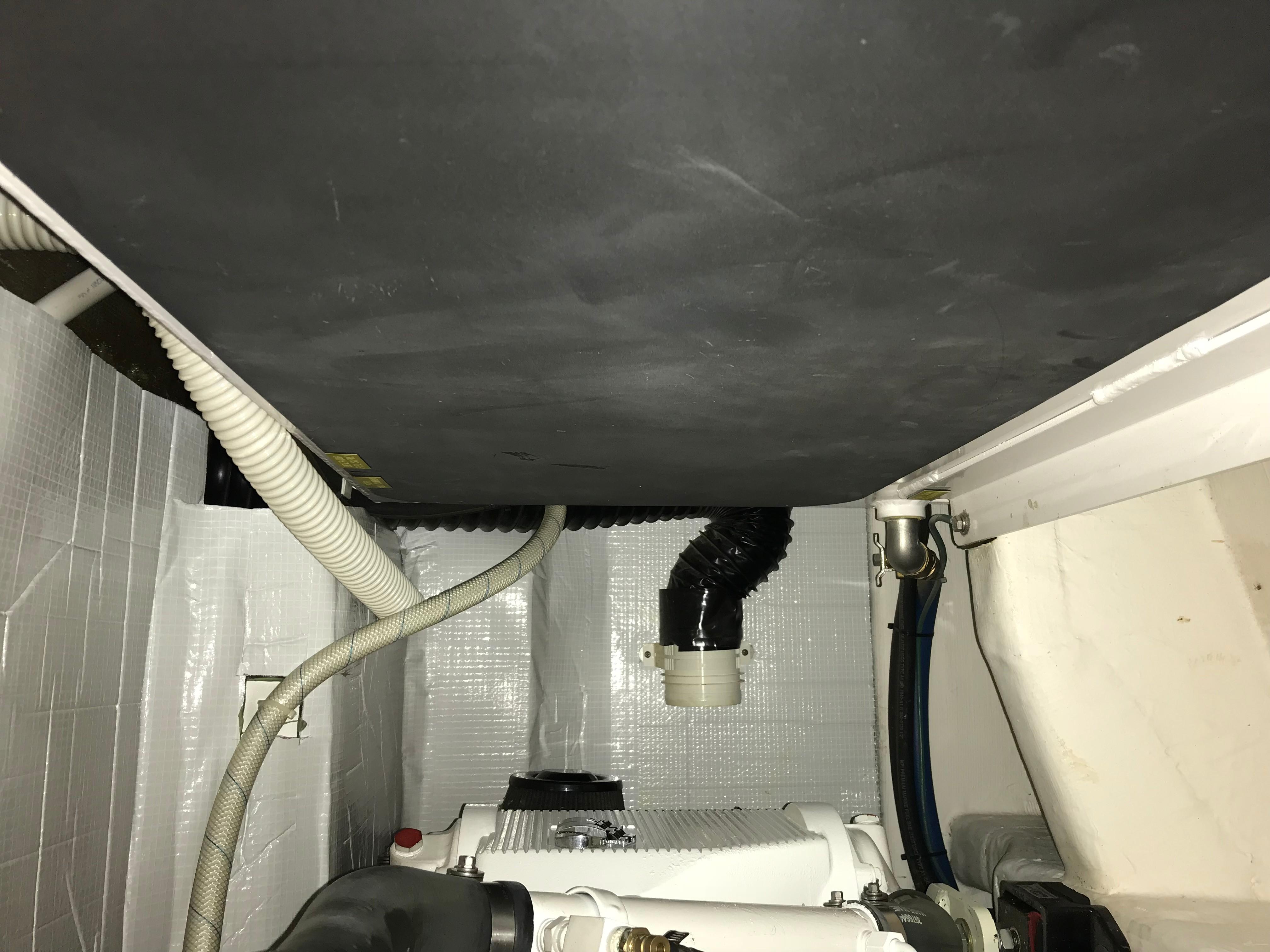

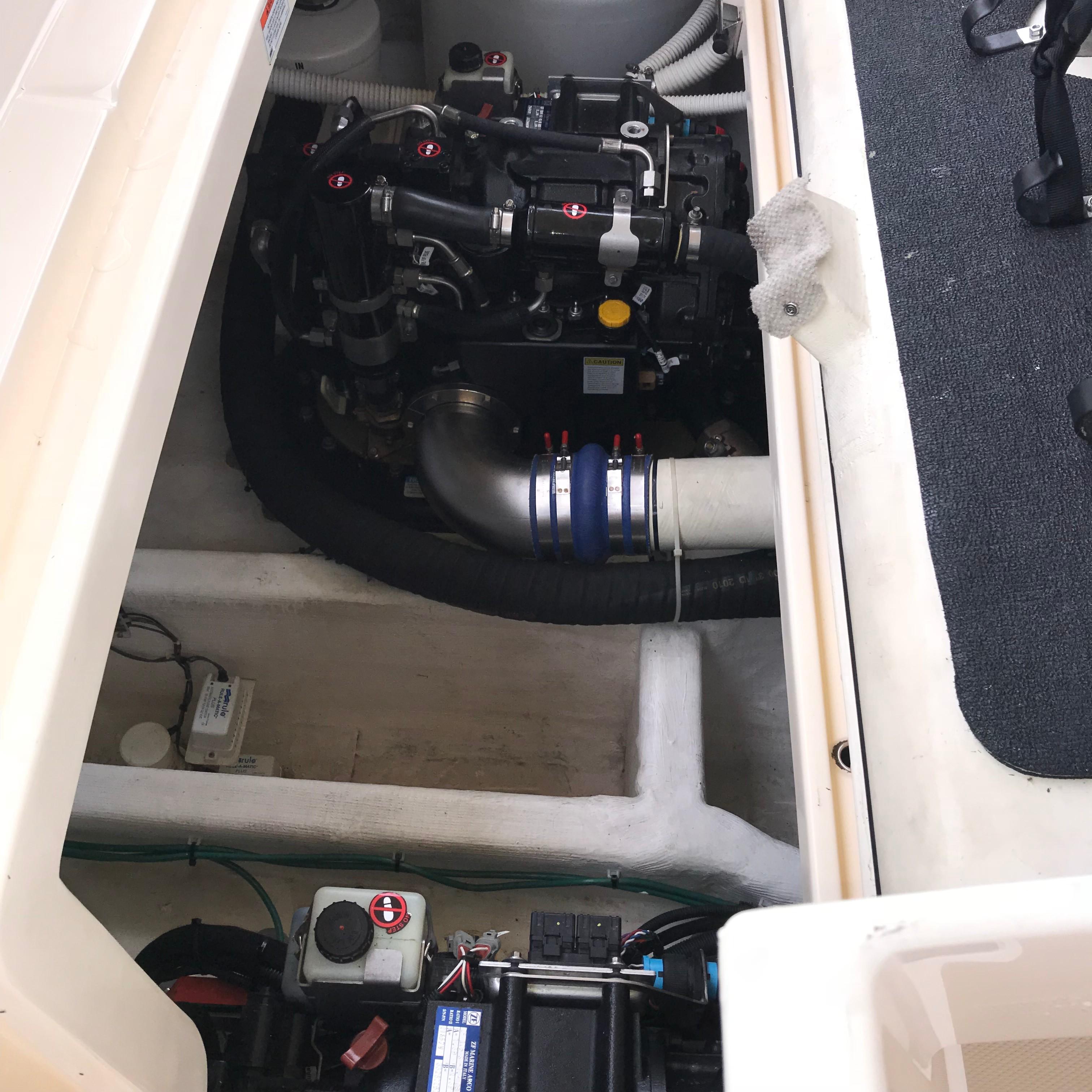

Propulsion

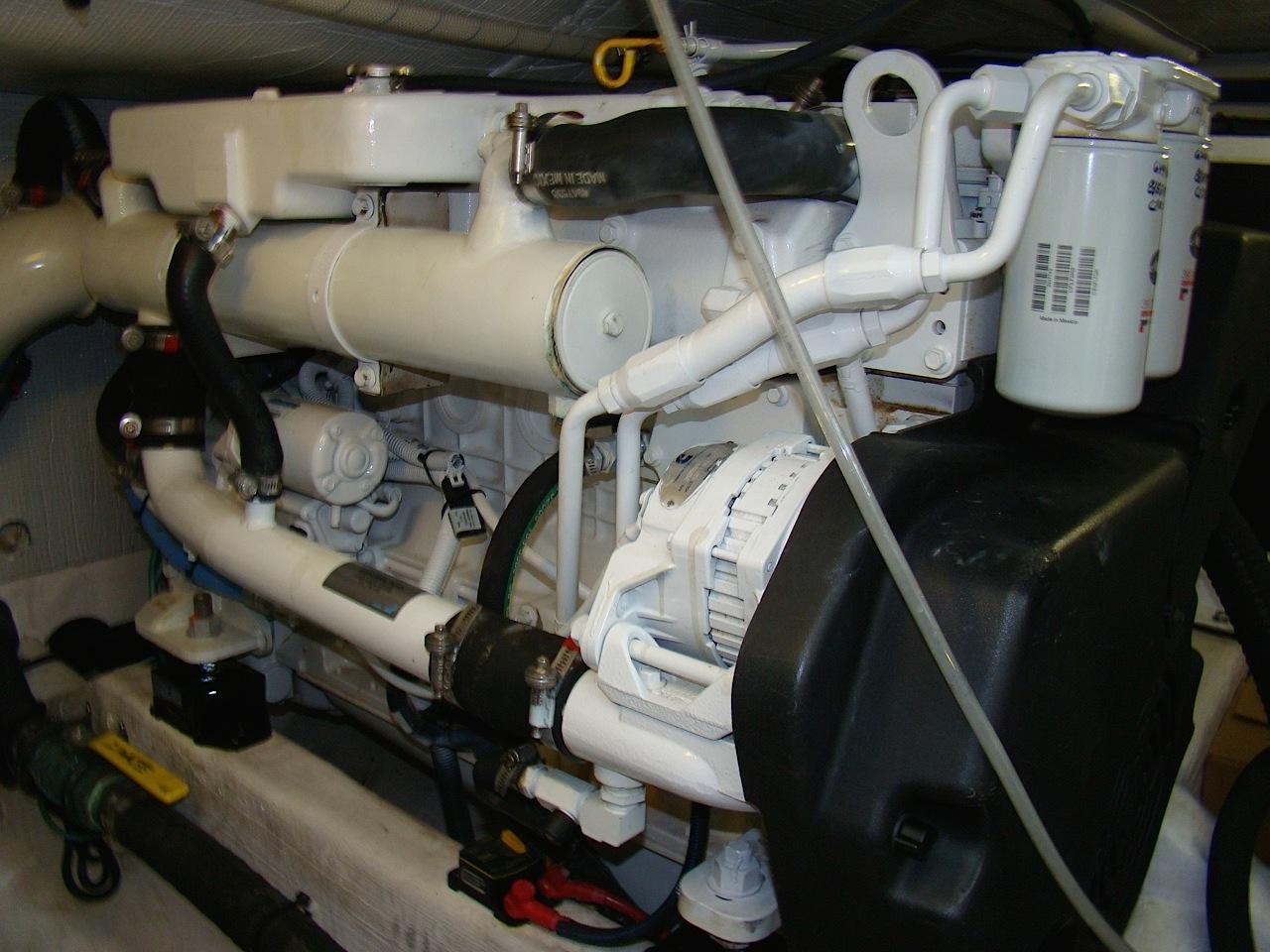

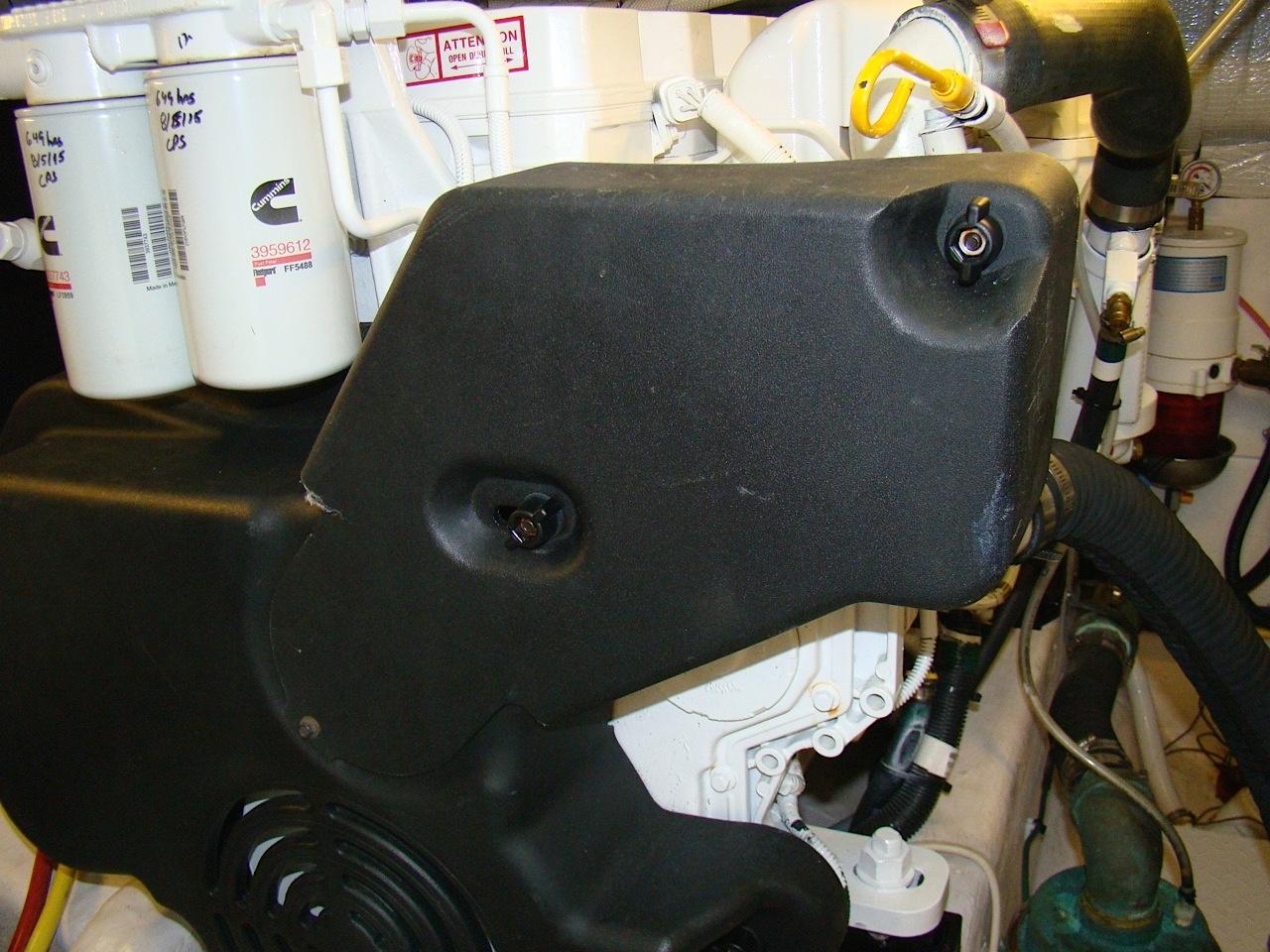

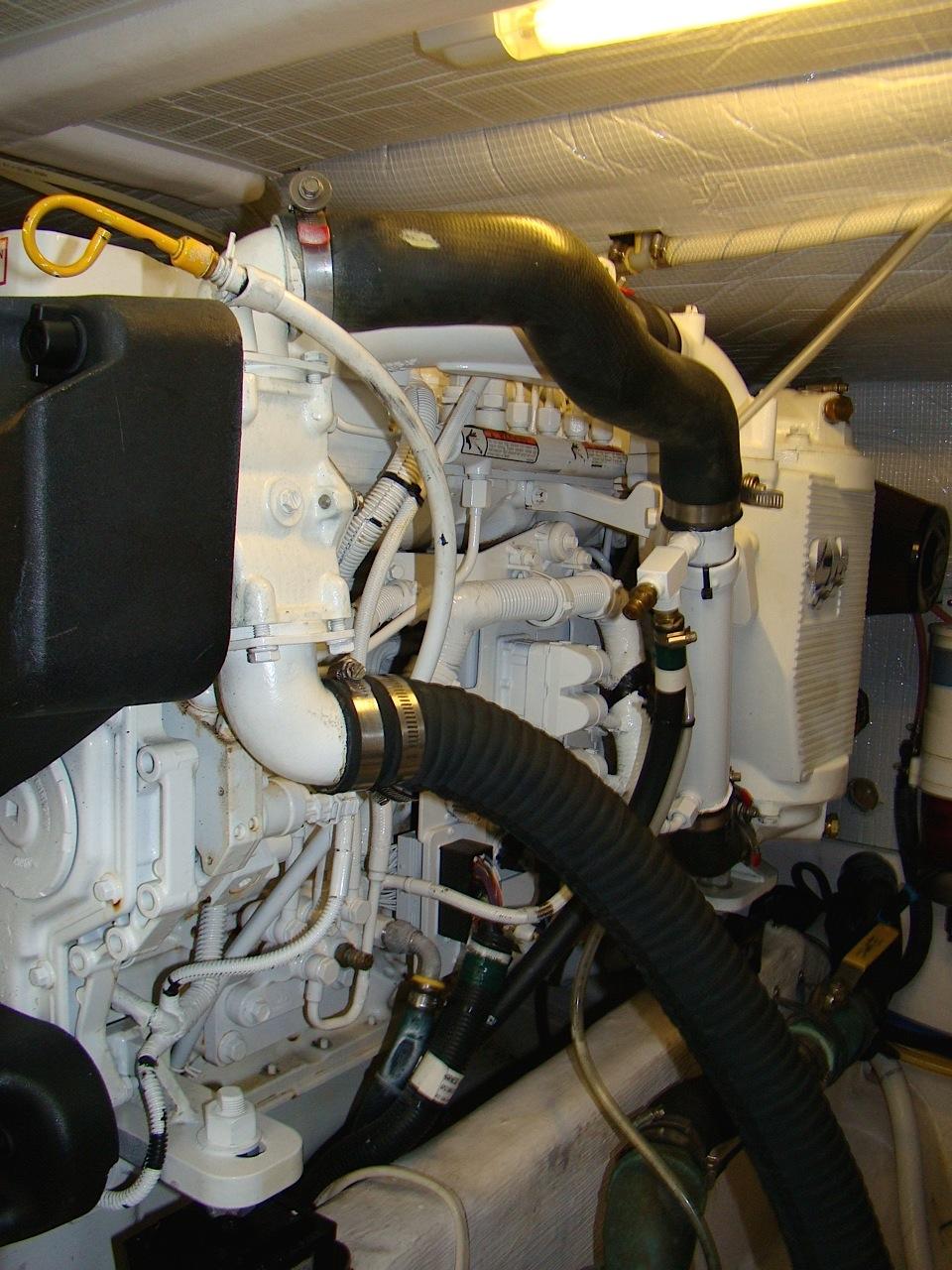

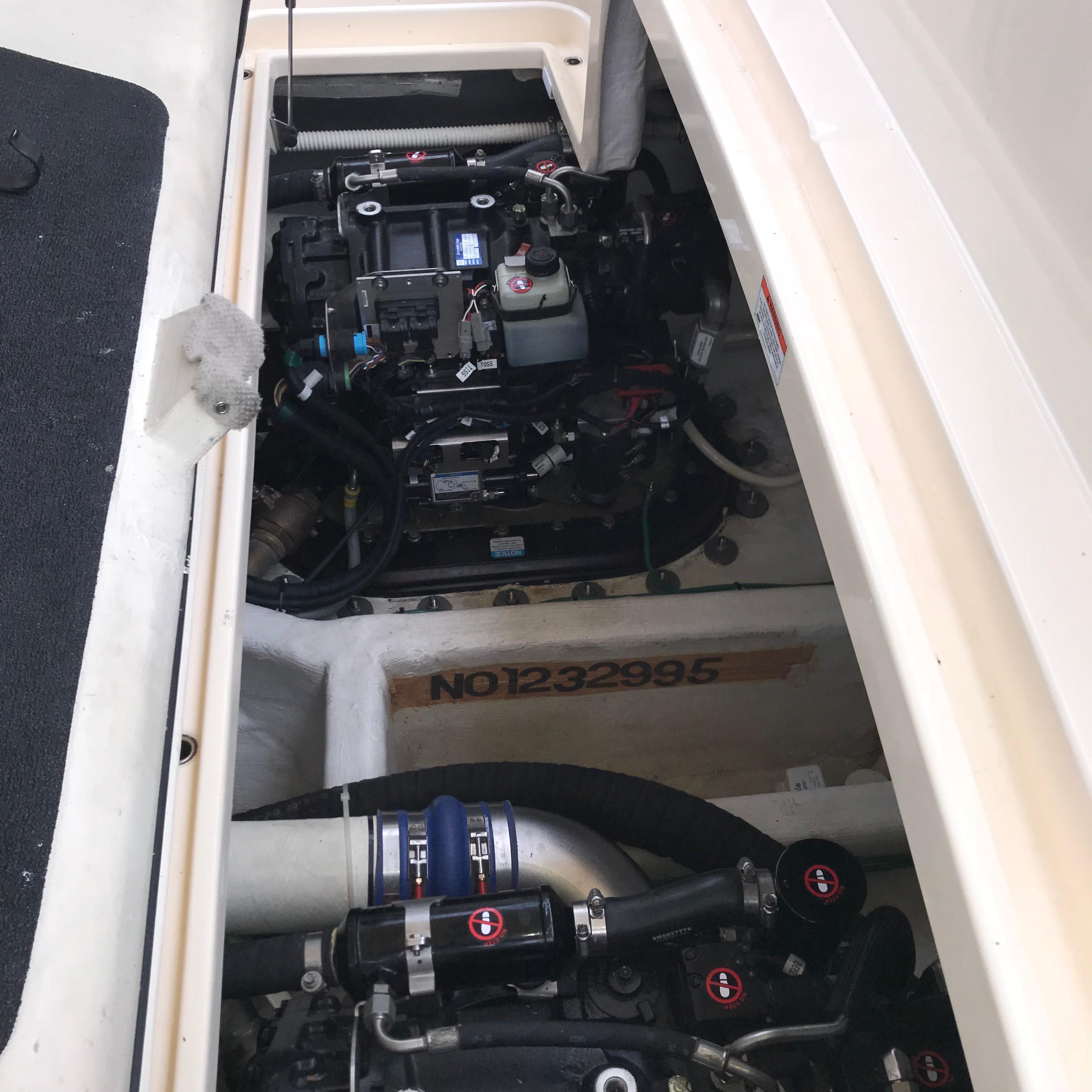

• - Twin Cummins QSB 5.9l 380hp electronic, fresh water-cooled engines..
• - Twin CMD Zeus 3500 pod drives, with integrated steering and trim tabs.
• - 120A, 12V alternators each engine.
• - (2) Exhaust by-pass mufflers.- Engine room blower.- Engine room vent ducts.
• - Engine room floor with FRP anti-skid. - White gelcoated engine room- Mylar face foam noise barrier.

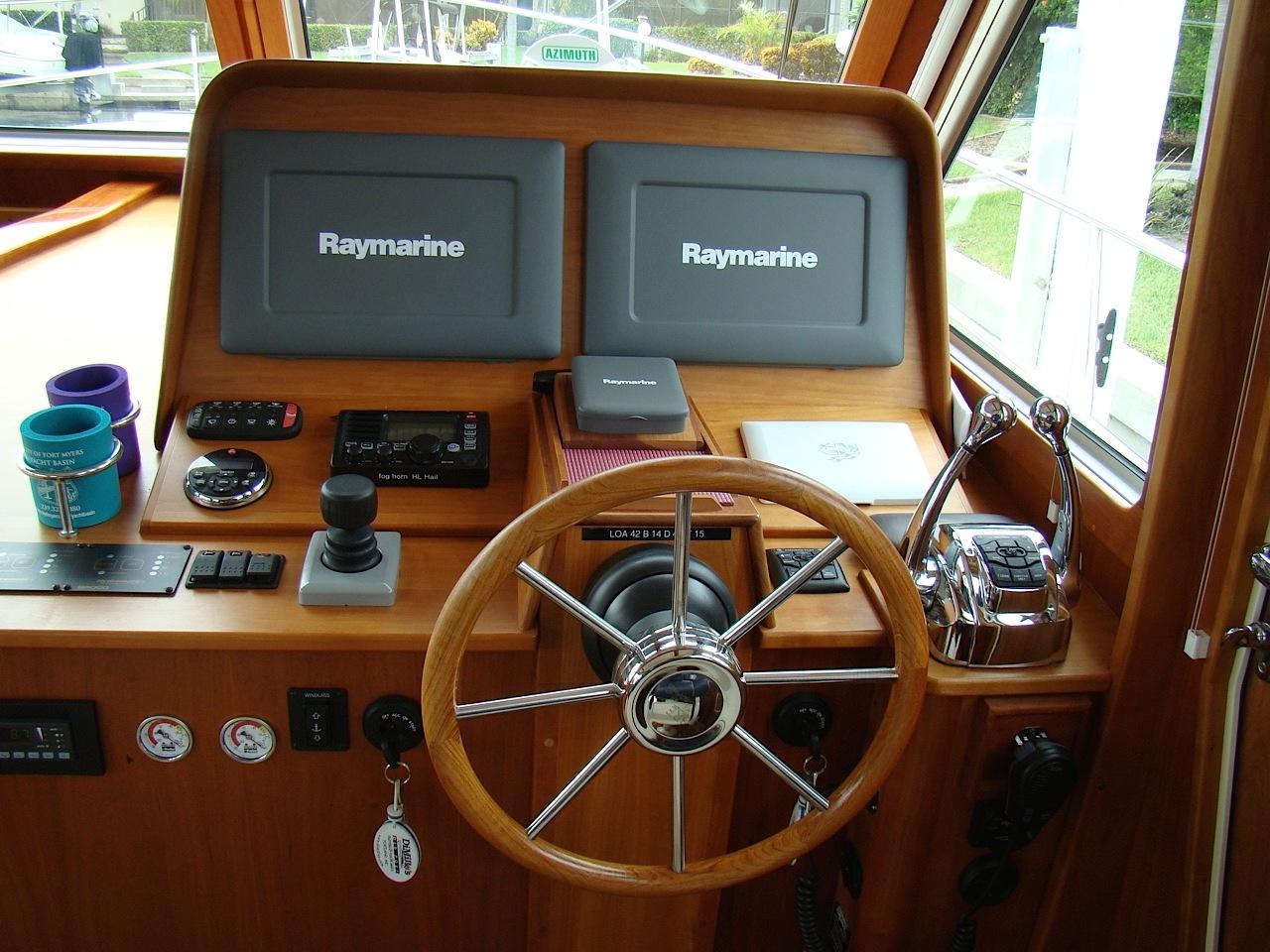

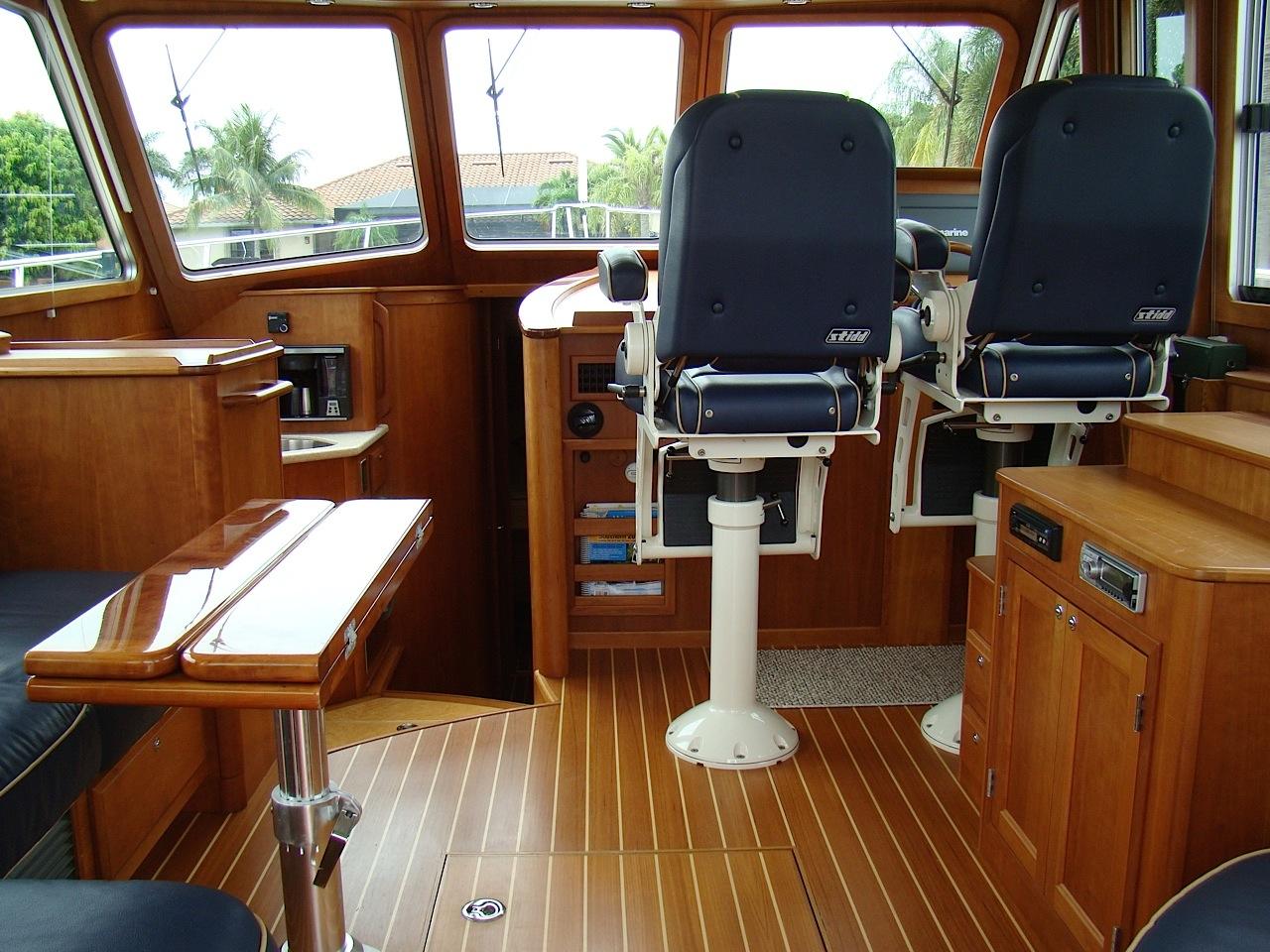

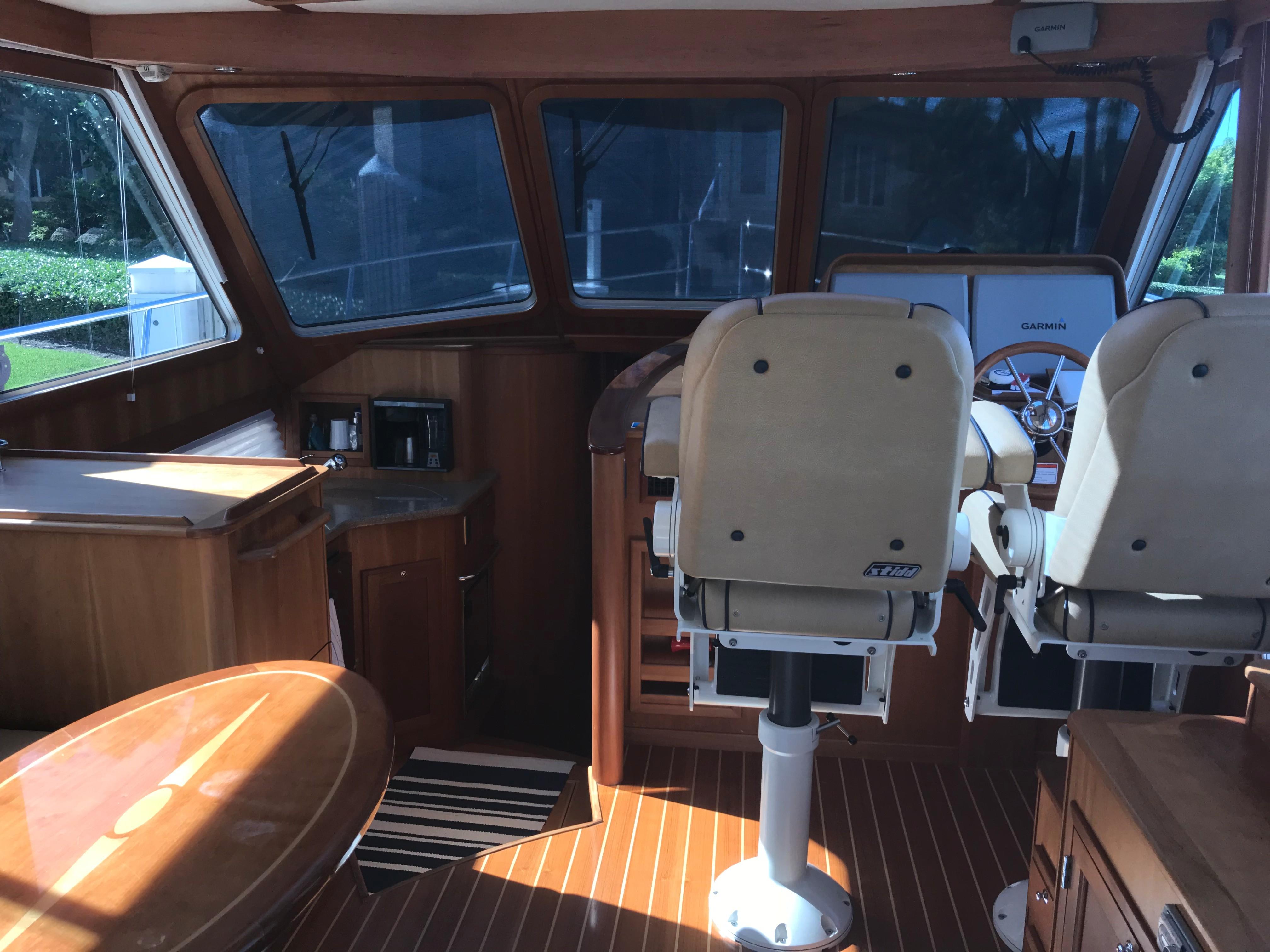

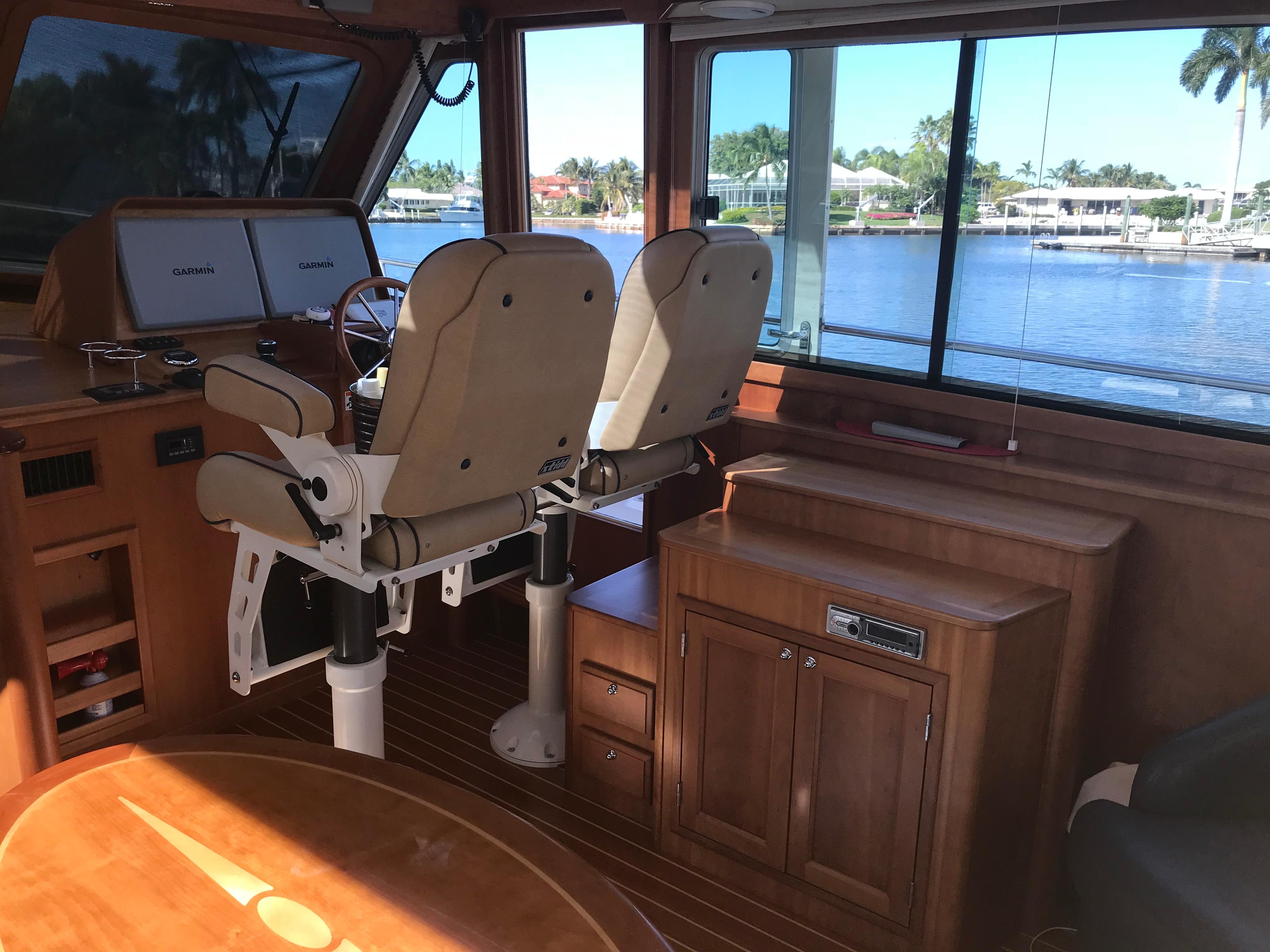

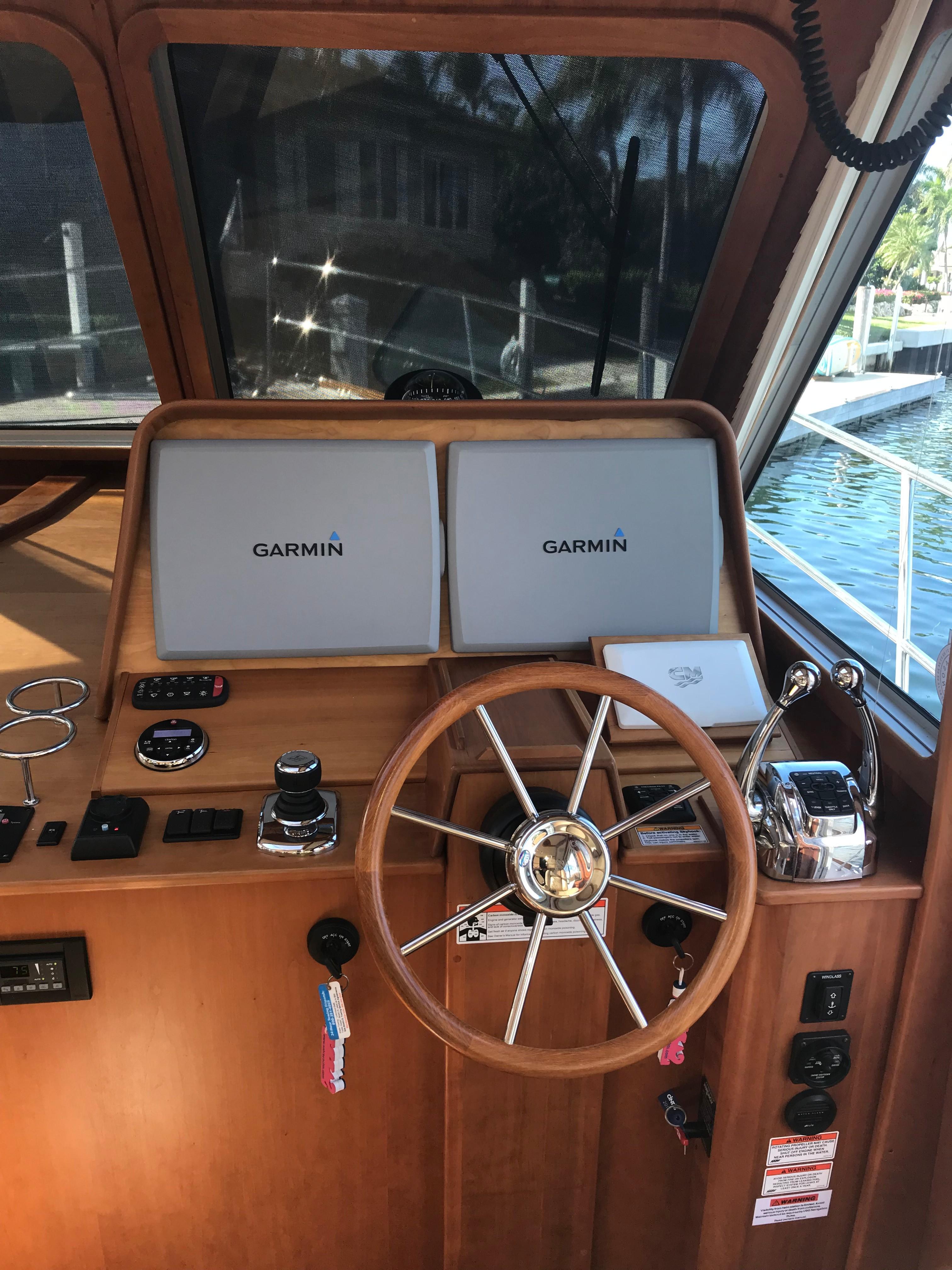

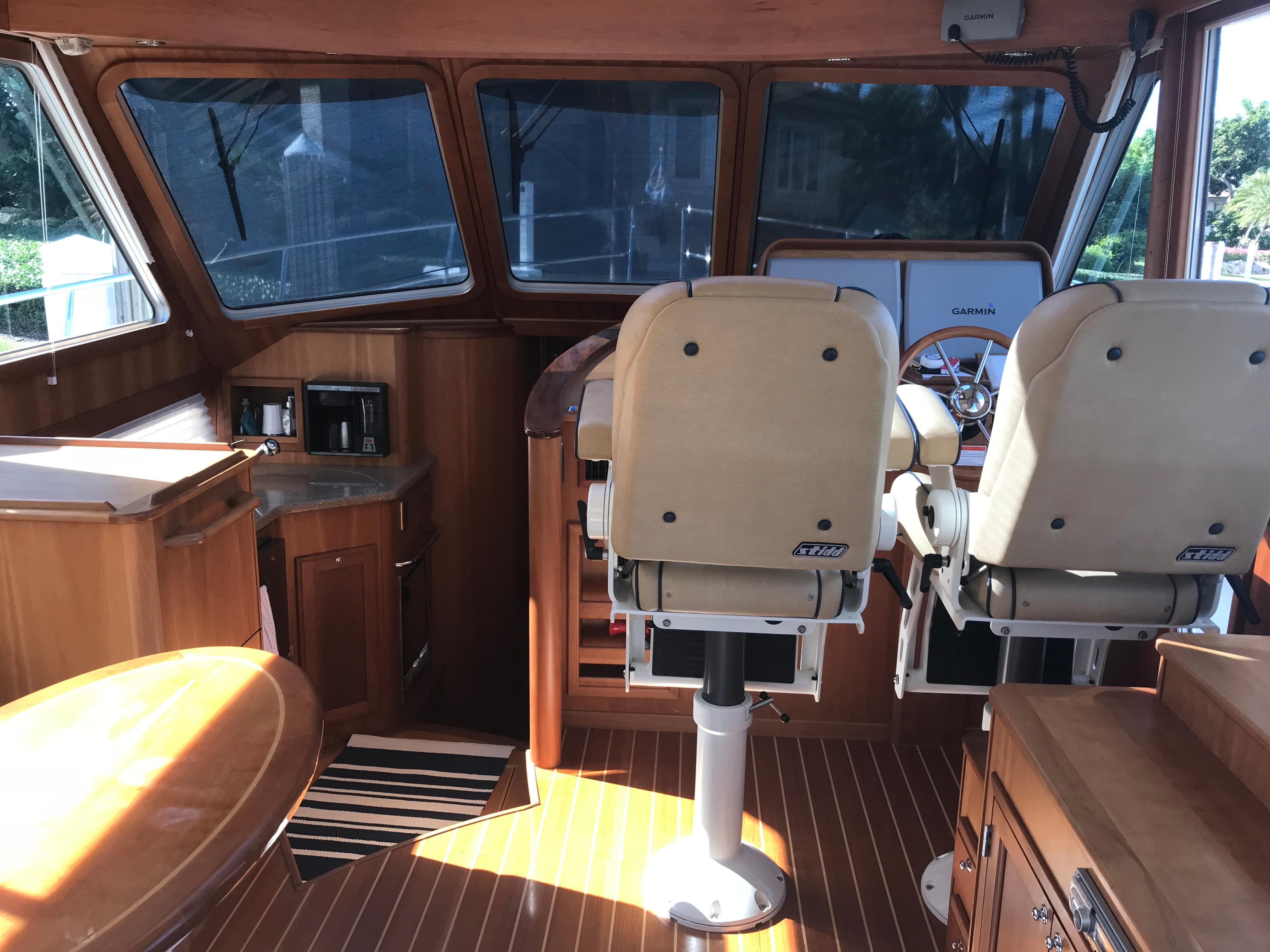

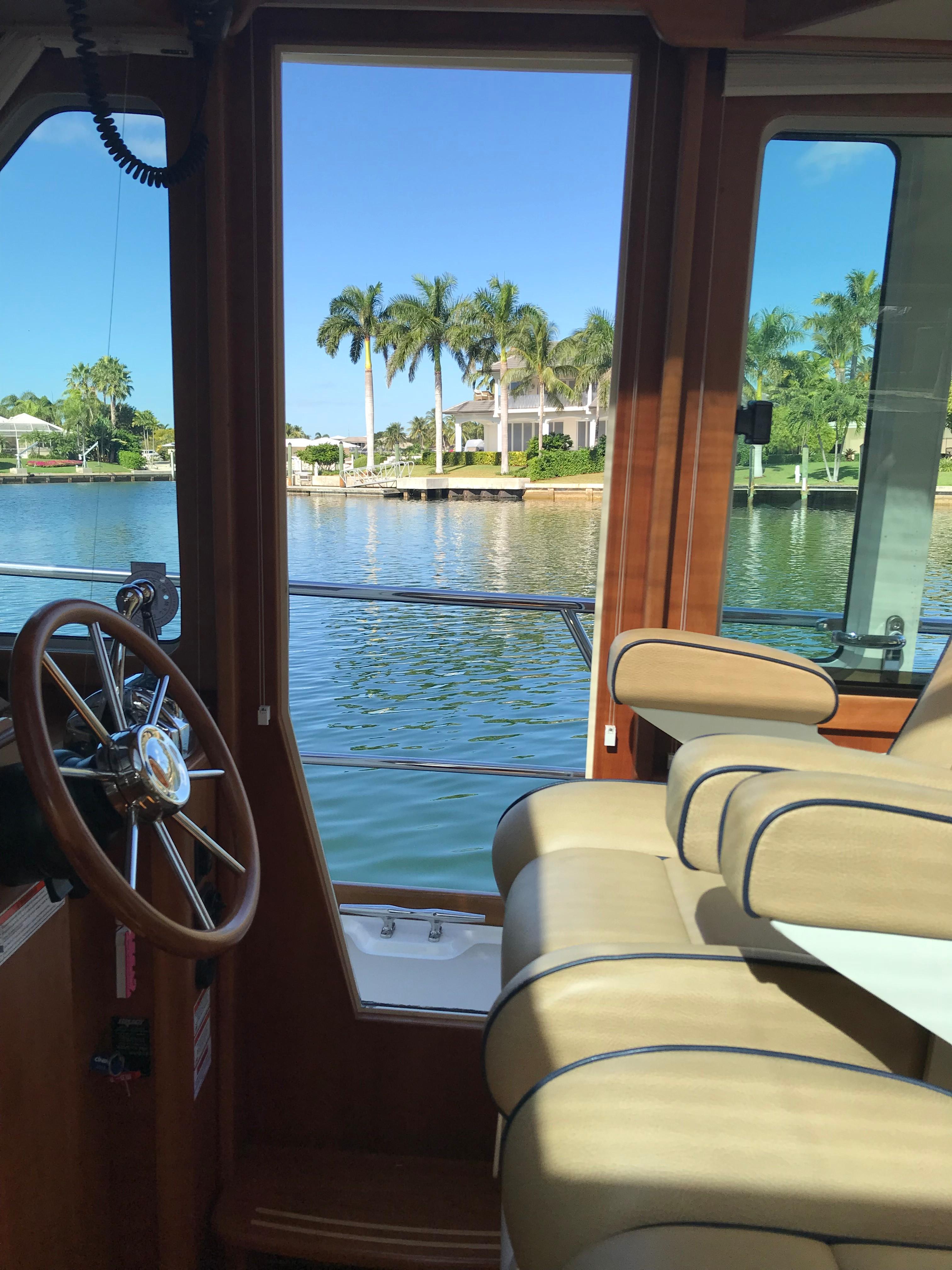

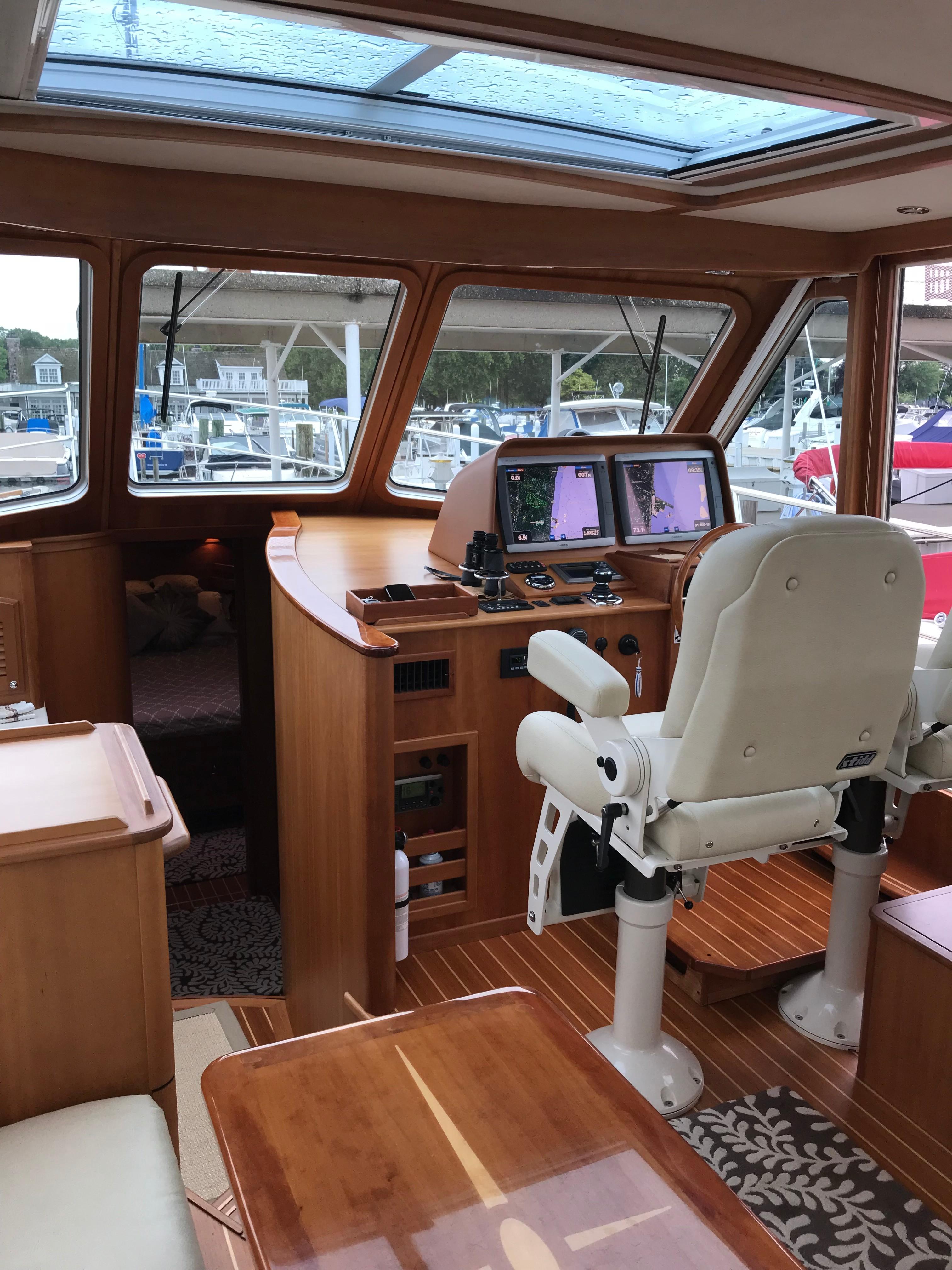

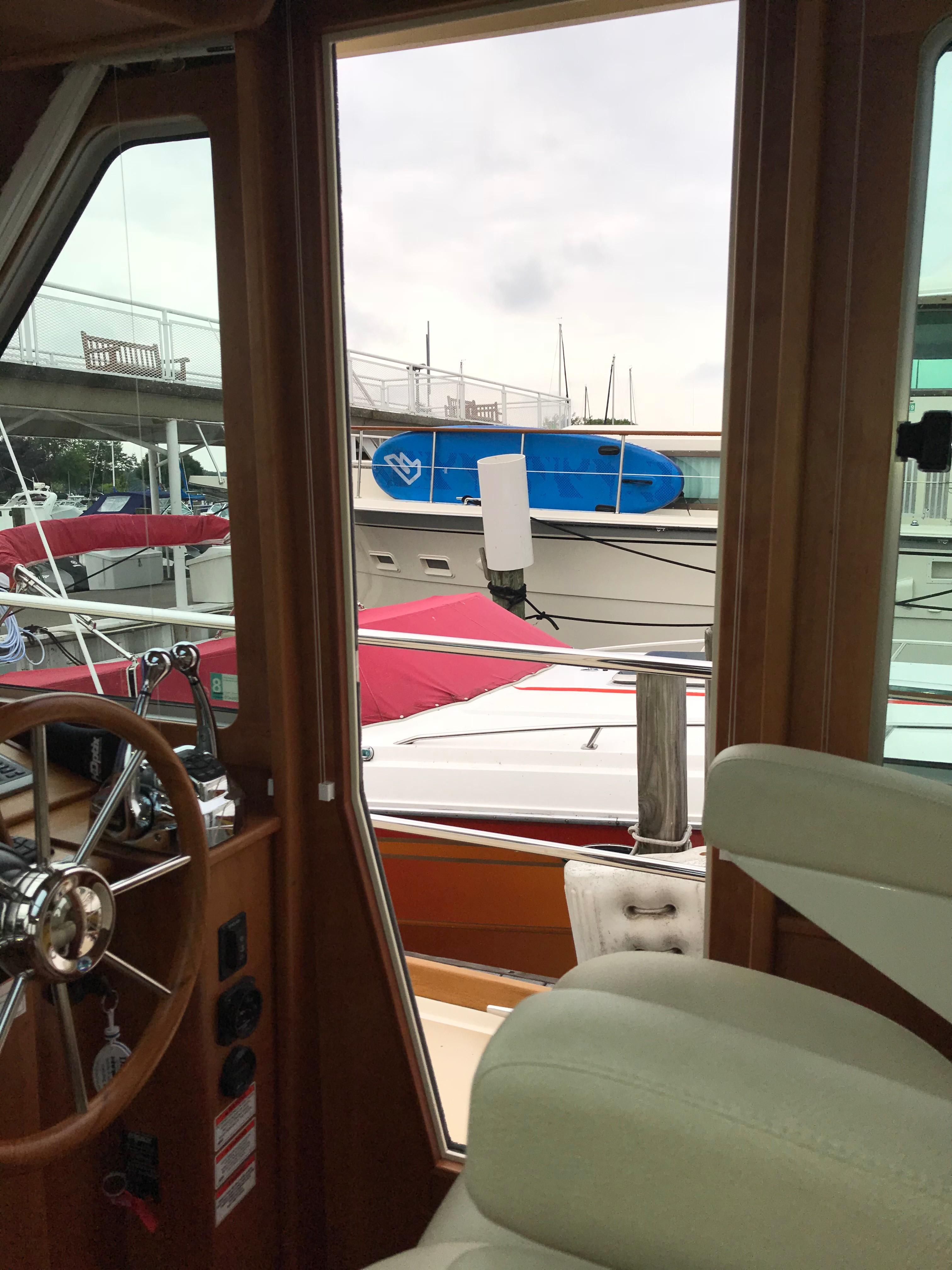

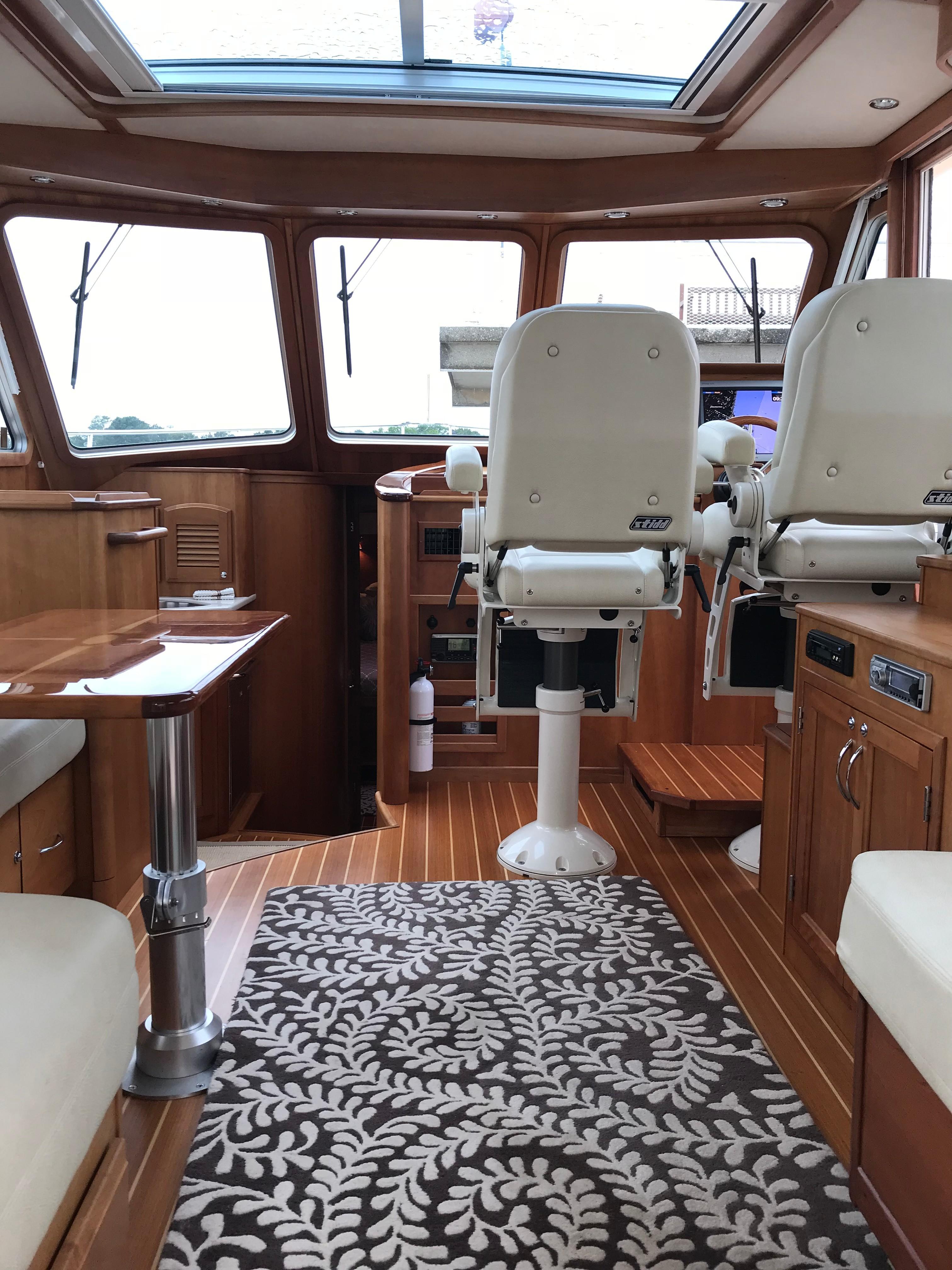

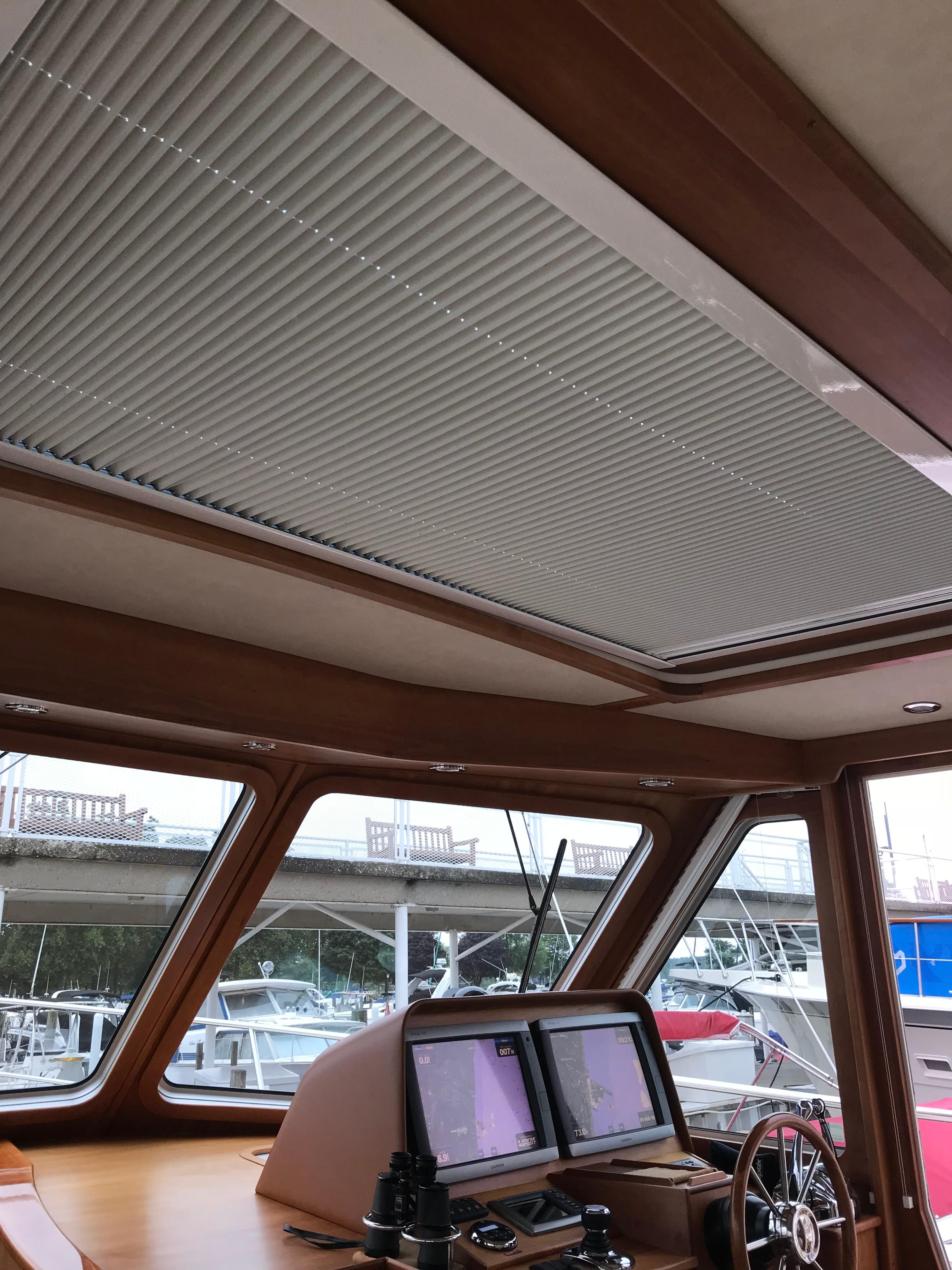

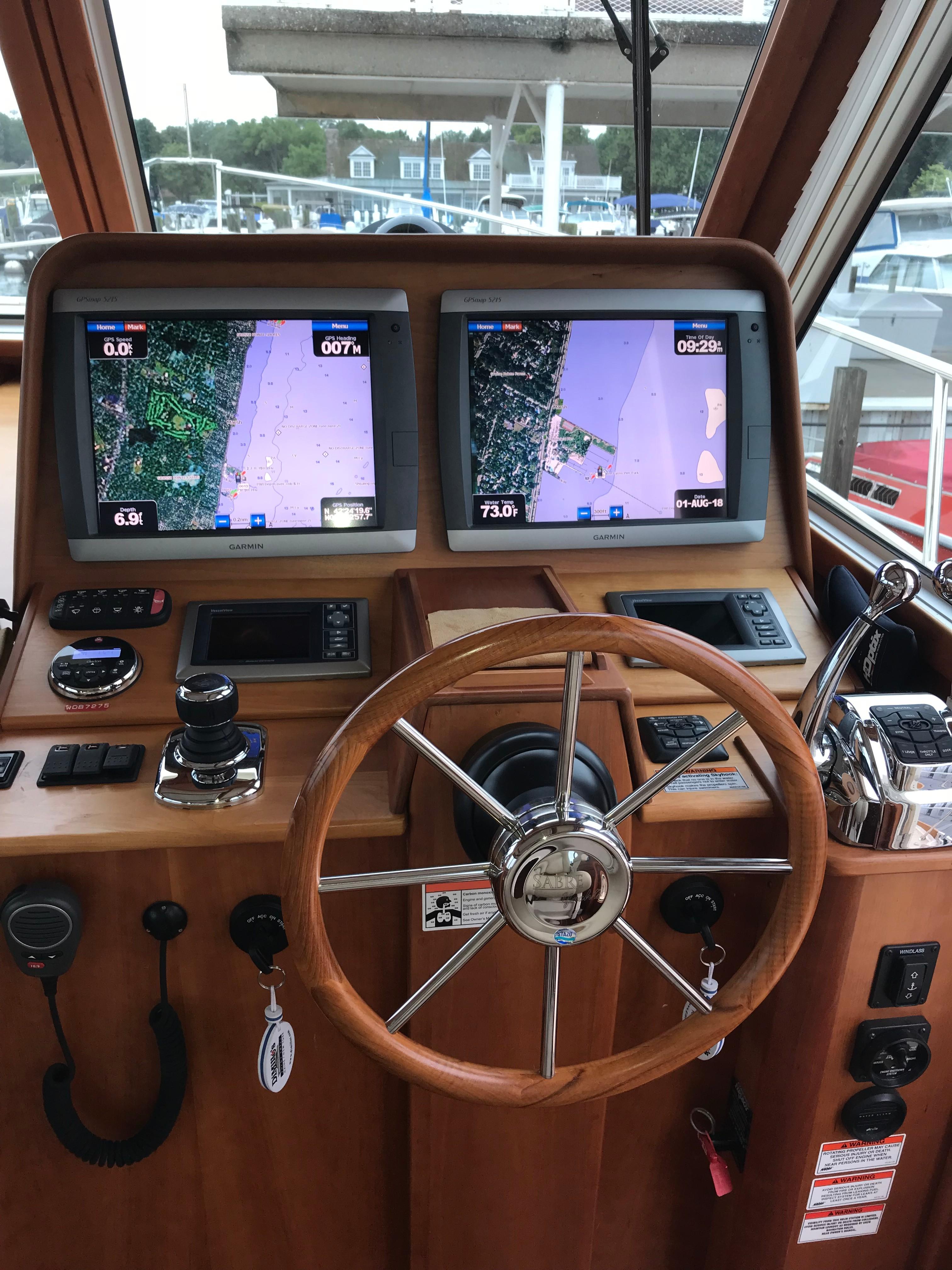

Helm Station

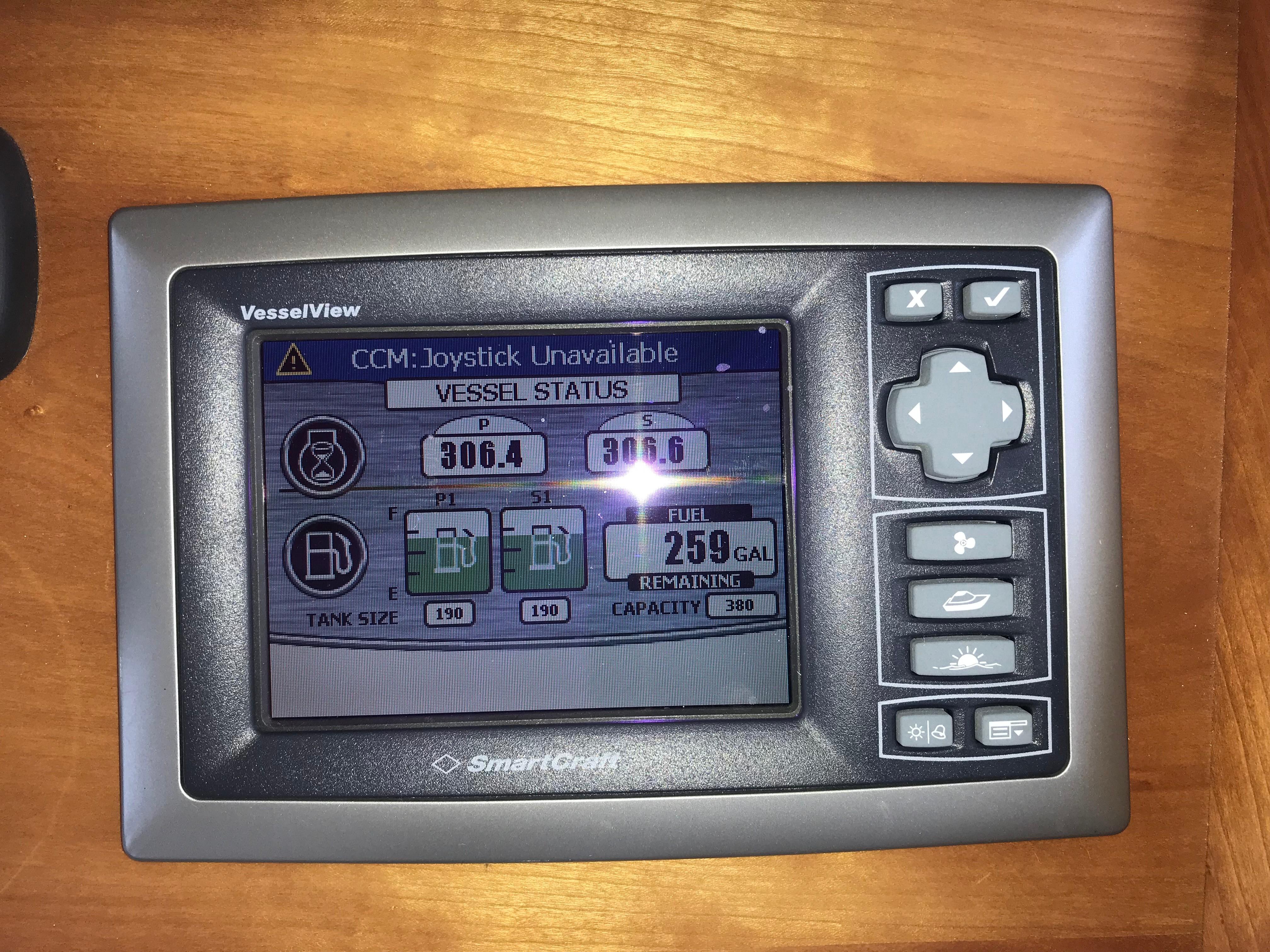

• - Cummins DTS single lever electronic controls.- One Cummins Smart Craft display (engine data, tank levels, vessel data, alarms).
• - Triple windshield wipers with washers.- Ritchie Compass.- Switch controls for horn, running lights, anchor light, engine

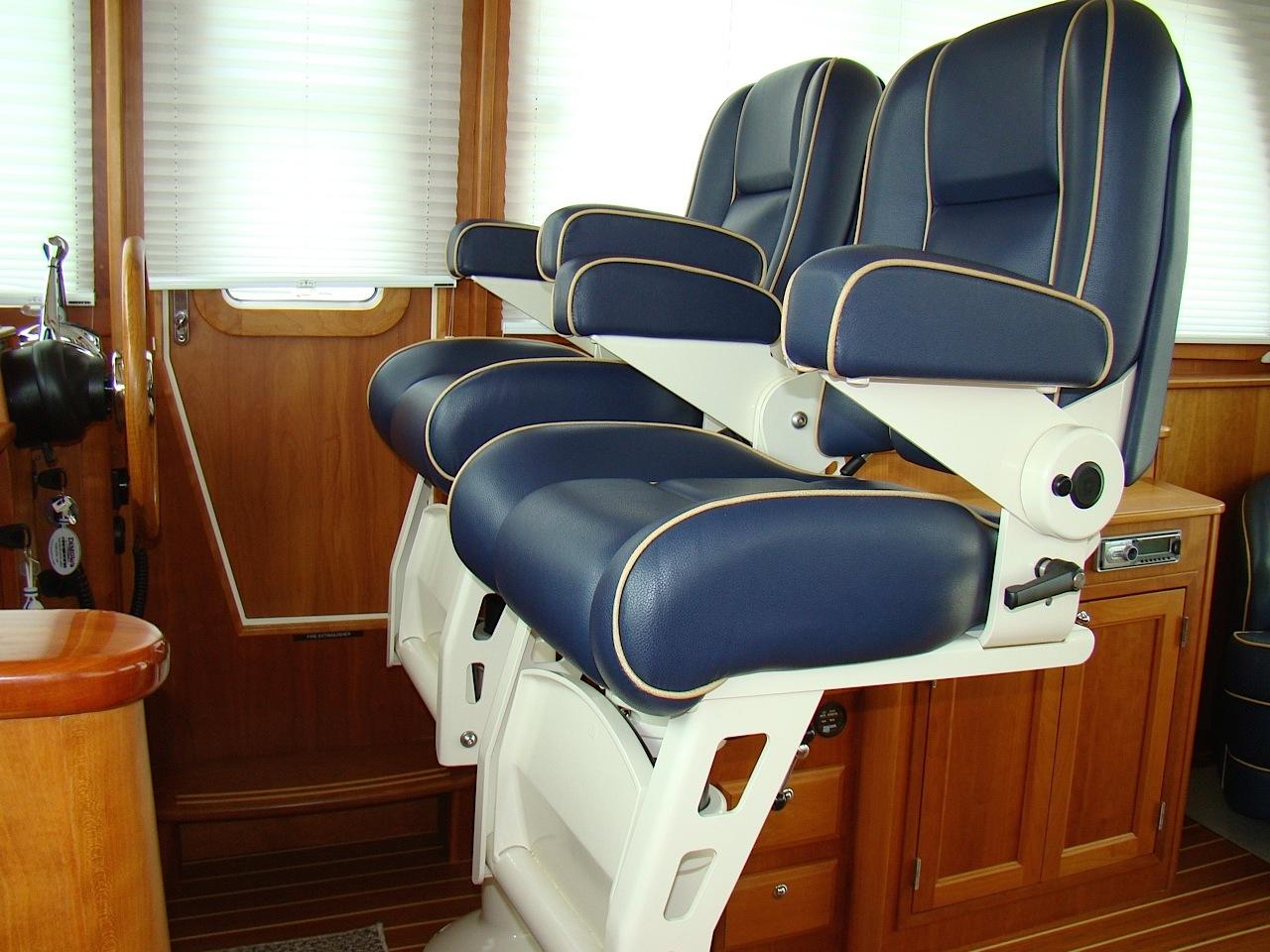

• room blower and optional equipment.- Stazo 400mm custom teak steering wheel with tilt helm. - (2) Stidd N-series single helm seats.

Steering and Trim Systems

• CMD helm, with joystick.Trim tabs integrated in CMD Zeus pod drives
• Autopilot in
• Integrated in CMD Zeus system.
• GPS receiver included.
• “Skyhook” GPS position hold system.

Fuel System

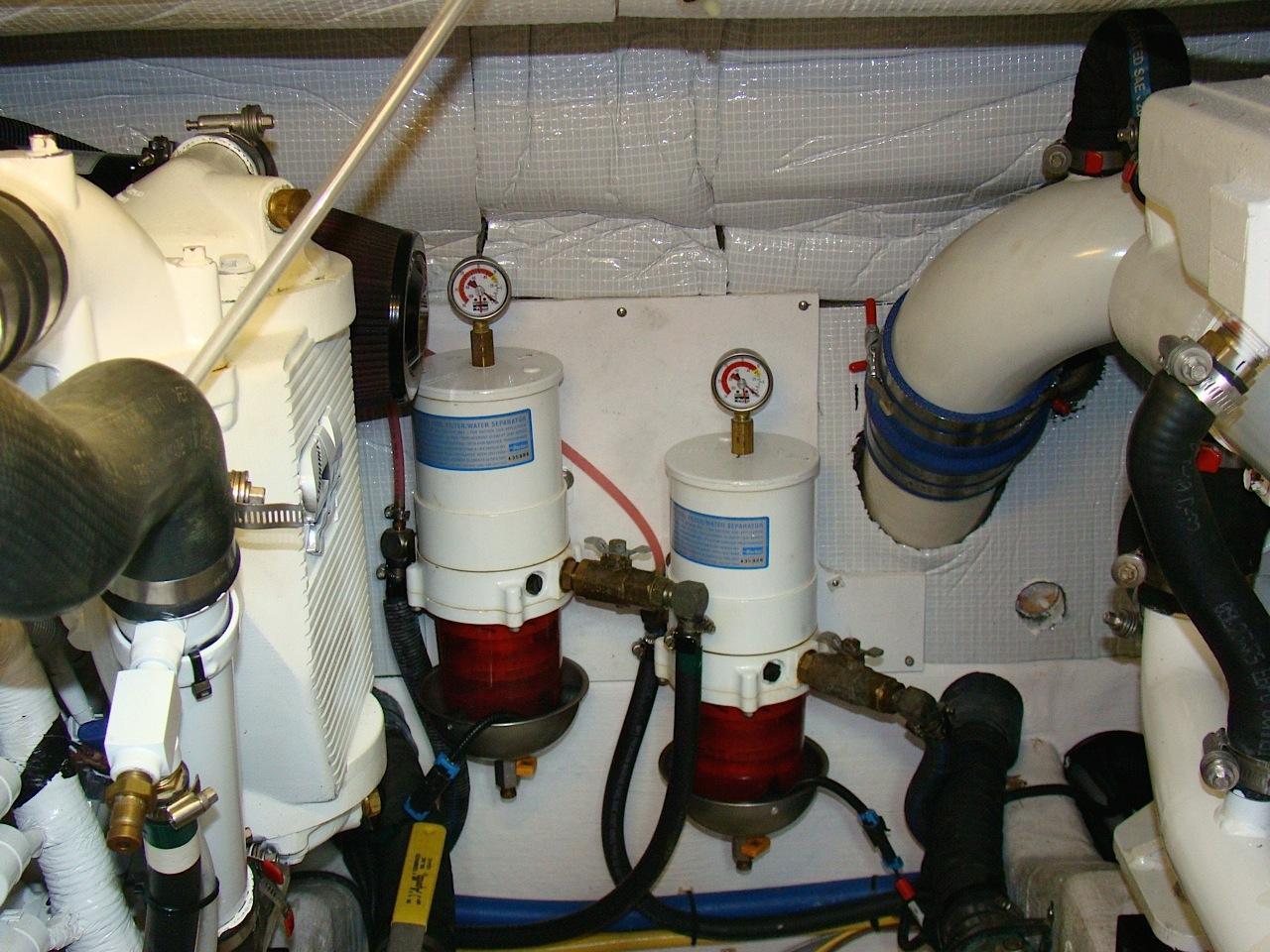

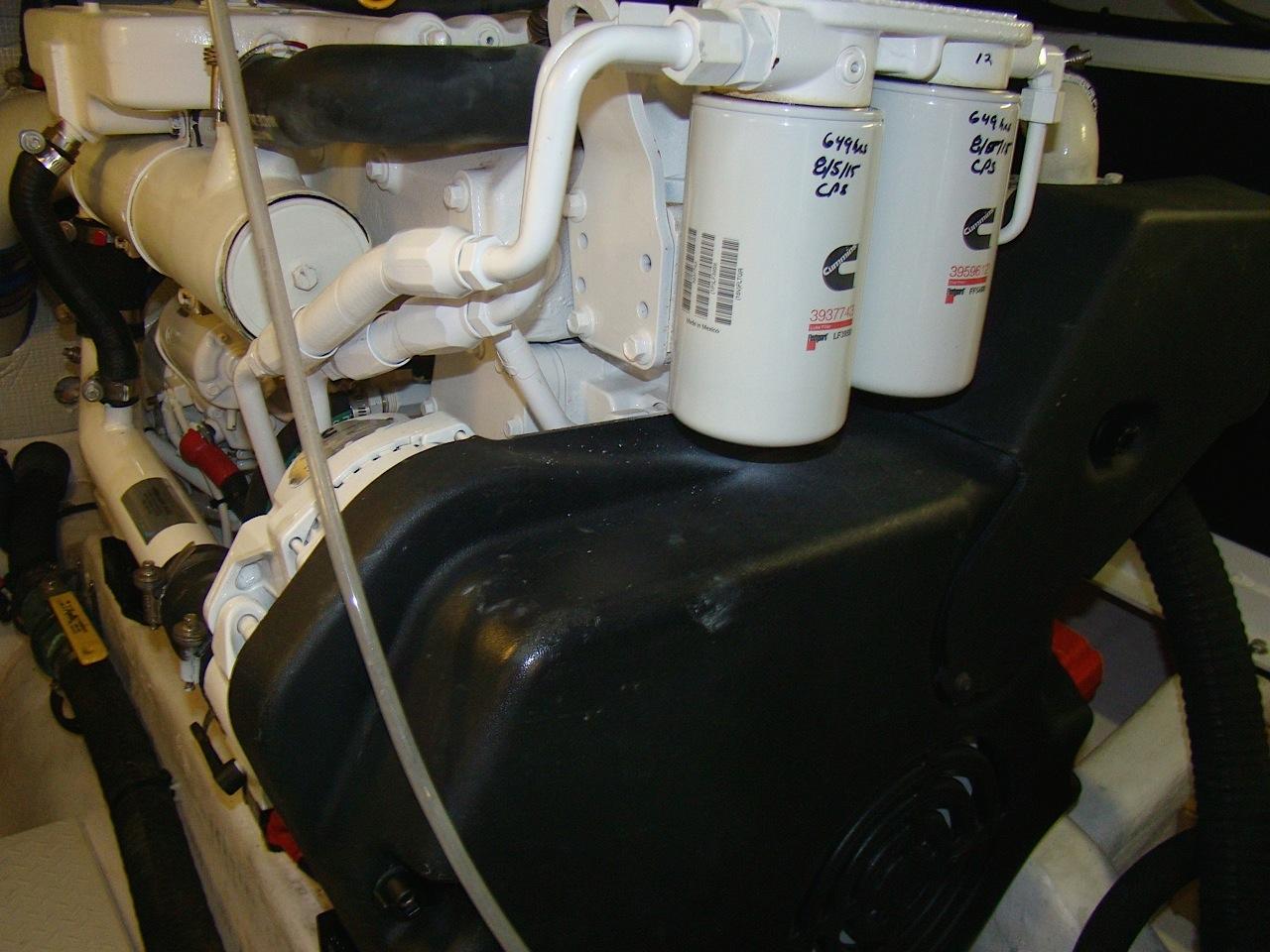

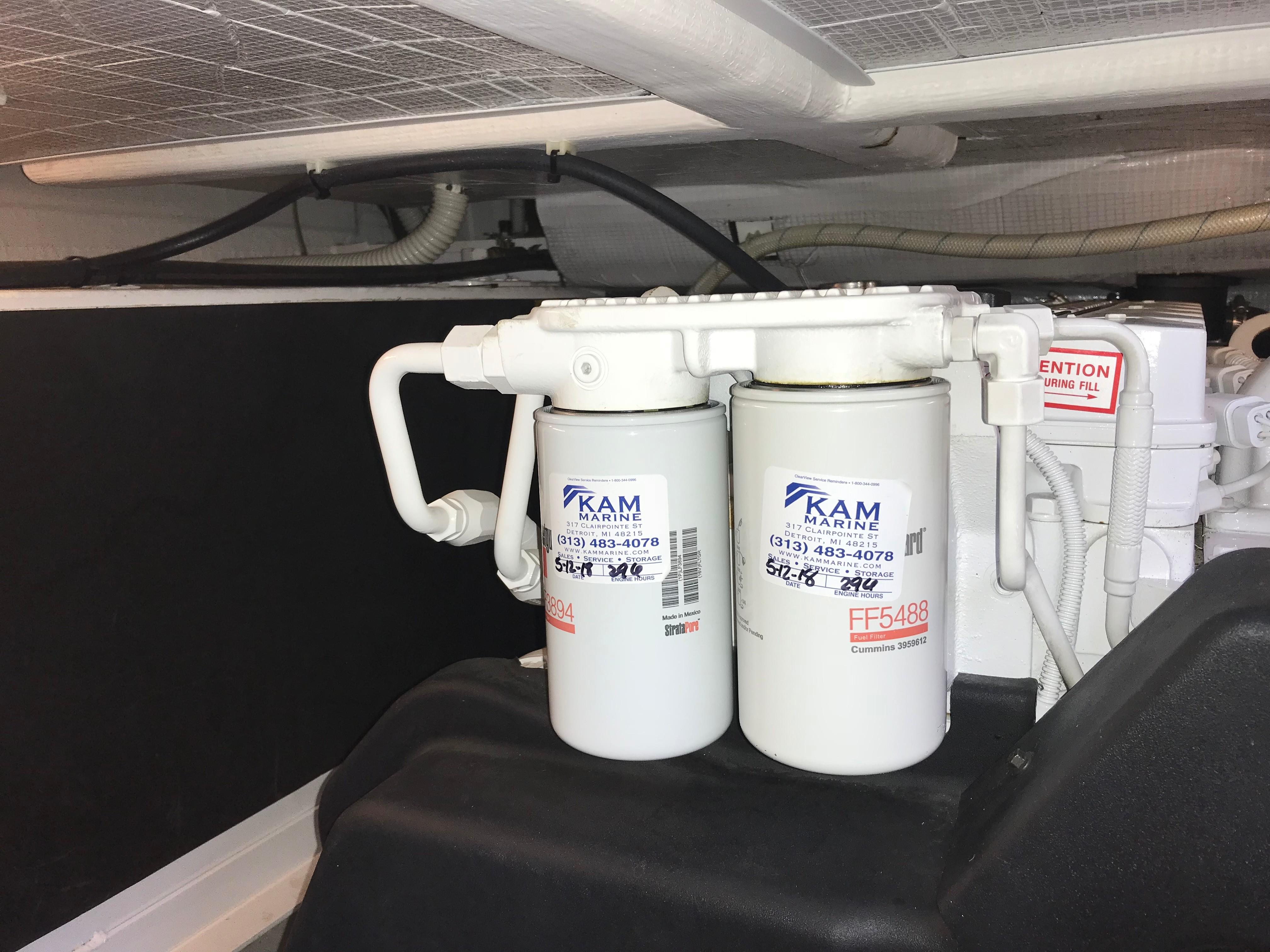

• - (2) 190 gal diesel fuel tanks port and starboard. - Racor fuel filters with water in fuel probes.
•  (2) 2” “Diesel” deck fill plates.

Electrical

12VDC ELECTRICAL SYSTEM

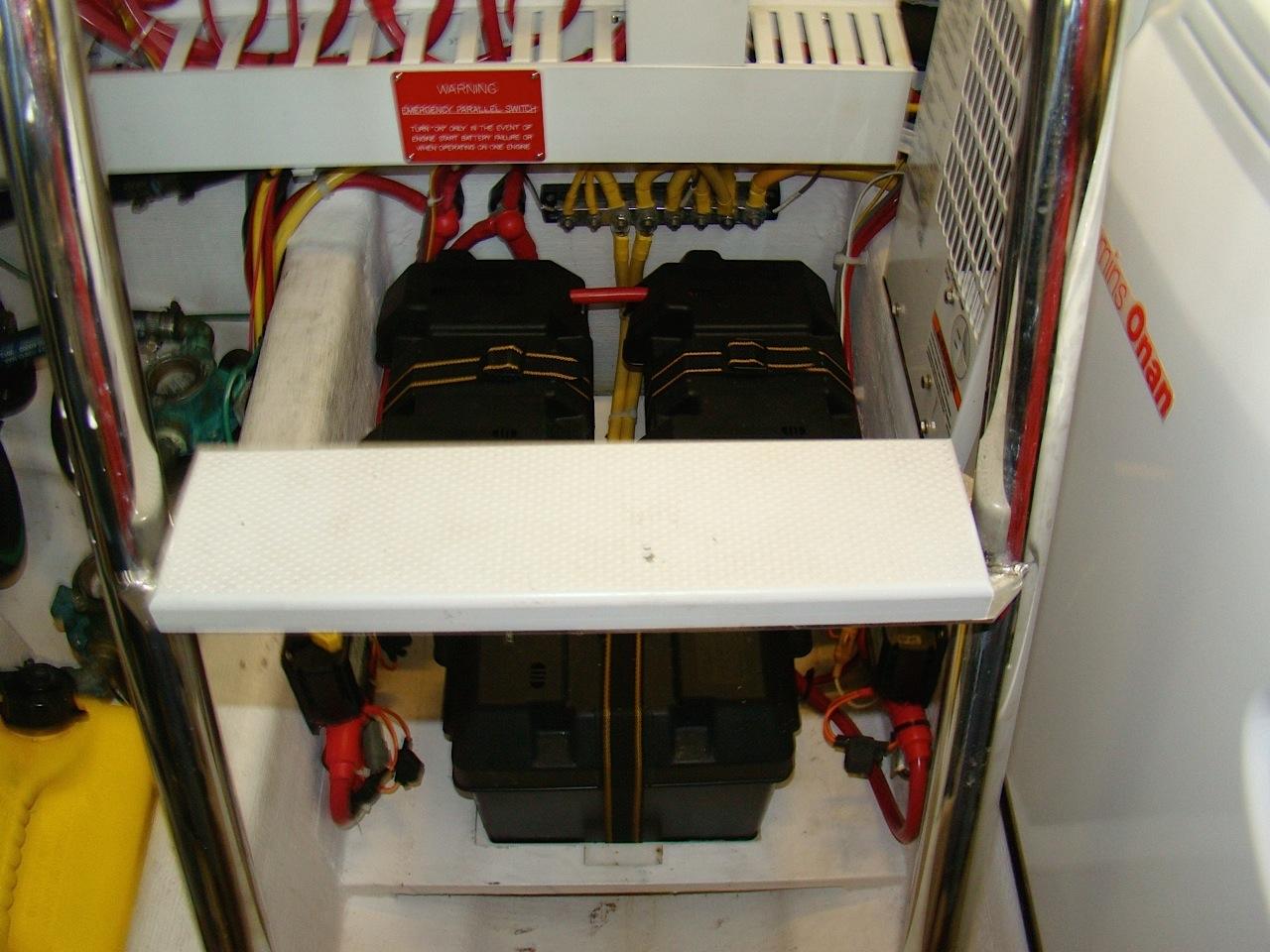

• Two AGM Group 31 dedicated engine start batteries. - Two AGM 4D deep cycle ship's service batteries.One AGM Group 24 generator start battery.Remote control battery switches with controls at helm. - Manual emergency battery crossover switch.

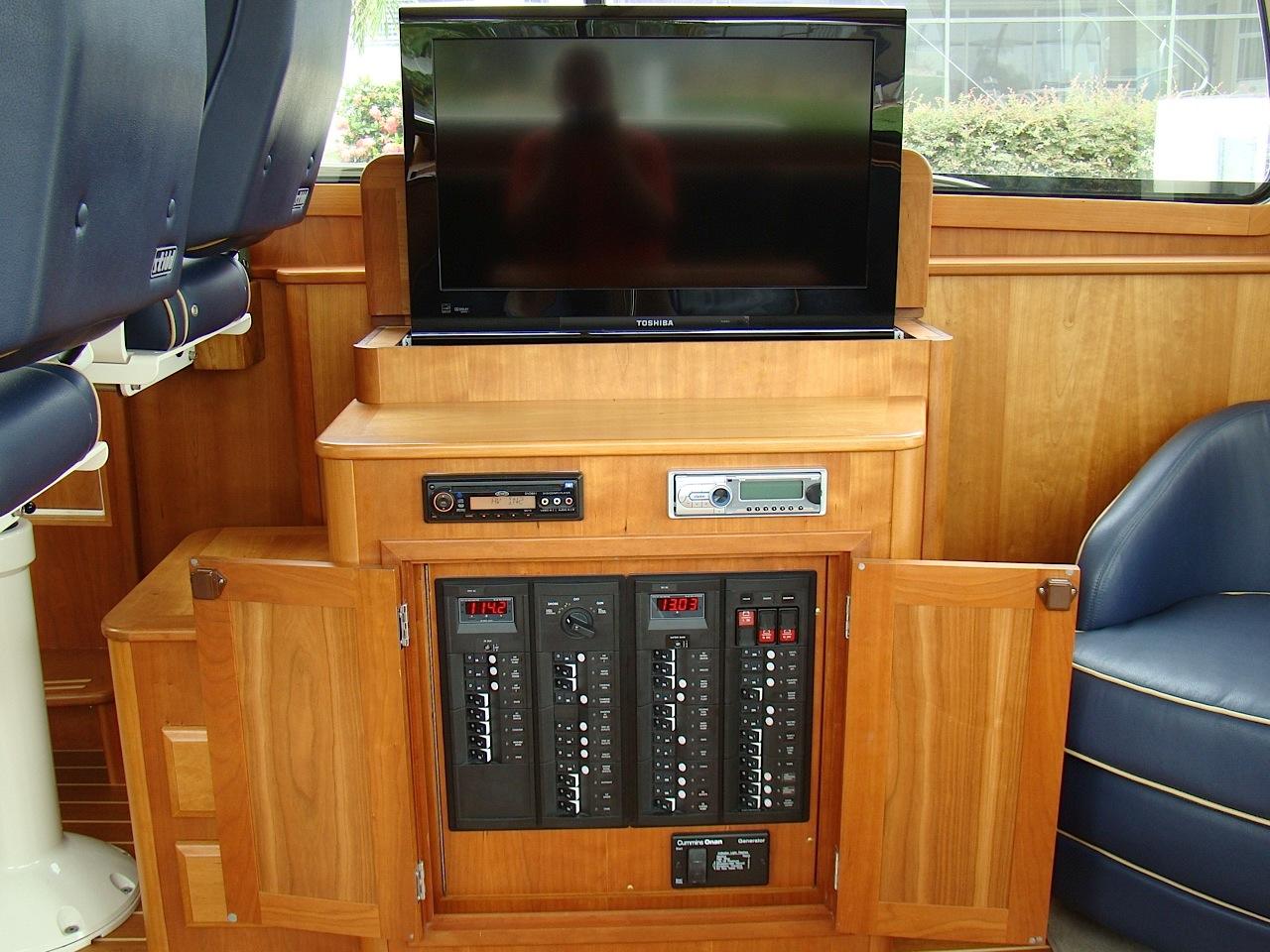

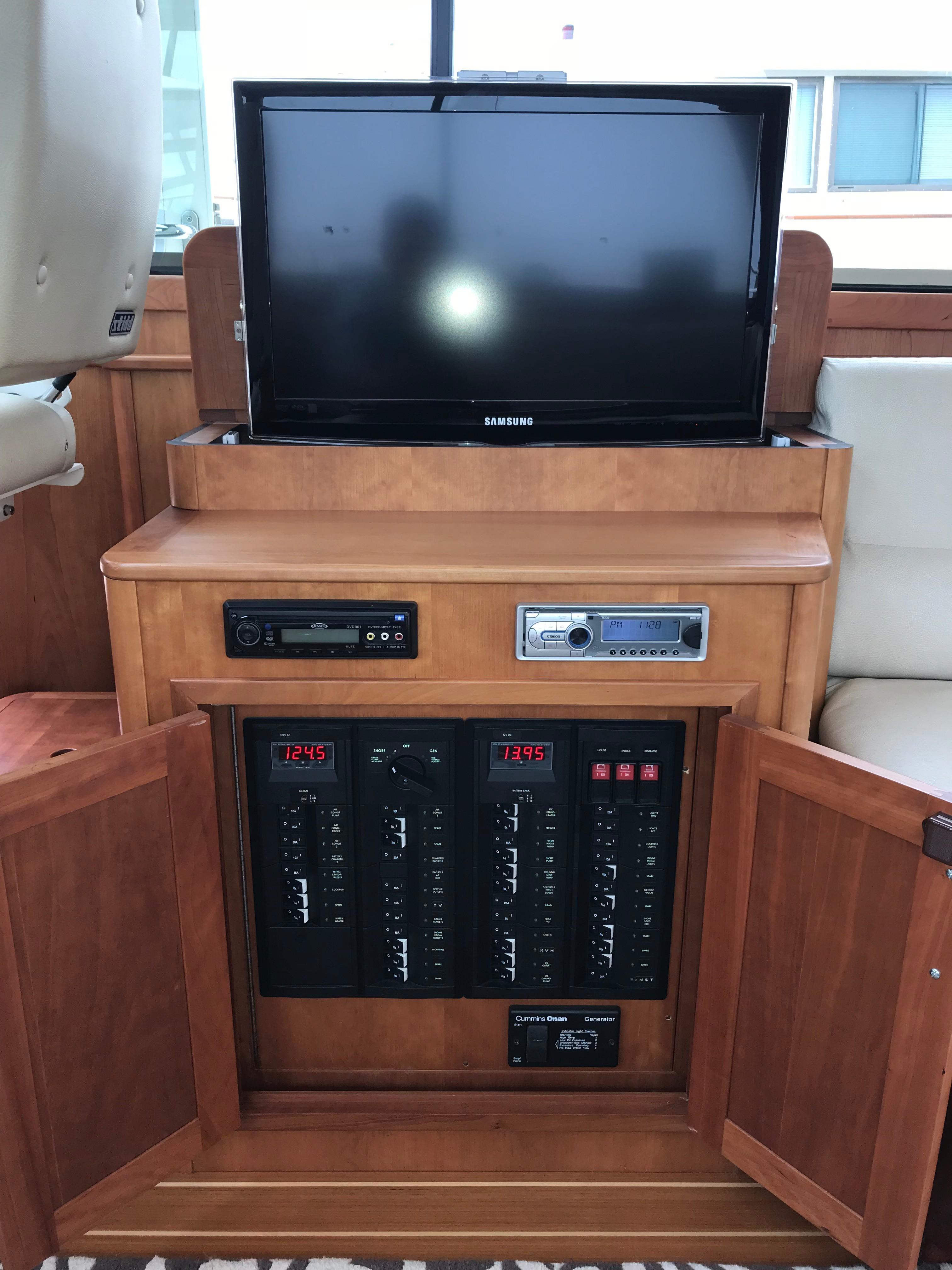

• Illuminated main circuit breaker distribution. - Digital battery monitor.Lighting:
• Danish cabin reading lights.High output LED lights in the overhead. Halogen bar lighting in appropriate locations. Fluorescent engine room lighting.Cockpit courtesy lights.
• Marine-grade, tinned wire throughout.

120VAC ELECTRICAL SYSTEM

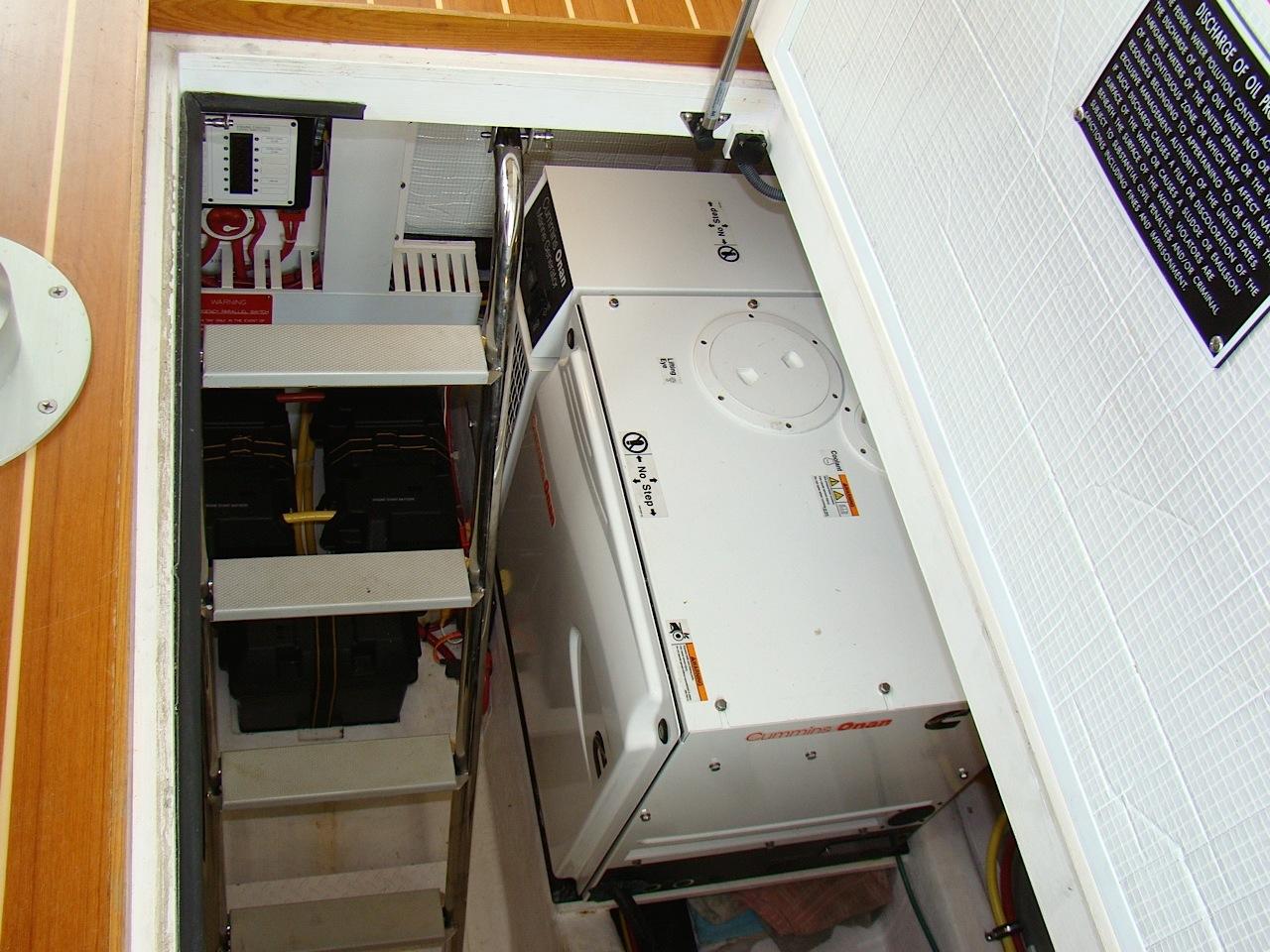

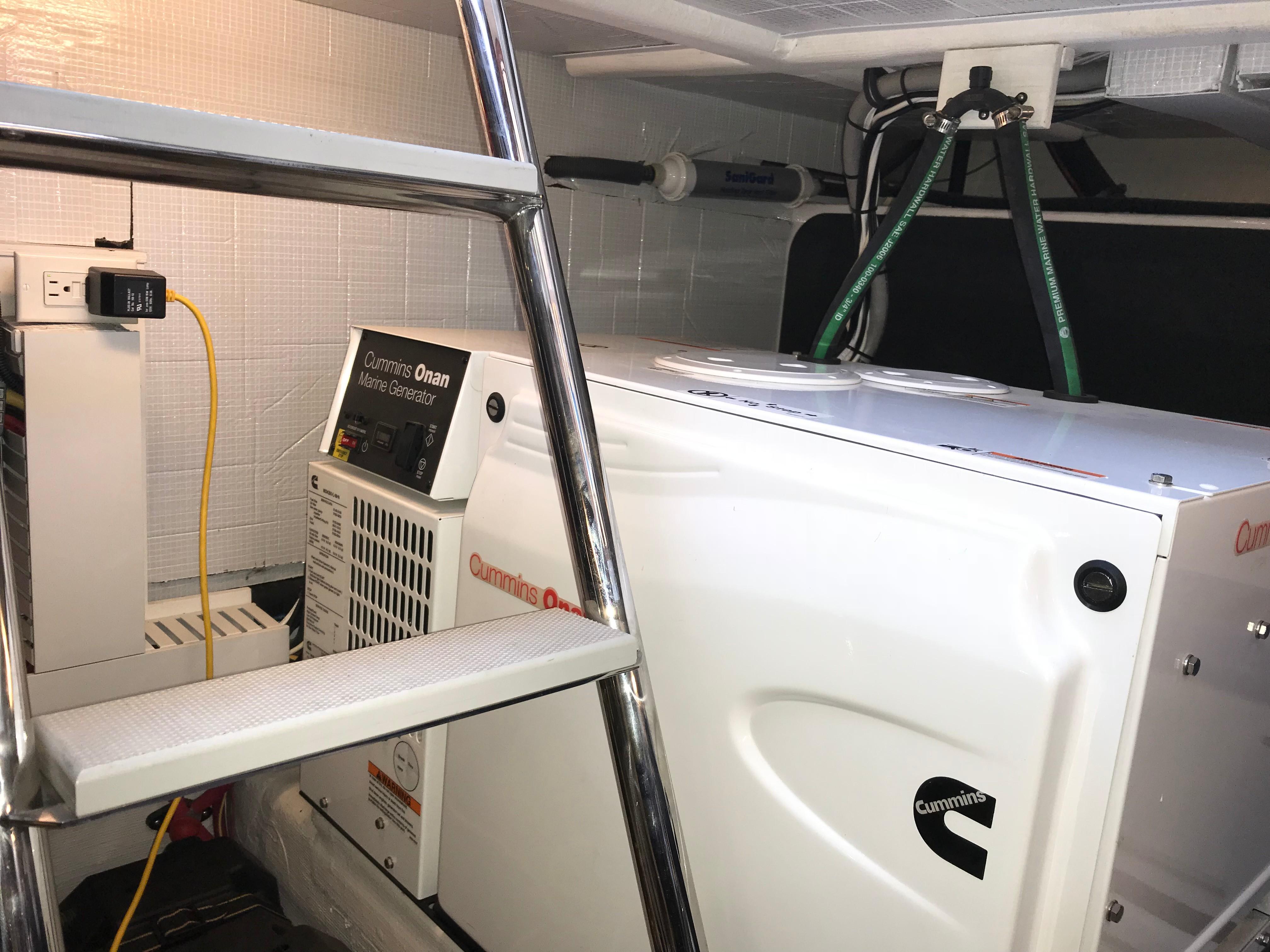

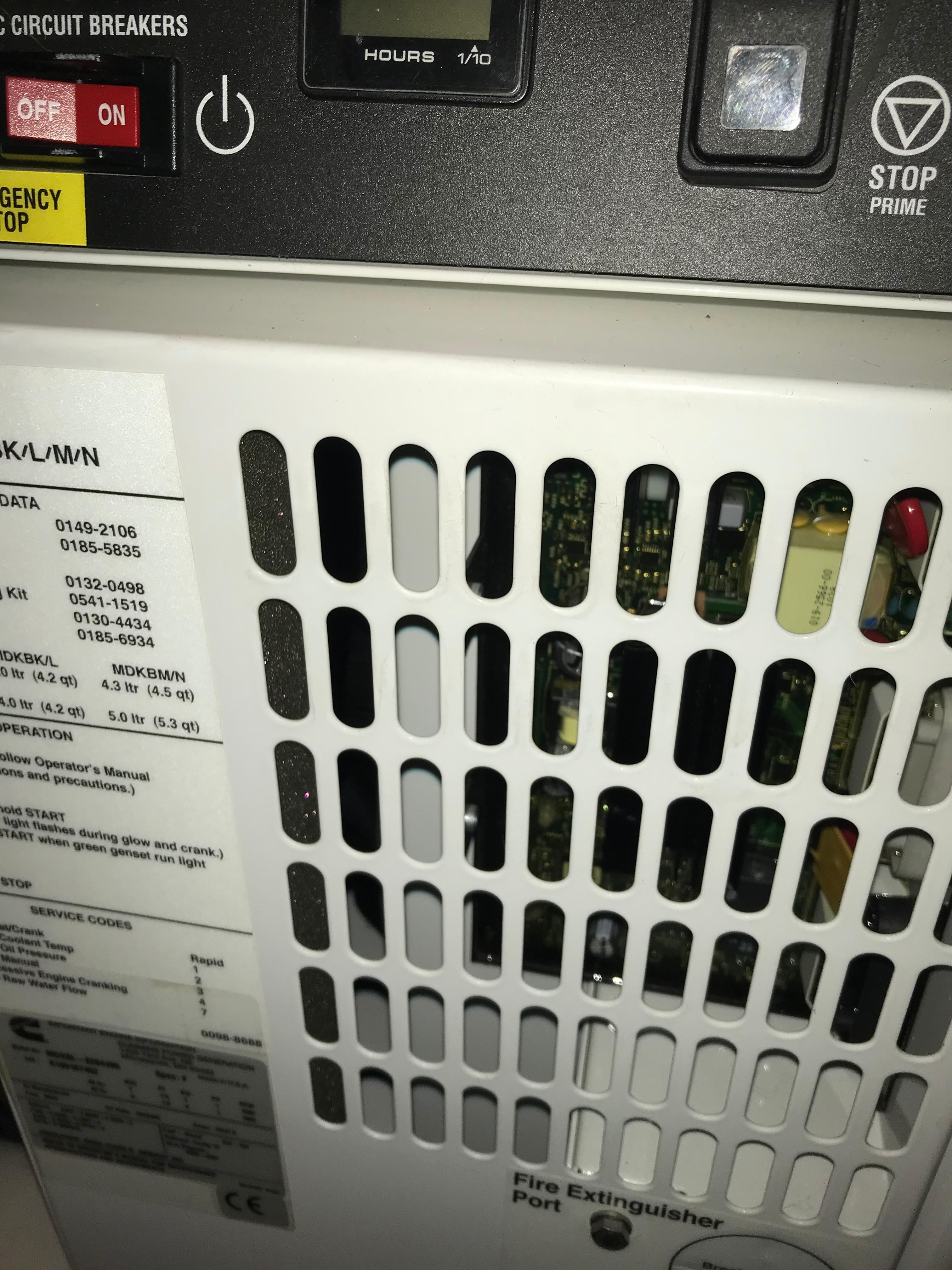

• - Onan 9.0 kw generator including:Interface to Cummins Vessel View display Dedicated start battery.Water lift muffler.Cooling water intake strainer.Sound shield.Transfer switch.
• - (2) 30A AC shore power inlets and (2) 50 ft. cords. - Fail safe galvanic isolator.- Illuminated main circuit breaker distribution panel. - Digital AC system monitor
• - (1) 120V outlet in each cabin and (1) in engine room.
• - All galley and head receptacles are GFI protected.
• Additional outlets positioned in locations appropriate for entertainment systems in main an forward cabin
• 50A, 3-bank battery charger
•  Additional outlets positioned in locations appropriate for entertainment  Reverse cycle heat/ air conditioning in (3) zones.
•

Fresh Water System

• Water capacity 140 gals
• Stainless steel, 11 gal. hot water heater, operates on 110-VAC or engine heat
• Temperature control valve on hot water supply.
• Hot and cold water pressure system 12V.
• Fresh water spigot in engine room.
• Optional Cockpit shower, hot and cold.
• Optional Fresh water wash down in anchor locker.

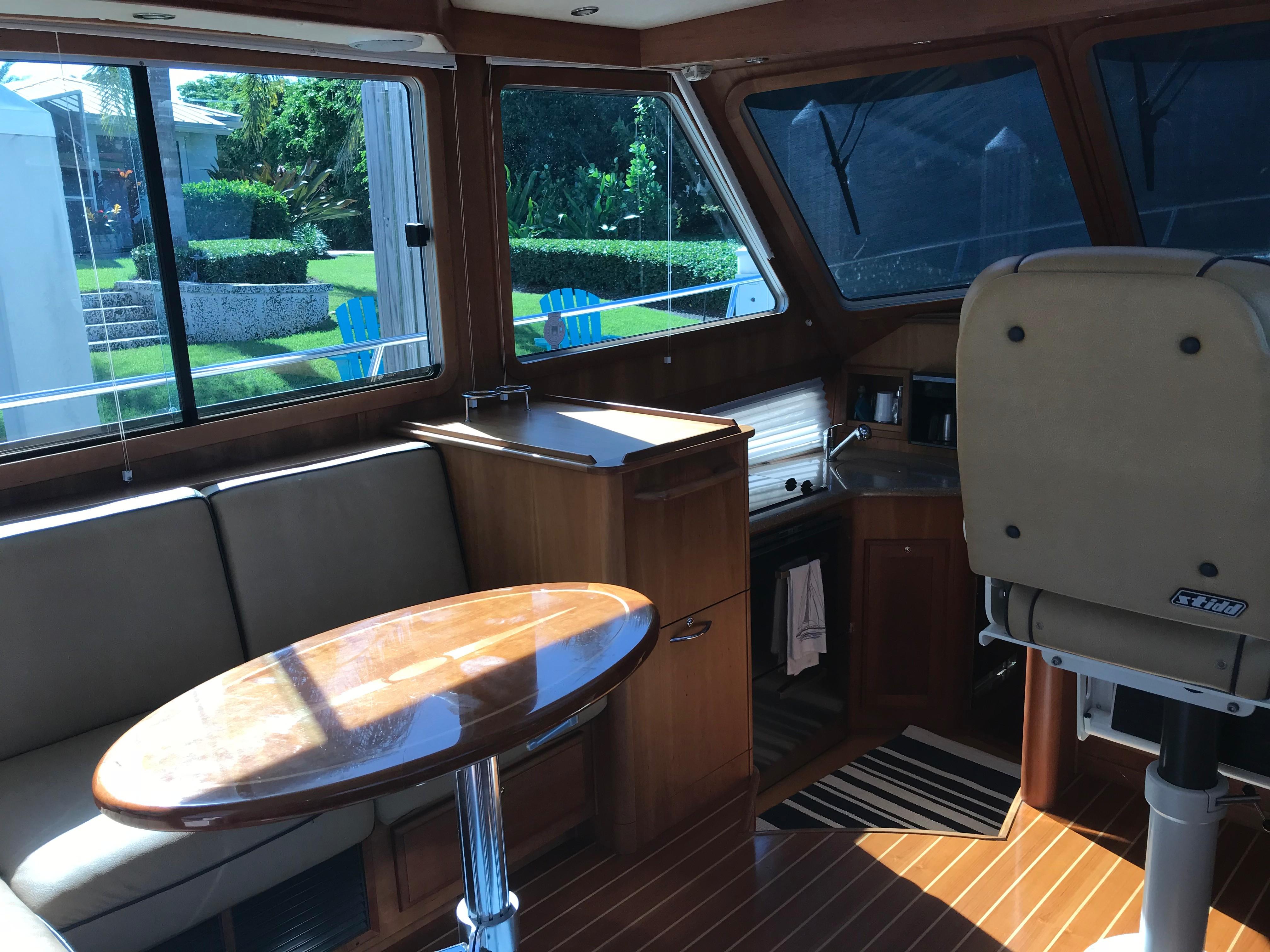

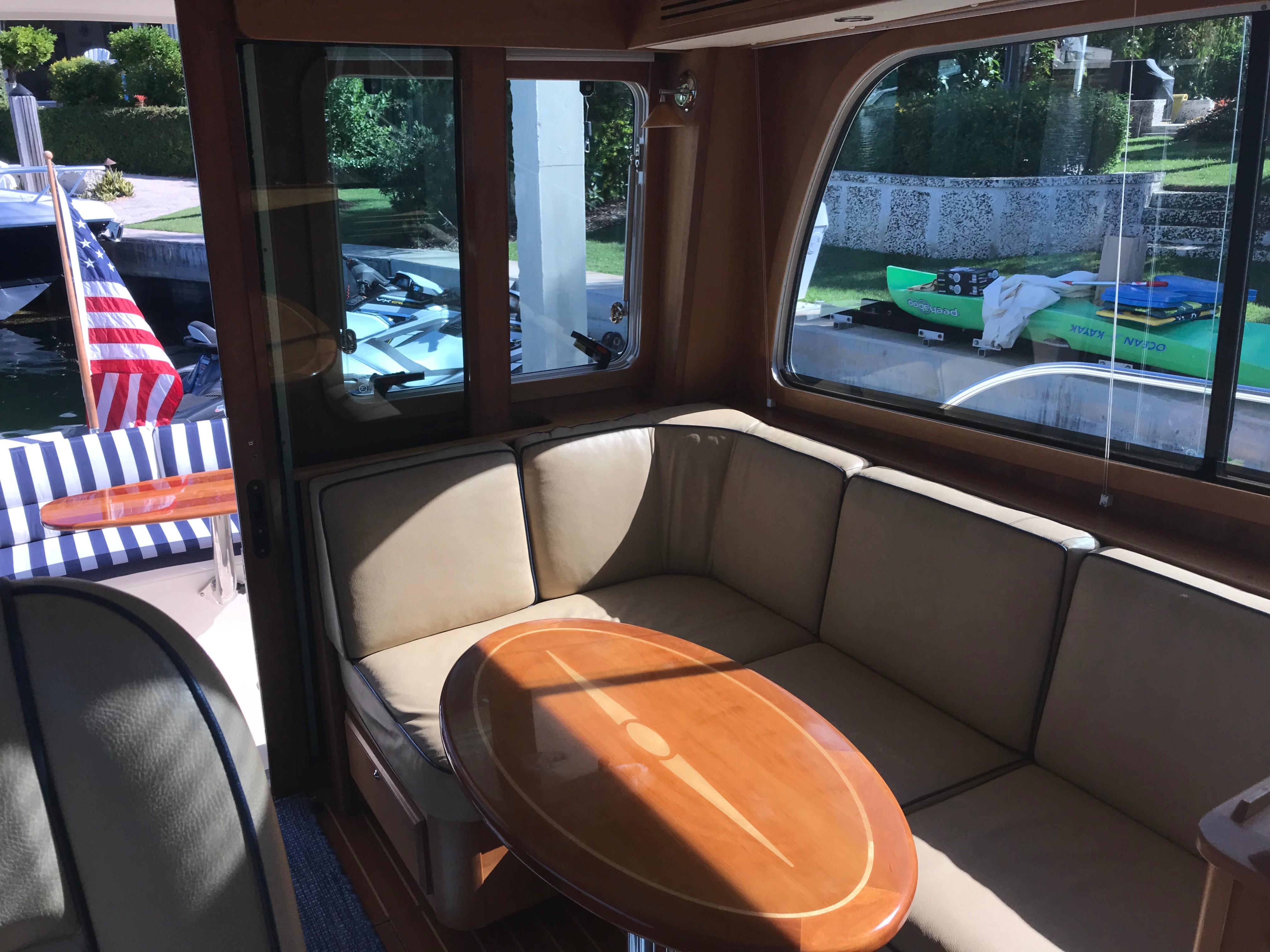

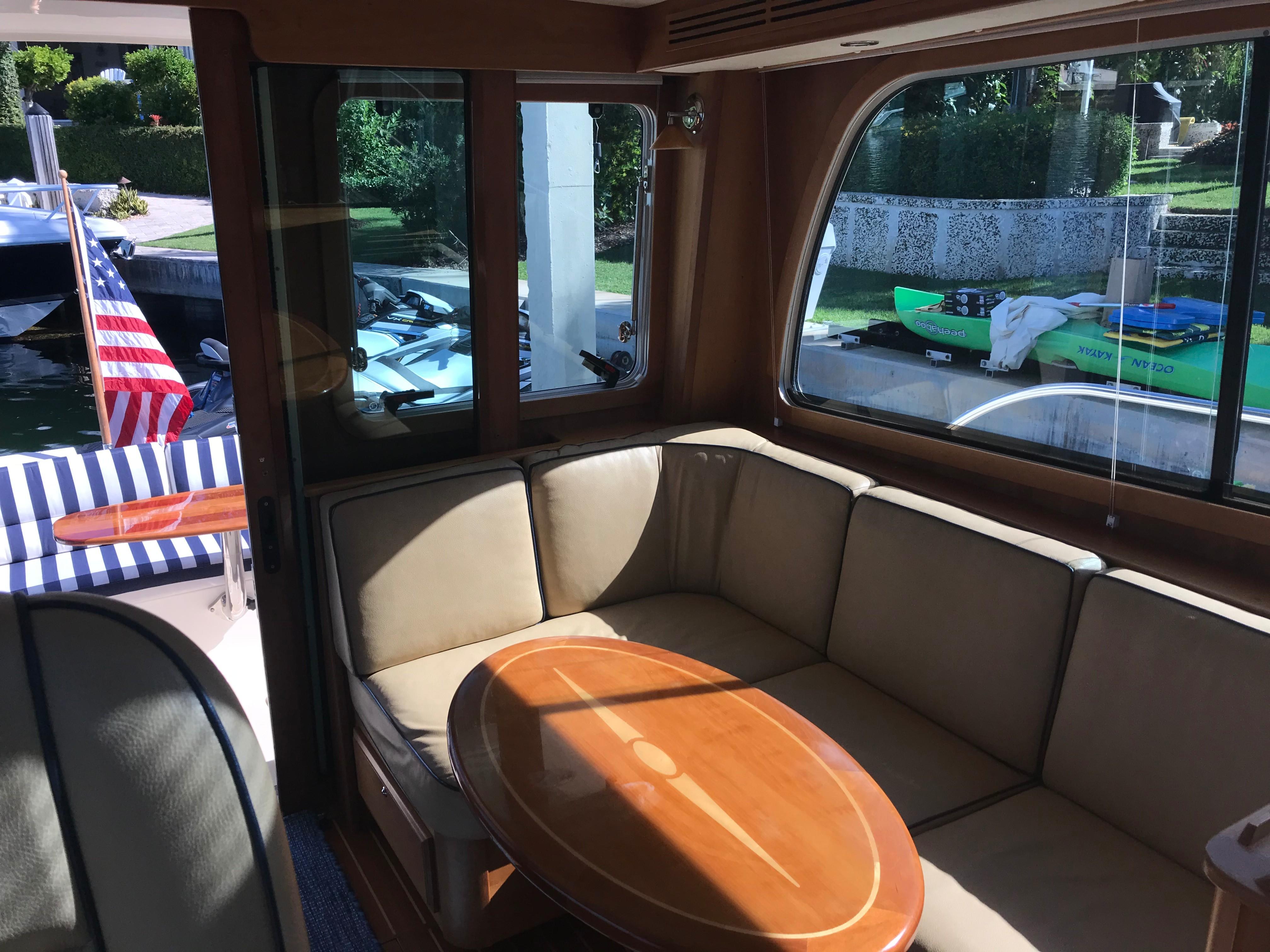

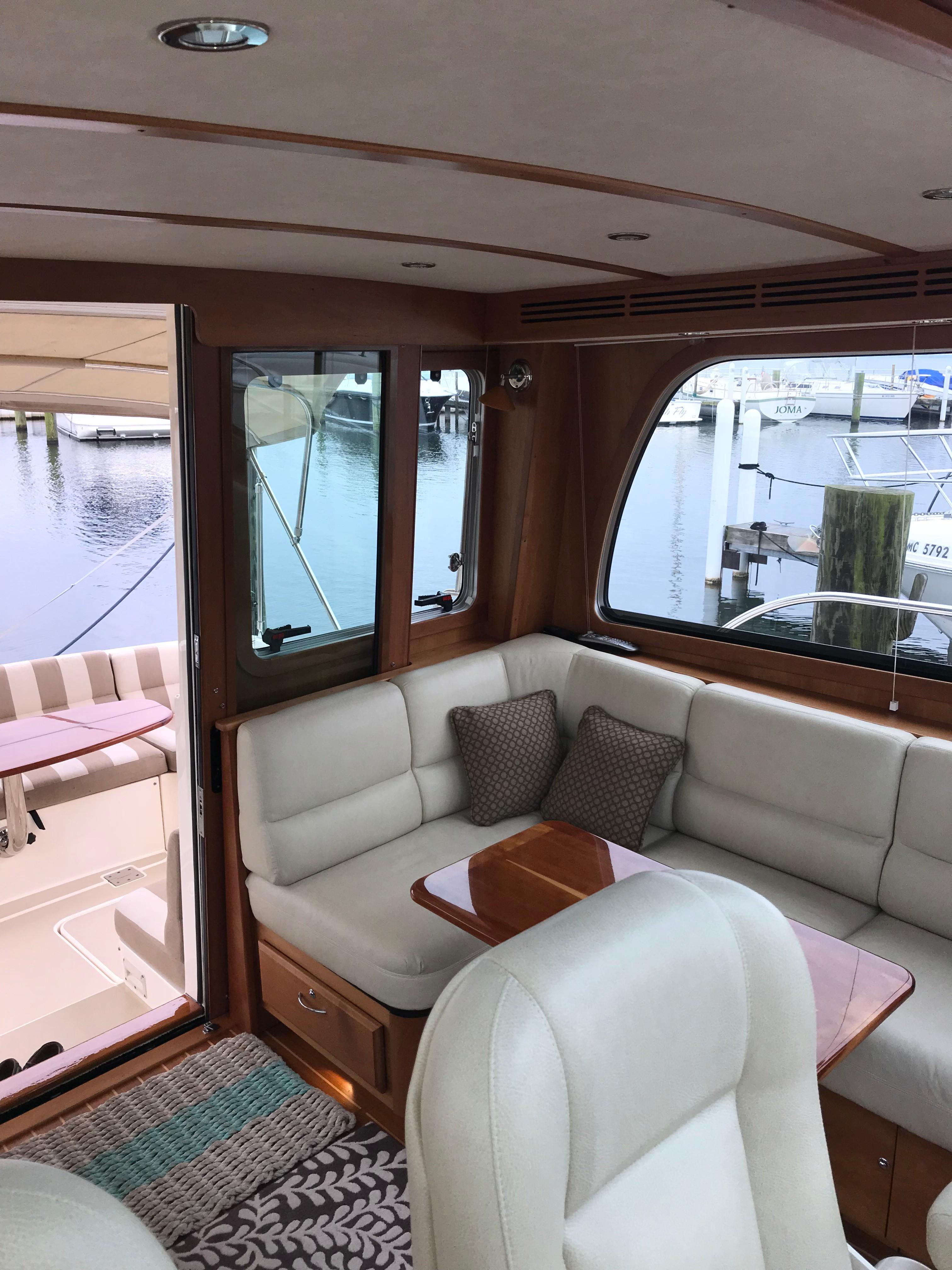

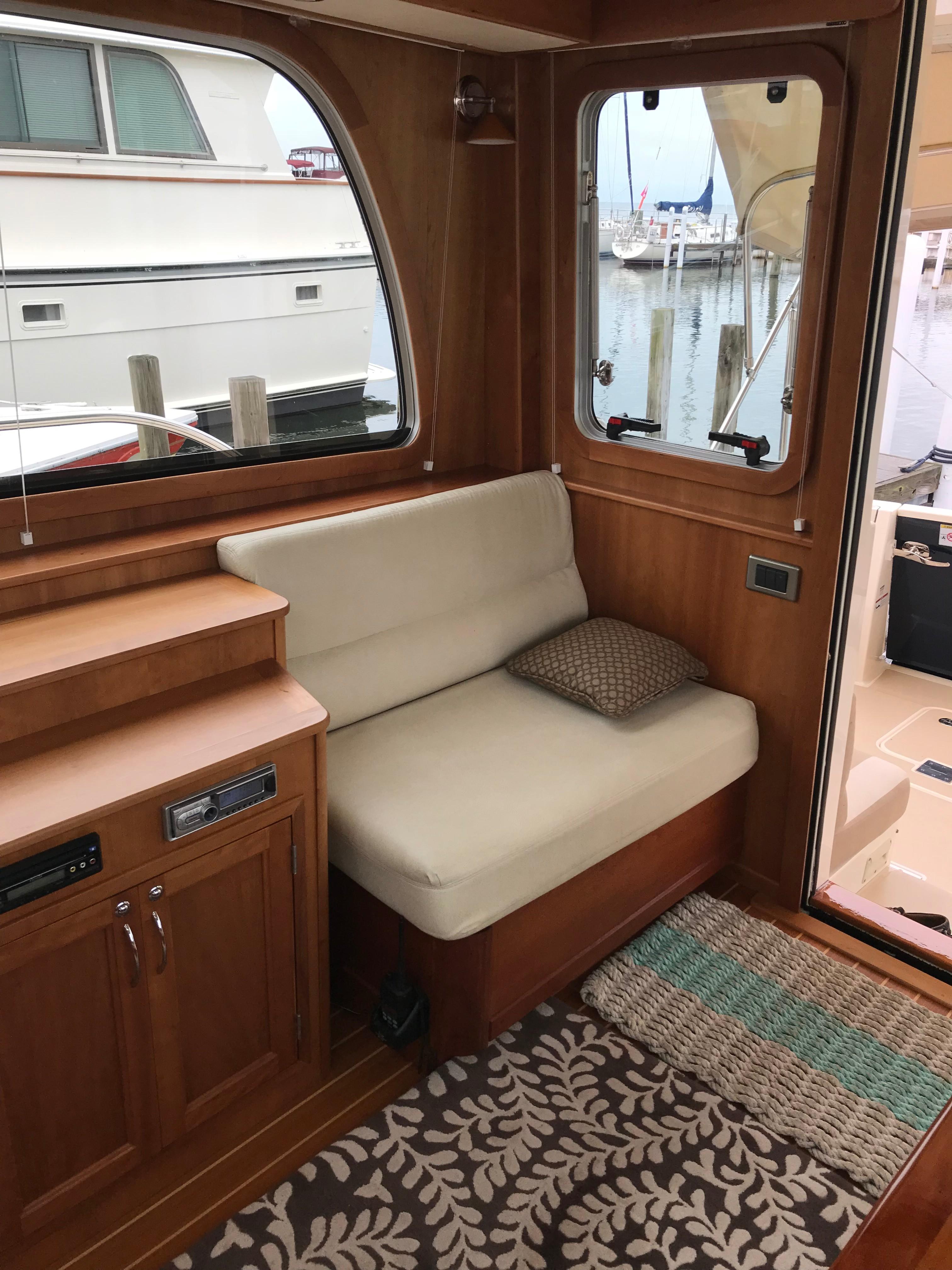

Main Salon

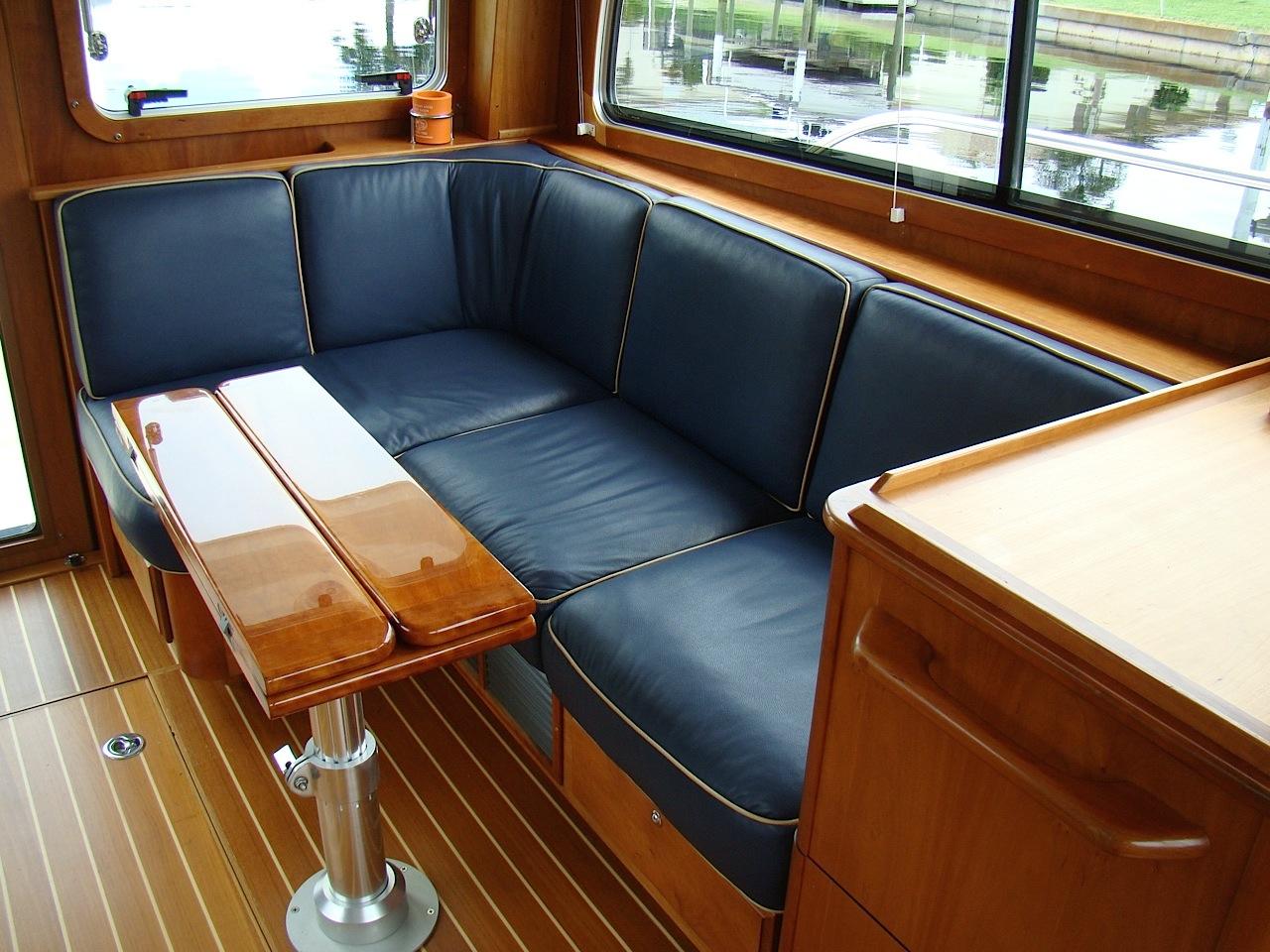

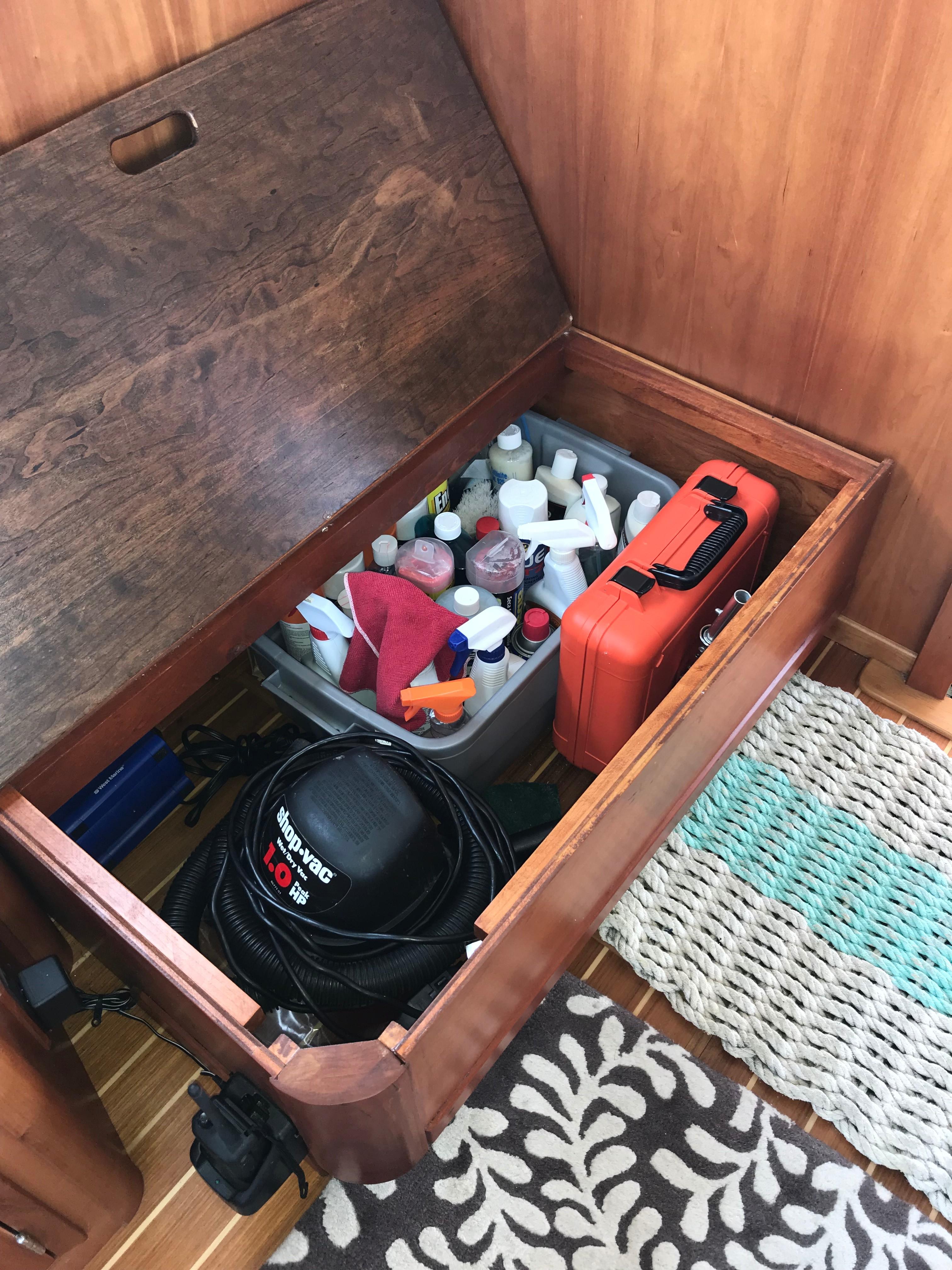

• - “L” settee to port, 5” foam cushions, with storage and Sabretool drawer under.
• High Gloss finished folding table with hi-low pedestal, lowers to coffee table height.

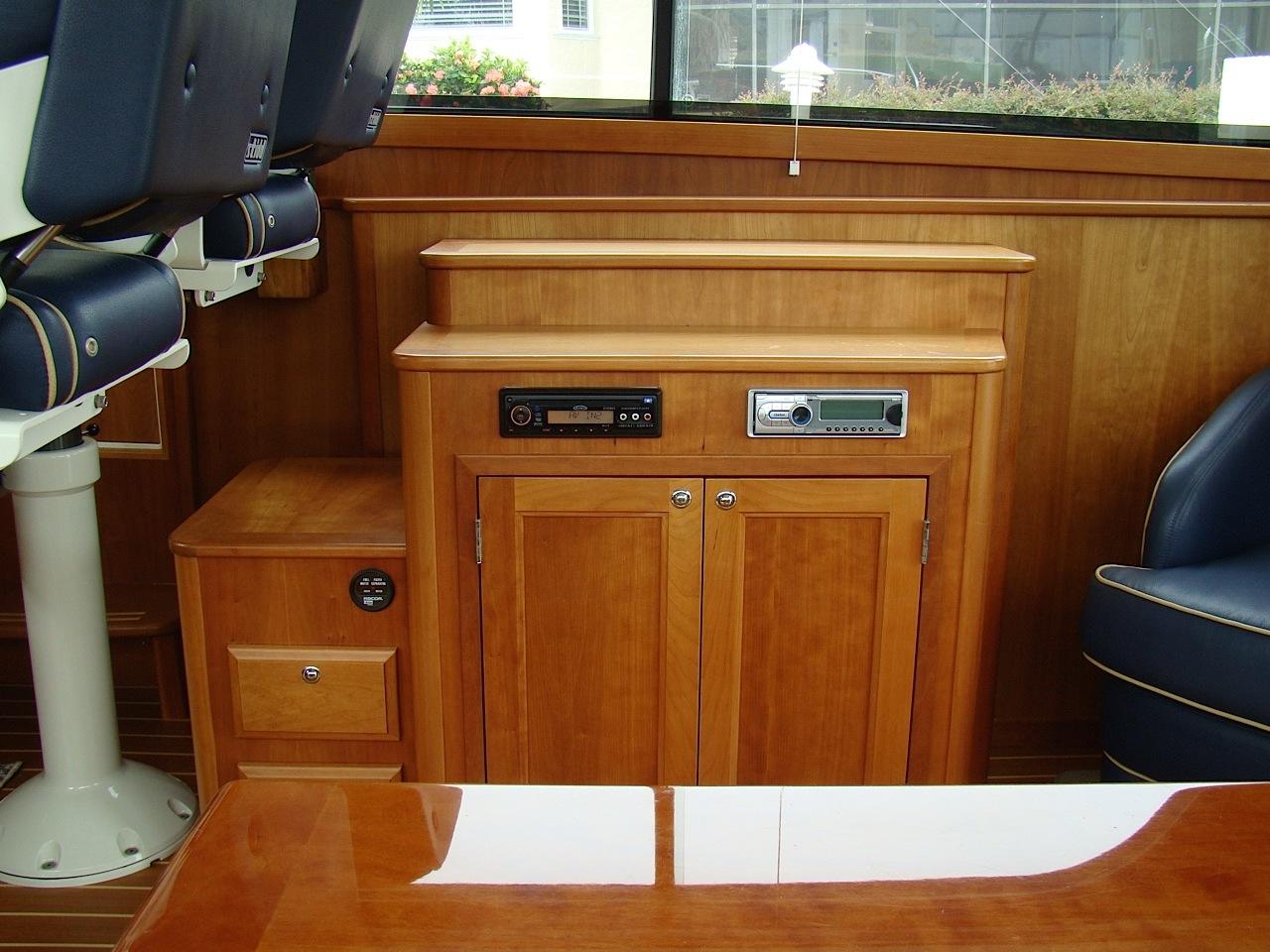

• Bar and entertainment unit to starboard including: 19” flat screen LCD TV on lift with DVD player
• Sound deadening, soft headliner panels.

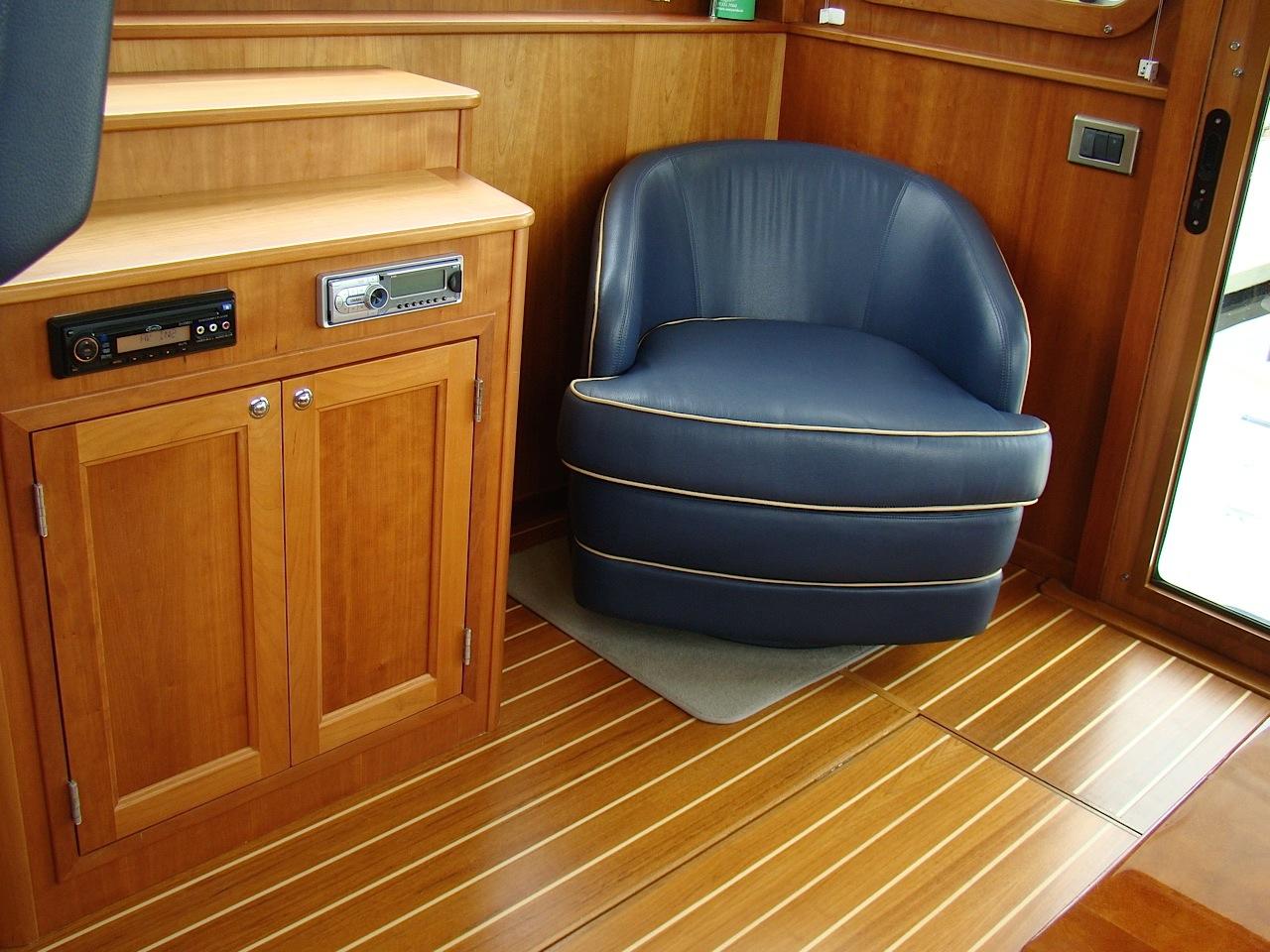

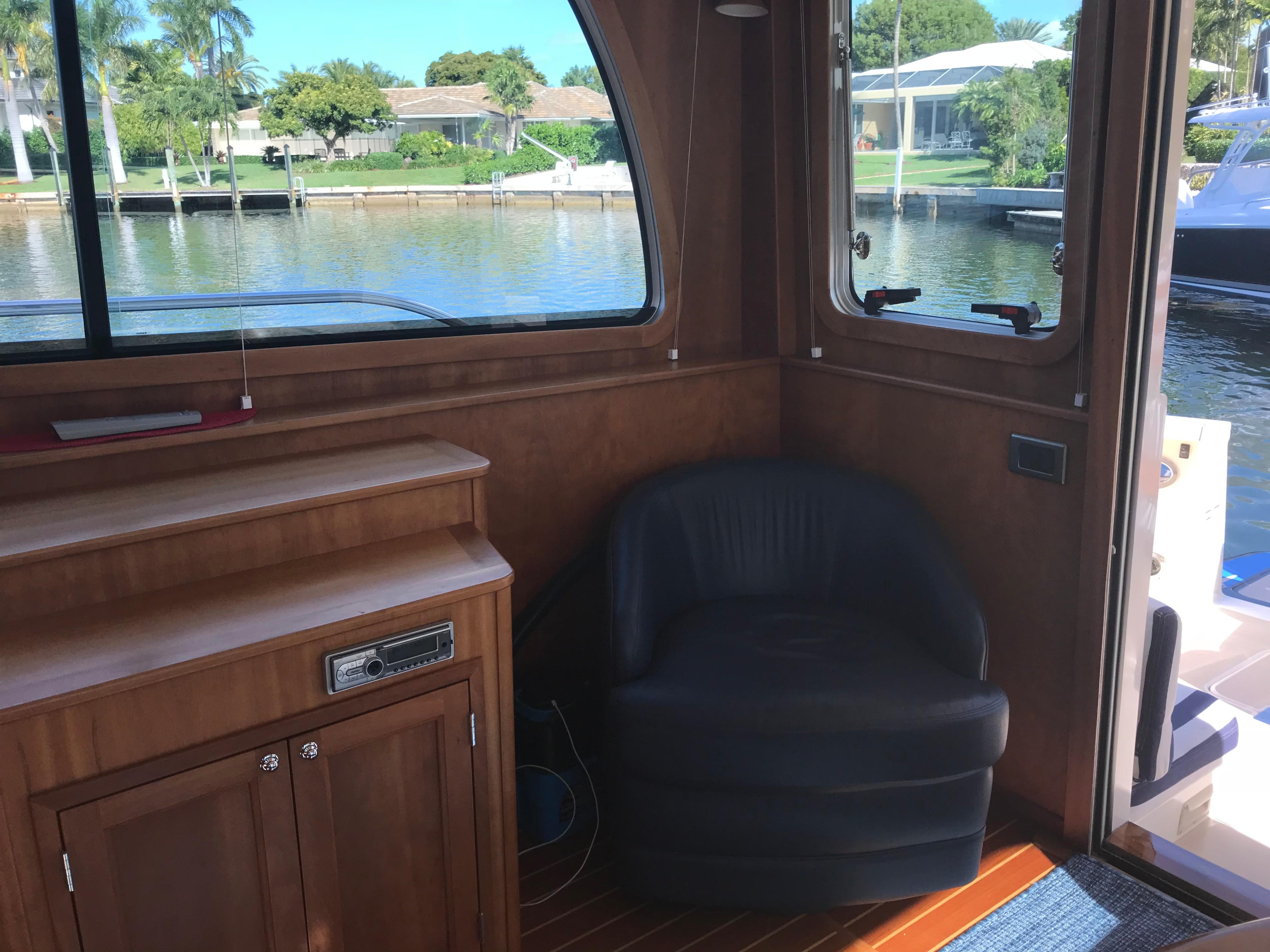

• Barrel chair

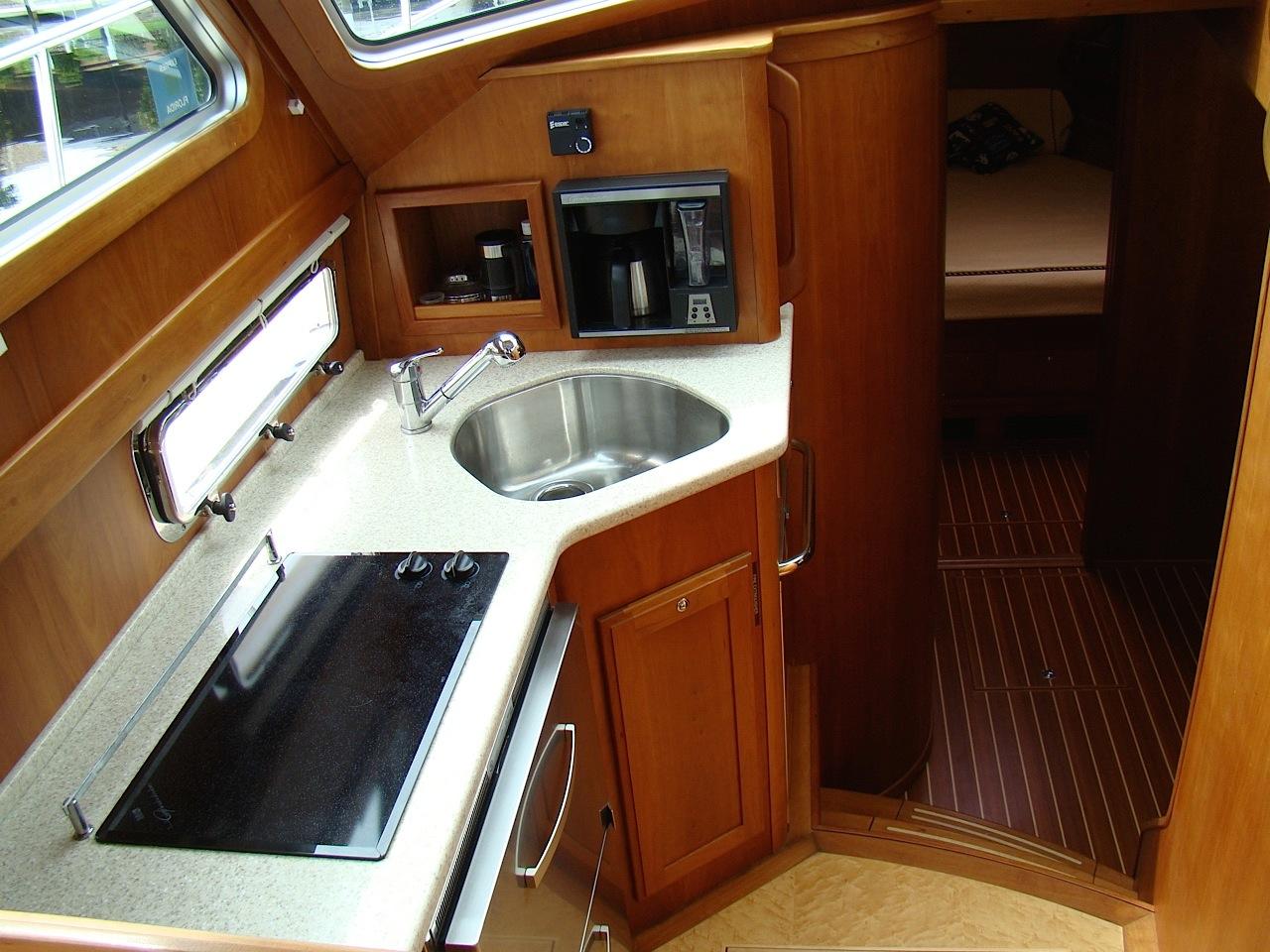

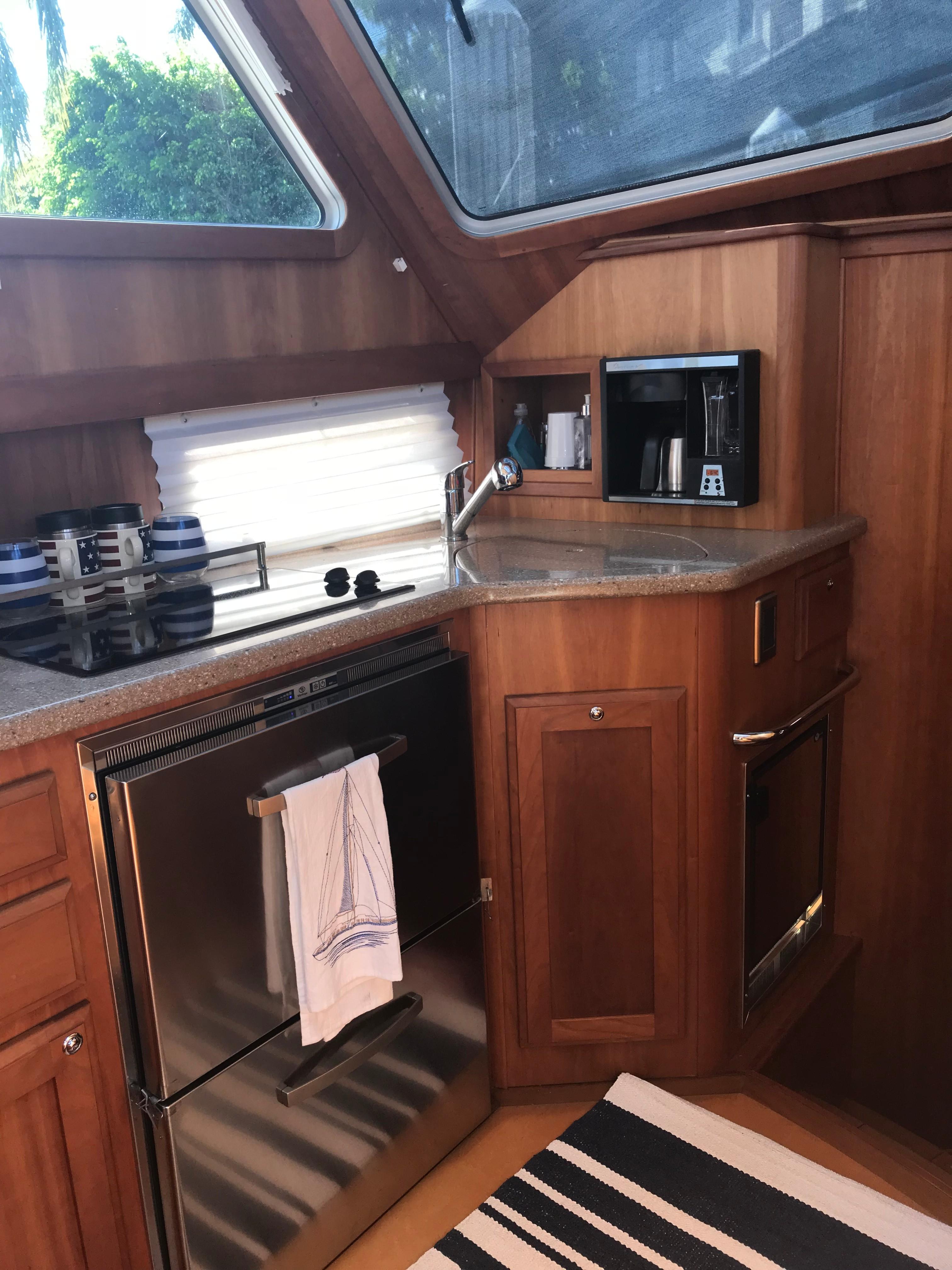

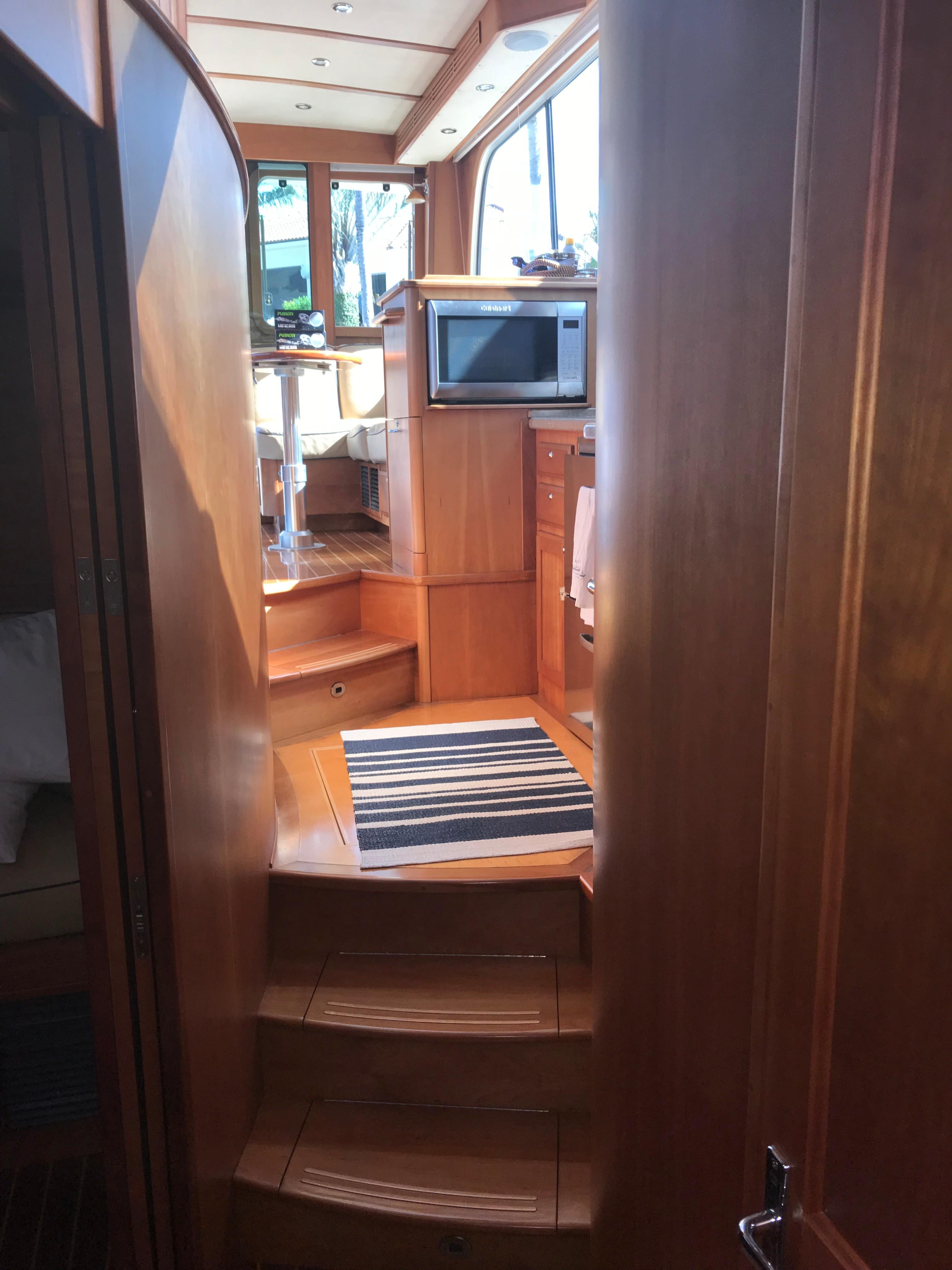

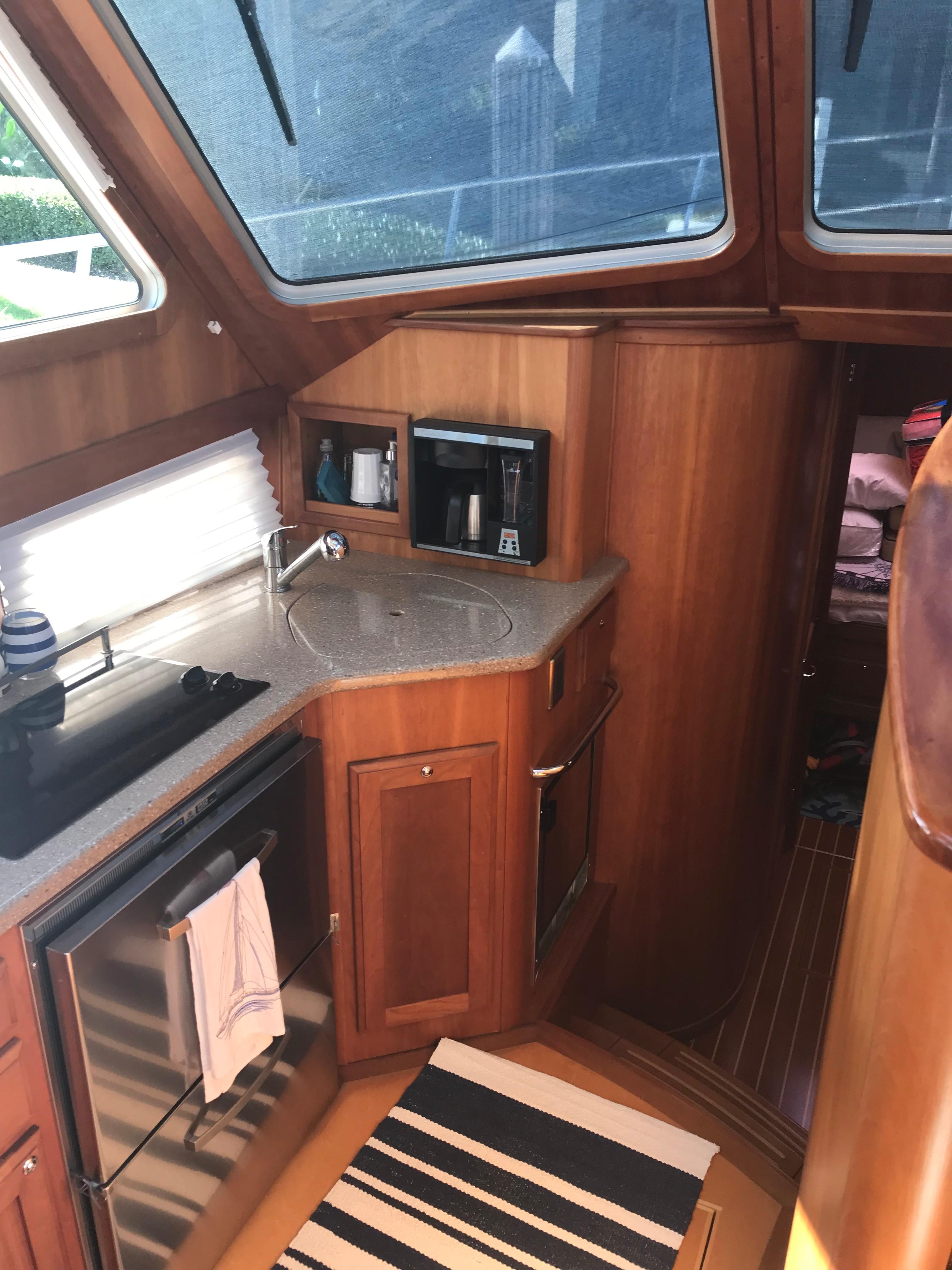

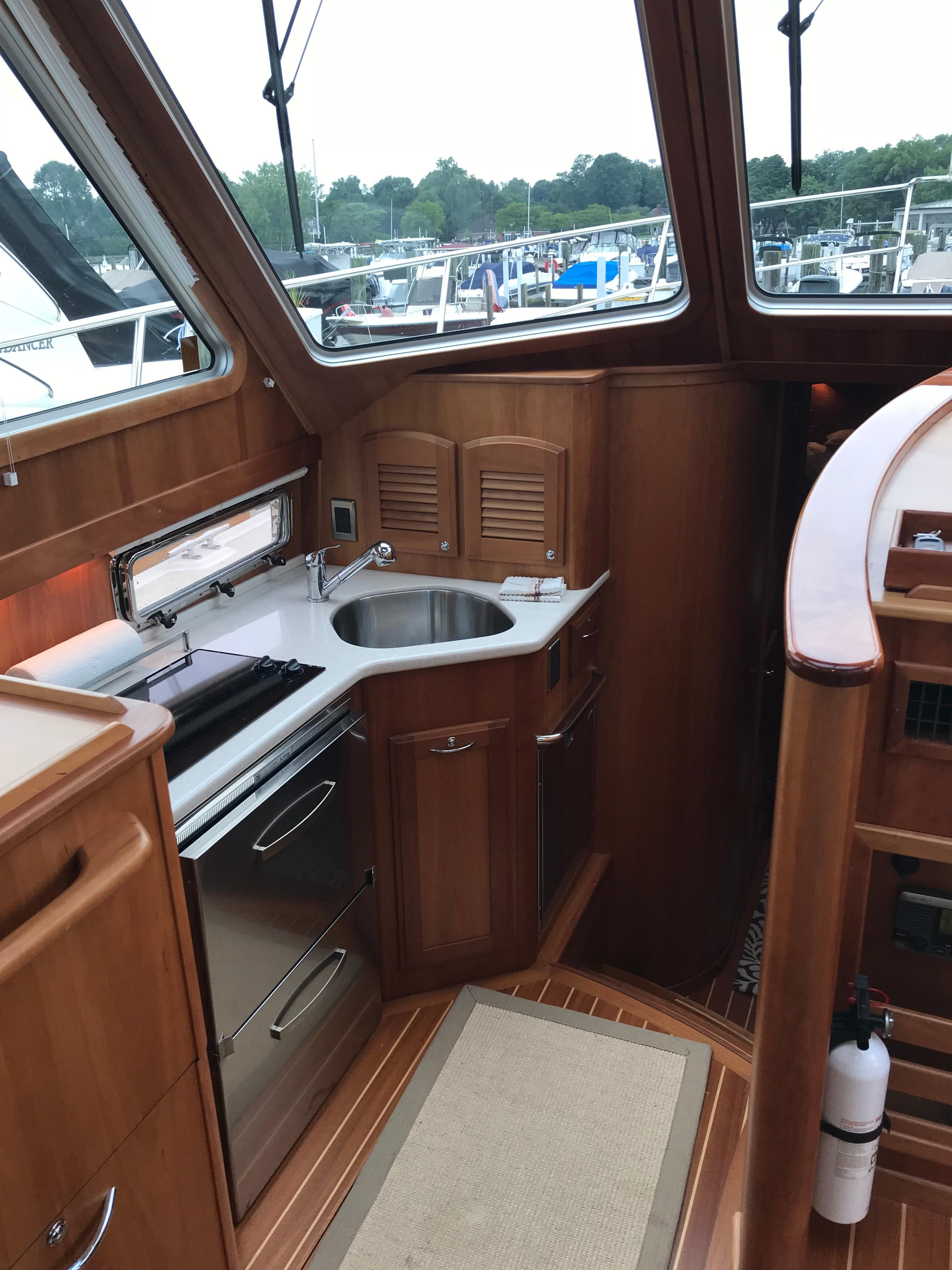

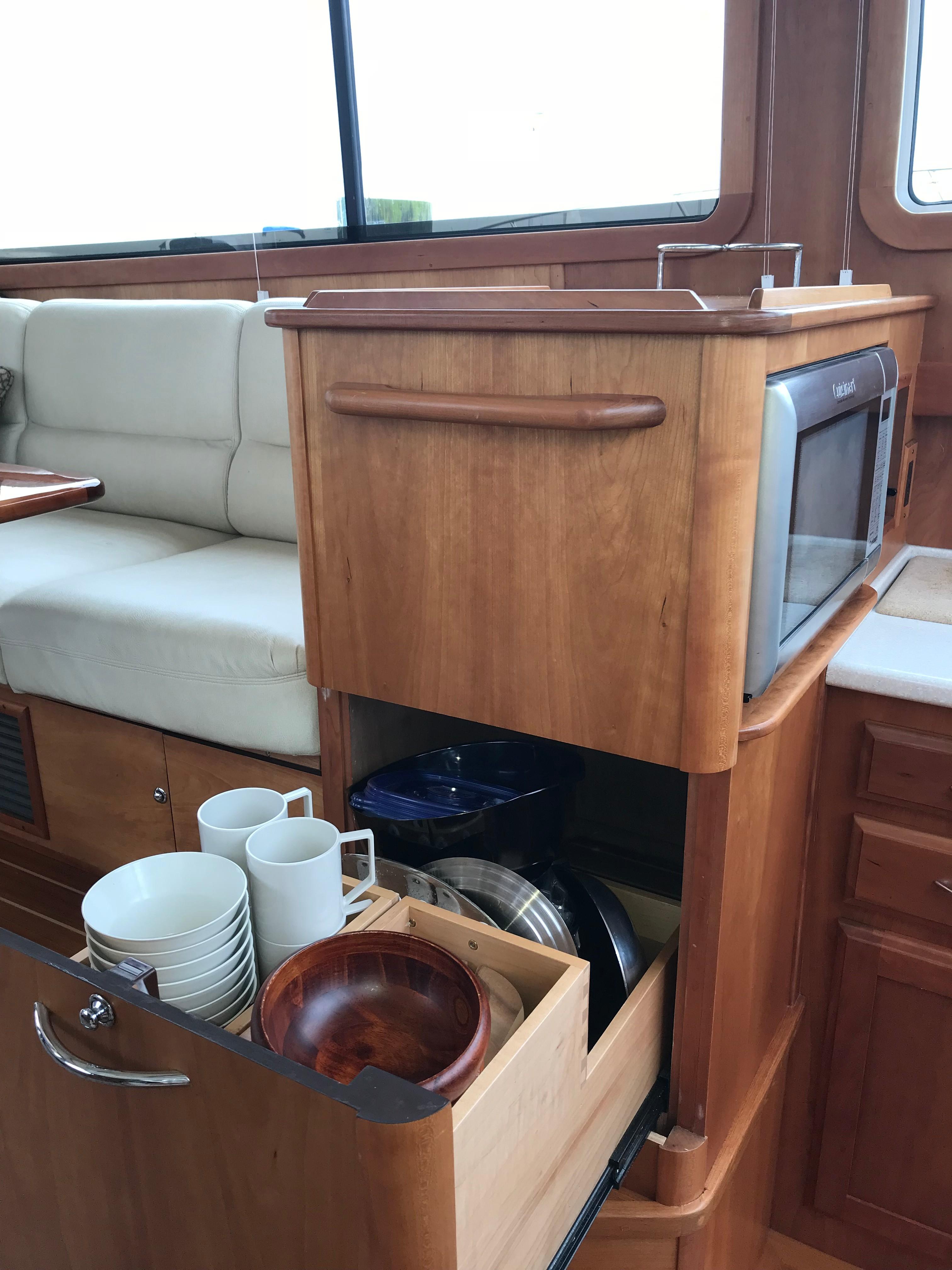

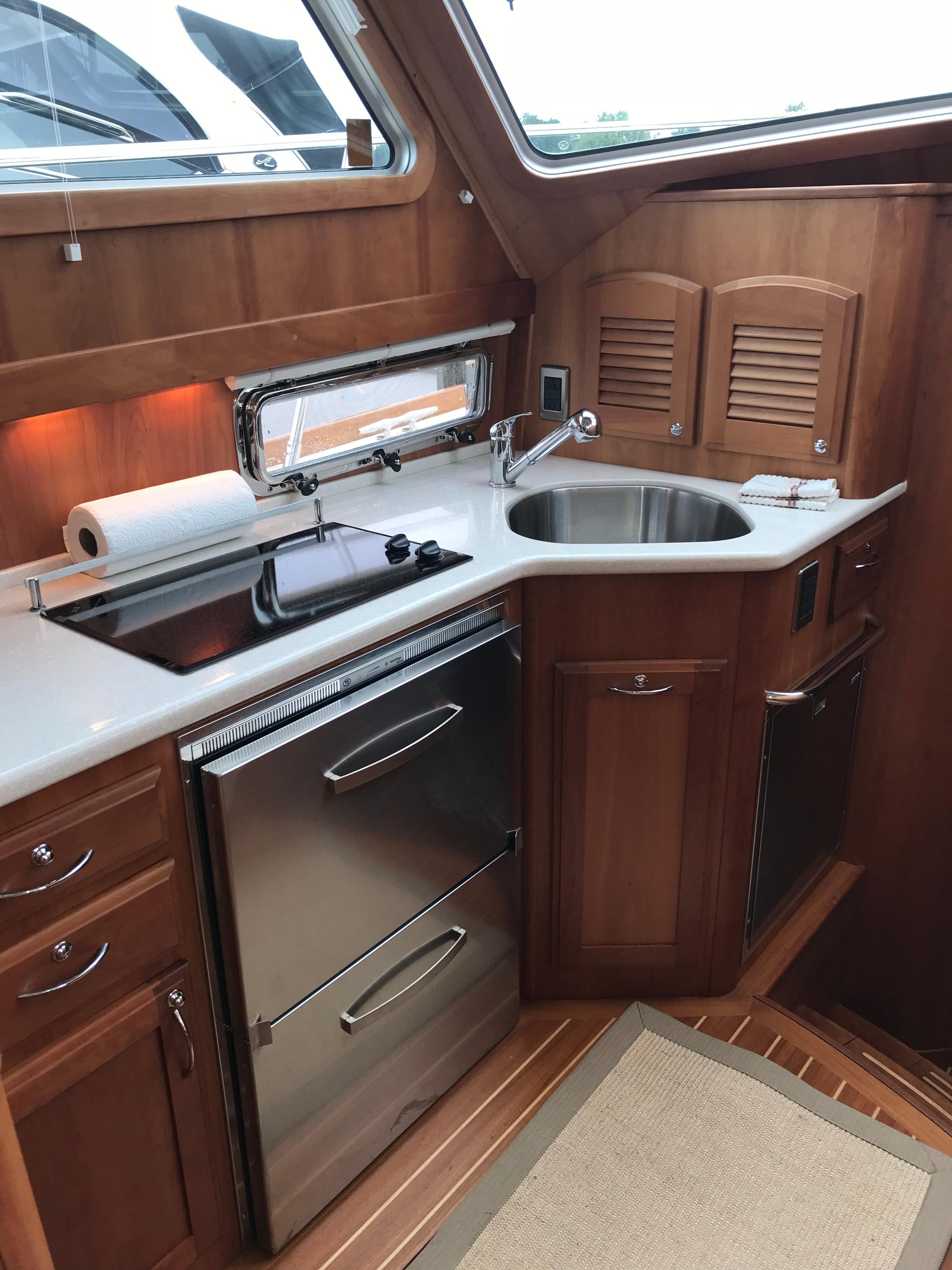

Galley

• -  Mid level galley.

• -  Solid surface galley counter top.

• -  Stainless steel under mount sink with Scandvik faucet.

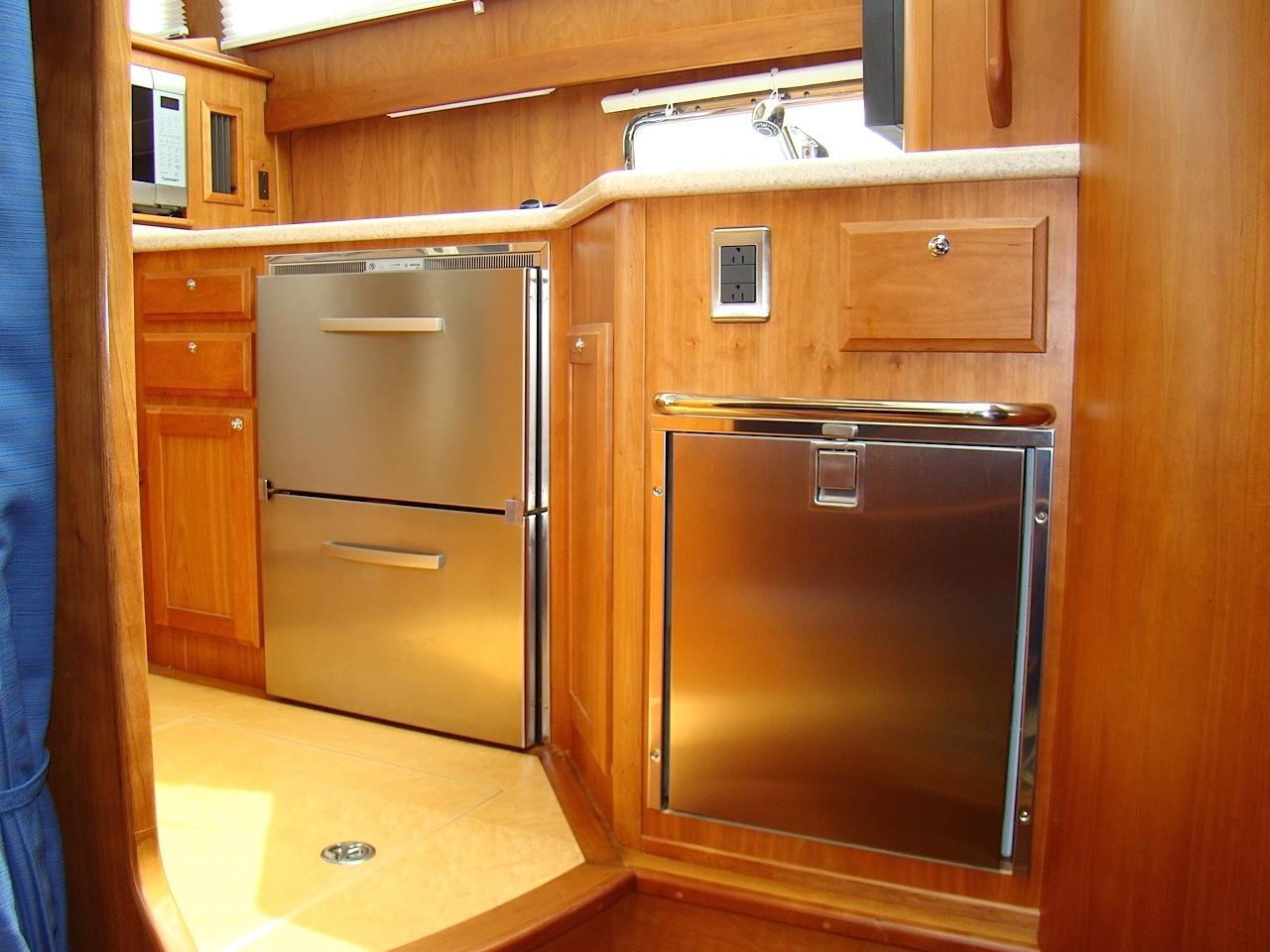

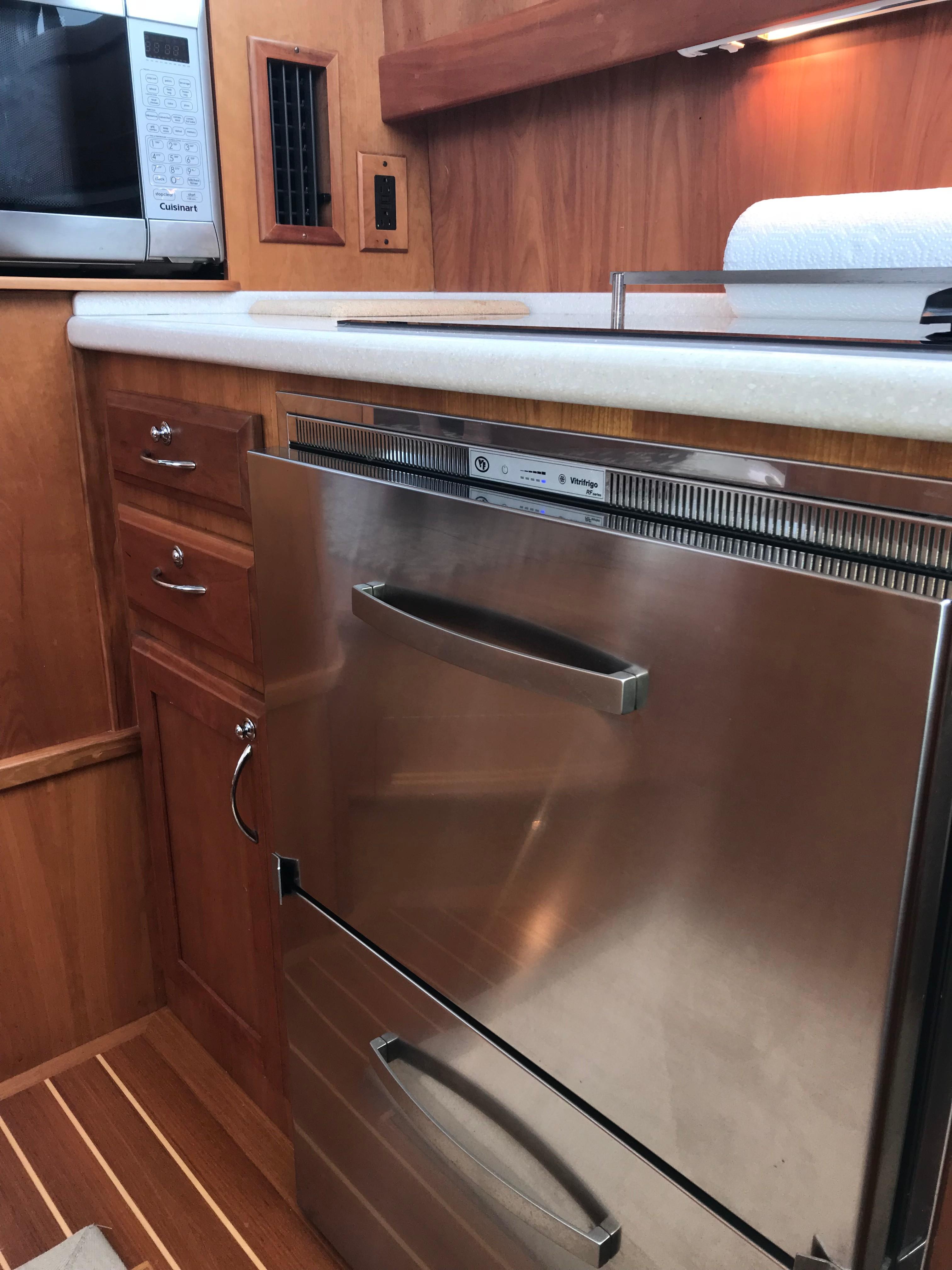

• -  Vitrifrigo 2-drawer Refrigeration with stainless steel doors.

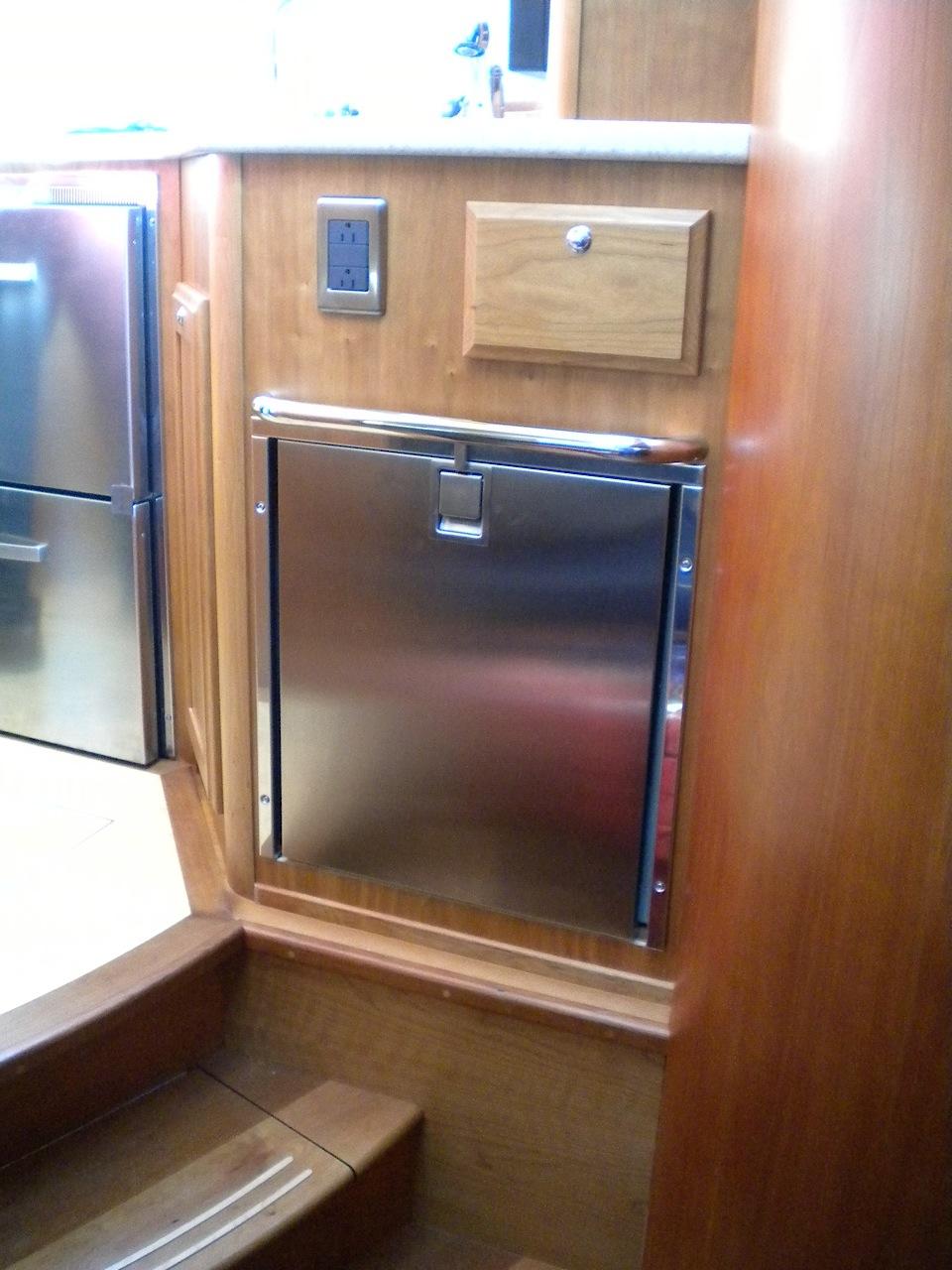

• -  Isotherm 1-drawer Freezer with stainless steel door.

• -  Two burner touch control electric cook top.

• -  Convection microwave with stainless steel door above aft

  counter.

• -  Built in coffee maker.

• -  Drawers and storage lockers below counter.

• -  Built-in waste basket.

• -  Large drawer under microwave opens athwartships

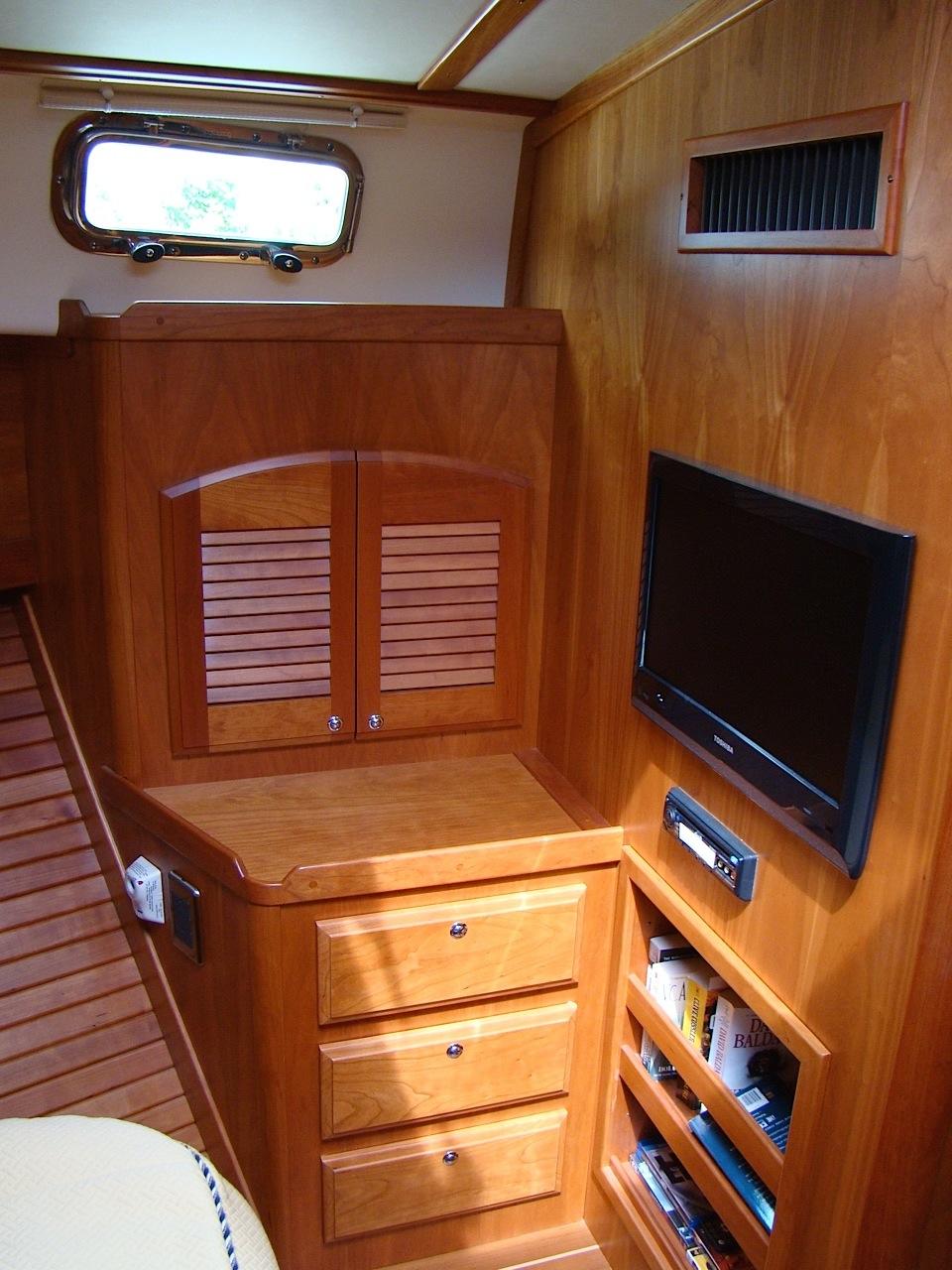

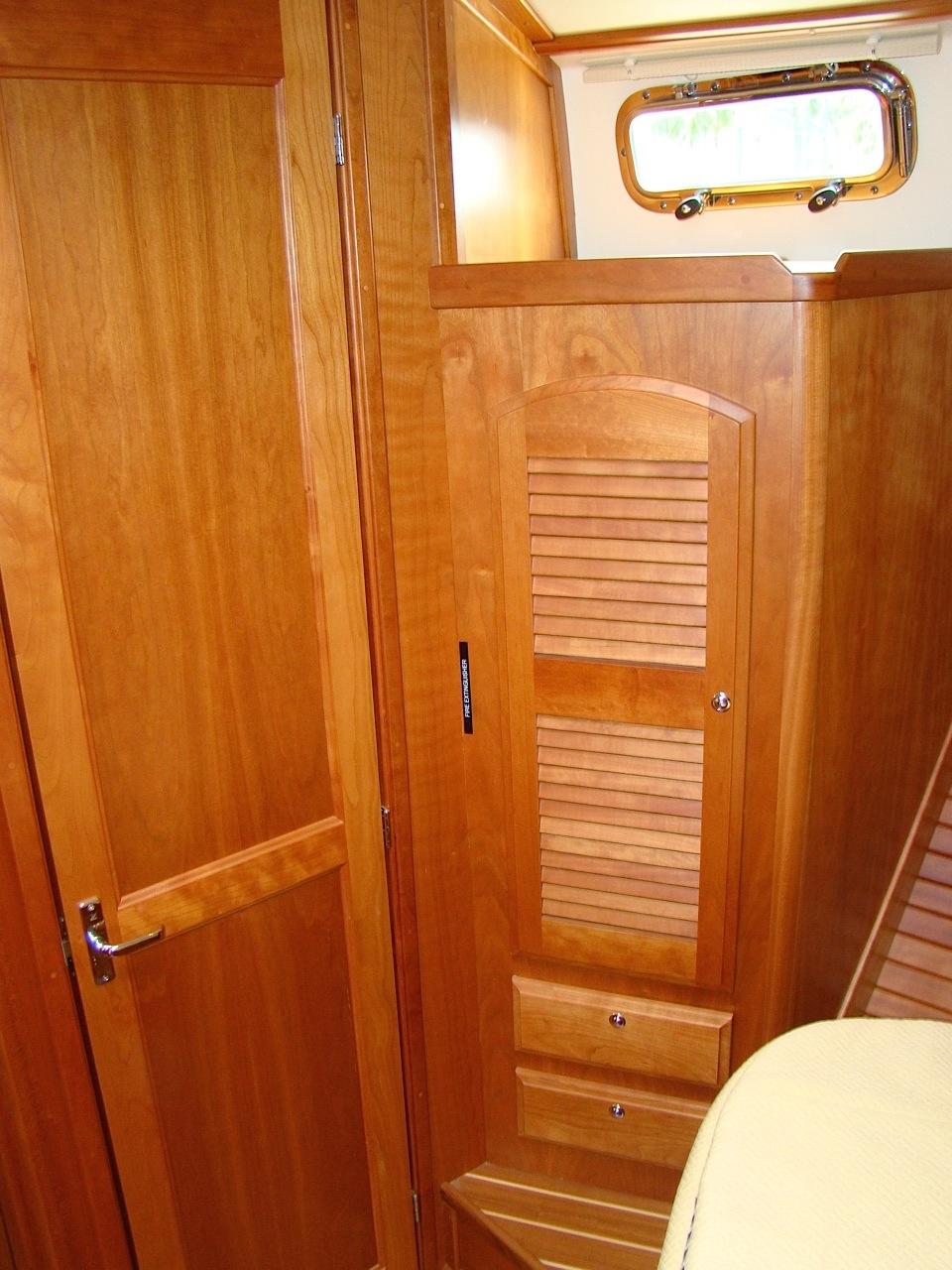

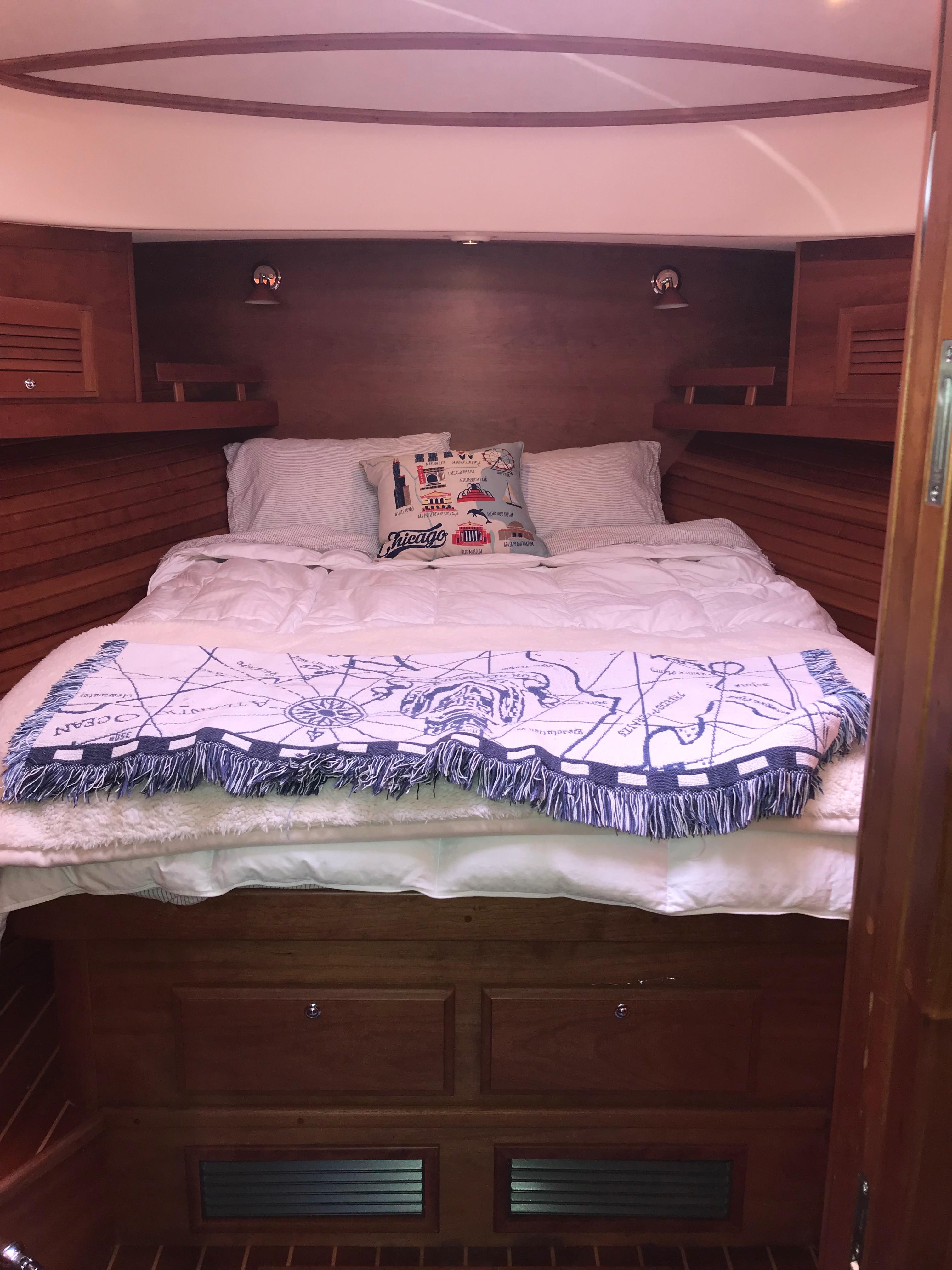

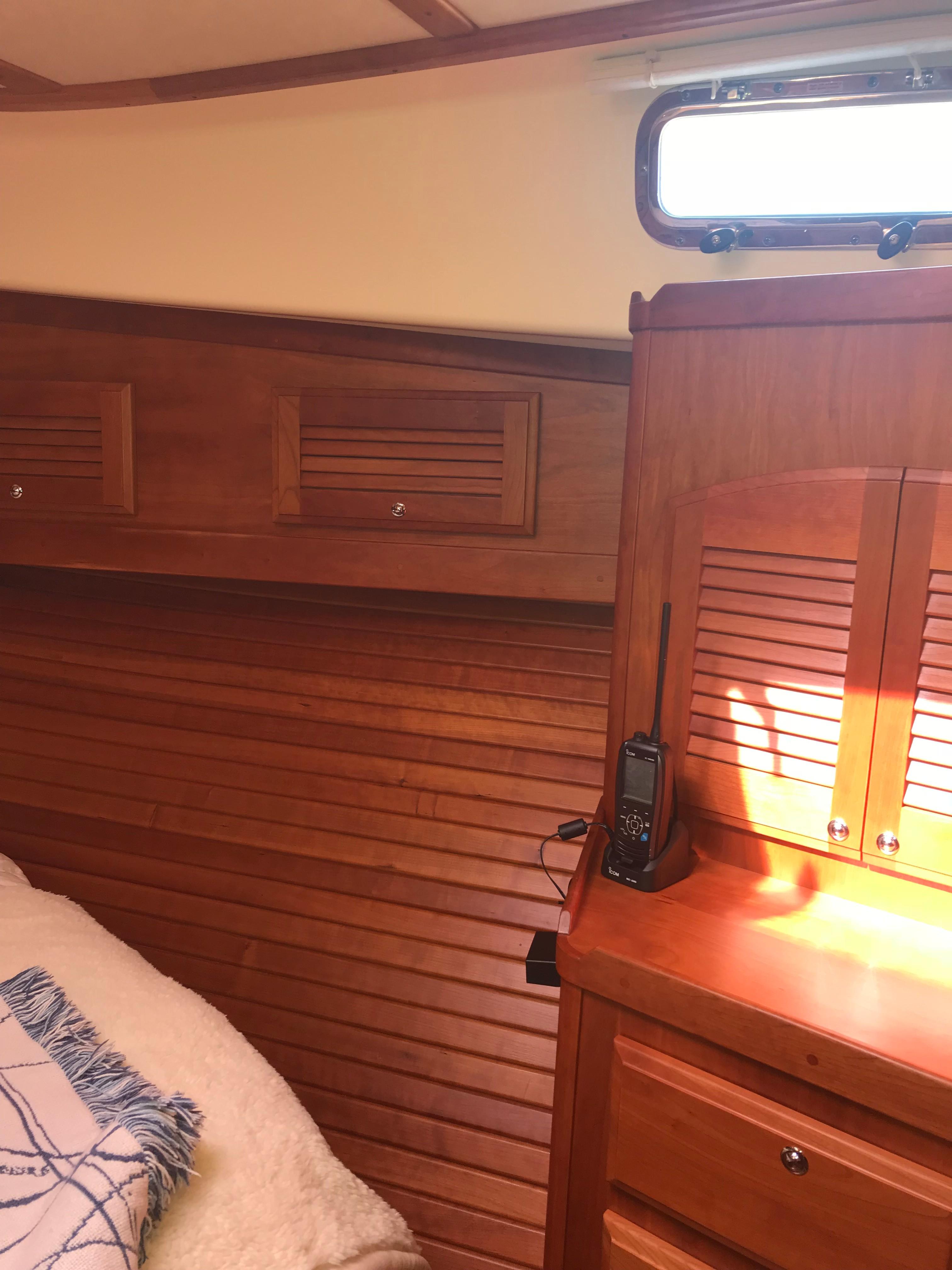

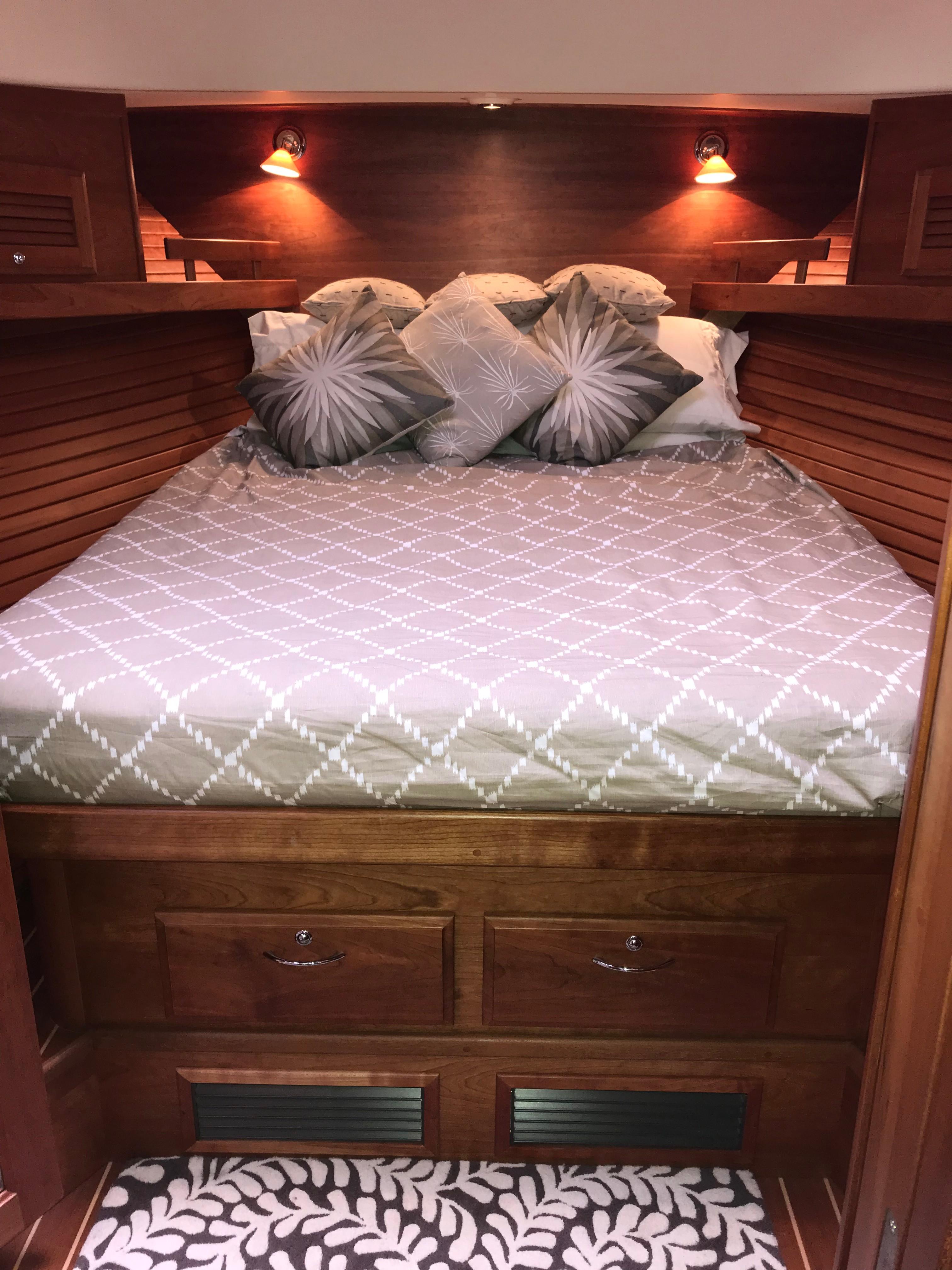

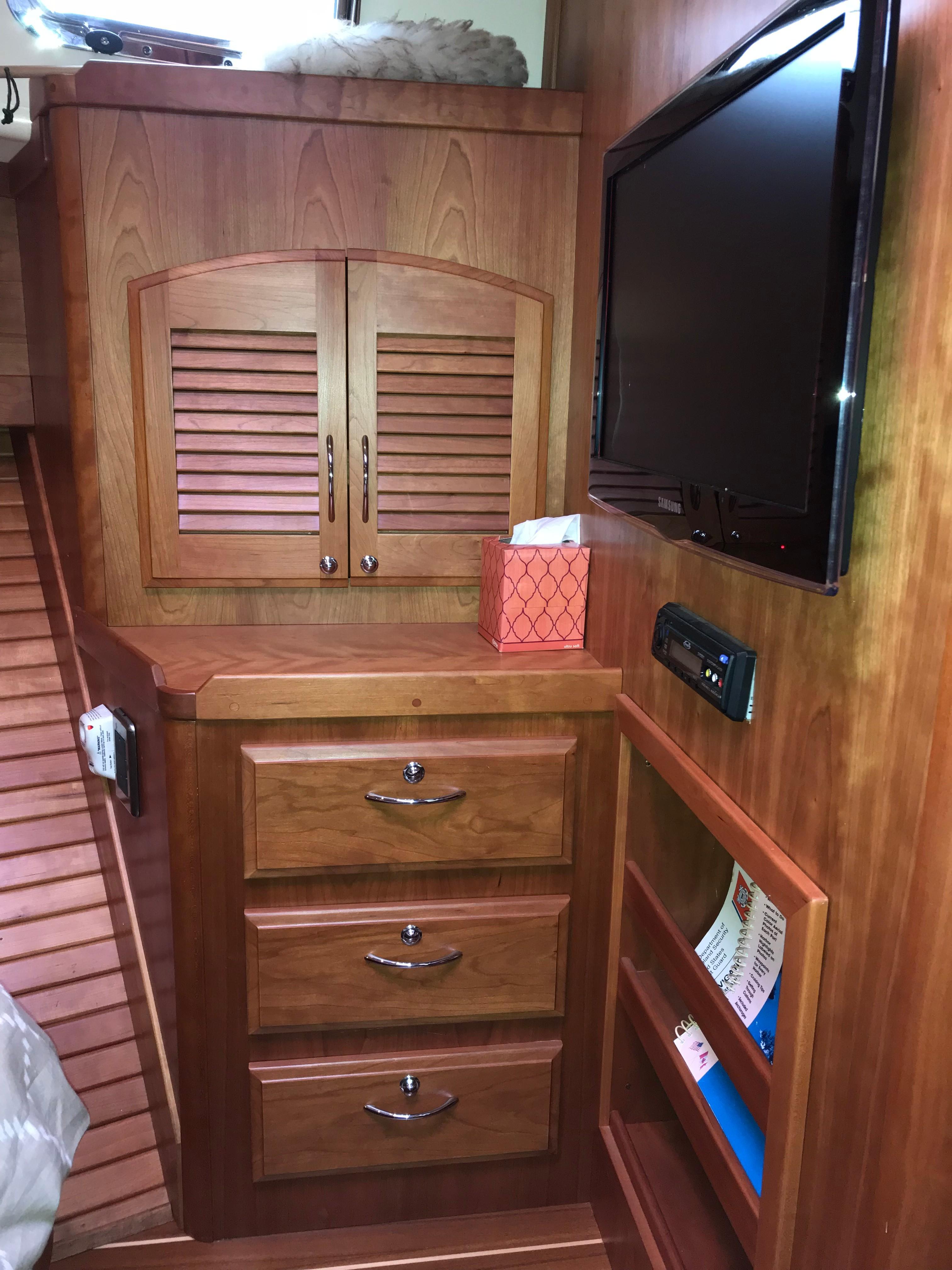

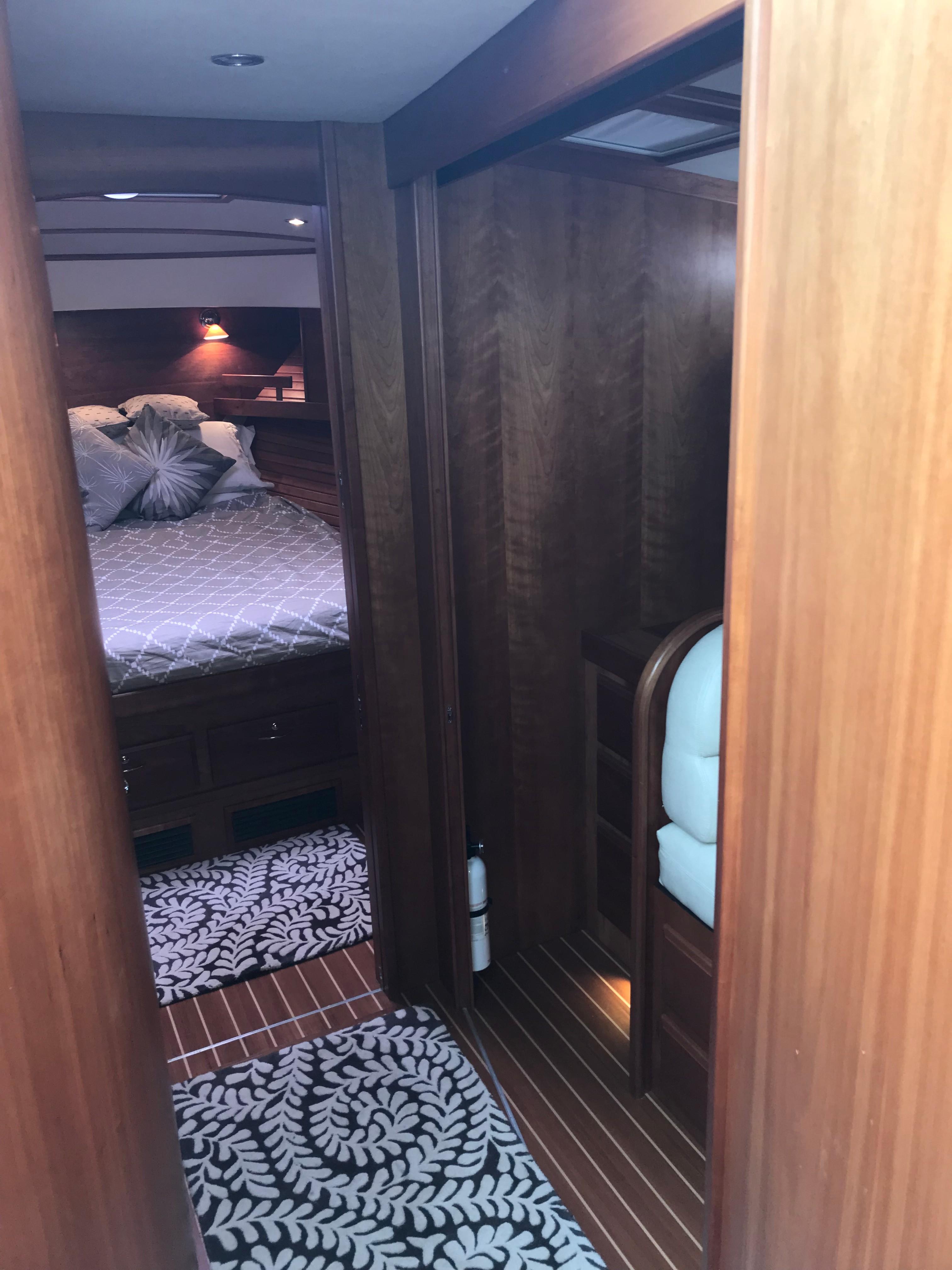

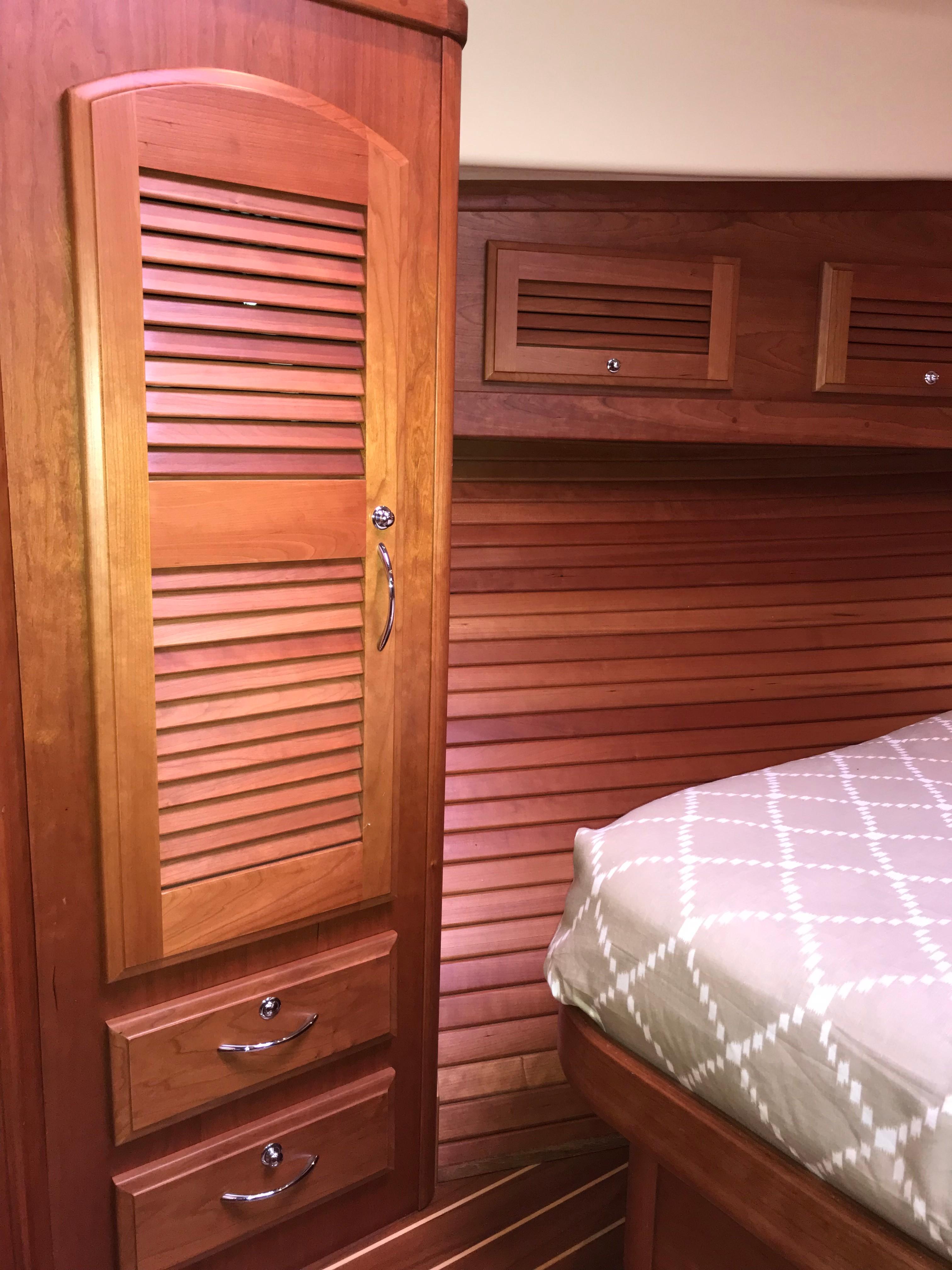

Forward Stateroom

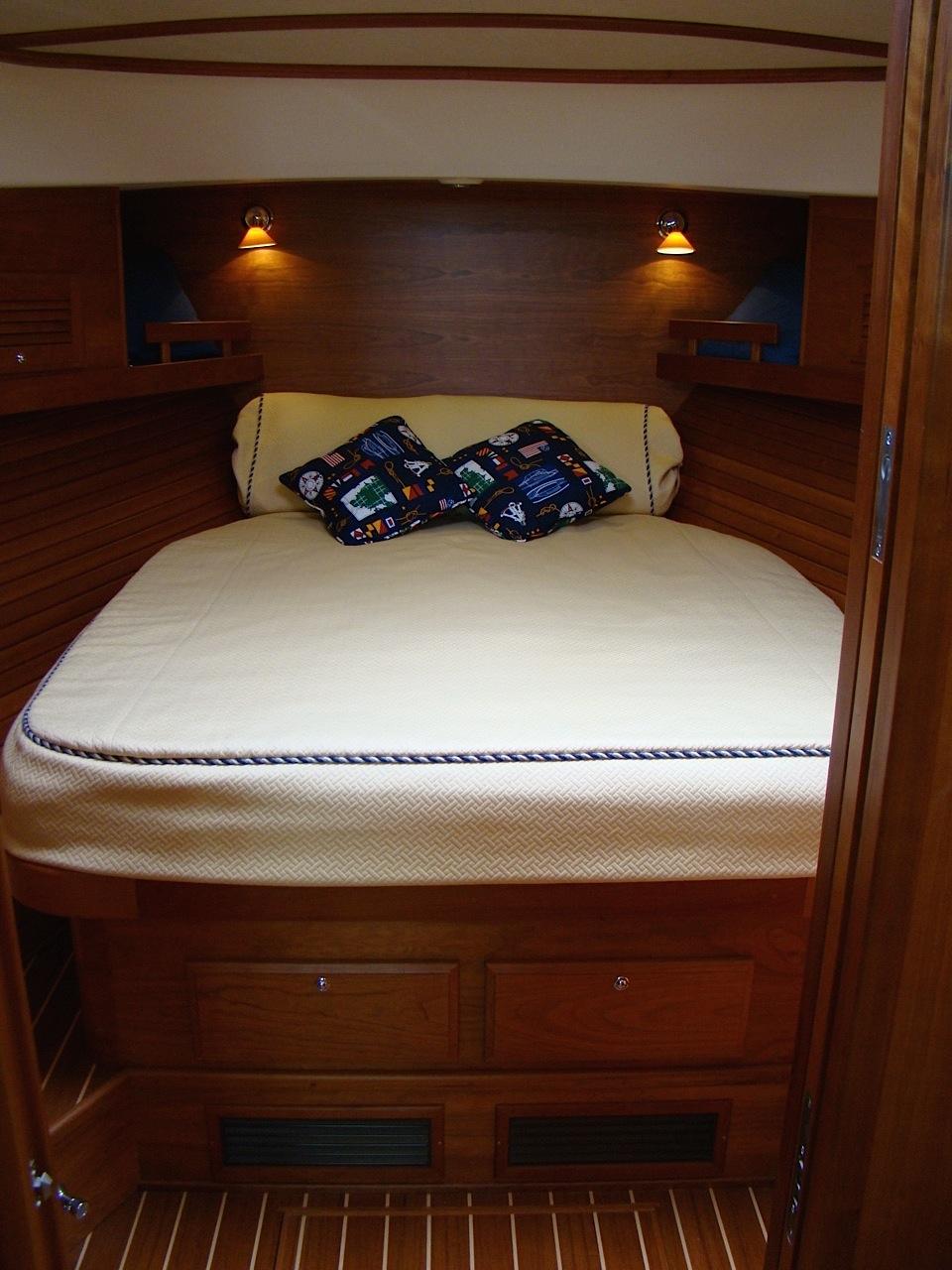

• -  Spacious Island Berth layout with 5" cushion. 3⁄4” laminated trim.

• -  Cherry hull ceilings.

• -  (2) Drawers under berth. A/C return grills under drawers.

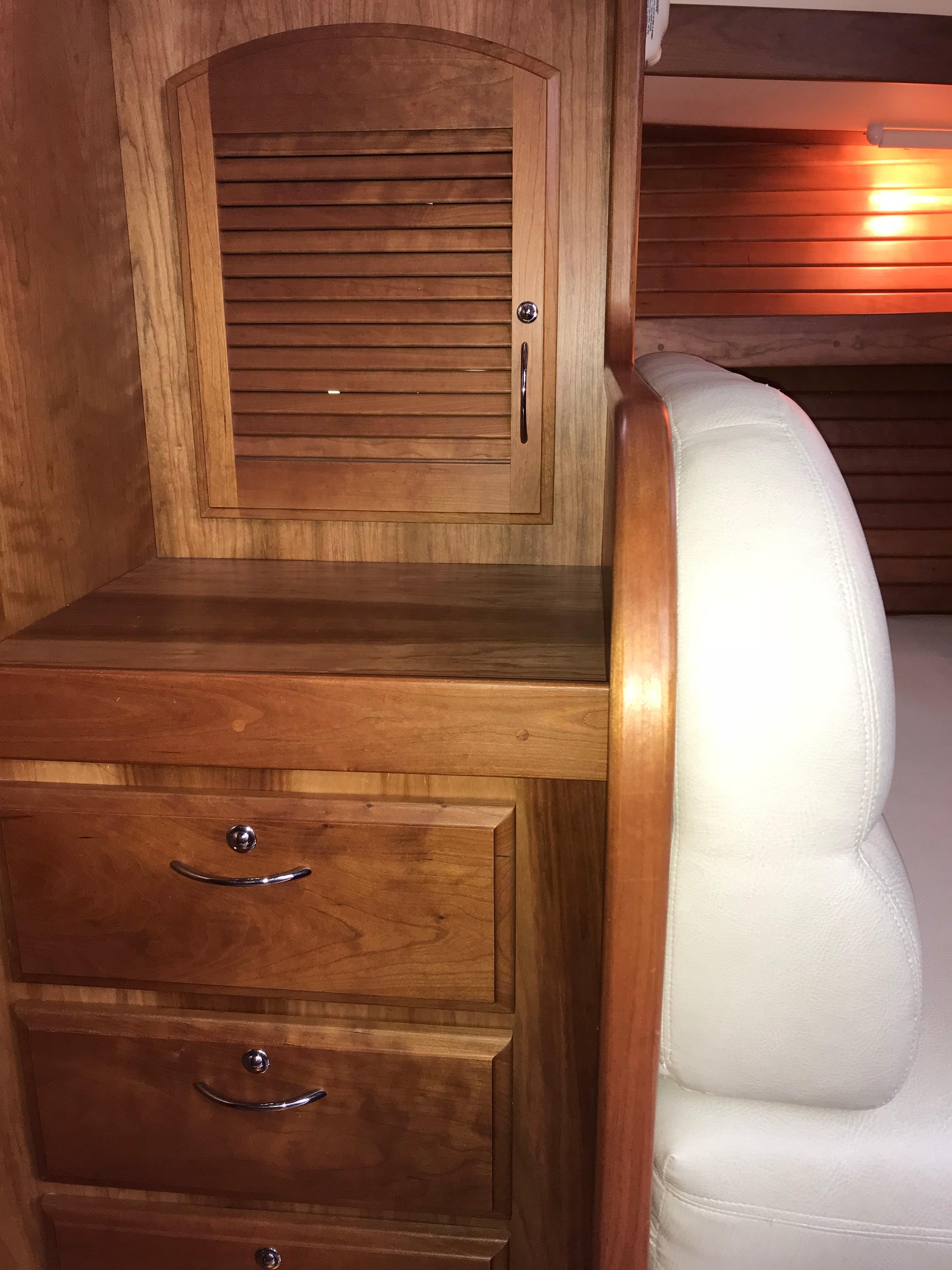

• -  (2) drawers in bureau w/locker w/shelf above and single louvered

  door.

• -  Upper enclosed shelves with storage behind. Locker face to have

  (2) louvered doors.

• -  Recessed shelf with fiddle on starboard main bulkhead with 19”

  flat screen TV and DVD player.

• -  Large cedar lined hanging locker to port, with louvered door,

  shelf and hangar pole.

• -  Open shelf above port hanging locker.

• -  Teak and holly sole.

• -  Sound deadening soft headliner panels.

• -  Pocket door to forward stateroom.

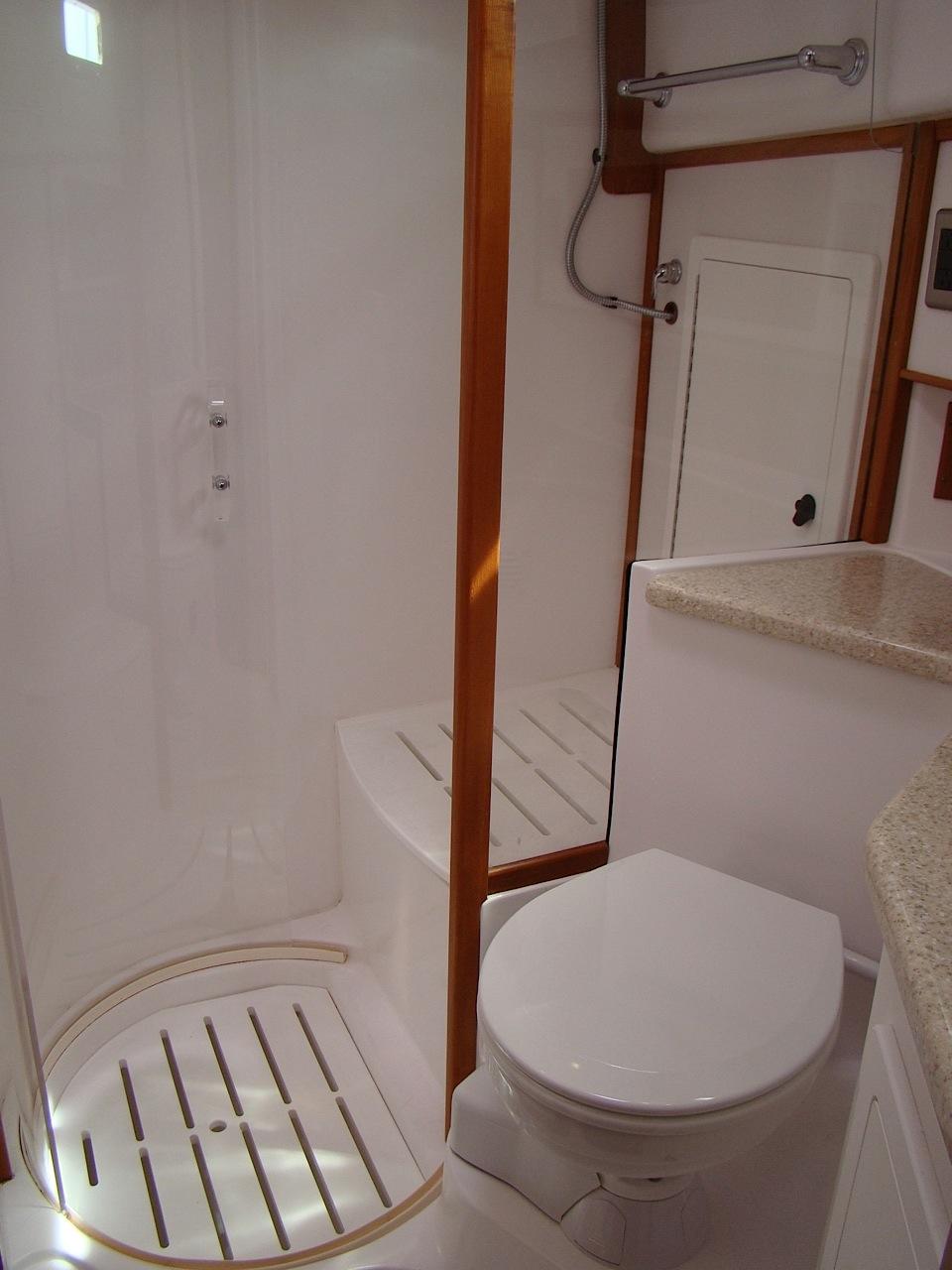

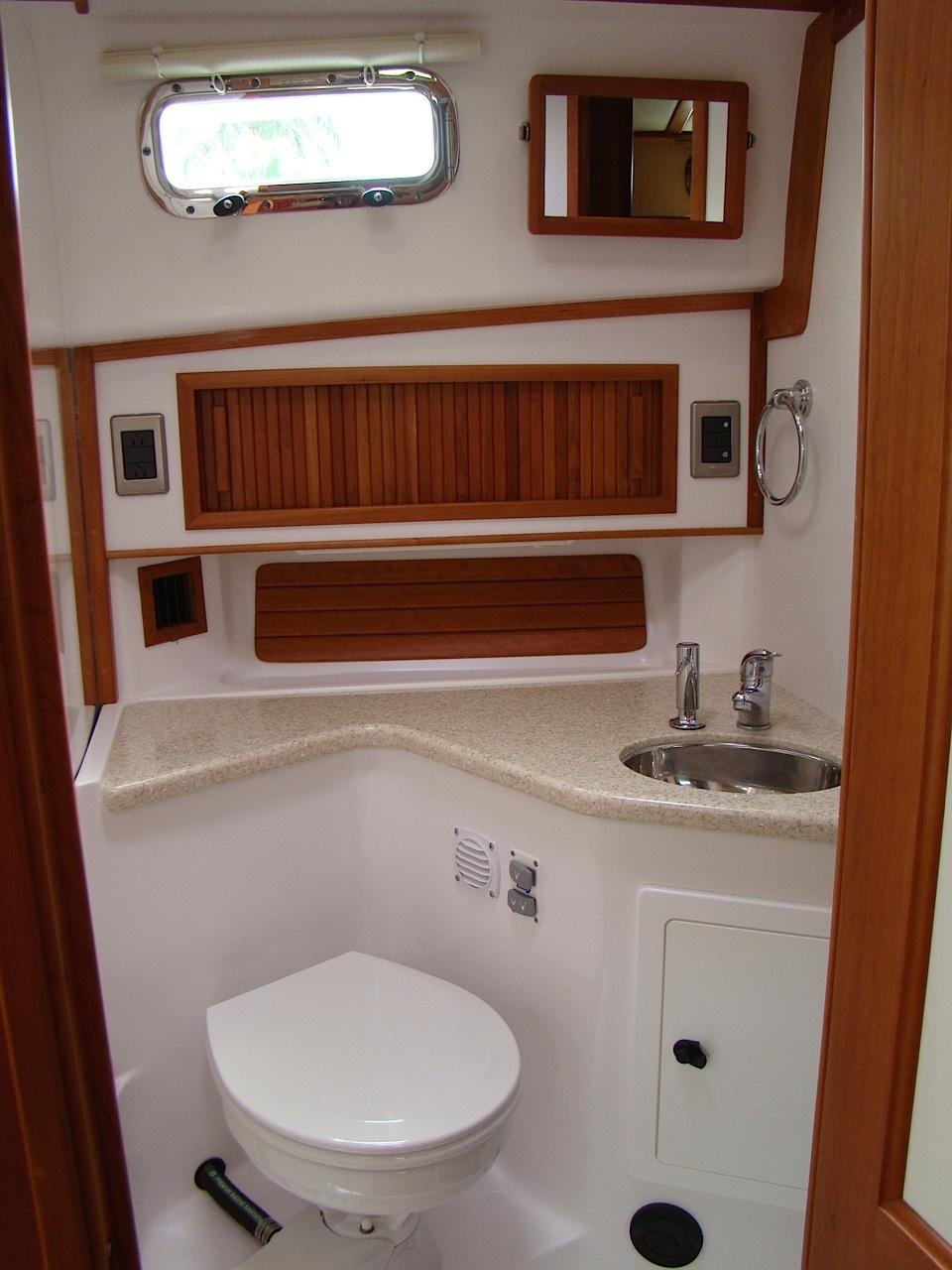

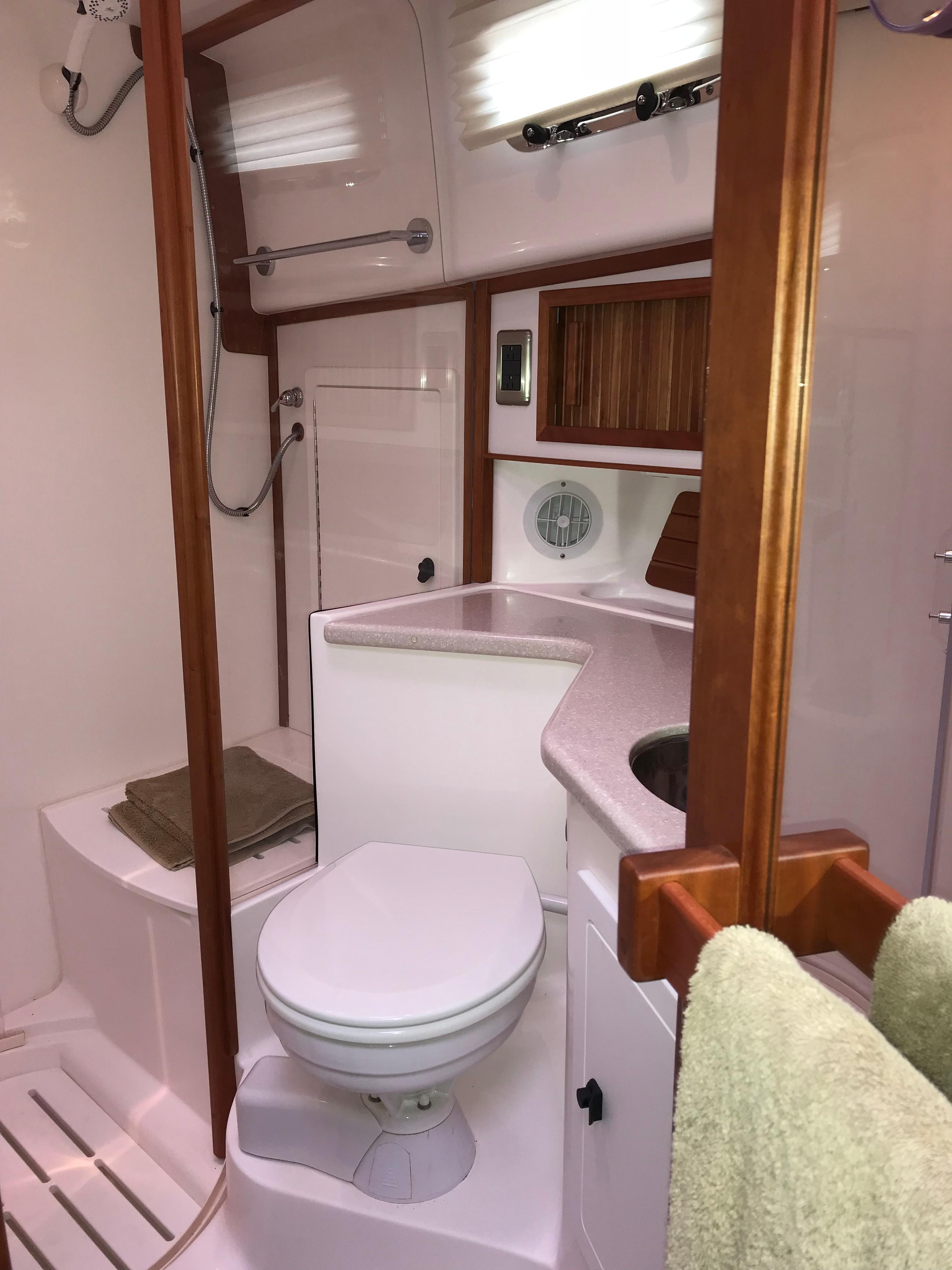

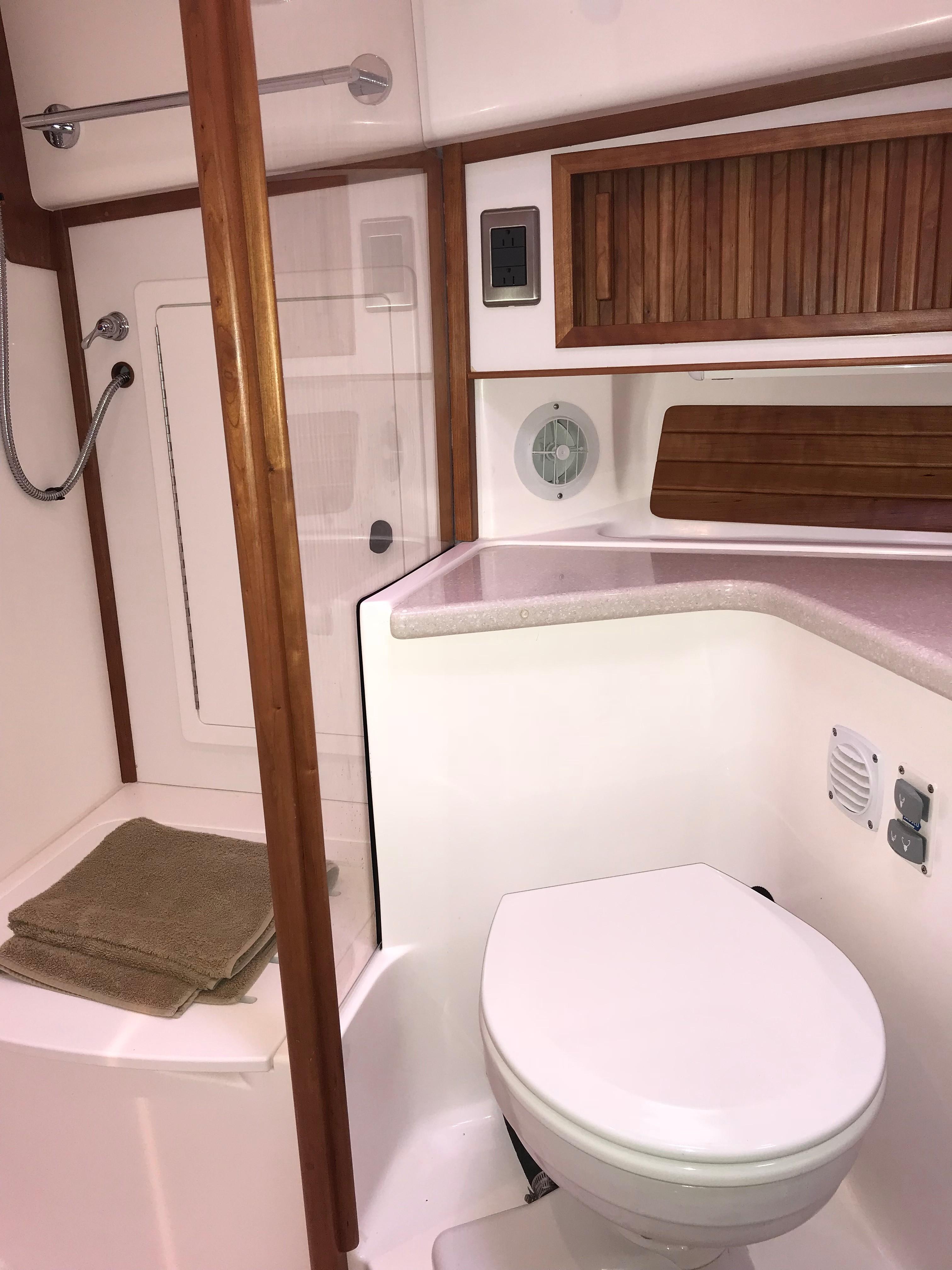

Head

• -  Stainless steel under mount sink.

• -  Circular shower stall with seat and locker outboard.

• -  Hot and cold pressure water

• -  Electric shower sump pump.

• -  Storage lockers.

• -  Solid surface vanity top with bull nose.

• -  Towel bar.

• -  Wood trimmed mirror over sink.

• -  Ventilation blower.

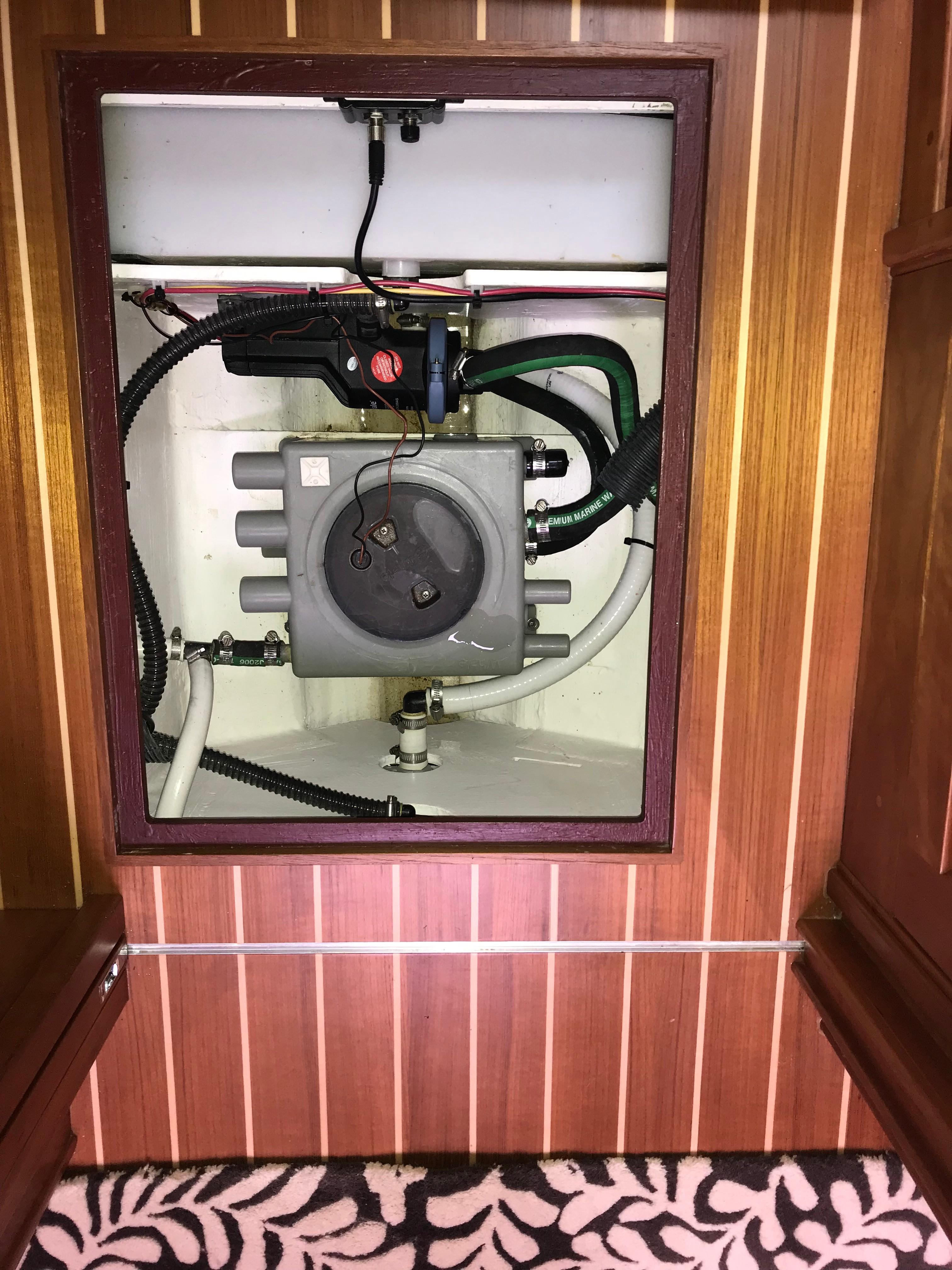

• Polyethylene holding tank with 60 gallon capacity.

   Jabsco Quiet Flush fresh water MSD.

  Diaphragm waste pump on holding tank.

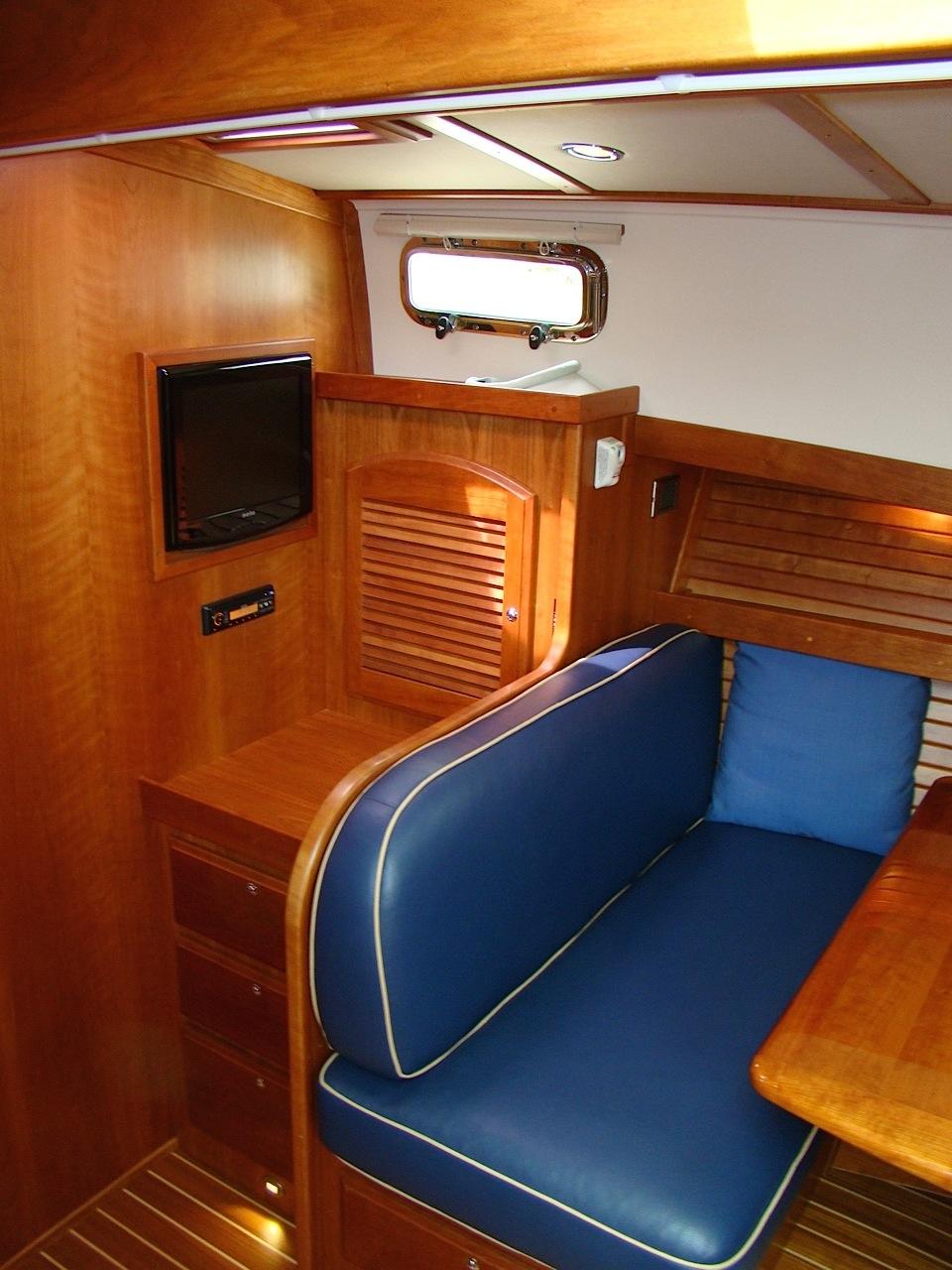

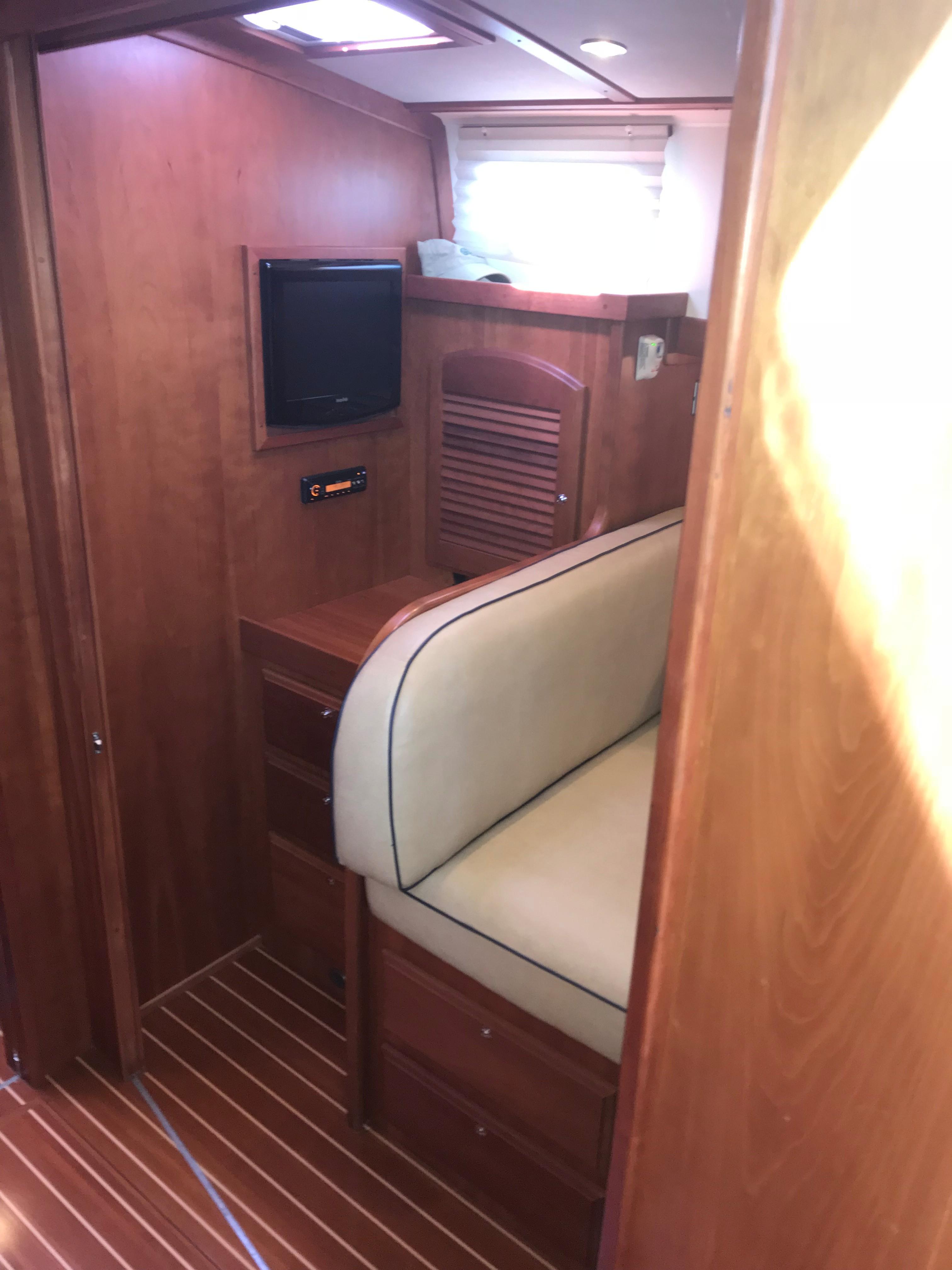

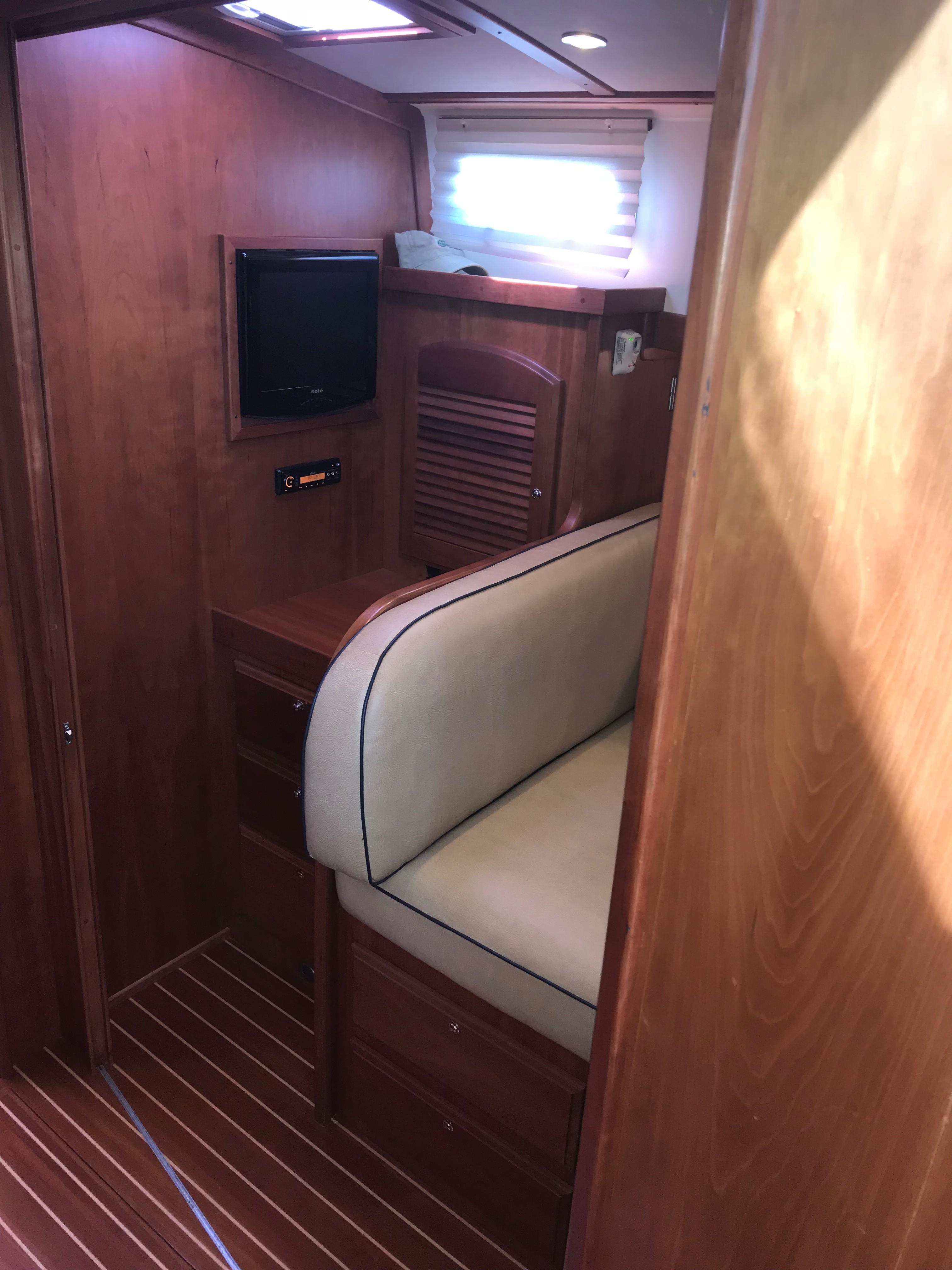

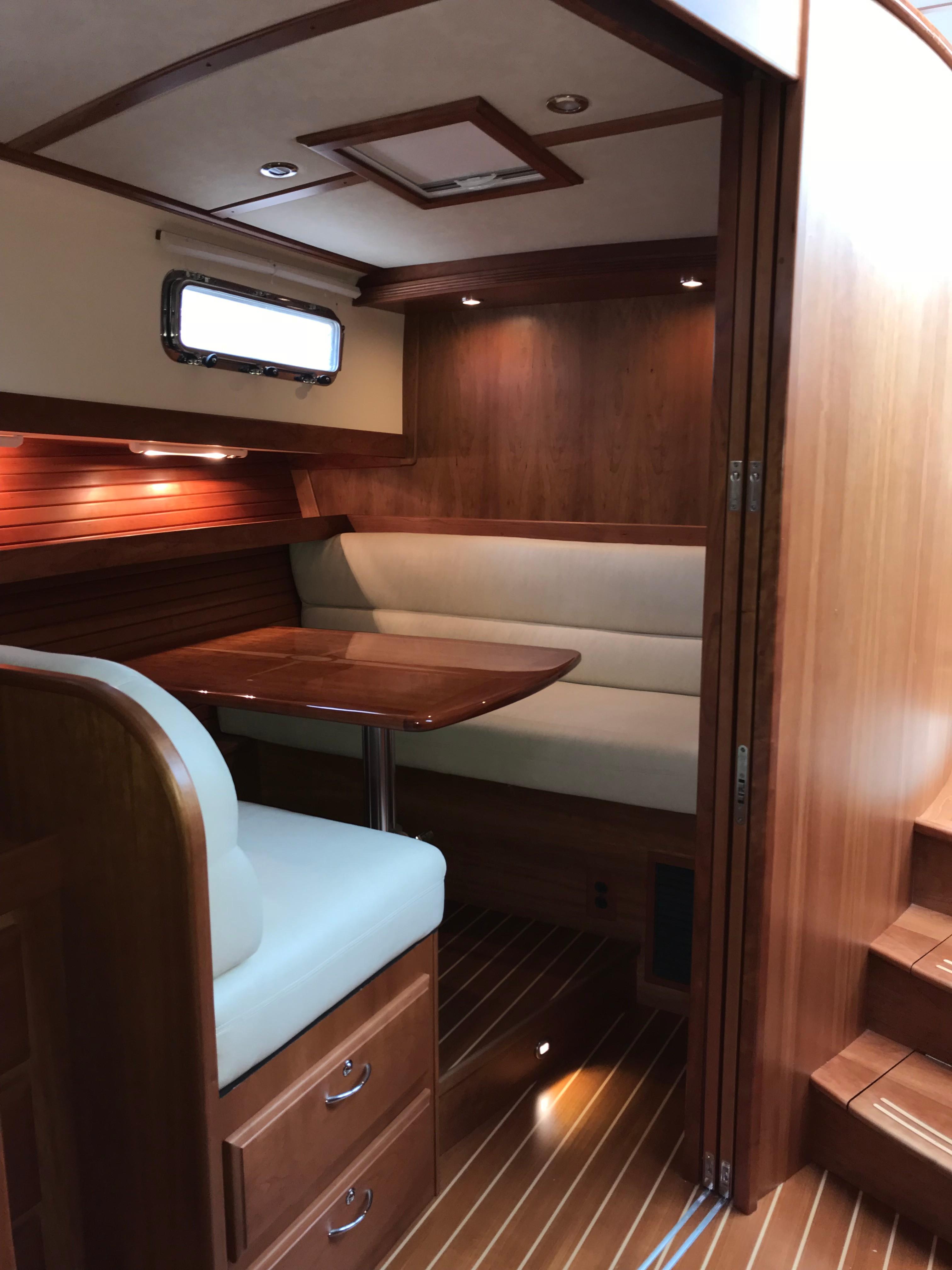

Second Stateroom

• -  Double berth, 5" foam cushions, 3⁄4” laminated trim.

• -  Cherry hull ceilings.

• -  (4) Drawers under berth, A/C return grille beside.

• -  Forward bulkhead storage locker, and shelf.

• -  Night stand with drawers below.

• -  Teak and holly sole.

• -  Sound deadening soft headliner panels.

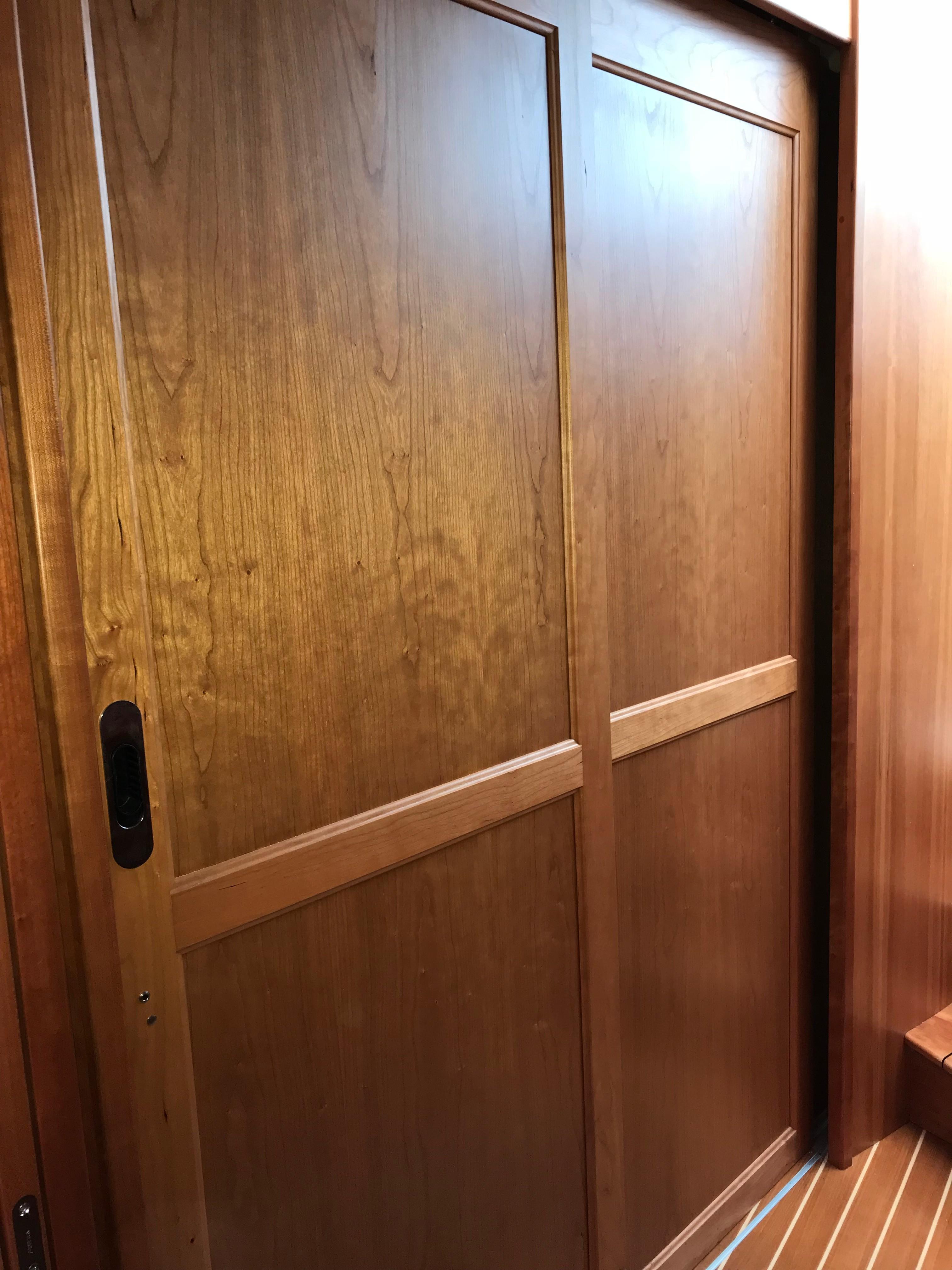

• -  Pocket doors between lower foyer and second stateroom.

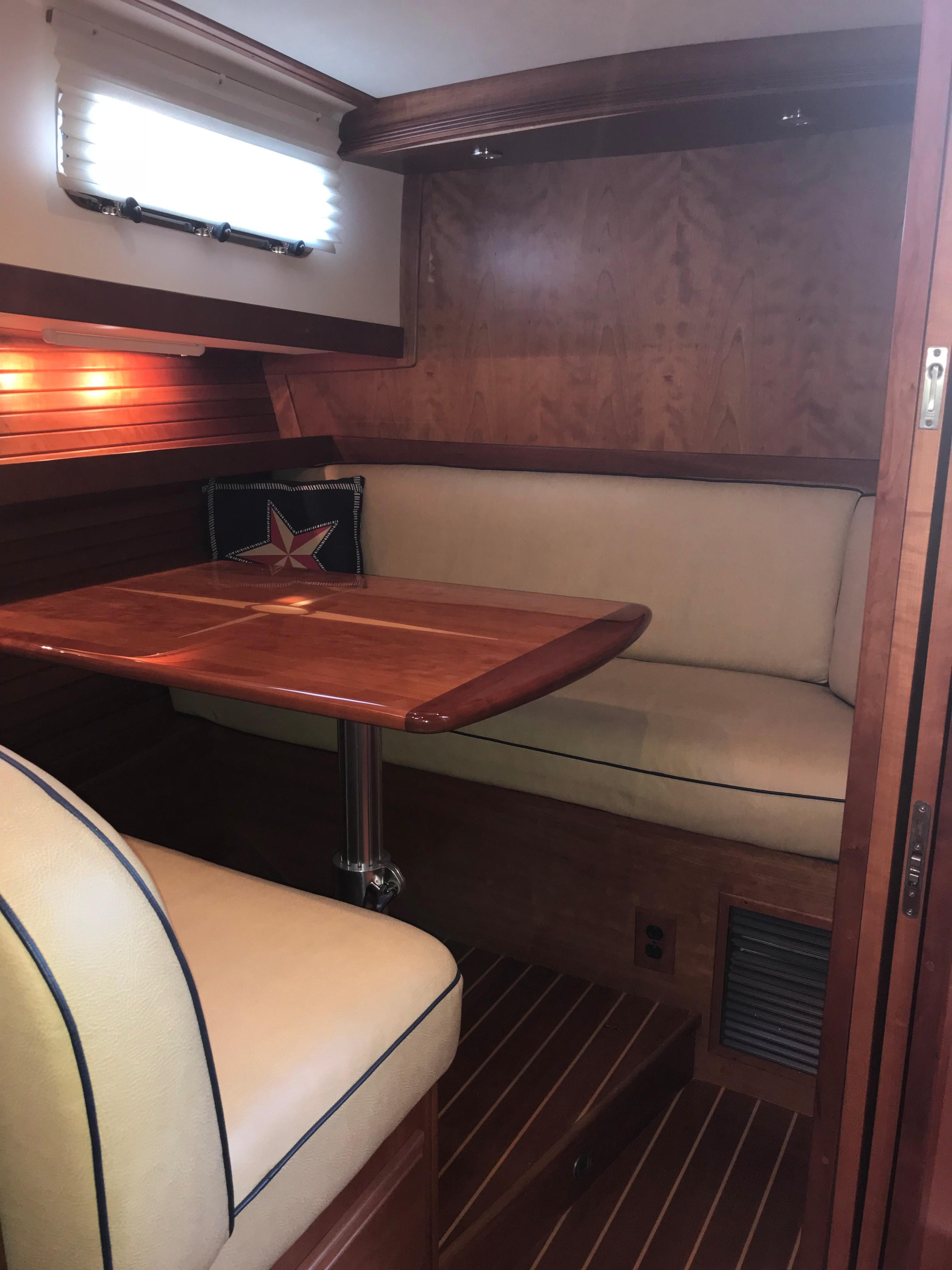

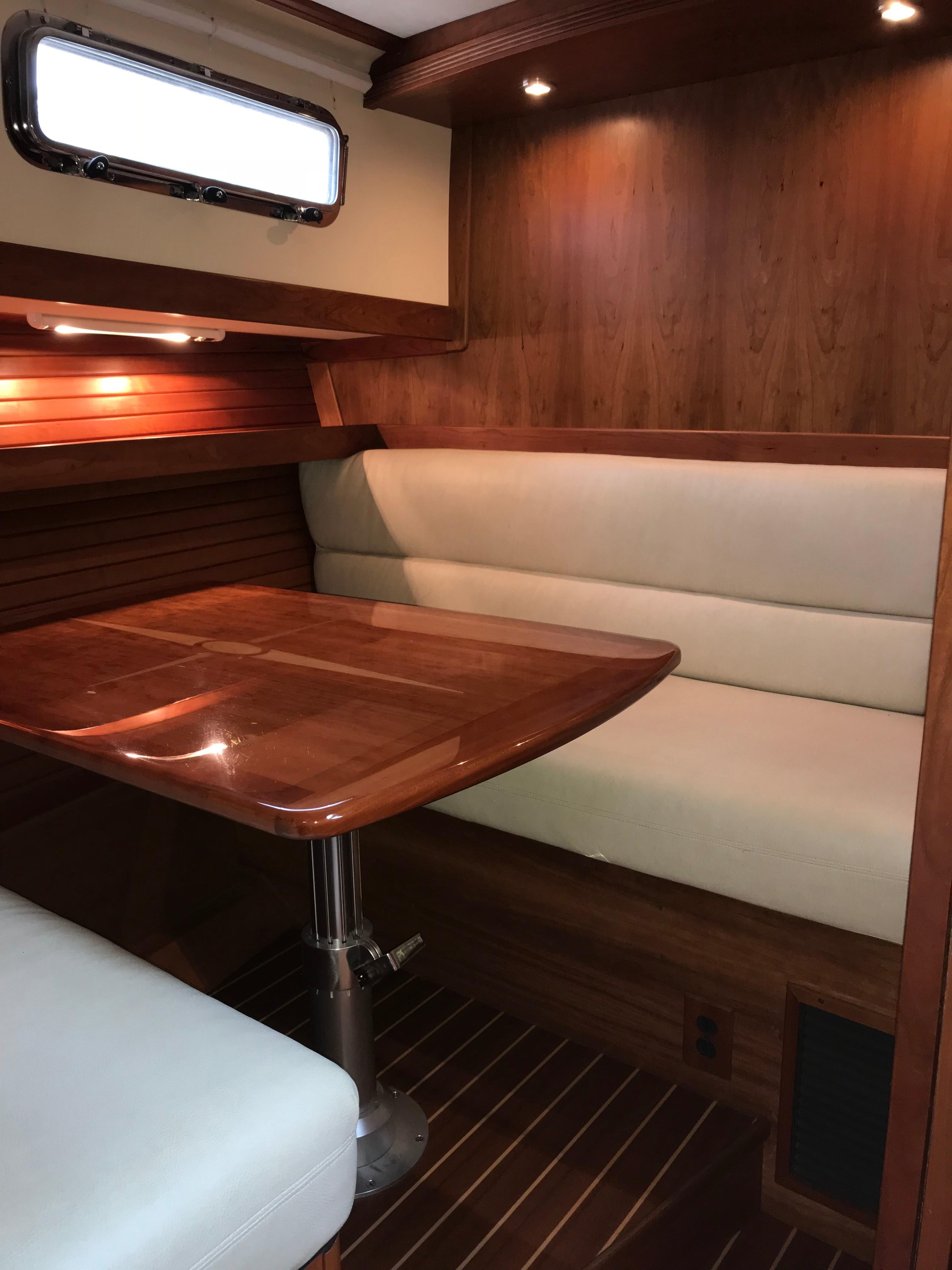

• -  Optional dinette available in this space.

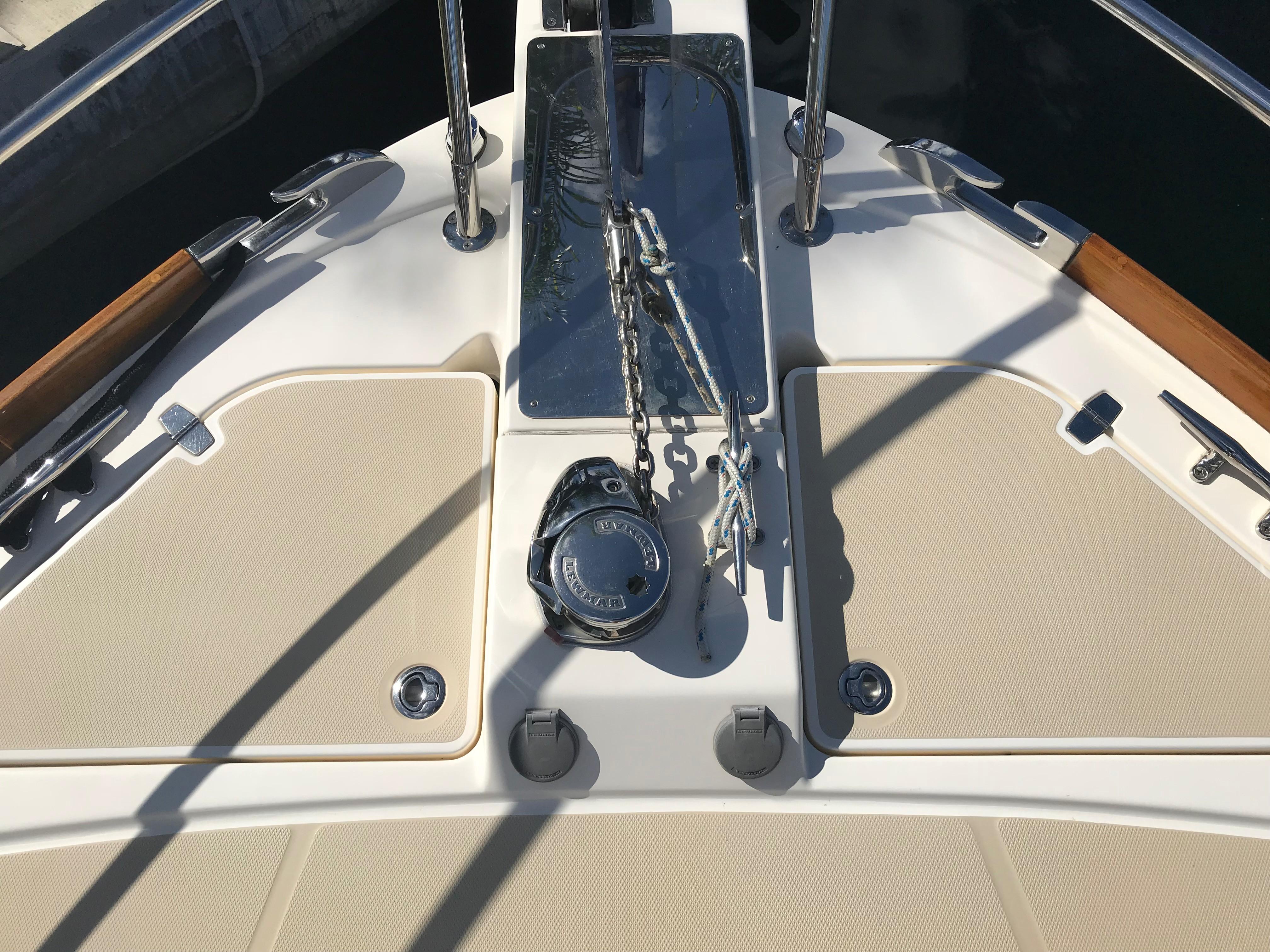

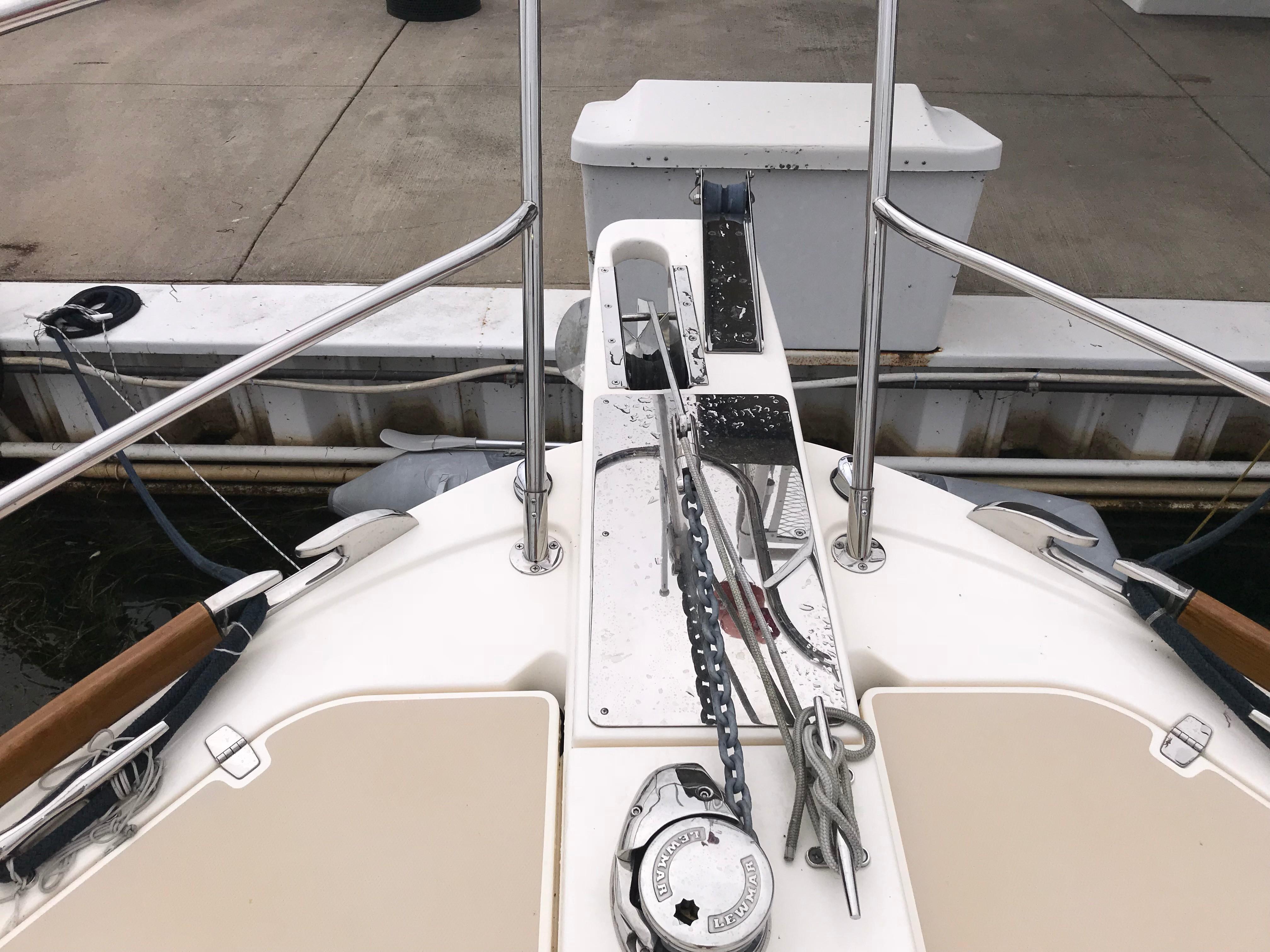

Anchor

• All chain anchor rode

Safety

• Fire extinguishers, (4) at 2 1/2 lbs.
• Marelon sea valves on all thru-hull fittings below waterline.
• Bonding system to safeguard against galvanic corrosion.
• Automatic fire extinguishing discharge system in engine space with override.
• (3) Automatic 12V electric bilge pumps. - (3) high water switches and alarm.
