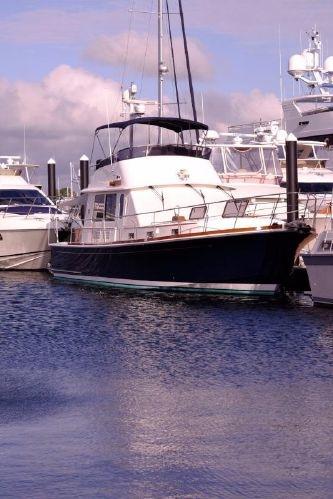

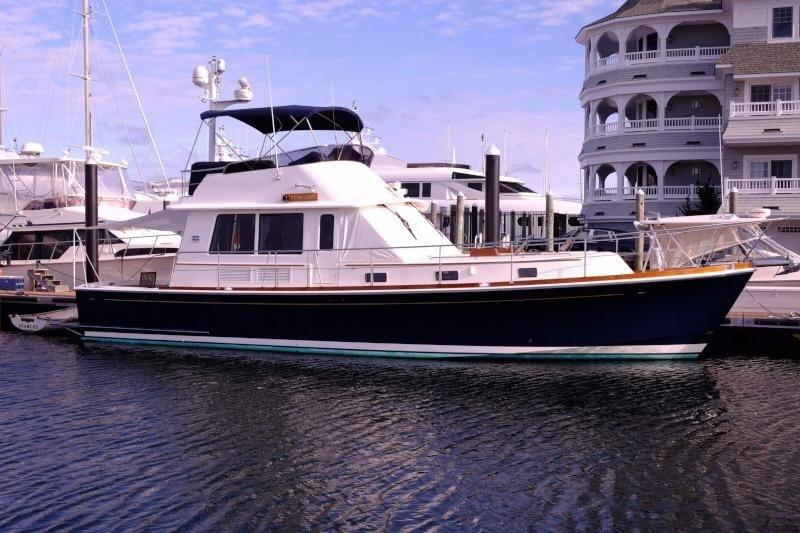

Deacon Blues is a lovely example of an Eastbay Flybridge. It is an excellent sea boat with its Ray Hunt designed hull. It is well balanced and a joy to operate in any sea condition. This boat will get you to safe harbor and it will be fun along the way.
This particular 47 FB has had very good care through her life. She’s well equipped and all services, maintenance, cosmetics are fully up to date. Fresh varnish wax and serviced teak decks, This is a rare jewel among 47’s and is not to be missed. Truly turn key!
SPECIFICATIONS
BASIC INFORMATION
Manufacturer:Eastbay
Model: 47 Flybridge
Year: 2007
Category:Power
Condition:Used
Location: Newport US
Vessel Name:DEACON BLUES
Hull Material:Fiberglass
ENGINE
Make:CAT
Model:C-12 ACERT
Engines(s):2
Hours:750
Engine Type:Inboard
Fuel Type:diesel
Horsepower:705|horsepower
ACCOMODATIONS
Total Cabins:2
Total Heads:2
DIMENSIONS & WEIGHT
Length:47 ft
Beam:15.67 ft
Draft - max:
TANK CAPACITIES
Fuel Tank:700|gallon
Fresh Water Tank:206|gallon
Holding Tank:700|gallon
GALLERY
DESCRIPTIONS
Walk Through

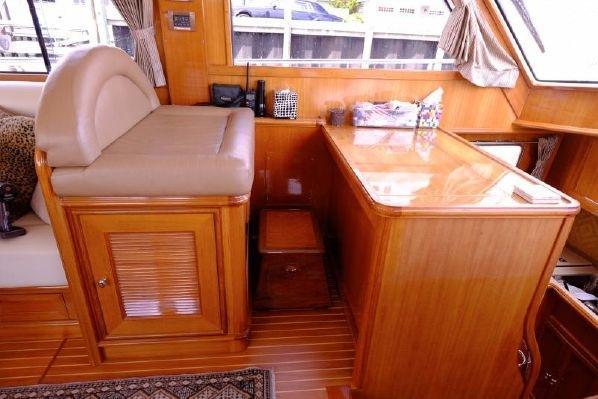

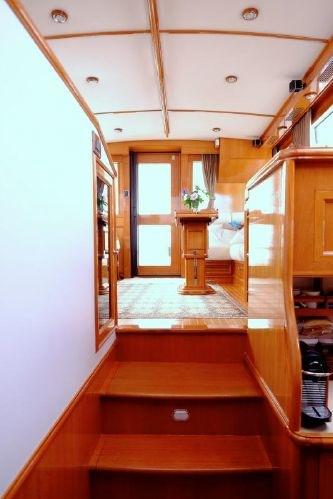

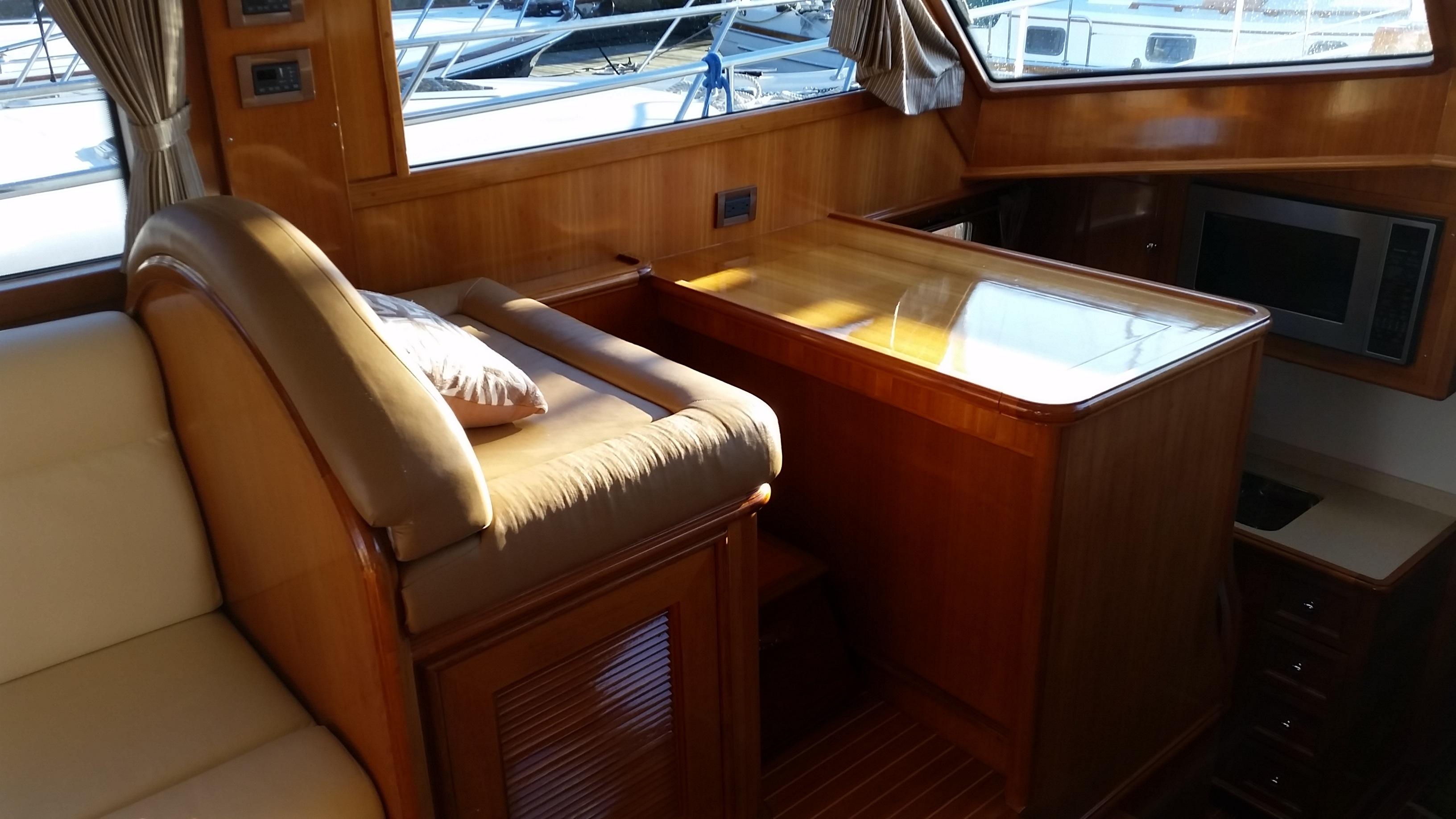

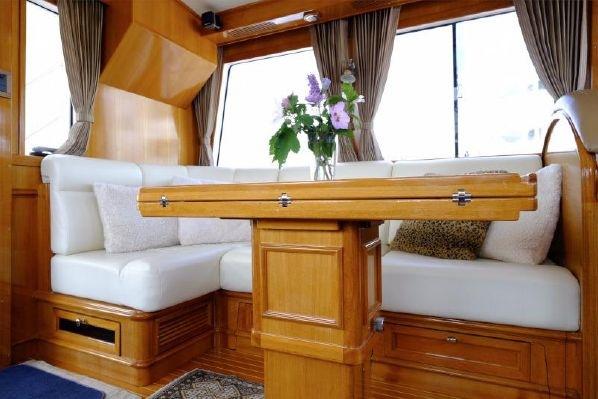

The salon is entered through the aft door. On port is a very comfortable curved settee that pulls out into an additional berth. A high-low teak dining table with fold-out leaves converts this area into dining. A double fixed mate bench seat is forward of the settee. There is a chart table with lift-up teak cover for storage.

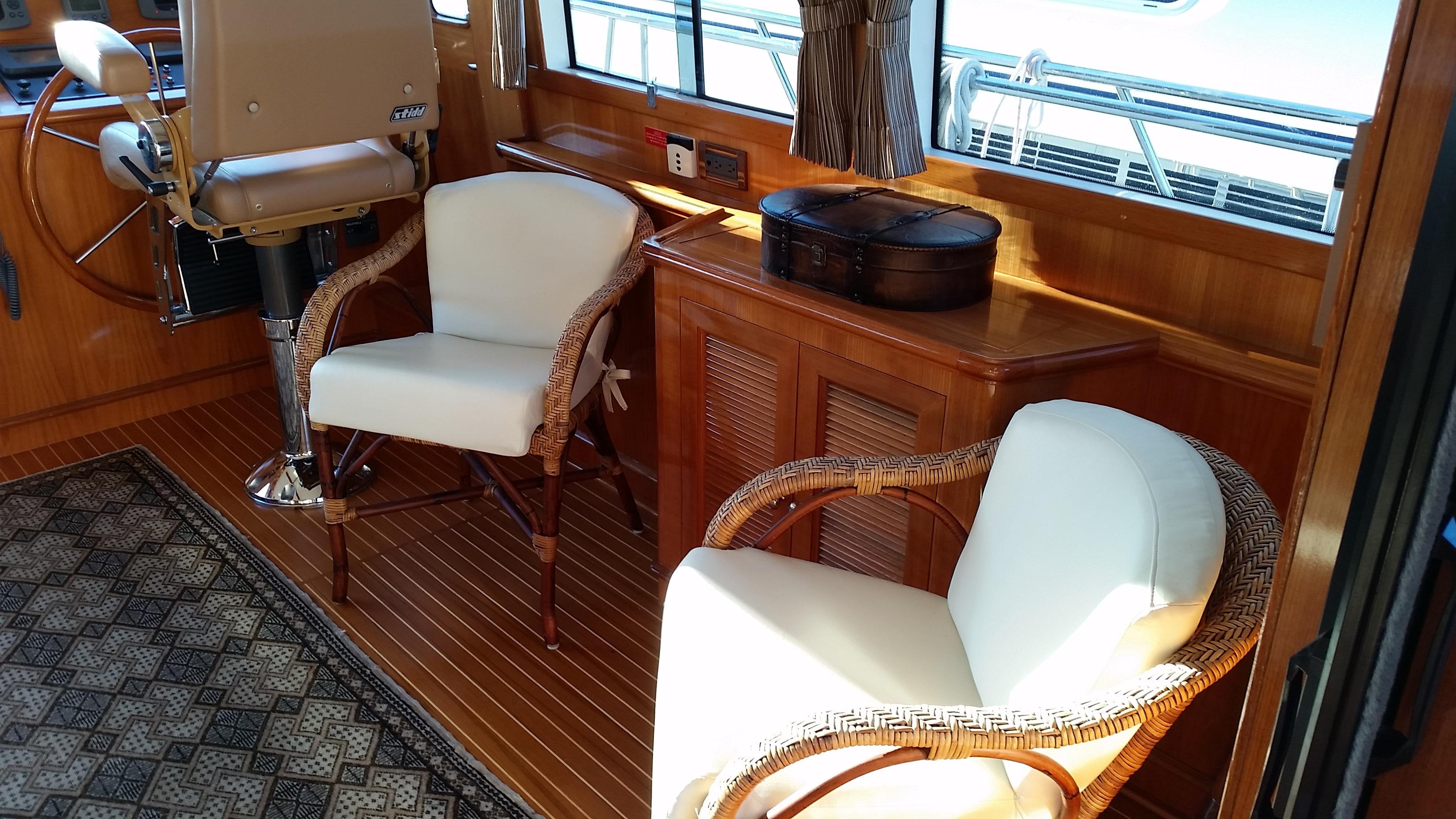

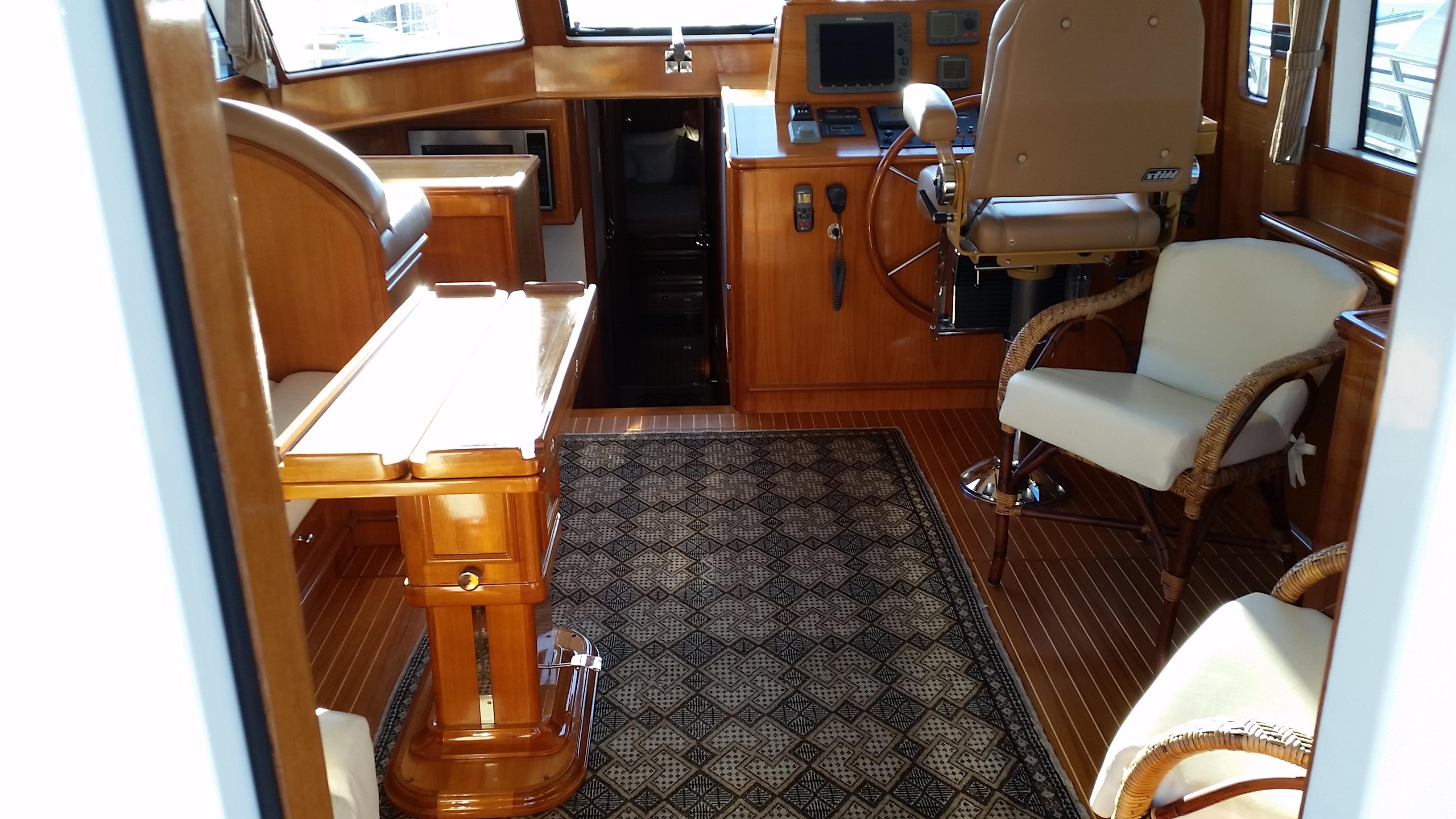

The lower helm station is on STBD with STIDD chair upholstered in UltraLeather. There is also a helm side door with a Phantom sliding screen. Aft is two new custom Palecek rattan arm chairs. The original GB barrel chairs were removed as they were too large for the area.

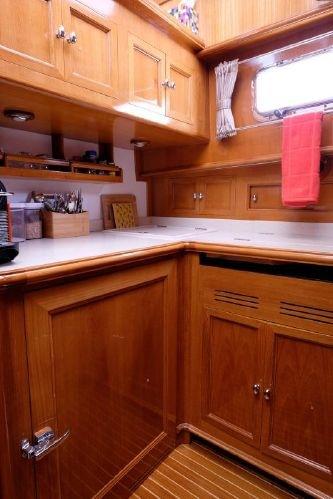

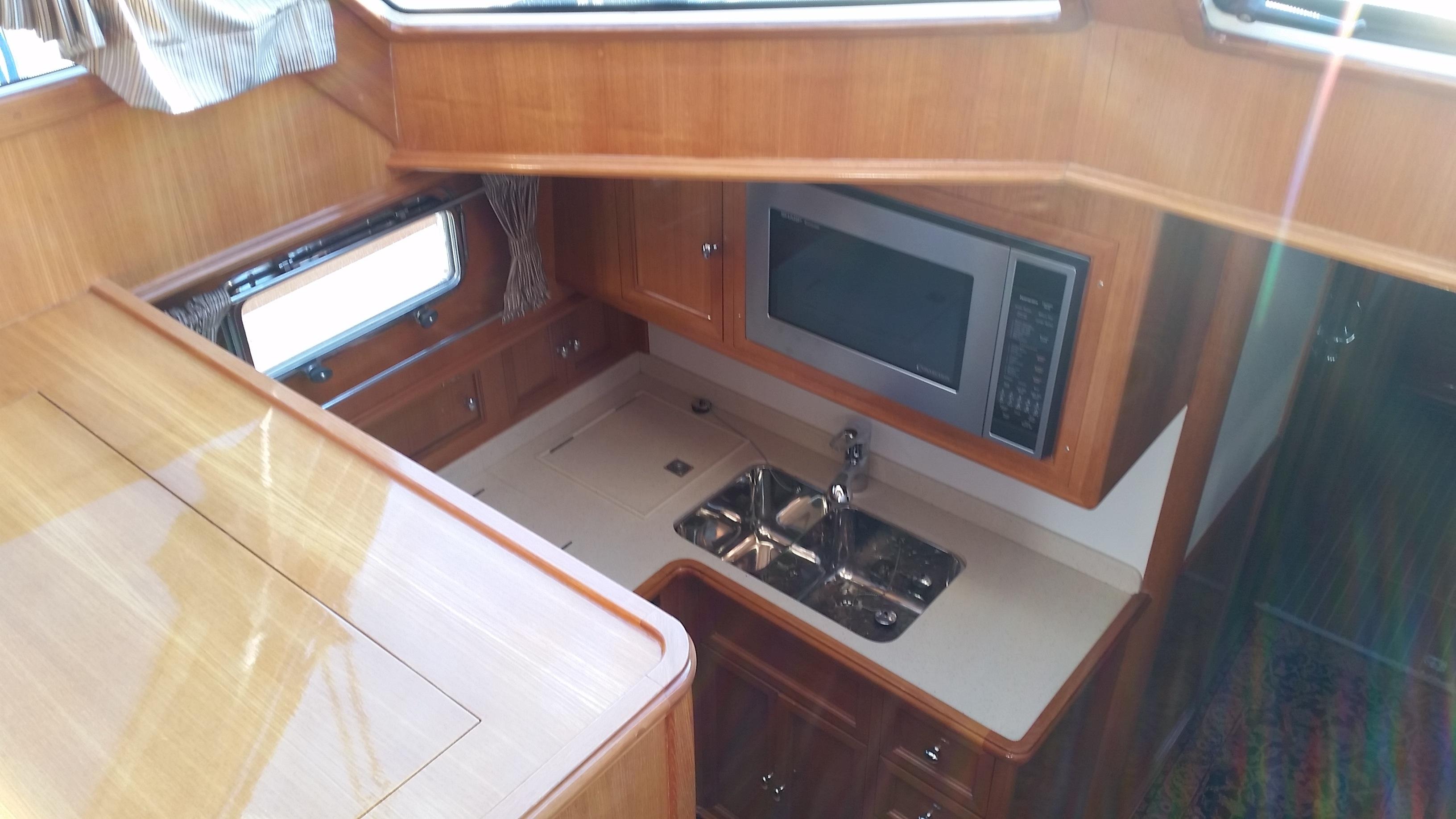

The galley is down 4 steps on port. It offers undercounter SubZero refrigeration and a corner reach-in freezer. There is abundant cabinet storage, Silestone counters and double stainless steel Scanvik sink. Also a Sharp micro/convection oven (being repaired).
The guest stateroom is on STBD and features two fore and aft berths, hanging locker and two port windows.

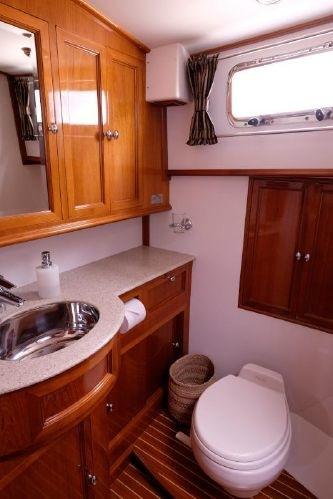

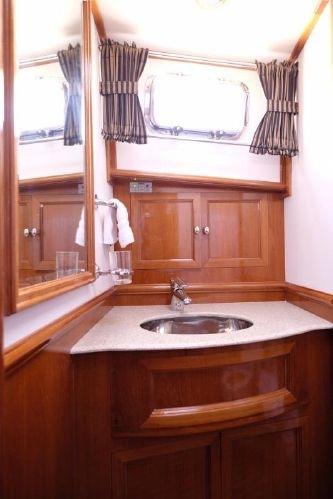

The guest head is across on port and has a separate stall shower, Silestone Ivory Coast counter, stainless steel Scanvik round sink, VacuFlush toilet and abundant cabinet storage.

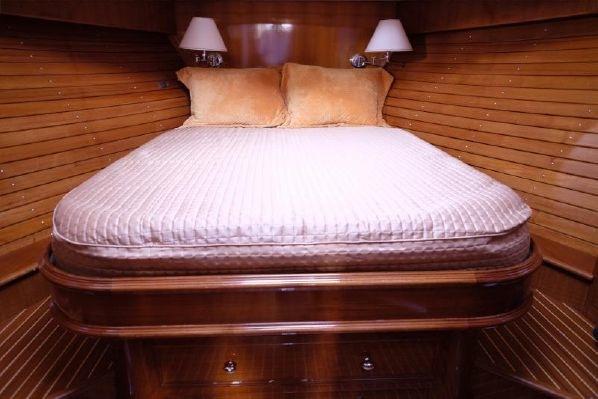

The Master STRM is forward with island queen berth, hanging locker, bureau and plenty of cabinet storage. There are also two adjustable reading lights. The Master Head is ensuite with separate stall shower, Silestone counter, stainless steel Scanvik round sink and VacuFlush toilet.

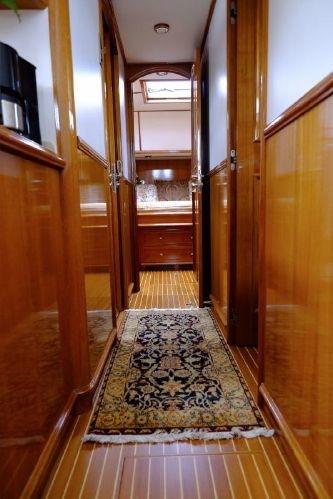

Throughout is:
Teak and holly soles
Oceanair hatch screens/blackout shades
Lined custom drapes
Bright finished teak cabinetry
LED overhead lights on dimmers in Salon and Master Stateroom
Salon

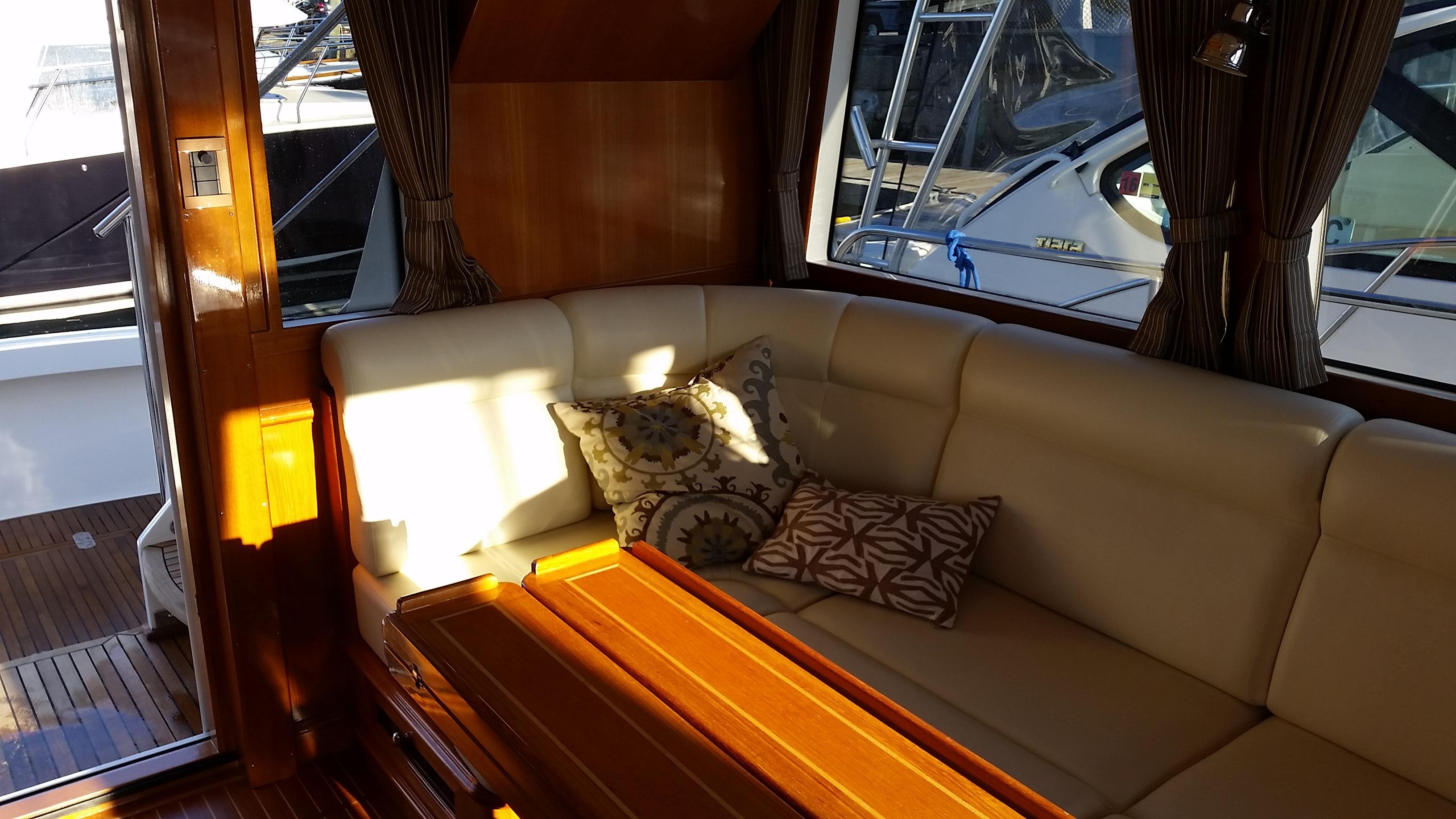

Settee upholstered in custom off-white UltraLeather that converts to double berth
Settee cushions renewed with memory foam (2013)
Custom throw pillows
Teak high-low dining table with fold-out leaves and maple inlay
Dimmable overhead LED lighting
Adjustable GB stainless steel reading lights (2)
Sharp flat screen TV on electric lift in teak cabinet between chairs
Bar cabinet
Rug
Aft door with Phantom Retractable screen

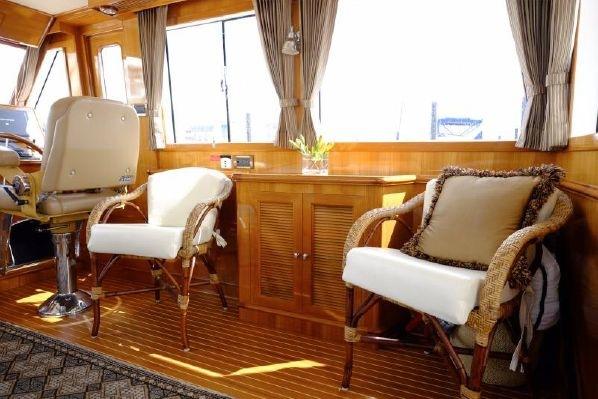

Palecek rattan arm chairs, cushions UltraLeather (2)
Yamaha/Cambridge Audio entertainment system including HDMI capability, internet TV (Roku 3), iPhone/iPad compatability (2014)

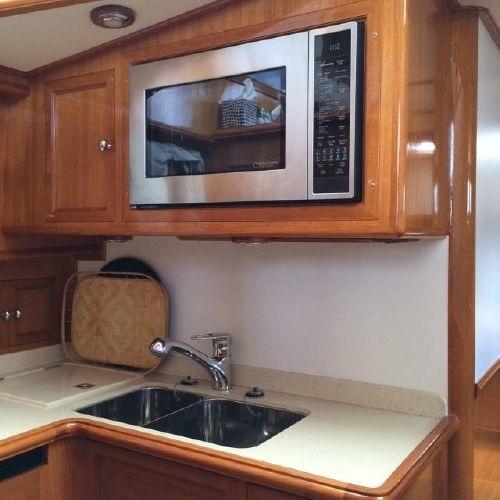

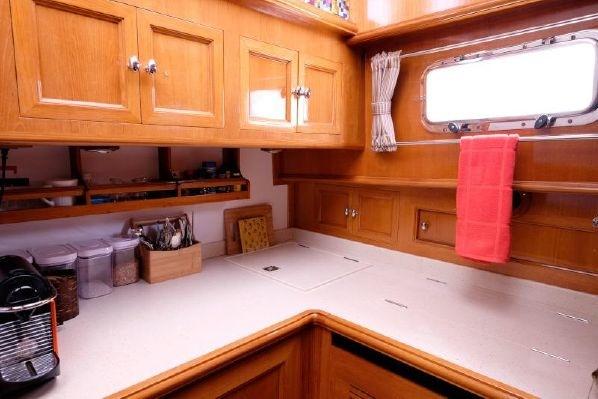

Galley
Silestone Capri Limestone counters
SubZero under counter refrigerator
Corner mounted reach-in freezer
Overhead and under counter teak cabinets
Sharp Micro/convection oven included but off boat for repair

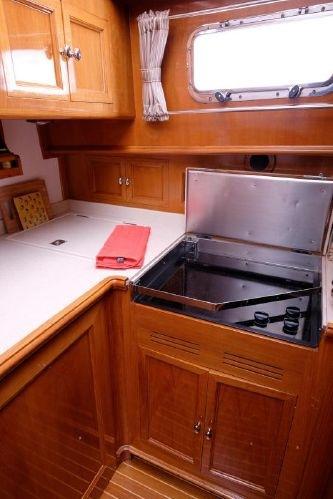

Princess glass cooktop with Silestone cover
Electric exhaust fan vented to outdoors
Scanvik double stainless steel sinks
Grohe sink faucet with pull-out sprayer
Abundant teak storage cabinets
(2) port windows and overhead hatch

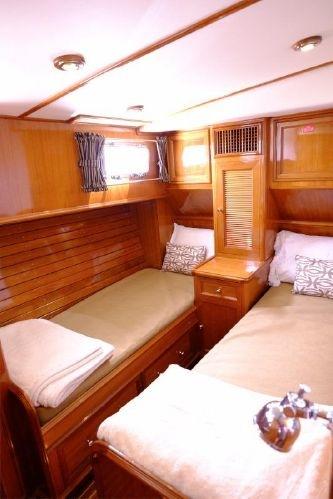

Guest Stateroom
Twin fore and aft berths
New bedspreads (8/14)
Air handler
Large cedar lined hanging locker
(2) port windows
(2) GB stainless steel adjustable reading lights
Teak framed beveled mirror
Storage under berths
End table between berths
Guest Head
Silestone Ivory Coast counter
Scanvik round stainless steel sink
Separate stall shower with fiberglass walls and Corian shower pan
Vacuflush toilet
Exhaust blower to outside
Grohe faucet, single lever
Teak framed beveled mirror
Teak cabinet storage
Port window
Shower drain pump, DC

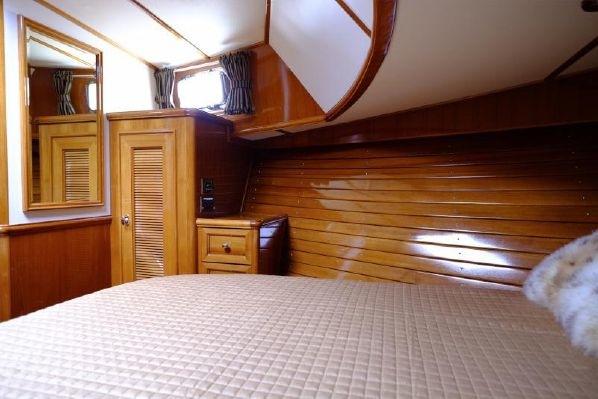

Master Stateroom
Queen island berth with (2) large drawers underneath plus additional storage
New bedspread (8/14)
Large cedar lined hanging locker
(2) Adjustable arm reading lights with shades
Drawer and shelf storage
(1) port window in STRM, (1) port window in Master ensuite head
Bureau with drawers
Inner spring mattress

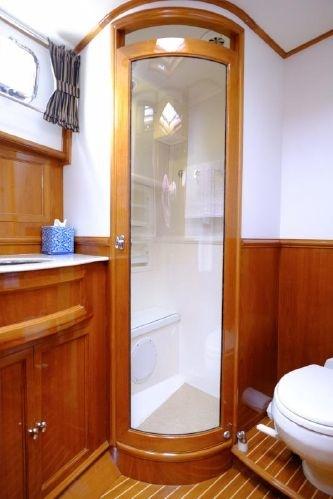

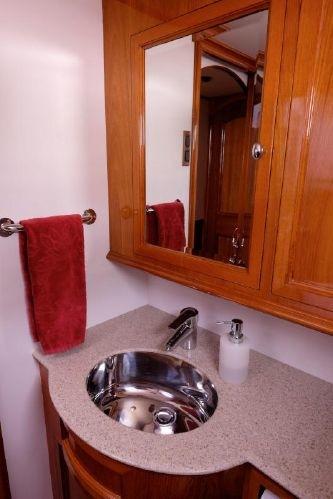

Master Head
Silestone Ivory Coast counter with Scanvik stainless steel oval sink
Teak framed curved separate stall shower door
VacuFlush toilet
Grohe faucet, single lever

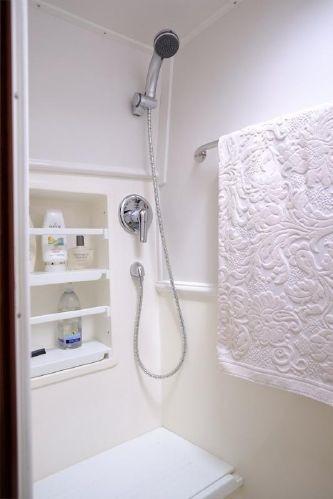

Separate stall shower with fiberglass walls and Corian shower pan
Exhaust blower to outside
Port window
Shower drain pump, DC
Teak framed beveled mirror
Teak cabinet storage

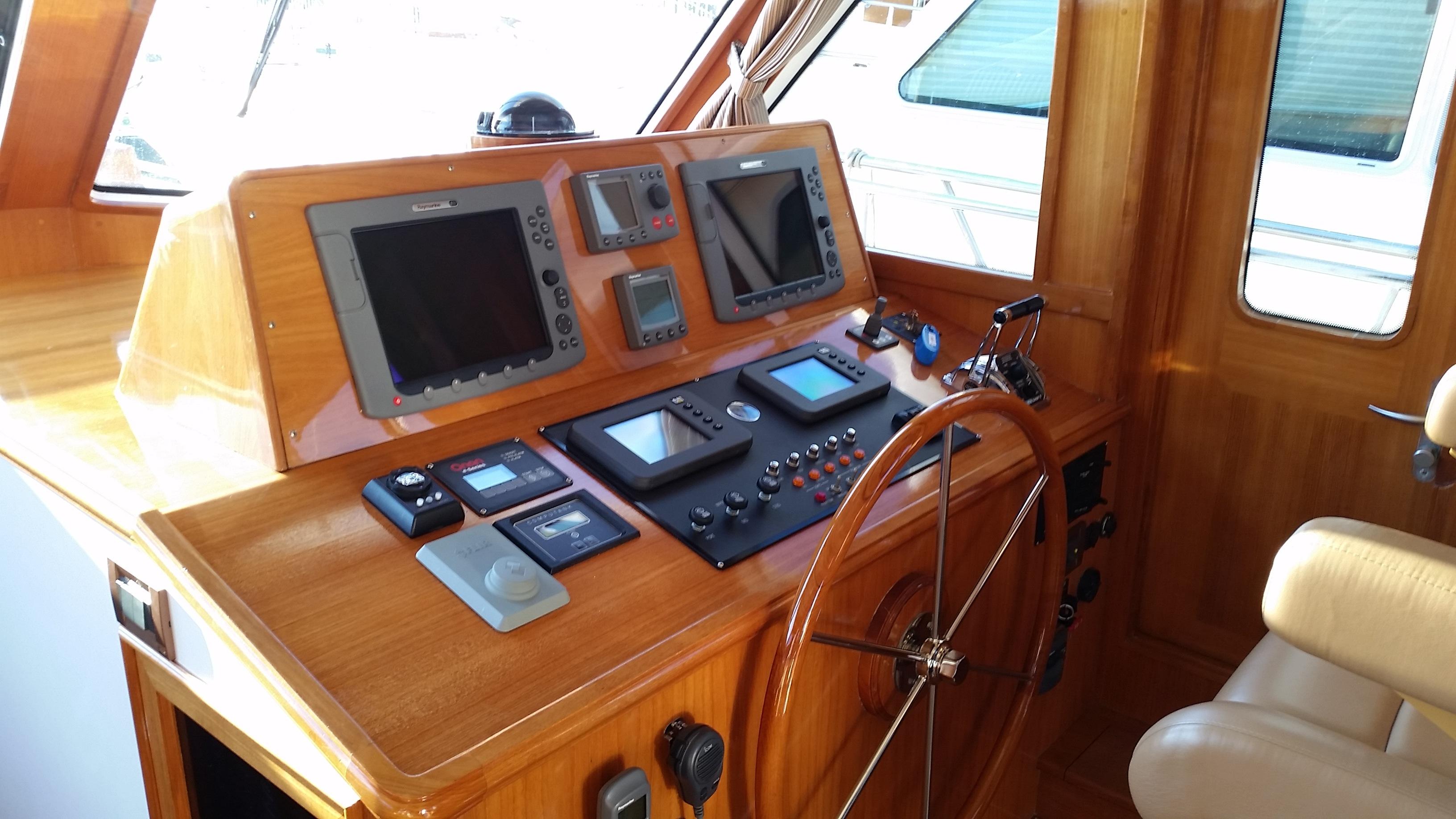

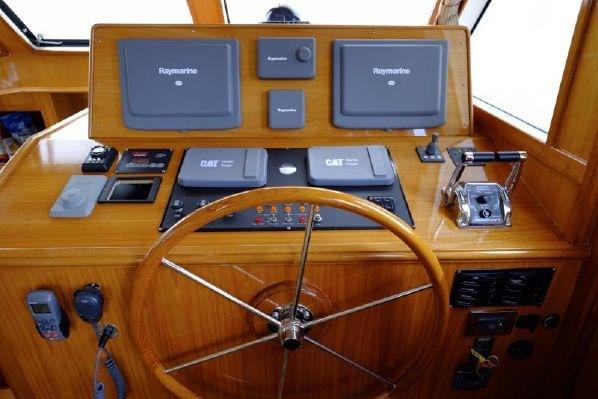

Lower Helm Electronics
Raymarine E-120 networked displays (2) for GPS plotter, radar, depth
Raymarine Smart Pilot Remote controller
Raymarine ST 8002 Autopilot (Smart Pilot)
Ramarine SR100 Satellite Weather Service receiver
Raymarine 4 kw Pathfinder Radar
Raymarine Raystar 125 GPS Sensor
Raymarine ST 60+ Tridata Display
Raymarine e7 Touchscreen Multifunction device at Mate's seat
Icom IC-M604 VHF w/remote Mic
CAT Marine Power Displays (2) – electronic displays with fuel burn data, synchronizer
Twin Disc EC-300 electronic multi station control gears and throttle
FLIR Night Vision integrated to lower and upper helms
DSM 300 Digital Sounder Module
Sleipner Sidepower SP125T bow thruster
Raymarine 37 STV Satellite TV system
ACR remote spot light with custom brow mount-dual control (model RCL 100D) motor drive, dual beam
Compass with light

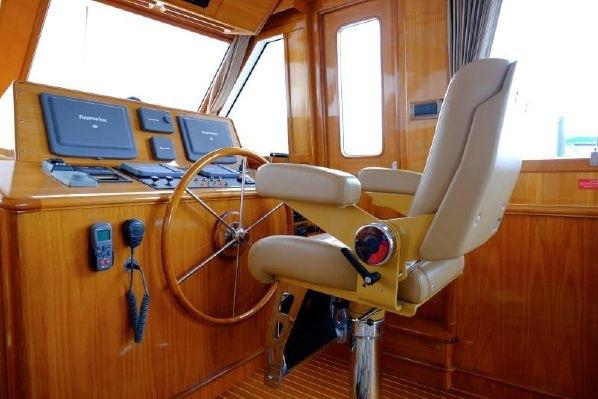

Helm Area
Bench seat to port
Chart locker, teak
Electronics console, teak
Electronics locker, overhead with removable panel
STIDD helm seat, Admiral Low Back with deluxe chrome package
Teak rimmed steering wheel
Helm side door with Phantom retractable screen

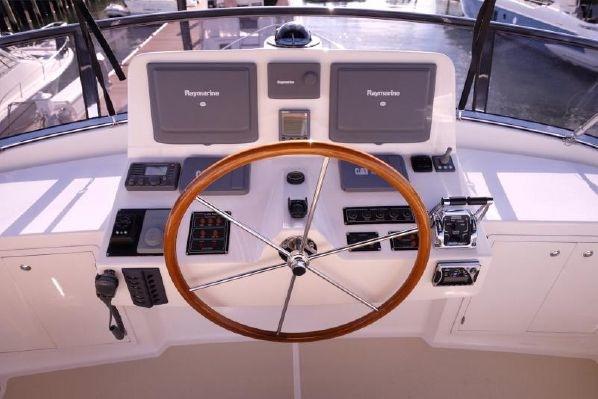

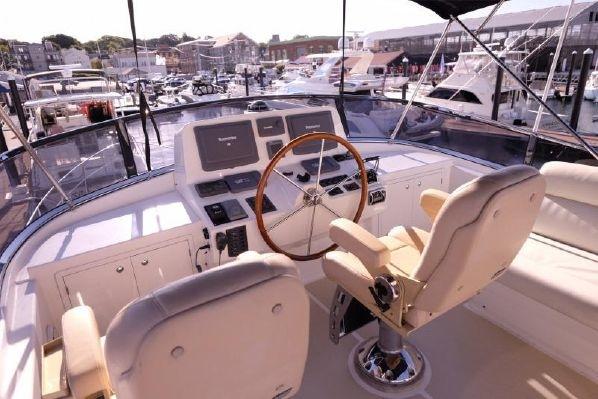

Upper Helm Electronics
Raymarine E-120 networked displays (2) for GPS plotter, radar, depth
Raymarine Smart Pilot Remote controller
Raymarine ST 8002 Autopilot (Smart Pilot)
Raymarine ST 60+ Tridata Display
Icom IC-M504 VHF
CAT Marine Power Displays (2) – electronic displays with fuel burn data, synchronizer
Twin Disc EC-300 electronic multi station control gears and throttle
FLIR Night Vision integrated to lower and upper helms (2012)
Sleipner Sidepower SP125T bow thruster
ACR remote spot light control pad
Compass with light
Flybridge
Courtesy lights
Deck non-skid, painted Awlgrip Moondust
Electronics console, molded fiberglass

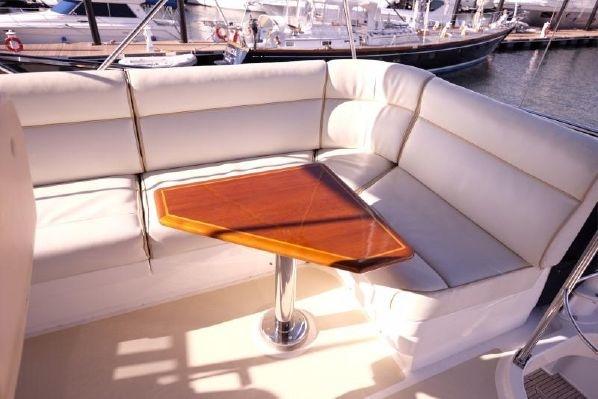

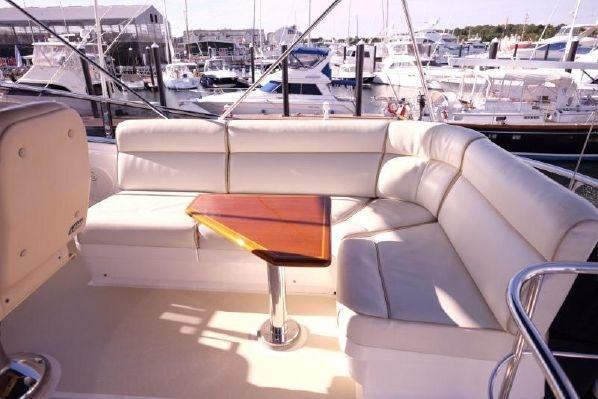

L-Settee (molded figerglass) with full storage under upholstered in Nautolex Softdura Extra Off-White with Chamois piping

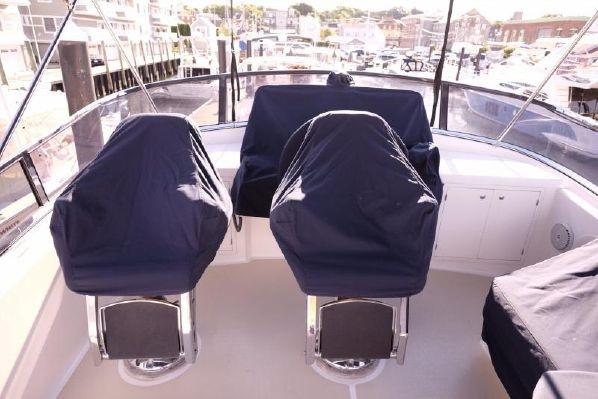

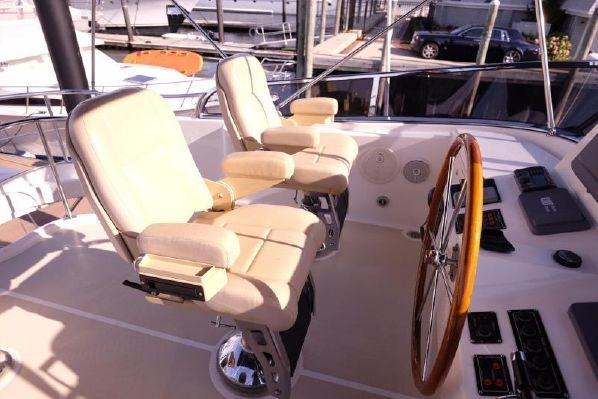

STIDD helm seats upholstered in UltraLeather Chamois with footrests (2) – New UltraLeather covers ordered 8/14
Steering wheel, stainless steel, teak rimmed
Teak table with stainless steel pedestal

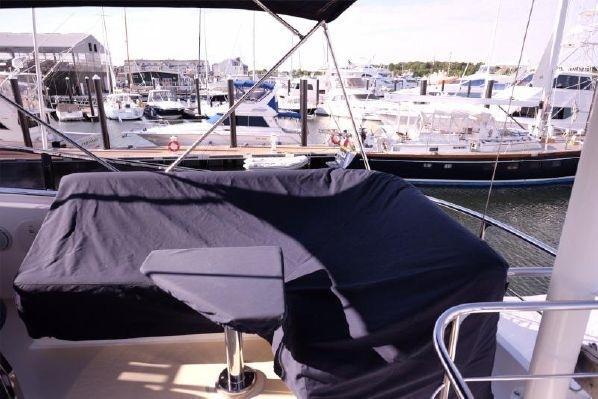

Navy canvas covers for STIDD’s, helm, table and settee
Navy canvas weather cloth “Dodgers”
Navy canvas bimini

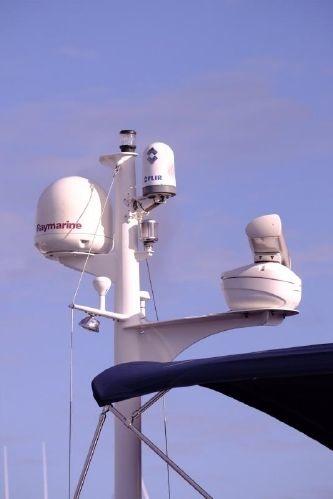

Aluminum mast, painted and hinged for lowering with power winch for carrying, launching, and retrieving dinghy (2012)

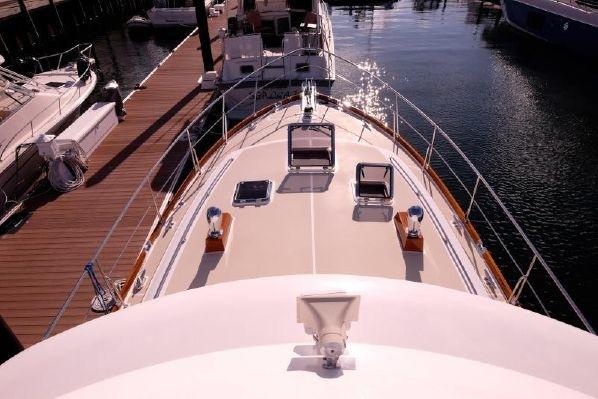

Deck & Hull
Gelcoat Flag Blue in excellent condition

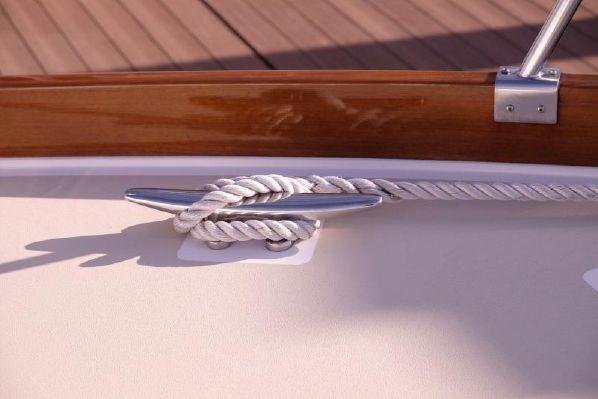

Varnished teak toe rail
Wide side decks with s/s full length double safety rails, Awlgrip non-skid
Spiral staircase to flybridge with teak treads

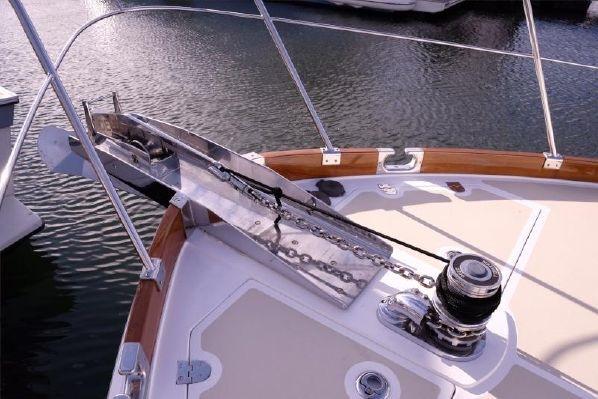

Maxwell 2200 anchor windlass and s/s bow roller
Lewmar stainless steel Delta anchor with 250’ all chain rode (3/8 HT G4)
Suncor stainless steel swivel
Anchor chain locker, self draining
Fresh water wash down in port bow locker
Twin stainless steel dorade vents mounted on varnished teak boxes

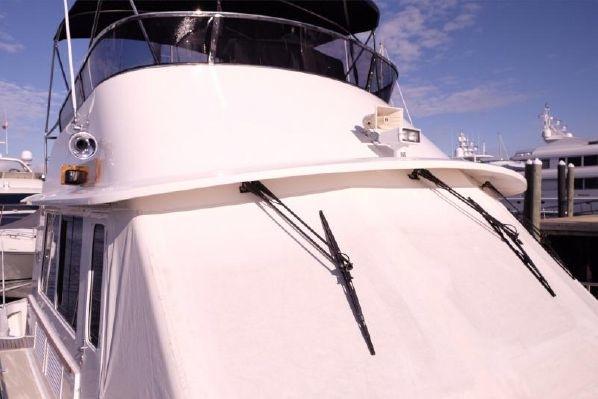

Windshield, center opening with stainless steel frame and electric actuator, tempered glass
Trinka 10 dinghy with oars and sail rigging
Torqueedo 1003 Travel electric dinghy motor (2013)
Custom cockpit Shade (2012)
Cockpit
Courtesy lights

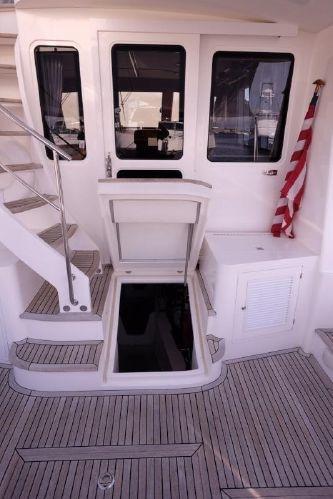

Engine room access, hydraulic
Lazarette lockers, pneumatic raise – (3)

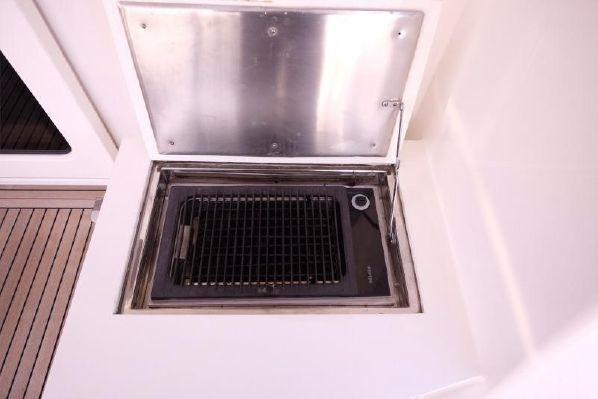

Miele electric grill with storage under
Wired and plumbed for ice-maker
Pop-up fender cleats port and starboard
Cockpit freshwater wash down
Transom door to swim platform
Teak decking in excellent condition, epoxy bonded not glued
Electrical
AC/DC distribution panels
Kahlenburg air horn
Air-conditioning, reverse cycle, (2) units salon/galley, (1) unit master STRM, air-handler guest
Alarm and indicator panel, each station
Alternator, each engine and generator
Batteries, AGM with fiberglass boxes, lids and straps, (2) 8D engine starting, (3) 8D house, (1) 2D generator starting
Battery charger automatic 50 amp
Battery condition indicator
Battery disconnect switch
Battery switch, emergency paralleling
Bilge pumps, automatic DC
Bonding system
Bow thruster, Sleipner Sidepower SP125TC, DC
Carbon monoxide detector in sleeping areas and salon
DC converters, 24-12V, 40 amp
Engine room lights, AC fluorescent lights with diffusers
Engine room lights, DC
Pressurized fresh water system, DC
Fuel transfer pump, DC

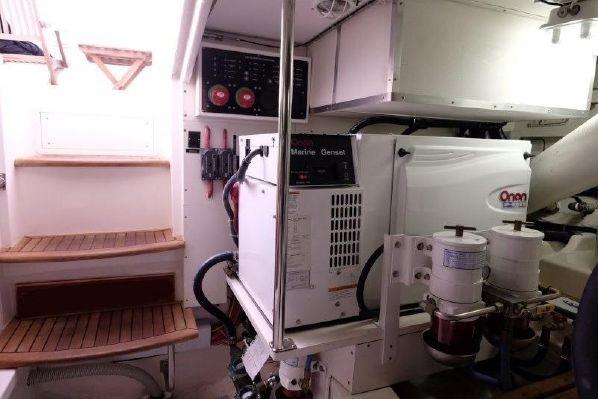

Onan generator with sound shield, 13.5 kW
Helm outlet, DC at each station
Holding tank level indicators
Holding tank, direct discharge with y valve on all toilets, DC
Isolation transformer
Navigation lights, DC
Oil change kit, DC
Outlets throughout, with GFCI protection
Rudder angle indicator DC
Shore power inlet, 50 Amp aft, (1) Glendinning Cablemaster with 75’ cable
Tank gauges for fuel and water, with Computank Display
Trim tabs, DC
Water heater 20 USG, AC
All wiring, marine grade tin-platted copper

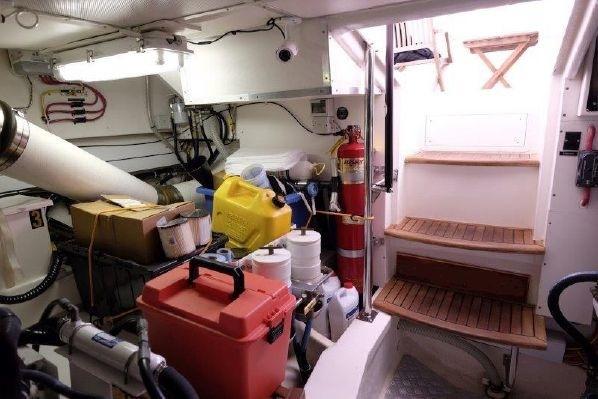

Mechanical / Engine Room
Engine room vents, Delta T air demisters
Twin CAT C-12 ACERT 705 HP engines, 750 hours
Engine room blowers, DC
Ball valve on thru hulls above water line, bronze
Bilge pump, manual
Drip pans under engines
Engine Controls, Twin Disc EC300, single lever, each station
Engine raw water intake strainers
Engine room faucet, fresh water
Engine room sound insulation
Exhaust system, sea water-cooled, with muffler
Fire extinguisher, with engine, generator, blower shut down and override control
Twin fuel filter, Racor water separators on each engine, single on generator
Fuel tank, fiberglass baffled
Gas/water separator on generator exhaust system
Nickel-aluminum-bronze dynamically balanced
Rudder, cast bronze
Groco Safety Seacocks on engine raw water inlets
Dripless shaft log with spare seals
Engine room sole Diamond Plate
Hydraulic steering with power assist
Bronze struts with rubber bearings
Aluminum painted water tanks
Water maker prep, wired and plumbed
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
