Descriptions

Dealer, Factory and Custom Options

Fresh Awlgrip 7/2020- Flag Blue
Anti-Skid color (fore & side deck) - Beige
Reverso Oil Change system
Freedom Lift dinghy lift
Shore water inlet
Single Seagull water purifier on galley cold water plumbed to separate spigot and Ice maker
Salt water wash down fore and aft
Fresh water wash down forward
Relocate windshield washer fluid to more accessible location in engine room near water heater and the water pump on bulkhead
Inverter/charger 3000 watt true sine wave with remote control
Beam central vacuum system with (2) outlets and a 32' expandable hose
Electric Sunroof with sunscreen in lieu of standard two (2) pilot hatches
FRP molded mast, separate radar platform & satellite pads for sedan hardtop

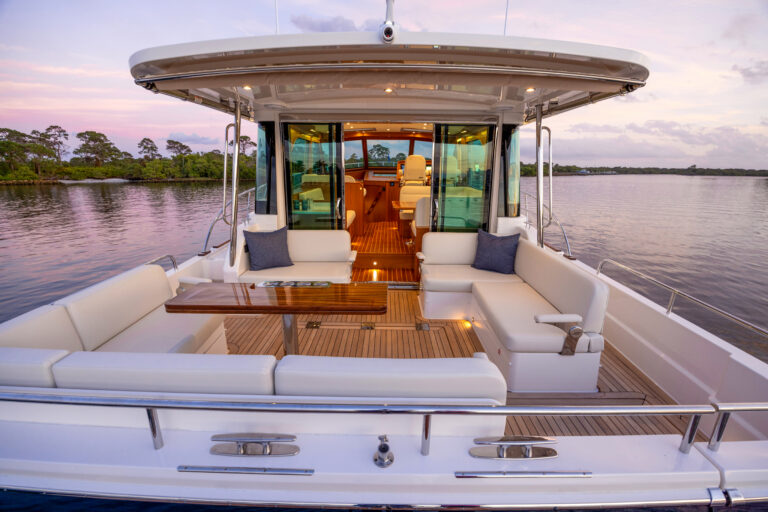

Teak decking in aft cockpit including steps
Teak deck on FRP swim platform
Kahlenberg triple chrome horns
Hot and cold transom shower
Replace single helm chair with (2) STIDDS mounted on cabinet with hi-gloss top, Foot rest on forward face, ice-maker, starboard settee becomes longer with more seating
Accord shades on opening ports
FACTORY CUSTOM OPTIONS
GALLEY
Install cherry doors on glass cabinet aft of galley sink. Install wood shelf with fiddle half way up in cabinet
Add a door on the small cabinet forward of galley sink. Remove fiddle and leave open inside
Build flat bottom in locker under cooktop
MAIN SALON & INTERIOR
Ultraleather upholstery main salon
Notch cover aft and outboard for opening and for wires to pass through, no thumbhole
Install a fixed fiddle on forward end of nav desk the same length and location as hinge on fwd end of cover. Add another fixed fiddle between the chart and TV covers 32" length. Fiddle should end at the end of the nav desk cover
Move double SS cup holder from nav desk area and install outboard of mate seat (port) on window edge.
Add single SS cup holder outboard of joystick
Delete the standard cherry grab rail at the helm
Increase two standard main salon armrests another 4'' in height on both settees
Add an additional cherry drop in box on port side of helm pod face above standard helm drop in box. Additional box to be rectangular with inside opening 6H"x8W"x10D". Leave enough room below the box for the dealer to install Fusion 700 stereo
MASTER CABIN & HEAD
Install a 26" TV with separate DVD in Master Stateroom. Install TV 47" from cabin sole
Install a tall mirror recessed (no frame) into the bulkhead behind master head shoji door
Witch Hazel Corian counter with radius and Corian Cameo White undermount sink in master head in lieu of cherry counter and vessel sink with vessel faucet. Add 3" matching fiddle behind sink.
Custom tile on the shower wall
GUEST CABIN & HEAD
Fwd head cabinet to be 1/2 fully open and the another 1/2 to have shelf with fiddle
Install second cherry towel rack on inside of door, location 10'' below top of door
ENGINE ROOM
Install fresh water spigot in engine room
Build shelf above house battery bank with fiddles on all four sides, rubber material base. Shelf to be made removable.
ELECTRICAL
(4) Additional dimmer switches in galley, master stateroom, forward cabin, and cockpit
Install 120VAC outlet inside chart storage locker. Outlet location to be aft and outboard
Install 120VAC outlet outboard of washer/dryer cabinet in utility room
Install 12V/USB charger centers at head of master berth, both sides of shelf
Install 12V/USB charger centers at head of forward berth, both sides of shelf
Install 12V/USB charger centers in crew quarters. Inboard of the washer/dryer near the shelf
Prewire for 4 speakers. Stereo head to be installed in helm pod. 2 speakers in the cockpit, standard locations. 2 speakers in the main salon in the standard locations. 2 speakers in the master cabin, fwd & aft inboard, near the bulkhead. 2 speakers in the forward cabin on the fwd end of upper cabinets.
UTILITY ROOM
Install Arriston separate washer and dryer (no door over washer/dryer). Washer/Dryer sits down on FRP and inboard next to berth. Cherry top over washer/dryer extends inboard to become top of units.
Utility Room to look like Crew Quarters: S/B Crew mattress and Ultraleather seat and back rest (3) cushions in utility room. Note: no notch in mattress. Install cherry treads in utility room. Replace utility lights with cabin lights. Add U/L wall covering. Install teak and holly floor.
DEALER OPTIONS
Custom 9" Box top Latex Mattress in Master and Guest Stateroom
Custom Décor including all bedding, rugs, pillows, & decorative items
Custom Canvas - Windshield Cover
Custom Canvas - Aft Cockpit Seat Covers
Custom Canvas - Aft Cockpit Table Cover
Custom Canvas - Stern Flag Cover & Burgee Cover
Navigational Electronics - (2) Garmin 7616 Chart-plotters, Garmin GMR xHD2 Radar, Garmin Weather Receiver, (2) Garmin VHF 300 - Black, Garmin AIS 600 Class B Transceiver, Garmin Marine Camera - Engine Room, Garmin Marine Camera - Reverse Image, Garmin GMI 120 Instrument, Garmin Grid Remote Input Device 8000 Series, FLIR Dual Payload Thermal/Low Light Camera, Airmar DT800 Transducer, Airmar Weather Station, Mercury Autopilot Gateway for Cummins Zeus, ACR RCL-75 Spotlight with Remote, Speco Hailer Horn, Matching Paint for Hardtop Electronics
KVH Satellite TV system - KVH TracVision TV3, KVH TracVision TV3 Empty Dome, (2) KVH DirecTV H25 HD Receiver with IR Remote Control, (2) KVH RF Remote Control Kits for DirecTV H25 Receivers
Fusion AV750 Stereo System - 4 Zone System, AM/FM/Sirius w/ Built-In Bluetooth, (4) Fusion 700 Series Wired Remotes, Speakers, Sub-Woofer

Main Salon

"L" settee to starboard, 5" foam cushions, with storage and Sabre tool drawer under.
High Gloss finished table with hi-low pedestal and angled slide mechanism. Lowers to coffee table height.
Entertainment unit to port including: flat screen LCD TV 26" on lift with DVD player
Sound deadening, soft headliner panels.
Raised mates L-shaped settee to port of helm chair
Stainless steel bi-fold door to cockpit
Electrically operated window aft of L-settee
Swing door at helm to starboard side deck
Deep chart table forward of L-settee

Master Stateroom Amidships

Spacious island berth athwartship layout with laminated trim
Hull side deadlight over head board
Shoji style passageway and closet doors
Shoji style portlight screen panels
Cherry hull ceilings
Drawers under berth and in bulkhead aft of berth
(2) hanging lockers fore and aft of bed
LED flat screen TV and DVD player
Teak and holly sole
Sound deadening soft headliner panels
Pocket door to master head compartment

Master Head

Private access from master stateroom
Custom tile in WC and shower sole
Vanity cabinet below sink
Storage outboard
Mirror above vanity, cherry framed
Electric shower sump pump
Deck hatch with blind/screen overhead
Ventilation blower
Stainless steel towel bars

Guest Stateroom

Spacious island berth, with laminated trim
Cherry hull ceilings
Drawers under berth
Storage lockers, drawers and shelves
Teak and holly sole
Sound deadening soft headliner panels
Pocket door to passageway
Private access to forward head and shower

Guest Head

Stainless steel under mount sink
Shower stall with seat and locker outboard
Hot and cold pressure water
Electric shower sump pump
Storage lockers
Solid surface vanity top with bull nose
Towel bars
Soap dispenser
Cherry wood trimmed mirror over sink
Ventilation blower

Galley

Solid surface galley counter top
Stainless steel under mount sink with cover and pull-out faucet
Stainless steel under mount "Farm Sink"
Soap dispenser
Isotherm stainless steel stand-up refrigeration/freezer
Two burner electric cook top
Convection microwave with stainless steel face
Drawers and storage lockers below counter
Built-in waste basket. Recycle bin below steps

Decor

Main Salon cushions - Promessa Cornflour Ultra-Leather
STIDD Captain Chairs - Tusk Ultra-Leather with Promessa Cornflour Piping
Mate's Raised Lounge Seat - Promessa Cornflour Ultra-Leather
Cockpit Cushions - Viento Nautical Sunbrella
Crew Cabin - Sailcloth Seagull Sunbrella
Galley Corian - Witch Hazel
Master Head Corian - Witch Hazel
Guest Head Corian - Witch Hazel
Ocean Air screen/blinds on deck hatches
Ocean Air pleated blinds on side windows and side door
Drapes on aft curved windows
Dovetailed, varnished maple drawer boxes
Varnished cherry interior finish
Exterior Teak - Hi-Gloss varnish

Helm Station

Cummins DTS single lever electronic controls
Cummins Smart Craft display (engine data, tank levels, vessel data, alarms)
Triple windshield wipers with washers
Ritchie Compass
Switch controls for horn, running lights, anchor light, engine room blower and optional equipment
Stazo 400mm custom teak steering wheel with tilt helm and Sabre logo
Stidd single helm seat with Ultraleather fabric

12VDC Electrical System

Two AGM Group 31 dedicated engine start batteries
Three AGM 4D deep cycle ship's service batteries
One AGM Group 24 generator start battery
Remote control battery switches with controls at helm
Manual emergency battery crossover switch
Illuminated main circuit breaker distribution
Digital battery monitor
Lighting: - St. Maarten amber cabin reading lights, LED lights in the overheads throughout cabin, bar lighting in appropriate locations, fluorescent engine room lighting, cockpit courtesy lights

120VAC Electrical System

Onan 13 kw generator (575hrs) including: interface to Cummins Vessel View display, dedicated start battery, water lift muffler, cooling water intake strainer, sound shield, transfer switch
50amp shore power service with Glendinning Cablemaster & 50 ft. cord
BlueSeas electrical panel, AC/DC with multi-meters
Fail safe galvanic isolator
Digital AC system monitor

120V GFCI protected outlets in each cabin and engine room
50amp, 3-bank battery charger
Reverse cycle heat/ air conditioning in (5) zones
3000W inverter/charger for house

Hull

Modified Deep "V" Planing hull design, with shallow pod drive tunnels
14º deadrise at transom, 23º deadrise amidships
ISO NPG white gelcoat w/vinylester back-up resin
Bottom, topsides and transom VIP resin infused biaxial E-glass with Airex C70 foam core
Stringer system biaxial E-glass with foam core
Bulkheads vacuum-bagged biaxial E-glass with polypropylene honeycomb core
Molded E-glass swim platform with molded-in anti-skid surface
PVC rub rail with stainless steel cap
Painted (IMRON) double boot top
Gold recessed cove stripe

Deck Hardware

1 1/4" Diameter type 316 stainless steel perimeter rail system
(8) 12" Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit)
(1) 10" Stainless steel cleat to starboard of windlass as anchor rode tie off
(4) Custom cast stainless steel mid-rail line chocks
(2) Custom cast stainless steel skene chocks forward
(2) Custom folding stainless steel mooring cleats aft
Bow pulpit with dual anchor roller for 55# Delta anchor and "lunch hook" with 250' chain
Quick anchor windlass, electric rope-chain type
Flag staff and socket on aft seat rails
Burgee staff on bow pulpit
(6) Low Profile stainless steel hatches w/screens
(6) Custom stainless steel opening port lights
Teak cabin side eye-brow
Custom cast stainless steel "SABRE" medallion

Deck and Hardtop

ISO NPG gelcoat
VIP resin infused biaxial E-glass with balsa core
Molded-in anti-skid deck surfaces
Sliding windows in salon on cabin sides
Electric opening window in salon aft bulkhead
Hinged access door to side deck at helm
Flush, outward opening, transom door with latch
Anchor locker with slam latch
Large lazarette/engine room access hatch in cockpit sole with compression latches

Steering and Trim Systems

CMD helm, with joystick.
Trim tabs integrated in CMD Zeus pod drives.
Autopilot integrated in CMD Zeus system.
"Skyhook" GPS position hold system with dedicated GPS receiver.

Propulsion

Twin Cummins QSC 8.3 550 hp electronic, fresh water-cooled engines.
Twin CMD Zeus 3800 pod drives, with integrated steering and trim
120A, 12V alternators each engine.
(2) Exhaust by-pass mufflers.
Engine room blower.
Engine room vent ducts.
Engine room floor with FRP anti-skid.
White gelcoated engine room
Mylar face foam noise barrier.

Fuel System

(2) 250 USG diesel fuel tanks port and starboard
Racor fuel filters with water in fuel senders
(2) 2" "Diesel" deck fill plates

Fresh Water System

Water capacity 160 gals
Stainless steel, 20 gal. water heater, operates on 110-VAC or engine heat
Temperature control valve on hot water supply
Hot and cold water pressure system 12V
Fresh water spigot in engine room

Waste Water System

Polyethylene holding tank with 70 gallon capacity
Jabsco Quiet Flush fresh water MSD in guest head
Tecma Eco MSD in master head
Diaphragm waste pump on holding tank

Safety

Triple Kahlenberg chrome trumpet horn with compressor
Fire extinguishers, (5) at 2 1/2 lbs
Marelon sea valves on all thru-hull fittings below waterline
Bonding system to safeguard against galvanic corrosion
Automatic fire extinguishing discharge system in engine space with override
(3) Automatic 12V electric bilge pumps
(3) high water switches and alarm

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
