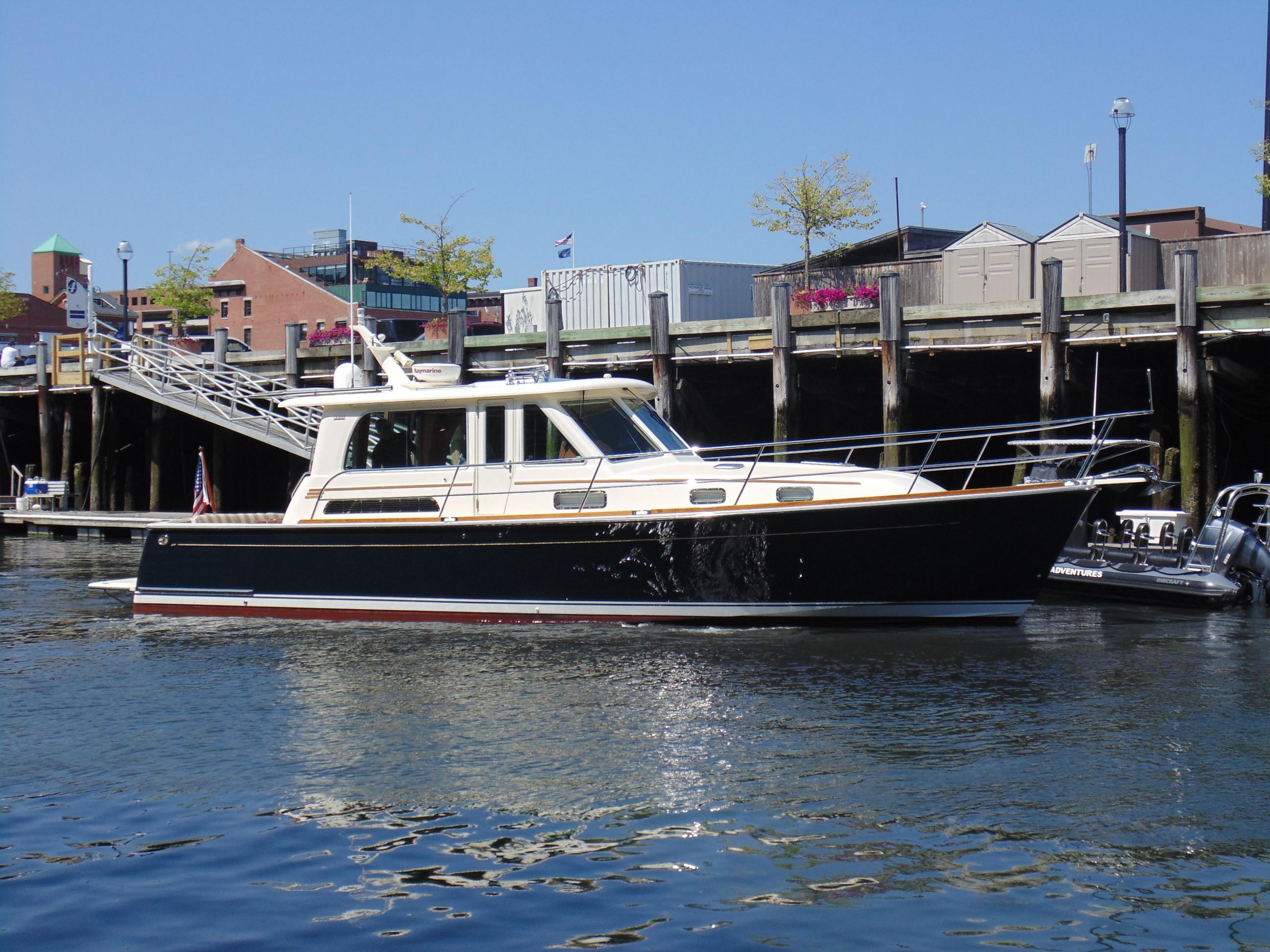

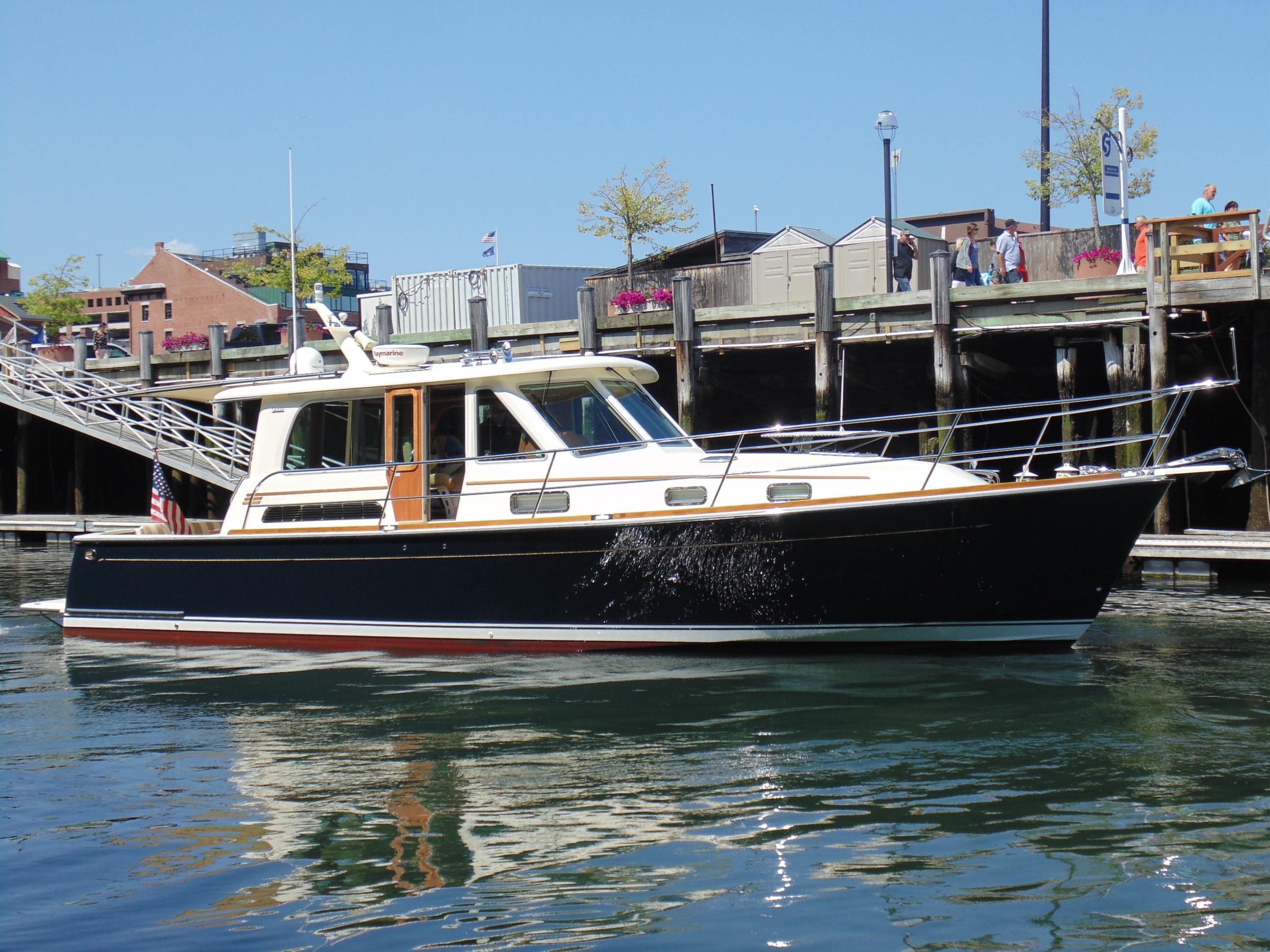

(SOLD) 2009 Sabre 40 Sedan

A whole new day: Quieter, more fuel efficient, more maneuverable. More of the things that make your boating experience exceptional. The Sabre 40 is the result of our observation that clients want to enjoy the same levels of personal luxury and comfort that they have come to expect in their homes and in their automobiles. To that end the Sabre 40 has been developed as a new style of sedan, available with or without a fly bridge, that permits boaters to operate from the comfort of the yacht’s interior or from the openness of an optional fly bridge.

Technology is advancing rapidly and owners have come to expect that if there is a new technology available, Sabre will employ it in their designs. Sabre has dramatically changed the way they build yachts and the way in which they are propelled. Traditional values such as fine craftsmanship and great looks remain, as Sabre owners have come to expect, but below the surface things are state-of-the-art.


  • Manufacturer:Sabre
  • Model: 40 Sedan
  • Year: 2009
  • Category: Power
  • Condition: New
  • Location: Portland US
  • Vessel Name:2009 Sabre 40 Sedan
  • Hull Material:Fiberglass
  • Designer:Sabre Yachts Design Team
  • Make:Cummins
  • Model:QSB 5.9l
  • Engines(s):2
  • Hours:
  • Engine Type:
  • Fuel Type:diesel
  • Horsepower:
  • Length:40 ft
  • Beam:14 ft
  • Draft - max:
  • Fuel Tank:
  • Fresh Water Tank:
  • Holding Tank:



DimensionsMax Draft: 3'4''Displacement: 26,000

EnginesTotal Power: 385 hp

TanksFuel: 380Fresh Water: 140Holding: 60

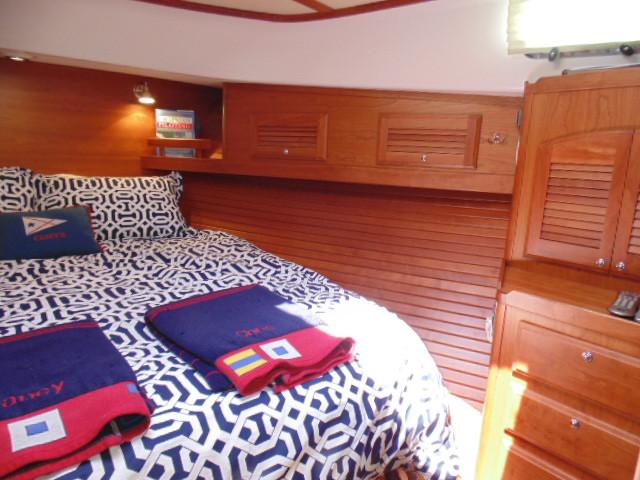

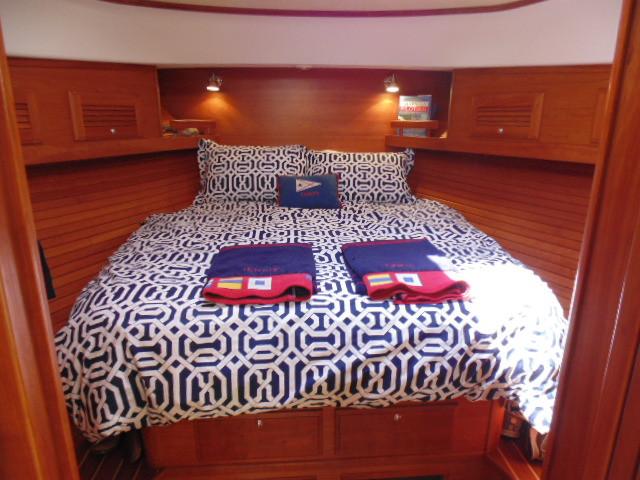

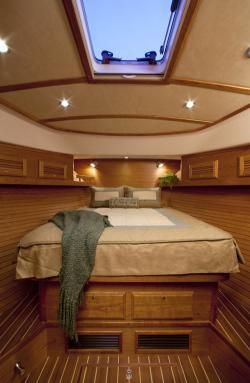

  • Spacious Island Berth layout with 5" cushion. ¾” laminated trim.
  • Cherry hull ceilings.
  • (2) Drawers under berth. A/C return grills under drawers.
  • (2) drawers in bureau w/locker w/shelf above and single louvered door.
  • Upper enclosed shelves with storage behind. Locker face to have (2) louvered doors.
  • Recessed shelf with fiddle on starboard main bulkhead sized for 17” flat screen TV option.
  • Large cedar lined hanging locker to port, with louvered door, cedar shelf and hangar pole.
  • Open shelf above port hanging locker.
  • Teak and holly sole.
  • Sound deadening soft headliner panels.
  • Pocket door between lower salon and forward stateroom.

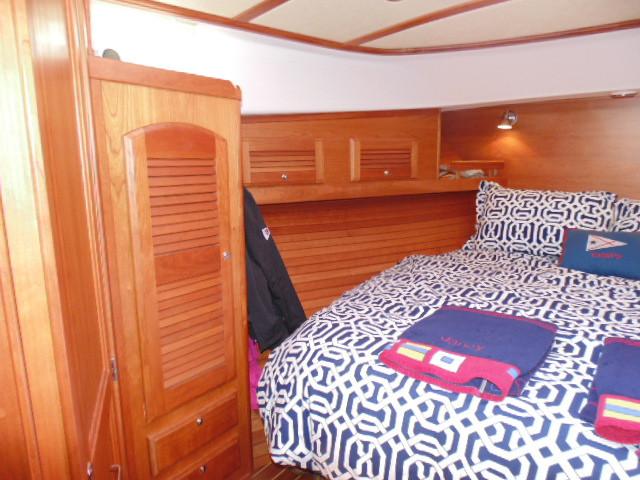

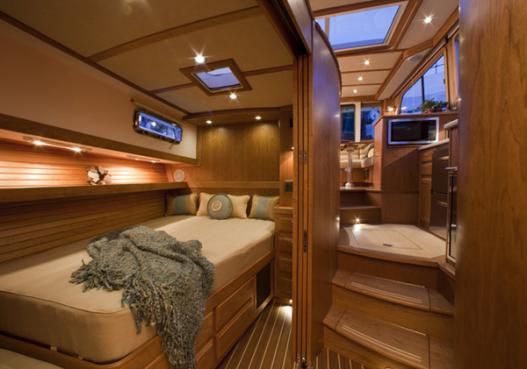

  • Double berth, 5" foam cushions, ¾” laminated trim.
  • Cherry hull ceilings.
  • (2) Drawers under berth, A/C return grills under drawers.
  • Forward bulkhead storage locker, and shelf sized for 17” flat screen TV option.
  • Night stand aft.
  • Teak and holly sole.
  • Sound deadening soft headliner panels.
  • Pocket door between lower foyer and second stateroom.
  • Optional dinette available in this space.

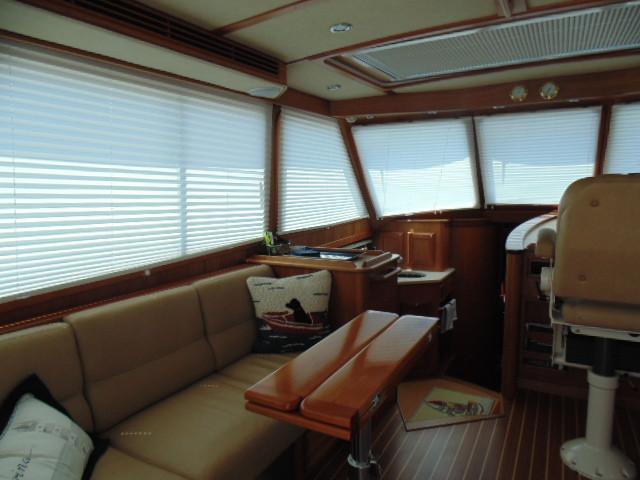

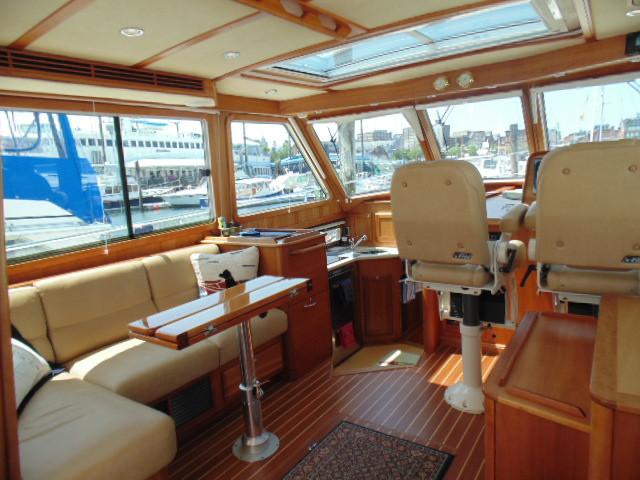

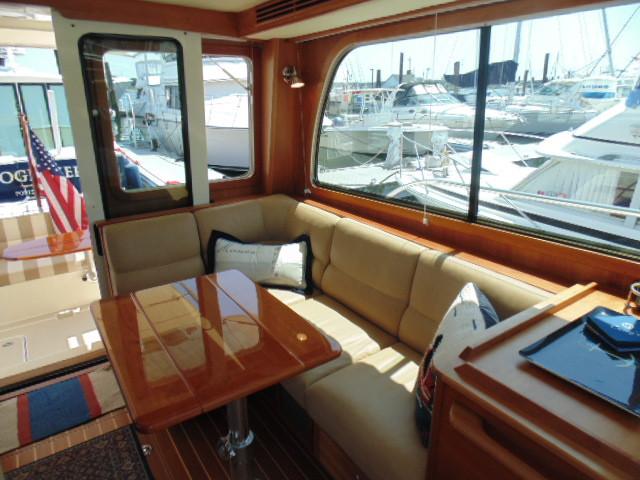

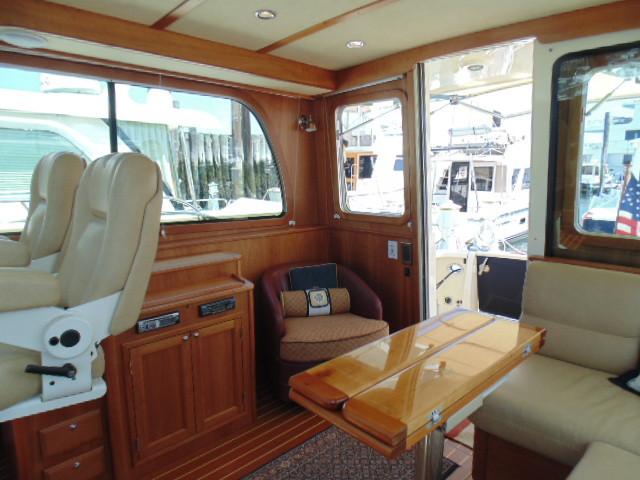

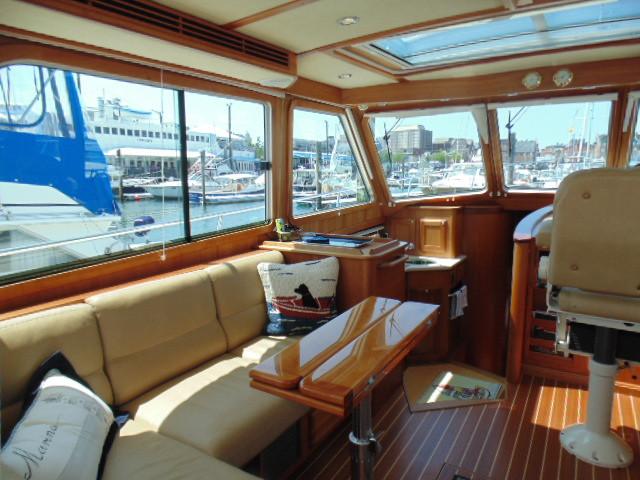

  • “L” settee to port, 4 1/2” foam cushions, with storage and Sabre tool drawer under.
  • Table with hi-low pedestal, lowers to form berth.
  • Bar and entertainment unit to starboard including: 20” flat screen LCD TV.
  • Ice maker.
  • Storage for bottles and glassware.
  • Sound deadening, soft headliner panels.
  • Varnished cherry interior finish.
  • Screens on all opening ports.
  • Ocean Air screen/blinds on deck hatches.
  • Optional fabric and drapery selections.
  • Laminated wood trims on wooden counters and shelves
  • Dovetailed maple drawer boxes

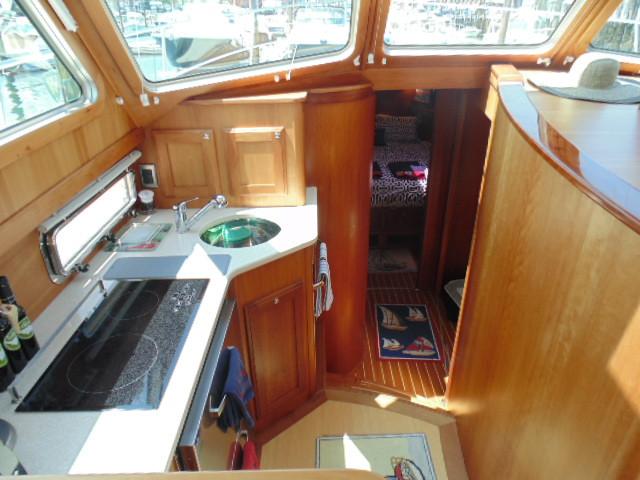

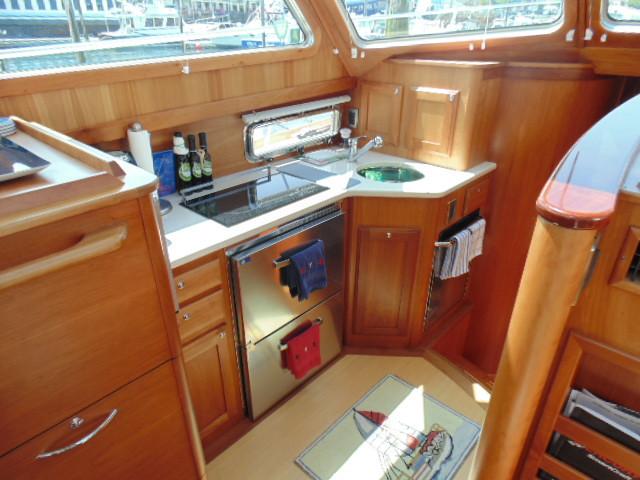

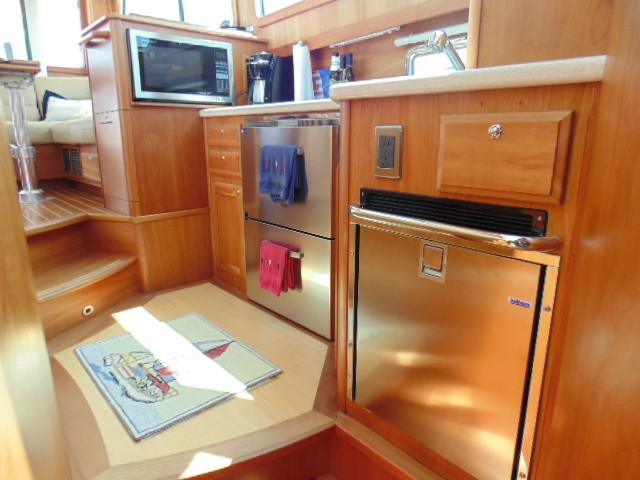

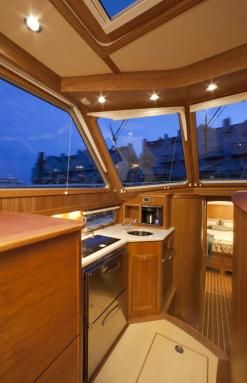

  • Mid level galley.
  • Solid surface galley counter top.
  • Stainless steel under mount sink with Scandvik faucet.
  • Refrigerator/Freezer with stainless steel door, 12VDC/120VAC.
  • Two burner electric cook top.
  • Convection microwave with stainless steel door above aft counter.
  • Coffee Maker.
  • Drawers and storage lockers below counter.
  • Built-in waste basket.

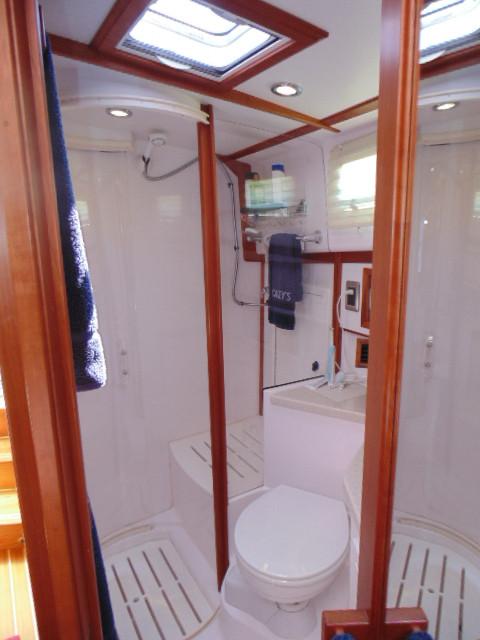

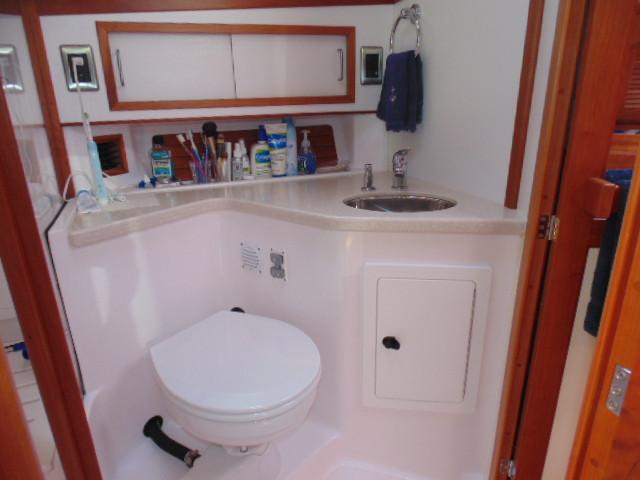

  • HEAD
  • Stainless steel under mount sink.
  • Circular shower stall with seat and locker outboard.
  • Hot and cold pressure water.
  • Electric shower sump pump.
  • Storage lockers.
  • Solid surface vanity top with bull nose.
  • Towel bar.
  • Wood trimmed mirror over sink.
  • Ventilation blower.


  • Two 4D dedicated engine start batteries.
  • Two 4D deep cycle ship's service batteries.
  • Battery Management panel including: Emergency crossover switch.
  • Ships power switch.
  • Starting Battery switch.
  • Illuminated main circuit breaker distribution panel w/battery condition gauge.
  • Lighting:
  • Danish cabin reading lights.
  • LED lights in the overhead.
  • Halogen bar lighting in appropriate locations.
  • Engine room lighting.
  • Cockpit courtesy lights w/remote switch at transom door.
  • Marine-grade, tinned wire throughout.
  • Master AC/DC breaker panel on galley inboard bulkhead.

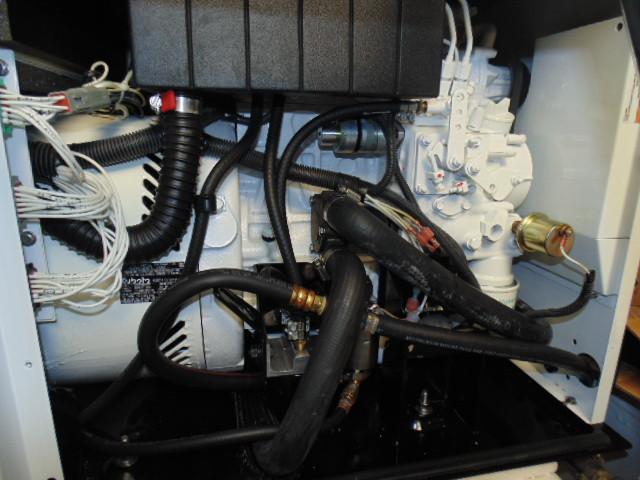

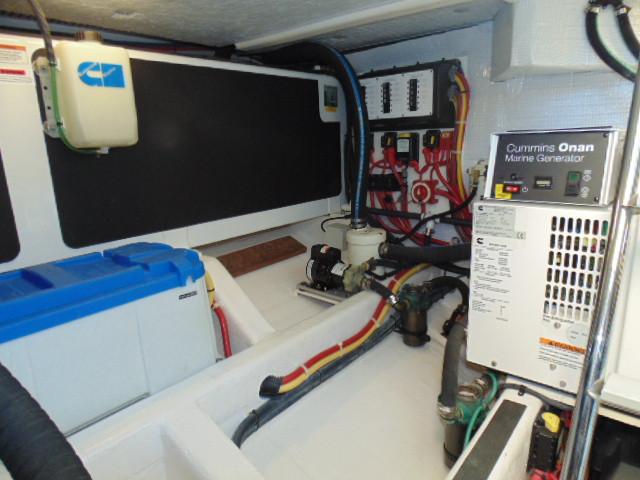

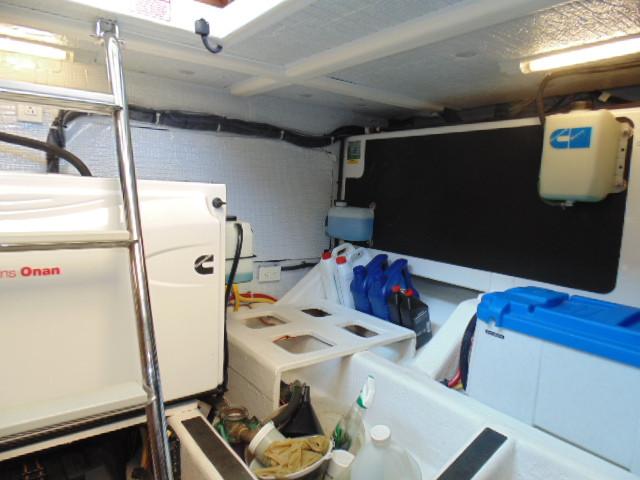

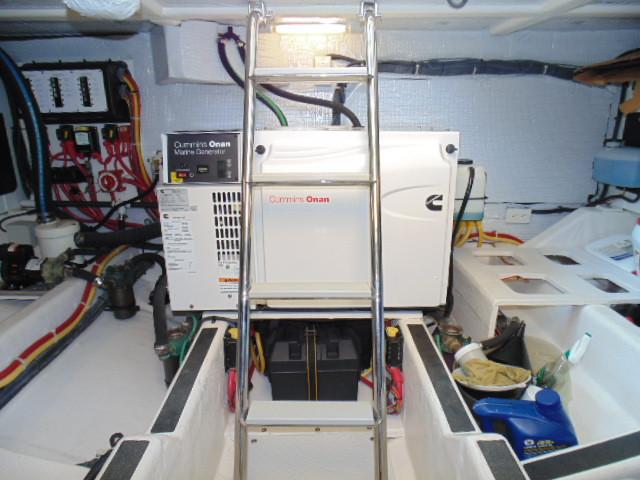

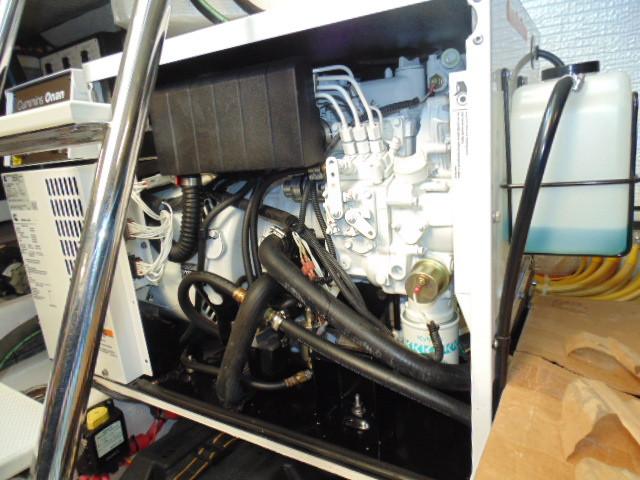

  • Onan 9.0 kw generator including:
  • Dedicated start battery.
  • Water lift muffler.
  • Cooling water intake strainer.
  • Sound shield.
  • Transfer switch.
  • (2) 30 A. AC shore power inlets and (2) 50 ft. cords.
  • Fail safe galvanic isolator.
  • Illuminated main circuit breaker distribution panel.
  • (1) 120V outlet in each cabin and (1) in engine room.
  • All galley and head receptacles are GFI protected.
  • Additional outlets positioned in locations appropriate for entertainment systems in main and forward cabin.
  • 50amp, 3-bank battery charger
  • Reverse cycle heat/ air conditioning in (3) zones.

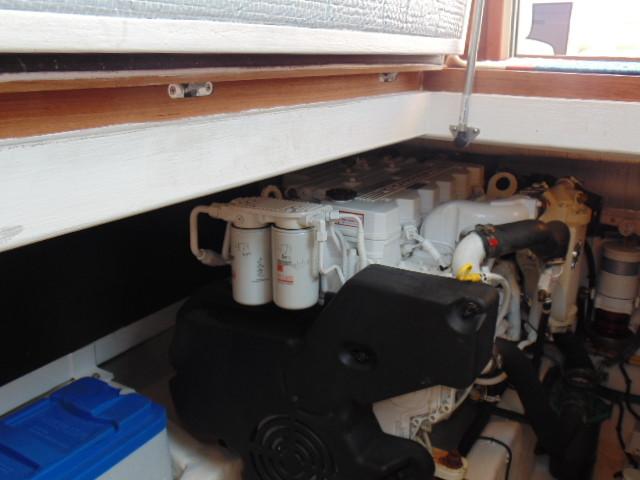

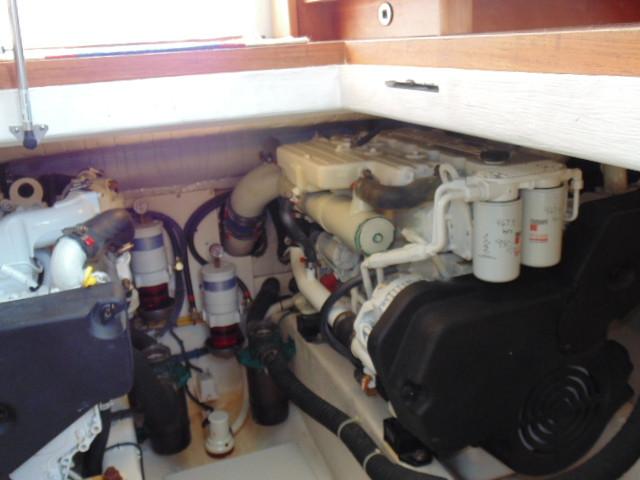

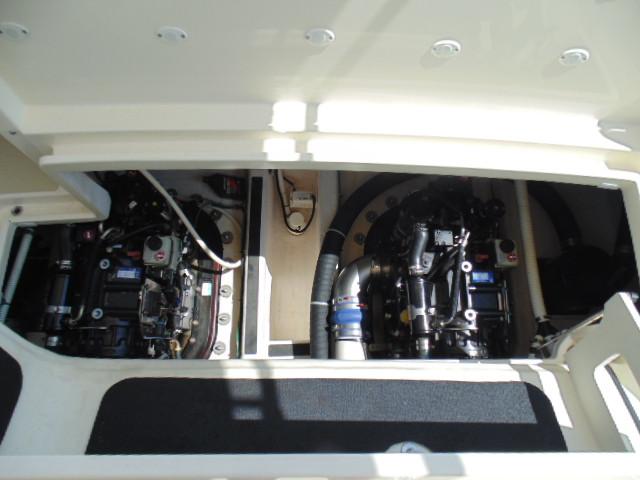

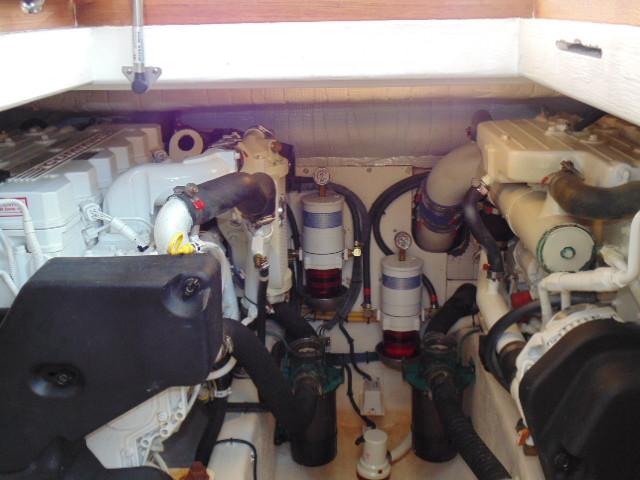

  • Twin Cummins QSB 5.9l 380hp electronic, fresh water-cooled engines.
  • Dual-station ETS electronic controls, and Smart Craft displays.

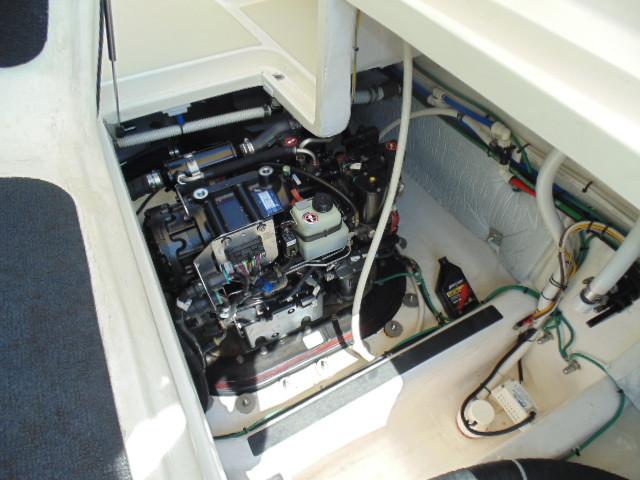

  • Twin CMD Zeus 3500 pod drives, with integrated steering and trim tabs.
  • 120A, 12V alternators each engine.(2) Exhaust by-pass mufflers.
  • Engine room blower.
  • Engine room vent ducts.
  • Engine room floor with gray anti-skid rubber.
  • White gelcoated engine room
  • Mylar face foam noise barrier.
  • (2) 190 gal aluminum diesel fuel tanks port and starboard.
  • Racor fuel filters.
  • (2) 2” “Diesel” deck fill plates.
  • Fuel Level Indicator at upper and lower helm stations.

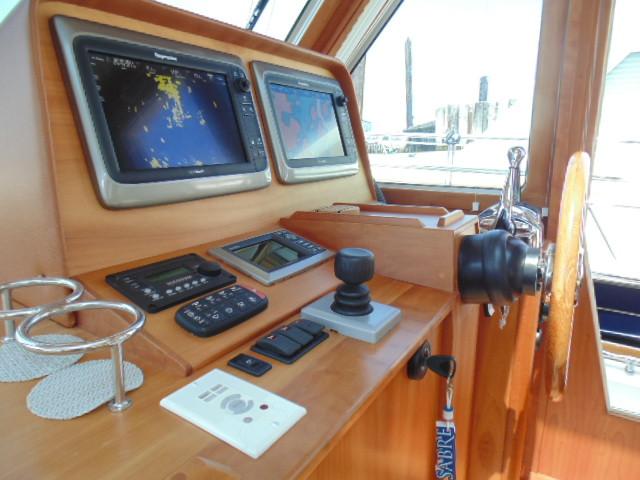

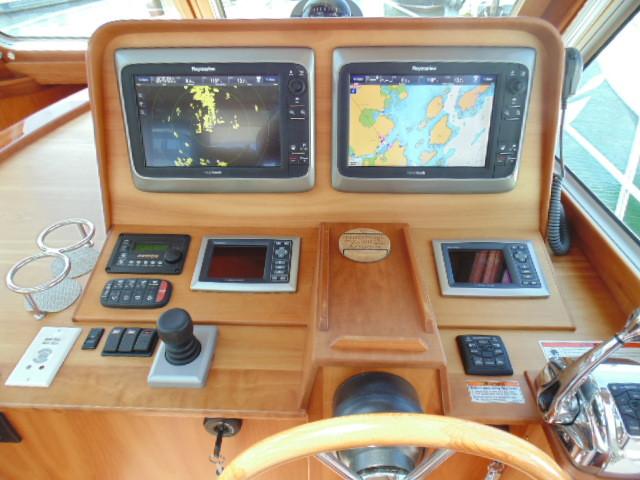

  • CMD helm, with joystick.
  • Trim tabs integrated in CMD Zeus pod drives.
  • Autopilot integrated in CMD Zeus system.


  • HULL
  • Modified Deep “V” Planing hull design, with shallow pod drive tunnels.
  • 16º deadrise at transom, 23º deadrise amidships.
  • ISO NPG Sport Yacht white gelcoat w/ vinylester back-up resin.
  • Bottom, topsides and transom vacuum-infused biaxial E-glass with foam core.
  • Stringer system biaxial E-glass with foam core.
  • Bulkheads vacuum-bagged biaxial E-glass with polypropylene honeycomb core.
  • Molded E-glass swim platform with molded-in anti-skid surface.
  • Hull side rubbing strakes.
  • PVC rub rail with stainless steel cap.
  • Painted (IMRON) double boot top.
  • Gold recessed cove stripe.
  • ISO NPG gelcoat.
  • Vacuum-infused biaxial E-glass with foam core.
  • Molded-in anti-skid deck surfaces.

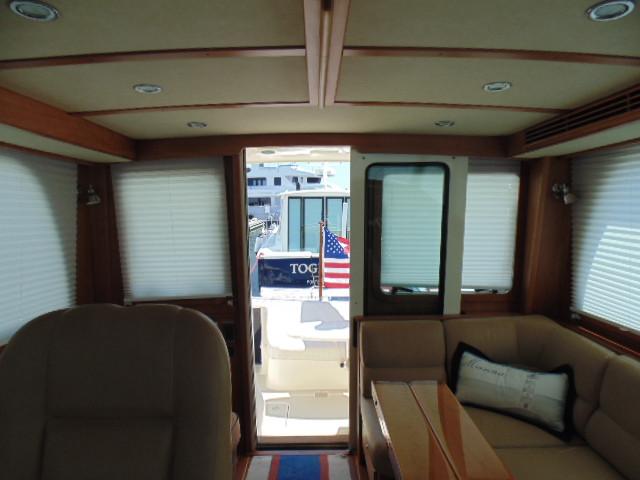

  • Sliding aft salon door slides starboard to port.
  • Sliding windows in salon aft bulkhead and on cabin sides.
  • Access door to side deck at helm.
  • Flush, outward opening, transom door with latch.
  • Anchor locker with slam latch.
  • Large lazarette locker hatch with gas struts and (2) compression latches.

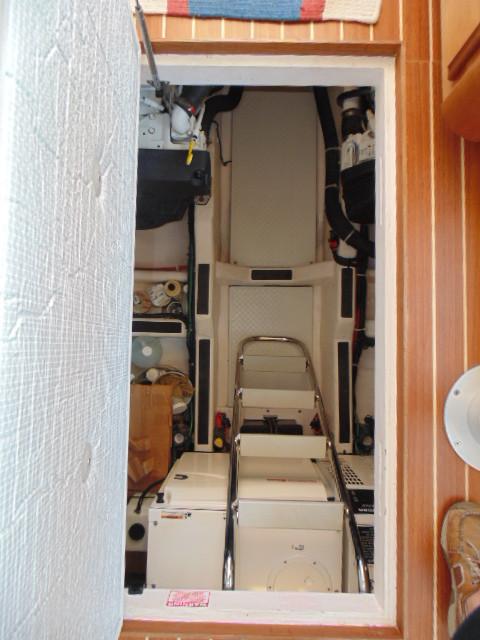

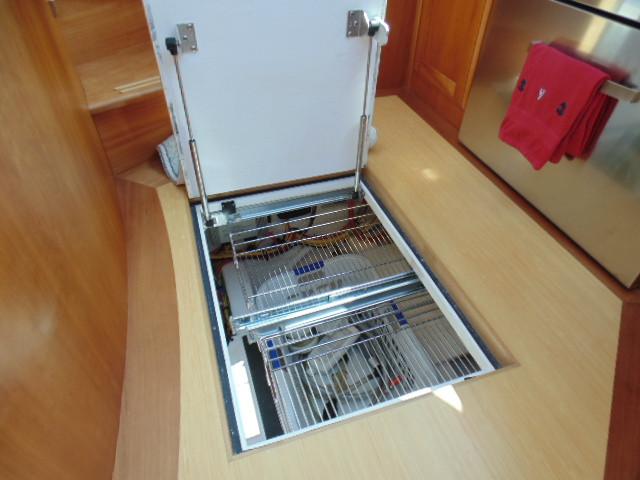

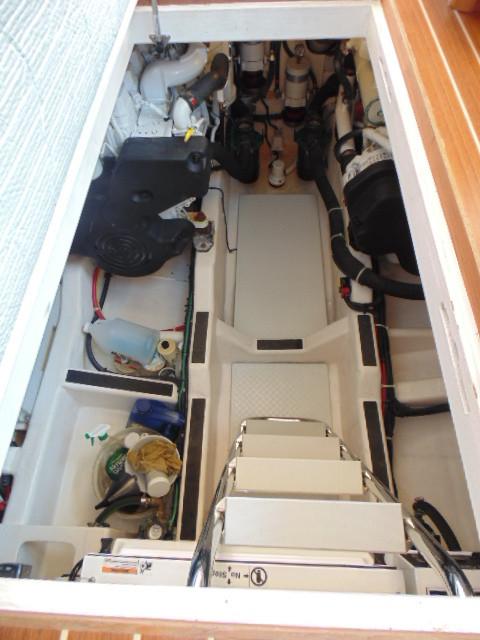

  • Large engine room hatch in main salon with compression latch.

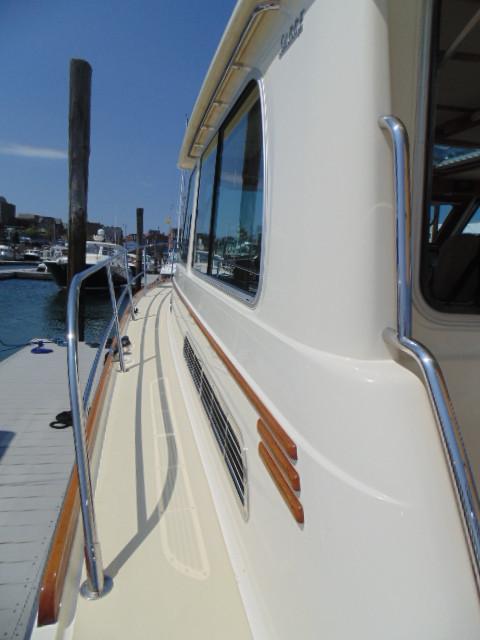

  • 1 1/4" Diameter type 316 stainless steel perimeter rail system.
  • (6) 12” Stainless steel cleats (2 fwd, 2 mid ship, 2 in aft cockpit).
  • (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off.
  • (2) Custom cast stainless steel mid-rail line chocks.
  • (2) Custom cast stainless steel skene chocks forward.
  • (4) Cast stainless steel corner hawse pipes in cockpit coamings.

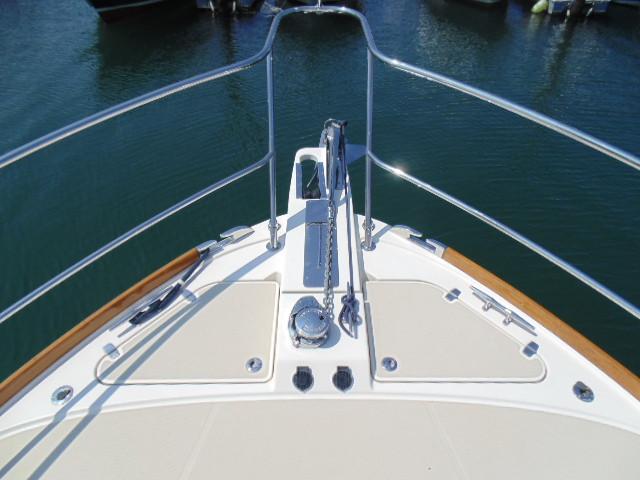

  • Fiberglass bow pulpit with single anchor roller for 35# CQR or Delta anchor.
  • Anchor windlass, electric rope-chain type.
  • Flag staff and socket on taffrail.
  • Burgee staff on bow pulpit.
  • (3) Lewmar Low Profile polished aluminum hatches w/screens.
  • (5) Custom stainless steel opening port lights.
  • Teak toe rails.
  • Teak cabin side eye-brow.
  • Custom cast stainless steel “SABRE” medallion.

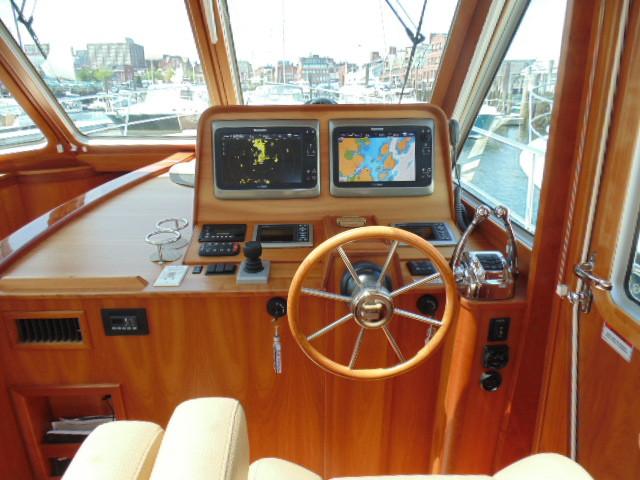

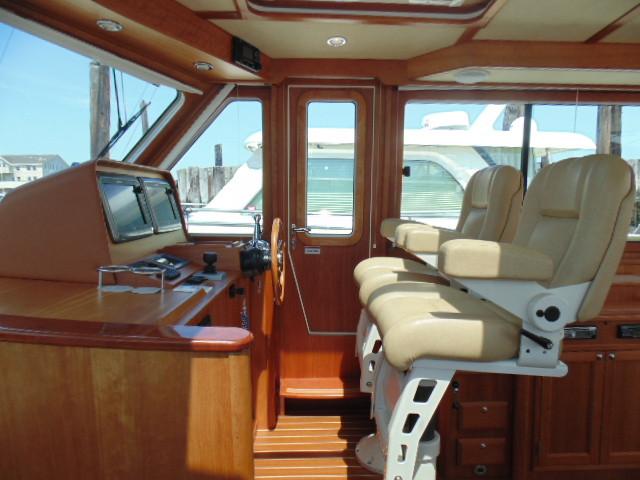

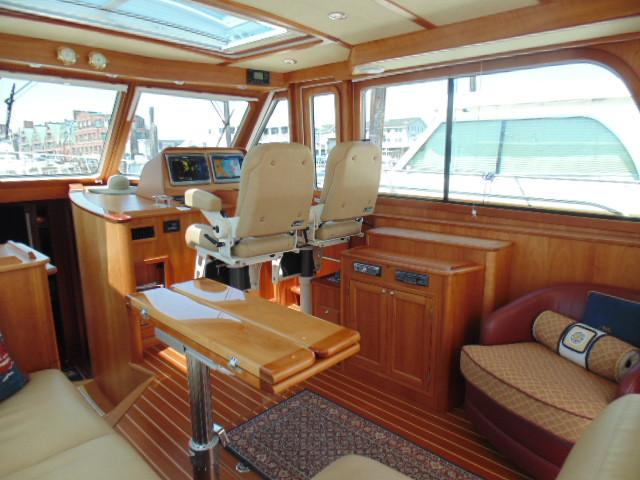

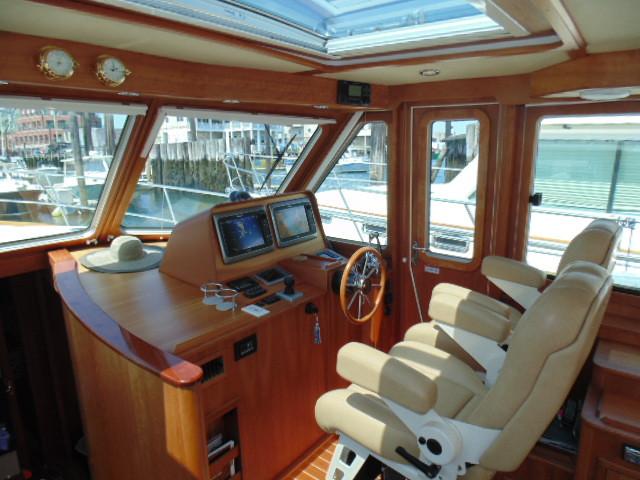

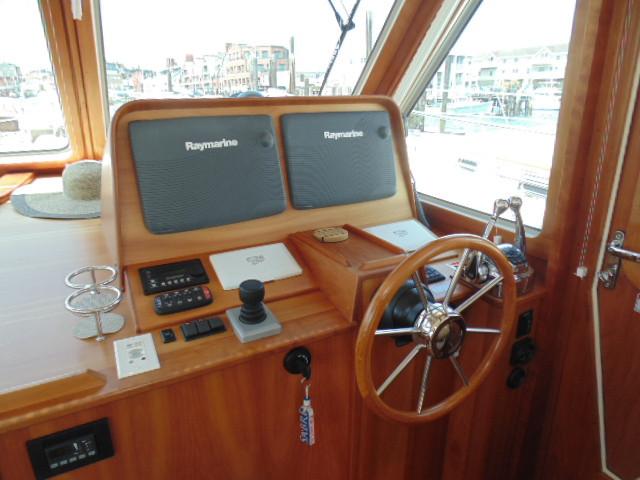

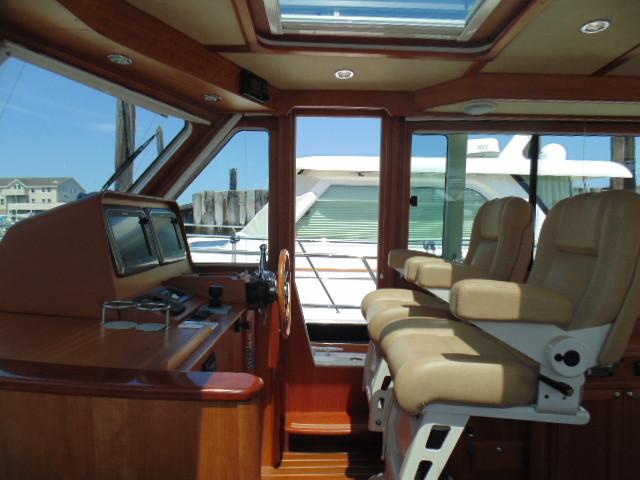

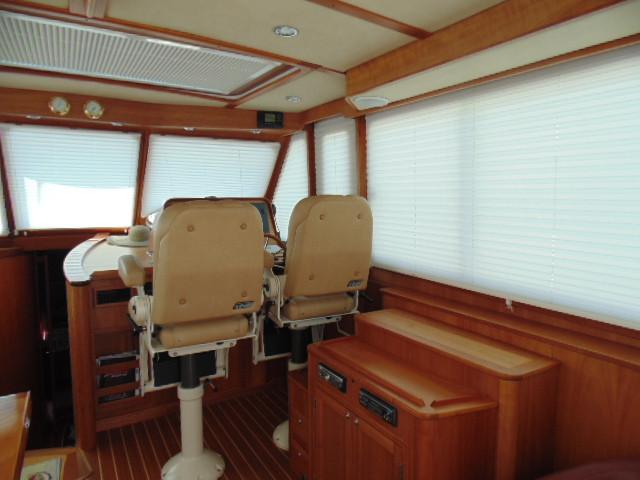

  • Cummins ETS single lever electronic controls.
  • Cummins Smart Craft display (engine data, tank levels, vessel data, alarms).
  • Triple windshield wipers with washers.
  • Ritchie Compass.
  • Switch controls for horn, running lights, anchor light, engine room blower and optional equipment.
  • Control for red instrument lights w/dimmer.
  • Stazo 600mm custom teak steering wheel with tilt helm pump.
  • (2) Stidd N-series single helm seats.

Additional Equipment

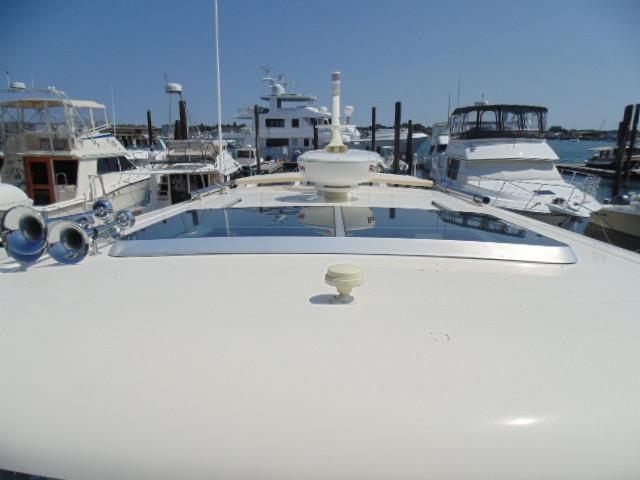

  • Electric sunroof with sunscreen

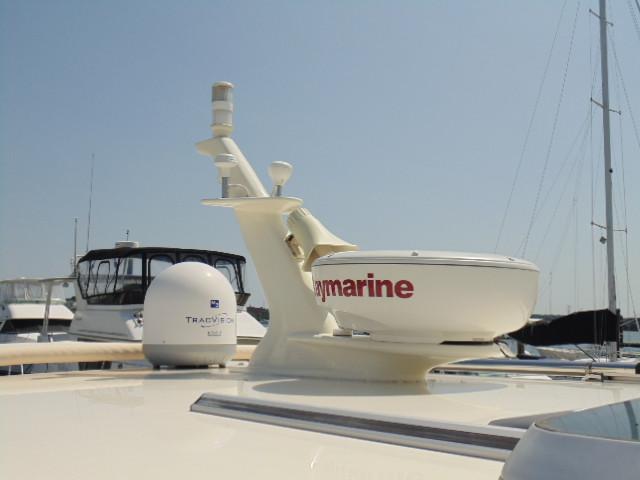

  • FRP molded electronics mast for sedan hardtop
  • Additional 12 volt DC outlet in forward cabin
  • Additional dimmer switch in galley & forward cabin
  • Clarion CD/FM/AM stereo w/four speakers and remote control
  • 15'' LCD TV in guest cabin with DVD player, includes TV inlet
  • Dark Hull Color - Flag Blue (Sabre White Boot Top & Deck)
  • Anti-Skid color (fore & side deck, aft cockpit, coamings and hard top) - Beige
  • Accord shades on opening ports
  • Buckskin ultraleather upholstery main salon, Promessa Merlot ultraleather on chair
  • Reverso Oil Change system

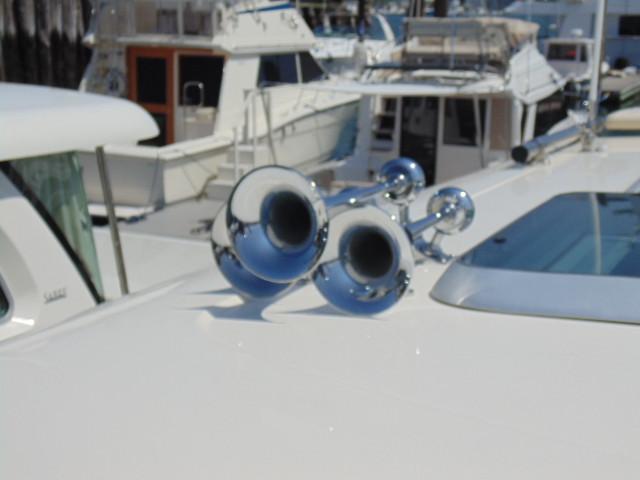

  • Kahlenberg triple chrome horn
  • Incremental tank gauge on head
  • Hot and cold transom shower
  • Salt water wash down forward system fore and aft
  • Fresh water wash down forward and aft
  • Shore water inlet
  • Single Seagull water purifier on galley cold water
  • Single Seagull water purifier on ice maker

DisclaimerThe Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
