(SOLD) 2007 Hinckley Picnic Boat EP

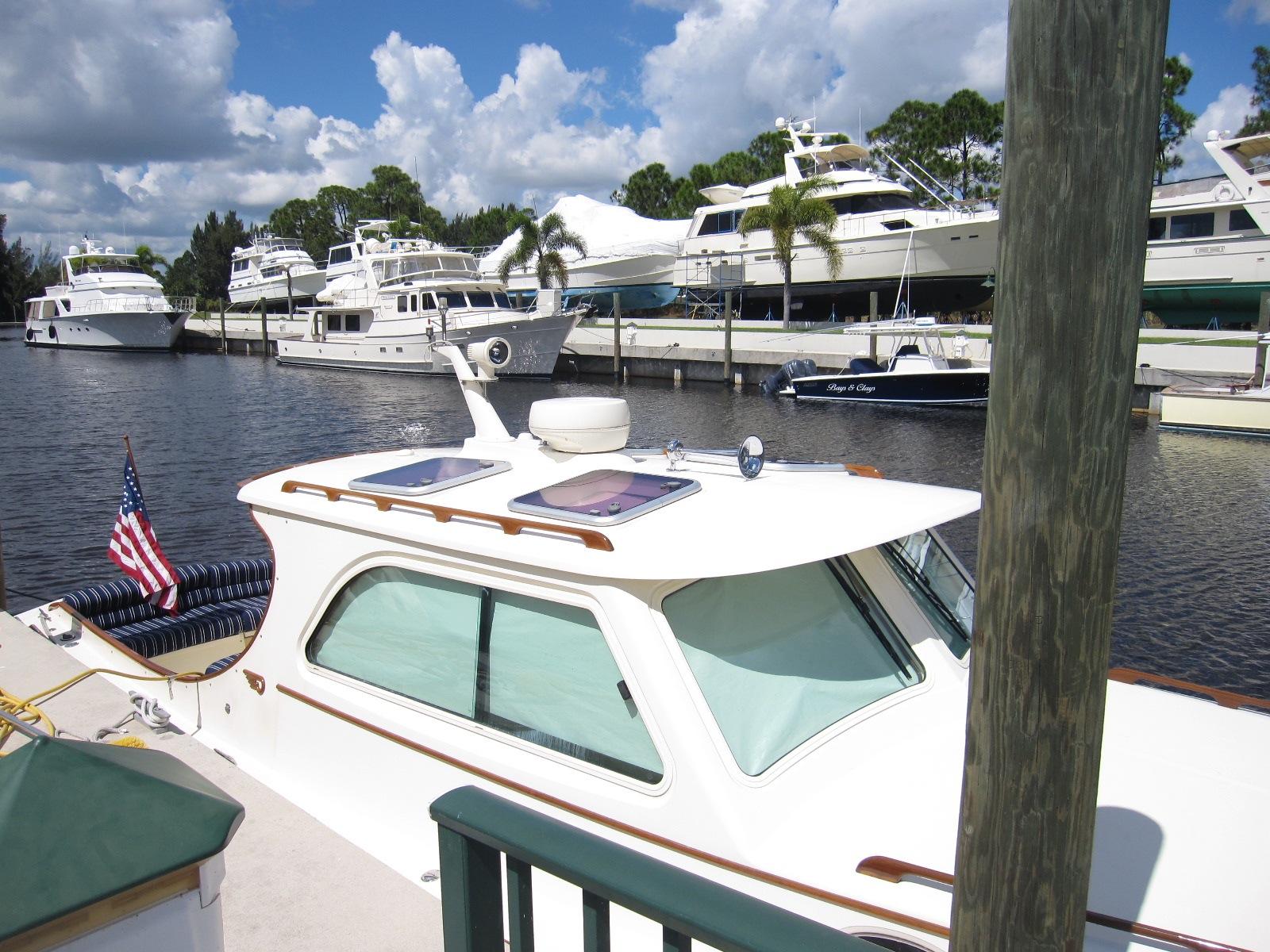

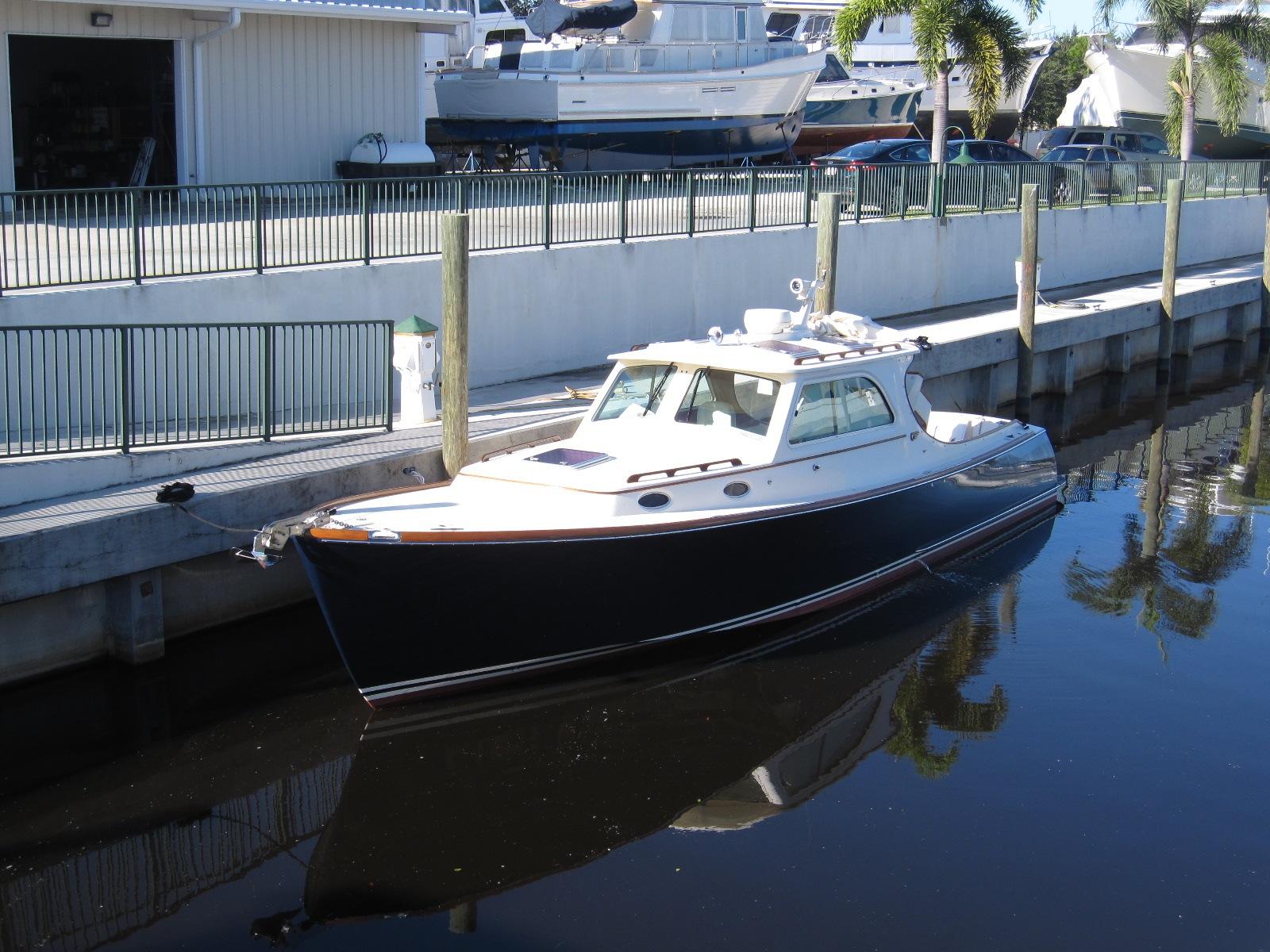

Recent Trade - Perhaps the most eloquent expression of the Hinckley power yacht, the 36 Extended Pilothouse is a stately presence in waters from Maine to Monaco. Her lines, are a study in the vernacular of Down East nautical design. Yet beneath her old-world elegance lies the newest, most advanced boat-building technologies. Her hull uses Kevlar and carbon fiber as part of Hinckley's innovative DualGuard composite construction. Upgraded 480hp Yanmar and a jet propulsion system accelerate the 36EP to a cruising speed of 24 knots with a top speed of 28 knots. JetStick, Hinckley's computer-integrated steering system, allows precision, one-touch control in all maneuvers. With a mere 1'9"-inch draft, unheard of in a boat of her size and capabilities, the 36EP Jet rewards owners with that rarest of yachting pleasures - a peaceful anchorage, far from crowded deep-water harbors and marinas. Cruising range is 300 nautical miles, putting plenty of distance between passengers and civilization

SPECIFICATIONS

BASIC INFORMATION
  • Manufacturer:Hinckley
  • Model: Picnic Boat EP
  • Year: 2007
  • Category: Power
  • Condition: Used
  • Location: Stuart US
  • Hull Material:Fiberglass
ENGINE
  • Make:Yanmar
  • Model:6LY3 FWC - Common Rail Tech.
  • Engines(s):1
  • Hours:329
  • Engine Type:Inboard
  • Fuel Type:diesel
  • Horsepower:480|horsepower
ACCOMODATIONS
DIMENSIONS & WEIGHT
  • Length:36 ft
  • Beam:10.08 ft
  • Draft - max:1.75 ft
TANK CAPACITIES
  • Fuel Tank:166|gallon
  • Fresh Water Tank:35|gallon
  • Holding Tank:166|gallon

GALLERY

DESCRIPTIONS

Accommodations

  • The interior is finished in satin-varnished cherry

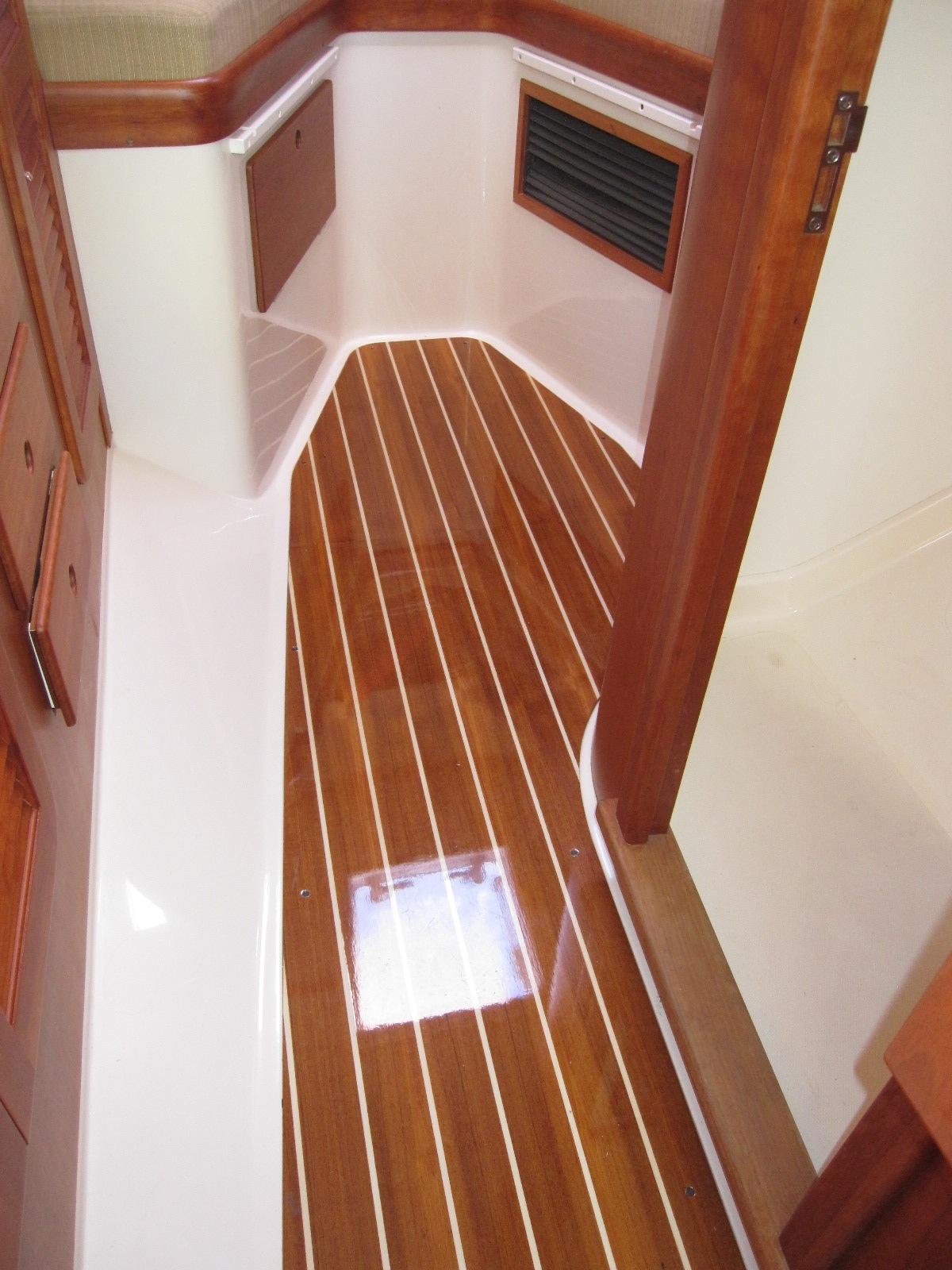

  • The cabin sole is varnished teak & tulipwood with a custom cabin sole cover
  • Louvered cherry locker doors
  • (5) Frigast stainless steel bulkhead lights add to the cabin ambience

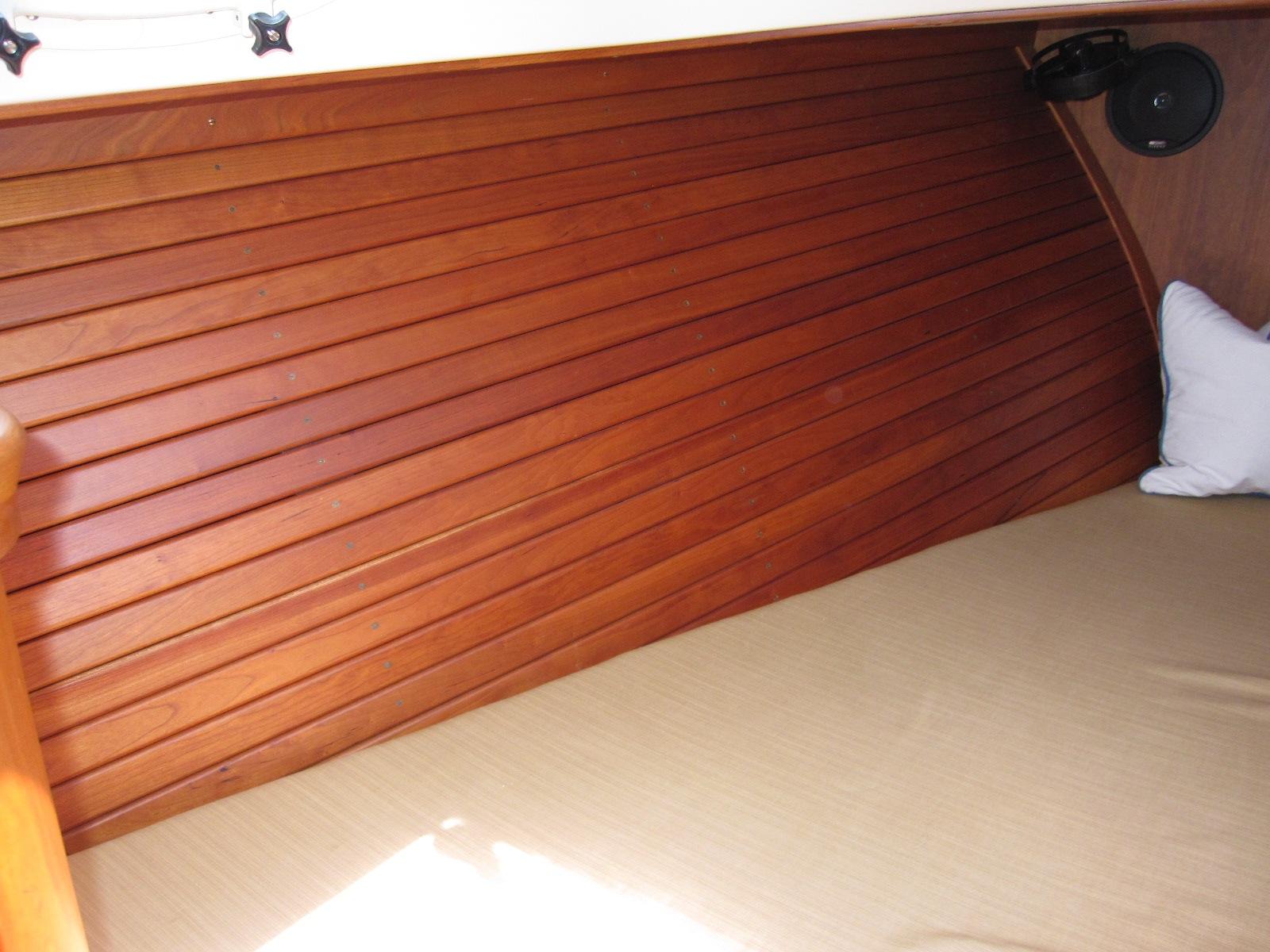

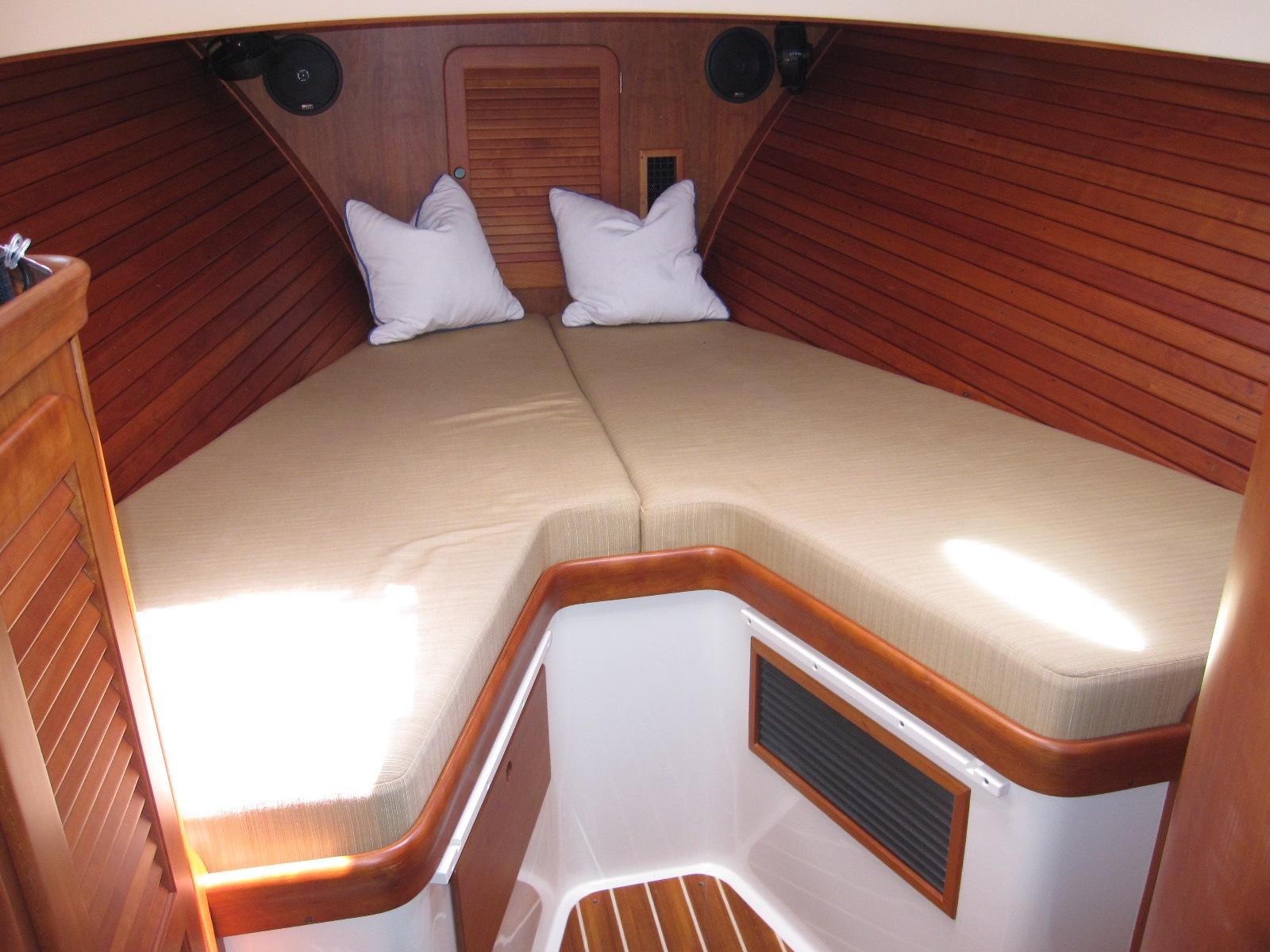

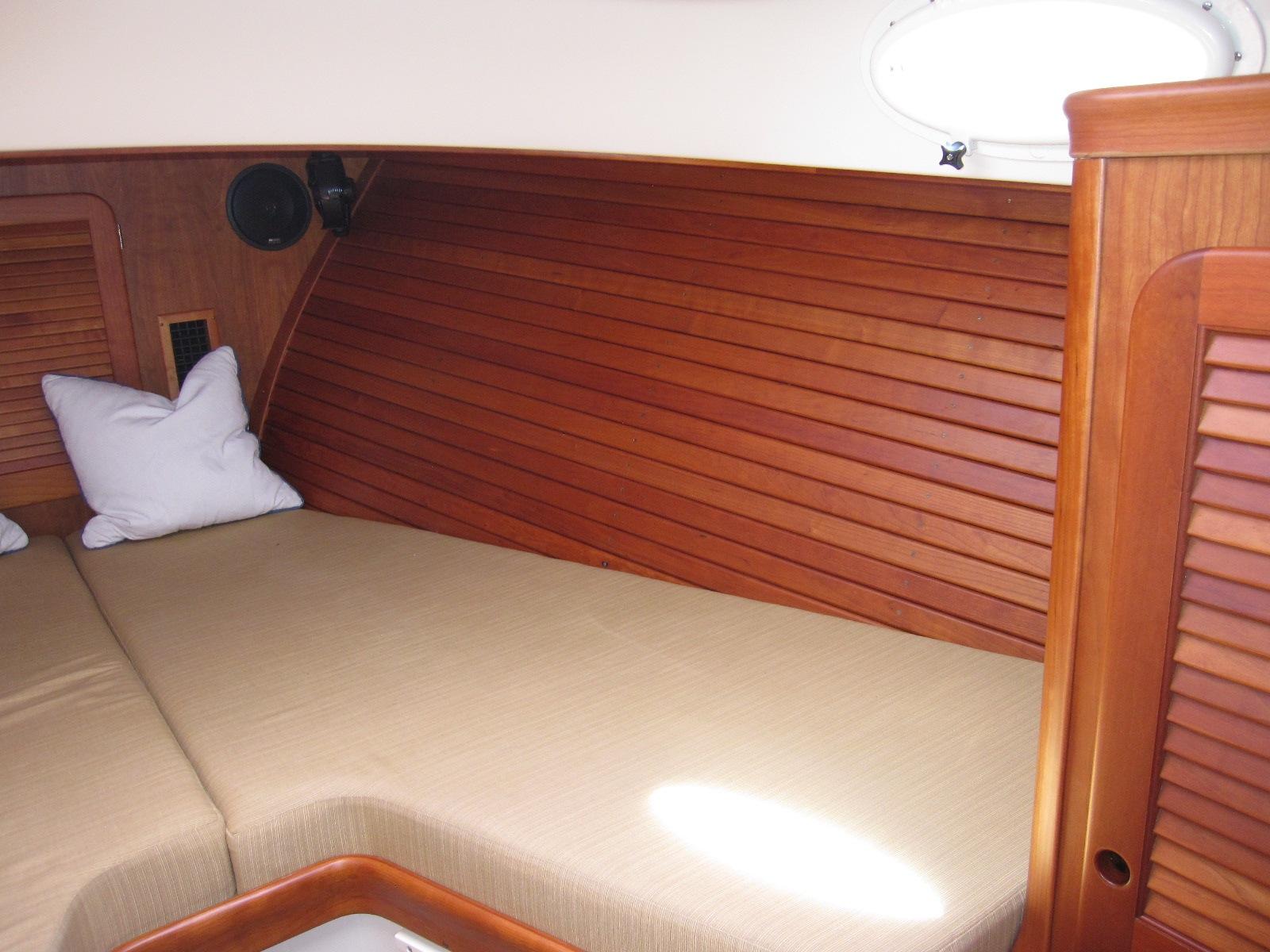

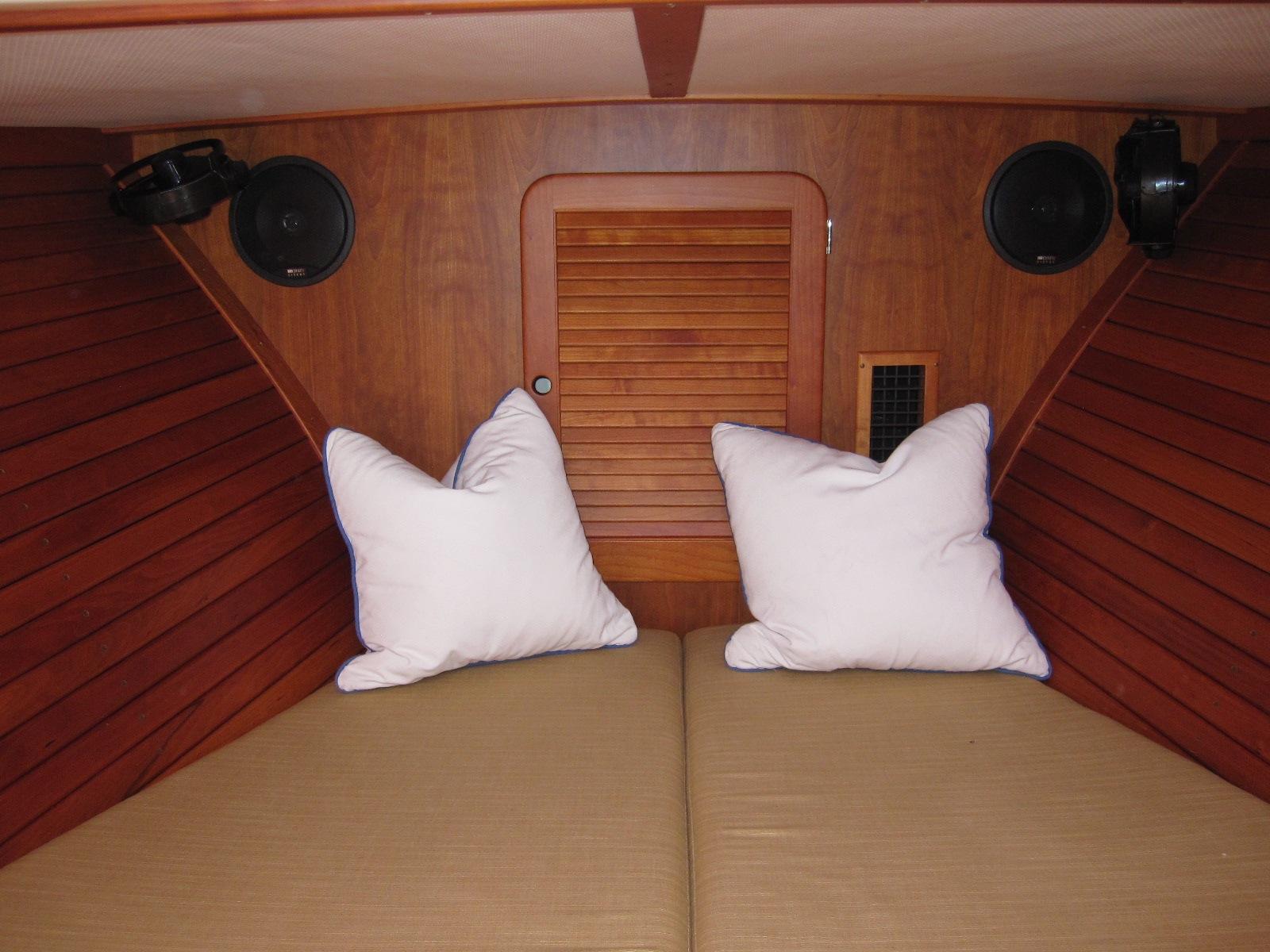

  • Comfortable double V-berth is formed with an insert
  • Storage locker under V-berth has a shelf and and an easy-access cherry drop-front door

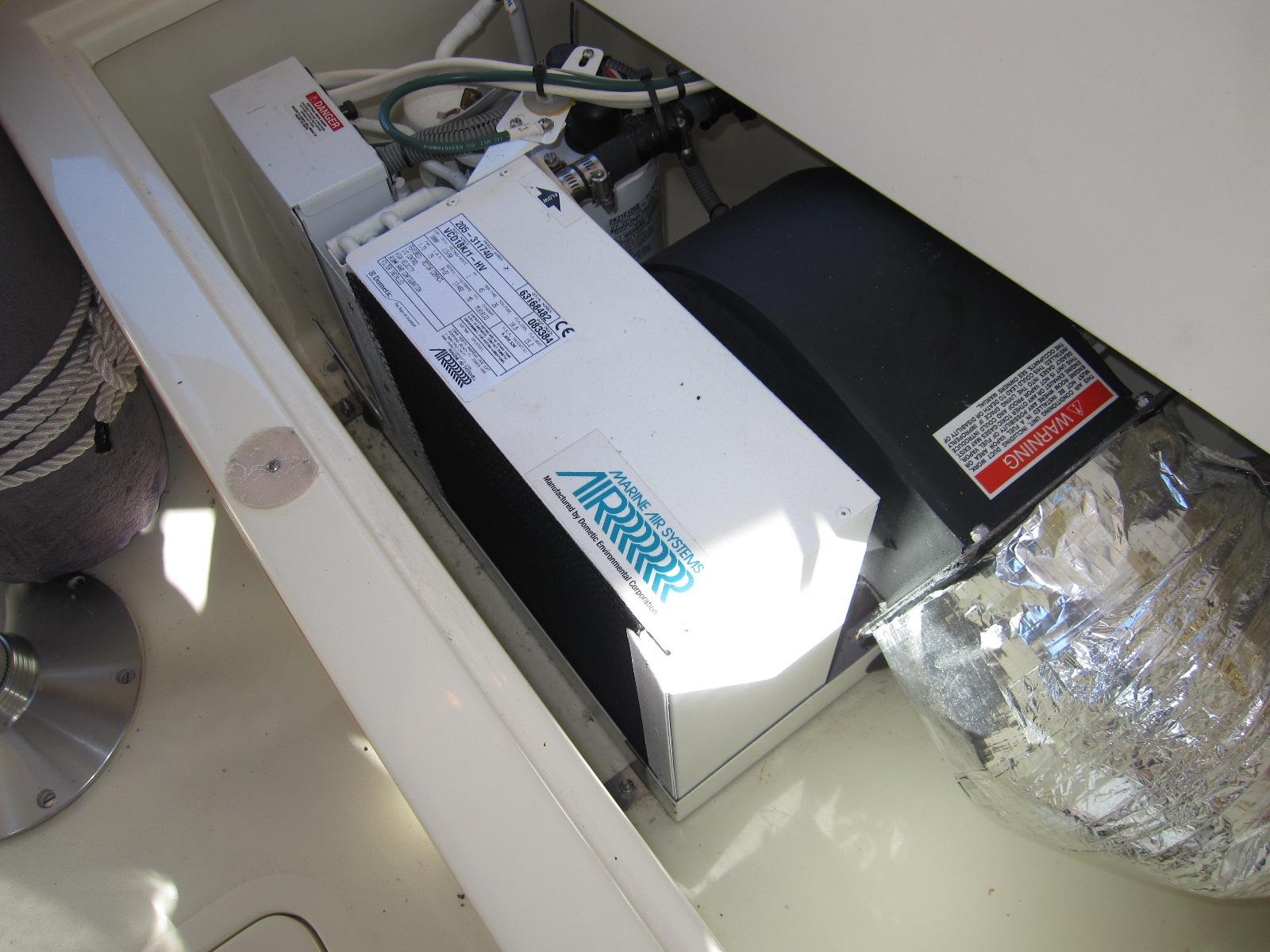

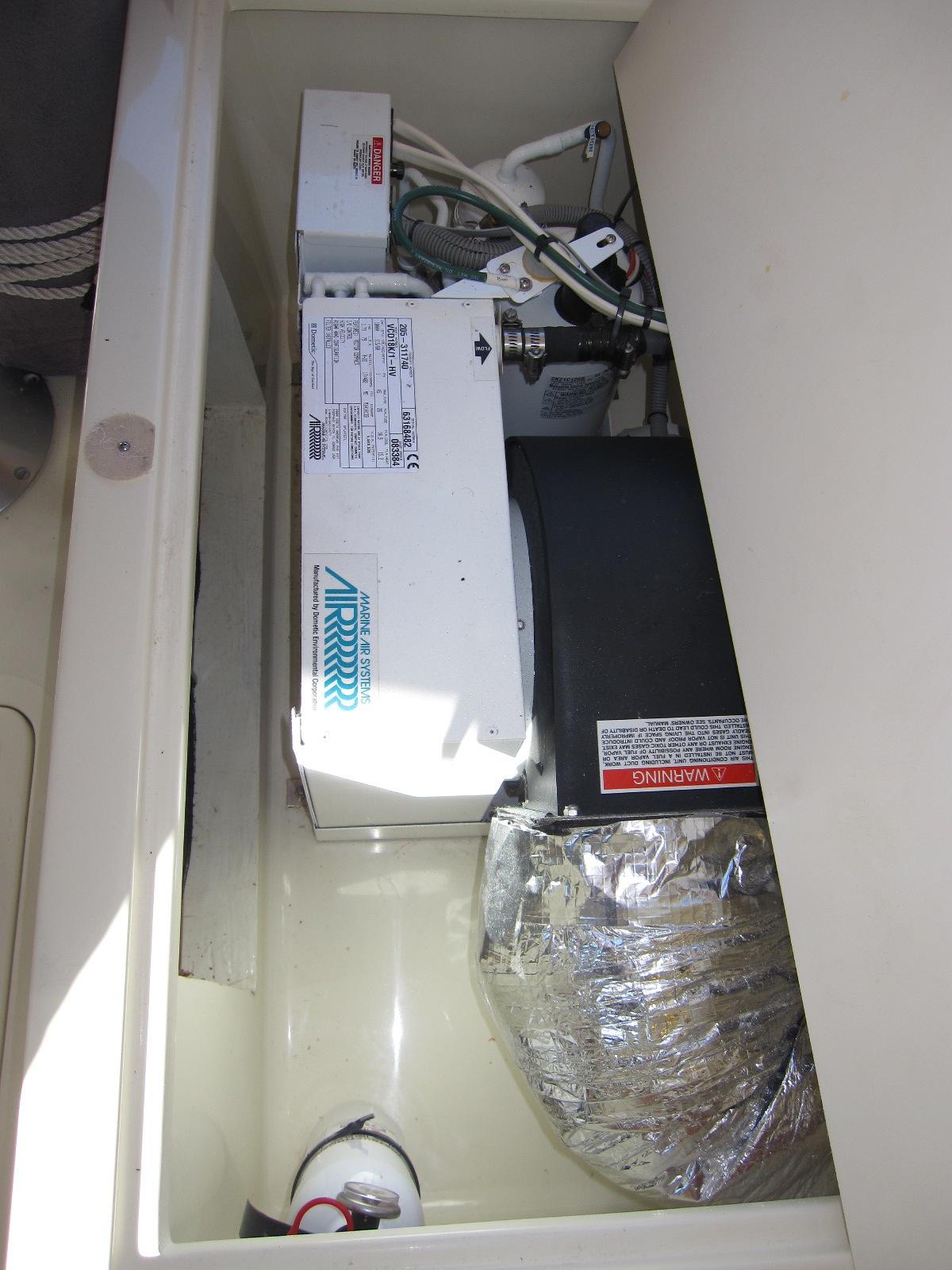

  • AC/Heater duct is under the berth

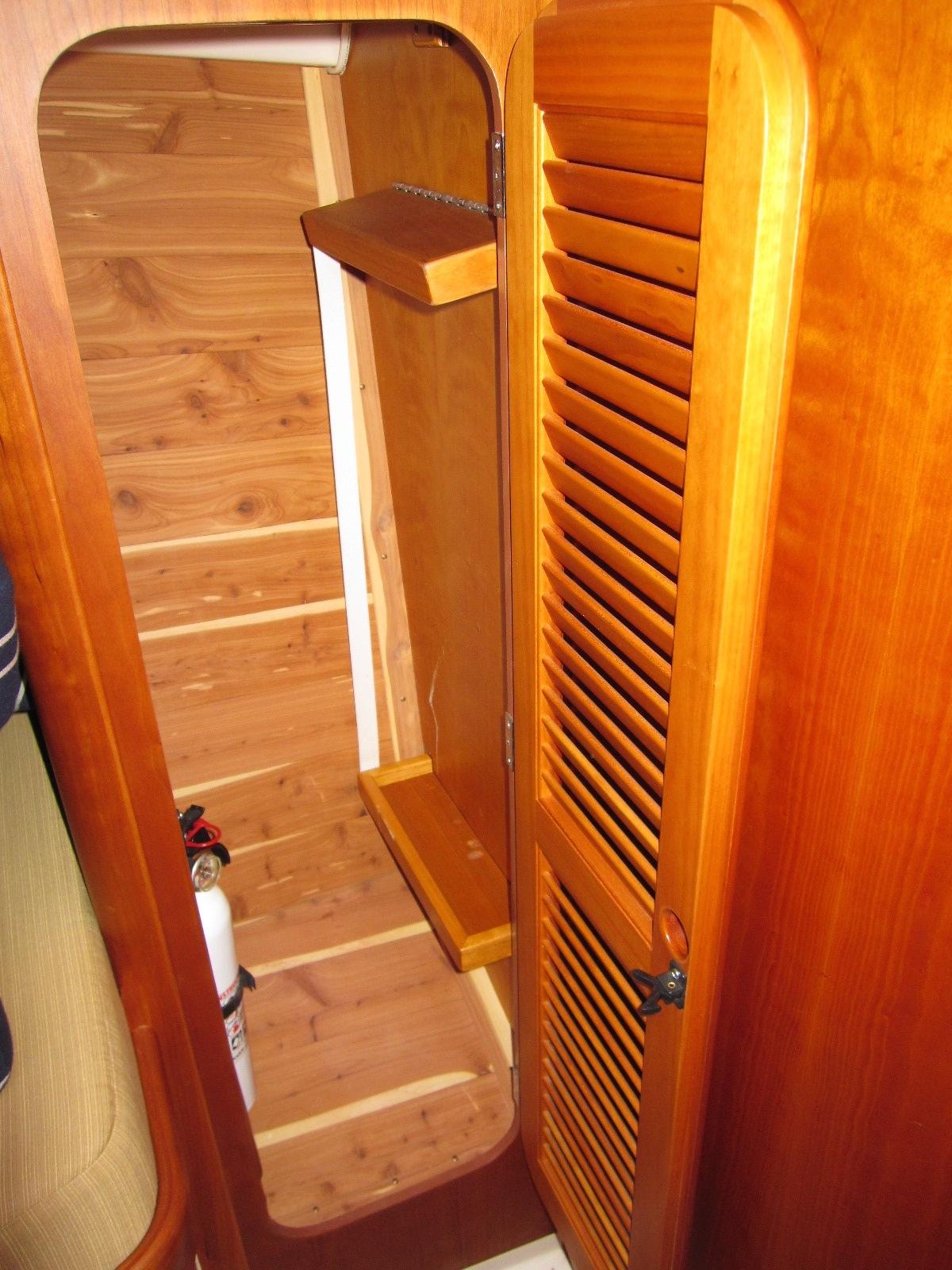

  • Cedar-lined hanging locker is just aft of the V-berths to starboard
  • (2) Stereo speakers are mounted on the forward bulkhead
  • (2) Hella fans mounted on the forward bulkhead
  • Overhead opening hatch with Ocean Air Sky screen/shade

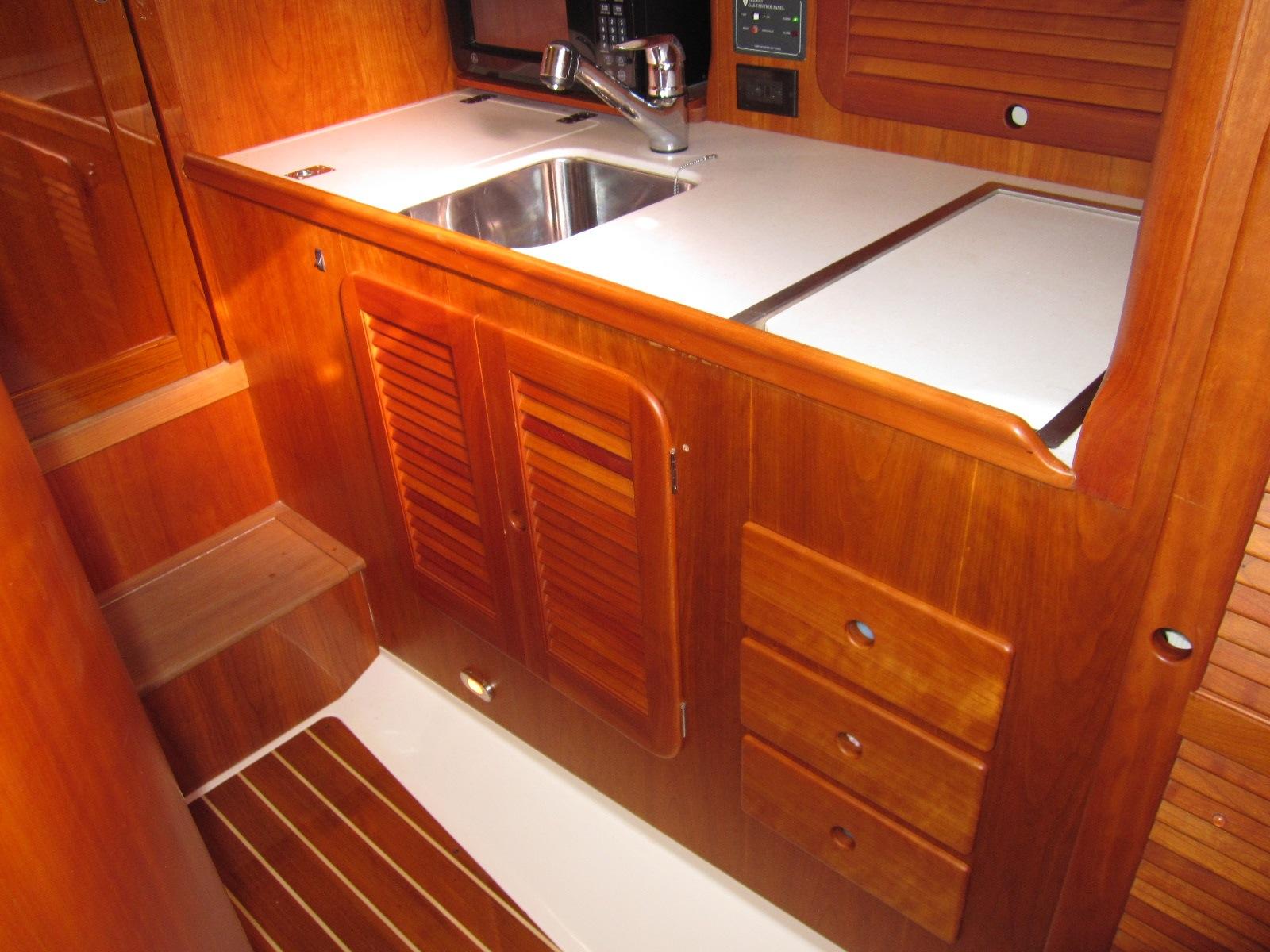

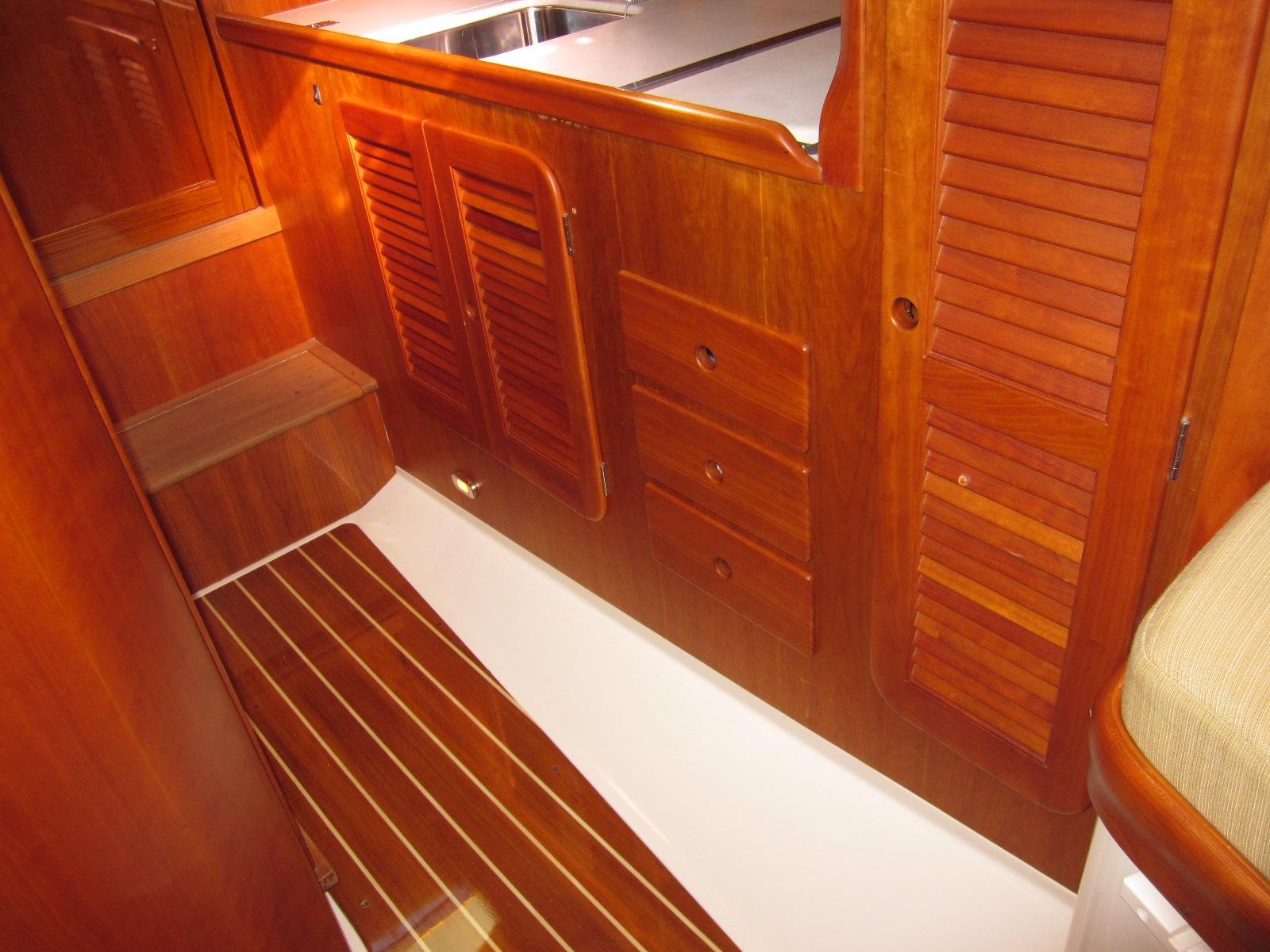

Galley

  • Corian countertop

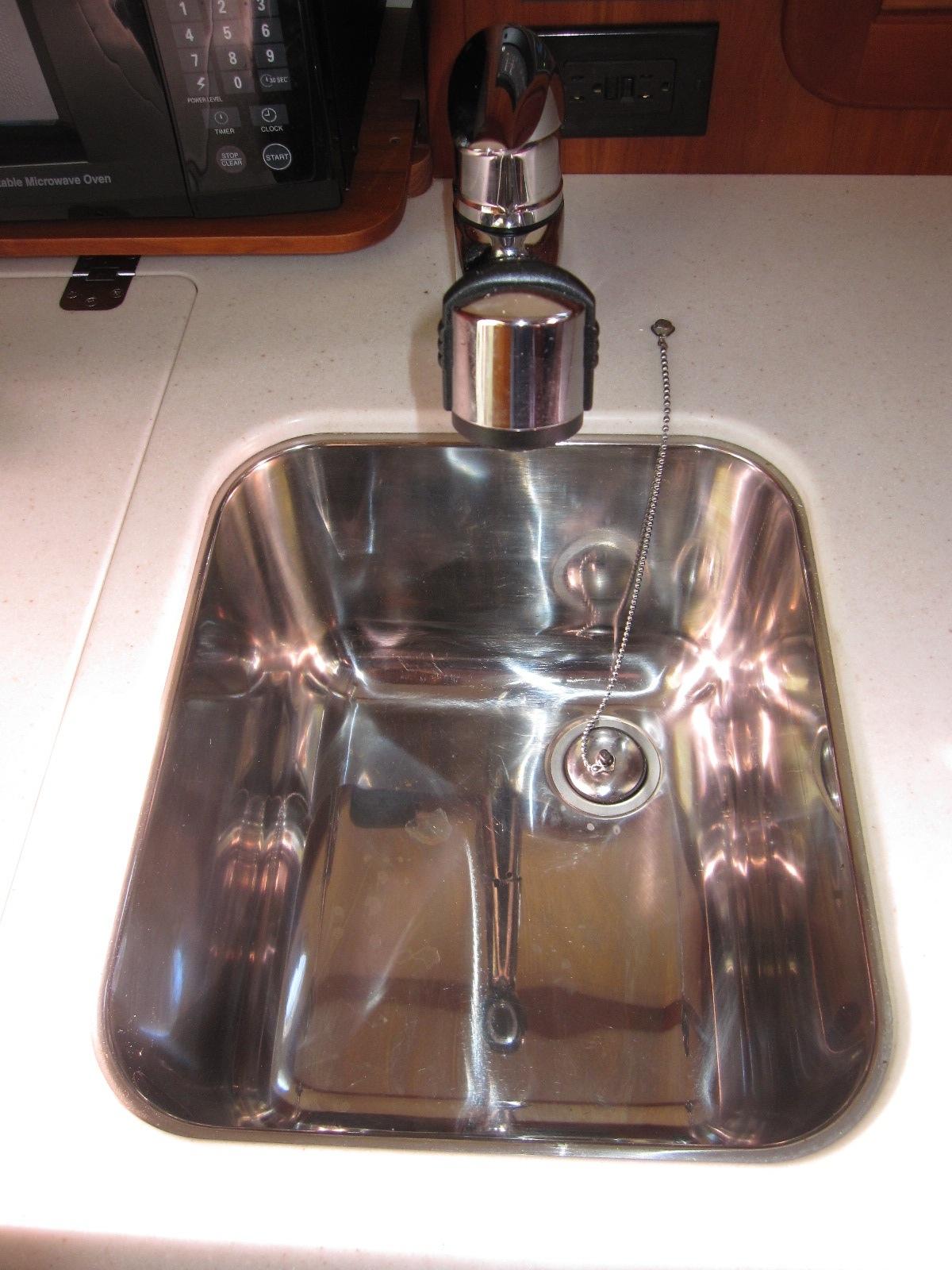

  • Stainless steel sink with Grohl fixtures, spray nozzle, and hot & cold pressure water
  • Adler Barbour refrigeration - 12V cold plate refrigerator in a self draining insulated box

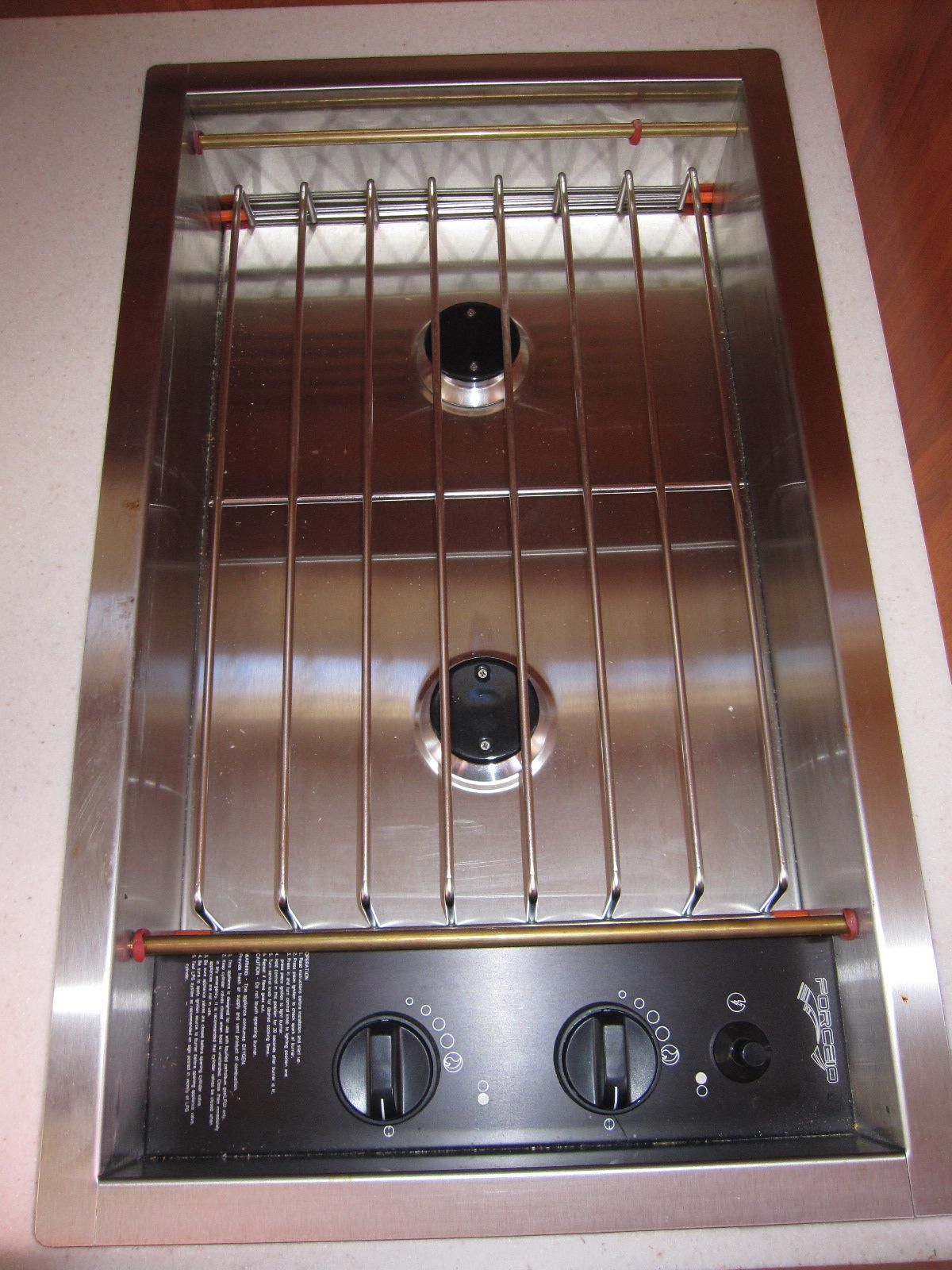

  • Force 10 two burner stainless steel stove with remote propane shut-off and wood cover/cutting board

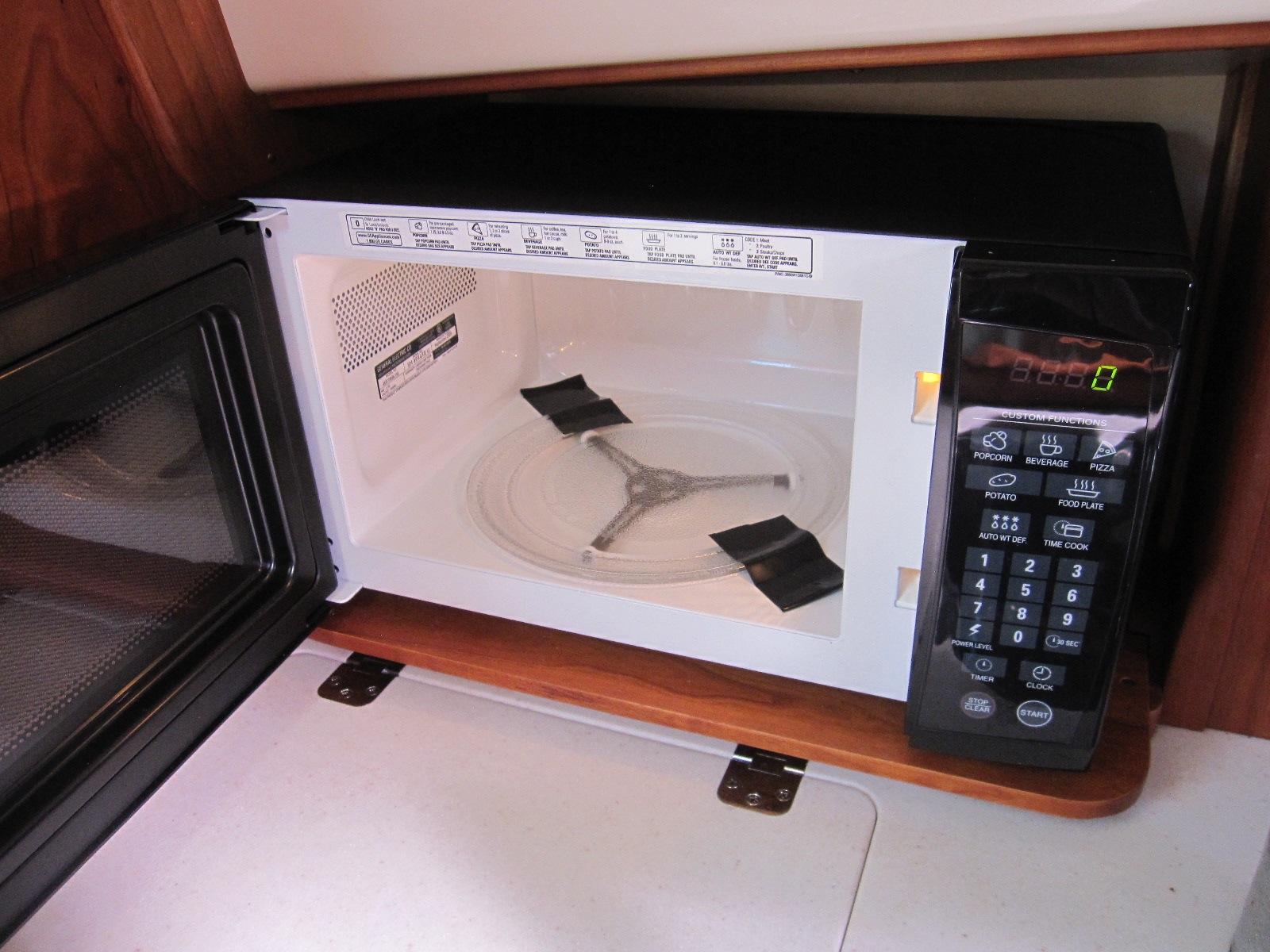

  • 600W - 110V Microwave
  • 110V outlet
  • Built-In bin for dish stowage
  • (3) Cherry pullout drawers
  • Red step-light in galley
  • Under counter pull-out garbage receptacle

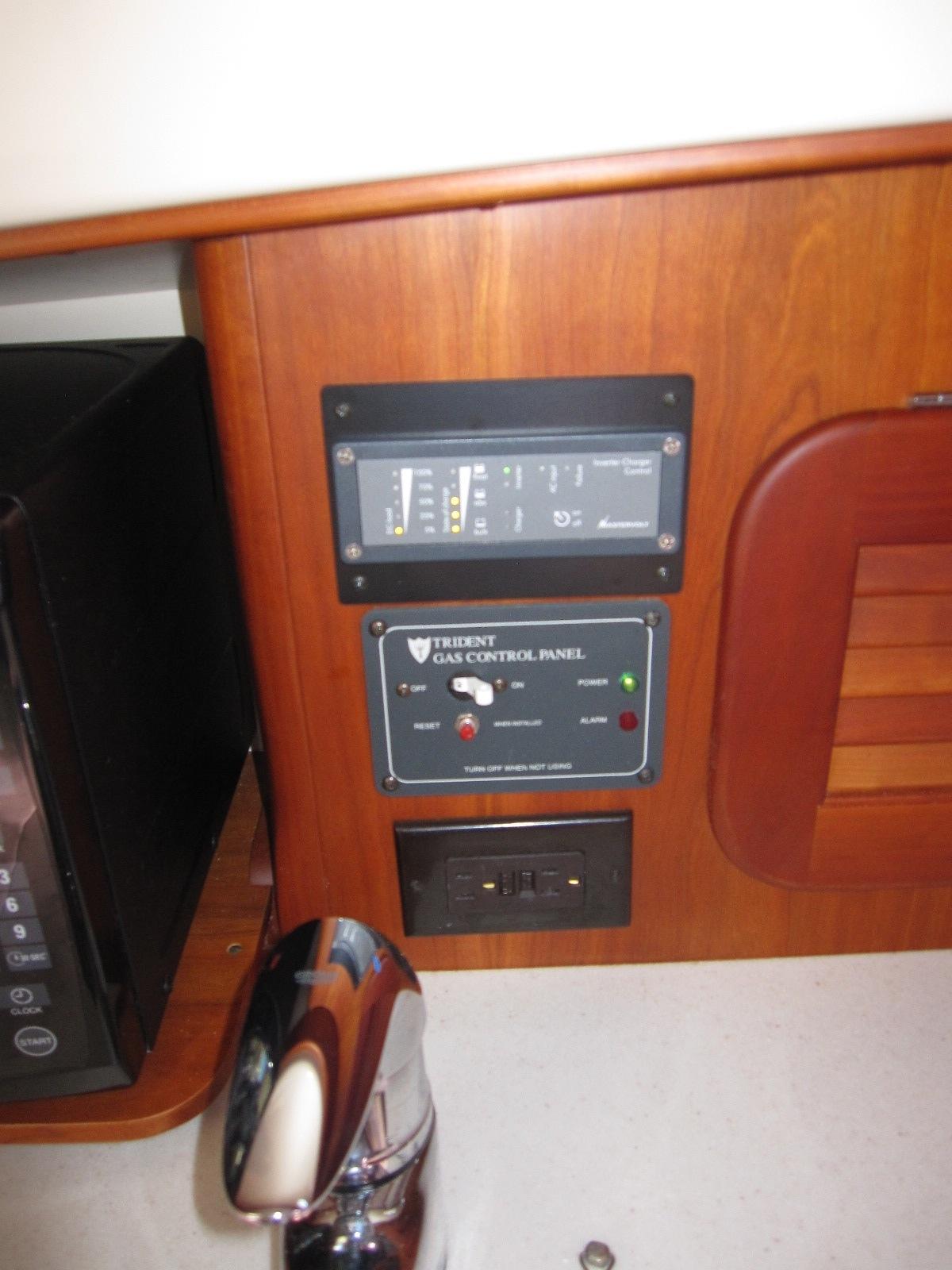

  • LP gas sniffer and a propane shut off valve
  • Opening port with screen
  • Additional storage is provided outboard and under the galley sink

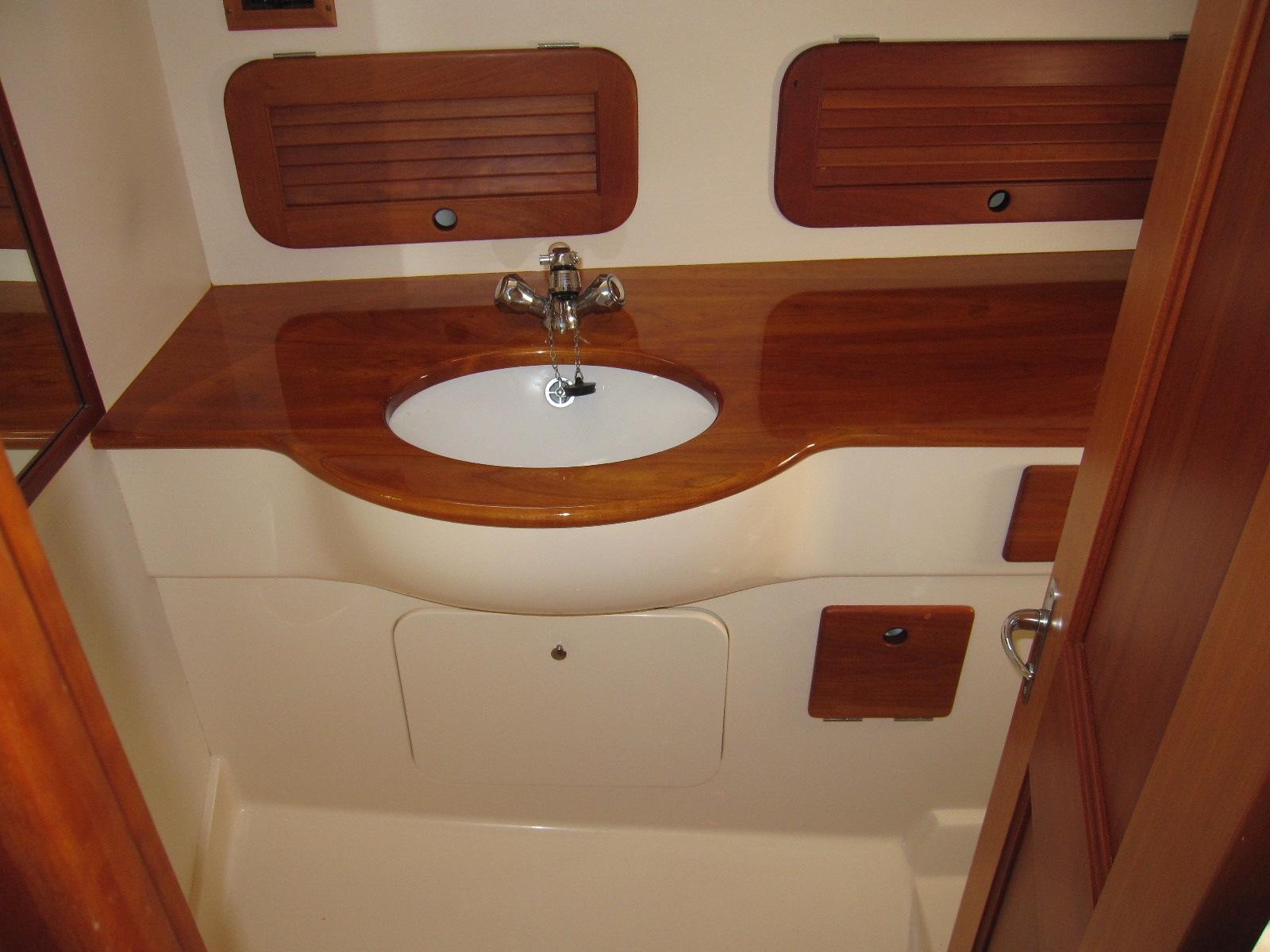

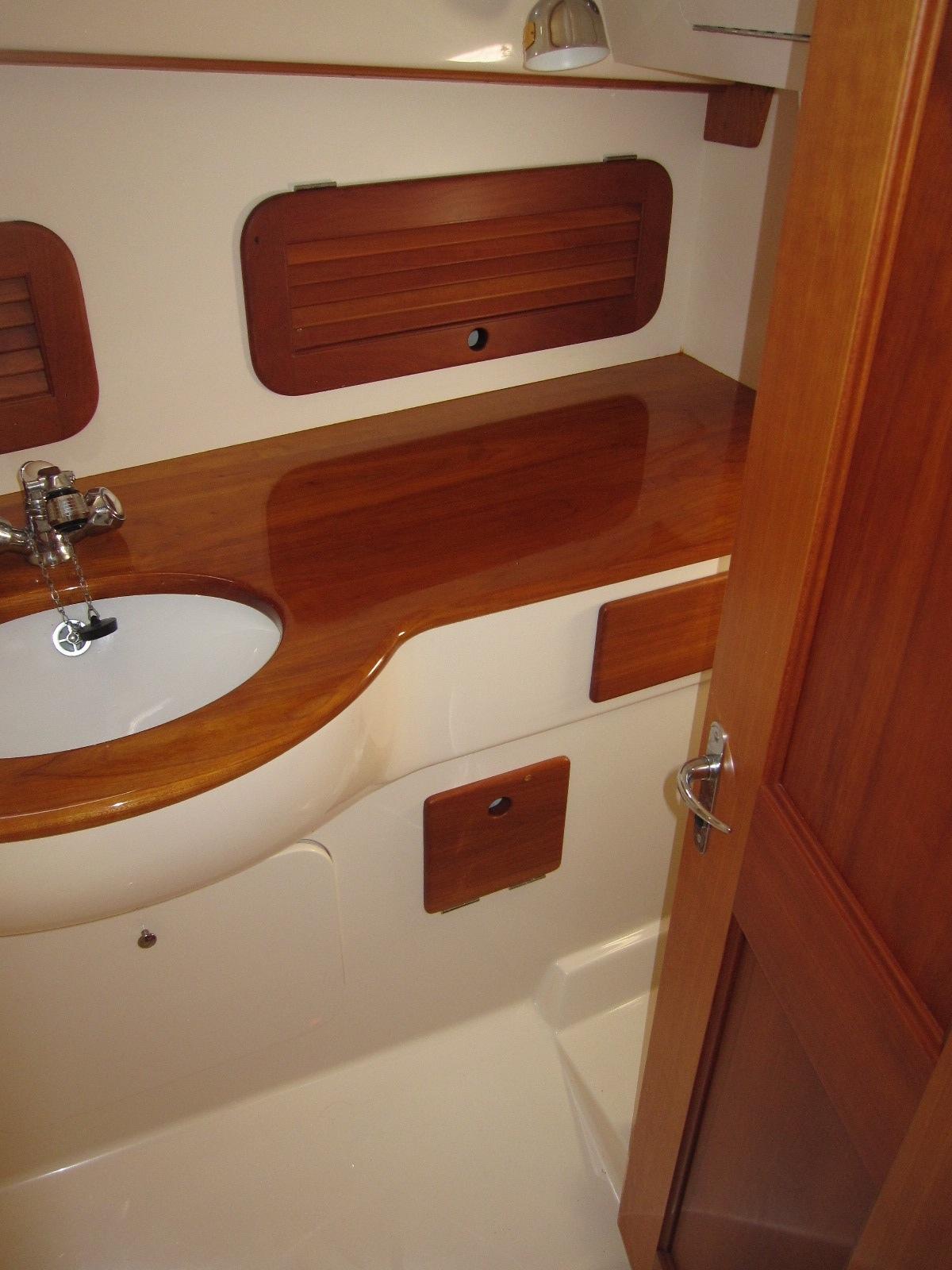

Head

  • Solid cherry panel door
  • Molded fiberglass sole for easy cleaning
  • Varnished cherry countertop with an under-mounted porcelain sink
  • Grohe faucet /handheld shower provides hot and cold pressure water

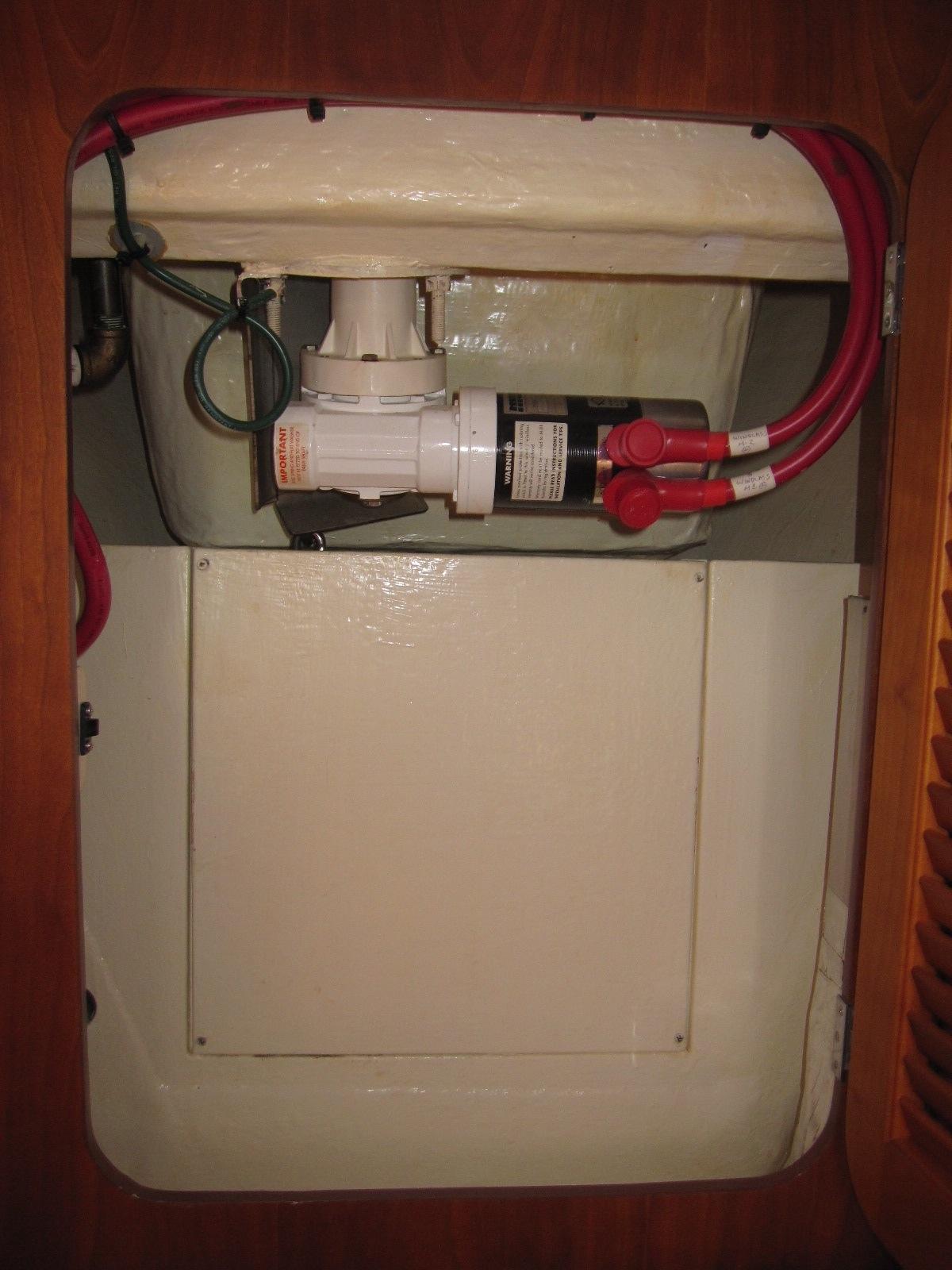

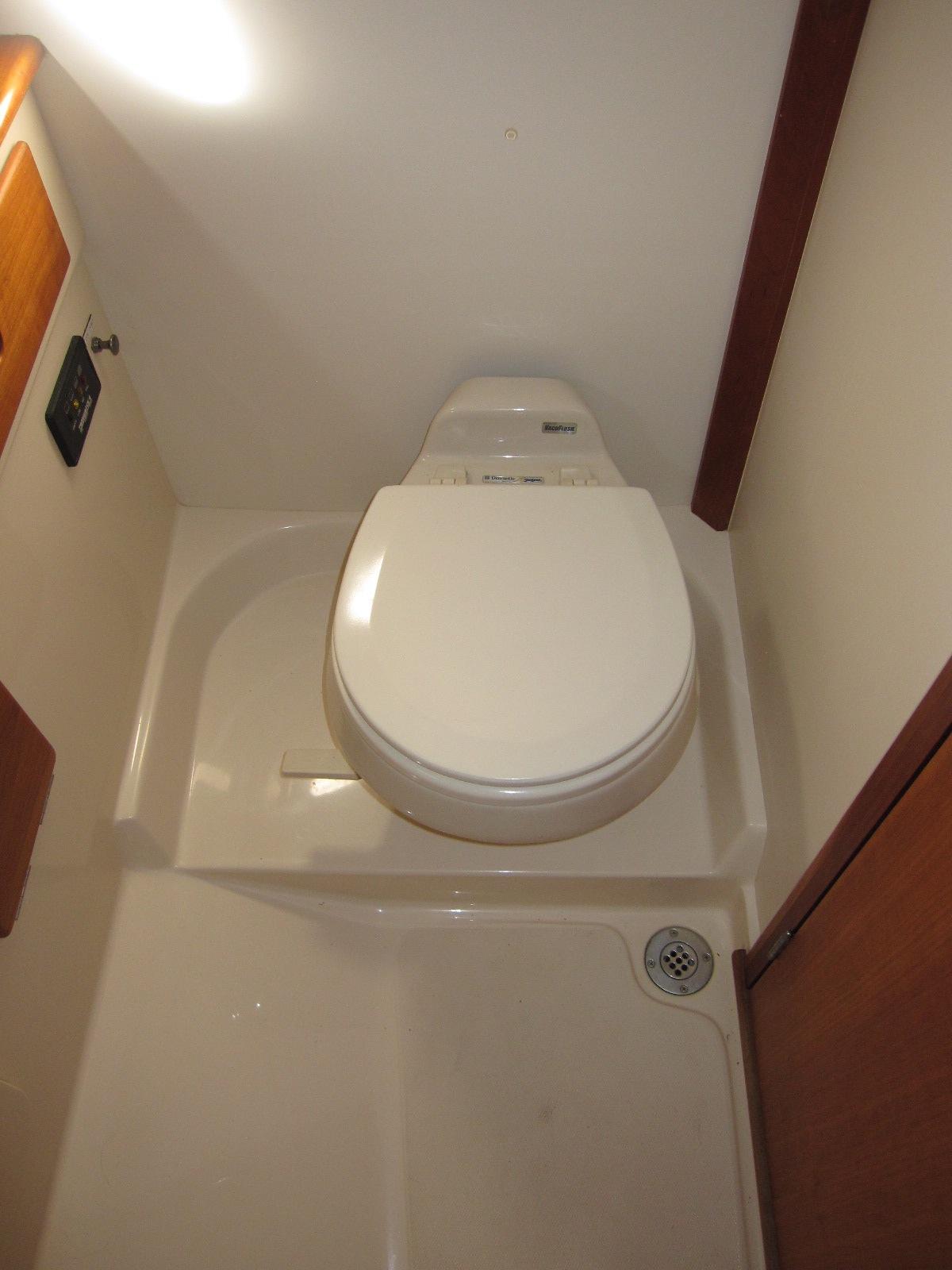

  • Sealand Vacu-Flush electric marine head plumbed to a 27 gal aluminum holding tank and overboard discharge
  • Mirror on the forward bulkhead with cherry frame
  • 110V outlet
  • Hella fan
  • Opening port with screen, as well as forced ventilation
  • Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity

Electrical

  • (3) 12V batteries for a total of 540A
  • Start - 12V AGM group 4D battery with 1100 CCA capability
  • House - (2) 12V AGM  group 4D batteries  210A each

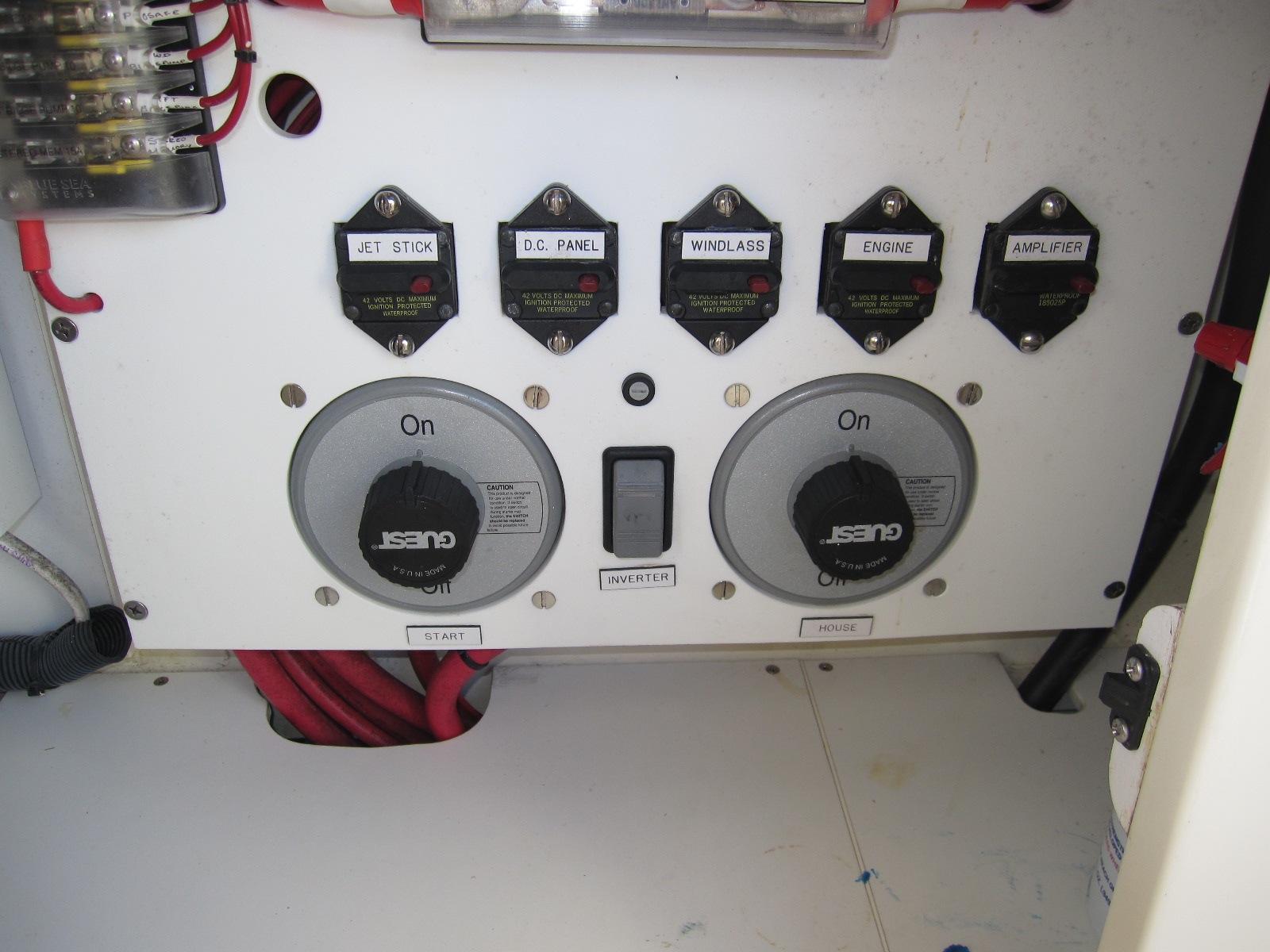

  • Battery parallel switch for emergency starting
  • 80A battery alternator on engine

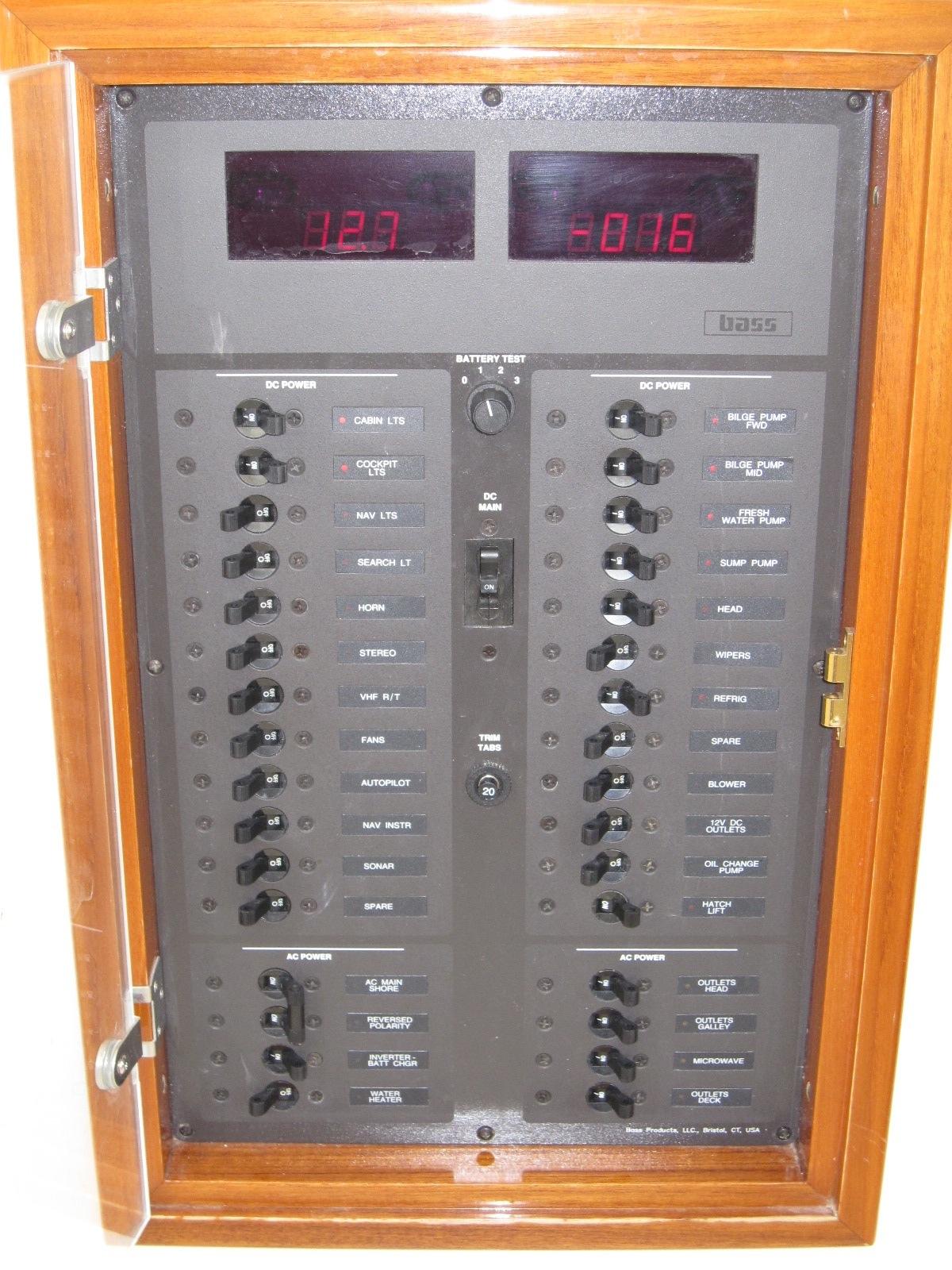

  • 12V distribution panel includes thermo-magnetic breakers, volt and amp meter
  • 110V shore power inlet and relay
  • 30A shore power cord with power indicator light

Mechanical

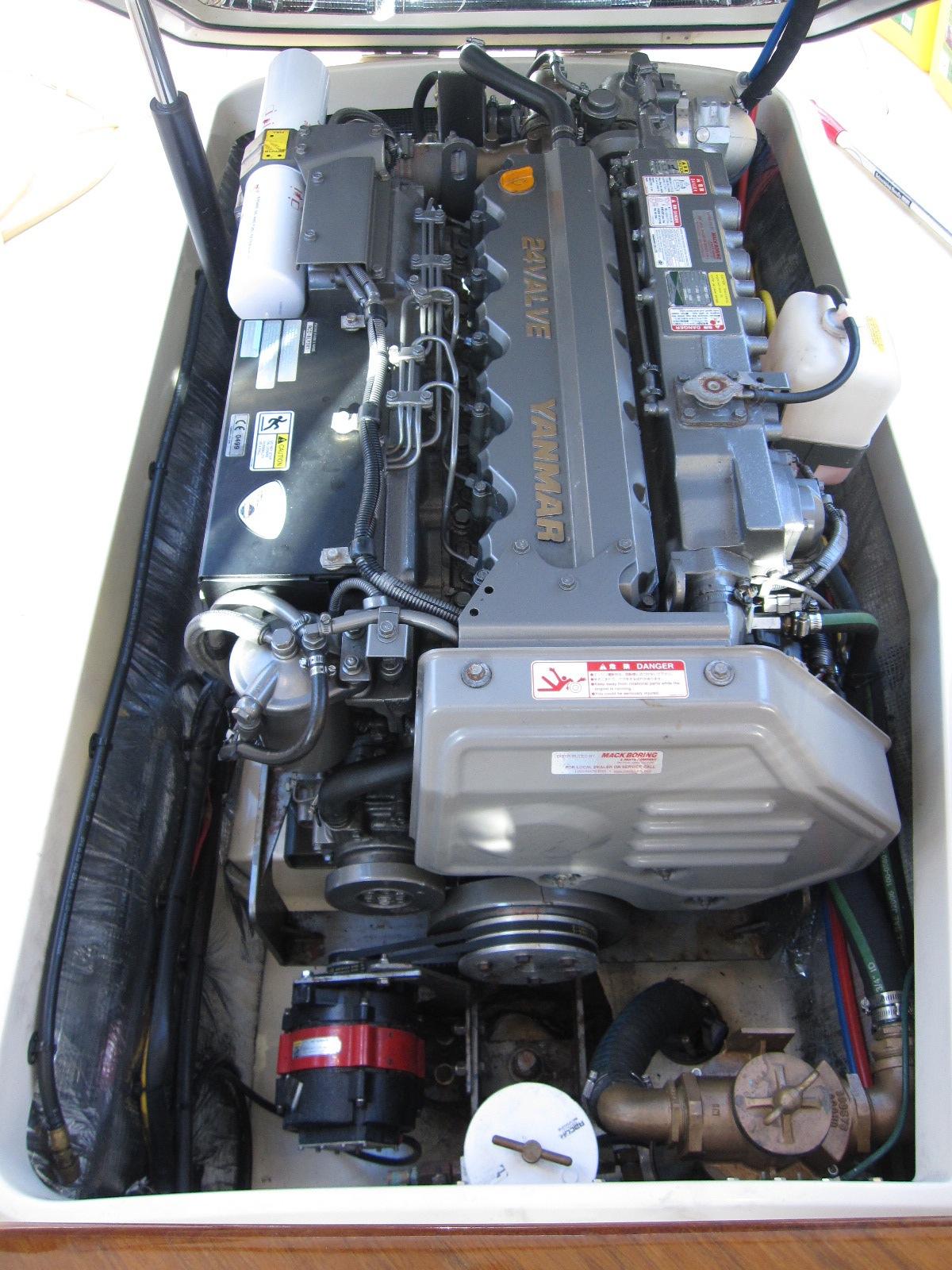

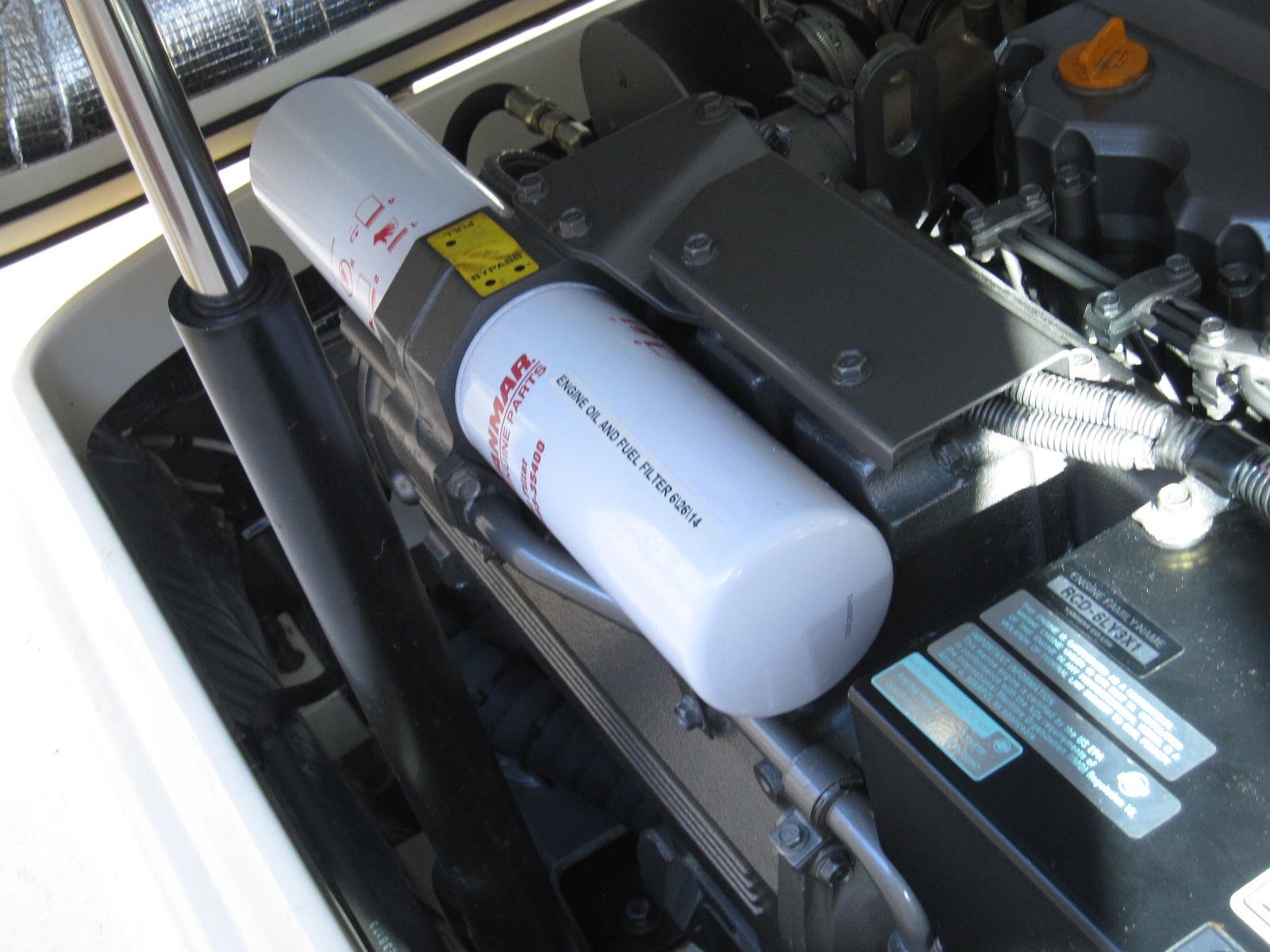

  • 2007 Yanmar 6LY3 480hp Common Rail (329hrs)
  • Hamilton 292 Jet Drive
  • ZF 280 reduction gear

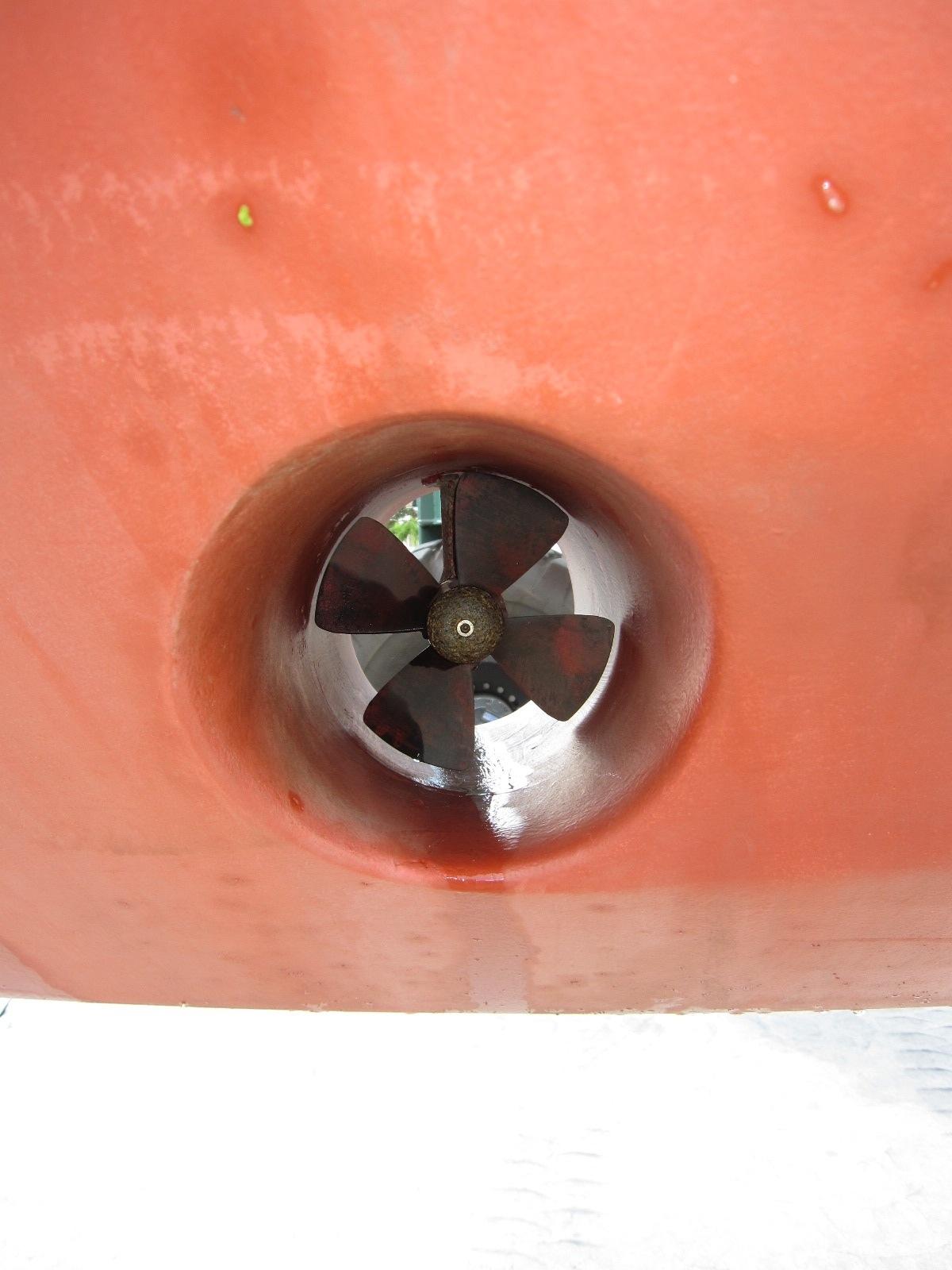

  • Side Power 12V bow-thruster

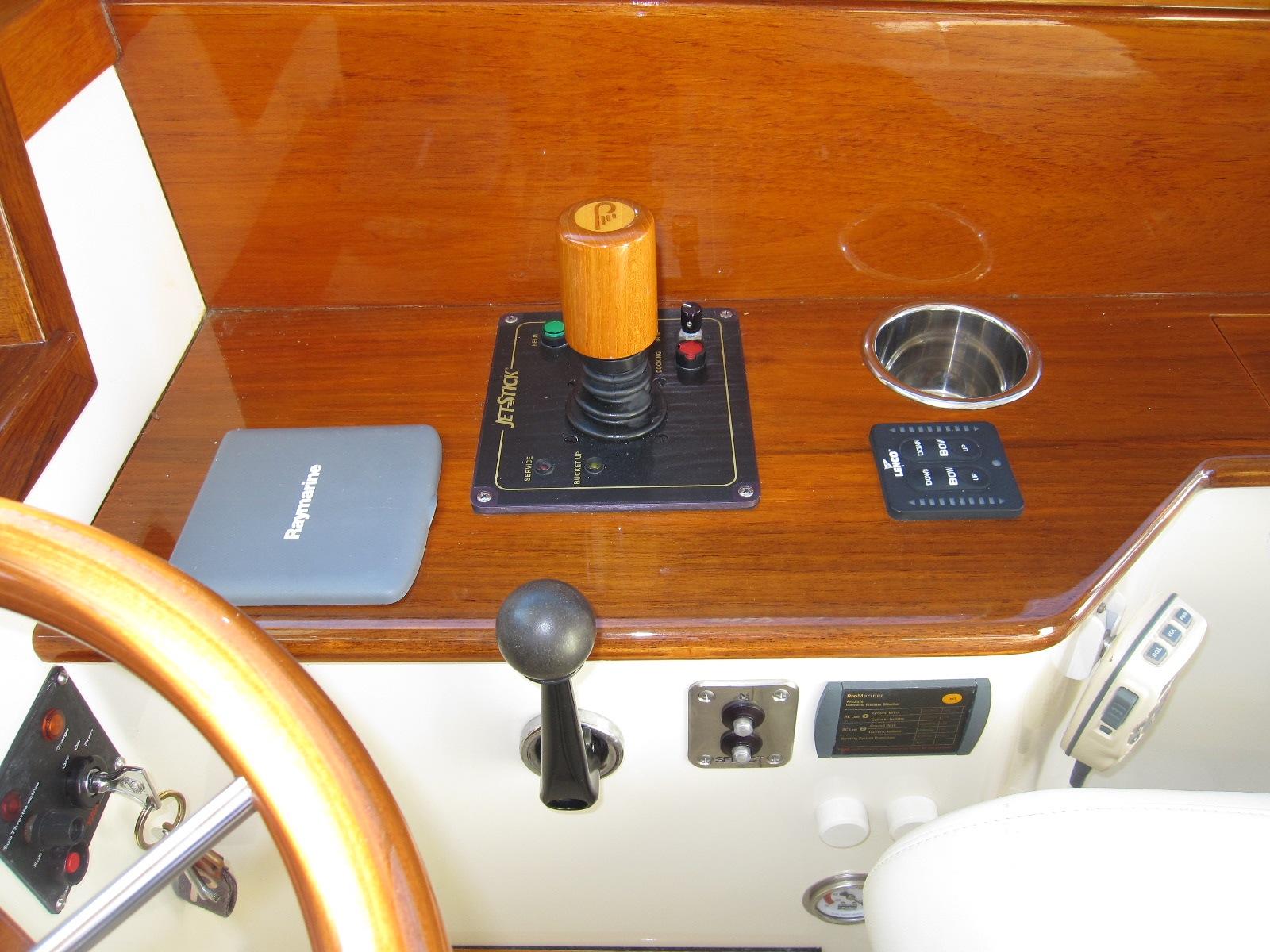

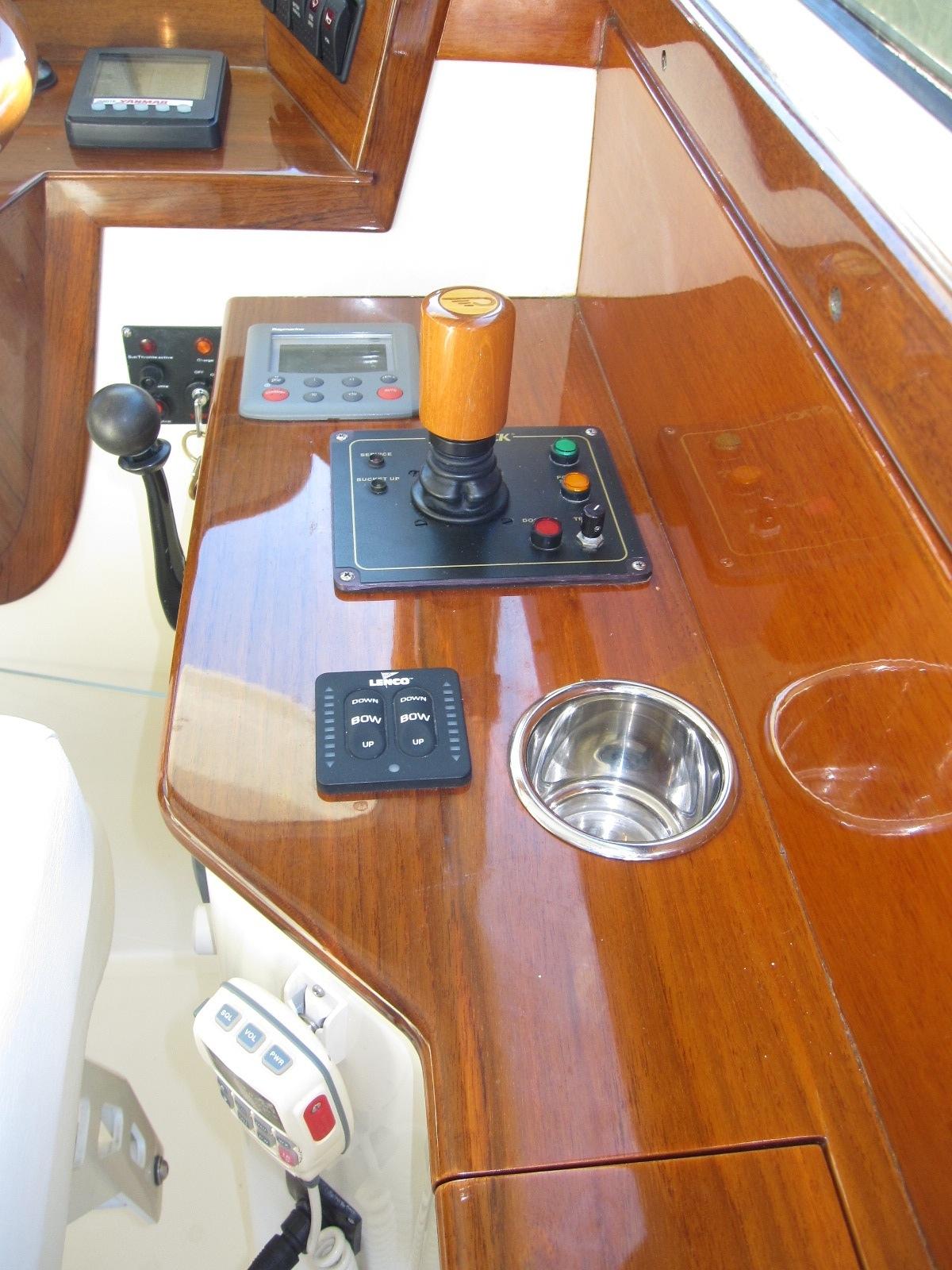

  • Hinckley custom JetStick control system
  • Lenco trim tabs
  • Custom water drop muffler
  • Oil transfer pump - engine and trans
  • (2) Electric 1500GPH 12V bilge pumps with float switches
  • Whale emergency bilge pump - mounted in cockpit locker
  • 12V automatic shower sump pump
  • Mylar faced acoustical foam-lined engine box insulation
  • Baffled and insulated air intake
  • Fire suppression system
  • 6 gal stainless steel hot water tank
  • (2) 80 gal heavy gauge aluminum fuel tanks

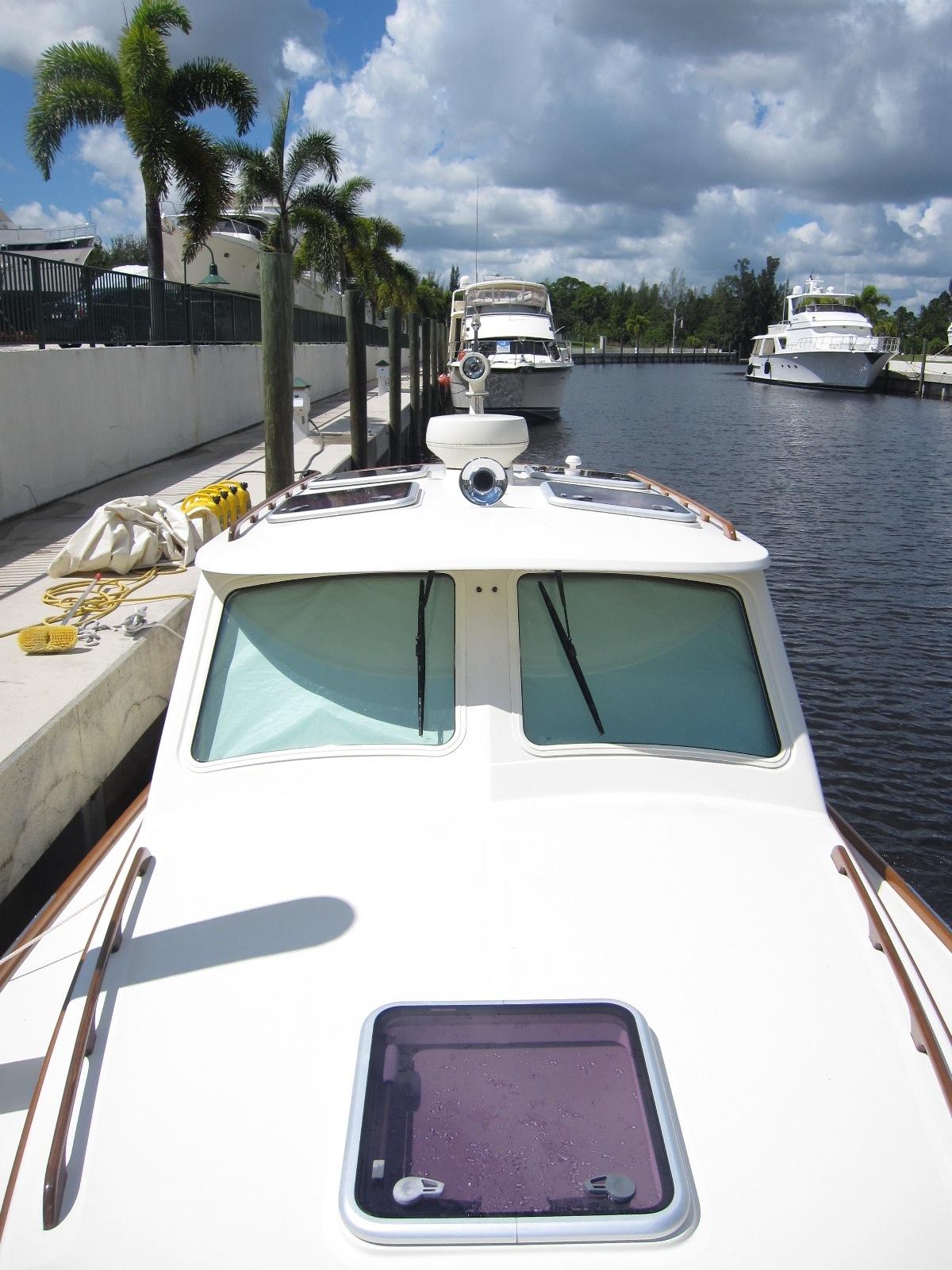

Hull & Deck

  • Hinckley DualGuard composite construction - Kevlar E-glass hybrid outer skin; aircraft grade end-grain balsa below the waterline; carbon fiber inner skin; SCRIMPED laminated with vinylester resin
  • Deck and Cockpit - E-glass with balsa and closed cell foam core, SCRIMPED with vinylester resin
  • Marelon ball-valve seacocks with thru-hulls below the waterline and Marelon thru-hulls oboe the waterline
  • Swim Platform - Heavy duty fiberglass swim platform with teak insert, and stainless steel brackets
  • Custom stainless handrail on transom, painted to match transom

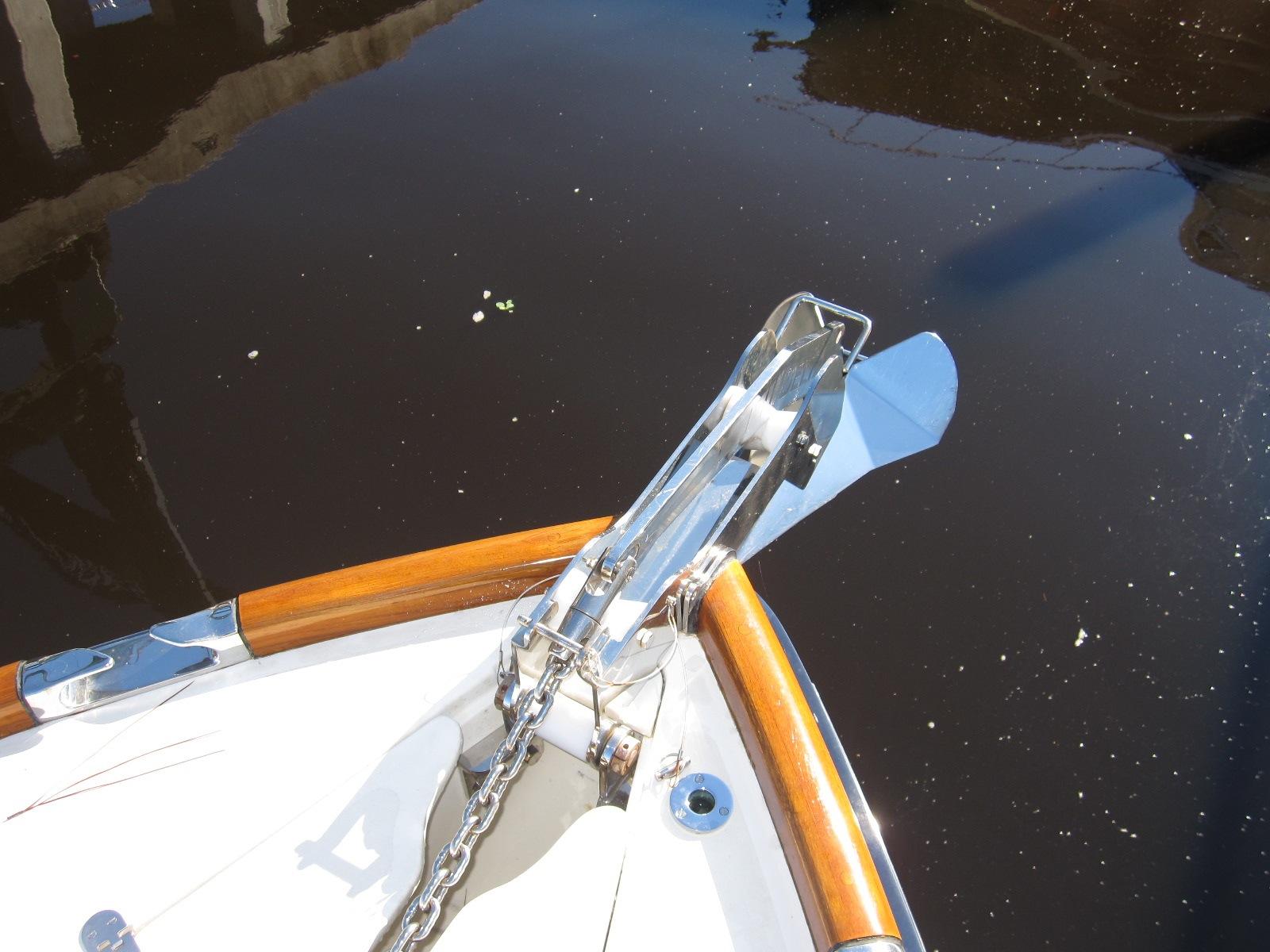

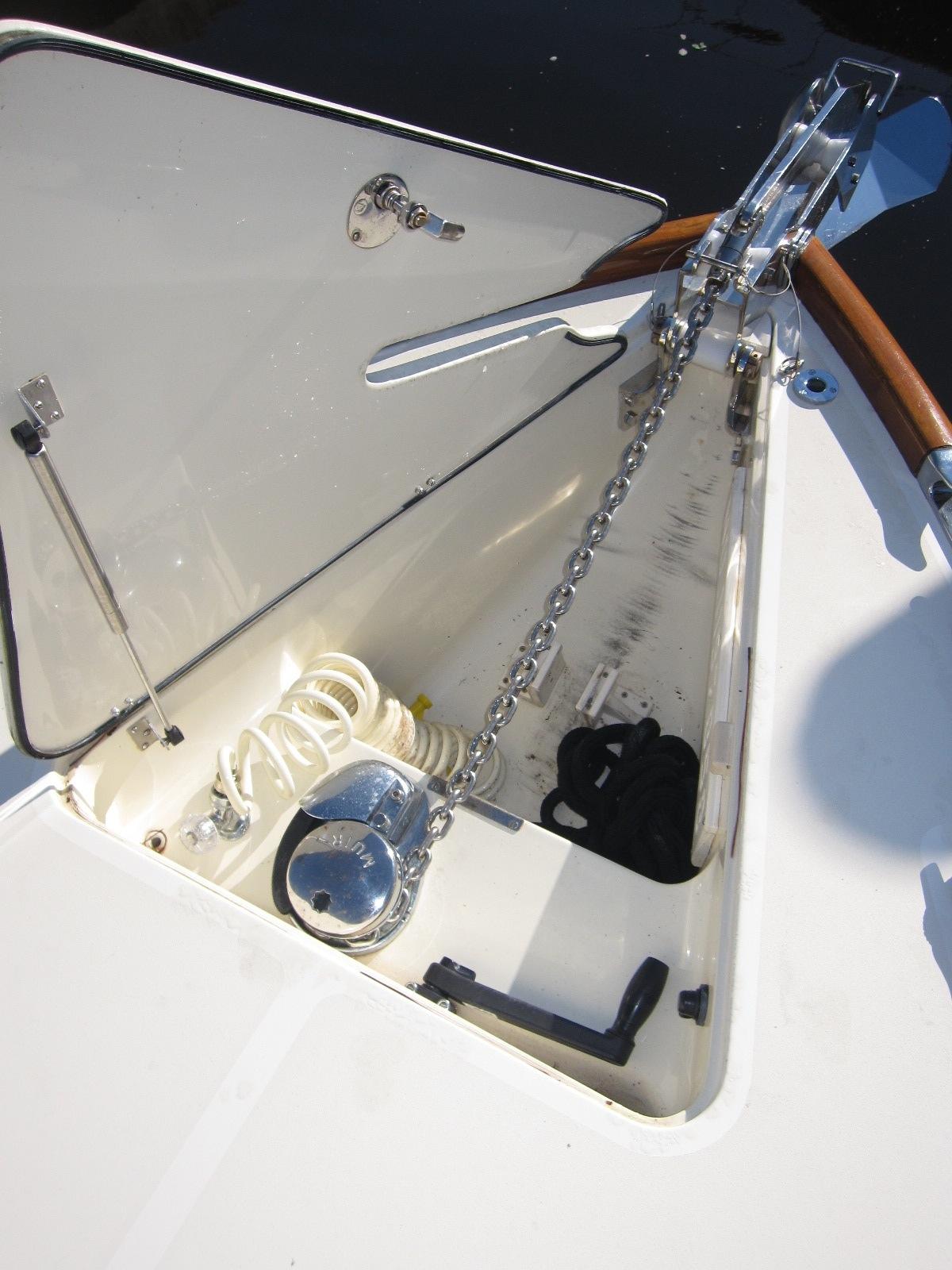

  • Flush foredeck anchor locker with hinged hatch and fold out anchor roller
  • Rounded, tapered, varnished teak toe rail
  • Varnished teak eyebrow molding around cabin

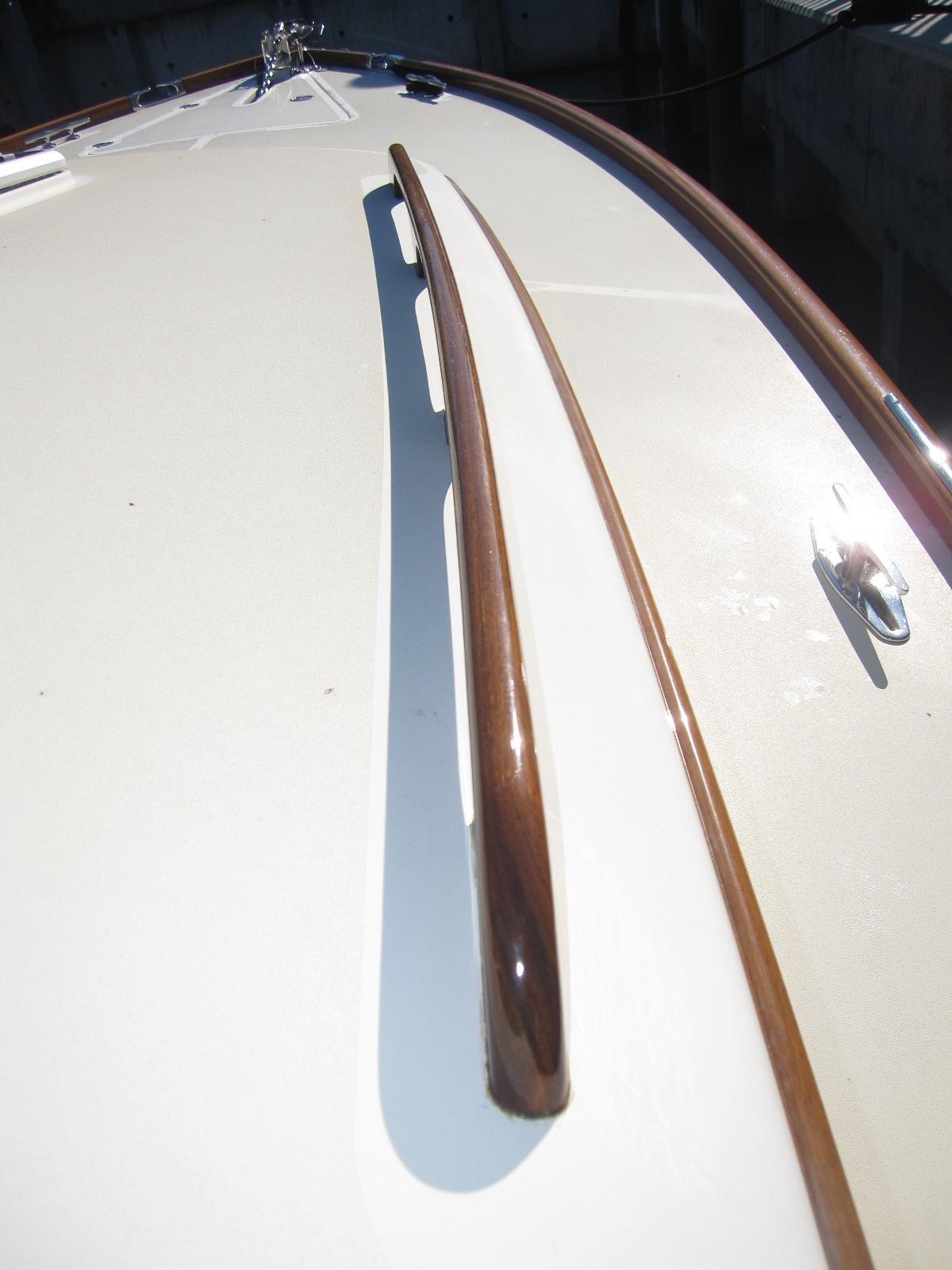

  • Vanished teak handrails on house top and aft end of pilothouse
  • Hinckley pilothouse mast with spotlight, radome, and satellite antenna painted to match deck
  • (5) Low-profile opening aluminum hatches with Ocean Air Sky screens
  • Custom Hinckley 316L stainless steel mooring cleats
  • Fender pad eyes with toe rail chafe strips
  • ACR spotlight  - Masthead mounted, with helm mounted electric remote control

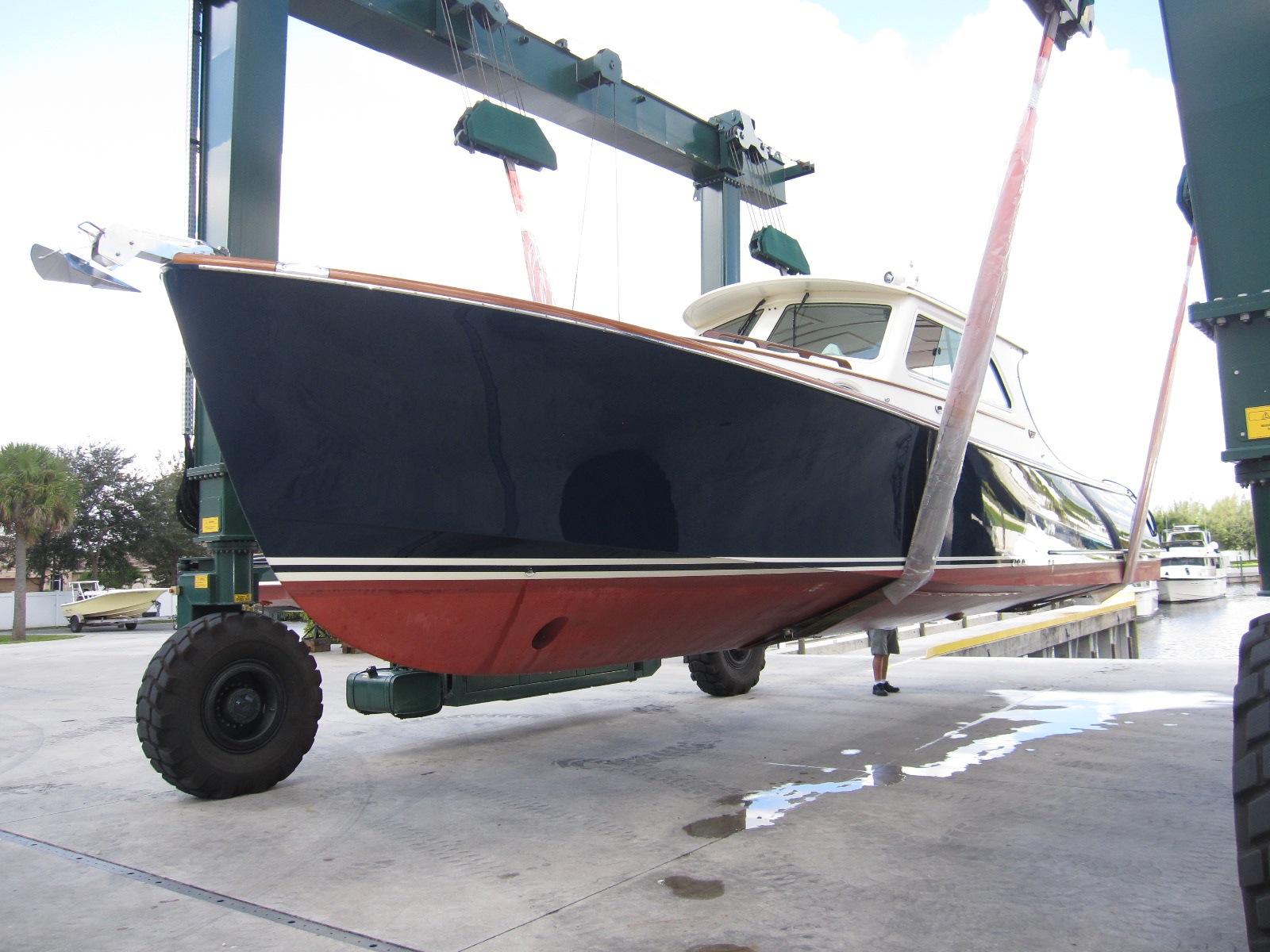

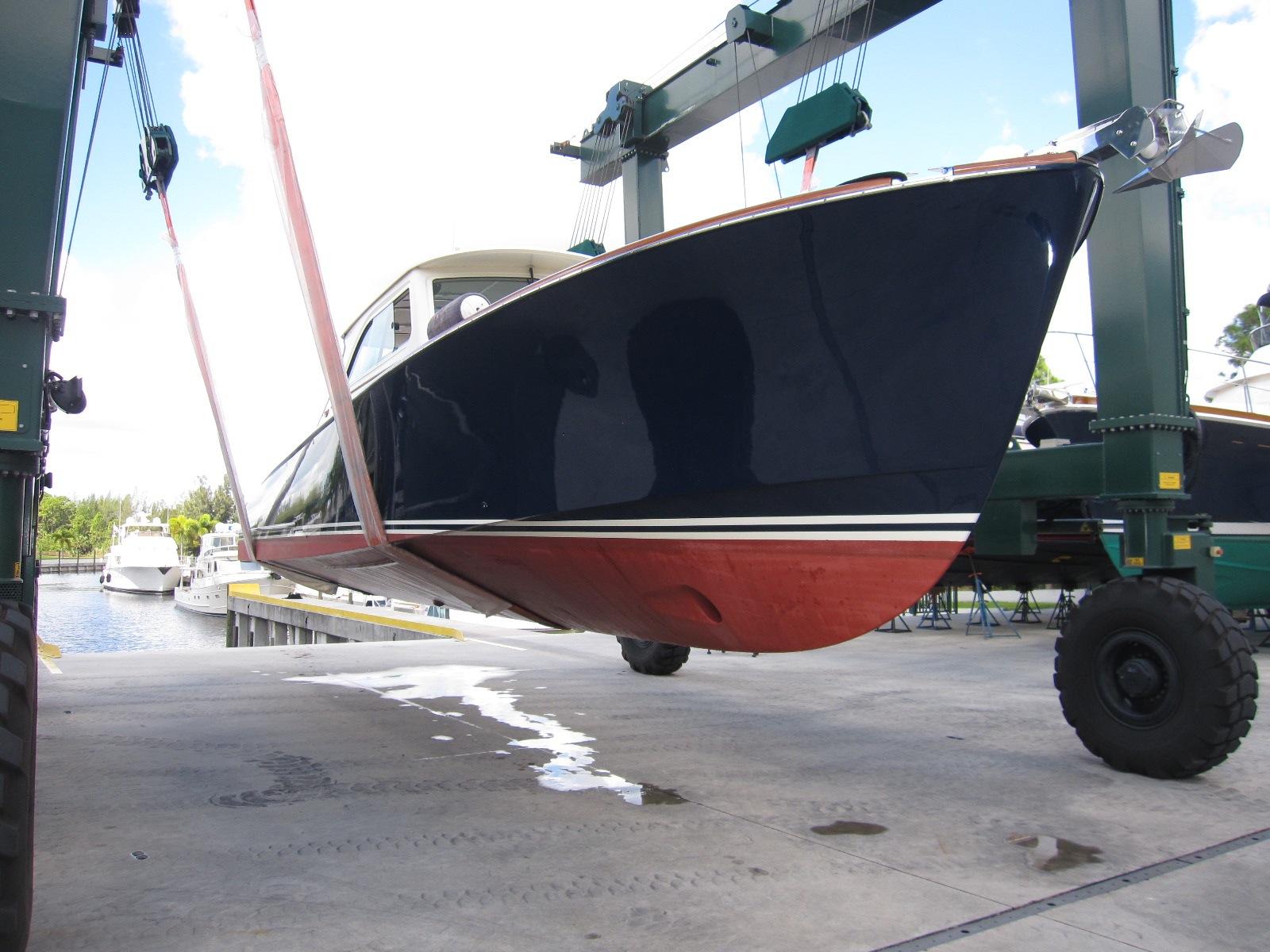

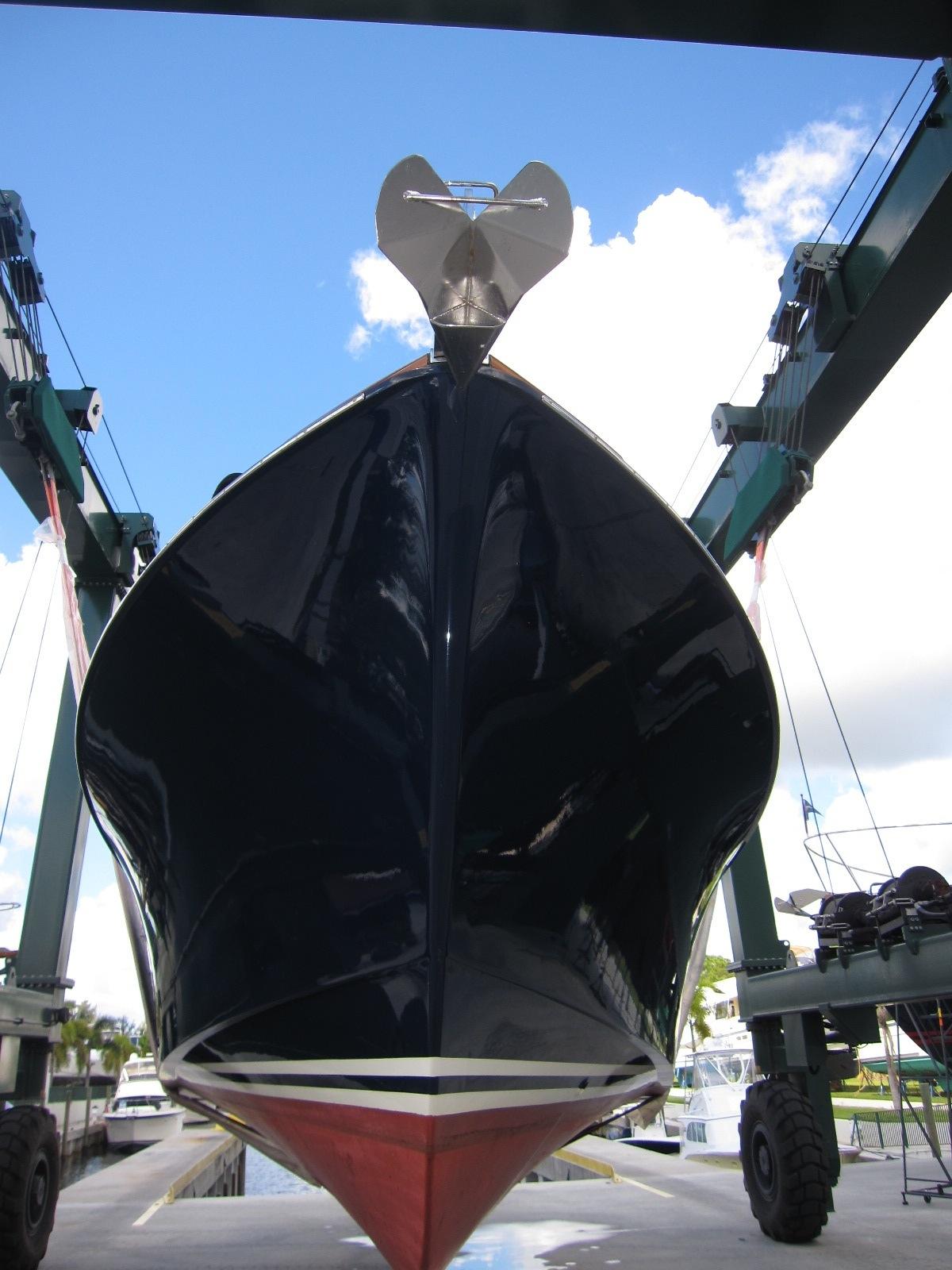

  • Flag Blue Awlgripped hull
  • Off-White house and deck
  • Off-White boot stripe
  • Red bottom paint

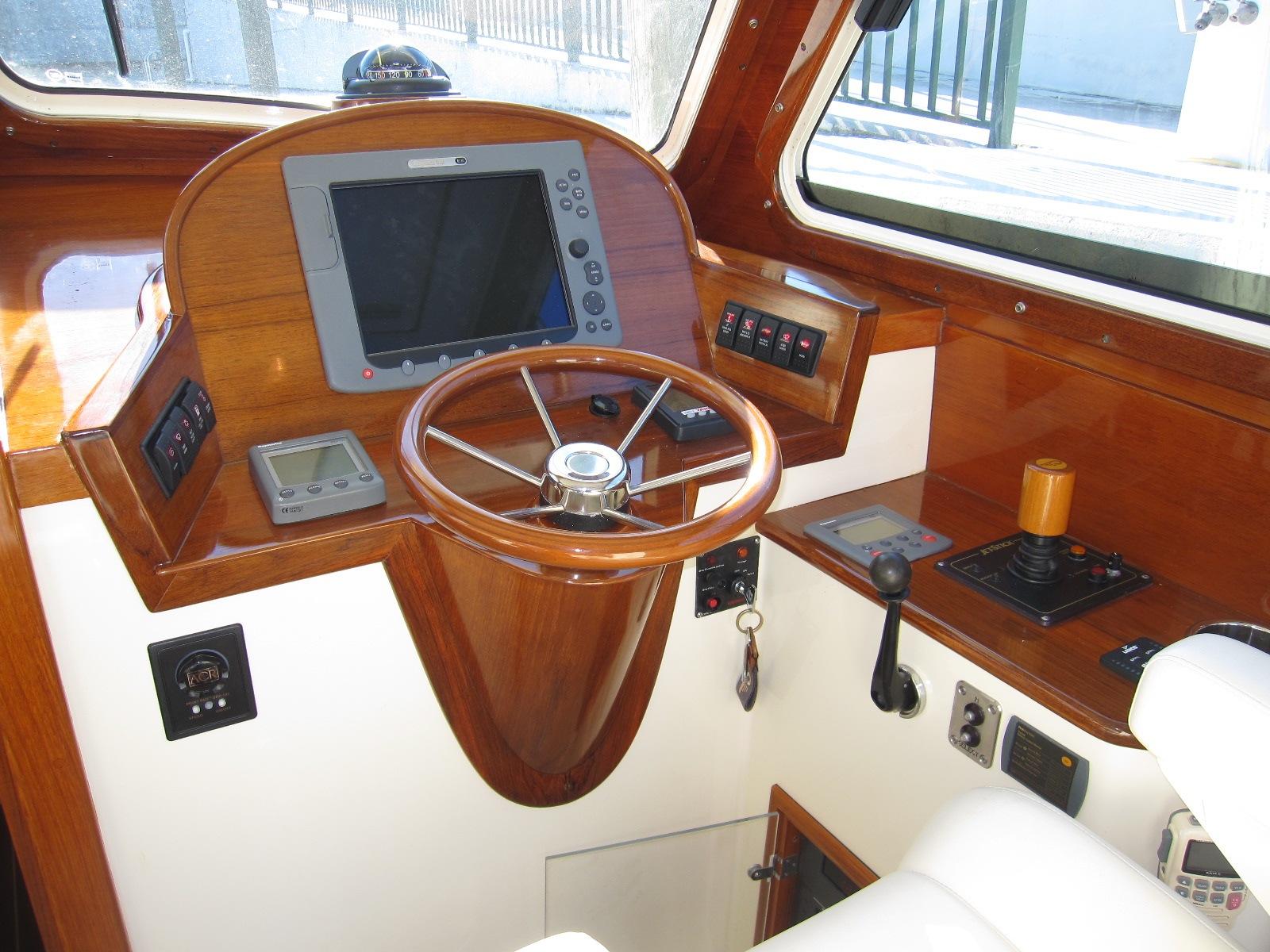

Pilot House

  • Teak finished pilothouse upper sides and dash
  • (4) Pilothouse windows include: (2) sliding windows and (2) fixed, forward with heavy duty, self parking, intermittent windshield wipers and fresh water washers
  • Ivory Ultra-leather helmsman and passenger seats, pedestals painted to match deck

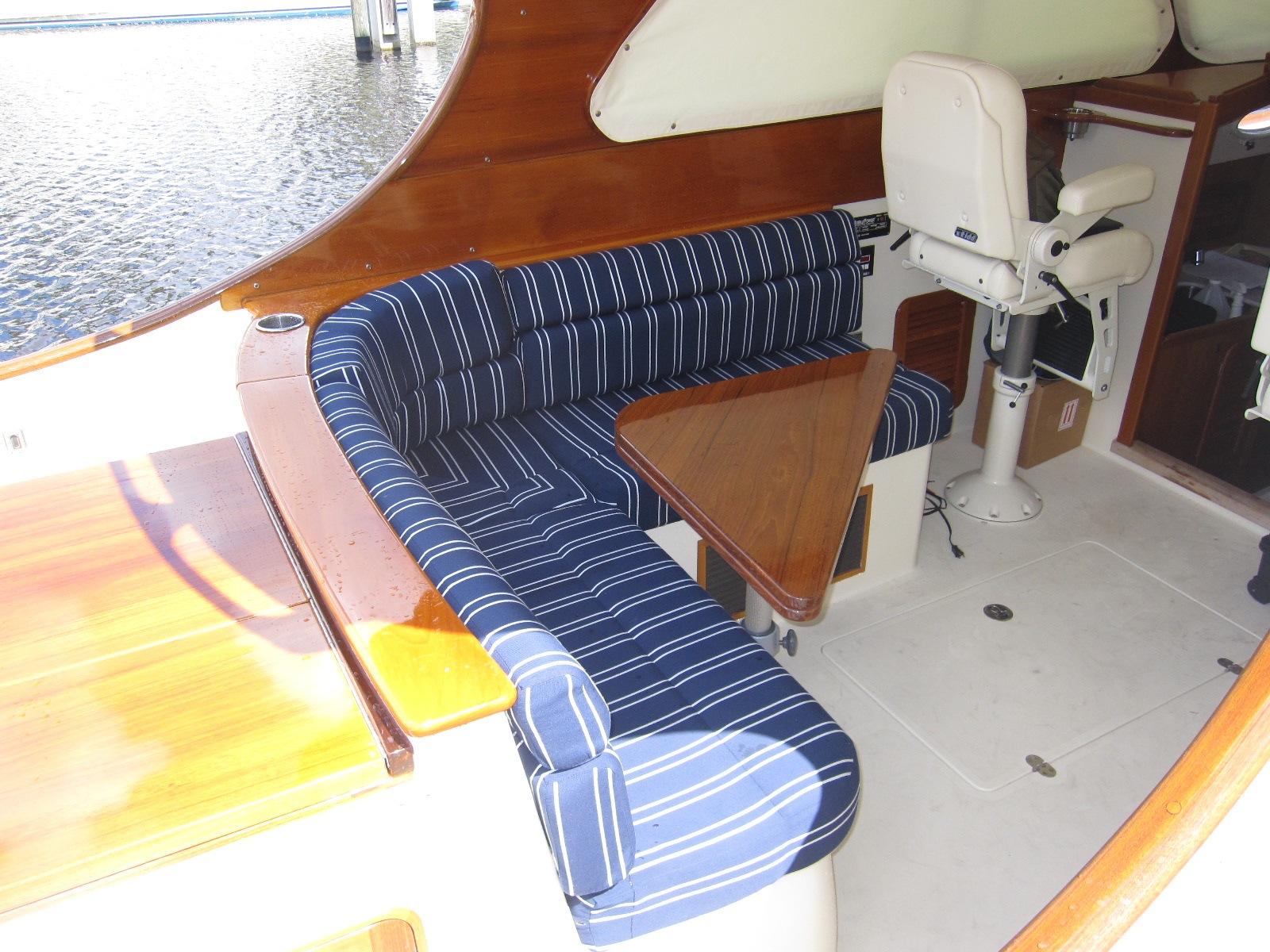

  • Cushioned L-shaped settee aft to port

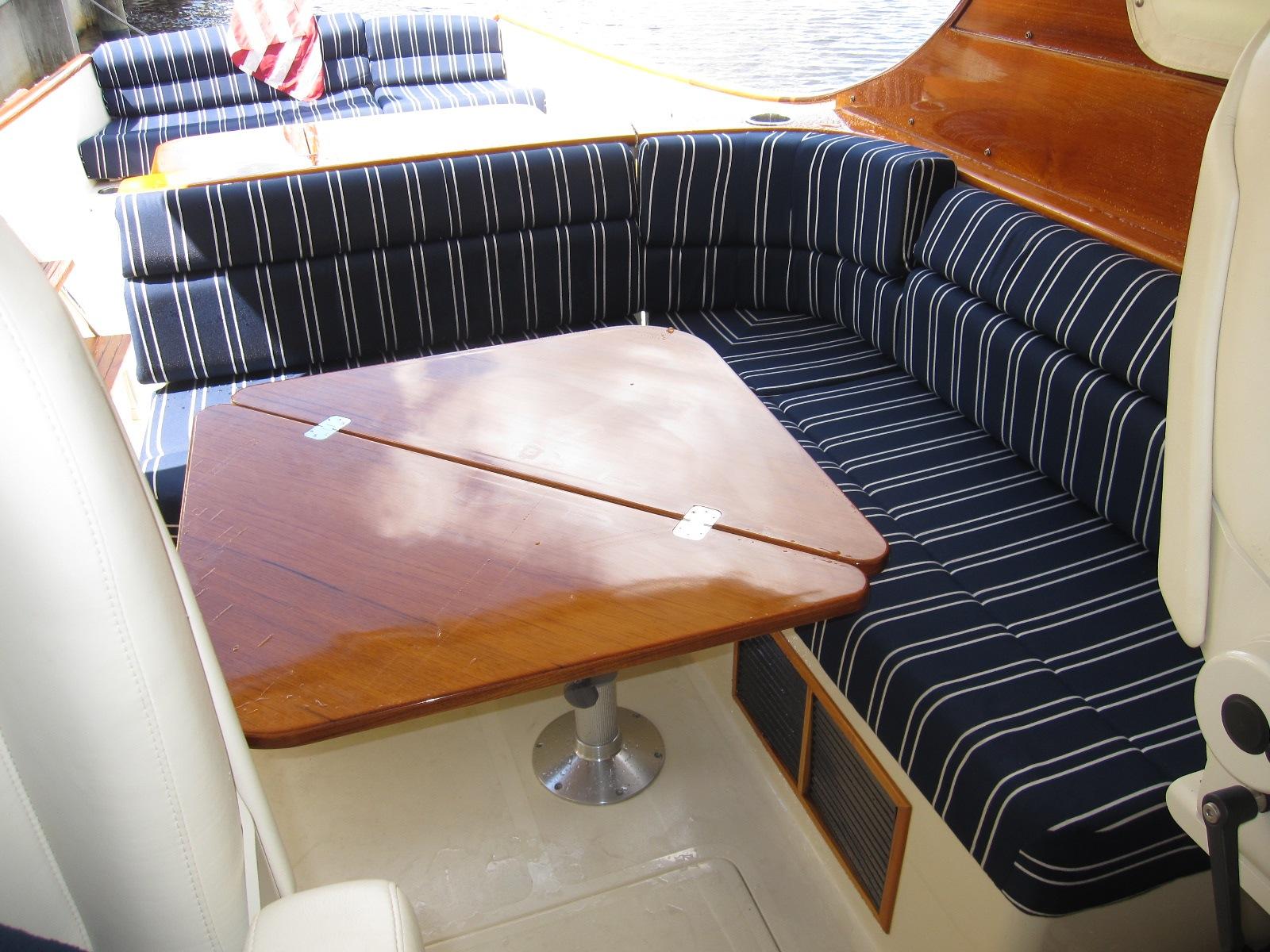

  • Pilothouse dining table
  • (4) acrylic opening hatches with Ocean Air Sky screens/shades
  • Additional illumination if by (4) overhead low-voltage halogen lights
  • Storage locker under pilothouse settee

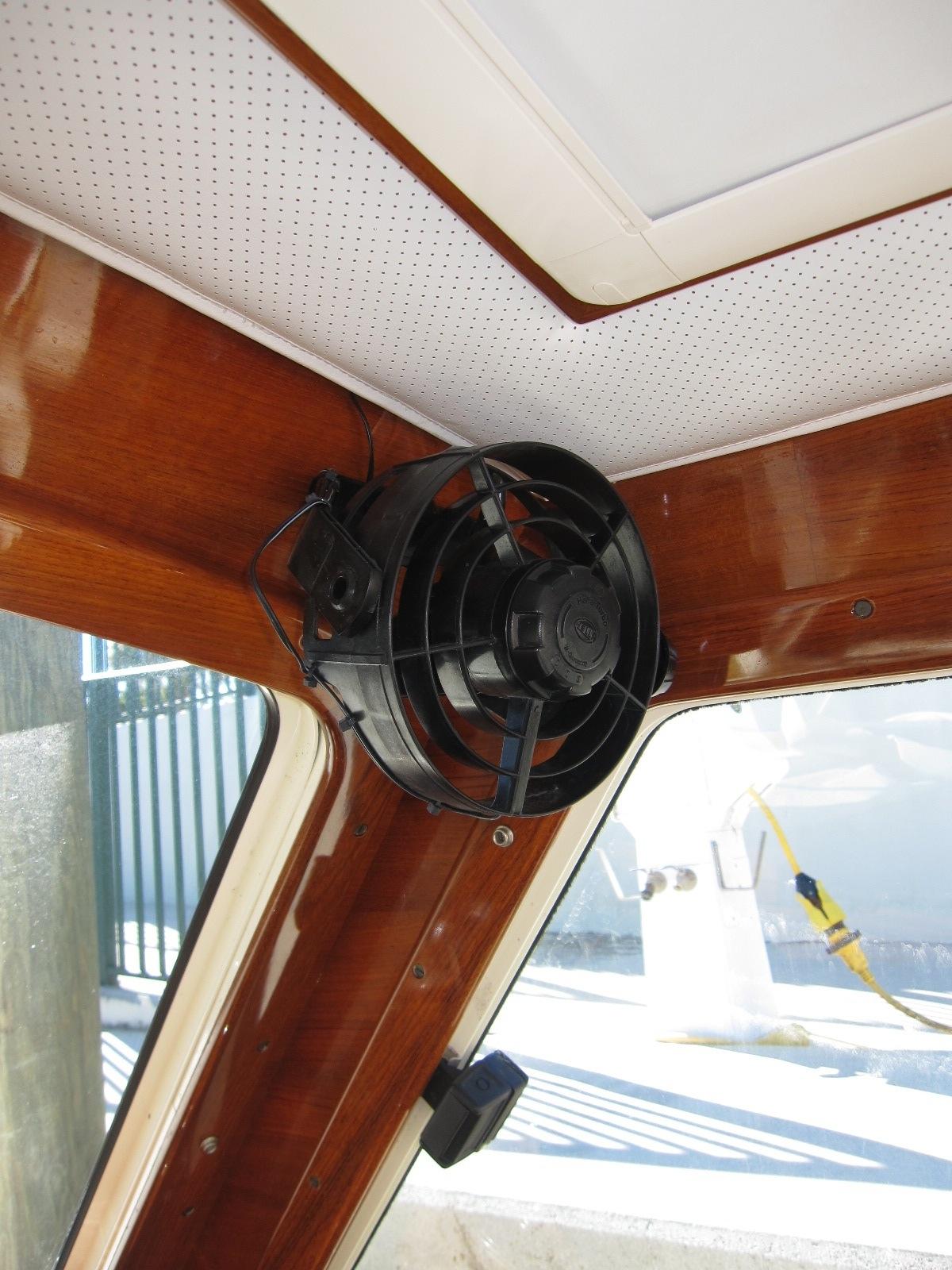

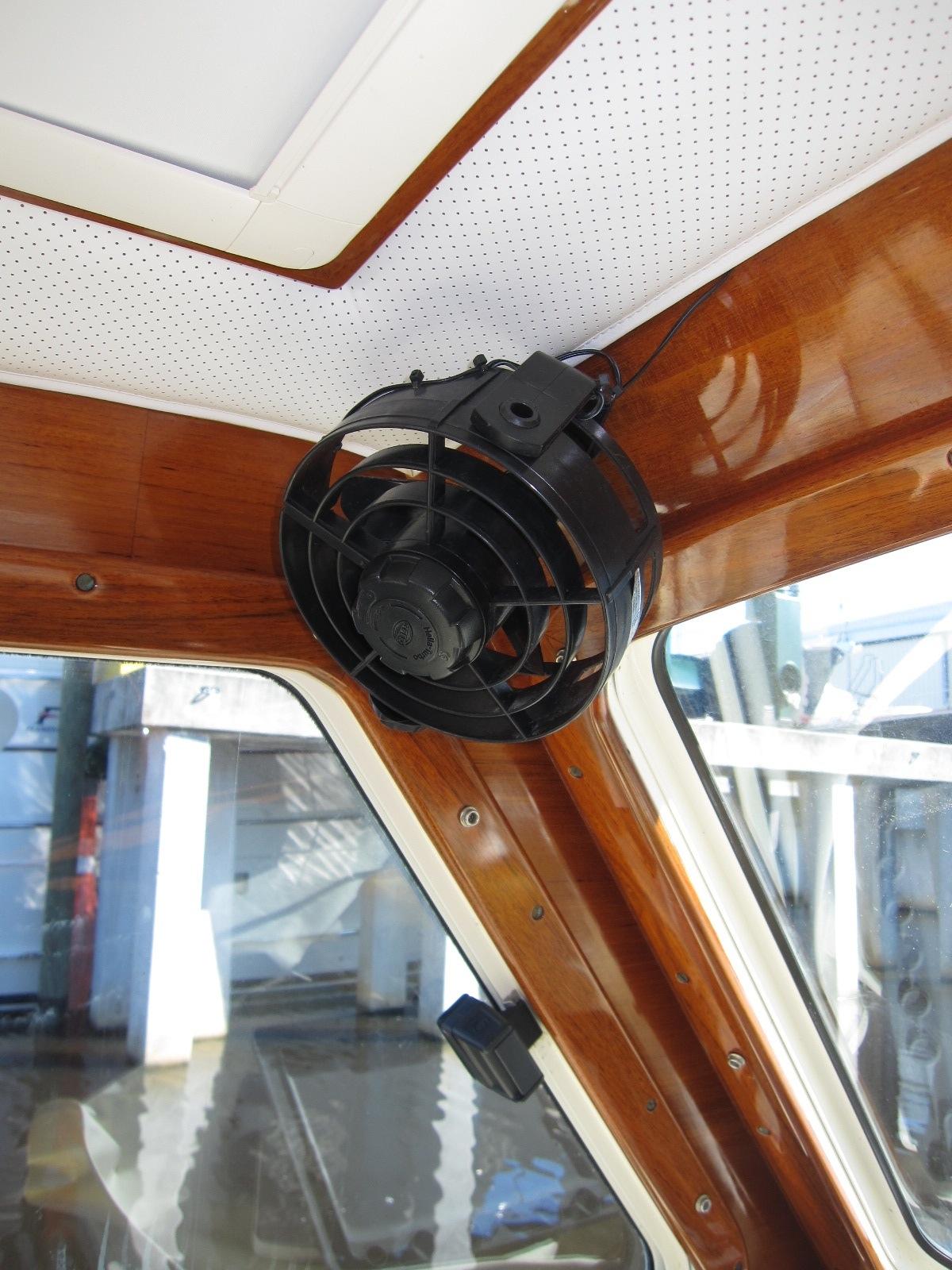

  • (2) Hella fans - mounted port & starboard
  • 120V Outlet in forward settee face
  • (5) Cup holders

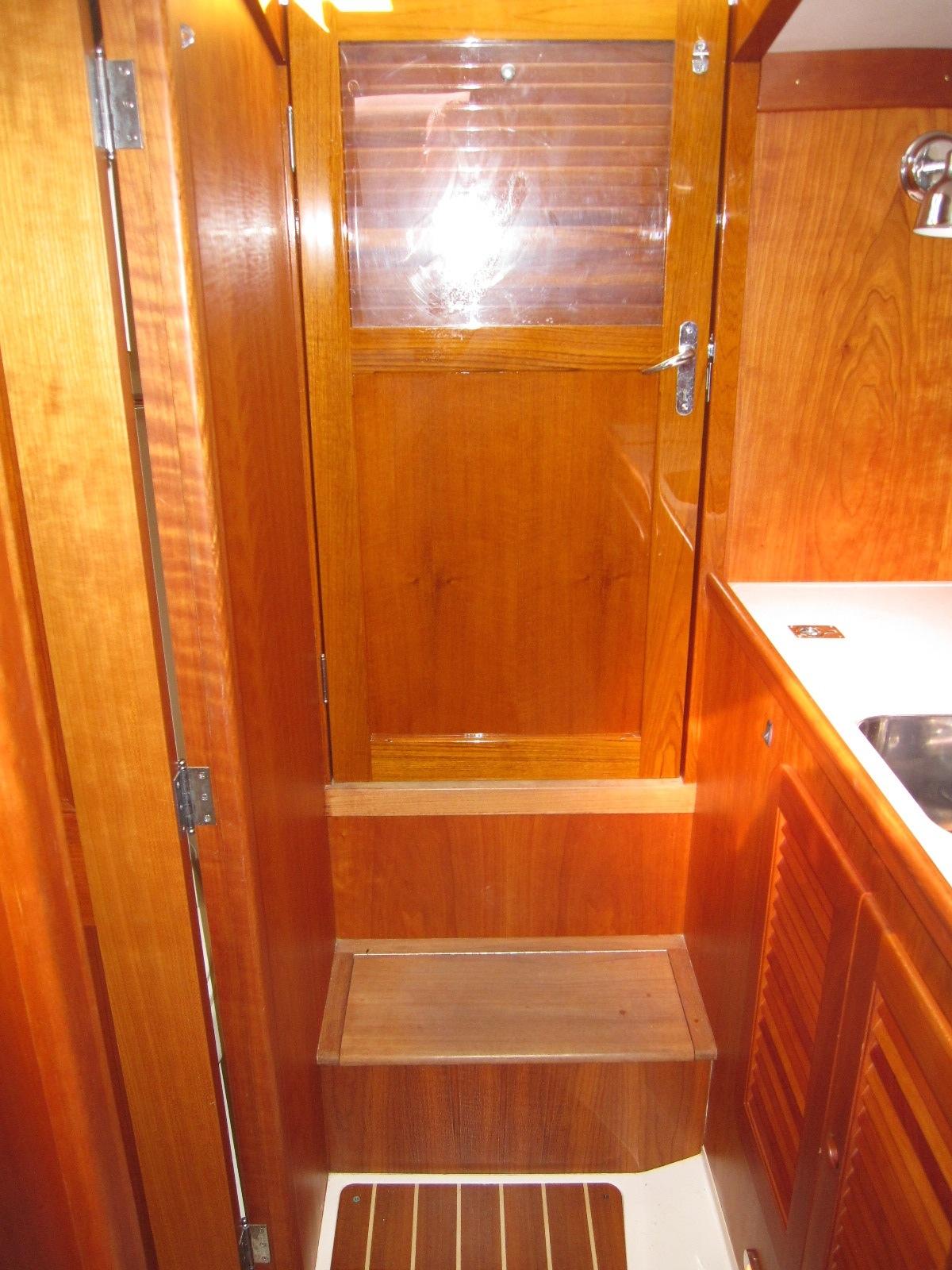

  • Varnished teak companionway door
  • (2) Varnished teak handrails are under the aft outboard ends of the pilothouse
  • Sunsure window covers
  • Stamoid 3-piece drop curtain with Eisenglass windows - can enclose the pilothouse

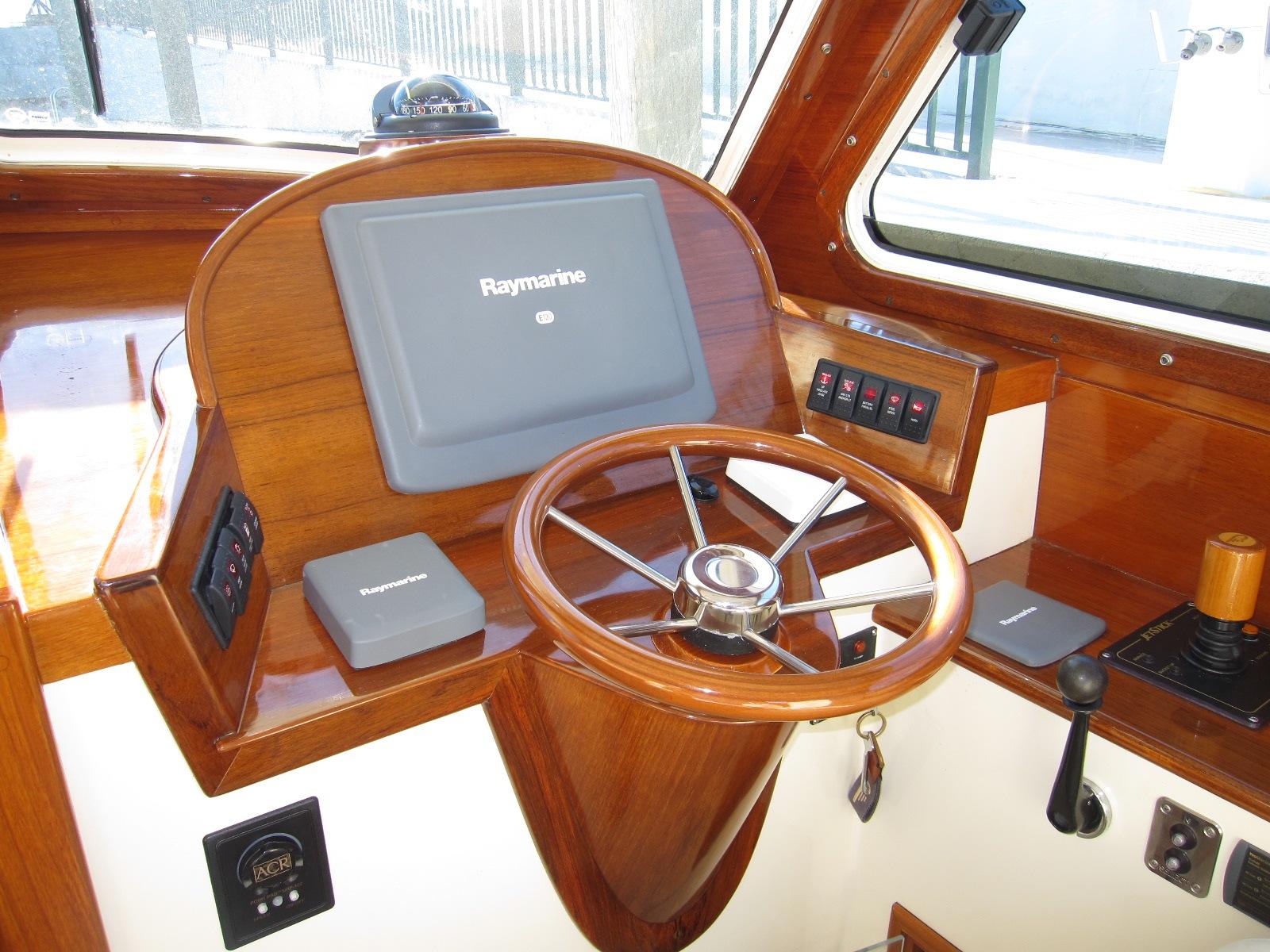

Navigation Equipment

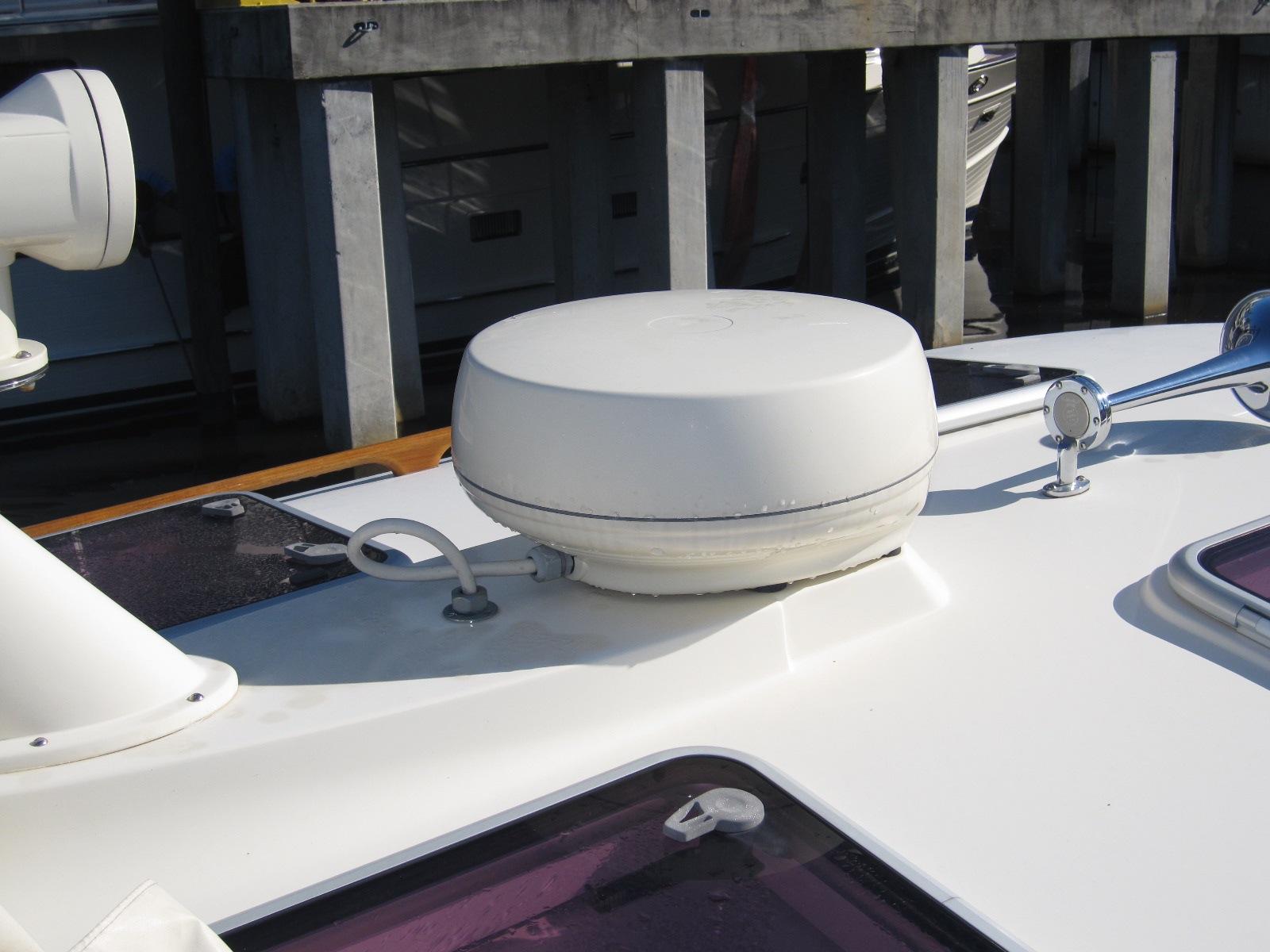

  • Raymarine E120 12' Color Chartplotter/Radar with 2kw Radome - Painted to match deck
  • Raymarine ST-6001 Autopilot with GyroPlus Interfaced to GPS
  • Raymarine 120 WAAS Antenna
  • Raymarine DSM300 Fishfinder Module

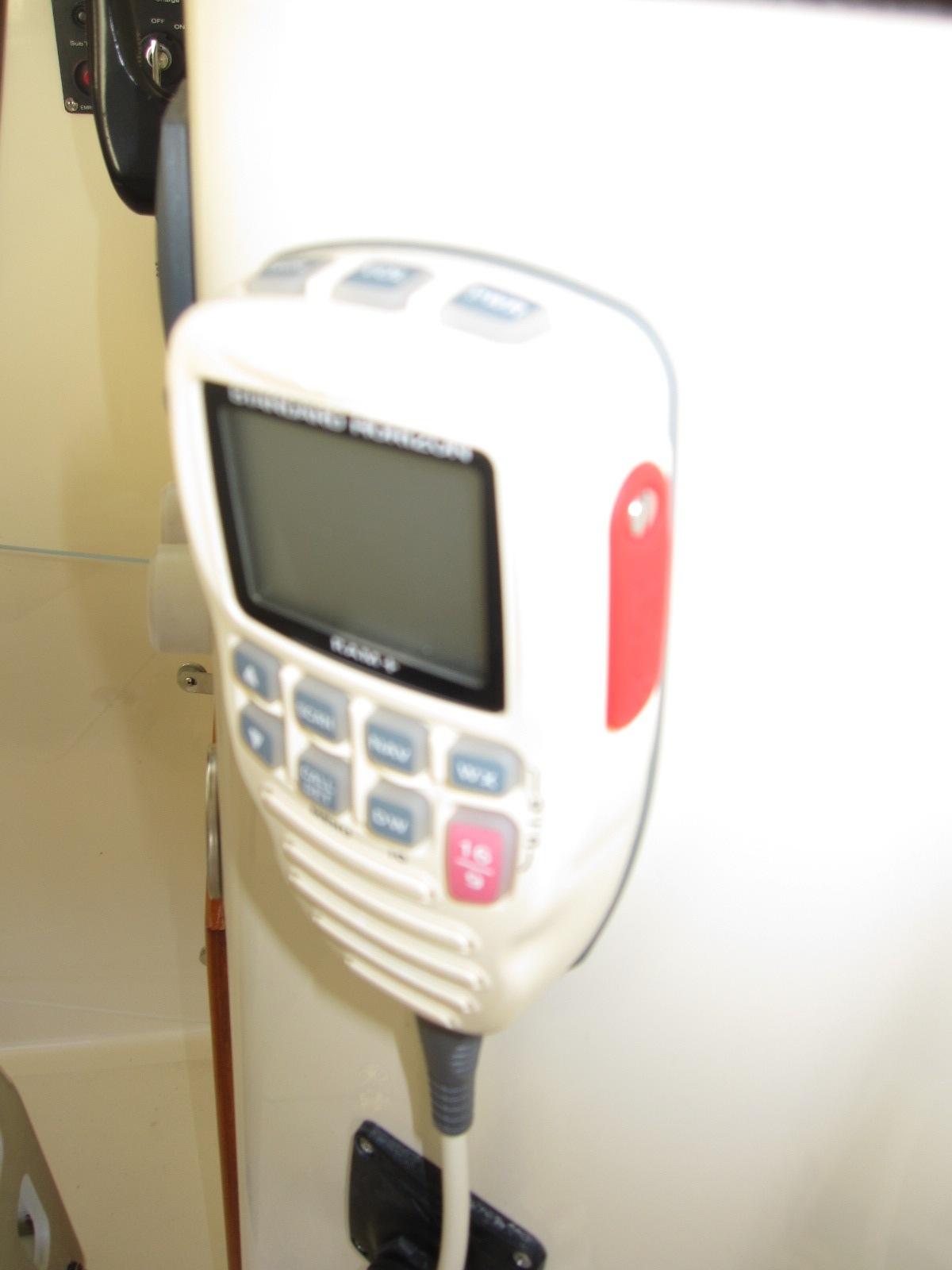

  • Standard Horizon PS-1000 VHF Radio and Mic

DisclaimerThe Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
