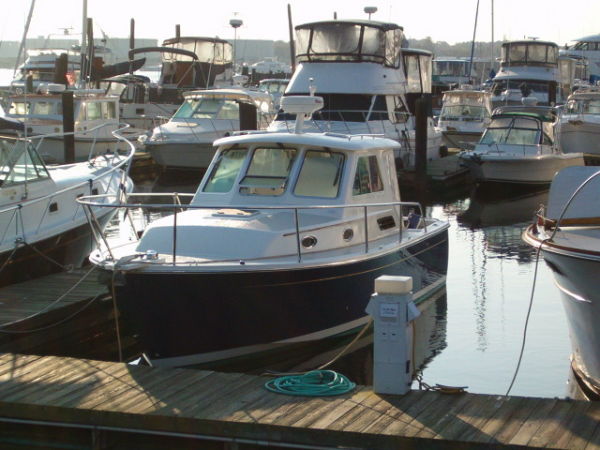

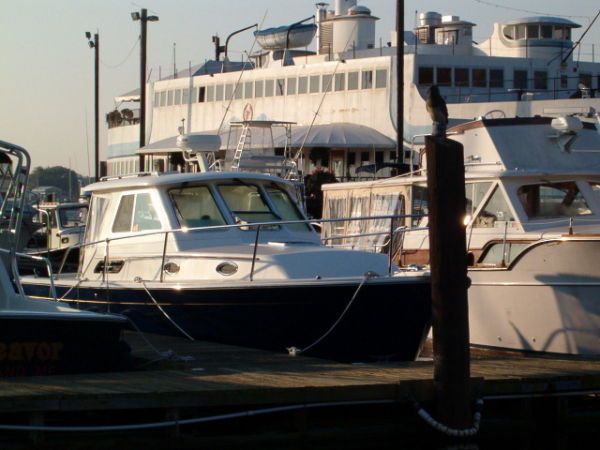

At the dock
Sold

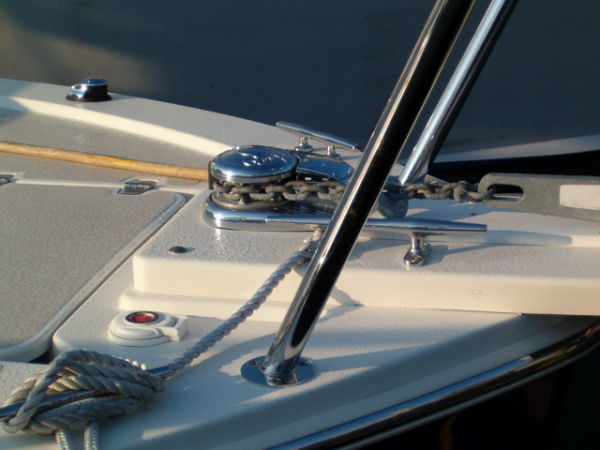

Windlass
Sold

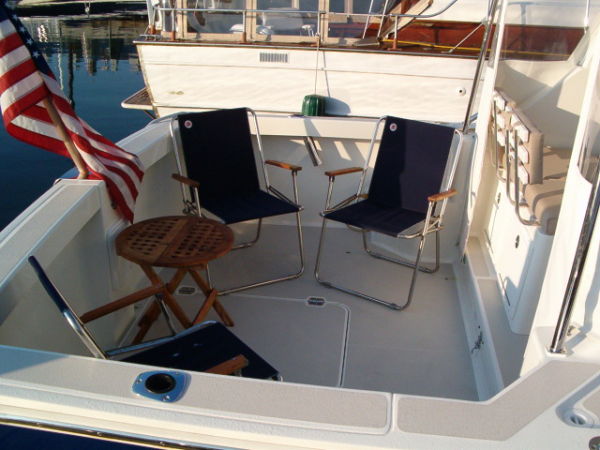

Cockpit with deck chairs
Sold

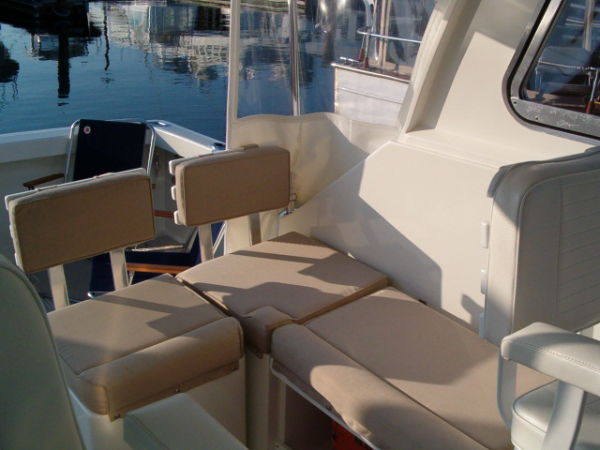

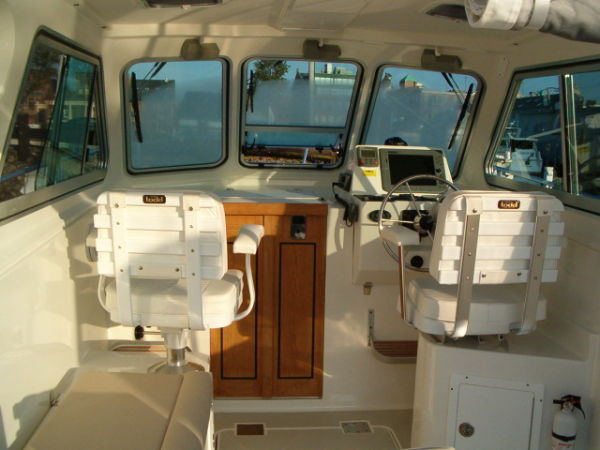

Helm deck
Sold

(SOLD) 2005 Back Cove 29 Hard Top

"Diablo" is a nicely equipped and kept example of the very popular Back Cove 29. Her optional equipment list includes a full electronics package with a 12" color display, autopilot, GPS and radar, as well as air conditioning, a colored hull, windlass, inverter and much more. Below the surface she is modern and contemporary. A deep-vee hull with prop recess and standard trim tabs offers comfort and performance. With her upgraded 315 horsepower, 6 cylinder diesel engine, she reaches a top end of 29 knots and will cruise very comfortably in the mid 20's. Around the docks, you will appreciate the maneuverability provided by her standard bow thruster. The Back Cove 29 Hard Top is practical and beautiful, and proves to be more than the ordinary boat. See why the Back Cove 29 continues to be one of the hottest boats on the market today. With over 125 built and very few available on the brokerage market, Diablo will not last long.

SPECIFICATIONS

BASIC INFORMATION
  • Manufacturer:Back Cove
  • Model: 29 Hard Top
  • Year: 2005
  • Category: Power
  • Condition: Used
  • Location: Portland US
  • Vessel Name:Diablo
  • Hull Material:Fiberglass
  • Designer:Sabre Design Team
ENGINE
  • Make:Yanmar
  • Model:6LP
  • Engines(s):1
  • Hours:60
  • Engine Type:
  • Fuel Type:diesel
  • Horsepower:
ACCOMODATIONS
DIMENSIONS & WEIGHT
  • Length:29 ft
  • Beam:10.42 ft
  • Draft - max:2.5 ft
TANK CAPACITIES
  • Fuel Tank:
  • Fresh Water Tank:
  • Holding Tank:

GALLERY

DESCRIPTIONS

DimensionsDisplacement: 10,000

EnginesTotal Power: 315

TanksFuel: 150Fresh Water: 30Holding: 30

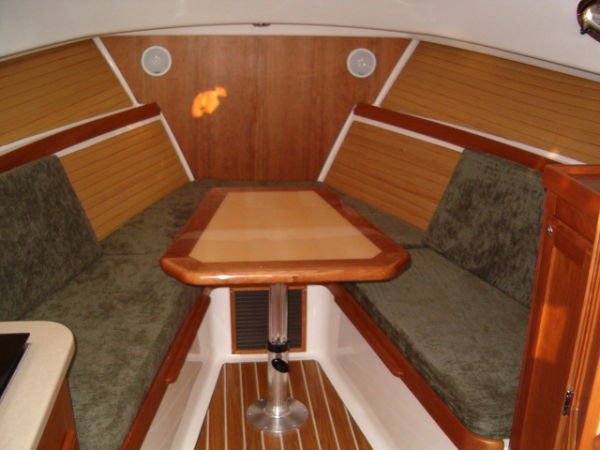

Accommodations

  • Varnished Cherry interior
  • Hi-Lo table with maple inlay
  • V berth
  • Shelves above berth
  • Cedar lined hanging locker
  • Reading light in dinette/ berth area
  • Ash hull ceilings
  • “Teak and holly” cabin sole
  • Overhead lighting
  • (4) Stainless steel opening ports with screens
  • Stereo system with CD and interior/cockpit speakers with wired remote
  • Storage under dinette and forward berth

Galley/Head

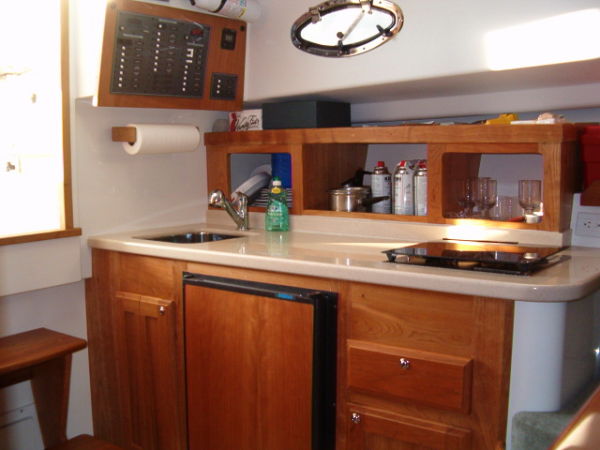

  • Galley
  • Butane Single Burner Stove
  • Front opening AC/DC fridge with freezer compartment
  • Galley sink with single lever faucet and drop in cover
  • Solid surface countertop
  • Countertop cabinet
  • Drawer and doors below counter

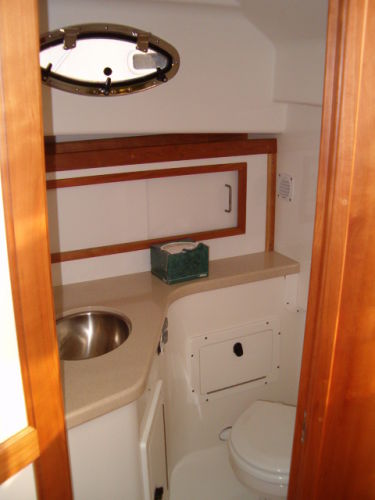

  • Head
  • Built-in vanity with sink
  • Solid surface countertop
  • Mirror
  • Pull out single lever faucet/ shower
  • Shower drain/ pump system
  • Electric toilet with holding tank
  • Waste tank monitor
  • Macerator for overboard discharge
  • Pump out fitting on deck
  • Stainless steel opening port with screen
  • Vent Fan

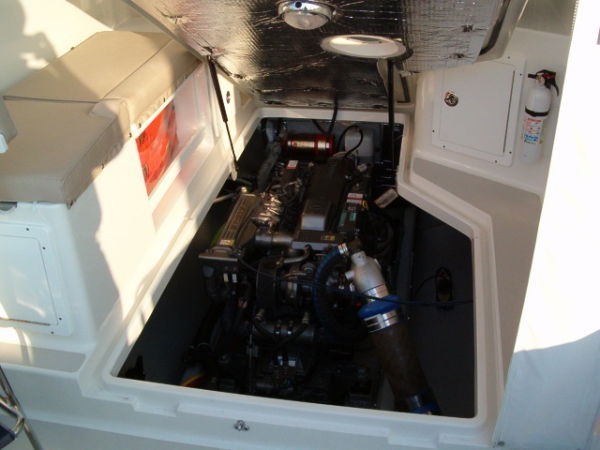

Mechanical

  • Yanmar 6LP 315 hp engine with ZF 63A Marine gear
  • Single lever engine control
  • Engine control panel with alarms and hour meter
  • Emergency cross over switch
  • Internal sea strainer
  • Fuel Filter
  • Engine room lights
  • 1.5” Aquamet shaft
  • 4 Blade bronze propeller
  • Dripless shaft log
  • Electric trim tabs
  • Tilting helm pump driven hydraulic steering
  • Hot and Cold pressurized water (110V and engine heated)
  • SidePower bow thruster with joy stick control, 88 pounds thrust
  • Marelon sea valves on underwater thru hulls
  • Welded 150 gallon aluminum fuel tank with 2” fill
  • Fireboy extinguisher system
  • Macerator with overboard discharge
  • Anchor Windlass
  • Oil Changing System

Electrical

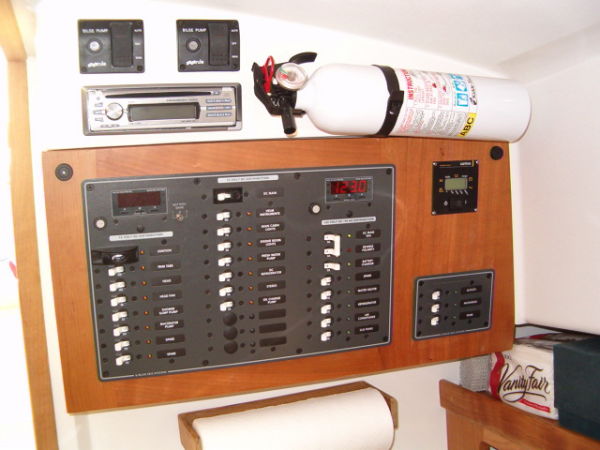

  • AC and DC control panel with polarity indicator
  • DC system battery management switching
  • DC breakers for electronics
  • 110VAC 30 amp shorepower with 50 foot cord set
  • Galvanic isolator
  • AC to DC converter/ charger, 40amp
  • 2) 31 DCM house batteries
  • (1) 31 engine start battery
  • (2) 12VDC bilge pumps
  • 12V outlet at helm
  • Bonding system w/ zinc anode
  • Cockpit courtesy lights
  • GFI protected 110V circuits
  • Air Conditioning, 9Kbtu

Hull/Deck

  • Molded in Graystone contrasting anti-skid on walk surface
  • Port and starboard molded steps Teak accent stripe
  • Back Cove white iso-npg gelcoat with contrasting anti-skid
  • Multiaxial E glass reinforcement
  • Lewmar #44 hatch in main salon with screen
  • (4) Schmidt opening Port lights with screens
  • Clear anodized aluminum windshield with side vent panels and integral handrails
  • 3) Windshield wipers
  • Horn
  • Compass, illuminated
  • Running lights
  • Anchor locker
  • SS anchor roller
  • Mooring cleats with skene chocks forward, aft and spring line cleats
  • Custom 1” 316L stainless steel bow rail
  • Captains helm seat (2)
  • L Settee to port with backrest
  • Swim platform and swim ladder
  • Hot & cold cockpit shower
  • Self bailing cockpit
  • Advanced prop pocket hull design
  • Back Cove white iso-npg gelcoat
  • Vinylester backup resin
  • Vacuum bagged Divynicell core in running surfaces
  • Multiaxial E glass reinforcement
  • Awlgrip boot top
  • Encapsulated foam stringers

Additional Equipment

  • Upgraded 315 Yanmar 6LP
  • Back Cove Blue hull

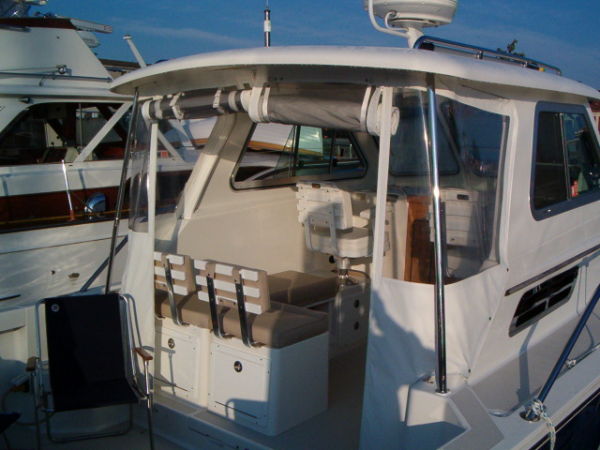

  • Composite Hardtop
  • Anchor Windlass
  • Oil Changing System
  • Air Conditioning, 9K BTU
  • Aft Enclosure, stamoid with Strataglass, and addtional screened panel
  • 1800 W Inverter
  • Single Burner Butane Stove
  • Teak Holders
  • 22lb Delta Anchor
  • 200' Anchor Rode
  • Evolution Line Cutter
  • Raymarine C120 12" Color Display for Radar, Chart, GPS and Fishfinder
  • 4 kW Radome
  • Custom Radar Mast
  • Raymarine 215 VHF
  • DSM 250 Sounder with Black Box
  • Bronze Thru Hull Transducer
  • GPS Sensor

DisclaimerThis company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
