(SOLD) 1996 Sabreline Motoryacht

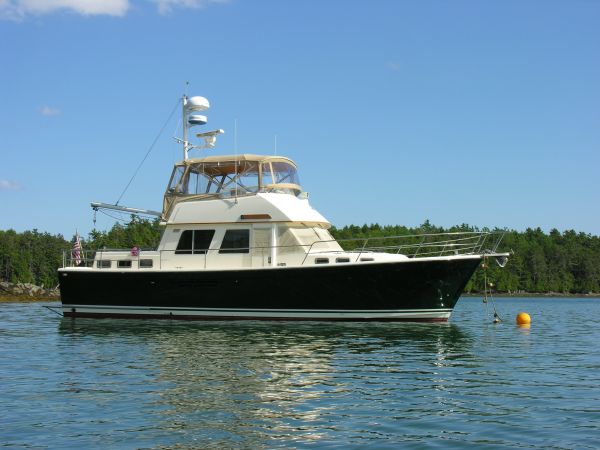

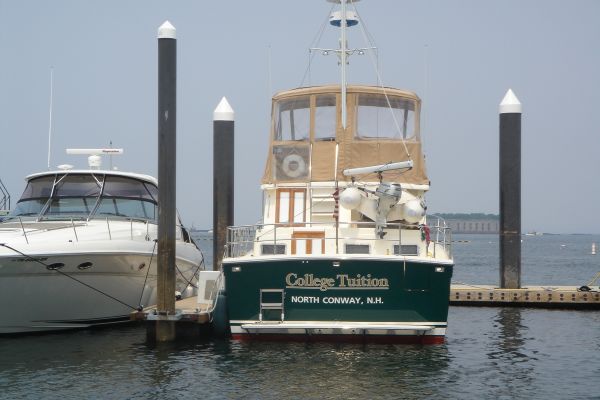

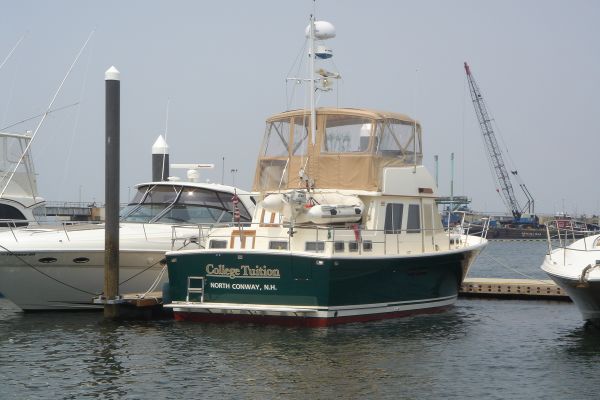

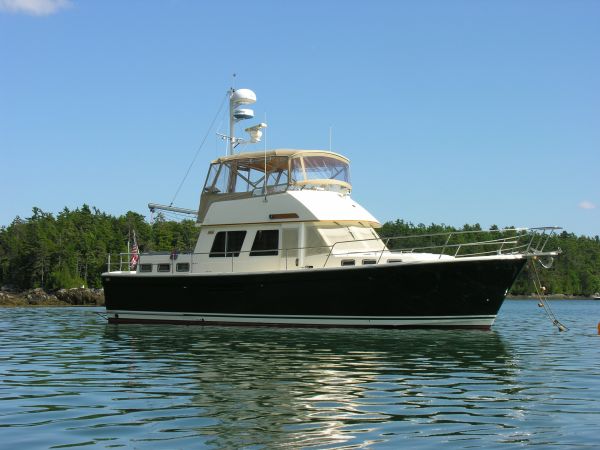

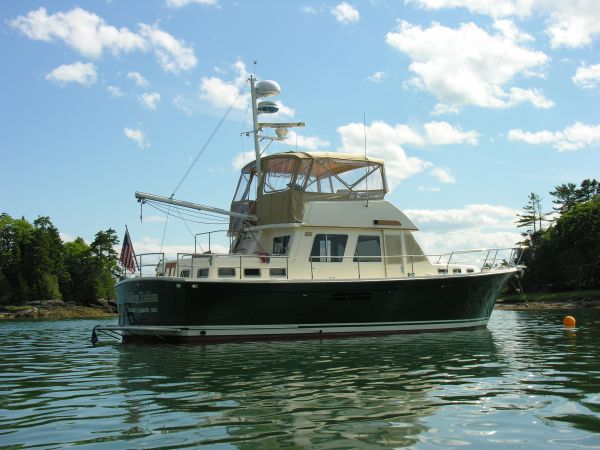

Don't miss out on this beautiful Sabre 43 Motoryacht, maintained and up-dated like no other on the market today. The Sabre 43 Motoryacht differs from the norm in that she's constructed on a modified-V hull which allows her to run efficiently at much higher speeds than you would expect from a trawler-style design. Performance aside, the 43 is a quality-built, double cabin cruiser with full walkaround decks and well-arranged accommodations. The floorplan offers a spacious galley, large V-berth stateroom forward with a private head and a walk-in, tiled shower stall. The master stateroom offers a full-size walkaround queen berth, ample drawer storage, hanging lockers and so much more. The master stateroom also offers a very large head with a tiled walk-in shower stall. Outside access is excellent: There are port & starboard deck doors entering the salon as well as a companionway door entering the aft-cabin top. Another door in the owner's stateroom provides direct access to the cockpit. The custom "Herreshoff" interior, with matched grain mahogany, is attractively finished with an abundance of fine craftsmanship from the proud folks at Sabre Yachts right here in Maine. Please call our office today for complete details and your own private showing. This Vessel wil not disapoint you.

SPECIFICATIONS

BASIC INFORMATION
  • Manufacturer:Sabreline
  • Model: Motoryacht
  • Year: 1996
  • Category: Power
  • Condition: Used
  • Location: Portland US
  • Vessel Name:1996 Sabreline 43 Motoryacht
  • Hull Material:Fiberglass
  • Designer:Sabre Design Team
ENGINE
  • Make:Caterpillar
  • Model:3126B- Electronic
  • Engines(s):2
  • Hours:561
  • Engine Type:
  • Fuel Type:diesel
  • Horsepower:
ACCOMODATIONS
DIMENSIONS & WEIGHT
  • Length:43 ft
  • Beam:1.25 ft
  • Draft - max:4 ft
  • Bridge Clearance:17.75 ft
TANK CAPACITIES
  • Fuel Tank:
  • Fresh Water Tank:
  • Holding Tank:

GALLERY

DESCRIPTIONS

DimensionsDisplacement: 41,000

EnginesTotal Power: 450

TanksFuel: 520Fresh Water: 250Holding: 72

Accommodations

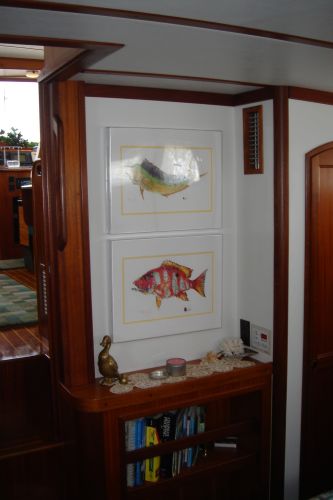

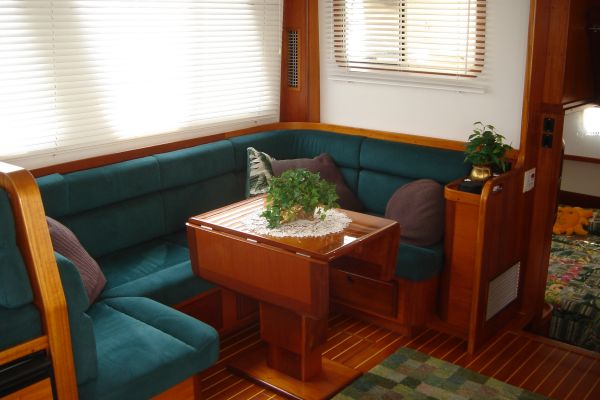

  • MAIN SALON
  • Custom Herreshoff interior with matched grain mahogany paneling & trim.
  • "U" settee with 3-position, Hi-Lo yacht table.
  • Locker storage under settees.

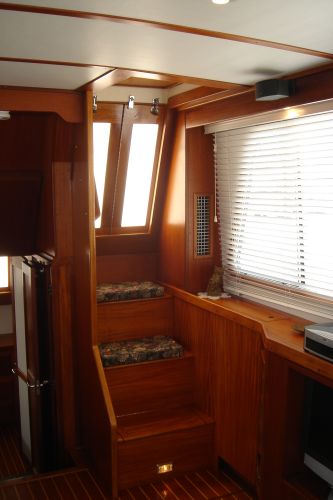

  • Companionway stairs to sun deck from salon with storage below
  • Helm seat with three drawers under.
  • High gloss teak and holly cabin sole.

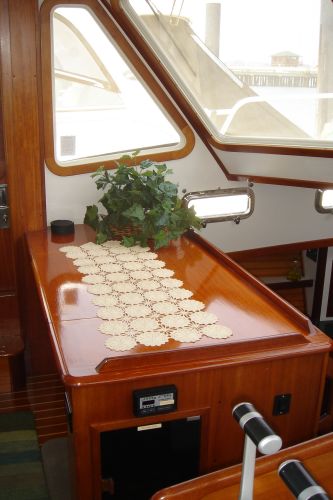

  • Chart table/Office desk
  • Sliding screened windows port, starboard & aft.
  • Side deck access doors, port & starboard.
  • Sound deadening headliner panels.
  • Custom wood mini-blinds on side and aft windows.

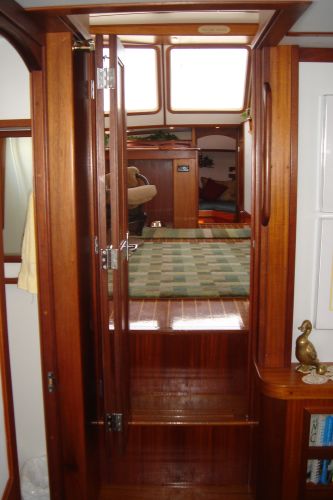

  • Passageway door to aft cabin.
  • Custom entertainment center to port - will hold 23" Sony LCD WEGA Flat Screen TV.
  • Lower helm station, forward to starboard.
  • Bose 3-2-1 surround sound system.
  • Custom leather swivel rocking chair.

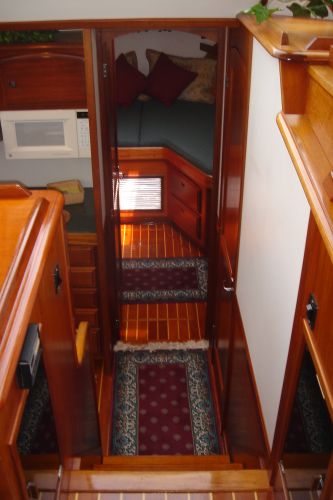

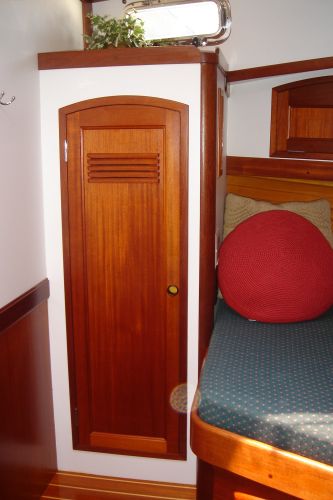

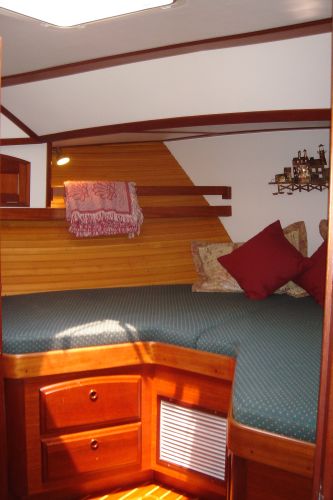

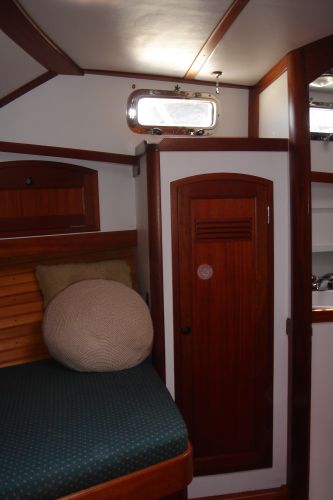

  • FORWARD STATEROOM
  • Large V-Berth.
  • Drawers and storage lockers under berth.
  • Direct access to forward head.
  • Storage lockers on shelves above berth.
  • High gloss teak and holly sole.
  • Soft headliner panels.
  • Two Cedar lined hanging lockers with flat panel doors.
  • Passageway door to main salon.

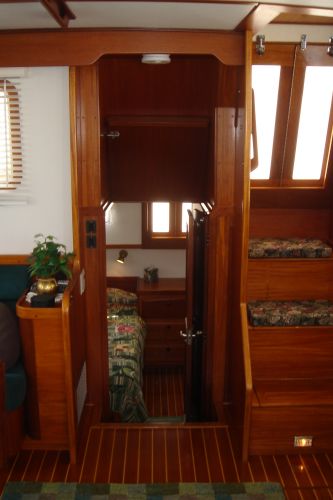

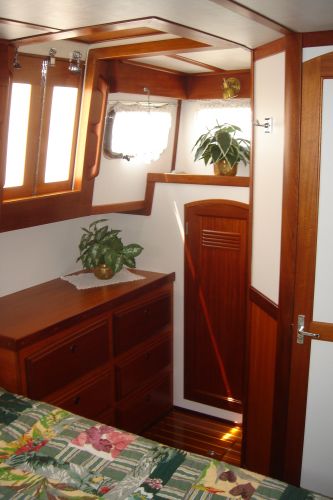

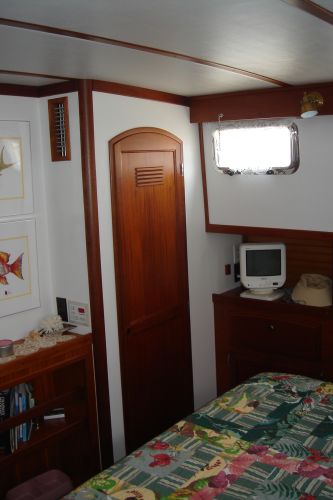

  • AFT STATEROOM
  • Island queen sized bed.
  • Night tables beside berth.
  • Danish Cabin reading lights on aft bulkhead.

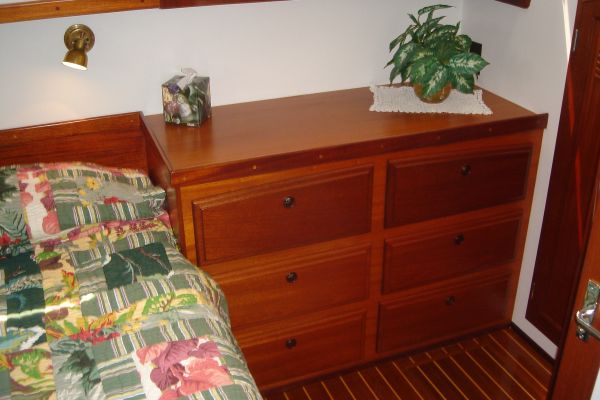

  • Drawers and storage lockers along starboard side.
  • Cedar lined hanging lockers.
  • Bi-fold door to main salon.
  • Built-in vanity mirror with lighting.
  • Custom stainless steel opening ports with screens.
  • Bureau
  • Bookshelf on forward bulkhead.
  • High gloss teak and holly cabin sole.

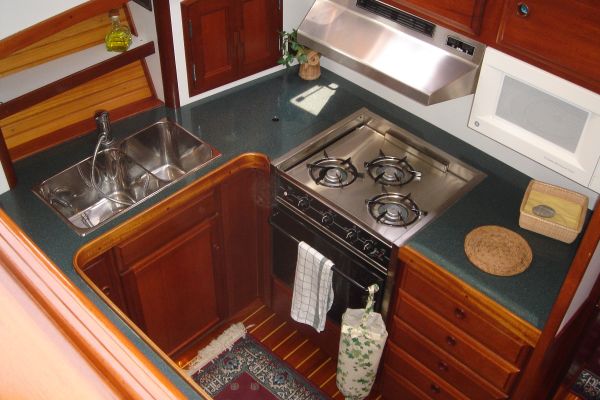

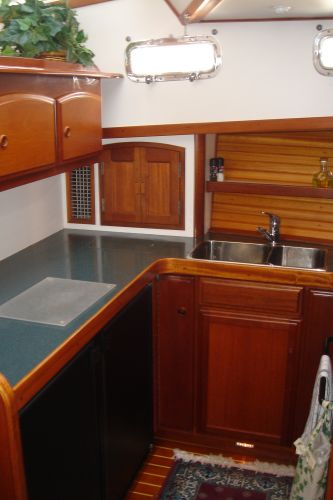

Galley/Head

  • Spacious galley counter-Corian
  • Double stainless steel sink with single lever faucet.
  • Built-in waste basket.
  • Drawers and storage lockers below counter.
  • Wall mounted storage cabinets.
  • Propane range/oven with stainless steel hood.
  • Microwave oven.

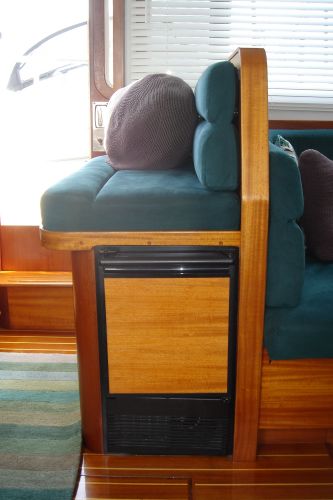

  • (2) New Tundra refrigerator with freezer units 110V/12V.

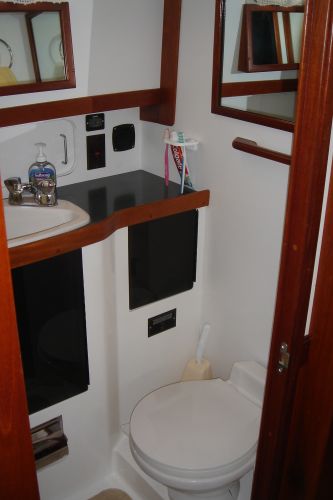

  • FORWARD HEAD
  • Corian counter, ceramic sink with Delta faucet.
  • Quiet Flush fresh water toilet.
  • Electric shower sump pump.
  • Storage lockers.
  • Corian counter.
  • Ceramic tile floors in head & shower "Beach Tan."
  • Hatch Overhead
  • Towel bar.
  • Wood trimmed mirror.
  • Ventilation blower.
  • Holding tank "full" indicator.
  • Macerator pump.

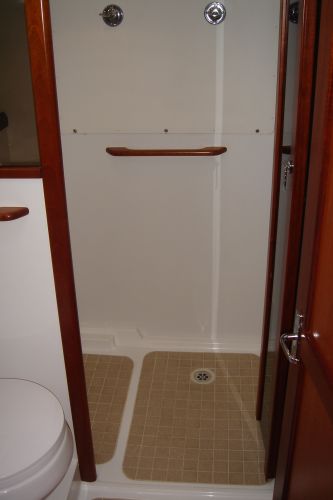

  • AFT HEAD
  • Ceramic sink with single lever Delta faucet.
  • Large shower stall w/bi-fold door and seat.
  • Storage lockers outboard.
  • Towel racks.
  • Wood trimmed mirror.
  • Shower stall storage locker.
  • Ceramic tile floors in shower & head "Beach Tan."
  • Electric shower sump pump.
  • Holding tank "full" indicator.
  • Ventilation blower.
  • Quiet Flush Fresh water toilet
  • Corian countertop.
  • Macerator pump.

Electronics

Electrical

  • AC ELECTRICAL SYSTEM
  • 50 A. 240V AC shore power system.
  • Illuminated main circuit breaker distribution panel.
  • PVC rubrail with stainless steel cap.
  • 120V outlets in each cabin, engine room and bridge. Galley, head, engine room and bridge are GFI.
  • Electric Glendinning cord reel with 65 foot cord set.
  • Battery charger 50-3 Amp.
  • 9.0 Kw Onan gen-set with sound shield(791 hrs).
  • Reverse cycle heat and air conditioning in three zones.
  • 12VDC ELECTRICAL SYSTEM
  • Two 8D dedicated engine start batteries-CCA lead acid batteries.
  • Three 8D Lifeline AGM deep cycle 255AH ship's batteries.
  • Engine battery and crossover switches in engine room.
  • Main disconnect panel for engines, ships power, bilge pumps and other systems.
  • Illuminated main circuit breaker distribution panel.
  • Navigation switch panel at lower helm station.
  • Battery condition gauge.
  • 12V lighting system 2-way switch controlled at each stairway. Danish Cabin reading lights throughout.
  • 12V horn.
  • 12V pressure water system. Groco Paragon Sr. pump.
  • Nav lights - side, steaming, stern and 360 degree light.
  • Tinned wire used throughout.

Hull/Deck

  • HULL
  • Modified "V" hull design with 20 degree deadrise amidships and 14 degrees at transom.
  • Pockets in hull for prop tip relief and draft reduction.
  • Hull laminate system with Isopthalic NPG gelcoat and vinylester back-up resin.
  • Biaxial fiberglass laminate.
  • Divinycell PVC foam core in running surfaces and balsa core in topsides.
  • Foam/plywood cored fiberglass stringer system.
  • Swim platform with low profile ladder.
  • Hull side rubbing strakes.
  • DECK
  • Isopthalic gelcoat.
  • Biaxial fiberglass laminate with balsa coring.
  • Molded in anti-skid deck surfaces.
  • 1 1/4" Diameter stainless steel rail/gate system.
  • Fiberglass bow pulpit with anchor roller.
  • Two anchor lockers, for line and fender stowage.
  • Muir VRC 1200 Windlass on pedestal with all chain rode- Fortress and 40 lb. Bruce
  • Recessed side deck walkways.
  • Sliding doors to main salon, port and starboard.

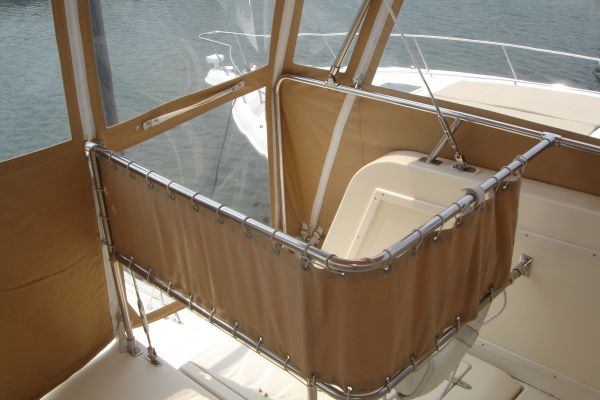

  • Sun deck over aft-cabin for seating or dinghy storage with perimeter stainless steel guard rail.
  • Companionway to aft stateroom.
  • Companionway from salon to sun deck.
  • Hinged lazarette locker hatches.
  • Transom door with boarding steps to swim platform.
  • Flagpole holder and flag staff.
  • Lewmar Coastline polished alum. hatches w/screens.
  • Custom stainless steel opening ports with screens.

Upper & Lower Control Station

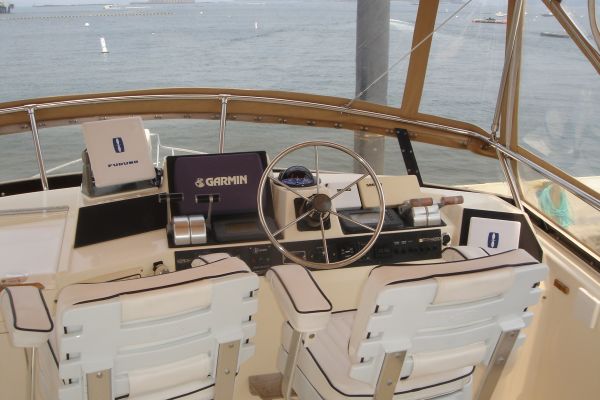

  • COMMAND BRIDGE CONTROL STATION
  • Start-up panel.
  • Twin Hynautic shift control unit.
  • Twin Hynautic throttle control unit.
  • Gauges for tachometer and hour meter, voltmeter, engine and transmission oil pressure, cooling water temperature.
  • Engine alarms for water, temperature and oil pressure.
  • (1) each AC (GFI) and DC outlet.
  • Bennett trim tab controls.
  • Switch controls for horn.
  • Switches for running and anchor lights.

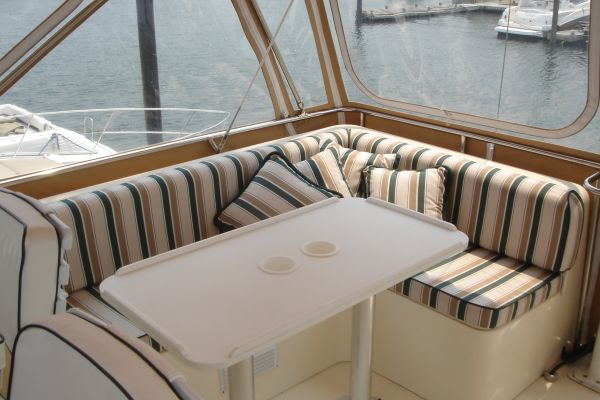

  • COMMAND BRIDGE
  • Control station console with storage below.
  • "L" settee with storage lockers below and cushions with contrasting piping.
  • Pompanette helm & mate seats Model P2000.
  • Command bridge table.
  • Stainless steel perimeter handrail.
  • Plexiglass wind screen.

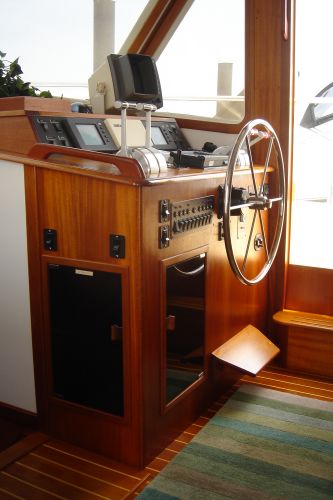

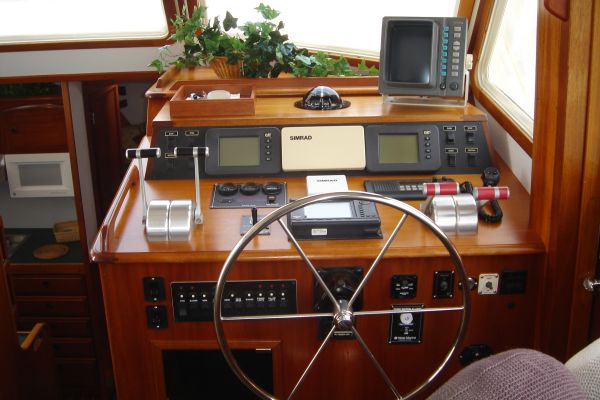

  • LOWER CONTROL STATION
  • Ignition key and start-up panel.
  • Twin Hynautic shift control unit.
  • Twin Hynautic throttle control unit.
  • Gauges for tachometer and hour meter, voltmeter, engine and transmission oil pressure, block cooling water temperature.
  • Engine alarms for water temperature and oil pressure.
  • Trim tab controls.
  • Exalto triple windshield wipers w/ washers.
  • 5" Ritchie compass.
  • Switch controls for horn.
  • Running and anchor lights.
  • Stainless steel wheel.

Mechanical Equipment

  • ENGINE SYSTEM
  • Twin 3126B Caterpillars(561 hrs).
  • ZF IRM 220A transmission.
  • 80A12V alternators on each engine.
  • 2.1/4" Aquamet 22 propeller safts.
  • Intermediate bearings.
  • PSS dripless Shaft Seals.
  • Manganese bronze struts with rubber cutlass bearings.
  • Five blade NiBrAl propellers to ISO Class S standard.
  • Engine room blowers.
  • White painted engine room, fully insulated, with Soundown foam noise barrier.
  • Engine isolator mounts.
  • Automatic fire extinguishing system.
  • FUEL SYSTEM
  • Two aluminum fuel tanks, 520 gallons total.
  • Racor fuel filters.
  • (2) Deck fill plates.
  • Tank tender fuel gauging.
  • STEERING AND TRIM SYSTEMS
  • Hynautic hydraulic steering system to both lower and upper control stations.
  • Twin bronze rudders w/Tides Marine lip seal bearings.
  • Twin Bennett trim tabs.

Additional Add-Ons & Custom Features

  • Caterpillar replaced both engines in 2001 with 3126B electronically controlled motors.
  • 10'6" Zeppelin Dinghy with 20hp Honda Four Stroke
  • New Hunter Green Awlgrip in 2001.
  • Custom Herreshoff interior with matched grain mahogany paneling & trim.
  • New bimini and enclosure.
  • Heart Interface Inverter 2500W
  • Sea-Tel Satellite TV
  • Trawler mast with boom.
  • Glendinning engine sychronizer.
  • A third mate seat was added at the upper helm.
  • Bridge cushions have been replaced.
  • Under water exhaust system (engine and gen-set) by Soundown
  • 2 1/4" stainless steel shafts.
  • 5 blade NiBral props.
  • The entertainment console was re-fitted to accomodate a 23" Sony LCD WEGA Flat Screen TV.
  • Bose 3-2-1 surround sound system.
  • (2) New Tundra refrigerator / freeze units.
  • Fuel polishing system.
  • (3) new 8D house batteries.
  • Custom wood "mini blinds" for all the windows in the salon.
  • Custom crown molding valances.
  • Refinished all exterior teak with 6 coats of Epifanes.
  • The bottom was stripped and barrier coated, then finished with Interlux Micron CSC Ablative paint.
  • Propane stove with oven.
  • Spurs (line cutters).
  • Key-Power hydraulic bow thruster.
